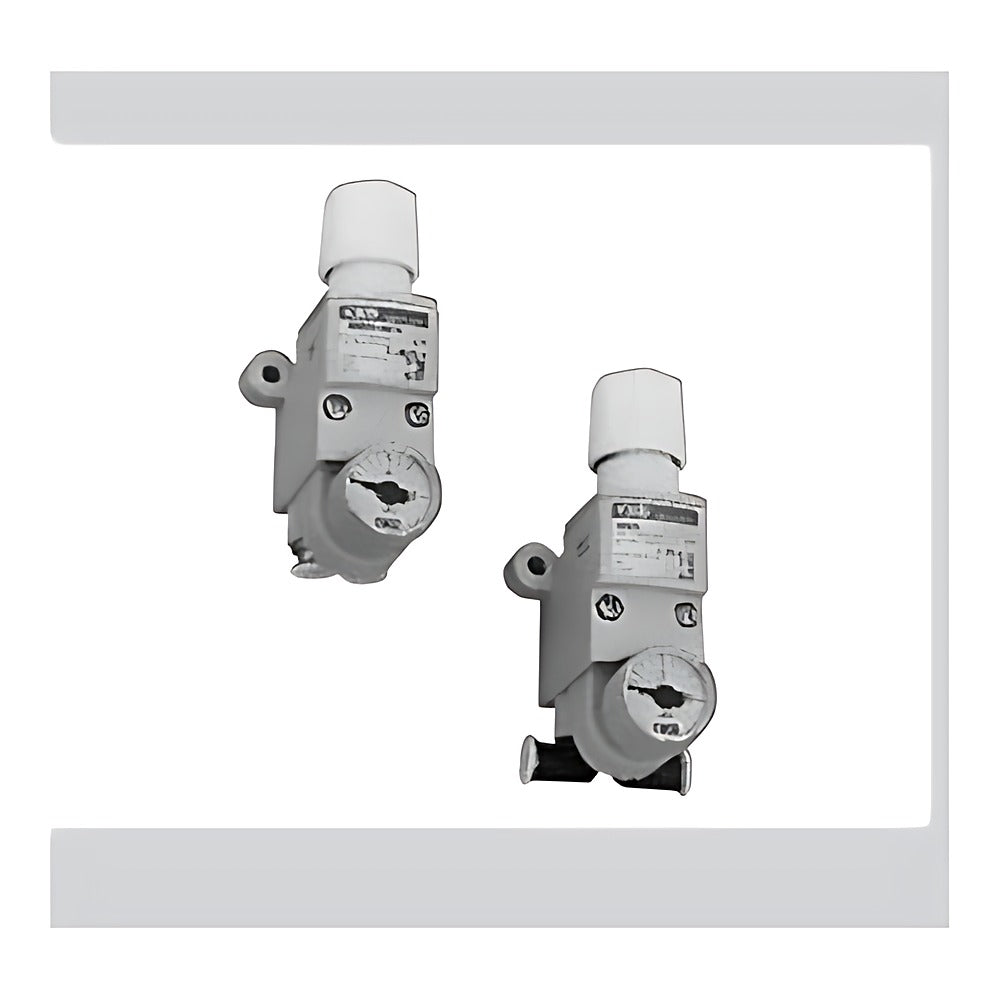

CKD R1100-W to R8100-W-P11 Reverse Regulator (Ozone Resistant)

CKD R1100-W to R8100-W-P11 Reverse Regulator (Ozone Resistant)

CKD R-W white series reverse (check valve built-in) regulator in ozone-resistant -P11 specification, port Rc1/8 to Rc1.

Key features

  • Rubber parts of fluoro rubber or hydrogenated nitrile rubber for ozone resistance
  • Dimensions identical to the standard product
  • Ozone-resistant specification ordered by adding -P11 to the end of the model code
  • Options before P11 (not expanded): L, N, T/T8, X1
  • Attachments: piping adapter sets, brackets, gauges

Specifications

Base series R1100-W to R8100-W standard white series
Set pressure (std) 0.05 to 0.85 MPa
Relief Relief type (std)
Gauge (std) G401 standard gauge
Port threads Rc, NPT, G
Rubber material Fluoro rubber / hydrogenated nitrile rubber
Ozone spec suffix -P11 (end of model code)
Source CKD Korea catalog CB-024SK-9, p. 2005
R1100-6-W-P11 Model: R1100 | Port: Rc 1/8 | Thread: Rc
R1100-6N-W-P11 Model: R1100 | Port: NPT 1/8 | Thread: NPT
R1100-6G-W-P11 Model: R1100 | Port: G 1/8 | Thread: G
R1100-8-W-P11 Model: R1100 | Port: Rc 1/4 | Thread: Rc
R1100-8N-W-P11 Model: R1100 | Port: NPT 1/4 | Thread: NPT
R1100-8G-W-P11 Model: R1100 | Port: G 1/4 | Thread: G
R2100-8-W-P11 Model: R2100 | Port: Rc 1/4 | Thread: Rc
R2100-8N-W-P11 Model: R2100 | Port: NPT 1/4 | Thread: NPT
R2100-8G-W-P11 Model: R2100 | Port: G 1/4 | Thread: G
R2100-10-W-P11 Model: R2100 | Port: Rc 3/8 | Thread: Rc
R2100-10N-W-P11 Model: R2100 | Port: NPT 3/8 | Thread: NPT
R2100-10G-W-P11 Model: R2100 | Port: G 3/8 | Thread: G
R3100-8-W-P11 Model: R3100 | Port: Rc 1/4 | Thread: Rc
R3100-8N-W-P11 Model: R3100 | Port: NPT 1/4 | Thread: NPT
R3100-8G-W-P11 Model: R3100 | Port: G 1/4 | Thread: G
R3100-10-W-P11 Model: R3100 | Port: Rc 3/8 | Thread: Rc
R3100-10N-W-P11 Model: R3100 | Port: NPT 3/8 | Thread: NPT
R3100-10G-W-P11 Model: R3100 | Port: G 3/8 | Thread: G
R4100-8-W-P11 Model: R4100 | Port: Rc 1/4 | Thread: Rc
R4100-8N-W-P11 Model: R4100 | Port: NPT 1/4 | Thread: NPT
R4100-8G-W-P11 Model: R4100 | Port: G 1/4 | Thread: G
R4100-10-W-P11 Model: R4100 | Port: Rc 3/8 | Thread: Rc
R4100-10N-W-P11 Model: R4100 | Port: NPT 3/8 | Thread: NPT
R4100-10G-W-P11 Model: R4100 | Port: G 3/8 | Thread: G
R4100-15-W-P11 Model: R4100 | Port: Rc 1/2 | Thread: Rc
R4100-15N-W-P11 Model: R4100 | Port: NPT 1/2 | Thread: NPT
R4100-15G-W-P11 Model: R4100 | Port: G 1/2 | Thread: G
R6100-20-W-P11 Model: R6100 | Port: Rc 3/4 | Thread: Rc
R6100-20N-W-P11 Model: R6100 | Port: NPT 3/4 | Thread: NPT
R6100-20G-W-P11 Model: R6100 | Port: G 3/4 | Thread: G
R6100-25-W-P11 Model: R6100 | Port: Rc 1 | Thread: Rc
R6100-25N-W-P11 Model: R6100 | Port: NPT 1 | Thread: NPT
R6100-25G-W-P11 Model: R6100 | Port: G 1 | Thread: G
R8100-20-W-P11 Model: R8100 | Port: Rc 3/4 | Thread: Rc
R8100-20N-W-P11 Model: R8100 | Port: NPT 3/4 | Thread: NPT
R8100-20G-W-P11 Model: R8100 | Port: G 3/4 | Thread: G
R8100-25-W-P11 Model: R8100 | Port: Rc 1 | Thread: Rc
R8100-25N-W-P11 Model: R8100 | Port: NPT 1 | Thread: NPT
R8100-25G-W-P11 Model: R8100 | Port: G 1 | Thread: G
Air RegulatorsCKD
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD R1100-W to R8100-W-P11 Reverse Regulator (Ozone Resistant)

Brand CKD·Air Regulators

Available part numbers (39)

R1100-6-W-P11, R1100-6N-W-P11, R1100-6G-W-P11, R1100-8-W-P11, R1100-8N-W-P11, R1100-8G-W-P11, R2100-8-W-P11, R2100-8N-W-P11, R2100-8G-W-P11, R2100-10-W-P11 + 29 more — see full table ↓
