• CKD RB500-P11 Compact Regulator (Ozone Resistant, Push-in 4, 6 mm)
1 1

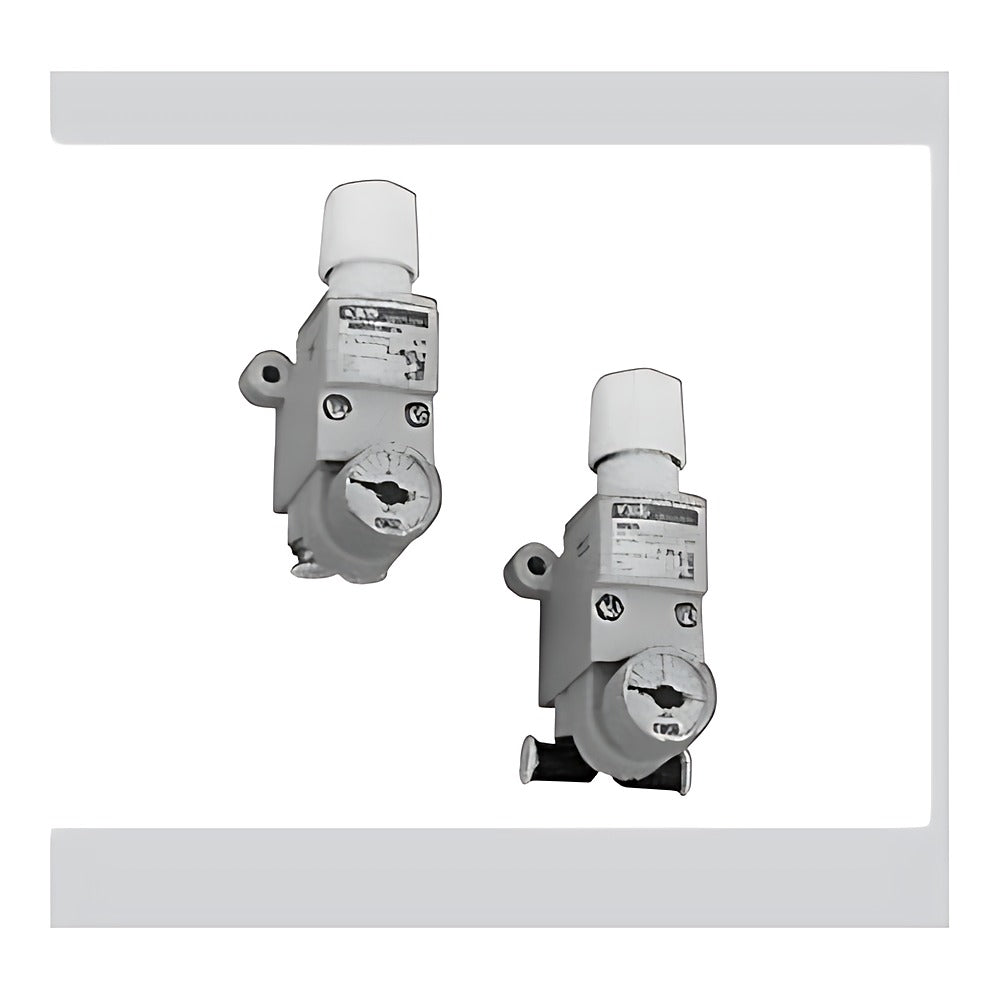

CKD RB500-P11 Compact Regulator (Ozone Resistant, Push-in 4, 6 mm)

CKD RB500-P11 Compact Regulator (Ozone Resistant, Push-in 4, 6 mm)

CKD RB500 compact regulator with push-in fittings 4 and 6 mm in ozone-resistant -P11 specification.

Key features

  • Rubber parts of fluoro rubber or hydrogenated nitrile rubber for ozone resistance
  • Dimensions identical to the standard product
  • Ozone-resistant specification ordered by adding -P11 to the end of the model code
  • Straight or elbow push-in fittings on IN and OUT sides
  • Options before P11 (not expanded): P panel nut, L low pressure 0.05-0.35 MPa, N non-relief, gauge T/G39

Specifications

Base series RB500 compact regulator
Set pressure (std) 0.05 to 0.7 MPa
Connection Push-in fitting 4, 6 mm
Relief Relief type (std)
Rubber material Fluoro rubber / hydrogenated nitrile rubber
Ozone spec suffix -P11 (end of model code)
Source CKD Korea catalog CB-024SK-9, p. 2006
RB500-SSC4-P11 IN fitting: Straight | OUT fitting: Straight | Tube size: 4 mm
RB500-SSC6-P11 IN fitting: Straight | OUT fitting: Straight | Tube size: 6 mm
RB500-SLC4-P11 IN fitting: Straight | OUT fitting: Elbow | Tube size: 4 mm
RB500-SLC6-P11 IN fitting: Straight | OUT fitting: Elbow | Tube size: 6 mm
RB500-LSC4-P11 IN fitting: Elbow | OUT fitting: Straight | Tube size: 4 mm
RB500-LSC6-P11 IN fitting: Elbow | OUT fitting: Straight | Tube size: 6 mm
RB500-LLC4-P11 IN fitting: Elbow | OUT fitting: Elbow | Tube size: 4 mm
RB500-LLC6-P11 IN fitting: Elbow | OUT fitting: Elbow | Tube size: 6 mm
Air RegulatorsCKD
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD RB500-P11 Compact Regulator (Ozone Resistant, Push-in 4, 6 mm)

Brand CKD·Air Regulators

Available part numbers (8)

RB500-SSC4-P11, RB500-SSC6-P11, RB500-SLC4-P11, RB500-SLC6-P11, RB500-LSC4-P11, RB500-LSC6-P11, RB500-LLC4-P11, RB500-LLC6-P11

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RB500-SSC4-P11IN fitting: Straight | OUT fitting: Straight | Tube size: 4 mm
RB500-SSC6-P11IN fitting: Straight | OUT fitting: Straight | Tube size: 6 mm
RB500-SLC4-P11IN fitting: Straight | OUT fitting: Elbow | Tube size: 4 mm
RB500-SLC6-P11IN fitting: Straight | OUT fitting: Elbow | Tube size: 6 mm
RB500-LSC4-P11IN fitting: Elbow | OUT fitting: Straight | Tube size: 4 mm
RB500-LSC6-P11IN fitting: Elbow | OUT fitting: Straight | Tube size: 6 mm
RB500-LLC4-P11IN fitting: Elbow | OUT fitting: Elbow | Tube size: 4 mm
RB500-LLC6-P11IN fitting: Elbow | OUT fitting: Elbow | Tube size: 6 mm
