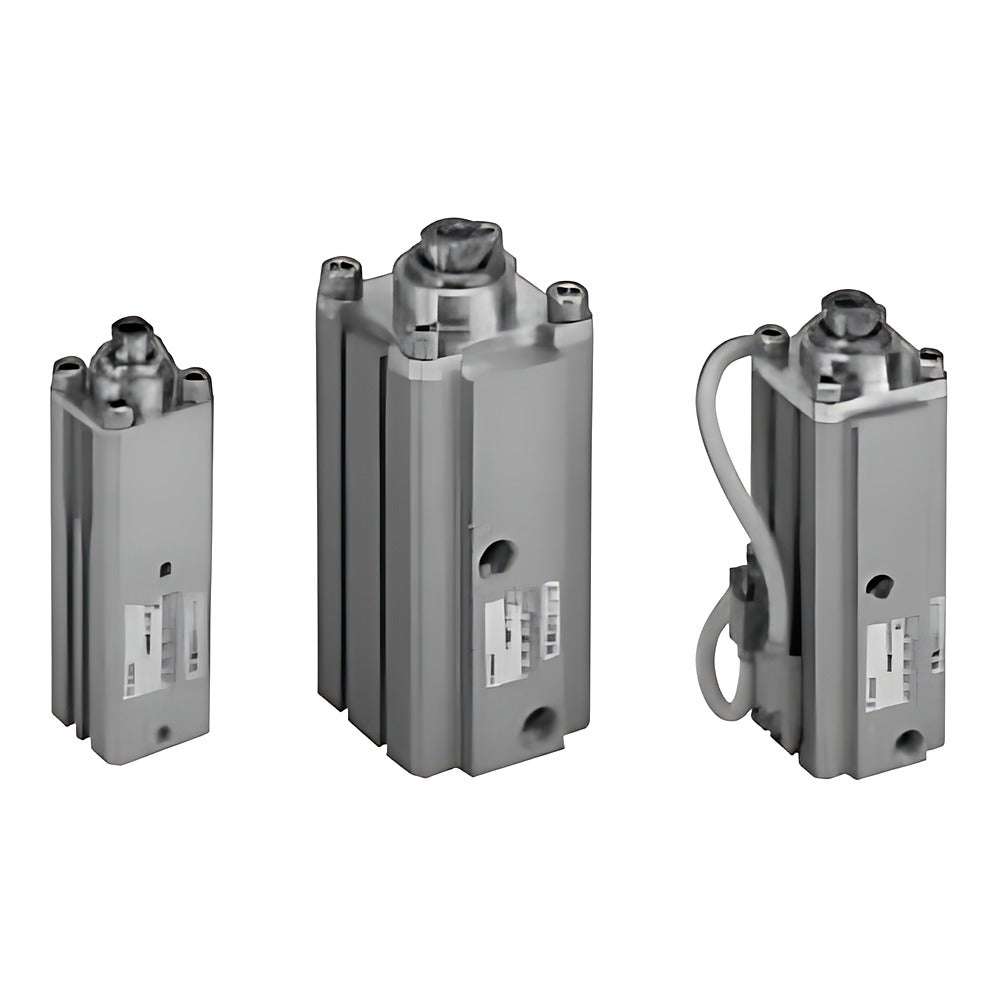

CKD RCC2-G4 Rotary Clamp Cylinder (Spatter Resistant, Bore 20-63)

CKD RCC2-G4 Rotary Clamp Cylinder (Spatter Resistant, Bore 20-63)

CKD RCC2-G4 double-acting rotary clamp cylinder with spatter-resistant construction (lube keeper and coil scraper) for welding lines, bore 20 to 63 mm.

Key features

  • Spatter-resistant version of the square RCC2 rotary clamp cylinder for welding environments
  • Coil scraper and lube keeper protect the rod seal from weld spatter
  • Piston rod swings 90 deg (R or L) then clamps; clamp stroke 10/20 mm (bore 20-40) or 20/50 mm (bore 50, 63)
  • Switch magnet built in; strong-magnetic-field switch T2YD available for welding sites (code suffix)
  • Mountings: basic (00), rod-end flange (FA), head-end flange (FB), head-end spigot fitting (HI)

Specifications

Action Double acting, rotary clamp (90 deg swing + linear clamp)
Fluid Compressed air
Operating pressure 0.2 to 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Piston speed 50 to 200 mm/s
Cushion Rubber cushion
Rotation angle 90 deg +/-10 deg
Lubrication Not required (turbine oil ISO VG32 if used)
Magnet Built in (switch ready)
Source CKD Korea catalog CB-030SK-9, p. 1196-1200
RCC2-G4-00-20-21-R Mounting: Basic | Bore: 20 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-00-20-21-L Mounting: Basic | Bore: 20 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-00-20-31-R Mounting: Basic | Bore: 20 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-00-20-31-L Mounting: Basic | Bore: 20 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-00-25-21-R Mounting: Basic | Bore: 25 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-00-25-21-L Mounting: Basic | Bore: 25 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-00-25-31-R Mounting: Basic | Bore: 25 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-00-25-31-L Mounting: Basic | Bore: 25 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-00-32-25-R Mounting: Basic | Bore: 32 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-00-32-25-L Mounting: Basic | Bore: 32 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-00-32-35-R Mounting: Basic | Bore: 32 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-00-32-35-L Mounting: Basic | Bore: 32 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-00-40-25-R Mounting: Basic | Bore: 40 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-00-40-25-L Mounting: Basic | Bore: 40 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-00-40-35-R Mounting: Basic | Bore: 40 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-00-40-35-L Mounting: Basic | Bore: 40 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-00-50-40-R Mounting: Basic | Bore: 50 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-00-50-40-L Mounting: Basic | Bore: 50 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-00-50-70-R Mounting: Basic | Bore: 50 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-00-50-70-L Mounting: Basic | Bore: 50 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-00-63-40-R Mounting: Basic | Bore: 63 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-00-63-40-L Mounting: Basic | Bore: 63 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-00-63-70-R Mounting: Basic | Bore: 63 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-00-63-70-L Mounting: Basic | Bore: 63 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-FA-20-21-R Mounting: Rod-end flange | Bore: 20 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-FA-20-21-L Mounting: Rod-end flange | Bore: 20 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-FA-20-31-R Mounting: Rod-end flange | Bore: 20 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-FA-20-31-L Mounting: Rod-end flange | Bore: 20 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-FA-25-21-R Mounting: Rod-end flange | Bore: 25 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-FA-25-21-L Mounting: Rod-end flange | Bore: 25 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-FA-25-31-R Mounting: Rod-end flange | Bore: 25 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-FA-25-31-L Mounting: Rod-end flange | Bore: 25 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-FA-32-25-R Mounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-FA-32-25-L Mounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-FA-32-35-R Mounting: Rod-end flange | Bore: 32 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-FA-32-35-L Mounting: Rod-end flange | Bore: 32 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-FA-40-25-R Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-FA-40-25-L Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-FA-40-35-R Mounting: Rod-end flange | Bore: 40 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-FA-40-35-L Mounting: Rod-end flange | Bore: 40 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-FA-50-40-R Mounting: Rod-end flange | Bore: 50 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-FA-50-40-L Mounting: Rod-end flange | Bore: 50 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-FA-50-70-R Mounting: Rod-end flange | Bore: 50 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-FA-50-70-L Mounting: Rod-end flange | Bore: 50 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-FA-63-40-R Mounting: Rod-end flange | Bore: 63 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-FA-63-40-L Mounting: Rod-end flange | Bore: 63 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-FA-63-70-R Mounting: Rod-end flange | Bore: 63 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-FA-63-70-L Mounting: Rod-end flange | Bore: 63 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-FB-20-21-R Mounting: Head-end flange | Bore: 20 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-FB-20-21-L Mounting: Head-end flange | Bore: 20 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-FB-20-31-R Mounting: Head-end flange | Bore: 20 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-FB-20-31-L Mounting: Head-end flange | Bore: 20 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-FB-25-21-R Mounting: Head-end flange | Bore: 25 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-FB-25-21-L Mounting: Head-end flange | Bore: 25 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-FB-25-31-R Mounting: Head-end flange | Bore: 25 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-FB-25-31-L Mounting: Head-end flange | Bore: 25 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-FB-32-25-R Mounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-FB-32-25-L Mounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-FB-32-35-R Mounting: Head-end flange | Bore: 32 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-FB-32-35-L Mounting: Head-end flange | Bore: 32 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-FB-40-25-R Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-FB-40-25-L Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-FB-40-35-R Mounting: Head-end flange | Bore: 40 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-FB-40-35-L Mounting: Head-end flange | Bore: 40 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-FB-50-40-R Mounting: Head-end flange | Bore: 50 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-FB-50-40-L Mounting: Head-end flange | Bore: 50 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-FB-50-70-R Mounting: Head-end flange | Bore: 50 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-FB-50-70-L Mounting: Head-end flange | Bore: 50 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-FB-63-40-R Mounting: Head-end flange | Bore: 63 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-FB-63-40-L Mounting: Head-end flange | Bore: 63 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-FB-63-70-R Mounting: Head-end flange | Bore: 63 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-FB-63-70-L Mounting: Head-end flange | Bore: 63 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-HI-20-21-R Mounting: Head-end spigot fitting | Bore: 20 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-HI-20-21-L Mounting: Head-end spigot fitting | Bore: 20 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-HI-20-31-R Mounting: Head-end spigot fitting | Bore: 20 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-HI-20-31-L Mounting: Head-end spigot fitting | Bore: 20 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-HI-25-21-R Mounting: Head-end spigot fitting | Bore: 25 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-HI-25-21-L Mounting: Head-end spigot fitting | Bore: 25 mm | Stroke: 21 mm (swing 11 + clamp 10) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-HI-25-31-R Mounting: Head-end spigot fitting | Bore: 25 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Clockwise (R) | Port: M5
RCC2-G4-HI-25-31-L Mounting: Head-end spigot fitting | Bore: 25 mm | Stroke: 31 mm (swing 11 + clamp 20) | Rotation: Counterclockwise (L) | Port: M5
RCC2-G4-HI-32-25-R Mounting: Head-end spigot fitting | Bore: 32 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-HI-32-25-L Mounting: Head-end spigot fitting | Bore: 32 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-HI-32-35-R Mounting: Head-end spigot fitting | Bore: 32 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-HI-32-35-L Mounting: Head-end spigot fitting | Bore: 32 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-HI-40-25-R Mounting: Head-end spigot fitting | Bore: 40 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-HI-40-25-L Mounting: Head-end spigot fitting | Bore: 40 mm | Stroke: 25 mm (swing 15 + clamp 10) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-HI-40-35-R Mounting: Head-end spigot fitting | Bore: 40 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/8
RCC2-G4-HI-40-35-L Mounting: Head-end spigot fitting | Bore: 40 mm | Stroke: 35 mm (swing 15 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/8
RCC2-G4-HI-50-40-R Mounting: Head-end spigot fitting | Bore: 50 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-HI-50-40-L Mounting: Head-end spigot fitting | Bore: 50 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-HI-50-70-R Mounting: Head-end spigot fitting | Bore: 50 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-HI-50-70-L Mounting: Head-end spigot fitting | Bore: 50 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-HI-63-40-R Mounting: Head-end spigot fitting | Bore: 63 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-HI-63-40-L Mounting: Head-end spigot fitting | Bore: 63 mm | Stroke: 40 mm (swing 20 + clamp 20) | Rotation: Counterclockwise (L) | Port: Rc1/4
RCC2-G4-HI-63-70-R Mounting: Head-end spigot fitting | Bore: 63 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Clockwise (R) | Port: Rc1/4
RCC2-G4-HI-63-70-L Mounting: Head-end spigot fitting | Bore: 63 mm | Stroke: 70 mm (swing 20 + clamp 50) | Rotation: Counterclockwise (L) | Port: Rc1/4
Pneumatic CylindersCKD
96 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD RCC2-G4 Rotary Clamp Cylinder (Spatter Resistant, Bore 20-63)

Brand CKD·Pneumatic Cylinders

Available part numbers (96)

RCC2-G4-00-20-21-R, RCC2-G4-00-20-21-L, RCC2-G4-00-20-31-R, RCC2-G4-00-20-31-L, RCC2-G4-00-25-21-R, RCC2-G4-00-25-21-L, RCC2-G4-00-25-31-R, RCC2-G4-00-25-31-L, RCC2-G4-00-32-25-R, RCC2-G4-00-32-25-L + 86 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
