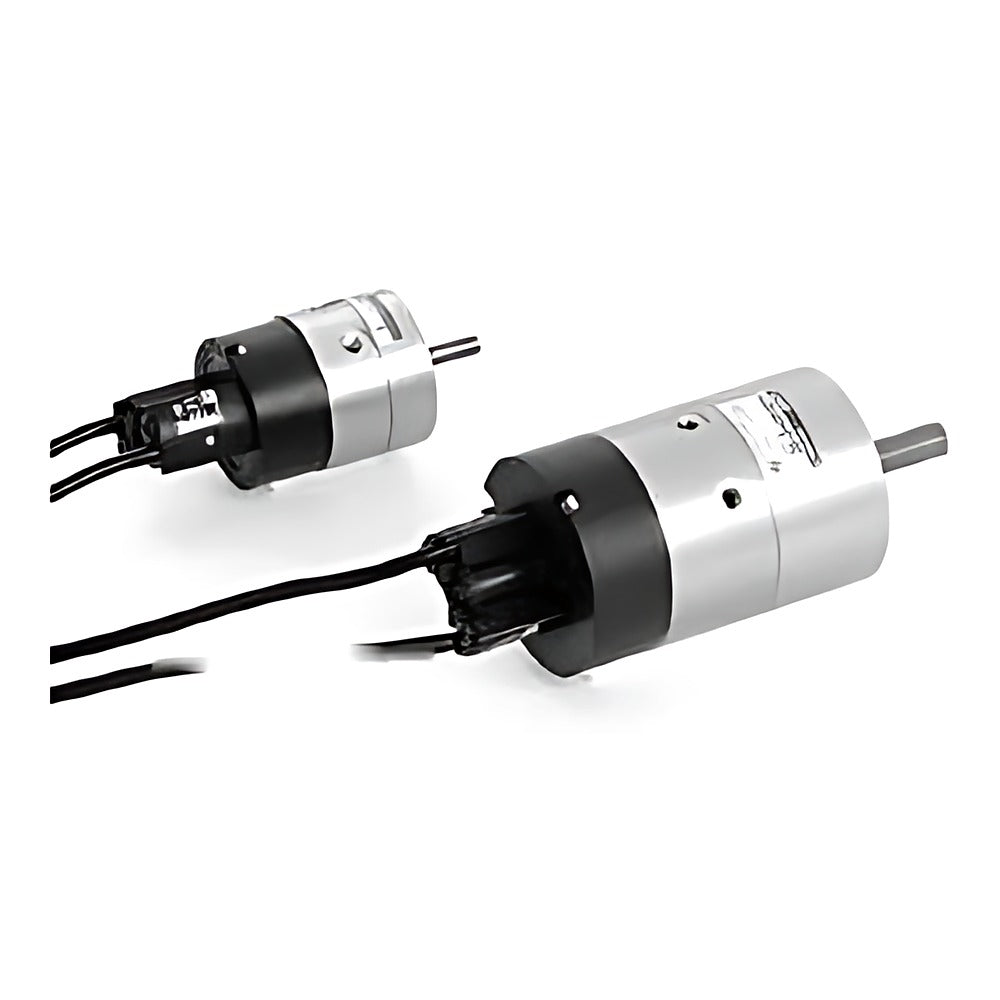

CKD RV3SA / RV3DA Small Selex Rotary Actuator (Angle Adjustable)

CKD RV3SA / RV3DA Small Selex Rotary Actuator (Angle Adjustable)

The CKD RV3SA/DA is a small vane-type Selex rotary actuator with external stoppers for freely set swing angles, in torque sizes 3 to 30.

Key features

  • External stopper sets the swing angle: 30-180 deg (RV3SA 3-20), 30-270 deg (RV3SA30), 30-90 deg (RV3DA)
  • Angle code 0 = no angle set (stoppers supplied loose); a specified angle can be ordered instead
  • Options: flange (FA) or foot (LS) bracket, protective cover (K)
  • Two-switch units FR / FR-U available by suffix
  • Lubrication not required

Specifications

Actuation Vane type, external stopper
Angle code 0 (no angle specified)
Operating pressure 0.2-0.7 MPa (3, 10), 0.2-1.0 MPa (20, 30)
Ambient temperature -5 to 80 C (size 30: -5 to 60 C)
Port size M5 (3-20), Rc1/8 (30)
