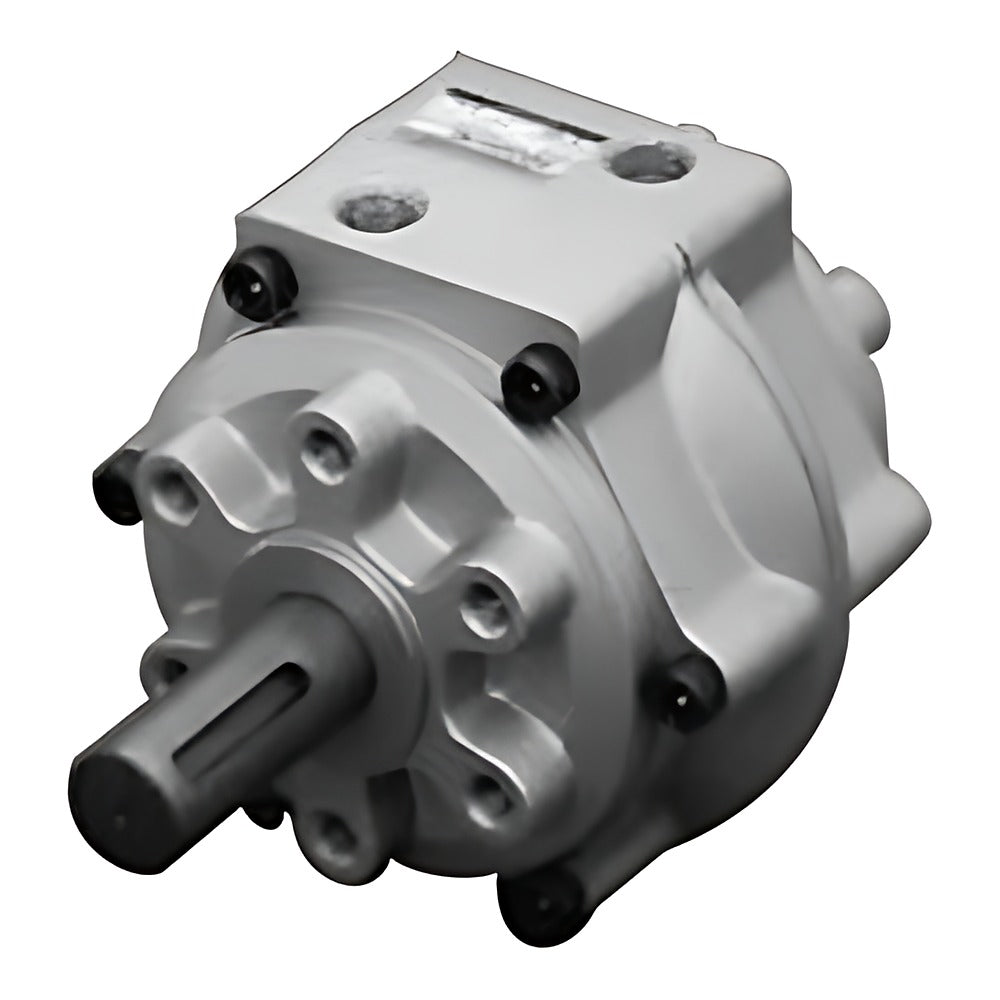

CKD RV3SH/RV3DH Large SELEX Rotary Actuator (Low Hydraulic Pressure)

CKD RV3SH/RV3DH Large SELEX Rotary Actuator (Low Hydraulic Pressure)

CKD RV3SH/RV3DH large SELEX rotary vane actuators for low-pressure hydraulic operation, sizes 50 to 800.

Key features

  • Operates on hydraulic fluid (JIS turbine oil ISO VG32 or equivalent) up to 1.0 MPa
  • Single vane 90/180/270/280 deg, double vane 90/100 deg rotation
  • Same dimensions and mass as the RV3S/RV3D air-operated standard type
  • Flange FA (sizes 50/150) and foot LS brackets, shock absorber option C
  • Switch units M2V/M3V/M0V/M5V ordered in the code (not expanded here)

Specifications

Fluid Hydraulic oil (ISO VG32)
Max operating pressure 1.0 MPa
Min operating pressure 0.2 MPa
Proof pressure 1.5 MPa
Ambient temperature 5 to 60 C
Recommended oil viscosity 400 mm2/s or less at operating temp.
Code format RV3SH50-90-45-M2V-D-C
Source CKD Korea catalog CB-030SK-9, p. 1466-1469
RV3SH50-90-45 Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 4.7 N-m | Port: Rc1/8
RV3SH50-90-45-FA Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Mounting: Flange (FA) | Torque (air, 0.5MPa): 4.7 N-m | Port: Rc1/8
RV3SH50-90-45-LS Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 4.7 N-m | Port: Rc1/8
RV3SH50-180-45 Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 4.7 N-m | Port: Rc1/8
RV3SH50-180-45-FA Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Mounting: Flange (FA) | Torque (air, 0.5MPa): 4.7 N-m | Port: Rc1/8
RV3SH50-180-45-LS Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 4.7 N-m | Port: Rc1/8
RV3SH50-270-45 Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 4.7 N-m | Port: Rc1/8
RV3SH50-270-45-FA Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Mounting: Flange (FA) | Torque (air, 0.5MPa): 4.7 N-m | Port: Rc1/8
RV3SH50-270-45-LS Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 4.7 N-m | Port: Rc1/8
RV3SH50-280-40 Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Mounting: None | Torque (air, 0.5MPa): 4.7 N-m | Port: Rc1/8
RV3SH50-280-40-FA Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Mounting: Flange (FA) | Torque (air, 0.5MPa): 4.7 N-m | Port: Rc1/8
RV3SH50-280-40-LS Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 4.7 N-m | Port: Rc1/8
RV3SH150-90-45 Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 14.7 N-m | Port: Rc1/4
RV3SH150-90-45-FA Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Mounting: Flange (FA) | Torque (air, 0.5MPa): 14.7 N-m | Port: Rc1/4
RV3SH150-90-45-LS Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 14.7 N-m | Port: Rc1/4
RV3SH150-180-45 Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 14.7 N-m | Port: Rc1/4
RV3SH150-180-45-FA Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Mounting: Flange (FA) | Torque (air, 0.5MPa): 14.7 N-m | Port: Rc1/4
RV3SH150-180-45-LS Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 14.7 N-m | Port: Rc1/4
RV3SH150-270-45 Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 14.7 N-m | Port: Rc1/4
RV3SH150-270-45-FA Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Mounting: Flange (FA) | Torque (air, 0.5MPa): 14.7 N-m | Port: Rc1/4
RV3SH150-270-45-LS Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 14.7 N-m | Port: Rc1/4
RV3SH150-280-40 Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Mounting: None | Torque (air, 0.5MPa): 14.7 N-m | Port: Rc1/4
RV3SH150-280-40-FA Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Mounting: Flange (FA) | Torque (air, 0.5MPa): 14.7 N-m | Port: Rc1/4
RV3SH150-280-40-LS Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 14.7 N-m | Port: Rc1/4
RV3SH300-90-45 Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 27.9 N-m | Port: Rc3/8
RV3SH300-90-45-LS Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 27.9 N-m | Port: Rc3/8
RV3SH300-180-45 Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 27.9 N-m | Port: Rc3/8
RV3SH300-180-45-LS Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 27.9 N-m | Port: Rc3/8
RV3SH300-270-45 Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 27.9 N-m | Port: Rc3/8
RV3SH300-270-45-LS Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 27.9 N-m | Port: Rc3/8
RV3SH300-280-40 Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Mounting: None | Torque (air, 0.5MPa): 27.9 N-m | Port: Rc3/8
RV3SH300-280-40-LS Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 27.9 N-m | Port: Rc3/8
RV3SH800-90-45 Vane: Single | Size: 800 | Rotation: 90 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 102 N-m | Port: Rc1/2
RV3SH800-90-45-LS Vane: Single | Size: 800 | Rotation: 90 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 102 N-m | Port: Rc1/2
RV3SH800-180-45 Vane: Single | Size: 800 | Rotation: 180 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 102 N-m | Port: Rc1/2
RV3SH800-180-45-LS Vane: Single | Size: 800 | Rotation: 180 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 102 N-m | Port: Rc1/2
RV3SH800-270-45 Vane: Single | Size: 800 | Rotation: 270 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 102 N-m | Port: Rc1/2
RV3SH800-270-45-LS Vane: Single | Size: 800 | Rotation: 270 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 102 N-m | Port: Rc1/2
RV3SH800-280-40 Vane: Single | Size: 800 | Rotation: 280 deg (origin 40 deg) | Mounting: None | Torque (air, 0.5MPa): 102 N-m | Port: Rc1/2
RV3SH800-280-40-LS Vane: Single | Size: 800 | Rotation: 280 deg (origin 40 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 102 N-m | Port: Rc1/2
RV3DH50-90-45 Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 10.1 N-m | Port: Rc1/8
RV3DH50-90-45-FA Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Mounting: Flange (FA) | Torque (air, 0.5MPa): 10.1 N-m | Port: Rc1/8
RV3DH50-90-45-LS Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 10.1 N-m | Port: Rc1/8
RV3DH50-100-40 Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Mounting: None | Torque (air, 0.5MPa): 10.1 N-m | Port: Rc1/8
RV3DH50-100-40-FA Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Mounting: Flange (FA) | Torque (air, 0.5MPa): 10.1 N-m | Port: Rc1/8
RV3DH50-100-40-LS Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 10.1 N-m | Port: Rc1/8
RV3DH150-90-45 Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 34.3 N-m | Port: Rc1/4
RV3DH150-90-45-FA Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Mounting: Flange (FA) | Torque (air, 0.5MPa): 34.3 N-m | Port: Rc1/4
RV3DH150-90-45-LS Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 34.3 N-m | Port: Rc1/4
RV3DH150-100-40 Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Mounting: None | Torque (air, 0.5MPa): 34.3 N-m | Port: Rc1/4
RV3DH150-100-40-FA Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Mounting: Flange (FA) | Torque (air, 0.5MPa): 34.3 N-m | Port: Rc1/4
RV3DH150-100-40-LS Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 34.3 N-m | Port: Rc1/4
RV3DH300-90-45 Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 66.6 N-m | Port: Rc3/8
RV3DH300-90-45-LS Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 66.6 N-m | Port: Rc3/8
RV3DH300-100-40 Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Mounting: None | Torque (air, 0.5MPa): 66.6 N-m | Port: Rc3/8
RV3DH300-100-40-LS Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 66.6 N-m | Port: Rc3/8
RV3DH800-90-45 Vane: Double | Size: 800 | Rotation: 90 deg (origin 45 deg) | Mounting: None | Torque (air, 0.5MPa): 206 N-m | Port: Rc1/2
RV3DH800-90-45-LS Vane: Double | Size: 800 | Rotation: 90 deg (origin 45 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 206 N-m | Port: Rc1/2
RV3DH800-100-40 Vane: Double | Size: 800 | Rotation: 100 deg (origin 40 deg) | Mounting: None | Torque (air, 0.5MPa): 206 N-m | Port: Rc1/2
RV3DH800-100-40-LS Vane: Double | Size: 800 | Rotation: 100 deg (origin 40 deg) | Mounting: Foot (LS) | Torque (air, 0.5MPa): 206 N-m | Port: Rc1/2
