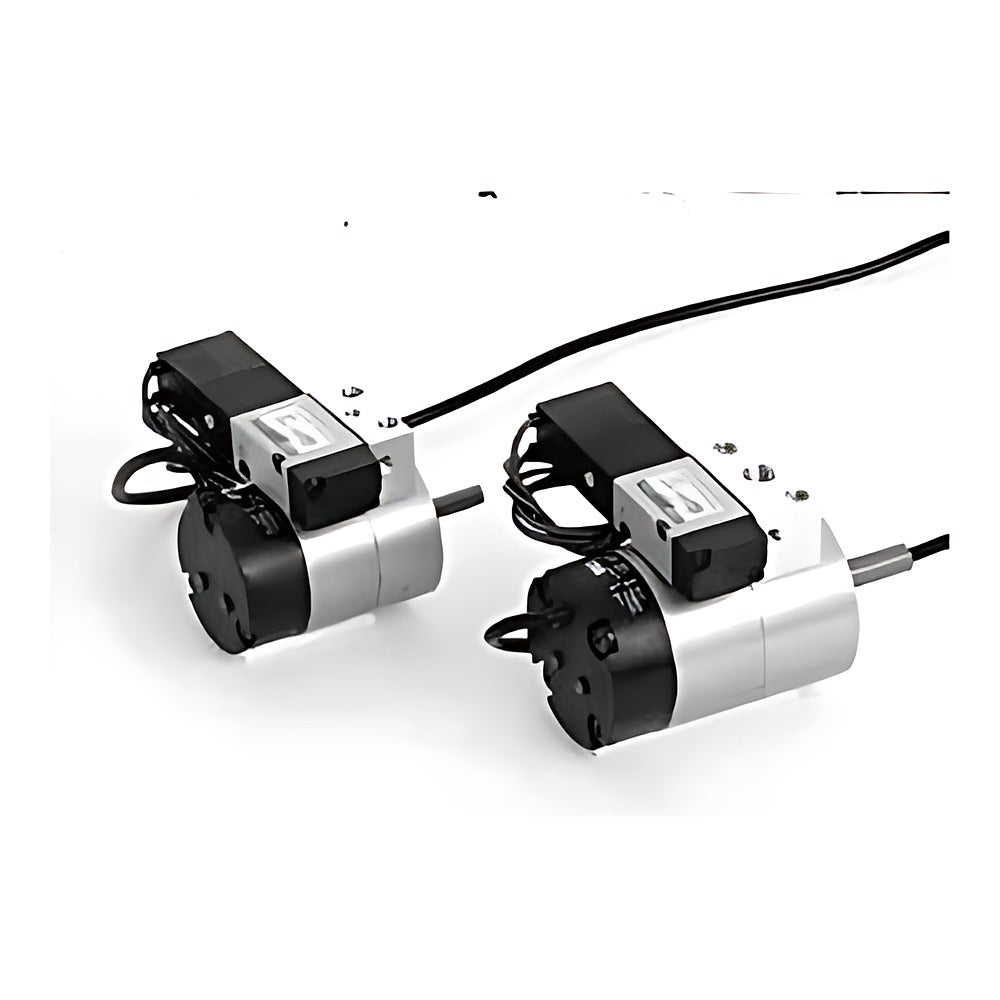

CKD RV3SV / RV3DW Small Selex Rotary Actuator (With Valve)

CKD RV3SV / RV3DW Small Selex Rotary Actuator (With Valve)

The CKD RV3SV/DW is a small vane-type Selex rotary actuator with a directly mounted single or double solenoid valve, in torque sizes 10 to 30.

Key features

  • Integrated single (V) or double (W) solenoid valve - no external piping to the actuator
  • Single vane 90/180/270 deg or double vane 90 deg
  • Valve voltage AC100V, AC200V or DC24V
  • Flange (FA) or foot (LS) bracket shipped attached as an option
  • Switch units SR / SR-U available by suffix

Specifications

Actuation Vane type with solenoid valve
Operating pressure 0.2-0.7 MPa
Ambient temperature -5 to 50 C
Port size M5 (10), Rc1/8 (20, 30)
Effective torque 0.98-7.7 N*m at 0.5 MPa
Source CKD Korea catalog CB-030SK-9, p. 1438-1441
RV3SV10-90-45-1 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV10-90-45-1-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV10-90-45-1-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV10-90-45-2 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV10-90-45-2-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV10-90-45-2-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV10-90-45-3 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV10-90-45-3-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV10-90-45-3-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV10-90-90-1 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SV10-90-90-1-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SV10-90-90-1-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SV10-90-90-2 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SV10-90-90-2-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SV10-90-90-2-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SV10-90-90-3 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SV10-90-90-3-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SV10-90-90-3-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SV10-180-45-1 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV10-180-45-1-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV10-180-45-1-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV10-180-45-2 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV10-180-45-2-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV10-180-45-2-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV10-180-45-3 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV10-180-45-3-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV10-180-45-3-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV10-180-90-1 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SV10-180-90-1-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SV10-180-90-1-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SV10-180-90-2 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SV10-180-90-2-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SV10-180-90-2-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SV10-180-90-3 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SV10-180-90-3-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SV10-180-90-3-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SV10-270-45-1 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV10-270-45-1-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV10-270-45-1-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV10-270-45-2 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV10-270-45-2-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV10-270-45-2-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV10-270-45-3 Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV10-270-45-3-FA Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV10-270-45-3-LS Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV20-90-45-1 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV20-90-45-1-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV20-90-45-1-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV20-90-45-2 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV20-90-45-2-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV20-90-45-2-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV20-90-45-3 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV20-90-45-3-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV20-90-45-3-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV20-90-90-1 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SV20-90-90-1-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SV20-90-90-1-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SV20-90-90-2 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SV20-90-90-2-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SV20-90-90-2-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SV20-90-90-3 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SV20-90-90-3-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SV20-90-90-3-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SV20-180-45-1 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV20-180-45-1-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV20-180-45-1-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV20-180-45-2 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV20-180-45-2-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV20-180-45-2-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV20-180-45-3 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV20-180-45-3-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV20-180-45-3-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV20-180-90-1 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SV20-180-90-1-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SV20-180-90-1-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SV20-180-90-2 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SV20-180-90-2-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SV20-180-90-2-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SV20-180-90-3 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SV20-180-90-3-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SV20-180-90-3-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SV20-270-45-1 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV20-270-45-1-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV20-270-45-1-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV20-270-45-2 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV20-270-45-2-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV20-270-45-2-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV20-270-45-3 Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV20-270-45-3-FA Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV20-270-45-3-LS Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV30-90-45-1 Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV30-90-45-1-FA Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV30-90-45-1-LS Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV30-90-45-2 Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV30-90-45-2-FA Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV30-90-45-2-LS Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV30-90-45-3 Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV30-90-45-3-FA Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV30-90-45-3-LS Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV30-180-45-1 Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV30-180-45-1-FA Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV30-180-45-1-LS Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV30-180-45-2 Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV30-180-45-2-FA Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV30-180-45-2-LS Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV30-180-45-3 Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV30-180-45-3-FA Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV30-180-45-3-LS Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV30-270-45-1 Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV30-270-45-1-FA Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV30-270-45-1-LS Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV30-270-45-2 Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV30-270-45-2-FA Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV30-270-45-2-LS Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV30-270-45-3 Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV30-270-45-3-FA Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV30-270-45-3-LS Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW10-90-45-1 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW10-90-45-1-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW10-90-45-1-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW10-90-45-2 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW10-90-45-2-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW10-90-45-2-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW10-90-45-3 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW10-90-45-3-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW10-90-45-3-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW10-90-90-1 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SW10-90-90-1-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SW10-90-90-1-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SW10-90-90-2 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SW10-90-90-2-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SW10-90-90-2-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SW10-90-90-3 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SW10-90-90-3-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SW10-90-90-3-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SW10-180-45-1 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW10-180-45-1-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW10-180-45-1-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW10-180-45-2 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW10-180-45-2-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW10-180-45-2-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW10-180-45-3 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW10-180-45-3-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW10-180-45-3-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW10-180-90-1 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SW10-180-90-1-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SW10-180-90-1-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SW10-180-90-2 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SW10-180-90-2-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SW10-180-90-2-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SW10-180-90-3 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SW10-180-90-3-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SW10-180-90-3-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SW10-270-45-1 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW10-270-45-1-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW10-270-45-1-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW10-270-45-2 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW10-270-45-2-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW10-270-45-2-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW10-270-45-3 Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW10-270-45-3-FA Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW10-270-45-3-LS Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW20-90-45-1 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW20-90-45-1-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW20-90-45-1-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW20-90-45-2 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW20-90-45-2-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW20-90-45-2-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW20-90-45-3 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW20-90-45-3-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW20-90-45-3-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW20-90-90-1 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SW20-90-90-1-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SW20-90-90-1-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SW20-90-90-2 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SW20-90-90-2-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SW20-90-90-2-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SW20-90-90-3 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SW20-90-90-3-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SW20-90-90-3-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SW20-180-45-1 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW20-180-45-1-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW20-180-45-1-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW20-180-45-2 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW20-180-45-2-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW20-180-45-2-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW20-180-45-3 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW20-180-45-3-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW20-180-45-3-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW20-180-90-1 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SW20-180-90-1-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SW20-180-90-1-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SW20-180-90-2 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SW20-180-90-2-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SW20-180-90-2-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SW20-180-90-3 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SW20-180-90-3-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SW20-180-90-3-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SW20-270-45-1 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW20-270-45-1-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW20-270-45-1-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW20-270-45-2 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW20-270-45-2-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW20-270-45-2-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW20-270-45-3 Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW20-270-45-3-FA Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW20-270-45-3-LS Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW30-90-45-1 Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW30-90-45-1-FA Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW30-90-45-1-LS Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW30-90-45-2 Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW30-90-45-2-FA Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW30-90-45-2-LS Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW30-90-45-3 Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW30-90-45-3-FA Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW30-90-45-3-LS Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW30-180-45-1 Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW30-180-45-1-FA Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW30-180-45-1-LS Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW30-180-45-2 Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW30-180-45-2-FA Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW30-180-45-2-LS Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW30-180-45-3 Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW30-180-45-3-FA Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW30-180-45-3-LS Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW30-270-45-1 Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW30-270-45-1-FA Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW30-270-45-1-LS Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW30-270-45-2 Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW30-270-45-2-FA Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW30-270-45-2-LS Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW30-270-45-3 Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW30-270-45-3-FA Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW30-270-45-3-LS Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3DV10-90-45-1 Model: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3DV10-90-45-1-FA Model: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3DV10-90-45-1-LS Model: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3DV10-90-45-2 Model: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3DV10-90-45-2-FA Model: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3DV10-90-45-2-LS Model: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3DV10-90-45-3 Model: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3DV10-90-45-3-FA Model: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3DV10-90-45-3-LS Model: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3DV20-90-45-1 Model: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3DV20-90-45-1-FA Model: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3DV20-90-45-1-LS Model: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3DV20-90-45-2 Model: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3DV20-90-45-2-FA Model: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3DV20-90-45-2-LS Model: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3DV20-90-45-3 Model: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3DV20-90-45-3-FA Model: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3DV20-90-45-3-LS Model: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3DV30-90-45-1 Model: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3DV30-90-45-1-FA Model: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3DV30-90-45-1-LS Model: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3DV30-90-45-2 Model: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3DV30-90-45-2-FA Model: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3DV30-90-45-2-LS Model: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3DV30-90-45-3 Model: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3DV30-90-45-3-FA Model: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3DV30-90-45-3-LS Model: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3DW10-90-45-1 Model: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3DW10-90-45-1-FA Model: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3DW10-90-45-1-LS Model: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3DW10-90-45-2 Model: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3DW10-90-45-2-FA Model: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3DW10-90-45-2-LS Model: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3DW10-90-45-3 Model: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3DW10-90-45-3-FA Model: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3DW10-90-45-3-LS Model: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3DW20-90-45-1 Model: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3DW20-90-45-1-FA Model: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3DW20-90-45-1-LS Model: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3DW20-90-45-2 Model: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3DW20-90-45-2-FA Model: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3DW20-90-45-2-LS Model: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3DW20-90-45-3 Model: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3DW20-90-45-3-FA Model: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3DW20-90-45-3-LS Model: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3DW30-90-45-1 Model: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3DW30-90-45-1-FA Model: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3DW30-90-45-1-LS Model: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3DW30-90-45-2 Model: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3DW30-90-45-2-FA Model: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3DW30-90-45-2-LS Model: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3DW30-90-45-3 Model: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3DW30-90-45-3-FA Model: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3DW30-90-45-3-LS Model: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
Rotary ActuatorsCKD
288 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD RV3SV / RV3DW Small Selex Rotary Actuator (With Valve)

Brand CKD·Rotary Actuators

Available part numbers (288)

RV3SV10-90-45-1, RV3SV10-90-45-1-FA, RV3SV10-90-45-1-LS, RV3SV10-90-45-2, RV3SV10-90-45-2-FA, RV3SV10-90-45-2-LS, RV3SV10-90-45-3, RV3SV10-90-45-3-FA, RV3SV10-90-45-3-LS, RV3SV10-90-90-1 + 278 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RV3SV10-90-45-1Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV10-90-45-1-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV10-90-45-1-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV10-90-45-2Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV10-90-45-2-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV10-90-45-2-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV10-90-45-3Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV10-90-45-3-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV10-90-45-3-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV10-90-90-1Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SV10-90-90-1-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SV10-90-90-1-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SV10-90-90-2Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SV10-90-90-2-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SV10-90-90-2-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SV10-90-90-3Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SV10-90-90-3-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SV10-90-90-3-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SV10-180-45-1Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV10-180-45-1-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV10-180-45-1-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV10-180-45-2Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV10-180-45-2-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV10-180-45-2-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV10-180-45-3Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV10-180-45-3-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV10-180-45-3-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV10-180-90-1Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SV10-180-90-1-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SV10-180-90-1-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SV10-180-90-2Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SV10-180-90-2-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SV10-180-90-2-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SV10-180-90-3Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SV10-180-90-3-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SV10-180-90-3-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SV10-270-45-1Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV10-270-45-1-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV10-270-45-1-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV10-270-45-2Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV10-270-45-2-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV10-270-45-2-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV10-270-45-3Model: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV10-270-45-3-FAModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV10-270-45-3-LSModel: RV3SV single vane, single sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV20-90-45-1Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV20-90-45-1-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV20-90-45-1-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV20-90-45-2Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV20-90-45-2-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV20-90-45-2-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV20-90-45-3Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV20-90-45-3-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV20-90-45-3-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV20-90-90-1Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SV20-90-90-1-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SV20-90-90-1-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SV20-90-90-2Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SV20-90-90-2-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SV20-90-90-2-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SV20-90-90-3Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SV20-90-90-3-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SV20-90-90-3-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SV20-180-45-1Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV20-180-45-1-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV20-180-45-1-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV20-180-45-2Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV20-180-45-2-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV20-180-45-2-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV20-180-45-3Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV20-180-45-3-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV20-180-45-3-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV20-180-90-1Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SV20-180-90-1-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SV20-180-90-1-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SV20-180-90-2Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SV20-180-90-2-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SV20-180-90-2-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SV20-180-90-3Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SV20-180-90-3-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SV20-180-90-3-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SV20-270-45-1Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV20-270-45-1-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV20-270-45-1-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV20-270-45-2Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV20-270-45-2-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV20-270-45-2-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV20-270-45-3Model: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV20-270-45-3-FAModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV20-270-45-3-LSModel: RV3SV single vane, single sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV30-90-45-1Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV30-90-45-1-FAModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV30-90-45-1-LSModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV30-90-45-2Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV30-90-45-2-FAModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV30-90-45-2-LSModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV30-90-45-3Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV30-90-45-3-FAModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV30-90-45-3-LSModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV30-180-45-1Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV30-180-45-1-FAModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV30-180-45-1-LSModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV30-180-45-2Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV30-180-45-2-FAModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV30-180-45-2-LSModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV30-180-45-3Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV30-180-45-3-FAModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV30-180-45-3-LSModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SV30-270-45-1Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SV30-270-45-1-FAModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SV30-270-45-1-LSModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SV30-270-45-2Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SV30-270-45-2-FAModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SV30-270-45-2-LSModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SV30-270-45-3Model: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SV30-270-45-3-FAModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SV30-270-45-3-LSModel: RV3SV single vane, single sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW10-90-45-1Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW10-90-45-1-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW10-90-45-1-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW10-90-45-2Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW10-90-45-2-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW10-90-45-2-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW10-90-45-3Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW10-90-45-3-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW10-90-45-3-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW10-90-90-1Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SW10-90-90-1-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SW10-90-90-1-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SW10-90-90-2Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SW10-90-90-2-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SW10-90-90-2-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SW10-90-90-3Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SW10-90-90-3-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SW10-90-90-3-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SW10-180-45-1Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW10-180-45-1-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW10-180-45-1-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW10-180-45-2Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW10-180-45-2-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW10-180-45-2-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW10-180-45-3Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW10-180-45-3-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW10-180-45-3-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW10-180-90-1Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SW10-180-90-1-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SW10-180-90-1-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SW10-180-90-2Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SW10-180-90-2-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SW10-180-90-2-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SW10-180-90-3Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SW10-180-90-3-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SW10-180-90-3-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SW10-270-45-1Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW10-270-45-1-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW10-270-45-1-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW10-270-45-2Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW10-270-45-2-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW10-270-45-2-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW10-270-45-3Model: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW10-270-45-3-FAModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW10-270-45-3-LSModel: RV3SW single vane, double sol. | Size: 10 (0.98 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW20-90-45-1Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW20-90-45-1-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW20-90-45-1-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW20-90-45-2Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW20-90-45-2-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW20-90-45-2-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW20-90-45-3Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW20-90-45-3-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW20-90-45-3-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW20-90-90-1Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SW20-90-90-1-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SW20-90-90-1-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SW20-90-90-2Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SW20-90-90-2-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SW20-90-90-2-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SW20-90-90-3Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SW20-90-90-3-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SW20-90-90-3-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 90 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SW20-180-45-1Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW20-180-45-1-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW20-180-45-1-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW20-180-45-2Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW20-180-45-2-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW20-180-45-2-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW20-180-45-3Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW20-180-45-3-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW20-180-45-3-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW20-180-90-1Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: None
RV3SW20-180-90-1-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Flange bracket
RV3SW20-180-90-1-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC100V | Option: Foot bracket
RV3SW20-180-90-2Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: None
RV3SW20-180-90-2-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Flange bracket
RV3SW20-180-90-2-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: AC200V | Option: Foot bracket
RV3SW20-180-90-3Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: None
RV3SW20-180-90-3-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Flange bracket
RV3SW20-180-90-3-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 180 deg | Origin: 90 deg | Voltage: DC24V | Option: Foot bracket
RV3SW20-270-45-1Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW20-270-45-1-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW20-270-45-1-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW20-270-45-2Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW20-270-45-2-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW20-270-45-2-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW20-270-45-3Model: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW20-270-45-3-FAModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW20-270-45-3-LSModel: RV3SW single vane, double sol. | Size: 20 (1.70 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW30-90-45-1Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW30-90-45-1-FAModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW30-90-45-1-LSModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW30-90-45-2Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW30-90-45-2-FAModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW30-90-45-2-LSModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW30-90-45-3Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW30-90-45-3-FAModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW30-90-45-3-LSModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW30-180-45-1Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW30-180-45-1-FAModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW30-180-45-1-LSModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW30-180-45-2Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW30-180-45-2-FAModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW30-180-45-2-LSModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW30-180-45-3Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW30-180-45-3-FAModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW30-180-45-3-LSModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 180 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3SW30-270-45-1Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3SW30-270-45-1-FAModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3SW30-270-45-1-LSModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3SW30-270-45-2Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3SW30-270-45-2-FAModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3SW30-270-45-2-LSModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3SW30-270-45-3Model: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3SW30-270-45-3-FAModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3SW30-270-45-3-LSModel: RV3SW single vane, double sol. | Size: 30 (3.19 N*m) | Rotation: 270 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3DV10-90-45-1Model: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3DV10-90-45-1-FAModel: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3DV10-90-45-1-LSModel: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3DV10-90-45-2Model: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3DV10-90-45-2-FAModel: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3DV10-90-45-2-LSModel: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3DV10-90-45-3Model: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3DV10-90-45-3-FAModel: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3DV10-90-45-3-LSModel: RV3DV double vane, single sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3DV20-90-45-1Model: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3DV20-90-45-1-FAModel: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3DV20-90-45-1-LSModel: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3DV20-90-45-2Model: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3DV20-90-45-2-FAModel: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3DV20-90-45-2-LSModel: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3DV20-90-45-3Model: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3DV20-90-45-3-FAModel: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3DV20-90-45-3-LSModel: RV3DV double vane, single sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3DV30-90-45-1Model: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3DV30-90-45-1-FAModel: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3DV30-90-45-1-LSModel: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3DV30-90-45-2Model: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3DV30-90-45-2-FAModel: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3DV30-90-45-2-LSModel: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3DV30-90-45-3Model: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3DV30-90-45-3-FAModel: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3DV30-90-45-3-LSModel: RV3DV double vane, single sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3DW10-90-45-1Model: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3DW10-90-45-1-FAModel: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3DW10-90-45-1-LSModel: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3DW10-90-45-2Model: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3DW10-90-45-2-FAModel: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3DW10-90-45-2-LSModel: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3DW10-90-45-3Model: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3DW10-90-45-3-FAModel: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3DW10-90-45-3-LSModel: RV3DW double vane, double sol. | Size: 10 (2.11 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3DW20-90-45-1Model: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3DW20-90-45-1-FAModel: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3DW20-90-45-1-LSModel: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3DW20-90-45-2Model: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3DW20-90-45-2-FAModel: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3DW20-90-45-2-LSModel: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3DW20-90-45-3Model: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3DW20-90-45-3-FAModel: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3DW20-90-45-3-LSModel: RV3DW double vane, double sol. | Size: 20 (3.88 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket
RV3DW30-90-45-1Model: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: None
RV3DW30-90-45-1-FAModel: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Flange bracket
RV3DW30-90-45-1-LSModel: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC100V | Option: Foot bracket
RV3DW30-90-45-2Model: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: None
RV3DW30-90-45-2-FAModel: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Flange bracket
RV3DW30-90-45-2-LSModel: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: AC200V | Option: Foot bracket
RV3DW30-90-45-3Model: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: None
RV3DW30-90-45-3-FAModel: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Flange bracket
RV3DW30-90-45-3-LSModel: RV3DW double vane, double sol. | Size: 30 (7.70 N*m) | Rotation: 90 deg | Origin: 45 deg | Voltage: DC24V | Option: Foot bracket

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
