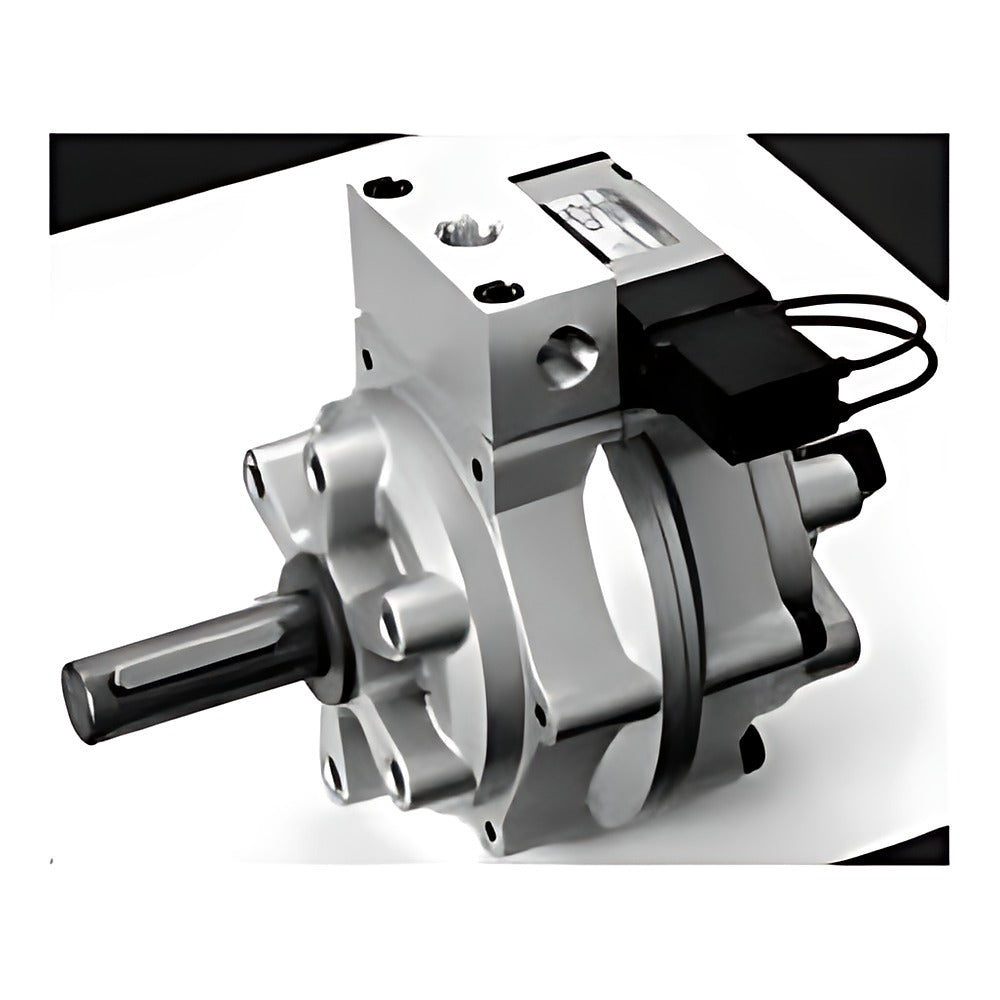

CKD RV3SV/RV3DW Large SELEX Rotary Actuator (Valve Mounted)

CKD RV3SV/RV3DW Large SELEX Rotary Actuator (Valve Mounted)

CKD large SELEX rotary vane actuators with a directly mounted 4KB solenoid valve, sizes 50, 150 and 300.

Key features

  • Valve symbol V = single solenoid, W = double solenoid; coil AC100V, AC200V or DC24V
  • Mounted valve 4KB119/4KB129 (size 50) or 4KB219/4KB229 (sizes 150/300)
  • Single vane 90/180/270/280 deg, double vane 90/100 deg rotation
  • Flange FA (sizes 50/150) and foot LS brackets; shock absorber option C
  • Switch units M2V/M3V/M0V/M5V ordered in the code (not expanded here)

Specifications

Fluid Compressed air
Max operating pressure 0.7 MPa
Min operating pressure 0.2 MPa
Proof pressure 1.05 MPa
Ambient temperature 5 to 50 C
Exhaust port M5 (size 50), Rc1/4 (150/300)
Code format RV3SV150-90-45-1-M2V-R-C
Source CKD Korea catalog CB-030SK-9, p. 1460-1464
RV3SV50-90-45-1 Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV50-90-45-1-FA Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV50-90-45-1-LS Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV50-90-45-2 Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV50-90-45-2-FA Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV50-90-45-2-LS Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV50-90-45-3 Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV50-90-45-3-FA Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV50-90-45-3-LS Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV50-180-45-1 Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV50-180-45-1-FA Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV50-180-45-1-LS Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV50-180-45-2 Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV50-180-45-2-FA Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV50-180-45-2-LS Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV50-180-45-3 Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV50-180-45-3-FA Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV50-180-45-3-LS Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV50-270-45-1 Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV50-270-45-1-FA Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV50-270-45-1-LS Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV50-270-45-2 Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV50-270-45-2-FA Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV50-270-45-2-LS Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV50-270-45-3 Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV50-270-45-3-FA Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV50-270-45-3-LS Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV50-280-40-1 Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV50-280-40-1-FA Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV50-280-40-1-LS Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV50-280-40-2 Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV50-280-40-2-FA Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV50-280-40-2-LS Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV50-280-40-3 Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV50-280-40-3-FA Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV50-280-40-3-LS Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV150-90-45-1 Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV150-90-45-1-FA Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV150-90-45-1-LS Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV150-90-45-2 Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV150-90-45-2-FA Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV150-90-45-2-LS Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV150-90-45-3 Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV150-90-45-3-FA Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV150-90-45-3-LS Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV150-180-45-1 Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV150-180-45-1-FA Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV150-180-45-1-LS Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV150-180-45-2 Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV150-180-45-2-FA Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV150-180-45-2-LS Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV150-180-45-3 Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV150-180-45-3-FA Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV150-180-45-3-LS Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV150-270-45-1 Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV150-270-45-1-FA Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV150-270-45-1-LS Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV150-270-45-2 Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV150-270-45-2-FA Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV150-270-45-2-LS Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV150-270-45-3 Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV150-270-45-3-FA Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV150-270-45-3-LS Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV150-280-40-1 Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV150-280-40-1-FA Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV150-280-40-1-LS Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV150-280-40-2 Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV150-280-40-2-FA Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV150-280-40-2-LS Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV150-280-40-3 Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV150-280-40-3-FA Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV150-280-40-3-LS Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV300-90-45-1 Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV300-90-45-1-LS Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV300-90-45-2 Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV300-90-45-2-LS Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV300-90-45-3 Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV300-90-45-3-LS Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV300-180-45-1 Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV300-180-45-1-LS Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV300-180-45-2 Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV300-180-45-2-LS Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV300-180-45-3 Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV300-180-45-3-LS Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV300-270-45-1 Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV300-270-45-1-LS Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV300-270-45-2 Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV300-270-45-2-LS Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV300-270-45-3 Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV300-270-45-3-LS Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV300-280-40-1 Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV300-280-40-1-LS Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV300-280-40-2 Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV300-280-40-2-LS Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV300-280-40-3 Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV300-280-40-3-LS Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SW50-90-45-1 Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW50-90-45-1-FA Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW50-90-45-1-LS Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW50-90-45-2 Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW50-90-45-2-FA Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW50-90-45-2-LS Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW50-90-45-3 Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW50-90-45-3-FA Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW50-90-45-3-LS Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW50-180-45-1 Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW50-180-45-1-FA Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW50-180-45-1-LS Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW50-180-45-2 Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW50-180-45-2-FA Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW50-180-45-2-LS Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW50-180-45-3 Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW50-180-45-3-FA Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW50-180-45-3-LS Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW50-270-45-1 Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW50-270-45-1-FA Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW50-270-45-1-LS Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW50-270-45-2 Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW50-270-45-2-FA Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW50-270-45-2-LS Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW50-270-45-3 Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW50-270-45-3-FA Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW50-270-45-3-LS Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW50-280-40-1 Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW50-280-40-1-FA Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW50-280-40-1-LS Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW50-280-40-2 Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW50-280-40-2-FA Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW50-280-40-2-LS Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW50-280-40-3 Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW50-280-40-3-FA Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW50-280-40-3-LS Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW150-90-45-1 Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW150-90-45-1-FA Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW150-90-45-1-LS Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW150-90-45-2 Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW150-90-45-2-FA Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW150-90-45-2-LS Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW150-90-45-3 Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW150-90-45-3-FA Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW150-90-45-3-LS Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW150-180-45-1 Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW150-180-45-1-FA Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW150-180-45-1-LS Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW150-180-45-2 Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW150-180-45-2-FA Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW150-180-45-2-LS Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW150-180-45-3 Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW150-180-45-3-FA Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW150-180-45-3-LS Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW150-270-45-1 Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW150-270-45-1-FA Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW150-270-45-1-LS Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW150-270-45-2 Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW150-270-45-2-FA Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW150-270-45-2-LS Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW150-270-45-3 Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW150-270-45-3-FA Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW150-270-45-3-LS Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW150-280-40-1 Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW150-280-40-1-FA Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW150-280-40-1-LS Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW150-280-40-2 Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW150-280-40-2-FA Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW150-280-40-2-LS Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW150-280-40-3 Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW150-280-40-3-FA Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW150-280-40-3-LS Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW300-90-45-1 Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW300-90-45-1-LS Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW300-90-45-2 Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW300-90-45-2-LS Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW300-90-45-3 Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW300-90-45-3-LS Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW300-180-45-1 Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW300-180-45-1-LS Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW300-180-45-2 Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW300-180-45-2-LS Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW300-180-45-3 Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW300-180-45-3-LS Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW300-270-45-1 Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW300-270-45-1-LS Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW300-270-45-2 Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW300-270-45-2-LS Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW300-270-45-3 Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW300-270-45-3-LS Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW300-280-40-1 Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW300-280-40-1-LS Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW300-280-40-2 Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW300-280-40-2-LS Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW300-280-40-3 Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW300-280-40-3-LS Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3DV50-90-45-1 Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3DV50-90-45-1-FA Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3DV50-90-45-1-LS Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3DV50-90-45-2 Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3DV50-90-45-2-FA Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3DV50-90-45-2-LS Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3DV50-90-45-3 Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3DV50-90-45-3-FA Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3DV50-90-45-3-LS Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3DV50-100-40-1 Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3DV50-100-40-1-FA Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3DV50-100-40-1-LS Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3DV50-100-40-2 Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3DV50-100-40-2-FA Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3DV50-100-40-2-LS Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3DV50-100-40-3 Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3DV50-100-40-3-FA Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3DV50-100-40-3-LS Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3DV150-90-45-1 Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3DV150-90-45-1-FA Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3DV150-90-45-1-LS Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3DV150-90-45-2 Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3DV150-90-45-2-FA Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3DV150-90-45-2-LS Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3DV150-90-45-3 Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3DV150-90-45-3-FA Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3DV150-90-45-3-LS Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3DV150-100-40-1 Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3DV150-100-40-1-FA Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3DV150-100-40-1-LS Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3DV150-100-40-2 Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3DV150-100-40-2-FA Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3DV150-100-40-2-LS Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3DV150-100-40-3 Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3DV150-100-40-3-FA Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3DV150-100-40-3-LS Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3DV300-90-45-1 Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3DV300-90-45-1-LS Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3DV300-90-45-2 Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3DV300-90-45-2-LS Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3DV300-90-45-3 Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3DV300-90-45-3-LS Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3DV300-100-40-1 Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3DV300-100-40-1-LS Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3DV300-100-40-2 Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3DV300-100-40-2-LS Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3DV300-100-40-3 Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3DV300-100-40-3-LS Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3DW50-90-45-1 Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3DW50-90-45-1-FA Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3DW50-90-45-1-LS Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3DW50-90-45-2 Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3DW50-90-45-2-FA Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3DW50-90-45-2-LS Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3DW50-90-45-3 Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3DW50-90-45-3-FA Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3DW50-90-45-3-LS Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3DW50-100-40-1 Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3DW50-100-40-1-FA Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3DW50-100-40-1-LS Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3DW50-100-40-2 Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3DW50-100-40-2-FA Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3DW50-100-40-2-LS Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3DW50-100-40-3 Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3DW50-100-40-3-FA Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3DW50-100-40-3-LS Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3DW150-90-45-1 Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3DW150-90-45-1-FA Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3DW150-90-45-1-LS Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3DW150-90-45-2 Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3DW150-90-45-2-FA Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3DW150-90-45-2-LS Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3DW150-90-45-3 Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3DW150-90-45-3-FA Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3DW150-90-45-3-LS Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3DW150-100-40-1 Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3DW150-100-40-1-FA Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3DW150-100-40-1-LS Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3DW150-100-40-2 Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3DW150-100-40-2-FA Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3DW150-100-40-2-LS Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3DW150-100-40-3 Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3DW150-100-40-3-FA Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3DW150-100-40-3-LS Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3DW300-90-45-1 Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3DW300-90-45-1-LS Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3DW300-90-45-2 Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3DW300-90-45-2-LS Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3DW300-90-45-3 Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3DW300-90-45-3-LS Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3DW300-100-40-1 Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3DW300-100-40-1-LS Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3DW300-100-40-2 Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3DW300-100-40-2-LS Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3DW300-100-40-3 Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3DW300-100-40-3-LS Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
Rotary ActuatorsCKD
288 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD RV3SV/RV3DW Large SELEX Rotary Actuator (Valve Mounted)

Brand CKD·Rotary Actuators

Available part numbers (288)

RV3SV50-90-45-1, RV3SV50-90-45-1-FA, RV3SV50-90-45-1-LS, RV3SV50-90-45-2, RV3SV50-90-45-2-FA, RV3SV50-90-45-2-LS, RV3SV50-90-45-3, RV3SV50-90-45-3-FA, RV3SV50-90-45-3-LS, RV3SV50-180-45-1 + 278 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RV3SV50-90-45-1Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV50-90-45-1-FAVane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV50-90-45-1-LSVane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV50-90-45-2Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV50-90-45-2-FAVane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV50-90-45-2-LSVane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV50-90-45-3Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV50-90-45-3-FAVane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV50-90-45-3-LSVane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV50-180-45-1Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV50-180-45-1-FAVane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV50-180-45-1-LSVane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV50-180-45-2Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV50-180-45-2-FAVane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV50-180-45-2-LSVane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV50-180-45-3Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV50-180-45-3-FAVane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV50-180-45-3-LSVane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV50-270-45-1Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV50-270-45-1-FAVane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV50-270-45-1-LSVane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV50-270-45-2Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV50-270-45-2-FAVane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV50-270-45-2-LSVane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV50-270-45-3Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV50-270-45-3-FAVane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV50-270-45-3-LSVane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV50-280-40-1Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV50-280-40-1-FAVane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV50-280-40-1-LSVane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV50-280-40-2Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV50-280-40-2-FAVane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV50-280-40-2-LSVane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV50-280-40-3Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV50-280-40-3-FAVane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV50-280-40-3-LSVane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV150-90-45-1Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV150-90-45-1-FAVane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV150-90-45-1-LSVane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV150-90-45-2Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV150-90-45-2-FAVane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV150-90-45-2-LSVane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV150-90-45-3Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV150-90-45-3-FAVane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV150-90-45-3-LSVane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV150-180-45-1Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV150-180-45-1-FAVane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV150-180-45-1-LSVane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV150-180-45-2Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV150-180-45-2-FAVane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV150-180-45-2-LSVane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV150-180-45-3Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV150-180-45-3-FAVane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV150-180-45-3-LSVane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV150-270-45-1Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV150-270-45-1-FAVane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV150-270-45-1-LSVane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV150-270-45-2Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV150-270-45-2-FAVane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV150-270-45-2-LSVane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV150-270-45-3Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV150-270-45-3-FAVane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV150-270-45-3-LSVane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV150-280-40-1Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV150-280-40-1-FAVane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3SV150-280-40-1-LSVane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV150-280-40-2Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV150-280-40-2-FAVane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3SV150-280-40-2-LSVane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV150-280-40-3Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV150-280-40-3-FAVane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3SV150-280-40-3-LSVane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV300-90-45-1Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV300-90-45-1-LSVane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV300-90-45-2Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV300-90-45-2-LSVane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV300-90-45-3Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV300-90-45-3-LSVane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV300-180-45-1Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV300-180-45-1-LSVane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV300-180-45-2Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV300-180-45-2-LSVane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV300-180-45-3Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV300-180-45-3-LSVane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV300-270-45-1Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV300-270-45-1-LSVane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV300-270-45-2Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV300-270-45-2-LSVane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV300-270-45-3Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV300-270-45-3-LSVane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SV300-280-40-1Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3SV300-280-40-1-LSVane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3SV300-280-40-2Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3SV300-280-40-2-LSVane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3SV300-280-40-3Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3SV300-280-40-3-LSVane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3SW50-90-45-1Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW50-90-45-1-FAVane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW50-90-45-1-LSVane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW50-90-45-2Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW50-90-45-2-FAVane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW50-90-45-2-LSVane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW50-90-45-3Vane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW50-90-45-3-FAVane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW50-90-45-3-LSVane: Single | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW50-180-45-1Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW50-180-45-1-FAVane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW50-180-45-1-LSVane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW50-180-45-2Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW50-180-45-2-FAVane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW50-180-45-2-LSVane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW50-180-45-3Vane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW50-180-45-3-FAVane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW50-180-45-3-LSVane: Single | Size: 50 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW50-270-45-1Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW50-270-45-1-FAVane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW50-270-45-1-LSVane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW50-270-45-2Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW50-270-45-2-FAVane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW50-270-45-2-LSVane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW50-270-45-3Vane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW50-270-45-3-FAVane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW50-270-45-3-LSVane: Single | Size: 50 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW50-280-40-1Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW50-280-40-1-FAVane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW50-280-40-1-LSVane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW50-280-40-2Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW50-280-40-2-FAVane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW50-280-40-2-LSVane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW50-280-40-3Vane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW50-280-40-3-FAVane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW50-280-40-3-LSVane: Single | Size: 50 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW150-90-45-1Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW150-90-45-1-FAVane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW150-90-45-1-LSVane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW150-90-45-2Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW150-90-45-2-FAVane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW150-90-45-2-LSVane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW150-90-45-3Vane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW150-90-45-3-FAVane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW150-90-45-3-LSVane: Single | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW150-180-45-1Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW150-180-45-1-FAVane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW150-180-45-1-LSVane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW150-180-45-2Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW150-180-45-2-FAVane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW150-180-45-2-LSVane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW150-180-45-3Vane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW150-180-45-3-FAVane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW150-180-45-3-LSVane: Single | Size: 150 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW150-270-45-1Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW150-270-45-1-FAVane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW150-270-45-1-LSVane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW150-270-45-2Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW150-270-45-2-FAVane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW150-270-45-2-LSVane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW150-270-45-3Vane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW150-270-45-3-FAVane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW150-270-45-3-LSVane: Single | Size: 150 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW150-280-40-1Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW150-280-40-1-FAVane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3SW150-280-40-1-LSVane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW150-280-40-2Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW150-280-40-2-FAVane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3SW150-280-40-2-LSVane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW150-280-40-3Vane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW150-280-40-3-FAVane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3SW150-280-40-3-LSVane: Single | Size: 150 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW300-90-45-1Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW300-90-45-1-LSVane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW300-90-45-2Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW300-90-45-2-LSVane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW300-90-45-3Vane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW300-90-45-3-LSVane: Single | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW300-180-45-1Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW300-180-45-1-LSVane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW300-180-45-2Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW300-180-45-2-LSVane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW300-180-45-3Vane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW300-180-45-3-LSVane: Single | Size: 300 | Rotation: 180 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW300-270-45-1Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW300-270-45-1-LSVane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW300-270-45-2Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW300-270-45-2-LSVane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW300-270-45-3Vane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW300-270-45-3-LSVane: Single | Size: 300 | Rotation: 270 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3SW300-280-40-1Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3SW300-280-40-1-LSVane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3SW300-280-40-2Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3SW300-280-40-2-LSVane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3SW300-280-40-3Vane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3SW300-280-40-3-LSVane: Single | Size: 300 | Rotation: 280 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3DV50-90-45-1Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3DV50-90-45-1-FAVane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3DV50-90-45-1-LSVane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3DV50-90-45-2Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3DV50-90-45-2-FAVane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3DV50-90-45-2-LSVane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3DV50-90-45-3Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3DV50-90-45-3-FAVane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3DV50-90-45-3-LSVane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3DV50-100-40-1Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3DV50-100-40-1-FAVane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3DV50-100-40-1-LSVane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3DV50-100-40-2Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3DV50-100-40-2-FAVane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3DV50-100-40-2-LSVane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3DV50-100-40-3Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3DV50-100-40-3-FAVane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3DV50-100-40-3-LSVane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3DV150-90-45-1Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3DV150-90-45-1-FAVane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3DV150-90-45-1-LSVane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3DV150-90-45-2Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3DV150-90-45-2-FAVane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3DV150-90-45-2-LSVane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3DV150-90-45-3Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3DV150-90-45-3-FAVane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3DV150-90-45-3-LSVane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3DV150-100-40-1Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3DV150-100-40-1-FAVane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Flange (FA)
RV3DV150-100-40-1-LSVane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3DV150-100-40-2Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3DV150-100-40-2-FAVane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Flange (FA)
RV3DV150-100-40-2-LSVane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3DV150-100-40-3Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3DV150-100-40-3-FAVane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Flange (FA)
RV3DV150-100-40-3-LSVane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3DV300-90-45-1Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3DV300-90-45-1-LSVane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3DV300-90-45-2Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3DV300-90-45-2-LSVane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3DV300-90-45-3Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3DV300-90-45-3-LSVane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3DV300-100-40-1Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: None
RV3DV300-100-40-1-LSVane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC100V | Mounting: Foot (LS)
RV3DV300-100-40-2Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: None
RV3DV300-100-40-2-LSVane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: AC200V | Mounting: Foot (LS)
RV3DV300-100-40-3Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: None
RV3DV300-100-40-3-LSVane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Single | Voltage: DC24V | Mounting: Foot (LS)
RV3DW50-90-45-1Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3DW50-90-45-1-FAVane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3DW50-90-45-1-LSVane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3DW50-90-45-2Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3DW50-90-45-2-FAVane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3DW50-90-45-2-LSVane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3DW50-90-45-3Vane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3DW50-90-45-3-FAVane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3DW50-90-45-3-LSVane: Double | Size: 50 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3DW50-100-40-1Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3DW50-100-40-1-FAVane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3DW50-100-40-1-LSVane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3DW50-100-40-2Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3DW50-100-40-2-FAVane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3DW50-100-40-2-LSVane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3DW50-100-40-3Vane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3DW50-100-40-3-FAVane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3DW50-100-40-3-LSVane: Double | Size: 50 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3DW150-90-45-1Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3DW150-90-45-1-FAVane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3DW150-90-45-1-LSVane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3DW150-90-45-2Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3DW150-90-45-2-FAVane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3DW150-90-45-2-LSVane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3DW150-90-45-3Vane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3DW150-90-45-3-FAVane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3DW150-90-45-3-LSVane: Double | Size: 150 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3DW150-100-40-1Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3DW150-100-40-1-FAVane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Flange (FA)
RV3DW150-100-40-1-LSVane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3DW150-100-40-2Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3DW150-100-40-2-FAVane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Flange (FA)
RV3DW150-100-40-2-LSVane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3DW150-100-40-3Vane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3DW150-100-40-3-FAVane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Flange (FA)
RV3DW150-100-40-3-LSVane: Double | Size: 150 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3DW300-90-45-1Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3DW300-90-45-1-LSVane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3DW300-90-45-2Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3DW300-90-45-2-LSVane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3DW300-90-45-3Vane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3DW300-90-45-3-LSVane: Double | Size: 300 | Rotation: 90 deg (origin 45 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)
RV3DW300-100-40-1Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: None
RV3DW300-100-40-1-LSVane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC100V | Mounting: Foot (LS)
RV3DW300-100-40-2Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: None
RV3DW300-100-40-2-LSVane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: AC200V | Mounting: Foot (LS)
RV3DW300-100-40-3Vane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: None
RV3DW300-100-40-3-LSVane: Double | Size: 300 | Rotation: 100 deg (origin 40 deg) | Solenoid: Double | Voltage: DC24V | Mounting: Foot (LS)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
