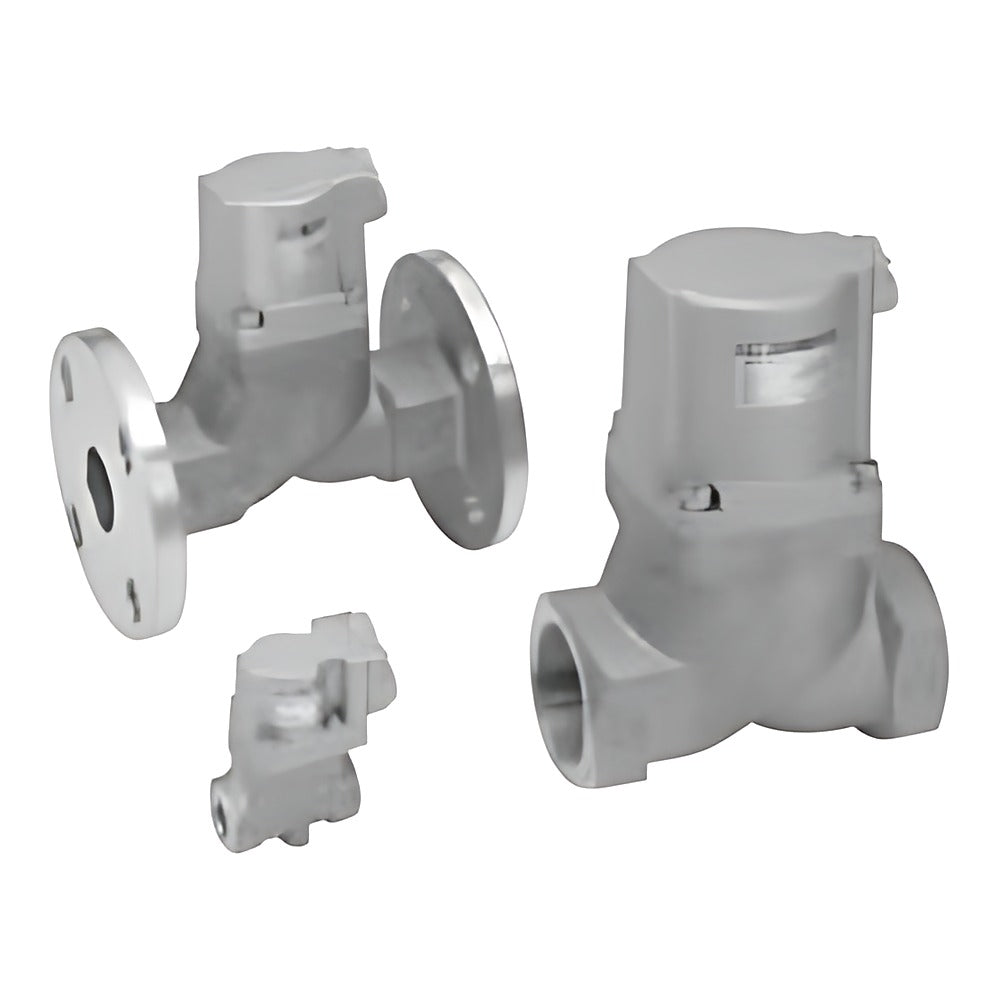

CKD SAB-A-FP1 Air Operated 2-Port Cylinder Valve for Air (Food Proc.)

CKD SAB-A-FP1 Air Operated 2-Port Cylinder Valve for Air (Food Proc.)

CKD SAB-A-FP1 air-operated 2-port cylinder valve for air and gas lines, NC, NO and double-acting versions with NSF H1 grease.

Key features

  • NC (SAB1A), NO (SAB2A) and double-acting (SAB3A) operation
  • Rc1/4 to Rc2 threaded and 32 to 50 flange ports
  • Bronze or stainless steel body with FKM seals
  • Options: mounting plate (B, ports 8-32 female thread) and reversed plate position (R, ports 15-32)
  • FP1 food-processing spec: NSF H1 registered grease, for use in food production areas

Specifications

Fluid Air
Operating pressure 0-0.9 MPa (NC), 0-1 MPa (NO, double)
Proof pressure 2.0 MPa (hydraulic)
Fluid temperature -10 to 90 C (no freezing)
Pilot pressure 0.35 to 0.7 MPa
Pilot port Rc1/8
Seal FKM
Mounting Any
Source CKD Korea catalog CC-1271K-5, p. 344-345
SAB1A-8A-B-FP1 Action: NC (normally closed) | Port: Rc1/4 | Body: Bronze
SAB1A-8A-E-FP1 Action: NC (normally closed) | Port: Rc1/4 | Body: Stainless steel
SAB1A-10A-B-FP1 Action: NC (normally closed) | Port: Rc3/8 | Body: Bronze
SAB1A-10A-E-FP1 Action: NC (normally closed) | Port: Rc3/8 | Body: Stainless steel
SAB1A-15A-B-FP1 Action: NC (normally closed) | Port: Rc1/2 | Body: Bronze
SAB1A-15A-E-FP1 Action: NC (normally closed) | Port: Rc1/2 | Body: Stainless steel
SAB1A-20A-B-FP1 Action: NC (normally closed) | Port: Rc3/4 | Body: Bronze
SAB1A-20A-E-FP1 Action: NC (normally closed) | Port: Rc3/4 | Body: Stainless steel
SAB1A-25A-B-FP1 Action: NC (normally closed) | Port: Rc1 | Body: Bronze
SAB1A-25A-E-FP1 Action: NC (normally closed) | Port: Rc1 | Body: Stainless steel
SAB1A-32A-B-FP1 Action: NC (normally closed) | Port: Rc1-1/4 | Body: Bronze
SAB1A-32A-E-FP1 Action: NC (normally closed) | Port: Rc1-1/4 | Body: Stainless steel
SAB1A-32F-B-FP1 Action: NC (normally closed) | Port: 32 flange | Body: Bronze
SAB1A-32F-E-FP1 Action: NC (normally closed) | Port: 32 flange | Body: Stainless steel
SAB1A-40A-B-FP1 Action: NC (normally closed) | Port: Rc1-1/2 | Body: Bronze
SAB1A-40A-E-FP1 Action: NC (normally closed) | Port: Rc1-1/2 | Body: Stainless steel
SAB1A-40F-B-FP1 Action: NC (normally closed) | Port: 40 flange | Body: Bronze
SAB1A-40F-E-FP1 Action: NC (normally closed) | Port: 40 flange | Body: Stainless steel
SAB1A-50A-B-FP1 Action: NC (normally closed) | Port: Rc2 | Body: Bronze
SAB1A-50A-E-FP1 Action: NC (normally closed) | Port: Rc2 | Body: Stainless steel
SAB1A-50F-B-FP1 Action: NC (normally closed) | Port: 50 flange | Body: Bronze
SAB1A-50F-E-FP1 Action: NC (normally closed) | Port: 50 flange | Body: Stainless steel
SAB2A-8A-B-FP1 Action: NO (normally open) | Port: Rc1/4 | Body: Bronze
SAB2A-8A-E-FP1 Action: NO (normally open) | Port: Rc1/4 | Body: Stainless steel
SAB2A-10A-B-FP1 Action: NO (normally open) | Port: Rc3/8 | Body: Bronze
SAB2A-10A-E-FP1 Action: NO (normally open) | Port: Rc3/8 | Body: Stainless steel
SAB2A-15A-B-FP1 Action: NO (normally open) | Port: Rc1/2 | Body: Bronze
SAB2A-15A-E-FP1 Action: NO (normally open) | Port: Rc1/2 | Body: Stainless steel
SAB2A-20A-B-FP1 Action: NO (normally open) | Port: Rc3/4 | Body: Bronze
SAB2A-20A-E-FP1 Action: NO (normally open) | Port: Rc3/4 | Body: Stainless steel
SAB2A-25A-B-FP1 Action: NO (normally open) | Port: Rc1 | Body: Bronze
SAB2A-25A-E-FP1 Action: NO (normally open) | Port: Rc1 | Body: Stainless steel
SAB2A-32A-B-FP1 Action: NO (normally open) | Port: Rc1-1/4 | Body: Bronze
SAB2A-32A-E-FP1 Action: NO (normally open) | Port: Rc1-1/4 | Body: Stainless steel
SAB2A-32F-B-FP1 Action: NO (normally open) | Port: 32 flange | Body: Bronze
SAB2A-32F-E-FP1 Action: NO (normally open) | Port: 32 flange | Body: Stainless steel
SAB2A-40A-B-FP1 Action: NO (normally open) | Port: Rc1-1/2 | Body: Bronze
SAB2A-40A-E-FP1 Action: NO (normally open) | Port: Rc1-1/2 | Body: Stainless steel
SAB2A-40F-B-FP1 Action: NO (normally open) | Port: 40 flange | Body: Bronze
SAB2A-40F-E-FP1 Action: NO (normally open) | Port: 40 flange | Body: Stainless steel
SAB2A-50A-B-FP1 Action: NO (normally open) | Port: Rc2 | Body: Bronze
SAB2A-50A-E-FP1 Action: NO (normally open) | Port: Rc2 | Body: Stainless steel
SAB2A-50F-B-FP1 Action: NO (normally open) | Port: 50 flange | Body: Bronze
SAB2A-50F-E-FP1 Action: NO (normally open) | Port: 50 flange | Body: Stainless steel
SAB3A-8A-B-FP1 Action: Double acting | Port: Rc1/4 | Body: Bronze
SAB3A-8A-E-FP1 Action: Double acting | Port: Rc1/4 | Body: Stainless steel
SAB3A-10A-B-FP1 Action: Double acting | Port: Rc3/8 | Body: Bronze
SAB3A-10A-E-FP1 Action: Double acting | Port: Rc3/8 | Body: Stainless steel
SAB3A-15A-B-FP1 Action: Double acting | Port: Rc1/2 | Body: Bronze
SAB3A-15A-E-FP1 Action: Double acting | Port: Rc1/2 | Body: Stainless steel
SAB3A-20A-B-FP1 Action: Double acting | Port: Rc3/4 | Body: Bronze
SAB3A-20A-E-FP1 Action: Double acting | Port: Rc3/4 | Body: Stainless steel
SAB3A-25A-B-FP1 Action: Double acting | Port: Rc1 | Body: Bronze
SAB3A-25A-E-FP1 Action: Double acting | Port: Rc1 | Body: Stainless steel
SAB3A-32A-B-FP1 Action: Double acting | Port: Rc1-1/4 | Body: Bronze
SAB3A-32A-E-FP1 Action: Double acting | Port: Rc1-1/4 | Body: Stainless steel
SAB3A-32F-B-FP1 Action: Double acting | Port: 32 flange | Body: Bronze
SAB3A-32F-E-FP1 Action: Double acting | Port: 32 flange | Body: Stainless steel
SAB3A-40A-B-FP1 Action: Double acting | Port: Rc1-1/2 | Body: Bronze
SAB3A-40A-E-FP1 Action: Double acting | Port: Rc1-1/2 | Body: Stainless steel
SAB3A-40F-B-FP1 Action: Double acting | Port: 40 flange | Body: Bronze
SAB3A-40F-E-FP1 Action: Double acting | Port: 40 flange | Body: Stainless steel
SAB3A-50A-B-FP1 Action: Double acting | Port: Rc2 | Body: Bronze
SAB3A-50A-E-FP1 Action: Double acting | Port: Rc2 | Body: Stainless steel
SAB3A-50F-B-FP1 Action: Double acting | Port: 50 flange | Body: Bronze
SAB3A-50F-E-FP1 Action: Double acting | Port: 50 flange | Body: Stainless steel
2-Port ValvesCKD
66 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SAB-A-FP1 Air Operated 2-Port Cylinder Valve for Air (Food Proc.)

Brand CKD·2-Port Valves

Available part numbers (66)

SAB1A-8A-B-FP1, SAB1A-8A-E-FP1, SAB1A-10A-B-FP1, SAB1A-10A-E-FP1, SAB1A-15A-B-FP1, SAB1A-15A-E-FP1, SAB1A-20A-B-FP1, SAB1A-20A-E-FP1, SAB1A-25A-B-FP1, SAB1A-25A-E-FP1 + 56 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
