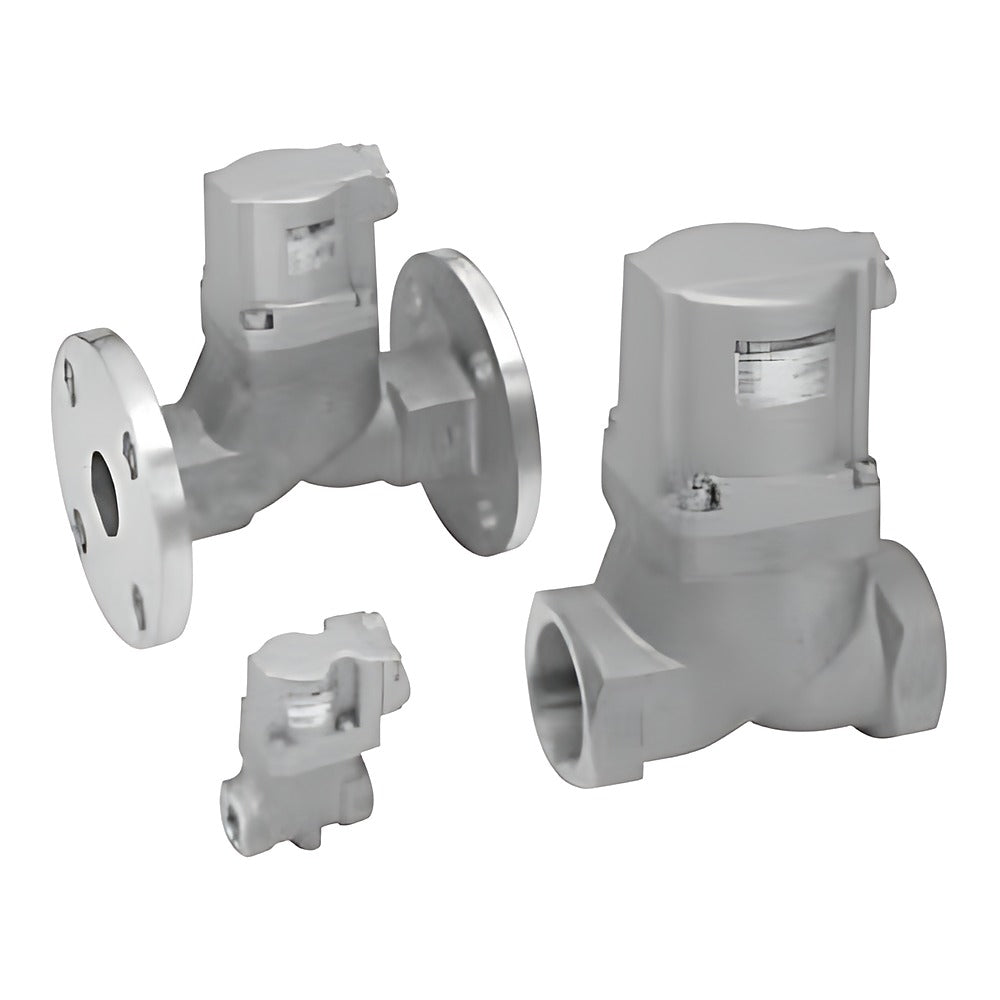

CKD SAB*V Air Operated 2-Port Valve (Cylinder Valve, Low Vacuum)

CKD SAB1V/SAB2V/SAB3V air-operated 2-port cylinder valves for low vacuum, Rc1/4 to Rc2 and 32-50 flange.

Key features

Normally closed (1), normally open (2) or double acting (3) air-operated cylinder valve
Female thread Rc / G / NPT 1/4 to 2, or JIS 10K flange 32 to 50
Options (not multiplied): mounting plate B (8-32 female thread), reversed plate R
Pilot port Rc1/8; pilot pressure NC 0.35-0.7 MPa (8-25), 0.25-0.7 MPa (32-50)

Specifications

Fluid	Low vacuum (air, water)
Working pressure	1.3x10^2 to 7x10^5 Pa(abs) (by type)
Proof pressure	2.0 MPa (water)
Fluid temperature	-10 to 60 C (FKM -10 to 90 C)
Ambient temperature	-10 to 60 C
Seat leakage	1.33x10^-3 Pa*m3/s (He) or less
Pilot fluid	Air
Source	CKD Korea catalog CB-03-1SK-9, p. 584-587

SAB1V-8A-0		Action: NC \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB1V-8A-B		Action: NC \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB1V-8A-P		Action: NC \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB1V-8A-D		Action: NC \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB1V-8A-E		Action: NC \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB1V-8A-R		Action: NC \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB1V-8G-0		Action: NC \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / NBR
SAB1V-8G-B		Action: NC \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / FKM
SAB1V-8G-P		Action: NC \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB1V-8G-D		Action: NC \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / NBR
SAB1V-8G-E		Action: NC \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / FKM
SAB1V-8G-R		Action: NC \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB1V-8N-0		Action: NC \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB1V-8N-B		Action: NC \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB1V-8N-P		Action: NC \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB1V-8N-D		Action: NC \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB1V-8N-E		Action: NC \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB1V-8N-R		Action: NC \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB1V-10A-0		Action: NC \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB1V-10A-B		Action: NC \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB1V-10A-P		Action: NC \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB1V-10A-D		Action: NC \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB1V-10A-E		Action: NC \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB1V-10A-R		Action: NC \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB1V-10G-0		Action: NC \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / NBR
SAB1V-10G-B		Action: NC \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / FKM
SAB1V-10G-P		Action: NC \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB1V-10G-D		Action: NC \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / NBR
SAB1V-10G-E		Action: NC \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / FKM
SAB1V-10G-R		Action: NC \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB1V-10N-0		Action: NC \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB1V-10N-B		Action: NC \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB1V-10N-P		Action: NC \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB1V-10N-D		Action: NC \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB1V-10N-E		Action: NC \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB1V-10N-R		Action: NC \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB1V-15A-0		Action: NC \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB1V-15A-B		Action: NC \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB1V-15A-P		Action: NC \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB1V-15A-D		Action: NC \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB1V-15A-E		Action: NC \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB1V-15A-R		Action: NC \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB1V-15G-0		Action: NC \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / NBR
SAB1V-15G-B		Action: NC \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / FKM
SAB1V-15G-P		Action: NC \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB1V-15G-D		Action: NC \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / NBR
SAB1V-15G-E		Action: NC \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / FKM
SAB1V-15G-R		Action: NC \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB1V-15N-0		Action: NC \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB1V-15N-B		Action: NC \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB1V-15N-P		Action: NC \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB1V-15N-D		Action: NC \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB1V-15N-E		Action: NC \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB1V-15N-R		Action: NC \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB1V-20A-0		Action: NC \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB1V-20A-B		Action: NC \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB1V-20A-P		Action: NC \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB1V-20A-D		Action: NC \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB1V-20A-E		Action: NC \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB1V-20A-R		Action: NC \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB1V-20G-0		Action: NC \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / NBR
SAB1V-20G-B		Action: NC \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / FKM
SAB1V-20G-P		Action: NC \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB1V-20G-D		Action: NC \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / NBR
SAB1V-20G-E		Action: NC \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / FKM
SAB1V-20G-R		Action: NC \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB1V-20N-0		Action: NC \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB1V-20N-B		Action: NC \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB1V-20N-P		Action: NC \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB1V-20N-D		Action: NC \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB1V-20N-E		Action: NC \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB1V-20N-R		Action: NC \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB1V-25A-0		Action: NC \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB1V-25A-B		Action: NC \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB1V-25A-P		Action: NC \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB1V-25A-D		Action: NC \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB1V-25A-E		Action: NC \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB1V-25A-R		Action: NC \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB1V-25G-0		Action: NC \| Size: 1 \| Thread: G \| Body/Seal: Bronze / NBR
SAB1V-25G-B		Action: NC \| Size: 1 \| Thread: G \| Body/Seal: Bronze / FKM
SAB1V-25G-P		Action: NC \| Size: 1 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB1V-25G-D		Action: NC \| Size: 1 \| Thread: G \| Body/Seal: Stainless / NBR
SAB1V-25G-E		Action: NC \| Size: 1 \| Thread: G \| Body/Seal: Stainless / FKM
SAB1V-25G-R		Action: NC \| Size: 1 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB1V-25N-0		Action: NC \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB1V-25N-B		Action: NC \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB1V-25N-P		Action: NC \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB1V-25N-D		Action: NC \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB1V-25N-E		Action: NC \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB1V-25N-R		Action: NC \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB1V-32A-0		Action: NC \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB1V-32A-B		Action: NC \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB1V-32A-P		Action: NC \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB1V-32A-D		Action: NC \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB1V-32A-E		Action: NC \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB1V-32A-R		Action: NC \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB1V-32G-0		Action: NC \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / NBR
SAB1V-32G-B		Action: NC \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / FKM
SAB1V-32G-P		Action: NC \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB1V-32G-D		Action: NC \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / NBR
SAB1V-32G-E		Action: NC \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / FKM
SAB1V-32G-R		Action: NC \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB1V-32N-0		Action: NC \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB1V-32N-B		Action: NC \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB1V-32N-P		Action: NC \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB1V-32N-D		Action: NC \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB1V-32N-E		Action: NC \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB1V-32N-R		Action: NC \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB1V-32F-0		Action: NC \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
SAB1V-32F-B		Action: NC \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
SAB1V-32F-P		Action: NC \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
SAB1V-32F-D		Action: NC \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
SAB1V-32F-E		Action: NC \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
SAB1V-32F-R		Action: NC \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
SAB1V-40A-0		Action: NC \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB1V-40A-B		Action: NC \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB1V-40A-P		Action: NC \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB1V-40A-D		Action: NC \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB1V-40A-E		Action: NC \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB1V-40A-R		Action: NC \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB1V-40G-0		Action: NC \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / NBR
SAB1V-40G-B		Action: NC \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / FKM
SAB1V-40G-P		Action: NC \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB1V-40G-D		Action: NC \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / NBR
SAB1V-40G-E		Action: NC \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / FKM
SAB1V-40G-R		Action: NC \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB1V-40N-0		Action: NC \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB1V-40N-B		Action: NC \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB1V-40N-P		Action: NC \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB1V-40N-D		Action: NC \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB1V-40N-E		Action: NC \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB1V-40N-R		Action: NC \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB1V-40F-0		Action: NC \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
SAB1V-40F-B		Action: NC \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
SAB1V-40F-P		Action: NC \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
SAB1V-40F-D		Action: NC \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
SAB1V-40F-E		Action: NC \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
SAB1V-40F-R		Action: NC \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
SAB1V-50A-0		Action: NC \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB1V-50A-B		Action: NC \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB1V-50A-P		Action: NC \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB1V-50A-D		Action: NC \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB1V-50A-E		Action: NC \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB1V-50A-R		Action: NC \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB1V-50G-0		Action: NC \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / NBR
SAB1V-50G-B		Action: NC \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / FKM
SAB1V-50G-P		Action: NC \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB1V-50G-D		Action: NC \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / NBR
SAB1V-50G-E		Action: NC \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / FKM
SAB1V-50G-R		Action: NC \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB1V-50N-0		Action: NC \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB1V-50N-B		Action: NC \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB1V-50N-P		Action: NC \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB1V-50N-D		Action: NC \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB1V-50N-E		Action: NC \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB1V-50N-R		Action: NC \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB1V-50F-0		Action: NC \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
SAB1V-50F-B		Action: NC \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
SAB1V-50F-P		Action: NC \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
SAB1V-50F-D		Action: NC \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
SAB1V-50F-E		Action: NC \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
SAB1V-50F-R		Action: NC \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
SAB2V-8A-0		Action: NO \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB2V-8A-B		Action: NO \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB2V-8A-P		Action: NO \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB2V-8A-D		Action: NO \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB2V-8A-E		Action: NO \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB2V-8A-R		Action: NO \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB2V-8G-0		Action: NO \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / NBR
SAB2V-8G-B		Action: NO \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / FKM
SAB2V-8G-P		Action: NO \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB2V-8G-D		Action: NO \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / NBR
SAB2V-8G-E		Action: NO \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / FKM
SAB2V-8G-R		Action: NO \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB2V-8N-0		Action: NO \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB2V-8N-B		Action: NO \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB2V-8N-P		Action: NO \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB2V-8N-D		Action: NO \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB2V-8N-E		Action: NO \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB2V-8N-R		Action: NO \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB2V-10A-0		Action: NO \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB2V-10A-B		Action: NO \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB2V-10A-P		Action: NO \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB2V-10A-D		Action: NO \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB2V-10A-E		Action: NO \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB2V-10A-R		Action: NO \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB2V-10G-0		Action: NO \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / NBR
SAB2V-10G-B		Action: NO \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / FKM
SAB2V-10G-P		Action: NO \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB2V-10G-D		Action: NO \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / NBR
SAB2V-10G-E		Action: NO \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / FKM
SAB2V-10G-R		Action: NO \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB2V-10N-0		Action: NO \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB2V-10N-B		Action: NO \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB2V-10N-P		Action: NO \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB2V-10N-D		Action: NO \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB2V-10N-E		Action: NO \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB2V-10N-R		Action: NO \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB2V-15A-0		Action: NO \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB2V-15A-B		Action: NO \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB2V-15A-P		Action: NO \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB2V-15A-D		Action: NO \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB2V-15A-E		Action: NO \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB2V-15A-R		Action: NO \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB2V-15G-0		Action: NO \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / NBR
SAB2V-15G-B		Action: NO \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / FKM
SAB2V-15G-P		Action: NO \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB2V-15G-D		Action: NO \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / NBR
SAB2V-15G-E		Action: NO \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / FKM
SAB2V-15G-R		Action: NO \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB2V-15N-0		Action: NO \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB2V-15N-B		Action: NO \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB2V-15N-P		Action: NO \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB2V-15N-D		Action: NO \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB2V-15N-E		Action: NO \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB2V-15N-R		Action: NO \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB2V-20A-0		Action: NO \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB2V-20A-B		Action: NO \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB2V-20A-P		Action: NO \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB2V-20A-D		Action: NO \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB2V-20A-E		Action: NO \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB2V-20A-R		Action: NO \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB2V-20G-0		Action: NO \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / NBR
SAB2V-20G-B		Action: NO \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / FKM
SAB2V-20G-P		Action: NO \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB2V-20G-D		Action: NO \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / NBR
SAB2V-20G-E		Action: NO \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / FKM
SAB2V-20G-R		Action: NO \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB2V-20N-0		Action: NO \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB2V-20N-B		Action: NO \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB2V-20N-P		Action: NO \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB2V-20N-D		Action: NO \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB2V-20N-E		Action: NO \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB2V-20N-R		Action: NO \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB2V-25A-0		Action: NO \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB2V-25A-B		Action: NO \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB2V-25A-P		Action: NO \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB2V-25A-D		Action: NO \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB2V-25A-E		Action: NO \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB2V-25A-R		Action: NO \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB2V-25G-0		Action: NO \| Size: 1 \| Thread: G \| Body/Seal: Bronze / NBR
SAB2V-25G-B		Action: NO \| Size: 1 \| Thread: G \| Body/Seal: Bronze / FKM
SAB2V-25G-P		Action: NO \| Size: 1 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB2V-25G-D		Action: NO \| Size: 1 \| Thread: G \| Body/Seal: Stainless / NBR
SAB2V-25G-E		Action: NO \| Size: 1 \| Thread: G \| Body/Seal: Stainless / FKM
SAB2V-25G-R		Action: NO \| Size: 1 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB2V-25N-0		Action: NO \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB2V-25N-B		Action: NO \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB2V-25N-P		Action: NO \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB2V-25N-D		Action: NO \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB2V-25N-E		Action: NO \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB2V-25N-R		Action: NO \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB2V-32A-0		Action: NO \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB2V-32A-B		Action: NO \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB2V-32A-P		Action: NO \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB2V-32A-D		Action: NO \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB2V-32A-E		Action: NO \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB2V-32A-R		Action: NO \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB2V-32G-0		Action: NO \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / NBR
SAB2V-32G-B		Action: NO \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / FKM
SAB2V-32G-P		Action: NO \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB2V-32G-D		Action: NO \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / NBR
SAB2V-32G-E		Action: NO \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / FKM
SAB2V-32G-R		Action: NO \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB2V-32N-0		Action: NO \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB2V-32N-B		Action: NO \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB2V-32N-P		Action: NO \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB2V-32N-D		Action: NO \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB2V-32N-E		Action: NO \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB2V-32N-R		Action: NO \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB2V-32F-0		Action: NO \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
SAB2V-32F-B		Action: NO \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
SAB2V-32F-P		Action: NO \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
SAB2V-32F-D		Action: NO \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
SAB2V-32F-E		Action: NO \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
SAB2V-32F-R		Action: NO \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
SAB2V-40A-0		Action: NO \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB2V-40A-B		Action: NO \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB2V-40A-P		Action: NO \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB2V-40A-D		Action: NO \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB2V-40A-E		Action: NO \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB2V-40A-R		Action: NO \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB2V-40G-0		Action: NO \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / NBR
SAB2V-40G-B		Action: NO \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / FKM
SAB2V-40G-P		Action: NO \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB2V-40G-D		Action: NO \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / NBR
SAB2V-40G-E		Action: NO \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / FKM
SAB2V-40G-R		Action: NO \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB2V-40N-0		Action: NO \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB2V-40N-B		Action: NO \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB2V-40N-P		Action: NO \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB2V-40N-D		Action: NO \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB2V-40N-E		Action: NO \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB2V-40N-R		Action: NO \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB2V-40F-0		Action: NO \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
SAB2V-40F-B		Action: NO \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
SAB2V-40F-P		Action: NO \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
SAB2V-40F-D		Action: NO \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
SAB2V-40F-E		Action: NO \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
SAB2V-40F-R		Action: NO \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
SAB2V-50A-0		Action: NO \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB2V-50A-B		Action: NO \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB2V-50A-P		Action: NO \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB2V-50A-D		Action: NO \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB2V-50A-E		Action: NO \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB2V-50A-R		Action: NO \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB2V-50G-0		Action: NO \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / NBR
SAB2V-50G-B		Action: NO \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / FKM
SAB2V-50G-P		Action: NO \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB2V-50G-D		Action: NO \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / NBR
SAB2V-50G-E		Action: NO \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / FKM
SAB2V-50G-R		Action: NO \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB2V-50N-0		Action: NO \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB2V-50N-B		Action: NO \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB2V-50N-P		Action: NO \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB2V-50N-D		Action: NO \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB2V-50N-E		Action: NO \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB2V-50N-R		Action: NO \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB2V-50F-0		Action: NO \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
SAB2V-50F-B		Action: NO \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
SAB2V-50F-P		Action: NO \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
SAB2V-50F-D		Action: NO \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
SAB2V-50F-E		Action: NO \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
SAB2V-50F-R		Action: NO \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
SAB3V-8A-0		Action: Double acting \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB3V-8A-B		Action: Double acting \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB3V-8A-P		Action: Double acting \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB3V-8A-D		Action: Double acting \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB3V-8A-E		Action: Double acting \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB3V-8A-R		Action: Double acting \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB3V-8G-0		Action: Double acting \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / NBR
SAB3V-8G-B		Action: Double acting \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / FKM
SAB3V-8G-P		Action: Double acting \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB3V-8G-D		Action: Double acting \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / NBR
SAB3V-8G-E		Action: Double acting \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / FKM
SAB3V-8G-R		Action: Double acting \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB3V-8N-0		Action: Double acting \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB3V-8N-B		Action: Double acting \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB3V-8N-P		Action: Double acting \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB3V-8N-D		Action: Double acting \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB3V-8N-E		Action: Double acting \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB3V-8N-R		Action: Double acting \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB3V-10A-0		Action: Double acting \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB3V-10A-B		Action: Double acting \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB3V-10A-P		Action: Double acting \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB3V-10A-D		Action: Double acting \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB3V-10A-E		Action: Double acting \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB3V-10A-R		Action: Double acting \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB3V-10G-0		Action: Double acting \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / NBR
SAB3V-10G-B		Action: Double acting \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / FKM
SAB3V-10G-P		Action: Double acting \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB3V-10G-D		Action: Double acting \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / NBR
SAB3V-10G-E		Action: Double acting \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / FKM
SAB3V-10G-R		Action: Double acting \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB3V-10N-0		Action: Double acting \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB3V-10N-B		Action: Double acting \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB3V-10N-P		Action: Double acting \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB3V-10N-D		Action: Double acting \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB3V-10N-E		Action: Double acting \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB3V-10N-R		Action: Double acting \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB3V-15A-0		Action: Double acting \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB3V-15A-B		Action: Double acting \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB3V-15A-P		Action: Double acting \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB3V-15A-D		Action: Double acting \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB3V-15A-E		Action: Double acting \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB3V-15A-R		Action: Double acting \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB3V-15G-0		Action: Double acting \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / NBR
SAB3V-15G-B		Action: Double acting \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / FKM
SAB3V-15G-P		Action: Double acting \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB3V-15G-D		Action: Double acting \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / NBR
SAB3V-15G-E		Action: Double acting \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / FKM
SAB3V-15G-R		Action: Double acting \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB3V-15N-0		Action: Double acting \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB3V-15N-B		Action: Double acting \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB3V-15N-P		Action: Double acting \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB3V-15N-D		Action: Double acting \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB3V-15N-E		Action: Double acting \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB3V-15N-R		Action: Double acting \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB3V-20A-0		Action: Double acting \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB3V-20A-B		Action: Double acting \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB3V-20A-P		Action: Double acting \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB3V-20A-D		Action: Double acting \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB3V-20A-E		Action: Double acting \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB3V-20A-R		Action: Double acting \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB3V-20G-0		Action: Double acting \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / NBR
SAB3V-20G-B		Action: Double acting \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / FKM
SAB3V-20G-P		Action: Double acting \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB3V-20G-D		Action: Double acting \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / NBR
SAB3V-20G-E		Action: Double acting \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / FKM
SAB3V-20G-R		Action: Double acting \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB3V-20N-0		Action: Double acting \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB3V-20N-B		Action: Double acting \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB3V-20N-P		Action: Double acting \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB3V-20N-D		Action: Double acting \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB3V-20N-E		Action: Double acting \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB3V-20N-R		Action: Double acting \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB3V-25A-0		Action: Double acting \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB3V-25A-B		Action: Double acting \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB3V-25A-P		Action: Double acting \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB3V-25A-D		Action: Double acting \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB3V-25A-E		Action: Double acting \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB3V-25A-R		Action: Double acting \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB3V-25G-0		Action: Double acting \| Size: 1 \| Thread: G \| Body/Seal: Bronze / NBR
SAB3V-25G-B		Action: Double acting \| Size: 1 \| Thread: G \| Body/Seal: Bronze / FKM
SAB3V-25G-P		Action: Double acting \| Size: 1 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB3V-25G-D		Action: Double acting \| Size: 1 \| Thread: G \| Body/Seal: Stainless / NBR
SAB3V-25G-E		Action: Double acting \| Size: 1 \| Thread: G \| Body/Seal: Stainless / FKM
SAB3V-25G-R		Action: Double acting \| Size: 1 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB3V-25N-0		Action: Double acting \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB3V-25N-B		Action: Double acting \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB3V-25N-P		Action: Double acting \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB3V-25N-D		Action: Double acting \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB3V-25N-E		Action: Double acting \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB3V-25N-R		Action: Double acting \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB3V-32A-0		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB3V-32A-B		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB3V-32A-P		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB3V-32A-D		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB3V-32A-E		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB3V-32A-R		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB3V-32G-0		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / NBR
SAB3V-32G-B		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / FKM
SAB3V-32G-P		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB3V-32G-D		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / NBR
SAB3V-32G-E		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / FKM
SAB3V-32G-R		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB3V-32N-0		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB3V-32N-B		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB3V-32N-P		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB3V-32N-D		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB3V-32N-E		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB3V-32N-R		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB3V-32F-0		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
SAB3V-32F-B		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
SAB3V-32F-P		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
SAB3V-32F-D		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
SAB3V-32F-E		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
SAB3V-32F-R		Action: Double acting \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
SAB3V-40A-0		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB3V-40A-B		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB3V-40A-P		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB3V-40A-D		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB3V-40A-E		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB3V-40A-R		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB3V-40G-0		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / NBR
SAB3V-40G-B		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / FKM
SAB3V-40G-P		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB3V-40G-D		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / NBR
SAB3V-40G-E		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / FKM
SAB3V-40G-R		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB3V-40N-0		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB3V-40N-B		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB3V-40N-P		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB3V-40N-D		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB3V-40N-E		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB3V-40N-R		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB3V-40F-0		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
SAB3V-40F-B		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
SAB3V-40F-P		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
SAB3V-40F-D		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
SAB3V-40F-E		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
SAB3V-40F-R		Action: Double acting \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
SAB3V-50A-0		Action: Double acting \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / NBR
SAB3V-50A-B		Action: Double acting \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / FKM
SAB3V-50A-P		Action: Double acting \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / EPDM
SAB3V-50A-D		Action: Double acting \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / NBR
SAB3V-50A-E		Action: Double acting \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / FKM
SAB3V-50A-R		Action: Double acting \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / EPDM
SAB3V-50G-0		Action: Double acting \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / NBR
SAB3V-50G-B		Action: Double acting \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / FKM
SAB3V-50G-P		Action: Double acting \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / EPDM
SAB3V-50G-D		Action: Double acting \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / NBR
SAB3V-50G-E		Action: Double acting \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / FKM
SAB3V-50G-R		Action: Double acting \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / EPDM
SAB3V-50N-0		Action: Double acting \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / NBR
SAB3V-50N-B		Action: Double acting \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / FKM
SAB3V-50N-P		Action: Double acting \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / EPDM
SAB3V-50N-D		Action: Double acting \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / NBR
SAB3V-50N-E		Action: Double acting \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / FKM
SAB3V-50N-R		Action: Double acting \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / EPDM
SAB3V-50F-0		Action: Double acting \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
SAB3V-50F-B		Action: Double acting \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
SAB3V-50F-P		Action: Double acting \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
SAB3V-50F-D		Action: Double acting \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
SAB3V-50F-E		Action: Double acting \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
SAB3V-50F-R		Action: Double acting \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM

Air Operated ValvesCKD

486 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SAB*V Air Operated 2-Port Valve (Cylinder Valve, Low Vacuum)

Brand CKD·Air Operated Valves

Available part numbers (486)

SAB1V-8A-0, SAB1V-8A-B, SAB1V-8A-P, SAB1V-8A-D, SAB1V-8A-E, SAB1V-8A-R, SAB1V-8G-0, SAB1V-8G-B, SAB1V-8G-P, SAB1V-8G-D + 476 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SAB1V-8A-0	Action: NC \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB1V-8A-B	Action: NC \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB1V-8A-P	Action: NC \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB1V-8A-D	Action: NC \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB1V-8A-E	Action: NC \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB1V-8A-R	Action: NC \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB1V-8G-0	Action: NC \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB1V-8G-B	Action: NC \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB1V-8G-P	Action: NC \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB1V-8G-D	Action: NC \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB1V-8G-E	Action: NC \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB1V-8G-R	Action: NC \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB1V-8N-0	Action: NC \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB1V-8N-B	Action: NC \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB1V-8N-P	Action: NC \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB1V-8N-D	Action: NC \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB1V-8N-E	Action: NC \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB1V-8N-R	Action: NC \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB1V-10A-0	Action: NC \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB1V-10A-B	Action: NC \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB1V-10A-P	Action: NC \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB1V-10A-D	Action: NC \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB1V-10A-E	Action: NC \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB1V-10A-R	Action: NC \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB1V-10G-0	Action: NC \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB1V-10G-B	Action: NC \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB1V-10G-P	Action: NC \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB1V-10G-D	Action: NC \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB1V-10G-E	Action: NC \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB1V-10G-R	Action: NC \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB1V-10N-0	Action: NC \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB1V-10N-B	Action: NC \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB1V-10N-P	Action: NC \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB1V-10N-D	Action: NC \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB1V-10N-E	Action: NC \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB1V-10N-R	Action: NC \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB1V-15A-0	Action: NC \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB1V-15A-B	Action: NC \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB1V-15A-P	Action: NC \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB1V-15A-D	Action: NC \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB1V-15A-E	Action: NC \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB1V-15A-R	Action: NC \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB1V-15G-0	Action: NC \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB1V-15G-B	Action: NC \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB1V-15G-P	Action: NC \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB1V-15G-D	Action: NC \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB1V-15G-E	Action: NC \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB1V-15G-R	Action: NC \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB1V-15N-0	Action: NC \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB1V-15N-B	Action: NC \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB1V-15N-P	Action: NC \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB1V-15N-D	Action: NC \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB1V-15N-E	Action: NC \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB1V-15N-R	Action: NC \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB1V-20A-0	Action: NC \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB1V-20A-B	Action: NC \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB1V-20A-P	Action: NC \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB1V-20A-D	Action: NC \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB1V-20A-E	Action: NC \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB1V-20A-R	Action: NC \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB1V-20G-0	Action: NC \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB1V-20G-B	Action: NC \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB1V-20G-P	Action: NC \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB1V-20G-D	Action: NC \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB1V-20G-E	Action: NC \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB1V-20G-R	Action: NC \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB1V-20N-0	Action: NC \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB1V-20N-B	Action: NC \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB1V-20N-P	Action: NC \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB1V-20N-D	Action: NC \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB1V-20N-E	Action: NC \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB1V-20N-R	Action: NC \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB1V-25A-0	Action: NC \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB1V-25A-B	Action: NC \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB1V-25A-P	Action: NC \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB1V-25A-D	Action: NC \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB1V-25A-E	Action: NC \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB1V-25A-R	Action: NC \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB1V-25G-0	Action: NC \| Size: 1 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB1V-25G-B	Action: NC \| Size: 1 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB1V-25G-P	Action: NC \| Size: 1 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB1V-25G-D	Action: NC \| Size: 1 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB1V-25G-E	Action: NC \| Size: 1 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB1V-25G-R	Action: NC \| Size: 1 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB1V-25N-0	Action: NC \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB1V-25N-B	Action: NC \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB1V-25N-P	Action: NC \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB1V-25N-D	Action: NC \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB1V-25N-E	Action: NC \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB1V-25N-R	Action: NC \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB1V-32A-0	Action: NC \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB1V-32A-B	Action: NC \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB1V-32A-P	Action: NC \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB1V-32A-D	Action: NC \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB1V-32A-E	Action: NC \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB1V-32A-R	Action: NC \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB1V-32G-0	Action: NC \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB1V-32G-B	Action: NC \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB1V-32G-P	Action: NC \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB1V-32G-D	Action: NC \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB1V-32G-E	Action: NC \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB1V-32G-R	Action: NC \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB1V-32N-0	Action: NC \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB1V-32N-B	Action: NC \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB1V-32N-P	Action: NC \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB1V-32N-D	Action: NC \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB1V-32N-E	Action: NC \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB1V-32N-R	Action: NC \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB1V-32F-0	Action: NC \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
	SAB1V-32F-B	Action: NC \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
	SAB1V-32F-P	Action: NC \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
	SAB1V-32F-D	Action: NC \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
	SAB1V-32F-E	Action: NC \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
	SAB1V-32F-R	Action: NC \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
	SAB1V-40A-0	Action: NC \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB1V-40A-B	Action: NC \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB1V-40A-P	Action: NC \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB1V-40A-D	Action: NC \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB1V-40A-E	Action: NC \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB1V-40A-R	Action: NC \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB1V-40G-0	Action: NC \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB1V-40G-B	Action: NC \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB1V-40G-P	Action: NC \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB1V-40G-D	Action: NC \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB1V-40G-E	Action: NC \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB1V-40G-R	Action: NC \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB1V-40N-0	Action: NC \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB1V-40N-B	Action: NC \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB1V-40N-P	Action: NC \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB1V-40N-D	Action: NC \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB1V-40N-E	Action: NC \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB1V-40N-R	Action: NC \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB1V-40F-0	Action: NC \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
	SAB1V-40F-B	Action: NC \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
	SAB1V-40F-P	Action: NC \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
	SAB1V-40F-D	Action: NC \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
	SAB1V-40F-E	Action: NC \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
	SAB1V-40F-R	Action: NC \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
	SAB1V-50A-0	Action: NC \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB1V-50A-B	Action: NC \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB1V-50A-P	Action: NC \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB1V-50A-D	Action: NC \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB1V-50A-E	Action: NC \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB1V-50A-R	Action: NC \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB1V-50G-0	Action: NC \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB1V-50G-B	Action: NC \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB1V-50G-P	Action: NC \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB1V-50G-D	Action: NC \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB1V-50G-E	Action: NC \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB1V-50G-R	Action: NC \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB1V-50N-0	Action: NC \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB1V-50N-B	Action: NC \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB1V-50N-P	Action: NC \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB1V-50N-D	Action: NC \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB1V-50N-E	Action: NC \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB1V-50N-R	Action: NC \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB1V-50F-0	Action: NC \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
	SAB1V-50F-B	Action: NC \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
	SAB1V-50F-P	Action: NC \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
	SAB1V-50F-D	Action: NC \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
	SAB1V-50F-E	Action: NC \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
	SAB1V-50F-R	Action: NC \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
	SAB2V-8A-0	Action: NO \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB2V-8A-B	Action: NO \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB2V-8A-P	Action: NO \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB2V-8A-D	Action: NO \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB2V-8A-E	Action: NO \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB2V-8A-R	Action: NO \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB2V-8G-0	Action: NO \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB2V-8G-B	Action: NO \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB2V-8G-P	Action: NO \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB2V-8G-D	Action: NO \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB2V-8G-E	Action: NO \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB2V-8G-R	Action: NO \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB2V-8N-0	Action: NO \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB2V-8N-B	Action: NO \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB2V-8N-P	Action: NO \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB2V-8N-D	Action: NO \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB2V-8N-E	Action: NO \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB2V-8N-R	Action: NO \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB2V-10A-0	Action: NO \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB2V-10A-B	Action: NO \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB2V-10A-P	Action: NO \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB2V-10A-D	Action: NO \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB2V-10A-E	Action: NO \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB2V-10A-R	Action: NO \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB2V-10G-0	Action: NO \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB2V-10G-B	Action: NO \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB2V-10G-P	Action: NO \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB2V-10G-D	Action: NO \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB2V-10G-E	Action: NO \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB2V-10G-R	Action: NO \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB2V-10N-0	Action: NO \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB2V-10N-B	Action: NO \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB2V-10N-P	Action: NO \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB2V-10N-D	Action: NO \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB2V-10N-E	Action: NO \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB2V-10N-R	Action: NO \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB2V-15A-0	Action: NO \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB2V-15A-B	Action: NO \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB2V-15A-P	Action: NO \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB2V-15A-D	Action: NO \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB2V-15A-E	Action: NO \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB2V-15A-R	Action: NO \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB2V-15G-0	Action: NO \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB2V-15G-B	Action: NO \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB2V-15G-P	Action: NO \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB2V-15G-D	Action: NO \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB2V-15G-E	Action: NO \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB2V-15G-R	Action: NO \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB2V-15N-0	Action: NO \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB2V-15N-B	Action: NO \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB2V-15N-P	Action: NO \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB2V-15N-D	Action: NO \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB2V-15N-E	Action: NO \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB2V-15N-R	Action: NO \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB2V-20A-0	Action: NO \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB2V-20A-B	Action: NO \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB2V-20A-P	Action: NO \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB2V-20A-D	Action: NO \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB2V-20A-E	Action: NO \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB2V-20A-R	Action: NO \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB2V-20G-0	Action: NO \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB2V-20G-B	Action: NO \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB2V-20G-P	Action: NO \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB2V-20G-D	Action: NO \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB2V-20G-E	Action: NO \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB2V-20G-R	Action: NO \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB2V-20N-0	Action: NO \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB2V-20N-B	Action: NO \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB2V-20N-P	Action: NO \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB2V-20N-D	Action: NO \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB2V-20N-E	Action: NO \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB2V-20N-R	Action: NO \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB2V-25A-0	Action: NO \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB2V-25A-B	Action: NO \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB2V-25A-P	Action: NO \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB2V-25A-D	Action: NO \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB2V-25A-E	Action: NO \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB2V-25A-R	Action: NO \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB2V-25G-0	Action: NO \| Size: 1 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB2V-25G-B	Action: NO \| Size: 1 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB2V-25G-P	Action: NO \| Size: 1 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB2V-25G-D	Action: NO \| Size: 1 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB2V-25G-E	Action: NO \| Size: 1 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB2V-25G-R	Action: NO \| Size: 1 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB2V-25N-0	Action: NO \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB2V-25N-B	Action: NO \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB2V-25N-P	Action: NO \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB2V-25N-D	Action: NO \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB2V-25N-E	Action: NO \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB2V-25N-R	Action: NO \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB2V-32A-0	Action: NO \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB2V-32A-B	Action: NO \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB2V-32A-P	Action: NO \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB2V-32A-D	Action: NO \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB2V-32A-E	Action: NO \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB2V-32A-R	Action: NO \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB2V-32G-0	Action: NO \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB2V-32G-B	Action: NO \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB2V-32G-P	Action: NO \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB2V-32G-D	Action: NO \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB2V-32G-E	Action: NO \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB2V-32G-R	Action: NO \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB2V-32N-0	Action: NO \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB2V-32N-B	Action: NO \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB2V-32N-P	Action: NO \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB2V-32N-D	Action: NO \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB2V-32N-E	Action: NO \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB2V-32N-R	Action: NO \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB2V-32F-0	Action: NO \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
	SAB2V-32F-B	Action: NO \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
	SAB2V-32F-P	Action: NO \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
	SAB2V-32F-D	Action: NO \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
	SAB2V-32F-E	Action: NO \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
	SAB2V-32F-R	Action: NO \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
	SAB2V-40A-0	Action: NO \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB2V-40A-B	Action: NO \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB2V-40A-P	Action: NO \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB2V-40A-D	Action: NO \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB2V-40A-E	Action: NO \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB2V-40A-R	Action: NO \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB2V-40G-0	Action: NO \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB2V-40G-B	Action: NO \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB2V-40G-P	Action: NO \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB2V-40G-D	Action: NO \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB2V-40G-E	Action: NO \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB2V-40G-R	Action: NO \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB2V-40N-0	Action: NO \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB2V-40N-B	Action: NO \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB2V-40N-P	Action: NO \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB2V-40N-D	Action: NO \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB2V-40N-E	Action: NO \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB2V-40N-R	Action: NO \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB2V-40F-0	Action: NO \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
	SAB2V-40F-B	Action: NO \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
	SAB2V-40F-P	Action: NO \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
	SAB2V-40F-D	Action: NO \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
	SAB2V-40F-E	Action: NO \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
	SAB2V-40F-R	Action: NO \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
	SAB2V-50A-0	Action: NO \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB2V-50A-B	Action: NO \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB2V-50A-P	Action: NO \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB2V-50A-D	Action: NO \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB2V-50A-E	Action: NO \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB2V-50A-R	Action: NO \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB2V-50G-0	Action: NO \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB2V-50G-B	Action: NO \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB2V-50G-P	Action: NO \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB2V-50G-D	Action: NO \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB2V-50G-E	Action: NO \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB2V-50G-R	Action: NO \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB2V-50N-0	Action: NO \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB2V-50N-B	Action: NO \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB2V-50N-P	Action: NO \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB2V-50N-D	Action: NO \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB2V-50N-E	Action: NO \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB2V-50N-R	Action: NO \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB2V-50F-0	Action: NO \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
	SAB2V-50F-B	Action: NO \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
	SAB2V-50F-P	Action: NO \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
	SAB2V-50F-D	Action: NO \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
	SAB2V-50F-E	Action: NO \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
	SAB2V-50F-R	Action: NO \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
	SAB3V-8A-0	Action: Double acting \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB3V-8A-B	Action: Double acting \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB3V-8A-P	Action: Double acting \| Size: 1/4 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB3V-8A-D	Action: Double acting \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB3V-8A-E	Action: Double acting \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB3V-8A-R	Action: Double acting \| Size: 1/4 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB3V-8G-0	Action: Double acting \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB3V-8G-B	Action: Double acting \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB3V-8G-P	Action: Double acting \| Size: 1/4 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB3V-8G-D	Action: Double acting \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB3V-8G-E	Action: Double acting \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB3V-8G-R	Action: Double acting \| Size: 1/4 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB3V-8N-0	Action: Double acting \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB3V-8N-B	Action: Double acting \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB3V-8N-P	Action: Double acting \| Size: 1/4 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB3V-8N-D	Action: Double acting \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB3V-8N-E	Action: Double acting \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB3V-8N-R	Action: Double acting \| Size: 1/4 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB3V-10A-0	Action: Double acting \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB3V-10A-B	Action: Double acting \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB3V-10A-P	Action: Double acting \| Size: 3/8 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB3V-10A-D	Action: Double acting \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB3V-10A-E	Action: Double acting \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB3V-10A-R	Action: Double acting \| Size: 3/8 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB3V-10G-0	Action: Double acting \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB3V-10G-B	Action: Double acting \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB3V-10G-P	Action: Double acting \| Size: 3/8 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB3V-10G-D	Action: Double acting \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB3V-10G-E	Action: Double acting \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB3V-10G-R	Action: Double acting \| Size: 3/8 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB3V-10N-0	Action: Double acting \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB3V-10N-B	Action: Double acting \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB3V-10N-P	Action: Double acting \| Size: 3/8 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB3V-10N-D	Action: Double acting \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB3V-10N-E	Action: Double acting \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB3V-10N-R	Action: Double acting \| Size: 3/8 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB3V-15A-0	Action: Double acting \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB3V-15A-B	Action: Double acting \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB3V-15A-P	Action: Double acting \| Size: 1/2 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB3V-15A-D	Action: Double acting \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB3V-15A-E	Action: Double acting \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB3V-15A-R	Action: Double acting \| Size: 1/2 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB3V-15G-0	Action: Double acting \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB3V-15G-B	Action: Double acting \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB3V-15G-P	Action: Double acting \| Size: 1/2 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB3V-15G-D	Action: Double acting \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB3V-15G-E	Action: Double acting \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB3V-15G-R	Action: Double acting \| Size: 1/2 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB3V-15N-0	Action: Double acting \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB3V-15N-B	Action: Double acting \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB3V-15N-P	Action: Double acting \| Size: 1/2 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB3V-15N-D	Action: Double acting \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB3V-15N-E	Action: Double acting \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB3V-15N-R	Action: Double acting \| Size: 1/2 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB3V-20A-0	Action: Double acting \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB3V-20A-B	Action: Double acting \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB3V-20A-P	Action: Double acting \| Size: 3/4 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB3V-20A-D	Action: Double acting \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB3V-20A-E	Action: Double acting \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB3V-20A-R	Action: Double acting \| Size: 3/4 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB3V-20G-0	Action: Double acting \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB3V-20G-B	Action: Double acting \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB3V-20G-P	Action: Double acting \| Size: 3/4 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB3V-20G-D	Action: Double acting \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB3V-20G-E	Action: Double acting \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB3V-20G-R	Action: Double acting \| Size: 3/4 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB3V-20N-0	Action: Double acting \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB3V-20N-B	Action: Double acting \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB3V-20N-P	Action: Double acting \| Size: 3/4 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB3V-20N-D	Action: Double acting \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB3V-20N-E	Action: Double acting \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB3V-20N-R	Action: Double acting \| Size: 3/4 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB3V-25A-0	Action: Double acting \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB3V-25A-B	Action: Double acting \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB3V-25A-P	Action: Double acting \| Size: 1 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB3V-25A-D	Action: Double acting \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB3V-25A-E	Action: Double acting \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB3V-25A-R	Action: Double acting \| Size: 1 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB3V-25G-0	Action: Double acting \| Size: 1 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB3V-25G-B	Action: Double acting \| Size: 1 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB3V-25G-P	Action: Double acting \| Size: 1 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB3V-25G-D	Action: Double acting \| Size: 1 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB3V-25G-E	Action: Double acting \| Size: 1 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB3V-25G-R	Action: Double acting \| Size: 1 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB3V-25N-0	Action: Double acting \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB3V-25N-B	Action: Double acting \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB3V-25N-P	Action: Double acting \| Size: 1 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB3V-25N-D	Action: Double acting \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB3V-25N-E	Action: Double acting \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB3V-25N-R	Action: Double acting \| Size: 1 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB3V-32A-0	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB3V-32A-B	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB3V-32A-P	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB3V-32A-D	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB3V-32A-E	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB3V-32A-R	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB3V-32G-0	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB3V-32G-B	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB3V-32G-P	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB3V-32G-D	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB3V-32G-E	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB3V-32G-R	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB3V-32N-0	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB3V-32N-B	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB3V-32N-P	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB3V-32N-D	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB3V-32N-E	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB3V-32N-R	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB3V-32F-0	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
	SAB3V-32F-B	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
	SAB3V-32F-P	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
	SAB3V-32F-D	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
	SAB3V-32F-E	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
	SAB3V-32F-R	Action: Double acting \| Size: 1-1/4 / 32 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
	SAB3V-40A-0	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB3V-40A-B	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB3V-40A-P	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB3V-40A-D	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB3V-40A-E	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB3V-40A-R	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB3V-40G-0	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB3V-40G-B	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB3V-40G-P	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB3V-40G-D	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB3V-40G-E	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB3V-40G-R	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB3V-40N-0	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB3V-40N-B	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB3V-40N-P	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB3V-40N-D	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB3V-40N-E	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB3V-40N-R	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB3V-40F-0	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
	SAB3V-40F-B	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
	SAB3V-40F-P	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
	SAB3V-40F-D	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
	SAB3V-40F-E	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
	SAB3V-40F-R	Action: Double acting \| Size: 1-1/2 / 40 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM
	SAB3V-50A-0	Action: Double acting \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / NBR
	SAB3V-50A-B	Action: Double acting \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / FKM
	SAB3V-50A-P	Action: Double acting \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Bronze / EPDM
	SAB3V-50A-D	Action: Double acting \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / NBR
	SAB3V-50A-E	Action: Double acting \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / FKM
	SAB3V-50A-R	Action: Double acting \| Size: 2 / 50 \| Thread: Rc \| Body/Seal: Stainless / EPDM
	SAB3V-50G-0	Action: Double acting \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / NBR
	SAB3V-50G-B	Action: Double acting \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / FKM
	SAB3V-50G-P	Action: Double acting \| Size: 2 / 50 \| Thread: G \| Body/Seal: Bronze / EPDM
	SAB3V-50G-D	Action: Double acting \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / NBR
	SAB3V-50G-E	Action: Double acting \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / FKM
	SAB3V-50G-R	Action: Double acting \| Size: 2 / 50 \| Thread: G \| Body/Seal: Stainless / EPDM
	SAB3V-50N-0	Action: Double acting \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / NBR
	SAB3V-50N-B	Action: Double acting \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / FKM
	SAB3V-50N-P	Action: Double acting \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Bronze / EPDM
	SAB3V-50N-D	Action: Double acting \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / NBR
	SAB3V-50N-E	Action: Double acting \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / FKM
	SAB3V-50N-R	Action: Double acting \| Size: 2 / 50 \| Thread: NPT \| Body/Seal: Stainless / EPDM
	SAB3V-50F-0	Action: Double acting \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / NBR
	SAB3V-50F-B	Action: Double acting \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / FKM
	SAB3V-50F-P	Action: Double acting \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Bronze / EPDM
	SAB3V-50F-D	Action: Double acting \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / NBR
	SAB3V-50F-E	Action: Double acting \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / FKM
	SAB3V-50F-R	Action: Double acting \| Size: 2 / 50 \| Thread: JIS 10K flange \| Body/Seal: Stainless / EPDM

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SAB*V Air Operated 2-Port Valve (Cylinder Valve, Low Vacuum)
