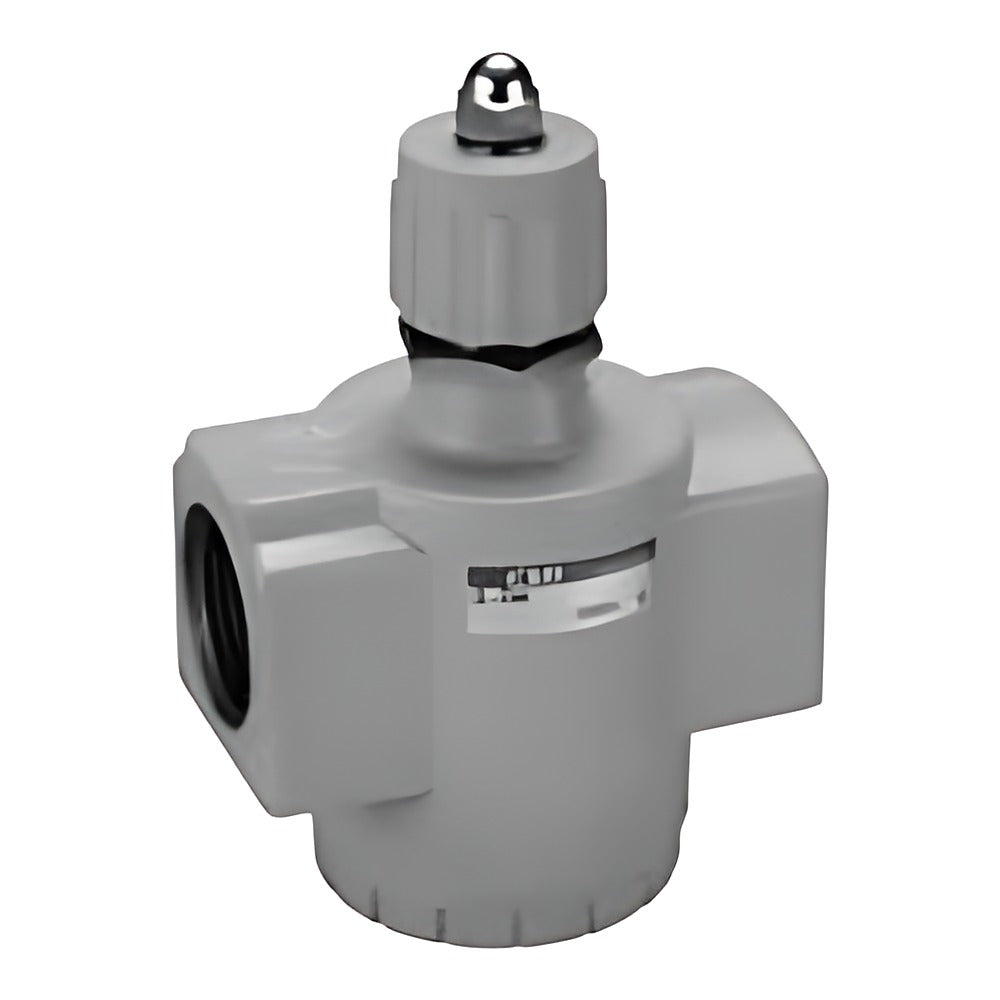

CKD SC1 Speed Controller (Medium Bore, Rc1/8 to Rc1/2)

CKD SC1 series in-line speed controller with female threaded ports for medium-bore cylinders of 20 to 160 mm, Rc1/8 to Rc1/2.

Key features

In-line body with Rc female ports, built-in check valve
Option X1: heat resistant (to 120 C) and ozone resistant; P6 non-flammable specification
Clean-room version -P7* in catalog CB-033S
Needle turns 10

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Proof pressure	1.5 MPa
Fluid temperature	5 to 60 C (X1: 5 to 120 C)
Ambient temperature	0 to 60 C (X1: 5 to 120 C)
Source	CKD Korea catalog CB-024SK-9, p. 818-819

SC1-6		Port: Rc1/8 \| Option: None
SC1-6-X1		Port: Rc1/8 \| Option: Heat (120 C)/ozone resistant
SC1-6-P6		Port: Rc1/8 \| Option: Non-flammable
SC1-8		Port: Rc1/4 \| Option: None
SC1-8-X1		Port: Rc1/4 \| Option: Heat (120 C)/ozone resistant
SC1-8-P6		Port: Rc1/4 \| Option: Non-flammable
SC1-10-X1		Port: Rc3/8 \| Option: Heat (120 C)/ozone resistant
SC1-10-P6		Port: Rc3/8 \| Option: Non-flammable
SC1-15-X1		Port: Rc1/2 \| Option: Heat (120 C)/ozone resistant
SC1-15-P6		Port: Rc1/2 \| Option: Non-flammable

Speed ControllersCKD

10 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SC1 Speed Controller (Medium Bore, Rc1/8 to Rc1/2)

Brand CKD·Speed Controllers

Available part numbers (10)

SC1-6, SC1-6-X1, SC1-6-P6, SC1-8, SC1-8-X1, SC1-8-P6, SC1-10-X1, SC1-10-P6, SC1-15-X1, SC1-15-P6

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
