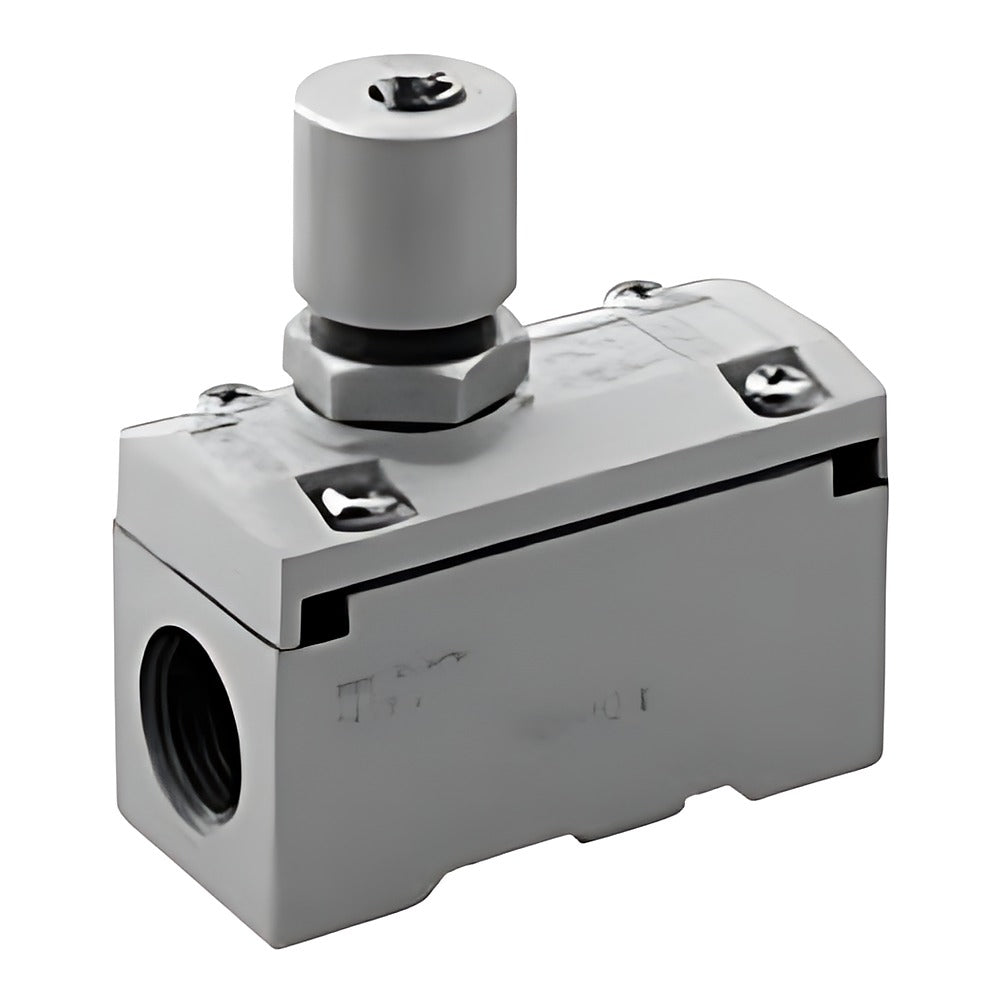

CKD SC1-W Speed Controller (Outdoor Series, Rc1/4 to Rc1/2)

CKD SC1-W outdoor series medium-bore speed controller with stainless and fluororubber parts for use outdoors, Rc1/4 to Rc1/2.

Key features

Outdoor specification with stainless needle, springs and lock nut, fluororubber seals
Ambient temperature -10 to 60 C
In-line body with Rc female ports and built-in check valve
Needle turns 10

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Proof pressure	1.5 MPa
Fluid temperature	5 to 60 C
Ambient temperature	-10 to 60 C (no freezing)
Source	CKD Korea catalog CB-024SK-9, p. 822-823

SC1-8-W		Port: Rc1/4 \| Cylinder bore: 32-75 mm
SC1-10-W		Port: Rc3/8 \| Cylinder bore: 50-140 mm
SC1-15-W		Port: Rc1/2 \| Cylinder bore: 80-160 mm

Speed ControllersCKD

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SC1-W Speed Controller (Outdoor Series, Rc1/4 to Rc1/2)

Brand CKD·Speed Controllers

Available part numbers (3)

SC1-8-W, SC1-10-W, SC1-15-W

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
