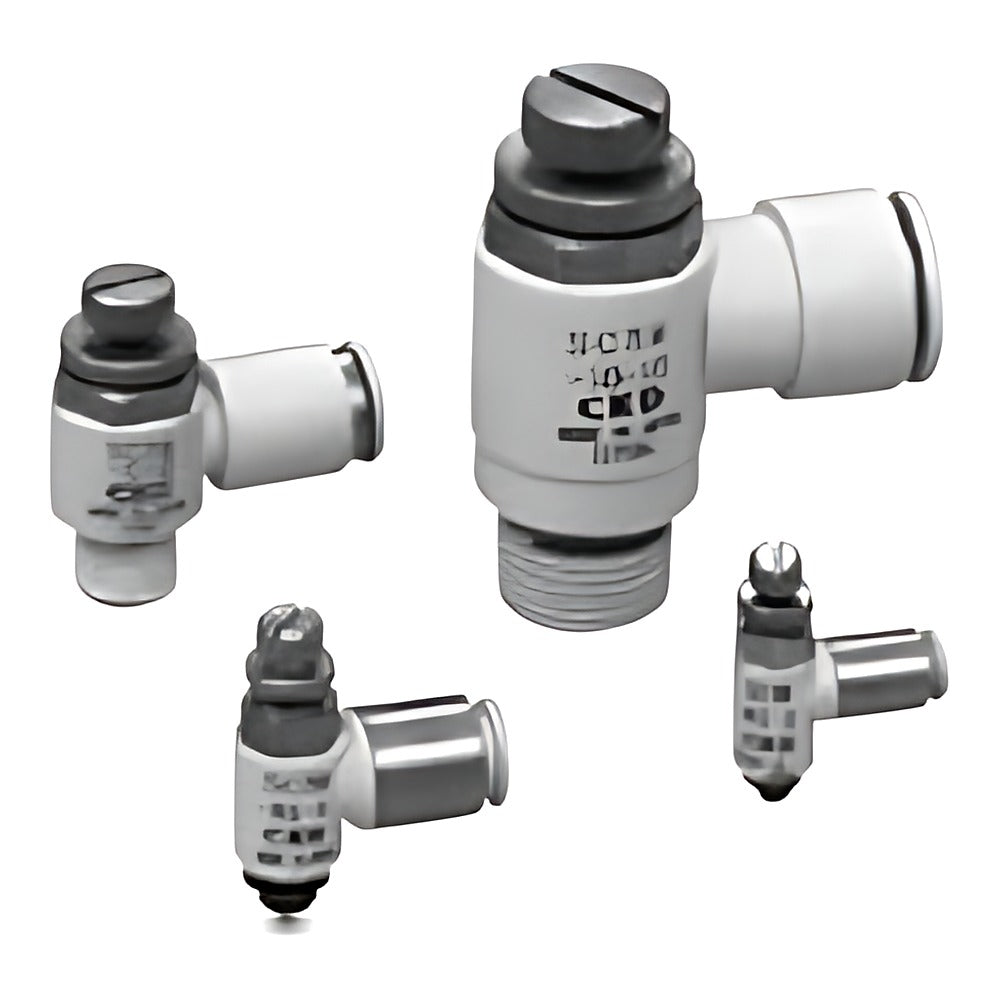

CKD SC3W-FP1 Speed Controller, Elbow with Push-in (Food Grade)

CKD SC3W-FP1 Speed Controller, Elbow with Push-in (Food Grade)

CKD SC3W-FP1 elbow-type speed controllers with push-in fitting, mounted directly on cylinder ports in food-processing machines.

Key features

  • FP1 food-processing series using NSF H1 registered grease
  • Meter-out standard; meter-in I (black push ring)
  • Ports M5 and R1/8 to R1/2, tubes 4 to 12 mm
  • Controlled flow 80 to 1600 L/min (ANR) at 0.5 MPa
  • Electroless nickel plated brass parts

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Proof pressure 1.5 MPa
Fluid temperature 5 to 60 C
Source CKD Korea catalog CC-1271K-5, p. 298-299
SC3W-M5-4-FP1 Port: M5 | Tube OD: 4 mm | Control: Meter-out
SC3W-M5-4-I-FP1 Port: M5 | Tube OD: 4 mm | Control: Meter-in
SC3W-M5-6-FP1 Port: M5 | Tube OD: 6 mm | Control: Meter-out
SC3W-M5-6-I-FP1 Port: M5 | Tube OD: 6 mm | Control: Meter-in
SC3W-6-4-FP1 Port: R1/8 | Tube OD: 4 mm | Control: Meter-out
SC3W-6-4-I-FP1 Port: R1/8 | Tube OD: 4 mm | Control: Meter-in
SC3W-6-6-FP1 Port: R1/8 | Tube OD: 6 mm | Control: Meter-out
SC3W-6-6-I-FP1 Port: R1/8 | Tube OD: 6 mm | Control: Meter-in
SC3W-6-8-FP1 Port: R1/8 | Tube OD: 8 mm | Control: Meter-out
SC3W-6-8-I-FP1 Port: R1/8 | Tube OD: 8 mm | Control: Meter-in
SC3W-8-6-FP1 Port: R1/4 | Tube OD: 6 mm | Control: Meter-out
SC3W-8-6-I-FP1 Port: R1/4 | Tube OD: 6 mm | Control: Meter-in
SC3W-8-8-FP1 Port: R1/4 | Tube OD: 8 mm | Control: Meter-out
SC3W-8-8-I-FP1 Port: R1/4 | Tube OD: 8 mm | Control: Meter-in
SC3W-8-10-FP1 Port: R1/4 | Tube OD: 10 mm | Control: Meter-out
SC3W-8-10-I-FP1 Port: R1/4 | Tube OD: 10 mm | Control: Meter-in
SC3W-10-6-FP1 Port: R3/8 | Tube OD: 6 mm | Control: Meter-out
SC3W-10-6-I-FP1 Port: R3/8 | Tube OD: 6 mm | Control: Meter-in
SC3W-10-8-FP1 Port: R3/8 | Tube OD: 8 mm | Control: Meter-out
SC3W-10-8-I-FP1 Port: R3/8 | Tube OD: 8 mm | Control: Meter-in
SC3W-10-10-FP1 Port: R3/8 | Tube OD: 10 mm | Control: Meter-out
SC3W-10-10-I-FP1 Port: R3/8 | Tube OD: 10 mm | Control: Meter-in
SC3W-10-12-FP1 Port: R3/8 | Tube OD: 12 mm | Control: Meter-out
SC3W-10-12-I-FP1 Port: R3/8 | Tube OD: 12 mm | Control: Meter-in
SC3W-15-10-FP1 Port: R1/2 | Tube OD: 10 mm | Control: Meter-out
SC3W-15-10-I-FP1 Port: R1/2 | Tube OD: 10 mm | Control: Meter-in
SC3W-15-12-FP1 Port: R1/2 | Tube OD: 12 mm | Control: Meter-out
SC3W-15-12-I-FP1 Port: R1/2 | Tube OD: 12 mm | Control: Meter-in
Speed ControllersCKD
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SC3W-FP1 Speed Controller, Elbow with Push-in (Food Grade)

Brand CKD·Speed Controllers

Available part numbers (28)

SC3W-M5-4-FP1, SC3W-M5-4-I-FP1, SC3W-M5-6-FP1, SC3W-M5-6-I-FP1, SC3W-6-4-FP1, SC3W-6-4-I-FP1, SC3W-6-6-FP1, SC3W-6-6-I-FP1, SC3W-6-8-FP1, SC3W-6-8-I-FP1 + 18 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SC3W-M5-4-FP1Port: M5 | Tube OD: 4 mm | Control: Meter-out
SC3W-M5-4-I-FP1Port: M5 | Tube OD: 4 mm | Control: Meter-in
SC3W-M5-6-FP1Port: M5 | Tube OD: 6 mm | Control: Meter-out
SC3W-M5-6-I-FP1Port: M5 | Tube OD: 6 mm | Control: Meter-in
SC3W-6-4-FP1Port: R1/8 | Tube OD: 4 mm | Control: Meter-out
SC3W-6-4-I-FP1Port: R1/8 | Tube OD: 4 mm | Control: Meter-in
SC3W-6-6-FP1Port: R1/8 | Tube OD: 6 mm | Control: Meter-out
SC3W-6-6-I-FP1Port: R1/8 | Tube OD: 6 mm | Control: Meter-in
SC3W-6-8-FP1Port: R1/8 | Tube OD: 8 mm | Control: Meter-out
SC3W-6-8-I-FP1Port: R1/8 | Tube OD: 8 mm | Control: Meter-in
SC3W-8-6-FP1Port: R1/4 | Tube OD: 6 mm | Control: Meter-out
SC3W-8-6-I-FP1Port: R1/4 | Tube OD: 6 mm | Control: Meter-in
SC3W-8-8-FP1Port: R1/4 | Tube OD: 8 mm | Control: Meter-out
SC3W-8-8-I-FP1Port: R1/4 | Tube OD: 8 mm | Control: Meter-in
SC3W-8-10-FP1Port: R1/4 | Tube OD: 10 mm | Control: Meter-out
SC3W-8-10-I-FP1Port: R1/4 | Tube OD: 10 mm | Control: Meter-in
SC3W-10-6-FP1Port: R3/8 | Tube OD: 6 mm | Control: Meter-out
SC3W-10-6-I-FP1Port: R3/8 | Tube OD: 6 mm | Control: Meter-in
SC3W-10-8-FP1Port: R3/8 | Tube OD: 8 mm | Control: Meter-out
SC3W-10-8-I-FP1Port: R3/8 | Tube OD: 8 mm | Control: Meter-in
SC3W-10-10-FP1Port: R3/8 | Tube OD: 10 mm | Control: Meter-out
SC3W-10-10-I-FP1Port: R3/8 | Tube OD: 10 mm | Control: Meter-in
SC3W-10-12-FP1Port: R3/8 | Tube OD: 12 mm | Control: Meter-out
SC3W-10-12-I-FP1Port: R3/8 | Tube OD: 12 mm | Control: Meter-in
SC3W-15-10-FP1Port: R1/2 | Tube OD: 10 mm | Control: Meter-out
SC3W-15-10-I-FP1Port: R1/2 | Tube OD: 10 mm | Control: Meter-in
SC3W-15-12-FP1Port: R1/2 | Tube OD: 12 mm | Control: Meter-out
SC3W-15-12-I-FP1Port: R1/2 | Tube OD: 12 mm | Control: Meter-in
