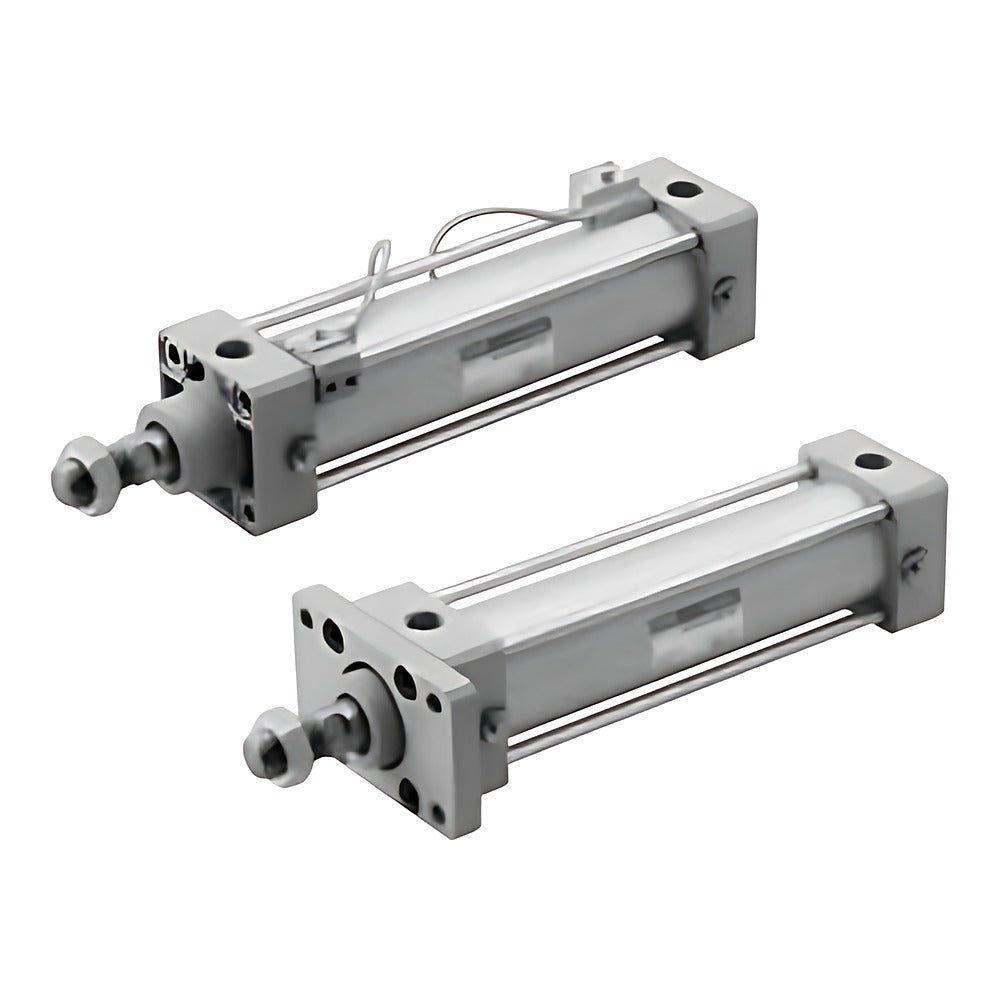

CKD SCA2-B-FP1 Selex Cylinder (Combination, Bore 100)

CKD SCA2-B-FP1 Selex Cylinder (Combination, Bore 100)

CKD SCA2-B-FP1 back-to-back combination Selex cylinder giving three positions, bore 100 mm, with NSF H1 food-grade grease.

Key features

  • NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
  • Selex cylinder, bore 40-100 mm; air cushion both ends/rod/head or no cushion
  • Auto switches (T0H, T2H, T2WH etc.) with count R/H/D/T, bellows J/L, stainless rod M, cushion needle position S/T and rod-end I/Y/B1-B4 ordered as suffixes
  • Hole-type trunnions TF/TD/TE not available for bore 40; intermediate strokes in 1 mm steps
  • Two cylinders back to back; clevis CA/CB not selectable; listed strokes 25-300 mm per cylinder (max. 600-800 mm)

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C
Port Rc1/4 (40), Rc3/8 (50/63), Rc1/2 (80/100)
Piston speed 50-1000 mm/s
Cushion Air, both ends (each cylinder)
Bore 100 mm
Source CKD Korea catalog CC-1271K, p. 74-78
SCA2-B-00-100-B25-B25-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B25-B50-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B25-B75-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B25-B100-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B25-B150-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B25-B200-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B25-B250-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B25-B300-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-00-100-B50-B25-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B50-B50-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B50-B75-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B50-B100-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B50-B150-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B50-B200-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B50-B250-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B50-B300-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-00-100-B75-B25-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B75-B50-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B75-B75-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B75-B100-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B75-B150-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B75-B200-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B75-B250-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B75-B300-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-00-100-B100-B25-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B100-B50-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B100-B75-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B100-B100-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B100-B150-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B100-B200-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B100-B250-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B100-B300-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-00-100-B150-B25-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B150-B50-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B150-B75-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B150-B100-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B150-B150-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B150-B200-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B150-B250-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B150-B300-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-00-100-B200-B25-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B200-B50-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B200-B75-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B200-B100-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B200-B150-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B200-B200-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B200-B250-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B200-B300-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-00-100-B250-B25-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B250-B50-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B250-B75-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B250-B100-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B250-B150-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B250-B200-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B250-B250-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B250-B300-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-00-100-B300-B25-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B300-B50-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B300-B75-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B300-B100-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B300-B150-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B300-B200-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B300-B250-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B300-B300-FP1 Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B25-B25-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B25-B50-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B25-B75-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B25-B100-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B25-B150-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B25-B200-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B25-B250-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B25-B300-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B50-B25-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B50-B50-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B50-B75-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B50-B100-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B50-B150-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B50-B200-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B50-B250-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B50-B300-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B75-B25-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B75-B50-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B75-B75-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B75-B100-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B75-B150-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B75-B200-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B75-B250-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B75-B300-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B100-B25-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B100-B50-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B100-B75-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B100-B100-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B100-B150-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B100-B200-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B100-B250-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B100-B300-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B150-B25-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B150-B50-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B150-B75-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B150-B100-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B150-B150-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B150-B200-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B150-B250-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B150-B300-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B200-B25-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B200-B50-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B200-B75-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B200-B100-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B200-B150-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B200-B200-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B200-B250-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B200-B300-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B250-B25-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B250-B50-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B250-B75-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B250-B100-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B250-B150-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B250-B200-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B250-B250-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B250-B300-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B300-B25-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B300-B50-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B300-B75-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B300-B100-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B300-B150-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B300-B200-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B300-B250-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B300-B300-FP1 Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B25-B25-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B25-B50-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B25-B75-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B25-B100-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B25-B150-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B25-B200-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B25-B250-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B25-B300-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B50-B25-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B50-B50-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B50-B75-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B50-B100-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B50-B150-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B50-B200-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B50-B250-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B50-B300-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B75-B25-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B75-B50-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B75-B75-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B75-B100-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B75-B150-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B75-B200-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B75-B250-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B75-B300-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B100-B25-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B100-B50-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B100-B75-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B100-B100-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B100-B150-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B100-B200-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B100-B250-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B100-B300-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B150-B25-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B150-B50-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B150-B75-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B150-B100-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B150-B150-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B150-B200-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B150-B250-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B150-B300-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B200-B25-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B200-B50-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B200-B75-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B200-B100-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B200-B150-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B200-B200-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B200-B250-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B200-B300-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B250-B25-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B250-B50-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B250-B75-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B250-B100-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B250-B150-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B250-B200-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B250-B250-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B250-B300-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B300-B25-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B300-B50-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B300-B75-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B300-B100-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B300-B150-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B300-B200-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B300-B250-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B300-B300-FP1 Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B25-B25-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B25-B50-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B25-B75-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B25-B100-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B25-B150-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B25-B200-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B25-B250-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B25-B300-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B50-B25-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B50-B50-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B50-B75-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B50-B100-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B50-B150-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B50-B200-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B50-B250-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B50-B300-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B75-B25-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B75-B50-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B75-B75-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B75-B100-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B75-B150-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B75-B200-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B75-B250-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B75-B300-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B100-B25-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B100-B50-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B100-B75-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B100-B100-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B100-B150-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B100-B200-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B100-B250-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B100-B300-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B150-B25-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B150-B50-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B150-B75-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B150-B100-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B150-B150-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B150-B200-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B150-B250-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B150-B300-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B200-B25-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B200-B50-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B200-B75-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B200-B100-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B200-B150-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B200-B200-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B200-B250-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B200-B300-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B250-B25-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B250-B50-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B250-B75-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B250-B100-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B250-B150-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B250-B200-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B250-B250-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B250-B300-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B300-B25-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B300-B50-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B300-B75-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B300-B100-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B300-B150-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B300-B200-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B300-B250-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B300-B300-FP1 Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B25-B25-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B25-B50-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B25-B75-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B25-B100-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B25-B150-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B25-B200-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B25-B250-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B25-B300-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B50-B25-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B50-B50-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B50-B75-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B50-B100-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B50-B150-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B50-B200-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B50-B250-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B50-B300-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B75-B25-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B75-B50-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B75-B75-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B75-B100-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B75-B150-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B75-B200-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B75-B250-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B75-B300-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B100-B25-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B100-B50-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B100-B75-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B100-B100-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B100-B150-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B100-B200-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B100-B250-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B100-B300-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B150-B25-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B150-B50-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B150-B75-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B150-B100-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B150-B150-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B150-B200-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B150-B250-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B150-B300-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B200-B25-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B200-B50-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B200-B75-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B200-B100-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B200-B150-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B200-B200-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B200-B250-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B200-B300-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B250-B25-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B250-B50-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B250-B75-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B250-B100-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B250-B150-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B250-B200-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B250-B250-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B250-B300-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B300-B25-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B300-B50-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B300-B75-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B300-B100-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B300-B150-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B300-B200-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B300-B250-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B300-B300-FP1 Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B25-B25-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B25-B50-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B25-B75-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B25-B100-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B25-B150-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B25-B200-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B25-B250-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B25-B300-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B50-B25-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B50-B50-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B50-B75-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B50-B100-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B50-B150-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B50-B200-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B50-B250-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B50-B300-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B75-B25-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B75-B50-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B75-B75-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B75-B100-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B75-B150-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B75-B200-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B75-B250-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B75-B300-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B100-B25-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B100-B50-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B100-B75-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B100-B100-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B100-B150-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B100-B200-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B100-B250-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B100-B300-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B150-B25-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B150-B50-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B150-B75-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B150-B100-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B150-B150-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B150-B200-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B150-B250-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B150-B300-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B200-B25-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B200-B50-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B200-B75-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B200-B100-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B200-B150-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B200-B200-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B200-B250-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B200-B300-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B250-B25-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B250-B50-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B250-B75-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B250-B100-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B250-B150-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B250-B200-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B250-B250-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B250-B300-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B300-B25-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B300-B50-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B300-B75-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B300-B100-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B300-B150-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B300-B200-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B300-B250-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B300-B300-FP1 Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B25-B25-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B25-B50-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B25-B75-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B25-B100-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B25-B150-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B25-B200-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B25-B250-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B25-B300-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B50-B25-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B50-B50-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B50-B75-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B50-B100-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B50-B150-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B50-B200-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B50-B250-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B50-B300-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B75-B25-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B75-B50-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B75-B75-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B75-B100-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B75-B150-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B75-B200-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B75-B250-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B75-B300-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B100-B25-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B100-B50-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B100-B75-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B100-B100-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B100-B150-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B100-B200-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B100-B250-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B100-B300-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B150-B25-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B150-B50-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B150-B75-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B150-B100-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B150-B150-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B150-B200-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B150-B250-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B150-B300-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B200-B25-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B200-B50-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B200-B75-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B200-B100-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B200-B150-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B200-B200-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B200-B250-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B200-B300-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B250-B25-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B250-B50-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B250-B75-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B250-B100-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B250-B150-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B250-B200-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B250-B250-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B250-B300-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B300-B25-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B300-B50-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B300-B75-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B300-B100-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B300-B150-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B300-B200-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B300-B250-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B300-B300-FP1 Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B25-B25-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B25-B50-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B25-B75-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B25-B100-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B25-B150-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B25-B200-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B25-B250-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B25-B300-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B50-B25-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B50-B50-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B50-B75-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B50-B100-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B50-B150-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B50-B200-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B50-B250-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B50-B300-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B75-B25-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B75-B50-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B75-B75-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B75-B100-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B75-B150-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B75-B200-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B75-B250-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B75-B300-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B100-B25-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B100-B50-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B100-B75-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B100-B100-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B100-B150-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B100-B200-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B100-B250-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B100-B300-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B150-B25-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B150-B50-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B150-B75-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B150-B100-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B150-B150-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B150-B200-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B150-B250-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B150-B300-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B200-B25-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B200-B50-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B200-B75-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B200-B100-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B200-B150-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B200-B200-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B200-B250-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B200-B300-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B250-B25-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B250-B50-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B250-B75-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B250-B100-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B250-B150-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B250-B200-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B250-B250-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B250-B300-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B300-B25-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B300-B50-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B300-B75-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B300-B100-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B300-B150-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B300-B200-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B300-B250-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B300-B300-FP1 Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B25-B25-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B25-B50-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B25-B75-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B25-B100-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B25-B150-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B25-B200-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B25-B250-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B25-B300-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B50-B25-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B50-B50-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B50-B75-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B50-B100-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B50-B150-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B50-B200-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B50-B250-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B50-B300-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B75-B25-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B75-B50-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B75-B75-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B75-B100-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B75-B150-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B75-B200-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B75-B250-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B75-B300-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B100-B25-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B100-B50-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B100-B75-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B100-B100-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B100-B150-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B100-B200-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B100-B250-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B100-B300-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B150-B25-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B150-B50-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B150-B75-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B150-B100-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B150-B150-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B150-B200-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B150-B250-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B150-B300-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B200-B25-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B200-B50-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B200-B75-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B200-B100-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B200-B150-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B200-B200-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B200-B250-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B200-B300-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B250-B25-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B250-B50-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B250-B75-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B250-B100-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B250-B150-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B250-B200-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B250-B250-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B250-B300-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B300-B25-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B300-B50-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B300-B75-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B300-B100-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B300-B150-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B300-B200-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B300-B250-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B300-B300-FP1 Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
Pneumatic CylindersCKD
576 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCA2-B-FP1 Selex Cylinder (Combination, Bore 100)

Brand CKD·Pneumatic Cylinders

Available part numbers (576)

SCA2-B-00-100-B25-B25-FP1, SCA2-B-00-100-B25-B50-FP1, SCA2-B-00-100-B25-B75-FP1, SCA2-B-00-100-B25-B100-FP1, SCA2-B-00-100-B25-B150-FP1, SCA2-B-00-100-B25-B200-FP1, SCA2-B-00-100-B25-B250-FP1, SCA2-B-00-100-B25-B300-FP1, SCA2-B-00-100-B50-B25-FP1, SCA2-B-00-100-B50-B50-FP1 + 566 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCA2-B-00-100-B25-B25-FP1Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B25-B50-FP1Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B25-B75-FP1Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B25-B100-FP1Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B25-B150-FP1Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B25-B200-FP1Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B25-B250-FP1Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B25-B300-FP1Mounting: Basic | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-00-100-B50-B25-FP1Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B50-B50-FP1Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B50-B75-FP1Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B50-B100-FP1Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B50-B150-FP1Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B50-B200-FP1Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B50-B250-FP1Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B50-B300-FP1Mounting: Basic | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-00-100-B75-B25-FP1Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B75-B50-FP1Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B75-B75-FP1Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B75-B100-FP1Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B75-B150-FP1Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B75-B200-FP1Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B75-B250-FP1Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B75-B300-FP1Mounting: Basic | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-00-100-B100-B25-FP1Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B100-B50-FP1Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B100-B75-FP1Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B100-B100-FP1Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B100-B150-FP1Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B100-B200-FP1Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B100-B250-FP1Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B100-B300-FP1Mounting: Basic | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-00-100-B150-B25-FP1Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B150-B50-FP1Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B150-B75-FP1Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B150-B100-FP1Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B150-B150-FP1Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B150-B200-FP1Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B150-B250-FP1Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B150-B300-FP1Mounting: Basic | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-00-100-B200-B25-FP1Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B200-B50-FP1Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B200-B75-FP1Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B200-B100-FP1Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B200-B150-FP1Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B200-B200-FP1Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B200-B250-FP1Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B200-B300-FP1Mounting: Basic | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-00-100-B250-B25-FP1Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B250-B50-FP1Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B250-B75-FP1Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B250-B100-FP1Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B250-B150-FP1Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B250-B200-FP1Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B250-B250-FP1Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B250-B300-FP1Mounting: Basic | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-00-100-B300-B25-FP1Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-00-100-B300-B50-FP1Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-00-100-B300-B75-FP1Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-00-100-B300-B100-FP1Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-00-100-B300-B150-FP1Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-00-100-B300-B200-FP1Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-00-100-B300-B250-FP1Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-00-100-B300-B300-FP1Mounting: Basic | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B25-B25-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B25-B50-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B25-B75-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B25-B100-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B25-B150-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B25-B200-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B25-B250-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B25-B300-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B50-B25-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B50-B50-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B50-B75-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B50-B100-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B50-B150-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B50-B200-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B50-B250-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B50-B300-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B75-B25-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B75-B50-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B75-B75-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B75-B100-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B75-B150-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B75-B200-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B75-B250-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B75-B300-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B100-B25-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B100-B50-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B100-B75-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B100-B100-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B100-B150-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B100-B200-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B100-B250-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B100-B300-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B150-B25-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B150-B50-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B150-B75-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B150-B100-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B150-B150-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B150-B200-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B150-B250-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B150-B300-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B200-B25-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B200-B50-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B200-B75-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B200-B100-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B200-B150-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B200-B200-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B200-B250-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B200-B300-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B250-B25-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B250-B50-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B250-B75-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B250-B100-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B250-B150-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B250-B200-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B250-B250-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B250-B300-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-LB-100-B300-B25-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-LB-100-B300-B50-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-LB-100-B300-B75-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-LB-100-B300-B100-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-LB-100-B300-B150-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-LB-100-B300-B200-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-LB-100-B300-B250-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-LB-100-B300-B300-FP1Mounting: Axial foot | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B25-B25-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B25-B50-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B25-B75-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B25-B100-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B25-B150-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B25-B200-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B25-B250-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B25-B300-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B50-B25-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B50-B50-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B50-B75-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B50-B100-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B50-B150-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B50-B200-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B50-B250-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B50-B300-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B75-B25-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B75-B50-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B75-B75-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B75-B100-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B75-B150-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B75-B200-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B75-B250-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B75-B300-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B100-B25-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B100-B50-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B100-B75-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B100-B100-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B100-B150-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B100-B200-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B100-B250-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B100-B300-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B150-B25-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B150-B50-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B150-B75-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B150-B100-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B150-B150-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B150-B200-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B150-B250-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B150-B300-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B200-B25-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B200-B50-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B200-B75-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B200-B100-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B200-B150-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B200-B200-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B200-B250-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B200-B300-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B250-B25-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B250-B50-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B250-B75-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B250-B100-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B250-B150-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B250-B200-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B250-B250-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B250-B300-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FA-100-B300-B25-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FA-100-B300-B50-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FA-100-B300-B75-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FA-100-B300-B100-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FA-100-B300-B150-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FA-100-B300-B200-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FA-100-B300-B250-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FA-100-B300-B300-FP1Mounting: Rod-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B25-B25-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B25-B50-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B25-B75-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B25-B100-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B25-B150-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B25-B200-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B25-B250-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B25-B300-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B50-B25-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B50-B50-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B50-B75-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B50-B100-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B50-B150-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B50-B200-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B50-B250-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B50-B300-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B75-B25-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B75-B50-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B75-B75-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B75-B100-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B75-B150-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B75-B200-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B75-B250-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B75-B300-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B100-B25-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B100-B50-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B100-B75-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B100-B100-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B100-B150-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B100-B200-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B100-B250-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B100-B300-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B150-B25-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B150-B50-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B150-B75-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B150-B100-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B150-B150-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B150-B200-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B150-B250-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B150-B300-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B200-B25-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B200-B50-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B200-B75-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B200-B100-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B200-B150-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B200-B200-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B200-B250-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B200-B300-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B250-B25-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B250-B50-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B250-B75-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B250-B100-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B250-B150-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B250-B200-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B250-B250-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B250-B300-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FB-100-B300-B25-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FB-100-B300-B50-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FB-100-B300-B75-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FB-100-B300-B100-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FB-100-B300-B150-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FB-100-B300-B200-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FB-100-B300-B250-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FB-100-B300-B300-FP1Mounting: Head-side flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B25-B25-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B25-B50-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B25-B75-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B25-B100-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B25-B150-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B25-B200-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B25-B250-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B25-B300-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B50-B25-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B50-B50-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B50-B75-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B50-B100-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B50-B150-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B50-B200-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B50-B250-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B50-B300-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B75-B25-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B75-B50-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B75-B75-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B75-B100-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B75-B150-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B75-B200-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B75-B250-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B75-B300-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B100-B25-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B100-B50-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B100-B75-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B100-B100-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B100-B150-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B100-B200-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B100-B250-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B100-B300-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B150-B25-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B150-B50-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B150-B75-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B150-B100-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B150-B150-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B150-B200-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B150-B250-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B150-B300-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B200-B25-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B200-B50-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B200-B75-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B200-B100-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B200-B150-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B200-B200-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B200-B250-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B200-B300-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B250-B25-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B250-B50-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B250-B75-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B250-B100-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B250-B150-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B250-B200-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B250-B250-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B250-B300-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-FC-100-B300-B25-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-FC-100-B300-B50-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-FC-100-B300-B75-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-FC-100-B300-B100-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-FC-100-B300-B150-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-FC-100-B300-B200-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-FC-100-B300-B250-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-FC-100-B300-B300-FP1Mounting: Head-side special flange | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B25-B25-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B25-B50-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B25-B75-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B25-B100-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B25-B150-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B25-B200-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B25-B250-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B25-B300-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B50-B25-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B50-B50-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B50-B75-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B50-B100-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B50-B150-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B50-B200-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B50-B250-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B50-B300-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B75-B25-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B75-B50-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B75-B75-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B75-B100-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B75-B150-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B75-B200-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B75-B250-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B75-B300-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B100-B25-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B100-B50-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B100-B75-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B100-B100-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B100-B150-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B100-B200-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B100-B250-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B100-B300-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B150-B25-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B150-B50-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B150-B75-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B150-B100-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B150-B150-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B150-B200-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B150-B250-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B150-B300-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B200-B25-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B200-B50-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B200-B75-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B200-B100-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B200-B150-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B200-B200-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B200-B250-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B200-B300-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B250-B25-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B250-B50-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B250-B75-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B250-B100-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B250-B150-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B250-B200-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B250-B250-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B250-B300-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TA-100-B300-B25-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TA-100-B300-B50-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TA-100-B300-B75-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TA-100-B300-B100-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TA-100-B300-B150-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TA-100-B300-B200-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TA-100-B300-B250-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TA-100-B300-B300-FP1Mounting: Rod-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B25-B25-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B25-B50-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B25-B75-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B25-B100-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B25-B150-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B25-B200-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B25-B250-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B25-B300-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B50-B25-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B50-B50-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B50-B75-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B50-B100-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B50-B150-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B50-B200-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B50-B250-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B50-B300-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B75-B25-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B75-B50-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B75-B75-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B75-B100-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B75-B150-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B75-B200-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B75-B250-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B75-B300-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B100-B25-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B100-B50-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B100-B75-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B100-B100-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B100-B150-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B100-B200-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B100-B250-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B100-B300-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B150-B25-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B150-B50-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B150-B75-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B150-B100-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B150-B150-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B150-B200-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B150-B250-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B150-B300-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B200-B25-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B200-B50-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B200-B75-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B200-B100-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B200-B150-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B200-B200-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B200-B250-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B200-B300-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B250-B25-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B250-B50-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B250-B75-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B250-B100-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B250-B150-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B250-B200-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B250-B250-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B250-B300-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TB-100-B300-B25-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TB-100-B300-B50-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TB-100-B300-B75-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TB-100-B300-B100-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TB-100-B300-B150-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TB-100-B300-B200-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TB-100-B300-B250-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TB-100-B300-B300-FP1Mounting: Head-side trunnion | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B25-B25-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B25-B50-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B25-B75-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B25-B100-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B25-B150-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B25-B200-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B25-B250-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B25-B300-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B50-B25-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B50-B50-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B50-B75-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B50-B100-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B50-B150-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B50-B200-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B50-B250-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B50-B300-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B75-B25-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B75-B50-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B75-B75-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B75-B100-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B75-B150-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B75-B200-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B75-B250-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B75-B300-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B100-B25-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B100-B50-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B100-B75-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B100-B100-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B100-B150-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B100-B200-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B100-B250-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B100-B300-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B150-B25-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B150-B50-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B150-B75-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B150-B100-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B150-B150-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B150-B200-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B150-B250-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B150-B300-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B200-B25-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B200-B50-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B200-B75-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B200-B100-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B200-B150-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B200-B200-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B200-B250-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B200-B300-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B250-B25-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B250-B50-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B250-B75-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B250-B100-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B250-B150-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B250-B200-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B250-B250-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B250-B300-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TD-100-B300-B25-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TD-100-B300-B50-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TD-100-B300-B75-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TD-100-B300-B100-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TD-100-B300-B150-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TD-100-B300-B200-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TD-100-B300-B250-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TD-100-B300-B300-FP1Mounting: Rod-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B25-B25-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B25-B50-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B25-B75-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B25-B100-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B25-B150-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B25-B200-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B25-B250-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B25-B300-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 25 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B50-B25-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B50-B50-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B50-B75-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B50-B100-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B50-B150-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B50-B200-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B50-B250-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B50-B300-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 50 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B75-B25-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B75-B50-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B75-B75-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B75-B100-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B75-B150-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B75-B200-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B75-B250-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B75-B300-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 75 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B100-B25-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B100-B50-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B100-B75-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B100-B100-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B100-B150-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B100-B200-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B100-B250-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B100-B300-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 100 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B150-B25-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B150-B50-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B150-B75-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B150-B100-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B150-B150-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B150-B200-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B150-B250-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B150-B300-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 150 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B200-B25-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B200-B50-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B200-B75-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B200-B100-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B200-B150-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B200-B200-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B200-B250-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B200-B300-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 200 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B250-B25-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B250-B50-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B250-B75-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B250-B100-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B250-B150-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B250-B200-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B250-B250-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B250-B300-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 250 mm | Stroke S2 (cyl. 2): 300 mm
SCA2-B-TE-100-B300-B25-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 25 mm
SCA2-B-TE-100-B300-B50-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 50 mm
SCA2-B-TE-100-B300-B75-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 75 mm
SCA2-B-TE-100-B300-B100-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 100 mm
SCA2-B-TE-100-B300-B150-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 150 mm
SCA2-B-TE-100-B300-B200-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 200 mm
SCA2-B-TE-100-B300-B250-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 250 mm
SCA2-B-TE-100-B300-B300-FP1Mounting: Head-side trunnion, hole type | Stroke S1 (cyl. 1): 300 mm | Stroke S2 (cyl. 2): 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
