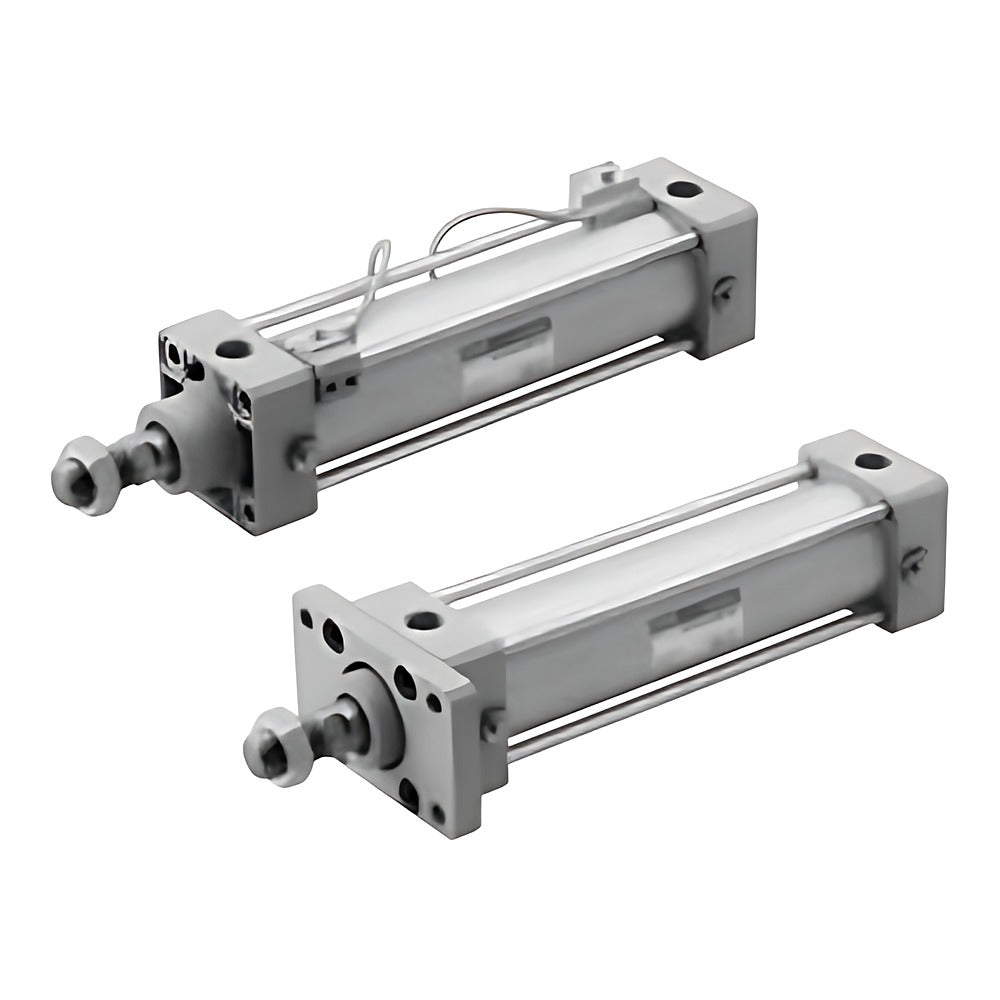

CKD SCA2-FP1 Selex Cylinder (Standard, Basic/Foot/Flange)

CKD SCA2-FP1 Selex cylinder (standard, basic/foot/flange mountings), bore 40-100 mm, with NSF H1 food-grade grease.

Key features

NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
Selex cylinder, bore 40-100 mm; air cushion both ends/rod/head or no cushion
Auto switches (T0H, T2H, T2WH etc.) with count R/H/D/T, bellows J/L, stainless rod M, cushion needle position S/T and rod-end I/Y/B1-B4 ordered as suffixes
Hole-type trunnions TF/TD/TE not available for bore 40; intermediate strokes in 1 mm steps
Standard strokes 25-500 mm; max. 600/700/800 mm by bore

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Port	Rc1/4 (40), Rc3/8 (50/63), Rc1/2 (80/100)
Piston speed	50-1000 mm/s
Type	Double acting, single rod
Source	CKD Korea catalog CC-1271K, p. 74-78

SCA2-00-40B-25-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-00-40B-50-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-00-40B-75-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-00-40B-100-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-00-40B-150-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-00-40B-200-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-00-40B-250-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-00-40B-300-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-00-40B-350-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-00-40B-400-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-00-40B-450-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-00-40B-500-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-00-40R-25-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-00-40R-50-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-00-40R-75-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-00-40R-100-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-00-40R-150-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-00-40R-200-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-00-40R-250-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-00-40R-300-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-00-40R-350-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-00-40R-400-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-00-40R-450-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-00-40R-500-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-00-40H-25-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-00-40H-50-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-00-40H-75-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-00-40H-100-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-00-40H-150-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-00-40H-200-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-00-40H-250-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-00-40H-300-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-00-40H-350-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-00-40H-400-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-00-40H-450-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-00-40H-500-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-00-40N-25-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
SCA2-00-40N-50-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
SCA2-00-40N-75-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
SCA2-00-40N-100-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
SCA2-00-40N-150-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
SCA2-00-40N-200-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
SCA2-00-40N-250-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
SCA2-00-40N-300-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
SCA2-00-40N-350-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
SCA2-00-40N-400-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
SCA2-00-40N-450-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
SCA2-00-40N-500-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
SCA2-00-50B-25-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-00-50B-50-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-00-50B-75-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-00-50B-100-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-00-50B-150-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-00-50B-200-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-00-50B-250-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-00-50B-300-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-00-50B-350-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-00-50B-400-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-00-50B-450-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-00-50B-500-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-00-50R-25-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-00-50R-50-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-00-50R-75-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-00-50R-100-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-00-50R-150-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-00-50R-200-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-00-50R-250-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-00-50R-300-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-00-50R-350-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-00-50R-400-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-00-50R-450-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-00-50R-500-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-00-50H-25-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-00-50H-50-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-00-50H-75-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-00-50H-100-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-00-50H-150-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-00-50H-200-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-00-50H-250-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-00-50H-300-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-00-50H-350-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-00-50H-400-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-00-50H-450-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-00-50H-500-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-00-50N-25-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
SCA2-00-50N-50-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
SCA2-00-50N-75-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
SCA2-00-50N-100-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
SCA2-00-50N-150-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
SCA2-00-50N-200-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
SCA2-00-50N-250-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
SCA2-00-50N-300-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
SCA2-00-50N-350-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
SCA2-00-50N-400-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
SCA2-00-50N-450-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
SCA2-00-50N-500-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
SCA2-00-63B-25-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-00-63B-50-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-00-63B-75-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-00-63B-100-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-00-63B-150-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-00-63B-200-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-00-63B-250-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-00-63B-300-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-00-63B-350-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-00-63B-400-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-00-63B-450-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-00-63B-500-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-00-63R-25-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-00-63R-50-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-00-63R-75-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-00-63R-100-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-00-63R-150-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-00-63R-200-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-00-63R-250-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-00-63R-300-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-00-63R-350-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-00-63R-400-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-00-63R-450-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-00-63R-500-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-00-63H-25-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-00-63H-50-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-00-63H-75-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-00-63H-100-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-00-63H-150-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-00-63H-200-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-00-63H-250-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-00-63H-300-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-00-63H-350-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-00-63H-400-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-00-63H-450-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-00-63H-500-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-00-63N-25-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
SCA2-00-63N-50-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
SCA2-00-63N-75-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
SCA2-00-63N-100-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
SCA2-00-63N-150-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
SCA2-00-63N-200-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
SCA2-00-63N-250-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
SCA2-00-63N-300-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
SCA2-00-63N-350-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
SCA2-00-63N-400-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
SCA2-00-63N-450-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
SCA2-00-63N-500-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
SCA2-00-80B-25-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-00-80B-50-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-00-80B-75-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-00-80B-100-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-00-80B-150-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-00-80B-200-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-00-80B-250-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-00-80B-300-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-00-80B-350-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-00-80B-400-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-00-80B-450-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-00-80B-500-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-00-80R-25-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-00-80R-50-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-00-80R-75-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-00-80R-100-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-00-80R-150-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-00-80R-200-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-00-80R-250-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-00-80R-300-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-00-80R-350-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-00-80R-400-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-00-80R-450-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-00-80R-500-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-00-80H-25-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-00-80H-50-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-00-80H-75-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-00-80H-100-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-00-80H-150-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-00-80H-200-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-00-80H-250-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-00-80H-300-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-00-80H-350-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-00-80H-400-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-00-80H-450-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-00-80H-500-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-00-80N-25-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
SCA2-00-80N-50-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
SCA2-00-80N-75-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
SCA2-00-80N-100-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
SCA2-00-80N-150-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
SCA2-00-80N-200-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
SCA2-00-80N-250-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
SCA2-00-80N-300-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
SCA2-00-80N-350-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
SCA2-00-80N-400-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
SCA2-00-80N-450-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
SCA2-00-80N-500-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
SCA2-00-100B-25-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-00-100B-50-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-00-100B-75-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-00-100B-100-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-00-100B-150-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-00-100B-200-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-00-100B-250-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-00-100B-300-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-00-100B-350-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-00-100B-400-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-00-100B-450-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-00-100B-500-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-00-100R-25-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-00-100R-50-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-00-100R-75-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-00-100R-100-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-00-100R-150-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-00-100R-200-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-00-100R-250-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-00-100R-300-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-00-100R-350-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-00-100R-400-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-00-100R-450-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-00-100R-500-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-00-100H-25-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-00-100H-50-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-00-100H-75-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-00-100H-100-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-00-100H-150-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-00-100H-200-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-00-100H-250-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-00-100H-300-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-00-100H-350-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-00-100H-400-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-00-100H-450-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-00-100H-500-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-00-100N-25-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
SCA2-00-100N-50-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
SCA2-00-100N-75-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
SCA2-00-100N-100-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
SCA2-00-100N-150-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
SCA2-00-100N-200-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
SCA2-00-100N-250-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
SCA2-00-100N-300-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
SCA2-00-100N-350-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
SCA2-00-100N-400-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
SCA2-00-100N-450-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
SCA2-00-100N-500-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm
SCA2-LB-40B-25-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-LB-40B-50-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-LB-40B-75-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-LB-40B-100-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-LB-40B-150-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-LB-40B-200-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-LB-40B-250-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-LB-40B-300-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-LB-40B-350-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-LB-40B-400-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-LB-40B-450-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-LB-40B-500-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-LB-40R-25-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-LB-40R-50-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-LB-40R-75-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-LB-40R-100-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-LB-40R-150-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-LB-40R-200-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-LB-40R-250-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-LB-40R-300-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-LB-40R-350-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-LB-40R-400-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-LB-40R-450-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-LB-40R-500-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-LB-40H-25-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-LB-40H-50-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-LB-40H-75-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-LB-40H-100-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-LB-40H-150-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-LB-40H-200-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-LB-40H-250-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-LB-40H-300-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-LB-40H-350-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-LB-40H-400-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-LB-40H-450-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-LB-40H-500-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-LB-40N-25-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
SCA2-LB-40N-50-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
SCA2-LB-40N-75-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
SCA2-LB-40N-100-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
SCA2-LB-40N-150-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
SCA2-LB-40N-200-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
SCA2-LB-40N-250-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
SCA2-LB-40N-300-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
SCA2-LB-40N-350-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
SCA2-LB-40N-400-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
SCA2-LB-40N-450-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
SCA2-LB-40N-500-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
SCA2-LB-50B-25-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-LB-50B-50-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-LB-50B-75-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-LB-50B-100-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-LB-50B-150-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-LB-50B-200-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-LB-50B-250-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-LB-50B-300-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-LB-50B-350-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-LB-50B-400-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-LB-50B-450-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-LB-50B-500-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-LB-50R-25-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-LB-50R-50-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-LB-50R-75-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-LB-50R-100-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-LB-50R-150-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-LB-50R-200-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-LB-50R-250-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-LB-50R-300-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-LB-50R-350-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-LB-50R-400-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-LB-50R-450-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-LB-50R-500-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-LB-50H-25-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-LB-50H-50-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-LB-50H-75-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-LB-50H-100-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-LB-50H-150-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-LB-50H-200-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-LB-50H-250-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-LB-50H-300-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-LB-50H-350-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-LB-50H-400-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-LB-50H-450-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-LB-50H-500-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-LB-50N-25-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
SCA2-LB-50N-50-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
SCA2-LB-50N-75-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
SCA2-LB-50N-100-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
SCA2-LB-50N-150-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
SCA2-LB-50N-200-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
SCA2-LB-50N-250-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
SCA2-LB-50N-300-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
SCA2-LB-50N-350-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
SCA2-LB-50N-400-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
SCA2-LB-50N-450-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
SCA2-LB-50N-500-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
SCA2-LB-63B-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-LB-63B-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-LB-63B-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-LB-63B-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-LB-63B-150-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-LB-63B-200-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-LB-63B-250-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-LB-63B-300-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-LB-63B-350-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-LB-63B-400-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-LB-63B-450-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-LB-63B-500-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-LB-63R-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-LB-63R-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-LB-63R-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-LB-63R-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-LB-63R-150-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-LB-63R-200-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-LB-63R-250-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-LB-63R-300-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-LB-63R-350-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-LB-63R-400-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-LB-63R-450-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-LB-63R-500-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-LB-63H-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-LB-63H-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-LB-63H-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-LB-63H-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-LB-63H-150-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-LB-63H-200-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-LB-63H-250-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-LB-63H-300-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-LB-63H-350-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-LB-63H-400-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-LB-63H-450-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-LB-63H-500-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-LB-63N-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
SCA2-LB-63N-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
SCA2-LB-63N-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
SCA2-LB-63N-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
SCA2-LB-63N-150-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
SCA2-LB-63N-200-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
SCA2-LB-63N-250-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
SCA2-LB-63N-300-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
SCA2-LB-63N-350-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
SCA2-LB-63N-400-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
SCA2-LB-63N-450-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
SCA2-LB-63N-500-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
SCA2-LB-80B-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-LB-80B-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-LB-80B-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-LB-80B-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-LB-80B-150-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-LB-80B-200-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-LB-80B-250-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-LB-80B-300-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-LB-80B-350-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-LB-80B-400-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-LB-80B-450-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-LB-80B-500-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-LB-80R-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-LB-80R-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-LB-80R-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-LB-80R-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-LB-80R-150-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-LB-80R-200-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-LB-80R-250-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-LB-80R-300-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-LB-80R-350-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-LB-80R-400-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-LB-80R-450-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-LB-80R-500-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-LB-80H-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-LB-80H-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-LB-80H-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-LB-80H-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-LB-80H-150-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-LB-80H-200-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-LB-80H-250-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-LB-80H-300-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-LB-80H-350-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-LB-80H-400-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-LB-80H-450-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-LB-80H-500-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-LB-80N-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
SCA2-LB-80N-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
SCA2-LB-80N-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
SCA2-LB-80N-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
SCA2-LB-80N-150-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
SCA2-LB-80N-200-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
SCA2-LB-80N-250-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
SCA2-LB-80N-300-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
SCA2-LB-80N-350-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
SCA2-LB-80N-400-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
SCA2-LB-80N-450-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
SCA2-LB-80N-500-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
SCA2-LB-100B-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-LB-100B-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-LB-100B-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-LB-100B-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-LB-100B-150-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-LB-100B-200-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-LB-100B-250-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-LB-100B-300-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-LB-100B-350-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-LB-100B-400-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-LB-100B-450-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-LB-100B-500-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-LB-100R-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-LB-100R-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-LB-100R-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-LB-100R-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-LB-100R-150-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-LB-100R-200-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-LB-100R-250-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-LB-100R-300-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-LB-100R-350-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-LB-100R-400-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-LB-100R-450-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-LB-100R-500-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-LB-100H-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-LB-100H-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-LB-100H-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-LB-100H-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-LB-100H-150-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-LB-100H-200-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-LB-100H-250-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-LB-100H-300-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-LB-100H-350-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-LB-100H-400-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-LB-100H-450-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-LB-100H-500-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-LB-100N-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
SCA2-LB-100N-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
SCA2-LB-100N-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
SCA2-LB-100N-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
SCA2-LB-100N-150-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
SCA2-LB-100N-200-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
SCA2-LB-100N-250-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
SCA2-LB-100N-300-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
SCA2-LB-100N-350-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
SCA2-LB-100N-400-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
SCA2-LB-100N-450-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
SCA2-LB-100N-500-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FA-40B-25-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FA-40B-50-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FA-40B-75-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FA-40B-100-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FA-40B-150-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FA-40B-200-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FA-40B-250-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FA-40B-300-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FA-40B-350-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FA-40B-400-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FA-40B-450-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FA-40B-500-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FA-40R-25-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FA-40R-50-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FA-40R-75-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FA-40R-100-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FA-40R-150-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FA-40R-200-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FA-40R-250-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FA-40R-300-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FA-40R-350-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FA-40R-400-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FA-40R-450-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FA-40R-500-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FA-40H-25-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FA-40H-50-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FA-40H-75-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FA-40H-100-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FA-40H-150-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FA-40H-200-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FA-40H-250-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FA-40H-300-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FA-40H-350-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FA-40H-400-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FA-40H-450-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FA-40H-500-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FA-40N-25-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FA-40N-50-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FA-40N-75-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FA-40N-100-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FA-40N-150-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FA-40N-200-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FA-40N-250-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FA-40N-300-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FA-40N-350-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FA-40N-400-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FA-40N-450-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FA-40N-500-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FA-50B-25-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FA-50B-50-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FA-50B-75-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FA-50B-100-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FA-50B-150-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FA-50B-200-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FA-50B-250-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FA-50B-300-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FA-50B-350-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FA-50B-400-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FA-50B-450-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FA-50B-500-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FA-50R-25-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FA-50R-50-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FA-50R-75-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FA-50R-100-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FA-50R-150-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FA-50R-200-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FA-50R-250-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FA-50R-300-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FA-50R-350-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FA-50R-400-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FA-50R-450-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FA-50R-500-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FA-50H-25-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FA-50H-50-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FA-50H-75-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FA-50H-100-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FA-50H-150-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FA-50H-200-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FA-50H-250-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FA-50H-300-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FA-50H-350-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FA-50H-400-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FA-50H-450-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FA-50H-500-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FA-50N-25-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FA-50N-50-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FA-50N-75-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FA-50N-100-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FA-50N-150-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FA-50N-200-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FA-50N-250-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FA-50N-300-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FA-50N-350-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FA-50N-400-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FA-50N-450-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FA-50N-500-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FA-63B-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FA-63B-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FA-63B-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FA-63B-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FA-63B-150-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FA-63B-200-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FA-63B-250-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FA-63B-300-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FA-63B-350-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FA-63B-400-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FA-63B-450-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FA-63B-500-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FA-63R-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FA-63R-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FA-63R-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FA-63R-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FA-63R-150-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FA-63R-200-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FA-63R-250-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FA-63R-300-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FA-63R-350-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FA-63R-400-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FA-63R-450-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FA-63R-500-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FA-63H-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FA-63H-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FA-63H-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FA-63H-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FA-63H-150-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FA-63H-200-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FA-63H-250-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FA-63H-300-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FA-63H-350-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FA-63H-400-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FA-63H-450-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FA-63H-500-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FA-63N-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FA-63N-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FA-63N-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FA-63N-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FA-63N-150-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FA-63N-200-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FA-63N-250-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FA-63N-300-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FA-63N-350-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FA-63N-400-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FA-63N-450-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FA-63N-500-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FA-80B-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FA-80B-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FA-80B-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FA-80B-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FA-80B-150-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FA-80B-200-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FA-80B-250-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FA-80B-300-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FA-80B-350-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FA-80B-400-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FA-80B-450-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FA-80B-500-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FA-80R-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FA-80R-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FA-80R-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FA-80R-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FA-80R-150-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FA-80R-200-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FA-80R-250-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FA-80R-300-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FA-80R-350-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FA-80R-400-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FA-80R-450-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FA-80R-500-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FA-80H-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FA-80H-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FA-80H-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FA-80H-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FA-80H-150-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FA-80H-200-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FA-80H-250-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FA-80H-300-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FA-80H-350-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FA-80H-400-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FA-80H-450-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FA-80H-500-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FA-80N-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FA-80N-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FA-80N-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FA-80N-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FA-80N-150-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FA-80N-200-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FA-80N-250-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FA-80N-300-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FA-80N-350-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FA-80N-400-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FA-80N-450-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FA-80N-500-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FA-100B-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FA-100B-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FA-100B-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FA-100B-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FA-100B-150-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FA-100B-200-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FA-100B-250-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FA-100B-300-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FA-100B-350-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FA-100B-400-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FA-100B-450-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FA-100B-500-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FA-100R-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FA-100R-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FA-100R-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FA-100R-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FA-100R-150-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FA-100R-200-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FA-100R-250-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FA-100R-300-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FA-100R-350-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FA-100R-400-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FA-100R-450-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FA-100R-500-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FA-100H-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FA-100H-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FA-100H-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FA-100H-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FA-100H-150-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FA-100H-200-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FA-100H-250-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FA-100H-300-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FA-100H-350-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FA-100H-400-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FA-100H-450-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FA-100H-500-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FA-100N-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FA-100N-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FA-100N-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FA-100N-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FA-100N-150-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FA-100N-200-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FA-100N-250-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FA-100N-300-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FA-100N-350-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FA-100N-400-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FA-100N-450-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FA-100N-500-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FB-40B-25-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FB-40B-50-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FB-40B-75-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FB-40B-100-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FB-40B-150-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FB-40B-200-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FB-40B-250-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FB-40B-300-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FB-40B-350-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FB-40B-400-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FB-40B-450-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FB-40B-500-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FB-40R-25-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FB-40R-50-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FB-40R-75-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FB-40R-100-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FB-40R-150-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FB-40R-200-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FB-40R-250-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FB-40R-300-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FB-40R-350-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FB-40R-400-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FB-40R-450-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FB-40R-500-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FB-40H-25-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FB-40H-50-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FB-40H-75-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FB-40H-100-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FB-40H-150-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FB-40H-200-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FB-40H-250-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FB-40H-300-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FB-40H-350-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FB-40H-400-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FB-40H-450-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FB-40H-500-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FB-40N-25-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FB-40N-50-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FB-40N-75-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FB-40N-100-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FB-40N-150-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FB-40N-200-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FB-40N-250-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FB-40N-300-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FB-40N-350-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FB-40N-400-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FB-40N-450-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FB-40N-500-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FB-50B-25-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FB-50B-50-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FB-50B-75-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FB-50B-100-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FB-50B-150-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FB-50B-200-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FB-50B-250-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FB-50B-300-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FB-50B-350-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FB-50B-400-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FB-50B-450-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FB-50B-500-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FB-50R-25-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FB-50R-50-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FB-50R-75-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FB-50R-100-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FB-50R-150-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FB-50R-200-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FB-50R-250-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FB-50R-300-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FB-50R-350-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FB-50R-400-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FB-50R-450-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FB-50R-500-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FB-50H-25-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FB-50H-50-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FB-50H-75-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FB-50H-100-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FB-50H-150-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FB-50H-200-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FB-50H-250-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FB-50H-300-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FB-50H-350-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FB-50H-400-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FB-50H-450-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FB-50H-500-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FB-50N-25-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FB-50N-50-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FB-50N-75-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FB-50N-100-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FB-50N-150-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FB-50N-200-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FB-50N-250-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FB-50N-300-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FB-50N-350-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FB-50N-400-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FB-50N-450-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FB-50N-500-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FB-63B-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FB-63B-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FB-63B-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FB-63B-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FB-63B-150-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FB-63B-200-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FB-63B-250-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FB-63B-300-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FB-63B-350-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FB-63B-400-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FB-63B-450-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FB-63B-500-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FB-63R-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FB-63R-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FB-63R-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FB-63R-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FB-63R-150-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FB-63R-200-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FB-63R-250-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FB-63R-300-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FB-63R-350-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FB-63R-400-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FB-63R-450-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FB-63R-500-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FB-63H-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FB-63H-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FB-63H-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FB-63H-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FB-63H-150-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FB-63H-200-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FB-63H-250-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FB-63H-300-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FB-63H-350-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FB-63H-400-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FB-63H-450-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FB-63H-500-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FB-63N-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FB-63N-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FB-63N-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FB-63N-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FB-63N-150-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FB-63N-200-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FB-63N-250-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FB-63N-300-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FB-63N-350-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FB-63N-400-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FB-63N-450-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FB-63N-500-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FB-80B-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FB-80B-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FB-80B-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FB-80B-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FB-80B-150-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FB-80B-200-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FB-80B-250-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FB-80B-300-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FB-80B-350-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FB-80B-400-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FB-80B-450-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FB-80B-500-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FB-80R-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FB-80R-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FB-80R-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FB-80R-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FB-80R-150-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FB-80R-200-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FB-80R-250-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FB-80R-300-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FB-80R-350-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FB-80R-400-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FB-80R-450-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FB-80R-500-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FB-80H-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FB-80H-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FB-80H-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FB-80H-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FB-80H-150-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FB-80H-200-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FB-80H-250-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FB-80H-300-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FB-80H-350-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FB-80H-400-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FB-80H-450-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FB-80H-500-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FB-80N-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FB-80N-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FB-80N-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FB-80N-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FB-80N-150-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FB-80N-200-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FB-80N-250-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FB-80N-300-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FB-80N-350-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FB-80N-400-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FB-80N-450-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FB-80N-500-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FB-100B-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FB-100B-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FB-100B-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FB-100B-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FB-100B-150-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FB-100B-200-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FB-100B-250-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FB-100B-300-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FB-100B-350-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FB-100B-400-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FB-100B-450-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FB-100B-500-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FB-100R-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FB-100R-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FB-100R-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FB-100R-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FB-100R-150-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FB-100R-200-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FB-100R-250-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FB-100R-300-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FB-100R-350-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FB-100R-400-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FB-100R-450-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FB-100R-500-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FB-100H-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FB-100H-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FB-100H-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FB-100H-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FB-100H-150-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FB-100H-200-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FB-100H-250-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FB-100H-300-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FB-100H-350-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FB-100H-400-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FB-100H-450-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FB-100H-500-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FB-100N-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FB-100N-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FB-100N-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FB-100N-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FB-100N-150-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FB-100N-200-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FB-100N-250-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FB-100N-300-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FB-100N-350-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FB-100N-400-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FB-100N-450-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FB-100N-500-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FC-40B-25-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FC-40B-50-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FC-40B-75-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FC-40B-100-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FC-40B-150-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FC-40B-200-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FC-40B-250-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FC-40B-300-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FC-40B-350-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FC-40B-400-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FC-40B-450-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FC-40B-500-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FC-40R-25-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FC-40R-50-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FC-40R-75-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FC-40R-100-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FC-40R-150-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FC-40R-200-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FC-40R-250-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FC-40R-300-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FC-40R-350-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FC-40R-400-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FC-40R-450-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FC-40R-500-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FC-40H-25-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FC-40H-50-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FC-40H-75-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FC-40H-100-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FC-40H-150-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FC-40H-200-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FC-40H-250-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FC-40H-300-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FC-40H-350-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FC-40H-400-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FC-40H-450-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FC-40H-500-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FC-40N-25-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FC-40N-50-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FC-40N-75-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FC-40N-100-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FC-40N-150-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FC-40N-200-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FC-40N-250-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FC-40N-300-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FC-40N-350-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FC-40N-400-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FC-40N-450-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FC-40N-500-FP1		Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FC-50B-25-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FC-50B-50-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FC-50B-75-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FC-50B-100-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FC-50B-150-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FC-50B-200-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FC-50B-250-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FC-50B-300-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FC-50B-350-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FC-50B-400-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FC-50B-450-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FC-50B-500-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FC-50R-25-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FC-50R-50-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FC-50R-75-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FC-50R-100-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FC-50R-150-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FC-50R-200-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FC-50R-250-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FC-50R-300-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FC-50R-350-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FC-50R-400-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FC-50R-450-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FC-50R-500-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FC-50H-25-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FC-50H-50-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FC-50H-75-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FC-50H-100-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FC-50H-150-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FC-50H-200-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FC-50H-250-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FC-50H-300-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FC-50H-350-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FC-50H-400-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FC-50H-450-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FC-50H-500-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FC-50N-25-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FC-50N-50-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FC-50N-75-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FC-50N-100-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FC-50N-150-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FC-50N-200-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FC-50N-250-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FC-50N-300-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FC-50N-350-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FC-50N-400-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FC-50N-450-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FC-50N-500-FP1		Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FC-63B-25-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FC-63B-50-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FC-63B-75-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FC-63B-100-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FC-63B-150-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FC-63B-200-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FC-63B-250-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FC-63B-300-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FC-63B-350-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FC-63B-400-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FC-63B-450-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FC-63B-500-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FC-63R-25-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FC-63R-50-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FC-63R-75-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FC-63R-100-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FC-63R-150-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FC-63R-200-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FC-63R-250-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FC-63R-300-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FC-63R-350-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FC-63R-400-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FC-63R-450-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FC-63R-500-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FC-63H-25-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FC-63H-50-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FC-63H-75-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FC-63H-100-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FC-63H-150-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FC-63H-200-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FC-63H-250-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FC-63H-300-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FC-63H-350-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FC-63H-400-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FC-63H-450-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FC-63H-500-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FC-63N-25-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FC-63N-50-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FC-63N-75-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FC-63N-100-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FC-63N-150-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FC-63N-200-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FC-63N-250-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FC-63N-300-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FC-63N-350-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FC-63N-400-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FC-63N-450-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FC-63N-500-FP1		Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FC-80B-25-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FC-80B-50-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FC-80B-75-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FC-80B-100-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FC-80B-150-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FC-80B-200-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FC-80B-250-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FC-80B-300-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FC-80B-350-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FC-80B-400-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FC-80B-450-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FC-80B-500-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FC-80R-25-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FC-80R-50-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FC-80R-75-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FC-80R-100-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FC-80R-150-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FC-80R-200-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FC-80R-250-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FC-80R-300-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FC-80R-350-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FC-80R-400-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FC-80R-450-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FC-80R-500-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FC-80H-25-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FC-80H-50-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FC-80H-75-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FC-80H-100-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FC-80H-150-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FC-80H-200-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FC-80H-250-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FC-80H-300-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FC-80H-350-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FC-80H-400-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FC-80H-450-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FC-80H-500-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FC-80N-25-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FC-80N-50-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FC-80N-75-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FC-80N-100-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FC-80N-150-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FC-80N-200-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FC-80N-250-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FC-80N-300-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FC-80N-350-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FC-80N-400-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FC-80N-450-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FC-80N-500-FP1		Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FC-100B-25-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCA2-FC-100B-50-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCA2-FC-100B-75-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCA2-FC-100B-100-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCA2-FC-100B-150-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCA2-FC-100B-200-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCA2-FC-100B-250-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCA2-FC-100B-300-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCA2-FC-100B-350-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCA2-FC-100B-400-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCA2-FC-100B-450-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCA2-FC-100B-500-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCA2-FC-100R-25-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm
SCA2-FC-100R-50-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCA2-FC-100R-75-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCA2-FC-100R-100-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCA2-FC-100R-150-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCA2-FC-100R-200-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCA2-FC-100R-250-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCA2-FC-100R-300-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCA2-FC-100R-350-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm
SCA2-FC-100R-400-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm
SCA2-FC-100R-450-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm
SCA2-FC-100R-500-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm
SCA2-FC-100H-25-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm
SCA2-FC-100H-50-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCA2-FC-100H-75-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCA2-FC-100H-100-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCA2-FC-100H-150-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCA2-FC-100H-200-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCA2-FC-100H-250-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCA2-FC-100H-300-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCA2-FC-100H-350-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm
SCA2-FC-100H-400-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm
SCA2-FC-100H-450-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm
SCA2-FC-100H-500-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm
SCA2-FC-100N-25-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FC-100N-50-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FC-100N-75-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FC-100N-100-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FC-100N-150-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FC-100N-200-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FC-100N-250-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FC-100N-300-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FC-100N-350-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FC-100N-400-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FC-100N-450-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FC-100N-500-FP1		Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm

Pneumatic CylindersCKD

1200 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCA2-FP1 Selex Cylinder (Standard, Basic/Foot/Flange)

Brand CKD·Pneumatic Cylinders

Available part numbers (1200)

SCA2-00-40B-25-FP1, SCA2-00-40B-50-FP1, SCA2-00-40B-75-FP1, SCA2-00-40B-100-FP1, SCA2-00-40B-150-FP1, SCA2-00-40B-200-FP1, SCA2-00-40B-250-FP1, SCA2-00-40B-300-FP1, SCA2-00-40B-350-FP1, SCA2-00-40B-400-FP1 + 1190 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCA2-00-40B-25-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-00-40B-50-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-00-40B-75-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-00-40B-100-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-00-40B-150-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-00-40B-200-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-00-40B-250-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-00-40B-300-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-00-40B-350-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-00-40B-400-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-00-40B-450-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-00-40B-500-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-00-40R-25-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-00-40R-50-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-00-40R-75-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-00-40R-100-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-00-40R-150-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-00-40R-200-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-00-40R-250-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-00-40R-300-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-00-40R-350-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-00-40R-400-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-00-40R-450-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-00-40R-500-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-00-40H-25-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-00-40H-50-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-00-40H-75-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-00-40H-100-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-00-40H-150-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-00-40H-200-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-00-40H-250-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-00-40H-300-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-00-40H-350-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-00-40H-400-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-00-40H-450-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-00-40H-500-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-00-40N-25-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-00-40N-50-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-00-40N-75-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-00-40N-100-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-00-40N-150-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-00-40N-200-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-00-40N-250-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-00-40N-300-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-00-40N-350-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-00-40N-400-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-00-40N-450-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-00-40N-500-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-00-50B-25-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-00-50B-50-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-00-50B-75-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-00-50B-100-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-00-50B-150-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-00-50B-200-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-00-50B-250-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-00-50B-300-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-00-50B-350-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-00-50B-400-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-00-50B-450-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-00-50B-500-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-00-50R-25-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-00-50R-50-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-00-50R-75-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-00-50R-100-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-00-50R-150-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-00-50R-200-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-00-50R-250-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-00-50R-300-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-00-50R-350-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-00-50R-400-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-00-50R-450-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-00-50R-500-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-00-50H-25-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-00-50H-50-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-00-50H-75-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-00-50H-100-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-00-50H-150-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-00-50H-200-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-00-50H-250-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-00-50H-300-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-00-50H-350-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-00-50H-400-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-00-50H-450-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-00-50H-500-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-00-50N-25-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-00-50N-50-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-00-50N-75-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-00-50N-100-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-00-50N-150-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-00-50N-200-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-00-50N-250-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-00-50N-300-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-00-50N-350-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-00-50N-400-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-00-50N-450-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-00-50N-500-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-00-63B-25-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-00-63B-50-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-00-63B-75-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-00-63B-100-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-00-63B-150-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-00-63B-200-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-00-63B-250-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-00-63B-300-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-00-63B-350-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-00-63B-400-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-00-63B-450-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-00-63B-500-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-00-63R-25-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-00-63R-50-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-00-63R-75-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-00-63R-100-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-00-63R-150-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-00-63R-200-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-00-63R-250-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-00-63R-300-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-00-63R-350-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-00-63R-400-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-00-63R-450-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-00-63R-500-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-00-63H-25-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-00-63H-50-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-00-63H-75-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-00-63H-100-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-00-63H-150-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-00-63H-200-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-00-63H-250-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-00-63H-300-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-00-63H-350-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-00-63H-400-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-00-63H-450-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-00-63H-500-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-00-63N-25-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-00-63N-50-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-00-63N-75-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-00-63N-100-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-00-63N-150-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-00-63N-200-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-00-63N-250-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-00-63N-300-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-00-63N-350-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-00-63N-400-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-00-63N-450-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-00-63N-500-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-00-80B-25-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-00-80B-50-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-00-80B-75-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-00-80B-100-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-00-80B-150-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-00-80B-200-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-00-80B-250-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-00-80B-300-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-00-80B-350-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-00-80B-400-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-00-80B-450-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-00-80B-500-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-00-80R-25-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-00-80R-50-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-00-80R-75-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-00-80R-100-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-00-80R-150-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-00-80R-200-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-00-80R-250-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-00-80R-300-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-00-80R-350-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-00-80R-400-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-00-80R-450-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-00-80R-500-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-00-80H-25-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-00-80H-50-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-00-80H-75-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-00-80H-100-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-00-80H-150-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-00-80H-200-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-00-80H-250-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-00-80H-300-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-00-80H-350-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-00-80H-400-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-00-80H-450-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-00-80H-500-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-00-80N-25-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-00-80N-50-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-00-80N-75-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-00-80N-100-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-00-80N-150-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-00-80N-200-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-00-80N-250-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-00-80N-300-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-00-80N-350-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-00-80N-400-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-00-80N-450-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-00-80N-500-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-00-100B-25-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-00-100B-50-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-00-100B-75-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-00-100B-100-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-00-100B-150-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-00-100B-200-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-00-100B-250-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-00-100B-300-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-00-100B-350-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-00-100B-400-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-00-100B-450-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-00-100B-500-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-00-100R-25-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-00-100R-50-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-00-100R-75-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-00-100R-100-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-00-100R-150-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-00-100R-200-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-00-100R-250-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-00-100R-300-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-00-100R-350-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-00-100R-400-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-00-100R-450-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-00-100R-500-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-00-100H-25-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-00-100H-50-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-00-100H-75-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-00-100H-100-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-00-100H-150-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-00-100H-200-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-00-100H-250-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-00-100H-300-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-00-100H-350-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-00-100H-400-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-00-100H-450-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-00-100H-500-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-00-100N-25-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-00-100N-50-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-00-100N-75-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-00-100N-100-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-00-100N-150-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-00-100N-200-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-00-100N-250-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-00-100N-300-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-00-100N-350-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-00-100N-400-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-00-100N-450-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-00-100N-500-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-LB-40B-25-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-LB-40B-50-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-LB-40B-75-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-LB-40B-100-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-LB-40B-150-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-LB-40B-200-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-LB-40B-250-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-LB-40B-300-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-LB-40B-350-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-LB-40B-400-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-LB-40B-450-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-LB-40B-500-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-LB-40R-25-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-LB-40R-50-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-LB-40R-75-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-LB-40R-100-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-LB-40R-150-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-LB-40R-200-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-LB-40R-250-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-LB-40R-300-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-LB-40R-350-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-LB-40R-400-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-LB-40R-450-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-LB-40R-500-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-LB-40H-25-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-LB-40H-50-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-LB-40H-75-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-LB-40H-100-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-LB-40H-150-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-LB-40H-200-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-LB-40H-250-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-LB-40H-300-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-LB-40H-350-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-LB-40H-400-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-LB-40H-450-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-LB-40H-500-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-LB-40N-25-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-LB-40N-50-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-LB-40N-75-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-LB-40N-100-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-LB-40N-150-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-LB-40N-200-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-LB-40N-250-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-LB-40N-300-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-LB-40N-350-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-LB-40N-400-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-LB-40N-450-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-LB-40N-500-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-LB-50B-25-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-LB-50B-50-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-LB-50B-75-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-LB-50B-100-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-LB-50B-150-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-LB-50B-200-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-LB-50B-250-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-LB-50B-300-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-LB-50B-350-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-LB-50B-400-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-LB-50B-450-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-LB-50B-500-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-LB-50R-25-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-LB-50R-50-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-LB-50R-75-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-LB-50R-100-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-LB-50R-150-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-LB-50R-200-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-LB-50R-250-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-LB-50R-300-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-LB-50R-350-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-LB-50R-400-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-LB-50R-450-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-LB-50R-500-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-LB-50H-25-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-LB-50H-50-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-LB-50H-75-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-LB-50H-100-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-LB-50H-150-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-LB-50H-200-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-LB-50H-250-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-LB-50H-300-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-LB-50H-350-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-LB-50H-400-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-LB-50H-450-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-LB-50H-500-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-LB-50N-25-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-LB-50N-50-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-LB-50N-75-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-LB-50N-100-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-LB-50N-150-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-LB-50N-200-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-LB-50N-250-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-LB-50N-300-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-LB-50N-350-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-LB-50N-400-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-LB-50N-450-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-LB-50N-500-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-LB-63B-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-LB-63B-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-LB-63B-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-LB-63B-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-LB-63B-150-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-LB-63B-200-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-LB-63B-250-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-LB-63B-300-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-LB-63B-350-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-LB-63B-400-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-LB-63B-450-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-LB-63B-500-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-LB-63R-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-LB-63R-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-LB-63R-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-LB-63R-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-LB-63R-150-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-LB-63R-200-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-LB-63R-250-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-LB-63R-300-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-LB-63R-350-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-LB-63R-400-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-LB-63R-450-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-LB-63R-500-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-LB-63H-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-LB-63H-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-LB-63H-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-LB-63H-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-LB-63H-150-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-LB-63H-200-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-LB-63H-250-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-LB-63H-300-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-LB-63H-350-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-LB-63H-400-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-LB-63H-450-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-LB-63H-500-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-LB-63N-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-LB-63N-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-LB-63N-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-LB-63N-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-LB-63N-150-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-LB-63N-200-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-LB-63N-250-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-LB-63N-300-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-LB-63N-350-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-LB-63N-400-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-LB-63N-450-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-LB-63N-500-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-LB-80B-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-LB-80B-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-LB-80B-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-LB-80B-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-LB-80B-150-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-LB-80B-200-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-LB-80B-250-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-LB-80B-300-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-LB-80B-350-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-LB-80B-400-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-LB-80B-450-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-LB-80B-500-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-LB-80R-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-LB-80R-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-LB-80R-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-LB-80R-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-LB-80R-150-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-LB-80R-200-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-LB-80R-250-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-LB-80R-300-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-LB-80R-350-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-LB-80R-400-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-LB-80R-450-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-LB-80R-500-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-LB-80H-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-LB-80H-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-LB-80H-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-LB-80H-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-LB-80H-150-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-LB-80H-200-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-LB-80H-250-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-LB-80H-300-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-LB-80H-350-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-LB-80H-400-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-LB-80H-450-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-LB-80H-500-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-LB-80N-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-LB-80N-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-LB-80N-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-LB-80N-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-LB-80N-150-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-LB-80N-200-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-LB-80N-250-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-LB-80N-300-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-LB-80N-350-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-LB-80N-400-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-LB-80N-450-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-LB-80N-500-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-LB-100B-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-LB-100B-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-LB-100B-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-LB-100B-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-LB-100B-150-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-LB-100B-200-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-LB-100B-250-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-LB-100B-300-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-LB-100B-350-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-LB-100B-400-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-LB-100B-450-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-LB-100B-500-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-LB-100R-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-LB-100R-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-LB-100R-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-LB-100R-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-LB-100R-150-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-LB-100R-200-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-LB-100R-250-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-LB-100R-300-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-LB-100R-350-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-LB-100R-400-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-LB-100R-450-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-LB-100R-500-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-LB-100H-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-LB-100H-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-LB-100H-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-LB-100H-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-LB-100H-150-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-LB-100H-200-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-LB-100H-250-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-LB-100H-300-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-LB-100H-350-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-LB-100H-400-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-LB-100H-450-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-LB-100H-500-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-LB-100N-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-LB-100N-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-LB-100N-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-LB-100N-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-LB-100N-150-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-LB-100N-200-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-LB-100N-250-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-LB-100N-300-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-LB-100N-350-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-LB-100N-400-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-LB-100N-450-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-LB-100N-500-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FA-40B-25-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FA-40B-50-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FA-40B-75-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FA-40B-100-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FA-40B-150-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FA-40B-200-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FA-40B-250-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FA-40B-300-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FA-40B-350-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FA-40B-400-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FA-40B-450-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FA-40B-500-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FA-40R-25-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FA-40R-50-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FA-40R-75-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FA-40R-100-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FA-40R-150-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FA-40R-200-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FA-40R-250-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FA-40R-300-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FA-40R-350-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FA-40R-400-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FA-40R-450-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FA-40R-500-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FA-40H-25-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FA-40H-50-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FA-40H-75-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FA-40H-100-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FA-40H-150-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FA-40H-200-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FA-40H-250-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FA-40H-300-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FA-40H-350-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FA-40H-400-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FA-40H-450-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FA-40H-500-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FA-40N-25-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FA-40N-50-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FA-40N-75-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FA-40N-100-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FA-40N-150-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FA-40N-200-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FA-40N-250-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FA-40N-300-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FA-40N-350-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FA-40N-400-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FA-40N-450-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FA-40N-500-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FA-50B-25-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FA-50B-50-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FA-50B-75-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FA-50B-100-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FA-50B-150-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FA-50B-200-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FA-50B-250-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FA-50B-300-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FA-50B-350-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FA-50B-400-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FA-50B-450-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FA-50B-500-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FA-50R-25-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FA-50R-50-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FA-50R-75-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FA-50R-100-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FA-50R-150-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FA-50R-200-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FA-50R-250-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FA-50R-300-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FA-50R-350-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FA-50R-400-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FA-50R-450-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FA-50R-500-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FA-50H-25-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FA-50H-50-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FA-50H-75-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FA-50H-100-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FA-50H-150-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FA-50H-200-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FA-50H-250-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FA-50H-300-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FA-50H-350-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FA-50H-400-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FA-50H-450-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FA-50H-500-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FA-50N-25-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FA-50N-50-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FA-50N-75-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FA-50N-100-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FA-50N-150-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FA-50N-200-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FA-50N-250-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FA-50N-300-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FA-50N-350-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FA-50N-400-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FA-50N-450-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FA-50N-500-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FA-63B-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FA-63B-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FA-63B-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FA-63B-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FA-63B-150-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FA-63B-200-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FA-63B-250-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FA-63B-300-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FA-63B-350-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FA-63B-400-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FA-63B-450-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FA-63B-500-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FA-63R-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FA-63R-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FA-63R-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FA-63R-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FA-63R-150-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FA-63R-200-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FA-63R-250-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FA-63R-300-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FA-63R-350-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FA-63R-400-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FA-63R-450-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FA-63R-500-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FA-63H-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FA-63H-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FA-63H-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FA-63H-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FA-63H-150-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FA-63H-200-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FA-63H-250-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FA-63H-300-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FA-63H-350-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FA-63H-400-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FA-63H-450-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FA-63H-500-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FA-63N-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FA-63N-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FA-63N-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FA-63N-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FA-63N-150-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FA-63N-200-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FA-63N-250-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FA-63N-300-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FA-63N-350-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FA-63N-400-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FA-63N-450-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FA-63N-500-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FA-80B-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FA-80B-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FA-80B-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FA-80B-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FA-80B-150-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FA-80B-200-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FA-80B-250-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FA-80B-300-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FA-80B-350-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FA-80B-400-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FA-80B-450-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FA-80B-500-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FA-80R-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FA-80R-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FA-80R-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FA-80R-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FA-80R-150-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FA-80R-200-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FA-80R-250-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FA-80R-300-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FA-80R-350-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FA-80R-400-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FA-80R-450-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FA-80R-500-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FA-80H-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FA-80H-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FA-80H-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FA-80H-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FA-80H-150-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FA-80H-200-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FA-80H-250-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FA-80H-300-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FA-80H-350-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FA-80H-400-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FA-80H-450-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FA-80H-500-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FA-80N-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FA-80N-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FA-80N-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FA-80N-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FA-80N-150-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FA-80N-200-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FA-80N-250-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FA-80N-300-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FA-80N-350-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FA-80N-400-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FA-80N-450-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FA-80N-500-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FA-100B-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FA-100B-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FA-100B-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FA-100B-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FA-100B-150-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FA-100B-200-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FA-100B-250-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FA-100B-300-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FA-100B-350-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FA-100B-400-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FA-100B-450-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FA-100B-500-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FA-100R-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FA-100R-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FA-100R-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FA-100R-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FA-100R-150-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FA-100R-200-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FA-100R-250-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FA-100R-300-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FA-100R-350-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FA-100R-400-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FA-100R-450-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FA-100R-500-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FA-100H-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FA-100H-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FA-100H-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FA-100H-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FA-100H-150-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FA-100H-200-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FA-100H-250-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FA-100H-300-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FA-100H-350-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FA-100H-400-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FA-100H-450-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FA-100H-500-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FA-100N-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FA-100N-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FA-100N-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FA-100N-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FA-100N-150-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FA-100N-200-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FA-100N-250-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FA-100N-300-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FA-100N-350-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FA-100N-400-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FA-100N-450-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FA-100N-500-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FB-40B-25-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FB-40B-50-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FB-40B-75-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FB-40B-100-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FB-40B-150-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FB-40B-200-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FB-40B-250-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FB-40B-300-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FB-40B-350-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FB-40B-400-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FB-40B-450-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FB-40B-500-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FB-40R-25-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FB-40R-50-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FB-40R-75-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FB-40R-100-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FB-40R-150-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FB-40R-200-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FB-40R-250-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FB-40R-300-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FB-40R-350-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FB-40R-400-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FB-40R-450-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FB-40R-500-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FB-40H-25-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FB-40H-50-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FB-40H-75-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FB-40H-100-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FB-40H-150-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FB-40H-200-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FB-40H-250-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FB-40H-300-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FB-40H-350-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FB-40H-400-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FB-40H-450-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FB-40H-500-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FB-40N-25-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FB-40N-50-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FB-40N-75-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FB-40N-100-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FB-40N-150-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FB-40N-200-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FB-40N-250-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FB-40N-300-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FB-40N-350-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FB-40N-400-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FB-40N-450-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FB-40N-500-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FB-50B-25-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FB-50B-50-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FB-50B-75-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FB-50B-100-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FB-50B-150-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FB-50B-200-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FB-50B-250-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FB-50B-300-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FB-50B-350-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FB-50B-400-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FB-50B-450-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FB-50B-500-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FB-50R-25-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FB-50R-50-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FB-50R-75-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FB-50R-100-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FB-50R-150-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FB-50R-200-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FB-50R-250-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FB-50R-300-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FB-50R-350-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FB-50R-400-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FB-50R-450-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FB-50R-500-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FB-50H-25-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FB-50H-50-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FB-50H-75-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FB-50H-100-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FB-50H-150-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FB-50H-200-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FB-50H-250-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FB-50H-300-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FB-50H-350-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FB-50H-400-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FB-50H-450-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FB-50H-500-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FB-50N-25-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FB-50N-50-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FB-50N-75-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FB-50N-100-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FB-50N-150-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FB-50N-200-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FB-50N-250-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FB-50N-300-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FB-50N-350-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FB-50N-400-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FB-50N-450-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FB-50N-500-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FB-63B-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FB-63B-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FB-63B-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FB-63B-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FB-63B-150-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FB-63B-200-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FB-63B-250-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FB-63B-300-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FB-63B-350-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FB-63B-400-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FB-63B-450-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FB-63B-500-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FB-63R-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FB-63R-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FB-63R-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FB-63R-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FB-63R-150-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FB-63R-200-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FB-63R-250-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FB-63R-300-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FB-63R-350-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FB-63R-400-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FB-63R-450-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FB-63R-500-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FB-63H-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FB-63H-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FB-63H-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FB-63H-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FB-63H-150-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FB-63H-200-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FB-63H-250-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FB-63H-300-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FB-63H-350-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FB-63H-400-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FB-63H-450-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FB-63H-500-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FB-63N-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FB-63N-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FB-63N-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FB-63N-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FB-63N-150-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FB-63N-200-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FB-63N-250-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FB-63N-300-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FB-63N-350-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FB-63N-400-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FB-63N-450-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FB-63N-500-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FB-80B-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FB-80B-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FB-80B-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FB-80B-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FB-80B-150-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FB-80B-200-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FB-80B-250-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FB-80B-300-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FB-80B-350-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FB-80B-400-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FB-80B-450-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FB-80B-500-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FB-80R-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FB-80R-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FB-80R-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FB-80R-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FB-80R-150-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FB-80R-200-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FB-80R-250-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FB-80R-300-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FB-80R-350-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FB-80R-400-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FB-80R-450-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FB-80R-500-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FB-80H-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FB-80H-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FB-80H-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FB-80H-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FB-80H-150-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FB-80H-200-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FB-80H-250-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FB-80H-300-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FB-80H-350-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FB-80H-400-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FB-80H-450-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FB-80H-500-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FB-80N-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FB-80N-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FB-80N-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FB-80N-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FB-80N-150-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FB-80N-200-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FB-80N-250-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FB-80N-300-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FB-80N-350-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FB-80N-400-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FB-80N-450-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FB-80N-500-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FB-100B-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FB-100B-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FB-100B-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FB-100B-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FB-100B-150-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FB-100B-200-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FB-100B-250-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FB-100B-300-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FB-100B-350-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FB-100B-400-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FB-100B-450-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FB-100B-500-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FB-100R-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FB-100R-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FB-100R-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FB-100R-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FB-100R-150-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FB-100R-200-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FB-100R-250-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FB-100R-300-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FB-100R-350-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FB-100R-400-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FB-100R-450-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FB-100R-500-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FB-100H-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FB-100H-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FB-100H-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FB-100H-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FB-100H-150-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FB-100H-200-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FB-100H-250-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FB-100H-300-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FB-100H-350-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FB-100H-400-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FB-100H-450-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FB-100H-500-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FB-100N-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FB-100N-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FB-100N-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FB-100N-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FB-100N-150-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FB-100N-200-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FB-100N-250-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FB-100N-300-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FB-100N-350-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FB-100N-400-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FB-100N-450-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FB-100N-500-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FC-40B-25-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FC-40B-50-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FC-40B-75-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FC-40B-100-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FC-40B-150-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FC-40B-200-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FC-40B-250-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FC-40B-300-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FC-40B-350-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FC-40B-400-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FC-40B-450-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FC-40B-500-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FC-40R-25-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FC-40R-50-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FC-40R-75-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FC-40R-100-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FC-40R-150-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FC-40R-200-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FC-40R-250-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FC-40R-300-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FC-40R-350-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FC-40R-400-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FC-40R-450-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FC-40R-500-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FC-40H-25-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FC-40H-50-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FC-40H-75-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FC-40H-100-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FC-40H-150-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FC-40H-200-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FC-40H-250-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FC-40H-300-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FC-40H-350-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FC-40H-400-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FC-40H-450-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FC-40H-500-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FC-40N-25-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FC-40N-50-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FC-40N-75-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FC-40N-100-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FC-40N-150-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FC-40N-200-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FC-40N-250-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FC-40N-300-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FC-40N-350-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FC-40N-400-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FC-40N-450-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FC-40N-500-FP1	Mounting: Head-side special flange \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FC-50B-25-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FC-50B-50-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FC-50B-75-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FC-50B-100-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FC-50B-150-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FC-50B-200-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FC-50B-250-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FC-50B-300-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FC-50B-350-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FC-50B-400-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FC-50B-450-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FC-50B-500-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FC-50R-25-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FC-50R-50-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FC-50R-75-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FC-50R-100-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FC-50R-150-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FC-50R-200-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FC-50R-250-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FC-50R-300-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FC-50R-350-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FC-50R-400-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FC-50R-450-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FC-50R-500-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FC-50H-25-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FC-50H-50-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FC-50H-75-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FC-50H-100-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FC-50H-150-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FC-50H-200-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FC-50H-250-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FC-50H-300-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FC-50H-350-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FC-50H-400-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FC-50H-450-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FC-50H-500-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FC-50N-25-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FC-50N-50-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FC-50N-75-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FC-50N-100-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FC-50N-150-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FC-50N-200-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FC-50N-250-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FC-50N-300-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FC-50N-350-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FC-50N-400-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FC-50N-450-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FC-50N-500-FP1	Mounting: Head-side special flange \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FC-63B-25-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FC-63B-50-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FC-63B-75-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FC-63B-100-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FC-63B-150-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FC-63B-200-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FC-63B-250-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FC-63B-300-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FC-63B-350-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FC-63B-400-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FC-63B-450-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FC-63B-500-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FC-63R-25-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FC-63R-50-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FC-63R-75-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FC-63R-100-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FC-63R-150-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FC-63R-200-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FC-63R-250-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FC-63R-300-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FC-63R-350-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FC-63R-400-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FC-63R-450-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FC-63R-500-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FC-63H-25-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FC-63H-50-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FC-63H-75-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FC-63H-100-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FC-63H-150-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FC-63H-200-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FC-63H-250-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FC-63H-300-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FC-63H-350-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FC-63H-400-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FC-63H-450-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FC-63H-500-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FC-63N-25-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FC-63N-50-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FC-63N-75-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FC-63N-100-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FC-63N-150-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FC-63N-200-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FC-63N-250-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FC-63N-300-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FC-63N-350-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FC-63N-400-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FC-63N-450-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FC-63N-500-FP1	Mounting: Head-side special flange \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FC-80B-25-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FC-80B-50-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FC-80B-75-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FC-80B-100-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FC-80B-150-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FC-80B-200-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FC-80B-250-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FC-80B-300-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FC-80B-350-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FC-80B-400-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FC-80B-450-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FC-80B-500-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FC-80R-25-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FC-80R-50-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FC-80R-75-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FC-80R-100-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FC-80R-150-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FC-80R-200-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FC-80R-250-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FC-80R-300-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FC-80R-350-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FC-80R-400-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FC-80R-450-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FC-80R-500-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FC-80H-25-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FC-80H-50-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FC-80H-75-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FC-80H-100-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FC-80H-150-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FC-80H-200-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FC-80H-250-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FC-80H-300-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FC-80H-350-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FC-80H-400-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FC-80H-450-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FC-80H-500-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FC-80N-25-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FC-80N-50-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FC-80N-75-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FC-80N-100-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FC-80N-150-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FC-80N-200-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FC-80N-250-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FC-80N-300-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FC-80N-350-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FC-80N-400-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FC-80N-450-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FC-80N-500-FP1	Mounting: Head-side special flange \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FC-100B-25-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCA2-FC-100B-50-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCA2-FC-100B-75-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCA2-FC-100B-100-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCA2-FC-100B-150-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCA2-FC-100B-200-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCA2-FC-100B-250-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCA2-FC-100B-300-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCA2-FC-100B-350-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCA2-FC-100B-400-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCA2-FC-100B-450-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCA2-FC-100B-500-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCA2-FC-100R-25-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm
	SCA2-FC-100R-50-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCA2-FC-100R-75-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCA2-FC-100R-100-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCA2-FC-100R-150-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCA2-FC-100R-200-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCA2-FC-100R-250-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCA2-FC-100R-300-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCA2-FC-100R-350-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm
	SCA2-FC-100R-400-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm
	SCA2-FC-100R-450-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm
	SCA2-FC-100R-500-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm
	SCA2-FC-100H-25-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm
	SCA2-FC-100H-50-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCA2-FC-100H-75-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCA2-FC-100H-100-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCA2-FC-100H-150-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCA2-FC-100H-200-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCA2-FC-100H-250-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCA2-FC-100H-300-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCA2-FC-100H-350-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm
	SCA2-FC-100H-400-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm
	SCA2-FC-100H-450-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm
	SCA2-FC-100H-500-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm
	SCA2-FC-100N-25-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FC-100N-50-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FC-100N-75-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FC-100N-100-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FC-100N-150-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FC-100N-200-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FC-100N-250-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FC-100N-300-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FC-100N-350-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FC-100N-400-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FC-100N-450-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FC-100N-500-FP1	Mounting: Head-side special flange \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCA2-FP1 Selex Cylinder (Standard, Basic/Foot/Flange)
