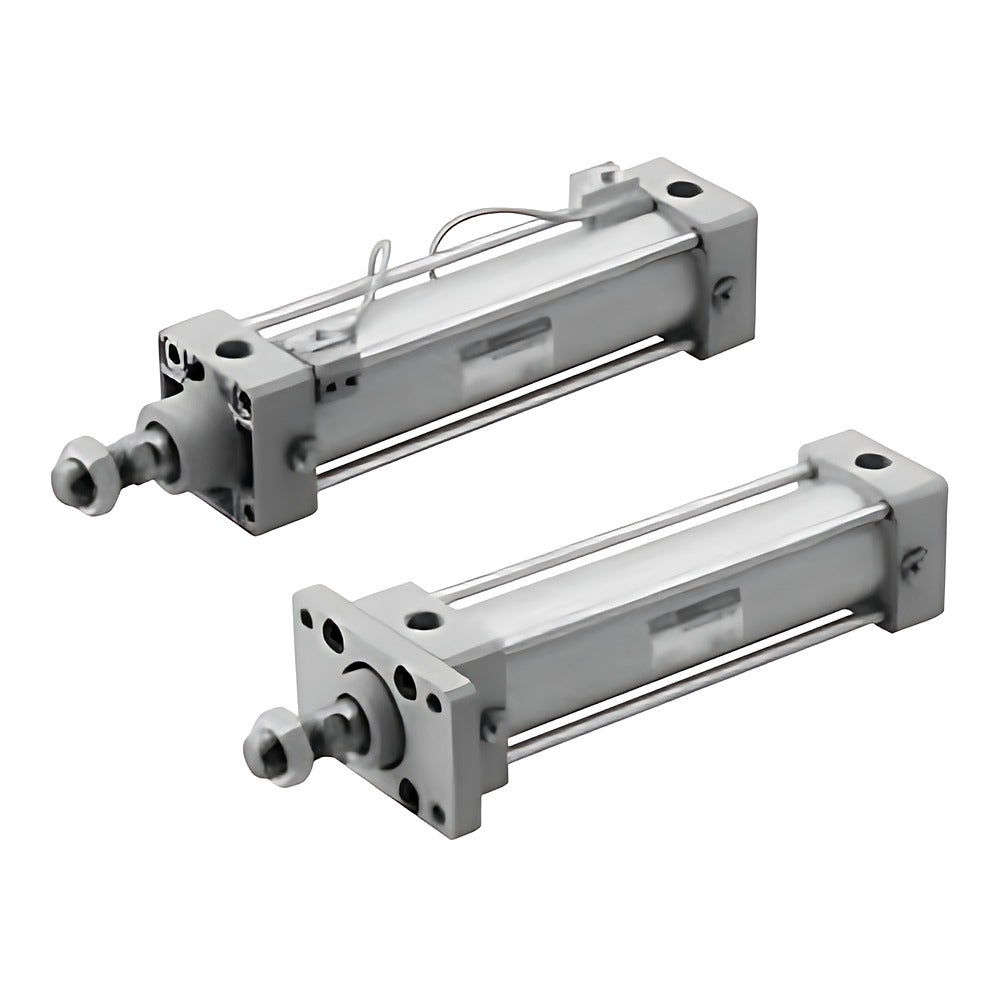

CKD SCA2-G Selex Cylinder (Strong Scraper, Clevis/Trunnion)

CKD SCA2-G Selex double-acting cylinder with a strong scraper that removes dust, sand and dry contaminants from the rod, bore 40 to 100 mm, clevis/trunnion mounting styles.

Key features

Strong scraper on the rod cover for dusty or chip-laden environments; switch magnet built in
Cushion: both ends (B), rod end (R), head end (H) or none (N)
Standard strokes 25 to 500 mm; intermediate strokes in 1 mm steps (max 600/700/800 mm by bore)
13 mounting styles in total; hole-type trunnions (TF, TD, TE) not available for bore 40
T-type auto switches, switch quantity (R/H/D/T), options (J/L bellows, M stainless rod, S/T cushion needle position) and knuckles/brackets (I, Y, B1-B4) ordered as suffixes
Rc port thread standard; NPT (N) and G (G) threads made to order

Specifications

Action	Double acting, strong scraper
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.05 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Piston speed	50 to 1000 mm/s
Lubrication	Not required
Cushion	Air cushion
Switch magnet	Built in
Source	CKD Korea catalog CB-029SK-9, p. 664-670

SCA2-G-CA-40B-25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-CA-40B-50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-CA-40B-75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-CA-40B-100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-CA-40B-150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-CA-40B-200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-CA-40B-250		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-CA-40B-300		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-CA-40B-350		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-CA-40B-400		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-CA-40B-450		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-CA-40B-500		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-CA-40R-25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-CA-40R-50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-CA-40R-75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-CA-40R-100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-CA-40R-150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-CA-40R-200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-CA-40R-250		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-CA-40R-300		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-CA-40R-350		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-CA-40R-400		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-CA-40R-450		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-CA-40R-500		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-CA-40H-25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-CA-40H-50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-CA-40H-75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-CA-40H-100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-CA-40H-150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-CA-40H-200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-CA-40H-250		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-CA-40H-300		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-CA-40H-350		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-CA-40H-400		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-CA-40H-450		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-CA-40H-500		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-CA-40N-25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-CA-40N-50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-CA-40N-75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-CA-40N-100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-CA-40N-150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-CA-40N-200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-CA-40N-250		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-CA-40N-300		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-CA-40N-350		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-CA-40N-400		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-CA-40N-450		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-CA-40N-500		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-CA-50B-25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CA-50B-50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CA-50B-75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CA-50B-100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CA-50B-150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CA-50B-200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CA-50B-250		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CA-50B-300		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CA-50B-350		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CA-50B-400		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CA-50B-450		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CA-50B-500		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CA-50R-25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CA-50R-50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CA-50R-75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CA-50R-100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CA-50R-150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CA-50R-200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CA-50R-250		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CA-50R-300		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CA-50R-350		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CA-50R-400		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CA-50R-450		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CA-50R-500		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CA-50H-25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CA-50H-50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CA-50H-75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CA-50H-100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CA-50H-150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CA-50H-200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CA-50H-250		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CA-50H-300		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CA-50H-350		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CA-50H-400		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CA-50H-450		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CA-50H-500		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CA-50N-25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CA-50N-50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CA-50N-75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CA-50N-100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CA-50N-150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CA-50N-200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CA-50N-250		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CA-50N-300		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CA-50N-350		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CA-50N-400		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CA-50N-450		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CA-50N-500		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CA-63B-25		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CA-63B-50		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CA-63B-75		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CA-63B-100		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CA-63B-150		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CA-63B-200		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CA-63B-250		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CA-63B-300		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CA-63B-350		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CA-63B-400		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CA-63B-450		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CA-63B-500		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CA-63R-25		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CA-63R-50		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CA-63R-75		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CA-63R-100		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CA-63R-150		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CA-63R-200		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CA-63R-250		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CA-63R-300		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CA-63R-350		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CA-63R-400		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CA-63R-450		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CA-63R-500		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CA-63H-25		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CA-63H-50		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CA-63H-75		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CA-63H-100		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CA-63H-150		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CA-63H-200		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CA-63H-250		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CA-63H-300		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CA-63H-350		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CA-63H-400		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CA-63H-450		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CA-63H-500		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CA-63N-25		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CA-63N-50		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CA-63N-75		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CA-63N-100		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CA-63N-150		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CA-63N-200		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CA-63N-250		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CA-63N-300		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CA-63N-350		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CA-63N-400		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CA-63N-450		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CA-63N-500		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CA-80B-25		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CA-80B-50		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CA-80B-75		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CA-80B-100		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CA-80B-150		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CA-80B-200		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CA-80B-250		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CA-80B-300		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CA-80B-350		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CA-80B-400		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CA-80B-450		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CA-80B-500		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CA-80R-25		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CA-80R-50		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CA-80R-75		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CA-80R-100		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CA-80R-150		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CA-80R-200		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CA-80R-250		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CA-80R-300		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CA-80R-350		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CA-80R-400		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CA-80R-450		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CA-80R-500		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CA-80H-25		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CA-80H-50		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CA-80H-75		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CA-80H-100		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CA-80H-150		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CA-80H-200		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CA-80H-250		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CA-80H-300		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CA-80H-350		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CA-80H-400		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CA-80H-450		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CA-80H-500		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CA-80N-25		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CA-80N-50		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CA-80N-75		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CA-80N-100		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CA-80N-150		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CA-80N-200		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CA-80N-250		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CA-80N-300		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CA-80N-350		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CA-80N-400		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CA-80N-450		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CA-80N-500		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CA-100B-25		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CA-100B-50		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CA-100B-75		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CA-100B-100		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CA-100B-150		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CA-100B-200		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CA-100B-250		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CA-100B-300		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CA-100B-350		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CA-100B-400		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CA-100B-450		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CA-100B-500		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CA-100R-25		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CA-100R-50		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CA-100R-75		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CA-100R-100		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CA-100R-150		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CA-100R-200		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CA-100R-250		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CA-100R-300		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CA-100R-350		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CA-100R-400		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CA-100R-450		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CA-100R-500		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CA-100H-25		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CA-100H-50		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CA-100H-75		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CA-100H-100		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CA-100H-150		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CA-100H-200		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CA-100H-250		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CA-100H-300		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CA-100H-350		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CA-100H-400		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CA-100H-450		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CA-100H-500		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CA-100N-25		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CA-100N-50		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CA-100N-75		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CA-100N-100		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CA-100N-150		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CA-100N-200		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CA-100N-250		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CA-100N-300		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CA-100N-350		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CA-100N-400		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CA-100N-450		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CA-100N-500		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CB-40B-25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-CB-40B-50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-CB-40B-75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-CB-40B-100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-CB-40B-150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-CB-40B-200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-CB-40B-250		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-CB-40B-300		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-CB-40B-350		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-CB-40B-400		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-CB-40B-450		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-CB-40B-500		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-CB-40R-25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-CB-40R-50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-CB-40R-75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-CB-40R-100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-CB-40R-150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-CB-40R-200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-CB-40R-250		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-CB-40R-300		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-CB-40R-350		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-CB-40R-400		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-CB-40R-450		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-CB-40R-500		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-CB-40H-25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-CB-40H-50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-CB-40H-75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-CB-40H-100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-CB-40H-150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-CB-40H-200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-CB-40H-250		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-CB-40H-300		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-CB-40H-350		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-CB-40H-400		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-CB-40H-450		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-CB-40H-500		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-CB-40N-25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-CB-40N-50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-CB-40N-75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-CB-40N-100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-CB-40N-150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-CB-40N-200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-CB-40N-250		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-CB-40N-300		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-CB-40N-350		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-CB-40N-400		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-CB-40N-450		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-CB-40N-500		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-CB-50B-25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CB-50B-50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CB-50B-75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CB-50B-100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CB-50B-150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CB-50B-200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CB-50B-250		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CB-50B-300		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CB-50B-350		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CB-50B-400		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CB-50B-450		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CB-50B-500		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CB-50R-25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CB-50R-50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CB-50R-75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CB-50R-100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CB-50R-150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CB-50R-200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CB-50R-250		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CB-50R-300		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CB-50R-350		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CB-50R-400		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CB-50R-450		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CB-50R-500		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CB-50H-25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CB-50H-50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CB-50H-75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CB-50H-100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CB-50H-150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CB-50H-200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CB-50H-250		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CB-50H-300		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CB-50H-350		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CB-50H-400		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CB-50H-450		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CB-50H-500		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CB-50N-25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CB-50N-50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CB-50N-75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CB-50N-100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CB-50N-150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CB-50N-200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CB-50N-250		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CB-50N-300		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CB-50N-350		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CB-50N-400		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CB-50N-450		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CB-50N-500		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CB-63B-25		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CB-63B-50		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CB-63B-75		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CB-63B-100		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CB-63B-150		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CB-63B-200		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CB-63B-250		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CB-63B-300		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CB-63B-350		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CB-63B-400		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CB-63B-450		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CB-63B-500		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CB-63R-25		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CB-63R-50		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CB-63R-75		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CB-63R-100		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CB-63R-150		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CB-63R-200		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CB-63R-250		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CB-63R-300		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CB-63R-350		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CB-63R-400		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CB-63R-450		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CB-63R-500		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CB-63H-25		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CB-63H-50		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CB-63H-75		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CB-63H-100		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CB-63H-150		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CB-63H-200		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CB-63H-250		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CB-63H-300		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CB-63H-350		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CB-63H-400		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CB-63H-450		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CB-63H-500		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CB-63N-25		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-CB-63N-50		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-CB-63N-75		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-CB-63N-100		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-CB-63N-150		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-CB-63N-200		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-CB-63N-250		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-CB-63N-300		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-CB-63N-350		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-CB-63N-400		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-CB-63N-450		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-CB-63N-500		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-CB-80B-25		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CB-80B-50		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CB-80B-75		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CB-80B-100		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CB-80B-150		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CB-80B-200		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CB-80B-250		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CB-80B-300		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CB-80B-350		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CB-80B-400		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CB-80B-450		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CB-80B-500		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CB-80R-25		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CB-80R-50		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CB-80R-75		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CB-80R-100		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CB-80R-150		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CB-80R-200		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CB-80R-250		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CB-80R-300		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CB-80R-350		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CB-80R-400		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CB-80R-450		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CB-80R-500		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CB-80H-25		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CB-80H-50		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CB-80H-75		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CB-80H-100		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CB-80H-150		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CB-80H-200		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CB-80H-250		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CB-80H-300		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CB-80H-350		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CB-80H-400		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CB-80H-450		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CB-80H-500		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CB-80N-25		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CB-80N-50		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CB-80N-75		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CB-80N-100		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CB-80N-150		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CB-80N-200		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CB-80N-250		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CB-80N-300		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CB-80N-350		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CB-80N-400		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CB-80N-450		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CB-80N-500		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CB-100B-25		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CB-100B-50		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CB-100B-75		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CB-100B-100		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CB-100B-150		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CB-100B-200		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CB-100B-250		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CB-100B-300		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CB-100B-350		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CB-100B-400		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CB-100B-450		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CB-100B-500		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CB-100R-25		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CB-100R-50		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CB-100R-75		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CB-100R-100		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CB-100R-150		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CB-100R-200		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CB-100R-250		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CB-100R-300		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CB-100R-350		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CB-100R-400		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CB-100R-450		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CB-100R-500		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CB-100H-25		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CB-100H-50		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CB-100H-75		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CB-100H-100		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CB-100H-150		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CB-100H-200		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CB-100H-250		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CB-100H-300		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CB-100H-350		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CB-100H-400		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CB-100H-450		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CB-100H-500		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-CB-100N-25		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-CB-100N-50		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-CB-100N-75		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-CB-100N-100		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-CB-100N-150		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-CB-100N-200		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-CB-100N-250		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-CB-100N-300		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-CB-100N-350		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-CB-100N-400		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-CB-100N-450		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-CB-100N-500		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TC-40B-25		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-TC-40B-50		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-TC-40B-75		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-TC-40B-100		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-TC-40B-150		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-TC-40B-200		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-TC-40B-250		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-TC-40B-300		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-TC-40B-350		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-TC-40B-400		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-TC-40B-450		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-TC-40B-500		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-TC-40R-25		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-TC-40R-50		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-TC-40R-75		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-TC-40R-100		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-TC-40R-150		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-TC-40R-200		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-TC-40R-250		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-TC-40R-300		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-TC-40R-350		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-TC-40R-400		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-TC-40R-450		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-TC-40R-500		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-TC-40H-25		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-TC-40H-50		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-TC-40H-75		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-TC-40H-100		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-TC-40H-150		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-TC-40H-200		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-TC-40H-250		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-TC-40H-300		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-TC-40H-350		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-TC-40H-400		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-TC-40H-450		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-TC-40H-500		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-TC-40N-25		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-TC-40N-50		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-TC-40N-75		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-TC-40N-100		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-TC-40N-150		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-TC-40N-200		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-TC-40N-250		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-TC-40N-300		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-TC-40N-350		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-TC-40N-400		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-TC-40N-450		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-TC-40N-500		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-TC-50B-25		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TC-50B-50		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TC-50B-75		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TC-50B-100		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TC-50B-150		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TC-50B-200		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TC-50B-250		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TC-50B-300		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TC-50B-350		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TC-50B-400		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TC-50B-450		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TC-50B-500		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TC-50R-25		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TC-50R-50		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TC-50R-75		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TC-50R-100		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TC-50R-150		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TC-50R-200		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TC-50R-250		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TC-50R-300		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TC-50R-350		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TC-50R-400		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TC-50R-450		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TC-50R-500		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TC-50H-25		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TC-50H-50		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TC-50H-75		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TC-50H-100		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TC-50H-150		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TC-50H-200		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TC-50H-250		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TC-50H-300		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TC-50H-350		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TC-50H-400		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TC-50H-450		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TC-50H-500		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TC-50N-25		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TC-50N-50		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TC-50N-75		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TC-50N-100		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TC-50N-150		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TC-50N-200		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TC-50N-250		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TC-50N-300		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TC-50N-350		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TC-50N-400		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TC-50N-450		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TC-50N-500		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TC-63B-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TC-63B-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TC-63B-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TC-63B-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TC-63B-150		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TC-63B-200		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TC-63B-250		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TC-63B-300		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TC-63B-350		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TC-63B-400		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TC-63B-450		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TC-63B-500		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TC-63R-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TC-63R-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TC-63R-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TC-63R-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TC-63R-150		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TC-63R-200		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TC-63R-250		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TC-63R-300		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TC-63R-350		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TC-63R-400		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TC-63R-450		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TC-63R-500		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TC-63H-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TC-63H-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TC-63H-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TC-63H-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TC-63H-150		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TC-63H-200		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TC-63H-250		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TC-63H-300		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TC-63H-350		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TC-63H-400		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TC-63H-450		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TC-63H-500		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TC-63N-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TC-63N-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TC-63N-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TC-63N-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TC-63N-150		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TC-63N-200		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TC-63N-250		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TC-63N-300		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TC-63N-350		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TC-63N-400		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TC-63N-450		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TC-63N-500		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TC-80B-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TC-80B-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TC-80B-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TC-80B-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TC-80B-150		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TC-80B-200		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TC-80B-250		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TC-80B-300		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TC-80B-350		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TC-80B-400		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TC-80B-450		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TC-80B-500		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TC-80R-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TC-80R-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TC-80R-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TC-80R-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TC-80R-150		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TC-80R-200		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TC-80R-250		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TC-80R-300		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TC-80R-350		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TC-80R-400		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TC-80R-450		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TC-80R-500		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TC-80H-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TC-80H-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TC-80H-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TC-80H-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TC-80H-150		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TC-80H-200		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TC-80H-250		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TC-80H-300		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TC-80H-350		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TC-80H-400		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TC-80H-450		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TC-80H-500		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TC-80N-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TC-80N-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TC-80N-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TC-80N-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TC-80N-150		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TC-80N-200		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TC-80N-250		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TC-80N-300		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TC-80N-350		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TC-80N-400		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TC-80N-450		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TC-80N-500		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TC-100B-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TC-100B-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TC-100B-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TC-100B-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TC-100B-150		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TC-100B-200		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TC-100B-250		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TC-100B-300		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TC-100B-350		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TC-100B-400		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TC-100B-450		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TC-100B-500		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TC-100R-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TC-100R-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TC-100R-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TC-100R-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TC-100R-150		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TC-100R-200		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TC-100R-250		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TC-100R-300		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TC-100R-350		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TC-100R-400		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TC-100R-450		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TC-100R-500		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TC-100H-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TC-100H-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TC-100H-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TC-100H-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TC-100H-150		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TC-100H-200		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TC-100H-250		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TC-100H-300		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TC-100H-350		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TC-100H-400		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TC-100H-450		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TC-100H-500		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TC-100N-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TC-100N-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TC-100N-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TC-100N-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TC-100N-150		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TC-100N-200		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TC-100N-250		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TC-100N-300		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TC-100N-350		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TC-100N-400		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TC-100N-450		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TC-100N-500		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TA-40B-25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-TA-40B-50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-TA-40B-75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-TA-40B-100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-TA-40B-150		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-TA-40B-200		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-TA-40B-250		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-TA-40B-300		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-TA-40B-350		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-TA-40B-400		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-TA-40B-450		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-TA-40B-500		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-TA-40R-25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-TA-40R-50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-TA-40R-75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-TA-40R-100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-TA-40R-150		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-TA-40R-200		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-TA-40R-250		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-TA-40R-300		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-TA-40R-350		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-TA-40R-400		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-TA-40R-450		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-TA-40R-500		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-TA-40H-25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-TA-40H-50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-TA-40H-75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-TA-40H-100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-TA-40H-150		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-TA-40H-200		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-TA-40H-250		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-TA-40H-300		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-TA-40H-350		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-TA-40H-400		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-TA-40H-450		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-TA-40H-500		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-TA-40N-25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-TA-40N-50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-TA-40N-75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-TA-40N-100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-TA-40N-150		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-TA-40N-200		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-TA-40N-250		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-TA-40N-300		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-TA-40N-350		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-TA-40N-400		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-TA-40N-450		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-TA-40N-500		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-TA-50B-25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TA-50B-50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TA-50B-75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TA-50B-100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TA-50B-150		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TA-50B-200		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TA-50B-250		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TA-50B-300		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TA-50B-350		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TA-50B-400		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TA-50B-450		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TA-50B-500		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TA-50R-25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TA-50R-50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TA-50R-75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TA-50R-100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TA-50R-150		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TA-50R-200		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TA-50R-250		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TA-50R-300		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TA-50R-350		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TA-50R-400		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TA-50R-450		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TA-50R-500		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TA-50H-25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TA-50H-50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TA-50H-75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TA-50H-100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TA-50H-150		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TA-50H-200		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TA-50H-250		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TA-50H-300		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TA-50H-350		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TA-50H-400		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TA-50H-450		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TA-50H-500		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TA-50N-25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TA-50N-50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TA-50N-75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TA-50N-100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TA-50N-150		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TA-50N-200		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TA-50N-250		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TA-50N-300		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TA-50N-350		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TA-50N-400		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TA-50N-450		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TA-50N-500		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TA-63B-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TA-63B-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TA-63B-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TA-63B-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TA-63B-150		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TA-63B-200		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TA-63B-250		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TA-63B-300		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TA-63B-350		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TA-63B-400		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TA-63B-450		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TA-63B-500		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TA-63R-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TA-63R-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TA-63R-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TA-63R-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TA-63R-150		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TA-63R-200		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TA-63R-250		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TA-63R-300		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TA-63R-350		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TA-63R-400		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TA-63R-450		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TA-63R-500		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TA-63H-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TA-63H-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TA-63H-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TA-63H-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TA-63H-150		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TA-63H-200		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TA-63H-250		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TA-63H-300		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TA-63H-350		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TA-63H-400		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TA-63H-450		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TA-63H-500		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TA-63N-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TA-63N-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TA-63N-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TA-63N-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TA-63N-150		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TA-63N-200		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TA-63N-250		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TA-63N-300		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TA-63N-350		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TA-63N-400		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TA-63N-450		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TA-63N-500		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TA-80B-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TA-80B-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TA-80B-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TA-80B-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TA-80B-150		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TA-80B-200		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TA-80B-250		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TA-80B-300		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TA-80B-350		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TA-80B-400		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TA-80B-450		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TA-80B-500		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TA-80R-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TA-80R-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TA-80R-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TA-80R-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TA-80R-150		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TA-80R-200		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TA-80R-250		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TA-80R-300		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TA-80R-350		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TA-80R-400		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TA-80R-450		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TA-80R-500		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TA-80H-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TA-80H-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TA-80H-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TA-80H-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TA-80H-150		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TA-80H-200		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TA-80H-250		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TA-80H-300		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TA-80H-350		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TA-80H-400		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TA-80H-450		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TA-80H-500		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TA-80N-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TA-80N-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TA-80N-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TA-80N-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TA-80N-150		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TA-80N-200		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TA-80N-250		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TA-80N-300		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TA-80N-350		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TA-80N-400		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TA-80N-450		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TA-80N-500		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TA-100B-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TA-100B-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TA-100B-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TA-100B-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TA-100B-150		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TA-100B-200		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TA-100B-250		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TA-100B-300		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TA-100B-350		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TA-100B-400		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TA-100B-450		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TA-100B-500		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TA-100R-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TA-100R-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TA-100R-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TA-100R-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TA-100R-150		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TA-100R-200		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TA-100R-250		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TA-100R-300		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TA-100R-350		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TA-100R-400		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TA-100R-450		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TA-100R-500		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TA-100H-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TA-100H-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TA-100H-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TA-100H-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TA-100H-150		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TA-100H-200		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TA-100H-250		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TA-100H-300		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TA-100H-350		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TA-100H-400		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TA-100H-450		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TA-100H-500		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TA-100N-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TA-100N-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TA-100N-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TA-100N-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TA-100N-150		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TA-100N-200		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TA-100N-250		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TA-100N-300		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TA-100N-350		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TA-100N-400		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TA-100N-450		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TA-100N-500		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TB-40B-25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-TB-40B-50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-TB-40B-75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-TB-40B-100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-TB-40B-150		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-TB-40B-200		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-TB-40B-250		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-TB-40B-300		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-TB-40B-350		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-TB-40B-400		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-TB-40B-450		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-TB-40B-500		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-TB-40R-25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-TB-40R-50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-TB-40R-75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-TB-40R-100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-TB-40R-150		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-TB-40R-200		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-TB-40R-250		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-TB-40R-300		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-TB-40R-350		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-TB-40R-400		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-TB-40R-450		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-TB-40R-500		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-TB-40H-25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-TB-40H-50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-TB-40H-75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-TB-40H-100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-TB-40H-150		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-TB-40H-200		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-TB-40H-250		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-TB-40H-300		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-TB-40H-350		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-TB-40H-400		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-TB-40H-450		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-TB-40H-500		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-TB-40N-25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/4
SCA2-G-TB-40N-50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/4
SCA2-G-TB-40N-75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/4
SCA2-G-TB-40N-100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/4
SCA2-G-TB-40N-150		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/4
SCA2-G-TB-40N-200		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/4
SCA2-G-TB-40N-250		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/4
SCA2-G-TB-40N-300		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/4
SCA2-G-TB-40N-350		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/4
SCA2-G-TB-40N-400		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/4
SCA2-G-TB-40N-450		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/4
SCA2-G-TB-40N-500		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/4
SCA2-G-TB-50B-25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TB-50B-50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TB-50B-75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TB-50B-100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TB-50B-150		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TB-50B-200		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TB-50B-250		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TB-50B-300		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TB-50B-350		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TB-50B-400		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TB-50B-450		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TB-50B-500		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TB-50R-25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TB-50R-50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TB-50R-75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TB-50R-100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TB-50R-150		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TB-50R-200		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TB-50R-250		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TB-50R-300		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TB-50R-350		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TB-50R-400		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TB-50R-450		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TB-50R-500		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TB-50H-25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TB-50H-50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TB-50H-75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TB-50H-100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TB-50H-150		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TB-50H-200		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TB-50H-250		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TB-50H-300		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TB-50H-350		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TB-50H-400		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TB-50H-450		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TB-50H-500		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TB-50N-25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TB-50N-50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TB-50N-75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TB-50N-100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TB-50N-150		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TB-50N-200		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TB-50N-250		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TB-50N-300		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TB-50N-350		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TB-50N-400		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TB-50N-450		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TB-50N-500		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TB-63B-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TB-63B-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TB-63B-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TB-63B-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TB-63B-150		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TB-63B-200		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TB-63B-250		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TB-63B-300		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TB-63B-350		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TB-63B-400		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TB-63B-450		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TB-63B-500		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TB-63R-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TB-63R-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TB-63R-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TB-63R-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TB-63R-150		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TB-63R-200		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TB-63R-250		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TB-63R-300		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TB-63R-350		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TB-63R-400		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TB-63R-450		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TB-63R-500		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TB-63H-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TB-63H-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TB-63H-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TB-63H-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TB-63H-150		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TB-63H-200		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TB-63H-250		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TB-63H-300		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TB-63H-350		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TB-63H-400		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TB-63H-450		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TB-63H-500		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TB-63N-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
SCA2-G-TB-63N-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
SCA2-G-TB-63N-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
SCA2-G-TB-63N-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
SCA2-G-TB-63N-150		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
SCA2-G-TB-63N-200		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
SCA2-G-TB-63N-250		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
SCA2-G-TB-63N-300		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
SCA2-G-TB-63N-350		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
SCA2-G-TB-63N-400		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
SCA2-G-TB-63N-450		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
SCA2-G-TB-63N-500		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
SCA2-G-TB-80B-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TB-80B-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TB-80B-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TB-80B-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TB-80B-150		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TB-80B-200		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TB-80B-250		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TB-80B-300		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TB-80B-350		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TB-80B-400		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TB-80B-450		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TB-80B-500		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TB-80R-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TB-80R-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TB-80R-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TB-80R-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TB-80R-150		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TB-80R-200		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TB-80R-250		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TB-80R-300		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TB-80R-350		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TB-80R-400		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TB-80R-450		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TB-80R-500		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TB-80H-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TB-80H-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TB-80H-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TB-80H-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TB-80H-150		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TB-80H-200		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TB-80H-250		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TB-80H-300		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TB-80H-350		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TB-80H-400		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TB-80H-450		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TB-80H-500		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TB-80N-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TB-80N-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TB-80N-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TB-80N-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TB-80N-150		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TB-80N-200		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TB-80N-250		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TB-80N-300		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TB-80N-350		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TB-80N-400		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TB-80N-450		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TB-80N-500		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TB-100B-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TB-100B-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TB-100B-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TB-100B-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TB-100B-150		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TB-100B-200		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TB-100B-250		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TB-100B-300		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TB-100B-350		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TB-100B-400		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TB-100B-450		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TB-100B-500		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TB-100R-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TB-100R-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TB-100R-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TB-100R-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TB-100R-150		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TB-100R-200		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TB-100R-250		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TB-100R-300		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TB-100R-350		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TB-100R-400		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TB-100R-450		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TB-100R-500		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TB-100H-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TB-100H-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TB-100H-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TB-100H-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TB-100H-150		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TB-100H-200		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TB-100H-250		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TB-100H-300		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TB-100H-350		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TB-100H-400		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TB-100H-450		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TB-100H-500		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
SCA2-G-TB-100N-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
SCA2-G-TB-100N-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCA2-G-TB-100N-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCA2-G-TB-100N-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCA2-G-TB-100N-150		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCA2-G-TB-100N-200		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCA2-G-TB-100N-250		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCA2-G-TB-100N-300		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCA2-G-TB-100N-350		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
SCA2-G-TB-100N-400		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
SCA2-G-TB-100N-450		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
SCA2-G-TB-100N-500		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2

Pneumatic CylindersCKD

1200 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCA2-G Selex Cylinder (Strong Scraper, Clevis/Trunnion)

Brand CKD·Pneumatic Cylinders

Available part numbers (1200)

SCA2-G-CA-40B-25, SCA2-G-CA-40B-50, SCA2-G-CA-40B-75, SCA2-G-CA-40B-100, SCA2-G-CA-40B-150, SCA2-G-CA-40B-200, SCA2-G-CA-40B-250, SCA2-G-CA-40B-300, SCA2-G-CA-40B-350, SCA2-G-CA-40B-400 + 1190 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCA2-G-CA-40B-25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-CA-40B-50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-CA-40B-75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-CA-40B-100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-CA-40B-150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-CA-40B-200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-CA-40B-250	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-CA-40B-300	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-CA-40B-350	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-CA-40B-400	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-CA-40B-450	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-CA-40B-500	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-CA-40R-25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-CA-40R-50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-CA-40R-75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-CA-40R-100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-CA-40R-150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-CA-40R-200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-CA-40R-250	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-CA-40R-300	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-CA-40R-350	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-CA-40R-400	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-CA-40R-450	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-CA-40R-500	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-CA-40H-25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-CA-40H-50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-CA-40H-75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-CA-40H-100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-CA-40H-150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-CA-40H-200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-CA-40H-250	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-CA-40H-300	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-CA-40H-350	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-CA-40H-400	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-CA-40H-450	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-CA-40H-500	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-CA-40N-25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-CA-40N-50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-CA-40N-75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-CA-40N-100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-CA-40N-150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-CA-40N-200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-CA-40N-250	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-CA-40N-300	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-CA-40N-350	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-CA-40N-400	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-CA-40N-450	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-CA-40N-500	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-CA-50B-25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CA-50B-50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CA-50B-75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CA-50B-100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CA-50B-150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CA-50B-200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CA-50B-250	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CA-50B-300	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CA-50B-350	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CA-50B-400	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CA-50B-450	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CA-50B-500	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CA-50R-25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CA-50R-50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CA-50R-75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CA-50R-100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CA-50R-150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CA-50R-200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CA-50R-250	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CA-50R-300	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CA-50R-350	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CA-50R-400	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CA-50R-450	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CA-50R-500	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CA-50H-25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CA-50H-50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CA-50H-75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CA-50H-100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CA-50H-150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CA-50H-200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CA-50H-250	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CA-50H-300	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CA-50H-350	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CA-50H-400	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CA-50H-450	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CA-50H-500	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CA-50N-25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CA-50N-50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CA-50N-75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CA-50N-100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CA-50N-150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CA-50N-200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CA-50N-250	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CA-50N-300	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CA-50N-350	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CA-50N-400	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CA-50N-450	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CA-50N-500	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CA-63B-25	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CA-63B-50	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CA-63B-75	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CA-63B-100	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CA-63B-150	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CA-63B-200	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CA-63B-250	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CA-63B-300	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CA-63B-350	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CA-63B-400	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CA-63B-450	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CA-63B-500	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CA-63R-25	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CA-63R-50	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CA-63R-75	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CA-63R-100	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CA-63R-150	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CA-63R-200	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CA-63R-250	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CA-63R-300	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CA-63R-350	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CA-63R-400	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CA-63R-450	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CA-63R-500	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CA-63H-25	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CA-63H-50	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CA-63H-75	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CA-63H-100	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CA-63H-150	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CA-63H-200	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CA-63H-250	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CA-63H-300	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CA-63H-350	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CA-63H-400	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CA-63H-450	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CA-63H-500	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CA-63N-25	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CA-63N-50	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CA-63N-75	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CA-63N-100	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CA-63N-150	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CA-63N-200	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CA-63N-250	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CA-63N-300	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CA-63N-350	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CA-63N-400	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CA-63N-450	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CA-63N-500	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CA-80B-25	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CA-80B-50	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CA-80B-75	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CA-80B-100	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CA-80B-150	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CA-80B-200	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CA-80B-250	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CA-80B-300	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CA-80B-350	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CA-80B-400	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CA-80B-450	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CA-80B-500	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CA-80R-25	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CA-80R-50	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CA-80R-75	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CA-80R-100	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CA-80R-150	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CA-80R-200	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CA-80R-250	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CA-80R-300	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CA-80R-350	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CA-80R-400	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CA-80R-450	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CA-80R-500	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CA-80H-25	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CA-80H-50	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CA-80H-75	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CA-80H-100	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CA-80H-150	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CA-80H-200	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CA-80H-250	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CA-80H-300	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CA-80H-350	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CA-80H-400	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CA-80H-450	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CA-80H-500	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CA-80N-25	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CA-80N-50	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CA-80N-75	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CA-80N-100	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CA-80N-150	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CA-80N-200	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CA-80N-250	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CA-80N-300	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CA-80N-350	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CA-80N-400	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CA-80N-450	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CA-80N-500	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CA-100B-25	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CA-100B-50	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CA-100B-75	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CA-100B-100	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CA-100B-150	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CA-100B-200	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CA-100B-250	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CA-100B-300	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CA-100B-350	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CA-100B-400	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CA-100B-450	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CA-100B-500	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CA-100R-25	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CA-100R-50	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CA-100R-75	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CA-100R-100	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CA-100R-150	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CA-100R-200	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CA-100R-250	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CA-100R-300	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CA-100R-350	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CA-100R-400	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CA-100R-450	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CA-100R-500	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CA-100H-25	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CA-100H-50	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CA-100H-75	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CA-100H-100	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CA-100H-150	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CA-100H-200	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CA-100H-250	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CA-100H-300	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CA-100H-350	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CA-100H-400	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CA-100H-450	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CA-100H-500	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CA-100N-25	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CA-100N-50	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CA-100N-75	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CA-100N-100	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CA-100N-150	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CA-100N-200	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CA-100N-250	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CA-100N-300	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CA-100N-350	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CA-100N-400	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CA-100N-450	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CA-100N-500	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CB-40B-25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-CB-40B-50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-CB-40B-75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-CB-40B-100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-CB-40B-150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-CB-40B-200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-CB-40B-250	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-CB-40B-300	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-CB-40B-350	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-CB-40B-400	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-CB-40B-450	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-CB-40B-500	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-CB-40R-25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-CB-40R-50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-CB-40R-75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-CB-40R-100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-CB-40R-150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-CB-40R-200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-CB-40R-250	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-CB-40R-300	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-CB-40R-350	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-CB-40R-400	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-CB-40R-450	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-CB-40R-500	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-CB-40H-25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-CB-40H-50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-CB-40H-75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-CB-40H-100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-CB-40H-150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-CB-40H-200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-CB-40H-250	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-CB-40H-300	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-CB-40H-350	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-CB-40H-400	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-CB-40H-450	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-CB-40H-500	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-CB-40N-25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-CB-40N-50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-CB-40N-75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-CB-40N-100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-CB-40N-150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-CB-40N-200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-CB-40N-250	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-CB-40N-300	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-CB-40N-350	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-CB-40N-400	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-CB-40N-450	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-CB-40N-500	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-CB-50B-25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CB-50B-50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CB-50B-75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CB-50B-100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CB-50B-150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CB-50B-200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CB-50B-250	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CB-50B-300	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CB-50B-350	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CB-50B-400	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CB-50B-450	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CB-50B-500	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CB-50R-25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CB-50R-50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CB-50R-75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CB-50R-100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CB-50R-150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CB-50R-200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CB-50R-250	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CB-50R-300	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CB-50R-350	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CB-50R-400	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CB-50R-450	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CB-50R-500	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CB-50H-25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CB-50H-50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CB-50H-75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CB-50H-100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CB-50H-150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CB-50H-200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CB-50H-250	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CB-50H-300	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CB-50H-350	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CB-50H-400	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CB-50H-450	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CB-50H-500	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CB-50N-25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CB-50N-50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CB-50N-75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CB-50N-100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CB-50N-150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CB-50N-200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CB-50N-250	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CB-50N-300	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CB-50N-350	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CB-50N-400	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CB-50N-450	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CB-50N-500	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CB-63B-25	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CB-63B-50	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CB-63B-75	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CB-63B-100	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CB-63B-150	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CB-63B-200	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CB-63B-250	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CB-63B-300	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CB-63B-350	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CB-63B-400	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CB-63B-450	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CB-63B-500	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CB-63R-25	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CB-63R-50	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CB-63R-75	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CB-63R-100	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CB-63R-150	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CB-63R-200	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CB-63R-250	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CB-63R-300	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CB-63R-350	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CB-63R-400	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CB-63R-450	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CB-63R-500	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CB-63H-25	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CB-63H-50	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CB-63H-75	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CB-63H-100	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CB-63H-150	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CB-63H-200	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CB-63H-250	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CB-63H-300	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CB-63H-350	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CB-63H-400	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CB-63H-450	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CB-63H-500	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CB-63N-25	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-CB-63N-50	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-CB-63N-75	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-CB-63N-100	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-CB-63N-150	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-CB-63N-200	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-CB-63N-250	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-CB-63N-300	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-CB-63N-350	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-CB-63N-400	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-CB-63N-450	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-CB-63N-500	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-CB-80B-25	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CB-80B-50	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CB-80B-75	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CB-80B-100	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CB-80B-150	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CB-80B-200	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CB-80B-250	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CB-80B-300	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CB-80B-350	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CB-80B-400	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CB-80B-450	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CB-80B-500	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CB-80R-25	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CB-80R-50	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CB-80R-75	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CB-80R-100	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CB-80R-150	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CB-80R-200	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CB-80R-250	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CB-80R-300	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CB-80R-350	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CB-80R-400	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CB-80R-450	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CB-80R-500	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CB-80H-25	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CB-80H-50	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CB-80H-75	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CB-80H-100	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CB-80H-150	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CB-80H-200	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CB-80H-250	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CB-80H-300	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CB-80H-350	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CB-80H-400	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CB-80H-450	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CB-80H-500	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CB-80N-25	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CB-80N-50	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CB-80N-75	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CB-80N-100	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CB-80N-150	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CB-80N-200	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CB-80N-250	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CB-80N-300	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CB-80N-350	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CB-80N-400	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CB-80N-450	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CB-80N-500	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CB-100B-25	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CB-100B-50	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CB-100B-75	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CB-100B-100	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CB-100B-150	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CB-100B-200	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CB-100B-250	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CB-100B-300	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CB-100B-350	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CB-100B-400	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CB-100B-450	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CB-100B-500	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CB-100R-25	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CB-100R-50	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CB-100R-75	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CB-100R-100	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CB-100R-150	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CB-100R-200	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CB-100R-250	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CB-100R-300	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CB-100R-350	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CB-100R-400	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CB-100R-450	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CB-100R-500	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CB-100H-25	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CB-100H-50	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CB-100H-75	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CB-100H-100	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CB-100H-150	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CB-100H-200	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CB-100H-250	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CB-100H-300	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CB-100H-350	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CB-100H-400	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CB-100H-450	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CB-100H-500	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-CB-100N-25	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-CB-100N-50	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-CB-100N-75	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-CB-100N-100	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-CB-100N-150	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-CB-100N-200	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-CB-100N-250	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-CB-100N-300	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-CB-100N-350	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-CB-100N-400	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-CB-100N-450	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-CB-100N-500	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TC-40B-25	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-TC-40B-50	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-TC-40B-75	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-TC-40B-100	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-TC-40B-150	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-TC-40B-200	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-TC-40B-250	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-TC-40B-300	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-TC-40B-350	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-TC-40B-400	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-TC-40B-450	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-TC-40B-500	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-TC-40R-25	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-TC-40R-50	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-TC-40R-75	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-TC-40R-100	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-TC-40R-150	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-TC-40R-200	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-TC-40R-250	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-TC-40R-300	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-TC-40R-350	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-TC-40R-400	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-TC-40R-450	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-TC-40R-500	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-TC-40H-25	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-TC-40H-50	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-TC-40H-75	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-TC-40H-100	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-TC-40H-150	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-TC-40H-200	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-TC-40H-250	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-TC-40H-300	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-TC-40H-350	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-TC-40H-400	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-TC-40H-450	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-TC-40H-500	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-TC-40N-25	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-TC-40N-50	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-TC-40N-75	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-TC-40N-100	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-TC-40N-150	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-TC-40N-200	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-TC-40N-250	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-TC-40N-300	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-TC-40N-350	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-TC-40N-400	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-TC-40N-450	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-TC-40N-500	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-TC-50B-25	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TC-50B-50	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TC-50B-75	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TC-50B-100	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TC-50B-150	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TC-50B-200	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TC-50B-250	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TC-50B-300	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TC-50B-350	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TC-50B-400	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TC-50B-450	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TC-50B-500	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TC-50R-25	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TC-50R-50	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TC-50R-75	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TC-50R-100	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TC-50R-150	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TC-50R-200	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TC-50R-250	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TC-50R-300	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TC-50R-350	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TC-50R-400	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TC-50R-450	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TC-50R-500	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TC-50H-25	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TC-50H-50	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TC-50H-75	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TC-50H-100	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TC-50H-150	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TC-50H-200	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TC-50H-250	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TC-50H-300	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TC-50H-350	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TC-50H-400	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TC-50H-450	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TC-50H-500	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TC-50N-25	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TC-50N-50	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TC-50N-75	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TC-50N-100	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TC-50N-150	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TC-50N-200	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TC-50N-250	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TC-50N-300	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TC-50N-350	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TC-50N-400	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TC-50N-450	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TC-50N-500	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TC-63B-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TC-63B-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TC-63B-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TC-63B-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TC-63B-150	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TC-63B-200	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TC-63B-250	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TC-63B-300	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TC-63B-350	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TC-63B-400	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TC-63B-450	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TC-63B-500	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TC-63R-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TC-63R-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TC-63R-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TC-63R-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TC-63R-150	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TC-63R-200	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TC-63R-250	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TC-63R-300	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TC-63R-350	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TC-63R-400	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TC-63R-450	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TC-63R-500	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TC-63H-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TC-63H-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TC-63H-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TC-63H-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TC-63H-150	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TC-63H-200	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TC-63H-250	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TC-63H-300	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TC-63H-350	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TC-63H-400	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TC-63H-450	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TC-63H-500	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TC-63N-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TC-63N-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TC-63N-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TC-63N-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TC-63N-150	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TC-63N-200	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TC-63N-250	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TC-63N-300	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TC-63N-350	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TC-63N-400	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TC-63N-450	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TC-63N-500	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TC-80B-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TC-80B-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TC-80B-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TC-80B-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TC-80B-150	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TC-80B-200	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TC-80B-250	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TC-80B-300	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TC-80B-350	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TC-80B-400	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TC-80B-450	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TC-80B-500	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TC-80R-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TC-80R-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TC-80R-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TC-80R-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TC-80R-150	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TC-80R-200	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TC-80R-250	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TC-80R-300	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TC-80R-350	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TC-80R-400	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TC-80R-450	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TC-80R-500	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TC-80H-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TC-80H-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TC-80H-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TC-80H-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TC-80H-150	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TC-80H-200	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TC-80H-250	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TC-80H-300	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TC-80H-350	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TC-80H-400	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TC-80H-450	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TC-80H-500	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TC-80N-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TC-80N-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TC-80N-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TC-80N-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TC-80N-150	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TC-80N-200	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TC-80N-250	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TC-80N-300	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TC-80N-350	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TC-80N-400	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TC-80N-450	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TC-80N-500	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TC-100B-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TC-100B-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TC-100B-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TC-100B-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TC-100B-150	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TC-100B-200	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TC-100B-250	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TC-100B-300	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TC-100B-350	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TC-100B-400	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TC-100B-450	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TC-100B-500	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TC-100R-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TC-100R-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TC-100R-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TC-100R-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TC-100R-150	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TC-100R-200	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TC-100R-250	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TC-100R-300	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TC-100R-350	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TC-100R-400	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TC-100R-450	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TC-100R-500	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TC-100H-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TC-100H-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TC-100H-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TC-100H-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TC-100H-150	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TC-100H-200	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TC-100H-250	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TC-100H-300	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TC-100H-350	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TC-100H-400	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TC-100H-450	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TC-100H-500	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TC-100N-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TC-100N-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TC-100N-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TC-100N-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TC-100N-150	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TC-100N-200	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TC-100N-250	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TC-100N-300	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TC-100N-350	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TC-100N-400	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TC-100N-450	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TC-100N-500	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TA-40B-25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-TA-40B-50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-TA-40B-75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-TA-40B-100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-TA-40B-150	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-TA-40B-200	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-TA-40B-250	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-TA-40B-300	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-TA-40B-350	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-TA-40B-400	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-TA-40B-450	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-TA-40B-500	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-TA-40R-25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-TA-40R-50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-TA-40R-75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-TA-40R-100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-TA-40R-150	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-TA-40R-200	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-TA-40R-250	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-TA-40R-300	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-TA-40R-350	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-TA-40R-400	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-TA-40R-450	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-TA-40R-500	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-TA-40H-25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-TA-40H-50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-TA-40H-75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-TA-40H-100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-TA-40H-150	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-TA-40H-200	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-TA-40H-250	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-TA-40H-300	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-TA-40H-350	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-TA-40H-400	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-TA-40H-450	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-TA-40H-500	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-TA-40N-25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-TA-40N-50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-TA-40N-75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-TA-40N-100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-TA-40N-150	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-TA-40N-200	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-TA-40N-250	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-TA-40N-300	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-TA-40N-350	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-TA-40N-400	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-TA-40N-450	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-TA-40N-500	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-TA-50B-25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TA-50B-50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TA-50B-75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TA-50B-100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TA-50B-150	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TA-50B-200	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TA-50B-250	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TA-50B-300	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TA-50B-350	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TA-50B-400	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TA-50B-450	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TA-50B-500	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TA-50R-25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TA-50R-50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TA-50R-75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TA-50R-100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TA-50R-150	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TA-50R-200	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TA-50R-250	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TA-50R-300	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TA-50R-350	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TA-50R-400	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TA-50R-450	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TA-50R-500	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TA-50H-25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TA-50H-50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TA-50H-75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TA-50H-100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TA-50H-150	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TA-50H-200	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TA-50H-250	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TA-50H-300	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TA-50H-350	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TA-50H-400	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TA-50H-450	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TA-50H-500	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TA-50N-25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TA-50N-50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TA-50N-75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TA-50N-100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TA-50N-150	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TA-50N-200	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TA-50N-250	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TA-50N-300	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TA-50N-350	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TA-50N-400	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TA-50N-450	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TA-50N-500	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TA-63B-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TA-63B-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TA-63B-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TA-63B-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TA-63B-150	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TA-63B-200	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TA-63B-250	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TA-63B-300	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TA-63B-350	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TA-63B-400	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TA-63B-450	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TA-63B-500	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TA-63R-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TA-63R-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TA-63R-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TA-63R-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TA-63R-150	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TA-63R-200	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TA-63R-250	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TA-63R-300	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TA-63R-350	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TA-63R-400	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TA-63R-450	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TA-63R-500	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TA-63H-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TA-63H-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TA-63H-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TA-63H-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TA-63H-150	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TA-63H-200	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TA-63H-250	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TA-63H-300	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TA-63H-350	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TA-63H-400	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TA-63H-450	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TA-63H-500	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TA-63N-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TA-63N-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TA-63N-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TA-63N-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TA-63N-150	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TA-63N-200	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TA-63N-250	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TA-63N-300	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TA-63N-350	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TA-63N-400	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TA-63N-450	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TA-63N-500	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TA-80B-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TA-80B-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TA-80B-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TA-80B-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TA-80B-150	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TA-80B-200	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TA-80B-250	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TA-80B-300	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TA-80B-350	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TA-80B-400	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TA-80B-450	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TA-80B-500	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TA-80R-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TA-80R-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TA-80R-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TA-80R-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TA-80R-150	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TA-80R-200	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TA-80R-250	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TA-80R-300	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TA-80R-350	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TA-80R-400	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TA-80R-450	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TA-80R-500	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TA-80H-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TA-80H-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TA-80H-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TA-80H-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TA-80H-150	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TA-80H-200	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TA-80H-250	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TA-80H-300	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TA-80H-350	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TA-80H-400	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TA-80H-450	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TA-80H-500	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TA-80N-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TA-80N-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TA-80N-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TA-80N-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TA-80N-150	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TA-80N-200	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TA-80N-250	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TA-80N-300	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TA-80N-350	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TA-80N-400	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TA-80N-450	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TA-80N-500	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TA-100B-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TA-100B-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TA-100B-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TA-100B-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TA-100B-150	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TA-100B-200	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TA-100B-250	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TA-100B-300	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TA-100B-350	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TA-100B-400	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TA-100B-450	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TA-100B-500	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TA-100R-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TA-100R-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TA-100R-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TA-100R-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TA-100R-150	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TA-100R-200	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TA-100R-250	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TA-100R-300	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TA-100R-350	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TA-100R-400	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TA-100R-450	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TA-100R-500	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TA-100H-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TA-100H-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TA-100H-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TA-100H-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TA-100H-150	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TA-100H-200	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TA-100H-250	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TA-100H-300	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TA-100H-350	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TA-100H-400	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TA-100H-450	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TA-100H-500	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TA-100N-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TA-100N-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TA-100N-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TA-100N-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TA-100N-150	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TA-100N-200	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TA-100N-250	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TA-100N-300	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TA-100N-350	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TA-100N-400	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TA-100N-450	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TA-100N-500	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TB-40B-25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-TB-40B-50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-TB-40B-75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-TB-40B-100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-TB-40B-150	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-TB-40B-200	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-TB-40B-250	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-TB-40B-300	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-TB-40B-350	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-TB-40B-400	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-TB-40B-450	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-TB-40B-500	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-TB-40R-25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-TB-40R-50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-TB-40R-75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-TB-40R-100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-TB-40R-150	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-TB-40R-200	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-TB-40R-250	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-TB-40R-300	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-TB-40R-350	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-TB-40R-400	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-TB-40R-450	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-TB-40R-500	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-TB-40H-25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-TB-40H-50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-TB-40H-75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-TB-40H-100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-TB-40H-150	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-TB-40H-200	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-TB-40H-250	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-TB-40H-300	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-TB-40H-350	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-TB-40H-400	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-TB-40H-450	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-TB-40H-500	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-TB-40N-25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-G-TB-40N-50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-G-TB-40N-75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-G-TB-40N-100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-G-TB-40N-150	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-G-TB-40N-200	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-G-TB-40N-250	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-G-TB-40N-300	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-G-TB-40N-350	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-G-TB-40N-400	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-G-TB-40N-450	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-G-TB-40N-500	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-G-TB-50B-25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TB-50B-50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TB-50B-75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TB-50B-100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TB-50B-150	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TB-50B-200	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TB-50B-250	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TB-50B-300	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TB-50B-350	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TB-50B-400	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TB-50B-450	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TB-50B-500	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TB-50R-25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TB-50R-50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TB-50R-75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TB-50R-100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TB-50R-150	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TB-50R-200	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TB-50R-250	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TB-50R-300	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TB-50R-350	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TB-50R-400	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TB-50R-450	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TB-50R-500	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TB-50H-25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TB-50H-50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TB-50H-75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TB-50H-100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TB-50H-150	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TB-50H-200	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TB-50H-250	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TB-50H-300	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TB-50H-350	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TB-50H-400	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TB-50H-450	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TB-50H-500	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TB-50N-25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TB-50N-50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TB-50N-75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TB-50N-100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TB-50N-150	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TB-50N-200	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TB-50N-250	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TB-50N-300	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TB-50N-350	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TB-50N-400	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TB-50N-450	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TB-50N-500	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TB-63B-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TB-63B-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TB-63B-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TB-63B-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TB-63B-150	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TB-63B-200	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TB-63B-250	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TB-63B-300	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TB-63B-350	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TB-63B-400	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TB-63B-450	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TB-63B-500	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TB-63R-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TB-63R-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TB-63R-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TB-63R-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TB-63R-150	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TB-63R-200	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TB-63R-250	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TB-63R-300	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TB-63R-350	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TB-63R-400	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TB-63R-450	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TB-63R-500	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TB-63H-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TB-63H-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TB-63H-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TB-63H-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TB-63H-150	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TB-63H-200	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TB-63H-250	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TB-63H-300	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TB-63H-350	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TB-63H-400	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TB-63H-450	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TB-63H-500	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TB-63N-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-G-TB-63N-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-G-TB-63N-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-G-TB-63N-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-G-TB-63N-150	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-G-TB-63N-200	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-G-TB-63N-250	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-G-TB-63N-300	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-G-TB-63N-350	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-G-TB-63N-400	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-G-TB-63N-450	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-G-TB-63N-500	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-G-TB-80B-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TB-80B-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TB-80B-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TB-80B-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TB-80B-150	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TB-80B-200	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TB-80B-250	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TB-80B-300	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TB-80B-350	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TB-80B-400	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TB-80B-450	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TB-80B-500	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TB-80R-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TB-80R-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TB-80R-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TB-80R-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TB-80R-150	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TB-80R-200	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TB-80R-250	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TB-80R-300	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TB-80R-350	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TB-80R-400	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TB-80R-450	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TB-80R-500	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TB-80H-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TB-80H-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TB-80H-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TB-80H-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TB-80H-150	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TB-80H-200	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TB-80H-250	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TB-80H-300	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TB-80H-350	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TB-80H-400	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TB-80H-450	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TB-80H-500	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TB-80N-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TB-80N-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TB-80N-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TB-80N-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TB-80N-150	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TB-80N-200	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TB-80N-250	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TB-80N-300	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TB-80N-350	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TB-80N-400	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TB-80N-450	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TB-80N-500	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TB-100B-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TB-100B-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TB-100B-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TB-100B-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TB-100B-150	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TB-100B-200	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TB-100B-250	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TB-100B-300	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TB-100B-350	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TB-100B-400	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TB-100B-450	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TB-100B-500	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TB-100R-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TB-100R-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TB-100R-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TB-100R-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TB-100R-150	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TB-100R-200	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TB-100R-250	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TB-100R-300	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TB-100R-350	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TB-100R-400	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TB-100R-450	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TB-100R-500	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, rod end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TB-100H-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TB-100H-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TB-100H-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TB-100H-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TB-100H-150	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TB-100H-200	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TB-100H-250	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TB-100H-300	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TB-100H-350	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TB-100H-400	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TB-100H-450	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TB-100H-500	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, head end \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-G-TB-100N-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-G-TB-100N-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-G-TB-100N-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-G-TB-100N-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-G-TB-100N-150	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-G-TB-100N-200	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-G-TB-100N-250	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-G-TB-100N-300	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-G-TB-100N-350	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-G-TB-100N-400	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-G-TB-100N-450	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-G-TB-100N-500	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm \| Port: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCA2-G Selex Cylinder (Strong Scraper, Clevis/Trunnion)
