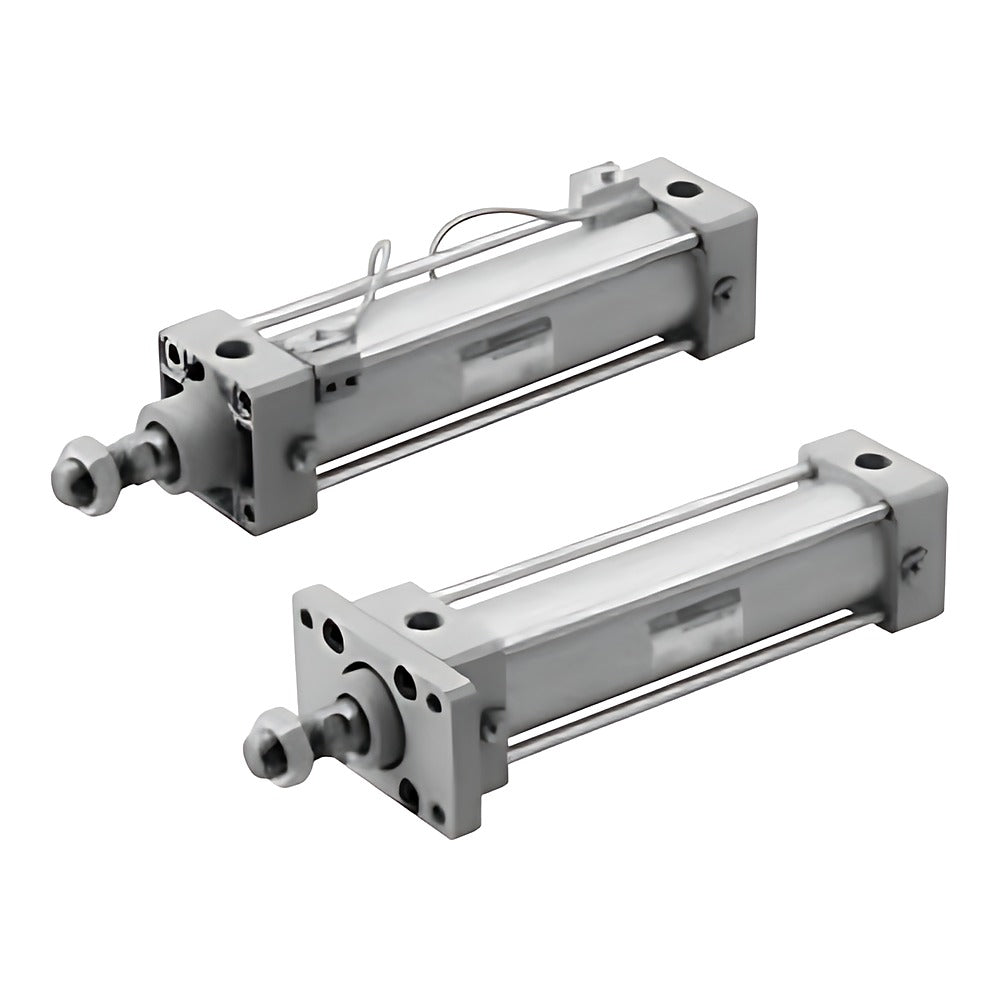

CKD SCA2-G Selex Cylinder (Strong Scraper, Hole-Type Trunnion)

CKD SCA2-G Selex Cylinder (Strong Scraper, Hole-Type Trunnion)

CKD SCA2-G Selex double-acting cylinder with a strong scraper that removes dust, sand and dry contaminants from the rod, bore 40 to 100 mm, hole-type trunnion mounting styles.

Key features

  • Strong scraper on the rod cover for dusty or chip-laden environments; switch magnet built in
  • Cushion: both ends (B), rod end (R), head end (H) or none (N)
  • Standard strokes 25 to 500 mm; intermediate strokes in 1 mm steps (max 600/700/800 mm by bore)
  • 13 mounting styles in total; hole-type trunnions (TF, TD, TE) not available for bore 40
  • T-type auto switches, switch quantity (R/H/D/T), options (J/L bellows, M stainless rod, S/T cushion needle position) and knuckles/brackets (I, Y, B1-B4) ordered as suffixes
  • Rc port thread standard; NPT (N) and G (G) threads made to order

Specifications

Action Double acting, strong scraper
Fluid Compressed air
Max. working pressure 1.0 MPa
Min. working pressure 0.05 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Piston speed 50 to 1000 mm/s
Lubrication Not required
Cushion Air cushion
Switch magnet Built in
Source CKD Korea catalog CB-029SK-9, p. 664-670
SCA2-G-TF-50B-25 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-50B-50 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-50B-75 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-50B-100 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-50B-150 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-50B-200 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-50B-250 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-50B-300 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-50B-350 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-50B-400 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-50B-450 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-50B-500 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-50R-25 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-50R-50 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-50R-75 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-50R-100 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-50R-150 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-50R-200 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-50R-250 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-50R-300 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-50R-350 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-50R-400 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-50R-450 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-50R-500 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-50H-25 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-50H-50 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-50H-75 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-50H-100 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-50H-150 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-50H-200 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-50H-250 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-50H-300 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-50H-350 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-50H-400 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-50H-450 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-50H-500 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-50N-25 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-50N-50 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-50N-75 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-50N-100 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-50N-150 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-50N-200 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-50N-250 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-50N-300 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-50N-350 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-50N-400 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-50N-450 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-50N-500 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-63B-25 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-63B-50 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-63B-75 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-63B-100 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-63B-150 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-63B-200 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-63B-250 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-63B-300 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-63B-350 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-63B-400 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-63B-450 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-63B-500 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-63R-25 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-63R-50 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-63R-75 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-63R-100 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-63R-150 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-63R-200 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-63R-250 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-63R-300 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-63R-350 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-63R-400 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-63R-450 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-63R-500 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-63H-25 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-63H-50 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-63H-75 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-63H-100 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-63H-150 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-63H-200 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-63H-250 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-63H-300 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-63H-350 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-63H-400 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-63H-450 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-63H-500 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-63N-25 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-63N-50 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-63N-75 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-63N-100 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-63N-150 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-63N-200 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-63N-250 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-63N-300 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-63N-350 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-63N-400 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-63N-450 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-63N-500 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-80B-25 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-80B-50 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-80B-75 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-80B-100 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-80B-150 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-80B-200 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-80B-250 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-80B-300 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-80B-350 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-80B-400 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-80B-450 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-80B-500 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TF-80R-25 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-80R-50 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-80R-75 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-80R-100 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-80R-150 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-80R-200 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-80R-250 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-80R-300 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-80R-350 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-80R-400 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-80R-450 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-80R-500 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TF-80H-25 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-80H-50 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-80H-75 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-80H-100 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-80H-150 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-80H-200 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-80H-250 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-80H-300 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-80H-350 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-80H-400 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-80H-450 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-80H-500 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TF-80N-25 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-80N-50 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-80N-75 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-80N-100 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-80N-150 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-80N-200 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-80N-250 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-80N-300 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-80N-350 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-80N-400 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-80N-450 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-80N-500 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TF-100B-25 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-100B-50 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-100B-75 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-100B-100 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-100B-150 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-100B-200 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-100B-250 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-100B-300 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-100B-350 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-100B-400 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-100B-450 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-100B-500 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TF-100R-25 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-100R-50 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-100R-75 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-100R-100 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-100R-150 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-100R-200 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-100R-250 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-100R-300 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-100R-350 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-100R-400 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-100R-450 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-100R-500 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TF-100H-25 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-100H-50 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-100H-75 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-100H-100 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-100H-150 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-100H-200 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-100H-250 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-100H-300 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-100H-350 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-100H-400 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-100H-450 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-100H-500 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TF-100N-25 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-100N-50 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-100N-75 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-100N-100 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-100N-150 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-100N-200 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-100N-250 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-100N-300 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-100N-350 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-100N-400 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-100N-450 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-100N-500 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-50B-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-50B-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-50B-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-50B-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-50B-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-50B-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-50B-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-50B-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-50B-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-50B-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-50B-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-50B-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-50R-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-50R-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-50R-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-50R-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-50R-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-50R-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-50R-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-50R-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-50R-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-50R-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-50R-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-50R-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-50H-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-50H-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-50H-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-50H-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-50H-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-50H-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-50H-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-50H-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-50H-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-50H-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-50H-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-50H-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-50N-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-50N-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-50N-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-50N-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-50N-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-50N-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-50N-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-50N-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-50N-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-50N-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-50N-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-50N-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-63B-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-63B-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-63B-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-63B-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-63B-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-63B-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-63B-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-63B-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-63B-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-63B-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-63B-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-63B-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-63R-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-63R-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-63R-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-63R-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-63R-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-63R-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-63R-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-63R-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-63R-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-63R-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-63R-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-63R-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-63H-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-63H-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-63H-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-63H-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-63H-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-63H-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-63H-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-63H-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-63H-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-63H-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-63H-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-63H-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-63N-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-63N-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-63N-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-63N-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-63N-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-63N-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-63N-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-63N-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-63N-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-63N-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-63N-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-63N-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-80B-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-80B-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-80B-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-80B-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-80B-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-80B-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-80B-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-80B-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-80B-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-80B-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-80B-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-80B-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-80R-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-80R-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-80R-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-80R-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-80R-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-80R-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-80R-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-80R-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-80R-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-80R-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-80R-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-80R-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-80H-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-80H-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-80H-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-80H-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-80H-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-80H-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-80H-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-80H-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-80H-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-80H-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-80H-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-80H-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-80N-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-80N-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-80N-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-80N-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-80N-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-80N-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-80N-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-80N-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-80N-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-80N-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-80N-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-80N-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-100B-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-100B-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-100B-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-100B-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-100B-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-100B-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-100B-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-100B-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-100B-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-100B-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-100B-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-100B-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-100R-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-100R-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-100R-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-100R-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-100R-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-100R-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-100R-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-100R-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-100R-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-100R-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-100R-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-100R-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-100H-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-100H-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-100H-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-100H-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-100H-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-100H-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-100H-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-100H-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-100H-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-100H-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-100H-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-100H-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-100N-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-100N-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-100N-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-100N-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-100N-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-100N-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-100N-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-100N-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-100N-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-100N-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-100N-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-100N-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-50B-25 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-50B-50 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-50B-75 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-50B-100 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-50B-150 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-50B-200 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-50B-250 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-50B-300 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-50B-350 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-50B-400 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-50B-450 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-50B-500 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-50R-25 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-50R-50 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-50R-75 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-50R-100 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-50R-150 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-50R-200 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-50R-250 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-50R-300 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-50R-350 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-50R-400 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-50R-450 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-50R-500 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-50H-25 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-50H-50 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-50H-75 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-50H-100 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-50H-150 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-50H-200 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-50H-250 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-50H-300 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-50H-350 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-50H-400 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-50H-450 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-50H-500 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-50N-25 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-50N-50 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-50N-75 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-50N-100 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-50N-150 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-50N-200 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-50N-250 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-50N-300 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-50N-350 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-50N-400 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-50N-450 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-50N-500 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-63B-25 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-63B-50 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-63B-75 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-63B-100 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-63B-150 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-63B-200 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-63B-250 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-63B-300 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-63B-350 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-63B-400 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-63B-450 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-63B-500 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-63R-25 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-63R-50 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-63R-75 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-63R-100 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-63R-150 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-63R-200 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-63R-250 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-63R-300 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-63R-350 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-63R-400 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-63R-450 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-63R-500 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-63H-25 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-63H-50 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-63H-75 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-63H-100 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-63H-150 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-63H-200 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-63H-250 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-63H-300 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-63H-350 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-63H-400 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-63H-450 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-63H-500 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-63N-25 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-63N-50 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-63N-75 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-63N-100 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-63N-150 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-63N-200 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-63N-250 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-63N-300 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-63N-350 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-63N-400 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-63N-450 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-63N-500 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-80B-25 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-80B-50 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-80B-75 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-80B-100 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-80B-150 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-80B-200 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-80B-250 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-80B-300 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-80B-350 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-80B-400 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-80B-450 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-80B-500 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-80R-25 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-80R-50 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-80R-75 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-80R-100 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-80R-150 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-80R-200 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-80R-250 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-80R-300 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-80R-350 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-80R-400 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-80R-450 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-80R-500 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-80H-25 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-80H-50 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-80H-75 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-80H-100 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-80H-150 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-80H-200 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-80H-250 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-80H-300 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-80H-350 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-80H-400 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-80H-450 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-80H-500 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-80N-25 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-80N-50 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-80N-75 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-80N-100 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-80N-150 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-80N-200 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-80N-250 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-80N-300 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-80N-350 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-80N-400 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-80N-450 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-80N-500 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-100B-25 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-100B-50 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-100B-75 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-100B-100 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-100B-150 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-100B-200 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-100B-250 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-100B-300 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-100B-350 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-100B-400 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-100B-450 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-100B-500 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-100R-25 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-100R-50 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-100R-75 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-100R-100 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-100R-150 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-100R-200 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-100R-250 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-100R-300 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-100R-350 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-100R-400 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-100R-450 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-100R-500 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-100H-25 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-100H-50 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-100H-75 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-100H-100 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-100H-150 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-100H-200 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-100H-250 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-100H-300 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-100H-350 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-100H-400 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-100H-450 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-100H-500 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-100N-25 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-100N-50 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-100N-75 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-100N-100 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-100N-150 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-100N-200 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-100N-250 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-100N-300 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-100N-350 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-100N-400 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-100N-450 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-100N-500 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 500 mm | Port: Rc1/2
Pneumatic CylindersCKD
576 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCA2-G Selex Cylinder (Strong Scraper, Hole-Type Trunnion)

Brand CKD·Pneumatic Cylinders

Available part numbers (576)

SCA2-G-TF-50B-25, SCA2-G-TF-50B-50, SCA2-G-TF-50B-75, SCA2-G-TF-50B-100, SCA2-G-TF-50B-150, SCA2-G-TF-50B-200, SCA2-G-TF-50B-250, SCA2-G-TF-50B-300, SCA2-G-TF-50B-350, SCA2-G-TF-50B-400 + 566 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCA2-G-TF-50B-25Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-50B-50Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-50B-75Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-50B-100Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-50B-150Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-50B-200Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-50B-250Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-50B-300Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-50B-350Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-50B-400Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-50B-450Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-50B-500Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-50R-25Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-50R-50Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-50R-75Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-50R-100Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-50R-150Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-50R-200Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-50R-250Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-50R-300Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-50R-350Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-50R-400Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-50R-450Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-50R-500Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-50H-25Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-50H-50Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-50H-75Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-50H-100Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-50H-150Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-50H-200Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-50H-250Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-50H-300Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-50H-350Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-50H-400Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-50H-450Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-50H-500Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-50N-25Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-50N-50Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-50N-75Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-50N-100Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-50N-150Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-50N-200Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-50N-250Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-50N-300Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-50N-350Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-50N-400Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-50N-450Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-50N-500Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Cushion: None | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-63B-25Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-63B-50Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-63B-75Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-63B-100Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-63B-150Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-63B-200Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-63B-250Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-63B-300Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-63B-350Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-63B-400Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-63B-450Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-63B-500Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-63R-25Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-63R-50Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-63R-75Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-63R-100Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-63R-150Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-63R-200Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-63R-250Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-63R-300Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-63R-350Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-63R-400Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-63R-450Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-63R-500Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-63H-25Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-63H-50Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-63H-75Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-63H-100Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-63H-150Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-63H-200Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-63H-250Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-63H-300Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-63H-350Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-63H-400Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-63H-450Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-63H-500Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-63N-25Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TF-63N-50Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TF-63N-75Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TF-63N-100Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TF-63N-150Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TF-63N-200Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TF-63N-250Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TF-63N-300Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TF-63N-350Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TF-63N-400Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TF-63N-450Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TF-63N-500Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Cushion: None | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TF-80B-25Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-80B-50Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-80B-75Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-80B-100Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-80B-150Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-80B-200Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-80B-250Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-80B-300Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-80B-350Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-80B-400Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-80B-450Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-80B-500Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TF-80R-25Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-80R-50Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-80R-75Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-80R-100Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-80R-150Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-80R-200Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-80R-250Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-80R-300Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-80R-350Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-80R-400Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-80R-450Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-80R-500Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TF-80H-25Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-80H-50Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-80H-75Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-80H-100Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-80H-150Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-80H-200Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-80H-250Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-80H-300Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-80H-350Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-80H-400Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-80H-450Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-80H-500Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TF-80N-25Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-80N-50Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-80N-75Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-80N-100Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-80N-150Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-80N-200Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-80N-250Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-80N-300Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-80N-350Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-80N-400Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-80N-450Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-80N-500Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Cushion: None | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TF-100B-25Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-100B-50Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-100B-75Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-100B-100Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-100B-150Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-100B-200Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-100B-250Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-100B-300Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-100B-350Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-100B-400Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-100B-450Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-100B-500Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TF-100R-25Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-100R-50Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-100R-75Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-100R-100Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-100R-150Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-100R-200Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-100R-250Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-100R-300Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-100R-350Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-100R-400Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-100R-450Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-100R-500Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TF-100H-25Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-100H-50Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-100H-75Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-100H-100Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-100H-150Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-100H-200Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-100H-250Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-100H-300Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-100H-350Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-100H-400Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-100H-450Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-100H-500Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TF-100N-25Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TF-100N-50Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TF-100N-75Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TF-100N-100Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TF-100N-150Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TF-100N-200Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TF-100N-250Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TF-100N-300Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TF-100N-350Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TF-100N-400Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TF-100N-450Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TF-100N-500Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Cushion: None | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-50B-25Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-50B-50Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-50B-75Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-50B-100Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-50B-150Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-50B-200Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-50B-250Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-50B-300Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-50B-350Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-50B-400Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-50B-450Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-50B-500Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-50R-25Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-50R-50Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-50R-75Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-50R-100Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-50R-150Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-50R-200Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-50R-250Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-50R-300Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-50R-350Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-50R-400Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-50R-450Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-50R-500Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-50H-25Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-50H-50Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-50H-75Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-50H-100Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-50H-150Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-50H-200Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-50H-250Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-50H-300Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-50H-350Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-50H-400Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-50H-450Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-50H-500Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-50N-25Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-50N-50Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-50N-75Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-50N-100Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-50N-150Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-50N-200Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-50N-250Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-50N-300Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-50N-350Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-50N-400Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-50N-450Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-50N-500Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Cushion: None | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-63B-25Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-63B-50Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-63B-75Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-63B-100Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-63B-150Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-63B-200Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-63B-250Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-63B-300Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-63B-350Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-63B-400Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-63B-450Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-63B-500Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-63R-25Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-63R-50Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-63R-75Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-63R-100Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-63R-150Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-63R-200Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-63R-250Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-63R-300Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-63R-350Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-63R-400Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-63R-450Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-63R-500Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-63H-25Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-63H-50Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-63H-75Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-63H-100Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-63H-150Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-63H-200Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-63H-250Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-63H-300Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-63H-350Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-63H-400Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-63H-450Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-63H-500Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-63N-25Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TD-63N-50Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TD-63N-75Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TD-63N-100Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TD-63N-150Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TD-63N-200Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TD-63N-250Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TD-63N-300Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TD-63N-350Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TD-63N-400Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TD-63N-450Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TD-63N-500Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Cushion: None | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TD-80B-25Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-80B-50Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-80B-75Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-80B-100Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-80B-150Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-80B-200Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-80B-250Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-80B-300Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-80B-350Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-80B-400Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-80B-450Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-80B-500Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-80R-25Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-80R-50Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-80R-75Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-80R-100Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-80R-150Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-80R-200Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-80R-250Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-80R-300Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-80R-350Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-80R-400Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-80R-450Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-80R-500Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-80H-25Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-80H-50Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-80H-75Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-80H-100Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-80H-150Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-80H-200Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-80H-250Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-80H-300Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-80H-350Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-80H-400Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-80H-450Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-80H-500Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-80N-25Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-80N-50Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-80N-75Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-80N-100Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-80N-150Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-80N-200Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-80N-250Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-80N-300Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-80N-350Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-80N-400Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-80N-450Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-80N-500Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Cushion: None | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-100B-25Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-100B-50Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-100B-75Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-100B-100Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-100B-150Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-100B-200Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-100B-250Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-100B-300Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-100B-350Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-100B-400Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-100B-450Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-100B-500Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-100R-25Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-100R-50Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-100R-75Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-100R-100Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-100R-150Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-100R-200Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-100R-250Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-100R-300Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-100R-350Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-100R-400Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-100R-450Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-100R-500Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-100H-25Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-100H-50Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-100H-75Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-100H-100Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-100H-150Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-100H-200Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-100H-250Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-100H-300Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-100H-350Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-100H-400Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-100H-450Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-100H-500Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TD-100N-25Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TD-100N-50Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TD-100N-75Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TD-100N-100Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TD-100N-150Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TD-100N-200Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TD-100N-250Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TD-100N-300Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TD-100N-350Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TD-100N-400Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TD-100N-450Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TD-100N-500Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Cushion: None | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-50B-25Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-50B-50Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-50B-75Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-50B-100Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-50B-150Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-50B-200Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-50B-250Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-50B-300Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-50B-350Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-50B-400Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-50B-450Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-50B-500Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-50R-25Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-50R-50Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-50R-75Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-50R-100Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-50R-150Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-50R-200Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-50R-250Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-50R-300Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-50R-350Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-50R-400Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-50R-450Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-50R-500Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-50H-25Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-50H-50Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-50H-75Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-50H-100Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-50H-150Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-50H-200Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-50H-250Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-50H-300Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-50H-350Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-50H-400Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-50H-450Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-50H-500Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-50N-25Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-50N-50Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-50N-75Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-50N-100Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-50N-150Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-50N-200Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-50N-250Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-50N-300Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-50N-350Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-50N-400Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-50N-450Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-50N-500Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Cushion: None | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-63B-25Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-63B-50Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-63B-75Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-63B-100Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-63B-150Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-63B-200Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-63B-250Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-63B-300Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-63B-350Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-63B-400Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-63B-450Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-63B-500Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-63R-25Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-63R-50Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-63R-75Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-63R-100Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-63R-150Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-63R-200Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-63R-250Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-63R-300Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-63R-350Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-63R-400Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-63R-450Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-63R-500Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-63H-25Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-63H-50Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-63H-75Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-63H-100Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-63H-150Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-63H-200Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-63H-250Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-63H-300Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-63H-350Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-63H-400Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-63H-450Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-63H-500Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-63N-25Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 25 mm | Port: Rc3/8
SCA2-G-TE-63N-50Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/8
SCA2-G-TE-63N-75Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/8
SCA2-G-TE-63N-100Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/8
SCA2-G-TE-63N-150Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/8
SCA2-G-TE-63N-200Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/8
SCA2-G-TE-63N-250Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/8
SCA2-G-TE-63N-300Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/8
SCA2-G-TE-63N-350Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 350 mm | Port: Rc3/8
SCA2-G-TE-63N-400Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 400 mm | Port: Rc3/8
SCA2-G-TE-63N-450Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 450 mm | Port: Rc3/8
SCA2-G-TE-63N-500Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Cushion: None | Stroke: 500 mm | Port: Rc3/8
SCA2-G-TE-80B-25Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-80B-50Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-80B-75Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-80B-100Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-80B-150Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-80B-200Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-80B-250Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-80B-300Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-80B-350Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-80B-400Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-80B-450Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-80B-500Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-80R-25Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-80R-50Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-80R-75Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-80R-100Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-80R-150Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-80R-200Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-80R-250Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-80R-300Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-80R-350Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-80R-400Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-80R-450Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-80R-500Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-80H-25Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-80H-50Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-80H-75Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-80H-100Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-80H-150Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-80H-200Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-80H-250Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-80H-300Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-80H-350Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-80H-400Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-80H-450Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-80H-500Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-80N-25Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-80N-50Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-80N-75Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-80N-100Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-80N-150Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-80N-200Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-80N-250Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-80N-300Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-80N-350Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-80N-400Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-80N-450Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-80N-500Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Cushion: None | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-100B-25Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-100B-50Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-100B-75Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-100B-100Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-100B-150Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-100B-200Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-100B-250Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-100B-300Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-100B-350Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-100B-400Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-100B-450Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-100B-500Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, both ends | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-100R-25Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-100R-50Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-100R-75Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-100R-100Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-100R-150Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-100R-200Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-100R-250Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-100R-300Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-100R-350Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-100R-400Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-100R-450Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-100R-500Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, rod end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-100H-25Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-100H-50Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-100H-75Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-100H-100Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-100H-150Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-100H-200Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-100H-250Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-100H-300Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-100H-350Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-100H-400Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-100H-450Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-100H-500Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: Air, head end | Stroke: 500 mm | Port: Rc1/2
SCA2-G-TE-100N-25Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 25 mm | Port: Rc1/2
SCA2-G-TE-100N-50Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCA2-G-TE-100N-75Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCA2-G-TE-100N-100Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCA2-G-TE-100N-150Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCA2-G-TE-100N-200Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCA2-G-TE-100N-250Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCA2-G-TE-100N-300Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCA2-G-TE-100N-350Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 350 mm | Port: Rc1/2
SCA2-G-TE-100N-400Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 400 mm | Port: Rc1/2
SCA2-G-TE-100N-450Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 450 mm | Port: Rc1/2
SCA2-G-TE-100N-500Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Cushion: None | Stroke: 500 mm | Port: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
