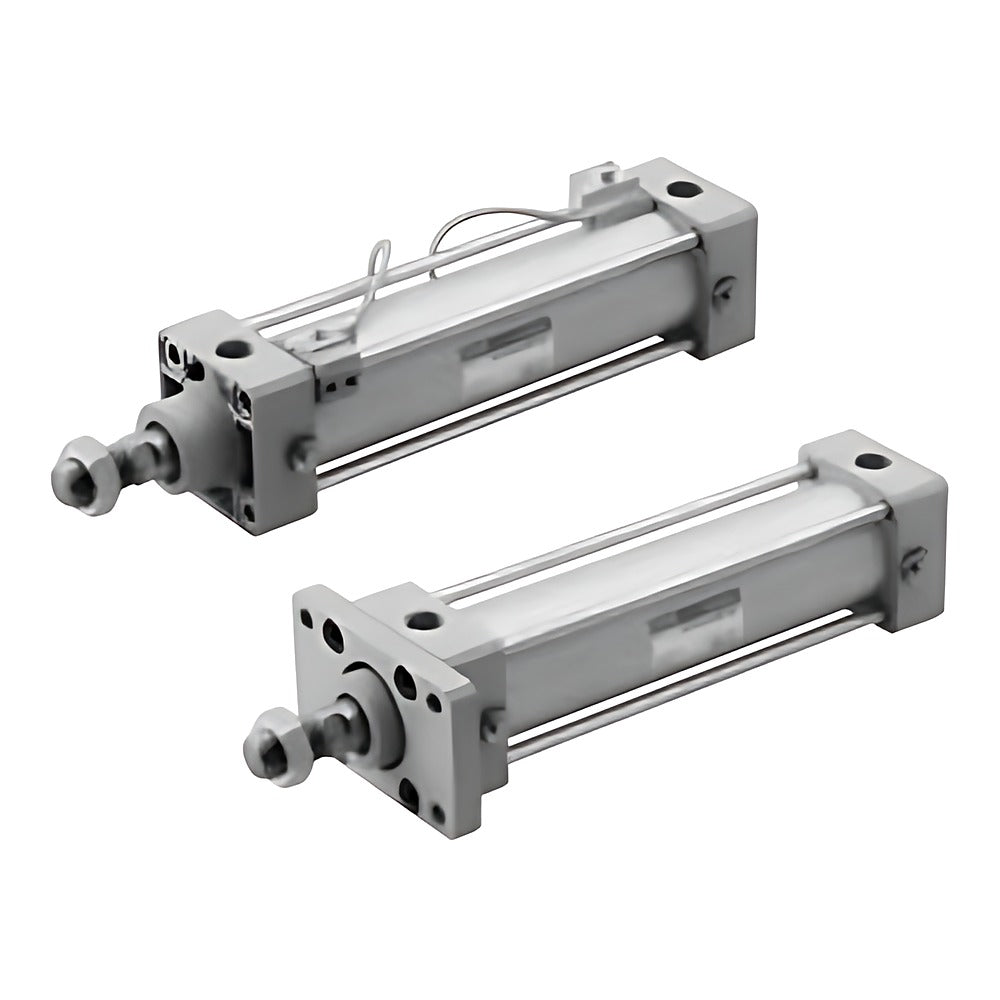

CKD SCA2-G2/G3-FP1 Selex Cylinder (Coolant Resistant)

CKD SCA2-G2/G3-FP1 coolant-resistant Selex cylinder (NBR or FKM packing), bore 40-100 mm, with NSF H1 food-grade grease.

Key features

NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
Selex cylinder, bore 40-100 mm; air cushion both ends/rod/head or no cushion
Auto switches (T0H, T2H, T2WH etc.) with count R/H/D/T, bellows J/L, stainless rod M, cushion needle position S/T and rod-end I/Y/B1-B4 ordered as suffixes
Hole-type trunnions TF/TD/TE not available for bore 40; intermediate strokes in 1 mm steps
Coolant-resistant scraper with NBR (G2) or FKM (G3) packing; T2YLH/T3YLH switches

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Port	Rc1/4 (40), Rc3/8 (50/63), Rc1/2 (80/100)
Piston speed	50-1000 mm/s
Cushion	Air, both ends
Source	CKD Korea catalog CC-1271K, p. 74-78

SCA2-G2-00-40B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G2-00-40B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G2-00-40B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G2-00-40B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G2-00-40B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G2-00-40B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G2-00-40B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G2-00-40B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G2-00-40B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G2-00-40B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G2-00-40B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G2-00-40B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G2-00-50B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G2-00-50B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G2-00-50B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G2-00-50B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G2-00-50B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G2-00-50B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G2-00-50B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G2-00-50B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G2-00-50B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G2-00-50B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G2-00-50B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G2-00-50B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G2-00-63B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G2-00-63B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G2-00-63B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G2-00-63B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G2-00-63B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G2-00-63B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G2-00-63B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G2-00-63B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G2-00-63B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G2-00-63B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G2-00-63B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G2-00-63B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G2-00-80B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G2-00-80B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G2-00-80B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G2-00-80B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G2-00-80B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G2-00-80B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G2-00-80B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G2-00-80B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G2-00-80B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G2-00-80B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G2-00-80B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G2-00-80B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G2-00-100B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G2-00-100B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G2-00-100B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G2-00-100B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G2-00-100B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G2-00-100B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G2-00-100B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G2-00-100B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G2-00-100B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G2-00-100B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G2-00-100B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G2-00-100B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G2-LB-40B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G2-LB-40B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G2-LB-40B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G2-LB-40B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G2-LB-40B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G2-LB-40B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G2-LB-40B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G2-LB-40B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G2-LB-40B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G2-LB-40B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G2-LB-40B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G2-LB-40B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G2-LB-50B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G2-LB-50B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G2-LB-50B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G2-LB-50B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G2-LB-50B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G2-LB-50B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G2-LB-50B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G2-LB-50B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G2-LB-50B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G2-LB-50B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G2-LB-50B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G2-LB-50B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G2-LB-63B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G2-LB-63B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G2-LB-63B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G2-LB-63B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G2-LB-63B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G2-LB-63B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G2-LB-63B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G2-LB-63B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G2-LB-63B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G2-LB-63B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G2-LB-63B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G2-LB-63B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G2-LB-80B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G2-LB-80B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G2-LB-80B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G2-LB-80B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G2-LB-80B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G2-LB-80B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G2-LB-80B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G2-LB-80B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G2-LB-80B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G2-LB-80B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G2-LB-80B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G2-LB-80B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G2-LB-100B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G2-LB-100B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G2-LB-100B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G2-LB-100B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G2-LB-100B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G2-LB-100B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G2-LB-100B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G2-LB-100B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G2-LB-100B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G2-LB-100B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G2-LB-100B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G2-LB-100B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G2-FA-40B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G2-FA-40B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G2-FA-40B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G2-FA-40B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G2-FA-40B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G2-FA-40B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G2-FA-40B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G2-FA-40B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G2-FA-40B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G2-FA-40B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G2-FA-40B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G2-FA-40B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G2-FA-50B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G2-FA-50B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G2-FA-50B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G2-FA-50B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G2-FA-50B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G2-FA-50B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G2-FA-50B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G2-FA-50B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G2-FA-50B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G2-FA-50B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G2-FA-50B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G2-FA-50B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G2-FA-63B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G2-FA-63B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G2-FA-63B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G2-FA-63B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G2-FA-63B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G2-FA-63B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G2-FA-63B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G2-FA-63B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G2-FA-63B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G2-FA-63B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G2-FA-63B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G2-FA-63B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G2-FA-80B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G2-FA-80B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G2-FA-80B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G2-FA-80B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G2-FA-80B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G2-FA-80B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G2-FA-80B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G2-FA-80B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G2-FA-80B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G2-FA-80B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G2-FA-80B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G2-FA-80B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G2-FA-100B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G2-FA-100B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G2-FA-100B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G2-FA-100B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G2-FA-100B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G2-FA-100B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G2-FA-100B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G2-FA-100B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G2-FA-100B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G2-FA-100B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G2-FA-100B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G2-FA-100B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G2-FB-40B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G2-FB-40B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G2-FB-40B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G2-FB-40B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G2-FB-40B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G2-FB-40B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G2-FB-40B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G2-FB-40B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G2-FB-40B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G2-FB-40B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G2-FB-40B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G2-FB-40B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G2-FB-50B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G2-FB-50B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G2-FB-50B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G2-FB-50B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G2-FB-50B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G2-FB-50B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G2-FB-50B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G2-FB-50B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G2-FB-50B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G2-FB-50B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G2-FB-50B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G2-FB-50B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G2-FB-63B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G2-FB-63B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G2-FB-63B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G2-FB-63B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G2-FB-63B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G2-FB-63B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G2-FB-63B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G2-FB-63B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G2-FB-63B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G2-FB-63B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G2-FB-63B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G2-FB-63B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G2-FB-80B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G2-FB-80B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G2-FB-80B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G2-FB-80B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G2-FB-80B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G2-FB-80B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G2-FB-80B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G2-FB-80B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G2-FB-80B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G2-FB-80B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G2-FB-80B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G2-FB-80B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G2-FB-100B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G2-FB-100B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G2-FB-100B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G2-FB-100B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G2-FB-100B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G2-FB-100B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G2-FB-100B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G2-FB-100B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G2-FB-100B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G2-FB-100B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G2-FB-100B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G2-FB-100B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G2-FC-40B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G2-FC-40B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G2-FC-40B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G2-FC-40B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G2-FC-40B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G2-FC-40B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G2-FC-40B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G2-FC-40B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G2-FC-40B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G2-FC-40B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G2-FC-40B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G2-FC-40B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G2-FC-50B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G2-FC-50B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G2-FC-50B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G2-FC-50B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G2-FC-50B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G2-FC-50B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G2-FC-50B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G2-FC-50B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G2-FC-50B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G2-FC-50B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G2-FC-50B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G2-FC-50B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G2-FC-63B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G2-FC-63B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G2-FC-63B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G2-FC-63B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G2-FC-63B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G2-FC-63B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G2-FC-63B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G2-FC-63B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G2-FC-63B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G2-FC-63B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G2-FC-63B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G2-FC-63B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G2-FC-80B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G2-FC-80B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G2-FC-80B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G2-FC-80B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G2-FC-80B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G2-FC-80B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G2-FC-80B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G2-FC-80B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G2-FC-80B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G2-FC-80B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G2-FC-80B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G2-FC-80B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G2-FC-100B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G2-FC-100B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G2-FC-100B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G2-FC-100B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G2-FC-100B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G2-FC-100B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G2-FC-100B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G2-FC-100B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G2-FC-100B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G2-FC-100B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G2-FC-100B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G2-FC-100B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G2-CA-40B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G2-CA-40B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G2-CA-40B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G2-CA-40B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G2-CA-40B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G2-CA-40B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G2-CA-40B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G2-CA-40B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G2-CA-40B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G2-CA-40B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G2-CA-40B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G2-CA-40B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G2-CA-50B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G2-CA-50B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G2-CA-50B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G2-CA-50B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G2-CA-50B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G2-CA-50B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G2-CA-50B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G2-CA-50B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G2-CA-50B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G2-CA-50B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G2-CA-50B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G2-CA-50B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G2-CA-63B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G2-CA-63B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G2-CA-63B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G2-CA-63B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G2-CA-63B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G2-CA-63B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G2-CA-63B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G2-CA-63B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G2-CA-63B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G2-CA-63B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G2-CA-63B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G2-CA-63B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G2-CA-80B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G2-CA-80B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G2-CA-80B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G2-CA-80B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G2-CA-80B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G2-CA-80B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G2-CA-80B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G2-CA-80B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G2-CA-80B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G2-CA-80B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G2-CA-80B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G2-CA-80B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G2-CA-100B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G2-CA-100B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G2-CA-100B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G2-CA-100B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G2-CA-100B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G2-CA-100B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G2-CA-100B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G2-CA-100B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G2-CA-100B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G2-CA-100B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G2-CA-100B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G2-CA-100B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G2-CB-40B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G2-CB-40B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G2-CB-40B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G2-CB-40B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G2-CB-40B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G2-CB-40B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G2-CB-40B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G2-CB-40B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G2-CB-40B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G2-CB-40B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G2-CB-40B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G2-CB-40B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G2-CB-50B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G2-CB-50B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G2-CB-50B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G2-CB-50B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G2-CB-50B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G2-CB-50B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G2-CB-50B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G2-CB-50B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G2-CB-50B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G2-CB-50B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G2-CB-50B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G2-CB-50B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G2-CB-63B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G2-CB-63B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G2-CB-63B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G2-CB-63B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G2-CB-63B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G2-CB-63B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G2-CB-63B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G2-CB-63B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G2-CB-63B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G2-CB-63B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G2-CB-63B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G2-CB-63B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G2-CB-80B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G2-CB-80B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G2-CB-80B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G2-CB-80B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G2-CB-80B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G2-CB-80B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G2-CB-80B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G2-CB-80B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G2-CB-80B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G2-CB-80B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G2-CB-80B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G2-CB-80B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G2-CB-100B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G2-CB-100B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G2-CB-100B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G2-CB-100B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G2-CB-100B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G2-CB-100B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G2-CB-100B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G2-CB-100B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G2-CB-100B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G2-CB-100B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G2-CB-100B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G2-CB-100B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G2-TC-40B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G2-TC-40B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G2-TC-40B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G2-TC-40B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G2-TC-40B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G2-TC-40B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G2-TC-40B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G2-TC-40B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G2-TC-40B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G2-TC-40B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G2-TC-40B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G2-TC-40B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G2-TC-50B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G2-TC-50B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G2-TC-50B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G2-TC-50B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G2-TC-50B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G2-TC-50B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G2-TC-50B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G2-TC-50B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G2-TC-50B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G2-TC-50B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G2-TC-50B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G2-TC-50B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G2-TC-63B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G2-TC-63B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G2-TC-63B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G2-TC-63B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G2-TC-63B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G2-TC-63B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G2-TC-63B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G2-TC-63B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G2-TC-63B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G2-TC-63B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G2-TC-63B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G2-TC-63B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G2-TC-80B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G2-TC-80B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G2-TC-80B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G2-TC-80B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G2-TC-80B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G2-TC-80B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G2-TC-80B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G2-TC-80B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G2-TC-80B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G2-TC-80B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G2-TC-80B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G2-TC-80B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G2-TC-100B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G2-TC-100B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G2-TC-100B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G2-TC-100B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G2-TC-100B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G2-TC-100B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G2-TC-100B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G2-TC-100B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G2-TC-100B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G2-TC-100B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G2-TC-100B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G2-TC-100B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G2-TA-40B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G2-TA-40B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G2-TA-40B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G2-TA-40B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G2-TA-40B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G2-TA-40B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G2-TA-40B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G2-TA-40B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G2-TA-40B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G2-TA-40B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G2-TA-40B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G2-TA-40B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G2-TA-50B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G2-TA-50B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G2-TA-50B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G2-TA-50B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G2-TA-50B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G2-TA-50B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G2-TA-50B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G2-TA-50B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G2-TA-50B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G2-TA-50B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G2-TA-50B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G2-TA-50B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G2-TA-63B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G2-TA-63B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G2-TA-63B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G2-TA-63B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G2-TA-63B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G2-TA-63B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G2-TA-63B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G2-TA-63B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G2-TA-63B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G2-TA-63B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G2-TA-63B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G2-TA-63B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G2-TA-80B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G2-TA-80B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G2-TA-80B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G2-TA-80B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G2-TA-80B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G2-TA-80B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G2-TA-80B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G2-TA-80B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G2-TA-80B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G2-TA-80B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G2-TA-80B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G2-TA-80B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G2-TA-100B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G2-TA-100B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G2-TA-100B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G2-TA-100B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G2-TA-100B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G2-TA-100B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G2-TA-100B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G2-TA-100B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G2-TA-100B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G2-TA-100B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G2-TA-100B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G2-TA-100B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G2-TB-40B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G2-TB-40B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G2-TB-40B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G2-TB-40B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G2-TB-40B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G2-TB-40B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G2-TB-40B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G2-TB-40B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G2-TB-40B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G2-TB-40B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G2-TB-40B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G2-TB-40B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G2-TB-50B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G2-TB-50B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G2-TB-50B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G2-TB-50B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G2-TB-50B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G2-TB-50B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G2-TB-50B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G2-TB-50B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G2-TB-50B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G2-TB-50B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G2-TB-50B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G2-TB-50B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G2-TB-63B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G2-TB-63B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G2-TB-63B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G2-TB-63B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G2-TB-63B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G2-TB-63B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G2-TB-63B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G2-TB-63B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G2-TB-63B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G2-TB-63B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G2-TB-63B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G2-TB-63B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G2-TB-80B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G2-TB-80B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G2-TB-80B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G2-TB-80B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G2-TB-80B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G2-TB-80B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G2-TB-80B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G2-TB-80B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G2-TB-80B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G2-TB-80B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G2-TB-80B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G2-TB-80B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G2-TB-100B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G2-TB-100B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G2-TB-100B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G2-TB-100B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G2-TB-100B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G2-TB-100B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G2-TB-100B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G2-TB-100B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G2-TB-100B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G2-TB-100B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G2-TB-100B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G2-TB-100B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G2-TF-50B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G2-TF-50B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G2-TF-50B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G2-TF-50B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G2-TF-50B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G2-TF-50B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G2-TF-50B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G2-TF-50B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G2-TF-50B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G2-TF-50B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G2-TF-50B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G2-TF-50B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G2-TF-63B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G2-TF-63B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G2-TF-63B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G2-TF-63B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G2-TF-63B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G2-TF-63B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G2-TF-63B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G2-TF-63B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G2-TF-63B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G2-TF-63B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G2-TF-63B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G2-TF-63B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G2-TF-80B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G2-TF-80B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G2-TF-80B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G2-TF-80B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G2-TF-80B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G2-TF-80B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G2-TF-80B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G2-TF-80B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G2-TF-80B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G2-TF-80B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G2-TF-80B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G2-TF-80B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G2-TF-100B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G2-TF-100B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G2-TF-100B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G2-TF-100B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G2-TF-100B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G2-TF-100B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G2-TF-100B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G2-TF-100B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G2-TF-100B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G2-TF-100B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G2-TF-100B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G2-TF-100B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G2-TD-50B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G2-TD-50B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G2-TD-50B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G2-TD-50B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G2-TD-50B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G2-TD-50B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G2-TD-50B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G2-TD-50B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G2-TD-50B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G2-TD-50B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G2-TD-50B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G2-TD-50B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G2-TD-63B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G2-TD-63B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G2-TD-63B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G2-TD-63B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G2-TD-63B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G2-TD-63B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G2-TD-63B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G2-TD-63B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G2-TD-63B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G2-TD-63B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G2-TD-63B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G2-TD-63B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G2-TD-80B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G2-TD-80B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G2-TD-80B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G2-TD-80B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G2-TD-80B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G2-TD-80B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G2-TD-80B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G2-TD-80B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G2-TD-80B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G2-TD-80B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G2-TD-80B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G2-TD-80B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G2-TD-100B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G2-TD-100B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G2-TD-100B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G2-TD-100B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G2-TD-100B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G2-TD-100B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G2-TD-100B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G2-TD-100B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G2-TD-100B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G2-TD-100B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G2-TD-100B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G2-TD-100B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G2-TE-50B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G2-TE-50B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G2-TE-50B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G2-TE-50B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G2-TE-50B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G2-TE-50B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G2-TE-50B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G2-TE-50B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G2-TE-50B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G2-TE-50B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G2-TE-50B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G2-TE-50B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G2-TE-63B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G2-TE-63B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G2-TE-63B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G2-TE-63B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G2-TE-63B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G2-TE-63B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G2-TE-63B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G2-TE-63B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G2-TE-63B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G2-TE-63B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G2-TE-63B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G2-TE-63B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G2-TE-80B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G2-TE-80B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G2-TE-80B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G2-TE-80B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G2-TE-80B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G2-TE-80B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G2-TE-80B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G2-TE-80B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G2-TE-80B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G2-TE-80B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G2-TE-80B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G2-TE-80B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G2-TE-100B-25-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G2-TE-100B-50-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G2-TE-100B-75-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G2-TE-100B-100-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G2-TE-100B-150-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G2-TE-100B-200-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G2-TE-100B-250-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G2-TE-100B-300-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G2-TE-100B-350-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G2-TE-100B-400-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G2-TE-100B-450-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G2-TE-100B-500-FP1		Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G3-00-40B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G3-00-40B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G3-00-40B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G3-00-40B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G3-00-40B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G3-00-40B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G3-00-40B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G3-00-40B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G3-00-40B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G3-00-40B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G3-00-40B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G3-00-40B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G3-00-50B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G3-00-50B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G3-00-50B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G3-00-50B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G3-00-50B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G3-00-50B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G3-00-50B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G3-00-50B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G3-00-50B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G3-00-50B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G3-00-50B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G3-00-50B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G3-00-63B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G3-00-63B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G3-00-63B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G3-00-63B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G3-00-63B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G3-00-63B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G3-00-63B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G3-00-63B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G3-00-63B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G3-00-63B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G3-00-63B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G3-00-63B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G3-00-80B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G3-00-80B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G3-00-80B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G3-00-80B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G3-00-80B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G3-00-80B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G3-00-80B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G3-00-80B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G3-00-80B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G3-00-80B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G3-00-80B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G3-00-80B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G3-00-100B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G3-00-100B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G3-00-100B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G3-00-100B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G3-00-100B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G3-00-100B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G3-00-100B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G3-00-100B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G3-00-100B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G3-00-100B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G3-00-100B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G3-00-100B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G3-LB-40B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G3-LB-40B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G3-LB-40B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G3-LB-40B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G3-LB-40B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G3-LB-40B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G3-LB-40B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G3-LB-40B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G3-LB-40B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G3-LB-40B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G3-LB-40B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G3-LB-40B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G3-LB-50B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G3-LB-50B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G3-LB-50B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G3-LB-50B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G3-LB-50B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G3-LB-50B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G3-LB-50B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G3-LB-50B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G3-LB-50B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G3-LB-50B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G3-LB-50B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G3-LB-50B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G3-LB-63B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G3-LB-63B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G3-LB-63B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G3-LB-63B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G3-LB-63B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G3-LB-63B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G3-LB-63B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G3-LB-63B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G3-LB-63B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G3-LB-63B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G3-LB-63B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G3-LB-63B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G3-LB-80B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G3-LB-80B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G3-LB-80B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G3-LB-80B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G3-LB-80B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G3-LB-80B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G3-LB-80B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G3-LB-80B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G3-LB-80B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G3-LB-80B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G3-LB-80B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G3-LB-80B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G3-LB-100B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G3-LB-100B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G3-LB-100B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G3-LB-100B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G3-LB-100B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G3-LB-100B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G3-LB-100B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G3-LB-100B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G3-LB-100B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G3-LB-100B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G3-LB-100B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G3-LB-100B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G3-FA-40B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G3-FA-40B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G3-FA-40B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G3-FA-40B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G3-FA-40B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G3-FA-40B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G3-FA-40B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G3-FA-40B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G3-FA-40B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G3-FA-40B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G3-FA-40B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G3-FA-40B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G3-FA-50B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G3-FA-50B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G3-FA-50B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G3-FA-50B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G3-FA-50B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G3-FA-50B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G3-FA-50B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G3-FA-50B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G3-FA-50B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G3-FA-50B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G3-FA-50B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G3-FA-50B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G3-FA-63B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G3-FA-63B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G3-FA-63B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G3-FA-63B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G3-FA-63B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G3-FA-63B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G3-FA-63B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G3-FA-63B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G3-FA-63B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G3-FA-63B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G3-FA-63B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G3-FA-63B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G3-FA-80B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G3-FA-80B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G3-FA-80B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G3-FA-80B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G3-FA-80B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G3-FA-80B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G3-FA-80B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G3-FA-80B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G3-FA-80B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G3-FA-80B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G3-FA-80B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G3-FA-80B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G3-FA-100B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G3-FA-100B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G3-FA-100B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G3-FA-100B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G3-FA-100B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G3-FA-100B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G3-FA-100B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G3-FA-100B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G3-FA-100B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G3-FA-100B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G3-FA-100B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G3-FA-100B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G3-FB-40B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G3-FB-40B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G3-FB-40B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G3-FB-40B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G3-FB-40B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G3-FB-40B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G3-FB-40B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G3-FB-40B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G3-FB-40B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G3-FB-40B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G3-FB-40B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G3-FB-40B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G3-FB-50B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G3-FB-50B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G3-FB-50B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G3-FB-50B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G3-FB-50B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G3-FB-50B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G3-FB-50B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G3-FB-50B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G3-FB-50B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G3-FB-50B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G3-FB-50B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G3-FB-50B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G3-FB-63B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G3-FB-63B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G3-FB-63B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G3-FB-63B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G3-FB-63B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G3-FB-63B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G3-FB-63B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G3-FB-63B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G3-FB-63B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G3-FB-63B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G3-FB-63B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G3-FB-63B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G3-FB-80B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G3-FB-80B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G3-FB-80B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G3-FB-80B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G3-FB-80B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G3-FB-80B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G3-FB-80B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G3-FB-80B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G3-FB-80B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G3-FB-80B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G3-FB-80B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G3-FB-80B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G3-FB-100B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G3-FB-100B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G3-FB-100B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G3-FB-100B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G3-FB-100B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G3-FB-100B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G3-FB-100B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G3-FB-100B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G3-FB-100B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G3-FB-100B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G3-FB-100B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G3-FB-100B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G3-FC-40B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G3-FC-40B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G3-FC-40B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G3-FC-40B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G3-FC-40B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G3-FC-40B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G3-FC-40B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G3-FC-40B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G3-FC-40B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G3-FC-40B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G3-FC-40B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G3-FC-40B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G3-FC-50B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G3-FC-50B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G3-FC-50B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G3-FC-50B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G3-FC-50B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G3-FC-50B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G3-FC-50B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G3-FC-50B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G3-FC-50B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G3-FC-50B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G3-FC-50B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G3-FC-50B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G3-FC-63B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G3-FC-63B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G3-FC-63B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G3-FC-63B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G3-FC-63B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G3-FC-63B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G3-FC-63B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G3-FC-63B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G3-FC-63B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G3-FC-63B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G3-FC-63B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G3-FC-63B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G3-FC-80B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G3-FC-80B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G3-FC-80B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G3-FC-80B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G3-FC-80B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G3-FC-80B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G3-FC-80B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G3-FC-80B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G3-FC-80B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G3-FC-80B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G3-FC-80B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G3-FC-80B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G3-FC-100B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G3-FC-100B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G3-FC-100B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G3-FC-100B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G3-FC-100B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G3-FC-100B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G3-FC-100B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G3-FC-100B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G3-FC-100B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G3-FC-100B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G3-FC-100B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G3-FC-100B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G3-CA-40B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G3-CA-40B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G3-CA-40B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G3-CA-40B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G3-CA-40B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G3-CA-40B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G3-CA-40B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G3-CA-40B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G3-CA-40B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G3-CA-40B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G3-CA-40B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G3-CA-40B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G3-CA-50B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G3-CA-50B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G3-CA-50B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G3-CA-50B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G3-CA-50B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G3-CA-50B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G3-CA-50B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G3-CA-50B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G3-CA-50B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G3-CA-50B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G3-CA-50B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G3-CA-50B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G3-CA-63B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G3-CA-63B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G3-CA-63B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G3-CA-63B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G3-CA-63B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G3-CA-63B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G3-CA-63B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G3-CA-63B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G3-CA-63B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G3-CA-63B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G3-CA-63B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G3-CA-63B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G3-CA-80B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G3-CA-80B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G3-CA-80B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G3-CA-80B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G3-CA-80B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G3-CA-80B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G3-CA-80B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G3-CA-80B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G3-CA-80B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G3-CA-80B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G3-CA-80B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G3-CA-80B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G3-CA-100B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G3-CA-100B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G3-CA-100B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G3-CA-100B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G3-CA-100B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G3-CA-100B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G3-CA-100B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G3-CA-100B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G3-CA-100B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G3-CA-100B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G3-CA-100B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G3-CA-100B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G3-CB-40B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G3-CB-40B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G3-CB-40B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G3-CB-40B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G3-CB-40B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G3-CB-40B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G3-CB-40B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G3-CB-40B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G3-CB-40B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G3-CB-40B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G3-CB-40B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G3-CB-40B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G3-CB-50B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G3-CB-50B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G3-CB-50B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G3-CB-50B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G3-CB-50B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G3-CB-50B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G3-CB-50B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G3-CB-50B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G3-CB-50B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G3-CB-50B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G3-CB-50B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G3-CB-50B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G3-CB-63B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G3-CB-63B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G3-CB-63B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G3-CB-63B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G3-CB-63B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G3-CB-63B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G3-CB-63B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G3-CB-63B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G3-CB-63B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G3-CB-63B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G3-CB-63B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G3-CB-63B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G3-CB-80B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G3-CB-80B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G3-CB-80B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G3-CB-80B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G3-CB-80B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G3-CB-80B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G3-CB-80B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G3-CB-80B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G3-CB-80B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G3-CB-80B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G3-CB-80B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G3-CB-80B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G3-CB-100B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G3-CB-100B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G3-CB-100B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G3-CB-100B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G3-CB-100B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G3-CB-100B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G3-CB-100B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G3-CB-100B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G3-CB-100B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G3-CB-100B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G3-CB-100B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G3-CB-100B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G3-TC-40B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G3-TC-40B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G3-TC-40B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G3-TC-40B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G3-TC-40B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G3-TC-40B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G3-TC-40B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G3-TC-40B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G3-TC-40B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G3-TC-40B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G3-TC-40B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G3-TC-40B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G3-TC-50B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G3-TC-50B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G3-TC-50B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G3-TC-50B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G3-TC-50B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G3-TC-50B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G3-TC-50B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G3-TC-50B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G3-TC-50B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G3-TC-50B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G3-TC-50B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G3-TC-50B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G3-TC-63B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G3-TC-63B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G3-TC-63B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G3-TC-63B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G3-TC-63B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G3-TC-63B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G3-TC-63B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G3-TC-63B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G3-TC-63B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G3-TC-63B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G3-TC-63B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G3-TC-63B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G3-TC-80B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G3-TC-80B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G3-TC-80B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G3-TC-80B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G3-TC-80B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G3-TC-80B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G3-TC-80B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G3-TC-80B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G3-TC-80B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G3-TC-80B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G3-TC-80B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G3-TC-80B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G3-TC-100B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G3-TC-100B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G3-TC-100B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G3-TC-100B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G3-TC-100B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G3-TC-100B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G3-TC-100B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G3-TC-100B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G3-TC-100B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G3-TC-100B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G3-TC-100B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G3-TC-100B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G3-TA-40B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G3-TA-40B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G3-TA-40B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G3-TA-40B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G3-TA-40B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G3-TA-40B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G3-TA-40B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G3-TA-40B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G3-TA-40B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G3-TA-40B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G3-TA-40B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G3-TA-40B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G3-TA-50B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G3-TA-50B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G3-TA-50B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G3-TA-50B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G3-TA-50B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G3-TA-50B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G3-TA-50B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G3-TA-50B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G3-TA-50B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G3-TA-50B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G3-TA-50B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G3-TA-50B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G3-TA-63B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G3-TA-63B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G3-TA-63B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G3-TA-63B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G3-TA-63B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G3-TA-63B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G3-TA-63B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G3-TA-63B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G3-TA-63B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G3-TA-63B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G3-TA-63B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G3-TA-63B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G3-TA-80B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G3-TA-80B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G3-TA-80B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G3-TA-80B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G3-TA-80B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G3-TA-80B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G3-TA-80B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G3-TA-80B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G3-TA-80B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G3-TA-80B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G3-TA-80B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G3-TA-80B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G3-TA-100B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G3-TA-100B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G3-TA-100B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G3-TA-100B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G3-TA-100B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G3-TA-100B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G3-TA-100B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G3-TA-100B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G3-TA-100B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G3-TA-100B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G3-TA-100B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G3-TA-100B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G3-TB-40B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm
SCA2-G3-TB-40B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm
SCA2-G3-TB-40B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm
SCA2-G3-TB-40B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm
SCA2-G3-TB-40B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm
SCA2-G3-TB-40B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm
SCA2-G3-TB-40B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm
SCA2-G3-TB-40B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm
SCA2-G3-TB-40B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 350 mm
SCA2-G3-TB-40B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 400 mm
SCA2-G3-TB-40B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 450 mm
SCA2-G3-TB-40B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 500 mm
SCA2-G3-TB-50B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G3-TB-50B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G3-TB-50B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G3-TB-50B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G3-TB-50B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G3-TB-50B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G3-TB-50B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G3-TB-50B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G3-TB-50B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G3-TB-50B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G3-TB-50B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G3-TB-50B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G3-TB-63B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G3-TB-63B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G3-TB-63B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G3-TB-63B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G3-TB-63B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G3-TB-63B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G3-TB-63B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G3-TB-63B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G3-TB-63B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G3-TB-63B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G3-TB-63B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G3-TB-63B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G3-TB-80B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G3-TB-80B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G3-TB-80B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G3-TB-80B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G3-TB-80B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G3-TB-80B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G3-TB-80B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G3-TB-80B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G3-TB-80B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G3-TB-80B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G3-TB-80B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G3-TB-80B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G3-TB-100B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G3-TB-100B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G3-TB-100B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G3-TB-100B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G3-TB-100B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G3-TB-100B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G3-TB-100B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G3-TB-100B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G3-TB-100B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G3-TB-100B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G3-TB-100B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G3-TB-100B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G3-TF-50B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G3-TF-50B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G3-TF-50B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G3-TF-50B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G3-TF-50B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G3-TF-50B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G3-TF-50B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G3-TF-50B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G3-TF-50B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G3-TF-50B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G3-TF-50B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G3-TF-50B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G3-TF-63B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G3-TF-63B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G3-TF-63B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G3-TF-63B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G3-TF-63B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G3-TF-63B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G3-TF-63B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G3-TF-63B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G3-TF-63B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G3-TF-63B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G3-TF-63B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G3-TF-63B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G3-TF-80B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G3-TF-80B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G3-TF-80B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G3-TF-80B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G3-TF-80B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G3-TF-80B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G3-TF-80B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G3-TF-80B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G3-TF-80B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G3-TF-80B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G3-TF-80B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G3-TF-80B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G3-TF-100B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G3-TF-100B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G3-TF-100B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G3-TF-100B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G3-TF-100B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G3-TF-100B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G3-TF-100B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G3-TF-100B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G3-TF-100B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G3-TF-100B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G3-TF-100B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G3-TF-100B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G3-TD-50B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G3-TD-50B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G3-TD-50B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G3-TD-50B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G3-TD-50B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G3-TD-50B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G3-TD-50B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G3-TD-50B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G3-TD-50B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G3-TD-50B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G3-TD-50B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G3-TD-50B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G3-TD-63B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G3-TD-63B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G3-TD-63B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G3-TD-63B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G3-TD-63B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G3-TD-63B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G3-TD-63B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G3-TD-63B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G3-TD-63B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G3-TD-63B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G3-TD-63B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G3-TD-63B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G3-TD-80B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G3-TD-80B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G3-TD-80B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G3-TD-80B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G3-TD-80B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G3-TD-80B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G3-TD-80B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G3-TD-80B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G3-TD-80B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G3-TD-80B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G3-TD-80B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G3-TD-80B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G3-TD-100B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G3-TD-100B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G3-TD-100B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G3-TD-100B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G3-TD-100B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G3-TD-100B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G3-TD-100B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G3-TD-100B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G3-TD-100B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G3-TD-100B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G3-TD-100B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G3-TD-100B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm
SCA2-G3-TE-50B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 25 mm
SCA2-G3-TE-50B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 50 mm
SCA2-G3-TE-50B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 75 mm
SCA2-G3-TE-50B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 100 mm
SCA2-G3-TE-50B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 150 mm
SCA2-G3-TE-50B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 200 mm
SCA2-G3-TE-50B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 250 mm
SCA2-G3-TE-50B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 300 mm
SCA2-G3-TE-50B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 350 mm
SCA2-G3-TE-50B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 400 mm
SCA2-G3-TE-50B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 450 mm
SCA2-G3-TE-50B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 500 mm
SCA2-G3-TE-63B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm
SCA2-G3-TE-63B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm
SCA2-G3-TE-63B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm
SCA2-G3-TE-63B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm
SCA2-G3-TE-63B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm
SCA2-G3-TE-63B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm
SCA2-G3-TE-63B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm
SCA2-G3-TE-63B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm
SCA2-G3-TE-63B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm
SCA2-G3-TE-63B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm
SCA2-G3-TE-63B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm
SCA2-G3-TE-63B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm
SCA2-G3-TE-80B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm
SCA2-G3-TE-80B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm
SCA2-G3-TE-80B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm
SCA2-G3-TE-80B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm
SCA2-G3-TE-80B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm
SCA2-G3-TE-80B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm
SCA2-G3-TE-80B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm
SCA2-G3-TE-80B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm
SCA2-G3-TE-80B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm
SCA2-G3-TE-80B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm
SCA2-G3-TE-80B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm
SCA2-G3-TE-80B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm
SCA2-G3-TE-100B-25-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm
SCA2-G3-TE-100B-50-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm
SCA2-G3-TE-100B-75-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm
SCA2-G3-TE-100B-100-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm
SCA2-G3-TE-100B-150-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm
SCA2-G3-TE-100B-200-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm
SCA2-G3-TE-100B-250-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm
SCA2-G3-TE-100B-300-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm
SCA2-G3-TE-100B-350-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm
SCA2-G3-TE-100B-400-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm
SCA2-G3-TE-100B-450-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm
SCA2-G3-TE-100B-500-FP1		Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm

Pneumatic CylindersCKD

1488 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCA2-G2/G3-FP1 Selex Cylinder (Coolant Resistant)

Brand CKD·Pneumatic Cylinders

Available part numbers (1488)

SCA2-G2-00-40B-25-FP1, SCA2-G2-00-40B-50-FP1, SCA2-G2-00-40B-75-FP1, SCA2-G2-00-40B-100-FP1, SCA2-G2-00-40B-150-FP1, SCA2-G2-00-40B-200-FP1, SCA2-G2-00-40B-250-FP1, SCA2-G2-00-40B-300-FP1, SCA2-G2-00-40B-350-FP1, SCA2-G2-00-40B-400-FP1 + 1478 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCA2-G2-00-40B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G2-00-40B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G2-00-40B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G2-00-40B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G2-00-40B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G2-00-40B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G2-00-40B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G2-00-40B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G2-00-40B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G2-00-40B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G2-00-40B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G2-00-40B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G2-00-50B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G2-00-50B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G2-00-50B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G2-00-50B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G2-00-50B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G2-00-50B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G2-00-50B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G2-00-50B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G2-00-50B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G2-00-50B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G2-00-50B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G2-00-50B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G2-00-63B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G2-00-63B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G2-00-63B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G2-00-63B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G2-00-63B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G2-00-63B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G2-00-63B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G2-00-63B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G2-00-63B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G2-00-63B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G2-00-63B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G2-00-63B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G2-00-80B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G2-00-80B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G2-00-80B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G2-00-80B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G2-00-80B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G2-00-80B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G2-00-80B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G2-00-80B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G2-00-80B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G2-00-80B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G2-00-80B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G2-00-80B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G2-00-100B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G2-00-100B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G2-00-100B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G2-00-100B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G2-00-100B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G2-00-100B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G2-00-100B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G2-00-100B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G2-00-100B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G2-00-100B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G2-00-100B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G2-00-100B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G2-LB-40B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G2-LB-40B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G2-LB-40B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G2-LB-40B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G2-LB-40B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G2-LB-40B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G2-LB-40B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G2-LB-40B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G2-LB-40B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G2-LB-40B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G2-LB-40B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G2-LB-40B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G2-LB-50B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G2-LB-50B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G2-LB-50B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G2-LB-50B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G2-LB-50B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G2-LB-50B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G2-LB-50B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G2-LB-50B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G2-LB-50B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G2-LB-50B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G2-LB-50B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G2-LB-50B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G2-LB-63B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G2-LB-63B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G2-LB-63B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G2-LB-63B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G2-LB-63B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G2-LB-63B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G2-LB-63B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G2-LB-63B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G2-LB-63B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G2-LB-63B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G2-LB-63B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G2-LB-63B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G2-LB-80B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G2-LB-80B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G2-LB-80B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G2-LB-80B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G2-LB-80B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G2-LB-80B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G2-LB-80B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G2-LB-80B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G2-LB-80B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G2-LB-80B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G2-LB-80B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G2-LB-80B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G2-LB-100B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G2-LB-100B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G2-LB-100B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G2-LB-100B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G2-LB-100B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G2-LB-100B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G2-LB-100B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G2-LB-100B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G2-LB-100B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G2-LB-100B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G2-LB-100B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G2-LB-100B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G2-FA-40B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G2-FA-40B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G2-FA-40B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G2-FA-40B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G2-FA-40B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G2-FA-40B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G2-FA-40B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G2-FA-40B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G2-FA-40B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G2-FA-40B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G2-FA-40B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G2-FA-40B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G2-FA-50B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G2-FA-50B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G2-FA-50B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G2-FA-50B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G2-FA-50B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G2-FA-50B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G2-FA-50B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G2-FA-50B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G2-FA-50B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G2-FA-50B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G2-FA-50B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G2-FA-50B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G2-FA-63B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G2-FA-63B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G2-FA-63B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G2-FA-63B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G2-FA-63B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G2-FA-63B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G2-FA-63B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G2-FA-63B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G2-FA-63B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G2-FA-63B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G2-FA-63B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G2-FA-63B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G2-FA-80B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G2-FA-80B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G2-FA-80B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G2-FA-80B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G2-FA-80B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G2-FA-80B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G2-FA-80B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G2-FA-80B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G2-FA-80B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G2-FA-80B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G2-FA-80B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G2-FA-80B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G2-FA-100B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G2-FA-100B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G2-FA-100B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G2-FA-100B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G2-FA-100B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G2-FA-100B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G2-FA-100B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G2-FA-100B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G2-FA-100B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G2-FA-100B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G2-FA-100B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G2-FA-100B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G2-FB-40B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G2-FB-40B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G2-FB-40B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G2-FB-40B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G2-FB-40B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G2-FB-40B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G2-FB-40B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G2-FB-40B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G2-FB-40B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G2-FB-40B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G2-FB-40B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G2-FB-40B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G2-FB-50B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G2-FB-50B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G2-FB-50B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G2-FB-50B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G2-FB-50B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G2-FB-50B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G2-FB-50B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G2-FB-50B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G2-FB-50B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G2-FB-50B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G2-FB-50B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G2-FB-50B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G2-FB-63B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G2-FB-63B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G2-FB-63B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G2-FB-63B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G2-FB-63B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G2-FB-63B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G2-FB-63B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G2-FB-63B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G2-FB-63B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G2-FB-63B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G2-FB-63B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G2-FB-63B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G2-FB-80B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G2-FB-80B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G2-FB-80B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G2-FB-80B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G2-FB-80B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G2-FB-80B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G2-FB-80B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G2-FB-80B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G2-FB-80B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G2-FB-80B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G2-FB-80B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G2-FB-80B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G2-FB-100B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G2-FB-100B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G2-FB-100B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G2-FB-100B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G2-FB-100B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G2-FB-100B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G2-FB-100B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G2-FB-100B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G2-FB-100B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G2-FB-100B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G2-FB-100B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G2-FB-100B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G2-FC-40B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G2-FC-40B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G2-FC-40B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G2-FC-40B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G2-FC-40B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G2-FC-40B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G2-FC-40B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G2-FC-40B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G2-FC-40B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G2-FC-40B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G2-FC-40B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G2-FC-40B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G2-FC-50B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G2-FC-50B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G2-FC-50B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G2-FC-50B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G2-FC-50B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G2-FC-50B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G2-FC-50B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G2-FC-50B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G2-FC-50B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G2-FC-50B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G2-FC-50B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G2-FC-50B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G2-FC-63B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G2-FC-63B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G2-FC-63B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G2-FC-63B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G2-FC-63B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G2-FC-63B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G2-FC-63B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G2-FC-63B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G2-FC-63B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G2-FC-63B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G2-FC-63B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G2-FC-63B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G2-FC-80B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G2-FC-80B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G2-FC-80B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G2-FC-80B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G2-FC-80B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G2-FC-80B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G2-FC-80B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G2-FC-80B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G2-FC-80B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G2-FC-80B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G2-FC-80B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G2-FC-80B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G2-FC-100B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G2-FC-100B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G2-FC-100B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G2-FC-100B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G2-FC-100B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G2-FC-100B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G2-FC-100B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G2-FC-100B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G2-FC-100B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G2-FC-100B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G2-FC-100B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G2-FC-100B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G2-CA-40B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G2-CA-40B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G2-CA-40B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G2-CA-40B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G2-CA-40B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G2-CA-40B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G2-CA-40B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G2-CA-40B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G2-CA-40B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G2-CA-40B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G2-CA-40B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G2-CA-40B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G2-CA-50B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G2-CA-50B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G2-CA-50B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G2-CA-50B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G2-CA-50B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G2-CA-50B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G2-CA-50B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G2-CA-50B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G2-CA-50B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G2-CA-50B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G2-CA-50B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G2-CA-50B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G2-CA-63B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G2-CA-63B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G2-CA-63B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G2-CA-63B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G2-CA-63B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G2-CA-63B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G2-CA-63B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G2-CA-63B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G2-CA-63B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G2-CA-63B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G2-CA-63B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G2-CA-63B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G2-CA-80B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G2-CA-80B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G2-CA-80B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G2-CA-80B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G2-CA-80B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G2-CA-80B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G2-CA-80B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G2-CA-80B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G2-CA-80B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G2-CA-80B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G2-CA-80B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G2-CA-80B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G2-CA-100B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G2-CA-100B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G2-CA-100B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G2-CA-100B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G2-CA-100B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G2-CA-100B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G2-CA-100B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G2-CA-100B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G2-CA-100B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G2-CA-100B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G2-CA-100B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G2-CA-100B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G2-CB-40B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G2-CB-40B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G2-CB-40B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G2-CB-40B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G2-CB-40B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G2-CB-40B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G2-CB-40B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G2-CB-40B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G2-CB-40B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G2-CB-40B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G2-CB-40B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G2-CB-40B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G2-CB-50B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G2-CB-50B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G2-CB-50B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G2-CB-50B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G2-CB-50B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G2-CB-50B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G2-CB-50B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G2-CB-50B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G2-CB-50B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G2-CB-50B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G2-CB-50B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G2-CB-50B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G2-CB-63B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G2-CB-63B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G2-CB-63B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G2-CB-63B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G2-CB-63B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G2-CB-63B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G2-CB-63B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G2-CB-63B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G2-CB-63B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G2-CB-63B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G2-CB-63B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G2-CB-63B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G2-CB-80B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G2-CB-80B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G2-CB-80B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G2-CB-80B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G2-CB-80B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G2-CB-80B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G2-CB-80B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G2-CB-80B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G2-CB-80B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G2-CB-80B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G2-CB-80B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G2-CB-80B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G2-CB-100B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G2-CB-100B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G2-CB-100B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G2-CB-100B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G2-CB-100B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G2-CB-100B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G2-CB-100B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G2-CB-100B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G2-CB-100B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G2-CB-100B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G2-CB-100B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G2-CB-100B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G2-TC-40B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G2-TC-40B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G2-TC-40B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G2-TC-40B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G2-TC-40B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G2-TC-40B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G2-TC-40B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G2-TC-40B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G2-TC-40B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G2-TC-40B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G2-TC-40B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G2-TC-40B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G2-TC-50B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G2-TC-50B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G2-TC-50B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G2-TC-50B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G2-TC-50B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G2-TC-50B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G2-TC-50B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G2-TC-50B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G2-TC-50B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G2-TC-50B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G2-TC-50B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G2-TC-50B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G2-TC-63B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G2-TC-63B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G2-TC-63B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G2-TC-63B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G2-TC-63B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G2-TC-63B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G2-TC-63B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G2-TC-63B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G2-TC-63B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G2-TC-63B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G2-TC-63B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G2-TC-63B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G2-TC-80B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G2-TC-80B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G2-TC-80B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G2-TC-80B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G2-TC-80B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G2-TC-80B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G2-TC-80B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G2-TC-80B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G2-TC-80B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G2-TC-80B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G2-TC-80B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G2-TC-80B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G2-TC-100B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G2-TC-100B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G2-TC-100B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G2-TC-100B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G2-TC-100B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G2-TC-100B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G2-TC-100B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G2-TC-100B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G2-TC-100B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G2-TC-100B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G2-TC-100B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G2-TC-100B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G2-TA-40B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G2-TA-40B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G2-TA-40B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G2-TA-40B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G2-TA-40B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G2-TA-40B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G2-TA-40B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G2-TA-40B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G2-TA-40B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G2-TA-40B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G2-TA-40B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G2-TA-40B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G2-TA-50B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G2-TA-50B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G2-TA-50B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G2-TA-50B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G2-TA-50B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G2-TA-50B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G2-TA-50B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G2-TA-50B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G2-TA-50B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G2-TA-50B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G2-TA-50B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G2-TA-50B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G2-TA-63B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G2-TA-63B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G2-TA-63B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G2-TA-63B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G2-TA-63B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G2-TA-63B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G2-TA-63B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G2-TA-63B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G2-TA-63B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G2-TA-63B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G2-TA-63B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G2-TA-63B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G2-TA-80B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G2-TA-80B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G2-TA-80B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G2-TA-80B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G2-TA-80B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G2-TA-80B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G2-TA-80B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G2-TA-80B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G2-TA-80B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G2-TA-80B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G2-TA-80B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G2-TA-80B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G2-TA-100B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G2-TA-100B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G2-TA-100B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G2-TA-100B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G2-TA-100B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G2-TA-100B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G2-TA-100B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G2-TA-100B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G2-TA-100B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G2-TA-100B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G2-TA-100B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G2-TA-100B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G2-TB-40B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G2-TB-40B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G2-TB-40B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G2-TB-40B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G2-TB-40B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G2-TB-40B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G2-TB-40B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G2-TB-40B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G2-TB-40B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G2-TB-40B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G2-TB-40B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G2-TB-40B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G2-TB-50B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G2-TB-50B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G2-TB-50B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G2-TB-50B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G2-TB-50B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G2-TB-50B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G2-TB-50B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G2-TB-50B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G2-TB-50B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G2-TB-50B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G2-TB-50B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G2-TB-50B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G2-TB-63B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G2-TB-63B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G2-TB-63B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G2-TB-63B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G2-TB-63B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G2-TB-63B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G2-TB-63B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G2-TB-63B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G2-TB-63B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G2-TB-63B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G2-TB-63B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G2-TB-63B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G2-TB-80B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G2-TB-80B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G2-TB-80B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G2-TB-80B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G2-TB-80B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G2-TB-80B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G2-TB-80B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G2-TB-80B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G2-TB-80B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G2-TB-80B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G2-TB-80B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G2-TB-80B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G2-TB-100B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G2-TB-100B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G2-TB-100B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G2-TB-100B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G2-TB-100B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G2-TB-100B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G2-TB-100B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G2-TB-100B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G2-TB-100B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G2-TB-100B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G2-TB-100B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G2-TB-100B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G2-TF-50B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G2-TF-50B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G2-TF-50B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G2-TF-50B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G2-TF-50B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G2-TF-50B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G2-TF-50B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G2-TF-50B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G2-TF-50B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G2-TF-50B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G2-TF-50B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G2-TF-50B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G2-TF-63B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G2-TF-63B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G2-TF-63B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G2-TF-63B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G2-TF-63B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G2-TF-63B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G2-TF-63B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G2-TF-63B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G2-TF-63B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G2-TF-63B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G2-TF-63B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G2-TF-63B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G2-TF-80B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G2-TF-80B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G2-TF-80B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G2-TF-80B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G2-TF-80B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G2-TF-80B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G2-TF-80B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G2-TF-80B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G2-TF-80B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G2-TF-80B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G2-TF-80B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G2-TF-80B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G2-TF-100B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G2-TF-100B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G2-TF-100B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G2-TF-100B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G2-TF-100B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G2-TF-100B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G2-TF-100B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G2-TF-100B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G2-TF-100B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G2-TF-100B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G2-TF-100B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G2-TF-100B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G2-TD-50B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G2-TD-50B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G2-TD-50B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G2-TD-50B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G2-TD-50B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G2-TD-50B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G2-TD-50B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G2-TD-50B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G2-TD-50B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G2-TD-50B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G2-TD-50B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G2-TD-50B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G2-TD-63B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G2-TD-63B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G2-TD-63B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G2-TD-63B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G2-TD-63B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G2-TD-63B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G2-TD-63B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G2-TD-63B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G2-TD-63B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G2-TD-63B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G2-TD-63B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G2-TD-63B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G2-TD-80B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G2-TD-80B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G2-TD-80B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G2-TD-80B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G2-TD-80B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G2-TD-80B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G2-TD-80B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G2-TD-80B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G2-TD-80B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G2-TD-80B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G2-TD-80B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G2-TD-80B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G2-TD-100B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G2-TD-100B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G2-TD-100B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G2-TD-100B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G2-TD-100B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G2-TD-100B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G2-TD-100B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G2-TD-100B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G2-TD-100B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G2-TD-100B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G2-TD-100B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G2-TD-100B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G2-TE-50B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G2-TE-50B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G2-TE-50B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G2-TE-50B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G2-TE-50B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G2-TE-50B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G2-TE-50B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G2-TE-50B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G2-TE-50B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G2-TE-50B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G2-TE-50B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G2-TE-50B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G2-TE-63B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G2-TE-63B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G2-TE-63B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G2-TE-63B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G2-TE-63B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G2-TE-63B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G2-TE-63B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G2-TE-63B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G2-TE-63B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G2-TE-63B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G2-TE-63B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G2-TE-63B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G2-TE-80B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G2-TE-80B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G2-TE-80B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G2-TE-80B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G2-TE-80B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G2-TE-80B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G2-TE-80B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G2-TE-80B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G2-TE-80B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G2-TE-80B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G2-TE-80B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G2-TE-80B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G2-TE-100B-25-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G2-TE-100B-50-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G2-TE-100B-75-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G2-TE-100B-100-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G2-TE-100B-150-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G2-TE-100B-200-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G2-TE-100B-250-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G2-TE-100B-300-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G2-TE-100B-350-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G2-TE-100B-400-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G2-TE-100B-450-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G2-TE-100B-500-FP1	Type: Coolant resistant, NBR packing (G2) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G3-00-40B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G3-00-40B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G3-00-40B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G3-00-40B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G3-00-40B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G3-00-40B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G3-00-40B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G3-00-40B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G3-00-40B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G3-00-40B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G3-00-40B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G3-00-40B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G3-00-50B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G3-00-50B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G3-00-50B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G3-00-50B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G3-00-50B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G3-00-50B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G3-00-50B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G3-00-50B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G3-00-50B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G3-00-50B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G3-00-50B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G3-00-50B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G3-00-63B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G3-00-63B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G3-00-63B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G3-00-63B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G3-00-63B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G3-00-63B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G3-00-63B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G3-00-63B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G3-00-63B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G3-00-63B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G3-00-63B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G3-00-63B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G3-00-80B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G3-00-80B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G3-00-80B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G3-00-80B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G3-00-80B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G3-00-80B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G3-00-80B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G3-00-80B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G3-00-80B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G3-00-80B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G3-00-80B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G3-00-80B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G3-00-100B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G3-00-100B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G3-00-100B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G3-00-100B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G3-00-100B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G3-00-100B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G3-00-100B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G3-00-100B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G3-00-100B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G3-00-100B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G3-00-100B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G3-00-100B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G3-LB-40B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G3-LB-40B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G3-LB-40B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G3-LB-40B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G3-LB-40B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G3-LB-40B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G3-LB-40B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G3-LB-40B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G3-LB-40B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G3-LB-40B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G3-LB-40B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G3-LB-40B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G3-LB-50B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G3-LB-50B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G3-LB-50B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G3-LB-50B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G3-LB-50B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G3-LB-50B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G3-LB-50B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G3-LB-50B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G3-LB-50B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G3-LB-50B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G3-LB-50B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G3-LB-50B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G3-LB-63B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G3-LB-63B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G3-LB-63B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G3-LB-63B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G3-LB-63B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G3-LB-63B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G3-LB-63B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G3-LB-63B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G3-LB-63B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G3-LB-63B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G3-LB-63B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G3-LB-63B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G3-LB-80B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G3-LB-80B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G3-LB-80B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G3-LB-80B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G3-LB-80B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G3-LB-80B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G3-LB-80B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G3-LB-80B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G3-LB-80B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G3-LB-80B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G3-LB-80B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G3-LB-80B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G3-LB-100B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G3-LB-100B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G3-LB-100B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G3-LB-100B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G3-LB-100B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G3-LB-100B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G3-LB-100B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G3-LB-100B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G3-LB-100B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G3-LB-100B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G3-LB-100B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G3-LB-100B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G3-FA-40B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G3-FA-40B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G3-FA-40B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G3-FA-40B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G3-FA-40B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G3-FA-40B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G3-FA-40B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G3-FA-40B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G3-FA-40B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G3-FA-40B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G3-FA-40B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G3-FA-40B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G3-FA-50B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G3-FA-50B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G3-FA-50B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G3-FA-50B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G3-FA-50B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G3-FA-50B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G3-FA-50B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G3-FA-50B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G3-FA-50B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G3-FA-50B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G3-FA-50B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G3-FA-50B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G3-FA-63B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G3-FA-63B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G3-FA-63B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G3-FA-63B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G3-FA-63B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G3-FA-63B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G3-FA-63B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G3-FA-63B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G3-FA-63B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G3-FA-63B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G3-FA-63B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G3-FA-63B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G3-FA-80B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G3-FA-80B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G3-FA-80B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G3-FA-80B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G3-FA-80B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G3-FA-80B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G3-FA-80B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G3-FA-80B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G3-FA-80B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G3-FA-80B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G3-FA-80B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G3-FA-80B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G3-FA-100B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G3-FA-100B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G3-FA-100B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G3-FA-100B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G3-FA-100B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G3-FA-100B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G3-FA-100B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G3-FA-100B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G3-FA-100B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G3-FA-100B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G3-FA-100B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G3-FA-100B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G3-FB-40B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G3-FB-40B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G3-FB-40B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G3-FB-40B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G3-FB-40B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G3-FB-40B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G3-FB-40B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G3-FB-40B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G3-FB-40B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G3-FB-40B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G3-FB-40B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G3-FB-40B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G3-FB-50B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G3-FB-50B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G3-FB-50B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G3-FB-50B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G3-FB-50B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G3-FB-50B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G3-FB-50B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G3-FB-50B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G3-FB-50B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G3-FB-50B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G3-FB-50B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G3-FB-50B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G3-FB-63B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G3-FB-63B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G3-FB-63B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G3-FB-63B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G3-FB-63B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G3-FB-63B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G3-FB-63B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G3-FB-63B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G3-FB-63B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G3-FB-63B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G3-FB-63B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G3-FB-63B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G3-FB-80B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G3-FB-80B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G3-FB-80B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G3-FB-80B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G3-FB-80B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G3-FB-80B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G3-FB-80B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G3-FB-80B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G3-FB-80B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G3-FB-80B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G3-FB-80B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G3-FB-80B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G3-FB-100B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G3-FB-100B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G3-FB-100B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G3-FB-100B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G3-FB-100B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G3-FB-100B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G3-FB-100B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G3-FB-100B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G3-FB-100B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G3-FB-100B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G3-FB-100B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G3-FB-100B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G3-FC-40B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G3-FC-40B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G3-FC-40B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G3-FC-40B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G3-FC-40B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G3-FC-40B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G3-FC-40B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G3-FC-40B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G3-FC-40B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G3-FC-40B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G3-FC-40B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G3-FC-40B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G3-FC-50B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G3-FC-50B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G3-FC-50B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G3-FC-50B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G3-FC-50B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G3-FC-50B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G3-FC-50B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G3-FC-50B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G3-FC-50B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G3-FC-50B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G3-FC-50B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G3-FC-50B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G3-FC-63B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G3-FC-63B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G3-FC-63B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G3-FC-63B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G3-FC-63B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G3-FC-63B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G3-FC-63B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G3-FC-63B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G3-FC-63B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G3-FC-63B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G3-FC-63B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G3-FC-63B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G3-FC-80B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G3-FC-80B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G3-FC-80B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G3-FC-80B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G3-FC-80B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G3-FC-80B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G3-FC-80B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G3-FC-80B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G3-FC-80B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G3-FC-80B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G3-FC-80B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G3-FC-80B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G3-FC-100B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G3-FC-100B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G3-FC-100B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G3-FC-100B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G3-FC-100B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G3-FC-100B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G3-FC-100B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G3-FC-100B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G3-FC-100B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G3-FC-100B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G3-FC-100B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G3-FC-100B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side special flange \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G3-CA-40B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G3-CA-40B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G3-CA-40B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G3-CA-40B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G3-CA-40B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G3-CA-40B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G3-CA-40B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G3-CA-40B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G3-CA-40B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G3-CA-40B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G3-CA-40B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G3-CA-40B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G3-CA-50B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G3-CA-50B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G3-CA-50B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G3-CA-50B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G3-CA-50B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G3-CA-50B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G3-CA-50B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G3-CA-50B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G3-CA-50B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G3-CA-50B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G3-CA-50B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G3-CA-50B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G3-CA-63B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G3-CA-63B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G3-CA-63B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G3-CA-63B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G3-CA-63B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G3-CA-63B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G3-CA-63B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G3-CA-63B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G3-CA-63B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G3-CA-63B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G3-CA-63B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G3-CA-63B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G3-CA-80B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G3-CA-80B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G3-CA-80B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G3-CA-80B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G3-CA-80B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G3-CA-80B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G3-CA-80B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G3-CA-80B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G3-CA-80B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G3-CA-80B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G3-CA-80B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G3-CA-80B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G3-CA-100B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G3-CA-100B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G3-CA-100B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G3-CA-100B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G3-CA-100B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G3-CA-100B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G3-CA-100B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G3-CA-100B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G3-CA-100B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G3-CA-100B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G3-CA-100B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G3-CA-100B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G3-CB-40B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G3-CB-40B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G3-CB-40B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G3-CB-40B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G3-CB-40B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G3-CB-40B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G3-CB-40B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G3-CB-40B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G3-CB-40B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G3-CB-40B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G3-CB-40B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G3-CB-40B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G3-CB-50B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G3-CB-50B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G3-CB-50B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G3-CB-50B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G3-CB-50B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G3-CB-50B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G3-CB-50B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G3-CB-50B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G3-CB-50B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G3-CB-50B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G3-CB-50B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G3-CB-50B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G3-CB-63B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G3-CB-63B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G3-CB-63B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G3-CB-63B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G3-CB-63B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G3-CB-63B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G3-CB-63B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G3-CB-63B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G3-CB-63B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G3-CB-63B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G3-CB-63B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G3-CB-63B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G3-CB-80B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G3-CB-80B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G3-CB-80B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G3-CB-80B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G3-CB-80B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G3-CB-80B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G3-CB-80B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G3-CB-80B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G3-CB-80B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G3-CB-80B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G3-CB-80B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G3-CB-80B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G3-CB-100B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G3-CB-100B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G3-CB-100B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G3-CB-100B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G3-CB-100B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G3-CB-100B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G3-CB-100B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G3-CB-100B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G3-CB-100B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G3-CB-100B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G3-CB-100B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G3-CB-100B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G3-TC-40B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G3-TC-40B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G3-TC-40B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G3-TC-40B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G3-TC-40B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G3-TC-40B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G3-TC-40B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G3-TC-40B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G3-TC-40B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G3-TC-40B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G3-TC-40B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G3-TC-40B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G3-TC-50B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G3-TC-50B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G3-TC-50B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G3-TC-50B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G3-TC-50B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G3-TC-50B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G3-TC-50B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G3-TC-50B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G3-TC-50B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G3-TC-50B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G3-TC-50B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G3-TC-50B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G3-TC-63B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G3-TC-63B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G3-TC-63B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G3-TC-63B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G3-TC-63B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G3-TC-63B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G3-TC-63B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G3-TC-63B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G3-TC-63B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G3-TC-63B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G3-TC-63B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G3-TC-63B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G3-TC-80B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G3-TC-80B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G3-TC-80B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G3-TC-80B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G3-TC-80B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G3-TC-80B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G3-TC-80B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G3-TC-80B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G3-TC-80B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G3-TC-80B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G3-TC-80B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G3-TC-80B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G3-TC-100B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G3-TC-100B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G3-TC-100B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G3-TC-100B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G3-TC-100B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G3-TC-100B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G3-TC-100B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G3-TC-100B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G3-TC-100B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G3-TC-100B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G3-TC-100B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G3-TC-100B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G3-TA-40B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G3-TA-40B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G3-TA-40B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G3-TA-40B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G3-TA-40B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G3-TA-40B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G3-TA-40B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G3-TA-40B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G3-TA-40B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G3-TA-40B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G3-TA-40B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G3-TA-40B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G3-TA-50B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G3-TA-50B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G3-TA-50B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G3-TA-50B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G3-TA-50B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G3-TA-50B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G3-TA-50B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G3-TA-50B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G3-TA-50B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G3-TA-50B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G3-TA-50B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G3-TA-50B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G3-TA-63B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G3-TA-63B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G3-TA-63B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G3-TA-63B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G3-TA-63B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G3-TA-63B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G3-TA-63B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G3-TA-63B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G3-TA-63B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G3-TA-63B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G3-TA-63B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G3-TA-63B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G3-TA-80B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G3-TA-80B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G3-TA-80B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G3-TA-80B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G3-TA-80B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G3-TA-80B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G3-TA-80B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G3-TA-80B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G3-TA-80B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G3-TA-80B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G3-TA-80B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G3-TA-80B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G3-TA-100B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G3-TA-100B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G3-TA-100B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G3-TA-100B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G3-TA-100B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G3-TA-100B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G3-TA-100B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G3-TA-100B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G3-TA-100B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G3-TA-100B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G3-TA-100B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G3-TA-100B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G3-TB-40B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm
	SCA2-G3-TB-40B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm
	SCA2-G3-TB-40B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm
	SCA2-G3-TB-40B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm
	SCA2-G3-TB-40B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm
	SCA2-G3-TB-40B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm
	SCA2-G3-TB-40B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm
	SCA2-G3-TB-40B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm
	SCA2-G3-TB-40B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 350 mm
	SCA2-G3-TB-40B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 400 mm
	SCA2-G3-TB-40B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 450 mm
	SCA2-G3-TB-40B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 500 mm
	SCA2-G3-TB-50B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G3-TB-50B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G3-TB-50B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G3-TB-50B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G3-TB-50B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G3-TB-50B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G3-TB-50B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G3-TB-50B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G3-TB-50B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G3-TB-50B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G3-TB-50B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G3-TB-50B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G3-TB-63B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G3-TB-63B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G3-TB-63B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G3-TB-63B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G3-TB-63B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G3-TB-63B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G3-TB-63B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G3-TB-63B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G3-TB-63B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G3-TB-63B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G3-TB-63B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G3-TB-63B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G3-TB-80B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G3-TB-80B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G3-TB-80B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G3-TB-80B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G3-TB-80B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G3-TB-80B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G3-TB-80B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G3-TB-80B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G3-TB-80B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G3-TB-80B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G3-TB-80B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G3-TB-80B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G3-TB-100B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G3-TB-100B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G3-TB-100B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G3-TB-100B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G3-TB-100B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G3-TB-100B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G3-TB-100B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G3-TB-100B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G3-TB-100B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G3-TB-100B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G3-TB-100B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G3-TB-100B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G3-TF-50B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G3-TF-50B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G3-TF-50B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G3-TF-50B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G3-TF-50B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G3-TF-50B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G3-TF-50B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G3-TF-50B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G3-TF-50B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G3-TF-50B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G3-TF-50B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G3-TF-50B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G3-TF-63B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G3-TF-63B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G3-TF-63B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G3-TF-63B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G3-TF-63B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G3-TF-63B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G3-TF-63B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G3-TF-63B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G3-TF-63B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G3-TF-63B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G3-TF-63B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G3-TF-63B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G3-TF-80B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G3-TF-80B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G3-TF-80B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G3-TF-80B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G3-TF-80B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G3-TF-80B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G3-TF-80B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G3-TF-80B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G3-TF-80B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G3-TF-80B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G3-TF-80B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G3-TF-80B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G3-TF-100B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G3-TF-100B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G3-TF-100B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G3-TF-100B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G3-TF-100B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G3-TF-100B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G3-TF-100B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G3-TF-100B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G3-TF-100B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G3-TF-100B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G3-TF-100B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G3-TF-100B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G3-TD-50B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G3-TD-50B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G3-TD-50B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G3-TD-50B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G3-TD-50B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G3-TD-50B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G3-TD-50B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G3-TD-50B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G3-TD-50B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G3-TD-50B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G3-TD-50B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G3-TD-50B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G3-TD-63B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G3-TD-63B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G3-TD-63B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G3-TD-63B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G3-TD-63B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G3-TD-63B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G3-TD-63B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G3-TD-63B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G3-TD-63B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G3-TD-63B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G3-TD-63B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G3-TD-63B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G3-TD-80B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G3-TD-80B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G3-TD-80B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G3-TD-80B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G3-TD-80B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G3-TD-80B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G3-TD-80B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G3-TD-80B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G3-TD-80B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G3-TD-80B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G3-TD-80B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G3-TD-80B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G3-TD-100B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G3-TD-100B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G3-TD-100B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G3-TD-100B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G3-TD-100B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G3-TD-100B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G3-TD-100B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G3-TD-100B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G3-TD-100B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G3-TD-100B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G3-TD-100B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G3-TD-100B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm
	SCA2-G3-TE-50B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 25 mm
	SCA2-G3-TE-50B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 50 mm
	SCA2-G3-TE-50B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 75 mm
	SCA2-G3-TE-50B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 100 mm
	SCA2-G3-TE-50B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 150 mm
	SCA2-G3-TE-50B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 200 mm
	SCA2-G3-TE-50B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 250 mm
	SCA2-G3-TE-50B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 300 mm
	SCA2-G3-TE-50B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 350 mm
	SCA2-G3-TE-50B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 400 mm
	SCA2-G3-TE-50B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 450 mm
	SCA2-G3-TE-50B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 50 mm \| Stroke: 500 mm
	SCA2-G3-TE-63B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm
	SCA2-G3-TE-63B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm
	SCA2-G3-TE-63B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm
	SCA2-G3-TE-63B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm
	SCA2-G3-TE-63B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm
	SCA2-G3-TE-63B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm
	SCA2-G3-TE-63B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm
	SCA2-G3-TE-63B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm
	SCA2-G3-TE-63B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm
	SCA2-G3-TE-63B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm
	SCA2-G3-TE-63B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm
	SCA2-G3-TE-63B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm
	SCA2-G3-TE-80B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm
	SCA2-G3-TE-80B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm
	SCA2-G3-TE-80B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm
	SCA2-G3-TE-80B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm
	SCA2-G3-TE-80B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm
	SCA2-G3-TE-80B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm
	SCA2-G3-TE-80B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm
	SCA2-G3-TE-80B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm
	SCA2-G3-TE-80B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm
	SCA2-G3-TE-80B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm
	SCA2-G3-TE-80B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm
	SCA2-G3-TE-80B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm
	SCA2-G3-TE-100B-25-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm
	SCA2-G3-TE-100B-50-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm
	SCA2-G3-TE-100B-75-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm
	SCA2-G3-TE-100B-100-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm
	SCA2-G3-TE-100B-150-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm
	SCA2-G3-TE-100B-200-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm
	SCA2-G3-TE-100B-250-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm
	SCA2-G3-TE-100B-300-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm
	SCA2-G3-TE-100B-350-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm
	SCA2-G3-TE-100B-400-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm
	SCA2-G3-TE-100B-450-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm
	SCA2-G3-TE-100B-500-FP1	Type: Coolant resistant, FKM packing (G3) \| Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCA2-G2/G3-FP1 Selex Cylinder (Coolant Resistant)
