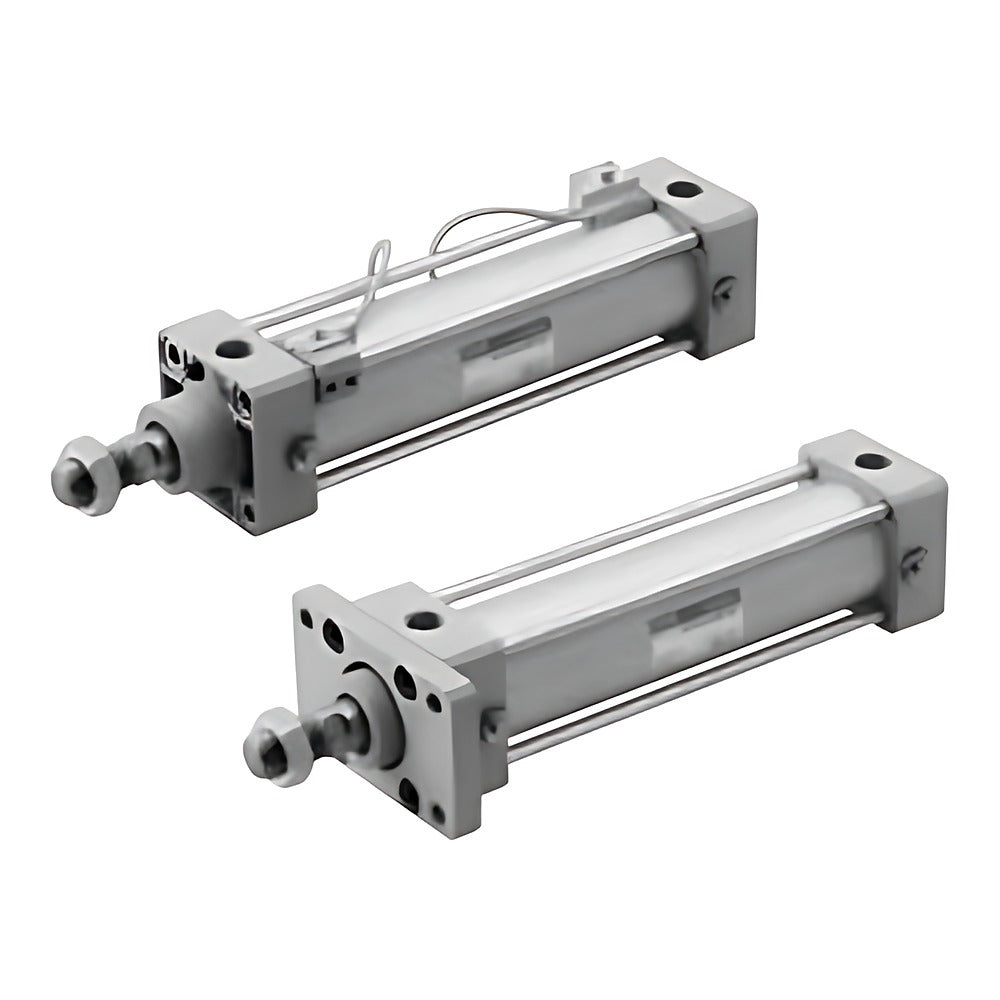

CKD SCA2-P-FP1 Selex Cylinder (Stroke Adjust Extend, Bore 63-100)

CKD SCA2-P-FP1 Selex cylinder with stroke adjustment on the extend side, bore 63-100 mm, with NSF H1 food-grade grease.

Key features

NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
Selex cylinder, bore 40-100 mm; air cushion both ends/rod/head or no cushion
Auto switches (T0H, T2H, T2WH etc.) with count R/H/D/T, bellows J/L, stainless rod M, cushion needle position S/T and rod-end I/Y/B1-B4 ordered as suffixes
Hole-type trunnions TF/TD/TE not available for bore 40; intermediate strokes in 1 mm steps
Stroke adjust range 25/50/75/100 mm; listed with air cushion both ends (B); R/H/N cushions ordered by symbol

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Port	Rc1/4 (40), Rc3/8 (50/63), Rc1/2 (80/100)
Piston speed	50-1000 mm/s
Type	Stroke adjust, extend (P)
Cushion	Air, both ends
Source	CKD Korea catalog CC-1271K, p. 74-78

SCA2-P-00-63B-25-25-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-00-63B-25-50-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-00-63B-25-75-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-00-63B-25-100-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-00-63B-50-25-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-00-63B-50-50-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-00-63B-50-75-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-00-63B-50-100-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-00-63B-75-25-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-00-63B-75-50-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-00-63B-75-75-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-00-63B-75-100-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-00-63B-100-25-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-00-63B-100-50-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-00-63B-100-75-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-00-63B-100-100-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-00-63B-150-25-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-00-63B-150-50-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-00-63B-150-75-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-00-63B-150-100-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-00-63B-200-25-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-00-63B-200-50-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-00-63B-200-75-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-00-63B-200-100-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-00-63B-250-25-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-00-63B-250-50-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-00-63B-250-75-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-00-63B-250-100-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-00-63B-300-25-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-00-63B-300-50-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-00-63B-300-75-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-00-63B-300-100-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-00-63B-350-25-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-00-63B-350-50-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-00-63B-350-75-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-00-63B-350-100-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-00-63B-400-25-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-00-63B-400-50-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-00-63B-400-75-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-00-63B-400-100-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-00-63B-450-25-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-00-63B-450-50-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-00-63B-450-75-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-00-63B-450-100-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-00-63B-500-25-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-00-63B-500-50-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-00-63B-500-75-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-00-63B-500-100-FP1		Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-00-80B-25-25-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-00-80B-25-50-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-00-80B-25-75-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-00-80B-25-100-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-00-80B-50-25-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-00-80B-50-50-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-00-80B-50-75-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-00-80B-50-100-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-00-80B-75-25-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-00-80B-75-50-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-00-80B-75-75-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-00-80B-75-100-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-00-80B-100-25-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-00-80B-100-50-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-00-80B-100-75-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-00-80B-100-100-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-00-80B-150-25-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-00-80B-150-50-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-00-80B-150-75-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-00-80B-150-100-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-00-80B-200-25-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-00-80B-200-50-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-00-80B-200-75-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-00-80B-200-100-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-00-80B-250-25-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-00-80B-250-50-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-00-80B-250-75-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-00-80B-250-100-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-00-80B-300-25-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-00-80B-300-50-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-00-80B-300-75-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-00-80B-300-100-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-00-80B-350-25-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-00-80B-350-50-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-00-80B-350-75-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-00-80B-350-100-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-00-80B-400-25-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-00-80B-400-50-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-00-80B-400-75-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-00-80B-400-100-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-00-80B-450-25-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-00-80B-450-50-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-00-80B-450-75-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-00-80B-450-100-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-00-80B-500-25-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-00-80B-500-50-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-00-80B-500-75-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-00-80B-500-100-FP1		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-00-100B-25-25-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-00-100B-25-50-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-00-100B-25-75-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-00-100B-25-100-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-00-100B-50-25-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-00-100B-50-50-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-00-100B-50-75-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-00-100B-50-100-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-00-100B-75-25-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-00-100B-75-50-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-00-100B-75-75-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-00-100B-75-100-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-00-100B-100-25-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-00-100B-100-50-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-00-100B-100-75-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-00-100B-100-100-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-00-100B-150-25-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-00-100B-150-50-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-00-100B-150-75-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-00-100B-150-100-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-00-100B-200-25-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-00-100B-200-50-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-00-100B-200-75-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-00-100B-200-100-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-00-100B-250-25-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-00-100B-250-50-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-00-100B-250-75-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-00-100B-250-100-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-00-100B-300-25-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-00-100B-300-50-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-00-100B-300-75-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-00-100B-300-100-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-00-100B-350-25-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-00-100B-350-50-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-00-100B-350-75-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-00-100B-350-100-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-00-100B-400-25-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-00-100B-400-50-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-00-100B-400-75-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-00-100B-400-100-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-00-100B-450-25-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-00-100B-450-50-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-00-100B-450-75-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-00-100B-450-100-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-00-100B-500-25-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-00-100B-500-50-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-00-100B-500-75-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-00-100B-500-100-FP1		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-LB-63B-25-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-LB-63B-25-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-LB-63B-25-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-LB-63B-25-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-LB-63B-50-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-LB-63B-50-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-LB-63B-50-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-LB-63B-50-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-LB-63B-75-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-LB-63B-75-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-LB-63B-75-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-LB-63B-75-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-LB-63B-100-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-LB-63B-100-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-LB-63B-100-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-LB-63B-100-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-LB-63B-150-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-LB-63B-150-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-LB-63B-150-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-LB-63B-150-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-LB-63B-200-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-LB-63B-200-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-LB-63B-200-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-LB-63B-200-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-LB-63B-250-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-LB-63B-250-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-LB-63B-250-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-LB-63B-250-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-LB-63B-300-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-LB-63B-300-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-LB-63B-300-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-LB-63B-300-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-LB-63B-350-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-LB-63B-350-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-LB-63B-350-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-LB-63B-350-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-LB-63B-400-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-LB-63B-400-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-LB-63B-400-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-LB-63B-400-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-LB-63B-450-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-LB-63B-450-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-LB-63B-450-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-LB-63B-450-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-LB-63B-500-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-LB-63B-500-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-LB-63B-500-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-LB-63B-500-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-LB-80B-25-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-LB-80B-25-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-LB-80B-25-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-LB-80B-25-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-LB-80B-50-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-LB-80B-50-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-LB-80B-50-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-LB-80B-50-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-LB-80B-75-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-LB-80B-75-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-LB-80B-75-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-LB-80B-75-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-LB-80B-100-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-LB-80B-100-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-LB-80B-100-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-LB-80B-100-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-LB-80B-150-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-LB-80B-150-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-LB-80B-150-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-LB-80B-150-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-LB-80B-200-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-LB-80B-200-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-LB-80B-200-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-LB-80B-200-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-LB-80B-250-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-LB-80B-250-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-LB-80B-250-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-LB-80B-250-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-LB-80B-300-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-LB-80B-300-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-LB-80B-300-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-LB-80B-300-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-LB-80B-350-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-LB-80B-350-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-LB-80B-350-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-LB-80B-350-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-LB-80B-400-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-LB-80B-400-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-LB-80B-400-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-LB-80B-400-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-LB-80B-450-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-LB-80B-450-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-LB-80B-450-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-LB-80B-450-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-LB-80B-500-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-LB-80B-500-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-LB-80B-500-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-LB-80B-500-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-LB-100B-25-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-LB-100B-25-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-LB-100B-25-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-LB-100B-25-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-LB-100B-50-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-LB-100B-50-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-LB-100B-50-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-LB-100B-50-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-LB-100B-75-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-LB-100B-75-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-LB-100B-75-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-LB-100B-75-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-LB-100B-100-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-LB-100B-100-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-LB-100B-100-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-LB-100B-100-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-LB-100B-150-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-LB-100B-150-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-LB-100B-150-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-LB-100B-150-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-LB-100B-200-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-LB-100B-200-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-LB-100B-200-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-LB-100B-200-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-LB-100B-250-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-LB-100B-250-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-LB-100B-250-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-LB-100B-250-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-LB-100B-300-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-LB-100B-300-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-LB-100B-300-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-LB-100B-300-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-LB-100B-350-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-LB-100B-350-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-LB-100B-350-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-LB-100B-350-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-LB-100B-400-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-LB-100B-400-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-LB-100B-400-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-LB-100B-400-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-LB-100B-450-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-LB-100B-450-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-LB-100B-450-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-LB-100B-450-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-LB-100B-500-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-LB-100B-500-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-LB-100B-500-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-LB-100B-500-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-FA-63B-25-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-FA-63B-25-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-FA-63B-25-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-FA-63B-25-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-FA-63B-50-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-FA-63B-50-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-FA-63B-50-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-FA-63B-50-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-FA-63B-75-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-FA-63B-75-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-FA-63B-75-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-FA-63B-75-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-FA-63B-100-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-FA-63B-100-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-FA-63B-100-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-FA-63B-100-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-FA-63B-150-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-FA-63B-150-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-FA-63B-150-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-FA-63B-150-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-FA-63B-200-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-FA-63B-200-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-FA-63B-200-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-FA-63B-200-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-FA-63B-250-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-FA-63B-250-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-FA-63B-250-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-FA-63B-250-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-FA-63B-300-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-FA-63B-300-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-FA-63B-300-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-FA-63B-300-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-FA-63B-350-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-FA-63B-350-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-FA-63B-350-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-FA-63B-350-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-FA-63B-400-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-FA-63B-400-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-FA-63B-400-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-FA-63B-400-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-FA-63B-450-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-FA-63B-450-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-FA-63B-450-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-FA-63B-450-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-FA-63B-500-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-FA-63B-500-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-FA-63B-500-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-FA-63B-500-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-FA-80B-25-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-FA-80B-25-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-FA-80B-25-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-FA-80B-25-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-FA-80B-50-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-FA-80B-50-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-FA-80B-50-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-FA-80B-50-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-FA-80B-75-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-FA-80B-75-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-FA-80B-75-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-FA-80B-75-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-FA-80B-100-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-FA-80B-100-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-FA-80B-100-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-FA-80B-100-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-FA-80B-150-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-FA-80B-150-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-FA-80B-150-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-FA-80B-150-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-FA-80B-200-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-FA-80B-200-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-FA-80B-200-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-FA-80B-200-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-FA-80B-250-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-FA-80B-250-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-FA-80B-250-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-FA-80B-250-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-FA-80B-300-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-FA-80B-300-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-FA-80B-300-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-FA-80B-300-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-FA-80B-350-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-FA-80B-350-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-FA-80B-350-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-FA-80B-350-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-FA-80B-400-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-FA-80B-400-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-FA-80B-400-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-FA-80B-400-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-FA-80B-450-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-FA-80B-450-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-FA-80B-450-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-FA-80B-450-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-FA-80B-500-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-FA-80B-500-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-FA-80B-500-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-FA-80B-500-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-FA-100B-25-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-FA-100B-25-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-FA-100B-25-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-FA-100B-25-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-FA-100B-50-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-FA-100B-50-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-FA-100B-50-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-FA-100B-50-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-FA-100B-75-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-FA-100B-75-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-FA-100B-75-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-FA-100B-75-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-FA-100B-100-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-FA-100B-100-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-FA-100B-100-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-FA-100B-100-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-FA-100B-150-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-FA-100B-150-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-FA-100B-150-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-FA-100B-150-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-FA-100B-200-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-FA-100B-200-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-FA-100B-200-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-FA-100B-200-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-FA-100B-250-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-FA-100B-250-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-FA-100B-250-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-FA-100B-250-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-FA-100B-300-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-FA-100B-300-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-FA-100B-300-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-FA-100B-300-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-FA-100B-350-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-FA-100B-350-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-FA-100B-350-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-FA-100B-350-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-FA-100B-400-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-FA-100B-400-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-FA-100B-400-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-FA-100B-400-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-FA-100B-450-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-FA-100B-450-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-FA-100B-450-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-FA-100B-450-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-FA-100B-500-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-FA-100B-500-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-FA-100B-500-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-FA-100B-500-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-FB-63B-25-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-FB-63B-25-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-FB-63B-25-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-FB-63B-25-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-FB-63B-50-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-FB-63B-50-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-FB-63B-50-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-FB-63B-50-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-FB-63B-75-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-FB-63B-75-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-FB-63B-75-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-FB-63B-75-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-FB-63B-100-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-FB-63B-100-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-FB-63B-100-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-FB-63B-100-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-FB-63B-150-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-FB-63B-150-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-FB-63B-150-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-FB-63B-150-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-FB-63B-200-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-FB-63B-200-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-FB-63B-200-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-FB-63B-200-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-FB-63B-250-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-FB-63B-250-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-FB-63B-250-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-FB-63B-250-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-FB-63B-300-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-FB-63B-300-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-FB-63B-300-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-FB-63B-300-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-FB-63B-350-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-FB-63B-350-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-FB-63B-350-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-FB-63B-350-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-FB-63B-400-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-FB-63B-400-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-FB-63B-400-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-FB-63B-400-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-FB-63B-450-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-FB-63B-450-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-FB-63B-450-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-FB-63B-450-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-FB-63B-500-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-FB-63B-500-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-FB-63B-500-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-FB-63B-500-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-FB-80B-25-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-FB-80B-25-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-FB-80B-25-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-FB-80B-25-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-FB-80B-50-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-FB-80B-50-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-FB-80B-50-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-FB-80B-50-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-FB-80B-75-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-FB-80B-75-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-FB-80B-75-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-FB-80B-75-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-FB-80B-100-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-FB-80B-100-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-FB-80B-100-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-FB-80B-100-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-FB-80B-150-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-FB-80B-150-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-FB-80B-150-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-FB-80B-150-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-FB-80B-200-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-FB-80B-200-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-FB-80B-200-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-FB-80B-200-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-FB-80B-250-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-FB-80B-250-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-FB-80B-250-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-FB-80B-250-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-FB-80B-300-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-FB-80B-300-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-FB-80B-300-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-FB-80B-300-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-FB-80B-350-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-FB-80B-350-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-FB-80B-350-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-FB-80B-350-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-FB-80B-400-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-FB-80B-400-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-FB-80B-400-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-FB-80B-400-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-FB-80B-450-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-FB-80B-450-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-FB-80B-450-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-FB-80B-450-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-FB-80B-500-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-FB-80B-500-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-FB-80B-500-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-FB-80B-500-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-FB-100B-25-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-FB-100B-25-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-FB-100B-25-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-FB-100B-25-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-FB-100B-50-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-FB-100B-50-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-FB-100B-50-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-FB-100B-50-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-FB-100B-75-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-FB-100B-75-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-FB-100B-75-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-FB-100B-75-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-FB-100B-100-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-FB-100B-100-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-FB-100B-100-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-FB-100B-100-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-FB-100B-150-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-FB-100B-150-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-FB-100B-150-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-FB-100B-150-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-FB-100B-200-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-FB-100B-200-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-FB-100B-200-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-FB-100B-200-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-FB-100B-250-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-FB-100B-250-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-FB-100B-250-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-FB-100B-250-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-FB-100B-300-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-FB-100B-300-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-FB-100B-300-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-FB-100B-300-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-FB-100B-350-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-FB-100B-350-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-FB-100B-350-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-FB-100B-350-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-FB-100B-400-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-FB-100B-400-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-FB-100B-400-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-FB-100B-400-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-FB-100B-450-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-FB-100B-450-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-FB-100B-450-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-FB-100B-450-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-FB-100B-500-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-FB-100B-500-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-FB-100B-500-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-FB-100B-500-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TC-63B-25-25-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TC-63B-25-50-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TC-63B-25-75-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TC-63B-25-100-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TC-63B-50-25-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TC-63B-50-50-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TC-63B-50-75-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TC-63B-50-100-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TC-63B-75-25-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TC-63B-75-50-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TC-63B-75-75-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TC-63B-75-100-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TC-63B-100-25-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TC-63B-100-50-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TC-63B-100-75-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TC-63B-100-100-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TC-63B-150-25-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TC-63B-150-50-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TC-63B-150-75-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TC-63B-150-100-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TC-63B-200-25-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TC-63B-200-50-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TC-63B-200-75-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TC-63B-200-100-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TC-63B-250-25-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TC-63B-250-50-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TC-63B-250-75-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TC-63B-250-100-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TC-63B-300-25-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TC-63B-300-50-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TC-63B-300-75-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TC-63B-300-100-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TC-63B-350-25-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TC-63B-350-50-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TC-63B-350-75-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TC-63B-350-100-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TC-63B-400-25-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TC-63B-400-50-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TC-63B-400-75-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TC-63B-400-100-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TC-63B-450-25-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TC-63B-450-50-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TC-63B-450-75-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TC-63B-450-100-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TC-63B-500-25-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TC-63B-500-50-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TC-63B-500-75-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TC-63B-500-100-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TC-80B-25-25-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TC-80B-25-50-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TC-80B-25-75-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TC-80B-25-100-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TC-80B-50-25-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TC-80B-50-50-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TC-80B-50-75-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TC-80B-50-100-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TC-80B-75-25-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TC-80B-75-50-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TC-80B-75-75-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TC-80B-75-100-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TC-80B-100-25-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TC-80B-100-50-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TC-80B-100-75-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TC-80B-100-100-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TC-80B-150-25-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TC-80B-150-50-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TC-80B-150-75-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TC-80B-150-100-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TC-80B-200-25-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TC-80B-200-50-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TC-80B-200-75-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TC-80B-200-100-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TC-80B-250-25-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TC-80B-250-50-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TC-80B-250-75-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TC-80B-250-100-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TC-80B-300-25-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TC-80B-300-50-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TC-80B-300-75-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TC-80B-300-100-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TC-80B-350-25-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TC-80B-350-50-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TC-80B-350-75-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TC-80B-350-100-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TC-80B-400-25-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TC-80B-400-50-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TC-80B-400-75-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TC-80B-400-100-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TC-80B-450-25-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TC-80B-450-50-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TC-80B-450-75-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TC-80B-450-100-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TC-80B-500-25-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TC-80B-500-50-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TC-80B-500-75-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TC-80B-500-100-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TC-100B-25-25-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TC-100B-25-50-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TC-100B-25-75-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TC-100B-25-100-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TC-100B-50-25-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TC-100B-50-50-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TC-100B-50-75-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TC-100B-50-100-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TC-100B-75-25-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TC-100B-75-50-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TC-100B-75-75-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TC-100B-75-100-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TC-100B-100-25-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TC-100B-100-50-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TC-100B-100-75-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TC-100B-100-100-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TC-100B-150-25-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TC-100B-150-50-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TC-100B-150-75-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TC-100B-150-100-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TC-100B-200-25-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TC-100B-200-50-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TC-100B-200-75-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TC-100B-200-100-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TC-100B-250-25-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TC-100B-250-50-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TC-100B-250-75-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TC-100B-250-100-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TC-100B-300-25-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TC-100B-300-50-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TC-100B-300-75-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TC-100B-300-100-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TC-100B-350-25-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TC-100B-350-50-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TC-100B-350-75-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TC-100B-350-100-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TC-100B-400-25-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TC-100B-400-50-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TC-100B-400-75-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TC-100B-400-100-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TC-100B-450-25-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TC-100B-450-50-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TC-100B-450-75-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TC-100B-450-100-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TC-100B-500-25-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TC-100B-500-50-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TC-100B-500-75-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TC-100B-500-100-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TA-63B-25-25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TA-63B-25-50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TA-63B-25-75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TA-63B-25-100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TA-63B-50-25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TA-63B-50-50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TA-63B-50-75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TA-63B-50-100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TA-63B-75-25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TA-63B-75-50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TA-63B-75-75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TA-63B-75-100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TA-63B-100-25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TA-63B-100-50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TA-63B-100-75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TA-63B-100-100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TA-63B-150-25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TA-63B-150-50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TA-63B-150-75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TA-63B-150-100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TA-63B-200-25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TA-63B-200-50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TA-63B-200-75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TA-63B-200-100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TA-63B-250-25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TA-63B-250-50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TA-63B-250-75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TA-63B-250-100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TA-63B-300-25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TA-63B-300-50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TA-63B-300-75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TA-63B-300-100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TA-63B-350-25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TA-63B-350-50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TA-63B-350-75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TA-63B-350-100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TA-63B-400-25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TA-63B-400-50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TA-63B-400-75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TA-63B-400-100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TA-63B-450-25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TA-63B-450-50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TA-63B-450-75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TA-63B-450-100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TA-63B-500-25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TA-63B-500-50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TA-63B-500-75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TA-63B-500-100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TA-80B-25-25-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TA-80B-25-50-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TA-80B-25-75-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TA-80B-25-100-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TA-80B-50-25-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TA-80B-50-50-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TA-80B-50-75-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TA-80B-50-100-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TA-80B-75-25-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TA-80B-75-50-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TA-80B-75-75-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TA-80B-75-100-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TA-80B-100-25-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TA-80B-100-50-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TA-80B-100-75-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TA-80B-100-100-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TA-80B-150-25-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TA-80B-150-50-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TA-80B-150-75-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TA-80B-150-100-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TA-80B-200-25-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TA-80B-200-50-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TA-80B-200-75-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TA-80B-200-100-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TA-80B-250-25-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TA-80B-250-50-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TA-80B-250-75-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TA-80B-250-100-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TA-80B-300-25-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TA-80B-300-50-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TA-80B-300-75-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TA-80B-300-100-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TA-80B-350-25-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TA-80B-350-50-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TA-80B-350-75-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TA-80B-350-100-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TA-80B-400-25-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TA-80B-400-50-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TA-80B-400-75-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TA-80B-400-100-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TA-80B-450-25-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TA-80B-450-50-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TA-80B-450-75-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TA-80B-450-100-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TA-80B-500-25-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TA-80B-500-50-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TA-80B-500-75-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TA-80B-500-100-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TA-100B-25-25-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TA-100B-25-50-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TA-100B-25-75-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TA-100B-25-100-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TA-100B-50-25-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TA-100B-50-50-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TA-100B-50-75-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TA-100B-50-100-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TA-100B-75-25-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TA-100B-75-50-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TA-100B-75-75-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TA-100B-75-100-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TA-100B-100-25-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TA-100B-100-50-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TA-100B-100-75-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TA-100B-100-100-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TA-100B-150-25-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TA-100B-150-50-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TA-100B-150-75-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TA-100B-150-100-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TA-100B-200-25-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TA-100B-200-50-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TA-100B-200-75-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TA-100B-200-100-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TA-100B-250-25-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TA-100B-250-50-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TA-100B-250-75-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TA-100B-250-100-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TA-100B-300-25-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TA-100B-300-50-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TA-100B-300-75-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TA-100B-300-100-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TA-100B-350-25-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TA-100B-350-50-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TA-100B-350-75-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TA-100B-350-100-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TA-100B-400-25-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TA-100B-400-50-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TA-100B-400-75-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TA-100B-400-100-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TA-100B-450-25-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TA-100B-450-50-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TA-100B-450-75-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TA-100B-450-100-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TA-100B-500-25-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TA-100B-500-50-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TA-100B-500-75-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TA-100B-500-100-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TB-63B-25-25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TB-63B-25-50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TB-63B-25-75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TB-63B-25-100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TB-63B-50-25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TB-63B-50-50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TB-63B-50-75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TB-63B-50-100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TB-63B-75-25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TB-63B-75-50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TB-63B-75-75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TB-63B-75-100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TB-63B-100-25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TB-63B-100-50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TB-63B-100-75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TB-63B-100-100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TB-63B-150-25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TB-63B-150-50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TB-63B-150-75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TB-63B-150-100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TB-63B-200-25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TB-63B-200-50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TB-63B-200-75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TB-63B-200-100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TB-63B-250-25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TB-63B-250-50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TB-63B-250-75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TB-63B-250-100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TB-63B-300-25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TB-63B-300-50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TB-63B-300-75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TB-63B-300-100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TB-63B-350-25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TB-63B-350-50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TB-63B-350-75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TB-63B-350-100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TB-63B-400-25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TB-63B-400-50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TB-63B-400-75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TB-63B-400-100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TB-63B-450-25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TB-63B-450-50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TB-63B-450-75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TB-63B-450-100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TB-63B-500-25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TB-63B-500-50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TB-63B-500-75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TB-63B-500-100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TB-80B-25-25-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TB-80B-25-50-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TB-80B-25-75-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TB-80B-25-100-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TB-80B-50-25-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TB-80B-50-50-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TB-80B-50-75-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TB-80B-50-100-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TB-80B-75-25-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TB-80B-75-50-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TB-80B-75-75-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TB-80B-75-100-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TB-80B-100-25-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TB-80B-100-50-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TB-80B-100-75-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TB-80B-100-100-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TB-80B-150-25-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TB-80B-150-50-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TB-80B-150-75-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TB-80B-150-100-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TB-80B-200-25-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TB-80B-200-50-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TB-80B-200-75-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TB-80B-200-100-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TB-80B-250-25-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TB-80B-250-50-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TB-80B-250-75-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TB-80B-250-100-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TB-80B-300-25-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TB-80B-300-50-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TB-80B-300-75-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TB-80B-300-100-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TB-80B-350-25-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TB-80B-350-50-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TB-80B-350-75-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TB-80B-350-100-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TB-80B-400-25-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TB-80B-400-50-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TB-80B-400-75-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TB-80B-400-100-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TB-80B-450-25-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TB-80B-450-50-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TB-80B-450-75-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TB-80B-450-100-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TB-80B-500-25-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TB-80B-500-50-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TB-80B-500-75-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TB-80B-500-100-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TB-100B-25-25-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TB-100B-25-50-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TB-100B-25-75-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TB-100B-25-100-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TB-100B-50-25-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TB-100B-50-50-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TB-100B-50-75-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TB-100B-50-100-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TB-100B-75-25-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TB-100B-75-50-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TB-100B-75-75-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TB-100B-75-100-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TB-100B-100-25-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TB-100B-100-50-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TB-100B-100-75-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TB-100B-100-100-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TB-100B-150-25-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TB-100B-150-50-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TB-100B-150-75-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TB-100B-150-100-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TB-100B-200-25-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TB-100B-200-50-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TB-100B-200-75-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TB-100B-200-100-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TB-100B-250-25-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TB-100B-250-50-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TB-100B-250-75-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TB-100B-250-100-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TB-100B-300-25-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TB-100B-300-50-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TB-100B-300-75-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TB-100B-300-100-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TB-100B-350-25-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TB-100B-350-50-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TB-100B-350-75-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TB-100B-350-100-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TB-100B-400-25-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TB-100B-400-50-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TB-100B-400-75-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TB-100B-400-100-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TB-100B-450-25-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TB-100B-450-50-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TB-100B-450-75-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TB-100B-450-100-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TB-100B-500-25-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TB-100B-500-50-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TB-100B-500-75-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TB-100B-500-100-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TF-63B-25-25-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TF-63B-25-50-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TF-63B-25-75-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TF-63B-25-100-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TF-63B-50-25-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TF-63B-50-50-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TF-63B-50-75-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TF-63B-50-100-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TF-63B-75-25-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TF-63B-75-50-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TF-63B-75-75-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TF-63B-75-100-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TF-63B-100-25-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TF-63B-100-50-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TF-63B-100-75-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TF-63B-100-100-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TF-63B-150-25-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TF-63B-150-50-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TF-63B-150-75-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TF-63B-150-100-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TF-63B-200-25-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TF-63B-200-50-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TF-63B-200-75-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TF-63B-200-100-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TF-63B-250-25-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TF-63B-250-50-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TF-63B-250-75-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TF-63B-250-100-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TF-63B-300-25-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TF-63B-300-50-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TF-63B-300-75-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TF-63B-300-100-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TF-63B-350-25-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TF-63B-350-50-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TF-63B-350-75-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TF-63B-350-100-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TF-63B-400-25-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TF-63B-400-50-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TF-63B-400-75-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TF-63B-400-100-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TF-63B-450-25-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TF-63B-450-50-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TF-63B-450-75-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TF-63B-450-100-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TF-63B-500-25-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TF-63B-500-50-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TF-63B-500-75-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TF-63B-500-100-FP1		Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TF-80B-25-25-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TF-80B-25-50-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TF-80B-25-75-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TF-80B-25-100-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TF-80B-50-25-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TF-80B-50-50-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TF-80B-50-75-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TF-80B-50-100-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TF-80B-75-25-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TF-80B-75-50-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TF-80B-75-75-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TF-80B-75-100-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TF-80B-100-25-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TF-80B-100-50-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TF-80B-100-75-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TF-80B-100-100-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TF-80B-150-25-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TF-80B-150-50-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TF-80B-150-75-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TF-80B-150-100-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TF-80B-200-25-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TF-80B-200-50-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TF-80B-200-75-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TF-80B-200-100-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TF-80B-250-25-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TF-80B-250-50-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TF-80B-250-75-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TF-80B-250-100-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TF-80B-300-25-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TF-80B-300-50-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TF-80B-300-75-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TF-80B-300-100-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TF-80B-350-25-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TF-80B-350-50-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TF-80B-350-75-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TF-80B-350-100-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TF-80B-400-25-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TF-80B-400-50-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TF-80B-400-75-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TF-80B-400-100-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TF-80B-450-25-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TF-80B-450-50-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TF-80B-450-75-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TF-80B-450-100-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TF-80B-500-25-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TF-80B-500-50-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TF-80B-500-75-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TF-80B-500-100-FP1		Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TF-100B-25-25-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TF-100B-25-50-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TF-100B-25-75-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TF-100B-25-100-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TF-100B-50-25-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TF-100B-50-50-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TF-100B-50-75-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TF-100B-50-100-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TF-100B-75-25-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TF-100B-75-50-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TF-100B-75-75-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TF-100B-75-100-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TF-100B-100-25-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TF-100B-100-50-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TF-100B-100-75-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TF-100B-100-100-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TF-100B-150-25-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TF-100B-150-50-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TF-100B-150-75-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TF-100B-150-100-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TF-100B-200-25-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TF-100B-200-50-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TF-100B-200-75-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TF-100B-200-100-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TF-100B-250-25-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TF-100B-250-50-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TF-100B-250-75-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TF-100B-250-100-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TF-100B-300-25-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TF-100B-300-50-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TF-100B-300-75-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TF-100B-300-100-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TF-100B-350-25-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TF-100B-350-50-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TF-100B-350-75-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TF-100B-350-100-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TF-100B-400-25-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TF-100B-400-50-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TF-100B-400-75-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TF-100B-400-100-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TF-100B-450-25-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TF-100B-450-50-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TF-100B-450-75-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TF-100B-450-100-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TF-100B-500-25-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TF-100B-500-50-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TF-100B-500-75-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TF-100B-500-100-FP1		Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TD-63B-25-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TD-63B-25-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TD-63B-25-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TD-63B-25-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TD-63B-50-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TD-63B-50-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TD-63B-50-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TD-63B-50-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TD-63B-75-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TD-63B-75-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TD-63B-75-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TD-63B-75-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TD-63B-100-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TD-63B-100-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TD-63B-100-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TD-63B-100-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TD-63B-150-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TD-63B-150-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TD-63B-150-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TD-63B-150-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TD-63B-200-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TD-63B-200-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TD-63B-200-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TD-63B-200-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TD-63B-250-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TD-63B-250-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TD-63B-250-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TD-63B-250-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TD-63B-300-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TD-63B-300-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TD-63B-300-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TD-63B-300-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TD-63B-350-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TD-63B-350-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TD-63B-350-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TD-63B-350-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TD-63B-400-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TD-63B-400-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TD-63B-400-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TD-63B-400-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TD-63B-450-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TD-63B-450-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TD-63B-450-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TD-63B-450-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TD-63B-500-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TD-63B-500-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TD-63B-500-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TD-63B-500-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TD-80B-25-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TD-80B-25-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TD-80B-25-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TD-80B-25-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TD-80B-50-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TD-80B-50-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TD-80B-50-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TD-80B-50-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TD-80B-75-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TD-80B-75-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TD-80B-75-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TD-80B-75-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TD-80B-100-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TD-80B-100-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TD-80B-100-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TD-80B-100-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TD-80B-150-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TD-80B-150-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TD-80B-150-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TD-80B-150-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TD-80B-200-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TD-80B-200-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TD-80B-200-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TD-80B-200-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TD-80B-250-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TD-80B-250-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TD-80B-250-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TD-80B-250-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TD-80B-300-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TD-80B-300-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TD-80B-300-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TD-80B-300-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TD-80B-350-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TD-80B-350-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TD-80B-350-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TD-80B-350-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TD-80B-400-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TD-80B-400-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TD-80B-400-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TD-80B-400-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TD-80B-450-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TD-80B-450-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TD-80B-450-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TD-80B-450-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TD-80B-500-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TD-80B-500-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TD-80B-500-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TD-80B-500-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TD-100B-25-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TD-100B-25-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TD-100B-25-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TD-100B-25-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TD-100B-50-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TD-100B-50-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TD-100B-50-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TD-100B-50-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TD-100B-75-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TD-100B-75-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TD-100B-75-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TD-100B-75-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TD-100B-100-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TD-100B-100-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TD-100B-100-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TD-100B-100-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TD-100B-150-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TD-100B-150-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TD-100B-150-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TD-100B-150-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TD-100B-200-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TD-100B-200-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TD-100B-200-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TD-100B-200-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TD-100B-250-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TD-100B-250-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TD-100B-250-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TD-100B-250-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TD-100B-300-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TD-100B-300-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TD-100B-300-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TD-100B-300-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TD-100B-350-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TD-100B-350-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TD-100B-350-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TD-100B-350-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TD-100B-400-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TD-100B-400-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TD-100B-400-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TD-100B-400-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TD-100B-450-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TD-100B-450-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TD-100B-450-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TD-100B-450-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TD-100B-500-25-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TD-100B-500-50-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TD-100B-500-75-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TD-100B-500-100-FP1		Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TE-63B-25-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TE-63B-25-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TE-63B-25-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TE-63B-25-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TE-63B-50-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TE-63B-50-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TE-63B-50-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TE-63B-50-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TE-63B-75-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TE-63B-75-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TE-63B-75-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TE-63B-75-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TE-63B-100-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TE-63B-100-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TE-63B-100-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TE-63B-100-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TE-63B-150-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TE-63B-150-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TE-63B-150-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TE-63B-150-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TE-63B-200-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TE-63B-200-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TE-63B-200-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TE-63B-200-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TE-63B-250-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TE-63B-250-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TE-63B-250-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TE-63B-250-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TE-63B-300-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TE-63B-300-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TE-63B-300-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TE-63B-300-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TE-63B-350-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TE-63B-350-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TE-63B-350-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TE-63B-350-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TE-63B-400-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TE-63B-400-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TE-63B-400-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TE-63B-400-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TE-63B-450-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TE-63B-450-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TE-63B-450-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TE-63B-450-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TE-63B-500-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TE-63B-500-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TE-63B-500-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TE-63B-500-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TE-80B-25-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TE-80B-25-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TE-80B-25-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TE-80B-25-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TE-80B-50-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TE-80B-50-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TE-80B-50-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TE-80B-50-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TE-80B-75-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TE-80B-75-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TE-80B-75-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TE-80B-75-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TE-80B-100-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TE-80B-100-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TE-80B-100-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TE-80B-100-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TE-80B-150-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TE-80B-150-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TE-80B-150-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TE-80B-150-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TE-80B-200-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TE-80B-200-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TE-80B-200-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TE-80B-200-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TE-80B-250-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TE-80B-250-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TE-80B-250-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TE-80B-250-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TE-80B-300-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TE-80B-300-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TE-80B-300-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TE-80B-300-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TE-80B-350-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TE-80B-350-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TE-80B-350-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TE-80B-350-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TE-80B-400-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TE-80B-400-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TE-80B-400-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TE-80B-400-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TE-80B-450-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TE-80B-450-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TE-80B-450-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TE-80B-450-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TE-80B-500-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TE-80B-500-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TE-80B-500-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TE-80B-500-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
SCA2-P-TE-100B-25-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCA2-P-TE-100B-25-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCA2-P-TE-100B-25-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
SCA2-P-TE-100B-25-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
SCA2-P-TE-100B-50-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCA2-P-TE-100B-50-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCA2-P-TE-100B-50-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
SCA2-P-TE-100B-50-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
SCA2-P-TE-100B-75-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCA2-P-TE-100B-75-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCA2-P-TE-100B-75-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
SCA2-P-TE-100B-75-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
SCA2-P-TE-100B-100-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCA2-P-TE-100B-100-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCA2-P-TE-100B-100-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
SCA2-P-TE-100B-100-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
SCA2-P-TE-100B-150-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCA2-P-TE-100B-150-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCA2-P-TE-100B-150-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
SCA2-P-TE-100B-150-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
SCA2-P-TE-100B-200-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCA2-P-TE-100B-200-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCA2-P-TE-100B-200-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
SCA2-P-TE-100B-200-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
SCA2-P-TE-100B-250-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCA2-P-TE-100B-250-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCA2-P-TE-100B-250-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
SCA2-P-TE-100B-250-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
SCA2-P-TE-100B-300-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCA2-P-TE-100B-300-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCA2-P-TE-100B-300-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
SCA2-P-TE-100B-300-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
SCA2-P-TE-100B-350-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
SCA2-P-TE-100B-350-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
SCA2-P-TE-100B-350-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
SCA2-P-TE-100B-350-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
SCA2-P-TE-100B-400-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
SCA2-P-TE-100B-400-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
SCA2-P-TE-100B-400-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
SCA2-P-TE-100B-400-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
SCA2-P-TE-100B-450-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
SCA2-P-TE-100B-450-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
SCA2-P-TE-100B-450-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
SCA2-P-TE-100B-450-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
SCA2-P-TE-100B-500-25-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
SCA2-P-TE-100B-500-50-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
SCA2-P-TE-100B-500-75-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
SCA2-P-TE-100B-500-100-FP1		Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm

Pneumatic CylindersCKD

1440 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCA2-P-FP1 Selex Cylinder (Stroke Adjust Extend, Bore 63-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (1440)

SCA2-P-00-63B-25-25-FP1, SCA2-P-00-63B-25-50-FP1, SCA2-P-00-63B-25-75-FP1, SCA2-P-00-63B-25-100-FP1, SCA2-P-00-63B-50-25-FP1, SCA2-P-00-63B-50-50-FP1, SCA2-P-00-63B-50-75-FP1, SCA2-P-00-63B-50-100-FP1, SCA2-P-00-63B-75-25-FP1, SCA2-P-00-63B-75-50-FP1 + 1430 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCA2-P-00-63B-25-25-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-00-63B-25-50-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-00-63B-25-75-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-00-63B-25-100-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-00-63B-50-25-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-00-63B-50-50-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-00-63B-50-75-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-00-63B-50-100-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-00-63B-75-25-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-00-63B-75-50-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-00-63B-75-75-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-00-63B-75-100-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-00-63B-100-25-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-00-63B-100-50-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-00-63B-100-75-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-00-63B-100-100-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-00-63B-150-25-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-00-63B-150-50-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-00-63B-150-75-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-00-63B-150-100-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-00-63B-200-25-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-00-63B-200-50-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-00-63B-200-75-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-00-63B-200-100-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-00-63B-250-25-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-00-63B-250-50-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-00-63B-250-75-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-00-63B-250-100-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-00-63B-300-25-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-00-63B-300-50-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-00-63B-300-75-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-00-63B-300-100-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-00-63B-350-25-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-00-63B-350-50-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-00-63B-350-75-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-00-63B-350-100-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-00-63B-400-25-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-00-63B-400-50-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-00-63B-400-75-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-00-63B-400-100-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-00-63B-450-25-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-00-63B-450-50-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-00-63B-450-75-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-00-63B-450-100-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-00-63B-500-25-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-00-63B-500-50-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-00-63B-500-75-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-00-63B-500-100-FP1	Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-00-80B-25-25-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-00-80B-25-50-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-00-80B-25-75-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-00-80B-25-100-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-00-80B-50-25-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-00-80B-50-50-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-00-80B-50-75-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-00-80B-50-100-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-00-80B-75-25-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-00-80B-75-50-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-00-80B-75-75-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-00-80B-75-100-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-00-80B-100-25-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-00-80B-100-50-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-00-80B-100-75-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-00-80B-100-100-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-00-80B-150-25-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-00-80B-150-50-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-00-80B-150-75-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-00-80B-150-100-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-00-80B-200-25-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-00-80B-200-50-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-00-80B-200-75-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-00-80B-200-100-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-00-80B-250-25-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-00-80B-250-50-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-00-80B-250-75-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-00-80B-250-100-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-00-80B-300-25-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-00-80B-300-50-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-00-80B-300-75-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-00-80B-300-100-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-00-80B-350-25-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-00-80B-350-50-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-00-80B-350-75-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-00-80B-350-100-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-00-80B-400-25-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-00-80B-400-50-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-00-80B-400-75-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-00-80B-400-100-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-00-80B-450-25-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-00-80B-450-50-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-00-80B-450-75-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-00-80B-450-100-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-00-80B-500-25-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-00-80B-500-50-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-00-80B-500-75-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-00-80B-500-100-FP1	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-00-100B-25-25-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-00-100B-25-50-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-00-100B-25-75-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-00-100B-25-100-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-00-100B-50-25-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-00-100B-50-50-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-00-100B-50-75-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-00-100B-50-100-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-00-100B-75-25-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-00-100B-75-50-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-00-100B-75-75-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-00-100B-75-100-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-00-100B-100-25-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-00-100B-100-50-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-00-100B-100-75-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-00-100B-100-100-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-00-100B-150-25-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-00-100B-150-50-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-00-100B-150-75-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-00-100B-150-100-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-00-100B-200-25-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-00-100B-200-50-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-00-100B-200-75-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-00-100B-200-100-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-00-100B-250-25-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-00-100B-250-50-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-00-100B-250-75-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-00-100B-250-100-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-00-100B-300-25-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-00-100B-300-50-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-00-100B-300-75-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-00-100B-300-100-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-00-100B-350-25-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-00-100B-350-50-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-00-100B-350-75-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-00-100B-350-100-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-00-100B-400-25-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-00-100B-400-50-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-00-100B-400-75-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-00-100B-400-100-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-00-100B-450-25-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-00-100B-450-50-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-00-100B-450-75-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-00-100B-450-100-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-00-100B-500-25-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-00-100B-500-50-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-00-100B-500-75-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-00-100B-500-100-FP1	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-LB-63B-25-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-LB-63B-25-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-LB-63B-25-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-LB-63B-25-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-LB-63B-50-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-LB-63B-50-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-LB-63B-50-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-LB-63B-50-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-LB-63B-75-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-LB-63B-75-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-LB-63B-75-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-LB-63B-75-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-LB-63B-100-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-LB-63B-100-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-LB-63B-100-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-LB-63B-100-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-LB-63B-150-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-LB-63B-150-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-LB-63B-150-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-LB-63B-150-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-LB-63B-200-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-LB-63B-200-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-LB-63B-200-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-LB-63B-200-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-LB-63B-250-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-LB-63B-250-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-LB-63B-250-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-LB-63B-250-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-LB-63B-300-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-LB-63B-300-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-LB-63B-300-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-LB-63B-300-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-LB-63B-350-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-LB-63B-350-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-LB-63B-350-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-LB-63B-350-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-LB-63B-400-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-LB-63B-400-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-LB-63B-400-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-LB-63B-400-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-LB-63B-450-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-LB-63B-450-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-LB-63B-450-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-LB-63B-450-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-LB-63B-500-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-LB-63B-500-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-LB-63B-500-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-LB-63B-500-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-LB-80B-25-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-LB-80B-25-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-LB-80B-25-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-LB-80B-25-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-LB-80B-50-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-LB-80B-50-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-LB-80B-50-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-LB-80B-50-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-LB-80B-75-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-LB-80B-75-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-LB-80B-75-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-LB-80B-75-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-LB-80B-100-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-LB-80B-100-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-LB-80B-100-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-LB-80B-100-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-LB-80B-150-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-LB-80B-150-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-LB-80B-150-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-LB-80B-150-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-LB-80B-200-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-LB-80B-200-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-LB-80B-200-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-LB-80B-200-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-LB-80B-250-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-LB-80B-250-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-LB-80B-250-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-LB-80B-250-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-LB-80B-300-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-LB-80B-300-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-LB-80B-300-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-LB-80B-300-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-LB-80B-350-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-LB-80B-350-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-LB-80B-350-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-LB-80B-350-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-LB-80B-400-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-LB-80B-400-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-LB-80B-400-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-LB-80B-400-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-LB-80B-450-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-LB-80B-450-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-LB-80B-450-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-LB-80B-450-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-LB-80B-500-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-LB-80B-500-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-LB-80B-500-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-LB-80B-500-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-LB-100B-25-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-LB-100B-25-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-LB-100B-25-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-LB-100B-25-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-LB-100B-50-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-LB-100B-50-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-LB-100B-50-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-LB-100B-50-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-LB-100B-75-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-LB-100B-75-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-LB-100B-75-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-LB-100B-75-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-LB-100B-100-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-LB-100B-100-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-LB-100B-100-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-LB-100B-100-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-LB-100B-150-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-LB-100B-150-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-LB-100B-150-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-LB-100B-150-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-LB-100B-200-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-LB-100B-200-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-LB-100B-200-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-LB-100B-200-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-LB-100B-250-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-LB-100B-250-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-LB-100B-250-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-LB-100B-250-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-LB-100B-300-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-LB-100B-300-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-LB-100B-300-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-LB-100B-300-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-LB-100B-350-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-LB-100B-350-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-LB-100B-350-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-LB-100B-350-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-LB-100B-400-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-LB-100B-400-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-LB-100B-400-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-LB-100B-400-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-LB-100B-450-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-LB-100B-450-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-LB-100B-450-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-LB-100B-450-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-LB-100B-500-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-LB-100B-500-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-LB-100B-500-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-LB-100B-500-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-FA-63B-25-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-FA-63B-25-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-FA-63B-25-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-FA-63B-25-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-FA-63B-50-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-FA-63B-50-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-FA-63B-50-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-FA-63B-50-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-FA-63B-75-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-FA-63B-75-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-FA-63B-75-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-FA-63B-75-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-FA-63B-100-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-FA-63B-100-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-FA-63B-100-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-FA-63B-100-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-FA-63B-150-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-FA-63B-150-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-FA-63B-150-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-FA-63B-150-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-FA-63B-200-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-FA-63B-200-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-FA-63B-200-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-FA-63B-200-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-FA-63B-250-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-FA-63B-250-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-FA-63B-250-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-FA-63B-250-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-FA-63B-300-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-FA-63B-300-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-FA-63B-300-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-FA-63B-300-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-FA-63B-350-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-FA-63B-350-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-FA-63B-350-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-FA-63B-350-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-FA-63B-400-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-FA-63B-400-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-FA-63B-400-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-FA-63B-400-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-FA-63B-450-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-FA-63B-450-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-FA-63B-450-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-FA-63B-450-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-FA-63B-500-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-FA-63B-500-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-FA-63B-500-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-FA-63B-500-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-FA-80B-25-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-FA-80B-25-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-FA-80B-25-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-FA-80B-25-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-FA-80B-50-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-FA-80B-50-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-FA-80B-50-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-FA-80B-50-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-FA-80B-75-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-FA-80B-75-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-FA-80B-75-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-FA-80B-75-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-FA-80B-100-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-FA-80B-100-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-FA-80B-100-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-FA-80B-100-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-FA-80B-150-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-FA-80B-150-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-FA-80B-150-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-FA-80B-150-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-FA-80B-200-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-FA-80B-200-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-FA-80B-200-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-FA-80B-200-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-FA-80B-250-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-FA-80B-250-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-FA-80B-250-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-FA-80B-250-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-FA-80B-300-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-FA-80B-300-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-FA-80B-300-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-FA-80B-300-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-FA-80B-350-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-FA-80B-350-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-FA-80B-350-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-FA-80B-350-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-FA-80B-400-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-FA-80B-400-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-FA-80B-400-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-FA-80B-400-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-FA-80B-450-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-FA-80B-450-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-FA-80B-450-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-FA-80B-450-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-FA-80B-500-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-FA-80B-500-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-FA-80B-500-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-FA-80B-500-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-FA-100B-25-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-FA-100B-25-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-FA-100B-25-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-FA-100B-25-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-FA-100B-50-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-FA-100B-50-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-FA-100B-50-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-FA-100B-50-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-FA-100B-75-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-FA-100B-75-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-FA-100B-75-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-FA-100B-75-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-FA-100B-100-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-FA-100B-100-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-FA-100B-100-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-FA-100B-100-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-FA-100B-150-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-FA-100B-150-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-FA-100B-150-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-FA-100B-150-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-FA-100B-200-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-FA-100B-200-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-FA-100B-200-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-FA-100B-200-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-FA-100B-250-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-FA-100B-250-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-FA-100B-250-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-FA-100B-250-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-FA-100B-300-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-FA-100B-300-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-FA-100B-300-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-FA-100B-300-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-FA-100B-350-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-FA-100B-350-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-FA-100B-350-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-FA-100B-350-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-FA-100B-400-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-FA-100B-400-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-FA-100B-400-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-FA-100B-400-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-FA-100B-450-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-FA-100B-450-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-FA-100B-450-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-FA-100B-450-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-FA-100B-500-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-FA-100B-500-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-FA-100B-500-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-FA-100B-500-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-FB-63B-25-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-FB-63B-25-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-FB-63B-25-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-FB-63B-25-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-FB-63B-50-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-FB-63B-50-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-FB-63B-50-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-FB-63B-50-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-FB-63B-75-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-FB-63B-75-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-FB-63B-75-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-FB-63B-75-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-FB-63B-100-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-FB-63B-100-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-FB-63B-100-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-FB-63B-100-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-FB-63B-150-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-FB-63B-150-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-FB-63B-150-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-FB-63B-150-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-FB-63B-200-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-FB-63B-200-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-FB-63B-200-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-FB-63B-200-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-FB-63B-250-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-FB-63B-250-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-FB-63B-250-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-FB-63B-250-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-FB-63B-300-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-FB-63B-300-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-FB-63B-300-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-FB-63B-300-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-FB-63B-350-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-FB-63B-350-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-FB-63B-350-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-FB-63B-350-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-FB-63B-400-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-FB-63B-400-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-FB-63B-400-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-FB-63B-400-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-FB-63B-450-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-FB-63B-450-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-FB-63B-450-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-FB-63B-450-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-FB-63B-500-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-FB-63B-500-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-FB-63B-500-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-FB-63B-500-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-FB-80B-25-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-FB-80B-25-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-FB-80B-25-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-FB-80B-25-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-FB-80B-50-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-FB-80B-50-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-FB-80B-50-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-FB-80B-50-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-FB-80B-75-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-FB-80B-75-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-FB-80B-75-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-FB-80B-75-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-FB-80B-100-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-FB-80B-100-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-FB-80B-100-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-FB-80B-100-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-FB-80B-150-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-FB-80B-150-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-FB-80B-150-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-FB-80B-150-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-FB-80B-200-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-FB-80B-200-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-FB-80B-200-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-FB-80B-200-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-FB-80B-250-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-FB-80B-250-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-FB-80B-250-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-FB-80B-250-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-FB-80B-300-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-FB-80B-300-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-FB-80B-300-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-FB-80B-300-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-FB-80B-350-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-FB-80B-350-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-FB-80B-350-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-FB-80B-350-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-FB-80B-400-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-FB-80B-400-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-FB-80B-400-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-FB-80B-400-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-FB-80B-450-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-FB-80B-450-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-FB-80B-450-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-FB-80B-450-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-FB-80B-500-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-FB-80B-500-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-FB-80B-500-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-FB-80B-500-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-FB-100B-25-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-FB-100B-25-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-FB-100B-25-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-FB-100B-25-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-FB-100B-50-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-FB-100B-50-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-FB-100B-50-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-FB-100B-50-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-FB-100B-75-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-FB-100B-75-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-FB-100B-75-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-FB-100B-75-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-FB-100B-100-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-FB-100B-100-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-FB-100B-100-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-FB-100B-100-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-FB-100B-150-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-FB-100B-150-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-FB-100B-150-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-FB-100B-150-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-FB-100B-200-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-FB-100B-200-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-FB-100B-200-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-FB-100B-200-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-FB-100B-250-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-FB-100B-250-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-FB-100B-250-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-FB-100B-250-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-FB-100B-300-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-FB-100B-300-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-FB-100B-300-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-FB-100B-300-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-FB-100B-350-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-FB-100B-350-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-FB-100B-350-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-FB-100B-350-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-FB-100B-400-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-FB-100B-400-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-FB-100B-400-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-FB-100B-400-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-FB-100B-450-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-FB-100B-450-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-FB-100B-450-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-FB-100B-450-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-FB-100B-500-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-FB-100B-500-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-FB-100B-500-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-FB-100B-500-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TC-63B-25-25-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TC-63B-25-50-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TC-63B-25-75-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TC-63B-25-100-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TC-63B-50-25-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TC-63B-50-50-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TC-63B-50-75-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TC-63B-50-100-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TC-63B-75-25-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TC-63B-75-50-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TC-63B-75-75-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TC-63B-75-100-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TC-63B-100-25-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TC-63B-100-50-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TC-63B-100-75-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TC-63B-100-100-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TC-63B-150-25-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TC-63B-150-50-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TC-63B-150-75-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TC-63B-150-100-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TC-63B-200-25-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TC-63B-200-50-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TC-63B-200-75-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TC-63B-200-100-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TC-63B-250-25-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TC-63B-250-50-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TC-63B-250-75-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TC-63B-250-100-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TC-63B-300-25-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TC-63B-300-50-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TC-63B-300-75-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TC-63B-300-100-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TC-63B-350-25-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TC-63B-350-50-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TC-63B-350-75-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TC-63B-350-100-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TC-63B-400-25-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TC-63B-400-50-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TC-63B-400-75-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TC-63B-400-100-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TC-63B-450-25-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TC-63B-450-50-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TC-63B-450-75-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TC-63B-450-100-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TC-63B-500-25-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TC-63B-500-50-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TC-63B-500-75-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TC-63B-500-100-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TC-80B-25-25-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TC-80B-25-50-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TC-80B-25-75-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TC-80B-25-100-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TC-80B-50-25-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TC-80B-50-50-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TC-80B-50-75-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TC-80B-50-100-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TC-80B-75-25-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TC-80B-75-50-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TC-80B-75-75-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TC-80B-75-100-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TC-80B-100-25-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TC-80B-100-50-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TC-80B-100-75-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TC-80B-100-100-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TC-80B-150-25-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TC-80B-150-50-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TC-80B-150-75-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TC-80B-150-100-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TC-80B-200-25-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TC-80B-200-50-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TC-80B-200-75-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TC-80B-200-100-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TC-80B-250-25-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TC-80B-250-50-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TC-80B-250-75-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TC-80B-250-100-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TC-80B-300-25-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TC-80B-300-50-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TC-80B-300-75-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TC-80B-300-100-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TC-80B-350-25-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TC-80B-350-50-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TC-80B-350-75-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TC-80B-350-100-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TC-80B-400-25-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TC-80B-400-50-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TC-80B-400-75-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TC-80B-400-100-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TC-80B-450-25-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TC-80B-450-50-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TC-80B-450-75-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TC-80B-450-100-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TC-80B-500-25-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TC-80B-500-50-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TC-80B-500-75-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TC-80B-500-100-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TC-100B-25-25-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TC-100B-25-50-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TC-100B-25-75-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TC-100B-25-100-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TC-100B-50-25-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TC-100B-50-50-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TC-100B-50-75-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TC-100B-50-100-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TC-100B-75-25-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TC-100B-75-50-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TC-100B-75-75-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TC-100B-75-100-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TC-100B-100-25-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TC-100B-100-50-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TC-100B-100-75-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TC-100B-100-100-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TC-100B-150-25-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TC-100B-150-50-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TC-100B-150-75-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TC-100B-150-100-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TC-100B-200-25-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TC-100B-200-50-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TC-100B-200-75-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TC-100B-200-100-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TC-100B-250-25-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TC-100B-250-50-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TC-100B-250-75-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TC-100B-250-100-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TC-100B-300-25-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TC-100B-300-50-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TC-100B-300-75-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TC-100B-300-100-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TC-100B-350-25-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TC-100B-350-50-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TC-100B-350-75-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TC-100B-350-100-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TC-100B-400-25-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TC-100B-400-50-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TC-100B-400-75-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TC-100B-400-100-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TC-100B-450-25-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TC-100B-450-50-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TC-100B-450-75-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TC-100B-450-100-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TC-100B-500-25-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TC-100B-500-50-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TC-100B-500-75-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TC-100B-500-100-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TA-63B-25-25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TA-63B-25-50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TA-63B-25-75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TA-63B-25-100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TA-63B-50-25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TA-63B-50-50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TA-63B-50-75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TA-63B-50-100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TA-63B-75-25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TA-63B-75-50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TA-63B-75-75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TA-63B-75-100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TA-63B-100-25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TA-63B-100-50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TA-63B-100-75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TA-63B-100-100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TA-63B-150-25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TA-63B-150-50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TA-63B-150-75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TA-63B-150-100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TA-63B-200-25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TA-63B-200-50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TA-63B-200-75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TA-63B-200-100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TA-63B-250-25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TA-63B-250-50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TA-63B-250-75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TA-63B-250-100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TA-63B-300-25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TA-63B-300-50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TA-63B-300-75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TA-63B-300-100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TA-63B-350-25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TA-63B-350-50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TA-63B-350-75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TA-63B-350-100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TA-63B-400-25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TA-63B-400-50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TA-63B-400-75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TA-63B-400-100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TA-63B-450-25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TA-63B-450-50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TA-63B-450-75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TA-63B-450-100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TA-63B-500-25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TA-63B-500-50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TA-63B-500-75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TA-63B-500-100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TA-80B-25-25-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TA-80B-25-50-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TA-80B-25-75-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TA-80B-25-100-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TA-80B-50-25-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TA-80B-50-50-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TA-80B-50-75-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TA-80B-50-100-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TA-80B-75-25-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TA-80B-75-50-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TA-80B-75-75-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TA-80B-75-100-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TA-80B-100-25-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TA-80B-100-50-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TA-80B-100-75-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TA-80B-100-100-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TA-80B-150-25-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TA-80B-150-50-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TA-80B-150-75-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TA-80B-150-100-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TA-80B-200-25-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TA-80B-200-50-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TA-80B-200-75-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TA-80B-200-100-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TA-80B-250-25-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TA-80B-250-50-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TA-80B-250-75-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TA-80B-250-100-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TA-80B-300-25-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TA-80B-300-50-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TA-80B-300-75-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TA-80B-300-100-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TA-80B-350-25-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TA-80B-350-50-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TA-80B-350-75-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TA-80B-350-100-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TA-80B-400-25-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TA-80B-400-50-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TA-80B-400-75-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TA-80B-400-100-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TA-80B-450-25-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TA-80B-450-50-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TA-80B-450-75-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TA-80B-450-100-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TA-80B-500-25-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TA-80B-500-50-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TA-80B-500-75-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TA-80B-500-100-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TA-100B-25-25-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TA-100B-25-50-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TA-100B-25-75-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TA-100B-25-100-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TA-100B-50-25-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TA-100B-50-50-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TA-100B-50-75-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TA-100B-50-100-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TA-100B-75-25-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TA-100B-75-50-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TA-100B-75-75-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TA-100B-75-100-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TA-100B-100-25-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TA-100B-100-50-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TA-100B-100-75-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TA-100B-100-100-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TA-100B-150-25-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TA-100B-150-50-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TA-100B-150-75-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TA-100B-150-100-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TA-100B-200-25-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TA-100B-200-50-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TA-100B-200-75-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TA-100B-200-100-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TA-100B-250-25-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TA-100B-250-50-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TA-100B-250-75-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TA-100B-250-100-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TA-100B-300-25-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TA-100B-300-50-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TA-100B-300-75-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TA-100B-300-100-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TA-100B-350-25-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TA-100B-350-50-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TA-100B-350-75-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TA-100B-350-100-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TA-100B-400-25-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TA-100B-400-50-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TA-100B-400-75-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TA-100B-400-100-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TA-100B-450-25-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TA-100B-450-50-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TA-100B-450-75-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TA-100B-450-100-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TA-100B-500-25-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TA-100B-500-50-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TA-100B-500-75-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TA-100B-500-100-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TB-63B-25-25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TB-63B-25-50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TB-63B-25-75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TB-63B-25-100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TB-63B-50-25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TB-63B-50-50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TB-63B-50-75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TB-63B-50-100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TB-63B-75-25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TB-63B-75-50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TB-63B-75-75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TB-63B-75-100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TB-63B-100-25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TB-63B-100-50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TB-63B-100-75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TB-63B-100-100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TB-63B-150-25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TB-63B-150-50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TB-63B-150-75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TB-63B-150-100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TB-63B-200-25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TB-63B-200-50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TB-63B-200-75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TB-63B-200-100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TB-63B-250-25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TB-63B-250-50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TB-63B-250-75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TB-63B-250-100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TB-63B-300-25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TB-63B-300-50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TB-63B-300-75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TB-63B-300-100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TB-63B-350-25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TB-63B-350-50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TB-63B-350-75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TB-63B-350-100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TB-63B-400-25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TB-63B-400-50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TB-63B-400-75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TB-63B-400-100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TB-63B-450-25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TB-63B-450-50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TB-63B-450-75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TB-63B-450-100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TB-63B-500-25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TB-63B-500-50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TB-63B-500-75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TB-63B-500-100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TB-80B-25-25-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TB-80B-25-50-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TB-80B-25-75-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TB-80B-25-100-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TB-80B-50-25-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TB-80B-50-50-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TB-80B-50-75-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TB-80B-50-100-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TB-80B-75-25-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TB-80B-75-50-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TB-80B-75-75-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TB-80B-75-100-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TB-80B-100-25-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TB-80B-100-50-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TB-80B-100-75-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TB-80B-100-100-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TB-80B-150-25-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TB-80B-150-50-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TB-80B-150-75-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TB-80B-150-100-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TB-80B-200-25-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TB-80B-200-50-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TB-80B-200-75-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TB-80B-200-100-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TB-80B-250-25-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TB-80B-250-50-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TB-80B-250-75-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TB-80B-250-100-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TB-80B-300-25-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TB-80B-300-50-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TB-80B-300-75-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TB-80B-300-100-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TB-80B-350-25-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TB-80B-350-50-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TB-80B-350-75-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TB-80B-350-100-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TB-80B-400-25-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TB-80B-400-50-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TB-80B-400-75-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TB-80B-400-100-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TB-80B-450-25-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TB-80B-450-50-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TB-80B-450-75-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TB-80B-450-100-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TB-80B-500-25-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TB-80B-500-50-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TB-80B-500-75-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TB-80B-500-100-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TB-100B-25-25-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TB-100B-25-50-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TB-100B-25-75-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TB-100B-25-100-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TB-100B-50-25-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TB-100B-50-50-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TB-100B-50-75-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TB-100B-50-100-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TB-100B-75-25-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TB-100B-75-50-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TB-100B-75-75-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TB-100B-75-100-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TB-100B-100-25-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TB-100B-100-50-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TB-100B-100-75-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TB-100B-100-100-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TB-100B-150-25-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TB-100B-150-50-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TB-100B-150-75-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TB-100B-150-100-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TB-100B-200-25-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TB-100B-200-50-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TB-100B-200-75-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TB-100B-200-100-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TB-100B-250-25-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TB-100B-250-50-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TB-100B-250-75-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TB-100B-250-100-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TB-100B-300-25-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TB-100B-300-50-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TB-100B-300-75-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TB-100B-300-100-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TB-100B-350-25-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TB-100B-350-50-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TB-100B-350-75-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TB-100B-350-100-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TB-100B-400-25-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TB-100B-400-50-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TB-100B-400-75-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TB-100B-400-100-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TB-100B-450-25-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TB-100B-450-50-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TB-100B-450-75-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TB-100B-450-100-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TB-100B-500-25-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TB-100B-500-50-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TB-100B-500-75-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TB-100B-500-100-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TF-63B-25-25-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TF-63B-25-50-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TF-63B-25-75-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TF-63B-25-100-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TF-63B-50-25-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TF-63B-50-50-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TF-63B-50-75-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TF-63B-50-100-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TF-63B-75-25-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TF-63B-75-50-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TF-63B-75-75-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TF-63B-75-100-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TF-63B-100-25-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TF-63B-100-50-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TF-63B-100-75-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TF-63B-100-100-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TF-63B-150-25-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TF-63B-150-50-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TF-63B-150-75-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TF-63B-150-100-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TF-63B-200-25-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TF-63B-200-50-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TF-63B-200-75-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TF-63B-200-100-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TF-63B-250-25-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TF-63B-250-50-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TF-63B-250-75-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TF-63B-250-100-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TF-63B-300-25-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TF-63B-300-50-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TF-63B-300-75-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TF-63B-300-100-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TF-63B-350-25-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TF-63B-350-50-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TF-63B-350-75-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TF-63B-350-100-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TF-63B-400-25-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TF-63B-400-50-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TF-63B-400-75-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TF-63B-400-100-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TF-63B-450-25-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TF-63B-450-50-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TF-63B-450-75-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TF-63B-450-100-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TF-63B-500-25-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TF-63B-500-50-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TF-63B-500-75-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TF-63B-500-100-FP1	Mounting: Center trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TF-80B-25-25-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TF-80B-25-50-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TF-80B-25-75-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TF-80B-25-100-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TF-80B-50-25-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TF-80B-50-50-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TF-80B-50-75-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TF-80B-50-100-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TF-80B-75-25-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TF-80B-75-50-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TF-80B-75-75-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TF-80B-75-100-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TF-80B-100-25-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TF-80B-100-50-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TF-80B-100-75-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TF-80B-100-100-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TF-80B-150-25-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TF-80B-150-50-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TF-80B-150-75-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TF-80B-150-100-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TF-80B-200-25-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TF-80B-200-50-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TF-80B-200-75-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TF-80B-200-100-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TF-80B-250-25-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TF-80B-250-50-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TF-80B-250-75-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TF-80B-250-100-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TF-80B-300-25-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TF-80B-300-50-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TF-80B-300-75-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TF-80B-300-100-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TF-80B-350-25-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TF-80B-350-50-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TF-80B-350-75-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TF-80B-350-100-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TF-80B-400-25-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TF-80B-400-50-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TF-80B-400-75-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TF-80B-400-100-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TF-80B-450-25-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TF-80B-450-50-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TF-80B-450-75-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TF-80B-450-100-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TF-80B-500-25-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TF-80B-500-50-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TF-80B-500-75-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TF-80B-500-100-FP1	Mounting: Center trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TF-100B-25-25-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TF-100B-25-50-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TF-100B-25-75-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TF-100B-25-100-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TF-100B-50-25-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TF-100B-50-50-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TF-100B-50-75-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TF-100B-50-100-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TF-100B-75-25-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TF-100B-75-50-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TF-100B-75-75-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TF-100B-75-100-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TF-100B-100-25-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TF-100B-100-50-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TF-100B-100-75-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TF-100B-100-100-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TF-100B-150-25-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TF-100B-150-50-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TF-100B-150-75-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TF-100B-150-100-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TF-100B-200-25-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TF-100B-200-50-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TF-100B-200-75-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TF-100B-200-100-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TF-100B-250-25-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TF-100B-250-50-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TF-100B-250-75-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TF-100B-250-100-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TF-100B-300-25-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TF-100B-300-50-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TF-100B-300-75-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TF-100B-300-100-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TF-100B-350-25-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TF-100B-350-50-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TF-100B-350-75-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TF-100B-350-100-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TF-100B-400-25-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TF-100B-400-50-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TF-100B-400-75-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TF-100B-400-100-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TF-100B-450-25-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TF-100B-450-50-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TF-100B-450-75-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TF-100B-450-100-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TF-100B-500-25-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TF-100B-500-50-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TF-100B-500-75-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TF-100B-500-100-FP1	Mounting: Center trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TD-63B-25-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TD-63B-25-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TD-63B-25-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TD-63B-25-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TD-63B-50-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TD-63B-50-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TD-63B-50-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TD-63B-50-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TD-63B-75-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TD-63B-75-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TD-63B-75-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TD-63B-75-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TD-63B-100-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TD-63B-100-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TD-63B-100-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TD-63B-100-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TD-63B-150-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TD-63B-150-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TD-63B-150-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TD-63B-150-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TD-63B-200-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TD-63B-200-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TD-63B-200-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TD-63B-200-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TD-63B-250-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TD-63B-250-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TD-63B-250-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TD-63B-250-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TD-63B-300-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TD-63B-300-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TD-63B-300-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TD-63B-300-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TD-63B-350-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TD-63B-350-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TD-63B-350-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TD-63B-350-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TD-63B-400-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TD-63B-400-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TD-63B-400-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TD-63B-400-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TD-63B-450-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TD-63B-450-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TD-63B-450-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TD-63B-450-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TD-63B-500-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TD-63B-500-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TD-63B-500-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TD-63B-500-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TD-80B-25-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TD-80B-25-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TD-80B-25-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TD-80B-25-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TD-80B-50-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TD-80B-50-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TD-80B-50-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TD-80B-50-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TD-80B-75-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TD-80B-75-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TD-80B-75-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TD-80B-75-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TD-80B-100-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TD-80B-100-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TD-80B-100-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TD-80B-100-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TD-80B-150-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TD-80B-150-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TD-80B-150-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TD-80B-150-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TD-80B-200-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TD-80B-200-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TD-80B-200-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TD-80B-200-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TD-80B-250-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TD-80B-250-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TD-80B-250-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TD-80B-250-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TD-80B-300-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TD-80B-300-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TD-80B-300-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TD-80B-300-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TD-80B-350-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TD-80B-350-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TD-80B-350-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TD-80B-350-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TD-80B-400-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TD-80B-400-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TD-80B-400-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TD-80B-400-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TD-80B-450-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TD-80B-450-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TD-80B-450-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TD-80B-450-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TD-80B-500-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TD-80B-500-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TD-80B-500-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TD-80B-500-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TD-100B-25-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TD-100B-25-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TD-100B-25-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TD-100B-25-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TD-100B-50-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TD-100B-50-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TD-100B-50-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TD-100B-50-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TD-100B-75-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TD-100B-75-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TD-100B-75-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TD-100B-75-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TD-100B-100-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TD-100B-100-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TD-100B-100-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TD-100B-100-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TD-100B-150-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TD-100B-150-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TD-100B-150-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TD-100B-150-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TD-100B-200-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TD-100B-200-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TD-100B-200-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TD-100B-200-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TD-100B-250-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TD-100B-250-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TD-100B-250-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TD-100B-250-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TD-100B-300-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TD-100B-300-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TD-100B-300-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TD-100B-300-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TD-100B-350-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TD-100B-350-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TD-100B-350-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TD-100B-350-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TD-100B-400-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TD-100B-400-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TD-100B-400-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TD-100B-400-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TD-100B-450-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TD-100B-450-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TD-100B-450-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TD-100B-450-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TD-100B-500-25-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TD-100B-500-50-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TD-100B-500-75-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TD-100B-500-100-FP1	Mounting: Rod-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TE-63B-25-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TE-63B-25-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TE-63B-25-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TE-63B-25-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TE-63B-50-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TE-63B-50-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TE-63B-50-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TE-63B-50-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TE-63B-75-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TE-63B-75-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TE-63B-75-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TE-63B-75-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TE-63B-100-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TE-63B-100-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TE-63B-100-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TE-63B-100-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TE-63B-150-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TE-63B-150-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TE-63B-150-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TE-63B-150-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TE-63B-200-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TE-63B-200-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TE-63B-200-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TE-63B-200-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TE-63B-250-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TE-63B-250-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TE-63B-250-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TE-63B-250-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TE-63B-300-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TE-63B-300-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TE-63B-300-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TE-63B-300-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TE-63B-350-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TE-63B-350-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TE-63B-350-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TE-63B-350-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TE-63B-400-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TE-63B-400-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TE-63B-400-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TE-63B-400-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TE-63B-450-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TE-63B-450-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TE-63B-450-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TE-63B-450-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TE-63B-500-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TE-63B-500-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TE-63B-500-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TE-63B-500-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TE-80B-25-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TE-80B-25-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TE-80B-25-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TE-80B-25-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TE-80B-50-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TE-80B-50-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TE-80B-50-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TE-80B-50-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TE-80B-75-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TE-80B-75-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TE-80B-75-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TE-80B-75-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TE-80B-100-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TE-80B-100-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TE-80B-100-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TE-80B-100-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TE-80B-150-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TE-80B-150-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TE-80B-150-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TE-80B-150-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TE-80B-200-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TE-80B-200-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TE-80B-200-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TE-80B-200-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TE-80B-250-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TE-80B-250-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TE-80B-250-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TE-80B-250-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TE-80B-300-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TE-80B-300-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TE-80B-300-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TE-80B-300-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TE-80B-350-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TE-80B-350-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TE-80B-350-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TE-80B-350-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TE-80B-400-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TE-80B-400-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TE-80B-400-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TE-80B-400-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TE-80B-450-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TE-80B-450-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TE-80B-450-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TE-80B-450-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TE-80B-500-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TE-80B-500-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TE-80B-500-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TE-80B-500-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm
	SCA2-P-TE-100B-25-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCA2-P-TE-100B-25-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCA2-P-TE-100B-25-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm
	SCA2-P-TE-100B-25-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm
	SCA2-P-TE-100B-50-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCA2-P-TE-100B-50-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCA2-P-TE-100B-50-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm
	SCA2-P-TE-100B-50-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm
	SCA2-P-TE-100B-75-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCA2-P-TE-100B-75-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCA2-P-TE-100B-75-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm
	SCA2-P-TE-100B-75-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm
	SCA2-P-TE-100B-100-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCA2-P-TE-100B-100-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCA2-P-TE-100B-100-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm
	SCA2-P-TE-100B-100-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm
	SCA2-P-TE-100B-150-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCA2-P-TE-100B-150-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCA2-P-TE-100B-150-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm
	SCA2-P-TE-100B-150-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm
	SCA2-P-TE-100B-200-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCA2-P-TE-100B-200-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCA2-P-TE-100B-200-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm
	SCA2-P-TE-100B-200-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm
	SCA2-P-TE-100B-250-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCA2-P-TE-100B-250-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCA2-P-TE-100B-250-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm
	SCA2-P-TE-100B-250-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm
	SCA2-P-TE-100B-300-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCA2-P-TE-100B-300-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCA2-P-TE-100B-300-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm
	SCA2-P-TE-100B-300-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm
	SCA2-P-TE-100B-350-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm
	SCA2-P-TE-100B-350-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm
	SCA2-P-TE-100B-350-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm
	SCA2-P-TE-100B-350-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm
	SCA2-P-TE-100B-400-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm
	SCA2-P-TE-100B-400-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm
	SCA2-P-TE-100B-400-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm
	SCA2-P-TE-100B-400-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm
	SCA2-P-TE-100B-450-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm
	SCA2-P-TE-100B-450-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm
	SCA2-P-TE-100B-450-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm
	SCA2-P-TE-100B-450-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm
	SCA2-P-TE-100B-500-25-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm
	SCA2-P-TE-100B-500-50-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm
	SCA2-P-TE-100B-500-75-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm
	SCA2-P-TE-100B-500-100-FP1	Mounting: Head-side trunnion, hole type \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCA2-P-FP1 Selex Cylinder (Stroke Adjust Extend, Bore 63-100)
