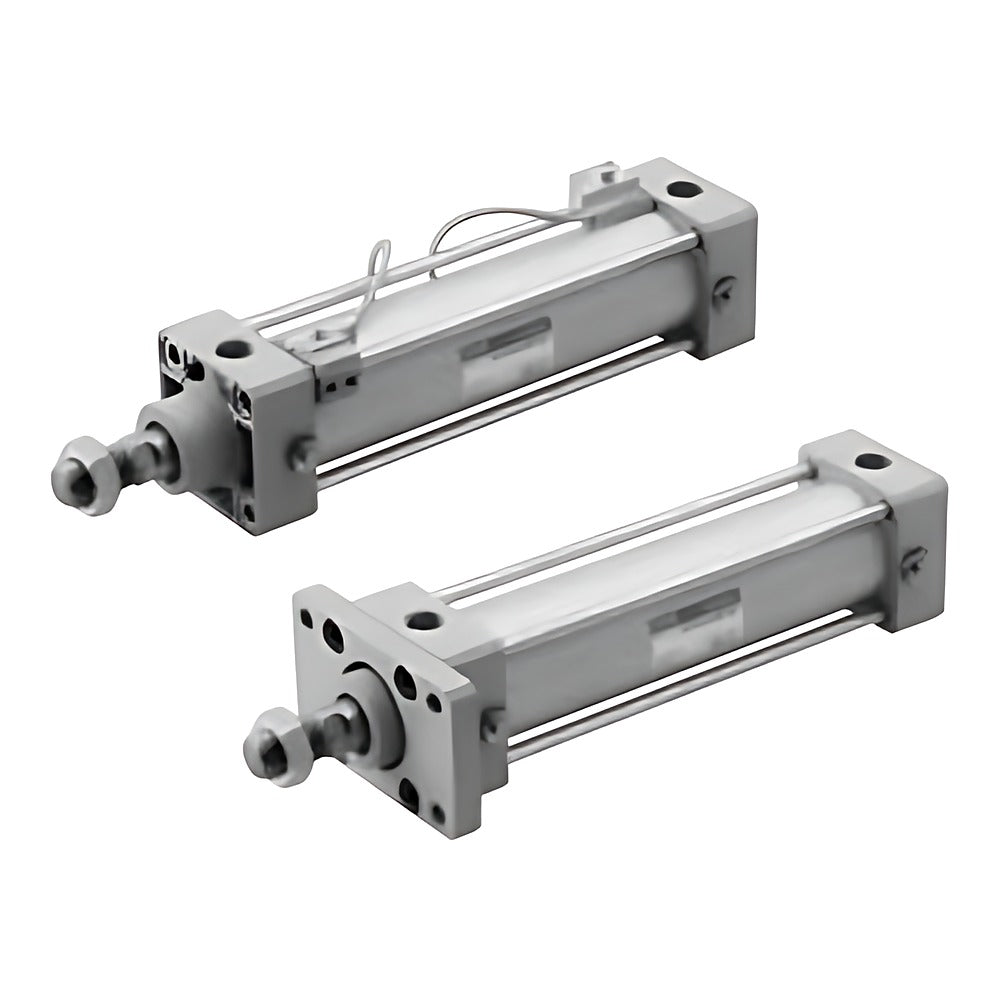

CKD SCA2-P Selex Cylinder (Stroke Adjust Extend, Bore 63-100)

CKD SCA2-P Selex cylinder with an adjustable extend stroke, bore 40 to 100 mm, adjustment range up to 100 mm.

Key features

Stroke adjustable on the extend side, adjustment range 25, 50, 75 or 100 mm
Standard strokes 25 to 500 mm (min. 25 mm); intermediate strokes in 1 mm steps
Mountings: 00, LB, FA, FB, TC, TA, TB, TF, TD, TE; hole-type trunnions (TF, TD, TE) not available for bore 40
Listed codes use air cushion both ends (B); rod-end (R), head-end (H) or no cushion (N) also available
T-type auto switches (T0H, T2H, T2YD etc.), switch quantity, options (J/L bellows, M stainless rod, S/T cushion needle position) and knuckles/brackets ordered as suffixes
Switch magnet built in; NPT (N), G (G) threads and P6 made to order

Specifications

Action	Double acting, stroke adjust (extend)
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.1 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Piston speed	50 to 1000 mm/s
Lubrication	Not required
Cushion	Air cushion, both ends (B)
Source	CKD Korea catalog CB-029SK-9, p. 560-567

SCA2-P-00-63B-25-25		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-00-63B-25-50		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-00-63B-25-75		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-00-63B-25-100		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-00-63B-50-25		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-00-63B-50-50		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-00-63B-50-75		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-00-63B-50-100		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-00-63B-75-25		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-00-63B-75-50		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-00-63B-75-75		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-00-63B-75-100		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-00-63B-100-25		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-00-63B-100-50		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-00-63B-100-75		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-00-63B-100-100		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-00-63B-150-25		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-00-63B-150-50		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-00-63B-150-75		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-00-63B-150-100		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-00-63B-200-25		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-00-63B-200-50		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-00-63B-200-75		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-00-63B-200-100		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-00-63B-250-25		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-00-63B-250-50		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-00-63B-250-75		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-00-63B-250-100		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-00-63B-300-25		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-00-63B-300-50		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-00-63B-300-75		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-00-63B-300-100		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-00-63B-350-25		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-00-63B-350-50		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-00-63B-350-75		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-00-63B-350-100		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-00-63B-400-25		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-00-63B-400-50		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-00-63B-400-75		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-00-63B-400-100		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-00-63B-450-25		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-00-63B-450-50		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-00-63B-450-75		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-00-63B-450-100		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-00-63B-500-25		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-00-63B-500-50		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-00-63B-500-75		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-00-63B-500-100		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-00-80B-25-25		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-80B-25-50		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-80B-25-75		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-80B-25-100		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-80B-50-25		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-80B-50-50		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-80B-50-75		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-80B-50-100		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-80B-75-25		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-80B-75-50		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-80B-75-75		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-80B-75-100		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-80B-100-25		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-80B-100-50		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-80B-100-75		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-80B-100-100		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-80B-150-25		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-80B-150-50		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-80B-150-75		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-80B-150-100		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-80B-200-25		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-80B-200-50		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-80B-200-75		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-80B-200-100		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-80B-250-25		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-80B-250-50		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-80B-250-75		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-80B-250-100		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-80B-300-25		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-80B-300-50		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-80B-300-75		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-80B-300-100		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-80B-350-25		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-80B-350-50		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-80B-350-75		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-80B-350-100		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-80B-400-25		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-80B-400-50		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-80B-400-75		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-80B-400-100		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-80B-450-25		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-80B-450-50		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-80B-450-75		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-80B-450-100		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-80B-500-25		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-80B-500-50		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-80B-500-75		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-80B-500-100		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-100B-25-25		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-100B-25-50		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-100B-25-75		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-100B-25-100		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-100B-50-25		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-100B-50-50		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-100B-50-75		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-100B-50-100		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-100B-75-25		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-100B-75-50		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-100B-75-75		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-100B-75-100		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-100B-100-25		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-100B-100-50		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-100B-100-75		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-100B-100-100		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-100B-150-25		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-100B-150-50		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-100B-150-75		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-100B-150-100		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-100B-200-25		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-100B-200-50		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-100B-200-75		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-100B-200-100		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-100B-250-25		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-100B-250-50		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-100B-250-75		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-100B-250-100		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-100B-300-25		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-100B-300-50		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-100B-300-75		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-100B-300-100		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-100B-350-25		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-100B-350-50		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-100B-350-75		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-100B-350-100		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-100B-400-25		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-100B-400-50		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-100B-400-75		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-100B-400-100		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-100B-450-25		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-100B-450-50		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-100B-450-75		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-100B-450-100		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-00-100B-500-25		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-00-100B-500-50		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-00-100B-500-75		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-00-100B-500-100		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-63B-25-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-LB-63B-25-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-LB-63B-25-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-LB-63B-25-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-LB-63B-50-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-LB-63B-50-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-LB-63B-50-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-LB-63B-50-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-LB-63B-75-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-LB-63B-75-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-LB-63B-75-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-LB-63B-75-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-LB-63B-100-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-LB-63B-100-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-LB-63B-100-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-LB-63B-100-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-LB-63B-150-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-LB-63B-150-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-LB-63B-150-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-LB-63B-150-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-LB-63B-200-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-LB-63B-200-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-LB-63B-200-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-LB-63B-200-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-LB-63B-250-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-LB-63B-250-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-LB-63B-250-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-LB-63B-250-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-LB-63B-300-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-LB-63B-300-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-LB-63B-300-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-LB-63B-300-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-LB-63B-350-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-LB-63B-350-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-LB-63B-350-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-LB-63B-350-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-LB-63B-400-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-LB-63B-400-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-LB-63B-400-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-LB-63B-400-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-LB-63B-450-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-LB-63B-450-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-LB-63B-450-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-LB-63B-450-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-LB-63B-500-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-LB-63B-500-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-LB-63B-500-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-LB-63B-500-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-LB-80B-25-25		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-80B-25-50		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-80B-25-75		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-80B-25-100		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-80B-50-25		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-80B-50-50		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-80B-50-75		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-80B-50-100		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-80B-75-25		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-80B-75-50		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-80B-75-75		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-80B-75-100		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-80B-100-25		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-80B-100-50		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-80B-100-75		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-80B-100-100		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-80B-150-25		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-80B-150-50		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-80B-150-75		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-80B-150-100		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-80B-200-25		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-80B-200-50		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-80B-200-75		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-80B-200-100		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-80B-250-25		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-80B-250-50		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-80B-250-75		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-80B-250-100		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-80B-300-25		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-80B-300-50		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-80B-300-75		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-80B-300-100		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-80B-350-25		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-80B-350-50		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-80B-350-75		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-80B-350-100		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-80B-400-25		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-80B-400-50		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-80B-400-75		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-80B-400-100		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-80B-450-25		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-80B-450-50		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-80B-450-75		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-80B-450-100		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-80B-500-25		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-80B-500-50		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-80B-500-75		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-80B-500-100		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-100B-25-25		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-100B-25-50		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-100B-25-75		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-100B-25-100		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-100B-50-25		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-100B-50-50		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-100B-50-75		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-100B-50-100		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-100B-75-25		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-100B-75-50		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-100B-75-75		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-100B-75-100		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-100B-100-25		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-100B-100-50		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-100B-100-75		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-100B-100-100		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-100B-150-25		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-100B-150-50		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-100B-150-75		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-100B-150-100		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-100B-200-25		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-100B-200-50		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-100B-200-75		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-100B-200-100		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-100B-250-25		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-100B-250-50		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-100B-250-75		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-100B-250-100		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-100B-300-25		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-100B-300-50		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-100B-300-75		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-100B-300-100		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-100B-350-25		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-100B-350-50		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-100B-350-75		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-100B-350-100		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-100B-400-25		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-100B-400-50		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-100B-400-75		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-100B-400-100		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-100B-450-25		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-100B-450-50		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-100B-450-75		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-100B-450-100		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-LB-100B-500-25		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-LB-100B-500-50		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-LB-100B-500-75		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-LB-100B-500-100		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-63B-25-25		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FA-63B-25-50		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FA-63B-25-75		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FA-63B-25-100		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FA-63B-50-25		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FA-63B-50-50		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FA-63B-50-75		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FA-63B-50-100		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FA-63B-75-25		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FA-63B-75-50		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FA-63B-75-75		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FA-63B-75-100		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FA-63B-100-25		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FA-63B-100-50		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FA-63B-100-75		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FA-63B-100-100		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FA-63B-150-25		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FA-63B-150-50		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FA-63B-150-75		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FA-63B-150-100		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FA-63B-200-25		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FA-63B-200-50		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FA-63B-200-75		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FA-63B-200-100		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FA-63B-250-25		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FA-63B-250-50		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FA-63B-250-75		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FA-63B-250-100		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FA-63B-300-25		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FA-63B-300-50		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FA-63B-300-75		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FA-63B-300-100		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FA-63B-350-25		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FA-63B-350-50		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FA-63B-350-75		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FA-63B-350-100		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FA-63B-400-25		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FA-63B-400-50		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FA-63B-400-75		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FA-63B-400-100		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FA-63B-450-25		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FA-63B-450-50		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FA-63B-450-75		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FA-63B-450-100		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FA-63B-500-25		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FA-63B-500-50		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FA-63B-500-75		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FA-63B-500-100		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FA-80B-25-25		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-80B-25-50		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-80B-25-75		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-80B-25-100		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-80B-50-25		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-80B-50-50		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-80B-50-75		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-80B-50-100		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-80B-75-25		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-80B-75-50		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-80B-75-75		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-80B-75-100		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-80B-100-25		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-80B-100-50		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-80B-100-75		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-80B-100-100		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-80B-150-25		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-80B-150-50		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-80B-150-75		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-80B-150-100		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-80B-200-25		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-80B-200-50		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-80B-200-75		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-80B-200-100		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-80B-250-25		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-80B-250-50		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-80B-250-75		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-80B-250-100		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-80B-300-25		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-80B-300-50		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-80B-300-75		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-80B-300-100		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-80B-350-25		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-80B-350-50		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-80B-350-75		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-80B-350-100		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-80B-400-25		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-80B-400-50		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-80B-400-75		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-80B-400-100		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-80B-450-25		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-80B-450-50		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-80B-450-75		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-80B-450-100		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-80B-500-25		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-80B-500-50		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-80B-500-75		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-80B-500-100		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-100B-25-25		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-100B-25-50		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-100B-25-75		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-100B-25-100		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-100B-50-25		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-100B-50-50		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-100B-50-75		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-100B-50-100		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-100B-75-25		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-100B-75-50		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-100B-75-75		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-100B-75-100		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-100B-100-25		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-100B-100-50		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-100B-100-75		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-100B-100-100		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-100B-150-25		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-100B-150-50		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-100B-150-75		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-100B-150-100		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-100B-200-25		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-100B-200-50		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-100B-200-75		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-100B-200-100		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-100B-250-25		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-100B-250-50		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-100B-250-75		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-100B-250-100		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-100B-300-25		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-100B-300-50		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-100B-300-75		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-100B-300-100		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-100B-350-25		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-100B-350-50		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-100B-350-75		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-100B-350-100		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-100B-400-25		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-100B-400-50		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-100B-400-75		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-100B-400-100		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-100B-450-25		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-100B-450-50		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-100B-450-75		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-100B-450-100		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FA-100B-500-25		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FA-100B-500-50		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FA-100B-500-75		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FA-100B-500-100		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-63B-25-25		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FB-63B-25-50		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FB-63B-25-75		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FB-63B-25-100		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FB-63B-50-25		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FB-63B-50-50		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FB-63B-50-75		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FB-63B-50-100		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FB-63B-75-25		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FB-63B-75-50		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FB-63B-75-75		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FB-63B-75-100		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FB-63B-100-25		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FB-63B-100-50		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FB-63B-100-75		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FB-63B-100-100		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FB-63B-150-25		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FB-63B-150-50		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FB-63B-150-75		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FB-63B-150-100		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FB-63B-200-25		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FB-63B-200-50		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FB-63B-200-75		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FB-63B-200-100		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FB-63B-250-25		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FB-63B-250-50		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FB-63B-250-75		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FB-63B-250-100		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FB-63B-300-25		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FB-63B-300-50		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FB-63B-300-75		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FB-63B-300-100		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FB-63B-350-25		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FB-63B-350-50		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FB-63B-350-75		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FB-63B-350-100		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FB-63B-400-25		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FB-63B-400-50		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FB-63B-400-75		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FB-63B-400-100		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FB-63B-450-25		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FB-63B-450-50		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FB-63B-450-75		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FB-63B-450-100		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FB-63B-500-25		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-FB-63B-500-50		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-FB-63B-500-75		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-FB-63B-500-100		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-FB-80B-25-25		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-80B-25-50		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-80B-25-75		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-80B-25-100		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-80B-50-25		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-80B-50-50		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-80B-50-75		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-80B-50-100		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-80B-75-25		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-80B-75-50		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-80B-75-75		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-80B-75-100		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-80B-100-25		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-80B-100-50		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-80B-100-75		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-80B-100-100		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-80B-150-25		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-80B-150-50		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-80B-150-75		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-80B-150-100		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-80B-200-25		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-80B-200-50		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-80B-200-75		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-80B-200-100		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-80B-250-25		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-80B-250-50		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-80B-250-75		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-80B-250-100		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-80B-300-25		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-80B-300-50		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-80B-300-75		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-80B-300-100		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-80B-350-25		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-80B-350-50		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-80B-350-75		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-80B-350-100		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-80B-400-25		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-80B-400-50		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-80B-400-75		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-80B-400-100		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-80B-450-25		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-80B-450-50		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-80B-450-75		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-80B-450-100		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-80B-500-25		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-80B-500-50		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-80B-500-75		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-80B-500-100		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-100B-25-25		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-100B-25-50		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-100B-25-75		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-100B-25-100		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-100B-50-25		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-100B-50-50		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-100B-50-75		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-100B-50-100		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-100B-75-25		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-100B-75-50		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-100B-75-75		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-100B-75-100		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-100B-100-25		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-100B-100-50		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-100B-100-75		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-100B-100-100		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-100B-150-25		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-100B-150-50		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-100B-150-75		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-100B-150-100		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-100B-200-25		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-100B-200-50		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-100B-200-75		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-100B-200-100		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-100B-250-25		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-100B-250-50		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-100B-250-75		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-100B-250-100		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-100B-300-25		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-100B-300-50		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-100B-300-75		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-100B-300-100		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-100B-350-25		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-100B-350-50		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-100B-350-75		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-100B-350-100		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-100B-400-25		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-100B-400-50		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-100B-400-75		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-100B-400-100		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-100B-450-25		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-100B-450-50		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-100B-450-75		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-100B-450-100		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-FB-100B-500-25		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-FB-100B-500-50		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-FB-100B-500-75		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-FB-100B-500-100		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-63B-25-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TC-63B-25-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TC-63B-25-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TC-63B-25-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TC-63B-50-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TC-63B-50-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TC-63B-50-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TC-63B-50-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TC-63B-75-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TC-63B-75-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TC-63B-75-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TC-63B-75-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TC-63B-100-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TC-63B-100-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TC-63B-100-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TC-63B-100-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TC-63B-150-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TC-63B-150-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TC-63B-150-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TC-63B-150-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TC-63B-200-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TC-63B-200-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TC-63B-200-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TC-63B-200-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TC-63B-250-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TC-63B-250-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TC-63B-250-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TC-63B-250-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TC-63B-300-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TC-63B-300-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TC-63B-300-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TC-63B-300-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TC-63B-350-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TC-63B-350-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TC-63B-350-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TC-63B-350-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TC-63B-400-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TC-63B-400-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TC-63B-400-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TC-63B-400-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TC-63B-450-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TC-63B-450-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TC-63B-450-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TC-63B-450-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TC-63B-500-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TC-63B-500-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TC-63B-500-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TC-63B-500-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TC-80B-25-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-80B-25-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-80B-25-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-80B-25-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-80B-50-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-80B-50-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-80B-50-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-80B-50-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-80B-75-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-80B-75-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-80B-75-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-80B-75-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-80B-100-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-80B-100-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-80B-100-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-80B-100-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-80B-150-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-80B-150-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-80B-150-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-80B-150-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-80B-200-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-80B-200-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-80B-200-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-80B-200-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-80B-250-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-80B-250-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-80B-250-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-80B-250-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-80B-300-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-80B-300-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-80B-300-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-80B-300-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-80B-350-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-80B-350-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-80B-350-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-80B-350-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-80B-400-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-80B-400-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-80B-400-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-80B-400-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-80B-450-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-80B-450-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-80B-450-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-80B-450-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-80B-500-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-80B-500-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-80B-500-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-80B-500-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-100B-25-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-100B-25-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-100B-25-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-100B-25-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-100B-50-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-100B-50-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-100B-50-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-100B-50-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-100B-75-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-100B-75-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-100B-75-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-100B-75-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-100B-100-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-100B-100-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-100B-100-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-100B-100-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-100B-150-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-100B-150-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-100B-150-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-100B-150-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-100B-200-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-100B-200-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-100B-200-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-100B-200-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-100B-250-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-100B-250-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-100B-250-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-100B-250-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-100B-300-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-100B-300-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-100B-300-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-100B-300-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-100B-350-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-100B-350-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-100B-350-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-100B-350-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-100B-400-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-100B-400-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-100B-400-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-100B-400-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-100B-450-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-100B-450-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-100B-450-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-100B-450-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TC-100B-500-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TC-100B-500-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TC-100B-500-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TC-100B-500-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-63B-25-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TA-63B-25-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TA-63B-25-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TA-63B-25-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TA-63B-50-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TA-63B-50-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TA-63B-50-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TA-63B-50-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TA-63B-75-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TA-63B-75-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TA-63B-75-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TA-63B-75-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TA-63B-100-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TA-63B-100-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TA-63B-100-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TA-63B-100-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TA-63B-150-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TA-63B-150-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TA-63B-150-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TA-63B-150-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TA-63B-200-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TA-63B-200-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TA-63B-200-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TA-63B-200-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TA-63B-250-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TA-63B-250-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TA-63B-250-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TA-63B-250-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TA-63B-300-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TA-63B-300-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TA-63B-300-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TA-63B-300-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TA-63B-350-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TA-63B-350-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TA-63B-350-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TA-63B-350-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TA-63B-400-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TA-63B-400-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TA-63B-400-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TA-63B-400-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TA-63B-450-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TA-63B-450-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TA-63B-450-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TA-63B-450-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TA-63B-500-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TA-63B-500-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TA-63B-500-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TA-63B-500-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TA-80B-25-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-80B-25-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-80B-25-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-80B-25-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-80B-50-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-80B-50-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-80B-50-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-80B-50-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-80B-75-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-80B-75-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-80B-75-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-80B-75-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-80B-100-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-80B-100-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-80B-100-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-80B-100-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-80B-150-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-80B-150-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-80B-150-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-80B-150-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-80B-200-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-80B-200-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-80B-200-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-80B-200-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-80B-250-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-80B-250-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-80B-250-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-80B-250-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-80B-300-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-80B-300-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-80B-300-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-80B-300-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-80B-350-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-80B-350-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-80B-350-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-80B-350-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-80B-400-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-80B-400-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-80B-400-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-80B-400-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-80B-450-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-80B-450-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-80B-450-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-80B-450-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-80B-500-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-80B-500-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-80B-500-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-80B-500-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-100B-25-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-100B-25-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-100B-25-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-100B-25-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-100B-50-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-100B-50-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-100B-50-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-100B-50-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-100B-75-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-100B-75-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-100B-75-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-100B-75-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-100B-100-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-100B-100-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-100B-100-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-100B-100-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-100B-150-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-100B-150-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-100B-150-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-100B-150-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-100B-200-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-100B-200-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-100B-200-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-100B-200-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-100B-250-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-100B-250-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-100B-250-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-100B-250-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-100B-300-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-100B-300-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-100B-300-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-100B-300-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-100B-350-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-100B-350-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-100B-350-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-100B-350-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-100B-400-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-100B-400-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-100B-400-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-100B-400-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-100B-450-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-100B-450-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-100B-450-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-100B-450-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TA-100B-500-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TA-100B-500-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TA-100B-500-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TA-100B-500-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-63B-25-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TB-63B-25-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TB-63B-25-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TB-63B-25-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TB-63B-50-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TB-63B-50-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TB-63B-50-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TB-63B-50-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TB-63B-75-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TB-63B-75-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TB-63B-75-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TB-63B-75-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TB-63B-100-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TB-63B-100-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TB-63B-100-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TB-63B-100-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TB-63B-150-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TB-63B-150-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TB-63B-150-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TB-63B-150-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TB-63B-200-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TB-63B-200-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TB-63B-200-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TB-63B-200-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TB-63B-250-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TB-63B-250-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TB-63B-250-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TB-63B-250-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TB-63B-300-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TB-63B-300-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TB-63B-300-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TB-63B-300-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TB-63B-350-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TB-63B-350-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TB-63B-350-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TB-63B-350-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TB-63B-400-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TB-63B-400-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TB-63B-400-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TB-63B-400-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TB-63B-450-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TB-63B-450-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TB-63B-450-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TB-63B-450-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TB-63B-500-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TB-63B-500-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TB-63B-500-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TB-63B-500-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TB-80B-25-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-80B-25-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-80B-25-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-80B-25-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-80B-50-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-80B-50-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-80B-50-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-80B-50-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-80B-75-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-80B-75-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-80B-75-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-80B-75-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-80B-100-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-80B-100-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-80B-100-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-80B-100-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-80B-150-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-80B-150-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-80B-150-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-80B-150-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-80B-200-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-80B-200-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-80B-200-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-80B-200-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-80B-250-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-80B-250-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-80B-250-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-80B-250-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-80B-300-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-80B-300-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-80B-300-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-80B-300-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-80B-350-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-80B-350-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-80B-350-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-80B-350-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-80B-400-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-80B-400-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-80B-400-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-80B-400-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-80B-450-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-80B-450-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-80B-450-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-80B-450-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-80B-500-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-80B-500-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-80B-500-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-80B-500-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-100B-25-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-100B-25-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-100B-25-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-100B-25-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-100B-50-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-100B-50-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-100B-50-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-100B-50-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-100B-75-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-100B-75-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-100B-75-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-100B-75-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-100B-100-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-100B-100-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-100B-100-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-100B-100-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-100B-150-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-100B-150-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-100B-150-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-100B-150-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-100B-200-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-100B-200-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-100B-200-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-100B-200-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-100B-250-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-100B-250-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-100B-250-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-100B-250-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-100B-300-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-100B-300-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-100B-300-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-100B-300-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-100B-350-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-100B-350-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-100B-350-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-100B-350-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-100B-400-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-100B-400-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-100B-400-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-100B-400-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-100B-450-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-100B-450-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-100B-450-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-100B-450-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TB-100B-500-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TB-100B-500-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TB-100B-500-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TB-100B-500-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-63B-25-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TF-63B-25-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TF-63B-25-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TF-63B-25-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TF-63B-50-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TF-63B-50-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TF-63B-50-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TF-63B-50-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TF-63B-75-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TF-63B-75-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TF-63B-75-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TF-63B-75-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TF-63B-100-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TF-63B-100-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TF-63B-100-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TF-63B-100-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TF-63B-150-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TF-63B-150-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TF-63B-150-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TF-63B-150-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TF-63B-200-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TF-63B-200-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TF-63B-200-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TF-63B-200-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TF-63B-250-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TF-63B-250-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TF-63B-250-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TF-63B-250-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TF-63B-300-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TF-63B-300-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TF-63B-300-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TF-63B-300-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TF-63B-350-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TF-63B-350-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TF-63B-350-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TF-63B-350-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TF-63B-400-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TF-63B-400-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TF-63B-400-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TF-63B-400-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TF-63B-450-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TF-63B-450-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TF-63B-450-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TF-63B-450-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TF-63B-500-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TF-63B-500-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TF-63B-500-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TF-63B-500-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TF-80B-25-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-80B-25-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-80B-25-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-80B-25-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-80B-50-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-80B-50-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-80B-50-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-80B-50-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-80B-75-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-80B-75-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-80B-75-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-80B-75-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-80B-100-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-80B-100-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-80B-100-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-80B-100-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-80B-150-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-80B-150-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-80B-150-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-80B-150-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-80B-200-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-80B-200-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-80B-200-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-80B-200-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-80B-250-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-80B-250-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-80B-250-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-80B-250-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-80B-300-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-80B-300-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-80B-300-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-80B-300-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-80B-350-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-80B-350-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-80B-350-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-80B-350-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-80B-400-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-80B-400-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-80B-400-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-80B-400-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-80B-450-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-80B-450-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-80B-450-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-80B-450-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-80B-500-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-80B-500-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-80B-500-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-80B-500-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-100B-25-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-100B-25-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-100B-25-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-100B-25-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-100B-50-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-100B-50-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-100B-50-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-100B-50-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-100B-75-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-100B-75-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-100B-75-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-100B-75-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-100B-100-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-100B-100-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-100B-100-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-100B-100-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-100B-150-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-100B-150-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-100B-150-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-100B-150-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-100B-200-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-100B-200-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-100B-200-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-100B-200-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-100B-250-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-100B-250-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-100B-250-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-100B-250-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-100B-300-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-100B-300-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-100B-300-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-100B-300-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-100B-350-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-100B-350-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-100B-350-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-100B-350-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-100B-400-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-100B-400-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-100B-400-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-100B-400-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-100B-450-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-100B-450-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-100B-450-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-100B-450-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TF-100B-500-25		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TF-100B-500-50		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TF-100B-500-75		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TF-100B-500-100		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-63B-25-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TD-63B-25-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TD-63B-25-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TD-63B-25-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TD-63B-50-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TD-63B-50-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TD-63B-50-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TD-63B-50-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TD-63B-75-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TD-63B-75-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TD-63B-75-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TD-63B-75-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TD-63B-100-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TD-63B-100-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TD-63B-100-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TD-63B-100-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TD-63B-150-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TD-63B-150-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TD-63B-150-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TD-63B-150-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TD-63B-200-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TD-63B-200-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TD-63B-200-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TD-63B-200-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TD-63B-250-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TD-63B-250-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TD-63B-250-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TD-63B-250-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TD-63B-300-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TD-63B-300-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TD-63B-300-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TD-63B-300-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TD-63B-350-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TD-63B-350-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TD-63B-350-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TD-63B-350-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TD-63B-400-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TD-63B-400-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TD-63B-400-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TD-63B-400-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TD-63B-450-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TD-63B-450-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TD-63B-450-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TD-63B-450-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TD-63B-500-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TD-63B-500-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TD-63B-500-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TD-63B-500-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TD-80B-25-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-80B-25-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-80B-25-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-80B-25-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-80B-50-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-80B-50-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-80B-50-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-80B-50-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-80B-75-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-80B-75-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-80B-75-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-80B-75-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-80B-100-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-80B-100-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-80B-100-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-80B-100-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-80B-150-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-80B-150-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-80B-150-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-80B-150-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-80B-200-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-80B-200-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-80B-200-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-80B-200-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-80B-250-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-80B-250-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-80B-250-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-80B-250-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-80B-300-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-80B-300-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-80B-300-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-80B-300-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-80B-350-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-80B-350-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-80B-350-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-80B-350-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-80B-400-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-80B-400-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-80B-400-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-80B-400-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-80B-450-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-80B-450-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-80B-450-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-80B-450-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-80B-500-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-80B-500-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-80B-500-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-80B-500-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-100B-25-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-100B-25-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-100B-25-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-100B-25-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-100B-50-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-100B-50-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-100B-50-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-100B-50-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-100B-75-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-100B-75-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-100B-75-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-100B-75-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-100B-100-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-100B-100-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-100B-100-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-100B-100-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-100B-150-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-100B-150-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-100B-150-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-100B-150-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-100B-200-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-100B-200-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-100B-200-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-100B-200-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-100B-250-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-100B-250-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-100B-250-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-100B-250-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-100B-300-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-100B-300-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-100B-300-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-100B-300-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-100B-350-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-100B-350-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-100B-350-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-100B-350-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-100B-400-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-100B-400-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-100B-400-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-100B-400-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-100B-450-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-100B-450-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-100B-450-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-100B-450-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TD-100B-500-25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TD-100B-500-50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TD-100B-500-75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TD-100B-500-100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-63B-25-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TE-63B-25-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TE-63B-25-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TE-63B-25-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TE-63B-50-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TE-63B-50-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TE-63B-50-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TE-63B-50-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TE-63B-75-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TE-63B-75-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TE-63B-75-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TE-63B-75-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TE-63B-100-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TE-63B-100-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TE-63B-100-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TE-63B-100-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TE-63B-150-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TE-63B-150-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TE-63B-150-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TE-63B-150-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TE-63B-200-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TE-63B-200-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TE-63B-200-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TE-63B-200-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TE-63B-250-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TE-63B-250-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TE-63B-250-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TE-63B-250-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TE-63B-300-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TE-63B-300-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TE-63B-300-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TE-63B-300-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TE-63B-350-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TE-63B-350-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TE-63B-350-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TE-63B-350-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TE-63B-400-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TE-63B-400-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TE-63B-400-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TE-63B-400-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TE-63B-450-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TE-63B-450-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TE-63B-450-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TE-63B-450-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TE-63B-500-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
SCA2-P-TE-63B-500-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
SCA2-P-TE-63B-500-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
SCA2-P-TE-63B-500-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
SCA2-P-TE-80B-25-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-80B-25-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-80B-25-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-80B-25-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-80B-50-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-80B-50-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-80B-50-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-80B-50-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-80B-75-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-80B-75-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-80B-75-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-80B-75-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-80B-100-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-80B-100-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-80B-100-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-80B-100-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-80B-150-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-80B-150-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-80B-150-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-80B-150-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-80B-200-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-80B-200-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-80B-200-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-80B-200-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-80B-250-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-80B-250-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-80B-250-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-80B-250-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-80B-300-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-80B-300-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-80B-300-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-80B-300-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-80B-350-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-80B-350-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-80B-350-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-80B-350-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-80B-400-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-80B-400-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-80B-400-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-80B-400-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-80B-450-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-80B-450-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-80B-450-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-80B-450-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-80B-500-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-80B-500-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-80B-500-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-80B-500-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-100B-25-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-100B-25-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-100B-25-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-100B-25-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-100B-50-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-100B-50-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-100B-50-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-100B-50-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-100B-75-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-100B-75-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-100B-75-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-100B-75-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-100B-100-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-100B-100-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-100B-100-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-100B-100-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-100B-150-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-100B-150-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-100B-150-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-100B-150-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-100B-200-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-100B-200-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-100B-200-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-100B-200-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-100B-250-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-100B-250-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-100B-250-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-100B-250-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-100B-300-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-100B-300-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-100B-300-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-100B-300-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-100B-350-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-100B-350-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-100B-350-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-100B-350-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-100B-400-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-100B-400-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-100B-400-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-100B-400-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-100B-450-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-100B-450-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-100B-450-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-100B-450-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCA2-P-TE-100B-500-25		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCA2-P-TE-100B-500-50		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCA2-P-TE-100B-500-75		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCA2-P-TE-100B-500-100		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2

Pneumatic CylindersCKD

1440 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCA2-P Selex Cylinder (Stroke Adjust Extend, Bore 63-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (1440)

SCA2-P-00-63B-25-25, SCA2-P-00-63B-25-50, SCA2-P-00-63B-25-75, SCA2-P-00-63B-25-100, SCA2-P-00-63B-50-25, SCA2-P-00-63B-50-50, SCA2-P-00-63B-50-75, SCA2-P-00-63B-50-100, SCA2-P-00-63B-75-25, SCA2-P-00-63B-75-50 + 1430 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCA2-P-00-63B-25-25	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-00-63B-25-50	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-00-63B-25-75	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-00-63B-25-100	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-00-63B-50-25	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-00-63B-50-50	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-00-63B-50-75	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-00-63B-50-100	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-00-63B-75-25	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-00-63B-75-50	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-00-63B-75-75	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-00-63B-75-100	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-00-63B-100-25	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-00-63B-100-50	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-00-63B-100-75	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-00-63B-100-100	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-00-63B-150-25	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-00-63B-150-50	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-00-63B-150-75	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-00-63B-150-100	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-00-63B-200-25	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-00-63B-200-50	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-00-63B-200-75	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-00-63B-200-100	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-00-63B-250-25	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-00-63B-250-50	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-00-63B-250-75	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-00-63B-250-100	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-00-63B-300-25	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-00-63B-300-50	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-00-63B-300-75	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-00-63B-300-100	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-00-63B-350-25	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-00-63B-350-50	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-00-63B-350-75	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-00-63B-350-100	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-00-63B-400-25	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-00-63B-400-50	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-00-63B-400-75	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-00-63B-400-100	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-00-63B-450-25	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-00-63B-450-50	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-00-63B-450-75	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-00-63B-450-100	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-00-63B-500-25	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-00-63B-500-50	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-00-63B-500-75	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-00-63B-500-100	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-00-80B-25-25	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-80B-25-50	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-80B-25-75	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-80B-25-100	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-80B-50-25	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-80B-50-50	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-80B-50-75	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-80B-50-100	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-80B-75-25	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-80B-75-50	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-80B-75-75	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-80B-75-100	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-80B-100-25	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-80B-100-50	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-80B-100-75	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-80B-100-100	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-80B-150-25	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-80B-150-50	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-80B-150-75	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-80B-150-100	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-80B-200-25	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-80B-200-50	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-80B-200-75	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-80B-200-100	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-80B-250-25	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-80B-250-50	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-80B-250-75	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-80B-250-100	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-80B-300-25	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-80B-300-50	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-80B-300-75	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-80B-300-100	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-80B-350-25	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-80B-350-50	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-80B-350-75	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-80B-350-100	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-80B-400-25	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-80B-400-50	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-80B-400-75	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-80B-400-100	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-80B-450-25	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-80B-450-50	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-80B-450-75	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-80B-450-100	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-80B-500-25	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-80B-500-50	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-80B-500-75	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-80B-500-100	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-100B-25-25	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-100B-25-50	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-100B-25-75	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-100B-25-100	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-100B-50-25	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-100B-50-50	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-100B-50-75	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-100B-50-100	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-100B-75-25	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-100B-75-50	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-100B-75-75	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-100B-75-100	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-100B-100-25	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-100B-100-50	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-100B-100-75	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-100B-100-100	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-100B-150-25	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-100B-150-50	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-100B-150-75	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-100B-150-100	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-100B-200-25	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-100B-200-50	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-100B-200-75	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-100B-200-100	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-100B-250-25	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-100B-250-50	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-100B-250-75	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-100B-250-100	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-100B-300-25	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-100B-300-50	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-100B-300-75	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-100B-300-100	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-100B-350-25	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-100B-350-50	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-100B-350-75	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-100B-350-100	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-100B-400-25	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-100B-400-50	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-100B-400-75	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-100B-400-100	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-100B-450-25	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-100B-450-50	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-100B-450-75	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-100B-450-100	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-00-100B-500-25	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-00-100B-500-50	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-00-100B-500-75	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-00-100B-500-100	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-63B-25-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-LB-63B-25-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-LB-63B-25-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-LB-63B-25-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-LB-63B-50-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-LB-63B-50-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-LB-63B-50-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-LB-63B-50-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-LB-63B-75-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-LB-63B-75-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-LB-63B-75-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-LB-63B-75-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-LB-63B-100-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-LB-63B-100-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-LB-63B-100-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-LB-63B-100-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-LB-63B-150-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-LB-63B-150-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-LB-63B-150-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-LB-63B-150-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-LB-63B-200-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-LB-63B-200-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-LB-63B-200-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-LB-63B-200-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-LB-63B-250-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-LB-63B-250-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-LB-63B-250-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-LB-63B-250-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-LB-63B-300-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-LB-63B-300-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-LB-63B-300-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-LB-63B-300-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-LB-63B-350-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-LB-63B-350-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-LB-63B-350-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-LB-63B-350-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-LB-63B-400-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-LB-63B-400-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-LB-63B-400-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-LB-63B-400-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-LB-63B-450-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-LB-63B-450-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-LB-63B-450-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-LB-63B-450-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-LB-63B-500-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-LB-63B-500-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-LB-63B-500-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-LB-63B-500-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-LB-80B-25-25	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-80B-25-50	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-80B-25-75	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-80B-25-100	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-80B-50-25	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-80B-50-50	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-80B-50-75	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-80B-50-100	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-80B-75-25	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-80B-75-50	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-80B-75-75	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-80B-75-100	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-80B-100-25	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-80B-100-50	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-80B-100-75	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-80B-100-100	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-80B-150-25	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-80B-150-50	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-80B-150-75	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-80B-150-100	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-80B-200-25	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-80B-200-50	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-80B-200-75	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-80B-200-100	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-80B-250-25	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-80B-250-50	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-80B-250-75	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-80B-250-100	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-80B-300-25	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-80B-300-50	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-80B-300-75	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-80B-300-100	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-80B-350-25	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-80B-350-50	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-80B-350-75	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-80B-350-100	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-80B-400-25	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-80B-400-50	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-80B-400-75	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-80B-400-100	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-80B-450-25	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-80B-450-50	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-80B-450-75	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-80B-450-100	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-80B-500-25	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-80B-500-50	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-80B-500-75	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-80B-500-100	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-100B-25-25	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-100B-25-50	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-100B-25-75	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-100B-25-100	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-100B-50-25	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-100B-50-50	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-100B-50-75	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-100B-50-100	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-100B-75-25	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-100B-75-50	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-100B-75-75	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-100B-75-100	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-100B-100-25	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-100B-100-50	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-100B-100-75	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-100B-100-100	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-100B-150-25	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-100B-150-50	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-100B-150-75	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-100B-150-100	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-100B-200-25	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-100B-200-50	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-100B-200-75	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-100B-200-100	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-100B-250-25	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-100B-250-50	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-100B-250-75	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-100B-250-100	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-100B-300-25	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-100B-300-50	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-100B-300-75	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-100B-300-100	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-100B-350-25	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-100B-350-50	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-100B-350-75	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-100B-350-100	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-100B-400-25	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-100B-400-50	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-100B-400-75	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-100B-400-100	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-100B-450-25	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-100B-450-50	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-100B-450-75	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-100B-450-100	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-LB-100B-500-25	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-LB-100B-500-50	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-LB-100B-500-75	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-LB-100B-500-100	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-63B-25-25	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FA-63B-25-50	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FA-63B-25-75	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FA-63B-25-100	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FA-63B-50-25	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FA-63B-50-50	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FA-63B-50-75	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FA-63B-50-100	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FA-63B-75-25	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FA-63B-75-50	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FA-63B-75-75	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FA-63B-75-100	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FA-63B-100-25	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FA-63B-100-50	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FA-63B-100-75	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FA-63B-100-100	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FA-63B-150-25	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FA-63B-150-50	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FA-63B-150-75	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FA-63B-150-100	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FA-63B-200-25	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FA-63B-200-50	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FA-63B-200-75	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FA-63B-200-100	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FA-63B-250-25	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FA-63B-250-50	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FA-63B-250-75	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FA-63B-250-100	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FA-63B-300-25	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FA-63B-300-50	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FA-63B-300-75	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FA-63B-300-100	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FA-63B-350-25	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FA-63B-350-50	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FA-63B-350-75	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FA-63B-350-100	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FA-63B-400-25	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FA-63B-400-50	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FA-63B-400-75	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FA-63B-400-100	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FA-63B-450-25	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FA-63B-450-50	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FA-63B-450-75	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FA-63B-450-100	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FA-63B-500-25	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FA-63B-500-50	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FA-63B-500-75	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FA-63B-500-100	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FA-80B-25-25	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-80B-25-50	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-80B-25-75	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-80B-25-100	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-80B-50-25	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-80B-50-50	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-80B-50-75	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-80B-50-100	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-80B-75-25	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-80B-75-50	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-80B-75-75	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-80B-75-100	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-80B-100-25	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-80B-100-50	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-80B-100-75	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-80B-100-100	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-80B-150-25	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-80B-150-50	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-80B-150-75	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-80B-150-100	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-80B-200-25	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-80B-200-50	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-80B-200-75	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-80B-200-100	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-80B-250-25	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-80B-250-50	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-80B-250-75	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-80B-250-100	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-80B-300-25	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-80B-300-50	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-80B-300-75	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-80B-300-100	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-80B-350-25	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-80B-350-50	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-80B-350-75	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-80B-350-100	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-80B-400-25	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-80B-400-50	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-80B-400-75	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-80B-400-100	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-80B-450-25	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-80B-450-50	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-80B-450-75	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-80B-450-100	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-80B-500-25	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-80B-500-50	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-80B-500-75	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-80B-500-100	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-100B-25-25	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-100B-25-50	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-100B-25-75	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-100B-25-100	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-100B-50-25	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-100B-50-50	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-100B-50-75	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-100B-50-100	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-100B-75-25	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-100B-75-50	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-100B-75-75	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-100B-75-100	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-100B-100-25	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-100B-100-50	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-100B-100-75	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-100B-100-100	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-100B-150-25	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-100B-150-50	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-100B-150-75	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-100B-150-100	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-100B-200-25	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-100B-200-50	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-100B-200-75	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-100B-200-100	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-100B-250-25	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-100B-250-50	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-100B-250-75	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-100B-250-100	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-100B-300-25	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-100B-300-50	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-100B-300-75	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-100B-300-100	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-100B-350-25	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-100B-350-50	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-100B-350-75	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-100B-350-100	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-100B-400-25	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-100B-400-50	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-100B-400-75	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-100B-400-100	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-100B-450-25	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-100B-450-50	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-100B-450-75	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-100B-450-100	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FA-100B-500-25	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FA-100B-500-50	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FA-100B-500-75	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FA-100B-500-100	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-63B-25-25	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FB-63B-25-50	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FB-63B-25-75	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FB-63B-25-100	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FB-63B-50-25	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FB-63B-50-50	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FB-63B-50-75	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FB-63B-50-100	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FB-63B-75-25	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FB-63B-75-50	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FB-63B-75-75	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FB-63B-75-100	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FB-63B-100-25	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FB-63B-100-50	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FB-63B-100-75	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FB-63B-100-100	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FB-63B-150-25	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FB-63B-150-50	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FB-63B-150-75	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FB-63B-150-100	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FB-63B-200-25	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FB-63B-200-50	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FB-63B-200-75	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FB-63B-200-100	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FB-63B-250-25	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FB-63B-250-50	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FB-63B-250-75	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FB-63B-250-100	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FB-63B-300-25	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FB-63B-300-50	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FB-63B-300-75	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FB-63B-300-100	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FB-63B-350-25	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FB-63B-350-50	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FB-63B-350-75	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FB-63B-350-100	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FB-63B-400-25	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FB-63B-400-50	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FB-63B-400-75	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FB-63B-400-100	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FB-63B-450-25	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FB-63B-450-50	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FB-63B-450-75	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FB-63B-450-100	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FB-63B-500-25	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-FB-63B-500-50	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-FB-63B-500-75	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-FB-63B-500-100	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-FB-80B-25-25	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-80B-25-50	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-80B-25-75	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-80B-25-100	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-80B-50-25	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-80B-50-50	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-80B-50-75	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-80B-50-100	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-80B-75-25	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-80B-75-50	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-80B-75-75	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-80B-75-100	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-80B-100-25	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-80B-100-50	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-80B-100-75	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-80B-100-100	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-80B-150-25	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-80B-150-50	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-80B-150-75	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-80B-150-100	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-80B-200-25	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-80B-200-50	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-80B-200-75	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-80B-200-100	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-80B-250-25	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-80B-250-50	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-80B-250-75	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-80B-250-100	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-80B-300-25	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-80B-300-50	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-80B-300-75	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-80B-300-100	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-80B-350-25	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-80B-350-50	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-80B-350-75	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-80B-350-100	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-80B-400-25	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-80B-400-50	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-80B-400-75	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-80B-400-100	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-80B-450-25	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-80B-450-50	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-80B-450-75	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-80B-450-100	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-80B-500-25	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-80B-500-50	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-80B-500-75	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-80B-500-100	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-100B-25-25	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-100B-25-50	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-100B-25-75	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-100B-25-100	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-100B-50-25	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-100B-50-50	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-100B-50-75	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-100B-50-100	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-100B-75-25	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-100B-75-50	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-100B-75-75	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-100B-75-100	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-100B-100-25	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-100B-100-50	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-100B-100-75	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-100B-100-100	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-100B-150-25	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-100B-150-50	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-100B-150-75	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-100B-150-100	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-100B-200-25	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-100B-200-50	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-100B-200-75	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-100B-200-100	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-100B-250-25	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-100B-250-50	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-100B-250-75	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-100B-250-100	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-100B-300-25	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-100B-300-50	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-100B-300-75	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-100B-300-100	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-100B-350-25	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-100B-350-50	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-100B-350-75	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-100B-350-100	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-100B-400-25	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-100B-400-50	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-100B-400-75	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-100B-400-100	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-100B-450-25	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-100B-450-50	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-100B-450-75	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-100B-450-100	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-FB-100B-500-25	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-FB-100B-500-50	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-FB-100B-500-75	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-FB-100B-500-100	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-63B-25-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TC-63B-25-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TC-63B-25-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TC-63B-25-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TC-63B-50-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TC-63B-50-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TC-63B-50-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TC-63B-50-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TC-63B-75-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TC-63B-75-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TC-63B-75-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TC-63B-75-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TC-63B-100-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TC-63B-100-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TC-63B-100-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TC-63B-100-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TC-63B-150-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TC-63B-150-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TC-63B-150-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TC-63B-150-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TC-63B-200-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TC-63B-200-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TC-63B-200-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TC-63B-200-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TC-63B-250-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TC-63B-250-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TC-63B-250-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TC-63B-250-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TC-63B-300-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TC-63B-300-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TC-63B-300-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TC-63B-300-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TC-63B-350-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TC-63B-350-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TC-63B-350-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TC-63B-350-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TC-63B-400-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TC-63B-400-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TC-63B-400-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TC-63B-400-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TC-63B-450-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TC-63B-450-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TC-63B-450-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TC-63B-450-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TC-63B-500-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TC-63B-500-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TC-63B-500-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TC-63B-500-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TC-80B-25-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-80B-25-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-80B-25-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-80B-25-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-80B-50-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-80B-50-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-80B-50-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-80B-50-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-80B-75-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-80B-75-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-80B-75-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-80B-75-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-80B-100-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-80B-100-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-80B-100-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-80B-100-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-80B-150-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-80B-150-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-80B-150-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-80B-150-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-80B-200-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-80B-200-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-80B-200-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-80B-200-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-80B-250-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-80B-250-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-80B-250-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-80B-250-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-80B-300-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-80B-300-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-80B-300-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-80B-300-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-80B-350-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-80B-350-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-80B-350-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-80B-350-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-80B-400-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-80B-400-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-80B-400-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-80B-400-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-80B-450-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-80B-450-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-80B-450-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-80B-450-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-80B-500-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-80B-500-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-80B-500-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-80B-500-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-100B-25-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-100B-25-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-100B-25-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-100B-25-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-100B-50-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-100B-50-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-100B-50-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-100B-50-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-100B-75-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-100B-75-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-100B-75-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-100B-75-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-100B-100-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-100B-100-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-100B-100-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-100B-100-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-100B-150-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-100B-150-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-100B-150-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-100B-150-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-100B-200-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-100B-200-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-100B-200-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-100B-200-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-100B-250-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-100B-250-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-100B-250-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-100B-250-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-100B-300-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-100B-300-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-100B-300-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-100B-300-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-100B-350-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-100B-350-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-100B-350-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-100B-350-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-100B-400-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-100B-400-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-100B-400-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-100B-400-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-100B-450-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-100B-450-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-100B-450-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-100B-450-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TC-100B-500-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TC-100B-500-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TC-100B-500-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TC-100B-500-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-63B-25-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TA-63B-25-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TA-63B-25-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TA-63B-25-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TA-63B-50-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TA-63B-50-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TA-63B-50-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TA-63B-50-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TA-63B-75-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TA-63B-75-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TA-63B-75-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TA-63B-75-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TA-63B-100-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TA-63B-100-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TA-63B-100-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TA-63B-100-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TA-63B-150-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TA-63B-150-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TA-63B-150-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TA-63B-150-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TA-63B-200-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TA-63B-200-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TA-63B-200-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TA-63B-200-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TA-63B-250-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TA-63B-250-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TA-63B-250-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TA-63B-250-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TA-63B-300-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TA-63B-300-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TA-63B-300-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TA-63B-300-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TA-63B-350-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TA-63B-350-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TA-63B-350-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TA-63B-350-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TA-63B-400-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TA-63B-400-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TA-63B-400-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TA-63B-400-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TA-63B-450-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TA-63B-450-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TA-63B-450-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TA-63B-450-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TA-63B-500-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TA-63B-500-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TA-63B-500-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TA-63B-500-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TA-80B-25-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-80B-25-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-80B-25-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-80B-25-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-80B-50-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-80B-50-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-80B-50-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-80B-50-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-80B-75-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-80B-75-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-80B-75-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-80B-75-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-80B-100-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-80B-100-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-80B-100-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-80B-100-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-80B-150-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-80B-150-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-80B-150-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-80B-150-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-80B-200-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-80B-200-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-80B-200-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-80B-200-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-80B-250-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-80B-250-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-80B-250-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-80B-250-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-80B-300-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-80B-300-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-80B-300-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-80B-300-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-80B-350-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-80B-350-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-80B-350-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-80B-350-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-80B-400-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-80B-400-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-80B-400-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-80B-400-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-80B-450-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-80B-450-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-80B-450-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-80B-450-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-80B-500-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-80B-500-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-80B-500-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-80B-500-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-100B-25-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-100B-25-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-100B-25-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-100B-25-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-100B-50-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-100B-50-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-100B-50-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-100B-50-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-100B-75-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-100B-75-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-100B-75-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-100B-75-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-100B-100-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-100B-100-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-100B-100-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-100B-100-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-100B-150-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-100B-150-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-100B-150-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-100B-150-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-100B-200-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-100B-200-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-100B-200-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-100B-200-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-100B-250-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-100B-250-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-100B-250-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-100B-250-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-100B-300-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-100B-300-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-100B-300-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-100B-300-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-100B-350-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-100B-350-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-100B-350-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-100B-350-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-100B-400-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-100B-400-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-100B-400-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-100B-400-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-100B-450-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-100B-450-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-100B-450-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-100B-450-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TA-100B-500-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TA-100B-500-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TA-100B-500-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TA-100B-500-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-63B-25-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TB-63B-25-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TB-63B-25-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TB-63B-25-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TB-63B-50-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TB-63B-50-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TB-63B-50-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TB-63B-50-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TB-63B-75-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TB-63B-75-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TB-63B-75-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TB-63B-75-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TB-63B-100-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TB-63B-100-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TB-63B-100-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TB-63B-100-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TB-63B-150-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TB-63B-150-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TB-63B-150-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TB-63B-150-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TB-63B-200-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TB-63B-200-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TB-63B-200-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TB-63B-200-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TB-63B-250-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TB-63B-250-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TB-63B-250-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TB-63B-250-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TB-63B-300-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TB-63B-300-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TB-63B-300-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TB-63B-300-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TB-63B-350-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TB-63B-350-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TB-63B-350-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TB-63B-350-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TB-63B-400-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TB-63B-400-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TB-63B-400-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TB-63B-400-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TB-63B-450-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TB-63B-450-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TB-63B-450-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TB-63B-450-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TB-63B-500-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TB-63B-500-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TB-63B-500-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TB-63B-500-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TB-80B-25-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-80B-25-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-80B-25-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-80B-25-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-80B-50-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-80B-50-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-80B-50-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-80B-50-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-80B-75-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-80B-75-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-80B-75-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-80B-75-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-80B-100-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-80B-100-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-80B-100-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-80B-100-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-80B-150-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-80B-150-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-80B-150-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-80B-150-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-80B-200-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-80B-200-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-80B-200-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-80B-200-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-80B-250-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-80B-250-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-80B-250-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-80B-250-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-80B-300-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-80B-300-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-80B-300-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-80B-300-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-80B-350-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-80B-350-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-80B-350-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-80B-350-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-80B-400-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-80B-400-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-80B-400-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-80B-400-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-80B-450-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-80B-450-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-80B-450-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-80B-450-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-80B-500-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-80B-500-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-80B-500-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-80B-500-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-100B-25-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-100B-25-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-100B-25-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-100B-25-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-100B-50-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-100B-50-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-100B-50-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-100B-50-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-100B-75-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-100B-75-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-100B-75-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-100B-75-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-100B-100-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-100B-100-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-100B-100-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-100B-100-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-100B-150-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-100B-150-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-100B-150-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-100B-150-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-100B-200-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-100B-200-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-100B-200-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-100B-200-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-100B-250-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-100B-250-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-100B-250-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-100B-250-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-100B-300-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-100B-300-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-100B-300-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-100B-300-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-100B-350-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-100B-350-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-100B-350-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-100B-350-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-100B-400-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-100B-400-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-100B-400-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-100B-400-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-100B-450-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-100B-450-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-100B-450-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-100B-450-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TB-100B-500-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TB-100B-500-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TB-100B-500-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TB-100B-500-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-63B-25-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TF-63B-25-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TF-63B-25-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TF-63B-25-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TF-63B-50-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TF-63B-50-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TF-63B-50-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TF-63B-50-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TF-63B-75-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TF-63B-75-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TF-63B-75-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TF-63B-75-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TF-63B-100-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TF-63B-100-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TF-63B-100-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TF-63B-100-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TF-63B-150-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TF-63B-150-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TF-63B-150-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TF-63B-150-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TF-63B-200-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TF-63B-200-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TF-63B-200-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TF-63B-200-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TF-63B-250-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TF-63B-250-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TF-63B-250-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TF-63B-250-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TF-63B-300-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TF-63B-300-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TF-63B-300-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TF-63B-300-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TF-63B-350-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TF-63B-350-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TF-63B-350-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TF-63B-350-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TF-63B-400-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TF-63B-400-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TF-63B-400-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TF-63B-400-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TF-63B-450-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TF-63B-450-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TF-63B-450-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TF-63B-450-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TF-63B-500-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TF-63B-500-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TF-63B-500-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TF-63B-500-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TF-80B-25-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-80B-25-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-80B-25-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-80B-25-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-80B-50-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-80B-50-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-80B-50-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-80B-50-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-80B-75-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-80B-75-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-80B-75-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-80B-75-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-80B-100-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-80B-100-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-80B-100-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-80B-100-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-80B-150-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-80B-150-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-80B-150-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-80B-150-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-80B-200-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-80B-200-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-80B-200-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-80B-200-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-80B-250-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-80B-250-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-80B-250-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-80B-250-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-80B-300-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-80B-300-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-80B-300-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-80B-300-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-80B-350-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-80B-350-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-80B-350-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-80B-350-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-80B-400-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-80B-400-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-80B-400-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-80B-400-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-80B-450-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-80B-450-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-80B-450-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-80B-450-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-80B-500-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-80B-500-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-80B-500-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-80B-500-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-100B-25-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-100B-25-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-100B-25-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-100B-25-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-100B-50-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-100B-50-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-100B-50-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-100B-50-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-100B-75-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-100B-75-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-100B-75-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-100B-75-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-100B-100-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-100B-100-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-100B-100-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-100B-100-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-100B-150-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-100B-150-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-100B-150-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-100B-150-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-100B-200-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-100B-200-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-100B-200-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-100B-200-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-100B-250-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-100B-250-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-100B-250-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-100B-250-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-100B-300-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-100B-300-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-100B-300-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-100B-300-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-100B-350-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-100B-350-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-100B-350-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-100B-350-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-100B-400-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-100B-400-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-100B-400-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-100B-400-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-100B-450-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-100B-450-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-100B-450-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-100B-450-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TF-100B-500-25	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TF-100B-500-50	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TF-100B-500-75	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TF-100B-500-100	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-63B-25-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TD-63B-25-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TD-63B-25-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TD-63B-25-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TD-63B-50-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TD-63B-50-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TD-63B-50-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TD-63B-50-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TD-63B-75-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TD-63B-75-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TD-63B-75-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TD-63B-75-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TD-63B-100-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TD-63B-100-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TD-63B-100-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TD-63B-100-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TD-63B-150-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TD-63B-150-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TD-63B-150-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TD-63B-150-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TD-63B-200-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TD-63B-200-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TD-63B-200-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TD-63B-200-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TD-63B-250-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TD-63B-250-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TD-63B-250-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TD-63B-250-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TD-63B-300-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TD-63B-300-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TD-63B-300-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TD-63B-300-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TD-63B-350-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TD-63B-350-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TD-63B-350-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TD-63B-350-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TD-63B-400-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TD-63B-400-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TD-63B-400-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TD-63B-400-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TD-63B-450-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TD-63B-450-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TD-63B-450-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TD-63B-450-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TD-63B-500-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TD-63B-500-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TD-63B-500-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TD-63B-500-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TD-80B-25-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-80B-25-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-80B-25-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-80B-25-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-80B-50-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-80B-50-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-80B-50-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-80B-50-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-80B-75-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-80B-75-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-80B-75-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-80B-75-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-80B-100-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-80B-100-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-80B-100-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-80B-100-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-80B-150-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-80B-150-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-80B-150-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-80B-150-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-80B-200-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-80B-200-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-80B-200-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-80B-200-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-80B-250-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-80B-250-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-80B-250-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-80B-250-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-80B-300-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-80B-300-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-80B-300-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-80B-300-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-80B-350-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-80B-350-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-80B-350-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-80B-350-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-80B-400-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-80B-400-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-80B-400-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-80B-400-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-80B-450-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-80B-450-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-80B-450-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-80B-450-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-80B-500-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-80B-500-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-80B-500-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-80B-500-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-100B-25-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-100B-25-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-100B-25-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-100B-25-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-100B-50-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-100B-50-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-100B-50-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-100B-50-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-100B-75-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-100B-75-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-100B-75-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-100B-75-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-100B-100-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-100B-100-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-100B-100-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-100B-100-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-100B-150-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-100B-150-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-100B-150-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-100B-150-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-100B-200-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-100B-200-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-100B-200-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-100B-200-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-100B-250-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-100B-250-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-100B-250-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-100B-250-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-100B-300-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-100B-300-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-100B-300-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-100B-300-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-100B-350-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-100B-350-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-100B-350-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-100B-350-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-100B-400-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-100B-400-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-100B-400-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-100B-400-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-100B-450-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-100B-450-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-100B-450-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-100B-450-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TD-100B-500-25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TD-100B-500-50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TD-100B-500-75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TD-100B-500-100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-63B-25-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TE-63B-25-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TE-63B-25-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TE-63B-25-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TE-63B-50-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TE-63B-50-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TE-63B-50-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TE-63B-50-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TE-63B-75-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TE-63B-75-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TE-63B-75-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TE-63B-75-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TE-63B-100-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TE-63B-100-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TE-63B-100-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TE-63B-100-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TE-63B-150-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TE-63B-150-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TE-63B-150-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TE-63B-150-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TE-63B-200-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TE-63B-200-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TE-63B-200-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TE-63B-200-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TE-63B-250-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TE-63B-250-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TE-63B-250-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TE-63B-250-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TE-63B-300-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TE-63B-300-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TE-63B-300-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TE-63B-300-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TE-63B-350-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TE-63B-350-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TE-63B-350-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TE-63B-350-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TE-63B-400-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TE-63B-400-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TE-63B-400-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TE-63B-400-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TE-63B-450-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TE-63B-450-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TE-63B-450-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TE-63B-450-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TE-63B-500-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc3/8
	SCA2-P-TE-63B-500-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc3/8
	SCA2-P-TE-63B-500-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc3/8
	SCA2-P-TE-63B-500-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc3/8
	SCA2-P-TE-80B-25-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-80B-25-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-80B-25-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-80B-25-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-80B-50-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-80B-50-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-80B-50-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-80B-50-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-80B-75-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-80B-75-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-80B-75-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-80B-75-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-80B-100-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-80B-100-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-80B-100-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-80B-100-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-80B-150-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-80B-150-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-80B-150-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-80B-150-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-80B-200-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-80B-200-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-80B-200-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-80B-200-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-80B-250-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-80B-250-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-80B-250-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-80B-250-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-80B-300-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-80B-300-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-80B-300-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-80B-300-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-80B-350-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-80B-350-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-80B-350-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-80B-350-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-80B-400-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-80B-400-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-80B-400-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-80B-400-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-80B-450-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-80B-450-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-80B-450-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-80B-450-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-80B-500-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-80B-500-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-80B-500-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-80B-500-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-100B-25-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-100B-25-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-100B-25-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-100B-25-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 25 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-100B-50-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-100B-50-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-100B-50-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-100B-50-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-100B-75-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-100B-75-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-100B-75-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-100B-75-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-100B-100-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-100B-100-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-100B-100-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-100B-100-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-100B-150-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-100B-150-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-100B-150-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-100B-150-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-100B-200-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-100B-200-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-100B-200-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-100B-200-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-100B-250-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-100B-250-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-100B-250-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-100B-250-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-100B-300-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-100B-300-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-100B-300-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-100B-300-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-100B-350-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-100B-350-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-100B-350-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-100B-350-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-100B-400-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-100B-400-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-100B-400-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-100B-400-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-100B-450-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-100B-450-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-100B-450-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-100B-450-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCA2-P-TE-100B-500-25	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCA2-P-TE-100B-500-50	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCA2-P-TE-100B-500-75	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCA2-P-TE-100B-500-100	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Adjust range: 100 mm \| Port: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCA2-P Selex Cylinder (Stroke Adjust Extend, Bore 63-100)
