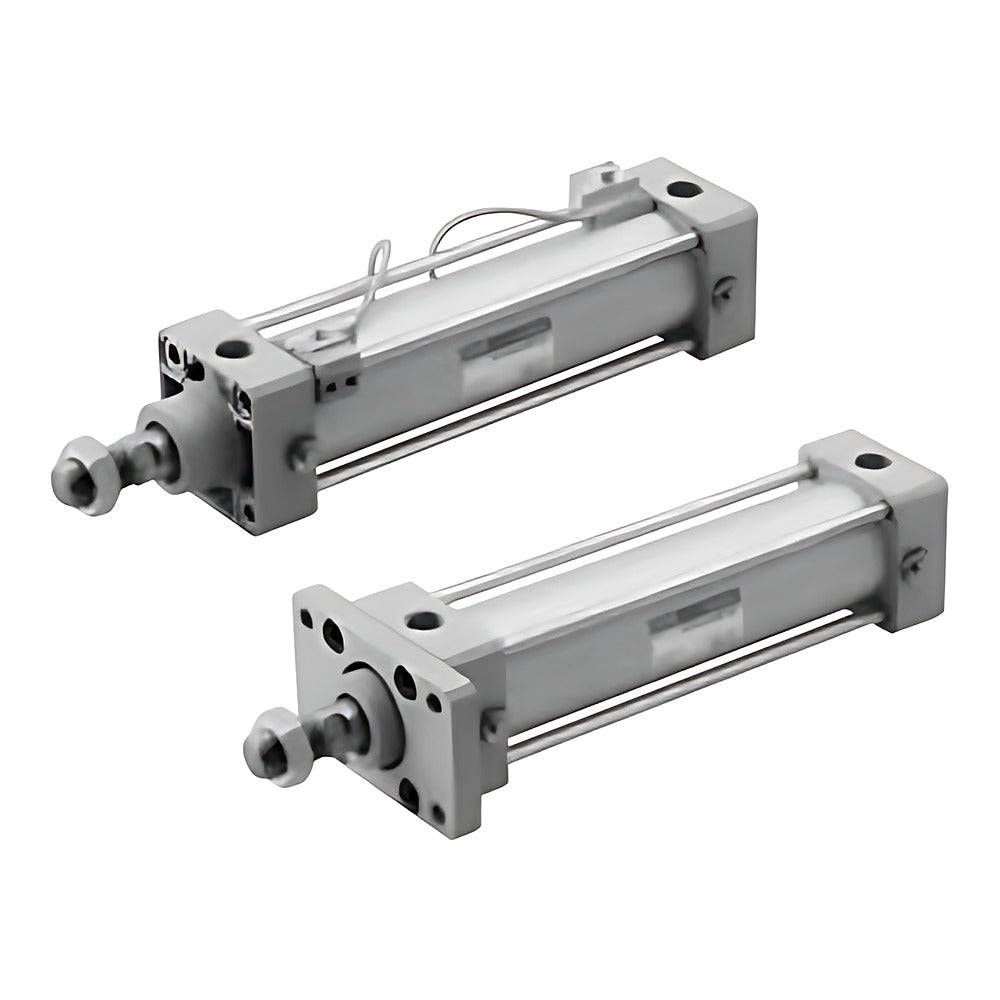

CKD SCA2-Q2 Selex Cylinder (Drop Prevention Lock, Bore 40-100)

CKD SCA2-Q2 Selex cylinder with a mechanical end lock that prevents the load from dropping when air pressure is lost, bore 40 to 100 mm.

Key features

Drop-prevention lock at head end (H) or rod end (R); holding force max. thrust x 0.7
13 mounting styles; TA cannot take rod-end lock, TB cannot take head-end lock; TF/TD/TE not for bore 40
Standard strokes 25 to 500 mm (min. 5 mm); intermediate strokes in 1 mm steps
Listed codes use air cushion both ends (B); R, H, N cushions also available
Manual release M0 (non-locking) / M1 (locking), stainless rod (M), switches and accessories as suffixes

Specifications

Action	Double acting, drop prevention
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.1 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Piston speed	50 to 500 mm/s
Lubrication	Not required
Cushion	Air cushion, both ends (B)
Source	CKD Korea catalog CB-029SK-9, p. 582-612

SCA2-Q2-00-40B-25-H		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-00-40B-25-R		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-00-40B-50-H		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-00-40B-50-R		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-00-40B-75-H		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-00-40B-75-R		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-00-40B-100-H		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-00-40B-100-R		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-00-40B-150-H		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-00-40B-150-R		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-00-40B-200-H		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-00-40B-200-R		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-00-40B-250-H		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-00-40B-250-R		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-00-40B-300-H		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-00-40B-300-R		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-00-40B-350-H		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-00-40B-350-R		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-00-40B-400-H		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-00-40B-400-R		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-00-40B-450-H		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-00-40B-450-R		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-00-40B-500-H		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-00-40B-500-R		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-00-50B-25-H		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-50B-25-R		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-50B-50-H		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-50B-50-R		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-50B-75-H		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-50B-75-R		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-50B-100-H		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-50B-100-R		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-50B-150-H		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-50B-150-R		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-50B-200-H		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-50B-200-R		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-50B-250-H		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-50B-250-R		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-50B-300-H		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-50B-300-R		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-50B-350-H		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-50B-350-R		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-50B-400-H		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-50B-400-R		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-50B-450-H		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-50B-450-R		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-50B-500-H		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-50B-500-R		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-63B-25-H		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-63B-25-R		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-63B-50-H		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-63B-50-R		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-63B-75-H		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-63B-75-R		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-63B-100-H		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-63B-100-R		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-63B-150-H		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-63B-150-R		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-63B-200-H		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-63B-200-R		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-63B-250-H		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-63B-250-R		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-63B-300-H		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-63B-300-R		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-63B-350-H		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-63B-350-R		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-63B-400-H		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-63B-400-R		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-63B-450-H		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-63B-450-R		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-63B-500-H		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-00-63B-500-R		Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-00-80B-25-H		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-80B-25-R		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-80B-50-H		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-80B-50-R		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-80B-75-H		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-80B-75-R		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-80B-100-H		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-80B-100-R		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-80B-150-H		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-80B-150-R		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-80B-200-H		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-80B-200-R		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-80B-250-H		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-80B-250-R		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-80B-300-H		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-80B-300-R		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-80B-350-H		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-80B-350-R		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-80B-400-H		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-80B-400-R		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-80B-450-H		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-80B-450-R		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-80B-500-H		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-80B-500-R		Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-100B-25-H		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-100B-25-R		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-100B-50-H		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-100B-50-R		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-100B-75-H		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-100B-75-R		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-100B-100-H		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-100B-100-R		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-100B-150-H		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-100B-150-R		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-100B-200-H		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-100B-200-R		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-100B-250-H		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-100B-250-R		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-100B-300-H		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-100B-300-R		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-100B-350-H		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-100B-350-R		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-100B-400-H		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-100B-400-R		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-100B-450-H		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-100B-450-R		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-00-100B-500-H		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-00-100B-500-R		Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-40B-25-H		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-LB-40B-25-R		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-LB-40B-50-H		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-LB-40B-50-R		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-LB-40B-75-H		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-LB-40B-75-R		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-LB-40B-100-H		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-LB-40B-100-R		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-LB-40B-150-H		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-LB-40B-150-R		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-LB-40B-200-H		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-LB-40B-200-R		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-LB-40B-250-H		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-LB-40B-250-R		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-LB-40B-300-H		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-LB-40B-300-R		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-LB-40B-350-H		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-LB-40B-350-R		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-LB-40B-400-H		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-LB-40B-400-R		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-LB-40B-450-H		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-LB-40B-450-R		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-LB-40B-500-H		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-LB-40B-500-R		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-LB-50B-25-H		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-50B-25-R		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-50B-50-H		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-50B-50-R		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-50B-75-H		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-50B-75-R		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-50B-100-H		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-50B-100-R		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-50B-150-H		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-50B-150-R		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-50B-200-H		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-50B-200-R		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-50B-250-H		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-50B-250-R		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-50B-300-H		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-50B-300-R		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-50B-350-H		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-50B-350-R		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-50B-400-H		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-50B-400-R		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-50B-450-H		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-50B-450-R		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-50B-500-H		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-50B-500-R		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-63B-25-H		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-63B-25-R		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-63B-50-H		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-63B-50-R		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-63B-75-H		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-63B-75-R		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-63B-100-H		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-63B-100-R		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-63B-150-H		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-63B-150-R		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-63B-200-H		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-63B-200-R		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-63B-250-H		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-63B-250-R		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-63B-300-H		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-63B-300-R		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-63B-350-H		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-63B-350-R		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-63B-400-H		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-63B-400-R		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-63B-450-H		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-63B-450-R		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-63B-500-H		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-LB-63B-500-R		Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-LB-80B-25-H		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-80B-25-R		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-80B-50-H		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-80B-50-R		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-80B-75-H		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-80B-75-R		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-80B-100-H		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-80B-100-R		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-80B-150-H		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-80B-150-R		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-80B-200-H		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-80B-200-R		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-80B-250-H		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-80B-250-R		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-80B-300-H		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-80B-300-R		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-80B-350-H		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-80B-350-R		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-80B-400-H		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-80B-400-R		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-80B-450-H		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-80B-450-R		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-80B-500-H		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-80B-500-R		Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-100B-25-H		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-100B-25-R		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-100B-50-H		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-100B-50-R		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-100B-75-H		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-100B-75-R		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-100B-100-H		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-100B-100-R		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-100B-150-H		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-100B-150-R		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-100B-200-H		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-100B-200-R		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-100B-250-H		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-100B-250-R		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-100B-300-H		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-100B-300-R		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-100B-350-H		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-100B-350-R		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-100B-400-H		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-100B-400-R		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-100B-450-H		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-100B-450-R		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-LB-100B-500-H		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-LB-100B-500-R		Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-40B-25-H		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FA-40B-25-R		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FA-40B-50-H		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FA-40B-50-R		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FA-40B-75-H		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FA-40B-75-R		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FA-40B-100-H		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FA-40B-100-R		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FA-40B-150-H		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FA-40B-150-R		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FA-40B-200-H		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FA-40B-200-R		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FA-40B-250-H		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FA-40B-250-R		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FA-40B-300-H		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FA-40B-300-R		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FA-40B-350-H		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FA-40B-350-R		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FA-40B-400-H		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FA-40B-400-R		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FA-40B-450-H		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FA-40B-450-R		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FA-40B-500-H		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FA-40B-500-R		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FA-50B-25-H		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-50B-25-R		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-50B-50-H		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-50B-50-R		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-50B-75-H		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-50B-75-R		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-50B-100-H		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-50B-100-R		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-50B-150-H		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-50B-150-R		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-50B-200-H		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-50B-200-R		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-50B-250-H		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-50B-250-R		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-50B-300-H		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-50B-300-R		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-50B-350-H		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-50B-350-R		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-50B-400-H		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-50B-400-R		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-50B-450-H		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-50B-450-R		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-50B-500-H		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-50B-500-R		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-63B-25-H		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-63B-25-R		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-63B-50-H		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-63B-50-R		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-63B-75-H		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-63B-75-R		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-63B-100-H		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-63B-100-R		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-63B-150-H		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-63B-150-R		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-63B-200-H		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-63B-200-R		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-63B-250-H		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-63B-250-R		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-63B-300-H		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-63B-300-R		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-63B-350-H		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-63B-350-R		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-63B-400-H		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-63B-400-R		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-63B-450-H		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-63B-450-R		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-63B-500-H		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FA-63B-500-R		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FA-80B-25-H		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-80B-25-R		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-80B-50-H		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-80B-50-R		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-80B-75-H		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-80B-75-R		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-80B-100-H		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-80B-100-R		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-80B-150-H		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-80B-150-R		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-80B-200-H		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-80B-200-R		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-80B-250-H		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-80B-250-R		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-80B-300-H		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-80B-300-R		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-80B-350-H		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-80B-350-R		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-80B-400-H		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-80B-400-R		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-80B-450-H		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-80B-450-R		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-80B-500-H		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-80B-500-R		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-100B-25-H		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-100B-25-R		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-100B-50-H		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-100B-50-R		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-100B-75-H		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-100B-75-R		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-100B-100-H		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-100B-100-R		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-100B-150-H		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-100B-150-R		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-100B-200-H		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-100B-200-R		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-100B-250-H		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-100B-250-R		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-100B-300-H		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-100B-300-R		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-100B-350-H		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-100B-350-R		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-100B-400-H		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-100B-400-R		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-100B-450-H		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-100B-450-R		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FA-100B-500-H		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FA-100B-500-R		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-40B-25-H		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FB-40B-25-R		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FB-40B-50-H		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FB-40B-50-R		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FB-40B-75-H		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FB-40B-75-R		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FB-40B-100-H		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FB-40B-100-R		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FB-40B-150-H		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FB-40B-150-R		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FB-40B-200-H		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FB-40B-200-R		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FB-40B-250-H		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FB-40B-250-R		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FB-40B-300-H		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FB-40B-300-R		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FB-40B-350-H		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FB-40B-350-R		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FB-40B-400-H		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FB-40B-400-R		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FB-40B-450-H		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FB-40B-450-R		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FB-40B-500-H		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FB-40B-500-R		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FB-50B-25-H		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-50B-25-R		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-50B-50-H		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-50B-50-R		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-50B-75-H		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-50B-75-R		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-50B-100-H		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-50B-100-R		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-50B-150-H		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-50B-150-R		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-50B-200-H		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-50B-200-R		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-50B-250-H		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-50B-250-R		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-50B-300-H		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-50B-300-R		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-50B-350-H		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-50B-350-R		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-50B-400-H		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-50B-400-R		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-50B-450-H		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-50B-450-R		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-50B-500-H		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-50B-500-R		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-63B-25-H		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-63B-25-R		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-63B-50-H		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-63B-50-R		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-63B-75-H		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-63B-75-R		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-63B-100-H		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-63B-100-R		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-63B-150-H		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-63B-150-R		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-63B-200-H		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-63B-200-R		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-63B-250-H		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-63B-250-R		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-63B-300-H		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-63B-300-R		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-63B-350-H		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-63B-350-R		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-63B-400-H		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-63B-400-R		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-63B-450-H		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-63B-450-R		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-63B-500-H		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FB-63B-500-R		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FB-80B-25-H		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-80B-25-R		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-80B-50-H		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-80B-50-R		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-80B-75-H		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-80B-75-R		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-80B-100-H		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-80B-100-R		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-80B-150-H		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-80B-150-R		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-80B-200-H		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-80B-200-R		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-80B-250-H		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-80B-250-R		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-80B-300-H		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-80B-300-R		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-80B-350-H		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-80B-350-R		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-80B-400-H		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-80B-400-R		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-80B-450-H		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-80B-450-R		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-80B-500-H		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-80B-500-R		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-100B-25-H		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-100B-25-R		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-100B-50-H		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-100B-50-R		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-100B-75-H		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-100B-75-R		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-100B-100-H		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-100B-100-R		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-100B-150-H		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-100B-150-R		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-100B-200-H		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-100B-200-R		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-100B-250-H		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-100B-250-R		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-100B-300-H		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-100B-300-R		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-100B-350-H		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-100B-350-R		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-100B-400-H		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-100B-400-R		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-100B-450-H		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-100B-450-R		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FB-100B-500-H		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FB-100B-500-R		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-40B-25-H		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FC-40B-25-R		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FC-40B-50-H		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FC-40B-50-R		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FC-40B-75-H		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FC-40B-75-R		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FC-40B-100-H		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FC-40B-100-R		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FC-40B-150-H		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FC-40B-150-R		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FC-40B-200-H		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FC-40B-200-R		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FC-40B-250-H		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FC-40B-250-R		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FC-40B-300-H		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FC-40B-300-R		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FC-40B-350-H		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FC-40B-350-R		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FC-40B-400-H		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FC-40B-400-R		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FC-40B-450-H		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FC-40B-450-R		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FC-40B-500-H		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-FC-40B-500-R		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-FC-50B-25-H		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-50B-25-R		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-50B-50-H		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-50B-50-R		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-50B-75-H		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-50B-75-R		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-50B-100-H		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-50B-100-R		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-50B-150-H		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-50B-150-R		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-50B-200-H		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-50B-200-R		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-50B-250-H		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-50B-250-R		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-50B-300-H		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-50B-300-R		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-50B-350-H		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-50B-350-R		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-50B-400-H		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-50B-400-R		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-50B-450-H		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-50B-450-R		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-50B-500-H		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-50B-500-R		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-63B-25-H		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-63B-25-R		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-63B-50-H		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-63B-50-R		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-63B-75-H		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-63B-75-R		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-63B-100-H		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-63B-100-R		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-63B-150-H		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-63B-150-R		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-63B-200-H		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-63B-200-R		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-63B-250-H		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-63B-250-R		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-63B-300-H		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-63B-300-R		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-63B-350-H		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-63B-350-R		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-63B-400-H		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-63B-400-R		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-63B-450-H		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-63B-450-R		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-63B-500-H		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-FC-63B-500-R		Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-FC-80B-25-H		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-80B-25-R		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-80B-50-H		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-80B-50-R		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-80B-75-H		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-80B-75-R		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-80B-100-H		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-80B-100-R		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-80B-150-H		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-80B-150-R		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-80B-200-H		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-80B-200-R		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-80B-250-H		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-80B-250-R		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-80B-300-H		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-80B-300-R		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-80B-350-H		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-80B-350-R		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-80B-400-H		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-80B-400-R		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-80B-450-H		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-80B-450-R		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-80B-500-H		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-80B-500-R		Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-100B-25-H		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-100B-25-R		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-100B-50-H		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-100B-50-R		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-100B-75-H		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-100B-75-R		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-100B-100-H		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-100B-100-R		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-100B-150-H		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-100B-150-R		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-100B-200-H		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-100B-200-R		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-100B-250-H		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-100B-250-R		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-100B-300-H		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-100B-300-R		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-100B-350-H		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-100B-350-R		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-100B-400-H		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-100B-400-R		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-100B-450-H		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-100B-450-R		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-FC-100B-500-H		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-FC-100B-500-R		Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-40B-25-H		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CA-40B-25-R		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CA-40B-50-H		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CA-40B-50-R		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CA-40B-75-H		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CA-40B-75-R		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CA-40B-100-H		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CA-40B-100-R		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CA-40B-150-H		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CA-40B-150-R		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CA-40B-200-H		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CA-40B-200-R		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CA-40B-250-H		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CA-40B-250-R		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CA-40B-300-H		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CA-40B-300-R		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CA-40B-350-H		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CA-40B-350-R		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CA-40B-400-H		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CA-40B-400-R		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CA-40B-450-H		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CA-40B-450-R		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CA-40B-500-H		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CA-40B-500-R		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CA-50B-25-H		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-50B-25-R		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-50B-50-H		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-50B-50-R		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-50B-75-H		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-50B-75-R		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-50B-100-H		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-50B-100-R		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-50B-150-H		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-50B-150-R		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-50B-200-H		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-50B-200-R		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-50B-250-H		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-50B-250-R		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-50B-300-H		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-50B-300-R		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-50B-350-H		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-50B-350-R		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-50B-400-H		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-50B-400-R		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-50B-450-H		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-50B-450-R		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-50B-500-H		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-50B-500-R		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-63B-25-H		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-63B-25-R		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-63B-50-H		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-63B-50-R		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-63B-75-H		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-63B-75-R		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-63B-100-H		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-63B-100-R		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-63B-150-H		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-63B-150-R		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-63B-200-H		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-63B-200-R		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-63B-250-H		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-63B-250-R		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-63B-300-H		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-63B-300-R		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-63B-350-H		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-63B-350-R		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-63B-400-H		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-63B-400-R		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-63B-450-H		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-63B-450-R		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-63B-500-H		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CA-63B-500-R		Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CA-80B-25-H		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-80B-25-R		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-80B-50-H		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-80B-50-R		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-80B-75-H		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-80B-75-R		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-80B-100-H		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-80B-100-R		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-80B-150-H		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-80B-150-R		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-80B-200-H		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-80B-200-R		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-80B-250-H		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-80B-250-R		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-80B-300-H		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-80B-300-R		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-80B-350-H		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-80B-350-R		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-80B-400-H		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-80B-400-R		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-80B-450-H		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-80B-450-R		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-80B-500-H		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-80B-500-R		Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-100B-25-H		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-100B-25-R		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-100B-50-H		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-100B-50-R		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-100B-75-H		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-100B-75-R		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-100B-100-H		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-100B-100-R		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-100B-150-H		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-100B-150-R		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-100B-200-H		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-100B-200-R		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-100B-250-H		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-100B-250-R		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-100B-300-H		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-100B-300-R		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-100B-350-H		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-100B-350-R		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-100B-400-H		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-100B-400-R		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-100B-450-H		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-100B-450-R		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CA-100B-500-H		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CA-100B-500-R		Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-40B-25-H		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CB-40B-25-R		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CB-40B-50-H		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CB-40B-50-R		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CB-40B-75-H		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CB-40B-75-R		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CB-40B-100-H		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CB-40B-100-R		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CB-40B-150-H		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CB-40B-150-R		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CB-40B-200-H		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CB-40B-200-R		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CB-40B-250-H		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CB-40B-250-R		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CB-40B-300-H		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CB-40B-300-R		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CB-40B-350-H		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CB-40B-350-R		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CB-40B-400-H		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CB-40B-400-R		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CB-40B-450-H		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CB-40B-450-R		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CB-40B-500-H		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-CB-40B-500-R		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-CB-50B-25-H		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-50B-25-R		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-50B-50-H		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-50B-50-R		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-50B-75-H		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-50B-75-R		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-50B-100-H		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-50B-100-R		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-50B-150-H		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-50B-150-R		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-50B-200-H		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-50B-200-R		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-50B-250-H		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-50B-250-R		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-50B-300-H		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-50B-300-R		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-50B-350-H		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-50B-350-R		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-50B-400-H		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-50B-400-R		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-50B-450-H		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-50B-450-R		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-50B-500-H		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-50B-500-R		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-63B-25-H		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-63B-25-R		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-63B-50-H		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-63B-50-R		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-63B-75-H		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-63B-75-R		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-63B-100-H		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-63B-100-R		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-63B-150-H		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-63B-150-R		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-63B-200-H		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-63B-200-R		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-63B-250-H		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-63B-250-R		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-63B-300-H		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-63B-300-R		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-63B-350-H		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-63B-350-R		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-63B-400-H		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-63B-400-R		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-63B-450-H		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-63B-450-R		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-63B-500-H		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-CB-63B-500-R		Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-CB-80B-25-H		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-80B-25-R		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-80B-50-H		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-80B-50-R		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-80B-75-H		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-80B-75-R		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-80B-100-H		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-80B-100-R		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-80B-150-H		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-80B-150-R		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-80B-200-H		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-80B-200-R		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-80B-250-H		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-80B-250-R		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-80B-300-H		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-80B-300-R		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-80B-350-H		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-80B-350-R		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-80B-400-H		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-80B-400-R		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-80B-450-H		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-80B-450-R		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-80B-500-H		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-80B-500-R		Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-100B-25-H		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-100B-25-R		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-100B-50-H		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-100B-50-R		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-100B-75-H		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-100B-75-R		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-100B-100-H		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-100B-100-R		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-100B-150-H		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-100B-150-R		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-100B-200-H		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-100B-200-R		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-100B-250-H		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-100B-250-R		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-100B-300-H		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-100B-300-R		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-100B-350-H		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-100B-350-R		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-100B-400-H		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-100B-400-R		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-100B-450-H		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-100B-450-R		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-CB-100B-500-H		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-CB-100B-500-R		Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-40B-25-H		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TC-40B-25-R		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TC-40B-50-H		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TC-40B-50-R		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TC-40B-75-H		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TC-40B-75-R		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TC-40B-100-H		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TC-40B-100-R		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TC-40B-150-H		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TC-40B-150-R		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TC-40B-200-H		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TC-40B-200-R		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TC-40B-250-H		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TC-40B-250-R		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TC-40B-300-H		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TC-40B-300-R		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TC-40B-350-H		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TC-40B-350-R		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TC-40B-400-H		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TC-40B-400-R		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TC-40B-450-H		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TC-40B-450-R		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TC-40B-500-H		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TC-40B-500-R		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TC-50B-25-H		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-50B-25-R		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-50B-50-H		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-50B-50-R		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-50B-75-H		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-50B-75-R		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-50B-100-H		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-50B-100-R		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-50B-150-H		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-50B-150-R		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-50B-200-H		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-50B-200-R		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-50B-250-H		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-50B-250-R		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-50B-300-H		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-50B-300-R		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-50B-350-H		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-50B-350-R		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-50B-400-H		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-50B-400-R		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-50B-450-H		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-50B-450-R		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-50B-500-H		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-50B-500-R		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-63B-25-H		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-63B-25-R		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-63B-50-H		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-63B-50-R		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-63B-75-H		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-63B-75-R		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-63B-100-H		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-63B-100-R		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-63B-150-H		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-63B-150-R		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-63B-200-H		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-63B-200-R		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-63B-250-H		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-63B-250-R		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-63B-300-H		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-63B-300-R		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-63B-350-H		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-63B-350-R		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-63B-400-H		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-63B-400-R		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-63B-450-H		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-63B-450-R		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-63B-500-H		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TC-63B-500-R		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TC-80B-25-H		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-80B-25-R		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-80B-50-H		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-80B-50-R		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-80B-75-H		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-80B-75-R		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-80B-100-H		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-80B-100-R		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-80B-150-H		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-80B-150-R		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-80B-200-H		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-80B-200-R		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-80B-250-H		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-80B-250-R		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-80B-300-H		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-80B-300-R		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-80B-350-H		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-80B-350-R		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-80B-400-H		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-80B-400-R		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-80B-450-H		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-80B-450-R		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-80B-500-H		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-80B-500-R		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-100B-25-H		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-100B-25-R		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-100B-50-H		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-100B-50-R		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-100B-75-H		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-100B-75-R		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-100B-100-H		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-100B-100-R		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-100B-150-H		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-100B-150-R		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-100B-200-H		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-100B-200-R		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-100B-250-H		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-100B-250-R		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-100B-300-H		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-100B-300-R		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-100B-350-H		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-100B-350-R		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-100B-400-H		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-100B-400-R		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-100B-450-H		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-100B-450-R		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TC-100B-500-H		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TC-100B-500-R		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TA-40B-25-H		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TA-40B-50-H		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TA-40B-75-H		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TA-40B-100-H		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TA-40B-150-H		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TA-40B-200-H		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TA-40B-250-H		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TA-40B-300-H		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TA-40B-350-H		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TA-40B-400-H		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TA-40B-450-H		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TA-40B-500-H		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
SCA2-Q2-TA-50B-25-H		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-50B-50-H		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-50B-75-H		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-50B-100-H		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-50B-150-H		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-50B-200-H		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-50B-250-H		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-50B-300-H		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-50B-350-H		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-50B-400-H		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-50B-450-H		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-50B-500-H		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-63B-25-H		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-63B-50-H		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-63B-75-H		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-63B-100-H		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-63B-150-H		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-63B-200-H		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-63B-250-H		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-63B-300-H		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-63B-350-H		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-63B-400-H		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-63B-450-H		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-63B-500-H		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TA-80B-25-H		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-80B-50-H		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-80B-75-H		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-80B-100-H		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-80B-150-H		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-80B-200-H		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-80B-250-H		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-80B-300-H		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-80B-350-H		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-80B-400-H		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-80B-450-H		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-80B-500-H		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-100B-25-H		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-100B-50-H		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-100B-75-H		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-100B-100-H		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-100B-150-H		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-100B-200-H		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-100B-250-H		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-100B-300-H		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-100B-350-H		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-100B-400-H		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-100B-450-H		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TA-100B-500-H		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TB-40B-25-R		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TB-40B-50-R		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TB-40B-75-R		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TB-40B-100-R		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TB-40B-150-R		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TB-40B-200-R		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TB-40B-250-R		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TB-40B-300-R		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TB-40B-350-R		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TB-40B-400-R		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TB-40B-450-R		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TB-40B-500-R		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
SCA2-Q2-TB-50B-25-R		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-50B-50-R		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-50B-75-R		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-50B-100-R		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-50B-150-R		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-50B-200-R		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-50B-250-R		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-50B-300-R		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-50B-350-R		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-50B-400-R		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-50B-450-R		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-50B-500-R		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-63B-25-R		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-63B-50-R		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-63B-75-R		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-63B-100-R		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-63B-150-R		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-63B-200-R		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-63B-250-R		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-63B-300-R		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-63B-350-R		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-63B-400-R		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-63B-450-R		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-63B-500-R		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TB-80B-25-R		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-80B-50-R		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-80B-75-R		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-80B-100-R		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-80B-150-R		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-80B-200-R		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-80B-250-R		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-80B-300-R		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-80B-350-R		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-80B-400-R		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-80B-450-R		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-80B-500-R		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-100B-25-R		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-100B-50-R		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-100B-75-R		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-100B-100-R		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-100B-150-R		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-100B-200-R		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-100B-250-R		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-100B-300-R		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-100B-350-R		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-100B-400-R		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-100B-450-R		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TB-100B-500-R		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-50B-25-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-50B-25-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-50B-50-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-50B-50-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-50B-75-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-50B-75-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-50B-100-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-50B-100-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-50B-150-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-50B-150-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-50B-200-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-50B-200-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-50B-250-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-50B-250-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-50B-300-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-50B-300-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-50B-350-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-50B-350-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-50B-400-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-50B-400-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-50B-450-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-50B-450-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-50B-500-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-50B-500-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-63B-25-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-63B-25-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-63B-50-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-63B-50-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-63B-75-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-63B-75-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-63B-100-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-63B-100-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-63B-150-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-63B-150-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-63B-200-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-63B-200-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-63B-250-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-63B-250-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-63B-300-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-63B-300-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-63B-350-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-63B-350-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-63B-400-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-63B-400-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-63B-450-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-63B-450-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-63B-500-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TF-63B-500-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TF-80B-25-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-80B-25-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-80B-50-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-80B-50-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-80B-75-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-80B-75-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-80B-100-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-80B-100-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-80B-150-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-80B-150-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-80B-200-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-80B-200-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-80B-250-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-80B-250-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-80B-300-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-80B-300-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-80B-350-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-80B-350-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-80B-400-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-80B-400-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-80B-450-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-80B-450-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-80B-500-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-80B-500-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-100B-25-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-100B-25-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-100B-50-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-100B-50-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-100B-75-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-100B-75-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-100B-100-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-100B-100-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-100B-150-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-100B-150-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-100B-200-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-100B-200-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-100B-250-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-100B-250-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-100B-300-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-100B-300-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-100B-350-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-100B-350-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-100B-400-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-100B-400-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-100B-450-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-100B-450-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TF-100B-500-H		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TF-100B-500-R		Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-50B-25-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-50B-25-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-50B-50-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-50B-50-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-50B-75-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-50B-75-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-50B-100-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-50B-100-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-50B-150-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-50B-150-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-50B-200-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-50B-200-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-50B-250-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-50B-250-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-50B-300-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-50B-300-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-50B-350-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-50B-350-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-50B-400-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-50B-400-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-50B-450-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-50B-450-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-50B-500-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-50B-500-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-63B-25-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-63B-25-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-63B-50-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-63B-50-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-63B-75-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-63B-75-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-63B-100-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-63B-100-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-63B-150-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-63B-150-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-63B-200-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-63B-200-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-63B-250-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-63B-250-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-63B-300-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-63B-300-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-63B-350-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-63B-350-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-63B-400-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-63B-400-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-63B-450-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-63B-450-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-63B-500-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TD-63B-500-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TD-80B-25-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-80B-25-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-80B-50-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-80B-50-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-80B-75-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-80B-75-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-80B-100-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-80B-100-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-80B-150-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-80B-150-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-80B-200-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-80B-200-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-80B-250-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-80B-250-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-80B-300-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-80B-300-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-80B-350-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-80B-350-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-80B-400-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-80B-400-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-80B-450-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-80B-450-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-80B-500-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-80B-500-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-100B-25-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-100B-25-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-100B-50-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-100B-50-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-100B-75-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-100B-75-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-100B-100-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-100B-100-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-100B-150-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-100B-150-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-100B-200-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-100B-200-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-100B-250-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-100B-250-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-100B-300-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-100B-300-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-100B-350-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-100B-350-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-100B-400-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-100B-400-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-100B-450-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-100B-450-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TD-100B-500-H		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TD-100B-500-R		Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-50B-25-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-50B-25-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-50B-50-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-50B-50-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-50B-75-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-50B-75-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-50B-100-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-50B-100-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-50B-150-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-50B-150-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-50B-200-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-50B-200-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-50B-250-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-50B-250-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-50B-300-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-50B-300-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-50B-350-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-50B-350-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-50B-400-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-50B-400-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-50B-450-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-50B-450-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-50B-500-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-50B-500-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-63B-25-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-63B-25-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-63B-50-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-63B-50-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-63B-75-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-63B-75-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-63B-100-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-63B-100-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-63B-150-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-63B-150-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-63B-200-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-63B-200-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-63B-250-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-63B-250-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-63B-300-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-63B-300-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-63B-350-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-63B-350-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-63B-400-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-63B-400-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-63B-450-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-63B-450-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-63B-500-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
SCA2-Q2-TE-63B-500-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
SCA2-Q2-TE-80B-25-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-80B-25-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-80B-50-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-80B-50-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-80B-75-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-80B-75-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-80B-100-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-80B-100-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-80B-150-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-80B-150-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-80B-200-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-80B-200-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-80B-250-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-80B-250-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-80B-300-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-80B-300-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-80B-350-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-80B-350-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-80B-400-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-80B-400-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-80B-450-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-80B-450-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-80B-500-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-80B-500-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-100B-25-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-100B-25-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-100B-50-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-100B-50-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-100B-75-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-100B-75-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-100B-100-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-100B-100-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-100B-150-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-100B-150-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-100B-200-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-100B-200-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-100B-250-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-100B-250-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-100B-300-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-100B-300-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-100B-350-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-100B-350-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-100B-400-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-100B-400-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-100B-450-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-100B-450-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
SCA2-Q2-TE-100B-500-H		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
SCA2-Q2-TE-100B-500-R		Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2

Pneumatic CylindersCKD

1368 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCA2-Q2 Selex Cylinder (Drop Prevention Lock, Bore 40-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (1368)

SCA2-Q2-00-40B-25-H, SCA2-Q2-00-40B-25-R, SCA2-Q2-00-40B-50-H, SCA2-Q2-00-40B-50-R, SCA2-Q2-00-40B-75-H, SCA2-Q2-00-40B-75-R, SCA2-Q2-00-40B-100-H, SCA2-Q2-00-40B-100-R, SCA2-Q2-00-40B-150-H, SCA2-Q2-00-40B-150-R + 1358 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCA2-Q2-00-40B-25-H	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-00-40B-25-R	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-00-40B-50-H	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-00-40B-50-R	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-00-40B-75-H	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-00-40B-75-R	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-00-40B-100-H	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-00-40B-100-R	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-00-40B-150-H	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-00-40B-150-R	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-00-40B-200-H	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-00-40B-200-R	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-00-40B-250-H	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-00-40B-250-R	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-00-40B-300-H	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-00-40B-300-R	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-00-40B-350-H	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-00-40B-350-R	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-00-40B-400-H	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-00-40B-400-R	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-00-40B-450-H	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-00-40B-450-R	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-00-40B-500-H	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-00-40B-500-R	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-00-50B-25-H	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-50B-25-R	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-50B-50-H	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-50B-50-R	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-50B-75-H	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-50B-75-R	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-50B-100-H	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-50B-100-R	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-50B-150-H	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-50B-150-R	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-50B-200-H	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-50B-200-R	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-50B-250-H	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-50B-250-R	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-50B-300-H	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-50B-300-R	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-50B-350-H	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-50B-350-R	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-50B-400-H	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-50B-400-R	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-50B-450-H	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-50B-450-R	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-50B-500-H	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-50B-500-R	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-63B-25-H	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-63B-25-R	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-63B-50-H	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-63B-50-R	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-63B-75-H	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-63B-75-R	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-63B-100-H	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-63B-100-R	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-63B-150-H	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-63B-150-R	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-63B-200-H	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-63B-200-R	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-63B-250-H	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-63B-250-R	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-63B-300-H	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-63B-300-R	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-63B-350-H	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-63B-350-R	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-63B-400-H	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-63B-400-R	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-63B-450-H	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-63B-450-R	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-63B-500-H	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-00-63B-500-R	Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-00-80B-25-H	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-80B-25-R	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-80B-50-H	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-80B-50-R	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-80B-75-H	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-80B-75-R	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-80B-100-H	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-80B-100-R	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-80B-150-H	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-80B-150-R	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-80B-200-H	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-80B-200-R	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-80B-250-H	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-80B-250-R	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-80B-300-H	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-80B-300-R	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-80B-350-H	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-80B-350-R	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-80B-400-H	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-80B-400-R	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-80B-450-H	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-80B-450-R	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-80B-500-H	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-80B-500-R	Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-100B-25-H	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-100B-25-R	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-100B-50-H	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-100B-50-R	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-100B-75-H	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-100B-75-R	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-100B-100-H	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-100B-100-R	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-100B-150-H	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-100B-150-R	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-100B-200-H	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-100B-200-R	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-100B-250-H	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-100B-250-R	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-100B-300-H	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-100B-300-R	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-100B-350-H	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-100B-350-R	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-100B-400-H	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-100B-400-R	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-100B-450-H	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-100B-450-R	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-00-100B-500-H	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-00-100B-500-R	Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-40B-25-H	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-LB-40B-25-R	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-LB-40B-50-H	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-LB-40B-50-R	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-LB-40B-75-H	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-LB-40B-75-R	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-LB-40B-100-H	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-LB-40B-100-R	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-LB-40B-150-H	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-LB-40B-150-R	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-LB-40B-200-H	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-LB-40B-200-R	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-LB-40B-250-H	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-LB-40B-250-R	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-LB-40B-300-H	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-LB-40B-300-R	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-LB-40B-350-H	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-LB-40B-350-R	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-LB-40B-400-H	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-LB-40B-400-R	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-LB-40B-450-H	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-LB-40B-450-R	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-LB-40B-500-H	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-LB-40B-500-R	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-LB-50B-25-H	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-50B-25-R	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-50B-50-H	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-50B-50-R	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-50B-75-H	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-50B-75-R	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-50B-100-H	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-50B-100-R	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-50B-150-H	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-50B-150-R	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-50B-200-H	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-50B-200-R	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-50B-250-H	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-50B-250-R	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-50B-300-H	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-50B-300-R	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-50B-350-H	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-50B-350-R	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-50B-400-H	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-50B-400-R	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-50B-450-H	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-50B-450-R	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-50B-500-H	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-50B-500-R	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-63B-25-H	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-63B-25-R	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-63B-50-H	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-63B-50-R	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-63B-75-H	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-63B-75-R	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-63B-100-H	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-63B-100-R	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-63B-150-H	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-63B-150-R	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-63B-200-H	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-63B-200-R	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-63B-250-H	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-63B-250-R	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-63B-300-H	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-63B-300-R	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-63B-350-H	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-63B-350-R	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-63B-400-H	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-63B-400-R	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-63B-450-H	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-63B-450-R	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-63B-500-H	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-LB-63B-500-R	Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-LB-80B-25-H	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-80B-25-R	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-80B-50-H	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-80B-50-R	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-80B-75-H	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-80B-75-R	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-80B-100-H	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-80B-100-R	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-80B-150-H	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-80B-150-R	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-80B-200-H	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-80B-200-R	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-80B-250-H	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-80B-250-R	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-80B-300-H	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-80B-300-R	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-80B-350-H	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-80B-350-R	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-80B-400-H	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-80B-400-R	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-80B-450-H	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-80B-450-R	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-80B-500-H	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-80B-500-R	Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-100B-25-H	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-100B-25-R	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-100B-50-H	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-100B-50-R	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-100B-75-H	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-100B-75-R	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-100B-100-H	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-100B-100-R	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-100B-150-H	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-100B-150-R	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-100B-200-H	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-100B-200-R	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-100B-250-H	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-100B-250-R	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-100B-300-H	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-100B-300-R	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-100B-350-H	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-100B-350-R	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-100B-400-H	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-100B-400-R	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-100B-450-H	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-100B-450-R	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-LB-100B-500-H	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-LB-100B-500-R	Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-40B-25-H	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FA-40B-25-R	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FA-40B-50-H	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FA-40B-50-R	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FA-40B-75-H	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FA-40B-75-R	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FA-40B-100-H	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FA-40B-100-R	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FA-40B-150-H	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FA-40B-150-R	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FA-40B-200-H	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FA-40B-200-R	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FA-40B-250-H	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FA-40B-250-R	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FA-40B-300-H	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FA-40B-300-R	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FA-40B-350-H	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FA-40B-350-R	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FA-40B-400-H	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FA-40B-400-R	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FA-40B-450-H	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FA-40B-450-R	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FA-40B-500-H	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FA-40B-500-R	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FA-50B-25-H	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-50B-25-R	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-50B-50-H	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-50B-50-R	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-50B-75-H	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-50B-75-R	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-50B-100-H	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-50B-100-R	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-50B-150-H	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-50B-150-R	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-50B-200-H	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-50B-200-R	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-50B-250-H	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-50B-250-R	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-50B-300-H	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-50B-300-R	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-50B-350-H	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-50B-350-R	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-50B-400-H	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-50B-400-R	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-50B-450-H	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-50B-450-R	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-50B-500-H	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-50B-500-R	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-63B-25-H	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-63B-25-R	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-63B-50-H	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-63B-50-R	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-63B-75-H	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-63B-75-R	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-63B-100-H	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-63B-100-R	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-63B-150-H	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-63B-150-R	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-63B-200-H	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-63B-200-R	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-63B-250-H	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-63B-250-R	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-63B-300-H	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-63B-300-R	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-63B-350-H	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-63B-350-R	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-63B-400-H	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-63B-400-R	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-63B-450-H	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-63B-450-R	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-63B-500-H	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FA-63B-500-R	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FA-80B-25-H	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-80B-25-R	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-80B-50-H	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-80B-50-R	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-80B-75-H	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-80B-75-R	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-80B-100-H	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-80B-100-R	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-80B-150-H	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-80B-150-R	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-80B-200-H	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-80B-200-R	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-80B-250-H	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-80B-250-R	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-80B-300-H	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-80B-300-R	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-80B-350-H	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-80B-350-R	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-80B-400-H	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-80B-400-R	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-80B-450-H	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-80B-450-R	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-80B-500-H	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-80B-500-R	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-100B-25-H	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-100B-25-R	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-100B-50-H	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-100B-50-R	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-100B-75-H	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-100B-75-R	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-100B-100-H	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-100B-100-R	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-100B-150-H	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-100B-150-R	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-100B-200-H	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-100B-200-R	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-100B-250-H	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-100B-250-R	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-100B-300-H	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-100B-300-R	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-100B-350-H	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-100B-350-R	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-100B-400-H	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-100B-400-R	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-100B-450-H	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-100B-450-R	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FA-100B-500-H	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FA-100B-500-R	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-40B-25-H	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FB-40B-25-R	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FB-40B-50-H	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FB-40B-50-R	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FB-40B-75-H	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FB-40B-75-R	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FB-40B-100-H	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FB-40B-100-R	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FB-40B-150-H	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FB-40B-150-R	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FB-40B-200-H	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FB-40B-200-R	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FB-40B-250-H	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FB-40B-250-R	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FB-40B-300-H	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FB-40B-300-R	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FB-40B-350-H	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FB-40B-350-R	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FB-40B-400-H	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FB-40B-400-R	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FB-40B-450-H	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FB-40B-450-R	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FB-40B-500-H	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FB-40B-500-R	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FB-50B-25-H	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-50B-25-R	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-50B-50-H	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-50B-50-R	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-50B-75-H	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-50B-75-R	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-50B-100-H	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-50B-100-R	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-50B-150-H	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-50B-150-R	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-50B-200-H	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-50B-200-R	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-50B-250-H	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-50B-250-R	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-50B-300-H	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-50B-300-R	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-50B-350-H	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-50B-350-R	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-50B-400-H	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-50B-400-R	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-50B-450-H	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-50B-450-R	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-50B-500-H	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-50B-500-R	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-63B-25-H	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-63B-25-R	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-63B-50-H	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-63B-50-R	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-63B-75-H	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-63B-75-R	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-63B-100-H	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-63B-100-R	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-63B-150-H	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-63B-150-R	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-63B-200-H	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-63B-200-R	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-63B-250-H	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-63B-250-R	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-63B-300-H	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-63B-300-R	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-63B-350-H	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-63B-350-R	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-63B-400-H	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-63B-400-R	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-63B-450-H	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-63B-450-R	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-63B-500-H	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FB-63B-500-R	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FB-80B-25-H	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-80B-25-R	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-80B-50-H	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-80B-50-R	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-80B-75-H	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-80B-75-R	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-80B-100-H	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-80B-100-R	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-80B-150-H	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-80B-150-R	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-80B-200-H	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-80B-200-R	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-80B-250-H	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-80B-250-R	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-80B-300-H	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-80B-300-R	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-80B-350-H	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-80B-350-R	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-80B-400-H	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-80B-400-R	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-80B-450-H	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-80B-450-R	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-80B-500-H	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-80B-500-R	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-100B-25-H	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-100B-25-R	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-100B-50-H	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-100B-50-R	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-100B-75-H	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-100B-75-R	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-100B-100-H	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-100B-100-R	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-100B-150-H	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-100B-150-R	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-100B-200-H	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-100B-200-R	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-100B-250-H	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-100B-250-R	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-100B-300-H	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-100B-300-R	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-100B-350-H	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-100B-350-R	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-100B-400-H	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-100B-400-R	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-100B-450-H	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-100B-450-R	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FB-100B-500-H	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FB-100B-500-R	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-40B-25-H	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FC-40B-25-R	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FC-40B-50-H	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FC-40B-50-R	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FC-40B-75-H	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FC-40B-75-R	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FC-40B-100-H	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FC-40B-100-R	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FC-40B-150-H	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FC-40B-150-R	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FC-40B-200-H	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FC-40B-200-R	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FC-40B-250-H	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FC-40B-250-R	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FC-40B-300-H	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FC-40B-300-R	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FC-40B-350-H	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FC-40B-350-R	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FC-40B-400-H	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FC-40B-400-R	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FC-40B-450-H	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FC-40B-450-R	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FC-40B-500-H	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-FC-40B-500-R	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-FC-50B-25-H	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-50B-25-R	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-50B-50-H	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-50B-50-R	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-50B-75-H	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-50B-75-R	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-50B-100-H	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-50B-100-R	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-50B-150-H	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-50B-150-R	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-50B-200-H	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-50B-200-R	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-50B-250-H	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-50B-250-R	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-50B-300-H	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-50B-300-R	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-50B-350-H	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-50B-350-R	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-50B-400-H	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-50B-400-R	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-50B-450-H	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-50B-450-R	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-50B-500-H	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-50B-500-R	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-63B-25-H	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-63B-25-R	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-63B-50-H	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-63B-50-R	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-63B-75-H	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-63B-75-R	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-63B-100-H	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-63B-100-R	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-63B-150-H	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-63B-150-R	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-63B-200-H	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-63B-200-R	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-63B-250-H	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-63B-250-R	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-63B-300-H	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-63B-300-R	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-63B-350-H	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-63B-350-R	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-63B-400-H	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-63B-400-R	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-63B-450-H	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-63B-450-R	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-63B-500-H	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-FC-63B-500-R	Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-FC-80B-25-H	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-80B-25-R	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-80B-50-H	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-80B-50-R	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-80B-75-H	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-80B-75-R	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-80B-100-H	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-80B-100-R	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-80B-150-H	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-80B-150-R	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-80B-200-H	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-80B-200-R	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-80B-250-H	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-80B-250-R	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-80B-300-H	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-80B-300-R	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-80B-350-H	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-80B-350-R	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-80B-400-H	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-80B-400-R	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-80B-450-H	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-80B-450-R	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-80B-500-H	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-80B-500-R	Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-100B-25-H	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-100B-25-R	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-100B-50-H	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-100B-50-R	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-100B-75-H	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-100B-75-R	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-100B-100-H	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-100B-100-R	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-100B-150-H	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-100B-150-R	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-100B-200-H	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-100B-200-R	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-100B-250-H	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-100B-250-R	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-100B-300-H	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-100B-300-R	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-100B-350-H	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-100B-350-R	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-100B-400-H	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-100B-400-R	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-100B-450-H	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-100B-450-R	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-FC-100B-500-H	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-FC-100B-500-R	Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-40B-25-H	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CA-40B-25-R	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CA-40B-50-H	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CA-40B-50-R	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CA-40B-75-H	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CA-40B-75-R	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CA-40B-100-H	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CA-40B-100-R	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CA-40B-150-H	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CA-40B-150-R	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CA-40B-200-H	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CA-40B-200-R	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CA-40B-250-H	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CA-40B-250-R	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CA-40B-300-H	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CA-40B-300-R	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CA-40B-350-H	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CA-40B-350-R	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CA-40B-400-H	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CA-40B-400-R	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CA-40B-450-H	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CA-40B-450-R	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CA-40B-500-H	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CA-40B-500-R	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CA-50B-25-H	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-50B-25-R	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-50B-50-H	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-50B-50-R	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-50B-75-H	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-50B-75-R	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-50B-100-H	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-50B-100-R	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-50B-150-H	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-50B-150-R	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-50B-200-H	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-50B-200-R	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-50B-250-H	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-50B-250-R	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-50B-300-H	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-50B-300-R	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-50B-350-H	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-50B-350-R	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-50B-400-H	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-50B-400-R	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-50B-450-H	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-50B-450-R	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-50B-500-H	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-50B-500-R	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-63B-25-H	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-63B-25-R	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-63B-50-H	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-63B-50-R	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-63B-75-H	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-63B-75-R	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-63B-100-H	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-63B-100-R	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-63B-150-H	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-63B-150-R	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-63B-200-H	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-63B-200-R	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-63B-250-H	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-63B-250-R	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-63B-300-H	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-63B-300-R	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-63B-350-H	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-63B-350-R	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-63B-400-H	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-63B-400-R	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-63B-450-H	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-63B-450-R	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-63B-500-H	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CA-63B-500-R	Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CA-80B-25-H	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-80B-25-R	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-80B-50-H	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-80B-50-R	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-80B-75-H	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-80B-75-R	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-80B-100-H	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-80B-100-R	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-80B-150-H	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-80B-150-R	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-80B-200-H	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-80B-200-R	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-80B-250-H	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-80B-250-R	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-80B-300-H	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-80B-300-R	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-80B-350-H	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-80B-350-R	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-80B-400-H	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-80B-400-R	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-80B-450-H	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-80B-450-R	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-80B-500-H	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-80B-500-R	Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-100B-25-H	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-100B-25-R	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-100B-50-H	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-100B-50-R	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-100B-75-H	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-100B-75-R	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-100B-100-H	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-100B-100-R	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-100B-150-H	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-100B-150-R	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-100B-200-H	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-100B-200-R	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-100B-250-H	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-100B-250-R	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-100B-300-H	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-100B-300-R	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-100B-350-H	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-100B-350-R	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-100B-400-H	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-100B-400-R	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-100B-450-H	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-100B-450-R	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CA-100B-500-H	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CA-100B-500-R	Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-40B-25-H	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CB-40B-25-R	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CB-40B-50-H	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CB-40B-50-R	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CB-40B-75-H	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CB-40B-75-R	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CB-40B-100-H	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CB-40B-100-R	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CB-40B-150-H	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CB-40B-150-R	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CB-40B-200-H	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CB-40B-200-R	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CB-40B-250-H	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CB-40B-250-R	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CB-40B-300-H	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CB-40B-300-R	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CB-40B-350-H	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CB-40B-350-R	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CB-40B-400-H	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CB-40B-400-R	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CB-40B-450-H	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CB-40B-450-R	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CB-40B-500-H	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-CB-40B-500-R	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-CB-50B-25-H	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-50B-25-R	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-50B-50-H	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-50B-50-R	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-50B-75-H	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-50B-75-R	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-50B-100-H	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-50B-100-R	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-50B-150-H	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-50B-150-R	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-50B-200-H	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-50B-200-R	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-50B-250-H	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-50B-250-R	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-50B-300-H	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-50B-300-R	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-50B-350-H	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-50B-350-R	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-50B-400-H	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-50B-400-R	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-50B-450-H	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-50B-450-R	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-50B-500-H	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-50B-500-R	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-63B-25-H	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-63B-25-R	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-63B-50-H	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-63B-50-R	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-63B-75-H	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-63B-75-R	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-63B-100-H	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-63B-100-R	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-63B-150-H	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-63B-150-R	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-63B-200-H	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-63B-200-R	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-63B-250-H	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-63B-250-R	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-63B-300-H	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-63B-300-R	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-63B-350-H	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-63B-350-R	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-63B-400-H	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-63B-400-R	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-63B-450-H	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-63B-450-R	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-63B-500-H	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-CB-63B-500-R	Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-CB-80B-25-H	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-80B-25-R	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-80B-50-H	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-80B-50-R	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-80B-75-H	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-80B-75-R	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-80B-100-H	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-80B-100-R	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-80B-150-H	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-80B-150-R	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-80B-200-H	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-80B-200-R	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-80B-250-H	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-80B-250-R	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-80B-300-H	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-80B-300-R	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-80B-350-H	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-80B-350-R	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-80B-400-H	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-80B-400-R	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-80B-450-H	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-80B-450-R	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-80B-500-H	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-80B-500-R	Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-100B-25-H	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-100B-25-R	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-100B-50-H	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-100B-50-R	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-100B-75-H	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-100B-75-R	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-100B-100-H	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-100B-100-R	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-100B-150-H	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-100B-150-R	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-100B-200-H	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-100B-200-R	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-100B-250-H	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-100B-250-R	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-100B-300-H	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-100B-300-R	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-100B-350-H	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-100B-350-R	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-100B-400-H	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-100B-400-R	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-100B-450-H	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-100B-450-R	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-CB-100B-500-H	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-CB-100B-500-R	Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-40B-25-H	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TC-40B-25-R	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TC-40B-50-H	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TC-40B-50-R	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TC-40B-75-H	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TC-40B-75-R	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TC-40B-100-H	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TC-40B-100-R	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TC-40B-150-H	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TC-40B-150-R	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TC-40B-200-H	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TC-40B-200-R	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TC-40B-250-H	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TC-40B-250-R	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TC-40B-300-H	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TC-40B-300-R	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TC-40B-350-H	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TC-40B-350-R	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TC-40B-400-H	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TC-40B-400-R	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TC-40B-450-H	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TC-40B-450-R	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TC-40B-500-H	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TC-40B-500-R	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TC-50B-25-H	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-50B-25-R	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-50B-50-H	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-50B-50-R	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-50B-75-H	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-50B-75-R	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-50B-100-H	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-50B-100-R	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-50B-150-H	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-50B-150-R	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-50B-200-H	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-50B-200-R	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-50B-250-H	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-50B-250-R	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-50B-300-H	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-50B-300-R	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-50B-350-H	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-50B-350-R	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-50B-400-H	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-50B-400-R	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-50B-450-H	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-50B-450-R	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-50B-500-H	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-50B-500-R	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-63B-25-H	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-63B-25-R	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-63B-50-H	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-63B-50-R	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-63B-75-H	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-63B-75-R	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-63B-100-H	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-63B-100-R	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-63B-150-H	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-63B-150-R	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-63B-200-H	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-63B-200-R	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-63B-250-H	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-63B-250-R	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-63B-300-H	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-63B-300-R	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-63B-350-H	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-63B-350-R	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-63B-400-H	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-63B-400-R	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-63B-450-H	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-63B-450-R	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-63B-500-H	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TC-63B-500-R	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TC-80B-25-H	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-80B-25-R	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-80B-50-H	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-80B-50-R	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-80B-75-H	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-80B-75-R	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-80B-100-H	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-80B-100-R	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-80B-150-H	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-80B-150-R	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-80B-200-H	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-80B-200-R	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-80B-250-H	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-80B-250-R	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-80B-300-H	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-80B-300-R	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-80B-350-H	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-80B-350-R	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-80B-400-H	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-80B-400-R	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-80B-450-H	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-80B-450-R	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-80B-500-H	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-80B-500-R	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-100B-25-H	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-100B-25-R	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-100B-50-H	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-100B-50-R	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-100B-75-H	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-100B-75-R	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-100B-100-H	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-100B-100-R	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-100B-150-H	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-100B-150-R	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-100B-200-H	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-100B-200-R	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-100B-250-H	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-100B-250-R	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-100B-300-H	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-100B-300-R	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-100B-350-H	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-100B-350-R	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-100B-400-H	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-100B-400-R	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-100B-450-H	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-100B-450-R	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TC-100B-500-H	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TC-100B-500-R	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TA-40B-25-H	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TA-40B-50-H	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TA-40B-75-H	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TA-40B-100-H	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TA-40B-150-H	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TA-40B-200-H	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TA-40B-250-H	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TA-40B-300-H	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TA-40B-350-H	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TA-40B-400-H	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TA-40B-450-H	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TA-40B-500-H	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/4
	SCA2-Q2-TA-50B-25-H	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-50B-50-H	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-50B-75-H	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-50B-100-H	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-50B-150-H	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-50B-200-H	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-50B-250-H	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-50B-300-H	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-50B-350-H	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-50B-400-H	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-50B-450-H	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-50B-500-H	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-63B-25-H	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-63B-50-H	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-63B-75-H	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-63B-100-H	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-63B-150-H	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-63B-200-H	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-63B-250-H	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-63B-300-H	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-63B-350-H	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-63B-400-H	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-63B-450-H	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-63B-500-H	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TA-80B-25-H	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-80B-50-H	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-80B-75-H	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-80B-100-H	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-80B-150-H	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-80B-200-H	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-80B-250-H	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-80B-300-H	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-80B-350-H	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-80B-400-H	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-80B-450-H	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-80B-500-H	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-100B-25-H	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-100B-50-H	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-100B-75-H	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-100B-100-H	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-100B-150-H	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-100B-200-H	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-100B-250-H	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-100B-300-H	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-100B-350-H	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-100B-400-H	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-100B-450-H	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TA-100B-500-H	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TB-40B-25-R	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TB-40B-50-R	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TB-40B-75-R	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TB-40B-100-R	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TB-40B-150-R	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TB-40B-200-R	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TB-40B-250-R	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TB-40B-300-R	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TB-40B-350-R	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TB-40B-400-R	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TB-40B-450-R	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TB-40B-500-R	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/4
	SCA2-Q2-TB-50B-25-R	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-50B-50-R	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-50B-75-R	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-50B-100-R	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-50B-150-R	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-50B-200-R	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-50B-250-R	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-50B-300-R	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-50B-350-R	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-50B-400-R	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-50B-450-R	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-50B-500-R	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-63B-25-R	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-63B-50-R	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-63B-75-R	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-63B-100-R	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-63B-150-R	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-63B-200-R	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-63B-250-R	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-63B-300-R	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-63B-350-R	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-63B-400-R	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-63B-450-R	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-63B-500-R	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TB-80B-25-R	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-80B-50-R	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-80B-75-R	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-80B-100-R	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-80B-150-R	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-80B-200-R	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-80B-250-R	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-80B-300-R	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-80B-350-R	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-80B-400-R	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-80B-450-R	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-80B-500-R	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-100B-25-R	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-100B-50-R	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-100B-75-R	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-100B-100-R	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-100B-150-R	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-100B-200-R	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-100B-250-R	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-100B-300-R	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-100B-350-R	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-100B-400-R	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-100B-450-R	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TB-100B-500-R	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-50B-25-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-50B-25-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-50B-50-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-50B-50-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-50B-75-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-50B-75-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-50B-100-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-50B-100-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-50B-150-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-50B-150-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-50B-200-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-50B-200-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-50B-250-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-50B-250-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-50B-300-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-50B-300-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-50B-350-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-50B-350-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-50B-400-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-50B-400-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-50B-450-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-50B-450-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-50B-500-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-50B-500-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-63B-25-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-63B-25-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-63B-50-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-63B-50-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-63B-75-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-63B-75-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-63B-100-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-63B-100-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-63B-150-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-63B-150-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-63B-200-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-63B-200-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-63B-250-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-63B-250-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-63B-300-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-63B-300-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-63B-350-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-63B-350-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-63B-400-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-63B-400-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-63B-450-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-63B-450-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-63B-500-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TF-63B-500-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TF-80B-25-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-80B-25-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-80B-50-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-80B-50-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-80B-75-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-80B-75-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-80B-100-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-80B-100-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-80B-150-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-80B-150-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-80B-200-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-80B-200-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-80B-250-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-80B-250-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-80B-300-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-80B-300-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-80B-350-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-80B-350-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-80B-400-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-80B-400-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-80B-450-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-80B-450-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-80B-500-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-80B-500-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-100B-25-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-100B-25-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-100B-50-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-100B-50-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-100B-75-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-100B-75-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-100B-100-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-100B-100-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-100B-150-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-100B-150-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-100B-200-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-100B-200-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-100B-250-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-100B-250-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-100B-300-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-100B-300-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-100B-350-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-100B-350-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-100B-400-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-100B-400-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-100B-450-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-100B-450-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TF-100B-500-H	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TF-100B-500-R	Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-50B-25-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-50B-25-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-50B-50-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-50B-50-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-50B-75-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-50B-75-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-50B-100-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-50B-100-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-50B-150-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-50B-150-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-50B-200-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-50B-200-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-50B-250-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-50B-250-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-50B-300-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-50B-300-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-50B-350-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-50B-350-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-50B-400-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-50B-400-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-50B-450-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-50B-450-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-50B-500-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-50B-500-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-63B-25-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-63B-25-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-63B-50-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-63B-50-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-63B-75-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-63B-75-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-63B-100-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-63B-100-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-63B-150-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-63B-150-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-63B-200-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-63B-200-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-63B-250-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-63B-250-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-63B-300-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-63B-300-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-63B-350-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-63B-350-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-63B-400-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-63B-400-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-63B-450-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-63B-450-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-63B-500-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TD-63B-500-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TD-80B-25-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-80B-25-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-80B-50-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-80B-50-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-80B-75-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-80B-75-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-80B-100-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-80B-100-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-80B-150-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-80B-150-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-80B-200-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-80B-200-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-80B-250-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-80B-250-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-80B-300-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-80B-300-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-80B-350-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-80B-350-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-80B-400-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-80B-400-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-80B-450-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-80B-450-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-80B-500-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-80B-500-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-100B-25-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-100B-25-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-100B-50-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-100B-50-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-100B-75-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-100B-75-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-100B-100-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-100B-100-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-100B-150-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-100B-150-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-100B-200-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-100B-200-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-100B-250-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-100B-250-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-100B-300-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-100B-300-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-100B-350-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-100B-350-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-100B-400-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-100B-400-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-100B-450-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-100B-450-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TD-100B-500-H	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TD-100B-500-R	Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-50B-25-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-50B-25-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-50B-50-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-50B-50-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-50B-75-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-50B-75-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-50B-100-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-50B-100-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-50B-150-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-50B-150-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-50B-200-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-50B-200-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-50B-250-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-50B-250-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-50B-300-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-50B-300-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-50B-350-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-50B-350-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-50B-400-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-50B-400-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-50B-450-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-50B-450-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-50B-500-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-50B-500-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-63B-25-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-63B-25-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-63B-50-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-63B-50-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-63B-75-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-63B-75-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-63B-100-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-63B-100-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-63B-150-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-63B-150-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-63B-200-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-63B-200-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-63B-250-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-63B-250-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-63B-300-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-63B-300-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-63B-350-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-63B-350-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-63B-400-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-63B-400-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-63B-450-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-63B-450-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-63B-500-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc3/8
	SCA2-Q2-TE-63B-500-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc3/8
	SCA2-Q2-TE-80B-25-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-80B-25-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-80B-50-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-80B-50-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-80B-75-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-80B-75-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-80B-100-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-80B-100-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-80B-150-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-80B-150-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-80B-200-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-80B-200-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-80B-250-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-80B-250-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-80B-300-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-80B-300-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-80B-350-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-80B-350-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-80B-400-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-80B-400-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-80B-450-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-80B-450-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-80B-500-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-80B-500-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-100B-25-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-100B-25-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-100B-50-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-100B-50-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-100B-75-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-100B-75-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-100B-100-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-100B-100-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-100B-150-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-100B-150-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-100B-200-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-100B-200-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-100B-250-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-100B-250-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-100B-300-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-100B-300-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-100B-350-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-100B-350-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-100B-400-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-100B-400-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-100B-450-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-100B-450-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Rod end \| Port: Rc1/2
	SCA2-Q2-TE-100B-500-H	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Head end \| Port: Rc1/2
	SCA2-Q2-TE-100B-500-R	Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Rod end \| Port: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCA2-Q2 Selex Cylinder (Drop Prevention Lock, Bore 40-100)
