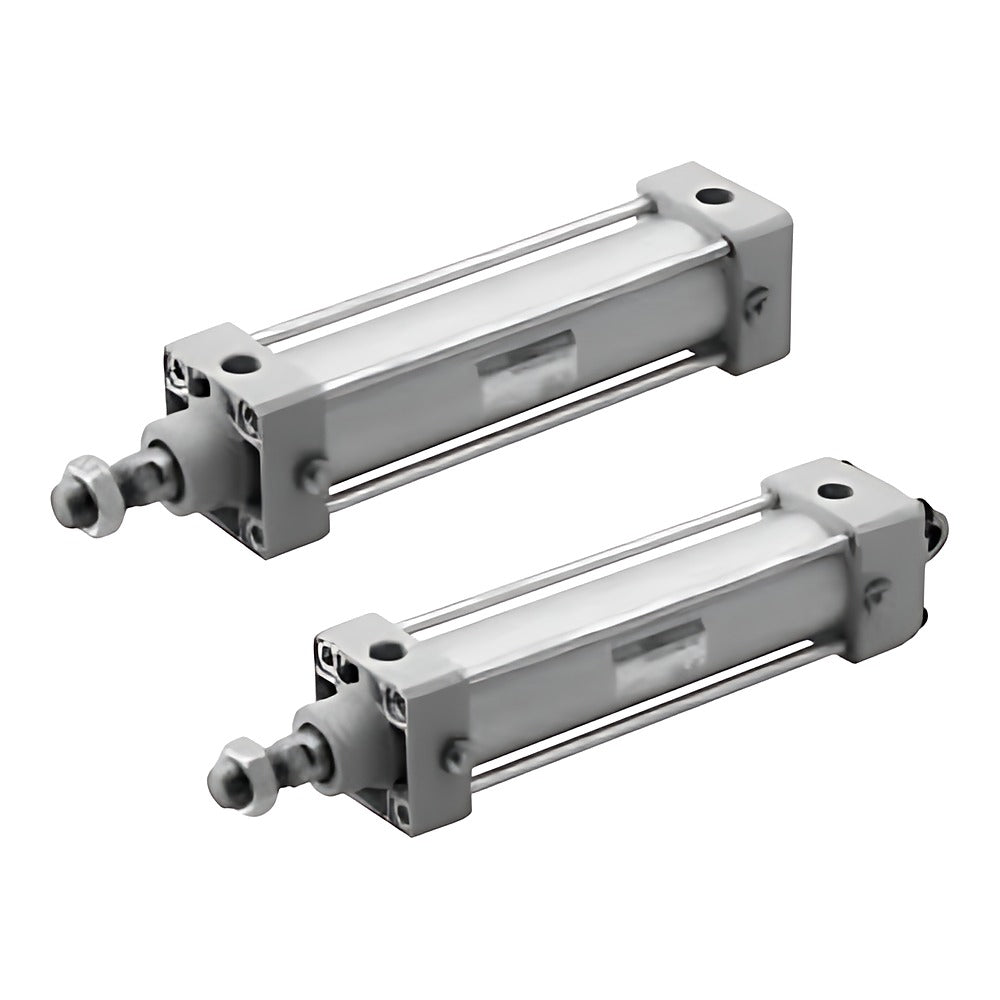

CKD SCA2-T Selex Cylinder (Heat Resistant 120 C, Bore 40-100)

CKD SCA2-T heat-resistant Selex cylinder for ambient temperatures from 5 to 120 C, available without magnet (SCA2-T) or with magnet for E0 switch (SCA2-L2T), bore 40 to 100 mm.

Key features

Heat-resistant seals for ambient 5 to 120 C; periodic heat-resistant grease required, no lubrication
SCA2-T without switch magnet: standard strokes 25 to 500 mm
SCA2-L2T with magnet for E0 reed switch: standard strokes 150 to 500 mm
13 mounting styles; hole-type trunnions (TF, TD, TE) not available for bore 40
Listed codes use air cushion both ends (B); R, H, N cushions, L bellows, M stainless rod and accessories as suffixes

Specifications

Action	Double acting, heat resistant
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.05 MPa
Proof pressure	1.6 MPa
Ambient temperature	5 to 120 C
Piston speed	50 to 1000 mm/s
Lubrication	Not allowed (heat-resistant grease)
Cushion	Air cushion, both ends (B)
Source	CKD Korea catalog CB-029SK-9, p. 576-581

SCA2-T-00-40B-25		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCA2-T-00-40B-50		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCA2-T-00-40B-75		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCA2-T-00-40B-100		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCA2-T-00-40B-150		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-T-00-40B-200		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-T-00-40B-250		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-T-00-40B-300		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-T-00-40B-350		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-T-00-40B-400		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-T-00-40B-450		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-T-00-40B-500		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-T-00-50B-25		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-00-50B-50		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-00-50B-75		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-00-50B-100		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-00-50B-150		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-00-50B-200		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-00-50B-250		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-00-50B-300		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-00-50B-350		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-00-50B-400		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-00-50B-450		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-00-50B-500		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-00-63B-25		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-00-63B-50		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-00-63B-75		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-00-63B-100		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-00-63B-150		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-00-63B-200		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-00-63B-250		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-00-63B-300		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-00-63B-350		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-00-63B-400		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-00-63B-450		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-00-63B-500		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-00-80B-25		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-00-80B-50		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-00-80B-75		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-00-80B-100		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-00-80B-150		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-00-80B-200		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-00-80B-250		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-00-80B-300		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-00-80B-350		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-00-80B-400		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-00-80B-450		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-00-80B-500		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-00-100B-25		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-00-100B-50		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-00-100B-75		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-00-100B-100		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-00-100B-150		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-00-100B-200		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-00-100B-250		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-00-100B-300		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-00-100B-350		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-00-100B-400		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-00-100B-450		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-00-100B-500		Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-LB-40B-25		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCA2-T-LB-40B-50		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCA2-T-LB-40B-75		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCA2-T-LB-40B-100		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCA2-T-LB-40B-150		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-T-LB-40B-200		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-T-LB-40B-250		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-T-LB-40B-300		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-T-LB-40B-350		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-T-LB-40B-400		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-T-LB-40B-450		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-T-LB-40B-500		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-T-LB-50B-25		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-LB-50B-50		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-LB-50B-75		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-LB-50B-100		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-LB-50B-150		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-LB-50B-200		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-LB-50B-250		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-LB-50B-300		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-LB-50B-350		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-LB-50B-400		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-LB-50B-450		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-LB-50B-500		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-LB-63B-25		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-LB-63B-50		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-LB-63B-75		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-LB-63B-100		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-LB-63B-150		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-LB-63B-200		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-LB-63B-250		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-LB-63B-300		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-LB-63B-350		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-LB-63B-400		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-LB-63B-450		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-LB-63B-500		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-LB-80B-25		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-LB-80B-50		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-LB-80B-75		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-LB-80B-100		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-LB-80B-150		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-LB-80B-200		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-LB-80B-250		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-LB-80B-300		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-LB-80B-350		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-LB-80B-400		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-LB-80B-450		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-LB-80B-500		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-LB-100B-25		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-LB-100B-50		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-LB-100B-75		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-LB-100B-100		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-LB-100B-150		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-LB-100B-200		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-LB-100B-250		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-LB-100B-300		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-LB-100B-350		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-LB-100B-400		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-LB-100B-450		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-LB-100B-500		Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-FA-40B-25		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCA2-T-FA-40B-50		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCA2-T-FA-40B-75		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCA2-T-FA-40B-100		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCA2-T-FA-40B-150		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-T-FA-40B-200		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-T-FA-40B-250		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-T-FA-40B-300		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-T-FA-40B-350		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-T-FA-40B-400		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-T-FA-40B-450		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-T-FA-40B-500		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-T-FA-50B-25		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-FA-50B-50		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-FA-50B-75		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-FA-50B-100		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-FA-50B-150		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-FA-50B-200		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-FA-50B-250		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-FA-50B-300		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-FA-50B-350		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-FA-50B-400		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-FA-50B-450		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-FA-50B-500		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-FA-63B-25		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-FA-63B-50		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-FA-63B-75		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-FA-63B-100		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-FA-63B-150		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-FA-63B-200		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-FA-63B-250		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-FA-63B-300		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-FA-63B-350		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-FA-63B-400		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-FA-63B-450		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-FA-63B-500		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-FA-80B-25		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-FA-80B-50		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-FA-80B-75		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-FA-80B-100		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-FA-80B-150		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-FA-80B-200		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-FA-80B-250		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-FA-80B-300		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-FA-80B-350		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-FA-80B-400		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-FA-80B-450		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-FA-80B-500		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-FA-100B-25		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-FA-100B-50		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-FA-100B-75		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-FA-100B-100		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-FA-100B-150		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-FA-100B-200		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-FA-100B-250		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-FA-100B-300		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-FA-100B-350		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-FA-100B-400		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-FA-100B-450		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-FA-100B-500		Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-FB-40B-25		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCA2-T-FB-40B-50		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCA2-T-FB-40B-75		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCA2-T-FB-40B-100		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCA2-T-FB-40B-150		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-T-FB-40B-200		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-T-FB-40B-250		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-T-FB-40B-300		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-T-FB-40B-350		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-T-FB-40B-400		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-T-FB-40B-450		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-T-FB-40B-500		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-T-FB-50B-25		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-FB-50B-50		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-FB-50B-75		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-FB-50B-100		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-FB-50B-150		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-FB-50B-200		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-FB-50B-250		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-FB-50B-300		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-FB-50B-350		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-FB-50B-400		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-FB-50B-450		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-FB-50B-500		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-FB-63B-25		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-FB-63B-50		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-FB-63B-75		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-FB-63B-100		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-FB-63B-150		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-FB-63B-200		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-FB-63B-250		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-FB-63B-300		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-FB-63B-350		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-FB-63B-400		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-FB-63B-450		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-FB-63B-500		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-FB-80B-25		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-FB-80B-50		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-FB-80B-75		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-FB-80B-100		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-FB-80B-150		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-FB-80B-200		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-FB-80B-250		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-FB-80B-300		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-FB-80B-350		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-FB-80B-400		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-FB-80B-450		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-FB-80B-500		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-FB-100B-25		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-FB-100B-50		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-FB-100B-75		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-FB-100B-100		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-FB-100B-150		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-FB-100B-200		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-FB-100B-250		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-FB-100B-300		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-FB-100B-350		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-FB-100B-400		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-FB-100B-450		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-FB-100B-500		Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-FC-40B-25		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCA2-T-FC-40B-50		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCA2-T-FC-40B-75		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCA2-T-FC-40B-100		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCA2-T-FC-40B-150		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-T-FC-40B-200		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-T-FC-40B-250		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-T-FC-40B-300		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-T-FC-40B-350		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-T-FC-40B-400		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-T-FC-40B-450		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-T-FC-40B-500		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-T-FC-50B-25		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-FC-50B-50		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-FC-50B-75		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-FC-50B-100		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-FC-50B-150		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-FC-50B-200		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-FC-50B-250		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-FC-50B-300		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-FC-50B-350		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-FC-50B-400		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-FC-50B-450		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-FC-50B-500		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-FC-63B-25		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-FC-63B-50		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-FC-63B-75		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-FC-63B-100		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-FC-63B-150		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-FC-63B-200		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-FC-63B-250		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-FC-63B-300		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-FC-63B-350		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-FC-63B-400		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-FC-63B-450		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-FC-63B-500		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-FC-80B-25		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-FC-80B-50		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-FC-80B-75		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-FC-80B-100		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-FC-80B-150		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-FC-80B-200		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-FC-80B-250		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-FC-80B-300		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-FC-80B-350		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-FC-80B-400		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-FC-80B-450		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-FC-80B-500		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-FC-100B-25		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-FC-100B-50		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-FC-100B-75		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-FC-100B-100		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-FC-100B-150		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-FC-100B-200		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-FC-100B-250		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-FC-100B-300		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-FC-100B-350		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-FC-100B-400		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-FC-100B-450		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-FC-100B-500		Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-CA-40B-25		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCA2-T-CA-40B-50		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCA2-T-CA-40B-75		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCA2-T-CA-40B-100		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCA2-T-CA-40B-150		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-T-CA-40B-200		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-T-CA-40B-250		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-T-CA-40B-300		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-T-CA-40B-350		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-T-CA-40B-400		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-T-CA-40B-450		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-T-CA-40B-500		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-T-CA-50B-25		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-CA-50B-50		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-CA-50B-75		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-CA-50B-100		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-CA-50B-150		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-CA-50B-200		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-CA-50B-250		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-CA-50B-300		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-CA-50B-350		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-CA-50B-400		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-CA-50B-450		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-CA-50B-500		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-CA-63B-25		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-CA-63B-50		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-CA-63B-75		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-CA-63B-100		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-CA-63B-150		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-CA-63B-200		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-CA-63B-250		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-CA-63B-300		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-CA-63B-350		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-CA-63B-400		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-CA-63B-450		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-CA-63B-500		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-CA-80B-25		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-CA-80B-50		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-CA-80B-75		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-CA-80B-100		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-CA-80B-150		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-CA-80B-200		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-CA-80B-250		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-CA-80B-300		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-CA-80B-350		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-CA-80B-400		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-CA-80B-450		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-CA-80B-500		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-CA-100B-25		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-CA-100B-50		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-CA-100B-75		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-CA-100B-100		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-CA-100B-150		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-CA-100B-200		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-CA-100B-250		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-CA-100B-300		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-CA-100B-350		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-CA-100B-400		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-CA-100B-450		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-CA-100B-500		Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-CB-40B-25		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCA2-T-CB-40B-50		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCA2-T-CB-40B-75		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCA2-T-CB-40B-100		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCA2-T-CB-40B-150		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-T-CB-40B-200		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-T-CB-40B-250		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-T-CB-40B-300		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-T-CB-40B-350		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-T-CB-40B-400		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-T-CB-40B-450		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-T-CB-40B-500		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-T-CB-50B-25		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-CB-50B-50		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-CB-50B-75		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-CB-50B-100		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-CB-50B-150		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-CB-50B-200		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-CB-50B-250		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-CB-50B-300		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-CB-50B-350		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-CB-50B-400		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-CB-50B-450		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-CB-50B-500		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-CB-63B-25		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-CB-63B-50		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-CB-63B-75		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-CB-63B-100		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-CB-63B-150		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-CB-63B-200		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-CB-63B-250		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-CB-63B-300		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-CB-63B-350		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-CB-63B-400		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-CB-63B-450		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-CB-63B-500		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-CB-80B-25		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-CB-80B-50		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-CB-80B-75		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-CB-80B-100		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-CB-80B-150		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-CB-80B-200		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-CB-80B-250		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-CB-80B-300		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-CB-80B-350		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-CB-80B-400		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-CB-80B-450		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-CB-80B-500		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-CB-100B-25		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-CB-100B-50		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-CB-100B-75		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-CB-100B-100		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-CB-100B-150		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-CB-100B-200		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-CB-100B-250		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-CB-100B-300		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-CB-100B-350		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-CB-100B-400		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-CB-100B-450		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-CB-100B-500		Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-TC-40B-25		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCA2-T-TC-40B-50		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCA2-T-TC-40B-75		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCA2-T-TC-40B-100		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCA2-T-TC-40B-150		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-T-TC-40B-200		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-T-TC-40B-250		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-T-TC-40B-300		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-T-TC-40B-350		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-T-TC-40B-400		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-T-TC-40B-450		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-T-TC-40B-500		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-T-TC-50B-25		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-TC-50B-50		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-TC-50B-75		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-TC-50B-100		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-TC-50B-150		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-TC-50B-200		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-TC-50B-250		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-TC-50B-300		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-TC-50B-350		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-TC-50B-400		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-TC-50B-450		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-TC-50B-500		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-TC-63B-25		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-TC-63B-50		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-TC-63B-75		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-TC-63B-100		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-TC-63B-150		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-TC-63B-200		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-TC-63B-250		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-TC-63B-300		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-TC-63B-350		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-TC-63B-400		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-TC-63B-450		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-TC-63B-500		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-TC-80B-25		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-TC-80B-50		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-TC-80B-75		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-TC-80B-100		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-TC-80B-150		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-TC-80B-200		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-TC-80B-250		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-TC-80B-300		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-TC-80B-350		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-TC-80B-400		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-TC-80B-450		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-TC-80B-500		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-TC-100B-25		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-TC-100B-50		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-TC-100B-75		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-TC-100B-100		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-TC-100B-150		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-TC-100B-200		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-TC-100B-250		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-TC-100B-300		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-TC-100B-350		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-TC-100B-400		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-TC-100B-450		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-TC-100B-500		Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-TA-40B-25		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCA2-T-TA-40B-50		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCA2-T-TA-40B-75		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCA2-T-TA-40B-100		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCA2-T-TA-40B-150		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-T-TA-40B-200		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-T-TA-40B-250		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-T-TA-40B-300		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-T-TA-40B-350		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-T-TA-40B-400		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-T-TA-40B-450		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-T-TA-40B-500		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-T-TA-50B-25		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-TA-50B-50		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-TA-50B-75		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-TA-50B-100		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-TA-50B-150		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-TA-50B-200		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-TA-50B-250		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-TA-50B-300		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-TA-50B-350		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-TA-50B-400		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-TA-50B-450		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-TA-50B-500		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-TA-63B-25		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-TA-63B-50		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-TA-63B-75		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-TA-63B-100		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-TA-63B-150		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-TA-63B-200		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-TA-63B-250		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-TA-63B-300		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-TA-63B-350		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-TA-63B-400		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-TA-63B-450		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-TA-63B-500		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-TA-80B-25		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-TA-80B-50		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-TA-80B-75		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-TA-80B-100		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-TA-80B-150		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-TA-80B-200		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-TA-80B-250		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-TA-80B-300		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-TA-80B-350		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-TA-80B-400		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-TA-80B-450		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-TA-80B-500		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-TA-100B-25		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-TA-100B-50		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-TA-100B-75		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-TA-100B-100		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-TA-100B-150		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-TA-100B-200		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-TA-100B-250		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-TA-100B-300		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-TA-100B-350		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-TA-100B-400		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-TA-100B-450		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-TA-100B-500		Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-TB-40B-25		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCA2-T-TB-40B-50		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCA2-T-TB-40B-75		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCA2-T-TB-40B-100		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCA2-T-TB-40B-150		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-T-TB-40B-200		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-T-TB-40B-250		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-T-TB-40B-300		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-T-TB-40B-350		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-T-TB-40B-400		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-T-TB-40B-450		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-T-TB-40B-500		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-T-TB-50B-25		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-TB-50B-50		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-TB-50B-75		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-TB-50B-100		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-TB-50B-150		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-TB-50B-200		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-TB-50B-250		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-TB-50B-300		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-TB-50B-350		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-TB-50B-400		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-TB-50B-450		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-TB-50B-500		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-TB-63B-25		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-TB-63B-50		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-TB-63B-75		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-TB-63B-100		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-TB-63B-150		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-TB-63B-200		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-TB-63B-250		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-TB-63B-300		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-TB-63B-350		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-TB-63B-400		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-TB-63B-450		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-TB-63B-500		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-TB-80B-25		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-TB-80B-50		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-TB-80B-75		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-TB-80B-100		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-TB-80B-150		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-TB-80B-200		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-TB-80B-250		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-TB-80B-300		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-TB-80B-350		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-TB-80B-400		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-TB-80B-450		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-TB-80B-500		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-TB-100B-25		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-TB-100B-50		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-TB-100B-75		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-TB-100B-100		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-TB-100B-150		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-TB-100B-200		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-TB-100B-250		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-TB-100B-300		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-TB-100B-350		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-TB-100B-400		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-TB-100B-450		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-TB-100B-500		Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-TF-50B-25		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-TF-50B-50		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-TF-50B-75		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-TF-50B-100		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-TF-50B-150		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-TF-50B-200		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-TF-50B-250		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-TF-50B-300		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-TF-50B-350		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-TF-50B-400		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-TF-50B-450		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-TF-50B-500		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-TF-63B-25		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-TF-63B-50		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-TF-63B-75		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-TF-63B-100		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-TF-63B-150		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-TF-63B-200		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-TF-63B-250		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-TF-63B-300		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-TF-63B-350		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-TF-63B-400		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-TF-63B-450		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-TF-63B-500		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-TF-80B-25		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-TF-80B-50		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-TF-80B-75		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-TF-80B-100		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-TF-80B-150		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-TF-80B-200		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-TF-80B-250		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-TF-80B-300		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-TF-80B-350		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-TF-80B-400		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-TF-80B-450		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-TF-80B-500		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-TF-100B-25		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-TF-100B-50		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-TF-100B-75		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-TF-100B-100		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-TF-100B-150		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-TF-100B-200		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-TF-100B-250		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-TF-100B-300		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-TF-100B-350		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-TF-100B-400		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-TF-100B-450		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-TF-100B-500		Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-TD-50B-25		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-TD-50B-50		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-TD-50B-75		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-TD-50B-100		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-TD-50B-150		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-TD-50B-200		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-TD-50B-250		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-TD-50B-300		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-TD-50B-350		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-TD-50B-400		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-TD-50B-450		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-TD-50B-500		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-TD-63B-25		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-TD-63B-50		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-TD-63B-75		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-TD-63B-100		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-TD-63B-150		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-TD-63B-200		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-TD-63B-250		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-TD-63B-300		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-TD-63B-350		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-TD-63B-400		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-TD-63B-450		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-TD-63B-500		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-TD-80B-25		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-TD-80B-50		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-TD-80B-75		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-TD-80B-100		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-TD-80B-150		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-TD-80B-200		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-TD-80B-250		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-TD-80B-300		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-TD-80B-350		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-TD-80B-400		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-TD-80B-450		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-TD-80B-500		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-TD-100B-25		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-TD-100B-50		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-TD-100B-75		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-TD-100B-100		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-TD-100B-150		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-TD-100B-200		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-TD-100B-250		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-TD-100B-300		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-TD-100B-350		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-TD-100B-400		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-TD-100B-450		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-TD-100B-500		Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-TE-50B-25		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-TE-50B-50		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-TE-50B-75		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-TE-50B-100		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-TE-50B-150		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-TE-50B-200		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-TE-50B-250		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-TE-50B-300		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-TE-50B-350		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-TE-50B-400		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-TE-50B-450		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-TE-50B-500		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-TE-63B-25		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCA2-T-TE-63B-50		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCA2-T-TE-63B-75		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCA2-T-TE-63B-100		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCA2-T-TE-63B-150		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-T-TE-63B-200		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-T-TE-63B-250		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-T-TE-63B-300		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-T-TE-63B-350		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-T-TE-63B-400		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-T-TE-63B-450		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-T-TE-63B-500		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-T-TE-80B-25		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-TE-80B-50		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-TE-80B-75		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-TE-80B-100		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-TE-80B-150		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-TE-80B-200		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-TE-80B-250		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-TE-80B-300		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-TE-80B-350		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-TE-80B-400		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-TE-80B-450		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-TE-80B-500		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-T-TE-100B-25		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCA2-T-TE-100B-50		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCA2-T-TE-100B-75		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCA2-T-TE-100B-100		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCA2-T-TE-100B-150		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-T-TE-100B-200		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-T-TE-100B-250		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-T-TE-100B-300		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-T-TE-100B-350		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-T-TE-100B-400		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-T-TE-100B-450		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-T-TE-100B-500		Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-00-40B-150		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-L2T-00-40B-200		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-L2T-00-40B-250		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-L2T-00-40B-300		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-L2T-00-40B-350		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-L2T-00-40B-400		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-L2T-00-40B-450		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-L2T-00-40B-500		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-L2T-00-50B-150		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-00-50B-200		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-00-50B-250		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-00-50B-300		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-00-50B-350		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-00-50B-400		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-00-50B-450		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-00-50B-500		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-00-63B-150		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-00-63B-200		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-00-63B-250		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-00-63B-300		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-00-63B-350		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-00-63B-400		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-00-63B-450		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-00-63B-500		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-00-80B-150		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-00-80B-200		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-00-80B-250		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-00-80B-300		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-00-80B-350		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-00-80B-400		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-00-80B-450		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-00-80B-500		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-00-100B-150		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-00-100B-200		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-00-100B-250		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-00-100B-300		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-00-100B-350		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-00-100B-400		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-00-100B-450		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-00-100B-500		Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-LB-40B-150		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-L2T-LB-40B-200		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-L2T-LB-40B-250		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-L2T-LB-40B-300		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-L2T-LB-40B-350		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-L2T-LB-40B-400		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-L2T-LB-40B-450		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-L2T-LB-40B-500		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-L2T-LB-50B-150		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-LB-50B-200		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-LB-50B-250		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-LB-50B-300		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-LB-50B-350		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-LB-50B-400		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-LB-50B-450		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-LB-50B-500		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-LB-63B-150		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-LB-63B-200		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-LB-63B-250		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-LB-63B-300		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-LB-63B-350		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-LB-63B-400		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-LB-63B-450		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-LB-63B-500		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-LB-80B-150		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-LB-80B-200		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-LB-80B-250		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-LB-80B-300		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-LB-80B-350		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-LB-80B-400		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-LB-80B-450		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-LB-80B-500		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-LB-100B-150		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-LB-100B-200		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-LB-100B-250		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-LB-100B-300		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-LB-100B-350		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-LB-100B-400		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-LB-100B-450		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-LB-100B-500		Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-FA-40B-150		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-L2T-FA-40B-200		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-L2T-FA-40B-250		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-L2T-FA-40B-300		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-L2T-FA-40B-350		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-L2T-FA-40B-400		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-L2T-FA-40B-450		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-L2T-FA-40B-500		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-L2T-FA-50B-150		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-FA-50B-200		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-FA-50B-250		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-FA-50B-300		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-FA-50B-350		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-FA-50B-400		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-FA-50B-450		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-FA-50B-500		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-FA-63B-150		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-FA-63B-200		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-FA-63B-250		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-FA-63B-300		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-FA-63B-350		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-FA-63B-400		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-FA-63B-450		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-FA-63B-500		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-FA-80B-150		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-FA-80B-200		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-FA-80B-250		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-FA-80B-300		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-FA-80B-350		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-FA-80B-400		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-FA-80B-450		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-FA-80B-500		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-FA-100B-150		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-FA-100B-200		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-FA-100B-250		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-FA-100B-300		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-FA-100B-350		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-FA-100B-400		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-FA-100B-450		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-FA-100B-500		Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-FB-40B-150		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-L2T-FB-40B-200		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-L2T-FB-40B-250		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-L2T-FB-40B-300		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-L2T-FB-40B-350		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-L2T-FB-40B-400		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-L2T-FB-40B-450		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-L2T-FB-40B-500		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-L2T-FB-50B-150		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-FB-50B-200		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-FB-50B-250		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-FB-50B-300		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-FB-50B-350		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-FB-50B-400		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-FB-50B-450		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-FB-50B-500		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-FB-63B-150		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-FB-63B-200		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-FB-63B-250		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-FB-63B-300		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-FB-63B-350		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-FB-63B-400		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-FB-63B-450		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-FB-63B-500		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-FB-80B-150		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-FB-80B-200		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-FB-80B-250		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-FB-80B-300		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-FB-80B-350		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-FB-80B-400		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-FB-80B-450		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-FB-80B-500		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-FB-100B-150		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-FB-100B-200		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-FB-100B-250		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-FB-100B-300		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-FB-100B-350		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-FB-100B-400		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-FB-100B-450		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-FB-100B-500		Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-FC-40B-150		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-L2T-FC-40B-200		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-L2T-FC-40B-250		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-L2T-FC-40B-300		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-L2T-FC-40B-350		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-L2T-FC-40B-400		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-L2T-FC-40B-450		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-L2T-FC-40B-500		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-L2T-FC-50B-150		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-FC-50B-200		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-FC-50B-250		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-FC-50B-300		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-FC-50B-350		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-FC-50B-400		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-FC-50B-450		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-FC-50B-500		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-FC-63B-150		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-FC-63B-200		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-FC-63B-250		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-FC-63B-300		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-FC-63B-350		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-FC-63B-400		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-FC-63B-450		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-FC-63B-500		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-FC-80B-150		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-FC-80B-200		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-FC-80B-250		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-FC-80B-300		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-FC-80B-350		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-FC-80B-400		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-FC-80B-450		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-FC-80B-500		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-FC-100B-150		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-FC-100B-200		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-FC-100B-250		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-FC-100B-300		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-FC-100B-350		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-FC-100B-400		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-FC-100B-450		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-FC-100B-500		Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-CA-40B-150		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-L2T-CA-40B-200		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-L2T-CA-40B-250		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-L2T-CA-40B-300		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-L2T-CA-40B-350		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-L2T-CA-40B-400		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-L2T-CA-40B-450		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-L2T-CA-40B-500		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-L2T-CA-50B-150		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-CA-50B-200		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-CA-50B-250		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-CA-50B-300		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-CA-50B-350		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-CA-50B-400		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-CA-50B-450		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-CA-50B-500		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-CA-63B-150		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-CA-63B-200		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-CA-63B-250		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-CA-63B-300		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-CA-63B-350		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-CA-63B-400		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-CA-63B-450		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-CA-63B-500		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-CA-80B-150		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-CA-80B-200		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-CA-80B-250		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-CA-80B-300		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-CA-80B-350		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-CA-80B-400		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-CA-80B-450		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-CA-80B-500		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-CA-100B-150		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-CA-100B-200		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-CA-100B-250		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-CA-100B-300		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-CA-100B-350		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-CA-100B-400		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-CA-100B-450		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-CA-100B-500		Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-CB-40B-150		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-L2T-CB-40B-200		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-L2T-CB-40B-250		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-L2T-CB-40B-300		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-L2T-CB-40B-350		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-L2T-CB-40B-400		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-L2T-CB-40B-450		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-L2T-CB-40B-500		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-L2T-CB-50B-150		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-CB-50B-200		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-CB-50B-250		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-CB-50B-300		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-CB-50B-350		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-CB-50B-400		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-CB-50B-450		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-CB-50B-500		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-CB-63B-150		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-CB-63B-200		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-CB-63B-250		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-CB-63B-300		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-CB-63B-350		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-CB-63B-400		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-CB-63B-450		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-CB-63B-500		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-CB-80B-150		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-CB-80B-200		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-CB-80B-250		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-CB-80B-300		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-CB-80B-350		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-CB-80B-400		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-CB-80B-450		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-CB-80B-500		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-CB-100B-150		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-CB-100B-200		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-CB-100B-250		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-CB-100B-300		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-CB-100B-350		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-CB-100B-400		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-CB-100B-450		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-CB-100B-500		Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-TC-40B-150		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-L2T-TC-40B-200		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-L2T-TC-40B-250		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-L2T-TC-40B-300		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-L2T-TC-40B-350		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-L2T-TC-40B-400		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-L2T-TC-40B-450		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-L2T-TC-40B-500		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-L2T-TC-50B-150		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-TC-50B-200		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-TC-50B-250		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-TC-50B-300		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-TC-50B-350		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-TC-50B-400		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-TC-50B-450		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-TC-50B-500		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-TC-63B-150		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-TC-63B-200		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-TC-63B-250		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-TC-63B-300		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-TC-63B-350		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-TC-63B-400		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-TC-63B-450		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-TC-63B-500		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-TC-80B-150		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-TC-80B-200		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-TC-80B-250		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-TC-80B-300		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-TC-80B-350		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-TC-80B-400		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-TC-80B-450		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-TC-80B-500		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-TC-100B-150		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-TC-100B-200		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-TC-100B-250		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-TC-100B-300		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-TC-100B-350		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-TC-100B-400		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-TC-100B-450		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-TC-100B-500		Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-TA-40B-150		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-L2T-TA-40B-200		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-L2T-TA-40B-250		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-L2T-TA-40B-300		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-L2T-TA-40B-350		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-L2T-TA-40B-400		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-L2T-TA-40B-450		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-L2T-TA-40B-500		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-L2T-TA-50B-150		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-TA-50B-200		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-TA-50B-250		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-TA-50B-300		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-TA-50B-350		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-TA-50B-400		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-TA-50B-450		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-TA-50B-500		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-TA-63B-150		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-TA-63B-200		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-TA-63B-250		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-TA-63B-300		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-TA-63B-350		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-TA-63B-400		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-TA-63B-450		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-TA-63B-500		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-TA-80B-150		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-TA-80B-200		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-TA-80B-250		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-TA-80B-300		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-TA-80B-350		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-TA-80B-400		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-TA-80B-450		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-TA-80B-500		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-TA-100B-150		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-TA-100B-200		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-TA-100B-250		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-TA-100B-300		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-TA-100B-350		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-TA-100B-400		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-TA-100B-450		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-TA-100B-500		Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-TB-40B-150		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCA2-L2T-TB-40B-200		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCA2-L2T-TB-40B-250		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCA2-L2T-TB-40B-300		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCA2-L2T-TB-40B-350		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCA2-L2T-TB-40B-400		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCA2-L2T-TB-40B-450		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCA2-L2T-TB-40B-500		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCA2-L2T-TB-50B-150		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-TB-50B-200		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-TB-50B-250		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-TB-50B-300		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-TB-50B-350		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-TB-50B-400		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-TB-50B-450		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-TB-50B-500		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-TB-63B-150		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-TB-63B-200		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-TB-63B-250		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-TB-63B-300		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-TB-63B-350		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-TB-63B-400		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-TB-63B-450		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-TB-63B-500		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-TB-80B-150		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-TB-80B-200		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-TB-80B-250		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-TB-80B-300		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-TB-80B-350		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-TB-80B-400		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-TB-80B-450		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-TB-80B-500		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-TB-100B-150		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-TB-100B-200		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-TB-100B-250		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-TB-100B-300		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-TB-100B-350		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-TB-100B-400		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-TB-100B-450		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-TB-100B-500		Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-TF-50B-150		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-TF-50B-200		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-TF-50B-250		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-TF-50B-300		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-TF-50B-350		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-TF-50B-400		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-TF-50B-450		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-TF-50B-500		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-TF-63B-150		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-TF-63B-200		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-TF-63B-250		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-TF-63B-300		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-TF-63B-350		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-TF-63B-400		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-TF-63B-450		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-TF-63B-500		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-TF-80B-150		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-TF-80B-200		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-TF-80B-250		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-TF-80B-300		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-TF-80B-350		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-TF-80B-400		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-TF-80B-450		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-TF-80B-500		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-TF-100B-150		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-TF-100B-200		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-TF-100B-250		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-TF-100B-300		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-TF-100B-350		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-TF-100B-400		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-TF-100B-450		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-TF-100B-500		Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-TD-50B-150		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-TD-50B-200		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-TD-50B-250		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-TD-50B-300		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-TD-50B-350		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-TD-50B-400		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-TD-50B-450		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-TD-50B-500		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-TD-63B-150		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-TD-63B-200		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-TD-63B-250		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-TD-63B-300		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-TD-63B-350		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-TD-63B-400		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-TD-63B-450		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-TD-63B-500		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-TD-80B-150		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-TD-80B-200		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-TD-80B-250		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-TD-80B-300		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-TD-80B-350		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-TD-80B-400		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-TD-80B-450		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-TD-80B-500		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-TD-100B-150		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-TD-100B-200		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-TD-100B-250		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-TD-100B-300		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-TD-100B-350		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-TD-100B-400		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-TD-100B-450		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-TD-100B-500		Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-TE-50B-150		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-TE-50B-200		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-TE-50B-250		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-TE-50B-300		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-TE-50B-350		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-TE-50B-400		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-TE-50B-450		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-TE-50B-500		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-TE-63B-150		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCA2-L2T-TE-63B-200		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCA2-L2T-TE-63B-250		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCA2-L2T-TE-63B-300		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCA2-L2T-TE-63B-350		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCA2-L2T-TE-63B-400		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCA2-L2T-TE-63B-450		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCA2-L2T-TE-63B-500		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCA2-L2T-TE-80B-150		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-TE-80B-200		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-TE-80B-250		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-TE-80B-300		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-TE-80B-350		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-TE-80B-400		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-TE-80B-450		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-TE-80B-500		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
SCA2-L2T-TE-100B-150		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCA2-L2T-TE-100B-200		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCA2-L2T-TE-100B-250		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCA2-L2T-TE-100B-300		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCA2-L2T-TE-100B-350		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCA2-L2T-TE-100B-400		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCA2-L2T-TE-100B-450		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCA2-L2T-TE-100B-500		Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2

Pneumatic CylindersCKD

1240 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCA2-T Selex Cylinder (Heat Resistant 120 C, Bore 40-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (1240)

SCA2-T-00-40B-25, SCA2-T-00-40B-50, SCA2-T-00-40B-75, SCA2-T-00-40B-100, SCA2-T-00-40B-150, SCA2-T-00-40B-200, SCA2-T-00-40B-250, SCA2-T-00-40B-300, SCA2-T-00-40B-350, SCA2-T-00-40B-400 + 1230 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCA2-T-00-40B-25	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-T-00-40B-50	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-T-00-40B-75	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-T-00-40B-100	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-T-00-40B-150	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-T-00-40B-200	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-T-00-40B-250	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-T-00-40B-300	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-T-00-40B-350	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-T-00-40B-400	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-T-00-40B-450	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-T-00-40B-500	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-T-00-50B-25	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-00-50B-50	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-00-50B-75	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-00-50B-100	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-00-50B-150	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-00-50B-200	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-00-50B-250	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-00-50B-300	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-00-50B-350	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-00-50B-400	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-00-50B-450	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-00-50B-500	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-00-63B-25	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-00-63B-50	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-00-63B-75	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-00-63B-100	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-00-63B-150	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-00-63B-200	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-00-63B-250	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-00-63B-300	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-00-63B-350	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-00-63B-400	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-00-63B-450	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-00-63B-500	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-00-80B-25	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-00-80B-50	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-00-80B-75	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-00-80B-100	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-00-80B-150	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-00-80B-200	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-00-80B-250	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-00-80B-300	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-00-80B-350	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-00-80B-400	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-00-80B-450	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-00-80B-500	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-00-100B-25	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-00-100B-50	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-00-100B-75	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-00-100B-100	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-00-100B-150	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-00-100B-200	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-00-100B-250	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-00-100B-300	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-00-100B-350	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-00-100B-400	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-00-100B-450	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-00-100B-500	Body: No switch magnet \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-LB-40B-25	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-T-LB-40B-50	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-T-LB-40B-75	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-T-LB-40B-100	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-T-LB-40B-150	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-T-LB-40B-200	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-T-LB-40B-250	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-T-LB-40B-300	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-T-LB-40B-350	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-T-LB-40B-400	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-T-LB-40B-450	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-T-LB-40B-500	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-T-LB-50B-25	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-LB-50B-50	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-LB-50B-75	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-LB-50B-100	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-LB-50B-150	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-LB-50B-200	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-LB-50B-250	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-LB-50B-300	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-LB-50B-350	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-LB-50B-400	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-LB-50B-450	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-LB-50B-500	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-LB-63B-25	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-LB-63B-50	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-LB-63B-75	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-LB-63B-100	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-LB-63B-150	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-LB-63B-200	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-LB-63B-250	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-LB-63B-300	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-LB-63B-350	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-LB-63B-400	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-LB-63B-450	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-LB-63B-500	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-LB-80B-25	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-LB-80B-50	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-LB-80B-75	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-LB-80B-100	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-LB-80B-150	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-LB-80B-200	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-LB-80B-250	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-LB-80B-300	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-LB-80B-350	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-LB-80B-400	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-LB-80B-450	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-LB-80B-500	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-LB-100B-25	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-LB-100B-50	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-LB-100B-75	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-LB-100B-100	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-LB-100B-150	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-LB-100B-200	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-LB-100B-250	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-LB-100B-300	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-LB-100B-350	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-LB-100B-400	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-LB-100B-450	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-LB-100B-500	Body: No switch magnet \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-FA-40B-25	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-T-FA-40B-50	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-T-FA-40B-75	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-T-FA-40B-100	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-T-FA-40B-150	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-T-FA-40B-200	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-T-FA-40B-250	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-T-FA-40B-300	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-T-FA-40B-350	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-T-FA-40B-400	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-T-FA-40B-450	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-T-FA-40B-500	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-T-FA-50B-25	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-FA-50B-50	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-FA-50B-75	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-FA-50B-100	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-FA-50B-150	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-FA-50B-200	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-FA-50B-250	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-FA-50B-300	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-FA-50B-350	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-FA-50B-400	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-FA-50B-450	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-FA-50B-500	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-FA-63B-25	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-FA-63B-50	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-FA-63B-75	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-FA-63B-100	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-FA-63B-150	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-FA-63B-200	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-FA-63B-250	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-FA-63B-300	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-FA-63B-350	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-FA-63B-400	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-FA-63B-450	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-FA-63B-500	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-FA-80B-25	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-FA-80B-50	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-FA-80B-75	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-FA-80B-100	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-FA-80B-150	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-FA-80B-200	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-FA-80B-250	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-FA-80B-300	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-FA-80B-350	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-FA-80B-400	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-FA-80B-450	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-FA-80B-500	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-FA-100B-25	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-FA-100B-50	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-FA-100B-75	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-FA-100B-100	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-FA-100B-150	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-FA-100B-200	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-FA-100B-250	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-FA-100B-300	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-FA-100B-350	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-FA-100B-400	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-FA-100B-450	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-FA-100B-500	Body: No switch magnet \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-FB-40B-25	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-T-FB-40B-50	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-T-FB-40B-75	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-T-FB-40B-100	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-T-FB-40B-150	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-T-FB-40B-200	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-T-FB-40B-250	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-T-FB-40B-300	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-T-FB-40B-350	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-T-FB-40B-400	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-T-FB-40B-450	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-T-FB-40B-500	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-T-FB-50B-25	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-FB-50B-50	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-FB-50B-75	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-FB-50B-100	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-FB-50B-150	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-FB-50B-200	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-FB-50B-250	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-FB-50B-300	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-FB-50B-350	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-FB-50B-400	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-FB-50B-450	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-FB-50B-500	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-FB-63B-25	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-FB-63B-50	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-FB-63B-75	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-FB-63B-100	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-FB-63B-150	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-FB-63B-200	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-FB-63B-250	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-FB-63B-300	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-FB-63B-350	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-FB-63B-400	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-FB-63B-450	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-FB-63B-500	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-FB-80B-25	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-FB-80B-50	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-FB-80B-75	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-FB-80B-100	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-FB-80B-150	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-FB-80B-200	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-FB-80B-250	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-FB-80B-300	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-FB-80B-350	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-FB-80B-400	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-FB-80B-450	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-FB-80B-500	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-FB-100B-25	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-FB-100B-50	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-FB-100B-75	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-FB-100B-100	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-FB-100B-150	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-FB-100B-200	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-FB-100B-250	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-FB-100B-300	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-FB-100B-350	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-FB-100B-400	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-FB-100B-450	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-FB-100B-500	Body: No switch magnet \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-FC-40B-25	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-T-FC-40B-50	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-T-FC-40B-75	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-T-FC-40B-100	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-T-FC-40B-150	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-T-FC-40B-200	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-T-FC-40B-250	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-T-FC-40B-300	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-T-FC-40B-350	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-T-FC-40B-400	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-T-FC-40B-450	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-T-FC-40B-500	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-T-FC-50B-25	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-FC-50B-50	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-FC-50B-75	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-FC-50B-100	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-FC-50B-150	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-FC-50B-200	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-FC-50B-250	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-FC-50B-300	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-FC-50B-350	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-FC-50B-400	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-FC-50B-450	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-FC-50B-500	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-FC-63B-25	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-FC-63B-50	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-FC-63B-75	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-FC-63B-100	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-FC-63B-150	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-FC-63B-200	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-FC-63B-250	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-FC-63B-300	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-FC-63B-350	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-FC-63B-400	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-FC-63B-450	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-FC-63B-500	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-FC-80B-25	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-FC-80B-50	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-FC-80B-75	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-FC-80B-100	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-FC-80B-150	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-FC-80B-200	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-FC-80B-250	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-FC-80B-300	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-FC-80B-350	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-FC-80B-400	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-FC-80B-450	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-FC-80B-500	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-FC-100B-25	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-FC-100B-50	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-FC-100B-75	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-FC-100B-100	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-FC-100B-150	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-FC-100B-200	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-FC-100B-250	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-FC-100B-300	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-FC-100B-350	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-FC-100B-400	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-FC-100B-450	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-FC-100B-500	Body: No switch magnet \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-CA-40B-25	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-T-CA-40B-50	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-T-CA-40B-75	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-T-CA-40B-100	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-T-CA-40B-150	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-T-CA-40B-200	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-T-CA-40B-250	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-T-CA-40B-300	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-T-CA-40B-350	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-T-CA-40B-400	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-T-CA-40B-450	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-T-CA-40B-500	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-T-CA-50B-25	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-CA-50B-50	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-CA-50B-75	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-CA-50B-100	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-CA-50B-150	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-CA-50B-200	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-CA-50B-250	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-CA-50B-300	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-CA-50B-350	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-CA-50B-400	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-CA-50B-450	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-CA-50B-500	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-CA-63B-25	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-CA-63B-50	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-CA-63B-75	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-CA-63B-100	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-CA-63B-150	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-CA-63B-200	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-CA-63B-250	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-CA-63B-300	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-CA-63B-350	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-CA-63B-400	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-CA-63B-450	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-CA-63B-500	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-CA-80B-25	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-CA-80B-50	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-CA-80B-75	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-CA-80B-100	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-CA-80B-150	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-CA-80B-200	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-CA-80B-250	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-CA-80B-300	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-CA-80B-350	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-CA-80B-400	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-CA-80B-450	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-CA-80B-500	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-CA-100B-25	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-CA-100B-50	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-CA-100B-75	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-CA-100B-100	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-CA-100B-150	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-CA-100B-200	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-CA-100B-250	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-CA-100B-300	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-CA-100B-350	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-CA-100B-400	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-CA-100B-450	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-CA-100B-500	Body: No switch magnet \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-CB-40B-25	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-T-CB-40B-50	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-T-CB-40B-75	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-T-CB-40B-100	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-T-CB-40B-150	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-T-CB-40B-200	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-T-CB-40B-250	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-T-CB-40B-300	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-T-CB-40B-350	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-T-CB-40B-400	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-T-CB-40B-450	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-T-CB-40B-500	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-T-CB-50B-25	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-CB-50B-50	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-CB-50B-75	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-CB-50B-100	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-CB-50B-150	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-CB-50B-200	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-CB-50B-250	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-CB-50B-300	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-CB-50B-350	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-CB-50B-400	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-CB-50B-450	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-CB-50B-500	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-CB-63B-25	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-CB-63B-50	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-CB-63B-75	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-CB-63B-100	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-CB-63B-150	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-CB-63B-200	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-CB-63B-250	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-CB-63B-300	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-CB-63B-350	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-CB-63B-400	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-CB-63B-450	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-CB-63B-500	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-CB-80B-25	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-CB-80B-50	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-CB-80B-75	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-CB-80B-100	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-CB-80B-150	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-CB-80B-200	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-CB-80B-250	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-CB-80B-300	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-CB-80B-350	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-CB-80B-400	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-CB-80B-450	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-CB-80B-500	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-CB-100B-25	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-CB-100B-50	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-CB-100B-75	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-CB-100B-100	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-CB-100B-150	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-CB-100B-200	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-CB-100B-250	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-CB-100B-300	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-CB-100B-350	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-CB-100B-400	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-CB-100B-450	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-CB-100B-500	Body: No switch magnet \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-TC-40B-25	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-T-TC-40B-50	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-T-TC-40B-75	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-T-TC-40B-100	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-T-TC-40B-150	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-T-TC-40B-200	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-T-TC-40B-250	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-T-TC-40B-300	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-T-TC-40B-350	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-T-TC-40B-400	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-T-TC-40B-450	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-T-TC-40B-500	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-T-TC-50B-25	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-TC-50B-50	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-TC-50B-75	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-TC-50B-100	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-TC-50B-150	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-TC-50B-200	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-TC-50B-250	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-TC-50B-300	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-TC-50B-350	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-TC-50B-400	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-TC-50B-450	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-TC-50B-500	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-TC-63B-25	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-TC-63B-50	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-TC-63B-75	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-TC-63B-100	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-TC-63B-150	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-TC-63B-200	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-TC-63B-250	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-TC-63B-300	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-TC-63B-350	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-TC-63B-400	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-TC-63B-450	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-TC-63B-500	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-TC-80B-25	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-TC-80B-50	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-TC-80B-75	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-TC-80B-100	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-TC-80B-150	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-TC-80B-200	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-TC-80B-250	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-TC-80B-300	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-TC-80B-350	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-TC-80B-400	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-TC-80B-450	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-TC-80B-500	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-TC-100B-25	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-TC-100B-50	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-TC-100B-75	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-TC-100B-100	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-TC-100B-150	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-TC-100B-200	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-TC-100B-250	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-TC-100B-300	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-TC-100B-350	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-TC-100B-400	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-TC-100B-450	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-TC-100B-500	Body: No switch magnet \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-TA-40B-25	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-T-TA-40B-50	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-T-TA-40B-75	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-T-TA-40B-100	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-T-TA-40B-150	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-T-TA-40B-200	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-T-TA-40B-250	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-T-TA-40B-300	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-T-TA-40B-350	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-T-TA-40B-400	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-T-TA-40B-450	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-T-TA-40B-500	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-T-TA-50B-25	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-TA-50B-50	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-TA-50B-75	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-TA-50B-100	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-TA-50B-150	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-TA-50B-200	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-TA-50B-250	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-TA-50B-300	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-TA-50B-350	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-TA-50B-400	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-TA-50B-450	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-TA-50B-500	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-TA-63B-25	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-TA-63B-50	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-TA-63B-75	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-TA-63B-100	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-TA-63B-150	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-TA-63B-200	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-TA-63B-250	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-TA-63B-300	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-TA-63B-350	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-TA-63B-400	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-TA-63B-450	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-TA-63B-500	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-TA-80B-25	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-TA-80B-50	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-TA-80B-75	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-TA-80B-100	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-TA-80B-150	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-TA-80B-200	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-TA-80B-250	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-TA-80B-300	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-TA-80B-350	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-TA-80B-400	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-TA-80B-450	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-TA-80B-500	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-TA-100B-25	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-TA-100B-50	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-TA-100B-75	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-TA-100B-100	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-TA-100B-150	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-TA-100B-200	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-TA-100B-250	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-TA-100B-300	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-TA-100B-350	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-TA-100B-400	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-TA-100B-450	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-TA-100B-500	Body: No switch magnet \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-TB-40B-25	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCA2-T-TB-40B-50	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCA2-T-TB-40B-75	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCA2-T-TB-40B-100	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCA2-T-TB-40B-150	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-T-TB-40B-200	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-T-TB-40B-250	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-T-TB-40B-300	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-T-TB-40B-350	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-T-TB-40B-400	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-T-TB-40B-450	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-T-TB-40B-500	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-T-TB-50B-25	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-TB-50B-50	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-TB-50B-75	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-TB-50B-100	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-TB-50B-150	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-TB-50B-200	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-TB-50B-250	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-TB-50B-300	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-TB-50B-350	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-TB-50B-400	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-TB-50B-450	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-TB-50B-500	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-TB-63B-25	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-TB-63B-50	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-TB-63B-75	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-TB-63B-100	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-TB-63B-150	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-TB-63B-200	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-TB-63B-250	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-TB-63B-300	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-TB-63B-350	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-TB-63B-400	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-TB-63B-450	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-TB-63B-500	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-TB-80B-25	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-TB-80B-50	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-TB-80B-75	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-TB-80B-100	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-TB-80B-150	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-TB-80B-200	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-TB-80B-250	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-TB-80B-300	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-TB-80B-350	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-TB-80B-400	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-TB-80B-450	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-TB-80B-500	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-TB-100B-25	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-TB-100B-50	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-TB-100B-75	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-TB-100B-100	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-TB-100B-150	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-TB-100B-200	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-TB-100B-250	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-TB-100B-300	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-TB-100B-350	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-TB-100B-400	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-TB-100B-450	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-TB-100B-500	Body: No switch magnet \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-TF-50B-25	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-TF-50B-50	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-TF-50B-75	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-TF-50B-100	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-TF-50B-150	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-TF-50B-200	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-TF-50B-250	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-TF-50B-300	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-TF-50B-350	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-TF-50B-400	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-TF-50B-450	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-TF-50B-500	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-TF-63B-25	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-TF-63B-50	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-TF-63B-75	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-TF-63B-100	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-TF-63B-150	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-TF-63B-200	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-TF-63B-250	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-TF-63B-300	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-TF-63B-350	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-TF-63B-400	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-TF-63B-450	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-TF-63B-500	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-TF-80B-25	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-TF-80B-50	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-TF-80B-75	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-TF-80B-100	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-TF-80B-150	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-TF-80B-200	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-TF-80B-250	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-TF-80B-300	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-TF-80B-350	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-TF-80B-400	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-TF-80B-450	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-TF-80B-500	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-TF-100B-25	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-TF-100B-50	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-TF-100B-75	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-TF-100B-100	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-TF-100B-150	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-TF-100B-200	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-TF-100B-250	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-TF-100B-300	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-TF-100B-350	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-TF-100B-400	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-TF-100B-450	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-TF-100B-500	Body: No switch magnet \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-TD-50B-25	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-TD-50B-50	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-TD-50B-75	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-TD-50B-100	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-TD-50B-150	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-TD-50B-200	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-TD-50B-250	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-TD-50B-300	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-TD-50B-350	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-TD-50B-400	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-TD-50B-450	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-TD-50B-500	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-TD-63B-25	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-TD-63B-50	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-TD-63B-75	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-TD-63B-100	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-TD-63B-150	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-TD-63B-200	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-TD-63B-250	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-TD-63B-300	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-TD-63B-350	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-TD-63B-400	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-TD-63B-450	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-TD-63B-500	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-TD-80B-25	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-TD-80B-50	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-TD-80B-75	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-TD-80B-100	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-TD-80B-150	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-TD-80B-200	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-TD-80B-250	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-TD-80B-300	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-TD-80B-350	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-TD-80B-400	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-TD-80B-450	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-TD-80B-500	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-TD-100B-25	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-TD-100B-50	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-TD-100B-75	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-TD-100B-100	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-TD-100B-150	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-TD-100B-200	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-TD-100B-250	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-TD-100B-300	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-TD-100B-350	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-TD-100B-400	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-TD-100B-450	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-TD-100B-500	Body: No switch magnet \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-TE-50B-25	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-TE-50B-50	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-TE-50B-75	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-TE-50B-100	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-TE-50B-150	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-TE-50B-200	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-TE-50B-250	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-TE-50B-300	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-TE-50B-350	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-TE-50B-400	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-TE-50B-450	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-TE-50B-500	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-TE-63B-25	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCA2-T-TE-63B-50	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCA2-T-TE-63B-75	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCA2-T-TE-63B-100	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCA2-T-TE-63B-150	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-T-TE-63B-200	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-T-TE-63B-250	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-T-TE-63B-300	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-T-TE-63B-350	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-T-TE-63B-400	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-T-TE-63B-450	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-T-TE-63B-500	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-T-TE-80B-25	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-TE-80B-50	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-TE-80B-75	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-TE-80B-100	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-TE-80B-150	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-TE-80B-200	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-TE-80B-250	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-TE-80B-300	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-TE-80B-350	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-TE-80B-400	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-TE-80B-450	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-TE-80B-500	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-T-TE-100B-25	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCA2-T-TE-100B-50	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCA2-T-TE-100B-75	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCA2-T-TE-100B-100	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCA2-T-TE-100B-150	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-T-TE-100B-200	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-T-TE-100B-250	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-T-TE-100B-300	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-T-TE-100B-350	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-T-TE-100B-400	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-T-TE-100B-450	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-T-TE-100B-500	Body: No switch magnet \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-00-40B-150	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-L2T-00-40B-200	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-L2T-00-40B-250	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-L2T-00-40B-300	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-L2T-00-40B-350	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-L2T-00-40B-400	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-L2T-00-40B-450	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-L2T-00-40B-500	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-L2T-00-50B-150	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-00-50B-200	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-00-50B-250	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-00-50B-300	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-00-50B-350	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-00-50B-400	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-00-50B-450	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-00-50B-500	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-00-63B-150	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-00-63B-200	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-00-63B-250	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-00-63B-300	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-00-63B-350	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-00-63B-400	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-00-63B-450	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-00-63B-500	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-00-80B-150	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-00-80B-200	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-00-80B-250	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-00-80B-300	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-00-80B-350	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-00-80B-400	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-00-80B-450	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-00-80B-500	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-00-100B-150	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-00-100B-200	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-00-100B-250	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-00-100B-300	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-00-100B-350	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-00-100B-400	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-00-100B-450	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-00-100B-500	Body: Magnet for E0 switch \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-LB-40B-150	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-L2T-LB-40B-200	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-L2T-LB-40B-250	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-L2T-LB-40B-300	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-L2T-LB-40B-350	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-L2T-LB-40B-400	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-L2T-LB-40B-450	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-L2T-LB-40B-500	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-L2T-LB-50B-150	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-LB-50B-200	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-LB-50B-250	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-LB-50B-300	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-LB-50B-350	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-LB-50B-400	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-LB-50B-450	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-LB-50B-500	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-LB-63B-150	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-LB-63B-200	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-LB-63B-250	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-LB-63B-300	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-LB-63B-350	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-LB-63B-400	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-LB-63B-450	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-LB-63B-500	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-LB-80B-150	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-LB-80B-200	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-LB-80B-250	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-LB-80B-300	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-LB-80B-350	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-LB-80B-400	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-LB-80B-450	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-LB-80B-500	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-LB-100B-150	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-LB-100B-200	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-LB-100B-250	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-LB-100B-300	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-LB-100B-350	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-LB-100B-400	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-LB-100B-450	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-LB-100B-500	Body: Magnet for E0 switch \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-FA-40B-150	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-L2T-FA-40B-200	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-L2T-FA-40B-250	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-L2T-FA-40B-300	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-L2T-FA-40B-350	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-L2T-FA-40B-400	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-L2T-FA-40B-450	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-L2T-FA-40B-500	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-L2T-FA-50B-150	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-FA-50B-200	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-FA-50B-250	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-FA-50B-300	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-FA-50B-350	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-FA-50B-400	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-FA-50B-450	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-FA-50B-500	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-FA-63B-150	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-FA-63B-200	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-FA-63B-250	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-FA-63B-300	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-FA-63B-350	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-FA-63B-400	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-FA-63B-450	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-FA-63B-500	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-FA-80B-150	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-FA-80B-200	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-FA-80B-250	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-FA-80B-300	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-FA-80B-350	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-FA-80B-400	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-FA-80B-450	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-FA-80B-500	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-FA-100B-150	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-FA-100B-200	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-FA-100B-250	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-FA-100B-300	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-FA-100B-350	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-FA-100B-400	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-FA-100B-450	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-FA-100B-500	Body: Magnet for E0 switch \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-FB-40B-150	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-L2T-FB-40B-200	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-L2T-FB-40B-250	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-L2T-FB-40B-300	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-L2T-FB-40B-350	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-L2T-FB-40B-400	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-L2T-FB-40B-450	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-L2T-FB-40B-500	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-L2T-FB-50B-150	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-FB-50B-200	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-FB-50B-250	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-FB-50B-300	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-FB-50B-350	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-FB-50B-400	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-FB-50B-450	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-FB-50B-500	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-FB-63B-150	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-FB-63B-200	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-FB-63B-250	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-FB-63B-300	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-FB-63B-350	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-FB-63B-400	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-FB-63B-450	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-FB-63B-500	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-FB-80B-150	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-FB-80B-200	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-FB-80B-250	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-FB-80B-300	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-FB-80B-350	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-FB-80B-400	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-FB-80B-450	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-FB-80B-500	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-FB-100B-150	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-FB-100B-200	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-FB-100B-250	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-FB-100B-300	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-FB-100B-350	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-FB-100B-400	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-FB-100B-450	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-FB-100B-500	Body: Magnet for E0 switch \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-FC-40B-150	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-L2T-FC-40B-200	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-L2T-FC-40B-250	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-L2T-FC-40B-300	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-L2T-FC-40B-350	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-L2T-FC-40B-400	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-L2T-FC-40B-450	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-L2T-FC-40B-500	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-L2T-FC-50B-150	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-FC-50B-200	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-FC-50B-250	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-FC-50B-300	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-FC-50B-350	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-FC-50B-400	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-FC-50B-450	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-FC-50B-500	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-FC-63B-150	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-FC-63B-200	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-FC-63B-250	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-FC-63B-300	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-FC-63B-350	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-FC-63B-400	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-FC-63B-450	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-FC-63B-500	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-FC-80B-150	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-FC-80B-200	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-FC-80B-250	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-FC-80B-300	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-FC-80B-350	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-FC-80B-400	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-FC-80B-450	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-FC-80B-500	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-FC-100B-150	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-FC-100B-200	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-FC-100B-250	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-FC-100B-300	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-FC-100B-350	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-FC-100B-400	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-FC-100B-450	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-FC-100B-500	Body: Magnet for E0 switch \| Mounting: Head-end special flange (FC) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-CA-40B-150	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-L2T-CA-40B-200	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-L2T-CA-40B-250	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-L2T-CA-40B-300	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-L2T-CA-40B-350	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-L2T-CA-40B-400	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-L2T-CA-40B-450	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-L2T-CA-40B-500	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-L2T-CA-50B-150	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-CA-50B-200	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-CA-50B-250	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-CA-50B-300	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-CA-50B-350	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-CA-50B-400	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-CA-50B-450	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-CA-50B-500	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-CA-63B-150	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-CA-63B-200	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-CA-63B-250	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-CA-63B-300	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-CA-63B-350	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-CA-63B-400	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-CA-63B-450	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-CA-63B-500	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-CA-80B-150	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-CA-80B-200	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-CA-80B-250	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-CA-80B-300	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-CA-80B-350	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-CA-80B-400	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-CA-80B-450	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-CA-80B-500	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-CA-100B-150	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-CA-100B-200	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-CA-100B-250	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-CA-100B-300	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-CA-100B-350	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-CA-100B-400	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-CA-100B-450	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-CA-100B-500	Body: Magnet for E0 switch \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-CB-40B-150	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-L2T-CB-40B-200	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-L2T-CB-40B-250	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-L2T-CB-40B-300	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-L2T-CB-40B-350	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-L2T-CB-40B-400	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-L2T-CB-40B-450	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-L2T-CB-40B-500	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-L2T-CB-50B-150	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-CB-50B-200	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-CB-50B-250	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-CB-50B-300	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-CB-50B-350	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-CB-50B-400	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-CB-50B-450	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-CB-50B-500	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-CB-63B-150	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-CB-63B-200	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-CB-63B-250	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-CB-63B-300	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-CB-63B-350	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-CB-63B-400	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-CB-63B-450	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-CB-63B-500	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-CB-80B-150	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-CB-80B-200	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-CB-80B-250	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-CB-80B-300	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-CB-80B-350	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-CB-80B-400	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-CB-80B-450	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-CB-80B-500	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-CB-100B-150	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-CB-100B-200	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-CB-100B-250	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-CB-100B-300	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-CB-100B-350	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-CB-100B-400	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-CB-100B-450	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-CB-100B-500	Body: Magnet for E0 switch \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-TC-40B-150	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-L2T-TC-40B-200	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-L2T-TC-40B-250	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-L2T-TC-40B-300	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-L2T-TC-40B-350	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-L2T-TC-40B-400	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-L2T-TC-40B-450	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-L2T-TC-40B-500	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-L2T-TC-50B-150	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-TC-50B-200	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-TC-50B-250	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-TC-50B-300	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-TC-50B-350	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-TC-50B-400	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-TC-50B-450	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-TC-50B-500	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-TC-63B-150	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-TC-63B-200	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-TC-63B-250	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-TC-63B-300	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-TC-63B-350	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-TC-63B-400	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-TC-63B-450	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-TC-63B-500	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-TC-80B-150	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-TC-80B-200	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-TC-80B-250	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-TC-80B-300	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-TC-80B-350	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-TC-80B-400	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-TC-80B-450	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-TC-80B-500	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-TC-100B-150	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-TC-100B-200	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-TC-100B-250	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-TC-100B-300	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-TC-100B-350	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-TC-100B-400	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-TC-100B-450	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-TC-100B-500	Body: Magnet for E0 switch \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-TA-40B-150	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-L2T-TA-40B-200	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-L2T-TA-40B-250	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-L2T-TA-40B-300	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-L2T-TA-40B-350	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-L2T-TA-40B-400	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-L2T-TA-40B-450	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-L2T-TA-40B-500	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-L2T-TA-50B-150	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-TA-50B-200	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-TA-50B-250	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-TA-50B-300	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-TA-50B-350	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-TA-50B-400	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-TA-50B-450	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-TA-50B-500	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-TA-63B-150	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-TA-63B-200	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-TA-63B-250	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-TA-63B-300	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-TA-63B-350	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-TA-63B-400	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-TA-63B-450	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-TA-63B-500	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-TA-80B-150	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-TA-80B-200	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-TA-80B-250	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-TA-80B-300	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-TA-80B-350	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-TA-80B-400	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-TA-80B-450	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-TA-80B-500	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-TA-100B-150	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-TA-100B-200	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-TA-100B-250	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-TA-100B-300	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-TA-100B-350	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-TA-100B-400	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-TA-100B-450	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-TA-100B-500	Body: Magnet for E0 switch \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-TB-40B-150	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCA2-L2T-TB-40B-200	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCA2-L2T-TB-40B-250	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCA2-L2T-TB-40B-300	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCA2-L2T-TB-40B-350	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCA2-L2T-TB-40B-400	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCA2-L2T-TB-40B-450	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCA2-L2T-TB-40B-500	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCA2-L2T-TB-50B-150	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-TB-50B-200	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-TB-50B-250	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-TB-50B-300	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-TB-50B-350	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-TB-50B-400	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-TB-50B-450	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-TB-50B-500	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-TB-63B-150	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-TB-63B-200	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-TB-63B-250	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-TB-63B-300	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-TB-63B-350	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-TB-63B-400	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-TB-63B-450	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-TB-63B-500	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-TB-80B-150	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-TB-80B-200	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-TB-80B-250	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-TB-80B-300	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-TB-80B-350	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-TB-80B-400	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-TB-80B-450	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-TB-80B-500	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-TB-100B-150	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-TB-100B-200	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-TB-100B-250	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-TB-100B-300	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-TB-100B-350	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-TB-100B-400	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-TB-100B-450	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-TB-100B-500	Body: Magnet for E0 switch \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-TF-50B-150	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-TF-50B-200	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-TF-50B-250	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-TF-50B-300	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-TF-50B-350	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-TF-50B-400	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-TF-50B-450	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-TF-50B-500	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-TF-63B-150	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-TF-63B-200	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-TF-63B-250	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-TF-63B-300	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-TF-63B-350	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-TF-63B-400	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-TF-63B-450	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-TF-63B-500	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-TF-80B-150	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-TF-80B-200	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-TF-80B-250	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-TF-80B-300	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-TF-80B-350	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-TF-80B-400	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-TF-80B-450	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-TF-80B-500	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-TF-100B-150	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-TF-100B-200	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-TF-100B-250	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-TF-100B-300	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-TF-100B-350	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-TF-100B-400	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-TF-100B-450	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-TF-100B-500	Body: Magnet for E0 switch \| Mounting: Center trunnion (hole type) (TF) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-TD-50B-150	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-TD-50B-200	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-TD-50B-250	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-TD-50B-300	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-TD-50B-350	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-TD-50B-400	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-TD-50B-450	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-TD-50B-500	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-TD-63B-150	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-TD-63B-200	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-TD-63B-250	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-TD-63B-300	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-TD-63B-350	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-TD-63B-400	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-TD-63B-450	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-TD-63B-500	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-TD-80B-150	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-TD-80B-200	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-TD-80B-250	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-TD-80B-300	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-TD-80B-350	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-TD-80B-400	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-TD-80B-450	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-TD-80B-500	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-TD-100B-150	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-TD-100B-200	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-TD-100B-250	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-TD-100B-300	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-TD-100B-350	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-TD-100B-400	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-TD-100B-450	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-TD-100B-500	Body: Magnet for E0 switch \| Mounting: Rod trunnion (hole type) (TD) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-TE-50B-150	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-TE-50B-200	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-TE-50B-250	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-TE-50B-300	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-TE-50B-350	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-TE-50B-400	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-TE-50B-450	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-TE-50B-500	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-TE-63B-150	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCA2-L2T-TE-63B-200	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCA2-L2T-TE-63B-250	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCA2-L2T-TE-63B-300	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCA2-L2T-TE-63B-350	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCA2-L2T-TE-63B-400	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCA2-L2T-TE-63B-450	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCA2-L2T-TE-63B-500	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCA2-L2T-TE-80B-150	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-TE-80B-200	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-TE-80B-250	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-TE-80B-300	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-TE-80B-350	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-TE-80B-400	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-TE-80B-450	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-TE-80B-500	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCA2-L2T-TE-100B-150	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCA2-L2T-TE-100B-200	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCA2-L2T-TE-100B-250	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCA2-L2T-TE-100B-300	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCA2-L2T-TE-100B-350	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCA2-L2T-TE-100B-400	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCA2-L2T-TE-100B-450	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCA2-L2T-TE-100B-500	Body: Magnet for E0 switch \| Mounting: Head trunnion (hole type) (TE) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCA2-T Selex Cylinder (Heat Resistant 120 C, Bore 40-100)
