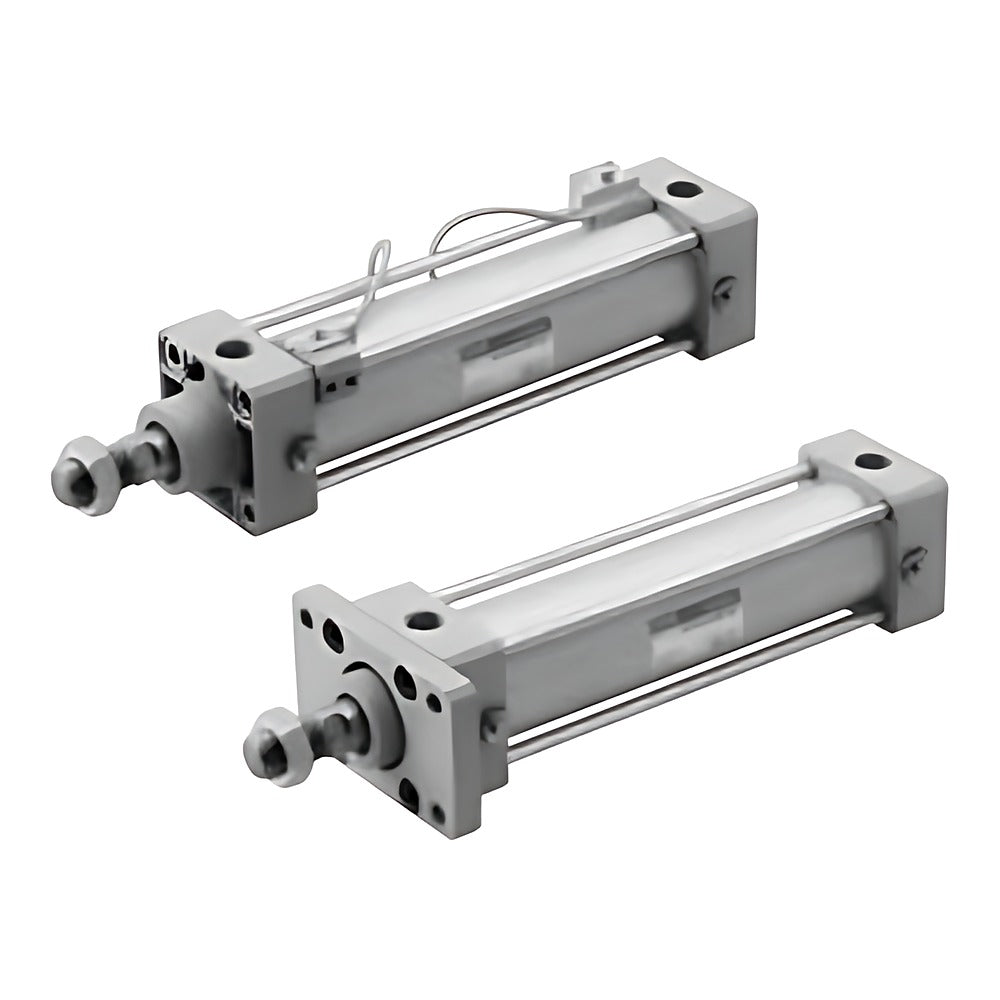

CKD SCA2-U Selex Cylinder (Low Friction, Static, Bore 40-100)

CKD SCA2-U Selex Cylinder (Low Friction, Static, Bore 40-100)

CKD SCA2-U low-friction Selex cylinder with low static friction under pressure for balancing and pressing control, bore 40 to 100 mm.

Key features

  • Low static friction under pressure for force control and balancing, piston speed 10 to 1000 mm/s
  • No cushion (N); external shock absorption recommended
  • 13 mounting styles; hole-type trunnions (TF, TD, TE) not available for bore 40
  • Standard strokes 25 to 500 mm; intermediate strokes in 1 mm steps
  • Switch magnet built in; T-type switches, stainless rod (M) and knuckles/brackets as suffixes

Specifications

Action Double acting, low friction
Fluid Compressed air
Max. working pressure 0.7 MPa
Min. working pressure 0.03 MPa
Proof pressure 1.0 MPa
Ambient temperature 5 to 60 C
Piston speed 10 to 1000 mm/s
Lubrication Not allowed
Cushion None (N)
Source CKD Korea catalog CB-029SK-9, p. 622-627
SCA2-U-00-40N-25 Mounting: Basic (00) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-00-40N-50 Mounting: Basic (00) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-00-40N-75 Mounting: Basic (00) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-00-40N-100 Mounting: Basic (00) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-00-40N-150 Mounting: Basic (00) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-00-40N-200 Mounting: Basic (00) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-00-40N-250 Mounting: Basic (00) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-00-40N-300 Mounting: Basic (00) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-00-40N-350 Mounting: Basic (00) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-00-40N-400 Mounting: Basic (00) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-00-40N-450 Mounting: Basic (00) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-00-40N-500 Mounting: Basic (00) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-00-50N-25 Mounting: Basic (00) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-00-50N-50 Mounting: Basic (00) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-00-50N-75 Mounting: Basic (00) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-00-50N-100 Mounting: Basic (00) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-00-50N-150 Mounting: Basic (00) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-00-50N-200 Mounting: Basic (00) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-00-50N-250 Mounting: Basic (00) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-00-50N-300 Mounting: Basic (00) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-00-50N-350 Mounting: Basic (00) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-00-50N-400 Mounting: Basic (00) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-00-50N-450 Mounting: Basic (00) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-00-50N-500 Mounting: Basic (00) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-00-63N-25 Mounting: Basic (00) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-00-63N-50 Mounting: Basic (00) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-00-63N-75 Mounting: Basic (00) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-00-63N-100 Mounting: Basic (00) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-00-63N-150 Mounting: Basic (00) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-00-63N-200 Mounting: Basic (00) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-00-63N-250 Mounting: Basic (00) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-00-63N-300 Mounting: Basic (00) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-00-63N-350 Mounting: Basic (00) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-00-63N-400 Mounting: Basic (00) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-00-63N-450 Mounting: Basic (00) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-00-63N-500 Mounting: Basic (00) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-00-80N-25 Mounting: Basic (00) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-00-80N-50 Mounting: Basic (00) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-00-80N-75 Mounting: Basic (00) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-00-80N-100 Mounting: Basic (00) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-00-80N-150 Mounting: Basic (00) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-00-80N-200 Mounting: Basic (00) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-00-80N-250 Mounting: Basic (00) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-00-80N-300 Mounting: Basic (00) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-00-80N-350 Mounting: Basic (00) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-00-80N-400 Mounting: Basic (00) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-00-80N-450 Mounting: Basic (00) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-00-80N-500 Mounting: Basic (00) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-00-100N-25 Mounting: Basic (00) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-00-100N-50 Mounting: Basic (00) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-00-100N-75 Mounting: Basic (00) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-00-100N-100 Mounting: Basic (00) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-00-100N-150 Mounting: Basic (00) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-00-100N-200 Mounting: Basic (00) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-00-100N-250 Mounting: Basic (00) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-00-100N-300 Mounting: Basic (00) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-00-100N-350 Mounting: Basic (00) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-00-100N-400 Mounting: Basic (00) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-00-100N-450 Mounting: Basic (00) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-00-100N-500 Mounting: Basic (00) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-LB-40N-25 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-LB-40N-50 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-LB-40N-75 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-LB-40N-100 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-LB-40N-150 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-LB-40N-200 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-LB-40N-250 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-LB-40N-300 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-LB-40N-350 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-LB-40N-400 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-LB-40N-450 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-LB-40N-500 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-LB-50N-25 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-LB-50N-50 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-LB-50N-75 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-LB-50N-100 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-LB-50N-150 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-LB-50N-200 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-LB-50N-250 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-LB-50N-300 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-LB-50N-350 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-LB-50N-400 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-LB-50N-450 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-LB-50N-500 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-LB-63N-25 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-LB-63N-50 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-LB-63N-75 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-LB-63N-100 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-LB-63N-150 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-LB-63N-200 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-LB-63N-250 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-LB-63N-300 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-LB-63N-350 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-LB-63N-400 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-LB-63N-450 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-LB-63N-500 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-LB-80N-25 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-LB-80N-50 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-LB-80N-75 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-LB-80N-100 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-LB-80N-150 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-LB-80N-200 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-LB-80N-250 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-LB-80N-300 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-LB-80N-350 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-LB-80N-400 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-LB-80N-450 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-LB-80N-500 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-LB-100N-25 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-LB-100N-50 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-LB-100N-75 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-LB-100N-100 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-LB-100N-150 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-LB-100N-200 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-LB-100N-250 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-LB-100N-300 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-LB-100N-350 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-LB-100N-400 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-LB-100N-450 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-LB-100N-500 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-FA-40N-25 Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-FA-40N-50 Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-FA-40N-75 Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-FA-40N-100 Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-FA-40N-150 Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-FA-40N-200 Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-FA-40N-250 Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-FA-40N-300 Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-FA-40N-350 Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-FA-40N-400 Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-FA-40N-450 Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-FA-40N-500 Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-FA-50N-25 Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-FA-50N-50 Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-FA-50N-75 Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-FA-50N-100 Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-FA-50N-150 Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-FA-50N-200 Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-FA-50N-250 Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-FA-50N-300 Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-FA-50N-350 Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-FA-50N-400 Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-FA-50N-450 Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-FA-50N-500 Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-FA-63N-25 Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-FA-63N-50 Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-FA-63N-75 Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-FA-63N-100 Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-FA-63N-150 Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-FA-63N-200 Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-FA-63N-250 Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-FA-63N-300 Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-FA-63N-350 Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-FA-63N-400 Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-FA-63N-450 Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-FA-63N-500 Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-FA-80N-25 Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-FA-80N-50 Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-FA-80N-75 Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-FA-80N-100 Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-FA-80N-150 Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-FA-80N-200 Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-FA-80N-250 Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-FA-80N-300 Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-FA-80N-350 Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-FA-80N-400 Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-FA-80N-450 Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-FA-80N-500 Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-FA-100N-25 Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-FA-100N-50 Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-FA-100N-75 Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-FA-100N-100 Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-FA-100N-150 Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-FA-100N-200 Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-FA-100N-250 Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-FA-100N-300 Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-FA-100N-350 Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-FA-100N-400 Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-FA-100N-450 Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-FA-100N-500 Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-FB-40N-25 Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-FB-40N-50 Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-FB-40N-75 Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-FB-40N-100 Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-FB-40N-150 Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-FB-40N-200 Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-FB-40N-250 Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-FB-40N-300 Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-FB-40N-350 Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-FB-40N-400 Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-FB-40N-450 Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-FB-40N-500 Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-FB-50N-25 Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-FB-50N-50 Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-FB-50N-75 Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-FB-50N-100 Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-FB-50N-150 Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-FB-50N-200 Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-FB-50N-250 Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-FB-50N-300 Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-FB-50N-350 Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-FB-50N-400 Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-FB-50N-450 Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-FB-50N-500 Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-FB-63N-25 Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-FB-63N-50 Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-FB-63N-75 Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-FB-63N-100 Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-FB-63N-150 Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-FB-63N-200 Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-FB-63N-250 Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-FB-63N-300 Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-FB-63N-350 Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-FB-63N-400 Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-FB-63N-450 Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-FB-63N-500 Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-FB-80N-25 Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-FB-80N-50 Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-FB-80N-75 Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-FB-80N-100 Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-FB-80N-150 Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-FB-80N-200 Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-FB-80N-250 Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-FB-80N-300 Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-FB-80N-350 Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-FB-80N-400 Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-FB-80N-450 Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-FB-80N-500 Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-FB-100N-25 Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-FB-100N-50 Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-FB-100N-75 Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-FB-100N-100 Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-FB-100N-150 Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-FB-100N-200 Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-FB-100N-250 Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-FB-100N-300 Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-FB-100N-350 Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-FB-100N-400 Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-FB-100N-450 Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-FB-100N-500 Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-FC-40N-25 Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-FC-40N-50 Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-FC-40N-75 Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-FC-40N-100 Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-FC-40N-150 Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-FC-40N-200 Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-FC-40N-250 Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-FC-40N-300 Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-FC-40N-350 Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-FC-40N-400 Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-FC-40N-450 Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-FC-40N-500 Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-FC-50N-25 Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-FC-50N-50 Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-FC-50N-75 Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-FC-50N-100 Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-FC-50N-150 Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-FC-50N-200 Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-FC-50N-250 Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-FC-50N-300 Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-FC-50N-350 Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-FC-50N-400 Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-FC-50N-450 Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-FC-50N-500 Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-FC-63N-25 Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-FC-63N-50 Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-FC-63N-75 Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-FC-63N-100 Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-FC-63N-150 Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-FC-63N-200 Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-FC-63N-250 Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-FC-63N-300 Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-FC-63N-350 Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-FC-63N-400 Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-FC-63N-450 Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-FC-63N-500 Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-FC-80N-25 Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-FC-80N-50 Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-FC-80N-75 Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-FC-80N-100 Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-FC-80N-150 Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-FC-80N-200 Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-FC-80N-250 Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-FC-80N-300 Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-FC-80N-350 Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-FC-80N-400 Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-FC-80N-450 Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-FC-80N-500 Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-FC-100N-25 Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-FC-100N-50 Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-FC-100N-75 Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-FC-100N-100 Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-FC-100N-150 Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-FC-100N-200 Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-FC-100N-250 Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-FC-100N-300 Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-FC-100N-350 Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-FC-100N-400 Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-FC-100N-450 Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-FC-100N-500 Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-CA-40N-25 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-CA-40N-50 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-CA-40N-75 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-CA-40N-100 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-CA-40N-150 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-CA-40N-200 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-CA-40N-250 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-CA-40N-300 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-CA-40N-350 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-CA-40N-400 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-CA-40N-450 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-CA-40N-500 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-CA-50N-25 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-CA-50N-50 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-CA-50N-75 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-CA-50N-100 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-CA-50N-150 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-CA-50N-200 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-CA-50N-250 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-CA-50N-300 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-CA-50N-350 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-CA-50N-400 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-CA-50N-450 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-CA-50N-500 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-CA-63N-25 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-CA-63N-50 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-CA-63N-75 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-CA-63N-100 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-CA-63N-150 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-CA-63N-200 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-CA-63N-250 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-CA-63N-300 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-CA-63N-350 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-CA-63N-400 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-CA-63N-450 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-CA-63N-500 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-CA-80N-25 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-CA-80N-50 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-CA-80N-75 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-CA-80N-100 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-CA-80N-150 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-CA-80N-200 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-CA-80N-250 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-CA-80N-300 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-CA-80N-350 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-CA-80N-400 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-CA-80N-450 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-CA-80N-500 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-CA-100N-25 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-CA-100N-50 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-CA-100N-75 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-CA-100N-100 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-CA-100N-150 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-CA-100N-200 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-CA-100N-250 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-CA-100N-300 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-CA-100N-350 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-CA-100N-400 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-CA-100N-450 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-CA-100N-500 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-CB-40N-25 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-CB-40N-50 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-CB-40N-75 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-CB-40N-100 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-CB-40N-150 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-CB-40N-200 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-CB-40N-250 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-CB-40N-300 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-CB-40N-350 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-CB-40N-400 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-CB-40N-450 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-CB-40N-500 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-CB-50N-25 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-CB-50N-50 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-CB-50N-75 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-CB-50N-100 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-CB-50N-150 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-CB-50N-200 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-CB-50N-250 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-CB-50N-300 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-CB-50N-350 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-CB-50N-400 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-CB-50N-450 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-CB-50N-500 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-CB-63N-25 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-CB-63N-50 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-CB-63N-75 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-CB-63N-100 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-CB-63N-150 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-CB-63N-200 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-CB-63N-250 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-CB-63N-300 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-CB-63N-350 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-CB-63N-400 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-CB-63N-450 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-CB-63N-500 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-CB-80N-25 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-CB-80N-50 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-CB-80N-75 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-CB-80N-100 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-CB-80N-150 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-CB-80N-200 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-CB-80N-250 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-CB-80N-300 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-CB-80N-350 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-CB-80N-400 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-CB-80N-450 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-CB-80N-500 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-CB-100N-25 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-CB-100N-50 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-CB-100N-75 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-CB-100N-100 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-CB-100N-150 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-CB-100N-200 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-CB-100N-250 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-CB-100N-300 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-CB-100N-350 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-CB-100N-400 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-CB-100N-450 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-CB-100N-500 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TC-40N-25 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-TC-40N-50 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-TC-40N-75 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-TC-40N-100 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-TC-40N-150 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-TC-40N-200 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-TC-40N-250 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-TC-40N-300 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-TC-40N-350 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-TC-40N-400 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-TC-40N-450 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-TC-40N-500 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-TC-50N-25 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TC-50N-50 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TC-50N-75 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TC-50N-100 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TC-50N-150 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TC-50N-200 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TC-50N-250 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TC-50N-300 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TC-50N-350 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TC-50N-400 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TC-50N-450 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TC-50N-500 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TC-63N-25 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TC-63N-50 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TC-63N-75 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TC-63N-100 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TC-63N-150 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TC-63N-200 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TC-63N-250 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TC-63N-300 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TC-63N-350 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TC-63N-400 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TC-63N-450 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TC-63N-500 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TC-80N-25 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TC-80N-50 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TC-80N-75 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TC-80N-100 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TC-80N-150 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TC-80N-200 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TC-80N-250 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TC-80N-300 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TC-80N-350 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TC-80N-400 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TC-80N-450 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TC-80N-500 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TC-100N-25 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TC-100N-50 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TC-100N-75 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TC-100N-100 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TC-100N-150 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TC-100N-200 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TC-100N-250 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TC-100N-300 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TC-100N-350 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TC-100N-400 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TC-100N-450 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TC-100N-500 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TA-40N-25 Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-TA-40N-50 Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-TA-40N-75 Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-TA-40N-100 Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-TA-40N-150 Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-TA-40N-200 Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-TA-40N-250 Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-TA-40N-300 Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-TA-40N-350 Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-TA-40N-400 Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-TA-40N-450 Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-TA-40N-500 Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-TA-50N-25 Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TA-50N-50 Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TA-50N-75 Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TA-50N-100 Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TA-50N-150 Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TA-50N-200 Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TA-50N-250 Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TA-50N-300 Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TA-50N-350 Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TA-50N-400 Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TA-50N-450 Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TA-50N-500 Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TA-63N-25 Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TA-63N-50 Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TA-63N-75 Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TA-63N-100 Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TA-63N-150 Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TA-63N-200 Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TA-63N-250 Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TA-63N-300 Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TA-63N-350 Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TA-63N-400 Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TA-63N-450 Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TA-63N-500 Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TA-80N-25 Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TA-80N-50 Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TA-80N-75 Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TA-80N-100 Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TA-80N-150 Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TA-80N-200 Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TA-80N-250 Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TA-80N-300 Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TA-80N-350 Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TA-80N-400 Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TA-80N-450 Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TA-80N-500 Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TA-100N-25 Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TA-100N-50 Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TA-100N-75 Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TA-100N-100 Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TA-100N-150 Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TA-100N-200 Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TA-100N-250 Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TA-100N-300 Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TA-100N-350 Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TA-100N-400 Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TA-100N-450 Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TA-100N-500 Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TB-40N-25 Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-TB-40N-50 Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-TB-40N-75 Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-TB-40N-100 Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-TB-40N-150 Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-TB-40N-200 Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-TB-40N-250 Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-TB-40N-300 Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-TB-40N-350 Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-TB-40N-400 Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-TB-40N-450 Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-TB-40N-500 Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-TB-50N-25 Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TB-50N-50 Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TB-50N-75 Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TB-50N-100 Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TB-50N-150 Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TB-50N-200 Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TB-50N-250 Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TB-50N-300 Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TB-50N-350 Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TB-50N-400 Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TB-50N-450 Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TB-50N-500 Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TB-63N-25 Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TB-63N-50 Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TB-63N-75 Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TB-63N-100 Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TB-63N-150 Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TB-63N-200 Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TB-63N-250 Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TB-63N-300 Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TB-63N-350 Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TB-63N-400 Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TB-63N-450 Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TB-63N-500 Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TB-80N-25 Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TB-80N-50 Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TB-80N-75 Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TB-80N-100 Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TB-80N-150 Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TB-80N-200 Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TB-80N-250 Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TB-80N-300 Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TB-80N-350 Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TB-80N-400 Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TB-80N-450 Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TB-80N-500 Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TB-100N-25 Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TB-100N-50 Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TB-100N-75 Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TB-100N-100 Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TB-100N-150 Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TB-100N-200 Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TB-100N-250 Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TB-100N-300 Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TB-100N-350 Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TB-100N-400 Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TB-100N-450 Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TB-100N-500 Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TF-50N-25 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TF-50N-50 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TF-50N-75 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TF-50N-100 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TF-50N-150 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TF-50N-200 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TF-50N-250 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TF-50N-300 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TF-50N-350 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TF-50N-400 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TF-50N-450 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TF-50N-500 Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TF-63N-25 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TF-63N-50 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TF-63N-75 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TF-63N-100 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TF-63N-150 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TF-63N-200 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TF-63N-250 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TF-63N-300 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TF-63N-350 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TF-63N-400 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TF-63N-450 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TF-63N-500 Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TF-80N-25 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TF-80N-50 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TF-80N-75 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TF-80N-100 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TF-80N-150 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TF-80N-200 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TF-80N-250 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TF-80N-300 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TF-80N-350 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TF-80N-400 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TF-80N-450 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TF-80N-500 Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TF-100N-25 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TF-100N-50 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TF-100N-75 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TF-100N-100 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TF-100N-150 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TF-100N-200 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TF-100N-250 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TF-100N-300 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TF-100N-350 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TF-100N-400 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TF-100N-450 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TF-100N-500 Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TD-50N-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TD-50N-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TD-50N-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TD-50N-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TD-50N-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TD-50N-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TD-50N-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TD-50N-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TD-50N-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TD-50N-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TD-50N-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TD-50N-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TD-63N-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TD-63N-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TD-63N-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TD-63N-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TD-63N-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TD-63N-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TD-63N-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TD-63N-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TD-63N-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TD-63N-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TD-63N-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TD-63N-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TD-80N-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TD-80N-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TD-80N-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TD-80N-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TD-80N-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TD-80N-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TD-80N-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TD-80N-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TD-80N-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TD-80N-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TD-80N-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TD-80N-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TD-100N-25 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TD-100N-50 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TD-100N-75 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TD-100N-100 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TD-100N-150 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TD-100N-200 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TD-100N-250 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TD-100N-300 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TD-100N-350 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TD-100N-400 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TD-100N-450 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TD-100N-500 Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TE-50N-25 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TE-50N-50 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TE-50N-75 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TE-50N-100 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TE-50N-150 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TE-50N-200 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TE-50N-250 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TE-50N-300 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TE-50N-350 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TE-50N-400 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TE-50N-450 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TE-50N-500 Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TE-63N-25 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TE-63N-50 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TE-63N-75 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TE-63N-100 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TE-63N-150 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TE-63N-200 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TE-63N-250 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TE-63N-300 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TE-63N-350 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TE-63N-400 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TE-63N-450 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TE-63N-500 Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TE-80N-25 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TE-80N-50 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TE-80N-75 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TE-80N-100 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TE-80N-150 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TE-80N-200 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TE-80N-250 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TE-80N-300 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TE-80N-350 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TE-80N-400 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TE-80N-450 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TE-80N-500 Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TE-100N-25 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TE-100N-50 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TE-100N-75 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TE-100N-100 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TE-100N-150 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TE-100N-200 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TE-100N-250 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TE-100N-300 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TE-100N-350 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TE-100N-400 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TE-100N-450 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TE-100N-500 Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
Pneumatic CylindersCKD
744 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCA2-U Selex Cylinder (Low Friction, Static, Bore 40-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (744)

SCA2-U-00-40N-25, SCA2-U-00-40N-50, SCA2-U-00-40N-75, SCA2-U-00-40N-100, SCA2-U-00-40N-150, SCA2-U-00-40N-200, SCA2-U-00-40N-250, SCA2-U-00-40N-300, SCA2-U-00-40N-350, SCA2-U-00-40N-400 + 734 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCA2-U-00-40N-25Mounting: Basic (00) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-00-40N-50Mounting: Basic (00) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-00-40N-75Mounting: Basic (00) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-00-40N-100Mounting: Basic (00) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-00-40N-150Mounting: Basic (00) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-00-40N-200Mounting: Basic (00) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-00-40N-250Mounting: Basic (00) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-00-40N-300Mounting: Basic (00) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-00-40N-350Mounting: Basic (00) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-00-40N-400Mounting: Basic (00) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-00-40N-450Mounting: Basic (00) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-00-40N-500Mounting: Basic (00) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-00-50N-25Mounting: Basic (00) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-00-50N-50Mounting: Basic (00) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-00-50N-75Mounting: Basic (00) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-00-50N-100Mounting: Basic (00) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-00-50N-150Mounting: Basic (00) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-00-50N-200Mounting: Basic (00) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-00-50N-250Mounting: Basic (00) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-00-50N-300Mounting: Basic (00) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-00-50N-350Mounting: Basic (00) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-00-50N-400Mounting: Basic (00) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-00-50N-450Mounting: Basic (00) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-00-50N-500Mounting: Basic (00) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-00-63N-25Mounting: Basic (00) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-00-63N-50Mounting: Basic (00) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-00-63N-75Mounting: Basic (00) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-00-63N-100Mounting: Basic (00) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-00-63N-150Mounting: Basic (00) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-00-63N-200Mounting: Basic (00) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-00-63N-250Mounting: Basic (00) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-00-63N-300Mounting: Basic (00) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-00-63N-350Mounting: Basic (00) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-00-63N-400Mounting: Basic (00) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-00-63N-450Mounting: Basic (00) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-00-63N-500Mounting: Basic (00) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-00-80N-25Mounting: Basic (00) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-00-80N-50Mounting: Basic (00) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-00-80N-75Mounting: Basic (00) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-00-80N-100Mounting: Basic (00) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-00-80N-150Mounting: Basic (00) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-00-80N-200Mounting: Basic (00) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-00-80N-250Mounting: Basic (00) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-00-80N-300Mounting: Basic (00) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-00-80N-350Mounting: Basic (00) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-00-80N-400Mounting: Basic (00) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-00-80N-450Mounting: Basic (00) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-00-80N-500Mounting: Basic (00) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-00-100N-25Mounting: Basic (00) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-00-100N-50Mounting: Basic (00) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-00-100N-75Mounting: Basic (00) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-00-100N-100Mounting: Basic (00) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-00-100N-150Mounting: Basic (00) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-00-100N-200Mounting: Basic (00) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-00-100N-250Mounting: Basic (00) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-00-100N-300Mounting: Basic (00) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-00-100N-350Mounting: Basic (00) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-00-100N-400Mounting: Basic (00) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-00-100N-450Mounting: Basic (00) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-00-100N-500Mounting: Basic (00) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-LB-40N-25Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-LB-40N-50Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-LB-40N-75Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-LB-40N-100Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-LB-40N-150Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-LB-40N-200Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-LB-40N-250Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-LB-40N-300Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-LB-40N-350Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-LB-40N-400Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-LB-40N-450Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-LB-40N-500Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-LB-50N-25Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-LB-50N-50Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-LB-50N-75Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-LB-50N-100Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-LB-50N-150Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-LB-50N-200Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-LB-50N-250Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-LB-50N-300Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-LB-50N-350Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-LB-50N-400Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-LB-50N-450Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-LB-50N-500Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-LB-63N-25Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-LB-63N-50Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-LB-63N-75Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-LB-63N-100Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-LB-63N-150Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-LB-63N-200Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-LB-63N-250Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-LB-63N-300Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-LB-63N-350Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-LB-63N-400Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-LB-63N-450Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-LB-63N-500Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-LB-80N-25Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-LB-80N-50Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-LB-80N-75Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-LB-80N-100Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-LB-80N-150Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-LB-80N-200Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-LB-80N-250Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-LB-80N-300Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-LB-80N-350Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-LB-80N-400Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-LB-80N-450Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-LB-80N-500Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-LB-100N-25Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-LB-100N-50Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-LB-100N-75Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-LB-100N-100Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-LB-100N-150Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-LB-100N-200Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-LB-100N-250Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-LB-100N-300Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-LB-100N-350Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-LB-100N-400Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-LB-100N-450Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-LB-100N-500Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-FA-40N-25Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-FA-40N-50Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-FA-40N-75Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-FA-40N-100Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-FA-40N-150Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-FA-40N-200Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-FA-40N-250Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-FA-40N-300Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-FA-40N-350Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-FA-40N-400Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-FA-40N-450Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-FA-40N-500Mounting: Rod-end flange (FA) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-FA-50N-25Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-FA-50N-50Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-FA-50N-75Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-FA-50N-100Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-FA-50N-150Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-FA-50N-200Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-FA-50N-250Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-FA-50N-300Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-FA-50N-350Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-FA-50N-400Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-FA-50N-450Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-FA-50N-500Mounting: Rod-end flange (FA) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-FA-63N-25Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-FA-63N-50Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-FA-63N-75Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-FA-63N-100Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-FA-63N-150Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-FA-63N-200Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-FA-63N-250Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-FA-63N-300Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-FA-63N-350Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-FA-63N-400Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-FA-63N-450Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-FA-63N-500Mounting: Rod-end flange (FA) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-FA-80N-25Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-FA-80N-50Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-FA-80N-75Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-FA-80N-100Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-FA-80N-150Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-FA-80N-200Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-FA-80N-250Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-FA-80N-300Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-FA-80N-350Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-FA-80N-400Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-FA-80N-450Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-FA-80N-500Mounting: Rod-end flange (FA) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-FA-100N-25Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-FA-100N-50Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-FA-100N-75Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-FA-100N-100Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-FA-100N-150Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-FA-100N-200Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-FA-100N-250Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-FA-100N-300Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-FA-100N-350Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-FA-100N-400Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-FA-100N-450Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-FA-100N-500Mounting: Rod-end flange (FA) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-FB-40N-25Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-FB-40N-50Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-FB-40N-75Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-FB-40N-100Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-FB-40N-150Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-FB-40N-200Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-FB-40N-250Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-FB-40N-300Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-FB-40N-350Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-FB-40N-400Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-FB-40N-450Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-FB-40N-500Mounting: Head-end flange (FB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-FB-50N-25Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-FB-50N-50Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-FB-50N-75Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-FB-50N-100Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-FB-50N-150Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-FB-50N-200Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-FB-50N-250Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-FB-50N-300Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-FB-50N-350Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-FB-50N-400Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-FB-50N-450Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-FB-50N-500Mounting: Head-end flange (FB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-FB-63N-25Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-FB-63N-50Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-FB-63N-75Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-FB-63N-100Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-FB-63N-150Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-FB-63N-200Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-FB-63N-250Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-FB-63N-300Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-FB-63N-350Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-FB-63N-400Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-FB-63N-450Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-FB-63N-500Mounting: Head-end flange (FB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-FB-80N-25Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-FB-80N-50Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-FB-80N-75Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-FB-80N-100Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-FB-80N-150Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-FB-80N-200Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-FB-80N-250Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-FB-80N-300Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-FB-80N-350Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-FB-80N-400Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-FB-80N-450Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-FB-80N-500Mounting: Head-end flange (FB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-FB-100N-25Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-FB-100N-50Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-FB-100N-75Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-FB-100N-100Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-FB-100N-150Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-FB-100N-200Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-FB-100N-250Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-FB-100N-300Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-FB-100N-350Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-FB-100N-400Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-FB-100N-450Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-FB-100N-500Mounting: Head-end flange (FB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-FC-40N-25Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-FC-40N-50Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-FC-40N-75Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-FC-40N-100Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-FC-40N-150Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-FC-40N-200Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-FC-40N-250Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-FC-40N-300Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-FC-40N-350Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-FC-40N-400Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-FC-40N-450Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-FC-40N-500Mounting: Head-end special flange (FC) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-FC-50N-25Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-FC-50N-50Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-FC-50N-75Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-FC-50N-100Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-FC-50N-150Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-FC-50N-200Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-FC-50N-250Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-FC-50N-300Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-FC-50N-350Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-FC-50N-400Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-FC-50N-450Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-FC-50N-500Mounting: Head-end special flange (FC) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-FC-63N-25Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-FC-63N-50Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-FC-63N-75Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-FC-63N-100Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-FC-63N-150Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-FC-63N-200Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-FC-63N-250Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-FC-63N-300Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-FC-63N-350Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-FC-63N-400Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-FC-63N-450Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-FC-63N-500Mounting: Head-end special flange (FC) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-FC-80N-25Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-FC-80N-50Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-FC-80N-75Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-FC-80N-100Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-FC-80N-150Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-FC-80N-200Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-FC-80N-250Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-FC-80N-300Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-FC-80N-350Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-FC-80N-400Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-FC-80N-450Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-FC-80N-500Mounting: Head-end special flange (FC) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-FC-100N-25Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-FC-100N-50Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-FC-100N-75Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-FC-100N-100Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-FC-100N-150Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-FC-100N-200Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-FC-100N-250Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-FC-100N-300Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-FC-100N-350Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-FC-100N-400Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-FC-100N-450Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-FC-100N-500Mounting: Head-end special flange (FC) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-CA-40N-25Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-CA-40N-50Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-CA-40N-75Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-CA-40N-100Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-CA-40N-150Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-CA-40N-200Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-CA-40N-250Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-CA-40N-300Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-CA-40N-350Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-CA-40N-400Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-CA-40N-450Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-CA-40N-500Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-CA-50N-25Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-CA-50N-50Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-CA-50N-75Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-CA-50N-100Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-CA-50N-150Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-CA-50N-200Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-CA-50N-250Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-CA-50N-300Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-CA-50N-350Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-CA-50N-400Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-CA-50N-450Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-CA-50N-500Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-CA-63N-25Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-CA-63N-50Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-CA-63N-75Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-CA-63N-100Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-CA-63N-150Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-CA-63N-200Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-CA-63N-250Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-CA-63N-300Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-CA-63N-350Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-CA-63N-400Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-CA-63N-450Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-CA-63N-500Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-CA-80N-25Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-CA-80N-50Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-CA-80N-75Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-CA-80N-100Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-CA-80N-150Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-CA-80N-200Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-CA-80N-250Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-CA-80N-300Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-CA-80N-350Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-CA-80N-400Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-CA-80N-450Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-CA-80N-500Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-CA-100N-25Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-CA-100N-50Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-CA-100N-75Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-CA-100N-100Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-CA-100N-150Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-CA-100N-200Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-CA-100N-250Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-CA-100N-300Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-CA-100N-350Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-CA-100N-400Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-CA-100N-450Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-CA-100N-500Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-CB-40N-25Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-CB-40N-50Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-CB-40N-75Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-CB-40N-100Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-CB-40N-150Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-CB-40N-200Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-CB-40N-250Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-CB-40N-300Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-CB-40N-350Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-CB-40N-400Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-CB-40N-450Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-CB-40N-500Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-CB-50N-25Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-CB-50N-50Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-CB-50N-75Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-CB-50N-100Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-CB-50N-150Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-CB-50N-200Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-CB-50N-250Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-CB-50N-300Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-CB-50N-350Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-CB-50N-400Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-CB-50N-450Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-CB-50N-500Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-CB-63N-25Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-CB-63N-50Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-CB-63N-75Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-CB-63N-100Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-CB-63N-150Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-CB-63N-200Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-CB-63N-250Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-CB-63N-300Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-CB-63N-350Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-CB-63N-400Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-CB-63N-450Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-CB-63N-500Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-CB-80N-25Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-CB-80N-50Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-CB-80N-75Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-CB-80N-100Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-CB-80N-150Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-CB-80N-200Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-CB-80N-250Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-CB-80N-300Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-CB-80N-350Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-CB-80N-400Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-CB-80N-450Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-CB-80N-500Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-CB-100N-25Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-CB-100N-50Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-CB-100N-75Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-CB-100N-100Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-CB-100N-150Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-CB-100N-200Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-CB-100N-250Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-CB-100N-300Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-CB-100N-350Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-CB-100N-400Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-CB-100N-450Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-CB-100N-500Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TC-40N-25Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-TC-40N-50Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-TC-40N-75Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-TC-40N-100Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-TC-40N-150Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-TC-40N-200Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-TC-40N-250Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-TC-40N-300Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-TC-40N-350Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-TC-40N-400Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-TC-40N-450Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-TC-40N-500Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-TC-50N-25Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TC-50N-50Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TC-50N-75Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TC-50N-100Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TC-50N-150Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TC-50N-200Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TC-50N-250Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TC-50N-300Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TC-50N-350Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TC-50N-400Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TC-50N-450Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TC-50N-500Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TC-63N-25Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TC-63N-50Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TC-63N-75Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TC-63N-100Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TC-63N-150Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TC-63N-200Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TC-63N-250Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TC-63N-300Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TC-63N-350Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TC-63N-400Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TC-63N-450Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TC-63N-500Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TC-80N-25Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TC-80N-50Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TC-80N-75Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TC-80N-100Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TC-80N-150Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TC-80N-200Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TC-80N-250Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TC-80N-300Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TC-80N-350Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TC-80N-400Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TC-80N-450Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TC-80N-500Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TC-100N-25Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TC-100N-50Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TC-100N-75Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TC-100N-100Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TC-100N-150Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TC-100N-200Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TC-100N-250Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TC-100N-300Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TC-100N-350Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TC-100N-400Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TC-100N-450Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TC-100N-500Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TA-40N-25Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-TA-40N-50Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-TA-40N-75Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-TA-40N-100Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-TA-40N-150Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-TA-40N-200Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-TA-40N-250Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-TA-40N-300Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-TA-40N-350Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-TA-40N-400Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-TA-40N-450Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-TA-40N-500Mounting: Rod-end trunnion (TA) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-TA-50N-25Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TA-50N-50Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TA-50N-75Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TA-50N-100Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TA-50N-150Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TA-50N-200Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TA-50N-250Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TA-50N-300Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TA-50N-350Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TA-50N-400Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TA-50N-450Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TA-50N-500Mounting: Rod-end trunnion (TA) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TA-63N-25Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TA-63N-50Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TA-63N-75Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TA-63N-100Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TA-63N-150Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TA-63N-200Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TA-63N-250Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TA-63N-300Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TA-63N-350Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TA-63N-400Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TA-63N-450Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TA-63N-500Mounting: Rod-end trunnion (TA) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TA-80N-25Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TA-80N-50Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TA-80N-75Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TA-80N-100Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TA-80N-150Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TA-80N-200Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TA-80N-250Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TA-80N-300Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TA-80N-350Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TA-80N-400Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TA-80N-450Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TA-80N-500Mounting: Rod-end trunnion (TA) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TA-100N-25Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TA-100N-50Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TA-100N-75Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TA-100N-100Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TA-100N-150Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TA-100N-200Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TA-100N-250Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TA-100N-300Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TA-100N-350Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TA-100N-400Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TA-100N-450Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TA-100N-500Mounting: Rod-end trunnion (TA) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TB-40N-25Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCA2-U-TB-40N-50Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCA2-U-TB-40N-75Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCA2-U-TB-40N-100Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCA2-U-TB-40N-150Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCA2-U-TB-40N-200Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCA2-U-TB-40N-250Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCA2-U-TB-40N-300Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCA2-U-TB-40N-350Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCA2-U-TB-40N-400Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCA2-U-TB-40N-450Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCA2-U-TB-40N-500Mounting: Head-end trunnion (TB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCA2-U-TB-50N-25Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TB-50N-50Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TB-50N-75Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TB-50N-100Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TB-50N-150Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TB-50N-200Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TB-50N-250Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TB-50N-300Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TB-50N-350Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TB-50N-400Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TB-50N-450Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TB-50N-500Mounting: Head-end trunnion (TB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TB-63N-25Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TB-63N-50Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TB-63N-75Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TB-63N-100Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TB-63N-150Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TB-63N-200Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TB-63N-250Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TB-63N-300Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TB-63N-350Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TB-63N-400Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TB-63N-450Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TB-63N-500Mounting: Head-end trunnion (TB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TB-80N-25Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TB-80N-50Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TB-80N-75Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TB-80N-100Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TB-80N-150Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TB-80N-200Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TB-80N-250Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TB-80N-300Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TB-80N-350Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TB-80N-400Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TB-80N-450Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TB-80N-500Mounting: Head-end trunnion (TB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TB-100N-25Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TB-100N-50Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TB-100N-75Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TB-100N-100Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TB-100N-150Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TB-100N-200Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TB-100N-250Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TB-100N-300Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TB-100N-350Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TB-100N-400Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TB-100N-450Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TB-100N-500Mounting: Head-end trunnion (TB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TF-50N-25Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TF-50N-50Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TF-50N-75Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TF-50N-100Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TF-50N-150Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TF-50N-200Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TF-50N-250Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TF-50N-300Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TF-50N-350Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TF-50N-400Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TF-50N-450Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TF-50N-500Mounting: Center trunnion (hole type) (TF) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TF-63N-25Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TF-63N-50Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TF-63N-75Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TF-63N-100Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TF-63N-150Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TF-63N-200Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TF-63N-250Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TF-63N-300Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TF-63N-350Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TF-63N-400Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TF-63N-450Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TF-63N-500Mounting: Center trunnion (hole type) (TF) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TF-80N-25Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TF-80N-50Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TF-80N-75Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TF-80N-100Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TF-80N-150Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TF-80N-200Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TF-80N-250Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TF-80N-300Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TF-80N-350Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TF-80N-400Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TF-80N-450Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TF-80N-500Mounting: Center trunnion (hole type) (TF) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TF-100N-25Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TF-100N-50Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TF-100N-75Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TF-100N-100Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TF-100N-150Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TF-100N-200Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TF-100N-250Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TF-100N-300Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TF-100N-350Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TF-100N-400Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TF-100N-450Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TF-100N-500Mounting: Center trunnion (hole type) (TF) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TD-50N-25Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TD-50N-50Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TD-50N-75Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TD-50N-100Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TD-50N-150Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TD-50N-200Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TD-50N-250Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TD-50N-300Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TD-50N-350Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TD-50N-400Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TD-50N-450Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TD-50N-500Mounting: Rod trunnion (hole type) (TD) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TD-63N-25Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TD-63N-50Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TD-63N-75Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TD-63N-100Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TD-63N-150Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TD-63N-200Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TD-63N-250Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TD-63N-300Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TD-63N-350Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TD-63N-400Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TD-63N-450Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TD-63N-500Mounting: Rod trunnion (hole type) (TD) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TD-80N-25Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TD-80N-50Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TD-80N-75Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TD-80N-100Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TD-80N-150Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TD-80N-200Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TD-80N-250Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TD-80N-300Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TD-80N-350Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TD-80N-400Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TD-80N-450Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TD-80N-500Mounting: Rod trunnion (hole type) (TD) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TD-100N-25Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TD-100N-50Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TD-100N-75Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TD-100N-100Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TD-100N-150Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TD-100N-200Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TD-100N-250Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TD-100N-300Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TD-100N-350Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TD-100N-400Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TD-100N-450Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TD-100N-500Mounting: Rod trunnion (hole type) (TD) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TE-50N-25Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TE-50N-50Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TE-50N-75Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TE-50N-100Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TE-50N-150Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TE-50N-200Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TE-50N-250Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TE-50N-300Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TE-50N-350Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TE-50N-400Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TE-50N-450Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TE-50N-500Mounting: Head trunnion (hole type) (TE) | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TE-63N-25Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCA2-U-TE-63N-50Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCA2-U-TE-63N-75Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCA2-U-TE-63N-100Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCA2-U-TE-63N-150Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCA2-U-TE-63N-200Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCA2-U-TE-63N-250Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCA2-U-TE-63N-300Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCA2-U-TE-63N-350Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCA2-U-TE-63N-400Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCA2-U-TE-63N-450Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCA2-U-TE-63N-500Mounting: Head trunnion (hole type) (TE) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCA2-U-TE-80N-25Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TE-80N-50Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TE-80N-75Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TE-80N-100Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TE-80N-150Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TE-80N-200Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TE-80N-250Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TE-80N-300Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TE-80N-350Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TE-80N-400Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TE-80N-450Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TE-80N-500Mounting: Head trunnion (hole type) (TE) | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
SCA2-U-TE-100N-25Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCA2-U-TE-100N-50Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCA2-U-TE-100N-75Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCA2-U-TE-100N-100Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCA2-U-TE-100N-150Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCA2-U-TE-100N-200Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCA2-U-TE-100N-250Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCA2-U-TE-100N-300Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCA2-U-TE-100N-350Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCA2-U-TE-100N-400Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCA2-U-TE-100N-450Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCA2-U-TE-100N-500Mounting: Head trunnion (hole type) (TE) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
