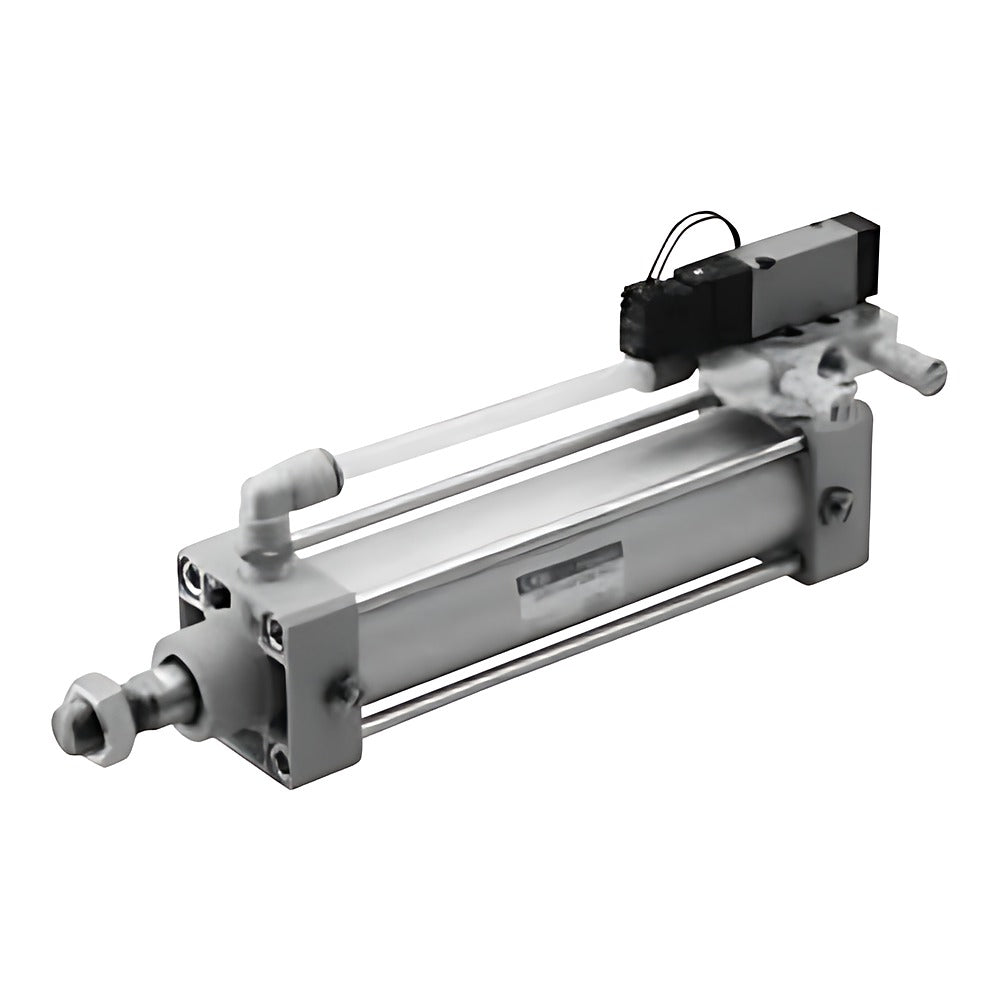

CKD SCA2-V2 Selex Cylinder w/ Valve (Single Sol. Pull, Bore 40-50)

CKD SCA2-V2 Selex double-acting cylinder with a directly mounted 4KB solenoid valve (single solenoid, pull when energized), bore 40-50 mm.

Key features

Valve function V2: single solenoid, pull when energized; 4KB2/4KB3/4KB4 valve by bore, grommet lead 300 mm
Coil voltage 1: AC100V, 2: AC200V, 3: DC24V (class B molded coil)
11 mounting styles (00, LB, FA, FB, CA, CB, TC, TA, TB, TF, TD); TF/TD not available for bore 40
Listed codes use air cushion both ends (B); R, H, N cushions also available
Standard strokes 50 to 500 mm (min. 50 mm); intermediate strokes in 1 mm steps
Switch magnet built in; T-type switches, options and knuckles/brackets as suffixes

Specifications

Action	Double acting, valve mounted
Fluid	Compressed air
Max. working pressure	0.7 MPa
Min. working pressure	0.15 MPa
Proof pressure	1.05 MPa
Ambient temperature	-5 to 50 C (no freezing)
Piston speed	50 to 500 mm/s (bore 100: 50 to 450)
Lubrication	Not required
Cushion	Air cushion, both ends (B)
Source	CKD Korea catalog CB-029SK-9, p. 684-701

SCA2-V2-00-40B-50-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-00-40B-50-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-00-40B-50-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-00-40B-75-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-00-40B-75-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-00-40B-75-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-00-40B-100-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-00-40B-100-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-00-40B-100-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-00-40B-150-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-00-40B-150-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-00-40B-150-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-00-40B-200-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-00-40B-200-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-00-40B-200-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-00-40B-250-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-00-40B-250-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-00-40B-250-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-00-40B-300-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-00-40B-300-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-00-40B-300-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-00-40B-350-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-00-40B-350-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-00-40B-350-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-00-40B-400-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-00-40B-400-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-00-40B-400-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-00-40B-450-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-00-40B-450-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-00-40B-450-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-00-40B-500-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-00-40B-500-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-00-40B-500-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-00-50B-50-1		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-00-50B-50-2		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-00-50B-50-3		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-00-50B-75-1		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-00-50B-75-2		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-00-50B-75-3		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-00-50B-100-1		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-00-50B-100-2		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-00-50B-100-3		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-00-50B-150-1		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-00-50B-150-2		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-00-50B-150-3		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-00-50B-200-1		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-00-50B-200-2		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-00-50B-200-3		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-00-50B-250-1		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-00-50B-250-2		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-00-50B-250-3		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-00-50B-300-1		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-00-50B-300-2		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-00-50B-300-3		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-00-50B-350-1		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-00-50B-350-2		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-00-50B-350-3		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-00-50B-400-1		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-00-50B-400-2		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-00-50B-400-3		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-00-50B-450-1		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-00-50B-450-2		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-00-50B-450-3		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-00-50B-500-1		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-00-50B-500-2		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-00-50B-500-3		Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-LB-40B-50-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-LB-40B-50-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-LB-40B-50-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-LB-40B-75-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-LB-40B-75-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-LB-40B-75-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-LB-40B-100-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-LB-40B-100-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-LB-40B-100-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-LB-40B-150-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-LB-40B-150-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-LB-40B-150-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-LB-40B-200-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-LB-40B-200-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-LB-40B-200-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-LB-40B-250-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-LB-40B-250-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-LB-40B-250-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-LB-40B-300-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-LB-40B-300-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-LB-40B-300-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-LB-40B-350-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-LB-40B-350-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-LB-40B-350-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-LB-40B-400-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-LB-40B-400-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-LB-40B-400-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-LB-40B-450-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-LB-40B-450-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-LB-40B-450-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-LB-40B-500-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-LB-40B-500-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-LB-40B-500-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-LB-50B-50-1		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-LB-50B-50-2		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-LB-50B-50-3		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-LB-50B-75-1		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-LB-50B-75-2		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-LB-50B-75-3		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-LB-50B-100-1		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-LB-50B-100-2		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-LB-50B-100-3		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-LB-50B-150-1		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-LB-50B-150-2		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-LB-50B-150-3		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-LB-50B-200-1		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-LB-50B-200-2		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-LB-50B-200-3		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-LB-50B-250-1		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-LB-50B-250-2		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-LB-50B-250-3		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-LB-50B-300-1		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-LB-50B-300-2		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-LB-50B-300-3		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-LB-50B-350-1		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-LB-50B-350-2		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-LB-50B-350-3		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-LB-50B-400-1		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-LB-50B-400-2		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-LB-50B-400-3		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-LB-50B-450-1		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-LB-50B-450-2		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-LB-50B-450-3		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-LB-50B-500-1		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-LB-50B-500-2		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-LB-50B-500-3		Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FA-40B-50-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FA-40B-50-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FA-40B-50-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FA-40B-75-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FA-40B-75-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FA-40B-75-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FA-40B-100-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FA-40B-100-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FA-40B-100-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FA-40B-150-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FA-40B-150-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FA-40B-150-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FA-40B-200-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FA-40B-200-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FA-40B-200-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FA-40B-250-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FA-40B-250-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FA-40B-250-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FA-40B-300-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FA-40B-300-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FA-40B-300-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FA-40B-350-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FA-40B-350-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FA-40B-350-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FA-40B-400-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FA-40B-400-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FA-40B-400-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FA-40B-450-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FA-40B-450-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FA-40B-450-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FA-40B-500-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FA-40B-500-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FA-40B-500-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FA-50B-50-1		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FA-50B-50-2		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FA-50B-50-3		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FA-50B-75-1		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FA-50B-75-2		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FA-50B-75-3		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FA-50B-100-1		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FA-50B-100-2		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FA-50B-100-3		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FA-50B-150-1		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FA-50B-150-2		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FA-50B-150-3		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FA-50B-200-1		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FA-50B-200-2		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FA-50B-200-3		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FA-50B-250-1		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FA-50B-250-2		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FA-50B-250-3		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FA-50B-300-1		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FA-50B-300-2		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FA-50B-300-3		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FA-50B-350-1		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FA-50B-350-2		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FA-50B-350-3		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FA-50B-400-1		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FA-50B-400-2		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FA-50B-400-3		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FA-50B-450-1		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FA-50B-450-2		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FA-50B-450-3		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FA-50B-500-1		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FA-50B-500-2		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FA-50B-500-3		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FB-40B-50-1		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FB-40B-50-2		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FB-40B-50-3		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FB-40B-75-1		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FB-40B-75-2		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FB-40B-75-3		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FB-40B-100-1		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FB-40B-100-2		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FB-40B-100-3		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FB-40B-150-1		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FB-40B-150-2		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FB-40B-150-3		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FB-40B-200-1		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FB-40B-200-2		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FB-40B-200-3		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FB-40B-250-1		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FB-40B-250-2		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FB-40B-250-3		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FB-40B-300-1		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FB-40B-300-2		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FB-40B-300-3		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FB-40B-350-1		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FB-40B-350-2		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FB-40B-350-3		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FB-40B-400-1		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FB-40B-400-2		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FB-40B-400-3		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FB-40B-450-1		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FB-40B-450-2		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FB-40B-450-3		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FB-40B-500-1		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-FB-40B-500-2		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-FB-40B-500-3		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-FB-50B-50-1		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FB-50B-50-2		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FB-50B-50-3		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FB-50B-75-1		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FB-50B-75-2		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FB-50B-75-3		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FB-50B-100-1		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FB-50B-100-2		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FB-50B-100-3		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FB-50B-150-1		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FB-50B-150-2		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FB-50B-150-3		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FB-50B-200-1		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FB-50B-200-2		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FB-50B-200-3		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FB-50B-250-1		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FB-50B-250-2		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FB-50B-250-3		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FB-50B-300-1		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FB-50B-300-2		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FB-50B-300-3		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FB-50B-350-1		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FB-50B-350-2		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FB-50B-350-3		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FB-50B-400-1		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FB-50B-400-2		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FB-50B-400-3		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FB-50B-450-1		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FB-50B-450-2		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FB-50B-450-3		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-FB-50B-500-1		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-FB-50B-500-2		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-FB-50B-500-3		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CA-40B-50-1		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CA-40B-50-2		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CA-40B-50-3		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CA-40B-75-1		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CA-40B-75-2		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CA-40B-75-3		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CA-40B-100-1		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CA-40B-100-2		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CA-40B-100-3		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CA-40B-150-1		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CA-40B-150-2		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CA-40B-150-3		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CA-40B-200-1		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CA-40B-200-2		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CA-40B-200-3		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CA-40B-250-1		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CA-40B-250-2		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CA-40B-250-3		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CA-40B-300-1		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CA-40B-300-2		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CA-40B-300-3		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CA-40B-350-1		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CA-40B-350-2		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CA-40B-350-3		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CA-40B-400-1		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CA-40B-400-2		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CA-40B-400-3		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CA-40B-450-1		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CA-40B-450-2		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CA-40B-450-3		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CA-40B-500-1		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CA-40B-500-2		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CA-40B-500-3		Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CA-50B-50-1		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CA-50B-50-2		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CA-50B-50-3		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CA-50B-75-1		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CA-50B-75-2		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CA-50B-75-3		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CA-50B-100-1		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CA-50B-100-2		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CA-50B-100-3		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CA-50B-150-1		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CA-50B-150-2		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CA-50B-150-3		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CA-50B-200-1		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CA-50B-200-2		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CA-50B-200-3		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CA-50B-250-1		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CA-50B-250-2		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CA-50B-250-3		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CA-50B-300-1		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CA-50B-300-2		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CA-50B-300-3		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CA-50B-350-1		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CA-50B-350-2		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CA-50B-350-3		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CA-50B-400-1		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CA-50B-400-2		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CA-50B-400-3		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CA-50B-450-1		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CA-50B-450-2		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CA-50B-450-3		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CA-50B-500-1		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CA-50B-500-2		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CA-50B-500-3		Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CB-40B-50-1		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CB-40B-50-2		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CB-40B-50-3		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CB-40B-75-1		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CB-40B-75-2		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CB-40B-75-3		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CB-40B-100-1		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CB-40B-100-2		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CB-40B-100-3		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CB-40B-150-1		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CB-40B-150-2		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CB-40B-150-3		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CB-40B-200-1		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CB-40B-200-2		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CB-40B-200-3		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CB-40B-250-1		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CB-40B-250-2		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CB-40B-250-3		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CB-40B-300-1		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CB-40B-300-2		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CB-40B-300-3		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CB-40B-350-1		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CB-40B-350-2		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CB-40B-350-3		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CB-40B-400-1		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CB-40B-400-2		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CB-40B-400-3		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CB-40B-450-1		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CB-40B-450-2		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CB-40B-450-3		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CB-40B-500-1		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-CB-40B-500-2		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-CB-40B-500-3		Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-CB-50B-50-1		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CB-50B-50-2		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CB-50B-50-3		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CB-50B-75-1		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CB-50B-75-2		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CB-50B-75-3		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CB-50B-100-1		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CB-50B-100-2		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CB-50B-100-3		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CB-50B-150-1		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CB-50B-150-2		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CB-50B-150-3		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CB-50B-200-1		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CB-50B-200-2		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CB-50B-200-3		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CB-50B-250-1		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CB-50B-250-2		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CB-50B-250-3		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CB-50B-300-1		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CB-50B-300-2		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CB-50B-300-3		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CB-50B-350-1		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CB-50B-350-2		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CB-50B-350-3		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CB-50B-400-1		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CB-50B-400-2		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CB-50B-400-3		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CB-50B-450-1		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CB-50B-450-2		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CB-50B-450-3		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-CB-50B-500-1		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-CB-50B-500-2		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-CB-50B-500-3		Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TC-40B-50-1		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TC-40B-50-2		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TC-40B-50-3		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TC-40B-75-1		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TC-40B-75-2		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TC-40B-75-3		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TC-40B-100-1		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TC-40B-100-2		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TC-40B-100-3		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TC-40B-150-1		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TC-40B-150-2		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TC-40B-150-3		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TC-40B-200-1		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TC-40B-200-2		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TC-40B-200-3		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TC-40B-250-1		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TC-40B-250-2		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TC-40B-250-3		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TC-40B-300-1		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TC-40B-300-2		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TC-40B-300-3		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TC-40B-350-1		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TC-40B-350-2		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TC-40B-350-3		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TC-40B-400-1		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TC-40B-400-2		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TC-40B-400-3		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TC-40B-450-1		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TC-40B-450-2		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TC-40B-450-3		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TC-40B-500-1		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TC-40B-500-2		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TC-40B-500-3		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TC-50B-50-1		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TC-50B-50-2		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TC-50B-50-3		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TC-50B-75-1		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TC-50B-75-2		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TC-50B-75-3		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TC-50B-100-1		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TC-50B-100-2		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TC-50B-100-3		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TC-50B-150-1		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TC-50B-150-2		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TC-50B-150-3		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TC-50B-200-1		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TC-50B-200-2		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TC-50B-200-3		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TC-50B-250-1		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TC-50B-250-2		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TC-50B-250-3		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TC-50B-300-1		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TC-50B-300-2		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TC-50B-300-3		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TC-50B-350-1		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TC-50B-350-2		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TC-50B-350-3		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TC-50B-400-1		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TC-50B-400-2		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TC-50B-400-3		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TC-50B-450-1		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TC-50B-450-2		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TC-50B-450-3		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TC-50B-500-1		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TC-50B-500-2		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TC-50B-500-3		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TA-40B-50-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TA-40B-50-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TA-40B-50-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TA-40B-75-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TA-40B-75-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TA-40B-75-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TA-40B-100-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TA-40B-100-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TA-40B-100-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TA-40B-150-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TA-40B-150-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TA-40B-150-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TA-40B-200-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TA-40B-200-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TA-40B-200-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TA-40B-250-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TA-40B-250-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TA-40B-250-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TA-40B-300-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TA-40B-300-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TA-40B-300-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TA-40B-350-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TA-40B-350-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TA-40B-350-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TA-40B-400-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TA-40B-400-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TA-40B-400-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TA-40B-450-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TA-40B-450-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TA-40B-450-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TA-40B-500-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TA-40B-500-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TA-40B-500-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TA-50B-50-1		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TA-50B-50-2		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TA-50B-50-3		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TA-50B-75-1		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TA-50B-75-2		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TA-50B-75-3		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TA-50B-100-1		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TA-50B-100-2		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TA-50B-100-3		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TA-50B-150-1		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TA-50B-150-2		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TA-50B-150-3		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TA-50B-200-1		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TA-50B-200-2		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TA-50B-200-3		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TA-50B-250-1		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TA-50B-250-2		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TA-50B-250-3		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TA-50B-300-1		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TA-50B-300-2		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TA-50B-300-3		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TA-50B-350-1		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TA-50B-350-2		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TA-50B-350-3		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TA-50B-400-1		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TA-50B-400-2		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TA-50B-400-3		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TA-50B-450-1		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TA-50B-450-2		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TA-50B-450-3		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TA-50B-500-1		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TA-50B-500-2		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TA-50B-500-3		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TB-40B-50-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TB-40B-50-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TB-40B-50-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TB-40B-75-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TB-40B-75-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TB-40B-75-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TB-40B-100-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TB-40B-100-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TB-40B-100-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TB-40B-150-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TB-40B-150-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TB-40B-150-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TB-40B-200-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TB-40B-200-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TB-40B-200-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TB-40B-250-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TB-40B-250-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TB-40B-250-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TB-40B-300-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TB-40B-300-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TB-40B-300-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TB-40B-350-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TB-40B-350-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TB-40B-350-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TB-40B-400-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TB-40B-400-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TB-40B-400-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TB-40B-450-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TB-40B-450-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TB-40B-450-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TB-40B-500-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
SCA2-V2-TB-40B-500-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
SCA2-V2-TB-40B-500-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
SCA2-V2-TB-50B-50-1		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TB-50B-50-2		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TB-50B-50-3		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TB-50B-75-1		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TB-50B-75-2		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TB-50B-75-3		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TB-50B-100-1		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TB-50B-100-2		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TB-50B-100-3		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TB-50B-150-1		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TB-50B-150-2		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TB-50B-150-3		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TB-50B-200-1		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TB-50B-200-2		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TB-50B-200-3		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TB-50B-250-1		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TB-50B-250-2		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TB-50B-250-3		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TB-50B-300-1		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TB-50B-300-2		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TB-50B-300-3		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TB-50B-350-1		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TB-50B-350-2		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TB-50B-350-3		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TB-50B-400-1		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TB-50B-400-2		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TB-50B-400-3		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TB-50B-450-1		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TB-50B-450-2		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TB-50B-450-3		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TB-50B-500-1		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TB-50B-500-2		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TB-50B-500-3		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TF-50B-50-1		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TF-50B-50-2		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TF-50B-50-3		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TF-50B-75-1		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TF-50B-75-2		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TF-50B-75-3		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TF-50B-100-1		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TF-50B-100-2		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TF-50B-100-3		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TF-50B-150-1		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TF-50B-150-2		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TF-50B-150-3		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TF-50B-200-1		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TF-50B-200-2		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TF-50B-200-3		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TF-50B-250-1		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TF-50B-250-2		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TF-50B-250-3		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TF-50B-300-1		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TF-50B-300-2		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TF-50B-300-3		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TF-50B-350-1		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TF-50B-350-2		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TF-50B-350-3		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TF-50B-400-1		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TF-50B-400-2		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TF-50B-400-3		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TF-50B-450-1		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TF-50B-450-2		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TF-50B-450-3		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TF-50B-500-1		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TF-50B-500-2		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TF-50B-500-3		Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TD-50B-50-1		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TD-50B-50-2		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TD-50B-50-3		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TD-50B-75-1		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TD-50B-75-2		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TD-50B-75-3		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TD-50B-100-1		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TD-50B-100-2		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TD-50B-100-3		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TD-50B-150-1		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TD-50B-150-2		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TD-50B-150-3		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TD-50B-200-1		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TD-50B-200-2		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TD-50B-200-3		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TD-50B-250-1		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TD-50B-250-2		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TD-50B-250-3		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TD-50B-300-1		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TD-50B-300-2		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TD-50B-300-3		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TD-50B-350-1		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TD-50B-350-2		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TD-50B-350-3		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TD-50B-400-1		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TD-50B-400-2		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TD-50B-400-3		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TD-50B-450-1		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TD-50B-450-2		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TD-50B-450-3		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
SCA2-V2-TD-50B-500-1		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
SCA2-V2-TD-50B-500-2		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
SCA2-V2-TD-50B-500-3		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8

Pneumatic CylindersCKD

660 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCA2-V2 Selex Cylinder w/ Valve (Single Sol. Pull, Bore 40-50)

Brand CKD·Pneumatic Cylinders

Available part numbers (660)

SCA2-V2-00-40B-50-1, SCA2-V2-00-40B-50-2, SCA2-V2-00-40B-50-3, SCA2-V2-00-40B-75-1, SCA2-V2-00-40B-75-2, SCA2-V2-00-40B-75-3, SCA2-V2-00-40B-100-1, SCA2-V2-00-40B-100-2, SCA2-V2-00-40B-100-3, SCA2-V2-00-40B-150-1 + 650 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCA2-V2-00-40B-50-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-00-40B-50-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-00-40B-50-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-00-40B-75-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-00-40B-75-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-00-40B-75-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-00-40B-100-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-00-40B-100-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-00-40B-100-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-00-40B-150-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-00-40B-150-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-00-40B-150-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-00-40B-200-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-00-40B-200-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-00-40B-200-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-00-40B-250-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-00-40B-250-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-00-40B-250-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-00-40B-300-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-00-40B-300-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-00-40B-300-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-00-40B-350-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-00-40B-350-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-00-40B-350-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-00-40B-400-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-00-40B-400-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-00-40B-400-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-00-40B-450-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-00-40B-450-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-00-40B-450-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-00-40B-500-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-00-40B-500-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-00-40B-500-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-00-50B-50-1	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-00-50B-50-2	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-00-50B-50-3	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-00-50B-75-1	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-00-50B-75-2	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-00-50B-75-3	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-00-50B-100-1	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-00-50B-100-2	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-00-50B-100-3	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-00-50B-150-1	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-00-50B-150-2	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-00-50B-150-3	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-00-50B-200-1	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-00-50B-200-2	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-00-50B-200-3	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-00-50B-250-1	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-00-50B-250-2	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-00-50B-250-3	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-00-50B-300-1	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-00-50B-300-2	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-00-50B-300-3	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-00-50B-350-1	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-00-50B-350-2	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-00-50B-350-3	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-00-50B-400-1	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-00-50B-400-2	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-00-50B-400-3	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-00-50B-450-1	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-00-50B-450-2	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-00-50B-450-3	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-00-50B-500-1	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-00-50B-500-2	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-00-50B-500-3	Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-LB-40B-50-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-LB-40B-50-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-LB-40B-50-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-LB-40B-75-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-LB-40B-75-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-LB-40B-75-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-LB-40B-100-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-LB-40B-100-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-LB-40B-100-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-LB-40B-150-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-LB-40B-150-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-LB-40B-150-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-LB-40B-200-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-LB-40B-200-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-LB-40B-200-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-LB-40B-250-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-LB-40B-250-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-LB-40B-250-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-LB-40B-300-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-LB-40B-300-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-LB-40B-300-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-LB-40B-350-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-LB-40B-350-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-LB-40B-350-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-LB-40B-400-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-LB-40B-400-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-LB-40B-400-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-LB-40B-450-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-LB-40B-450-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-LB-40B-450-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-LB-40B-500-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-LB-40B-500-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-LB-40B-500-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-LB-50B-50-1	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-LB-50B-50-2	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-LB-50B-50-3	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-LB-50B-75-1	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-LB-50B-75-2	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-LB-50B-75-3	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-LB-50B-100-1	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-LB-50B-100-2	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-LB-50B-100-3	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-LB-50B-150-1	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-LB-50B-150-2	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-LB-50B-150-3	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-LB-50B-200-1	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-LB-50B-200-2	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-LB-50B-200-3	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-LB-50B-250-1	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-LB-50B-250-2	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-LB-50B-250-3	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-LB-50B-300-1	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-LB-50B-300-2	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-LB-50B-300-3	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-LB-50B-350-1	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-LB-50B-350-2	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-LB-50B-350-3	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-LB-50B-400-1	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-LB-50B-400-2	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-LB-50B-400-3	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-LB-50B-450-1	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-LB-50B-450-2	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-LB-50B-450-3	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-LB-50B-500-1	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-LB-50B-500-2	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-LB-50B-500-3	Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FA-40B-50-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FA-40B-50-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FA-40B-50-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FA-40B-75-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FA-40B-75-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FA-40B-75-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FA-40B-100-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FA-40B-100-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FA-40B-100-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FA-40B-150-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FA-40B-150-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FA-40B-150-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FA-40B-200-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FA-40B-200-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FA-40B-200-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FA-40B-250-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FA-40B-250-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FA-40B-250-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FA-40B-300-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FA-40B-300-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FA-40B-300-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FA-40B-350-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FA-40B-350-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FA-40B-350-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FA-40B-400-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FA-40B-400-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FA-40B-400-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FA-40B-450-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FA-40B-450-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FA-40B-450-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FA-40B-500-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FA-40B-500-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FA-40B-500-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FA-50B-50-1	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FA-50B-50-2	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FA-50B-50-3	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FA-50B-75-1	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FA-50B-75-2	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FA-50B-75-3	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FA-50B-100-1	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FA-50B-100-2	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FA-50B-100-3	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FA-50B-150-1	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FA-50B-150-2	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FA-50B-150-3	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FA-50B-200-1	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FA-50B-200-2	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FA-50B-200-3	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FA-50B-250-1	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FA-50B-250-2	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FA-50B-250-3	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FA-50B-300-1	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FA-50B-300-2	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FA-50B-300-3	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FA-50B-350-1	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FA-50B-350-2	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FA-50B-350-3	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FA-50B-400-1	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FA-50B-400-2	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FA-50B-400-3	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FA-50B-450-1	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FA-50B-450-2	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FA-50B-450-3	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FA-50B-500-1	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FA-50B-500-2	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FA-50B-500-3	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FB-40B-50-1	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FB-40B-50-2	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FB-40B-50-3	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FB-40B-75-1	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FB-40B-75-2	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FB-40B-75-3	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FB-40B-100-1	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FB-40B-100-2	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FB-40B-100-3	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FB-40B-150-1	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FB-40B-150-2	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FB-40B-150-3	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FB-40B-200-1	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FB-40B-200-2	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FB-40B-200-3	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FB-40B-250-1	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FB-40B-250-2	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FB-40B-250-3	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FB-40B-300-1	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FB-40B-300-2	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FB-40B-300-3	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FB-40B-350-1	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FB-40B-350-2	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FB-40B-350-3	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FB-40B-400-1	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FB-40B-400-2	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FB-40B-400-3	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FB-40B-450-1	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FB-40B-450-2	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FB-40B-450-3	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FB-40B-500-1	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-FB-40B-500-2	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-FB-40B-500-3	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-FB-50B-50-1	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FB-50B-50-2	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FB-50B-50-3	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FB-50B-75-1	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FB-50B-75-2	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FB-50B-75-3	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FB-50B-100-1	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FB-50B-100-2	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FB-50B-100-3	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FB-50B-150-1	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FB-50B-150-2	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FB-50B-150-3	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FB-50B-200-1	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FB-50B-200-2	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FB-50B-200-3	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FB-50B-250-1	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FB-50B-250-2	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FB-50B-250-3	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FB-50B-300-1	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FB-50B-300-2	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FB-50B-300-3	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FB-50B-350-1	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FB-50B-350-2	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FB-50B-350-3	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FB-50B-400-1	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FB-50B-400-2	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FB-50B-400-3	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FB-50B-450-1	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FB-50B-450-2	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FB-50B-450-3	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-FB-50B-500-1	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-FB-50B-500-2	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-FB-50B-500-3	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CA-40B-50-1	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CA-40B-50-2	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CA-40B-50-3	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CA-40B-75-1	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CA-40B-75-2	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CA-40B-75-3	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CA-40B-100-1	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CA-40B-100-2	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CA-40B-100-3	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CA-40B-150-1	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CA-40B-150-2	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CA-40B-150-3	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CA-40B-200-1	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CA-40B-200-2	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CA-40B-200-3	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CA-40B-250-1	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CA-40B-250-2	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CA-40B-250-3	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CA-40B-300-1	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CA-40B-300-2	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CA-40B-300-3	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CA-40B-350-1	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CA-40B-350-2	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CA-40B-350-3	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CA-40B-400-1	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CA-40B-400-2	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CA-40B-400-3	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CA-40B-450-1	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CA-40B-450-2	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CA-40B-450-3	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CA-40B-500-1	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CA-40B-500-2	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CA-40B-500-3	Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CA-50B-50-1	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CA-50B-50-2	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CA-50B-50-3	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CA-50B-75-1	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CA-50B-75-2	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CA-50B-75-3	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CA-50B-100-1	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CA-50B-100-2	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CA-50B-100-3	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CA-50B-150-1	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CA-50B-150-2	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CA-50B-150-3	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CA-50B-200-1	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CA-50B-200-2	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CA-50B-200-3	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CA-50B-250-1	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CA-50B-250-2	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CA-50B-250-3	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CA-50B-300-1	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CA-50B-300-2	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CA-50B-300-3	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CA-50B-350-1	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CA-50B-350-2	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CA-50B-350-3	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CA-50B-400-1	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CA-50B-400-2	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CA-50B-400-3	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CA-50B-450-1	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CA-50B-450-2	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CA-50B-450-3	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CA-50B-500-1	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CA-50B-500-2	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CA-50B-500-3	Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CB-40B-50-1	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CB-40B-50-2	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CB-40B-50-3	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CB-40B-75-1	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CB-40B-75-2	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CB-40B-75-3	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CB-40B-100-1	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CB-40B-100-2	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CB-40B-100-3	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CB-40B-150-1	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CB-40B-150-2	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CB-40B-150-3	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CB-40B-200-1	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CB-40B-200-2	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CB-40B-200-3	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CB-40B-250-1	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CB-40B-250-2	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CB-40B-250-3	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CB-40B-300-1	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CB-40B-300-2	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CB-40B-300-3	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CB-40B-350-1	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CB-40B-350-2	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CB-40B-350-3	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CB-40B-400-1	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CB-40B-400-2	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CB-40B-400-3	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CB-40B-450-1	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CB-40B-450-2	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CB-40B-450-3	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CB-40B-500-1	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-CB-40B-500-2	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-CB-40B-500-3	Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-CB-50B-50-1	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CB-50B-50-2	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CB-50B-50-3	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CB-50B-75-1	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CB-50B-75-2	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CB-50B-75-3	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CB-50B-100-1	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CB-50B-100-2	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CB-50B-100-3	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CB-50B-150-1	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CB-50B-150-2	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CB-50B-150-3	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CB-50B-200-1	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CB-50B-200-2	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CB-50B-200-3	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CB-50B-250-1	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CB-50B-250-2	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CB-50B-250-3	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CB-50B-300-1	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CB-50B-300-2	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CB-50B-300-3	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CB-50B-350-1	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CB-50B-350-2	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CB-50B-350-3	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CB-50B-400-1	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CB-50B-400-2	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CB-50B-400-3	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CB-50B-450-1	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CB-50B-450-2	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CB-50B-450-3	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-CB-50B-500-1	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-CB-50B-500-2	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-CB-50B-500-3	Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TC-40B-50-1	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TC-40B-50-2	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TC-40B-50-3	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TC-40B-75-1	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TC-40B-75-2	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TC-40B-75-3	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TC-40B-100-1	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TC-40B-100-2	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TC-40B-100-3	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TC-40B-150-1	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TC-40B-150-2	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TC-40B-150-3	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TC-40B-200-1	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TC-40B-200-2	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TC-40B-200-3	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TC-40B-250-1	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TC-40B-250-2	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TC-40B-250-3	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TC-40B-300-1	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TC-40B-300-2	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TC-40B-300-3	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TC-40B-350-1	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TC-40B-350-2	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TC-40B-350-3	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TC-40B-400-1	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TC-40B-400-2	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TC-40B-400-3	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TC-40B-450-1	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TC-40B-450-2	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TC-40B-450-3	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TC-40B-500-1	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TC-40B-500-2	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TC-40B-500-3	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TC-50B-50-1	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TC-50B-50-2	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TC-50B-50-3	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TC-50B-75-1	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TC-50B-75-2	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TC-50B-75-3	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TC-50B-100-1	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TC-50B-100-2	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TC-50B-100-3	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TC-50B-150-1	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TC-50B-150-2	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TC-50B-150-3	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TC-50B-200-1	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TC-50B-200-2	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TC-50B-200-3	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TC-50B-250-1	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TC-50B-250-2	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TC-50B-250-3	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TC-50B-300-1	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TC-50B-300-2	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TC-50B-300-3	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TC-50B-350-1	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TC-50B-350-2	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TC-50B-350-3	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TC-50B-400-1	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TC-50B-400-2	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TC-50B-400-3	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TC-50B-450-1	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TC-50B-450-2	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TC-50B-450-3	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TC-50B-500-1	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TC-50B-500-2	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TC-50B-500-3	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TA-40B-50-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TA-40B-50-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TA-40B-50-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TA-40B-75-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TA-40B-75-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TA-40B-75-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TA-40B-100-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TA-40B-100-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TA-40B-100-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TA-40B-150-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TA-40B-150-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TA-40B-150-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TA-40B-200-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TA-40B-200-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TA-40B-200-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TA-40B-250-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TA-40B-250-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TA-40B-250-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TA-40B-300-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TA-40B-300-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TA-40B-300-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TA-40B-350-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TA-40B-350-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TA-40B-350-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TA-40B-400-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TA-40B-400-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TA-40B-400-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TA-40B-450-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TA-40B-450-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TA-40B-450-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TA-40B-500-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TA-40B-500-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TA-40B-500-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TA-50B-50-1	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TA-50B-50-2	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TA-50B-50-3	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TA-50B-75-1	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TA-50B-75-2	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TA-50B-75-3	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TA-50B-100-1	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TA-50B-100-2	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TA-50B-100-3	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TA-50B-150-1	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TA-50B-150-2	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TA-50B-150-3	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TA-50B-200-1	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TA-50B-200-2	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TA-50B-200-3	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TA-50B-250-1	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TA-50B-250-2	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TA-50B-250-3	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TA-50B-300-1	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TA-50B-300-2	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TA-50B-300-3	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TA-50B-350-1	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TA-50B-350-2	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TA-50B-350-3	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TA-50B-400-1	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TA-50B-400-2	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TA-50B-400-3	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TA-50B-450-1	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TA-50B-450-2	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TA-50B-450-3	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TA-50B-500-1	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TA-50B-500-2	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TA-50B-500-3	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TB-40B-50-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TB-40B-50-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TB-40B-50-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TB-40B-75-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TB-40B-75-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TB-40B-75-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TB-40B-100-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TB-40B-100-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TB-40B-100-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TB-40B-150-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TB-40B-150-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TB-40B-150-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TB-40B-200-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TB-40B-200-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TB-40B-200-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TB-40B-250-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TB-40B-250-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TB-40B-250-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TB-40B-300-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TB-40B-300-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TB-40B-300-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TB-40B-350-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TB-40B-350-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TB-40B-350-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TB-40B-400-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TB-40B-400-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TB-40B-400-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TB-40B-450-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TB-40B-450-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TB-40B-450-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TB-40B-500-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc1/4
	SCA2-V2-TB-40B-500-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc1/4
	SCA2-V2-TB-40B-500-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc1/4
	SCA2-V2-TB-50B-50-1	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TB-50B-50-2	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TB-50B-50-3	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TB-50B-75-1	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TB-50B-75-2	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TB-50B-75-3	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TB-50B-100-1	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TB-50B-100-2	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TB-50B-100-3	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TB-50B-150-1	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TB-50B-150-2	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TB-50B-150-3	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TB-50B-200-1	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TB-50B-200-2	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TB-50B-200-3	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TB-50B-250-1	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TB-50B-250-2	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TB-50B-250-3	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TB-50B-300-1	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TB-50B-300-2	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TB-50B-300-3	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TB-50B-350-1	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TB-50B-350-2	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TB-50B-350-3	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TB-50B-400-1	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TB-50B-400-2	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TB-50B-400-3	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TB-50B-450-1	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TB-50B-450-2	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TB-50B-450-3	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TB-50B-500-1	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TB-50B-500-2	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TB-50B-500-3	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TF-50B-50-1	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TF-50B-50-2	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TF-50B-50-3	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TF-50B-75-1	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TF-50B-75-2	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TF-50B-75-3	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TF-50B-100-1	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TF-50B-100-2	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TF-50B-100-3	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TF-50B-150-1	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TF-50B-150-2	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TF-50B-150-3	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TF-50B-200-1	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TF-50B-200-2	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TF-50B-200-3	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TF-50B-250-1	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TF-50B-250-2	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TF-50B-250-3	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TF-50B-300-1	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TF-50B-300-2	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TF-50B-300-3	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TF-50B-350-1	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TF-50B-350-2	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TF-50B-350-3	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TF-50B-400-1	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TF-50B-400-2	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TF-50B-400-3	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TF-50B-450-1	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TF-50B-450-2	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TF-50B-450-3	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TF-50B-500-1	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TF-50B-500-2	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TF-50B-500-3	Mounting: Center trunnion (hole type) (TF) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TD-50B-50-1	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TD-50B-50-2	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TD-50B-50-3	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 50 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TD-50B-75-1	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TD-50B-75-2	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TD-50B-75-3	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 75 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TD-50B-100-1	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TD-50B-100-2	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TD-50B-100-3	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 100 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TD-50B-150-1	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TD-50B-150-2	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TD-50B-150-3	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 150 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TD-50B-200-1	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TD-50B-200-2	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TD-50B-200-3	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 200 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TD-50B-250-1	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TD-50B-250-2	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TD-50B-250-3	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 250 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TD-50B-300-1	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TD-50B-300-2	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TD-50B-300-3	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 300 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TD-50B-350-1	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TD-50B-350-2	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TD-50B-350-3	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 350 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TD-50B-400-1	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TD-50B-400-2	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TD-50B-400-3	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 400 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TD-50B-450-1	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TD-50B-450-2	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TD-50B-450-3	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 450 mm \| Voltage: DC24V \| Port: Rc3/8
	SCA2-V2-TD-50B-500-1	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC100V \| Port: Rc3/8
	SCA2-V2-TD-50B-500-2	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: AC200V \| Port: Rc3/8
	SCA2-V2-TD-50B-500-3	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Stroke: 500 mm \| Voltage: DC24V \| Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCA2-V2 Selex Cylinder w/ Valve (Single Sol. Pull, Bore 40-50)
