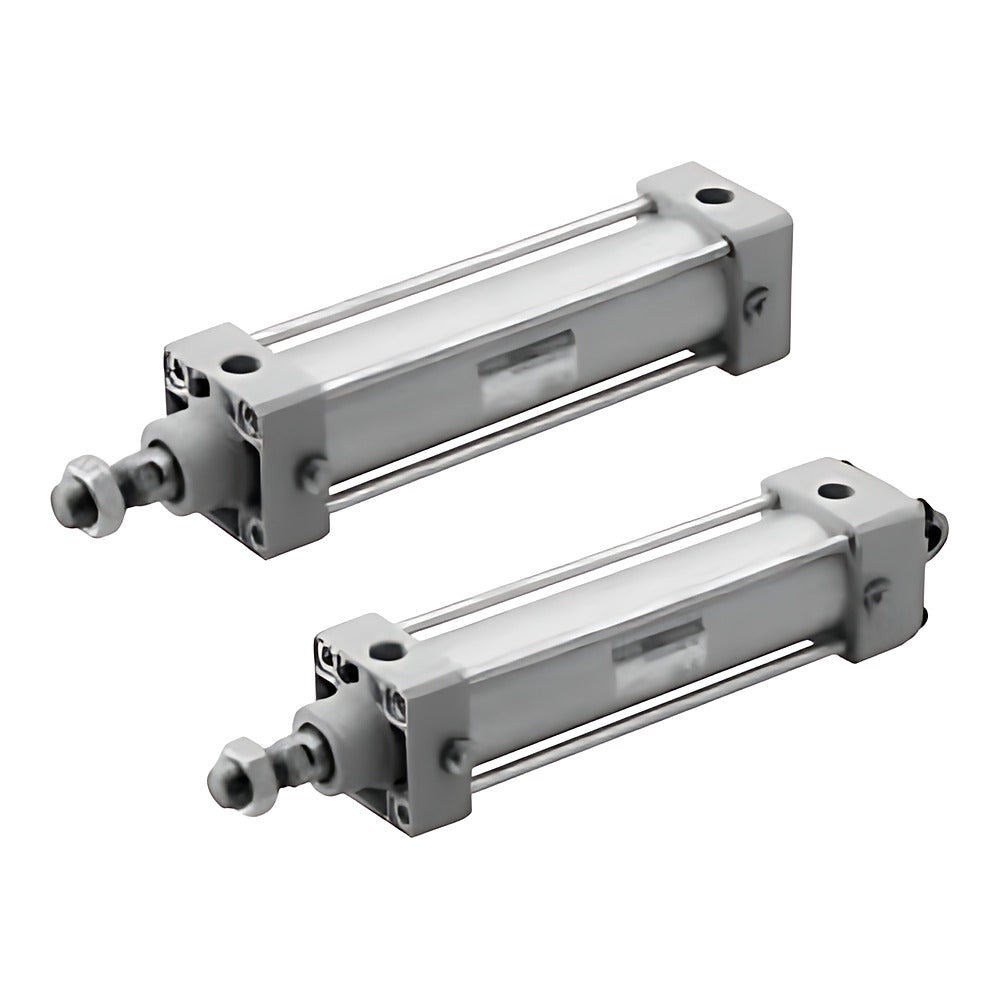

CKD SCA2-W Selex Cylinder (Two-Stage, Bore 40-50)

CKD SCA2-W two-stage Selex cylinder giving an intermediate stop (1st stage S2) within the total stroke S1, bore 40 to 100 mm.

Key features

Two-stage stroke: total stroke S1 with intermediate 1st-stage stroke S2 (S2 max. 200 mm)
11 mounting styles; TD/TE not available for bore 40
Listed codes: standard strokes, S2 not exceeding S1, air cushion both ends (B) on both stages
When S1 equals S2 the max. working pressure is 0.5 MPa
R/H/N cushions, switches per stage, options and accessories as suffixes

Specifications

Action	Double acting, two-stage
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.1 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Piston speed	50 to 1000 mm/s
Lubrication	Not required
Cushion	Air cushion, both ends (B)
Source	CKD Korea catalog CB-029SK-9, p. 644-651

SCA2-W-00-40-B25-B25		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-00-40-B50-B25		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-00-40-B50-B50		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-00-40-B75-B25		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-00-40-B75-B50		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-00-40-B75-B75		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-00-40-B100-B25		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-00-40-B100-B50		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-00-40-B100-B75		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-00-40-B100-B100		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-00-40-B150-B25		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-00-40-B150-B50		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-00-40-B150-B75		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-00-40-B150-B100		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-00-40-B150-B150		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-00-40-B200-B25		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-00-40-B200-B50		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-00-40-B200-B75		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-00-40-B200-B100		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-00-40-B200-B150		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-00-40-B200-B200		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-00-40-B250-B25		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-00-40-B250-B50		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-00-40-B250-B75		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-00-40-B250-B100		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-00-40-B250-B150		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-00-40-B250-B200		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-00-40-B300-B25		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-00-40-B300-B50		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-00-40-B300-B75		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-00-40-B300-B100		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-00-40-B300-B150		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-00-40-B300-B200		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-00-40-B350-B25		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-00-40-B350-B50		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-00-40-B350-B75		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-00-40-B350-B100		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-00-40-B350-B150		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-00-40-B350-B200		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-00-40-B400-B25		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-00-40-B400-B50		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-00-40-B400-B75		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-00-40-B400-B100		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-00-40-B400-B150		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-00-40-B400-B200		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-00-40-B450-B25		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-00-40-B450-B50		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-00-40-B450-B75		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-00-40-B450-B100		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-00-40-B450-B150		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-00-40-B450-B200		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-00-40-B500-B25		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-00-40-B500-B50		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-00-40-B500-B75		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-00-40-B500-B100		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-00-40-B500-B150		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-00-40-B500-B200		Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-00-50-B25-B25		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-00-50-B50-B25		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-00-50-B50-B50		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-00-50-B75-B25		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-00-50-B75-B50		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-00-50-B75-B75		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-00-50-B100-B25		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-00-50-B100-B50		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-00-50-B100-B75		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-00-50-B100-B100		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-00-50-B150-B25		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-00-50-B150-B50		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-00-50-B150-B75		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-00-50-B150-B100		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-00-50-B150-B150		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-00-50-B200-B25		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-00-50-B200-B50		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-00-50-B200-B75		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-00-50-B200-B100		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-00-50-B200-B150		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-00-50-B200-B200		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-00-50-B250-B25		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-00-50-B250-B50		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-00-50-B250-B75		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-00-50-B250-B100		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-00-50-B250-B150		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-00-50-B250-B200		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-00-50-B300-B25		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-00-50-B300-B50		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-00-50-B300-B75		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-00-50-B300-B100		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-00-50-B300-B150		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-00-50-B300-B200		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-00-50-B350-B25		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-00-50-B350-B50		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-00-50-B350-B75		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-00-50-B350-B100		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-00-50-B350-B150		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-00-50-B350-B200		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-00-50-B400-B25		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-00-50-B400-B50		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-00-50-B400-B75		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-00-50-B400-B100		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-00-50-B400-B150		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-00-50-B400-B200		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-00-50-B450-B25		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-00-50-B450-B50		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-00-50-B450-B75		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-00-50-B450-B100		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-00-50-B450-B150		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-00-50-B450-B200		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-00-50-B500-B25		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-00-50-B500-B50		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-00-50-B500-B75		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-00-50-B500-B100		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-00-50-B500-B150		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-00-50-B500-B200		Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-LB-40-B25-B25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-LB-40-B50-B25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-LB-40-B50-B50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-LB-40-B75-B25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-LB-40-B75-B50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-LB-40-B75-B75		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-LB-40-B100-B25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-LB-40-B100-B50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-LB-40-B100-B75		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-LB-40-B100-B100		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-LB-40-B150-B25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-LB-40-B150-B50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-LB-40-B150-B75		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-LB-40-B150-B100		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-LB-40-B150-B150		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-LB-40-B200-B25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-LB-40-B200-B50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-LB-40-B200-B75		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-LB-40-B200-B100		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-LB-40-B200-B150		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-LB-40-B200-B200		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-LB-40-B250-B25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-LB-40-B250-B50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-LB-40-B250-B75		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-LB-40-B250-B100		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-LB-40-B250-B150		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-LB-40-B250-B200		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-LB-40-B300-B25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-LB-40-B300-B50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-LB-40-B300-B75		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-LB-40-B300-B100		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-LB-40-B300-B150		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-LB-40-B300-B200		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-LB-40-B350-B25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-LB-40-B350-B50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-LB-40-B350-B75		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-LB-40-B350-B100		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-LB-40-B350-B150		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-LB-40-B350-B200		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-LB-40-B400-B25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-LB-40-B400-B50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-LB-40-B400-B75		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-LB-40-B400-B100		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-LB-40-B400-B150		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-LB-40-B400-B200		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-LB-40-B450-B25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-LB-40-B450-B50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-LB-40-B450-B75		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-LB-40-B450-B100		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-LB-40-B450-B150		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-LB-40-B450-B200		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-LB-40-B500-B25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-LB-40-B500-B50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-LB-40-B500-B75		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-LB-40-B500-B100		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-LB-40-B500-B150		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-LB-40-B500-B200		Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-LB-50-B25-B25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-LB-50-B50-B25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-LB-50-B50-B50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-LB-50-B75-B25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-LB-50-B75-B50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-LB-50-B75-B75		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-LB-50-B100-B25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-LB-50-B100-B50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-LB-50-B100-B75		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-LB-50-B100-B100		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-LB-50-B150-B25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-LB-50-B150-B50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-LB-50-B150-B75		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-LB-50-B150-B100		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-LB-50-B150-B150		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-LB-50-B200-B25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-LB-50-B200-B50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-LB-50-B200-B75		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-LB-50-B200-B100		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-LB-50-B200-B150		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-LB-50-B200-B200		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-LB-50-B250-B25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-LB-50-B250-B50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-LB-50-B250-B75		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-LB-50-B250-B100		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-LB-50-B250-B150		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-LB-50-B250-B200		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-LB-50-B300-B25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-LB-50-B300-B50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-LB-50-B300-B75		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-LB-50-B300-B100		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-LB-50-B300-B150		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-LB-50-B300-B200		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-LB-50-B350-B25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-LB-50-B350-B50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-LB-50-B350-B75		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-LB-50-B350-B100		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-LB-50-B350-B150		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-LB-50-B350-B200		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-LB-50-B400-B25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-LB-50-B400-B50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-LB-50-B400-B75		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-LB-50-B400-B100		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-LB-50-B400-B150		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-LB-50-B400-B200		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-LB-50-B450-B25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-LB-50-B450-B50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-LB-50-B450-B75		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-LB-50-B450-B100		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-LB-50-B450-B150		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-LB-50-B450-B200		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-LB-50-B500-B25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-LB-50-B500-B50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-LB-50-B500-B75		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-LB-50-B500-B100		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-LB-50-B500-B150		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-LB-50-B500-B200		Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FA-40-B25-B25		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FA-40-B50-B25		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FA-40-B50-B50		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FA-40-B75-B25		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FA-40-B75-B50		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FA-40-B75-B75		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FA-40-B100-B25		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FA-40-B100-B50		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FA-40-B100-B75		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FA-40-B100-B100		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FA-40-B150-B25		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FA-40-B150-B50		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FA-40-B150-B75		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FA-40-B150-B100		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FA-40-B150-B150		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FA-40-B200-B25		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FA-40-B200-B50		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FA-40-B200-B75		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FA-40-B200-B100		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FA-40-B200-B150		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FA-40-B200-B200		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FA-40-B250-B25		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FA-40-B250-B50		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FA-40-B250-B75		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FA-40-B250-B100		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FA-40-B250-B150		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FA-40-B250-B200		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FA-40-B300-B25		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FA-40-B300-B50		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FA-40-B300-B75		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FA-40-B300-B100		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FA-40-B300-B150		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FA-40-B300-B200		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FA-40-B350-B25		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FA-40-B350-B50		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FA-40-B350-B75		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FA-40-B350-B100		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FA-40-B350-B150		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FA-40-B350-B200		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FA-40-B400-B25		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FA-40-B400-B50		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FA-40-B400-B75		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FA-40-B400-B100		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FA-40-B400-B150		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FA-40-B400-B200		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FA-40-B450-B25		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FA-40-B450-B50		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FA-40-B450-B75		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FA-40-B450-B100		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FA-40-B450-B150		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FA-40-B450-B200		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FA-40-B500-B25		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FA-40-B500-B50		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FA-40-B500-B75		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FA-40-B500-B100		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FA-40-B500-B150		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FA-40-B500-B200		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FA-50-B25-B25		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FA-50-B50-B25		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FA-50-B50-B50		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FA-50-B75-B25		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FA-50-B75-B50		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FA-50-B75-B75		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FA-50-B100-B25		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FA-50-B100-B50		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FA-50-B100-B75		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FA-50-B100-B100		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FA-50-B150-B25		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FA-50-B150-B50		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FA-50-B150-B75		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FA-50-B150-B100		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FA-50-B150-B150		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FA-50-B200-B25		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FA-50-B200-B50		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FA-50-B200-B75		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FA-50-B200-B100		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FA-50-B200-B150		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FA-50-B200-B200		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FA-50-B250-B25		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FA-50-B250-B50		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FA-50-B250-B75		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FA-50-B250-B100		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FA-50-B250-B150		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FA-50-B250-B200		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FA-50-B300-B25		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FA-50-B300-B50		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FA-50-B300-B75		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FA-50-B300-B100		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FA-50-B300-B150		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FA-50-B300-B200		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FA-50-B350-B25		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FA-50-B350-B50		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FA-50-B350-B75		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FA-50-B350-B100		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FA-50-B350-B150		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FA-50-B350-B200		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FA-50-B400-B25		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FA-50-B400-B50		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FA-50-B400-B75		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FA-50-B400-B100		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FA-50-B400-B150		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FA-50-B400-B200		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FA-50-B450-B25		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FA-50-B450-B50		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FA-50-B450-B75		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FA-50-B450-B100		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FA-50-B450-B150		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FA-50-B450-B200		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FA-50-B500-B25		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FA-50-B500-B50		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FA-50-B500-B75		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FA-50-B500-B100		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FA-50-B500-B150		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FA-50-B500-B200		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FB-40-B25-B25		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FB-40-B50-B25		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FB-40-B50-B50		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FB-40-B75-B25		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FB-40-B75-B50		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FB-40-B75-B75		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FB-40-B100-B25		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FB-40-B100-B50		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FB-40-B100-B75		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FB-40-B100-B100		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FB-40-B150-B25		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FB-40-B150-B50		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FB-40-B150-B75		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FB-40-B150-B100		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FB-40-B150-B150		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FB-40-B200-B25		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FB-40-B200-B50		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FB-40-B200-B75		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FB-40-B200-B100		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FB-40-B200-B150		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FB-40-B200-B200		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FB-40-B250-B25		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FB-40-B250-B50		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FB-40-B250-B75		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FB-40-B250-B100		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FB-40-B250-B150		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FB-40-B250-B200		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FB-40-B300-B25		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FB-40-B300-B50		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FB-40-B300-B75		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FB-40-B300-B100		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FB-40-B300-B150		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FB-40-B300-B200		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FB-40-B350-B25		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FB-40-B350-B50		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FB-40-B350-B75		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FB-40-B350-B100		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FB-40-B350-B150		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FB-40-B350-B200		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FB-40-B400-B25		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FB-40-B400-B50		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FB-40-B400-B75		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FB-40-B400-B100		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FB-40-B400-B150		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FB-40-B400-B200		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FB-40-B450-B25		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FB-40-B450-B50		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FB-40-B450-B75		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FB-40-B450-B100		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FB-40-B450-B150		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FB-40-B450-B200		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FB-40-B500-B25		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FB-40-B500-B50		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FB-40-B500-B75		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FB-40-B500-B100		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FB-40-B500-B150		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FB-40-B500-B200		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FB-50-B25-B25		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FB-50-B50-B25		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FB-50-B50-B50		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FB-50-B75-B25		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FB-50-B75-B50		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FB-50-B75-B75		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FB-50-B100-B25		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FB-50-B100-B50		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FB-50-B100-B75		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FB-50-B100-B100		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FB-50-B150-B25		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FB-50-B150-B50		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FB-50-B150-B75		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FB-50-B150-B100		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FB-50-B150-B150		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FB-50-B200-B25		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FB-50-B200-B50		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FB-50-B200-B75		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FB-50-B200-B100		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FB-50-B200-B150		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FB-50-B200-B200		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FB-50-B250-B25		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FB-50-B250-B50		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FB-50-B250-B75		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FB-50-B250-B100		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FB-50-B250-B150		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FB-50-B250-B200		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FB-50-B300-B25		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FB-50-B300-B50		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FB-50-B300-B75		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FB-50-B300-B100		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FB-50-B300-B150		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FB-50-B300-B200		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FB-50-B350-B25		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FB-50-B350-B50		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FB-50-B350-B75		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FB-50-B350-B100		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FB-50-B350-B150		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FB-50-B350-B200		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FB-50-B400-B25		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FB-50-B400-B50		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FB-50-B400-B75		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FB-50-B400-B100		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FB-50-B400-B150		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FB-50-B400-B200		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FB-50-B450-B25		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FB-50-B450-B50		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FB-50-B450-B75		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FB-50-B450-B100		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FB-50-B450-B150		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FB-50-B450-B200		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FB-50-B500-B25		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FB-50-B500-B50		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FB-50-B500-B75		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FB-50-B500-B100		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FB-50-B500-B150		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FB-50-B500-B200		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FC-40-B25-B25		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FC-40-B50-B25		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FC-40-B50-B50		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FC-40-B75-B25		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FC-40-B75-B50		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FC-40-B75-B75		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FC-40-B100-B25		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FC-40-B100-B50		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FC-40-B100-B75		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FC-40-B100-B100		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FC-40-B150-B25		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FC-40-B150-B50		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FC-40-B150-B75		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FC-40-B150-B100		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FC-40-B150-B150		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FC-40-B200-B25		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FC-40-B200-B50		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FC-40-B200-B75		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FC-40-B200-B100		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FC-40-B200-B150		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FC-40-B200-B200		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FC-40-B250-B25		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FC-40-B250-B50		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FC-40-B250-B75		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FC-40-B250-B100		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FC-40-B250-B150		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FC-40-B250-B200		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FC-40-B300-B25		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FC-40-B300-B50		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FC-40-B300-B75		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FC-40-B300-B100		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FC-40-B300-B150		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FC-40-B300-B200		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FC-40-B350-B25		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FC-40-B350-B50		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FC-40-B350-B75		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FC-40-B350-B100		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FC-40-B350-B150		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FC-40-B350-B200		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FC-40-B400-B25		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FC-40-B400-B50		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FC-40-B400-B75		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FC-40-B400-B100		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FC-40-B400-B150		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FC-40-B400-B200		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FC-40-B450-B25		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FC-40-B450-B50		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FC-40-B450-B75		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FC-40-B450-B100		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FC-40-B450-B150		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FC-40-B450-B200		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FC-40-B500-B25		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-FC-40-B500-B50		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-FC-40-B500-B75		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-FC-40-B500-B100		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-FC-40-B500-B150		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-FC-40-B500-B200		Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-FC-50-B25-B25		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FC-50-B50-B25		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FC-50-B50-B50		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FC-50-B75-B25		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FC-50-B75-B50		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FC-50-B75-B75		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FC-50-B100-B25		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FC-50-B100-B50		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FC-50-B100-B75		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FC-50-B100-B100		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FC-50-B150-B25		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FC-50-B150-B50		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FC-50-B150-B75		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FC-50-B150-B100		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FC-50-B150-B150		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FC-50-B200-B25		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FC-50-B200-B50		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FC-50-B200-B75		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FC-50-B200-B100		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FC-50-B200-B150		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FC-50-B200-B200		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FC-50-B250-B25		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FC-50-B250-B50		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FC-50-B250-B75		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FC-50-B250-B100		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FC-50-B250-B150		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FC-50-B250-B200		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FC-50-B300-B25		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FC-50-B300-B50		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FC-50-B300-B75		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FC-50-B300-B100		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FC-50-B300-B150		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FC-50-B300-B200		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FC-50-B350-B25		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FC-50-B350-B50		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FC-50-B350-B75		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FC-50-B350-B100		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FC-50-B350-B150		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FC-50-B350-B200		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FC-50-B400-B25		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FC-50-B400-B50		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FC-50-B400-B75		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FC-50-B400-B100		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FC-50-B400-B150		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FC-50-B400-B200		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FC-50-B450-B25		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FC-50-B450-B50		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FC-50-B450-B75		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FC-50-B450-B100		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FC-50-B450-B150		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FC-50-B450-B200		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-FC-50-B500-B25		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-FC-50-B500-B50		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-FC-50-B500-B75		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-FC-50-B500-B100		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-FC-50-B500-B150		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-FC-50-B500-B200		Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-CA-40-B25-B25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CA-40-B50-B25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CA-40-B50-B50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CA-40-B75-B25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CA-40-B75-B50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CA-40-B75-B75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CA-40-B100-B25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CA-40-B100-B50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CA-40-B100-B75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CA-40-B100-B100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CA-40-B150-B25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CA-40-B150-B50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CA-40-B150-B75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CA-40-B150-B100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CA-40-B150-B150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CA-40-B200-B25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CA-40-B200-B50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CA-40-B200-B75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CA-40-B200-B100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CA-40-B200-B150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CA-40-B200-B200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-CA-40-B250-B25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CA-40-B250-B50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CA-40-B250-B75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CA-40-B250-B100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CA-40-B250-B150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CA-40-B250-B200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-CA-40-B300-B25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CA-40-B300-B50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CA-40-B300-B75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CA-40-B300-B100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CA-40-B300-B150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CA-40-B300-B200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-CA-40-B350-B25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CA-40-B350-B50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CA-40-B350-B75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CA-40-B350-B100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CA-40-B350-B150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CA-40-B350-B200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-CA-40-B400-B25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CA-40-B400-B50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CA-40-B400-B75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CA-40-B400-B100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CA-40-B400-B150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CA-40-B400-B200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-CA-40-B450-B25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CA-40-B450-B50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CA-40-B450-B75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CA-40-B450-B100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CA-40-B450-B150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CA-40-B450-B200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-CA-40-B500-B25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CA-40-B500-B50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CA-40-B500-B75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CA-40-B500-B100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CA-40-B500-B150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CA-40-B500-B200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-CA-50-B25-B25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CA-50-B50-B25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CA-50-B50-B50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CA-50-B75-B25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CA-50-B75-B50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CA-50-B75-B75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CA-50-B100-B25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CA-50-B100-B50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CA-50-B100-B75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CA-50-B100-B100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CA-50-B150-B25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CA-50-B150-B50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CA-50-B150-B75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CA-50-B150-B100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CA-50-B150-B150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CA-50-B200-B25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CA-50-B200-B50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CA-50-B200-B75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CA-50-B200-B100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CA-50-B200-B150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CA-50-B200-B200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-CA-50-B250-B25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CA-50-B250-B50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CA-50-B250-B75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CA-50-B250-B100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CA-50-B250-B150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CA-50-B250-B200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-CA-50-B300-B25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CA-50-B300-B50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CA-50-B300-B75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CA-50-B300-B100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CA-50-B300-B150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CA-50-B300-B200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-CA-50-B350-B25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CA-50-B350-B50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CA-50-B350-B75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CA-50-B350-B100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CA-50-B350-B150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CA-50-B350-B200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-CA-50-B400-B25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CA-50-B400-B50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CA-50-B400-B75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CA-50-B400-B100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CA-50-B400-B150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CA-50-B400-B200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-CA-50-B450-B25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CA-50-B450-B50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CA-50-B450-B75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CA-50-B450-B100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CA-50-B450-B150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CA-50-B450-B200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-CA-50-B500-B25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CA-50-B500-B50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CA-50-B500-B75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CA-50-B500-B100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CA-50-B500-B150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CA-50-B500-B200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-CB-40-B25-B25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CB-40-B50-B25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CB-40-B50-B50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CB-40-B75-B25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CB-40-B75-B50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CB-40-B75-B75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CB-40-B100-B25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CB-40-B100-B50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CB-40-B100-B75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CB-40-B100-B100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CB-40-B150-B25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CB-40-B150-B50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CB-40-B150-B75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CB-40-B150-B100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CB-40-B150-B150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CB-40-B200-B25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CB-40-B200-B50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CB-40-B200-B75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CB-40-B200-B100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CB-40-B200-B150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CB-40-B200-B200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-CB-40-B250-B25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CB-40-B250-B50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CB-40-B250-B75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CB-40-B250-B100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CB-40-B250-B150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CB-40-B250-B200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-CB-40-B300-B25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CB-40-B300-B50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CB-40-B300-B75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CB-40-B300-B100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CB-40-B300-B150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CB-40-B300-B200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-CB-40-B350-B25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CB-40-B350-B50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CB-40-B350-B75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CB-40-B350-B100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CB-40-B350-B150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CB-40-B350-B200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-CB-40-B400-B25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CB-40-B400-B50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CB-40-B400-B75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CB-40-B400-B100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CB-40-B400-B150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CB-40-B400-B200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-CB-40-B450-B25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CB-40-B450-B50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CB-40-B450-B75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CB-40-B450-B100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CB-40-B450-B150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CB-40-B450-B200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-CB-40-B500-B25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-CB-40-B500-B50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-CB-40-B500-B75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-CB-40-B500-B100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-CB-40-B500-B150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-CB-40-B500-B200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-CB-50-B25-B25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CB-50-B50-B25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CB-50-B50-B50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CB-50-B75-B25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CB-50-B75-B50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CB-50-B75-B75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CB-50-B100-B25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CB-50-B100-B50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CB-50-B100-B75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CB-50-B100-B100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CB-50-B150-B25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CB-50-B150-B50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CB-50-B150-B75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CB-50-B150-B100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CB-50-B150-B150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CB-50-B200-B25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CB-50-B200-B50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CB-50-B200-B75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CB-50-B200-B100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CB-50-B200-B150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CB-50-B200-B200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-CB-50-B250-B25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CB-50-B250-B50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CB-50-B250-B75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CB-50-B250-B100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CB-50-B250-B150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CB-50-B250-B200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-CB-50-B300-B25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CB-50-B300-B50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CB-50-B300-B75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CB-50-B300-B100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CB-50-B300-B150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CB-50-B300-B200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-CB-50-B350-B25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CB-50-B350-B50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CB-50-B350-B75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CB-50-B350-B100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CB-50-B350-B150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CB-50-B350-B200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-CB-50-B400-B25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CB-50-B400-B50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CB-50-B400-B75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CB-50-B400-B100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CB-50-B400-B150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CB-50-B400-B200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-CB-50-B450-B25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CB-50-B450-B50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CB-50-B450-B75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CB-50-B450-B100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CB-50-B450-B150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CB-50-B450-B200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-CB-50-B500-B25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-CB-50-B500-B50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-CB-50-B500-B75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-CB-50-B500-B100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-CB-50-B500-B150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-CB-50-B500-B200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TA-40-B25-B25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TA-40-B50-B25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TA-40-B50-B50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TA-40-B75-B25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TA-40-B75-B50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TA-40-B75-B75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TA-40-B100-B25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TA-40-B100-B50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TA-40-B100-B75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TA-40-B100-B100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TA-40-B150-B25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TA-40-B150-B50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TA-40-B150-B75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TA-40-B150-B100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TA-40-B150-B150		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TA-40-B200-B25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TA-40-B200-B50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TA-40-B200-B75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TA-40-B200-B100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TA-40-B200-B150		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TA-40-B200-B200		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-TA-40-B250-B25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TA-40-B250-B50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TA-40-B250-B75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TA-40-B250-B100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TA-40-B250-B150		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TA-40-B250-B200		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-TA-40-B300-B25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TA-40-B300-B50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TA-40-B300-B75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TA-40-B300-B100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TA-40-B300-B150		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TA-40-B300-B200		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-TA-40-B350-B25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TA-40-B350-B50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TA-40-B350-B75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TA-40-B350-B100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TA-40-B350-B150		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TA-40-B350-B200		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-TA-40-B400-B25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TA-40-B400-B50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TA-40-B400-B75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TA-40-B400-B100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TA-40-B400-B150		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TA-40-B400-B200		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-TA-40-B450-B25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TA-40-B450-B50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TA-40-B450-B75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TA-40-B450-B100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TA-40-B450-B150		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TA-40-B450-B200		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-TA-40-B500-B25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TA-40-B500-B50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TA-40-B500-B75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TA-40-B500-B100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TA-40-B500-B150		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TA-40-B500-B200		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-TA-50-B25-B25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TA-50-B50-B25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TA-50-B50-B50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TA-50-B75-B25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TA-50-B75-B50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TA-50-B75-B75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TA-50-B100-B25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TA-50-B100-B50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TA-50-B100-B75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TA-50-B100-B100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TA-50-B150-B25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TA-50-B150-B50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TA-50-B150-B75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TA-50-B150-B100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TA-50-B150-B150		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TA-50-B200-B25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TA-50-B200-B50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TA-50-B200-B75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TA-50-B200-B100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TA-50-B200-B150		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TA-50-B200-B200		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TA-50-B250-B25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TA-50-B250-B50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TA-50-B250-B75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TA-50-B250-B100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TA-50-B250-B150		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TA-50-B250-B200		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TA-50-B300-B25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TA-50-B300-B50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TA-50-B300-B75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TA-50-B300-B100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TA-50-B300-B150		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TA-50-B300-B200		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TA-50-B350-B25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TA-50-B350-B50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TA-50-B350-B75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TA-50-B350-B100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TA-50-B350-B150		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TA-50-B350-B200		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TA-50-B400-B25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TA-50-B400-B50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TA-50-B400-B75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TA-50-B400-B100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TA-50-B400-B150		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TA-50-B400-B200		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TA-50-B450-B25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TA-50-B450-B50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TA-50-B450-B75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TA-50-B450-B100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TA-50-B450-B150		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TA-50-B450-B200		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TA-50-B500-B25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TA-50-B500-B50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TA-50-B500-B75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TA-50-B500-B100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TA-50-B500-B150		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TA-50-B500-B200		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TB-40-B25-B25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TB-40-B50-B25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TB-40-B50-B50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TB-40-B75-B25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TB-40-B75-B50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TB-40-B75-B75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TB-40-B100-B25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TB-40-B100-B50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TB-40-B100-B75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TB-40-B100-B100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TB-40-B150-B25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TB-40-B150-B50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TB-40-B150-B75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TB-40-B150-B100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TB-40-B150-B150		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TB-40-B200-B25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TB-40-B200-B50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TB-40-B200-B75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TB-40-B200-B100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TB-40-B200-B150		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TB-40-B200-B200		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-TB-40-B250-B25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TB-40-B250-B50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TB-40-B250-B75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TB-40-B250-B100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TB-40-B250-B150		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TB-40-B250-B200		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-TB-40-B300-B25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TB-40-B300-B50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TB-40-B300-B75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TB-40-B300-B100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TB-40-B300-B150		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TB-40-B300-B200		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-TB-40-B350-B25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TB-40-B350-B50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TB-40-B350-B75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TB-40-B350-B100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TB-40-B350-B150		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TB-40-B350-B200		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-TB-40-B400-B25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TB-40-B400-B50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TB-40-B400-B75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TB-40-B400-B100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TB-40-B400-B150		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TB-40-B400-B200		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-TB-40-B450-B25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TB-40-B450-B50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TB-40-B450-B75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TB-40-B450-B100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TB-40-B450-B150		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TB-40-B450-B200		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-TB-40-B500-B25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
SCA2-W-TB-40-B500-B50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
SCA2-W-TB-40-B500-B75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
SCA2-W-TB-40-B500-B100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
SCA2-W-TB-40-B500-B150		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
SCA2-W-TB-40-B500-B200		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
SCA2-W-TB-50-B25-B25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TB-50-B50-B25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TB-50-B50-B50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TB-50-B75-B25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TB-50-B75-B50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TB-50-B75-B75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TB-50-B100-B25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TB-50-B100-B50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TB-50-B100-B75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TB-50-B100-B100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TB-50-B150-B25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TB-50-B150-B50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TB-50-B150-B75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TB-50-B150-B100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TB-50-B150-B150		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TB-50-B200-B25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TB-50-B200-B50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TB-50-B200-B75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TB-50-B200-B100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TB-50-B200-B150		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TB-50-B200-B200		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TB-50-B250-B25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TB-50-B250-B50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TB-50-B250-B75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TB-50-B250-B100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TB-50-B250-B150		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TB-50-B250-B200		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TB-50-B300-B25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TB-50-B300-B50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TB-50-B300-B75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TB-50-B300-B100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TB-50-B300-B150		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TB-50-B300-B200		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TB-50-B350-B25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TB-50-B350-B50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TB-50-B350-B75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TB-50-B350-B100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TB-50-B350-B150		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TB-50-B350-B200		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TB-50-B400-B25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TB-50-B400-B50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TB-50-B400-B75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TB-50-B400-B100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TB-50-B400-B150		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TB-50-B400-B200		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TB-50-B450-B25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TB-50-B450-B50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TB-50-B450-B75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TB-50-B450-B100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TB-50-B450-B150		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TB-50-B450-B200		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TB-50-B500-B25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TB-50-B500-B50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TB-50-B500-B75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TB-50-B500-B100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TB-50-B500-B150		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TB-50-B500-B200		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TD-50-B25-B25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TD-50-B50-B25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TD-50-B50-B50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TD-50-B75-B25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TD-50-B75-B50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TD-50-B75-B75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TD-50-B100-B25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TD-50-B100-B50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TD-50-B100-B75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TD-50-B100-B100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TD-50-B150-B25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TD-50-B150-B50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TD-50-B150-B75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TD-50-B150-B100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TD-50-B150-B150		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TD-50-B200-B25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TD-50-B200-B50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TD-50-B200-B75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TD-50-B200-B100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TD-50-B200-B150		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TD-50-B200-B200		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TD-50-B250-B25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TD-50-B250-B50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TD-50-B250-B75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TD-50-B250-B100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TD-50-B250-B150		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TD-50-B250-B200		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TD-50-B300-B25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TD-50-B300-B50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TD-50-B300-B75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TD-50-B300-B100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TD-50-B300-B150		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TD-50-B300-B200		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TD-50-B350-B25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TD-50-B350-B50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TD-50-B350-B75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TD-50-B350-B100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TD-50-B350-B150		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TD-50-B350-B200		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TD-50-B400-B25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TD-50-B400-B50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TD-50-B400-B75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TD-50-B400-B100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TD-50-B400-B150		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TD-50-B400-B200		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TD-50-B450-B25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TD-50-B450-B50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TD-50-B450-B75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TD-50-B450-B100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TD-50-B450-B150		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TD-50-B450-B200		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TD-50-B500-B25		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TD-50-B500-B50		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TD-50-B500-B75		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TD-50-B500-B100		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TD-50-B500-B150		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TD-50-B500-B200		Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TE-50-B25-B25		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TE-50-B50-B25		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TE-50-B50-B50		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TE-50-B75-B25		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TE-50-B75-B50		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TE-50-B75-B75		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TE-50-B100-B25		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TE-50-B100-B50		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TE-50-B100-B75		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TE-50-B100-B100		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TE-50-B150-B25		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TE-50-B150-B50		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TE-50-B150-B75		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TE-50-B150-B100		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TE-50-B150-B150		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TE-50-B200-B25		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TE-50-B200-B50		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TE-50-B200-B75		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TE-50-B200-B100		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TE-50-B200-B150		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TE-50-B200-B200		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TE-50-B250-B25		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TE-50-B250-B50		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TE-50-B250-B75		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TE-50-B250-B100		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TE-50-B250-B150		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TE-50-B250-B200		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TE-50-B300-B25		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TE-50-B300-B50		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TE-50-B300-B75		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TE-50-B300-B100		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TE-50-B300-B150		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TE-50-B300-B200		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TE-50-B350-B25		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TE-50-B350-B50		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TE-50-B350-B75		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TE-50-B350-B100		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TE-50-B350-B150		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TE-50-B350-B200		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TE-50-B400-B25		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TE-50-B400-B50		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TE-50-B400-B75		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TE-50-B400-B100		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TE-50-B400-B150		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TE-50-B400-B200		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TE-50-B450-B25		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TE-50-B450-B50		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TE-50-B450-B75		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TE-50-B450-B100		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TE-50-B450-B150		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TE-50-B450-B200		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
SCA2-W-TE-50-B500-B25		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
SCA2-W-TE-50-B500-B50		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
SCA2-W-TE-50-B500-B75		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
SCA2-W-TE-50-B500-B100		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
SCA2-W-TE-50-B500-B150		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
SCA2-W-TE-50-B500-B200		Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8

Pneumatic CylindersCKD

1140 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCA2-W Selex Cylinder (Two-Stage, Bore 40-50)

Brand CKD·Pneumatic Cylinders

Available part numbers (1140)

SCA2-W-00-40-B25-B25, SCA2-W-00-40-B50-B25, SCA2-W-00-40-B50-B50, SCA2-W-00-40-B75-B25, SCA2-W-00-40-B75-B50, SCA2-W-00-40-B75-B75, SCA2-W-00-40-B100-B25, SCA2-W-00-40-B100-B50, SCA2-W-00-40-B100-B75, SCA2-W-00-40-B100-B100 + 1130 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCA2-W-00-40-B25-B25	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-00-40-B50-B25	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-00-40-B50-B50	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-00-40-B75-B25	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-00-40-B75-B50	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-00-40-B75-B75	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-00-40-B100-B25	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-00-40-B100-B50	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-00-40-B100-B75	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-00-40-B100-B100	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-00-40-B150-B25	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-00-40-B150-B50	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-00-40-B150-B75	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-00-40-B150-B100	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-00-40-B150-B150	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-00-40-B200-B25	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-00-40-B200-B50	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-00-40-B200-B75	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-00-40-B200-B100	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-00-40-B200-B150	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-00-40-B200-B200	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-00-40-B250-B25	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-00-40-B250-B50	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-00-40-B250-B75	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-00-40-B250-B100	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-00-40-B250-B150	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-00-40-B250-B200	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-00-40-B300-B25	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-00-40-B300-B50	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-00-40-B300-B75	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-00-40-B300-B100	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-00-40-B300-B150	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-00-40-B300-B200	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-00-40-B350-B25	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-00-40-B350-B50	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-00-40-B350-B75	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-00-40-B350-B100	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-00-40-B350-B150	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-00-40-B350-B200	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-00-40-B400-B25	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-00-40-B400-B50	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-00-40-B400-B75	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-00-40-B400-B100	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-00-40-B400-B150	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-00-40-B400-B200	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-00-40-B450-B25	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-00-40-B450-B50	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-00-40-B450-B75	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-00-40-B450-B100	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-00-40-B450-B150	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-00-40-B450-B200	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-00-40-B500-B25	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-00-40-B500-B50	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-00-40-B500-B75	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-00-40-B500-B100	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-00-40-B500-B150	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-00-40-B500-B200	Mounting: Basic (00) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-00-50-B25-B25	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-00-50-B50-B25	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-00-50-B50-B50	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-00-50-B75-B25	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-00-50-B75-B50	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-00-50-B75-B75	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-00-50-B100-B25	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-00-50-B100-B50	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-00-50-B100-B75	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-00-50-B100-B100	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-00-50-B150-B25	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-00-50-B150-B50	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-00-50-B150-B75	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-00-50-B150-B100	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-00-50-B150-B150	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-00-50-B200-B25	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-00-50-B200-B50	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-00-50-B200-B75	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-00-50-B200-B100	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-00-50-B200-B150	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-00-50-B200-B200	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-00-50-B250-B25	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-00-50-B250-B50	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-00-50-B250-B75	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-00-50-B250-B100	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-00-50-B250-B150	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-00-50-B250-B200	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-00-50-B300-B25	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-00-50-B300-B50	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-00-50-B300-B75	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-00-50-B300-B100	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-00-50-B300-B150	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-00-50-B300-B200	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-00-50-B350-B25	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-00-50-B350-B50	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-00-50-B350-B75	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-00-50-B350-B100	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-00-50-B350-B150	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-00-50-B350-B200	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-00-50-B400-B25	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-00-50-B400-B50	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-00-50-B400-B75	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-00-50-B400-B100	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-00-50-B400-B150	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-00-50-B400-B200	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-00-50-B450-B25	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-00-50-B450-B50	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-00-50-B450-B75	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-00-50-B450-B100	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-00-50-B450-B150	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-00-50-B450-B200	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-00-50-B500-B25	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-00-50-B500-B50	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-00-50-B500-B75	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-00-50-B500-B100	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-00-50-B500-B150	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-00-50-B500-B200	Mounting: Basic (00) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-LB-40-B25-B25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-LB-40-B50-B25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-LB-40-B50-B50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-LB-40-B75-B25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-LB-40-B75-B50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-LB-40-B75-B75	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-LB-40-B100-B25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-LB-40-B100-B50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-LB-40-B100-B75	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-LB-40-B100-B100	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-LB-40-B150-B25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-LB-40-B150-B50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-LB-40-B150-B75	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-LB-40-B150-B100	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-LB-40-B150-B150	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-LB-40-B200-B25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-LB-40-B200-B50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-LB-40-B200-B75	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-LB-40-B200-B100	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-LB-40-B200-B150	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-LB-40-B200-B200	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-LB-40-B250-B25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-LB-40-B250-B50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-LB-40-B250-B75	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-LB-40-B250-B100	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-LB-40-B250-B150	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-LB-40-B250-B200	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-LB-40-B300-B25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-LB-40-B300-B50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-LB-40-B300-B75	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-LB-40-B300-B100	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-LB-40-B300-B150	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-LB-40-B300-B200	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-LB-40-B350-B25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-LB-40-B350-B50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-LB-40-B350-B75	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-LB-40-B350-B100	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-LB-40-B350-B150	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-LB-40-B350-B200	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-LB-40-B400-B25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-LB-40-B400-B50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-LB-40-B400-B75	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-LB-40-B400-B100	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-LB-40-B400-B150	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-LB-40-B400-B200	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-LB-40-B450-B25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-LB-40-B450-B50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-LB-40-B450-B75	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-LB-40-B450-B100	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-LB-40-B450-B150	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-LB-40-B450-B200	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-LB-40-B500-B25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-LB-40-B500-B50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-LB-40-B500-B75	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-LB-40-B500-B100	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-LB-40-B500-B150	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-LB-40-B500-B200	Mounting: Axial foot (LB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-LB-50-B25-B25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-LB-50-B50-B25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-LB-50-B50-B50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-LB-50-B75-B25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-LB-50-B75-B50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-LB-50-B75-B75	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-LB-50-B100-B25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-LB-50-B100-B50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-LB-50-B100-B75	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-LB-50-B100-B100	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-LB-50-B150-B25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-LB-50-B150-B50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-LB-50-B150-B75	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-LB-50-B150-B100	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-LB-50-B150-B150	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-LB-50-B200-B25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-LB-50-B200-B50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-LB-50-B200-B75	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-LB-50-B200-B100	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-LB-50-B200-B150	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-LB-50-B200-B200	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-LB-50-B250-B25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-LB-50-B250-B50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-LB-50-B250-B75	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-LB-50-B250-B100	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-LB-50-B250-B150	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-LB-50-B250-B200	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-LB-50-B300-B25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-LB-50-B300-B50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-LB-50-B300-B75	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-LB-50-B300-B100	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-LB-50-B300-B150	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-LB-50-B300-B200	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-LB-50-B350-B25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-LB-50-B350-B50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-LB-50-B350-B75	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-LB-50-B350-B100	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-LB-50-B350-B150	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-LB-50-B350-B200	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-LB-50-B400-B25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-LB-50-B400-B50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-LB-50-B400-B75	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-LB-50-B400-B100	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-LB-50-B400-B150	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-LB-50-B400-B200	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-LB-50-B450-B25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-LB-50-B450-B50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-LB-50-B450-B75	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-LB-50-B450-B100	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-LB-50-B450-B150	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-LB-50-B450-B200	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-LB-50-B500-B25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-LB-50-B500-B50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-LB-50-B500-B75	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-LB-50-B500-B100	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-LB-50-B500-B150	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-LB-50-B500-B200	Mounting: Axial foot (LB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FA-40-B25-B25	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FA-40-B50-B25	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FA-40-B50-B50	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FA-40-B75-B25	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FA-40-B75-B50	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FA-40-B75-B75	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FA-40-B100-B25	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FA-40-B100-B50	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FA-40-B100-B75	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FA-40-B100-B100	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FA-40-B150-B25	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FA-40-B150-B50	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FA-40-B150-B75	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FA-40-B150-B100	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FA-40-B150-B150	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FA-40-B200-B25	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FA-40-B200-B50	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FA-40-B200-B75	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FA-40-B200-B100	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FA-40-B200-B150	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FA-40-B200-B200	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FA-40-B250-B25	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FA-40-B250-B50	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FA-40-B250-B75	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FA-40-B250-B100	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FA-40-B250-B150	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FA-40-B250-B200	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FA-40-B300-B25	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FA-40-B300-B50	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FA-40-B300-B75	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FA-40-B300-B100	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FA-40-B300-B150	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FA-40-B300-B200	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FA-40-B350-B25	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FA-40-B350-B50	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FA-40-B350-B75	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FA-40-B350-B100	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FA-40-B350-B150	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FA-40-B350-B200	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FA-40-B400-B25	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FA-40-B400-B50	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FA-40-B400-B75	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FA-40-B400-B100	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FA-40-B400-B150	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FA-40-B400-B200	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FA-40-B450-B25	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FA-40-B450-B50	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FA-40-B450-B75	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FA-40-B450-B100	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FA-40-B450-B150	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FA-40-B450-B200	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FA-40-B500-B25	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FA-40-B500-B50	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FA-40-B500-B75	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FA-40-B500-B100	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FA-40-B500-B150	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FA-40-B500-B200	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FA-50-B25-B25	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FA-50-B50-B25	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FA-50-B50-B50	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FA-50-B75-B25	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FA-50-B75-B50	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FA-50-B75-B75	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FA-50-B100-B25	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FA-50-B100-B50	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FA-50-B100-B75	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FA-50-B100-B100	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FA-50-B150-B25	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FA-50-B150-B50	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FA-50-B150-B75	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FA-50-B150-B100	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FA-50-B150-B150	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FA-50-B200-B25	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FA-50-B200-B50	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FA-50-B200-B75	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FA-50-B200-B100	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FA-50-B200-B150	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FA-50-B200-B200	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FA-50-B250-B25	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FA-50-B250-B50	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FA-50-B250-B75	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FA-50-B250-B100	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FA-50-B250-B150	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FA-50-B250-B200	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FA-50-B300-B25	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FA-50-B300-B50	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FA-50-B300-B75	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FA-50-B300-B100	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FA-50-B300-B150	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FA-50-B300-B200	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FA-50-B350-B25	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FA-50-B350-B50	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FA-50-B350-B75	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FA-50-B350-B100	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FA-50-B350-B150	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FA-50-B350-B200	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FA-50-B400-B25	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FA-50-B400-B50	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FA-50-B400-B75	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FA-50-B400-B100	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FA-50-B400-B150	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FA-50-B400-B200	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FA-50-B450-B25	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FA-50-B450-B50	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FA-50-B450-B75	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FA-50-B450-B100	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FA-50-B450-B150	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FA-50-B450-B200	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FA-50-B500-B25	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FA-50-B500-B50	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FA-50-B500-B75	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FA-50-B500-B100	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FA-50-B500-B150	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FA-50-B500-B200	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FB-40-B25-B25	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FB-40-B50-B25	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FB-40-B50-B50	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FB-40-B75-B25	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FB-40-B75-B50	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FB-40-B75-B75	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FB-40-B100-B25	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FB-40-B100-B50	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FB-40-B100-B75	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FB-40-B100-B100	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FB-40-B150-B25	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FB-40-B150-B50	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FB-40-B150-B75	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FB-40-B150-B100	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FB-40-B150-B150	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FB-40-B200-B25	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FB-40-B200-B50	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FB-40-B200-B75	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FB-40-B200-B100	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FB-40-B200-B150	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FB-40-B200-B200	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FB-40-B250-B25	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FB-40-B250-B50	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FB-40-B250-B75	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FB-40-B250-B100	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FB-40-B250-B150	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FB-40-B250-B200	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FB-40-B300-B25	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FB-40-B300-B50	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FB-40-B300-B75	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FB-40-B300-B100	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FB-40-B300-B150	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FB-40-B300-B200	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FB-40-B350-B25	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FB-40-B350-B50	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FB-40-B350-B75	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FB-40-B350-B100	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FB-40-B350-B150	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FB-40-B350-B200	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FB-40-B400-B25	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FB-40-B400-B50	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FB-40-B400-B75	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FB-40-B400-B100	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FB-40-B400-B150	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FB-40-B400-B200	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FB-40-B450-B25	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FB-40-B450-B50	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FB-40-B450-B75	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FB-40-B450-B100	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FB-40-B450-B150	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FB-40-B450-B200	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FB-40-B500-B25	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FB-40-B500-B50	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FB-40-B500-B75	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FB-40-B500-B100	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FB-40-B500-B150	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FB-40-B500-B200	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FB-50-B25-B25	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FB-50-B50-B25	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FB-50-B50-B50	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FB-50-B75-B25	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FB-50-B75-B50	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FB-50-B75-B75	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FB-50-B100-B25	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FB-50-B100-B50	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FB-50-B100-B75	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FB-50-B100-B100	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FB-50-B150-B25	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FB-50-B150-B50	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FB-50-B150-B75	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FB-50-B150-B100	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FB-50-B150-B150	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FB-50-B200-B25	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FB-50-B200-B50	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FB-50-B200-B75	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FB-50-B200-B100	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FB-50-B200-B150	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FB-50-B200-B200	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FB-50-B250-B25	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FB-50-B250-B50	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FB-50-B250-B75	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FB-50-B250-B100	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FB-50-B250-B150	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FB-50-B250-B200	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FB-50-B300-B25	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FB-50-B300-B50	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FB-50-B300-B75	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FB-50-B300-B100	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FB-50-B300-B150	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FB-50-B300-B200	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FB-50-B350-B25	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FB-50-B350-B50	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FB-50-B350-B75	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FB-50-B350-B100	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FB-50-B350-B150	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FB-50-B350-B200	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FB-50-B400-B25	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FB-50-B400-B50	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FB-50-B400-B75	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FB-50-B400-B100	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FB-50-B400-B150	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FB-50-B400-B200	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FB-50-B450-B25	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FB-50-B450-B50	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FB-50-B450-B75	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FB-50-B450-B100	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FB-50-B450-B150	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FB-50-B450-B200	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FB-50-B500-B25	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FB-50-B500-B50	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FB-50-B500-B75	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FB-50-B500-B100	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FB-50-B500-B150	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FB-50-B500-B200	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FC-40-B25-B25	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FC-40-B50-B25	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FC-40-B50-B50	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FC-40-B75-B25	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FC-40-B75-B50	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FC-40-B75-B75	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FC-40-B100-B25	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FC-40-B100-B50	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FC-40-B100-B75	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FC-40-B100-B100	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FC-40-B150-B25	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FC-40-B150-B50	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FC-40-B150-B75	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FC-40-B150-B100	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FC-40-B150-B150	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FC-40-B200-B25	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FC-40-B200-B50	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FC-40-B200-B75	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FC-40-B200-B100	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FC-40-B200-B150	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FC-40-B200-B200	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FC-40-B250-B25	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FC-40-B250-B50	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FC-40-B250-B75	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FC-40-B250-B100	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FC-40-B250-B150	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FC-40-B250-B200	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FC-40-B300-B25	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FC-40-B300-B50	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FC-40-B300-B75	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FC-40-B300-B100	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FC-40-B300-B150	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FC-40-B300-B200	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FC-40-B350-B25	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FC-40-B350-B50	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FC-40-B350-B75	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FC-40-B350-B100	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FC-40-B350-B150	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FC-40-B350-B200	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FC-40-B400-B25	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FC-40-B400-B50	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FC-40-B400-B75	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FC-40-B400-B100	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FC-40-B400-B150	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FC-40-B400-B200	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FC-40-B450-B25	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FC-40-B450-B50	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FC-40-B450-B75	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FC-40-B450-B100	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FC-40-B450-B150	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FC-40-B450-B200	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FC-40-B500-B25	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-FC-40-B500-B50	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-FC-40-B500-B75	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-FC-40-B500-B100	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-FC-40-B500-B150	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-FC-40-B500-B200	Mounting: Head-end special flange (FC) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-FC-50-B25-B25	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FC-50-B50-B25	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FC-50-B50-B50	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FC-50-B75-B25	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FC-50-B75-B50	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FC-50-B75-B75	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FC-50-B100-B25	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FC-50-B100-B50	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FC-50-B100-B75	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FC-50-B100-B100	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FC-50-B150-B25	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FC-50-B150-B50	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FC-50-B150-B75	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FC-50-B150-B100	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FC-50-B150-B150	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FC-50-B200-B25	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FC-50-B200-B50	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FC-50-B200-B75	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FC-50-B200-B100	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FC-50-B200-B150	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FC-50-B200-B200	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FC-50-B250-B25	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FC-50-B250-B50	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FC-50-B250-B75	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FC-50-B250-B100	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FC-50-B250-B150	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FC-50-B250-B200	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FC-50-B300-B25	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FC-50-B300-B50	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FC-50-B300-B75	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FC-50-B300-B100	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FC-50-B300-B150	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FC-50-B300-B200	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FC-50-B350-B25	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FC-50-B350-B50	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FC-50-B350-B75	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FC-50-B350-B100	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FC-50-B350-B150	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FC-50-B350-B200	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FC-50-B400-B25	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FC-50-B400-B50	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FC-50-B400-B75	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FC-50-B400-B100	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FC-50-B400-B150	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FC-50-B400-B200	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FC-50-B450-B25	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FC-50-B450-B50	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FC-50-B450-B75	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FC-50-B450-B100	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FC-50-B450-B150	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FC-50-B450-B200	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-FC-50-B500-B25	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-FC-50-B500-B50	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-FC-50-B500-B75	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-FC-50-B500-B100	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-FC-50-B500-B150	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-FC-50-B500-B200	Mounting: Head-end special flange (FC) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-CA-40-B25-B25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CA-40-B50-B25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CA-40-B50-B50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CA-40-B75-B25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CA-40-B75-B50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CA-40-B75-B75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CA-40-B100-B25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CA-40-B100-B50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CA-40-B100-B75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CA-40-B100-B100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CA-40-B150-B25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CA-40-B150-B50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CA-40-B150-B75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CA-40-B150-B100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CA-40-B150-B150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CA-40-B200-B25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CA-40-B200-B50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CA-40-B200-B75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CA-40-B200-B100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CA-40-B200-B150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CA-40-B200-B200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-CA-40-B250-B25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CA-40-B250-B50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CA-40-B250-B75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CA-40-B250-B100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CA-40-B250-B150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CA-40-B250-B200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-CA-40-B300-B25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CA-40-B300-B50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CA-40-B300-B75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CA-40-B300-B100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CA-40-B300-B150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CA-40-B300-B200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-CA-40-B350-B25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CA-40-B350-B50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CA-40-B350-B75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CA-40-B350-B100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CA-40-B350-B150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CA-40-B350-B200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-CA-40-B400-B25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CA-40-B400-B50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CA-40-B400-B75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CA-40-B400-B100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CA-40-B400-B150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CA-40-B400-B200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-CA-40-B450-B25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CA-40-B450-B50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CA-40-B450-B75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CA-40-B450-B100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CA-40-B450-B150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CA-40-B450-B200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-CA-40-B500-B25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CA-40-B500-B50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CA-40-B500-B75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CA-40-B500-B100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CA-40-B500-B150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CA-40-B500-B200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-CA-50-B25-B25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CA-50-B50-B25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CA-50-B50-B50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CA-50-B75-B25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CA-50-B75-B50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CA-50-B75-B75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CA-50-B100-B25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CA-50-B100-B50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CA-50-B100-B75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CA-50-B100-B100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CA-50-B150-B25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CA-50-B150-B50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CA-50-B150-B75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CA-50-B150-B100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CA-50-B150-B150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CA-50-B200-B25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CA-50-B200-B50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CA-50-B200-B75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CA-50-B200-B100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CA-50-B200-B150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CA-50-B200-B200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-CA-50-B250-B25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CA-50-B250-B50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CA-50-B250-B75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CA-50-B250-B100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CA-50-B250-B150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CA-50-B250-B200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-CA-50-B300-B25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CA-50-B300-B50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CA-50-B300-B75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CA-50-B300-B100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CA-50-B300-B150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CA-50-B300-B200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-CA-50-B350-B25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CA-50-B350-B50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CA-50-B350-B75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CA-50-B350-B100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CA-50-B350-B150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CA-50-B350-B200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-CA-50-B400-B25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CA-50-B400-B50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CA-50-B400-B75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CA-50-B400-B100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CA-50-B400-B150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CA-50-B400-B200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-CA-50-B450-B25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CA-50-B450-B50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CA-50-B450-B75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CA-50-B450-B100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CA-50-B450-B150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CA-50-B450-B200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-CA-50-B500-B25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CA-50-B500-B50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CA-50-B500-B75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CA-50-B500-B100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CA-50-B500-B150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CA-50-B500-B200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-CB-40-B25-B25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CB-40-B50-B25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CB-40-B50-B50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CB-40-B75-B25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CB-40-B75-B50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CB-40-B75-B75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CB-40-B100-B25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CB-40-B100-B50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CB-40-B100-B75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CB-40-B100-B100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CB-40-B150-B25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CB-40-B150-B50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CB-40-B150-B75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CB-40-B150-B100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CB-40-B150-B150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CB-40-B200-B25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CB-40-B200-B50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CB-40-B200-B75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CB-40-B200-B100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CB-40-B200-B150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CB-40-B200-B200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-CB-40-B250-B25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CB-40-B250-B50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CB-40-B250-B75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CB-40-B250-B100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CB-40-B250-B150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CB-40-B250-B200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-CB-40-B300-B25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CB-40-B300-B50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CB-40-B300-B75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CB-40-B300-B100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CB-40-B300-B150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CB-40-B300-B200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-CB-40-B350-B25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CB-40-B350-B50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CB-40-B350-B75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CB-40-B350-B100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CB-40-B350-B150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CB-40-B350-B200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-CB-40-B400-B25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CB-40-B400-B50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CB-40-B400-B75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CB-40-B400-B100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CB-40-B400-B150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CB-40-B400-B200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-CB-40-B450-B25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CB-40-B450-B50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CB-40-B450-B75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CB-40-B450-B100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CB-40-B450-B150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CB-40-B450-B200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-CB-40-B500-B25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-CB-40-B500-B50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-CB-40-B500-B75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-CB-40-B500-B100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-CB-40-B500-B150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-CB-40-B500-B200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-CB-50-B25-B25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CB-50-B50-B25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CB-50-B50-B50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CB-50-B75-B25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CB-50-B75-B50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CB-50-B75-B75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CB-50-B100-B25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CB-50-B100-B50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CB-50-B100-B75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CB-50-B100-B100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CB-50-B150-B25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CB-50-B150-B50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CB-50-B150-B75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CB-50-B150-B100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CB-50-B150-B150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CB-50-B200-B25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CB-50-B200-B50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CB-50-B200-B75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CB-50-B200-B100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CB-50-B200-B150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CB-50-B200-B200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-CB-50-B250-B25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CB-50-B250-B50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CB-50-B250-B75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CB-50-B250-B100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CB-50-B250-B150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CB-50-B250-B200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-CB-50-B300-B25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CB-50-B300-B50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CB-50-B300-B75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CB-50-B300-B100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CB-50-B300-B150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CB-50-B300-B200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-CB-50-B350-B25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CB-50-B350-B50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CB-50-B350-B75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CB-50-B350-B100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CB-50-B350-B150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CB-50-B350-B200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-CB-50-B400-B25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CB-50-B400-B50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CB-50-B400-B75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CB-50-B400-B100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CB-50-B400-B150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CB-50-B400-B200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-CB-50-B450-B25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CB-50-B450-B50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CB-50-B450-B75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CB-50-B450-B100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CB-50-B450-B150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CB-50-B450-B200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-CB-50-B500-B25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-CB-50-B500-B50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-CB-50-B500-B75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-CB-50-B500-B100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-CB-50-B500-B150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-CB-50-B500-B200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TA-40-B25-B25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TA-40-B50-B25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TA-40-B50-B50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TA-40-B75-B25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TA-40-B75-B50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TA-40-B75-B75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TA-40-B100-B25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TA-40-B100-B50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TA-40-B100-B75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TA-40-B100-B100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TA-40-B150-B25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TA-40-B150-B50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TA-40-B150-B75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TA-40-B150-B100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TA-40-B150-B150	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TA-40-B200-B25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TA-40-B200-B50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TA-40-B200-B75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TA-40-B200-B100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TA-40-B200-B150	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TA-40-B200-B200	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-TA-40-B250-B25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TA-40-B250-B50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TA-40-B250-B75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TA-40-B250-B100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TA-40-B250-B150	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TA-40-B250-B200	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-TA-40-B300-B25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TA-40-B300-B50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TA-40-B300-B75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TA-40-B300-B100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TA-40-B300-B150	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TA-40-B300-B200	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-TA-40-B350-B25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TA-40-B350-B50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TA-40-B350-B75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TA-40-B350-B100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TA-40-B350-B150	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TA-40-B350-B200	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-TA-40-B400-B25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TA-40-B400-B50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TA-40-B400-B75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TA-40-B400-B100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TA-40-B400-B150	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TA-40-B400-B200	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-TA-40-B450-B25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TA-40-B450-B50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TA-40-B450-B75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TA-40-B450-B100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TA-40-B450-B150	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TA-40-B450-B200	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-TA-40-B500-B25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TA-40-B500-B50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TA-40-B500-B75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TA-40-B500-B100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TA-40-B500-B150	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TA-40-B500-B200	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-TA-50-B25-B25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TA-50-B50-B25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TA-50-B50-B50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TA-50-B75-B25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TA-50-B75-B50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TA-50-B75-B75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TA-50-B100-B25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TA-50-B100-B50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TA-50-B100-B75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TA-50-B100-B100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TA-50-B150-B25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TA-50-B150-B50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TA-50-B150-B75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TA-50-B150-B100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TA-50-B150-B150	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TA-50-B200-B25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TA-50-B200-B50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TA-50-B200-B75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TA-50-B200-B100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TA-50-B200-B150	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TA-50-B200-B200	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TA-50-B250-B25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TA-50-B250-B50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TA-50-B250-B75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TA-50-B250-B100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TA-50-B250-B150	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TA-50-B250-B200	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TA-50-B300-B25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TA-50-B300-B50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TA-50-B300-B75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TA-50-B300-B100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TA-50-B300-B150	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TA-50-B300-B200	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TA-50-B350-B25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TA-50-B350-B50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TA-50-B350-B75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TA-50-B350-B100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TA-50-B350-B150	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TA-50-B350-B200	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TA-50-B400-B25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TA-50-B400-B50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TA-50-B400-B75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TA-50-B400-B100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TA-50-B400-B150	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TA-50-B400-B200	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TA-50-B450-B25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TA-50-B450-B50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TA-50-B450-B75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TA-50-B450-B100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TA-50-B450-B150	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TA-50-B450-B200	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TA-50-B500-B25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TA-50-B500-B50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TA-50-B500-B75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TA-50-B500-B100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TA-50-B500-B150	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TA-50-B500-B200	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TB-40-B25-B25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TB-40-B50-B25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TB-40-B50-B50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TB-40-B75-B25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TB-40-B75-B50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TB-40-B75-B75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TB-40-B100-B25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TB-40-B100-B50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TB-40-B100-B75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TB-40-B100-B100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TB-40-B150-B25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TB-40-B150-B50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TB-40-B150-B75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TB-40-B150-B100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TB-40-B150-B150	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TB-40-B200-B25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TB-40-B200-B50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TB-40-B200-B75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TB-40-B200-B100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TB-40-B200-B150	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TB-40-B200-B200	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-TB-40-B250-B25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TB-40-B250-B50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TB-40-B250-B75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TB-40-B250-B100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TB-40-B250-B150	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TB-40-B250-B200	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-TB-40-B300-B25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TB-40-B300-B50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TB-40-B300-B75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TB-40-B300-B100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TB-40-B300-B150	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TB-40-B300-B200	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-TB-40-B350-B25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TB-40-B350-B50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TB-40-B350-B75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TB-40-B350-B100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TB-40-B350-B150	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TB-40-B350-B200	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-TB-40-B400-B25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TB-40-B400-B50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TB-40-B400-B75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TB-40-B400-B100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TB-40-B400-B150	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TB-40-B400-B200	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-TB-40-B450-B25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TB-40-B450-B50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TB-40-B450-B75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TB-40-B450-B100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TB-40-B450-B150	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TB-40-B450-B200	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-TB-40-B500-B25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc1/4
	SCA2-W-TB-40-B500-B50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc1/4
	SCA2-W-TB-40-B500-B75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc1/4
	SCA2-W-TB-40-B500-B100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc1/4
	SCA2-W-TB-40-B500-B150	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc1/4
	SCA2-W-TB-40-B500-B200	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc1/4
	SCA2-W-TB-50-B25-B25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TB-50-B50-B25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TB-50-B50-B50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TB-50-B75-B25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TB-50-B75-B50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TB-50-B75-B75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TB-50-B100-B25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TB-50-B100-B50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TB-50-B100-B75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TB-50-B100-B100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TB-50-B150-B25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TB-50-B150-B50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TB-50-B150-B75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TB-50-B150-B100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TB-50-B150-B150	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TB-50-B200-B25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TB-50-B200-B50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TB-50-B200-B75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TB-50-B200-B100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TB-50-B200-B150	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TB-50-B200-B200	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TB-50-B250-B25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TB-50-B250-B50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TB-50-B250-B75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TB-50-B250-B100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TB-50-B250-B150	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TB-50-B250-B200	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TB-50-B300-B25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TB-50-B300-B50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TB-50-B300-B75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TB-50-B300-B100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TB-50-B300-B150	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TB-50-B300-B200	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TB-50-B350-B25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TB-50-B350-B50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TB-50-B350-B75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TB-50-B350-B100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TB-50-B350-B150	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TB-50-B350-B200	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TB-50-B400-B25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TB-50-B400-B50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TB-50-B400-B75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TB-50-B400-B100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TB-50-B400-B150	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TB-50-B400-B200	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TB-50-B450-B25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TB-50-B450-B50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TB-50-B450-B75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TB-50-B450-B100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TB-50-B450-B150	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TB-50-B450-B200	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TB-50-B500-B25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TB-50-B500-B50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TB-50-B500-B75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TB-50-B500-B100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TB-50-B500-B150	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TB-50-B500-B200	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TD-50-B25-B25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TD-50-B50-B25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TD-50-B50-B50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TD-50-B75-B25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TD-50-B75-B50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TD-50-B75-B75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TD-50-B100-B25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TD-50-B100-B50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TD-50-B100-B75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TD-50-B100-B100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TD-50-B150-B25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TD-50-B150-B50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TD-50-B150-B75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TD-50-B150-B100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TD-50-B150-B150	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TD-50-B200-B25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TD-50-B200-B50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TD-50-B200-B75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TD-50-B200-B100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TD-50-B200-B150	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TD-50-B200-B200	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TD-50-B250-B25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TD-50-B250-B50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TD-50-B250-B75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TD-50-B250-B100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TD-50-B250-B150	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TD-50-B250-B200	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TD-50-B300-B25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TD-50-B300-B50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TD-50-B300-B75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TD-50-B300-B100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TD-50-B300-B150	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TD-50-B300-B200	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TD-50-B350-B25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TD-50-B350-B50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TD-50-B350-B75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TD-50-B350-B100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TD-50-B350-B150	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TD-50-B350-B200	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TD-50-B400-B25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TD-50-B400-B50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TD-50-B400-B75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TD-50-B400-B100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TD-50-B400-B150	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TD-50-B400-B200	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TD-50-B450-B25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TD-50-B450-B50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TD-50-B450-B75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TD-50-B450-B100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TD-50-B450-B150	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TD-50-B450-B200	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TD-50-B500-B25	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TD-50-B500-B50	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TD-50-B500-B75	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TD-50-B500-B100	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TD-50-B500-B150	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TD-50-B500-B200	Mounting: Rod trunnion (hole type) (TD) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TE-50-B25-B25	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TE-50-B50-B25	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TE-50-B50-B50	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TE-50-B75-B25	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TE-50-B75-B50	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TE-50-B75-B75	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TE-50-B100-B25	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TE-50-B100-B50	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TE-50-B100-B75	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TE-50-B100-B100	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TE-50-B150-B25	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TE-50-B150-B50	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TE-50-B150-B75	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TE-50-B150-B100	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TE-50-B150-B150	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TE-50-B200-B25	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TE-50-B200-B50	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TE-50-B200-B75	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TE-50-B200-B100	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TE-50-B200-B150	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TE-50-B200-B200	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TE-50-B250-B25	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TE-50-B250-B50	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TE-50-B250-B75	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TE-50-B250-B100	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TE-50-B250-B150	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TE-50-B250-B200	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TE-50-B300-B25	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TE-50-B300-B50	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TE-50-B300-B75	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TE-50-B300-B100	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TE-50-B300-B150	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TE-50-B300-B200	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TE-50-B350-B25	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TE-50-B350-B50	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TE-50-B350-B75	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TE-50-B350-B100	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TE-50-B350-B150	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TE-50-B350-B200	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 350 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TE-50-B400-B25	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TE-50-B400-B50	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TE-50-B400-B75	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TE-50-B400-B100	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TE-50-B400-B150	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TE-50-B400-B200	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 400 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TE-50-B450-B25	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TE-50-B450-B50	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TE-50-B450-B75	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TE-50-B450-B100	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TE-50-B450-B150	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TE-50-B450-B200	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 450 mm \| 1st stage S2: 200 mm \| Port: Rc3/8
	SCA2-W-TE-50-B500-B25	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 25 mm \| Port: Rc3/8
	SCA2-W-TE-50-B500-B50	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 50 mm \| Port: Rc3/8
	SCA2-W-TE-50-B500-B75	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 75 mm \| Port: Rc3/8
	SCA2-W-TE-50-B500-B100	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 100 mm \| Port: Rc3/8
	SCA2-W-TE-50-B500-B150	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 150 mm \| Port: Rc3/8
	SCA2-W-TE-50-B500-B200	Mounting: Head trunnion (hole type) (TE) \| Bore: 50 mm \| Total stroke S1: 500 mm \| 1st stage S2: 200 mm \| Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCA2-W Selex Cylinder (Two-Stage, Bore 40-50)
