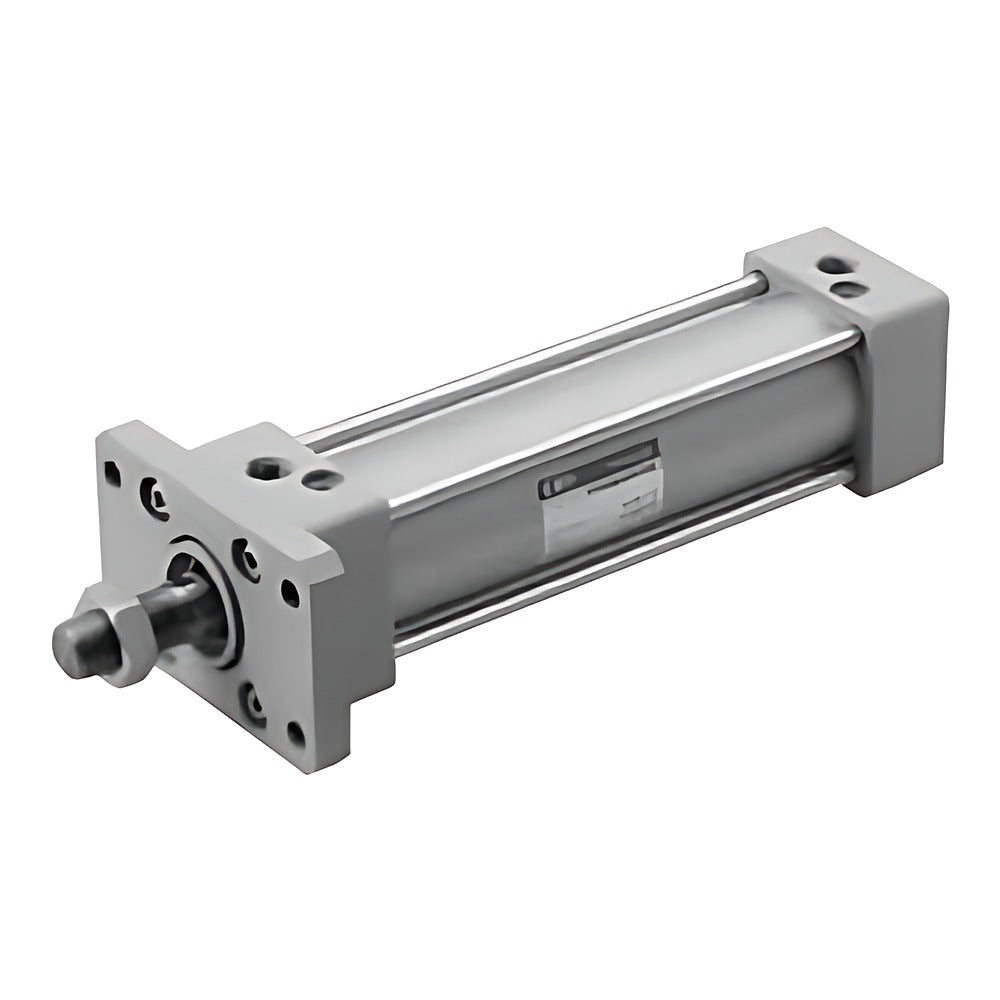

CKD SCG-G-FP1 Tie-Rod Cylinder (Strong Scraper, Bore 32-100)

CKD SCG-G-FP1 double-acting tie-rod cylinder with strong scraper, bore 32-100 mm, with NSF H1 food-grade grease.

Key features

NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
Tie-rod cylinder with switch magnet; air cushion (B) or rubber cushion (D) both ends
Auto switches with count R/H/D/T, bellows J, stainless rod M and rod-end I/Y/B1-B4 ordered as suffixes; NPT/G threads made to order
Standard strokes 25-500 mm; intermediate strokes in 1 mm steps
Strong scraper for dusty or sticky environments

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Port	Rc1/8 (32), Rc1/4 (40/50), Rc3/8 (63/80), Rc1/2 (100)
Piston speed	30-1000 mm/s
Type	Double acting, strong scraper (G)
Source	CKD Korea catalog CC-1271K, p. 70-72

SCG-G-00-32B-25-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-00-32B-50-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-00-32B-75-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-00-32B-100-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-00-32B-150-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-00-32B-200-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-00-32B-250-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-00-32B-300-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-00-32B-350-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-00-32B-400-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-00-32B-450-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-00-32B-500-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-00-32D-25-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-00-32D-50-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-00-32D-75-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-00-32D-100-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-00-32D-150-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-00-32D-200-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-00-32D-250-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-00-32D-300-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-00-32D-350-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-00-32D-400-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-00-32D-450-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-00-32D-500-FP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-00-40B-25-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-00-40B-50-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-00-40B-75-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-00-40B-100-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-00-40B-150-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-00-40B-200-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-00-40B-250-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-00-40B-300-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-00-40B-350-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-00-40B-400-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-00-40B-450-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-00-40B-500-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-00-40D-25-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-00-40D-50-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-00-40D-75-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-00-40D-100-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-00-40D-150-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-00-40D-200-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-00-40D-250-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-00-40D-300-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-00-40D-350-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-00-40D-400-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-00-40D-450-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-00-40D-500-FP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-00-50B-25-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-00-50B-50-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-00-50B-75-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-00-50B-100-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-00-50B-150-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-00-50B-200-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-00-50B-250-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-00-50B-300-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-00-50B-350-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-00-50B-400-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-00-50B-450-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-00-50B-500-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-00-50D-25-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-00-50D-50-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-00-50D-75-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-00-50D-100-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-00-50D-150-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-00-50D-200-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-00-50D-250-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-00-50D-300-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-00-50D-350-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-00-50D-400-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-00-50D-450-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-00-50D-500-FP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-00-63B-25-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-00-63B-50-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-00-63B-75-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-00-63B-100-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-00-63B-150-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-00-63B-200-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-00-63B-250-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-00-63B-300-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-00-63B-350-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-00-63B-400-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-00-63B-450-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-00-63B-500-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-00-63D-25-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-00-63D-50-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-00-63D-75-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-00-63D-100-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-00-63D-150-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-00-63D-200-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-00-63D-250-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-00-63D-300-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-00-63D-350-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-00-63D-400-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-00-63D-450-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-00-63D-500-FP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-00-80B-25-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-00-80B-50-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-00-80B-75-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-00-80B-100-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-00-80B-150-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-00-80B-200-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-00-80B-250-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-00-80B-300-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-00-80B-350-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-00-80B-400-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-00-80B-450-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-00-80B-500-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-00-80D-25-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-00-80D-50-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-00-80D-75-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-00-80D-100-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-00-80D-150-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-00-80D-200-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-00-80D-250-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-00-80D-300-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-00-80D-350-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-00-80D-400-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-00-80D-450-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-00-80D-500-FP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-00-100B-25-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-00-100B-50-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-00-100B-75-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-00-100B-100-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-00-100B-150-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-00-100B-200-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-00-100B-250-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-00-100B-300-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-00-100B-350-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-00-100B-400-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-00-100B-450-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-00-100B-500-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-00-100D-25-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-00-100D-50-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-00-100D-75-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-00-100D-100-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-00-100D-150-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-00-100D-200-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-00-100D-250-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-00-100D-300-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-00-100D-350-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-00-100D-400-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-00-100D-450-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-00-100D-500-FP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-LB-32B-25-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-LB-32B-50-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-LB-32B-75-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-LB-32B-100-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-LB-32B-150-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-LB-32B-200-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-LB-32B-250-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-LB-32B-300-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-LB-32B-350-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-LB-32B-400-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-LB-32B-450-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-LB-32B-500-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-LB-32D-25-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-LB-32D-50-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-LB-32D-75-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-LB-32D-100-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-LB-32D-150-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-LB-32D-200-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-LB-32D-250-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-LB-32D-300-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-LB-32D-350-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-LB-32D-400-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-LB-32D-450-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-LB-32D-500-FP1		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-LB-40B-25-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-LB-40B-50-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-LB-40B-75-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-LB-40B-100-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-LB-40B-150-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-LB-40B-200-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-LB-40B-250-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-LB-40B-300-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-LB-40B-350-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-LB-40B-400-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-LB-40B-450-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-LB-40B-500-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-LB-40D-25-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-LB-40D-50-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-LB-40D-75-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-LB-40D-100-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-LB-40D-150-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-LB-40D-200-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-LB-40D-250-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-LB-40D-300-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-LB-40D-350-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-LB-40D-400-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-LB-40D-450-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-LB-40D-500-FP1		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-LB-50B-25-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-LB-50B-50-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-LB-50B-75-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-LB-50B-100-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-LB-50B-150-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-LB-50B-200-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-LB-50B-250-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-LB-50B-300-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-LB-50B-350-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-LB-50B-400-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-LB-50B-450-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-LB-50B-500-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-LB-50D-25-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-LB-50D-50-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-LB-50D-75-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-LB-50D-100-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-LB-50D-150-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-LB-50D-200-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-LB-50D-250-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-LB-50D-300-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-LB-50D-350-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-LB-50D-400-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-LB-50D-450-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-LB-50D-500-FP1		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-LB-63B-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-LB-63B-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-LB-63B-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-LB-63B-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-LB-63B-150-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-LB-63B-200-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-LB-63B-250-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-LB-63B-300-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-LB-63B-350-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-LB-63B-400-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-LB-63B-450-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-LB-63B-500-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-LB-63D-25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-LB-63D-50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-LB-63D-75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-LB-63D-100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-LB-63D-150-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-LB-63D-200-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-LB-63D-250-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-LB-63D-300-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-LB-63D-350-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-LB-63D-400-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-LB-63D-450-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-LB-63D-500-FP1		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-LB-80B-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-LB-80B-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-LB-80B-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-LB-80B-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-LB-80B-150-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-LB-80B-200-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-LB-80B-250-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-LB-80B-300-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-LB-80B-350-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-LB-80B-400-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-LB-80B-450-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-LB-80B-500-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-LB-80D-25-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-LB-80D-50-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-LB-80D-75-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-LB-80D-100-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-LB-80D-150-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-LB-80D-200-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-LB-80D-250-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-LB-80D-300-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-LB-80D-350-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-LB-80D-400-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-LB-80D-450-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-LB-80D-500-FP1		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-LB-100B-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-LB-100B-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-LB-100B-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-LB-100B-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-LB-100B-150-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-LB-100B-200-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-LB-100B-250-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-LB-100B-300-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-LB-100B-350-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-LB-100B-400-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-LB-100B-450-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-LB-100B-500-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-LB-100D-25-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-LB-100D-50-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-LB-100D-75-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-LB-100D-100-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-LB-100D-150-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-LB-100D-200-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-LB-100D-250-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-LB-100D-300-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-LB-100D-350-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-LB-100D-400-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-LB-100D-450-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-LB-100D-500-FP1		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-FA-32B-25-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-FA-32B-50-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-FA-32B-75-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-FA-32B-100-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-FA-32B-150-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-FA-32B-200-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-FA-32B-250-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-FA-32B-300-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-FA-32B-350-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-FA-32B-400-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-FA-32B-450-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-FA-32B-500-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-FA-32D-25-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-FA-32D-50-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-FA-32D-75-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-FA-32D-100-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-FA-32D-150-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-FA-32D-200-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-FA-32D-250-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-FA-32D-300-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-FA-32D-350-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-FA-32D-400-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-FA-32D-450-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-FA-32D-500-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-FA-40B-25-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-FA-40B-50-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-FA-40B-75-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-FA-40B-100-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-FA-40B-150-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-FA-40B-200-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-FA-40B-250-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-FA-40B-300-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-FA-40B-350-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-FA-40B-400-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-FA-40B-450-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-FA-40B-500-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-FA-40D-25-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-FA-40D-50-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-FA-40D-75-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-FA-40D-100-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-FA-40D-150-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-FA-40D-200-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-FA-40D-250-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-FA-40D-300-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-FA-40D-350-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-FA-40D-400-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-FA-40D-450-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-FA-40D-500-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-FA-50B-25-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-FA-50B-50-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-FA-50B-75-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-FA-50B-100-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-FA-50B-150-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-FA-50B-200-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-FA-50B-250-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-FA-50B-300-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-FA-50B-350-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-FA-50B-400-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-FA-50B-450-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-FA-50B-500-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-FA-50D-25-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-FA-50D-50-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-FA-50D-75-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-FA-50D-100-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-FA-50D-150-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-FA-50D-200-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-FA-50D-250-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-FA-50D-300-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-FA-50D-350-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-FA-50D-400-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-FA-50D-450-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-FA-50D-500-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-FA-63B-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-FA-63B-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-FA-63B-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-FA-63B-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-FA-63B-150-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-FA-63B-200-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-FA-63B-250-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-FA-63B-300-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-FA-63B-350-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-FA-63B-400-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-FA-63B-450-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-FA-63B-500-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-FA-63D-25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-FA-63D-50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-FA-63D-75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-FA-63D-100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-FA-63D-150-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-FA-63D-200-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-FA-63D-250-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-FA-63D-300-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-FA-63D-350-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-FA-63D-400-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-FA-63D-450-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-FA-63D-500-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-FA-80B-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-FA-80B-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-FA-80B-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-FA-80B-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-FA-80B-150-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-FA-80B-200-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-FA-80B-250-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-FA-80B-300-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-FA-80B-350-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-FA-80B-400-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-FA-80B-450-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-FA-80B-500-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-FA-80D-25-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-FA-80D-50-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-FA-80D-75-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-FA-80D-100-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-FA-80D-150-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-FA-80D-200-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-FA-80D-250-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-FA-80D-300-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-FA-80D-350-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-FA-80D-400-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-FA-80D-450-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-FA-80D-500-FP1		Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-FA-100B-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-FA-100B-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-FA-100B-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-FA-100B-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-FA-100B-150-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-FA-100B-200-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-FA-100B-250-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-FA-100B-300-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-FA-100B-350-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-FA-100B-400-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-FA-100B-450-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-FA-100B-500-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-FA-100D-25-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-FA-100D-50-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-FA-100D-75-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-FA-100D-100-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-FA-100D-150-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-FA-100D-200-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-FA-100D-250-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-FA-100D-300-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-FA-100D-350-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-FA-100D-400-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-FA-100D-450-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-FA-100D-500-FP1		Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-FB-32B-25-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-FB-32B-50-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-FB-32B-75-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-FB-32B-100-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-FB-32B-150-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-FB-32B-200-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-FB-32B-250-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-FB-32B-300-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-FB-32B-350-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-FB-32B-400-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-FB-32B-450-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-FB-32B-500-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-FB-32D-25-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-FB-32D-50-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-FB-32D-75-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-FB-32D-100-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-FB-32D-150-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-FB-32D-200-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-FB-32D-250-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-FB-32D-300-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-FB-32D-350-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-FB-32D-400-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-FB-32D-450-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-FB-32D-500-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-FB-40B-25-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-FB-40B-50-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-FB-40B-75-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-FB-40B-100-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-FB-40B-150-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-FB-40B-200-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-FB-40B-250-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-FB-40B-300-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-FB-40B-350-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-FB-40B-400-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-FB-40B-450-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-FB-40B-500-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-FB-40D-25-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-FB-40D-50-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-FB-40D-75-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-FB-40D-100-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-FB-40D-150-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-FB-40D-200-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-FB-40D-250-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-FB-40D-300-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-FB-40D-350-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-FB-40D-400-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-FB-40D-450-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-FB-40D-500-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-FB-50B-25-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-FB-50B-50-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-FB-50B-75-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-FB-50B-100-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-FB-50B-150-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-FB-50B-200-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-FB-50B-250-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-FB-50B-300-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-FB-50B-350-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-FB-50B-400-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-FB-50B-450-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-FB-50B-500-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-FB-50D-25-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-FB-50D-50-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-FB-50D-75-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-FB-50D-100-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-FB-50D-150-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-FB-50D-200-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-FB-50D-250-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-FB-50D-300-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-FB-50D-350-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-FB-50D-400-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-FB-50D-450-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-FB-50D-500-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-FB-63B-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-FB-63B-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-FB-63B-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-FB-63B-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-FB-63B-150-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-FB-63B-200-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-FB-63B-250-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-FB-63B-300-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-FB-63B-350-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-FB-63B-400-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-FB-63B-450-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-FB-63B-500-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-FB-63D-25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-FB-63D-50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-FB-63D-75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-FB-63D-100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-FB-63D-150-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-FB-63D-200-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-FB-63D-250-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-FB-63D-300-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-FB-63D-350-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-FB-63D-400-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-FB-63D-450-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-FB-63D-500-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-FB-80B-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-FB-80B-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-FB-80B-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-FB-80B-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-FB-80B-150-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-FB-80B-200-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-FB-80B-250-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-FB-80B-300-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-FB-80B-350-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-FB-80B-400-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-FB-80B-450-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-FB-80B-500-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-FB-80D-25-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-FB-80D-50-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-FB-80D-75-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-FB-80D-100-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-FB-80D-150-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-FB-80D-200-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-FB-80D-250-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-FB-80D-300-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-FB-80D-350-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-FB-80D-400-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-FB-80D-450-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-FB-80D-500-FP1		Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-FB-100B-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-FB-100B-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-FB-100B-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-FB-100B-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-FB-100B-150-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-FB-100B-200-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-FB-100B-250-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-FB-100B-300-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-FB-100B-350-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-FB-100B-400-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-FB-100B-450-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-FB-100B-500-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-FB-100D-25-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-FB-100D-50-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-FB-100D-75-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-FB-100D-100-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-FB-100D-150-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-FB-100D-200-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-FB-100D-250-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-FB-100D-300-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-FB-100D-350-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-FB-100D-400-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-FB-100D-450-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-FB-100D-500-FP1		Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-CA-32B-25-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-CA-32B-50-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-CA-32B-75-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-CA-32B-100-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-CA-32B-150-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-CA-32B-200-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-CA-32B-250-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-CA-32B-300-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-CA-32B-350-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-CA-32B-400-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-CA-32B-450-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-CA-32B-500-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-CA-32D-25-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-CA-32D-50-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-CA-32D-75-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-CA-32D-100-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-CA-32D-150-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-CA-32D-200-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-CA-32D-250-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-CA-32D-300-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-CA-32D-350-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-CA-32D-400-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-CA-32D-450-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-CA-32D-500-FP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-CA-40B-25-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-CA-40B-50-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-CA-40B-75-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-CA-40B-100-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-CA-40B-150-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-CA-40B-200-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-CA-40B-250-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-CA-40B-300-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-CA-40B-350-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-CA-40B-400-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-CA-40B-450-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-CA-40B-500-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-CA-40D-25-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-CA-40D-50-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-CA-40D-75-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-CA-40D-100-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-CA-40D-150-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-CA-40D-200-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-CA-40D-250-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-CA-40D-300-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-CA-40D-350-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-CA-40D-400-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-CA-40D-450-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-CA-40D-500-FP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-CA-50B-25-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-CA-50B-50-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-CA-50B-75-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-CA-50B-100-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-CA-50B-150-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-CA-50B-200-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-CA-50B-250-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-CA-50B-300-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-CA-50B-350-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-CA-50B-400-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-CA-50B-450-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-CA-50B-500-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-CA-50D-25-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-CA-50D-50-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-CA-50D-75-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-CA-50D-100-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-CA-50D-150-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-CA-50D-200-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-CA-50D-250-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-CA-50D-300-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-CA-50D-350-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-CA-50D-400-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-CA-50D-450-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-CA-50D-500-FP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-CA-63B-25-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-CA-63B-50-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-CA-63B-75-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-CA-63B-100-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-CA-63B-150-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-CA-63B-200-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-CA-63B-250-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-CA-63B-300-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-CA-63B-350-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-CA-63B-400-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-CA-63B-450-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-CA-63B-500-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-CA-63D-25-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-CA-63D-50-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-CA-63D-75-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-CA-63D-100-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-CA-63D-150-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-CA-63D-200-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-CA-63D-250-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-CA-63D-300-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-CA-63D-350-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-CA-63D-400-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-CA-63D-450-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-CA-63D-500-FP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-CA-80B-25-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-CA-80B-50-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-CA-80B-75-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-CA-80B-100-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-CA-80B-150-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-CA-80B-200-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-CA-80B-250-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-CA-80B-300-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-CA-80B-350-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-CA-80B-400-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-CA-80B-450-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-CA-80B-500-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-CA-80D-25-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-CA-80D-50-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-CA-80D-75-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-CA-80D-100-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-CA-80D-150-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-CA-80D-200-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-CA-80D-250-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-CA-80D-300-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-CA-80D-350-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-CA-80D-400-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-CA-80D-450-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-CA-80D-500-FP1		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-CA-100B-25-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-CA-100B-50-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-CA-100B-75-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-CA-100B-100-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-CA-100B-150-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-CA-100B-200-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-CA-100B-250-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-CA-100B-300-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-CA-100B-350-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-CA-100B-400-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-CA-100B-450-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-CA-100B-500-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-CA-100D-25-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-CA-100D-50-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-CA-100D-75-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-CA-100D-100-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-CA-100D-150-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-CA-100D-200-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-CA-100D-250-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-CA-100D-300-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-CA-100D-350-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-CA-100D-400-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-CA-100D-450-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-CA-100D-500-FP1		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-CB-32B-25-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-CB-32B-50-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-CB-32B-75-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-CB-32B-100-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-CB-32B-150-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-CB-32B-200-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-CB-32B-250-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-CB-32B-300-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-CB-32B-350-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-CB-32B-400-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-CB-32B-450-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-CB-32B-500-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-CB-32D-25-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-CB-32D-50-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-CB-32D-75-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-CB-32D-100-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-CB-32D-150-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-CB-32D-200-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-CB-32D-250-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-CB-32D-300-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-CB-32D-350-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-CB-32D-400-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-CB-32D-450-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-CB-32D-500-FP1		Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-CB-40B-25-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-CB-40B-50-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-CB-40B-75-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-CB-40B-100-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-CB-40B-150-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-CB-40B-200-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-CB-40B-250-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-CB-40B-300-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-CB-40B-350-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-CB-40B-400-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-CB-40B-450-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-CB-40B-500-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-CB-40D-25-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-CB-40D-50-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-CB-40D-75-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-CB-40D-100-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-CB-40D-150-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-CB-40D-200-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-CB-40D-250-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-CB-40D-300-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-CB-40D-350-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-CB-40D-400-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-CB-40D-450-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-CB-40D-500-FP1		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-CB-50B-25-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-CB-50B-50-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-CB-50B-75-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-CB-50B-100-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-CB-50B-150-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-CB-50B-200-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-CB-50B-250-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-CB-50B-300-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-CB-50B-350-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-CB-50B-400-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-CB-50B-450-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-CB-50B-500-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-CB-50D-25-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-CB-50D-50-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-CB-50D-75-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-CB-50D-100-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-CB-50D-150-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-CB-50D-200-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-CB-50D-250-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-CB-50D-300-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-CB-50D-350-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-CB-50D-400-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-CB-50D-450-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-CB-50D-500-FP1		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-CB-63B-25-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-CB-63B-50-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-CB-63B-75-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-CB-63B-100-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-CB-63B-150-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-CB-63B-200-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-CB-63B-250-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-CB-63B-300-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-CB-63B-350-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-CB-63B-400-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-CB-63B-450-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-CB-63B-500-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-CB-63D-25-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-CB-63D-50-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-CB-63D-75-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-CB-63D-100-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-CB-63D-150-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-CB-63D-200-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-CB-63D-250-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-CB-63D-300-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-CB-63D-350-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-CB-63D-400-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-CB-63D-450-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-CB-63D-500-FP1		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-CB-80B-25-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-CB-80B-50-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-CB-80B-75-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-CB-80B-100-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-CB-80B-150-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-CB-80B-200-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-CB-80B-250-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-CB-80B-300-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-CB-80B-350-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-CB-80B-400-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-CB-80B-450-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-CB-80B-500-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-CB-80D-25-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-CB-80D-50-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-CB-80D-75-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-CB-80D-100-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-CB-80D-150-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-CB-80D-200-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-CB-80D-250-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-CB-80D-300-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-CB-80D-350-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-CB-80D-400-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-CB-80D-450-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-CB-80D-500-FP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-CB-100B-25-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-CB-100B-50-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-CB-100B-75-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-CB-100B-100-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-CB-100B-150-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-CB-100B-200-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-CB-100B-250-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-CB-100B-300-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-CB-100B-350-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-CB-100B-400-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-CB-100B-450-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-CB-100B-500-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-CB-100D-25-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-CB-100D-50-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-CB-100D-75-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-CB-100D-100-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-CB-100D-150-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-CB-100D-200-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-CB-100D-250-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-CB-100D-300-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-CB-100D-350-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-CB-100D-400-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-CB-100D-450-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-CB-100D-500-FP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TA-32B-25-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TA-32B-50-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TA-32B-75-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TA-32B-100-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TA-32B-150-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TA-32B-200-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TA-32B-250-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TA-32B-300-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TA-32B-350-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TA-32B-400-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TA-32B-450-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TA-32B-500-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TA-32D-25-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TA-32D-50-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TA-32D-75-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TA-32D-100-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TA-32D-150-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TA-32D-200-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TA-32D-250-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TA-32D-300-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TA-32D-350-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TA-32D-400-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TA-32D-450-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TA-32D-500-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TA-40B-25-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TA-40B-50-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TA-40B-75-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TA-40B-100-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TA-40B-150-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TA-40B-200-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TA-40B-250-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TA-40B-300-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TA-40B-350-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TA-40B-400-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TA-40B-450-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TA-40B-500-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TA-40D-25-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TA-40D-50-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TA-40D-75-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TA-40D-100-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TA-40D-150-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TA-40D-200-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TA-40D-250-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TA-40D-300-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TA-40D-350-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TA-40D-400-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TA-40D-450-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TA-40D-500-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TA-50B-25-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TA-50B-50-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TA-50B-75-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TA-50B-100-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TA-50B-150-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TA-50B-200-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TA-50B-250-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TA-50B-300-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TA-50B-350-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TA-50B-400-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TA-50B-450-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TA-50B-500-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TA-50D-25-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TA-50D-50-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TA-50D-75-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TA-50D-100-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TA-50D-150-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TA-50D-200-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TA-50D-250-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TA-50D-300-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TA-50D-350-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TA-50D-400-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TA-50D-450-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TA-50D-500-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TA-63B-25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TA-63B-50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TA-63B-75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TA-63B-100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TA-63B-150-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TA-63B-200-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TA-63B-250-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TA-63B-300-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TA-63B-350-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TA-63B-400-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TA-63B-450-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TA-63B-500-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TA-63D-25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TA-63D-50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TA-63D-75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TA-63D-100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TA-63D-150-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TA-63D-200-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TA-63D-250-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TA-63D-300-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TA-63D-350-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TA-63D-400-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TA-63D-450-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TA-63D-500-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TA-80B-25-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TA-80B-50-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TA-80B-75-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TA-80B-100-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TA-80B-150-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TA-80B-200-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TA-80B-250-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TA-80B-300-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TA-80B-350-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TA-80B-400-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TA-80B-450-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TA-80B-500-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TA-80D-25-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TA-80D-50-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TA-80D-75-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TA-80D-100-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TA-80D-150-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TA-80D-200-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TA-80D-250-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TA-80D-300-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TA-80D-350-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TA-80D-400-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TA-80D-450-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TA-80D-500-FP1		Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TA-100B-25-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TA-100B-50-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TA-100B-75-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TA-100B-100-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TA-100B-150-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TA-100B-200-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TA-100B-250-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TA-100B-300-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TA-100B-350-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TA-100B-400-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TA-100B-450-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TA-100B-500-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TA-100D-25-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TA-100D-50-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TA-100D-75-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TA-100D-100-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TA-100D-150-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TA-100D-200-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TA-100D-250-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TA-100D-300-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TA-100D-350-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TA-100D-400-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TA-100D-450-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TA-100D-500-FP1		Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TB-32B-25-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TB-32B-50-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TB-32B-75-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TB-32B-100-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TB-32B-150-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TB-32B-200-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TB-32B-250-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TB-32B-300-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TB-32B-350-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TB-32B-400-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TB-32B-450-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TB-32B-500-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TB-32D-25-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TB-32D-50-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TB-32D-75-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TB-32D-100-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TB-32D-150-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TB-32D-200-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TB-32D-250-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TB-32D-300-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TB-32D-350-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TB-32D-400-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TB-32D-450-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TB-32D-500-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TB-40B-25-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TB-40B-50-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TB-40B-75-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TB-40B-100-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TB-40B-150-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TB-40B-200-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TB-40B-250-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TB-40B-300-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TB-40B-350-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TB-40B-400-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TB-40B-450-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TB-40B-500-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TB-40D-25-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TB-40D-50-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TB-40D-75-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TB-40D-100-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TB-40D-150-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TB-40D-200-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TB-40D-250-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TB-40D-300-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TB-40D-350-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TB-40D-400-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TB-40D-450-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TB-40D-500-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TB-50B-25-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TB-50B-50-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TB-50B-75-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TB-50B-100-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TB-50B-150-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TB-50B-200-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TB-50B-250-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TB-50B-300-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TB-50B-350-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TB-50B-400-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TB-50B-450-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TB-50B-500-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TB-50D-25-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TB-50D-50-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TB-50D-75-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TB-50D-100-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TB-50D-150-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TB-50D-200-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TB-50D-250-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TB-50D-300-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TB-50D-350-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TB-50D-400-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TB-50D-450-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TB-50D-500-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TB-63B-25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TB-63B-50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TB-63B-75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TB-63B-100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TB-63B-150-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TB-63B-200-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TB-63B-250-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TB-63B-300-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TB-63B-350-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TB-63B-400-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TB-63B-450-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TB-63B-500-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TB-63D-25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TB-63D-50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TB-63D-75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TB-63D-100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TB-63D-150-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TB-63D-200-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TB-63D-250-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TB-63D-300-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TB-63D-350-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TB-63D-400-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TB-63D-450-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TB-63D-500-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TB-80B-25-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TB-80B-50-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TB-80B-75-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TB-80B-100-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TB-80B-150-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TB-80B-200-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TB-80B-250-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TB-80B-300-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TB-80B-350-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TB-80B-400-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TB-80B-450-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TB-80B-500-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TB-80D-25-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TB-80D-50-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TB-80D-75-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TB-80D-100-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TB-80D-150-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TB-80D-200-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TB-80D-250-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TB-80D-300-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TB-80D-350-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TB-80D-400-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TB-80D-450-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TB-80D-500-FP1		Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TB-100B-25-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TB-100B-50-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TB-100B-75-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TB-100B-100-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TB-100B-150-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TB-100B-200-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TB-100B-250-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TB-100B-300-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TB-100B-350-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TB-100B-400-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TB-100B-450-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TB-100B-500-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TB-100D-25-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TB-100D-50-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TB-100D-75-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TB-100D-100-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TB-100D-150-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TB-100D-200-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TB-100D-250-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TB-100D-300-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TB-100D-350-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TB-100D-400-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TB-100D-450-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TB-100D-500-FP1		Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TC-32B-25-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TC-32B-50-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TC-32B-75-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TC-32B-100-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TC-32B-150-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TC-32B-200-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TC-32B-250-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TC-32B-300-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TC-32B-350-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TC-32B-400-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TC-32B-450-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TC-32B-500-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TC-32D-25-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TC-32D-50-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TC-32D-75-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TC-32D-100-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TC-32D-150-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TC-32D-200-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TC-32D-250-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TC-32D-300-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TC-32D-350-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TC-32D-400-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TC-32D-450-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TC-32D-500-FP1		Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TC-40B-25-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TC-40B-50-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TC-40B-75-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TC-40B-100-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TC-40B-150-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TC-40B-200-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TC-40B-250-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TC-40B-300-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TC-40B-350-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TC-40B-400-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TC-40B-450-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TC-40B-500-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TC-40D-25-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TC-40D-50-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TC-40D-75-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TC-40D-100-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TC-40D-150-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TC-40D-200-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TC-40D-250-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TC-40D-300-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TC-40D-350-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TC-40D-400-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TC-40D-450-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TC-40D-500-FP1		Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TC-50B-25-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TC-50B-50-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TC-50B-75-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TC-50B-100-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TC-50B-150-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TC-50B-200-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TC-50B-250-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TC-50B-300-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TC-50B-350-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TC-50B-400-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TC-50B-450-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TC-50B-500-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TC-50D-25-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TC-50D-50-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TC-50D-75-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TC-50D-100-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TC-50D-150-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TC-50D-200-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TC-50D-250-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TC-50D-300-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TC-50D-350-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TC-50D-400-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TC-50D-450-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TC-50D-500-FP1		Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TC-63B-25-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TC-63B-50-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TC-63B-75-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TC-63B-100-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TC-63B-150-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TC-63B-200-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TC-63B-250-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TC-63B-300-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TC-63B-350-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TC-63B-400-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TC-63B-450-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TC-63B-500-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TC-63D-25-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TC-63D-50-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TC-63D-75-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TC-63D-100-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TC-63D-150-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TC-63D-200-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TC-63D-250-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TC-63D-300-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TC-63D-350-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TC-63D-400-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TC-63D-450-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TC-63D-500-FP1		Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TC-80B-25-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TC-80B-50-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TC-80B-75-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TC-80B-100-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TC-80B-150-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TC-80B-200-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TC-80B-250-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TC-80B-300-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TC-80B-350-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TC-80B-400-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TC-80B-450-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TC-80B-500-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TC-80D-25-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TC-80D-50-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TC-80D-75-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TC-80D-100-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TC-80D-150-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TC-80D-200-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TC-80D-250-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TC-80D-300-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TC-80D-350-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TC-80D-400-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TC-80D-450-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TC-80D-500-FP1		Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
SCG-G-TC-100B-25-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
SCG-G-TC-100B-50-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCG-G-TC-100B-75-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCG-G-TC-100B-100-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCG-G-TC-100B-150-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCG-G-TC-100B-200-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCG-G-TC-100B-250-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCG-G-TC-100B-300-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCG-G-TC-100B-350-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
SCG-G-TC-100B-400-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
SCG-G-TC-100B-450-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
SCG-G-TC-100B-500-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
SCG-G-TC-100D-25-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
SCG-G-TC-100D-50-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
SCG-G-TC-100D-75-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
SCG-G-TC-100D-100-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
SCG-G-TC-100D-150-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
SCG-G-TC-100D-200-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
SCG-G-TC-100D-250-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
SCG-G-TC-100D-300-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
SCG-G-TC-100D-350-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
SCG-G-TC-100D-400-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
SCG-G-TC-100D-450-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
SCG-G-TC-100D-500-FP1		Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm

Pneumatic CylindersCKD

1296 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCG-G-FP1 Tie-Rod Cylinder (Strong Scraper, Bore 32-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (1296)

SCG-G-00-32B-25-FP1, SCG-G-00-32B-50-FP1, SCG-G-00-32B-75-FP1, SCG-G-00-32B-100-FP1, SCG-G-00-32B-150-FP1, SCG-G-00-32B-200-FP1, SCG-G-00-32B-250-FP1, SCG-G-00-32B-300-FP1, SCG-G-00-32B-350-FP1, SCG-G-00-32B-400-FP1 + 1286 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCG-G-00-32B-25-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-00-32B-50-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-00-32B-75-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-00-32B-100-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-00-32B-150-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-00-32B-200-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-00-32B-250-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-00-32B-300-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-00-32B-350-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-00-32B-400-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-00-32B-450-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-00-32B-500-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-00-32D-25-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-00-32D-50-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-00-32D-75-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-00-32D-100-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-00-32D-150-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-00-32D-200-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-00-32D-250-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-00-32D-300-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-00-32D-350-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-00-32D-400-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-00-32D-450-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-00-32D-500-FP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-00-40B-25-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-00-40B-50-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-00-40B-75-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-00-40B-100-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-00-40B-150-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-00-40B-200-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-00-40B-250-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-00-40B-300-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-00-40B-350-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-00-40B-400-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-00-40B-450-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-00-40B-500-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-00-40D-25-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-00-40D-50-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-00-40D-75-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-00-40D-100-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-00-40D-150-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-00-40D-200-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-00-40D-250-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-00-40D-300-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-00-40D-350-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-00-40D-400-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-00-40D-450-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-00-40D-500-FP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-00-50B-25-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-00-50B-50-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-00-50B-75-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-00-50B-100-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-00-50B-150-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-00-50B-200-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-00-50B-250-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-00-50B-300-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-00-50B-350-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-00-50B-400-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-00-50B-450-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-00-50B-500-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-00-50D-25-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-00-50D-50-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-00-50D-75-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-00-50D-100-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-00-50D-150-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-00-50D-200-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-00-50D-250-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-00-50D-300-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-00-50D-350-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-00-50D-400-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-00-50D-450-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-00-50D-500-FP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-00-63B-25-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-00-63B-50-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-00-63B-75-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-00-63B-100-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-00-63B-150-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-00-63B-200-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-00-63B-250-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-00-63B-300-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-00-63B-350-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-00-63B-400-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-00-63B-450-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-00-63B-500-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-00-63D-25-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-00-63D-50-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-00-63D-75-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-00-63D-100-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-00-63D-150-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-00-63D-200-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-00-63D-250-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-00-63D-300-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-00-63D-350-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-00-63D-400-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-00-63D-450-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-00-63D-500-FP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-00-80B-25-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-00-80B-50-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-00-80B-75-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-00-80B-100-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-00-80B-150-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-00-80B-200-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-00-80B-250-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-00-80B-300-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-00-80B-350-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-00-80B-400-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-00-80B-450-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-00-80B-500-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-00-80D-25-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-00-80D-50-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-00-80D-75-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-00-80D-100-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-00-80D-150-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-00-80D-200-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-00-80D-250-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-00-80D-300-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-00-80D-350-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-00-80D-400-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-00-80D-450-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-00-80D-500-FP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-00-100B-25-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-00-100B-50-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-00-100B-75-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-00-100B-100-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-00-100B-150-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-00-100B-200-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-00-100B-250-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-00-100B-300-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-00-100B-350-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-00-100B-400-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-00-100B-450-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-00-100B-500-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-00-100D-25-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-00-100D-50-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-00-100D-75-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-00-100D-100-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-00-100D-150-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-00-100D-200-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-00-100D-250-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-00-100D-300-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-00-100D-350-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-00-100D-400-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-00-100D-450-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-00-100D-500-FP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-LB-32B-25-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-LB-32B-50-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-LB-32B-75-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-LB-32B-100-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-LB-32B-150-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-LB-32B-200-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-LB-32B-250-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-LB-32B-300-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-LB-32B-350-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-LB-32B-400-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-LB-32B-450-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-LB-32B-500-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-LB-32D-25-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-LB-32D-50-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-LB-32D-75-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-LB-32D-100-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-LB-32D-150-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-LB-32D-200-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-LB-32D-250-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-LB-32D-300-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-LB-32D-350-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-LB-32D-400-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-LB-32D-450-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-LB-32D-500-FP1	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-LB-40B-25-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-LB-40B-50-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-LB-40B-75-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-LB-40B-100-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-LB-40B-150-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-LB-40B-200-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-LB-40B-250-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-LB-40B-300-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-LB-40B-350-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-LB-40B-400-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-LB-40B-450-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-LB-40B-500-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-LB-40D-25-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-LB-40D-50-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-LB-40D-75-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-LB-40D-100-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-LB-40D-150-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-LB-40D-200-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-LB-40D-250-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-LB-40D-300-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-LB-40D-350-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-LB-40D-400-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-LB-40D-450-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-LB-40D-500-FP1	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-LB-50B-25-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-LB-50B-50-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-LB-50B-75-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-LB-50B-100-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-LB-50B-150-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-LB-50B-200-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-LB-50B-250-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-LB-50B-300-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-LB-50B-350-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-LB-50B-400-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-LB-50B-450-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-LB-50B-500-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-LB-50D-25-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-LB-50D-50-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-LB-50D-75-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-LB-50D-100-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-LB-50D-150-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-LB-50D-200-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-LB-50D-250-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-LB-50D-300-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-LB-50D-350-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-LB-50D-400-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-LB-50D-450-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-LB-50D-500-FP1	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-LB-63B-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-LB-63B-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-LB-63B-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-LB-63B-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-LB-63B-150-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-LB-63B-200-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-LB-63B-250-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-LB-63B-300-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-LB-63B-350-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-LB-63B-400-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-LB-63B-450-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-LB-63B-500-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-LB-63D-25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-LB-63D-50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-LB-63D-75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-LB-63D-100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-LB-63D-150-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-LB-63D-200-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-LB-63D-250-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-LB-63D-300-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-LB-63D-350-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-LB-63D-400-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-LB-63D-450-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-LB-63D-500-FP1	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-LB-80B-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-LB-80B-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-LB-80B-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-LB-80B-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-LB-80B-150-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-LB-80B-200-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-LB-80B-250-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-LB-80B-300-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-LB-80B-350-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-LB-80B-400-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-LB-80B-450-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-LB-80B-500-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-LB-80D-25-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-LB-80D-50-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-LB-80D-75-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-LB-80D-100-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-LB-80D-150-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-LB-80D-200-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-LB-80D-250-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-LB-80D-300-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-LB-80D-350-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-LB-80D-400-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-LB-80D-450-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-LB-80D-500-FP1	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-LB-100B-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-LB-100B-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-LB-100B-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-LB-100B-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-LB-100B-150-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-LB-100B-200-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-LB-100B-250-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-LB-100B-300-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-LB-100B-350-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-LB-100B-400-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-LB-100B-450-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-LB-100B-500-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-LB-100D-25-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-LB-100D-50-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-LB-100D-75-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-LB-100D-100-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-LB-100D-150-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-LB-100D-200-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-LB-100D-250-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-LB-100D-300-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-LB-100D-350-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-LB-100D-400-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-LB-100D-450-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-LB-100D-500-FP1	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-FA-32B-25-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-FA-32B-50-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-FA-32B-75-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-FA-32B-100-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-FA-32B-150-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-FA-32B-200-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-FA-32B-250-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-FA-32B-300-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-FA-32B-350-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-FA-32B-400-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-FA-32B-450-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-FA-32B-500-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-FA-32D-25-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-FA-32D-50-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-FA-32D-75-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-FA-32D-100-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-FA-32D-150-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-FA-32D-200-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-FA-32D-250-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-FA-32D-300-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-FA-32D-350-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-FA-32D-400-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-FA-32D-450-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-FA-32D-500-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-FA-40B-25-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-FA-40B-50-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-FA-40B-75-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-FA-40B-100-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-FA-40B-150-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-FA-40B-200-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-FA-40B-250-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-FA-40B-300-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-FA-40B-350-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-FA-40B-400-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-FA-40B-450-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-FA-40B-500-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-FA-40D-25-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-FA-40D-50-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-FA-40D-75-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-FA-40D-100-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-FA-40D-150-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-FA-40D-200-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-FA-40D-250-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-FA-40D-300-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-FA-40D-350-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-FA-40D-400-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-FA-40D-450-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-FA-40D-500-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-FA-50B-25-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-FA-50B-50-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-FA-50B-75-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-FA-50B-100-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-FA-50B-150-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-FA-50B-200-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-FA-50B-250-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-FA-50B-300-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-FA-50B-350-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-FA-50B-400-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-FA-50B-450-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-FA-50B-500-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-FA-50D-25-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-FA-50D-50-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-FA-50D-75-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-FA-50D-100-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-FA-50D-150-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-FA-50D-200-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-FA-50D-250-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-FA-50D-300-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-FA-50D-350-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-FA-50D-400-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-FA-50D-450-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-FA-50D-500-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-FA-63B-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-FA-63B-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-FA-63B-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-FA-63B-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-FA-63B-150-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-FA-63B-200-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-FA-63B-250-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-FA-63B-300-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-FA-63B-350-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-FA-63B-400-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-FA-63B-450-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-FA-63B-500-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-FA-63D-25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-FA-63D-50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-FA-63D-75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-FA-63D-100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-FA-63D-150-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-FA-63D-200-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-FA-63D-250-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-FA-63D-300-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-FA-63D-350-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-FA-63D-400-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-FA-63D-450-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-FA-63D-500-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-FA-80B-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-FA-80B-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-FA-80B-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-FA-80B-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-FA-80B-150-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-FA-80B-200-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-FA-80B-250-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-FA-80B-300-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-FA-80B-350-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-FA-80B-400-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-FA-80B-450-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-FA-80B-500-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-FA-80D-25-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-FA-80D-50-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-FA-80D-75-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-FA-80D-100-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-FA-80D-150-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-FA-80D-200-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-FA-80D-250-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-FA-80D-300-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-FA-80D-350-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-FA-80D-400-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-FA-80D-450-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-FA-80D-500-FP1	Mounting: Rod-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-FA-100B-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-FA-100B-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-FA-100B-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-FA-100B-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-FA-100B-150-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-FA-100B-200-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-FA-100B-250-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-FA-100B-300-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-FA-100B-350-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-FA-100B-400-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-FA-100B-450-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-FA-100B-500-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-FA-100D-25-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-FA-100D-50-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-FA-100D-75-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-FA-100D-100-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-FA-100D-150-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-FA-100D-200-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-FA-100D-250-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-FA-100D-300-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-FA-100D-350-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-FA-100D-400-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-FA-100D-450-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-FA-100D-500-FP1	Mounting: Rod-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-FB-32B-25-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-FB-32B-50-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-FB-32B-75-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-FB-32B-100-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-FB-32B-150-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-FB-32B-200-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-FB-32B-250-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-FB-32B-300-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-FB-32B-350-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-FB-32B-400-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-FB-32B-450-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-FB-32B-500-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-FB-32D-25-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-FB-32D-50-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-FB-32D-75-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-FB-32D-100-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-FB-32D-150-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-FB-32D-200-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-FB-32D-250-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-FB-32D-300-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-FB-32D-350-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-FB-32D-400-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-FB-32D-450-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-FB-32D-500-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-FB-40B-25-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-FB-40B-50-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-FB-40B-75-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-FB-40B-100-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-FB-40B-150-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-FB-40B-200-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-FB-40B-250-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-FB-40B-300-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-FB-40B-350-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-FB-40B-400-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-FB-40B-450-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-FB-40B-500-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-FB-40D-25-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-FB-40D-50-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-FB-40D-75-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-FB-40D-100-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-FB-40D-150-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-FB-40D-200-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-FB-40D-250-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-FB-40D-300-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-FB-40D-350-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-FB-40D-400-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-FB-40D-450-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-FB-40D-500-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-FB-50B-25-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-FB-50B-50-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-FB-50B-75-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-FB-50B-100-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-FB-50B-150-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-FB-50B-200-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-FB-50B-250-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-FB-50B-300-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-FB-50B-350-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-FB-50B-400-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-FB-50B-450-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-FB-50B-500-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-FB-50D-25-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-FB-50D-50-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-FB-50D-75-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-FB-50D-100-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-FB-50D-150-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-FB-50D-200-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-FB-50D-250-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-FB-50D-300-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-FB-50D-350-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-FB-50D-400-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-FB-50D-450-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-FB-50D-500-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-FB-63B-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-FB-63B-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-FB-63B-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-FB-63B-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-FB-63B-150-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-FB-63B-200-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-FB-63B-250-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-FB-63B-300-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-FB-63B-350-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-FB-63B-400-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-FB-63B-450-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-FB-63B-500-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-FB-63D-25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-FB-63D-50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-FB-63D-75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-FB-63D-100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-FB-63D-150-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-FB-63D-200-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-FB-63D-250-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-FB-63D-300-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-FB-63D-350-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-FB-63D-400-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-FB-63D-450-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-FB-63D-500-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-FB-80B-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-FB-80B-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-FB-80B-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-FB-80B-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-FB-80B-150-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-FB-80B-200-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-FB-80B-250-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-FB-80B-300-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-FB-80B-350-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-FB-80B-400-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-FB-80B-450-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-FB-80B-500-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-FB-80D-25-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-FB-80D-50-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-FB-80D-75-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-FB-80D-100-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-FB-80D-150-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-FB-80D-200-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-FB-80D-250-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-FB-80D-300-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-FB-80D-350-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-FB-80D-400-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-FB-80D-450-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-FB-80D-500-FP1	Mounting: Head-side flange \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-FB-100B-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-FB-100B-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-FB-100B-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-FB-100B-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-FB-100B-150-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-FB-100B-200-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-FB-100B-250-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-FB-100B-300-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-FB-100B-350-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-FB-100B-400-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-FB-100B-450-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-FB-100B-500-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-FB-100D-25-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-FB-100D-50-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-FB-100D-75-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-FB-100D-100-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-FB-100D-150-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-FB-100D-200-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-FB-100D-250-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-FB-100D-300-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-FB-100D-350-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-FB-100D-400-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-FB-100D-450-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-FB-100D-500-FP1	Mounting: Head-side flange \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-CA-32B-25-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-CA-32B-50-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-CA-32B-75-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-CA-32B-100-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-CA-32B-150-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-CA-32B-200-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-CA-32B-250-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-CA-32B-300-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-CA-32B-350-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-CA-32B-400-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-CA-32B-450-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-CA-32B-500-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-CA-32D-25-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-CA-32D-50-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-CA-32D-75-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-CA-32D-100-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-CA-32D-150-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-CA-32D-200-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-CA-32D-250-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-CA-32D-300-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-CA-32D-350-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-CA-32D-400-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-CA-32D-450-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-CA-32D-500-FP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-CA-40B-25-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-CA-40B-50-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-CA-40B-75-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-CA-40B-100-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-CA-40B-150-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-CA-40B-200-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-CA-40B-250-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-CA-40B-300-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-CA-40B-350-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-CA-40B-400-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-CA-40B-450-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-CA-40B-500-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-CA-40D-25-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-CA-40D-50-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-CA-40D-75-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-CA-40D-100-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-CA-40D-150-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-CA-40D-200-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-CA-40D-250-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-CA-40D-300-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-CA-40D-350-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-CA-40D-400-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-CA-40D-450-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-CA-40D-500-FP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-CA-50B-25-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-CA-50B-50-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-CA-50B-75-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-CA-50B-100-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-CA-50B-150-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-CA-50B-200-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-CA-50B-250-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-CA-50B-300-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-CA-50B-350-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-CA-50B-400-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-CA-50B-450-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-CA-50B-500-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-CA-50D-25-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-CA-50D-50-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-CA-50D-75-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-CA-50D-100-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-CA-50D-150-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-CA-50D-200-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-CA-50D-250-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-CA-50D-300-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-CA-50D-350-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-CA-50D-400-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-CA-50D-450-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-CA-50D-500-FP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-CA-63B-25-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-CA-63B-50-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-CA-63B-75-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-CA-63B-100-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-CA-63B-150-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-CA-63B-200-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-CA-63B-250-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-CA-63B-300-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-CA-63B-350-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-CA-63B-400-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-CA-63B-450-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-CA-63B-500-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-CA-63D-25-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-CA-63D-50-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-CA-63D-75-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-CA-63D-100-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-CA-63D-150-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-CA-63D-200-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-CA-63D-250-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-CA-63D-300-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-CA-63D-350-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-CA-63D-400-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-CA-63D-450-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-CA-63D-500-FP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-CA-80B-25-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-CA-80B-50-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-CA-80B-75-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-CA-80B-100-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-CA-80B-150-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-CA-80B-200-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-CA-80B-250-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-CA-80B-300-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-CA-80B-350-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-CA-80B-400-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-CA-80B-450-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-CA-80B-500-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-CA-80D-25-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-CA-80D-50-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-CA-80D-75-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-CA-80D-100-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-CA-80D-150-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-CA-80D-200-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-CA-80D-250-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-CA-80D-300-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-CA-80D-350-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-CA-80D-400-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-CA-80D-450-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-CA-80D-500-FP1	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-CA-100B-25-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-CA-100B-50-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-CA-100B-75-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-CA-100B-100-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-CA-100B-150-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-CA-100B-200-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-CA-100B-250-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-CA-100B-300-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-CA-100B-350-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-CA-100B-400-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-CA-100B-450-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-CA-100B-500-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-CA-100D-25-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-CA-100D-50-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-CA-100D-75-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-CA-100D-100-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-CA-100D-150-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-CA-100D-200-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-CA-100D-250-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-CA-100D-300-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-CA-100D-350-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-CA-100D-400-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-CA-100D-450-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-CA-100D-500-FP1	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-CB-32B-25-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-CB-32B-50-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-CB-32B-75-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-CB-32B-100-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-CB-32B-150-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-CB-32B-200-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-CB-32B-250-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-CB-32B-300-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-CB-32B-350-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-CB-32B-400-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-CB-32B-450-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-CB-32B-500-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-CB-32D-25-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-CB-32D-50-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-CB-32D-75-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-CB-32D-100-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-CB-32D-150-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-CB-32D-200-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-CB-32D-250-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-CB-32D-300-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-CB-32D-350-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-CB-32D-400-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-CB-32D-450-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-CB-32D-500-FP1	Mounting: Double clevis \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-CB-40B-25-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-CB-40B-50-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-CB-40B-75-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-CB-40B-100-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-CB-40B-150-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-CB-40B-200-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-CB-40B-250-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-CB-40B-300-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-CB-40B-350-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-CB-40B-400-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-CB-40B-450-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-CB-40B-500-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-CB-40D-25-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-CB-40D-50-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-CB-40D-75-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-CB-40D-100-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-CB-40D-150-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-CB-40D-200-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-CB-40D-250-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-CB-40D-300-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-CB-40D-350-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-CB-40D-400-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-CB-40D-450-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-CB-40D-500-FP1	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-CB-50B-25-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-CB-50B-50-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-CB-50B-75-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-CB-50B-100-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-CB-50B-150-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-CB-50B-200-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-CB-50B-250-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-CB-50B-300-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-CB-50B-350-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-CB-50B-400-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-CB-50B-450-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-CB-50B-500-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-CB-50D-25-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-CB-50D-50-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-CB-50D-75-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-CB-50D-100-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-CB-50D-150-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-CB-50D-200-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-CB-50D-250-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-CB-50D-300-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-CB-50D-350-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-CB-50D-400-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-CB-50D-450-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-CB-50D-500-FP1	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-CB-63B-25-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-CB-63B-50-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-CB-63B-75-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-CB-63B-100-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-CB-63B-150-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-CB-63B-200-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-CB-63B-250-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-CB-63B-300-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-CB-63B-350-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-CB-63B-400-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-CB-63B-450-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-CB-63B-500-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-CB-63D-25-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-CB-63D-50-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-CB-63D-75-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-CB-63D-100-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-CB-63D-150-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-CB-63D-200-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-CB-63D-250-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-CB-63D-300-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-CB-63D-350-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-CB-63D-400-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-CB-63D-450-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-CB-63D-500-FP1	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-CB-80B-25-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-CB-80B-50-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-CB-80B-75-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-CB-80B-100-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-CB-80B-150-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-CB-80B-200-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-CB-80B-250-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-CB-80B-300-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-CB-80B-350-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-CB-80B-400-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-CB-80B-450-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-CB-80B-500-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-CB-80D-25-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-CB-80D-50-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-CB-80D-75-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-CB-80D-100-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-CB-80D-150-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-CB-80D-200-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-CB-80D-250-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-CB-80D-300-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-CB-80D-350-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-CB-80D-400-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-CB-80D-450-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-CB-80D-500-FP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-CB-100B-25-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-CB-100B-50-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-CB-100B-75-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-CB-100B-100-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-CB-100B-150-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-CB-100B-200-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-CB-100B-250-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-CB-100B-300-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-CB-100B-350-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-CB-100B-400-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-CB-100B-450-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-CB-100B-500-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-CB-100D-25-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-CB-100D-50-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-CB-100D-75-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-CB-100D-100-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-CB-100D-150-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-CB-100D-200-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-CB-100D-250-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-CB-100D-300-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-CB-100D-350-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-CB-100D-400-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-CB-100D-450-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-CB-100D-500-FP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TA-32B-25-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TA-32B-50-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TA-32B-75-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TA-32B-100-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TA-32B-150-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TA-32B-200-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TA-32B-250-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TA-32B-300-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TA-32B-350-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TA-32B-400-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TA-32B-450-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TA-32B-500-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TA-32D-25-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TA-32D-50-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TA-32D-75-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TA-32D-100-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TA-32D-150-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TA-32D-200-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TA-32D-250-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TA-32D-300-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TA-32D-350-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TA-32D-400-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TA-32D-450-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TA-32D-500-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TA-40B-25-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TA-40B-50-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TA-40B-75-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TA-40B-100-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TA-40B-150-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TA-40B-200-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TA-40B-250-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TA-40B-300-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TA-40B-350-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TA-40B-400-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TA-40B-450-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TA-40B-500-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TA-40D-25-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TA-40D-50-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TA-40D-75-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TA-40D-100-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TA-40D-150-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TA-40D-200-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TA-40D-250-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TA-40D-300-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TA-40D-350-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TA-40D-400-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TA-40D-450-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TA-40D-500-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TA-50B-25-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TA-50B-50-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TA-50B-75-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TA-50B-100-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TA-50B-150-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TA-50B-200-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TA-50B-250-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TA-50B-300-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TA-50B-350-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TA-50B-400-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TA-50B-450-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TA-50B-500-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TA-50D-25-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TA-50D-50-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TA-50D-75-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TA-50D-100-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TA-50D-150-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TA-50D-200-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TA-50D-250-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TA-50D-300-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TA-50D-350-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TA-50D-400-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TA-50D-450-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TA-50D-500-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TA-63B-25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TA-63B-50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TA-63B-75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TA-63B-100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TA-63B-150-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TA-63B-200-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TA-63B-250-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TA-63B-300-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TA-63B-350-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TA-63B-400-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TA-63B-450-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TA-63B-500-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TA-63D-25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TA-63D-50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TA-63D-75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TA-63D-100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TA-63D-150-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TA-63D-200-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TA-63D-250-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TA-63D-300-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TA-63D-350-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TA-63D-400-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TA-63D-450-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TA-63D-500-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TA-80B-25-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TA-80B-50-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TA-80B-75-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TA-80B-100-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TA-80B-150-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TA-80B-200-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TA-80B-250-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TA-80B-300-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TA-80B-350-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TA-80B-400-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TA-80B-450-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TA-80B-500-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TA-80D-25-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TA-80D-50-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TA-80D-75-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TA-80D-100-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TA-80D-150-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TA-80D-200-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TA-80D-250-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TA-80D-300-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TA-80D-350-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TA-80D-400-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TA-80D-450-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TA-80D-500-FP1	Mounting: Rod-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TA-100B-25-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TA-100B-50-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TA-100B-75-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TA-100B-100-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TA-100B-150-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TA-100B-200-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TA-100B-250-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TA-100B-300-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TA-100B-350-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TA-100B-400-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TA-100B-450-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TA-100B-500-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TA-100D-25-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TA-100D-50-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TA-100D-75-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TA-100D-100-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TA-100D-150-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TA-100D-200-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TA-100D-250-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TA-100D-300-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TA-100D-350-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TA-100D-400-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TA-100D-450-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TA-100D-500-FP1	Mounting: Rod-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TB-32B-25-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TB-32B-50-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TB-32B-75-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TB-32B-100-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TB-32B-150-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TB-32B-200-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TB-32B-250-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TB-32B-300-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TB-32B-350-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TB-32B-400-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TB-32B-450-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TB-32B-500-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TB-32D-25-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TB-32D-50-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TB-32D-75-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TB-32D-100-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TB-32D-150-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TB-32D-200-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TB-32D-250-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TB-32D-300-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TB-32D-350-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TB-32D-400-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TB-32D-450-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TB-32D-500-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TB-40B-25-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TB-40B-50-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TB-40B-75-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TB-40B-100-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TB-40B-150-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TB-40B-200-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TB-40B-250-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TB-40B-300-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TB-40B-350-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TB-40B-400-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TB-40B-450-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TB-40B-500-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TB-40D-25-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TB-40D-50-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TB-40D-75-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TB-40D-100-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TB-40D-150-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TB-40D-200-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TB-40D-250-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TB-40D-300-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TB-40D-350-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TB-40D-400-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TB-40D-450-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TB-40D-500-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TB-50B-25-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TB-50B-50-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TB-50B-75-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TB-50B-100-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TB-50B-150-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TB-50B-200-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TB-50B-250-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TB-50B-300-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TB-50B-350-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TB-50B-400-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TB-50B-450-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TB-50B-500-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TB-50D-25-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TB-50D-50-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TB-50D-75-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TB-50D-100-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TB-50D-150-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TB-50D-200-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TB-50D-250-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TB-50D-300-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TB-50D-350-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TB-50D-400-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TB-50D-450-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TB-50D-500-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TB-63B-25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TB-63B-50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TB-63B-75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TB-63B-100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TB-63B-150-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TB-63B-200-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TB-63B-250-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TB-63B-300-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TB-63B-350-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TB-63B-400-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TB-63B-450-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TB-63B-500-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TB-63D-25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TB-63D-50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TB-63D-75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TB-63D-100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TB-63D-150-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TB-63D-200-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TB-63D-250-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TB-63D-300-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TB-63D-350-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TB-63D-400-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TB-63D-450-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TB-63D-500-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TB-80B-25-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TB-80B-50-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TB-80B-75-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TB-80B-100-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TB-80B-150-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TB-80B-200-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TB-80B-250-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TB-80B-300-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TB-80B-350-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TB-80B-400-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TB-80B-450-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TB-80B-500-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TB-80D-25-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TB-80D-50-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TB-80D-75-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TB-80D-100-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TB-80D-150-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TB-80D-200-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TB-80D-250-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TB-80D-300-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TB-80D-350-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TB-80D-400-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TB-80D-450-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TB-80D-500-FP1	Mounting: Head-side trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TB-100B-25-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TB-100B-50-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TB-100B-75-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TB-100B-100-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TB-100B-150-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TB-100B-200-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TB-100B-250-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TB-100B-300-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TB-100B-350-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TB-100B-400-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TB-100B-450-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TB-100B-500-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TB-100D-25-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TB-100D-50-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TB-100D-75-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TB-100D-100-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TB-100D-150-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TB-100D-200-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TB-100D-250-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TB-100D-300-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TB-100D-350-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TB-100D-400-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TB-100D-450-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TB-100D-500-FP1	Mounting: Head-side trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TC-32B-25-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TC-32B-50-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TC-32B-75-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TC-32B-100-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TC-32B-150-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TC-32B-200-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TC-32B-250-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TC-32B-300-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TC-32B-350-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TC-32B-400-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TC-32B-450-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TC-32B-500-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TC-32D-25-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TC-32D-50-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TC-32D-75-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TC-32D-100-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TC-32D-150-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TC-32D-200-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TC-32D-250-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TC-32D-300-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TC-32D-350-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TC-32D-400-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TC-32D-450-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TC-32D-500-FP1	Mounting: Center trunnion \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TC-40B-25-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TC-40B-50-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TC-40B-75-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TC-40B-100-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TC-40B-150-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TC-40B-200-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TC-40B-250-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TC-40B-300-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TC-40B-350-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TC-40B-400-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TC-40B-450-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TC-40B-500-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TC-40D-25-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TC-40D-50-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TC-40D-75-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TC-40D-100-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TC-40D-150-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TC-40D-200-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TC-40D-250-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TC-40D-300-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TC-40D-350-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TC-40D-400-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TC-40D-450-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TC-40D-500-FP1	Mounting: Center trunnion \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TC-50B-25-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TC-50B-50-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TC-50B-75-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TC-50B-100-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TC-50B-150-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TC-50B-200-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TC-50B-250-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TC-50B-300-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TC-50B-350-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TC-50B-400-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TC-50B-450-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TC-50B-500-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TC-50D-25-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TC-50D-50-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TC-50D-75-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TC-50D-100-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TC-50D-150-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TC-50D-200-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TC-50D-250-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TC-50D-300-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TC-50D-350-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TC-50D-400-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TC-50D-450-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TC-50D-500-FP1	Mounting: Center trunnion \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TC-63B-25-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TC-63B-50-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TC-63B-75-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TC-63B-100-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TC-63B-150-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TC-63B-200-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TC-63B-250-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TC-63B-300-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TC-63B-350-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TC-63B-400-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TC-63B-450-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TC-63B-500-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TC-63D-25-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TC-63D-50-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TC-63D-75-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TC-63D-100-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TC-63D-150-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TC-63D-200-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TC-63D-250-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TC-63D-300-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TC-63D-350-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TC-63D-400-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TC-63D-450-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TC-63D-500-FP1	Mounting: Center trunnion \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TC-80B-25-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TC-80B-50-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TC-80B-75-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TC-80B-100-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TC-80B-150-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TC-80B-200-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TC-80B-250-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TC-80B-300-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TC-80B-350-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TC-80B-400-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TC-80B-450-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TC-80B-500-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TC-80D-25-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TC-80D-50-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TC-80D-75-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TC-80D-100-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TC-80D-150-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TC-80D-200-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TC-80D-250-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TC-80D-300-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TC-80D-350-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TC-80D-400-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TC-80D-450-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TC-80D-500-FP1	Mounting: Center trunnion \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm
	SCG-G-TC-100B-25-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm
	SCG-G-TC-100B-50-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCG-G-TC-100B-75-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCG-G-TC-100B-100-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCG-G-TC-100B-150-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCG-G-TC-100B-200-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCG-G-TC-100B-250-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCG-G-TC-100B-300-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCG-G-TC-100B-350-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm
	SCG-G-TC-100B-400-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm
	SCG-G-TC-100B-450-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm
	SCG-G-TC-100B-500-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm
	SCG-G-TC-100D-25-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm
	SCG-G-TC-100D-50-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm
	SCG-G-TC-100D-75-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm
	SCG-G-TC-100D-100-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm
	SCG-G-TC-100D-150-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm
	SCG-G-TC-100D-200-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm
	SCG-G-TC-100D-250-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm
	SCG-G-TC-100D-300-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm
	SCG-G-TC-100D-350-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm
	SCG-G-TC-100D-400-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm
	SCG-G-TC-100D-450-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm
	SCG-G-TC-100D-500-FP1	Mounting: Center trunnion \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCG-G-FP1 Tie-Rod Cylinder (Strong Scraper, Bore 32-100)
