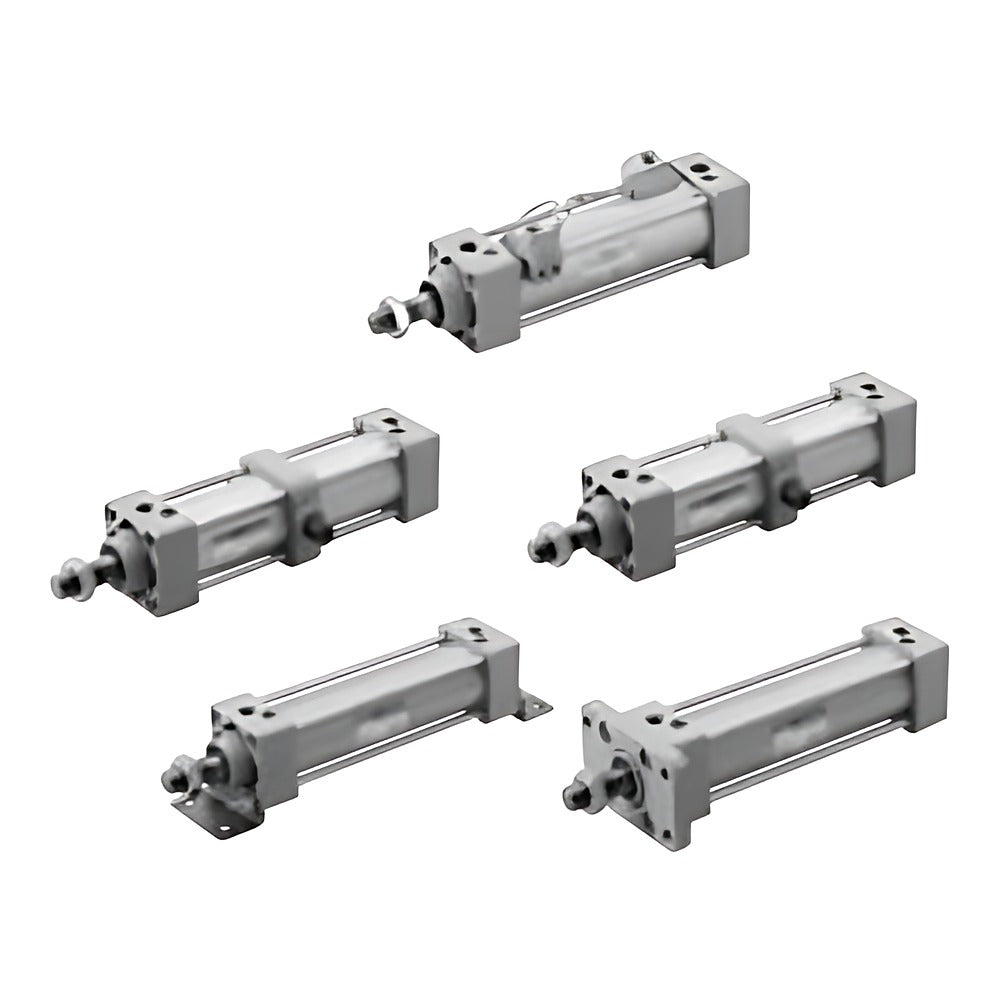

CKD SCG-G Tie-Rod Cylinder (Strong Scraper, Bore 32-100)

CKD SCG-G double-acting tie-rod cylinder with a strong scraper that removes dust, sand and dry contaminants from the piston rod, bore 32 to 100 mm.

Key features

Strong scraper on the rod cover for dusty, sandy or chip-laden environments
Nine mounting styles: basic, foot, rod/head flange, single/double clevis, rod/head/center trunnion
Air cushion (B) or rubber cushion (D) at both ends; built-in switch magnet
Standard strokes 25 to 500 mm; intermediate strokes in 1 mm steps up to 600/700/800 mm (max 1500 mm on order)
T-type auto switches (T0H, T2H, T2YD etc.), stainless rod (M), P6 option and knuckles/brackets (I, Y, B1-B4) ordered as suffixes
Rc port thread standard; NPT (N) and G (G) threads made to order

Specifications

Action	Double acting, single rod
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.1 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Piston speed	50 to 1000 mm/s
Lubrication	Not required
Switch magnet	Built in (switch-ready)
Source	CKD Korea catalog CB-029SK-9, p. 506-511

SCG-G-00-32B-25		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-00-32B-50		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-00-32B-75		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-00-32B-100		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-00-32B-150		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-00-32B-200		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-00-32B-250		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-00-32B-300		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-00-32B-350		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-00-32B-400		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-00-32B-450		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-00-32B-500		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-00-32D-25		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-00-32D-50		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-00-32D-75		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-00-32D-100		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-00-32D-150		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-00-32D-200		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-00-32D-250		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-00-32D-300		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-00-32D-350		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-00-32D-400		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-00-32D-450		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-00-32D-500		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-00-40B-25		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-00-40B-50		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-00-40B-75		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-00-40B-100		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-00-40B-150		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-00-40B-200		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-00-40B-250		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-00-40B-300		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-00-40B-350		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-00-40B-400		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-00-40B-450		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-00-40B-500		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-00-40D-25		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-00-40D-50		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-00-40D-75		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-00-40D-100		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-00-40D-150		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-00-40D-200		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-00-40D-250		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-00-40D-300		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-00-40D-350		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-00-40D-400		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-00-40D-450		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-00-40D-500		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-00-50B-25		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-00-50B-50		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-00-50B-75		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-00-50B-100		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-00-50B-150		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-00-50B-200		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-00-50B-250		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-00-50B-300		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-00-50B-350		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-00-50B-400		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-00-50B-450		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-00-50B-500		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-00-50D-25		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-00-50D-50		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-00-50D-75		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-00-50D-100		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-00-50D-150		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-00-50D-200		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-00-50D-250		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-00-50D-300		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-00-50D-350		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-00-50D-400		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-00-50D-450		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-00-50D-500		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-00-63B-25		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-00-63B-50		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-00-63B-75		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-00-63B-100		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-00-63B-150		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-00-63B-200		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-00-63B-250		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-00-63B-300		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-00-63B-350		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-00-63B-400		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-00-63B-450		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-00-63B-500		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-00-63D-25		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-00-63D-50		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-00-63D-75		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-00-63D-100		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-00-63D-150		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-00-63D-200		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-00-63D-250		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-00-63D-300		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-00-63D-350		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-00-63D-400		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-00-63D-450		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-00-63D-500		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-00-80B-25		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-00-80B-50		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-00-80B-75		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-00-80B-100		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-00-80B-150		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-00-80B-200		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-00-80B-250		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-00-80B-300		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-00-80B-350		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-00-80B-400		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-00-80B-450		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-00-80B-500		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-00-80D-25		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-00-80D-50		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-00-80D-75		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-00-80D-100		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-00-80D-150		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-00-80D-200		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-00-80D-250		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-00-80D-300		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-00-80D-350		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-00-80D-400		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-00-80D-450		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-00-80D-500		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-00-100B-25		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-00-100B-50		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-00-100B-75		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-00-100B-100		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-00-100B-150		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-00-100B-200		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-00-100B-250		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-00-100B-300		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-00-100B-350		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-00-100B-400		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-00-100B-450		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-00-100B-500		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-00-100D-25		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-00-100D-50		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-00-100D-75		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-00-100D-100		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-00-100D-150		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-00-100D-200		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-00-100D-250		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-00-100D-300		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-00-100D-350		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-00-100D-400		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-00-100D-450		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-00-100D-500		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-LB-32B-25		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-LB-32B-50		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-LB-32B-75		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-LB-32B-100		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-LB-32B-150		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-LB-32B-200		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-LB-32B-250		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-LB-32B-300		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-LB-32B-350		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-LB-32B-400		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-LB-32B-450		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-LB-32B-500		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-LB-32D-25		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-LB-32D-50		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-LB-32D-75		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-LB-32D-100		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-LB-32D-150		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-LB-32D-200		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-LB-32D-250		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-LB-32D-300		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-LB-32D-350		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-LB-32D-400		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-LB-32D-450		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-LB-32D-500		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-LB-40B-25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-LB-40B-50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-LB-40B-75		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-LB-40B-100		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-LB-40B-150		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-LB-40B-200		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-LB-40B-250		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-LB-40B-300		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-LB-40B-350		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-LB-40B-400		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-LB-40B-450		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-LB-40B-500		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-LB-40D-25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-LB-40D-50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-LB-40D-75		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-LB-40D-100		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-LB-40D-150		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-LB-40D-200		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-LB-40D-250		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-LB-40D-300		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-LB-40D-350		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-LB-40D-400		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-LB-40D-450		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-LB-40D-500		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-LB-50B-25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-LB-50B-50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-LB-50B-75		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-LB-50B-100		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-LB-50B-150		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-LB-50B-200		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-LB-50B-250		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-LB-50B-300		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-LB-50B-350		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-LB-50B-400		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-LB-50B-450		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-LB-50B-500		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-LB-50D-25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-LB-50D-50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-LB-50D-75		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-LB-50D-100		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-LB-50D-150		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-LB-50D-200		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-LB-50D-250		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-LB-50D-300		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-LB-50D-350		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-LB-50D-400		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-LB-50D-450		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-LB-50D-500		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-LB-63B-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-LB-63B-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-LB-63B-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-LB-63B-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-LB-63B-150		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-LB-63B-200		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-LB-63B-250		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-LB-63B-300		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-LB-63B-350		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-LB-63B-400		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-LB-63B-450		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-LB-63B-500		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-LB-63D-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-LB-63D-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-LB-63D-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-LB-63D-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-LB-63D-150		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-LB-63D-200		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-LB-63D-250		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-LB-63D-300		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-LB-63D-350		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-LB-63D-400		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-LB-63D-450		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-LB-63D-500		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-LB-80B-25		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-LB-80B-50		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-LB-80B-75		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-LB-80B-100		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-LB-80B-150		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-LB-80B-200		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-LB-80B-250		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-LB-80B-300		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-LB-80B-350		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-LB-80B-400		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-LB-80B-450		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-LB-80B-500		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-LB-80D-25		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-LB-80D-50		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-LB-80D-75		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-LB-80D-100		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-LB-80D-150		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-LB-80D-200		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-LB-80D-250		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-LB-80D-300		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-LB-80D-350		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-LB-80D-400		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-LB-80D-450		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-LB-80D-500		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-LB-100B-25		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-LB-100B-50		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-LB-100B-75		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-LB-100B-100		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-LB-100B-150		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-LB-100B-200		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-LB-100B-250		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-LB-100B-300		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-LB-100B-350		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-LB-100B-400		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-LB-100B-450		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-LB-100B-500		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-LB-100D-25		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-LB-100D-50		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-LB-100D-75		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-LB-100D-100		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-LB-100D-150		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-LB-100D-200		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-LB-100D-250		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-LB-100D-300		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-LB-100D-350		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-LB-100D-400		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-LB-100D-450		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-LB-100D-500		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-FA-32B-25		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-FA-32B-50		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-FA-32B-75		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-FA-32B-100		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-FA-32B-150		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-FA-32B-200		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-FA-32B-250		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-FA-32B-300		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-FA-32B-350		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-FA-32B-400		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-FA-32B-450		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-FA-32B-500		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-FA-32D-25		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-FA-32D-50		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-FA-32D-75		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-FA-32D-100		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-FA-32D-150		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-FA-32D-200		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-FA-32D-250		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-FA-32D-300		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-FA-32D-350		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-FA-32D-400		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-FA-32D-450		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-FA-32D-500		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-FA-40B-25		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-FA-40B-50		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-FA-40B-75		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-FA-40B-100		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-FA-40B-150		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-FA-40B-200		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-FA-40B-250		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-FA-40B-300		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-FA-40B-350		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-FA-40B-400		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-FA-40B-450		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-FA-40B-500		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-FA-40D-25		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-FA-40D-50		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-FA-40D-75		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-FA-40D-100		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-FA-40D-150		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-FA-40D-200		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-FA-40D-250		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-FA-40D-300		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-FA-40D-350		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-FA-40D-400		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-FA-40D-450		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-FA-40D-500		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-FA-50B-25		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-FA-50B-50		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-FA-50B-75		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-FA-50B-100		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-FA-50B-150		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-FA-50B-200		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-FA-50B-250		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-FA-50B-300		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-FA-50B-350		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-FA-50B-400		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-FA-50B-450		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-FA-50B-500		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-FA-50D-25		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-FA-50D-50		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-FA-50D-75		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-FA-50D-100		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-FA-50D-150		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-FA-50D-200		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-FA-50D-250		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-FA-50D-300		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-FA-50D-350		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-FA-50D-400		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-FA-50D-450		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-FA-50D-500		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-FA-63B-25		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-FA-63B-50		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-FA-63B-75		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-FA-63B-100		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-FA-63B-150		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-FA-63B-200		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-FA-63B-250		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-FA-63B-300		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-FA-63B-350		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-FA-63B-400		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-FA-63B-450		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-FA-63B-500		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-FA-63D-25		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-FA-63D-50		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-FA-63D-75		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-FA-63D-100		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-FA-63D-150		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-FA-63D-200		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-FA-63D-250		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-FA-63D-300		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-FA-63D-350		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-FA-63D-400		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-FA-63D-450		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-FA-63D-500		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-FA-80B-25		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-FA-80B-50		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-FA-80B-75		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-FA-80B-100		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-FA-80B-150		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-FA-80B-200		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-FA-80B-250		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-FA-80B-300		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-FA-80B-350		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-FA-80B-400		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-FA-80B-450		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-FA-80B-500		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-FA-80D-25		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-FA-80D-50		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-FA-80D-75		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-FA-80D-100		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-FA-80D-150		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-FA-80D-200		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-FA-80D-250		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-FA-80D-300		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-FA-80D-350		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-FA-80D-400		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-FA-80D-450		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-FA-80D-500		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-FA-100B-25		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-FA-100B-50		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-FA-100B-75		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-FA-100B-100		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-FA-100B-150		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-FA-100B-200		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-FA-100B-250		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-FA-100B-300		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-FA-100B-350		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-FA-100B-400		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-FA-100B-450		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-FA-100B-500		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-FA-100D-25		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-FA-100D-50		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-FA-100D-75		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-FA-100D-100		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-FA-100D-150		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-FA-100D-200		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-FA-100D-250		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-FA-100D-300		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-FA-100D-350		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-FA-100D-400		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-FA-100D-450		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-FA-100D-500		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-FB-32B-25		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-FB-32B-50		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-FB-32B-75		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-FB-32B-100		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-FB-32B-150		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-FB-32B-200		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-FB-32B-250		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-FB-32B-300		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-FB-32B-350		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-FB-32B-400		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-FB-32B-450		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-FB-32B-500		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-FB-32D-25		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-FB-32D-50		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-FB-32D-75		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-FB-32D-100		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-FB-32D-150		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-FB-32D-200		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-FB-32D-250		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-FB-32D-300		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-FB-32D-350		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-FB-32D-400		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-FB-32D-450		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-FB-32D-500		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-FB-40B-25		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-FB-40B-50		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-FB-40B-75		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-FB-40B-100		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-FB-40B-150		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-FB-40B-200		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-FB-40B-250		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-FB-40B-300		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-FB-40B-350		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-FB-40B-400		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-FB-40B-450		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-FB-40B-500		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-FB-40D-25		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-FB-40D-50		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-FB-40D-75		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-FB-40D-100		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-FB-40D-150		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-FB-40D-200		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-FB-40D-250		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-FB-40D-300		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-FB-40D-350		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-FB-40D-400		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-FB-40D-450		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-FB-40D-500		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-FB-50B-25		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-FB-50B-50		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-FB-50B-75		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-FB-50B-100		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-FB-50B-150		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-FB-50B-200		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-FB-50B-250		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-FB-50B-300		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-FB-50B-350		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-FB-50B-400		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-FB-50B-450		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-FB-50B-500		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-FB-50D-25		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-FB-50D-50		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-FB-50D-75		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-FB-50D-100		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-FB-50D-150		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-FB-50D-200		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-FB-50D-250		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-FB-50D-300		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-FB-50D-350		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-FB-50D-400		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-FB-50D-450		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-FB-50D-500		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-FB-63B-25		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-FB-63B-50		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-FB-63B-75		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-FB-63B-100		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-FB-63B-150		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-FB-63B-200		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-FB-63B-250		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-FB-63B-300		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-FB-63B-350		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-FB-63B-400		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-FB-63B-450		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-FB-63B-500		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-FB-63D-25		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-FB-63D-50		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-FB-63D-75		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-FB-63D-100		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-FB-63D-150		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-FB-63D-200		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-FB-63D-250		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-FB-63D-300		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-FB-63D-350		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-FB-63D-400		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-FB-63D-450		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-FB-63D-500		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-FB-80B-25		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-FB-80B-50		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-FB-80B-75		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-FB-80B-100		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-FB-80B-150		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-FB-80B-200		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-FB-80B-250		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-FB-80B-300		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-FB-80B-350		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-FB-80B-400		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-FB-80B-450		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-FB-80B-500		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-FB-80D-25		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-FB-80D-50		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-FB-80D-75		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-FB-80D-100		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-FB-80D-150		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-FB-80D-200		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-FB-80D-250		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-FB-80D-300		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-FB-80D-350		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-FB-80D-400		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-FB-80D-450		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-FB-80D-500		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-FB-100B-25		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-FB-100B-50		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-FB-100B-75		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-FB-100B-100		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-FB-100B-150		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-FB-100B-200		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-FB-100B-250		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-FB-100B-300		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-FB-100B-350		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-FB-100B-400		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-FB-100B-450		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-FB-100B-500		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-FB-100D-25		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-FB-100D-50		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-FB-100D-75		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-FB-100D-100		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-FB-100D-150		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-FB-100D-200		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-FB-100D-250		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-FB-100D-300		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-FB-100D-350		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-FB-100D-400		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-FB-100D-450		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-FB-100D-500		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-CA-32B-25		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-CA-32B-50		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-CA-32B-75		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-CA-32B-100		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-CA-32B-150		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-CA-32B-200		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-CA-32B-250		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-CA-32B-300		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-CA-32B-350		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-CA-32B-400		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-CA-32B-450		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-CA-32B-500		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-CA-32D-25		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-CA-32D-50		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-CA-32D-75		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-CA-32D-100		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-CA-32D-150		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-CA-32D-200		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-CA-32D-250		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-CA-32D-300		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-CA-32D-350		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-CA-32D-400		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-CA-32D-450		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-CA-32D-500		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-CA-40B-25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-CA-40B-50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-CA-40B-75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-CA-40B-100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-CA-40B-150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-CA-40B-200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-CA-40B-250		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-CA-40B-300		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-CA-40B-350		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-CA-40B-400		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-CA-40B-450		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-CA-40B-500		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-CA-40D-25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-CA-40D-50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-CA-40D-75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-CA-40D-100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-CA-40D-150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-CA-40D-200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-CA-40D-250		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-CA-40D-300		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-CA-40D-350		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-CA-40D-400		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-CA-40D-450		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-CA-40D-500		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-CA-50B-25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-CA-50B-50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-CA-50B-75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-CA-50B-100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-CA-50B-150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-CA-50B-200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-CA-50B-250		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-CA-50B-300		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-CA-50B-350		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-CA-50B-400		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-CA-50B-450		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-CA-50B-500		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-CA-50D-25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-CA-50D-50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-CA-50D-75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-CA-50D-100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-CA-50D-150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-CA-50D-200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-CA-50D-250		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-CA-50D-300		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-CA-50D-350		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-CA-50D-400		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-CA-50D-450		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-CA-50D-500		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-CA-63B-25		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-CA-63B-50		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-CA-63B-75		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-CA-63B-100		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-CA-63B-150		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-CA-63B-200		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-CA-63B-250		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-CA-63B-300		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-CA-63B-350		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-CA-63B-400		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-CA-63B-450		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-CA-63B-500		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-CA-63D-25		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-CA-63D-50		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-CA-63D-75		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-CA-63D-100		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-CA-63D-150		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-CA-63D-200		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-CA-63D-250		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-CA-63D-300		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-CA-63D-350		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-CA-63D-400		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-CA-63D-450		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-CA-63D-500		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-CA-80B-25		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-CA-80B-50		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-CA-80B-75		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-CA-80B-100		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-CA-80B-150		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-CA-80B-200		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-CA-80B-250		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-CA-80B-300		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-CA-80B-350		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-CA-80B-400		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-CA-80B-450		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-CA-80B-500		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-CA-80D-25		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-CA-80D-50		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-CA-80D-75		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-CA-80D-100		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-CA-80D-150		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-CA-80D-200		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-CA-80D-250		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-CA-80D-300		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-CA-80D-350		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-CA-80D-400		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-CA-80D-450		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-CA-80D-500		Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-CA-100B-25		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-CA-100B-50		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-CA-100B-75		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-CA-100B-100		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-CA-100B-150		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-CA-100B-200		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-CA-100B-250		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-CA-100B-300		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-CA-100B-350		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-CA-100B-400		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-CA-100B-450		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-CA-100B-500		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-CA-100D-25		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-CA-100D-50		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-CA-100D-75		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-CA-100D-100		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-CA-100D-150		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-CA-100D-200		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-CA-100D-250		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-CA-100D-300		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-CA-100D-350		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-CA-100D-400		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-CA-100D-450		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-CA-100D-500		Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-CB-32B-25		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-CB-32B-50		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-CB-32B-75		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-CB-32B-100		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-CB-32B-150		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-CB-32B-200		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-CB-32B-250		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-CB-32B-300		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-CB-32B-350		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-CB-32B-400		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-CB-32B-450		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-CB-32B-500		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-CB-32D-25		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-CB-32D-50		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-CB-32D-75		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-CB-32D-100		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-CB-32D-150		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-CB-32D-200		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-CB-32D-250		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-CB-32D-300		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-CB-32D-350		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-CB-32D-400		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-CB-32D-450		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-CB-32D-500		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-CB-40B-25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-CB-40B-50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-CB-40B-75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-CB-40B-100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-CB-40B-150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-CB-40B-200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-CB-40B-250		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-CB-40B-300		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-CB-40B-350		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-CB-40B-400		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-CB-40B-450		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-CB-40B-500		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-CB-40D-25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-CB-40D-50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-CB-40D-75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-CB-40D-100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-CB-40D-150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-CB-40D-200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-CB-40D-250		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-CB-40D-300		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-CB-40D-350		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-CB-40D-400		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-CB-40D-450		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-CB-40D-500		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-CB-50B-25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-CB-50B-50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-CB-50B-75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-CB-50B-100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-CB-50B-150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-CB-50B-200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-CB-50B-250		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-CB-50B-300		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-CB-50B-350		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-CB-50B-400		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-CB-50B-450		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-CB-50B-500		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-CB-50D-25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-CB-50D-50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-CB-50D-75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-CB-50D-100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-CB-50D-150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-CB-50D-200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-CB-50D-250		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-CB-50D-300		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-CB-50D-350		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-CB-50D-400		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-CB-50D-450		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-CB-50D-500		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-CB-63B-25		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-CB-63B-50		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-CB-63B-75		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-CB-63B-100		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-CB-63B-150		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-CB-63B-200		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-CB-63B-250		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-CB-63B-300		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-CB-63B-350		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-CB-63B-400		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-CB-63B-450		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-CB-63B-500		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-CB-63D-25		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-CB-63D-50		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-CB-63D-75		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-CB-63D-100		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-CB-63D-150		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-CB-63D-200		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-CB-63D-250		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-CB-63D-300		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-CB-63D-350		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-CB-63D-400		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-CB-63D-450		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-CB-63D-500		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-CB-80B-25		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-CB-80B-50		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-CB-80B-75		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-CB-80B-100		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-CB-80B-150		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-CB-80B-200		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-CB-80B-250		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-CB-80B-300		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-CB-80B-350		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-CB-80B-400		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-CB-80B-450		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-CB-80B-500		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-CB-80D-25		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-CB-80D-50		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-CB-80D-75		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-CB-80D-100		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-CB-80D-150		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-CB-80D-200		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-CB-80D-250		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-CB-80D-300		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-CB-80D-350		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-CB-80D-400		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-CB-80D-450		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-CB-80D-500		Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-CB-100B-25		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-CB-100B-50		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-CB-100B-75		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-CB-100B-100		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-CB-100B-150		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-CB-100B-200		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-CB-100B-250		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-CB-100B-300		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-CB-100B-350		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-CB-100B-400		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-CB-100B-450		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-CB-100B-500		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-CB-100D-25		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-CB-100D-50		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-CB-100D-75		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-CB-100D-100		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-CB-100D-150		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-CB-100D-200		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-CB-100D-250		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-CB-100D-300		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-CB-100D-350		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-CB-100D-400		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-CB-100D-450		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-CB-100D-500		Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-TA-32B-25		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-TA-32B-50		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-TA-32B-75		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-TA-32B-100		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-TA-32B-150		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-TA-32B-200		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-TA-32B-250		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-TA-32B-300		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-TA-32B-350		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-TA-32B-400		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-TA-32B-450		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-TA-32B-500		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-TA-32D-25		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-TA-32D-50		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-TA-32D-75		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-TA-32D-100		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-TA-32D-150		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-TA-32D-200		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-TA-32D-250		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-TA-32D-300		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-TA-32D-350		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-TA-32D-400		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-TA-32D-450		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-TA-32D-500		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-TA-40B-25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-TA-40B-50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-TA-40B-75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-TA-40B-100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-TA-40B-150		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-TA-40B-200		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-TA-40B-250		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-TA-40B-300		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-TA-40B-350		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-TA-40B-400		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-TA-40B-450		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-TA-40B-500		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-TA-40D-25		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-TA-40D-50		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-TA-40D-75		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-TA-40D-100		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-TA-40D-150		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-TA-40D-200		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-TA-40D-250		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-TA-40D-300		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-TA-40D-350		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-TA-40D-400		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-TA-40D-450		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-TA-40D-500		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-TA-50B-25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-TA-50B-50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-TA-50B-75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-TA-50B-100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-TA-50B-150		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-TA-50B-200		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-TA-50B-250		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-TA-50B-300		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-TA-50B-350		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-TA-50B-400		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-TA-50B-450		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-TA-50B-500		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-TA-50D-25		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-TA-50D-50		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-TA-50D-75		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-TA-50D-100		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-TA-50D-150		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-TA-50D-200		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-TA-50D-250		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-TA-50D-300		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-TA-50D-350		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-TA-50D-400		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-TA-50D-450		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-TA-50D-500		Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-TA-63B-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-TA-63B-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-TA-63B-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-TA-63B-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-TA-63B-150		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-TA-63B-200		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-TA-63B-250		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-TA-63B-300		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-TA-63B-350		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-TA-63B-400		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-TA-63B-450		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-TA-63B-500		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-TA-63D-25		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-TA-63D-50		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-TA-63D-75		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-TA-63D-100		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-TA-63D-150		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-TA-63D-200		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-TA-63D-250		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-TA-63D-300		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-TA-63D-350		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-TA-63D-400		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-TA-63D-450		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-TA-63D-500		Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-TA-80B-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-TA-80B-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-TA-80B-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-TA-80B-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-TA-80B-150		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-TA-80B-200		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-TA-80B-250		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-TA-80B-300		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-TA-80B-350		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-TA-80B-400		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-TA-80B-450		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-TA-80B-500		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-TA-80D-25		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-TA-80D-50		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-TA-80D-75		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-TA-80D-100		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-TA-80D-150		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-TA-80D-200		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-TA-80D-250		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-TA-80D-300		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-TA-80D-350		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-TA-80D-400		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-TA-80D-450		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-TA-80D-500		Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-TA-100B-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-TA-100B-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-TA-100B-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-TA-100B-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-TA-100B-150		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-TA-100B-200		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-TA-100B-250		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-TA-100B-300		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-TA-100B-350		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-TA-100B-400		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-TA-100B-450		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-TA-100B-500		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-TA-100D-25		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-TA-100D-50		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-TA-100D-75		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-TA-100D-100		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-TA-100D-150		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-TA-100D-200		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-TA-100D-250		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-TA-100D-300		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-TA-100D-350		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-TA-100D-400		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-TA-100D-450		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-TA-100D-500		Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-TB-32B-25		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-TB-32B-50		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-TB-32B-75		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-TB-32B-100		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-TB-32B-150		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-TB-32B-200		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-TB-32B-250		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-TB-32B-300		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-TB-32B-350		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-TB-32B-400		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-TB-32B-450		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-TB-32B-500		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-TB-32D-25		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-TB-32D-50		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-TB-32D-75		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-TB-32D-100		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-TB-32D-150		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-TB-32D-200		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-TB-32D-250		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-TB-32D-300		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-TB-32D-350		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-TB-32D-400		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-TB-32D-450		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-TB-32D-500		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-TB-40B-25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-TB-40B-50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-TB-40B-75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-TB-40B-100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-TB-40B-150		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-TB-40B-200		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-TB-40B-250		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-TB-40B-300		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-TB-40B-350		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-TB-40B-400		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-TB-40B-450		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-TB-40B-500		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-TB-40D-25		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-TB-40D-50		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-TB-40D-75		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-TB-40D-100		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-TB-40D-150		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-TB-40D-200		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-TB-40D-250		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-TB-40D-300		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-TB-40D-350		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-TB-40D-400		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-TB-40D-450		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-TB-40D-500		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-TB-50B-25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-TB-50B-50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-TB-50B-75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-TB-50B-100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-TB-50B-150		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-TB-50B-200		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-TB-50B-250		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-TB-50B-300		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-TB-50B-350		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-TB-50B-400		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-TB-50B-450		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-TB-50B-500		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-TB-50D-25		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-TB-50D-50		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-TB-50D-75		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-TB-50D-100		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-TB-50D-150		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-TB-50D-200		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-TB-50D-250		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-TB-50D-300		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-TB-50D-350		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-TB-50D-400		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-TB-50D-450		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-TB-50D-500		Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-TB-63B-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-TB-63B-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-TB-63B-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-TB-63B-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-TB-63B-150		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-TB-63B-200		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-TB-63B-250		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-TB-63B-300		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-TB-63B-350		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-TB-63B-400		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-TB-63B-450		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-TB-63B-500		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-TB-63D-25		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-TB-63D-50		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-TB-63D-75		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-TB-63D-100		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-TB-63D-150		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-TB-63D-200		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-TB-63D-250		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-TB-63D-300		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-TB-63D-350		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-TB-63D-400		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-TB-63D-450		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-TB-63D-500		Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-TB-80B-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-TB-80B-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-TB-80B-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-TB-80B-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-TB-80B-150		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-TB-80B-200		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-TB-80B-250		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-TB-80B-300		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-TB-80B-350		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-TB-80B-400		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-TB-80B-450		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-TB-80B-500		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-TB-80D-25		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-TB-80D-50		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-TB-80D-75		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-TB-80D-100		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-TB-80D-150		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-TB-80D-200		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-TB-80D-250		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-TB-80D-300		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-TB-80D-350		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-TB-80D-400		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-TB-80D-450		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-TB-80D-500		Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-TB-100B-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-TB-100B-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-TB-100B-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-TB-100B-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-TB-100B-150		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-TB-100B-200		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-TB-100B-250		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-TB-100B-300		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-TB-100B-350		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-TB-100B-400		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-TB-100B-450		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-TB-100B-500		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-TB-100D-25		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-TB-100D-50		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-TB-100D-75		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-TB-100D-100		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-TB-100D-150		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-TB-100D-200		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-TB-100D-250		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-TB-100D-300		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-TB-100D-350		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-TB-100D-400		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-TB-100D-450		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-TB-100D-500		Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-TC-32B-25		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-TC-32B-50		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-TC-32B-75		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-TC-32B-100		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-TC-32B-150		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-TC-32B-200		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-TC-32B-250		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-TC-32B-300		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-TC-32B-350		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-TC-32B-400		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-TC-32B-450		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-TC-32B-500		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-TC-32D-25		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-G-TC-32D-50		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-G-TC-32D-75		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-G-TC-32D-100		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-G-TC-32D-150		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-G-TC-32D-200		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-G-TC-32D-250		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-G-TC-32D-300		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-G-TC-32D-350		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-G-TC-32D-400		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-G-TC-32D-450		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-G-TC-32D-500		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-G-TC-40B-25		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-TC-40B-50		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-TC-40B-75		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-TC-40B-100		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-TC-40B-150		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-TC-40B-200		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-TC-40B-250		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-TC-40B-300		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-TC-40B-350		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-TC-40B-400		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-TC-40B-450		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-TC-40B-500		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-TC-40D-25		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-TC-40D-50		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-TC-40D-75		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-TC-40D-100		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-TC-40D-150		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-TC-40D-200		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-TC-40D-250		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-TC-40D-300		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-TC-40D-350		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-TC-40D-400		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-TC-40D-450		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-TC-40D-500		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-TC-50B-25		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-TC-50B-50		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-TC-50B-75		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-TC-50B-100		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-TC-50B-150		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-TC-50B-200		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-TC-50B-250		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-TC-50B-300		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-TC-50B-350		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-TC-50B-400		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-TC-50B-450		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-TC-50B-500		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-TC-50D-25		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-G-TC-50D-50		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-G-TC-50D-75		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-G-TC-50D-100		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-G-TC-50D-150		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-G-TC-50D-200		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-G-TC-50D-250		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-G-TC-50D-300		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-G-TC-50D-350		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-G-TC-50D-400		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-G-TC-50D-450		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-G-TC-50D-500		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-G-TC-63B-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-TC-63B-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-TC-63B-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-TC-63B-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-TC-63B-150		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-TC-63B-200		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-TC-63B-250		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-TC-63B-300		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-TC-63B-350		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-TC-63B-400		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-TC-63B-450		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-TC-63B-500		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-TC-63D-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-TC-63D-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-TC-63D-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-TC-63D-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-TC-63D-150		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-TC-63D-200		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-TC-63D-250		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-TC-63D-300		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-TC-63D-350		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-TC-63D-400		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-TC-63D-450		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-TC-63D-500		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-TC-80B-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-TC-80B-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-TC-80B-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-TC-80B-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-TC-80B-150		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-TC-80B-200		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-TC-80B-250		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-TC-80B-300		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-TC-80B-350		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-TC-80B-400		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-TC-80B-450		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-TC-80B-500		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-TC-80D-25		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-G-TC-80D-50		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-G-TC-80D-75		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-G-TC-80D-100		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-G-TC-80D-150		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-G-TC-80D-200		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-G-TC-80D-250		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-G-TC-80D-300		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-G-TC-80D-350		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-G-TC-80D-400		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-G-TC-80D-450		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-G-TC-80D-500		Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-G-TC-100B-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-TC-100B-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-TC-100B-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-TC-100B-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-TC-100B-150		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-TC-100B-200		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-TC-100B-250		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-TC-100B-300		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-TC-100B-350		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-TC-100B-400		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-TC-100B-450		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-TC-100B-500		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
SCG-G-TC-100D-25		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
SCG-G-TC-100D-50		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCG-G-TC-100D-75		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCG-G-TC-100D-100		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCG-G-TC-100D-150		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCG-G-TC-100D-200		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCG-G-TC-100D-250		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCG-G-TC-100D-300		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCG-G-TC-100D-350		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
SCG-G-TC-100D-400		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
SCG-G-TC-100D-450		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
SCG-G-TC-100D-500		Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2

Pneumatic CylindersCKD

1296 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCG-G Tie-Rod Cylinder (Strong Scraper, Bore 32-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (1296)

SCG-G-00-32B-25, SCG-G-00-32B-50, SCG-G-00-32B-75, SCG-G-00-32B-100, SCG-G-00-32B-150, SCG-G-00-32B-200, SCG-G-00-32B-250, SCG-G-00-32B-300, SCG-G-00-32B-350, SCG-G-00-32B-400 + 1286 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCG-G-00-32B-25	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-00-32B-50	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-00-32B-75	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-00-32B-100	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-00-32B-150	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-00-32B-200	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-00-32B-250	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-00-32B-300	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-00-32B-350	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-00-32B-400	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-00-32B-450	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-00-32B-500	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-00-32D-25	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-00-32D-50	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-00-32D-75	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-00-32D-100	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-00-32D-150	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-00-32D-200	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-00-32D-250	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-00-32D-300	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-00-32D-350	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-00-32D-400	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-00-32D-450	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-00-32D-500	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-00-40B-25	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-00-40B-50	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-00-40B-75	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-00-40B-100	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-00-40B-150	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-00-40B-200	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-00-40B-250	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-00-40B-300	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-00-40B-350	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-00-40B-400	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-00-40B-450	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-00-40B-500	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-00-40D-25	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-00-40D-50	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-00-40D-75	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-00-40D-100	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-00-40D-150	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-00-40D-200	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-00-40D-250	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-00-40D-300	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-00-40D-350	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-00-40D-400	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-00-40D-450	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-00-40D-500	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-00-50B-25	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-00-50B-50	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-00-50B-75	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-00-50B-100	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-00-50B-150	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-00-50B-200	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-00-50B-250	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-00-50B-300	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-00-50B-350	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-00-50B-400	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-00-50B-450	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-00-50B-500	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-00-50D-25	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-00-50D-50	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-00-50D-75	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-00-50D-100	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-00-50D-150	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-00-50D-200	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-00-50D-250	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-00-50D-300	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-00-50D-350	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-00-50D-400	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-00-50D-450	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-00-50D-500	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-00-63B-25	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-00-63B-50	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-00-63B-75	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-00-63B-100	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-00-63B-150	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-00-63B-200	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-00-63B-250	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-00-63B-300	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-00-63B-350	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-00-63B-400	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-00-63B-450	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-00-63B-500	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-00-63D-25	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-00-63D-50	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-00-63D-75	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-00-63D-100	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-00-63D-150	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-00-63D-200	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-00-63D-250	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-00-63D-300	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-00-63D-350	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-00-63D-400	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-00-63D-450	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-00-63D-500	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-00-80B-25	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-00-80B-50	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-00-80B-75	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-00-80B-100	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-00-80B-150	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-00-80B-200	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-00-80B-250	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-00-80B-300	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-00-80B-350	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-00-80B-400	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-00-80B-450	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-00-80B-500	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-00-80D-25	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-00-80D-50	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-00-80D-75	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-00-80D-100	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-00-80D-150	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-00-80D-200	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-00-80D-250	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-00-80D-300	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-00-80D-350	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-00-80D-400	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-00-80D-450	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-00-80D-500	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-00-100B-25	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-00-100B-50	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-00-100B-75	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-00-100B-100	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-00-100B-150	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-00-100B-200	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-00-100B-250	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-00-100B-300	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-00-100B-350	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-00-100B-400	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-00-100B-450	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-00-100B-500	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-00-100D-25	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-00-100D-50	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-00-100D-75	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-00-100D-100	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-00-100D-150	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-00-100D-200	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-00-100D-250	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-00-100D-300	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-00-100D-350	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-00-100D-400	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-00-100D-450	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-00-100D-500	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-LB-32B-25	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-LB-32B-50	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-LB-32B-75	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-LB-32B-100	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-LB-32B-150	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-LB-32B-200	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-LB-32B-250	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-LB-32B-300	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-LB-32B-350	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-LB-32B-400	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-LB-32B-450	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-LB-32B-500	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-LB-32D-25	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-LB-32D-50	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-LB-32D-75	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-LB-32D-100	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-LB-32D-150	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-LB-32D-200	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-LB-32D-250	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-LB-32D-300	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-LB-32D-350	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-LB-32D-400	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-LB-32D-450	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-LB-32D-500	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-LB-40B-25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-LB-40B-50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-LB-40B-75	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-LB-40B-100	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-LB-40B-150	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-LB-40B-200	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-LB-40B-250	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-LB-40B-300	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-LB-40B-350	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-LB-40B-400	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-LB-40B-450	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-LB-40B-500	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-LB-40D-25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-LB-40D-50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-LB-40D-75	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-LB-40D-100	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-LB-40D-150	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-LB-40D-200	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-LB-40D-250	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-LB-40D-300	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-LB-40D-350	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-LB-40D-400	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-LB-40D-450	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-LB-40D-500	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-LB-50B-25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-LB-50B-50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-LB-50B-75	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-LB-50B-100	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-LB-50B-150	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-LB-50B-200	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-LB-50B-250	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-LB-50B-300	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-LB-50B-350	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-LB-50B-400	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-LB-50B-450	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-LB-50B-500	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-LB-50D-25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-LB-50D-50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-LB-50D-75	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-LB-50D-100	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-LB-50D-150	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-LB-50D-200	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-LB-50D-250	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-LB-50D-300	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-LB-50D-350	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-LB-50D-400	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-LB-50D-450	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-LB-50D-500	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-LB-63B-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-LB-63B-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-LB-63B-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-LB-63B-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-LB-63B-150	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-LB-63B-200	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-LB-63B-250	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-LB-63B-300	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-LB-63B-350	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-LB-63B-400	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-LB-63B-450	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-LB-63B-500	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-LB-63D-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-LB-63D-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-LB-63D-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-LB-63D-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-LB-63D-150	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-LB-63D-200	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-LB-63D-250	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-LB-63D-300	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-LB-63D-350	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-LB-63D-400	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-LB-63D-450	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-LB-63D-500	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-LB-80B-25	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-LB-80B-50	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-LB-80B-75	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-LB-80B-100	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-LB-80B-150	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-LB-80B-200	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-LB-80B-250	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-LB-80B-300	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-LB-80B-350	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-LB-80B-400	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-LB-80B-450	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-LB-80B-500	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-LB-80D-25	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-LB-80D-50	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-LB-80D-75	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-LB-80D-100	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-LB-80D-150	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-LB-80D-200	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-LB-80D-250	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-LB-80D-300	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-LB-80D-350	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-LB-80D-400	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-LB-80D-450	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-LB-80D-500	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-LB-100B-25	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-LB-100B-50	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-LB-100B-75	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-LB-100B-100	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-LB-100B-150	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-LB-100B-200	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-LB-100B-250	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-LB-100B-300	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-LB-100B-350	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-LB-100B-400	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-LB-100B-450	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-LB-100B-500	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-LB-100D-25	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-LB-100D-50	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-LB-100D-75	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-LB-100D-100	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-LB-100D-150	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-LB-100D-200	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-LB-100D-250	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-LB-100D-300	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-LB-100D-350	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-LB-100D-400	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-LB-100D-450	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-LB-100D-500	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-FA-32B-25	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-FA-32B-50	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-FA-32B-75	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-FA-32B-100	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-FA-32B-150	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-FA-32B-200	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-FA-32B-250	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-FA-32B-300	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-FA-32B-350	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-FA-32B-400	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-FA-32B-450	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-FA-32B-500	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-FA-32D-25	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-FA-32D-50	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-FA-32D-75	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-FA-32D-100	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-FA-32D-150	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-FA-32D-200	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-FA-32D-250	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-FA-32D-300	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-FA-32D-350	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-FA-32D-400	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-FA-32D-450	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-FA-32D-500	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-FA-40B-25	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-FA-40B-50	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-FA-40B-75	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-FA-40B-100	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-FA-40B-150	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-FA-40B-200	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-FA-40B-250	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-FA-40B-300	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-FA-40B-350	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-FA-40B-400	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-FA-40B-450	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-FA-40B-500	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-FA-40D-25	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-FA-40D-50	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-FA-40D-75	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-FA-40D-100	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-FA-40D-150	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-FA-40D-200	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-FA-40D-250	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-FA-40D-300	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-FA-40D-350	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-FA-40D-400	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-FA-40D-450	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-FA-40D-500	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-FA-50B-25	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-FA-50B-50	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-FA-50B-75	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-FA-50B-100	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-FA-50B-150	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-FA-50B-200	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-FA-50B-250	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-FA-50B-300	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-FA-50B-350	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-FA-50B-400	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-FA-50B-450	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-FA-50B-500	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-FA-50D-25	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-FA-50D-50	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-FA-50D-75	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-FA-50D-100	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-FA-50D-150	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-FA-50D-200	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-FA-50D-250	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-FA-50D-300	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-FA-50D-350	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-FA-50D-400	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-FA-50D-450	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-FA-50D-500	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-FA-63B-25	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-FA-63B-50	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-FA-63B-75	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-FA-63B-100	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-FA-63B-150	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-FA-63B-200	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-FA-63B-250	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-FA-63B-300	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-FA-63B-350	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-FA-63B-400	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-FA-63B-450	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-FA-63B-500	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-FA-63D-25	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-FA-63D-50	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-FA-63D-75	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-FA-63D-100	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-FA-63D-150	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-FA-63D-200	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-FA-63D-250	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-FA-63D-300	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-FA-63D-350	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-FA-63D-400	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-FA-63D-450	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-FA-63D-500	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-FA-80B-25	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-FA-80B-50	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-FA-80B-75	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-FA-80B-100	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-FA-80B-150	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-FA-80B-200	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-FA-80B-250	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-FA-80B-300	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-FA-80B-350	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-FA-80B-400	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-FA-80B-450	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-FA-80B-500	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-FA-80D-25	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-FA-80D-50	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-FA-80D-75	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-FA-80D-100	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-FA-80D-150	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-FA-80D-200	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-FA-80D-250	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-FA-80D-300	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-FA-80D-350	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-FA-80D-400	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-FA-80D-450	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-FA-80D-500	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-FA-100B-25	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-FA-100B-50	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-FA-100B-75	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-FA-100B-100	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-FA-100B-150	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-FA-100B-200	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-FA-100B-250	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-FA-100B-300	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-FA-100B-350	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-FA-100B-400	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-FA-100B-450	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-FA-100B-500	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-FA-100D-25	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-FA-100D-50	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-FA-100D-75	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-FA-100D-100	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-FA-100D-150	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-FA-100D-200	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-FA-100D-250	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-FA-100D-300	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-FA-100D-350	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-FA-100D-400	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-FA-100D-450	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-FA-100D-500	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-FB-32B-25	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-FB-32B-50	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-FB-32B-75	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-FB-32B-100	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-FB-32B-150	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-FB-32B-200	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-FB-32B-250	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-FB-32B-300	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-FB-32B-350	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-FB-32B-400	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-FB-32B-450	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-FB-32B-500	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-FB-32D-25	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-FB-32D-50	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-FB-32D-75	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-FB-32D-100	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-FB-32D-150	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-FB-32D-200	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-FB-32D-250	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-FB-32D-300	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-FB-32D-350	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-FB-32D-400	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-FB-32D-450	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-FB-32D-500	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-FB-40B-25	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-FB-40B-50	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-FB-40B-75	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-FB-40B-100	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-FB-40B-150	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-FB-40B-200	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-FB-40B-250	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-FB-40B-300	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-FB-40B-350	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-FB-40B-400	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-FB-40B-450	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-FB-40B-500	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-FB-40D-25	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-FB-40D-50	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-FB-40D-75	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-FB-40D-100	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-FB-40D-150	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-FB-40D-200	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-FB-40D-250	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-FB-40D-300	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-FB-40D-350	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-FB-40D-400	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-FB-40D-450	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-FB-40D-500	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-FB-50B-25	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-FB-50B-50	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-FB-50B-75	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-FB-50B-100	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-FB-50B-150	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-FB-50B-200	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-FB-50B-250	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-FB-50B-300	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-FB-50B-350	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-FB-50B-400	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-FB-50B-450	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-FB-50B-500	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-FB-50D-25	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-FB-50D-50	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-FB-50D-75	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-FB-50D-100	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-FB-50D-150	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-FB-50D-200	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-FB-50D-250	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-FB-50D-300	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-FB-50D-350	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-FB-50D-400	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-FB-50D-450	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-FB-50D-500	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-FB-63B-25	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-FB-63B-50	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-FB-63B-75	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-FB-63B-100	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-FB-63B-150	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-FB-63B-200	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-FB-63B-250	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-FB-63B-300	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-FB-63B-350	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-FB-63B-400	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-FB-63B-450	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-FB-63B-500	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-FB-63D-25	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-FB-63D-50	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-FB-63D-75	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-FB-63D-100	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-FB-63D-150	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-FB-63D-200	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-FB-63D-250	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-FB-63D-300	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-FB-63D-350	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-FB-63D-400	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-FB-63D-450	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-FB-63D-500	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-FB-80B-25	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-FB-80B-50	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-FB-80B-75	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-FB-80B-100	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-FB-80B-150	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-FB-80B-200	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-FB-80B-250	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-FB-80B-300	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-FB-80B-350	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-FB-80B-400	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-FB-80B-450	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-FB-80B-500	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-FB-80D-25	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-FB-80D-50	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-FB-80D-75	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-FB-80D-100	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-FB-80D-150	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-FB-80D-200	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-FB-80D-250	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-FB-80D-300	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-FB-80D-350	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-FB-80D-400	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-FB-80D-450	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-FB-80D-500	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-FB-100B-25	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-FB-100B-50	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-FB-100B-75	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-FB-100B-100	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-FB-100B-150	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-FB-100B-200	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-FB-100B-250	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-FB-100B-300	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-FB-100B-350	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-FB-100B-400	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-FB-100B-450	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-FB-100B-500	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-FB-100D-25	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-FB-100D-50	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-FB-100D-75	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-FB-100D-100	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-FB-100D-150	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-FB-100D-200	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-FB-100D-250	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-FB-100D-300	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-FB-100D-350	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-FB-100D-400	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-FB-100D-450	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-FB-100D-500	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-CA-32B-25	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-CA-32B-50	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-CA-32B-75	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-CA-32B-100	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-CA-32B-150	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-CA-32B-200	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-CA-32B-250	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-CA-32B-300	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-CA-32B-350	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-CA-32B-400	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-CA-32B-450	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-CA-32B-500	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-CA-32D-25	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-CA-32D-50	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-CA-32D-75	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-CA-32D-100	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-CA-32D-150	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-CA-32D-200	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-CA-32D-250	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-CA-32D-300	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-CA-32D-350	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-CA-32D-400	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-CA-32D-450	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-CA-32D-500	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-CA-40B-25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-CA-40B-50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-CA-40B-75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-CA-40B-100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-CA-40B-150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-CA-40B-200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-CA-40B-250	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-CA-40B-300	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-CA-40B-350	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-CA-40B-400	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-CA-40B-450	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-CA-40B-500	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-CA-40D-25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-CA-40D-50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-CA-40D-75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-CA-40D-100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-CA-40D-150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-CA-40D-200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-CA-40D-250	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-CA-40D-300	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-CA-40D-350	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-CA-40D-400	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-CA-40D-450	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-CA-40D-500	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-CA-50B-25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-CA-50B-50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-CA-50B-75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-CA-50B-100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-CA-50B-150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-CA-50B-200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-CA-50B-250	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-CA-50B-300	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-CA-50B-350	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-CA-50B-400	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-CA-50B-450	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-CA-50B-500	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-CA-50D-25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-CA-50D-50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-CA-50D-75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-CA-50D-100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-CA-50D-150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-CA-50D-200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-CA-50D-250	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-CA-50D-300	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-CA-50D-350	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-CA-50D-400	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-CA-50D-450	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-CA-50D-500	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-CA-63B-25	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-CA-63B-50	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-CA-63B-75	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-CA-63B-100	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-CA-63B-150	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-CA-63B-200	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-CA-63B-250	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-CA-63B-300	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-CA-63B-350	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-CA-63B-400	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-CA-63B-450	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-CA-63B-500	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-CA-63D-25	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-CA-63D-50	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-CA-63D-75	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-CA-63D-100	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-CA-63D-150	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-CA-63D-200	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-CA-63D-250	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-CA-63D-300	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-CA-63D-350	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-CA-63D-400	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-CA-63D-450	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-CA-63D-500	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-CA-80B-25	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-CA-80B-50	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-CA-80B-75	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-CA-80B-100	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-CA-80B-150	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-CA-80B-200	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-CA-80B-250	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-CA-80B-300	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-CA-80B-350	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-CA-80B-400	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-CA-80B-450	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-CA-80B-500	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-CA-80D-25	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-CA-80D-50	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-CA-80D-75	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-CA-80D-100	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-CA-80D-150	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-CA-80D-200	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-CA-80D-250	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-CA-80D-300	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-CA-80D-350	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-CA-80D-400	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-CA-80D-450	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-CA-80D-500	Mounting: Single clevis (CA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-CA-100B-25	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-CA-100B-50	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-CA-100B-75	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-CA-100B-100	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-CA-100B-150	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-CA-100B-200	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-CA-100B-250	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-CA-100B-300	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-CA-100B-350	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-CA-100B-400	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-CA-100B-450	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-CA-100B-500	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-CA-100D-25	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-CA-100D-50	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-CA-100D-75	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-CA-100D-100	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-CA-100D-150	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-CA-100D-200	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-CA-100D-250	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-CA-100D-300	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-CA-100D-350	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-CA-100D-400	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-CA-100D-450	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-CA-100D-500	Mounting: Single clevis (CA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-CB-32B-25	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-CB-32B-50	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-CB-32B-75	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-CB-32B-100	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-CB-32B-150	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-CB-32B-200	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-CB-32B-250	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-CB-32B-300	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-CB-32B-350	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-CB-32B-400	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-CB-32B-450	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-CB-32B-500	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-CB-32D-25	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-CB-32D-50	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-CB-32D-75	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-CB-32D-100	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-CB-32D-150	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-CB-32D-200	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-CB-32D-250	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-CB-32D-300	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-CB-32D-350	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-CB-32D-400	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-CB-32D-450	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-CB-32D-500	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-CB-40B-25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-CB-40B-50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-CB-40B-75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-CB-40B-100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-CB-40B-150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-CB-40B-200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-CB-40B-250	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-CB-40B-300	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-CB-40B-350	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-CB-40B-400	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-CB-40B-450	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-CB-40B-500	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-CB-40D-25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-CB-40D-50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-CB-40D-75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-CB-40D-100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-CB-40D-150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-CB-40D-200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-CB-40D-250	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-CB-40D-300	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-CB-40D-350	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-CB-40D-400	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-CB-40D-450	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-CB-40D-500	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-CB-50B-25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-CB-50B-50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-CB-50B-75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-CB-50B-100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-CB-50B-150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-CB-50B-200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-CB-50B-250	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-CB-50B-300	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-CB-50B-350	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-CB-50B-400	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-CB-50B-450	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-CB-50B-500	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-CB-50D-25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-CB-50D-50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-CB-50D-75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-CB-50D-100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-CB-50D-150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-CB-50D-200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-CB-50D-250	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-CB-50D-300	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-CB-50D-350	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-CB-50D-400	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-CB-50D-450	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-CB-50D-500	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-CB-63B-25	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-CB-63B-50	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-CB-63B-75	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-CB-63B-100	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-CB-63B-150	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-CB-63B-200	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-CB-63B-250	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-CB-63B-300	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-CB-63B-350	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-CB-63B-400	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-CB-63B-450	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-CB-63B-500	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-CB-63D-25	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-CB-63D-50	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-CB-63D-75	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-CB-63D-100	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-CB-63D-150	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-CB-63D-200	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-CB-63D-250	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-CB-63D-300	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-CB-63D-350	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-CB-63D-400	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-CB-63D-450	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-CB-63D-500	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-CB-80B-25	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-CB-80B-50	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-CB-80B-75	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-CB-80B-100	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-CB-80B-150	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-CB-80B-200	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-CB-80B-250	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-CB-80B-300	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-CB-80B-350	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-CB-80B-400	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-CB-80B-450	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-CB-80B-500	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-CB-80D-25	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-CB-80D-50	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-CB-80D-75	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-CB-80D-100	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-CB-80D-150	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-CB-80D-200	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-CB-80D-250	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-CB-80D-300	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-CB-80D-350	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-CB-80D-400	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-CB-80D-450	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-CB-80D-500	Mounting: Double clevis (CB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-CB-100B-25	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-CB-100B-50	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-CB-100B-75	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-CB-100B-100	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-CB-100B-150	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-CB-100B-200	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-CB-100B-250	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-CB-100B-300	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-CB-100B-350	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-CB-100B-400	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-CB-100B-450	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-CB-100B-500	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-CB-100D-25	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-CB-100D-50	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-CB-100D-75	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-CB-100D-100	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-CB-100D-150	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-CB-100D-200	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-CB-100D-250	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-CB-100D-300	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-CB-100D-350	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-CB-100D-400	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-CB-100D-450	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-CB-100D-500	Mounting: Double clevis (CB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-TA-32B-25	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-TA-32B-50	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-TA-32B-75	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-TA-32B-100	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-TA-32B-150	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-TA-32B-200	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-TA-32B-250	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-TA-32B-300	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-TA-32B-350	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-TA-32B-400	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-TA-32B-450	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-TA-32B-500	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-TA-32D-25	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-TA-32D-50	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-TA-32D-75	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-TA-32D-100	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-TA-32D-150	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-TA-32D-200	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-TA-32D-250	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-TA-32D-300	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-TA-32D-350	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-TA-32D-400	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-TA-32D-450	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-TA-32D-500	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-TA-40B-25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-TA-40B-50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-TA-40B-75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-TA-40B-100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-TA-40B-150	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-TA-40B-200	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-TA-40B-250	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-TA-40B-300	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-TA-40B-350	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-TA-40B-400	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-TA-40B-450	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-TA-40B-500	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-TA-40D-25	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-TA-40D-50	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-TA-40D-75	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-TA-40D-100	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-TA-40D-150	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-TA-40D-200	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-TA-40D-250	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-TA-40D-300	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-TA-40D-350	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-TA-40D-400	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-TA-40D-450	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-TA-40D-500	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-TA-50B-25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-TA-50B-50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-TA-50B-75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-TA-50B-100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-TA-50B-150	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-TA-50B-200	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-TA-50B-250	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-TA-50B-300	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-TA-50B-350	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-TA-50B-400	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-TA-50B-450	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-TA-50B-500	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-TA-50D-25	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-TA-50D-50	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-TA-50D-75	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-TA-50D-100	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-TA-50D-150	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-TA-50D-200	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-TA-50D-250	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-TA-50D-300	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-TA-50D-350	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-TA-50D-400	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-TA-50D-450	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-TA-50D-500	Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-TA-63B-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-TA-63B-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-TA-63B-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-TA-63B-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-TA-63B-150	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-TA-63B-200	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-TA-63B-250	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-TA-63B-300	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-TA-63B-350	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-TA-63B-400	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-TA-63B-450	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-TA-63B-500	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-TA-63D-25	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-TA-63D-50	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-TA-63D-75	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-TA-63D-100	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-TA-63D-150	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-TA-63D-200	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-TA-63D-250	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-TA-63D-300	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-TA-63D-350	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-TA-63D-400	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-TA-63D-450	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-TA-63D-500	Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-TA-80B-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-TA-80B-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-TA-80B-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-TA-80B-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-TA-80B-150	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-TA-80B-200	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-TA-80B-250	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-TA-80B-300	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-TA-80B-350	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-TA-80B-400	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-TA-80B-450	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-TA-80B-500	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-TA-80D-25	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-TA-80D-50	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-TA-80D-75	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-TA-80D-100	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-TA-80D-150	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-TA-80D-200	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-TA-80D-250	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-TA-80D-300	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-TA-80D-350	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-TA-80D-400	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-TA-80D-450	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-TA-80D-500	Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-TA-100B-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-TA-100B-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-TA-100B-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-TA-100B-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-TA-100B-150	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-TA-100B-200	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-TA-100B-250	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-TA-100B-300	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-TA-100B-350	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-TA-100B-400	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-TA-100B-450	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-TA-100B-500	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-TA-100D-25	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-TA-100D-50	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-TA-100D-75	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-TA-100D-100	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-TA-100D-150	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-TA-100D-200	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-TA-100D-250	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-TA-100D-300	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-TA-100D-350	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-TA-100D-400	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-TA-100D-450	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-TA-100D-500	Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-TB-32B-25	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-TB-32B-50	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-TB-32B-75	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-TB-32B-100	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-TB-32B-150	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-TB-32B-200	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-TB-32B-250	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-TB-32B-300	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-TB-32B-350	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-TB-32B-400	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-TB-32B-450	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-TB-32B-500	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-TB-32D-25	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-TB-32D-50	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-TB-32D-75	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-TB-32D-100	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-TB-32D-150	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-TB-32D-200	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-TB-32D-250	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-TB-32D-300	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-TB-32D-350	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-TB-32D-400	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-TB-32D-450	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-TB-32D-500	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-TB-40B-25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-TB-40B-50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-TB-40B-75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-TB-40B-100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-TB-40B-150	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-TB-40B-200	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-TB-40B-250	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-TB-40B-300	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-TB-40B-350	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-TB-40B-400	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-TB-40B-450	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-TB-40B-500	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-TB-40D-25	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-TB-40D-50	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-TB-40D-75	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-TB-40D-100	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-TB-40D-150	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-TB-40D-200	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-TB-40D-250	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-TB-40D-300	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-TB-40D-350	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-TB-40D-400	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-TB-40D-450	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-TB-40D-500	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-TB-50B-25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-TB-50B-50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-TB-50B-75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-TB-50B-100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-TB-50B-150	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-TB-50B-200	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-TB-50B-250	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-TB-50B-300	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-TB-50B-350	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-TB-50B-400	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-TB-50B-450	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-TB-50B-500	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-TB-50D-25	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-TB-50D-50	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-TB-50D-75	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-TB-50D-100	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-TB-50D-150	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-TB-50D-200	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-TB-50D-250	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-TB-50D-300	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-TB-50D-350	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-TB-50D-400	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-TB-50D-450	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-TB-50D-500	Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-TB-63B-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-TB-63B-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-TB-63B-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-TB-63B-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-TB-63B-150	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-TB-63B-200	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-TB-63B-250	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-TB-63B-300	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-TB-63B-350	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-TB-63B-400	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-TB-63B-450	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-TB-63B-500	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-TB-63D-25	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-TB-63D-50	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-TB-63D-75	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-TB-63D-100	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-TB-63D-150	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-TB-63D-200	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-TB-63D-250	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-TB-63D-300	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-TB-63D-350	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-TB-63D-400	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-TB-63D-450	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-TB-63D-500	Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-TB-80B-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-TB-80B-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-TB-80B-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-TB-80B-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-TB-80B-150	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-TB-80B-200	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-TB-80B-250	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-TB-80B-300	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-TB-80B-350	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-TB-80B-400	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-TB-80B-450	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-TB-80B-500	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-TB-80D-25	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-TB-80D-50	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-TB-80D-75	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-TB-80D-100	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-TB-80D-150	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-TB-80D-200	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-TB-80D-250	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-TB-80D-300	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-TB-80D-350	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-TB-80D-400	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-TB-80D-450	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-TB-80D-500	Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-TB-100B-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-TB-100B-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-TB-100B-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-TB-100B-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-TB-100B-150	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-TB-100B-200	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-TB-100B-250	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-TB-100B-300	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-TB-100B-350	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-TB-100B-400	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-TB-100B-450	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-TB-100B-500	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-TB-100D-25	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-TB-100D-50	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-TB-100D-75	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-TB-100D-100	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-TB-100D-150	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-TB-100D-200	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-TB-100D-250	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-TB-100D-300	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-TB-100D-350	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-TB-100D-400	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-TB-100D-450	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-TB-100D-500	Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-TC-32B-25	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-TC-32B-50	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-TC-32B-75	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-TC-32B-100	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-TC-32B-150	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-TC-32B-200	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-TC-32B-250	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-TC-32B-300	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-TC-32B-350	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-TC-32B-400	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-TC-32B-450	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-TC-32B-500	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-TC-32D-25	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-G-TC-32D-50	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-G-TC-32D-75	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-G-TC-32D-100	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-G-TC-32D-150	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-G-TC-32D-200	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-G-TC-32D-250	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-G-TC-32D-300	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-G-TC-32D-350	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-G-TC-32D-400	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-G-TC-32D-450	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-G-TC-32D-500	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-G-TC-40B-25	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-TC-40B-50	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-TC-40B-75	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-TC-40B-100	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-TC-40B-150	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-TC-40B-200	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-TC-40B-250	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-TC-40B-300	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-TC-40B-350	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-TC-40B-400	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-TC-40B-450	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-TC-40B-500	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-TC-40D-25	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-TC-40D-50	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-TC-40D-75	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-TC-40D-100	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-TC-40D-150	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-TC-40D-200	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-TC-40D-250	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-TC-40D-300	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-TC-40D-350	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-TC-40D-400	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-TC-40D-450	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-TC-40D-500	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-TC-50B-25	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-TC-50B-50	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-TC-50B-75	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-TC-50B-100	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-TC-50B-150	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-TC-50B-200	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-TC-50B-250	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-TC-50B-300	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-TC-50B-350	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-TC-50B-400	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-TC-50B-450	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-TC-50B-500	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-TC-50D-25	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G-TC-50D-50	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G-TC-50D-75	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G-TC-50D-100	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G-TC-50D-150	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G-TC-50D-200	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G-TC-50D-250	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G-TC-50D-300	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G-TC-50D-350	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G-TC-50D-400	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G-TC-50D-450	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G-TC-50D-500	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G-TC-63B-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-TC-63B-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-TC-63B-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-TC-63B-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-TC-63B-150	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-TC-63B-200	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-TC-63B-250	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-TC-63B-300	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-TC-63B-350	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-TC-63B-400	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-TC-63B-450	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-TC-63B-500	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-TC-63D-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-TC-63D-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-TC-63D-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-TC-63D-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-TC-63D-150	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-TC-63D-200	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-TC-63D-250	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-TC-63D-300	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-TC-63D-350	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-TC-63D-400	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-TC-63D-450	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-TC-63D-500	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-TC-80B-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-TC-80B-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-TC-80B-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-TC-80B-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-TC-80B-150	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-TC-80B-200	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-TC-80B-250	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-TC-80B-300	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-TC-80B-350	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-TC-80B-400	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-TC-80B-450	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-TC-80B-500	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-TC-80D-25	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G-TC-80D-50	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G-TC-80D-75	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G-TC-80D-100	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G-TC-80D-150	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G-TC-80D-200	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G-TC-80D-250	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G-TC-80D-300	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G-TC-80D-350	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G-TC-80D-400	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G-TC-80D-450	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G-TC-80D-500	Mounting: Center trunnion (TC) \| Bore: 80 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G-TC-100B-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-TC-100B-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-TC-100B-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-TC-100B-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-TC-100B-150	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-TC-100B-200	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-TC-100B-250	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-TC-100B-300	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-TC-100B-350	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-TC-100B-400	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-TC-100B-450	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-TC-100B-500	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Air, both ends \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G-TC-100D-25	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G-TC-100D-50	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G-TC-100D-75	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G-TC-100D-100	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G-TC-100D-150	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G-TC-100D-200	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G-TC-100D-250	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G-TC-100D-300	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G-TC-100D-350	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G-TC-100D-400	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G-TC-100D-450	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G-TC-100D-500	Mounting: Center trunnion (TC) \| Bore: 100 mm \| Cushion: Rubber, both ends \| Stroke: 500 mm \| Port: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCG-G Tie-Rod Cylinder (Strong Scraper, Bore 32-100)
