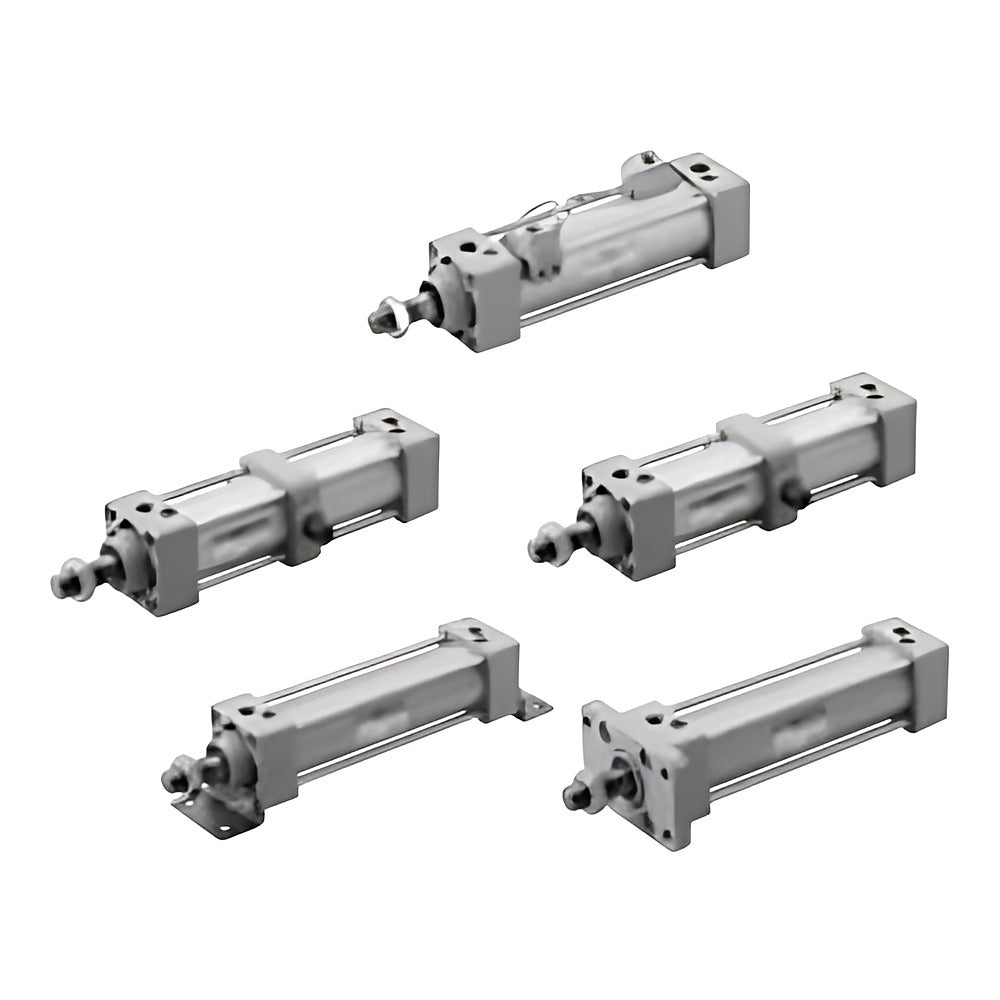

CKD SCG-G2/G3 Tie-Rod Cylinder (Coolant Resistant, Bore 40-100)

CKD SCG-G2/G3 double-acting tie-rod cylinder with a cutting-fluid resistant scraper and packing for machine-tool environments, bore 40 to 100 mm.

Key features

Protection level G2: coolant-resistant scraper with NBR packing; G3: with FKM packing
Nine mounting styles: basic, foot, rod/head flange, single/double clevis, rod/head/center trunnion
Air cushion at both ends (B); built-in switch magnet for T2YLH/T3YLH 2-colour solid-state switches
Standard strokes 25 to 500 mm; intermediate strokes in 1 mm steps (max 1500 mm on order)
Bore 32 and rubber cushion on request; NPT/G port threads made to order

Specifications

Action	Double acting, coolant resistant
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.1 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Piston speed	50 to 1000 mm/s
Cushion	Air cushion, both ends (B)
Lubrication	Not required
Source	CKD Korea catalog CB-029SK-9, p. 512-517

SCG-G2-00-40B-25		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-00-40B-50		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-00-40B-75		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-00-40B-100		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-00-40B-150		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-00-40B-200		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-00-40B-250		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-00-40B-300		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-00-40B-350		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-00-40B-400		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-00-40B-450		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-00-40B-500		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-00-50B-25		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-00-50B-50		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-00-50B-75		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-00-50B-100		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-00-50B-150		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-00-50B-200		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-00-50B-250		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-00-50B-300		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-00-50B-350		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-00-50B-400		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-00-50B-450		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-00-50B-500		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-00-63B-25		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-00-63B-50		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-00-63B-75		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-00-63B-100		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-00-63B-150		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-00-63B-200		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-00-63B-250		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-00-63B-300		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-00-63B-350		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-00-63B-400		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-00-63B-450		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-00-63B-500		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-00-80B-25		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-00-80B-50		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-00-80B-75		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-00-80B-100		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-00-80B-150		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-00-80B-200		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-00-80B-250		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-00-80B-300		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-00-80B-350		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-00-80B-400		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-00-80B-450		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-00-80B-500		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-00-100B-25		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G2-00-100B-50		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G2-00-100B-75		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G2-00-100B-100		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G2-00-100B-150		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G2-00-100B-200		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G2-00-100B-250		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G2-00-100B-300		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G2-00-100B-350		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G2-00-100B-400		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G2-00-100B-450		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G2-00-100B-500		Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G2-LB-40B-25		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-LB-40B-50		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-LB-40B-75		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-LB-40B-100		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-LB-40B-150		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-LB-40B-200		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-LB-40B-250		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-LB-40B-300		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-LB-40B-350		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-LB-40B-400		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-LB-40B-450		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-LB-40B-500		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-LB-50B-25		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-LB-50B-50		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-LB-50B-75		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-LB-50B-100		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-LB-50B-150		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-LB-50B-200		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-LB-50B-250		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-LB-50B-300		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-LB-50B-350		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-LB-50B-400		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-LB-50B-450		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-LB-50B-500		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-LB-63B-25		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-LB-63B-50		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-LB-63B-75		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-LB-63B-100		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-LB-63B-150		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-LB-63B-200		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-LB-63B-250		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-LB-63B-300		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-LB-63B-350		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-LB-63B-400		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-LB-63B-450		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-LB-63B-500		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-LB-80B-25		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-LB-80B-50		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-LB-80B-75		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-LB-80B-100		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-LB-80B-150		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-LB-80B-200		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-LB-80B-250		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-LB-80B-300		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-LB-80B-350		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-LB-80B-400		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-LB-80B-450		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-LB-80B-500		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-LB-100B-25		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G2-LB-100B-50		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G2-LB-100B-75		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G2-LB-100B-100		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G2-LB-100B-150		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G2-LB-100B-200		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G2-LB-100B-250		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G2-LB-100B-300		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G2-LB-100B-350		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G2-LB-100B-400		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G2-LB-100B-450		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G2-LB-100B-500		Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G2-FA-40B-25		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-FA-40B-50		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-FA-40B-75		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-FA-40B-100		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-FA-40B-150		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-FA-40B-200		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-FA-40B-250		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-FA-40B-300		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-FA-40B-350		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-FA-40B-400		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-FA-40B-450		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-FA-40B-500		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-FA-50B-25		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-FA-50B-50		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-FA-50B-75		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-FA-50B-100		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-FA-50B-150		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-FA-50B-200		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-FA-50B-250		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-FA-50B-300		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-FA-50B-350		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-FA-50B-400		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-FA-50B-450		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-FA-50B-500		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-FA-63B-25		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-FA-63B-50		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-FA-63B-75		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-FA-63B-100		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-FA-63B-150		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-FA-63B-200		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-FA-63B-250		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-FA-63B-300		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-FA-63B-350		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-FA-63B-400		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-FA-63B-450		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-FA-63B-500		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-FA-80B-25		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-FA-80B-50		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-FA-80B-75		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-FA-80B-100		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-FA-80B-150		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-FA-80B-200		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-FA-80B-250		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-FA-80B-300		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-FA-80B-350		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-FA-80B-400		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-FA-80B-450		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-FA-80B-500		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-FA-100B-25		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G2-FA-100B-50		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G2-FA-100B-75		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G2-FA-100B-100		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G2-FA-100B-150		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G2-FA-100B-200		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G2-FA-100B-250		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G2-FA-100B-300		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G2-FA-100B-350		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G2-FA-100B-400		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G2-FA-100B-450		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G2-FA-100B-500		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G2-FB-40B-25		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-FB-40B-50		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-FB-40B-75		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-FB-40B-100		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-FB-40B-150		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-FB-40B-200		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-FB-40B-250		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-FB-40B-300		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-FB-40B-350		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-FB-40B-400		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-FB-40B-450		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-FB-40B-500		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-FB-50B-25		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-FB-50B-50		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-FB-50B-75		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-FB-50B-100		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-FB-50B-150		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-FB-50B-200		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-FB-50B-250		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-FB-50B-300		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-FB-50B-350		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-FB-50B-400		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-FB-50B-450		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-FB-50B-500		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-FB-63B-25		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-FB-63B-50		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-FB-63B-75		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-FB-63B-100		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-FB-63B-150		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-FB-63B-200		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-FB-63B-250		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-FB-63B-300		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-FB-63B-350		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-FB-63B-400		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-FB-63B-450		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-FB-63B-500		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-FB-80B-25		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-FB-80B-50		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-FB-80B-75		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-FB-80B-100		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-FB-80B-150		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-FB-80B-200		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-FB-80B-250		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-FB-80B-300		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-FB-80B-350		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-FB-80B-400		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-FB-80B-450		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-FB-80B-500		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-FB-100B-25		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G2-FB-100B-50		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G2-FB-100B-75		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G2-FB-100B-100		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G2-FB-100B-150		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G2-FB-100B-200		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G2-FB-100B-250		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G2-FB-100B-300		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G2-FB-100B-350		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G2-FB-100B-400		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G2-FB-100B-450		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G2-FB-100B-500		Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G2-CA-40B-25		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-CA-40B-50		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-CA-40B-75		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-CA-40B-100		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-CA-40B-150		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-CA-40B-200		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-CA-40B-250		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-CA-40B-300		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-CA-40B-350		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-CA-40B-400		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-CA-40B-450		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-CA-40B-500		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-CA-50B-25		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-CA-50B-50		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-CA-50B-75		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-CA-50B-100		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-CA-50B-150		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-CA-50B-200		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-CA-50B-250		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-CA-50B-300		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-CA-50B-350		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-CA-50B-400		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-CA-50B-450		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-CA-50B-500		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-CA-63B-25		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-CA-63B-50		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-CA-63B-75		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-CA-63B-100		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-CA-63B-150		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-CA-63B-200		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-CA-63B-250		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-CA-63B-300		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-CA-63B-350		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-CA-63B-400		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-CA-63B-450		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-CA-63B-500		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-CA-80B-25		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-CA-80B-50		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-CA-80B-75		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-CA-80B-100		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-CA-80B-150		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-CA-80B-200		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-CA-80B-250		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-CA-80B-300		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-CA-80B-350		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-CA-80B-400		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-CA-80B-450		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-CA-80B-500		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-CA-100B-25		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G2-CA-100B-50		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G2-CA-100B-75		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G2-CA-100B-100		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G2-CA-100B-150		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G2-CA-100B-200		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G2-CA-100B-250		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G2-CA-100B-300		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G2-CA-100B-350		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G2-CA-100B-400		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G2-CA-100B-450		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G2-CA-100B-500		Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G2-CB-40B-25		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-CB-40B-50		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-CB-40B-75		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-CB-40B-100		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-CB-40B-150		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-CB-40B-200		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-CB-40B-250		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-CB-40B-300		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-CB-40B-350		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-CB-40B-400		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-CB-40B-450		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-CB-40B-500		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-CB-50B-25		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-CB-50B-50		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-CB-50B-75		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-CB-50B-100		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-CB-50B-150		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-CB-50B-200		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-CB-50B-250		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-CB-50B-300		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-CB-50B-350		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-CB-50B-400		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-CB-50B-450		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-CB-50B-500		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-CB-63B-25		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-CB-63B-50		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-CB-63B-75		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-CB-63B-100		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-CB-63B-150		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-CB-63B-200		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-CB-63B-250		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-CB-63B-300		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-CB-63B-350		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-CB-63B-400		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-CB-63B-450		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-CB-63B-500		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-CB-80B-25		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-CB-80B-50		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-CB-80B-75		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-CB-80B-100		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-CB-80B-150		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-CB-80B-200		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-CB-80B-250		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-CB-80B-300		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-CB-80B-350		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-CB-80B-400		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-CB-80B-450		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-CB-80B-500		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-CB-100B-25		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G2-CB-100B-50		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G2-CB-100B-75		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G2-CB-100B-100		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G2-CB-100B-150		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G2-CB-100B-200		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G2-CB-100B-250		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G2-CB-100B-300		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G2-CB-100B-350		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G2-CB-100B-400		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G2-CB-100B-450		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G2-CB-100B-500		Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G2-TA-40B-25		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-TA-40B-50		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-TA-40B-75		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-TA-40B-100		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-TA-40B-150		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-TA-40B-200		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-TA-40B-250		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-TA-40B-300		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-TA-40B-350		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-TA-40B-400		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-TA-40B-450		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-TA-40B-500		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-TA-50B-25		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-TA-50B-50		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-TA-50B-75		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-TA-50B-100		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-TA-50B-150		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-TA-50B-200		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-TA-50B-250		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-TA-50B-300		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-TA-50B-350		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-TA-50B-400		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-TA-50B-450		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-TA-50B-500		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-TA-63B-25		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-TA-63B-50		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-TA-63B-75		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-TA-63B-100		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-TA-63B-150		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-TA-63B-200		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-TA-63B-250		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-TA-63B-300		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-TA-63B-350		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-TA-63B-400		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-TA-63B-450		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-TA-63B-500		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-TA-80B-25		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-TA-80B-50		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-TA-80B-75		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-TA-80B-100		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-TA-80B-150		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-TA-80B-200		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-TA-80B-250		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-TA-80B-300		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-TA-80B-350		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-TA-80B-400		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-TA-80B-450		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-TA-80B-500		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-TA-100B-25		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G2-TA-100B-50		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G2-TA-100B-75		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G2-TA-100B-100		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G2-TA-100B-150		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G2-TA-100B-200		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G2-TA-100B-250		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G2-TA-100B-300		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G2-TA-100B-350		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G2-TA-100B-400		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G2-TA-100B-450		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G2-TA-100B-500		Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G2-TB-40B-25		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-TB-40B-50		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-TB-40B-75		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-TB-40B-100		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-TB-40B-150		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-TB-40B-200		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-TB-40B-250		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-TB-40B-300		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-TB-40B-350		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-TB-40B-400		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-TB-40B-450		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-TB-40B-500		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-TB-50B-25		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-TB-50B-50		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-TB-50B-75		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-TB-50B-100		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-TB-50B-150		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-TB-50B-200		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-TB-50B-250		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-TB-50B-300		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-TB-50B-350		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-TB-50B-400		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-TB-50B-450		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-TB-50B-500		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-TB-63B-25		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-TB-63B-50		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-TB-63B-75		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-TB-63B-100		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-TB-63B-150		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-TB-63B-200		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-TB-63B-250		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-TB-63B-300		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-TB-63B-350		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-TB-63B-400		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-TB-63B-450		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-TB-63B-500		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-TB-80B-25		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-TB-80B-50		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-TB-80B-75		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-TB-80B-100		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-TB-80B-150		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-TB-80B-200		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-TB-80B-250		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-TB-80B-300		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-TB-80B-350		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-TB-80B-400		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-TB-80B-450		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-TB-80B-500		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-TB-100B-25		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G2-TB-100B-50		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G2-TB-100B-75		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G2-TB-100B-100		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G2-TB-100B-150		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G2-TB-100B-200		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G2-TB-100B-250		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G2-TB-100B-300		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G2-TB-100B-350		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G2-TB-100B-400		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G2-TB-100B-450		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G2-TB-100B-500		Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G2-TC-40B-25		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-TC-40B-50		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-TC-40B-75		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-TC-40B-100		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-TC-40B-150		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-TC-40B-200		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-TC-40B-250		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-TC-40B-300		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-TC-40B-350		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-TC-40B-400		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-TC-40B-450		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-TC-40B-500		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-TC-50B-25		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G2-TC-50B-50		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G2-TC-50B-75		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G2-TC-50B-100		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G2-TC-50B-150		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G2-TC-50B-200		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G2-TC-50B-250		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G2-TC-50B-300		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G2-TC-50B-350		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G2-TC-50B-400		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G2-TC-50B-450		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G2-TC-50B-500		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G2-TC-63B-25		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-TC-63B-50		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-TC-63B-75		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-TC-63B-100		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-TC-63B-150		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-TC-63B-200		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-TC-63B-250		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-TC-63B-300		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-TC-63B-350		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-TC-63B-400		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-TC-63B-450		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-TC-63B-500		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-TC-80B-25		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G2-TC-80B-50		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G2-TC-80B-75		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G2-TC-80B-100		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G2-TC-80B-150		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G2-TC-80B-200		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G2-TC-80B-250		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G2-TC-80B-300		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G2-TC-80B-350		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G2-TC-80B-400		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G2-TC-80B-450		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G2-TC-80B-500		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G2-TC-100B-25		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G2-TC-100B-50		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G2-TC-100B-75		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G2-TC-100B-100		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G2-TC-100B-150		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G2-TC-100B-200		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G2-TC-100B-250		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G2-TC-100B-300		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G2-TC-100B-350		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G2-TC-100B-400		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G2-TC-100B-450		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G2-TC-100B-500		Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G3-00-40B-25		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-00-40B-50		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-00-40B-75		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-00-40B-100		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-00-40B-150		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-00-40B-200		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-00-40B-250		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-00-40B-300		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-00-40B-350		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-00-40B-400		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-00-40B-450		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-00-40B-500		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-00-50B-25		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-00-50B-50		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-00-50B-75		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-00-50B-100		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-00-50B-150		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-00-50B-200		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-00-50B-250		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-00-50B-300		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-00-50B-350		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-00-50B-400		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-00-50B-450		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-00-50B-500		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-00-63B-25		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-00-63B-50		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-00-63B-75		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-00-63B-100		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-00-63B-150		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-00-63B-200		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-00-63B-250		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-00-63B-300		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-00-63B-350		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-00-63B-400		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-00-63B-450		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-00-63B-500		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-00-80B-25		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-00-80B-50		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-00-80B-75		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-00-80B-100		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-00-80B-150		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-00-80B-200		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-00-80B-250		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-00-80B-300		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-00-80B-350		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-00-80B-400		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-00-80B-450		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-00-80B-500		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-00-100B-25		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G3-00-100B-50		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G3-00-100B-75		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G3-00-100B-100		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G3-00-100B-150		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G3-00-100B-200		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G3-00-100B-250		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G3-00-100B-300		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G3-00-100B-350		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G3-00-100B-400		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G3-00-100B-450		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G3-00-100B-500		Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G3-LB-40B-25		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-LB-40B-50		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-LB-40B-75		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-LB-40B-100		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-LB-40B-150		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-LB-40B-200		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-LB-40B-250		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-LB-40B-300		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-LB-40B-350		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-LB-40B-400		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-LB-40B-450		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-LB-40B-500		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-LB-50B-25		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-LB-50B-50		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-LB-50B-75		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-LB-50B-100		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-LB-50B-150		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-LB-50B-200		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-LB-50B-250		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-LB-50B-300		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-LB-50B-350		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-LB-50B-400		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-LB-50B-450		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-LB-50B-500		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-LB-63B-25		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-LB-63B-50		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-LB-63B-75		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-LB-63B-100		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-LB-63B-150		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-LB-63B-200		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-LB-63B-250		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-LB-63B-300		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-LB-63B-350		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-LB-63B-400		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-LB-63B-450		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-LB-63B-500		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-LB-80B-25		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-LB-80B-50		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-LB-80B-75		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-LB-80B-100		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-LB-80B-150		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-LB-80B-200		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-LB-80B-250		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-LB-80B-300		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-LB-80B-350		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-LB-80B-400		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-LB-80B-450		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-LB-80B-500		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-LB-100B-25		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G3-LB-100B-50		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G3-LB-100B-75		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G3-LB-100B-100		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G3-LB-100B-150		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G3-LB-100B-200		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G3-LB-100B-250		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G3-LB-100B-300		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G3-LB-100B-350		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G3-LB-100B-400		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G3-LB-100B-450		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G3-LB-100B-500		Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G3-FA-40B-25		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-FA-40B-50		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-FA-40B-75		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-FA-40B-100		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-FA-40B-150		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-FA-40B-200		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-FA-40B-250		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-FA-40B-300		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-FA-40B-350		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-FA-40B-400		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-FA-40B-450		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-FA-40B-500		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-FA-50B-25		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-FA-50B-50		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-FA-50B-75		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-FA-50B-100		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-FA-50B-150		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-FA-50B-200		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-FA-50B-250		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-FA-50B-300		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-FA-50B-350		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-FA-50B-400		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-FA-50B-450		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-FA-50B-500		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-FA-63B-25		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-FA-63B-50		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-FA-63B-75		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-FA-63B-100		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-FA-63B-150		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-FA-63B-200		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-FA-63B-250		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-FA-63B-300		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-FA-63B-350		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-FA-63B-400		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-FA-63B-450		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-FA-63B-500		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-FA-80B-25		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-FA-80B-50		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-FA-80B-75		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-FA-80B-100		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-FA-80B-150		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-FA-80B-200		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-FA-80B-250		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-FA-80B-300		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-FA-80B-350		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-FA-80B-400		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-FA-80B-450		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-FA-80B-500		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-FA-100B-25		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G3-FA-100B-50		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G3-FA-100B-75		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G3-FA-100B-100		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G3-FA-100B-150		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G3-FA-100B-200		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G3-FA-100B-250		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G3-FA-100B-300		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G3-FA-100B-350		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G3-FA-100B-400		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G3-FA-100B-450		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G3-FA-100B-500		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G3-FB-40B-25		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-FB-40B-50		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-FB-40B-75		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-FB-40B-100		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-FB-40B-150		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-FB-40B-200		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-FB-40B-250		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-FB-40B-300		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-FB-40B-350		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-FB-40B-400		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-FB-40B-450		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-FB-40B-500		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-FB-50B-25		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-FB-50B-50		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-FB-50B-75		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-FB-50B-100		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-FB-50B-150		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-FB-50B-200		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-FB-50B-250		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-FB-50B-300		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-FB-50B-350		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-FB-50B-400		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-FB-50B-450		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-FB-50B-500		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-FB-63B-25		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-FB-63B-50		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-FB-63B-75		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-FB-63B-100		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-FB-63B-150		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-FB-63B-200		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-FB-63B-250		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-FB-63B-300		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-FB-63B-350		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-FB-63B-400		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-FB-63B-450		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-FB-63B-500		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-FB-80B-25		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-FB-80B-50		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-FB-80B-75		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-FB-80B-100		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-FB-80B-150		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-FB-80B-200		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-FB-80B-250		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-FB-80B-300		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-FB-80B-350		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-FB-80B-400		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-FB-80B-450		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-FB-80B-500		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-FB-100B-25		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G3-FB-100B-50		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G3-FB-100B-75		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G3-FB-100B-100		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G3-FB-100B-150		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G3-FB-100B-200		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G3-FB-100B-250		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G3-FB-100B-300		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G3-FB-100B-350		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G3-FB-100B-400		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G3-FB-100B-450		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G3-FB-100B-500		Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G3-CA-40B-25		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-CA-40B-50		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-CA-40B-75		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-CA-40B-100		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-CA-40B-150		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-CA-40B-200		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-CA-40B-250		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-CA-40B-300		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-CA-40B-350		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-CA-40B-400		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-CA-40B-450		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-CA-40B-500		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-CA-50B-25		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-CA-50B-50		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-CA-50B-75		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-CA-50B-100		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-CA-50B-150		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-CA-50B-200		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-CA-50B-250		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-CA-50B-300		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-CA-50B-350		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-CA-50B-400		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-CA-50B-450		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-CA-50B-500		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-CA-63B-25		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-CA-63B-50		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-CA-63B-75		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-CA-63B-100		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-CA-63B-150		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-CA-63B-200		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-CA-63B-250		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-CA-63B-300		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-CA-63B-350		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-CA-63B-400		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-CA-63B-450		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-CA-63B-500		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-CA-80B-25		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-CA-80B-50		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-CA-80B-75		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-CA-80B-100		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-CA-80B-150		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-CA-80B-200		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-CA-80B-250		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-CA-80B-300		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-CA-80B-350		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-CA-80B-400		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-CA-80B-450		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-CA-80B-500		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-CA-100B-25		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G3-CA-100B-50		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G3-CA-100B-75		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G3-CA-100B-100		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G3-CA-100B-150		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G3-CA-100B-200		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G3-CA-100B-250		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G3-CA-100B-300		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G3-CA-100B-350		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G3-CA-100B-400		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G3-CA-100B-450		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G3-CA-100B-500		Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G3-CB-40B-25		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-CB-40B-50		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-CB-40B-75		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-CB-40B-100		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-CB-40B-150		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-CB-40B-200		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-CB-40B-250		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-CB-40B-300		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-CB-40B-350		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-CB-40B-400		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-CB-40B-450		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-CB-40B-500		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-CB-50B-25		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-CB-50B-50		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-CB-50B-75		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-CB-50B-100		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-CB-50B-150		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-CB-50B-200		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-CB-50B-250		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-CB-50B-300		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-CB-50B-350		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-CB-50B-400		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-CB-50B-450		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-CB-50B-500		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-CB-63B-25		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-CB-63B-50		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-CB-63B-75		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-CB-63B-100		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-CB-63B-150		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-CB-63B-200		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-CB-63B-250		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-CB-63B-300		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-CB-63B-350		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-CB-63B-400		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-CB-63B-450		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-CB-63B-500		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-CB-80B-25		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-CB-80B-50		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-CB-80B-75		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-CB-80B-100		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-CB-80B-150		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-CB-80B-200		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-CB-80B-250		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-CB-80B-300		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-CB-80B-350		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-CB-80B-400		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-CB-80B-450		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-CB-80B-500		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-CB-100B-25		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G3-CB-100B-50		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G3-CB-100B-75		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G3-CB-100B-100		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G3-CB-100B-150		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G3-CB-100B-200		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G3-CB-100B-250		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G3-CB-100B-300		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G3-CB-100B-350		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G3-CB-100B-400		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G3-CB-100B-450		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G3-CB-100B-500		Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G3-TA-40B-25		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-TA-40B-50		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-TA-40B-75		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-TA-40B-100		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-TA-40B-150		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-TA-40B-200		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-TA-40B-250		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-TA-40B-300		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-TA-40B-350		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-TA-40B-400		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-TA-40B-450		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-TA-40B-500		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-TA-50B-25		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-TA-50B-50		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-TA-50B-75		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-TA-50B-100		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-TA-50B-150		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-TA-50B-200		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-TA-50B-250		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-TA-50B-300		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-TA-50B-350		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-TA-50B-400		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-TA-50B-450		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-TA-50B-500		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-TA-63B-25		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-TA-63B-50		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-TA-63B-75		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-TA-63B-100		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-TA-63B-150		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-TA-63B-200		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-TA-63B-250		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-TA-63B-300		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-TA-63B-350		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-TA-63B-400		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-TA-63B-450		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-TA-63B-500		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-TA-80B-25		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-TA-80B-50		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-TA-80B-75		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-TA-80B-100		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-TA-80B-150		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-TA-80B-200		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-TA-80B-250		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-TA-80B-300		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-TA-80B-350		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-TA-80B-400		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-TA-80B-450		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-TA-80B-500		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-TA-100B-25		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G3-TA-100B-50		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G3-TA-100B-75		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G3-TA-100B-100		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G3-TA-100B-150		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G3-TA-100B-200		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G3-TA-100B-250		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G3-TA-100B-300		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G3-TA-100B-350		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G3-TA-100B-400		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G3-TA-100B-450		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G3-TA-100B-500		Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G3-TB-40B-25		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-TB-40B-50		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-TB-40B-75		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-TB-40B-100		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-TB-40B-150		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-TB-40B-200		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-TB-40B-250		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-TB-40B-300		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-TB-40B-350		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-TB-40B-400		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-TB-40B-450		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-TB-40B-500		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-TB-50B-25		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-TB-50B-50		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-TB-50B-75		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-TB-50B-100		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-TB-50B-150		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-TB-50B-200		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-TB-50B-250		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-TB-50B-300		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-TB-50B-350		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-TB-50B-400		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-TB-50B-450		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-TB-50B-500		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-TB-63B-25		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-TB-63B-50		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-TB-63B-75		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-TB-63B-100		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-TB-63B-150		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-TB-63B-200		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-TB-63B-250		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-TB-63B-300		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-TB-63B-350		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-TB-63B-400		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-TB-63B-450		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-TB-63B-500		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-TB-80B-25		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-TB-80B-50		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-TB-80B-75		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-TB-80B-100		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-TB-80B-150		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-TB-80B-200		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-TB-80B-250		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-TB-80B-300		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-TB-80B-350		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-TB-80B-400		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-TB-80B-450		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-TB-80B-500		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-TB-100B-25		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G3-TB-100B-50		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G3-TB-100B-75		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G3-TB-100B-100		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G3-TB-100B-150		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G3-TB-100B-200		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G3-TB-100B-250		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G3-TB-100B-300		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G3-TB-100B-350		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G3-TB-100B-400		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G3-TB-100B-450		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G3-TB-100B-500		Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
SCG-G3-TC-40B-25		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-TC-40B-50		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-TC-40B-75		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-TC-40B-100		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-TC-40B-150		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-TC-40B-200		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-TC-40B-250		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-TC-40B-300		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-TC-40B-350		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-TC-40B-400		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-TC-40B-450		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-TC-40B-500		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-TC-50B-25		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
SCG-G3-TC-50B-50		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
SCG-G3-TC-50B-75		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
SCG-G3-TC-50B-100		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
SCG-G3-TC-50B-150		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
SCG-G3-TC-50B-200		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
SCG-G3-TC-50B-250		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
SCG-G3-TC-50B-300		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
SCG-G3-TC-50B-350		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
SCG-G3-TC-50B-400		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
SCG-G3-TC-50B-450		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
SCG-G3-TC-50B-500		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
SCG-G3-TC-63B-25		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-TC-63B-50		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-TC-63B-75		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-TC-63B-100		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-TC-63B-150		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-TC-63B-200		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-TC-63B-250		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-TC-63B-300		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-TC-63B-350		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-TC-63B-400		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-TC-63B-450		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-TC-63B-500		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-TC-80B-25		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
SCG-G3-TC-80B-50		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
SCG-G3-TC-80B-75		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
SCG-G3-TC-80B-100		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
SCG-G3-TC-80B-150		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
SCG-G3-TC-80B-200		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
SCG-G3-TC-80B-250		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
SCG-G3-TC-80B-300		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
SCG-G3-TC-80B-350		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
SCG-G3-TC-80B-400		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
SCG-G3-TC-80B-450		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
SCG-G3-TC-80B-500		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
SCG-G3-TC-100B-25		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
SCG-G3-TC-100B-50		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
SCG-G3-TC-100B-75		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
SCG-G3-TC-100B-100		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
SCG-G3-TC-100B-150		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
SCG-G3-TC-100B-200		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
SCG-G3-TC-100B-250		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
SCG-G3-TC-100B-300		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
SCG-G3-TC-100B-350		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
SCG-G3-TC-100B-400		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
SCG-G3-TC-100B-450		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
SCG-G3-TC-100B-500		Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2

Pneumatic CylindersCKD

1080 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCG-G2/G3 Tie-Rod Cylinder (Coolant Resistant, Bore 40-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (1080)

SCG-G2-00-40B-25, SCG-G2-00-40B-50, SCG-G2-00-40B-75, SCG-G2-00-40B-100, SCG-G2-00-40B-150, SCG-G2-00-40B-200, SCG-G2-00-40B-250, SCG-G2-00-40B-300, SCG-G2-00-40B-350, SCG-G2-00-40B-400 + 1070 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCG-G2-00-40B-25	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-00-40B-50	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-00-40B-75	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-00-40B-100	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-00-40B-150	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-00-40B-200	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-00-40B-250	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-00-40B-300	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-00-40B-350	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-00-40B-400	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-00-40B-450	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-00-40B-500	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-00-50B-25	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-00-50B-50	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-00-50B-75	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-00-50B-100	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-00-50B-150	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-00-50B-200	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-00-50B-250	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-00-50B-300	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-00-50B-350	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-00-50B-400	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-00-50B-450	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-00-50B-500	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-00-63B-25	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-00-63B-50	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-00-63B-75	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-00-63B-100	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-00-63B-150	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-00-63B-200	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-00-63B-250	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-00-63B-300	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-00-63B-350	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-00-63B-400	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-00-63B-450	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-00-63B-500	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-00-80B-25	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-00-80B-50	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-00-80B-75	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-00-80B-100	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-00-80B-150	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-00-80B-200	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-00-80B-250	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-00-80B-300	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-00-80B-350	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-00-80B-400	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-00-80B-450	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-00-80B-500	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-00-100B-25	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G2-00-100B-50	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G2-00-100B-75	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G2-00-100B-100	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G2-00-100B-150	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G2-00-100B-200	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G2-00-100B-250	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G2-00-100B-300	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G2-00-100B-350	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G2-00-100B-400	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G2-00-100B-450	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G2-00-100B-500	Protection: Coolant scraper + NBR packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G2-LB-40B-25	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-LB-40B-50	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-LB-40B-75	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-LB-40B-100	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-LB-40B-150	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-LB-40B-200	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-LB-40B-250	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-LB-40B-300	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-LB-40B-350	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-LB-40B-400	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-LB-40B-450	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-LB-40B-500	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-LB-50B-25	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-LB-50B-50	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-LB-50B-75	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-LB-50B-100	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-LB-50B-150	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-LB-50B-200	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-LB-50B-250	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-LB-50B-300	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-LB-50B-350	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-LB-50B-400	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-LB-50B-450	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-LB-50B-500	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-LB-63B-25	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-LB-63B-50	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-LB-63B-75	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-LB-63B-100	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-LB-63B-150	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-LB-63B-200	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-LB-63B-250	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-LB-63B-300	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-LB-63B-350	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-LB-63B-400	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-LB-63B-450	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-LB-63B-500	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-LB-80B-25	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-LB-80B-50	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-LB-80B-75	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-LB-80B-100	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-LB-80B-150	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-LB-80B-200	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-LB-80B-250	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-LB-80B-300	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-LB-80B-350	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-LB-80B-400	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-LB-80B-450	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-LB-80B-500	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-LB-100B-25	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G2-LB-100B-50	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G2-LB-100B-75	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G2-LB-100B-100	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G2-LB-100B-150	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G2-LB-100B-200	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G2-LB-100B-250	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G2-LB-100B-300	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G2-LB-100B-350	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G2-LB-100B-400	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G2-LB-100B-450	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G2-LB-100B-500	Protection: Coolant scraper + NBR packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G2-FA-40B-25	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-FA-40B-50	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-FA-40B-75	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-FA-40B-100	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-FA-40B-150	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-FA-40B-200	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-FA-40B-250	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-FA-40B-300	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-FA-40B-350	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-FA-40B-400	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-FA-40B-450	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-FA-40B-500	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-FA-50B-25	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-FA-50B-50	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-FA-50B-75	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-FA-50B-100	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-FA-50B-150	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-FA-50B-200	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-FA-50B-250	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-FA-50B-300	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-FA-50B-350	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-FA-50B-400	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-FA-50B-450	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-FA-50B-500	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-FA-63B-25	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-FA-63B-50	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-FA-63B-75	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-FA-63B-100	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-FA-63B-150	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-FA-63B-200	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-FA-63B-250	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-FA-63B-300	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-FA-63B-350	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-FA-63B-400	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-FA-63B-450	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-FA-63B-500	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-FA-80B-25	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-FA-80B-50	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-FA-80B-75	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-FA-80B-100	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-FA-80B-150	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-FA-80B-200	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-FA-80B-250	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-FA-80B-300	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-FA-80B-350	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-FA-80B-400	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-FA-80B-450	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-FA-80B-500	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-FA-100B-25	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G2-FA-100B-50	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G2-FA-100B-75	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G2-FA-100B-100	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G2-FA-100B-150	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G2-FA-100B-200	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G2-FA-100B-250	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G2-FA-100B-300	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G2-FA-100B-350	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G2-FA-100B-400	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G2-FA-100B-450	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G2-FA-100B-500	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G2-FB-40B-25	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-FB-40B-50	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-FB-40B-75	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-FB-40B-100	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-FB-40B-150	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-FB-40B-200	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-FB-40B-250	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-FB-40B-300	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-FB-40B-350	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-FB-40B-400	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-FB-40B-450	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-FB-40B-500	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-FB-50B-25	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-FB-50B-50	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-FB-50B-75	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-FB-50B-100	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-FB-50B-150	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-FB-50B-200	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-FB-50B-250	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-FB-50B-300	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-FB-50B-350	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-FB-50B-400	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-FB-50B-450	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-FB-50B-500	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-FB-63B-25	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-FB-63B-50	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-FB-63B-75	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-FB-63B-100	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-FB-63B-150	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-FB-63B-200	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-FB-63B-250	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-FB-63B-300	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-FB-63B-350	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-FB-63B-400	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-FB-63B-450	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-FB-63B-500	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-FB-80B-25	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-FB-80B-50	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-FB-80B-75	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-FB-80B-100	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-FB-80B-150	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-FB-80B-200	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-FB-80B-250	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-FB-80B-300	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-FB-80B-350	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-FB-80B-400	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-FB-80B-450	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-FB-80B-500	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-FB-100B-25	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G2-FB-100B-50	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G2-FB-100B-75	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G2-FB-100B-100	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G2-FB-100B-150	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G2-FB-100B-200	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G2-FB-100B-250	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G2-FB-100B-300	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G2-FB-100B-350	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G2-FB-100B-400	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G2-FB-100B-450	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G2-FB-100B-500	Protection: Coolant scraper + NBR packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G2-CA-40B-25	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-CA-40B-50	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-CA-40B-75	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-CA-40B-100	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-CA-40B-150	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-CA-40B-200	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-CA-40B-250	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-CA-40B-300	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-CA-40B-350	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-CA-40B-400	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-CA-40B-450	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-CA-40B-500	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-CA-50B-25	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-CA-50B-50	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-CA-50B-75	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-CA-50B-100	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-CA-50B-150	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-CA-50B-200	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-CA-50B-250	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-CA-50B-300	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-CA-50B-350	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-CA-50B-400	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-CA-50B-450	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-CA-50B-500	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-CA-63B-25	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-CA-63B-50	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-CA-63B-75	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-CA-63B-100	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-CA-63B-150	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-CA-63B-200	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-CA-63B-250	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-CA-63B-300	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-CA-63B-350	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-CA-63B-400	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-CA-63B-450	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-CA-63B-500	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-CA-80B-25	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-CA-80B-50	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-CA-80B-75	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-CA-80B-100	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-CA-80B-150	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-CA-80B-200	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-CA-80B-250	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-CA-80B-300	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-CA-80B-350	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-CA-80B-400	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-CA-80B-450	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-CA-80B-500	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-CA-100B-25	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G2-CA-100B-50	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G2-CA-100B-75	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G2-CA-100B-100	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G2-CA-100B-150	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G2-CA-100B-200	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G2-CA-100B-250	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G2-CA-100B-300	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G2-CA-100B-350	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G2-CA-100B-400	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G2-CA-100B-450	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G2-CA-100B-500	Protection: Coolant scraper + NBR packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G2-CB-40B-25	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-CB-40B-50	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-CB-40B-75	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-CB-40B-100	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-CB-40B-150	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-CB-40B-200	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-CB-40B-250	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-CB-40B-300	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-CB-40B-350	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-CB-40B-400	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-CB-40B-450	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-CB-40B-500	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-CB-50B-25	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-CB-50B-50	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-CB-50B-75	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-CB-50B-100	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-CB-50B-150	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-CB-50B-200	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-CB-50B-250	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-CB-50B-300	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-CB-50B-350	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-CB-50B-400	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-CB-50B-450	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-CB-50B-500	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-CB-63B-25	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-CB-63B-50	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-CB-63B-75	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-CB-63B-100	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-CB-63B-150	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-CB-63B-200	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-CB-63B-250	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-CB-63B-300	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-CB-63B-350	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-CB-63B-400	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-CB-63B-450	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-CB-63B-500	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-CB-80B-25	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-CB-80B-50	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-CB-80B-75	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-CB-80B-100	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-CB-80B-150	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-CB-80B-200	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-CB-80B-250	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-CB-80B-300	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-CB-80B-350	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-CB-80B-400	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-CB-80B-450	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-CB-80B-500	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-CB-100B-25	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G2-CB-100B-50	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G2-CB-100B-75	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G2-CB-100B-100	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G2-CB-100B-150	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G2-CB-100B-200	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G2-CB-100B-250	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G2-CB-100B-300	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G2-CB-100B-350	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G2-CB-100B-400	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G2-CB-100B-450	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G2-CB-100B-500	Protection: Coolant scraper + NBR packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G2-TA-40B-25	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-TA-40B-50	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-TA-40B-75	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-TA-40B-100	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-TA-40B-150	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-TA-40B-200	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-TA-40B-250	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-TA-40B-300	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-TA-40B-350	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-TA-40B-400	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-TA-40B-450	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-TA-40B-500	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-TA-50B-25	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-TA-50B-50	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-TA-50B-75	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-TA-50B-100	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-TA-50B-150	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-TA-50B-200	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-TA-50B-250	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-TA-50B-300	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-TA-50B-350	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-TA-50B-400	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-TA-50B-450	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-TA-50B-500	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-TA-63B-25	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-TA-63B-50	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-TA-63B-75	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-TA-63B-100	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-TA-63B-150	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-TA-63B-200	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-TA-63B-250	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-TA-63B-300	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-TA-63B-350	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-TA-63B-400	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-TA-63B-450	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-TA-63B-500	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-TA-80B-25	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-TA-80B-50	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-TA-80B-75	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-TA-80B-100	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-TA-80B-150	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-TA-80B-200	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-TA-80B-250	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-TA-80B-300	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-TA-80B-350	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-TA-80B-400	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-TA-80B-450	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-TA-80B-500	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-TA-100B-25	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G2-TA-100B-50	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G2-TA-100B-75	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G2-TA-100B-100	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G2-TA-100B-150	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G2-TA-100B-200	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G2-TA-100B-250	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G2-TA-100B-300	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G2-TA-100B-350	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G2-TA-100B-400	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G2-TA-100B-450	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G2-TA-100B-500	Protection: Coolant scraper + NBR packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G2-TB-40B-25	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-TB-40B-50	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-TB-40B-75	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-TB-40B-100	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-TB-40B-150	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-TB-40B-200	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-TB-40B-250	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-TB-40B-300	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-TB-40B-350	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-TB-40B-400	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-TB-40B-450	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-TB-40B-500	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-TB-50B-25	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-TB-50B-50	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-TB-50B-75	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-TB-50B-100	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-TB-50B-150	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-TB-50B-200	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-TB-50B-250	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-TB-50B-300	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-TB-50B-350	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-TB-50B-400	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-TB-50B-450	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-TB-50B-500	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-TB-63B-25	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-TB-63B-50	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-TB-63B-75	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-TB-63B-100	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-TB-63B-150	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-TB-63B-200	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-TB-63B-250	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-TB-63B-300	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-TB-63B-350	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-TB-63B-400	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-TB-63B-450	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-TB-63B-500	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-TB-80B-25	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-TB-80B-50	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-TB-80B-75	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-TB-80B-100	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-TB-80B-150	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-TB-80B-200	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-TB-80B-250	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-TB-80B-300	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-TB-80B-350	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-TB-80B-400	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-TB-80B-450	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-TB-80B-500	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-TB-100B-25	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G2-TB-100B-50	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G2-TB-100B-75	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G2-TB-100B-100	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G2-TB-100B-150	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G2-TB-100B-200	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G2-TB-100B-250	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G2-TB-100B-300	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G2-TB-100B-350	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G2-TB-100B-400	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G2-TB-100B-450	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G2-TB-100B-500	Protection: Coolant scraper + NBR packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G2-TC-40B-25	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-TC-40B-50	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-TC-40B-75	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-TC-40B-100	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-TC-40B-150	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-TC-40B-200	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-TC-40B-250	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-TC-40B-300	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-TC-40B-350	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-TC-40B-400	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-TC-40B-450	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-TC-40B-500	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-TC-50B-25	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G2-TC-50B-50	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G2-TC-50B-75	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G2-TC-50B-100	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G2-TC-50B-150	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G2-TC-50B-200	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G2-TC-50B-250	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G2-TC-50B-300	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G2-TC-50B-350	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G2-TC-50B-400	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G2-TC-50B-450	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G2-TC-50B-500	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G2-TC-63B-25	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-TC-63B-50	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-TC-63B-75	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-TC-63B-100	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-TC-63B-150	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-TC-63B-200	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-TC-63B-250	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-TC-63B-300	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-TC-63B-350	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-TC-63B-400	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-TC-63B-450	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-TC-63B-500	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-TC-80B-25	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G2-TC-80B-50	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G2-TC-80B-75	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G2-TC-80B-100	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G2-TC-80B-150	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G2-TC-80B-200	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G2-TC-80B-250	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G2-TC-80B-300	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G2-TC-80B-350	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G2-TC-80B-400	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G2-TC-80B-450	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G2-TC-80B-500	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G2-TC-100B-25	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G2-TC-100B-50	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G2-TC-100B-75	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G2-TC-100B-100	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G2-TC-100B-150	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G2-TC-100B-200	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G2-TC-100B-250	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G2-TC-100B-300	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G2-TC-100B-350	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G2-TC-100B-400	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G2-TC-100B-450	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G2-TC-100B-500	Protection: Coolant scraper + NBR packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G3-00-40B-25	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-00-40B-50	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-00-40B-75	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-00-40B-100	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-00-40B-150	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-00-40B-200	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-00-40B-250	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-00-40B-300	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-00-40B-350	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-00-40B-400	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-00-40B-450	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-00-40B-500	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-00-50B-25	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-00-50B-50	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-00-50B-75	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-00-50B-100	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-00-50B-150	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-00-50B-200	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-00-50B-250	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-00-50B-300	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-00-50B-350	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-00-50B-400	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-00-50B-450	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-00-50B-500	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-00-63B-25	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-00-63B-50	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-00-63B-75	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-00-63B-100	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-00-63B-150	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-00-63B-200	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-00-63B-250	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-00-63B-300	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-00-63B-350	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-00-63B-400	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-00-63B-450	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-00-63B-500	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-00-80B-25	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-00-80B-50	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-00-80B-75	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-00-80B-100	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-00-80B-150	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-00-80B-200	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-00-80B-250	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-00-80B-300	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-00-80B-350	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-00-80B-400	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-00-80B-450	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-00-80B-500	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-00-100B-25	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G3-00-100B-50	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G3-00-100B-75	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G3-00-100B-100	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G3-00-100B-150	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G3-00-100B-200	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G3-00-100B-250	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G3-00-100B-300	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G3-00-100B-350	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G3-00-100B-400	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G3-00-100B-450	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G3-00-100B-500	Protection: Coolant scraper + FKM packing \| Mounting: Basic (00) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G3-LB-40B-25	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-LB-40B-50	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-LB-40B-75	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-LB-40B-100	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-LB-40B-150	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-LB-40B-200	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-LB-40B-250	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-LB-40B-300	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-LB-40B-350	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-LB-40B-400	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-LB-40B-450	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-LB-40B-500	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-LB-50B-25	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-LB-50B-50	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-LB-50B-75	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-LB-50B-100	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-LB-50B-150	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-LB-50B-200	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-LB-50B-250	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-LB-50B-300	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-LB-50B-350	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-LB-50B-400	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-LB-50B-450	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-LB-50B-500	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-LB-63B-25	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-LB-63B-50	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-LB-63B-75	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-LB-63B-100	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-LB-63B-150	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-LB-63B-200	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-LB-63B-250	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-LB-63B-300	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-LB-63B-350	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-LB-63B-400	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-LB-63B-450	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-LB-63B-500	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-LB-80B-25	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-LB-80B-50	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-LB-80B-75	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-LB-80B-100	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-LB-80B-150	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-LB-80B-200	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-LB-80B-250	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-LB-80B-300	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-LB-80B-350	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-LB-80B-400	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-LB-80B-450	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-LB-80B-500	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-LB-100B-25	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G3-LB-100B-50	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G3-LB-100B-75	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G3-LB-100B-100	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G3-LB-100B-150	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G3-LB-100B-200	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G3-LB-100B-250	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G3-LB-100B-300	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G3-LB-100B-350	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G3-LB-100B-400	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G3-LB-100B-450	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G3-LB-100B-500	Protection: Coolant scraper + FKM packing \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G3-FA-40B-25	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-FA-40B-50	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-FA-40B-75	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-FA-40B-100	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-FA-40B-150	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-FA-40B-200	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-FA-40B-250	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-FA-40B-300	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-FA-40B-350	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-FA-40B-400	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-FA-40B-450	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-FA-40B-500	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-FA-50B-25	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-FA-50B-50	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-FA-50B-75	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-FA-50B-100	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-FA-50B-150	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-FA-50B-200	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-FA-50B-250	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-FA-50B-300	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-FA-50B-350	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-FA-50B-400	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-FA-50B-450	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-FA-50B-500	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-FA-63B-25	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-FA-63B-50	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-FA-63B-75	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-FA-63B-100	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-FA-63B-150	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-FA-63B-200	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-FA-63B-250	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-FA-63B-300	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-FA-63B-350	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-FA-63B-400	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-FA-63B-450	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-FA-63B-500	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-FA-80B-25	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-FA-80B-50	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-FA-80B-75	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-FA-80B-100	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-FA-80B-150	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-FA-80B-200	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-FA-80B-250	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-FA-80B-300	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-FA-80B-350	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-FA-80B-400	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-FA-80B-450	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-FA-80B-500	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-FA-100B-25	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G3-FA-100B-50	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G3-FA-100B-75	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G3-FA-100B-100	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G3-FA-100B-150	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G3-FA-100B-200	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G3-FA-100B-250	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G3-FA-100B-300	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G3-FA-100B-350	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G3-FA-100B-400	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G3-FA-100B-450	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G3-FA-100B-500	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G3-FB-40B-25	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-FB-40B-50	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-FB-40B-75	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-FB-40B-100	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-FB-40B-150	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-FB-40B-200	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-FB-40B-250	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-FB-40B-300	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-FB-40B-350	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-FB-40B-400	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-FB-40B-450	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-FB-40B-500	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-FB-50B-25	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-FB-50B-50	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-FB-50B-75	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-FB-50B-100	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-FB-50B-150	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-FB-50B-200	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-FB-50B-250	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-FB-50B-300	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-FB-50B-350	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-FB-50B-400	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-FB-50B-450	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-FB-50B-500	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-FB-63B-25	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-FB-63B-50	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-FB-63B-75	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-FB-63B-100	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-FB-63B-150	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-FB-63B-200	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-FB-63B-250	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-FB-63B-300	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-FB-63B-350	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-FB-63B-400	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-FB-63B-450	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-FB-63B-500	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-FB-80B-25	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-FB-80B-50	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-FB-80B-75	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-FB-80B-100	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-FB-80B-150	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-FB-80B-200	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-FB-80B-250	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-FB-80B-300	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-FB-80B-350	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-FB-80B-400	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-FB-80B-450	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-FB-80B-500	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-FB-100B-25	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G3-FB-100B-50	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G3-FB-100B-75	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G3-FB-100B-100	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G3-FB-100B-150	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G3-FB-100B-200	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G3-FB-100B-250	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G3-FB-100B-300	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G3-FB-100B-350	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G3-FB-100B-400	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G3-FB-100B-450	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G3-FB-100B-500	Protection: Coolant scraper + FKM packing \| Mounting: Head-end flange (FB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G3-CA-40B-25	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-CA-40B-50	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-CA-40B-75	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-CA-40B-100	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-CA-40B-150	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-CA-40B-200	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-CA-40B-250	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-CA-40B-300	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-CA-40B-350	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-CA-40B-400	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-CA-40B-450	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-CA-40B-500	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-CA-50B-25	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-CA-50B-50	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-CA-50B-75	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-CA-50B-100	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-CA-50B-150	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-CA-50B-200	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-CA-50B-250	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-CA-50B-300	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-CA-50B-350	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-CA-50B-400	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-CA-50B-450	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-CA-50B-500	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-CA-63B-25	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-CA-63B-50	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-CA-63B-75	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-CA-63B-100	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-CA-63B-150	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-CA-63B-200	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-CA-63B-250	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-CA-63B-300	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-CA-63B-350	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-CA-63B-400	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-CA-63B-450	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-CA-63B-500	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-CA-80B-25	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-CA-80B-50	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-CA-80B-75	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-CA-80B-100	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-CA-80B-150	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-CA-80B-200	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-CA-80B-250	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-CA-80B-300	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-CA-80B-350	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-CA-80B-400	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-CA-80B-450	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-CA-80B-500	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-CA-100B-25	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G3-CA-100B-50	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G3-CA-100B-75	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G3-CA-100B-100	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G3-CA-100B-150	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G3-CA-100B-200	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G3-CA-100B-250	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G3-CA-100B-300	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G3-CA-100B-350	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G3-CA-100B-400	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G3-CA-100B-450	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G3-CA-100B-500	Protection: Coolant scraper + FKM packing \| Mounting: Single clevis (CA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G3-CB-40B-25	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-CB-40B-50	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-CB-40B-75	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-CB-40B-100	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-CB-40B-150	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-CB-40B-200	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-CB-40B-250	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-CB-40B-300	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-CB-40B-350	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-CB-40B-400	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-CB-40B-450	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-CB-40B-500	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-CB-50B-25	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-CB-50B-50	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-CB-50B-75	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-CB-50B-100	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-CB-50B-150	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-CB-50B-200	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-CB-50B-250	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-CB-50B-300	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-CB-50B-350	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-CB-50B-400	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-CB-50B-450	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-CB-50B-500	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-CB-63B-25	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-CB-63B-50	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-CB-63B-75	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-CB-63B-100	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-CB-63B-150	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-CB-63B-200	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-CB-63B-250	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-CB-63B-300	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-CB-63B-350	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-CB-63B-400	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-CB-63B-450	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-CB-63B-500	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-CB-80B-25	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-CB-80B-50	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-CB-80B-75	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-CB-80B-100	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-CB-80B-150	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-CB-80B-200	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-CB-80B-250	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-CB-80B-300	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-CB-80B-350	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-CB-80B-400	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-CB-80B-450	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-CB-80B-500	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-CB-100B-25	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G3-CB-100B-50	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G3-CB-100B-75	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G3-CB-100B-100	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G3-CB-100B-150	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G3-CB-100B-200	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G3-CB-100B-250	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G3-CB-100B-300	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G3-CB-100B-350	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G3-CB-100B-400	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G3-CB-100B-450	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G3-CB-100B-500	Protection: Coolant scraper + FKM packing \| Mounting: Double clevis (CB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G3-TA-40B-25	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-TA-40B-50	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-TA-40B-75	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-TA-40B-100	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-TA-40B-150	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-TA-40B-200	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-TA-40B-250	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-TA-40B-300	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-TA-40B-350	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-TA-40B-400	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-TA-40B-450	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-TA-40B-500	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-TA-50B-25	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-TA-50B-50	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-TA-50B-75	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-TA-50B-100	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-TA-50B-150	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-TA-50B-200	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-TA-50B-250	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-TA-50B-300	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-TA-50B-350	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-TA-50B-400	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-TA-50B-450	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-TA-50B-500	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-TA-63B-25	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-TA-63B-50	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-TA-63B-75	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-TA-63B-100	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-TA-63B-150	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-TA-63B-200	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-TA-63B-250	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-TA-63B-300	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-TA-63B-350	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-TA-63B-400	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-TA-63B-450	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-TA-63B-500	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-TA-80B-25	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-TA-80B-50	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-TA-80B-75	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-TA-80B-100	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-TA-80B-150	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-TA-80B-200	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-TA-80B-250	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-TA-80B-300	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-TA-80B-350	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-TA-80B-400	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-TA-80B-450	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-TA-80B-500	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-TA-100B-25	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G3-TA-100B-50	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G3-TA-100B-75	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G3-TA-100B-100	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G3-TA-100B-150	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G3-TA-100B-200	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G3-TA-100B-250	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G3-TA-100B-300	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G3-TA-100B-350	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G3-TA-100B-400	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G3-TA-100B-450	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G3-TA-100B-500	Protection: Coolant scraper + FKM packing \| Mounting: Rod-end trunnion (TA) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G3-TB-40B-25	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-TB-40B-50	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-TB-40B-75	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-TB-40B-100	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-TB-40B-150	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-TB-40B-200	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-TB-40B-250	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-TB-40B-300	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-TB-40B-350	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-TB-40B-400	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-TB-40B-450	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-TB-40B-500	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-TB-50B-25	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-TB-50B-50	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-TB-50B-75	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-TB-50B-100	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-TB-50B-150	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-TB-50B-200	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-TB-50B-250	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-TB-50B-300	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-TB-50B-350	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-TB-50B-400	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-TB-50B-450	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-TB-50B-500	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-TB-63B-25	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-TB-63B-50	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-TB-63B-75	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-TB-63B-100	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-TB-63B-150	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-TB-63B-200	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-TB-63B-250	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-TB-63B-300	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-TB-63B-350	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-TB-63B-400	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-TB-63B-450	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-TB-63B-500	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-TB-80B-25	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-TB-80B-50	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-TB-80B-75	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-TB-80B-100	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-TB-80B-150	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-TB-80B-200	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-TB-80B-250	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-TB-80B-300	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-TB-80B-350	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-TB-80B-400	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-TB-80B-450	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-TB-80B-500	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-TB-100B-25	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G3-TB-100B-50	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G3-TB-100B-75	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G3-TB-100B-100	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G3-TB-100B-150	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G3-TB-100B-200	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G3-TB-100B-250	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G3-TB-100B-300	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G3-TB-100B-350	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G3-TB-100B-400	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G3-TB-100B-450	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G3-TB-100B-500	Protection: Coolant scraper + FKM packing \| Mounting: Head-end trunnion (TB) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	SCG-G3-TC-40B-25	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-TC-40B-50	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-TC-40B-75	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-TC-40B-100	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-TC-40B-150	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-TC-40B-200	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-TC-40B-250	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-TC-40B-300	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-TC-40B-350	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-TC-40B-400	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-TC-40B-450	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-TC-40B-500	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-TC-50B-25	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc1/4
	SCG-G3-TC-50B-50	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc1/4
	SCG-G3-TC-50B-75	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc1/4
	SCG-G3-TC-50B-100	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc1/4
	SCG-G3-TC-50B-150	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc1/4
	SCG-G3-TC-50B-200	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc1/4
	SCG-G3-TC-50B-250	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc1/4
	SCG-G3-TC-50B-300	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc1/4
	SCG-G3-TC-50B-350	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc1/4
	SCG-G3-TC-50B-400	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc1/4
	SCG-G3-TC-50B-450	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc1/4
	SCG-G3-TC-50B-500	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc1/4
	SCG-G3-TC-63B-25	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-TC-63B-50	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-TC-63B-75	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-TC-63B-100	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-TC-63B-150	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-TC-63B-200	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-TC-63B-250	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-TC-63B-300	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-TC-63B-350	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-TC-63B-400	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-TC-63B-450	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-TC-63B-500	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-TC-80B-25	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc3/8
	SCG-G3-TC-80B-50	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc3/8
	SCG-G3-TC-80B-75	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc3/8
	SCG-G3-TC-80B-100	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc3/8
	SCG-G3-TC-80B-150	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc3/8
	SCG-G3-TC-80B-200	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc3/8
	SCG-G3-TC-80B-250	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc3/8
	SCG-G3-TC-80B-300	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc3/8
	SCG-G3-TC-80B-350	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc3/8
	SCG-G3-TC-80B-400	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc3/8
	SCG-G3-TC-80B-450	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc3/8
	SCG-G3-TC-80B-500	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc3/8
	SCG-G3-TC-100B-25	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	SCG-G3-TC-100B-50	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	SCG-G3-TC-100B-75	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	SCG-G3-TC-100B-100	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	SCG-G3-TC-100B-150	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	SCG-G3-TC-100B-200	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	SCG-G3-TC-100B-250	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	SCG-G3-TC-100B-300	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	SCG-G3-TC-100B-350	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	SCG-G3-TC-100B-400	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	SCG-G3-TC-100B-450	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	SCG-G3-TC-100B-500	Protection: Coolant scraper + FKM packing \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCG-G2/G3 Tie-Rod Cylinder (Coolant Resistant, Bore 40-100)
