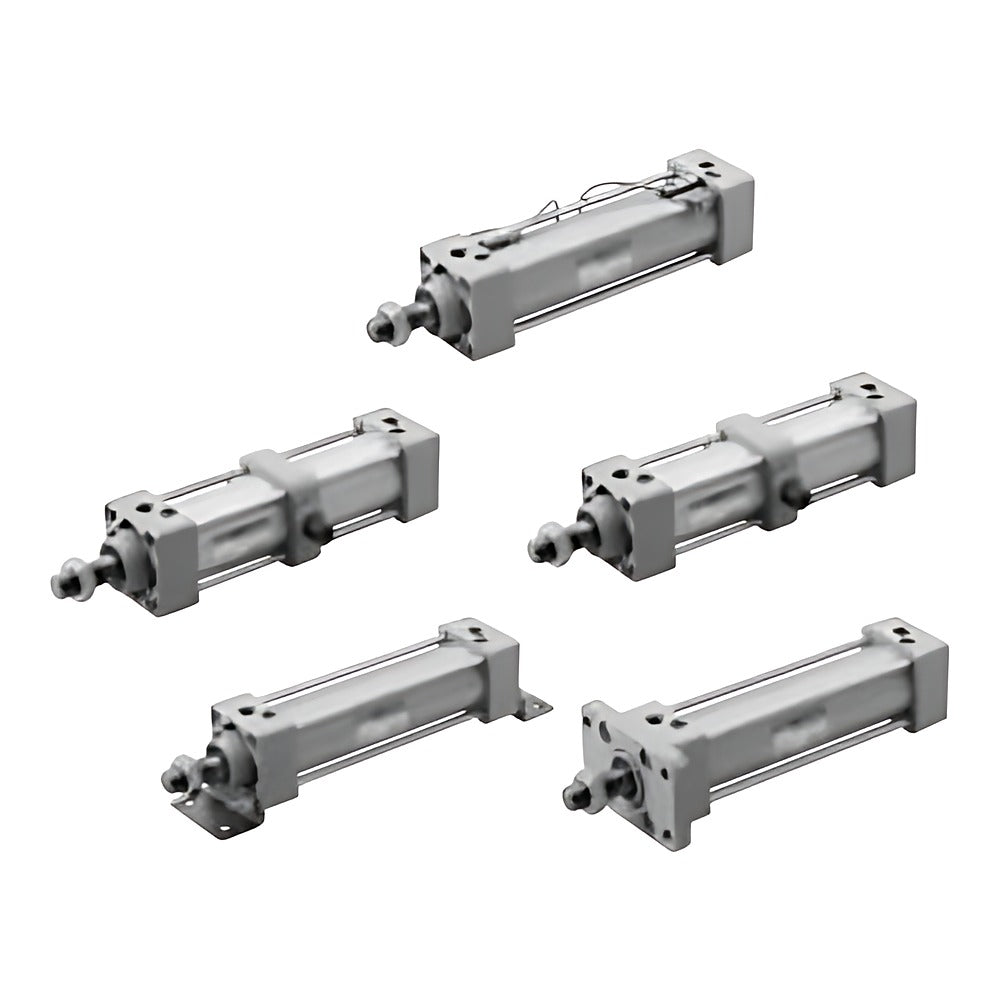

CKD SCG-M Tie-Rod Cylinder, Non-rotating (Bore 32-63)

CKD SCG-M tie-rod double-acting cylinder with non-rotating piston rod, bore 32 to 63 mm.

Key features

Non-rotating piston rod, non-rotation accuracy ±1°
Cushion: air both ends (B, standard) or rubber both ends (D)
Mountings 00, LB, FA, FB, CA, CB, TA, TB, TC
Standard strokes 25 to 500 mm; 1 mm intermediate strokes up to 600 mm
Auto switch ready (built-in magnet); T0/T5/T8 reed and T1/T2/T3/T2W/T2Y/T2YD/T2J solid-state switches ordered as suffix (R/H/D/T switches)
Option J (bellows); accessories I/Y/B1-B4 as suffix

Specifications

Action	Double acting, non-rotating
Fluid	Compressed air
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60°C (no freezing)
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa (ø32-50), 0.05 MPa (ø63)
Piston speed	50 to 1000 mm/s
Lubrication	Not required
Source	CKD Korea catalog CB-029SK-9, p. 500-505

SCG-M-00-32B-25		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-00-32B-50		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-00-32B-75		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-00-32B-100		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-00-32B-150		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-00-32B-200		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-00-32B-250		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-00-32B-300		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-00-32B-350		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-00-32B-400		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-00-32B-450		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-00-32B-500		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-00-32D-25		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-00-32D-50		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-00-32D-75		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-00-32D-100		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-00-32D-150		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-00-32D-200		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-00-32D-250		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-00-32D-300		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-00-32D-350		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-00-32D-400		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-00-32D-450		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-00-32D-500		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-LB-32B-25		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-LB-32B-50		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-LB-32B-75		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-LB-32B-100		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-LB-32B-150		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-LB-32B-200		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-LB-32B-250		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-LB-32B-300		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-LB-32B-350		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-LB-32B-400		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-LB-32B-450		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-LB-32B-500		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-LB-32D-25		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-LB-32D-50		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-LB-32D-75		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-LB-32D-100		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-LB-32D-150		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-LB-32D-200		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-LB-32D-250		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-LB-32D-300		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-LB-32D-350		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-LB-32D-400		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-LB-32D-450		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-LB-32D-500		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-FA-32B-25		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-FA-32B-50		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-FA-32B-75		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-FA-32B-100		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-FA-32B-150		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-FA-32B-200		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-FA-32B-250		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-FA-32B-300		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-FA-32B-350		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-FA-32B-400		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-FA-32B-450		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-FA-32B-500		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-FA-32D-25		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-FA-32D-50		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-FA-32D-75		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-FA-32D-100		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-FA-32D-150		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-FA-32D-200		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-FA-32D-250		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-FA-32D-300		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-FA-32D-350		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-FA-32D-400		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-FA-32D-450		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-FA-32D-500		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-FB-32B-25		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-FB-32B-50		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-FB-32B-75		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-FB-32B-100		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-FB-32B-150		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-FB-32B-200		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-FB-32B-250		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-FB-32B-300		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-FB-32B-350		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-FB-32B-400		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-FB-32B-450		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-FB-32B-500		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-FB-32D-25		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-FB-32D-50		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-FB-32D-75		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-FB-32D-100		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-FB-32D-150		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-FB-32D-200		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-FB-32D-250		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-FB-32D-300		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-FB-32D-350		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-FB-32D-400		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-FB-32D-450		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-FB-32D-500		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-CA-32B-25		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-CA-32B-50		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-CA-32B-75		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-CA-32B-100		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-CA-32B-150		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-CA-32B-200		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-CA-32B-250		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-CA-32B-300		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-CA-32B-350		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-CA-32B-400		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-CA-32B-450		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-CA-32B-500		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-CA-32D-25		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-CA-32D-50		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-CA-32D-75		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-CA-32D-100		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-CA-32D-150		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-CA-32D-200		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-CA-32D-250		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-CA-32D-300		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-CA-32D-350		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-CA-32D-400		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-CA-32D-450		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-CA-32D-500		Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-CB-32B-25		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-CB-32B-50		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-CB-32B-75		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-CB-32B-100		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-CB-32B-150		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-CB-32B-200		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-CB-32B-250		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-CB-32B-300		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-CB-32B-350		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-CB-32B-400		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-CB-32B-450		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-CB-32B-500		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-CB-32D-25		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-CB-32D-50		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-CB-32D-75		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-CB-32D-100		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-CB-32D-150		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-CB-32D-200		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-CB-32D-250		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-CB-32D-300		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-CB-32D-350		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-CB-32D-400		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-CB-32D-450		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-CB-32D-500		Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-TA-32B-25		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-TA-32B-50		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-TA-32B-75		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-TA-32B-100		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-TA-32B-150		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-TA-32B-200		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-TA-32B-250		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-TA-32B-300		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-TA-32B-350		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-TA-32B-400		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-TA-32B-450		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-TA-32B-500		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-TA-32D-25		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-TA-32D-50		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-TA-32D-75		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-TA-32D-100		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-TA-32D-150		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-TA-32D-200		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-TA-32D-250		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-TA-32D-300		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-TA-32D-350		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-TA-32D-400		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-TA-32D-450		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-TA-32D-500		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-TB-32B-25		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-TB-32B-50		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-TB-32B-75		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-TB-32B-100		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-TB-32B-150		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-TB-32B-200		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-TB-32B-250		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-TB-32B-300		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-TB-32B-350		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-TB-32B-400		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-TB-32B-450		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-TB-32B-500		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-TB-32D-25		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-TB-32D-50		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-TB-32D-75		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-TB-32D-100		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-TB-32D-150		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-TB-32D-200		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-TB-32D-250		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-TB-32D-300		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-TB-32D-350		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-TB-32D-400		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-TB-32D-450		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-TB-32D-500		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-TC-32B-25		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-TC-32B-50		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-TC-32B-75		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-TC-32B-100		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-TC-32B-150		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-TC-32B-200		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-TC-32B-250		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-TC-32B-300		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-TC-32B-350		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-TC-32B-400		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-TC-32B-450		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-TC-32B-500		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-TC-32D-25		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
SCG-M-TC-32D-50		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
SCG-M-TC-32D-75		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
SCG-M-TC-32D-100		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
SCG-M-TC-32D-150		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
SCG-M-TC-32D-200		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
SCG-M-TC-32D-250		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
SCG-M-TC-32D-300		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
SCG-M-TC-32D-350		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
SCG-M-TC-32D-400		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
SCG-M-TC-32D-450		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
SCG-M-TC-32D-500		Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
SCG-M-00-40B-25		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-00-40B-50		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-00-40B-75		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-00-40B-100		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-00-40B-150		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-00-40B-200		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-00-40B-250		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-00-40B-300		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-00-40B-350		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-00-40B-400		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-00-40B-450		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-00-40B-500		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-00-40D-25		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-00-40D-50		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-00-40D-75		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-00-40D-100		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-00-40D-150		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-00-40D-200		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-00-40D-250		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-00-40D-300		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-00-40D-350		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-00-40D-400		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-00-40D-450		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-00-40D-500		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-LB-40B-25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-LB-40B-50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-LB-40B-75		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-LB-40B-100		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-LB-40B-150		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-LB-40B-200		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-LB-40B-250		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-LB-40B-300		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-LB-40B-350		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-LB-40B-400		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-LB-40B-450		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-LB-40B-500		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-LB-40D-25		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-LB-40D-50		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-LB-40D-75		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-LB-40D-100		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-LB-40D-150		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-LB-40D-200		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-LB-40D-250		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-LB-40D-300		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-LB-40D-350		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-LB-40D-400		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-LB-40D-450		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-LB-40D-500		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-FA-40B-25		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-FA-40B-50		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-FA-40B-75		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-FA-40B-100		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-FA-40B-150		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-FA-40B-200		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-FA-40B-250		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-FA-40B-300		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-FA-40B-350		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-FA-40B-400		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-FA-40B-450		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-FA-40B-500		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-FA-40D-25		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-FA-40D-50		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-FA-40D-75		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-FA-40D-100		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-FA-40D-150		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-FA-40D-200		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-FA-40D-250		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-FA-40D-300		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-FA-40D-350		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-FA-40D-400		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-FA-40D-450		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-FA-40D-500		Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-FB-40B-25		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-FB-40B-50		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-FB-40B-75		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-FB-40B-100		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-FB-40B-150		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-FB-40B-200		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-FB-40B-250		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-FB-40B-300		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-FB-40B-350		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-FB-40B-400		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-FB-40B-450		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-FB-40B-500		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-FB-40D-25		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-FB-40D-50		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-FB-40D-75		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-FB-40D-100		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-FB-40D-150		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-FB-40D-200		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-FB-40D-250		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-FB-40D-300		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-FB-40D-350		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-FB-40D-400		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-FB-40D-450		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-FB-40D-500		Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-CA-40B-25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-CA-40B-50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-CA-40B-75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-CA-40B-100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-CA-40B-150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-CA-40B-200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-CA-40B-250		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-CA-40B-300		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-CA-40B-350		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-CA-40B-400		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-CA-40B-450		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-CA-40B-500		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-CA-40D-25		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-CA-40D-50		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-CA-40D-75		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-CA-40D-100		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-CA-40D-150		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-CA-40D-200		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-CA-40D-250		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-CA-40D-300		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-CA-40D-350		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-CA-40D-400		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-CA-40D-450		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-CA-40D-500		Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-CB-40B-25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-CB-40B-50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-CB-40B-75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-CB-40B-100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-CB-40B-150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-CB-40B-200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-CB-40B-250		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-CB-40B-300		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-CB-40B-350		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-CB-40B-400		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-CB-40B-450		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-CB-40B-500		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-CB-40D-25		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-CB-40D-50		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-CB-40D-75		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-CB-40D-100		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-CB-40D-150		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-CB-40D-200		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-CB-40D-250		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-CB-40D-300		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-CB-40D-350		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-CB-40D-400		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-CB-40D-450		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-CB-40D-500		Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-TA-40B-25		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-TA-40B-50		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-TA-40B-75		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-TA-40B-100		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-TA-40B-150		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-TA-40B-200		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-TA-40B-250		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-TA-40B-300		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-TA-40B-350		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-TA-40B-400		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-TA-40B-450		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-TA-40B-500		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-TA-40D-25		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-TA-40D-50		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-TA-40D-75		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-TA-40D-100		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-TA-40D-150		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-TA-40D-200		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-TA-40D-250		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-TA-40D-300		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-TA-40D-350		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-TA-40D-400		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-TA-40D-450		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-TA-40D-500		Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-TB-40B-25		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-TB-40B-50		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-TB-40B-75		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-TB-40B-100		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-TB-40B-150		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-TB-40B-200		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-TB-40B-250		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-TB-40B-300		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-TB-40B-350		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-TB-40B-400		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-TB-40B-450		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-TB-40B-500		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-TB-40D-25		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-TB-40D-50		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-TB-40D-75		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-TB-40D-100		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-TB-40D-150		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-TB-40D-200		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-TB-40D-250		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-TB-40D-300		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-TB-40D-350		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-TB-40D-400		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-TB-40D-450		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-TB-40D-500		Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-TC-40B-25		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-TC-40B-50		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-TC-40B-75		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-TC-40B-100		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-TC-40B-150		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-TC-40B-200		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-TC-40B-250		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-TC-40B-300		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-TC-40B-350		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-TC-40B-400		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-TC-40B-450		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-TC-40B-500		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-TC-40D-25		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-TC-40D-50		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-TC-40D-75		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-TC-40D-100		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-TC-40D-150		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-TC-40D-200		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-TC-40D-250		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-TC-40D-300		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-TC-40D-350		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-TC-40D-400		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-TC-40D-450		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-TC-40D-500		Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-00-50B-25		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-00-50B-50		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-00-50B-75		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-00-50B-100		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-00-50B-150		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-00-50B-200		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-00-50B-250		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-00-50B-300		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-00-50B-350		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-00-50B-400		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-00-50B-450		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-00-50B-500		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-00-50D-25		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-00-50D-50		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-00-50D-75		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-00-50D-100		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-00-50D-150		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-00-50D-200		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-00-50D-250		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-00-50D-300		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-00-50D-350		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-00-50D-400		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-00-50D-450		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-00-50D-500		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-LB-50B-25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-LB-50B-50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-LB-50B-75		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-LB-50B-100		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-LB-50B-150		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-LB-50B-200		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-LB-50B-250		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-LB-50B-300		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-LB-50B-350		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-LB-50B-400		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-LB-50B-450		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-LB-50B-500		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-LB-50D-25		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-LB-50D-50		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-LB-50D-75		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-LB-50D-100		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-LB-50D-150		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-LB-50D-200		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-LB-50D-250		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-LB-50D-300		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-LB-50D-350		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-LB-50D-400		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-LB-50D-450		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-LB-50D-500		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-FA-50B-25		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-FA-50B-50		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-FA-50B-75		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-FA-50B-100		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-FA-50B-150		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-FA-50B-200		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-FA-50B-250		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-FA-50B-300		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-FA-50B-350		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-FA-50B-400		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-FA-50B-450		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-FA-50B-500		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-FA-50D-25		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-FA-50D-50		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-FA-50D-75		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-FA-50D-100		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-FA-50D-150		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-FA-50D-200		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-FA-50D-250		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-FA-50D-300		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-FA-50D-350		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-FA-50D-400		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-FA-50D-450		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-FA-50D-500		Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-FB-50B-25		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-FB-50B-50		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-FB-50B-75		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-FB-50B-100		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-FB-50B-150		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-FB-50B-200		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-FB-50B-250		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-FB-50B-300		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-FB-50B-350		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-FB-50B-400		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-FB-50B-450		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-FB-50B-500		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-FB-50D-25		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-FB-50D-50		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-FB-50D-75		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-FB-50D-100		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-FB-50D-150		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-FB-50D-200		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-FB-50D-250		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-FB-50D-300		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-FB-50D-350		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-FB-50D-400		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-FB-50D-450		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-FB-50D-500		Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-CA-50B-25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-CA-50B-50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-CA-50B-75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-CA-50B-100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-CA-50B-150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-CA-50B-200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-CA-50B-250		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-CA-50B-300		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-CA-50B-350		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-CA-50B-400		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-CA-50B-450		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-CA-50B-500		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-CA-50D-25		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-CA-50D-50		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-CA-50D-75		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-CA-50D-100		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-CA-50D-150		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-CA-50D-200		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-CA-50D-250		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-CA-50D-300		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-CA-50D-350		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-CA-50D-400		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-CA-50D-450		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-CA-50D-500		Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-CB-50B-25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-CB-50B-50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-CB-50B-75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-CB-50B-100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-CB-50B-150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-CB-50B-200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-CB-50B-250		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-CB-50B-300		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-CB-50B-350		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-CB-50B-400		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-CB-50B-450		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-CB-50B-500		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-CB-50D-25		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-CB-50D-50		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-CB-50D-75		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-CB-50D-100		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-CB-50D-150		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-CB-50D-200		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-CB-50D-250		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-CB-50D-300		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-CB-50D-350		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-CB-50D-400		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-CB-50D-450		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-CB-50D-500		Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-TA-50B-25		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-TA-50B-50		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-TA-50B-75		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-TA-50B-100		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-TA-50B-150		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-TA-50B-200		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-TA-50B-250		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-TA-50B-300		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-TA-50B-350		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-TA-50B-400		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-TA-50B-450		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-TA-50B-500		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-TA-50D-25		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-TA-50D-50		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-TA-50D-75		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-TA-50D-100		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-TA-50D-150		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-TA-50D-200		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-TA-50D-250		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-TA-50D-300		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-TA-50D-350		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-TA-50D-400		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-TA-50D-450		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-TA-50D-500		Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-TB-50B-25		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-TB-50B-50		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-TB-50B-75		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-TB-50B-100		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-TB-50B-150		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-TB-50B-200		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-TB-50B-250		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-TB-50B-300		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-TB-50B-350		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-TB-50B-400		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-TB-50B-450		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-TB-50B-500		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-TB-50D-25		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-TB-50D-50		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-TB-50D-75		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-TB-50D-100		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-TB-50D-150		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-TB-50D-200		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-TB-50D-250		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-TB-50D-300		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-TB-50D-350		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-TB-50D-400		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-TB-50D-450		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-TB-50D-500		Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-TC-50B-25		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-TC-50B-50		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-TC-50B-75		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-TC-50B-100		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-TC-50B-150		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-TC-50B-200		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-TC-50B-250		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-TC-50B-300		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-TC-50B-350		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-TC-50B-400		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-TC-50B-450		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-TC-50B-500		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-TC-50D-25		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
SCG-M-TC-50D-50		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
SCG-M-TC-50D-75		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
SCG-M-TC-50D-100		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
SCG-M-TC-50D-150		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
SCG-M-TC-50D-200		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
SCG-M-TC-50D-250		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
SCG-M-TC-50D-300		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
SCG-M-TC-50D-350		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
SCG-M-TC-50D-400		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
SCG-M-TC-50D-450		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
SCG-M-TC-50D-500		Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
SCG-M-00-63B-25		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-00-63B-50		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-00-63B-75		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-00-63B-100		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-00-63B-150		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-00-63B-200		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-00-63B-250		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-00-63B-300		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-00-63B-350		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-00-63B-400		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-00-63B-450		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-00-63B-500		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-00-63D-25		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-00-63D-50		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-00-63D-75		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-00-63D-100		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-00-63D-150		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-00-63D-200		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-00-63D-250		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-00-63D-300		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-00-63D-350		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-00-63D-400		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-00-63D-450		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-00-63D-500		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-LB-63B-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-LB-63B-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-LB-63B-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-LB-63B-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-LB-63B-150		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-LB-63B-200		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-LB-63B-250		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-LB-63B-300		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-LB-63B-350		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-LB-63B-400		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-LB-63B-450		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-LB-63B-500		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-LB-63D-25		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-LB-63D-50		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-LB-63D-75		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-LB-63D-100		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-LB-63D-150		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-LB-63D-200		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-LB-63D-250		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-LB-63D-300		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-LB-63D-350		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-LB-63D-400		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-LB-63D-450		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-LB-63D-500		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-FA-63B-25		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-FA-63B-50		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-FA-63B-75		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-FA-63B-100		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-FA-63B-150		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-FA-63B-200		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-FA-63B-250		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-FA-63B-300		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-FA-63B-350		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-FA-63B-400		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-FA-63B-450		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-FA-63B-500		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-FA-63D-25		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-FA-63D-50		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-FA-63D-75		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-FA-63D-100		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-FA-63D-150		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-FA-63D-200		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-FA-63D-250		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-FA-63D-300		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-FA-63D-350		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-FA-63D-400		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-FA-63D-450		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-FA-63D-500		Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-FB-63B-25		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-FB-63B-50		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-FB-63B-75		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-FB-63B-100		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-FB-63B-150		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-FB-63B-200		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-FB-63B-250		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-FB-63B-300		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-FB-63B-350		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-FB-63B-400		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-FB-63B-450		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-FB-63B-500		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-FB-63D-25		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-FB-63D-50		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-FB-63D-75		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-FB-63D-100		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-FB-63D-150		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-FB-63D-200		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-FB-63D-250		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-FB-63D-300		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-FB-63D-350		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-FB-63D-400		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-FB-63D-450		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-FB-63D-500		Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-CA-63B-25		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-CA-63B-50		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-CA-63B-75		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-CA-63B-100		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-CA-63B-150		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-CA-63B-200		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-CA-63B-250		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-CA-63B-300		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-CA-63B-350		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-CA-63B-400		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-CA-63B-450		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-CA-63B-500		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-CA-63D-25		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-CA-63D-50		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-CA-63D-75		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-CA-63D-100		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-CA-63D-150		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-CA-63D-200		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-CA-63D-250		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-CA-63D-300		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-CA-63D-350		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-CA-63D-400		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-CA-63D-450		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-CA-63D-500		Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-CB-63B-25		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-CB-63B-50		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-CB-63B-75		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-CB-63B-100		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-CB-63B-150		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-CB-63B-200		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-CB-63B-250		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-CB-63B-300		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-CB-63B-350		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-CB-63B-400		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-CB-63B-450		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-CB-63B-500		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-CB-63D-25		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-CB-63D-50		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-CB-63D-75		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-CB-63D-100		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-CB-63D-150		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-CB-63D-200		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-CB-63D-250		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-CB-63D-300		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-CB-63D-350		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-CB-63D-400		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-CB-63D-450		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-CB-63D-500		Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-TA-63B-25		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-TA-63B-50		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-TA-63B-75		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-TA-63B-100		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-TA-63B-150		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-TA-63B-200		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-TA-63B-250		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-TA-63B-300		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-TA-63B-350		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-TA-63B-400		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-TA-63B-450		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-TA-63B-500		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-TA-63D-25		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-TA-63D-50		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-TA-63D-75		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-TA-63D-100		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-TA-63D-150		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-TA-63D-200		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-TA-63D-250		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-TA-63D-300		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-TA-63D-350		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-TA-63D-400		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-TA-63D-450		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-TA-63D-500		Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-TB-63B-25		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-TB-63B-50		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-TB-63B-75		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-TB-63B-100		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-TB-63B-150		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-TB-63B-200		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-TB-63B-250		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-TB-63B-300		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-TB-63B-350		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-TB-63B-400		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-TB-63B-450		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-TB-63B-500		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-TB-63D-25		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-TB-63D-50		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-TB-63D-75		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-TB-63D-100		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-TB-63D-150		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-TB-63D-200		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-TB-63D-250		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-TB-63D-300		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-TB-63D-350		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-TB-63D-400		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-TB-63D-450		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-TB-63D-500		Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-TC-63B-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-TC-63B-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-TC-63B-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-TC-63B-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-TC-63B-150		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-TC-63B-200		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-TC-63B-250		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-TC-63B-300		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-TC-63B-350		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-TC-63B-400		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-TC-63B-450		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-TC-63B-500		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
SCG-M-TC-63D-25		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
SCG-M-TC-63D-50		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
SCG-M-TC-63D-75		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
SCG-M-TC-63D-100		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
SCG-M-TC-63D-150		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
SCG-M-TC-63D-200		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
SCG-M-TC-63D-250		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
SCG-M-TC-63D-300		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
SCG-M-TC-63D-350		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
SCG-M-TC-63D-400		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
SCG-M-TC-63D-450		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
SCG-M-TC-63D-500		Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8

Pneumatic CylindersCKD

864 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCG-M Tie-Rod Cylinder, Non-rotating (Bore 32-63)

Brand CKD·Pneumatic Cylinders

Available part numbers (864)

SCG-M-00-32B-25, SCG-M-00-32B-50, SCG-M-00-32B-75, SCG-M-00-32B-100, SCG-M-00-32B-150, SCG-M-00-32B-200, SCG-M-00-32B-250, SCG-M-00-32B-300, SCG-M-00-32B-350, SCG-M-00-32B-400 + 854 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCG-M-00-32B-25	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-00-32B-50	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-00-32B-75	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-00-32B-100	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-00-32B-150	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-00-32B-200	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-00-32B-250	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-00-32B-300	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-00-32B-350	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-00-32B-400	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-00-32B-450	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-00-32B-500	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-00-32D-25	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-00-32D-50	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-00-32D-75	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-00-32D-100	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-00-32D-150	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-00-32D-200	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-00-32D-250	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-00-32D-300	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-00-32D-350	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-00-32D-400	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-00-32D-450	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-00-32D-500	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-LB-32B-25	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-LB-32B-50	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-LB-32B-75	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-LB-32B-100	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-LB-32B-150	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-LB-32B-200	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-LB-32B-250	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-LB-32B-300	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-LB-32B-350	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-LB-32B-400	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-LB-32B-450	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-LB-32B-500	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-LB-32D-25	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-LB-32D-50	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-LB-32D-75	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-LB-32D-100	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-LB-32D-150	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-LB-32D-200	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-LB-32D-250	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-LB-32D-300	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-LB-32D-350	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-LB-32D-400	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-LB-32D-450	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-LB-32D-500	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-FA-32B-25	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-FA-32B-50	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-FA-32B-75	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-FA-32B-100	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-FA-32B-150	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-FA-32B-200	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-FA-32B-250	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-FA-32B-300	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-FA-32B-350	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-FA-32B-400	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-FA-32B-450	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-FA-32B-500	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-FA-32D-25	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-FA-32D-50	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-FA-32D-75	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-FA-32D-100	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-FA-32D-150	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-FA-32D-200	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-FA-32D-250	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-FA-32D-300	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-FA-32D-350	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-FA-32D-400	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-FA-32D-450	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-FA-32D-500	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-FB-32B-25	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-FB-32B-50	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-FB-32B-75	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-FB-32B-100	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-FB-32B-150	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-FB-32B-200	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-FB-32B-250	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-FB-32B-300	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-FB-32B-350	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-FB-32B-400	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-FB-32B-450	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-FB-32B-500	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-FB-32D-25	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-FB-32D-50	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-FB-32D-75	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-FB-32D-100	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-FB-32D-150	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-FB-32D-200	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-FB-32D-250	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-FB-32D-300	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-FB-32D-350	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-FB-32D-400	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-FB-32D-450	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-FB-32D-500	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-CA-32B-25	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-CA-32B-50	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-CA-32B-75	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-CA-32B-100	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-CA-32B-150	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-CA-32B-200	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-CA-32B-250	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-CA-32B-300	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-CA-32B-350	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-CA-32B-400	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-CA-32B-450	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-CA-32B-500	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-CA-32D-25	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-CA-32D-50	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-CA-32D-75	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-CA-32D-100	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-CA-32D-150	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-CA-32D-200	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-CA-32D-250	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-CA-32D-300	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-CA-32D-350	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-CA-32D-400	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-CA-32D-450	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-CA-32D-500	Mounting: Single clevis (CA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-CB-32B-25	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-CB-32B-50	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-CB-32B-75	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-CB-32B-100	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-CB-32B-150	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-CB-32B-200	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-CB-32B-250	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-CB-32B-300	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-CB-32B-350	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-CB-32B-400	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-CB-32B-450	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-CB-32B-500	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-CB-32D-25	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-CB-32D-50	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-CB-32D-75	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-CB-32D-100	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-CB-32D-150	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-CB-32D-200	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-CB-32D-250	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-CB-32D-300	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-CB-32D-350	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-CB-32D-400	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-CB-32D-450	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-CB-32D-500	Mounting: Double clevis (CB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-TA-32B-25	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-TA-32B-50	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-TA-32B-75	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-TA-32B-100	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-TA-32B-150	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-TA-32B-200	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-TA-32B-250	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-TA-32B-300	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-TA-32B-350	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-TA-32B-400	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-TA-32B-450	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-TA-32B-500	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-TA-32D-25	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-TA-32D-50	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-TA-32D-75	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-TA-32D-100	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-TA-32D-150	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-TA-32D-200	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-TA-32D-250	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-TA-32D-300	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-TA-32D-350	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-TA-32D-400	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-TA-32D-450	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-TA-32D-500	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-TB-32B-25	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-TB-32B-50	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-TB-32B-75	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-TB-32B-100	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-TB-32B-150	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-TB-32B-200	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-TB-32B-250	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-TB-32B-300	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-TB-32B-350	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-TB-32B-400	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-TB-32B-450	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-TB-32B-500	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-TB-32D-25	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-TB-32D-50	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-TB-32D-75	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-TB-32D-100	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-TB-32D-150	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-TB-32D-200	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-TB-32D-250	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-TB-32D-300	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-TB-32D-350	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-TB-32D-400	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-TB-32D-450	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-TB-32D-500	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-TC-32B-25	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-TC-32B-50	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-TC-32B-75	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-TC-32B-100	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-TC-32B-150	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-TC-32B-200	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-TC-32B-250	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-TC-32B-300	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-TC-32B-350	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-TC-32B-400	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-TC-32B-450	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-TC-32B-500	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-TC-32D-25	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/8
	SCG-M-TC-32D-50	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/8
	SCG-M-TC-32D-75	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/8
	SCG-M-TC-32D-100	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/8
	SCG-M-TC-32D-150	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/8
	SCG-M-TC-32D-200	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/8
	SCG-M-TC-32D-250	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/8
	SCG-M-TC-32D-300	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/8
	SCG-M-TC-32D-350	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/8
	SCG-M-TC-32D-400	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/8
	SCG-M-TC-32D-450	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/8
	SCG-M-TC-32D-500	Mounting: Center trunnion (TC) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/8
	SCG-M-00-40B-25	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-00-40B-50	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-00-40B-75	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-00-40B-100	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-00-40B-150	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-00-40B-200	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-00-40B-250	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-00-40B-300	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-00-40B-350	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-00-40B-400	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-00-40B-450	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-00-40B-500	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-00-40D-25	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-00-40D-50	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-00-40D-75	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-00-40D-100	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-00-40D-150	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-00-40D-200	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-00-40D-250	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-00-40D-300	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-00-40D-350	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-00-40D-400	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-00-40D-450	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-00-40D-500	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-LB-40B-25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-LB-40B-50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-LB-40B-75	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-LB-40B-100	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-LB-40B-150	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-LB-40B-200	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-LB-40B-250	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-LB-40B-300	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-LB-40B-350	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-LB-40B-400	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-LB-40B-450	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-LB-40B-500	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-LB-40D-25	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-LB-40D-50	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-LB-40D-75	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-LB-40D-100	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-LB-40D-150	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-LB-40D-200	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-LB-40D-250	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-LB-40D-300	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-LB-40D-350	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-LB-40D-400	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-LB-40D-450	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-LB-40D-500	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-FA-40B-25	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-FA-40B-50	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-FA-40B-75	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-FA-40B-100	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-FA-40B-150	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-FA-40B-200	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-FA-40B-250	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-FA-40B-300	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-FA-40B-350	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-FA-40B-400	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-FA-40B-450	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-FA-40B-500	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-FA-40D-25	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-FA-40D-50	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-FA-40D-75	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-FA-40D-100	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-FA-40D-150	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-FA-40D-200	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-FA-40D-250	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-FA-40D-300	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-FA-40D-350	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-FA-40D-400	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-FA-40D-450	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-FA-40D-500	Mounting: Rod-side flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-FB-40B-25	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-FB-40B-50	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-FB-40B-75	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-FB-40B-100	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-FB-40B-150	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-FB-40B-200	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-FB-40B-250	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-FB-40B-300	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-FB-40B-350	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-FB-40B-400	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-FB-40B-450	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-FB-40B-500	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-FB-40D-25	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-FB-40D-50	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-FB-40D-75	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-FB-40D-100	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-FB-40D-150	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-FB-40D-200	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-FB-40D-250	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-FB-40D-300	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-FB-40D-350	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-FB-40D-400	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-FB-40D-450	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-FB-40D-500	Mounting: Head-side flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-CA-40B-25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-CA-40B-50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-CA-40B-75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-CA-40B-100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-CA-40B-150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-CA-40B-200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-CA-40B-250	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-CA-40B-300	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-CA-40B-350	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-CA-40B-400	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-CA-40B-450	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-CA-40B-500	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-CA-40D-25	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-CA-40D-50	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-CA-40D-75	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-CA-40D-100	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-CA-40D-150	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-CA-40D-200	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-CA-40D-250	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-CA-40D-300	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-CA-40D-350	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-CA-40D-400	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-CA-40D-450	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-CA-40D-500	Mounting: Single clevis (CA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-CB-40B-25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-CB-40B-50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-CB-40B-75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-CB-40B-100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-CB-40B-150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-CB-40B-200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-CB-40B-250	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-CB-40B-300	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-CB-40B-350	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-CB-40B-400	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-CB-40B-450	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-CB-40B-500	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-CB-40D-25	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-CB-40D-50	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-CB-40D-75	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-CB-40D-100	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-CB-40D-150	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-CB-40D-200	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-CB-40D-250	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-CB-40D-300	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-CB-40D-350	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-CB-40D-400	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-CB-40D-450	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-CB-40D-500	Mounting: Double clevis (CB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-TA-40B-25	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-TA-40B-50	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-TA-40B-75	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-TA-40B-100	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-TA-40B-150	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-TA-40B-200	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-TA-40B-250	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-TA-40B-300	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-TA-40B-350	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-TA-40B-400	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-TA-40B-450	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-TA-40B-500	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-TA-40D-25	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-TA-40D-50	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-TA-40D-75	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-TA-40D-100	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-TA-40D-150	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-TA-40D-200	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-TA-40D-250	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-TA-40D-300	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-TA-40D-350	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-TA-40D-400	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-TA-40D-450	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-TA-40D-500	Mounting: Rod-side trunnion (TA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-TB-40B-25	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-TB-40B-50	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-TB-40B-75	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-TB-40B-100	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-TB-40B-150	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-TB-40B-200	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-TB-40B-250	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-TB-40B-300	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-TB-40B-350	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-TB-40B-400	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-TB-40B-450	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-TB-40B-500	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-TB-40D-25	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-TB-40D-50	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-TB-40D-75	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-TB-40D-100	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-TB-40D-150	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-TB-40D-200	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-TB-40D-250	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-TB-40D-300	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-TB-40D-350	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-TB-40D-400	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-TB-40D-450	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-TB-40D-500	Mounting: Head-side trunnion (TB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-TC-40B-25	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-TC-40B-50	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-TC-40B-75	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-TC-40B-100	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-TC-40B-150	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-TC-40B-200	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-TC-40B-250	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-TC-40B-300	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-TC-40B-350	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-TC-40B-400	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-TC-40B-450	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-TC-40B-500	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-TC-40D-25	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-TC-40D-50	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-TC-40D-75	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-TC-40D-100	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-TC-40D-150	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-TC-40D-200	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-TC-40D-250	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-TC-40D-300	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-TC-40D-350	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-TC-40D-400	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-TC-40D-450	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-TC-40D-500	Mounting: Center trunnion (TC) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-00-50B-25	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-00-50B-50	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-00-50B-75	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-00-50B-100	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-00-50B-150	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-00-50B-200	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-00-50B-250	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-00-50B-300	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-00-50B-350	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-00-50B-400	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-00-50B-450	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-00-50B-500	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-00-50D-25	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-00-50D-50	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-00-50D-75	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-00-50D-100	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-00-50D-150	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-00-50D-200	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-00-50D-250	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-00-50D-300	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-00-50D-350	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-00-50D-400	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-00-50D-450	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-00-50D-500	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-LB-50B-25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-LB-50B-50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-LB-50B-75	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-LB-50B-100	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-LB-50B-150	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-LB-50B-200	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-LB-50B-250	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-LB-50B-300	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-LB-50B-350	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-LB-50B-400	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-LB-50B-450	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-LB-50B-500	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-LB-50D-25	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-LB-50D-50	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-LB-50D-75	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-LB-50D-100	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-LB-50D-150	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-LB-50D-200	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-LB-50D-250	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-LB-50D-300	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-LB-50D-350	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-LB-50D-400	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-LB-50D-450	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-LB-50D-500	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-FA-50B-25	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-FA-50B-50	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-FA-50B-75	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-FA-50B-100	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-FA-50B-150	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-FA-50B-200	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-FA-50B-250	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-FA-50B-300	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-FA-50B-350	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-FA-50B-400	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-FA-50B-450	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-FA-50B-500	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-FA-50D-25	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-FA-50D-50	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-FA-50D-75	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-FA-50D-100	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-FA-50D-150	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-FA-50D-200	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-FA-50D-250	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-FA-50D-300	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-FA-50D-350	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-FA-50D-400	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-FA-50D-450	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-FA-50D-500	Mounting: Rod-side flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-FB-50B-25	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-FB-50B-50	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-FB-50B-75	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-FB-50B-100	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-FB-50B-150	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-FB-50B-200	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-FB-50B-250	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-FB-50B-300	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-FB-50B-350	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-FB-50B-400	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-FB-50B-450	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-FB-50B-500	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-FB-50D-25	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-FB-50D-50	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-FB-50D-75	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-FB-50D-100	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-FB-50D-150	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-FB-50D-200	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-FB-50D-250	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-FB-50D-300	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-FB-50D-350	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-FB-50D-400	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-FB-50D-450	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-FB-50D-500	Mounting: Head-side flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-CA-50B-25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-CA-50B-50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-CA-50B-75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-CA-50B-100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-CA-50B-150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-CA-50B-200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-CA-50B-250	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-CA-50B-300	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-CA-50B-350	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-CA-50B-400	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-CA-50B-450	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-CA-50B-500	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-CA-50D-25	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-CA-50D-50	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-CA-50D-75	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-CA-50D-100	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-CA-50D-150	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-CA-50D-200	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-CA-50D-250	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-CA-50D-300	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-CA-50D-350	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-CA-50D-400	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-CA-50D-450	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-CA-50D-500	Mounting: Single clevis (CA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-CB-50B-25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-CB-50B-50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-CB-50B-75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-CB-50B-100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-CB-50B-150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-CB-50B-200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-CB-50B-250	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-CB-50B-300	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-CB-50B-350	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-CB-50B-400	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-CB-50B-450	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-CB-50B-500	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-CB-50D-25	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-CB-50D-50	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-CB-50D-75	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-CB-50D-100	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-CB-50D-150	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-CB-50D-200	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-CB-50D-250	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-CB-50D-300	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-CB-50D-350	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-CB-50D-400	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-CB-50D-450	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-CB-50D-500	Mounting: Double clevis (CB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-TA-50B-25	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-TA-50B-50	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-TA-50B-75	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-TA-50B-100	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-TA-50B-150	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-TA-50B-200	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-TA-50B-250	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-TA-50B-300	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-TA-50B-350	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-TA-50B-400	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-TA-50B-450	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-TA-50B-500	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-TA-50D-25	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-TA-50D-50	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-TA-50D-75	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-TA-50D-100	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-TA-50D-150	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-TA-50D-200	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-TA-50D-250	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-TA-50D-300	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-TA-50D-350	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-TA-50D-400	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-TA-50D-450	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-TA-50D-500	Mounting: Rod-side trunnion (TA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-TB-50B-25	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-TB-50B-50	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-TB-50B-75	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-TB-50B-100	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-TB-50B-150	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-TB-50B-200	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-TB-50B-250	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-TB-50B-300	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-TB-50B-350	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-TB-50B-400	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-TB-50B-450	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-TB-50B-500	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-TB-50D-25	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-TB-50D-50	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-TB-50D-75	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-TB-50D-100	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-TB-50D-150	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-TB-50D-200	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-TB-50D-250	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-TB-50D-300	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-TB-50D-350	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-TB-50D-400	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-TB-50D-450	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-TB-50D-500	Mounting: Head-side trunnion (TB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-TC-50B-25	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-TC-50B-50	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-TC-50B-75	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-TC-50B-100	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-TC-50B-150	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-TC-50B-200	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-TC-50B-250	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-TC-50B-300	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-TC-50B-350	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-TC-50B-400	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-TC-50B-450	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-TC-50B-500	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-TC-50D-25	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc1/4
	SCG-M-TC-50D-50	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc1/4
	SCG-M-TC-50D-75	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc1/4
	SCG-M-TC-50D-100	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc1/4
	SCG-M-TC-50D-150	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc1/4
	SCG-M-TC-50D-200	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc1/4
	SCG-M-TC-50D-250	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc1/4
	SCG-M-TC-50D-300	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc1/4
	SCG-M-TC-50D-350	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc1/4
	SCG-M-TC-50D-400	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc1/4
	SCG-M-TC-50D-450	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc1/4
	SCG-M-TC-50D-500	Mounting: Center trunnion (TC) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc1/4
	SCG-M-00-63B-25	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-00-63B-50	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-00-63B-75	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-00-63B-100	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-00-63B-150	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-00-63B-200	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-00-63B-250	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-00-63B-300	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-00-63B-350	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-00-63B-400	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-00-63B-450	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-00-63B-500	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-00-63D-25	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-00-63D-50	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-00-63D-75	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-00-63D-100	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-00-63D-150	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-00-63D-200	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-00-63D-250	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-00-63D-300	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-00-63D-350	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-00-63D-400	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-00-63D-450	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-00-63D-500	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-LB-63B-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-LB-63B-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-LB-63B-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-LB-63B-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-LB-63B-150	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-LB-63B-200	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-LB-63B-250	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-LB-63B-300	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-LB-63B-350	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-LB-63B-400	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-LB-63B-450	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-LB-63B-500	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-LB-63D-25	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-LB-63D-50	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-LB-63D-75	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-LB-63D-100	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-LB-63D-150	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-LB-63D-200	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-LB-63D-250	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-LB-63D-300	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-LB-63D-350	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-LB-63D-400	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-LB-63D-450	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-LB-63D-500	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-FA-63B-25	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-FA-63B-50	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-FA-63B-75	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-FA-63B-100	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-FA-63B-150	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-FA-63B-200	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-FA-63B-250	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-FA-63B-300	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-FA-63B-350	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-FA-63B-400	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-FA-63B-450	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-FA-63B-500	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-FA-63D-25	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-FA-63D-50	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-FA-63D-75	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-FA-63D-100	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-FA-63D-150	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-FA-63D-200	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-FA-63D-250	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-FA-63D-300	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-FA-63D-350	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-FA-63D-400	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-FA-63D-450	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-FA-63D-500	Mounting: Rod-side flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-FB-63B-25	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-FB-63B-50	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-FB-63B-75	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-FB-63B-100	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-FB-63B-150	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-FB-63B-200	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-FB-63B-250	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-FB-63B-300	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-FB-63B-350	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-FB-63B-400	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-FB-63B-450	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-FB-63B-500	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-FB-63D-25	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-FB-63D-50	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-FB-63D-75	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-FB-63D-100	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-FB-63D-150	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-FB-63D-200	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-FB-63D-250	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-FB-63D-300	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-FB-63D-350	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-FB-63D-400	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-FB-63D-450	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-FB-63D-500	Mounting: Head-side flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-CA-63B-25	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-CA-63B-50	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-CA-63B-75	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-CA-63B-100	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-CA-63B-150	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-CA-63B-200	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-CA-63B-250	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-CA-63B-300	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-CA-63B-350	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-CA-63B-400	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-CA-63B-450	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-CA-63B-500	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-CA-63D-25	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-CA-63D-50	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-CA-63D-75	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-CA-63D-100	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-CA-63D-150	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-CA-63D-200	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-CA-63D-250	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-CA-63D-300	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-CA-63D-350	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-CA-63D-400	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-CA-63D-450	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-CA-63D-500	Mounting: Single clevis (CA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-CB-63B-25	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-CB-63B-50	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-CB-63B-75	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-CB-63B-100	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-CB-63B-150	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-CB-63B-200	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-CB-63B-250	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-CB-63B-300	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-CB-63B-350	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-CB-63B-400	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-CB-63B-450	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-CB-63B-500	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-CB-63D-25	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-CB-63D-50	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-CB-63D-75	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-CB-63D-100	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-CB-63D-150	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-CB-63D-200	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-CB-63D-250	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-CB-63D-300	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-CB-63D-350	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-CB-63D-400	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-CB-63D-450	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-CB-63D-500	Mounting: Double clevis (CB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-TA-63B-25	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-TA-63B-50	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-TA-63B-75	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-TA-63B-100	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-TA-63B-150	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-TA-63B-200	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-TA-63B-250	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-TA-63B-300	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-TA-63B-350	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-TA-63B-400	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-TA-63B-450	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-TA-63B-500	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-TA-63D-25	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-TA-63D-50	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-TA-63D-75	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-TA-63D-100	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-TA-63D-150	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-TA-63D-200	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-TA-63D-250	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-TA-63D-300	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-TA-63D-350	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-TA-63D-400	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-TA-63D-450	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-TA-63D-500	Mounting: Rod-side trunnion (TA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-TB-63B-25	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-TB-63B-50	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-TB-63B-75	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-TB-63B-100	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-TB-63B-150	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-TB-63B-200	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-TB-63B-250	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-TB-63B-300	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-TB-63B-350	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-TB-63B-400	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-TB-63B-450	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-TB-63B-500	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-TB-63D-25	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-TB-63D-50	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-TB-63D-75	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-TB-63D-100	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-TB-63D-150	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-TB-63D-200	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-TB-63D-250	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-TB-63D-300	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-TB-63D-350	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-TB-63D-400	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-TB-63D-450	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-TB-63D-500	Mounting: Head-side trunnion (TB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-TC-63B-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-TC-63B-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-TC-63B-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-TC-63B-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-TC-63B-150	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-TC-63B-200	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-TC-63B-250	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-TC-63B-300	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-TC-63B-350	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-TC-63B-400	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-TC-63B-450	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-TC-63B-500	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8
	SCG-M-TC-63D-25	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Port: Rc3/8
	SCG-M-TC-63D-50	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Port: Rc3/8
	SCG-M-TC-63D-75	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Port: Rc3/8
	SCG-M-TC-63D-100	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Port: Rc3/8
	SCG-M-TC-63D-150	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Port: Rc3/8
	SCG-M-TC-63D-200	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Port: Rc3/8
	SCG-M-TC-63D-250	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Port: Rc3/8
	SCG-M-TC-63D-300	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Port: Rc3/8
	SCG-M-TC-63D-350	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 350 mm \| Port: Rc3/8
	SCG-M-TC-63D-400	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 400 mm \| Port: Rc3/8
	SCG-M-TC-63D-450	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 450 mm \| Port: Rc3/8
	SCG-M-TC-63D-500	Mounting: Center trunnion (TC) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 500 mm \| Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCG-M Tie-Rod Cylinder, Non-rotating (Bore 32-63)
