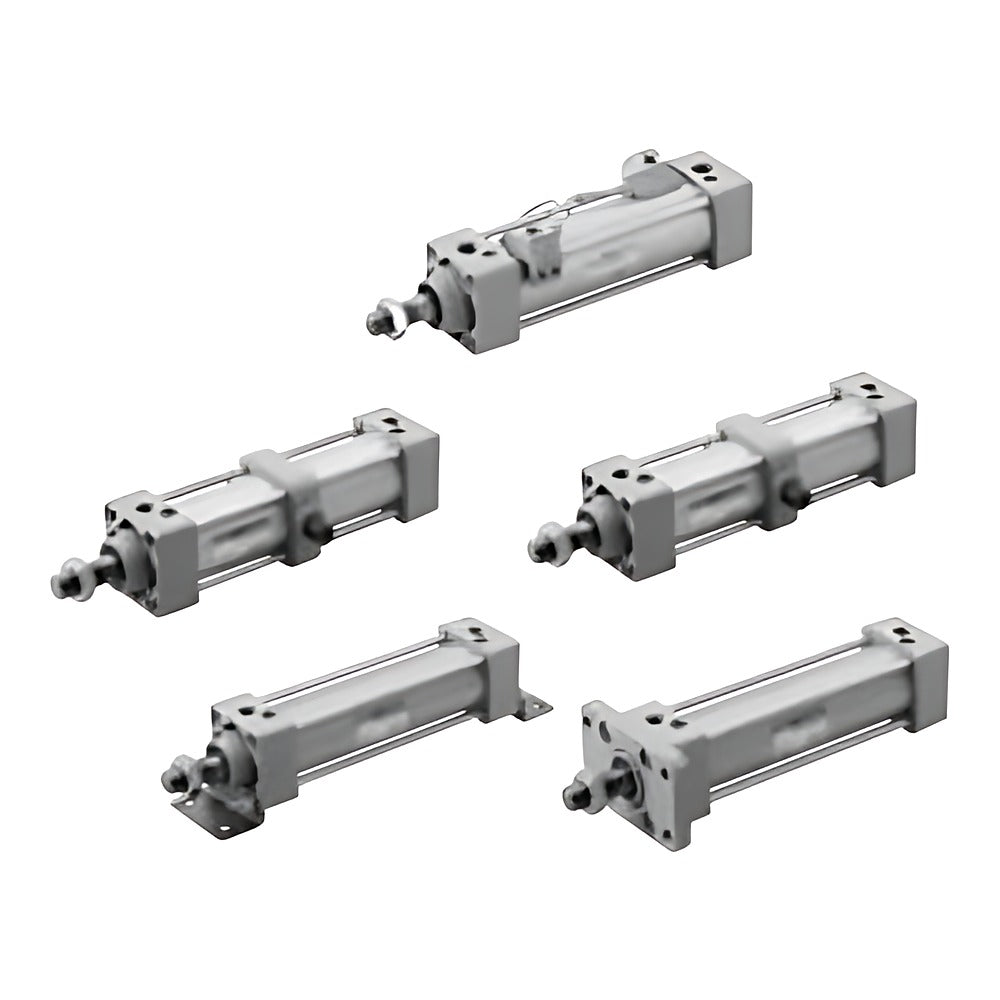

CKD SCG-U Tie-Rod Cylinder, Low Friction (Bore 32-100)

CKD SCG-U Tie-Rod Cylinder, Low Friction (Bore 32-100)

CKD SCG-U tie-rod double-acting low friction cylinder without cushion, bore 32 to 100 mm.

Key features

  • Low-friction type (static friction minimized under pressure), operates from 0.03 MPa
  • No cushion (N); external shock absorber recommended
  • Mountings 00, LB, FA, FB, CA, CB, TA, TB, TC
  • Standard strokes 25 to 500 mm; 1 mm intermediate strokes to 600 mm (ø32-63), 700 mm (ø80), 800 mm (ø100)
  • Auto switch ready (built-in magnet); T0/T5/T8 reed and T1/T2/T3/T2W/T2Y/T2YD/T2J solid-state switches ordered as suffix (R/H/D/T switches)
  • Option M (stainless rod); accessories I/Y/B1-B4 as suffix

Specifications

Action Double acting, low friction
Fluid Compressed air
Proof pressure 1.0 MPa
Ambient temperature 5 to 60°C
Max. operating pressure 0.7 MPa
Min. operating pressure 0.03 MPa
Piston speed 10 to 1000 mm/s
Cushion No cushion (N)
Lubrication Not allowed
Source CKD Korea catalog CB-029SK-9, p. 490-493
SCG-U-00-32N-25 Mounting: Basic (00) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-00-32N-50 Mounting: Basic (00) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-00-32N-75 Mounting: Basic (00) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-00-32N-100 Mounting: Basic (00) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-00-32N-150 Mounting: Basic (00) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-00-32N-200 Mounting: Basic (00) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-00-32N-250 Mounting: Basic (00) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-00-32N-300 Mounting: Basic (00) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-00-32N-350 Mounting: Basic (00) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-00-32N-400 Mounting: Basic (00) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-00-32N-450 Mounting: Basic (00) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-00-32N-500 Mounting: Basic (00) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-LB-32N-25 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-LB-32N-50 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-LB-32N-75 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-LB-32N-100 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-LB-32N-150 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-LB-32N-200 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-LB-32N-250 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-LB-32N-300 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-LB-32N-350 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-LB-32N-400 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-LB-32N-450 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-LB-32N-500 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-FA-32N-25 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-FA-32N-50 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-FA-32N-75 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-FA-32N-100 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-FA-32N-150 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-FA-32N-200 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-FA-32N-250 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-FA-32N-300 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-FA-32N-350 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-FA-32N-400 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-FA-32N-450 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-FA-32N-500 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-FB-32N-25 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-FB-32N-50 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-FB-32N-75 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-FB-32N-100 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-FB-32N-150 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-FB-32N-200 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-FB-32N-250 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-FB-32N-300 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-FB-32N-350 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-FB-32N-400 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-FB-32N-450 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-FB-32N-500 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-CA-32N-25 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-CA-32N-50 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-CA-32N-75 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-CA-32N-100 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-CA-32N-150 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-CA-32N-200 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-CA-32N-250 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-CA-32N-300 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-CA-32N-350 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-CA-32N-400 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-CA-32N-450 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-CA-32N-500 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-CB-32N-25 Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-CB-32N-50 Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-CB-32N-75 Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-CB-32N-100 Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-CB-32N-150 Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-CB-32N-200 Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-CB-32N-250 Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-CB-32N-300 Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-CB-32N-350 Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-CB-32N-400 Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-CB-32N-450 Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-CB-32N-500 Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-TA-32N-25 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-TA-32N-50 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-TA-32N-75 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-TA-32N-100 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-TA-32N-150 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-TA-32N-200 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-TA-32N-250 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-TA-32N-300 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-TA-32N-350 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-TA-32N-400 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-TA-32N-450 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-TA-32N-500 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-TB-32N-25 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-TB-32N-50 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-TB-32N-75 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-TB-32N-100 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-TB-32N-150 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-TB-32N-200 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-TB-32N-250 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-TB-32N-300 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-TB-32N-350 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-TB-32N-400 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-TB-32N-450 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-TB-32N-500 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-TC-32N-25 Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-TC-32N-50 Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-TC-32N-75 Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-TC-32N-100 Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-TC-32N-150 Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-TC-32N-200 Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-TC-32N-250 Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-TC-32N-300 Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-TC-32N-350 Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-TC-32N-400 Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-TC-32N-450 Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-TC-32N-500 Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-00-40N-25 Mounting: Basic (00) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-00-40N-50 Mounting: Basic (00) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-00-40N-75 Mounting: Basic (00) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-00-40N-100 Mounting: Basic (00) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-00-40N-150 Mounting: Basic (00) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-00-40N-200 Mounting: Basic (00) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-00-40N-250 Mounting: Basic (00) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-00-40N-300 Mounting: Basic (00) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-00-40N-350 Mounting: Basic (00) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-00-40N-400 Mounting: Basic (00) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-00-40N-450 Mounting: Basic (00) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-00-40N-500 Mounting: Basic (00) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-LB-40N-25 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-LB-40N-50 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-LB-40N-75 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-LB-40N-100 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-LB-40N-150 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-LB-40N-200 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-LB-40N-250 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-LB-40N-300 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-LB-40N-350 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-LB-40N-400 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-LB-40N-450 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-LB-40N-500 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-FA-40N-25 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-FA-40N-50 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-FA-40N-75 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-FA-40N-100 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-FA-40N-150 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-FA-40N-200 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-FA-40N-250 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-FA-40N-300 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-FA-40N-350 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-FA-40N-400 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-FA-40N-450 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-FA-40N-500 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-FB-40N-25 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-FB-40N-50 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-FB-40N-75 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-FB-40N-100 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-FB-40N-150 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-FB-40N-200 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-FB-40N-250 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-FB-40N-300 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-FB-40N-350 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-FB-40N-400 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-FB-40N-450 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-FB-40N-500 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-CA-40N-25 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-CA-40N-50 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-CA-40N-75 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-CA-40N-100 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-CA-40N-150 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-CA-40N-200 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-CA-40N-250 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-CA-40N-300 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-CA-40N-350 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-CA-40N-400 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-CA-40N-450 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-CA-40N-500 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-CB-40N-25 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-CB-40N-50 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-CB-40N-75 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-CB-40N-100 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-CB-40N-150 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-CB-40N-200 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-CB-40N-250 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-CB-40N-300 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-CB-40N-350 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-CB-40N-400 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-CB-40N-450 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-CB-40N-500 Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-TA-40N-25 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-TA-40N-50 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-TA-40N-75 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-TA-40N-100 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-TA-40N-150 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-TA-40N-200 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-TA-40N-250 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-TA-40N-300 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-TA-40N-350 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-TA-40N-400 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-TA-40N-450 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-TA-40N-500 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-TB-40N-25 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-TB-40N-50 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-TB-40N-75 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-TB-40N-100 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-TB-40N-150 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-TB-40N-200 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-TB-40N-250 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-TB-40N-300 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-TB-40N-350 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-TB-40N-400 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-TB-40N-450 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-TB-40N-500 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-TC-40N-25 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-TC-40N-50 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-TC-40N-75 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-TC-40N-100 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-TC-40N-150 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-TC-40N-200 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-TC-40N-250 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-TC-40N-300 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-TC-40N-350 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-TC-40N-400 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-TC-40N-450 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-TC-40N-500 Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-00-50N-25 Mounting: Basic (00) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-00-50N-50 Mounting: Basic (00) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-00-50N-75 Mounting: Basic (00) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-00-50N-100 Mounting: Basic (00) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-00-50N-150 Mounting: Basic (00) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-00-50N-200 Mounting: Basic (00) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-00-50N-250 Mounting: Basic (00) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-00-50N-300 Mounting: Basic (00) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-00-50N-350 Mounting: Basic (00) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-00-50N-400 Mounting: Basic (00) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-00-50N-450 Mounting: Basic (00) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-00-50N-500 Mounting: Basic (00) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-LB-50N-25 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-LB-50N-50 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-LB-50N-75 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-LB-50N-100 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-LB-50N-150 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-LB-50N-200 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-LB-50N-250 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-LB-50N-300 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-LB-50N-350 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-LB-50N-400 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-LB-50N-450 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-LB-50N-500 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-FA-50N-25 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-FA-50N-50 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-FA-50N-75 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-FA-50N-100 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-FA-50N-150 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-FA-50N-200 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-FA-50N-250 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-FA-50N-300 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-FA-50N-350 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-FA-50N-400 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-FA-50N-450 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-FA-50N-500 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-FB-50N-25 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-FB-50N-50 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-FB-50N-75 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-FB-50N-100 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-FB-50N-150 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-FB-50N-200 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-FB-50N-250 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-FB-50N-300 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-FB-50N-350 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-FB-50N-400 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-FB-50N-450 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-FB-50N-500 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-CA-50N-25 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-CA-50N-50 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-CA-50N-75 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-CA-50N-100 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-CA-50N-150 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-CA-50N-200 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-CA-50N-250 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-CA-50N-300 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-CA-50N-350 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-CA-50N-400 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-CA-50N-450 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-CA-50N-500 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-CB-50N-25 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-CB-50N-50 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-CB-50N-75 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-CB-50N-100 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-CB-50N-150 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-CB-50N-200 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-CB-50N-250 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-CB-50N-300 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-CB-50N-350 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-CB-50N-400 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-CB-50N-450 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-CB-50N-500 Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-TA-50N-25 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-TA-50N-50 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-TA-50N-75 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-TA-50N-100 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-TA-50N-150 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-TA-50N-200 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-TA-50N-250 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-TA-50N-300 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-TA-50N-350 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-TA-50N-400 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-TA-50N-450 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-TA-50N-500 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-TB-50N-25 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-TB-50N-50 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-TB-50N-75 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-TB-50N-100 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-TB-50N-150 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-TB-50N-200 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-TB-50N-250 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-TB-50N-300 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-TB-50N-350 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-TB-50N-400 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-TB-50N-450 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-TB-50N-500 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-TC-50N-25 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-TC-50N-50 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-TC-50N-75 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-TC-50N-100 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-TC-50N-150 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-TC-50N-200 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-TC-50N-250 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-TC-50N-300 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-TC-50N-350 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-TC-50N-400 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-TC-50N-450 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-TC-50N-500 Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-00-63N-25 Mounting: Basic (00) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-00-63N-50 Mounting: Basic (00) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-00-63N-75 Mounting: Basic (00) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-00-63N-100 Mounting: Basic (00) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-00-63N-150 Mounting: Basic (00) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-00-63N-200 Mounting: Basic (00) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-00-63N-250 Mounting: Basic (00) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-00-63N-300 Mounting: Basic (00) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-00-63N-350 Mounting: Basic (00) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-00-63N-400 Mounting: Basic (00) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-00-63N-450 Mounting: Basic (00) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-00-63N-500 Mounting: Basic (00) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-LB-63N-25 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-LB-63N-50 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-LB-63N-75 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-LB-63N-100 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-LB-63N-150 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-LB-63N-200 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-LB-63N-250 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-LB-63N-300 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-LB-63N-350 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-LB-63N-400 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-LB-63N-450 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-LB-63N-500 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-FA-63N-25 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-FA-63N-50 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-FA-63N-75 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-FA-63N-100 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-FA-63N-150 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-FA-63N-200 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-FA-63N-250 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-FA-63N-300 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-FA-63N-350 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-FA-63N-400 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-FA-63N-450 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-FA-63N-500 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-FB-63N-25 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-FB-63N-50 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-FB-63N-75 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-FB-63N-100 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-FB-63N-150 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-FB-63N-200 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-FB-63N-250 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-FB-63N-300 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-FB-63N-350 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-FB-63N-400 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-FB-63N-450 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-FB-63N-500 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-CA-63N-25 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-CA-63N-50 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-CA-63N-75 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-CA-63N-100 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-CA-63N-150 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-CA-63N-200 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-CA-63N-250 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-CA-63N-300 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-CA-63N-350 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-CA-63N-400 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-CA-63N-450 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-CA-63N-500 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-CB-63N-25 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-CB-63N-50 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-CB-63N-75 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-CB-63N-100 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-CB-63N-150 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-CB-63N-200 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-CB-63N-250 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-CB-63N-300 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-CB-63N-350 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-CB-63N-400 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-CB-63N-450 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-CB-63N-500 Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-TA-63N-25 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-TA-63N-50 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-TA-63N-75 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-TA-63N-100 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-TA-63N-150 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-TA-63N-200 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-TA-63N-250 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-TA-63N-300 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-TA-63N-350 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-TA-63N-400 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-TA-63N-450 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-TA-63N-500 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-TB-63N-25 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-TB-63N-50 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-TB-63N-75 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-TB-63N-100 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-TB-63N-150 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-TB-63N-200 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-TB-63N-250 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-TB-63N-300 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-TB-63N-350 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-TB-63N-400 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-TB-63N-450 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-TB-63N-500 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-TC-63N-25 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-TC-63N-50 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-TC-63N-75 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-TC-63N-100 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-TC-63N-150 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-TC-63N-200 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-TC-63N-250 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-TC-63N-300 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-TC-63N-350 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-TC-63N-400 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-TC-63N-450 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-TC-63N-500 Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-00-80N-25 Mounting: Basic (00) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-00-80N-50 Mounting: Basic (00) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-00-80N-75 Mounting: Basic (00) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-00-80N-100 Mounting: Basic (00) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-00-80N-150 Mounting: Basic (00) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-00-80N-200 Mounting: Basic (00) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-00-80N-250 Mounting: Basic (00) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-00-80N-300 Mounting: Basic (00) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-00-80N-350 Mounting: Basic (00) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-00-80N-400 Mounting: Basic (00) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-00-80N-450 Mounting: Basic (00) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-00-80N-500 Mounting: Basic (00) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-LB-80N-25 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-LB-80N-50 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-LB-80N-75 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-LB-80N-100 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-LB-80N-150 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-LB-80N-200 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-LB-80N-250 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-LB-80N-300 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-LB-80N-350 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-LB-80N-400 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-LB-80N-450 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-LB-80N-500 Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-FA-80N-25 Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-FA-80N-50 Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-FA-80N-75 Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-FA-80N-100 Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-FA-80N-150 Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-FA-80N-200 Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-FA-80N-250 Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-FA-80N-300 Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-FA-80N-350 Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-FA-80N-400 Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-FA-80N-450 Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-FA-80N-500 Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-FB-80N-25 Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-FB-80N-50 Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-FB-80N-75 Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-FB-80N-100 Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-FB-80N-150 Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-FB-80N-200 Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-FB-80N-250 Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-FB-80N-300 Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-FB-80N-350 Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-FB-80N-400 Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-FB-80N-450 Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-FB-80N-500 Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-CA-80N-25 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-CA-80N-50 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-CA-80N-75 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-CA-80N-100 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-CA-80N-150 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-CA-80N-200 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-CA-80N-250 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-CA-80N-300 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-CA-80N-350 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-CA-80N-400 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-CA-80N-450 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-CA-80N-500 Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-CB-80N-25 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-CB-80N-50 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-CB-80N-75 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-CB-80N-100 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-CB-80N-150 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-CB-80N-200 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-CB-80N-250 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-CB-80N-300 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-CB-80N-350 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-CB-80N-400 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-CB-80N-450 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-CB-80N-500 Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-TA-80N-25 Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-TA-80N-50 Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-TA-80N-75 Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-TA-80N-100 Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-TA-80N-150 Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-TA-80N-200 Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-TA-80N-250 Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-TA-80N-300 Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-TA-80N-350 Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-TA-80N-400 Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-TA-80N-450 Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-TA-80N-500 Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-TB-80N-25 Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-TB-80N-50 Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-TB-80N-75 Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-TB-80N-100 Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-TB-80N-150 Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-TB-80N-200 Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-TB-80N-250 Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-TB-80N-300 Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-TB-80N-350 Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-TB-80N-400 Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-TB-80N-450 Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-TB-80N-500 Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-TC-80N-25 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-TC-80N-50 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-TC-80N-75 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-TC-80N-100 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-TC-80N-150 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-TC-80N-200 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-TC-80N-250 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-TC-80N-300 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-TC-80N-350 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-TC-80N-400 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-TC-80N-450 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-TC-80N-500 Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-00-100N-25 Mounting: Basic (00) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-00-100N-50 Mounting: Basic (00) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-00-100N-75 Mounting: Basic (00) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-00-100N-100 Mounting: Basic (00) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-00-100N-150 Mounting: Basic (00) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-00-100N-200 Mounting: Basic (00) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-00-100N-250 Mounting: Basic (00) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-00-100N-300 Mounting: Basic (00) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-00-100N-350 Mounting: Basic (00) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-00-100N-400 Mounting: Basic (00) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-00-100N-450 Mounting: Basic (00) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-00-100N-500 Mounting: Basic (00) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-LB-100N-25 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-LB-100N-50 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-LB-100N-75 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-LB-100N-100 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-LB-100N-150 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-LB-100N-200 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-LB-100N-250 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-LB-100N-300 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-LB-100N-350 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-LB-100N-400 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-LB-100N-450 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-LB-100N-500 Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-FA-100N-25 Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-FA-100N-50 Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-FA-100N-75 Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-FA-100N-100 Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-FA-100N-150 Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-FA-100N-200 Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-FA-100N-250 Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-FA-100N-300 Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-FA-100N-350 Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-FA-100N-400 Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-FA-100N-450 Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-FA-100N-500 Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-FB-100N-25 Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-FB-100N-50 Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-FB-100N-75 Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-FB-100N-100 Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-FB-100N-150 Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-FB-100N-200 Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-FB-100N-250 Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-FB-100N-300 Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-FB-100N-350 Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-FB-100N-400 Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-FB-100N-450 Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-FB-100N-500 Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-CA-100N-25 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-CA-100N-50 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-CA-100N-75 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-CA-100N-100 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-CA-100N-150 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-CA-100N-200 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-CA-100N-250 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-CA-100N-300 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-CA-100N-350 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-CA-100N-400 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-CA-100N-450 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-CA-100N-500 Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-CB-100N-25 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-CB-100N-50 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-CB-100N-75 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-CB-100N-100 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-CB-100N-150 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-CB-100N-200 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-CB-100N-250 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-CB-100N-300 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-CB-100N-350 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-CB-100N-400 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-CB-100N-450 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-CB-100N-500 Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-TA-100N-25 Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-TA-100N-50 Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-TA-100N-75 Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-TA-100N-100 Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-TA-100N-150 Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-TA-100N-200 Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-TA-100N-250 Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-TA-100N-300 Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-TA-100N-350 Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-TA-100N-400 Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-TA-100N-450 Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-TA-100N-500 Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-TB-100N-25 Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-TB-100N-50 Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-TB-100N-75 Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-TB-100N-100 Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-TB-100N-150 Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-TB-100N-200 Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-TB-100N-250 Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-TB-100N-300 Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-TB-100N-350 Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-TB-100N-400 Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-TB-100N-450 Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-TB-100N-500 Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-TC-100N-25 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-TC-100N-50 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-TC-100N-75 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-TC-100N-100 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-TC-100N-150 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-TC-100N-200 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-TC-100N-250 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-TC-100N-300 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-TC-100N-350 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-TC-100N-400 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-TC-100N-450 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-TC-100N-500 Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
Pneumatic CylindersCKD
648 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCG-U Tie-Rod Cylinder, Low Friction (Bore 32-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (648)

SCG-U-00-32N-25, SCG-U-00-32N-50, SCG-U-00-32N-75, SCG-U-00-32N-100, SCG-U-00-32N-150, SCG-U-00-32N-200, SCG-U-00-32N-250, SCG-U-00-32N-300, SCG-U-00-32N-350, SCG-U-00-32N-400 + 638 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCG-U-00-32N-25Mounting: Basic (00) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-00-32N-50Mounting: Basic (00) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-00-32N-75Mounting: Basic (00) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-00-32N-100Mounting: Basic (00) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-00-32N-150Mounting: Basic (00) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-00-32N-200Mounting: Basic (00) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-00-32N-250Mounting: Basic (00) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-00-32N-300Mounting: Basic (00) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-00-32N-350Mounting: Basic (00) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-00-32N-400Mounting: Basic (00) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-00-32N-450Mounting: Basic (00) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-00-32N-500Mounting: Basic (00) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-LB-32N-25Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-LB-32N-50Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-LB-32N-75Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-LB-32N-100Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-LB-32N-150Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-LB-32N-200Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-LB-32N-250Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-LB-32N-300Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-LB-32N-350Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-LB-32N-400Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-LB-32N-450Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-LB-32N-500Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-FA-32N-25Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-FA-32N-50Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-FA-32N-75Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-FA-32N-100Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-FA-32N-150Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-FA-32N-200Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-FA-32N-250Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-FA-32N-300Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-FA-32N-350Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-FA-32N-400Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-FA-32N-450Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-FA-32N-500Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-FB-32N-25Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-FB-32N-50Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-FB-32N-75Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-FB-32N-100Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-FB-32N-150Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-FB-32N-200Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-FB-32N-250Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-FB-32N-300Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-FB-32N-350Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-FB-32N-400Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-FB-32N-450Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-FB-32N-500Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-CA-32N-25Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-CA-32N-50Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-CA-32N-75Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-CA-32N-100Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-CA-32N-150Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-CA-32N-200Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-CA-32N-250Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-CA-32N-300Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-CA-32N-350Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-CA-32N-400Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-CA-32N-450Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-CA-32N-500Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-CB-32N-25Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-CB-32N-50Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-CB-32N-75Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-CB-32N-100Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-CB-32N-150Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-CB-32N-200Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-CB-32N-250Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-CB-32N-300Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-CB-32N-350Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-CB-32N-400Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-CB-32N-450Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-CB-32N-500Mounting: Double clevis (CB) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-TA-32N-25Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-TA-32N-50Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-TA-32N-75Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-TA-32N-100Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-TA-32N-150Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-TA-32N-200Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-TA-32N-250Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-TA-32N-300Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-TA-32N-350Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-TA-32N-400Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-TA-32N-450Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-TA-32N-500Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-TB-32N-25Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-TB-32N-50Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-TB-32N-75Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-TB-32N-100Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-TB-32N-150Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-TB-32N-200Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-TB-32N-250Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-TB-32N-300Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-TB-32N-350Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-TB-32N-400Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-TB-32N-450Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-TB-32N-500Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-TC-32N-25Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCG-U-TC-32N-50Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCG-U-TC-32N-75Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCG-U-TC-32N-100Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCG-U-TC-32N-150Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCG-U-TC-32N-200Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCG-U-TC-32N-250Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCG-U-TC-32N-300Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCG-U-TC-32N-350Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
SCG-U-TC-32N-400Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
SCG-U-TC-32N-450Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8
SCG-U-TC-32N-500Mounting: Center trunnion (TC) | Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8
SCG-U-00-40N-25Mounting: Basic (00) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-00-40N-50Mounting: Basic (00) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-00-40N-75Mounting: Basic (00) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-00-40N-100Mounting: Basic (00) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-00-40N-150Mounting: Basic (00) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-00-40N-200Mounting: Basic (00) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-00-40N-250Mounting: Basic (00) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-00-40N-300Mounting: Basic (00) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-00-40N-350Mounting: Basic (00) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-00-40N-400Mounting: Basic (00) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-00-40N-450Mounting: Basic (00) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-00-40N-500Mounting: Basic (00) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-LB-40N-25Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-LB-40N-50Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-LB-40N-75Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-LB-40N-100Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-LB-40N-150Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-LB-40N-200Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-LB-40N-250Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-LB-40N-300Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-LB-40N-350Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-LB-40N-400Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-LB-40N-450Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-LB-40N-500Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-FA-40N-25Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-FA-40N-50Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-FA-40N-75Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-FA-40N-100Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-FA-40N-150Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-FA-40N-200Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-FA-40N-250Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-FA-40N-300Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-FA-40N-350Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-FA-40N-400Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-FA-40N-450Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-FA-40N-500Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-FB-40N-25Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-FB-40N-50Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-FB-40N-75Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-FB-40N-100Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-FB-40N-150Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-FB-40N-200Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-FB-40N-250Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-FB-40N-300Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-FB-40N-350Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-FB-40N-400Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-FB-40N-450Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-FB-40N-500Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-CA-40N-25Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-CA-40N-50Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-CA-40N-75Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-CA-40N-100Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-CA-40N-150Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-CA-40N-200Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-CA-40N-250Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-CA-40N-300Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-CA-40N-350Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-CA-40N-400Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-CA-40N-450Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-CA-40N-500Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-CB-40N-25Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-CB-40N-50Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-CB-40N-75Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-CB-40N-100Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-CB-40N-150Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-CB-40N-200Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-CB-40N-250Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-CB-40N-300Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-CB-40N-350Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-CB-40N-400Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-CB-40N-450Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-CB-40N-500Mounting: Double clevis (CB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-TA-40N-25Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-TA-40N-50Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-TA-40N-75Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-TA-40N-100Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-TA-40N-150Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-TA-40N-200Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-TA-40N-250Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-TA-40N-300Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-TA-40N-350Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-TA-40N-400Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-TA-40N-450Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-TA-40N-500Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-TB-40N-25Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-TB-40N-50Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-TB-40N-75Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-TB-40N-100Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-TB-40N-150Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-TB-40N-200Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-TB-40N-250Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-TB-40N-300Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-TB-40N-350Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-TB-40N-400Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-TB-40N-450Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-TB-40N-500Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-TC-40N-25Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-TC-40N-50Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-TC-40N-75Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-TC-40N-100Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-TC-40N-150Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-TC-40N-200Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-TC-40N-250Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-TC-40N-300Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-TC-40N-350Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-TC-40N-400Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-TC-40N-450Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-TC-40N-500Mounting: Center trunnion (TC) | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-00-50N-25Mounting: Basic (00) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-00-50N-50Mounting: Basic (00) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-00-50N-75Mounting: Basic (00) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-00-50N-100Mounting: Basic (00) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-00-50N-150Mounting: Basic (00) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-00-50N-200Mounting: Basic (00) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-00-50N-250Mounting: Basic (00) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-00-50N-300Mounting: Basic (00) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-00-50N-350Mounting: Basic (00) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-00-50N-400Mounting: Basic (00) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-00-50N-450Mounting: Basic (00) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-00-50N-500Mounting: Basic (00) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-LB-50N-25Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-LB-50N-50Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-LB-50N-75Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-LB-50N-100Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-LB-50N-150Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-LB-50N-200Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-LB-50N-250Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-LB-50N-300Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-LB-50N-350Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-LB-50N-400Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-LB-50N-450Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-LB-50N-500Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-FA-50N-25Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-FA-50N-50Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-FA-50N-75Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-FA-50N-100Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-FA-50N-150Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-FA-50N-200Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-FA-50N-250Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-FA-50N-300Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-FA-50N-350Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-FA-50N-400Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-FA-50N-450Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-FA-50N-500Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-FB-50N-25Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-FB-50N-50Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-FB-50N-75Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-FB-50N-100Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-FB-50N-150Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-FB-50N-200Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-FB-50N-250Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-FB-50N-300Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-FB-50N-350Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-FB-50N-400Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-FB-50N-450Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-FB-50N-500Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-CA-50N-25Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-CA-50N-50Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-CA-50N-75Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-CA-50N-100Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-CA-50N-150Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-CA-50N-200Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-CA-50N-250Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-CA-50N-300Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-CA-50N-350Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-CA-50N-400Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-CA-50N-450Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-CA-50N-500Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-CB-50N-25Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-CB-50N-50Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-CB-50N-75Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-CB-50N-100Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-CB-50N-150Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-CB-50N-200Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-CB-50N-250Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-CB-50N-300Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-CB-50N-350Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-CB-50N-400Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-CB-50N-450Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-CB-50N-500Mounting: Double clevis (CB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-TA-50N-25Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-TA-50N-50Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-TA-50N-75Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-TA-50N-100Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-TA-50N-150Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-TA-50N-200Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-TA-50N-250Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-TA-50N-300Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-TA-50N-350Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-TA-50N-400Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-TA-50N-450Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-TA-50N-500Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-TB-50N-25Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-TB-50N-50Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-TB-50N-75Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-TB-50N-100Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-TB-50N-150Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-TB-50N-200Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-TB-50N-250Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-TB-50N-300Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-TB-50N-350Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-TB-50N-400Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-TB-50N-450Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-TB-50N-500Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-TC-50N-25Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCG-U-TC-50N-50Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCG-U-TC-50N-75Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCG-U-TC-50N-100Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCG-U-TC-50N-150Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCG-U-TC-50N-200Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCG-U-TC-50N-250Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCG-U-TC-50N-300Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCG-U-TC-50N-350Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
SCG-U-TC-50N-400Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
SCG-U-TC-50N-450Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4
SCG-U-TC-50N-500Mounting: Center trunnion (TC) | Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4
SCG-U-00-63N-25Mounting: Basic (00) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-00-63N-50Mounting: Basic (00) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-00-63N-75Mounting: Basic (00) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-00-63N-100Mounting: Basic (00) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-00-63N-150Mounting: Basic (00) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-00-63N-200Mounting: Basic (00) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-00-63N-250Mounting: Basic (00) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-00-63N-300Mounting: Basic (00) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-00-63N-350Mounting: Basic (00) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-00-63N-400Mounting: Basic (00) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-00-63N-450Mounting: Basic (00) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-00-63N-500Mounting: Basic (00) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-LB-63N-25Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-LB-63N-50Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-LB-63N-75Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-LB-63N-100Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-LB-63N-150Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-LB-63N-200Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-LB-63N-250Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-LB-63N-300Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-LB-63N-350Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-LB-63N-400Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-LB-63N-450Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-LB-63N-500Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-FA-63N-25Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-FA-63N-50Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-FA-63N-75Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-FA-63N-100Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-FA-63N-150Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-FA-63N-200Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-FA-63N-250Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-FA-63N-300Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-FA-63N-350Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-FA-63N-400Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-FA-63N-450Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-FA-63N-500Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-FB-63N-25Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-FB-63N-50Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-FB-63N-75Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-FB-63N-100Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-FB-63N-150Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-FB-63N-200Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-FB-63N-250Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-FB-63N-300Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-FB-63N-350Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-FB-63N-400Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-FB-63N-450Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-FB-63N-500Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-CA-63N-25Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-CA-63N-50Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-CA-63N-75Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-CA-63N-100Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-CA-63N-150Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-CA-63N-200Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-CA-63N-250Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-CA-63N-300Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-CA-63N-350Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-CA-63N-400Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-CA-63N-450Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-CA-63N-500Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-CB-63N-25Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-CB-63N-50Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-CB-63N-75Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-CB-63N-100Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-CB-63N-150Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-CB-63N-200Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-CB-63N-250Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-CB-63N-300Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-CB-63N-350Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-CB-63N-400Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-CB-63N-450Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-CB-63N-500Mounting: Double clevis (CB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-TA-63N-25Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-TA-63N-50Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-TA-63N-75Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-TA-63N-100Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-TA-63N-150Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-TA-63N-200Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-TA-63N-250Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-TA-63N-300Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-TA-63N-350Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-TA-63N-400Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-TA-63N-450Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-TA-63N-500Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-TB-63N-25Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-TB-63N-50Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-TB-63N-75Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-TB-63N-100Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-TB-63N-150Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-TB-63N-200Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-TB-63N-250Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-TB-63N-300Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-TB-63N-350Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-TB-63N-400Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-TB-63N-450Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-TB-63N-500Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-TC-63N-25Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-TC-63N-50Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-TC-63N-75Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-TC-63N-100Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-TC-63N-150Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-TC-63N-200Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-TC-63N-250Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-TC-63N-300Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-TC-63N-350Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-TC-63N-400Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-TC-63N-450Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-TC-63N-500Mounting: Center trunnion (TC) | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-00-80N-25Mounting: Basic (00) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-00-80N-50Mounting: Basic (00) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-00-80N-75Mounting: Basic (00) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-00-80N-100Mounting: Basic (00) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-00-80N-150Mounting: Basic (00) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-00-80N-200Mounting: Basic (00) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-00-80N-250Mounting: Basic (00) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-00-80N-300Mounting: Basic (00) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-00-80N-350Mounting: Basic (00) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-00-80N-400Mounting: Basic (00) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-00-80N-450Mounting: Basic (00) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-00-80N-500Mounting: Basic (00) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-LB-80N-25Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-LB-80N-50Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-LB-80N-75Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-LB-80N-100Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-LB-80N-150Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-LB-80N-200Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-LB-80N-250Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-LB-80N-300Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-LB-80N-350Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-LB-80N-400Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-LB-80N-450Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-LB-80N-500Mounting: Axial foot (LB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-FA-80N-25Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-FA-80N-50Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-FA-80N-75Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-FA-80N-100Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-FA-80N-150Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-FA-80N-200Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-FA-80N-250Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-FA-80N-300Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-FA-80N-350Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-FA-80N-400Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-FA-80N-450Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-FA-80N-500Mounting: Rod-side flange (FA) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-FB-80N-25Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-FB-80N-50Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-FB-80N-75Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-FB-80N-100Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-FB-80N-150Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-FB-80N-200Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-FB-80N-250Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-FB-80N-300Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-FB-80N-350Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-FB-80N-400Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-FB-80N-450Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-FB-80N-500Mounting: Head-side flange (FB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-CA-80N-25Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-CA-80N-50Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-CA-80N-75Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-CA-80N-100Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-CA-80N-150Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-CA-80N-200Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-CA-80N-250Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-CA-80N-300Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-CA-80N-350Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-CA-80N-400Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-CA-80N-450Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-CA-80N-500Mounting: Single clevis (CA) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-CB-80N-25Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-CB-80N-50Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-CB-80N-75Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-CB-80N-100Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-CB-80N-150Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-CB-80N-200Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-CB-80N-250Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-CB-80N-300Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-CB-80N-350Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-CB-80N-400Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-CB-80N-450Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-CB-80N-500Mounting: Double clevis (CB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-TA-80N-25Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-TA-80N-50Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-TA-80N-75Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-TA-80N-100Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-TA-80N-150Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-TA-80N-200Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-TA-80N-250Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-TA-80N-300Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-TA-80N-350Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-TA-80N-400Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-TA-80N-450Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-TA-80N-500Mounting: Rod-side trunnion (TA) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-TB-80N-25Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-TB-80N-50Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-TB-80N-75Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-TB-80N-100Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-TB-80N-150Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-TB-80N-200Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-TB-80N-250Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-TB-80N-300Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-TB-80N-350Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-TB-80N-400Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-TB-80N-450Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-TB-80N-500Mounting: Head-side trunnion (TB) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-TC-80N-25Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
SCG-U-TC-80N-50Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SCG-U-TC-80N-75Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
SCG-U-TC-80N-100Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SCG-U-TC-80N-150Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
SCG-U-TC-80N-200Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
SCG-U-TC-80N-250Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
SCG-U-TC-80N-300Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
SCG-U-TC-80N-350Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
SCG-U-TC-80N-400Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
SCG-U-TC-80N-450Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 450 mm | Port: Rc3/8
SCG-U-TC-80N-500Mounting: Center trunnion (TC) | Bore: 80 mm | Stroke: 500 mm | Port: Rc3/8
SCG-U-00-100N-25Mounting: Basic (00) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-00-100N-50Mounting: Basic (00) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-00-100N-75Mounting: Basic (00) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-00-100N-100Mounting: Basic (00) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-00-100N-150Mounting: Basic (00) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-00-100N-200Mounting: Basic (00) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-00-100N-250Mounting: Basic (00) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-00-100N-300Mounting: Basic (00) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-00-100N-350Mounting: Basic (00) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-00-100N-400Mounting: Basic (00) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-00-100N-450Mounting: Basic (00) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-00-100N-500Mounting: Basic (00) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-LB-100N-25Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-LB-100N-50Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-LB-100N-75Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-LB-100N-100Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-LB-100N-150Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-LB-100N-200Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-LB-100N-250Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-LB-100N-300Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-LB-100N-350Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-LB-100N-400Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-LB-100N-450Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-LB-100N-500Mounting: Axial foot (LB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-FA-100N-25Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-FA-100N-50Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-FA-100N-75Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-FA-100N-100Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-FA-100N-150Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-FA-100N-200Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-FA-100N-250Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-FA-100N-300Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-FA-100N-350Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-FA-100N-400Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-FA-100N-450Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-FA-100N-500Mounting: Rod-side flange (FA) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-FB-100N-25Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-FB-100N-50Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-FB-100N-75Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-FB-100N-100Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-FB-100N-150Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-FB-100N-200Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-FB-100N-250Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-FB-100N-300Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-FB-100N-350Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-FB-100N-400Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-FB-100N-450Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-FB-100N-500Mounting: Head-side flange (FB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-CA-100N-25Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-CA-100N-50Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-CA-100N-75Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-CA-100N-100Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-CA-100N-150Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-CA-100N-200Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-CA-100N-250Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-CA-100N-300Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-CA-100N-350Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-CA-100N-400Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-CA-100N-450Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-CA-100N-500Mounting: Single clevis (CA) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-CB-100N-25Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-CB-100N-50Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-CB-100N-75Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-CB-100N-100Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-CB-100N-150Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-CB-100N-200Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-CB-100N-250Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-CB-100N-300Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-CB-100N-350Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-CB-100N-400Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-CB-100N-450Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-CB-100N-500Mounting: Double clevis (CB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-TA-100N-25Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-TA-100N-50Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-TA-100N-75Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-TA-100N-100Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-TA-100N-150Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-TA-100N-200Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-TA-100N-250Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-TA-100N-300Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-TA-100N-350Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-TA-100N-400Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-TA-100N-450Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-TA-100N-500Mounting: Rod-side trunnion (TA) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-TB-100N-25Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-TB-100N-50Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-TB-100N-75Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-TB-100N-100Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-TB-100N-150Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-TB-100N-200Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-TB-100N-250Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-TB-100N-300Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-TB-100N-350Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-TB-100N-400Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-TB-100N-450Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-TB-100N-500Mounting: Head-side trunnion (TB) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
SCG-U-TC-100N-25Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
SCG-U-TC-100N-50Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
SCG-U-TC-100N-75Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
SCG-U-TC-100N-100Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
SCG-U-TC-100N-150Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
SCG-U-TC-100N-200Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
SCG-U-TC-100N-250Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 250 mm | Port: Rc1/2
SCG-U-TC-100N-300Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
SCG-U-TC-100N-350Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
SCG-U-TC-100N-400Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
SCG-U-TC-100N-450Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
SCG-U-TC-100N-500Mounting: Center trunnion (TC) | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
