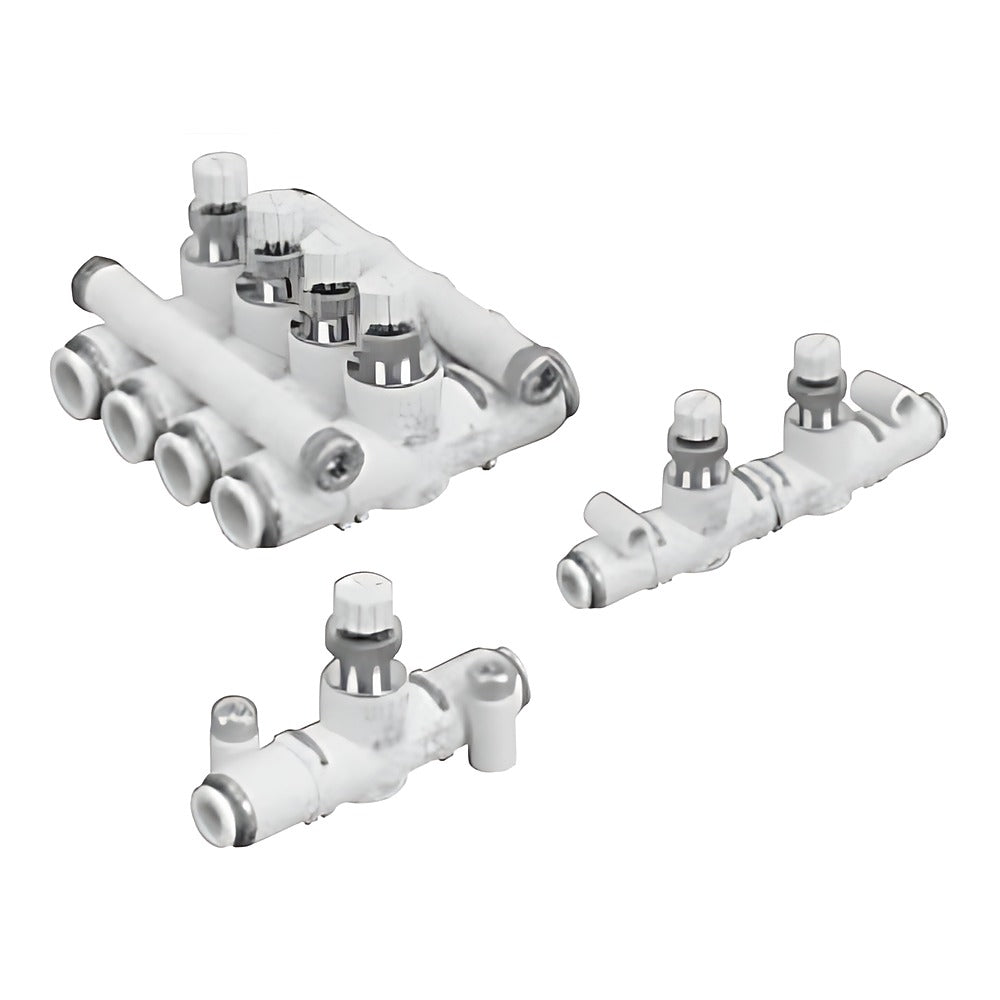

CKD SCL2 In-line Speed Controller (Battery Mfg. Spec P4)

CKD SCL2 In-line Speed Controller (Battery Mfg. Spec P4)

CKD SCL2 series in-line push-in speed controller in -P4 secondary-battery-manufacturing specification.

Key features

  • Structure suitable for secondary battery manufacturing processes (catalog CC-1226)
  • One-way (meter-out) flow control in an in-line body with push-in fittings both ends
  • Mounting hole rotates for floor, side or panel mounting
  • Micro-speed type (F) for 1.8/4/6 mm tube sizes; 1.8 mm tube connection is not push-in (see catalog p.894)

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa (0.7 MPa for 1.8 mm tube)
Min. operating pressure 0.1 MPa
Proof pressure 1.5 MPa (1.05 MPa for 1.8 mm tube)
Fluid temperature 5 to 60 C (no freezing)
Ambient temperature 0 to 60 C (no freezing)
Needle turns 12 (micro speed 15)
Source CKD Korea catalog CB-024SK-9, p. 796-804
SCL2-04-H22-F-P4 Body size: M5 equiv. | Tube OD (A/B side): 1.8 mm | Flow type: Micro speed
SCL2-04-H42-F-P4 Body size: M5 equiv. | Tube OD (A/B side): 4 / 1.8 mm | Flow type: Micro speed
SCL2-04-H24-F-P4 Body size: M5 equiv. | Tube OD (A/B side): 1.8 / 4 mm | Flow type: Micro speed
SCL2-04-H44-P4 Body size: M5 equiv. | Tube OD (A/B side): 4 mm | Flow type: Standard
SCL2-04-H44-F-P4 Body size: M5 equiv. | Tube OD (A/B side): 4 mm | Flow type: Micro speed
SCL2-06-H66-P4 Body size: 1/8 equiv. | Tube OD (A/B side): 6 mm | Flow type: Standard
SCL2-06-H66-F-P4 Body size: 1/8 equiv. | Tube OD (A/B side): 6 mm | Flow type: Micro speed
SCL2-08-H66-P4 Body size: 1/4 equiv. | Tube OD (A/B side): 6 mm | Flow type: Standard
SCL2-08-H88-P4 Body size: 1/4 equiv. | Tube OD (A/B side): 8 mm | Flow type: Standard
SCL2-10-H88-P4 Body size: 3/8 equiv. | Tube OD (A/B side): 8 mm | Flow type: Standard
SCL2-10-H1010-P4 Body size: 3/8 equiv. | Tube OD (A/B side): 10 mm | Flow type: Standard
SCL2-10-H1212-P4 Body size: 3/8 equiv. | Tube OD (A/B side): 12 mm | Flow type: Standard
Speed ControllersCKD
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCL2 In-line Speed Controller (Battery Mfg. Spec P4)

Brand CKD·Speed Controllers

Available part numbers (12)

SCL2-04-H22-F-P4, SCL2-04-H42-F-P4, SCL2-04-H24-F-P4, SCL2-04-H44-P4, SCL2-04-H44-F-P4, SCL2-06-H66-P4, SCL2-06-H66-F-P4, SCL2-08-H66-P4, SCL2-08-H88-P4, SCL2-10-H88-P4 + 2 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCL2-04-H22-F-P4Body size: M5 equiv. | Tube OD (A/B side): 1.8 mm | Flow type: Micro speed
SCL2-04-H42-F-P4Body size: M5 equiv. | Tube OD (A/B side): 4 / 1.8 mm | Flow type: Micro speed
SCL2-04-H24-F-P4Body size: M5 equiv. | Tube OD (A/B side): 1.8 / 4 mm | Flow type: Micro speed
SCL2-04-H44-P4Body size: M5 equiv. | Tube OD (A/B side): 4 mm | Flow type: Standard
SCL2-04-H44-F-P4Body size: M5 equiv. | Tube OD (A/B side): 4 mm | Flow type: Micro speed
SCL2-06-H66-P4Body size: 1/8 equiv. | Tube OD (A/B side): 6 mm | Flow type: Standard
SCL2-06-H66-F-P4Body size: 1/8 equiv. | Tube OD (A/B side): 6 mm | Flow type: Micro speed
SCL2-08-H66-P4Body size: 1/4 equiv. | Tube OD (A/B side): 6 mm | Flow type: Standard
SCL2-08-H88-P4Body size: 1/4 equiv. | Tube OD (A/B side): 8 mm | Flow type: Standard
SCL2-10-H88-P4Body size: 3/8 equiv. | Tube OD (A/B side): 8 mm | Flow type: Standard
SCL2-10-H1010-P4Body size: 3/8 equiv. | Tube OD (A/B side): 10 mm | Flow type: Standard
SCL2-10-H1212-P4Body size: 3/8 equiv. | Tube OD (A/B side): 12 mm | Flow type: Standard
