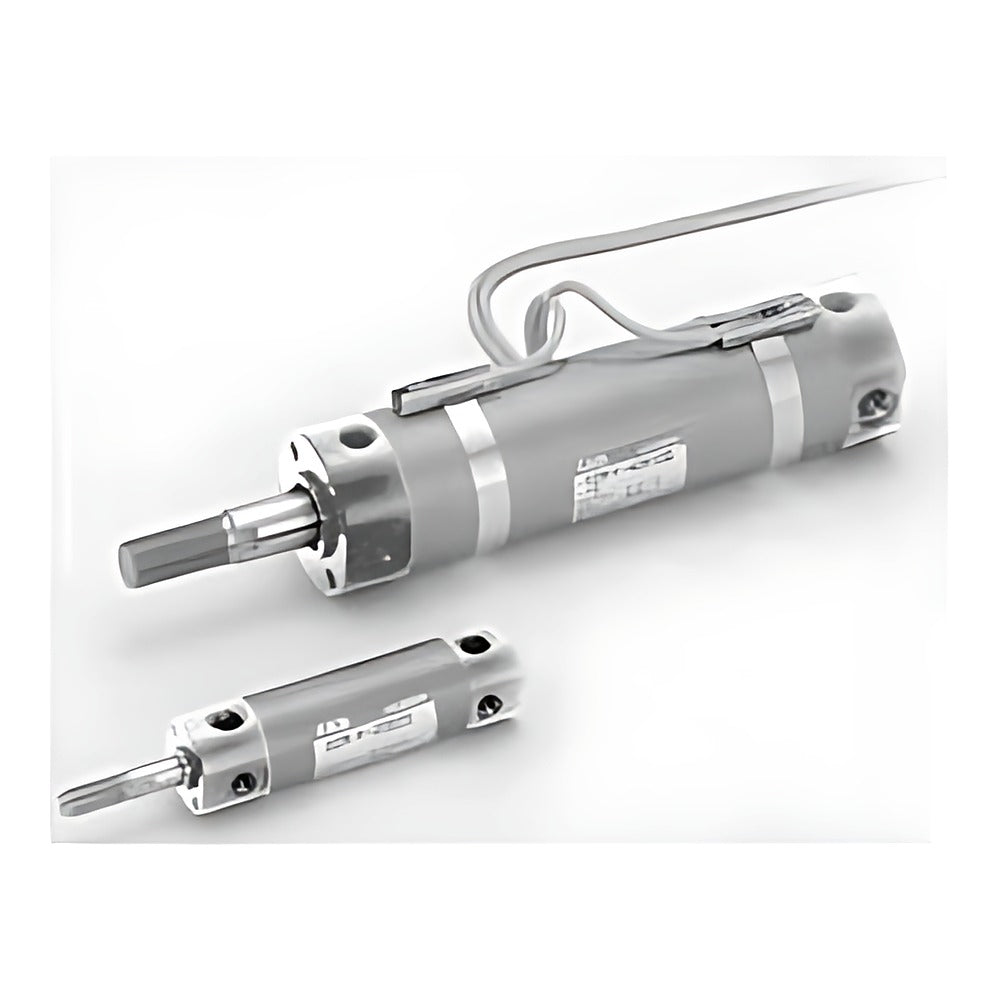

CKD SCM-F Super Micro Cylinder, Fine Speed (Bore 20-40)

CKD SCM-F Super Micro Cylinder, Fine Speed (Bore 20-40)

CKD SCM-F super micro double-acting fine-speed cylinder for smooth, stick-slip-free motion from 1 mm/s, bore 20 to 40 mm.

Key features

  • Fine-speed type for stable motion at 1 to 200 mm/s
  • Mountings 00, LB, FA, FB, CA, TA, TB; rubber cushion on both ends
  • Standard strokes 25 to 300 mm; 1 mm intermediate strokes up to 500 mm to order
  • Auto switch ready (built-in magnet); T0/T5/T8 reed and T1/T2/T3/T2W/T2Y/T2YD/T2J solid-state switches, rail or band (Z) mounting, ordered as suffix
  • Option M (stainless steel piston rod), Q (rail delivered); I/Y/B2 accessories as suffix
  • Lubrication must not be used

Specifications

Action Double acting, fine speed
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 1 to 200 mm/s
Cushion Rubber cushion, both ends (D)
Port size Rc1/8
Lubrication Not allowed
Source CKD Korea catalog CB-029SK-9, p. 380-384
SCM-F-00-20D-25 Mounting: Basic (00) | Bore: 20 mm | Stroke: 25 mm
SCM-F-00-20D-50 Mounting: Basic (00) | Bore: 20 mm | Stroke: 50 mm
SCM-F-00-20D-75 Mounting: Basic (00) | Bore: 20 mm | Stroke: 75 mm
SCM-F-00-20D-100 Mounting: Basic (00) | Bore: 20 mm | Stroke: 100 mm
SCM-F-00-20D-125 Mounting: Basic (00) | Bore: 20 mm | Stroke: 125 mm
SCM-F-00-20D-150 Mounting: Basic (00) | Bore: 20 mm | Stroke: 150 mm
SCM-F-00-20D-200 Mounting: Basic (00) | Bore: 20 mm | Stroke: 200 mm
SCM-F-00-20D-250 Mounting: Basic (00) | Bore: 20 mm | Stroke: 250 mm
SCM-F-00-20D-300 Mounting: Basic (00) | Bore: 20 mm | Stroke: 300 mm
SCM-F-LB-20D-25 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 25 mm
SCM-F-LB-20D-50 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 50 mm
SCM-F-LB-20D-75 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 75 mm
SCM-F-LB-20D-100 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 100 mm
SCM-F-LB-20D-125 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 125 mm
SCM-F-LB-20D-150 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 150 mm
SCM-F-LB-20D-200 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 200 mm
SCM-F-LB-20D-250 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 250 mm
SCM-F-LB-20D-300 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 300 mm
SCM-F-FA-20D-25 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 25 mm
SCM-F-FA-20D-50 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 50 mm
SCM-F-FA-20D-75 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 75 mm
SCM-F-FA-20D-100 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 100 mm
SCM-F-FA-20D-125 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 125 mm
SCM-F-FA-20D-150 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 150 mm
SCM-F-FA-20D-200 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 200 mm
SCM-F-FA-20D-250 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 250 mm
SCM-F-FA-20D-300 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 300 mm
SCM-F-FB-20D-25 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 25 mm
SCM-F-FB-20D-50 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 50 mm
SCM-F-FB-20D-75 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 75 mm
SCM-F-FB-20D-100 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 100 mm
SCM-F-FB-20D-125 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 125 mm
SCM-F-FB-20D-150 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 150 mm
SCM-F-FB-20D-200 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 200 mm
SCM-F-FB-20D-250 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 250 mm
SCM-F-FB-20D-300 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 300 mm
SCM-F-CA-20D-25 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 25 mm
SCM-F-CA-20D-50 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 50 mm
SCM-F-CA-20D-75 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 75 mm
SCM-F-CA-20D-100 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 100 mm
SCM-F-CA-20D-125 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 125 mm
SCM-F-CA-20D-150 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 150 mm
SCM-F-CA-20D-200 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 200 mm
SCM-F-CA-20D-250 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 250 mm
SCM-F-CA-20D-300 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 300 mm
SCM-F-TA-20D-25 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 25 mm
SCM-F-TA-20D-50 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 50 mm
SCM-F-TA-20D-75 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 75 mm
SCM-F-TA-20D-100 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 100 mm
SCM-F-TA-20D-125 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 125 mm
SCM-F-TA-20D-150 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 150 mm
SCM-F-TA-20D-200 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 200 mm
SCM-F-TA-20D-250 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 250 mm
SCM-F-TA-20D-300 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 300 mm
SCM-F-TB-20D-25 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 25 mm
SCM-F-TB-20D-50 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 50 mm
SCM-F-TB-20D-75 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 75 mm
SCM-F-TB-20D-100 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 100 mm
SCM-F-TB-20D-125 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 125 mm
SCM-F-TB-20D-150 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 150 mm
SCM-F-TB-20D-200 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 200 mm
SCM-F-TB-20D-250 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 250 mm
SCM-F-TB-20D-300 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 300 mm
SCM-F-00-25D-25 Mounting: Basic (00) | Bore: 25 mm | Stroke: 25 mm
SCM-F-00-25D-50 Mounting: Basic (00) | Bore: 25 mm | Stroke: 50 mm
SCM-F-00-25D-75 Mounting: Basic (00) | Bore: 25 mm | Stroke: 75 mm
SCM-F-00-25D-100 Mounting: Basic (00) | Bore: 25 mm | Stroke: 100 mm
SCM-F-00-25D-125 Mounting: Basic (00) | Bore: 25 mm | Stroke: 125 mm
SCM-F-00-25D-150 Mounting: Basic (00) | Bore: 25 mm | Stroke: 150 mm
SCM-F-00-25D-200 Mounting: Basic (00) | Bore: 25 mm | Stroke: 200 mm
SCM-F-00-25D-250 Mounting: Basic (00) | Bore: 25 mm | Stroke: 250 mm
SCM-F-00-25D-300 Mounting: Basic (00) | Bore: 25 mm | Stroke: 300 mm
SCM-F-LB-25D-25 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 25 mm
SCM-F-LB-25D-50 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 50 mm
SCM-F-LB-25D-75 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 75 mm
SCM-F-LB-25D-100 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 100 mm
SCM-F-LB-25D-125 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 125 mm
SCM-F-LB-25D-150 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 150 mm
SCM-F-LB-25D-200 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 200 mm
SCM-F-LB-25D-250 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 250 mm
SCM-F-LB-25D-300 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 300 mm
SCM-F-FA-25D-25 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 25 mm
SCM-F-FA-25D-50 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 50 mm
SCM-F-FA-25D-75 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 75 mm
SCM-F-FA-25D-100 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 100 mm
SCM-F-FA-25D-125 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 125 mm
SCM-F-FA-25D-150 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 150 mm
SCM-F-FA-25D-200 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 200 mm
SCM-F-FA-25D-250 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 250 mm
SCM-F-FA-25D-300 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 300 mm
SCM-F-FB-25D-25 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 25 mm
SCM-F-FB-25D-50 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 50 mm
SCM-F-FB-25D-75 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 75 mm
SCM-F-FB-25D-100 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 100 mm
SCM-F-FB-25D-125 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 125 mm
SCM-F-FB-25D-150 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 150 mm
SCM-F-FB-25D-200 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 200 mm
SCM-F-FB-25D-250 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 250 mm
SCM-F-FB-25D-300 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 300 mm
SCM-F-CA-25D-25 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 25 mm
SCM-F-CA-25D-50 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 50 mm
SCM-F-CA-25D-75 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 75 mm
SCM-F-CA-25D-100 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 100 mm
SCM-F-CA-25D-125 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 125 mm
SCM-F-CA-25D-150 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 150 mm
SCM-F-CA-25D-200 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 200 mm
SCM-F-CA-25D-250 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 250 mm
SCM-F-CA-25D-300 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 300 mm
SCM-F-TA-25D-25 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 25 mm
SCM-F-TA-25D-50 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 50 mm
SCM-F-TA-25D-75 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 75 mm
SCM-F-TA-25D-100 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 100 mm
SCM-F-TA-25D-125 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 125 mm
SCM-F-TA-25D-150 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 150 mm
SCM-F-TA-25D-200 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 200 mm
SCM-F-TA-25D-250 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 250 mm
SCM-F-TA-25D-300 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 300 mm
SCM-F-TB-25D-25 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 25 mm
SCM-F-TB-25D-50 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 50 mm
SCM-F-TB-25D-75 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 75 mm
SCM-F-TB-25D-100 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 100 mm
SCM-F-TB-25D-125 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 125 mm
SCM-F-TB-25D-150 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 150 mm
SCM-F-TB-25D-200 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 200 mm
SCM-F-TB-25D-250 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 250 mm
SCM-F-TB-25D-300 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 300 mm
SCM-F-00-32D-25 Mounting: Basic (00) | Bore: 32 mm | Stroke: 25 mm
SCM-F-00-32D-50 Mounting: Basic (00) | Bore: 32 mm | Stroke: 50 mm
SCM-F-00-32D-75 Mounting: Basic (00) | Bore: 32 mm | Stroke: 75 mm
SCM-F-00-32D-100 Mounting: Basic (00) | Bore: 32 mm | Stroke: 100 mm
SCM-F-00-32D-125 Mounting: Basic (00) | Bore: 32 mm | Stroke: 125 mm
SCM-F-00-32D-150 Mounting: Basic (00) | Bore: 32 mm | Stroke: 150 mm
SCM-F-00-32D-200 Mounting: Basic (00) | Bore: 32 mm | Stroke: 200 mm
SCM-F-00-32D-250 Mounting: Basic (00) | Bore: 32 mm | Stroke: 250 mm
SCM-F-00-32D-300 Mounting: Basic (00) | Bore: 32 mm | Stroke: 300 mm
SCM-F-LB-32D-25 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 25 mm
SCM-F-LB-32D-50 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 50 mm
SCM-F-LB-32D-75 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 75 mm
SCM-F-LB-32D-100 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 100 mm
SCM-F-LB-32D-125 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 125 mm
SCM-F-LB-32D-150 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 150 mm
SCM-F-LB-32D-200 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 200 mm
SCM-F-LB-32D-250 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 250 mm
SCM-F-LB-32D-300 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 300 mm
SCM-F-FA-32D-25 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 25 mm
SCM-F-FA-32D-50 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 50 mm
SCM-F-FA-32D-75 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 75 mm
SCM-F-FA-32D-100 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 100 mm
SCM-F-FA-32D-125 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 125 mm
SCM-F-FA-32D-150 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 150 mm
SCM-F-FA-32D-200 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 200 mm
SCM-F-FA-32D-250 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 250 mm
SCM-F-FA-32D-300 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 300 mm
SCM-F-FB-32D-25 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 25 mm
SCM-F-FB-32D-50 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 50 mm
SCM-F-FB-32D-75 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 75 mm
SCM-F-FB-32D-100 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 100 mm
SCM-F-FB-32D-125 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 125 mm
SCM-F-FB-32D-150 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 150 mm
SCM-F-FB-32D-200 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 200 mm
SCM-F-FB-32D-250 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 250 mm
SCM-F-FB-32D-300 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 300 mm
SCM-F-CA-32D-25 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 25 mm
SCM-F-CA-32D-50 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 50 mm
SCM-F-CA-32D-75 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 75 mm
SCM-F-CA-32D-100 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 100 mm
SCM-F-CA-32D-125 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 125 mm
SCM-F-CA-32D-150 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 150 mm
SCM-F-CA-32D-200 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 200 mm
SCM-F-CA-32D-250 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 250 mm
SCM-F-CA-32D-300 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 300 mm
SCM-F-TA-32D-25 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 25 mm
SCM-F-TA-32D-50 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 50 mm
SCM-F-TA-32D-75 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 75 mm
SCM-F-TA-32D-100 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 100 mm
SCM-F-TA-32D-125 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 125 mm
SCM-F-TA-32D-150 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 150 mm
SCM-F-TA-32D-200 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 200 mm
SCM-F-TA-32D-250 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 250 mm
SCM-F-TA-32D-300 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 300 mm
SCM-F-TB-32D-25 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 25 mm
SCM-F-TB-32D-50 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 50 mm
SCM-F-TB-32D-75 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 75 mm
SCM-F-TB-32D-100 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 100 mm
SCM-F-TB-32D-125 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 125 mm
SCM-F-TB-32D-150 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 150 mm
SCM-F-TB-32D-200 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 200 mm
SCM-F-TB-32D-250 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 250 mm
SCM-F-TB-32D-300 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 300 mm
SCM-F-00-40D-25 Mounting: Basic (00) | Bore: 40 mm | Stroke: 25 mm
SCM-F-00-40D-50 Mounting: Basic (00) | Bore: 40 mm | Stroke: 50 mm
SCM-F-00-40D-75 Mounting: Basic (00) | Bore: 40 mm | Stroke: 75 mm
SCM-F-00-40D-100 Mounting: Basic (00) | Bore: 40 mm | Stroke: 100 mm
SCM-F-00-40D-125 Mounting: Basic (00) | Bore: 40 mm | Stroke: 125 mm
SCM-F-00-40D-150 Mounting: Basic (00) | Bore: 40 mm | Stroke: 150 mm
SCM-F-00-40D-200 Mounting: Basic (00) | Bore: 40 mm | Stroke: 200 mm
SCM-F-00-40D-250 Mounting: Basic (00) | Bore: 40 mm | Stroke: 250 mm
SCM-F-00-40D-300 Mounting: Basic (00) | Bore: 40 mm | Stroke: 300 mm
SCM-F-LB-40D-25 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 25 mm
SCM-F-LB-40D-50 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 50 mm
SCM-F-LB-40D-75 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 75 mm
SCM-F-LB-40D-100 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 100 mm
SCM-F-LB-40D-125 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 125 mm
SCM-F-LB-40D-150 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 150 mm
SCM-F-LB-40D-200 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 200 mm
SCM-F-LB-40D-250 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 250 mm
SCM-F-LB-40D-300 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 300 mm
SCM-F-FA-40D-25 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 25 mm
SCM-F-FA-40D-50 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 50 mm
SCM-F-FA-40D-75 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 75 mm
SCM-F-FA-40D-100 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 100 mm
SCM-F-FA-40D-125 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 125 mm
SCM-F-FA-40D-150 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 150 mm
SCM-F-FA-40D-200 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 200 mm
SCM-F-FA-40D-250 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 250 mm
SCM-F-FA-40D-300 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 300 mm
SCM-F-FB-40D-25 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 25 mm
SCM-F-FB-40D-50 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 50 mm
SCM-F-FB-40D-75 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 75 mm
SCM-F-FB-40D-100 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 100 mm
SCM-F-FB-40D-125 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 125 mm
SCM-F-FB-40D-150 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 150 mm
SCM-F-FB-40D-200 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 200 mm
SCM-F-FB-40D-250 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 250 mm
SCM-F-FB-40D-300 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 300 mm
SCM-F-CA-40D-25 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 25 mm
SCM-F-CA-40D-50 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 50 mm
SCM-F-CA-40D-75 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 75 mm
SCM-F-CA-40D-100 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 100 mm
SCM-F-CA-40D-125 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 125 mm
SCM-F-CA-40D-150 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 150 mm
SCM-F-CA-40D-200 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 200 mm
SCM-F-CA-40D-250 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 250 mm
SCM-F-CA-40D-300 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 300 mm
SCM-F-TA-40D-25 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 25 mm
SCM-F-TA-40D-50 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 50 mm
SCM-F-TA-40D-75 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 75 mm
SCM-F-TA-40D-100 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 100 mm
SCM-F-TA-40D-125 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 125 mm
SCM-F-TA-40D-150 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 150 mm
SCM-F-TA-40D-200 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 200 mm
SCM-F-TA-40D-250 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 250 mm
SCM-F-TA-40D-300 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 300 mm
SCM-F-TB-40D-25 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 25 mm
SCM-F-TB-40D-50 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 50 mm
SCM-F-TB-40D-75 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 75 mm
SCM-F-TB-40D-100 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 100 mm
SCM-F-TB-40D-125 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 125 mm
SCM-F-TB-40D-150 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 150 mm
SCM-F-TB-40D-200 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 200 mm
SCM-F-TB-40D-250 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 250 mm
SCM-F-TB-40D-300 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 300 mm
Pneumatic CylindersCKD
252 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-F Super Micro Cylinder, Fine Speed (Bore 20-40)

Brand CKD·Pneumatic Cylinders

Available part numbers (252)

SCM-F-00-20D-25, SCM-F-00-20D-50, SCM-F-00-20D-75, SCM-F-00-20D-100, SCM-F-00-20D-125, SCM-F-00-20D-150, SCM-F-00-20D-200, SCM-F-00-20D-250, SCM-F-00-20D-300, SCM-F-LB-20D-25 + 242 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCM-F-00-20D-25Mounting: Basic (00) | Bore: 20 mm | Stroke: 25 mm
SCM-F-00-20D-50Mounting: Basic (00) | Bore: 20 mm | Stroke: 50 mm
SCM-F-00-20D-75Mounting: Basic (00) | Bore: 20 mm | Stroke: 75 mm
SCM-F-00-20D-100Mounting: Basic (00) | Bore: 20 mm | Stroke: 100 mm
SCM-F-00-20D-125Mounting: Basic (00) | Bore: 20 mm | Stroke: 125 mm
SCM-F-00-20D-150Mounting: Basic (00) | Bore: 20 mm | Stroke: 150 mm
SCM-F-00-20D-200Mounting: Basic (00) | Bore: 20 mm | Stroke: 200 mm
SCM-F-00-20D-250Mounting: Basic (00) | Bore: 20 mm | Stroke: 250 mm
SCM-F-00-20D-300Mounting: Basic (00) | Bore: 20 mm | Stroke: 300 mm
SCM-F-LB-20D-25Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 25 mm
SCM-F-LB-20D-50Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 50 mm
SCM-F-LB-20D-75Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 75 mm
SCM-F-LB-20D-100Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 100 mm
SCM-F-LB-20D-125Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 125 mm
SCM-F-LB-20D-150Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 150 mm
SCM-F-LB-20D-200Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 200 mm
SCM-F-LB-20D-250Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 250 mm
SCM-F-LB-20D-300Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 300 mm
SCM-F-FA-20D-25Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 25 mm
SCM-F-FA-20D-50Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 50 mm
SCM-F-FA-20D-75Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 75 mm
SCM-F-FA-20D-100Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 100 mm
SCM-F-FA-20D-125Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 125 mm
SCM-F-FA-20D-150Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 150 mm
SCM-F-FA-20D-200Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 200 mm
SCM-F-FA-20D-250Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 250 mm
SCM-F-FA-20D-300Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 300 mm
SCM-F-FB-20D-25Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 25 mm
SCM-F-FB-20D-50Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 50 mm
SCM-F-FB-20D-75Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 75 mm
SCM-F-FB-20D-100Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 100 mm
SCM-F-FB-20D-125Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 125 mm
SCM-F-FB-20D-150Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 150 mm
SCM-F-FB-20D-200Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 200 mm
SCM-F-FB-20D-250Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 250 mm
SCM-F-FB-20D-300Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 300 mm
SCM-F-CA-20D-25Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 25 mm
SCM-F-CA-20D-50Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 50 mm
SCM-F-CA-20D-75Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 75 mm
SCM-F-CA-20D-100Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 100 mm
SCM-F-CA-20D-125Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 125 mm
SCM-F-CA-20D-150Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 150 mm
SCM-F-CA-20D-200Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 200 mm
SCM-F-CA-20D-250Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 250 mm
SCM-F-CA-20D-300Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 300 mm
SCM-F-TA-20D-25Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 25 mm
SCM-F-TA-20D-50Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 50 mm
SCM-F-TA-20D-75Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 75 mm
SCM-F-TA-20D-100Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 100 mm
SCM-F-TA-20D-125Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 125 mm
SCM-F-TA-20D-150Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 150 mm
SCM-F-TA-20D-200Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 200 mm
SCM-F-TA-20D-250Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 250 mm
SCM-F-TA-20D-300Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 300 mm
SCM-F-TB-20D-25Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 25 mm
SCM-F-TB-20D-50Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 50 mm
SCM-F-TB-20D-75Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 75 mm
SCM-F-TB-20D-100Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 100 mm
SCM-F-TB-20D-125Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 125 mm
SCM-F-TB-20D-150Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 150 mm
SCM-F-TB-20D-200Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 200 mm
SCM-F-TB-20D-250Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 250 mm
SCM-F-TB-20D-300Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 300 mm
SCM-F-00-25D-25Mounting: Basic (00) | Bore: 25 mm | Stroke: 25 mm
SCM-F-00-25D-50Mounting: Basic (00) | Bore: 25 mm | Stroke: 50 mm
SCM-F-00-25D-75Mounting: Basic (00) | Bore: 25 mm | Stroke: 75 mm
SCM-F-00-25D-100Mounting: Basic (00) | Bore: 25 mm | Stroke: 100 mm
SCM-F-00-25D-125Mounting: Basic (00) | Bore: 25 mm | Stroke: 125 mm
SCM-F-00-25D-150Mounting: Basic (00) | Bore: 25 mm | Stroke: 150 mm
SCM-F-00-25D-200Mounting: Basic (00) | Bore: 25 mm | Stroke: 200 mm
SCM-F-00-25D-250Mounting: Basic (00) | Bore: 25 mm | Stroke: 250 mm
SCM-F-00-25D-300Mounting: Basic (00) | Bore: 25 mm | Stroke: 300 mm
SCM-F-LB-25D-25Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 25 mm
SCM-F-LB-25D-50Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 50 mm
SCM-F-LB-25D-75Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 75 mm
SCM-F-LB-25D-100Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 100 mm
SCM-F-LB-25D-125Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 125 mm
SCM-F-LB-25D-150Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 150 mm
SCM-F-LB-25D-200Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 200 mm
SCM-F-LB-25D-250Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 250 mm
SCM-F-LB-25D-300Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 300 mm
SCM-F-FA-25D-25Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 25 mm
SCM-F-FA-25D-50Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 50 mm
SCM-F-FA-25D-75Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 75 mm
SCM-F-FA-25D-100Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 100 mm
SCM-F-FA-25D-125Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 125 mm
SCM-F-FA-25D-150Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 150 mm
SCM-F-FA-25D-200Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 200 mm
SCM-F-FA-25D-250Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 250 mm
SCM-F-FA-25D-300Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 300 mm
SCM-F-FB-25D-25Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 25 mm
SCM-F-FB-25D-50Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 50 mm
SCM-F-FB-25D-75Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 75 mm
SCM-F-FB-25D-100Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 100 mm
SCM-F-FB-25D-125Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 125 mm
SCM-F-FB-25D-150Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 150 mm
SCM-F-FB-25D-200Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 200 mm
SCM-F-FB-25D-250Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 250 mm
SCM-F-FB-25D-300Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 300 mm
SCM-F-CA-25D-25Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 25 mm
SCM-F-CA-25D-50Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 50 mm
SCM-F-CA-25D-75Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 75 mm
SCM-F-CA-25D-100Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 100 mm
SCM-F-CA-25D-125Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 125 mm
SCM-F-CA-25D-150Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 150 mm
SCM-F-CA-25D-200Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 200 mm
SCM-F-CA-25D-250Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 250 mm
SCM-F-CA-25D-300Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 300 mm
SCM-F-TA-25D-25Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 25 mm
SCM-F-TA-25D-50Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 50 mm
SCM-F-TA-25D-75Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 75 mm
SCM-F-TA-25D-100Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 100 mm
SCM-F-TA-25D-125Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 125 mm
SCM-F-TA-25D-150Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 150 mm
SCM-F-TA-25D-200Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 200 mm
SCM-F-TA-25D-250Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 250 mm
SCM-F-TA-25D-300Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 300 mm
SCM-F-TB-25D-25Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 25 mm
SCM-F-TB-25D-50Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 50 mm
SCM-F-TB-25D-75Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 75 mm
SCM-F-TB-25D-100Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 100 mm
SCM-F-TB-25D-125Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 125 mm
SCM-F-TB-25D-150Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 150 mm
SCM-F-TB-25D-200Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 200 mm
SCM-F-TB-25D-250Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 250 mm
SCM-F-TB-25D-300Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 300 mm
SCM-F-00-32D-25Mounting: Basic (00) | Bore: 32 mm | Stroke: 25 mm
SCM-F-00-32D-50Mounting: Basic (00) | Bore: 32 mm | Stroke: 50 mm
SCM-F-00-32D-75Mounting: Basic (00) | Bore: 32 mm | Stroke: 75 mm
SCM-F-00-32D-100Mounting: Basic (00) | Bore: 32 mm | Stroke: 100 mm
SCM-F-00-32D-125Mounting: Basic (00) | Bore: 32 mm | Stroke: 125 mm
SCM-F-00-32D-150Mounting: Basic (00) | Bore: 32 mm | Stroke: 150 mm
SCM-F-00-32D-200Mounting: Basic (00) | Bore: 32 mm | Stroke: 200 mm
SCM-F-00-32D-250Mounting: Basic (00) | Bore: 32 mm | Stroke: 250 mm
SCM-F-00-32D-300Mounting: Basic (00) | Bore: 32 mm | Stroke: 300 mm
SCM-F-LB-32D-25Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 25 mm
SCM-F-LB-32D-50Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 50 mm
SCM-F-LB-32D-75Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 75 mm
SCM-F-LB-32D-100Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 100 mm
SCM-F-LB-32D-125Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 125 mm
SCM-F-LB-32D-150Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 150 mm
SCM-F-LB-32D-200Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 200 mm
SCM-F-LB-32D-250Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 250 mm
SCM-F-LB-32D-300Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 300 mm
SCM-F-FA-32D-25Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 25 mm
SCM-F-FA-32D-50Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 50 mm
SCM-F-FA-32D-75Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 75 mm
SCM-F-FA-32D-100Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 100 mm
SCM-F-FA-32D-125Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 125 mm
SCM-F-FA-32D-150Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 150 mm
SCM-F-FA-32D-200Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 200 mm
SCM-F-FA-32D-250Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 250 mm
SCM-F-FA-32D-300Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 300 mm
SCM-F-FB-32D-25Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 25 mm
SCM-F-FB-32D-50Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 50 mm
SCM-F-FB-32D-75Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 75 mm
SCM-F-FB-32D-100Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 100 mm
SCM-F-FB-32D-125Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 125 mm
SCM-F-FB-32D-150Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 150 mm
SCM-F-FB-32D-200Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 200 mm
SCM-F-FB-32D-250Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 250 mm
SCM-F-FB-32D-300Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 300 mm
SCM-F-CA-32D-25Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 25 mm
SCM-F-CA-32D-50Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 50 mm
SCM-F-CA-32D-75Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 75 mm
SCM-F-CA-32D-100Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 100 mm
SCM-F-CA-32D-125Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 125 mm
SCM-F-CA-32D-150Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 150 mm
SCM-F-CA-32D-200Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 200 mm
SCM-F-CA-32D-250Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 250 mm
SCM-F-CA-32D-300Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 300 mm
SCM-F-TA-32D-25Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 25 mm
SCM-F-TA-32D-50Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 50 mm
SCM-F-TA-32D-75Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 75 mm
SCM-F-TA-32D-100Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 100 mm
SCM-F-TA-32D-125Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 125 mm
SCM-F-TA-32D-150Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 150 mm
SCM-F-TA-32D-200Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 200 mm
SCM-F-TA-32D-250Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 250 mm
SCM-F-TA-32D-300Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 300 mm
SCM-F-TB-32D-25Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 25 mm
SCM-F-TB-32D-50Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 50 mm
SCM-F-TB-32D-75Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 75 mm
SCM-F-TB-32D-100Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 100 mm
SCM-F-TB-32D-125Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 125 mm
SCM-F-TB-32D-150Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 150 mm
SCM-F-TB-32D-200Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 200 mm
SCM-F-TB-32D-250Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 250 mm
SCM-F-TB-32D-300Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 300 mm
SCM-F-00-40D-25Mounting: Basic (00) | Bore: 40 mm | Stroke: 25 mm
SCM-F-00-40D-50Mounting: Basic (00) | Bore: 40 mm | Stroke: 50 mm
SCM-F-00-40D-75Mounting: Basic (00) | Bore: 40 mm | Stroke: 75 mm
SCM-F-00-40D-100Mounting: Basic (00) | Bore: 40 mm | Stroke: 100 mm
SCM-F-00-40D-125Mounting: Basic (00) | Bore: 40 mm | Stroke: 125 mm
SCM-F-00-40D-150Mounting: Basic (00) | Bore: 40 mm | Stroke: 150 mm
SCM-F-00-40D-200Mounting: Basic (00) | Bore: 40 mm | Stroke: 200 mm
SCM-F-00-40D-250Mounting: Basic (00) | Bore: 40 mm | Stroke: 250 mm
SCM-F-00-40D-300Mounting: Basic (00) | Bore: 40 mm | Stroke: 300 mm
SCM-F-LB-40D-25Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 25 mm
SCM-F-LB-40D-50Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 50 mm
SCM-F-LB-40D-75Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 75 mm
SCM-F-LB-40D-100Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 100 mm
SCM-F-LB-40D-125Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 125 mm
SCM-F-LB-40D-150Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 150 mm
SCM-F-LB-40D-200Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 200 mm
SCM-F-LB-40D-250Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 250 mm
SCM-F-LB-40D-300Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 300 mm
SCM-F-FA-40D-25Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 25 mm
SCM-F-FA-40D-50Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 50 mm
SCM-F-FA-40D-75Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 75 mm
SCM-F-FA-40D-100Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 100 mm
SCM-F-FA-40D-125Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 125 mm
SCM-F-FA-40D-150Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 150 mm
SCM-F-FA-40D-200Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 200 mm
SCM-F-FA-40D-250Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 250 mm
SCM-F-FA-40D-300Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 300 mm
SCM-F-FB-40D-25Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 25 mm
SCM-F-FB-40D-50Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 50 mm
SCM-F-FB-40D-75Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 75 mm
SCM-F-FB-40D-100Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 100 mm
SCM-F-FB-40D-125Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 125 mm
SCM-F-FB-40D-150Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 150 mm
SCM-F-FB-40D-200Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 200 mm
SCM-F-FB-40D-250Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 250 mm
SCM-F-FB-40D-300Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 300 mm
SCM-F-CA-40D-25Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 25 mm
SCM-F-CA-40D-50Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 50 mm
SCM-F-CA-40D-75Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 75 mm
SCM-F-CA-40D-100Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 100 mm
SCM-F-CA-40D-125Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 125 mm
SCM-F-CA-40D-150Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 150 mm
SCM-F-CA-40D-200Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 200 mm
SCM-F-CA-40D-250Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 250 mm
SCM-F-CA-40D-300Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 300 mm
SCM-F-TA-40D-25Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 25 mm
SCM-F-TA-40D-50Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 50 mm
SCM-F-TA-40D-75Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 75 mm
SCM-F-TA-40D-100Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 100 mm
SCM-F-TA-40D-125Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 125 mm
SCM-F-TA-40D-150Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 150 mm
SCM-F-TA-40D-200Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 200 mm
SCM-F-TA-40D-250Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 250 mm
SCM-F-TA-40D-300Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 300 mm
SCM-F-TB-40D-25Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 25 mm
SCM-F-TB-40D-50Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 50 mm
SCM-F-TB-40D-75Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 75 mm
SCM-F-TB-40D-100Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 100 mm
SCM-F-TB-40D-125Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 125 mm
SCM-F-TB-40D-150Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 150 mm
SCM-F-TB-40D-200Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 200 mm
SCM-F-TB-40D-250Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 250 mm
SCM-F-TB-40D-300Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
