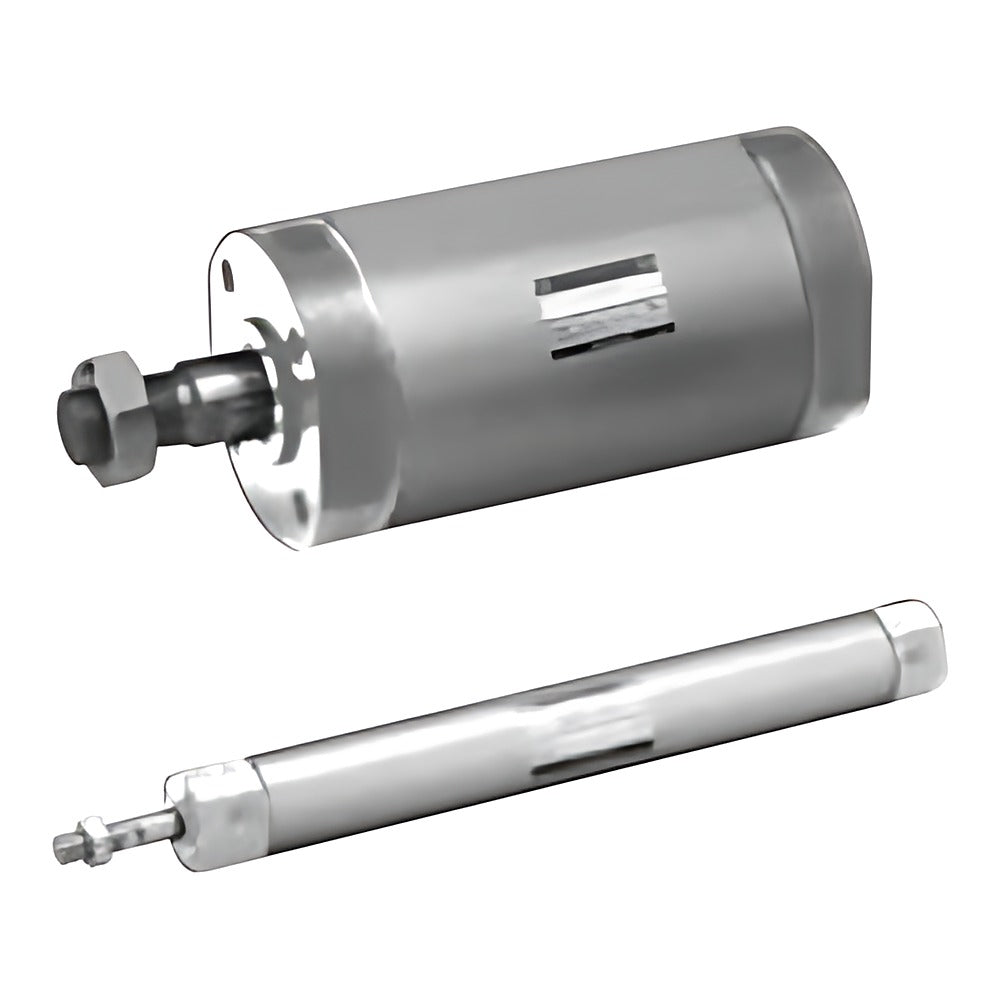

CKD SCM-G-HP1 Environment-resistant Super Micro Cylinder (50-100)

CKD SCM-G-HP1 environment-resistant long-life super micro cylinder with strong scraper, bores 50-100 mm.

Key features

G-HP1 environment-resistant design: strong scraper and long-life seals for dusty / swarf environments
Mounting: basic, LB foot, FA/FB flange, CA clevis, TA/TB trunnion (20-63) or CB double clevis (80, 100)
Cushion selectable: air cushion both ends/rod end/head end (B/R/H) or rubber cushion both ends (D)
Standard strokes 25-300 mm; max. 1000 (20-32) / 1500 mm (40-100) in 1 mm steps
Options not expanded: N/G threads, rail or band (Z) switch mounting, Q/M/P6 options, I/Y/B1/B2 accessories

Specifications

Operation	Double acting, single rod, strong scraper
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Piston speed	30-1000 mm/s
Min. operating pressure	0.1 MPa
Port size	Rc1/4 (50, 63), Rc3/8 (80), Rc1/2 (100)
Code format	SCM-G-<mount>-<bore><cushion>-<stroke>-HP1
Source	CKD Korea catalog CC-1421KR-7, p. 78-83

SCM-G-00-50B-25-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-00-50B-50-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-00-50B-75-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-00-50B-100-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-00-50B-125-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-00-50B-150-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-00-50B-200-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-00-50B-250-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-00-50B-300-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-00-50R-25-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-00-50R-50-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-00-50R-75-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-00-50R-100-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-00-50R-125-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-00-50R-150-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-00-50R-200-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-00-50R-250-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-00-50R-300-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-00-50H-25-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-00-50H-50-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-00-50H-75-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-00-50H-100-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-00-50H-125-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-00-50H-150-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-00-50H-200-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-00-50H-250-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-00-50H-300-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-00-50D-25-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-00-50D-50-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-00-50D-75-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-00-50D-100-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-00-50D-125-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-00-50D-150-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-00-50D-200-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-00-50D-250-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-00-50D-300-HP1		Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-00-63B-25-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-00-63B-50-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-00-63B-75-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-00-63B-100-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-00-63B-125-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-00-63B-150-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-00-63B-200-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-00-63B-250-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-00-63B-300-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-00-63R-25-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-00-63R-50-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-00-63R-75-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-00-63R-100-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-00-63R-125-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-00-63R-150-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-00-63R-200-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-00-63R-250-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-00-63R-300-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-00-63H-25-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-00-63H-50-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-00-63H-75-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-00-63H-100-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-00-63H-125-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-00-63H-150-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-00-63H-200-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-00-63H-250-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-00-63H-300-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-00-63D-25-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-00-63D-50-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-00-63D-75-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-00-63D-100-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-00-63D-125-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-00-63D-150-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-00-63D-200-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-00-63D-250-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-00-63D-300-HP1		Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-00-80B-25-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-00-80B-50-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-00-80B-75-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-00-80B-100-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-00-80B-125-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-00-80B-150-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-00-80B-200-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-00-80B-250-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-00-80B-300-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-00-80R-25-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-00-80R-50-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-00-80R-75-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-00-80R-100-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-00-80R-125-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-00-80R-150-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-00-80R-200-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-00-80R-250-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-00-80R-300-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-00-80H-25-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-00-80H-50-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-00-80H-75-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-00-80H-100-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-00-80H-125-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-00-80H-150-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-00-80H-200-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-00-80H-250-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-00-80H-300-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-00-80D-25-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-00-80D-50-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-00-80D-75-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-00-80D-100-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-00-80D-125-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-00-80D-150-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-00-80D-200-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-00-80D-250-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-00-80D-300-HP1		Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-00-100B-25-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-00-100B-50-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-00-100B-75-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-00-100B-100-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-00-100B-125-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-00-100B-150-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-00-100B-200-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-00-100B-250-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-00-100B-300-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-00-100R-25-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-00-100R-50-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-00-100R-75-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-00-100R-100-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-00-100R-125-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-00-100R-150-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-00-100R-200-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-00-100R-250-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-00-100R-300-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-00-100H-25-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-00-100H-50-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-00-100H-75-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-00-100H-100-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-00-100H-125-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-00-100H-150-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-00-100H-200-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-00-100H-250-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-00-100H-300-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-00-100D-25-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-00-100D-50-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-00-100D-75-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-00-100D-100-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-00-100D-125-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-00-100D-150-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-00-100D-200-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-00-100D-250-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-00-100D-300-HP1		Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-LB-50B-25-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-LB-50B-50-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-LB-50B-75-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-LB-50B-100-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-LB-50B-125-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-LB-50B-150-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-LB-50B-200-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-LB-50B-250-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-LB-50B-300-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-LB-50R-25-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-LB-50R-50-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-LB-50R-75-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-LB-50R-100-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-LB-50R-125-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-LB-50R-150-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-LB-50R-200-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-LB-50R-250-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-LB-50R-300-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-LB-50H-25-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-LB-50H-50-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-LB-50H-75-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-LB-50H-100-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-LB-50H-125-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-LB-50H-150-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-LB-50H-200-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-LB-50H-250-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-LB-50H-300-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-LB-50D-25-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-LB-50D-50-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-LB-50D-75-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-LB-50D-100-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-LB-50D-125-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-LB-50D-150-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-LB-50D-200-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-LB-50D-250-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-LB-50D-300-HP1		Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-LB-63B-25-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-LB-63B-50-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-LB-63B-75-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-LB-63B-100-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-LB-63B-125-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-LB-63B-150-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-LB-63B-200-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-LB-63B-250-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-LB-63B-300-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-LB-63R-25-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-LB-63R-50-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-LB-63R-75-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-LB-63R-100-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-LB-63R-125-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-LB-63R-150-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-LB-63R-200-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-LB-63R-250-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-LB-63R-300-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-LB-63H-25-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-LB-63H-50-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-LB-63H-75-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-LB-63H-100-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-LB-63H-125-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-LB-63H-150-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-LB-63H-200-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-LB-63H-250-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-LB-63H-300-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-LB-63D-25-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-LB-63D-50-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-LB-63D-75-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-LB-63D-100-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-LB-63D-125-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-LB-63D-150-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-LB-63D-200-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-LB-63D-250-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-LB-63D-300-HP1		Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-LB-80B-25-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-LB-80B-50-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-LB-80B-75-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-LB-80B-100-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-LB-80B-125-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-LB-80B-150-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-LB-80B-200-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-LB-80B-250-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-LB-80B-300-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-LB-80R-25-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-LB-80R-50-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-LB-80R-75-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-LB-80R-100-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-LB-80R-125-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-LB-80R-150-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-LB-80R-200-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-LB-80R-250-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-LB-80R-300-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-LB-80H-25-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-LB-80H-50-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-LB-80H-75-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-LB-80H-100-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-LB-80H-125-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-LB-80H-150-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-LB-80H-200-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-LB-80H-250-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-LB-80H-300-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-LB-80D-25-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-LB-80D-50-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-LB-80D-75-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-LB-80D-100-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-LB-80D-125-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-LB-80D-150-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-LB-80D-200-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-LB-80D-250-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-LB-80D-300-HP1		Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-LB-100B-25-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-LB-100B-50-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-LB-100B-75-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-LB-100B-100-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-LB-100B-125-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-LB-100B-150-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-LB-100B-200-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-LB-100B-250-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-LB-100B-300-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-LB-100R-25-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-LB-100R-50-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-LB-100R-75-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-LB-100R-100-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-LB-100R-125-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-LB-100R-150-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-LB-100R-200-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-LB-100R-250-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-LB-100R-300-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-LB-100H-25-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-LB-100H-50-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-LB-100H-75-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-LB-100H-100-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-LB-100H-125-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-LB-100H-150-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-LB-100H-200-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-LB-100H-250-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-LB-100H-300-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-LB-100D-25-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-LB-100D-50-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-LB-100D-75-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-LB-100D-100-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-LB-100D-125-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-LB-100D-150-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-LB-100D-200-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-LB-100D-250-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-LB-100D-300-HP1		Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-FA-50B-25-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-FA-50B-50-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-FA-50B-75-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-FA-50B-100-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-FA-50B-125-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-FA-50B-150-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-FA-50B-200-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-FA-50B-250-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-FA-50B-300-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-FA-50R-25-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-FA-50R-50-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-FA-50R-75-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-FA-50R-100-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-FA-50R-125-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-FA-50R-150-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-FA-50R-200-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-FA-50R-250-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-FA-50R-300-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-FA-50H-25-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-FA-50H-50-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-FA-50H-75-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-FA-50H-100-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-FA-50H-125-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-FA-50H-150-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-FA-50H-200-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-FA-50H-250-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-FA-50H-300-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-FA-50D-25-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-FA-50D-50-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-FA-50D-75-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-FA-50D-100-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-FA-50D-125-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-FA-50D-150-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-FA-50D-200-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-FA-50D-250-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-FA-50D-300-HP1		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-FA-63B-25-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-FA-63B-50-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-FA-63B-75-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-FA-63B-100-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-FA-63B-125-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-FA-63B-150-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-FA-63B-200-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-FA-63B-250-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-FA-63B-300-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-FA-63R-25-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-FA-63R-50-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-FA-63R-75-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-FA-63R-100-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-FA-63R-125-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-FA-63R-150-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-FA-63R-200-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-FA-63R-250-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-FA-63R-300-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-FA-63H-25-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-FA-63H-50-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-FA-63H-75-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-FA-63H-100-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-FA-63H-125-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-FA-63H-150-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-FA-63H-200-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-FA-63H-250-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-FA-63H-300-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-FA-63D-25-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-FA-63D-50-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-FA-63D-75-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-FA-63D-100-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-FA-63D-125-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-FA-63D-150-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-FA-63D-200-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-FA-63D-250-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-FA-63D-300-HP1		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-FA-80B-25-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-FA-80B-50-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-FA-80B-75-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-FA-80B-100-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-FA-80B-125-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-FA-80B-150-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-FA-80B-200-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-FA-80B-250-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-FA-80B-300-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-FA-80R-25-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-FA-80R-50-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-FA-80R-75-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-FA-80R-100-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-FA-80R-125-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-FA-80R-150-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-FA-80R-200-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-FA-80R-250-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-FA-80R-300-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-FA-80H-25-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-FA-80H-50-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-FA-80H-75-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-FA-80H-100-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-FA-80H-125-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-FA-80H-150-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-FA-80H-200-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-FA-80H-250-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-FA-80H-300-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-FA-80D-25-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-FA-80D-50-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-FA-80D-75-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-FA-80D-100-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-FA-80D-125-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-FA-80D-150-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-FA-80D-200-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-FA-80D-250-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-FA-80D-300-HP1		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-FA-100B-25-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-FA-100B-50-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-FA-100B-75-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-FA-100B-100-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-FA-100B-125-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-FA-100B-150-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-FA-100B-200-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-FA-100B-250-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-FA-100B-300-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-FA-100R-25-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-FA-100R-50-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-FA-100R-75-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-FA-100R-100-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-FA-100R-125-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-FA-100R-150-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-FA-100R-200-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-FA-100R-250-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-FA-100R-300-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-FA-100H-25-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-FA-100H-50-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-FA-100H-75-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-FA-100H-100-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-FA-100H-125-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-FA-100H-150-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-FA-100H-200-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-FA-100H-250-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-FA-100H-300-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-FA-100D-25-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-FA-100D-50-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-FA-100D-75-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-FA-100D-100-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-FA-100D-125-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-FA-100D-150-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-FA-100D-200-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-FA-100D-250-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-FA-100D-300-HP1		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-FB-50B-25-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-FB-50B-50-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-FB-50B-75-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-FB-50B-100-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-FB-50B-125-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-FB-50B-150-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-FB-50B-200-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-FB-50B-250-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-FB-50B-300-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-FB-50R-25-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-FB-50R-50-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-FB-50R-75-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-FB-50R-100-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-FB-50R-125-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-FB-50R-150-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-FB-50R-200-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-FB-50R-250-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-FB-50R-300-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-FB-50H-25-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-FB-50H-50-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-FB-50H-75-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-FB-50H-100-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-FB-50H-125-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-FB-50H-150-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-FB-50H-200-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-FB-50H-250-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-FB-50H-300-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-FB-50D-25-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-FB-50D-50-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-FB-50D-75-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-FB-50D-100-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-FB-50D-125-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-FB-50D-150-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-FB-50D-200-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-FB-50D-250-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-FB-50D-300-HP1		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-FB-63B-25-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-FB-63B-50-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-FB-63B-75-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-FB-63B-100-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-FB-63B-125-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-FB-63B-150-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-FB-63B-200-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-FB-63B-250-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-FB-63B-300-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-FB-63R-25-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-FB-63R-50-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-FB-63R-75-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-FB-63R-100-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-FB-63R-125-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-FB-63R-150-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-FB-63R-200-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-FB-63R-250-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-FB-63R-300-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-FB-63H-25-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-FB-63H-50-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-FB-63H-75-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-FB-63H-100-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-FB-63H-125-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-FB-63H-150-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-FB-63H-200-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-FB-63H-250-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-FB-63H-300-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-FB-63D-25-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-FB-63D-50-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-FB-63D-75-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-FB-63D-100-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-FB-63D-125-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-FB-63D-150-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-FB-63D-200-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-FB-63D-250-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-FB-63D-300-HP1		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-FB-80B-25-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-FB-80B-50-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-FB-80B-75-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-FB-80B-100-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-FB-80B-125-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-FB-80B-150-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-FB-80B-200-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-FB-80B-250-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-FB-80B-300-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-FB-80R-25-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-FB-80R-50-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-FB-80R-75-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-FB-80R-100-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-FB-80R-125-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-FB-80R-150-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-FB-80R-200-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-FB-80R-250-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-FB-80R-300-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-FB-80H-25-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-FB-80H-50-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-FB-80H-75-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-FB-80H-100-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-FB-80H-125-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-FB-80H-150-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-FB-80H-200-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-FB-80H-250-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-FB-80H-300-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-FB-80D-25-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-FB-80D-50-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-FB-80D-75-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-FB-80D-100-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-FB-80D-125-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-FB-80D-150-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-FB-80D-200-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-FB-80D-250-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-FB-80D-300-HP1		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-FB-100B-25-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-FB-100B-50-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-FB-100B-75-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-FB-100B-100-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-FB-100B-125-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-FB-100B-150-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-FB-100B-200-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-FB-100B-250-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-FB-100B-300-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-FB-100R-25-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-FB-100R-50-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-FB-100R-75-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-FB-100R-100-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-FB-100R-125-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-FB-100R-150-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-FB-100R-200-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-FB-100R-250-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-FB-100R-300-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-FB-100H-25-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-FB-100H-50-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-FB-100H-75-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-FB-100H-100-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-FB-100H-125-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-FB-100H-150-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-FB-100H-200-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-FB-100H-250-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-FB-100H-300-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-FB-100D-25-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-FB-100D-50-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-FB-100D-75-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-FB-100D-100-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-FB-100D-125-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-FB-100D-150-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-FB-100D-200-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-FB-100D-250-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-FB-100D-300-HP1		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-CA-50B-25-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-CA-50B-50-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-CA-50B-75-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-CA-50B-100-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-CA-50B-125-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-CA-50B-150-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-CA-50B-200-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-CA-50B-250-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-CA-50B-300-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-CA-50R-25-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-CA-50R-50-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-CA-50R-75-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-CA-50R-100-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-CA-50R-125-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-CA-50R-150-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-CA-50R-200-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-CA-50R-250-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-CA-50R-300-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-CA-50H-25-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-CA-50H-50-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-CA-50H-75-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-CA-50H-100-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-CA-50H-125-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-CA-50H-150-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-CA-50H-200-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-CA-50H-250-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-CA-50H-300-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-CA-50D-25-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-CA-50D-50-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-CA-50D-75-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-CA-50D-100-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-CA-50D-125-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-CA-50D-150-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-CA-50D-200-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-CA-50D-250-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-CA-50D-300-HP1		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-CA-63B-25-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-CA-63B-50-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-CA-63B-75-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-CA-63B-100-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-CA-63B-125-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-CA-63B-150-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-CA-63B-200-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-CA-63B-250-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-CA-63B-300-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-CA-63R-25-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-CA-63R-50-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-CA-63R-75-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-CA-63R-100-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-CA-63R-125-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-CA-63R-150-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-CA-63R-200-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-CA-63R-250-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-CA-63R-300-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-CA-63H-25-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-CA-63H-50-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-CA-63H-75-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-CA-63H-100-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-CA-63H-125-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-CA-63H-150-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-CA-63H-200-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-CA-63H-250-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-CA-63H-300-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-CA-63D-25-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-CA-63D-50-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-CA-63D-75-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-CA-63D-100-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-CA-63D-125-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-CA-63D-150-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-CA-63D-200-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-CA-63D-250-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-CA-63D-300-HP1		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-CB-80B-25-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-CB-80B-50-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-CB-80B-75-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-CB-80B-100-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-CB-80B-125-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-CB-80B-150-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-CB-80B-200-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-CB-80B-250-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-CB-80B-300-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-CB-80R-25-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-CB-80R-50-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-CB-80R-75-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-CB-80R-100-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-CB-80R-125-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-CB-80R-150-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-CB-80R-200-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-CB-80R-250-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-CB-80R-300-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-CB-80H-25-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-CB-80H-50-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-CB-80H-75-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-CB-80H-100-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-CB-80H-125-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-CB-80H-150-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-CB-80H-200-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-CB-80H-250-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-CB-80H-300-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-CB-80D-25-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-CB-80D-50-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-CB-80D-75-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-CB-80D-100-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-CB-80D-125-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-CB-80D-150-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-CB-80D-200-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-CB-80D-250-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-CB-80D-300-HP1		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-CB-100B-25-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-CB-100B-50-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-CB-100B-75-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-CB-100B-100-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-CB-100B-125-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-CB-100B-150-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-CB-100B-200-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-CB-100B-250-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-CB-100B-300-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-CB-100R-25-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-CB-100R-50-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-CB-100R-75-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-CB-100R-100-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-CB-100R-125-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-CB-100R-150-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-CB-100R-200-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-CB-100R-250-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-CB-100R-300-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-CB-100H-25-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-CB-100H-50-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-CB-100H-75-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-CB-100H-100-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-CB-100H-125-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-CB-100H-150-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-CB-100H-200-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-CB-100H-250-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-CB-100H-300-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-CB-100D-25-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-CB-100D-50-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-CB-100D-75-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-CB-100D-100-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-CB-100D-125-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-CB-100D-150-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-CB-100D-200-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-CB-100D-250-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-CB-100D-300-HP1		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-TA-50B-25-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-TA-50B-50-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-TA-50B-75-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-TA-50B-100-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-TA-50B-125-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-TA-50B-150-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-TA-50B-200-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-TA-50B-250-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-TA-50B-300-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-TA-50R-25-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-TA-50R-50-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-TA-50R-75-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-TA-50R-100-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-TA-50R-125-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-TA-50R-150-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-TA-50R-200-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-TA-50R-250-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-TA-50R-300-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-TA-50H-25-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-TA-50H-50-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-TA-50H-75-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-TA-50H-100-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-TA-50H-125-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-TA-50H-150-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-TA-50H-200-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-TA-50H-250-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-TA-50H-300-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-TA-50D-25-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-TA-50D-50-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-TA-50D-75-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-TA-50D-100-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-TA-50D-125-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-TA-50D-150-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-TA-50D-200-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-TA-50D-250-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-TA-50D-300-HP1		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-TA-63B-25-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-TA-63B-50-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-TA-63B-75-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-TA-63B-100-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-TA-63B-125-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-TA-63B-150-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-TA-63B-200-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-TA-63B-250-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-TA-63B-300-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-TA-63R-25-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-TA-63R-50-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-TA-63R-75-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-TA-63R-100-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-TA-63R-125-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-TA-63R-150-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-TA-63R-200-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-TA-63R-250-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-TA-63R-300-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-TA-63H-25-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-TA-63H-50-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-TA-63H-75-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-TA-63H-100-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-TA-63H-125-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-TA-63H-150-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-TA-63H-200-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-TA-63H-250-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-TA-63H-300-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-TA-63D-25-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-TA-63D-50-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-TA-63D-75-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-TA-63D-100-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-TA-63D-125-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-TA-63D-150-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-TA-63D-200-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-TA-63D-250-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-TA-63D-300-HP1		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-TB-50B-25-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-TB-50B-50-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-TB-50B-75-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-TB-50B-100-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-TB-50B-125-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-TB-50B-150-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-TB-50B-200-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-TB-50B-250-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-TB-50B-300-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-TB-50R-25-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-TB-50R-50-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-TB-50R-75-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-TB-50R-100-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-TB-50R-125-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-TB-50R-150-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-TB-50R-200-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-TB-50R-250-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-TB-50R-300-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-TB-50H-25-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-TB-50H-50-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-TB-50H-75-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-TB-50H-100-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-TB-50H-125-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-TB-50H-150-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-TB-50H-200-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-TB-50H-250-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-TB-50H-300-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-TB-50D-25-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-TB-50D-50-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-TB-50D-75-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-TB-50D-100-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-TB-50D-125-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-TB-50D-150-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-TB-50D-200-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-TB-50D-250-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-TB-50D-300-HP1		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-G-TB-63B-25-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-G-TB-63B-50-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-G-TB-63B-75-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-G-TB-63B-100-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-G-TB-63B-125-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-G-TB-63B-150-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-G-TB-63B-200-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-G-TB-63B-250-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-G-TB-63B-300-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-G-TB-63R-25-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-G-TB-63R-50-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-G-TB-63R-75-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-G-TB-63R-100-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-G-TB-63R-125-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-G-TB-63R-150-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-G-TB-63R-200-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-G-TB-63R-250-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-G-TB-63R-300-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-G-TB-63H-25-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-G-TB-63H-50-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-G-TB-63H-75-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-G-TB-63H-100-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-G-TB-63H-125-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-G-TB-63H-150-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-G-TB-63H-200-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-G-TB-63H-250-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-G-TB-63H-300-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-G-TB-63D-25-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-G-TB-63D-50-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-G-TB-63D-75-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-G-TB-63D-100-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-G-TB-63D-125-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-G-TB-63D-150-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-G-TB-63D-200-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-G-TB-63D-250-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-G-TB-63D-300-HP1		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm

Pneumatic CylindersCKD

864 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-G-HP1 Environment-resistant Super Micro Cylinder (50-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (864)

SCM-G-00-50B-25-HP1, SCM-G-00-50B-50-HP1, SCM-G-00-50B-75-HP1, SCM-G-00-50B-100-HP1, SCM-G-00-50B-125-HP1, SCM-G-00-50B-150-HP1, SCM-G-00-50B-200-HP1, SCM-G-00-50B-250-HP1, SCM-G-00-50B-300-HP1, SCM-G-00-50R-25-HP1 + 854 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCM-G-00-50B-25-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-00-50B-50-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-00-50B-75-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-00-50B-100-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-00-50B-125-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-00-50B-150-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-00-50B-200-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-00-50B-250-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-00-50B-300-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-00-50R-25-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-00-50R-50-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-00-50R-75-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-00-50R-100-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-00-50R-125-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-00-50R-150-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-00-50R-200-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-00-50R-250-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-00-50R-300-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-00-50H-25-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-00-50H-50-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-00-50H-75-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-00-50H-100-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-00-50H-125-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-00-50H-150-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-00-50H-200-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-00-50H-250-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-00-50H-300-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-00-50D-25-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-00-50D-50-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-00-50D-75-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-00-50D-100-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-00-50D-125-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-00-50D-150-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-00-50D-200-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-00-50D-250-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-00-50D-300-HP1	Mounting: Basic \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-00-63B-25-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-00-63B-50-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-00-63B-75-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-00-63B-100-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-00-63B-125-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-00-63B-150-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-00-63B-200-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-00-63B-250-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-00-63B-300-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-00-63R-25-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-00-63R-50-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-00-63R-75-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-00-63R-100-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-00-63R-125-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-00-63R-150-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-00-63R-200-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-00-63R-250-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-00-63R-300-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-00-63H-25-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-00-63H-50-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-00-63H-75-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-00-63H-100-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-00-63H-125-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-00-63H-150-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-00-63H-200-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-00-63H-250-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-00-63H-300-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-00-63D-25-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-00-63D-50-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-00-63D-75-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-00-63D-100-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-00-63D-125-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-00-63D-150-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-00-63D-200-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-00-63D-250-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-00-63D-300-HP1	Mounting: Basic \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-00-80B-25-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-00-80B-50-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-00-80B-75-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-00-80B-100-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-00-80B-125-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-00-80B-150-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-00-80B-200-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-00-80B-250-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-00-80B-300-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-00-80R-25-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-00-80R-50-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-00-80R-75-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-00-80R-100-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-00-80R-125-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-00-80R-150-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-00-80R-200-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-00-80R-250-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-00-80R-300-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-00-80H-25-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-00-80H-50-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-00-80H-75-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-00-80H-100-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-00-80H-125-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-00-80H-150-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-00-80H-200-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-00-80H-250-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-00-80H-300-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-00-80D-25-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-00-80D-50-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-00-80D-75-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-00-80D-100-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-00-80D-125-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-00-80D-150-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-00-80D-200-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-00-80D-250-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-00-80D-300-HP1	Mounting: Basic \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-00-100B-25-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-00-100B-50-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-00-100B-75-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-00-100B-100-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-00-100B-125-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-00-100B-150-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-00-100B-200-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-00-100B-250-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-00-100B-300-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-00-100R-25-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-00-100R-50-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-00-100R-75-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-00-100R-100-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-00-100R-125-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-00-100R-150-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-00-100R-200-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-00-100R-250-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-00-100R-300-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-00-100H-25-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-00-100H-50-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-00-100H-75-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-00-100H-100-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-00-100H-125-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-00-100H-150-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-00-100H-200-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-00-100H-250-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-00-100H-300-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-00-100D-25-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-00-100D-50-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-00-100D-75-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-00-100D-100-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-00-100D-125-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-00-100D-150-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-00-100D-200-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-00-100D-250-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-00-100D-300-HP1	Mounting: Basic \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-LB-50B-25-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-LB-50B-50-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-LB-50B-75-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-LB-50B-100-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-LB-50B-125-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-LB-50B-150-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-LB-50B-200-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-LB-50B-250-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-LB-50B-300-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-LB-50R-25-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-LB-50R-50-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-LB-50R-75-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-LB-50R-100-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-LB-50R-125-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-LB-50R-150-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-LB-50R-200-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-LB-50R-250-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-LB-50R-300-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-LB-50H-25-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-LB-50H-50-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-LB-50H-75-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-LB-50H-100-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-LB-50H-125-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-LB-50H-150-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-LB-50H-200-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-LB-50H-250-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-LB-50H-300-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-LB-50D-25-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-LB-50D-50-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-LB-50D-75-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-LB-50D-100-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-LB-50D-125-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-LB-50D-150-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-LB-50D-200-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-LB-50D-250-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-LB-50D-300-HP1	Mounting: Axial foot, both sides \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-LB-63B-25-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-LB-63B-50-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-LB-63B-75-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-LB-63B-100-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-LB-63B-125-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-LB-63B-150-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-LB-63B-200-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-LB-63B-250-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-LB-63B-300-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-LB-63R-25-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-LB-63R-50-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-LB-63R-75-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-LB-63R-100-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-LB-63R-125-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-LB-63R-150-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-LB-63R-200-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-LB-63R-250-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-LB-63R-300-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-LB-63H-25-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-LB-63H-50-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-LB-63H-75-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-LB-63H-100-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-LB-63H-125-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-LB-63H-150-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-LB-63H-200-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-LB-63H-250-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-LB-63H-300-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-LB-63D-25-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-LB-63D-50-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-LB-63D-75-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-LB-63D-100-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-LB-63D-125-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-LB-63D-150-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-LB-63D-200-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-LB-63D-250-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-LB-63D-300-HP1	Mounting: Axial foot, both sides \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-LB-80B-25-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-LB-80B-50-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-LB-80B-75-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-LB-80B-100-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-LB-80B-125-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-LB-80B-150-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-LB-80B-200-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-LB-80B-250-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-LB-80B-300-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-LB-80R-25-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-LB-80R-50-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-LB-80R-75-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-LB-80R-100-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-LB-80R-125-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-LB-80R-150-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-LB-80R-200-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-LB-80R-250-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-LB-80R-300-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-LB-80H-25-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-LB-80H-50-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-LB-80H-75-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-LB-80H-100-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-LB-80H-125-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-LB-80H-150-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-LB-80H-200-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-LB-80H-250-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-LB-80H-300-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-LB-80D-25-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-LB-80D-50-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-LB-80D-75-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-LB-80D-100-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-LB-80D-125-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-LB-80D-150-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-LB-80D-200-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-LB-80D-250-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-LB-80D-300-HP1	Mounting: Axial foot, both sides \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-LB-100B-25-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-LB-100B-50-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-LB-100B-75-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-LB-100B-100-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-LB-100B-125-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-LB-100B-150-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-LB-100B-200-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-LB-100B-250-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-LB-100B-300-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-LB-100R-25-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-LB-100R-50-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-LB-100R-75-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-LB-100R-100-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-LB-100R-125-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-LB-100R-150-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-LB-100R-200-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-LB-100R-250-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-LB-100R-300-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-LB-100H-25-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-LB-100H-50-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-LB-100H-75-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-LB-100H-100-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-LB-100H-125-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-LB-100H-150-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-LB-100H-200-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-LB-100H-250-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-LB-100H-300-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-LB-100D-25-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-LB-100D-50-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-LB-100D-75-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-LB-100D-100-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-LB-100D-125-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-LB-100D-150-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-LB-100D-200-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-LB-100D-250-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-LB-100D-300-HP1	Mounting: Axial foot, both sides \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-FA-50B-25-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-FA-50B-50-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-FA-50B-75-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-FA-50B-100-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-FA-50B-125-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-FA-50B-150-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-FA-50B-200-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-FA-50B-250-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-FA-50B-300-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-FA-50R-25-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-FA-50R-50-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-FA-50R-75-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-FA-50R-100-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-FA-50R-125-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-FA-50R-150-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-FA-50R-200-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-FA-50R-250-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-FA-50R-300-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-FA-50H-25-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-FA-50H-50-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-FA-50H-75-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-FA-50H-100-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-FA-50H-125-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-FA-50H-150-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-FA-50H-200-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-FA-50H-250-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-FA-50H-300-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-FA-50D-25-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-FA-50D-50-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-FA-50D-75-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-FA-50D-100-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-FA-50D-125-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-FA-50D-150-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-FA-50D-200-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-FA-50D-250-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-FA-50D-300-HP1	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-FA-63B-25-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-FA-63B-50-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-FA-63B-75-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-FA-63B-100-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-FA-63B-125-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-FA-63B-150-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-FA-63B-200-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-FA-63B-250-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-FA-63B-300-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-FA-63R-25-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-FA-63R-50-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-FA-63R-75-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-FA-63R-100-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-FA-63R-125-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-FA-63R-150-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-FA-63R-200-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-FA-63R-250-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-FA-63R-300-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-FA-63H-25-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-FA-63H-50-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-FA-63H-75-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-FA-63H-100-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-FA-63H-125-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-FA-63H-150-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-FA-63H-200-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-FA-63H-250-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-FA-63H-300-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-FA-63D-25-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-FA-63D-50-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-FA-63D-75-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-FA-63D-100-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-FA-63D-125-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-FA-63D-150-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-FA-63D-200-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-FA-63D-250-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-FA-63D-300-HP1	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-FA-80B-25-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-FA-80B-50-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-FA-80B-75-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-FA-80B-100-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-FA-80B-125-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-FA-80B-150-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-FA-80B-200-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-FA-80B-250-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-FA-80B-300-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-FA-80R-25-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-FA-80R-50-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-FA-80R-75-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-FA-80R-100-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-FA-80R-125-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-FA-80R-150-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-FA-80R-200-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-FA-80R-250-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-FA-80R-300-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-FA-80H-25-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-FA-80H-50-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-FA-80H-75-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-FA-80H-100-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-FA-80H-125-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-FA-80H-150-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-FA-80H-200-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-FA-80H-250-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-FA-80H-300-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-FA-80D-25-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-FA-80D-50-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-FA-80D-75-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-FA-80D-100-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-FA-80D-125-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-FA-80D-150-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-FA-80D-200-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-FA-80D-250-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-FA-80D-300-HP1	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-FA-100B-25-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-FA-100B-50-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-FA-100B-75-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-FA-100B-100-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-FA-100B-125-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-FA-100B-150-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-FA-100B-200-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-FA-100B-250-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-FA-100B-300-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-FA-100R-25-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-FA-100R-50-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-FA-100R-75-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-FA-100R-100-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-FA-100R-125-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-FA-100R-150-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-FA-100R-200-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-FA-100R-250-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-FA-100R-300-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-FA-100H-25-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-FA-100H-50-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-FA-100H-75-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-FA-100H-100-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-FA-100H-125-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-FA-100H-150-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-FA-100H-200-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-FA-100H-250-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-FA-100H-300-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-FA-100D-25-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-FA-100D-50-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-FA-100D-75-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-FA-100D-100-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-FA-100D-125-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-FA-100D-150-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-FA-100D-200-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-FA-100D-250-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-FA-100D-300-HP1	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-FB-50B-25-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-FB-50B-50-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-FB-50B-75-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-FB-50B-100-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-FB-50B-125-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-FB-50B-150-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-FB-50B-200-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-FB-50B-250-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-FB-50B-300-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-FB-50R-25-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-FB-50R-50-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-FB-50R-75-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-FB-50R-100-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-FB-50R-125-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-FB-50R-150-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-FB-50R-200-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-FB-50R-250-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-FB-50R-300-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-FB-50H-25-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-FB-50H-50-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-FB-50H-75-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-FB-50H-100-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-FB-50H-125-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-FB-50H-150-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-FB-50H-200-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-FB-50H-250-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-FB-50H-300-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-FB-50D-25-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-FB-50D-50-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-FB-50D-75-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-FB-50D-100-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-FB-50D-125-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-FB-50D-150-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-FB-50D-200-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-FB-50D-250-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-FB-50D-300-HP1	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-FB-63B-25-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-FB-63B-50-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-FB-63B-75-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-FB-63B-100-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-FB-63B-125-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-FB-63B-150-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-FB-63B-200-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-FB-63B-250-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-FB-63B-300-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-FB-63R-25-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-FB-63R-50-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-FB-63R-75-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-FB-63R-100-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-FB-63R-125-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-FB-63R-150-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-FB-63R-200-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-FB-63R-250-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-FB-63R-300-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-FB-63H-25-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-FB-63H-50-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-FB-63H-75-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-FB-63H-100-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-FB-63H-125-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-FB-63H-150-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-FB-63H-200-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-FB-63H-250-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-FB-63H-300-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-FB-63D-25-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-FB-63D-50-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-FB-63D-75-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-FB-63D-100-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-FB-63D-125-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-FB-63D-150-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-FB-63D-200-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-FB-63D-250-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-FB-63D-300-HP1	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-FB-80B-25-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-FB-80B-50-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-FB-80B-75-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-FB-80B-100-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-FB-80B-125-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-FB-80B-150-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-FB-80B-200-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-FB-80B-250-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-FB-80B-300-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-FB-80R-25-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-FB-80R-50-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-FB-80R-75-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-FB-80R-100-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-FB-80R-125-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-FB-80R-150-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-FB-80R-200-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-FB-80R-250-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-FB-80R-300-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-FB-80H-25-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-FB-80H-50-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-FB-80H-75-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-FB-80H-100-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-FB-80H-125-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-FB-80H-150-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-FB-80H-200-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-FB-80H-250-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-FB-80H-300-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-FB-80D-25-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-FB-80D-50-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-FB-80D-75-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-FB-80D-100-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-FB-80D-125-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-FB-80D-150-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-FB-80D-200-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-FB-80D-250-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-FB-80D-300-HP1	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-FB-100B-25-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-FB-100B-50-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-FB-100B-75-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-FB-100B-100-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-FB-100B-125-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-FB-100B-150-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-FB-100B-200-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-FB-100B-250-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-FB-100B-300-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-FB-100R-25-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-FB-100R-50-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-FB-100R-75-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-FB-100R-100-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-FB-100R-125-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-FB-100R-150-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-FB-100R-200-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-FB-100R-250-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-FB-100R-300-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-FB-100H-25-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-FB-100H-50-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-FB-100H-75-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-FB-100H-100-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-FB-100H-125-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-FB-100H-150-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-FB-100H-200-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-FB-100H-250-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-FB-100H-300-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-FB-100D-25-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-FB-100D-50-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-FB-100D-75-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-FB-100D-100-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-FB-100D-125-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-FB-100D-150-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-FB-100D-200-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-FB-100D-250-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-FB-100D-300-HP1	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-CA-50B-25-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-CA-50B-50-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-CA-50B-75-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-CA-50B-100-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-CA-50B-125-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-CA-50B-150-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-CA-50B-200-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-CA-50B-250-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-CA-50B-300-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-CA-50R-25-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-CA-50R-50-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-CA-50R-75-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-CA-50R-100-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-CA-50R-125-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-CA-50R-150-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-CA-50R-200-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-CA-50R-250-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-CA-50R-300-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-CA-50H-25-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-CA-50H-50-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-CA-50H-75-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-CA-50H-100-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-CA-50H-125-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-CA-50H-150-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-CA-50H-200-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-CA-50H-250-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-CA-50H-300-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-CA-50D-25-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-CA-50D-50-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-CA-50D-75-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-CA-50D-100-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-CA-50D-125-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-CA-50D-150-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-CA-50D-200-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-CA-50D-250-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-CA-50D-300-HP1	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-CA-63B-25-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-CA-63B-50-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-CA-63B-75-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-CA-63B-100-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-CA-63B-125-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-CA-63B-150-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-CA-63B-200-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-CA-63B-250-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-CA-63B-300-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-CA-63R-25-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-CA-63R-50-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-CA-63R-75-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-CA-63R-100-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-CA-63R-125-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-CA-63R-150-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-CA-63R-200-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-CA-63R-250-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-CA-63R-300-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-CA-63H-25-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-CA-63H-50-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-CA-63H-75-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-CA-63H-100-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-CA-63H-125-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-CA-63H-150-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-CA-63H-200-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-CA-63H-250-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-CA-63H-300-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-CA-63D-25-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-CA-63D-50-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-CA-63D-75-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-CA-63D-100-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-CA-63D-125-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-CA-63D-150-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-CA-63D-200-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-CA-63D-250-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-CA-63D-300-HP1	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-CB-80B-25-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-CB-80B-50-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-CB-80B-75-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-CB-80B-100-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-CB-80B-125-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-CB-80B-150-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-CB-80B-200-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-CB-80B-250-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-CB-80B-300-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-CB-80R-25-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-CB-80R-50-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-CB-80R-75-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-CB-80R-100-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-CB-80R-125-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-CB-80R-150-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-CB-80R-200-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-CB-80R-250-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-CB-80R-300-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-CB-80H-25-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-CB-80H-50-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-CB-80H-75-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-CB-80H-100-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-CB-80H-125-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-CB-80H-150-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-CB-80H-200-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-CB-80H-250-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-CB-80H-300-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-CB-80D-25-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-CB-80D-50-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-CB-80D-75-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-CB-80D-100-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-CB-80D-125-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-CB-80D-150-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-CB-80D-200-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-CB-80D-250-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-CB-80D-300-HP1	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-CB-100B-25-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-CB-100B-50-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-CB-100B-75-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-CB-100B-100-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-CB-100B-125-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-CB-100B-150-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-CB-100B-200-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-CB-100B-250-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-CB-100B-300-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-CB-100R-25-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-CB-100R-50-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-CB-100R-75-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-CB-100R-100-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-CB-100R-125-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-CB-100R-150-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-CB-100R-200-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-CB-100R-250-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-CB-100R-300-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-CB-100H-25-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-CB-100H-50-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-CB-100H-75-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-CB-100H-100-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-CB-100H-125-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-CB-100H-150-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-CB-100H-200-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-CB-100H-250-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-CB-100H-300-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-CB-100D-25-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-CB-100D-50-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-CB-100D-75-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-CB-100D-100-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-CB-100D-125-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-CB-100D-150-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-CB-100D-200-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-CB-100D-250-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-CB-100D-300-HP1	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-TA-50B-25-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-TA-50B-50-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-TA-50B-75-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-TA-50B-100-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-TA-50B-125-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-TA-50B-150-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-TA-50B-200-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-TA-50B-250-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-TA-50B-300-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-TA-50R-25-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-TA-50R-50-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-TA-50R-75-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-TA-50R-100-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-TA-50R-125-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-TA-50R-150-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-TA-50R-200-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-TA-50R-250-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-TA-50R-300-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-TA-50H-25-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-TA-50H-50-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-TA-50H-75-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-TA-50H-100-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-TA-50H-125-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-TA-50H-150-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-TA-50H-200-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-TA-50H-250-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-TA-50H-300-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-TA-50D-25-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-TA-50D-50-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-TA-50D-75-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-TA-50D-100-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-TA-50D-125-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-TA-50D-150-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-TA-50D-200-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-TA-50D-250-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-TA-50D-300-HP1	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-TA-63B-25-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-TA-63B-50-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-TA-63B-75-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-TA-63B-100-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-TA-63B-125-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-TA-63B-150-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-TA-63B-200-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-TA-63B-250-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-TA-63B-300-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-TA-63R-25-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-TA-63R-50-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-TA-63R-75-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-TA-63R-100-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-TA-63R-125-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-TA-63R-150-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-TA-63R-200-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-TA-63R-250-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-TA-63R-300-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-TA-63H-25-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-TA-63H-50-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-TA-63H-75-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-TA-63H-100-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-TA-63H-125-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-TA-63H-150-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-TA-63H-200-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-TA-63H-250-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-TA-63H-300-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-TA-63D-25-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-TA-63D-50-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-TA-63D-75-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-TA-63D-100-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-TA-63D-125-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-TA-63D-150-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-TA-63D-200-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-TA-63D-250-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-TA-63D-300-HP1	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-TB-50B-25-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-TB-50B-50-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-TB-50B-75-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-TB-50B-100-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-TB-50B-125-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-TB-50B-150-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-TB-50B-200-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-TB-50B-250-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-TB-50B-300-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-TB-50R-25-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-TB-50R-50-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-TB-50R-75-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-TB-50R-100-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-TB-50R-125-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-TB-50R-150-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-TB-50R-200-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-TB-50R-250-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-TB-50R-300-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-TB-50H-25-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-TB-50H-50-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-TB-50H-75-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-TB-50H-100-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-TB-50H-125-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-TB-50H-150-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-TB-50H-200-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-TB-50H-250-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-TB-50H-300-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-TB-50D-25-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-TB-50D-50-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-TB-50D-75-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-TB-50D-100-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-TB-50D-125-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-TB-50D-150-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-TB-50D-200-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-TB-50D-250-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-TB-50D-300-HP1	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-G-TB-63B-25-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-G-TB-63B-50-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-G-TB-63B-75-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-G-TB-63B-100-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-G-TB-63B-125-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-G-TB-63B-150-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-G-TB-63B-200-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-G-TB-63B-250-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-G-TB-63B-300-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-G-TB-63R-25-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-G-TB-63R-50-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-G-TB-63R-75-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-G-TB-63R-100-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-G-TB-63R-125-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-G-TB-63R-150-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-G-TB-63R-200-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-G-TB-63R-250-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-G-TB-63R-300-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-G-TB-63H-25-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-G-TB-63H-50-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-G-TB-63H-75-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-G-TB-63H-100-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-G-TB-63H-125-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-G-TB-63H-150-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-G-TB-63H-200-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-G-TB-63H-250-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-G-TB-63H-300-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-G-TB-63D-25-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-G-TB-63D-50-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-G-TB-63D-75-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-G-TB-63D-100-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-G-TB-63D-125-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-G-TB-63D-150-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-G-TB-63D-200-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-G-TB-63D-250-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-G-TB-63D-300-HP1	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCM-G-HP1 Environment-resistant Super Micro Cylinder (50-100)
