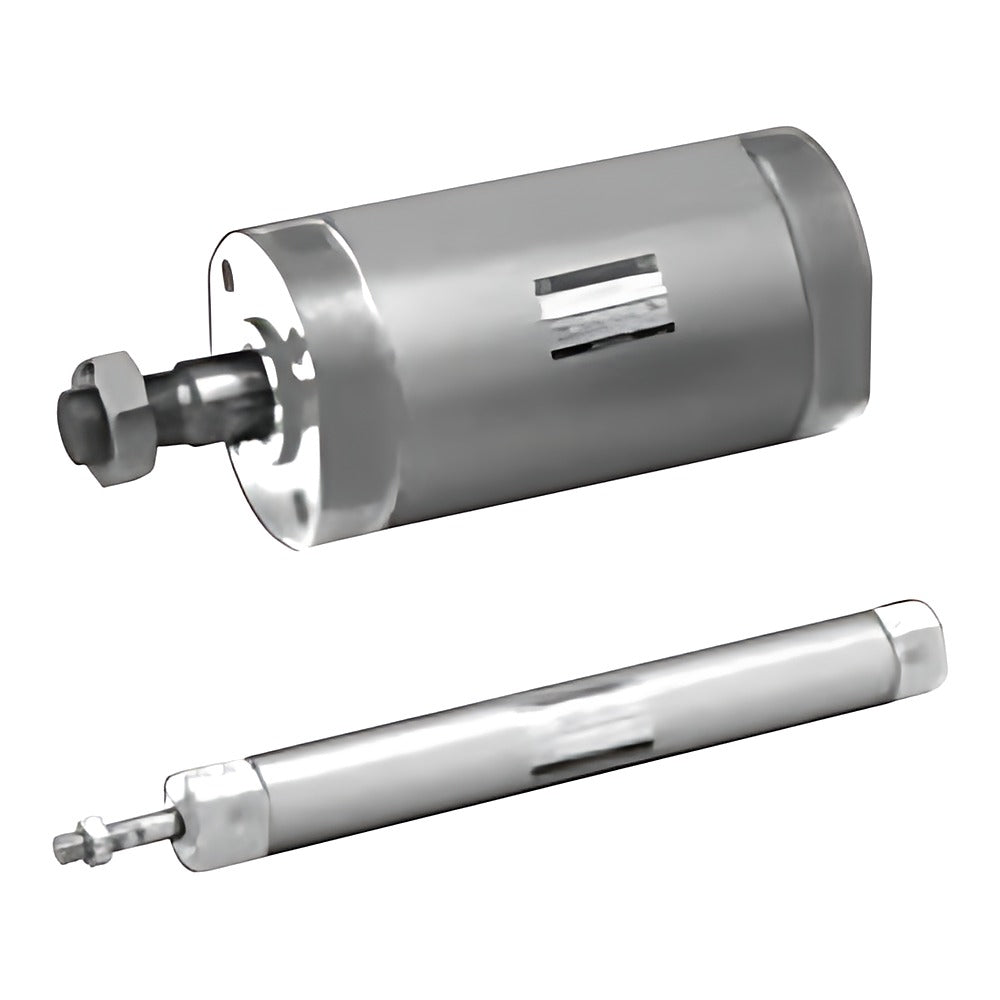

CKD SCM-HP1 Long-life Super Micro Cylinder (Bore 20-40 mm)

CKD SCM-HP1 long-life double-acting super micro cylinder with built-in switch magnet, bores 20-40 mm.

Key features

HP1 long-life design: optimised sliding parts, rated for 20 million+ cycles (about 4x conventional, CKD test conditions)
Mounting: basic, LB foot, FA/FB flange, CA clevis, TA/TB trunnion (brackets supplied with the cylinder)
Cushion selectable: air cushion both ends/rod end/head end (B/R/H) or rubber cushion both ends (D)
Standard strokes 25-150 mm; intermediate strokes in 1 mm steps (min. 10 mm)
Options not expanded: N/G threads, rail or band (Z) switch mounting, Q/M options, I/Y/B2 accessories

Specifications

Operation	Double acting, single rod
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Port size	Rc1/8 (air cushion 20/25: M5)
Piston speed	30-1000 mm/s
Code format	SCM-<mount>-<bore><cushion>-<stroke>-HP1
Source	CKD Korea catalog CC-1421KR-7, p. 28-30

SCM-00-20B-25-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-00-20B-50-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-00-20B-75-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-00-20B-100-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-00-20B-125-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-00-20B-150-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-00-20R-25-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-00-20R-50-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-00-20R-75-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-00-20R-100-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-00-20R-125-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-00-20R-150-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-00-20H-25-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-00-20H-50-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-00-20H-75-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-00-20H-100-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-00-20H-125-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-00-20H-150-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-00-20D-25-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-00-20D-50-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-00-20D-75-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-00-20D-100-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-00-20D-125-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-00-20D-150-HP1		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-00-25B-25-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-00-25B-50-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-00-25B-75-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-00-25B-100-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-00-25B-125-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-00-25B-150-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-00-25R-25-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-00-25R-50-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-00-25R-75-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-00-25R-100-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-00-25R-125-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-00-25R-150-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-00-25H-25-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-00-25H-50-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-00-25H-75-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-00-25H-100-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-00-25H-125-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-00-25H-150-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-00-25D-25-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-00-25D-50-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-00-25D-75-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-00-25D-100-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-00-25D-125-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-00-25D-150-HP1		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-00-32B-25-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-00-32B-50-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-00-32B-75-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-00-32B-100-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-00-32B-125-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-00-32B-150-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-00-32R-25-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-00-32R-50-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-00-32R-75-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-00-32R-100-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-00-32R-125-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-00-32R-150-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-00-32H-25-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-00-32H-50-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-00-32H-75-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-00-32H-100-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-00-32H-125-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-00-32H-150-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-00-32D-25-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-00-32D-50-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-00-32D-75-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-00-32D-100-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-00-32D-125-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-00-32D-150-HP1		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-00-40B-25-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-00-40B-50-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-00-40B-75-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-00-40B-100-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-00-40B-125-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-00-40B-150-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-00-40R-25-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-00-40R-50-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-00-40R-75-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-00-40R-100-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-00-40R-125-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-00-40R-150-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-00-40H-25-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-00-40H-50-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-00-40H-75-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-00-40H-100-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-00-40H-125-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-00-40H-150-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-00-40D-25-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-00-40D-50-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-00-40D-75-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-00-40D-100-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-00-40D-125-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-00-40D-150-HP1		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-LB-20B-25-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-LB-20B-50-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-LB-20B-75-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-LB-20B-100-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-LB-20B-125-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-LB-20B-150-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-LB-20R-25-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-LB-20R-50-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-LB-20R-75-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-LB-20R-100-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-LB-20R-125-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-LB-20R-150-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-LB-20H-25-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-LB-20H-50-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-LB-20H-75-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-LB-20H-100-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-LB-20H-125-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-LB-20H-150-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-LB-20D-25-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-LB-20D-50-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-LB-20D-75-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-LB-20D-100-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-LB-20D-125-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-LB-20D-150-HP1		Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-LB-25B-25-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-LB-25B-50-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-LB-25B-75-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-LB-25B-100-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-LB-25B-125-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-LB-25B-150-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-LB-25R-25-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-LB-25R-50-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-LB-25R-75-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-LB-25R-100-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-LB-25R-125-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-LB-25R-150-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-LB-25H-25-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-LB-25H-50-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-LB-25H-75-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-LB-25H-100-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-LB-25H-125-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-LB-25H-150-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-LB-25D-25-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-LB-25D-50-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-LB-25D-75-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-LB-25D-100-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-LB-25D-125-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-LB-25D-150-HP1		Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-LB-32B-25-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-LB-32B-50-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-LB-32B-75-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-LB-32B-100-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-LB-32B-125-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-LB-32B-150-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-LB-32R-25-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-LB-32R-50-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-LB-32R-75-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-LB-32R-100-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-LB-32R-125-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-LB-32R-150-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-LB-32H-25-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-LB-32H-50-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-LB-32H-75-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-LB-32H-100-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-LB-32H-125-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-LB-32H-150-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-LB-32D-25-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-LB-32D-50-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-LB-32D-75-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-LB-32D-100-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-LB-32D-125-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-LB-32D-150-HP1		Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-LB-40B-25-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-LB-40B-50-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-LB-40B-75-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-LB-40B-100-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-LB-40B-125-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-LB-40B-150-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-LB-40R-25-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-LB-40R-50-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-LB-40R-75-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-LB-40R-100-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-LB-40R-125-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-LB-40R-150-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-LB-40H-25-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-LB-40H-50-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-LB-40H-75-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-LB-40H-100-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-LB-40H-125-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-LB-40H-150-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-LB-40D-25-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-LB-40D-50-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-LB-40D-75-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-LB-40D-100-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-LB-40D-125-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-LB-40D-150-HP1		Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FA-20B-25-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FA-20B-50-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FA-20B-75-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FA-20B-100-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FA-20B-125-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FA-20B-150-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FA-20R-25-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FA-20R-50-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FA-20R-75-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FA-20R-100-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FA-20R-125-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FA-20R-150-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FA-20H-25-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FA-20H-50-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FA-20H-75-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FA-20H-100-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FA-20H-125-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FA-20H-150-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FA-20D-25-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FA-20D-50-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FA-20D-75-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FA-20D-100-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FA-20D-125-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FA-20D-150-HP1		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FA-25B-25-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FA-25B-50-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FA-25B-75-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FA-25B-100-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FA-25B-125-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FA-25B-150-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FA-25R-25-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FA-25R-50-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FA-25R-75-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FA-25R-100-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FA-25R-125-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FA-25R-150-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FA-25H-25-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FA-25H-50-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FA-25H-75-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FA-25H-100-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FA-25H-125-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FA-25H-150-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FA-25D-25-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FA-25D-50-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FA-25D-75-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FA-25D-100-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FA-25D-125-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FA-25D-150-HP1		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FA-32B-25-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FA-32B-50-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FA-32B-75-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FA-32B-100-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FA-32B-125-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FA-32B-150-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FA-32R-25-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FA-32R-50-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FA-32R-75-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FA-32R-100-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FA-32R-125-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FA-32R-150-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FA-32H-25-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FA-32H-50-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FA-32H-75-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FA-32H-100-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FA-32H-125-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FA-32H-150-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FA-32D-25-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FA-32D-50-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FA-32D-75-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FA-32D-100-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FA-32D-125-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FA-32D-150-HP1		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FA-40B-25-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FA-40B-50-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FA-40B-75-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FA-40B-100-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FA-40B-125-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FA-40B-150-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FA-40R-25-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FA-40R-50-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FA-40R-75-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FA-40R-100-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FA-40R-125-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FA-40R-150-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FA-40H-25-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FA-40H-50-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FA-40H-75-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FA-40H-100-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FA-40H-125-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FA-40H-150-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FA-40D-25-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FA-40D-50-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FA-40D-75-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FA-40D-100-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FA-40D-125-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FA-40D-150-HP1		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FB-20B-25-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FB-20B-50-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FB-20B-75-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FB-20B-100-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FB-20B-125-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FB-20B-150-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FB-20R-25-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FB-20R-50-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FB-20R-75-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FB-20R-100-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FB-20R-125-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FB-20R-150-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FB-20H-25-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FB-20H-50-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FB-20H-75-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FB-20H-100-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FB-20H-125-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FB-20H-150-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FB-20D-25-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FB-20D-50-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FB-20D-75-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FB-20D-100-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FB-20D-125-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FB-20D-150-HP1		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FB-25B-25-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FB-25B-50-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FB-25B-75-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FB-25B-100-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FB-25B-125-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FB-25B-150-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FB-25R-25-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FB-25R-50-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FB-25R-75-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FB-25R-100-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FB-25R-125-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FB-25R-150-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FB-25H-25-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FB-25H-50-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FB-25H-75-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FB-25H-100-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FB-25H-125-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FB-25H-150-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FB-25D-25-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FB-25D-50-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FB-25D-75-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FB-25D-100-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FB-25D-125-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FB-25D-150-HP1		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FB-32B-25-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FB-32B-50-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FB-32B-75-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FB-32B-100-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FB-32B-125-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FB-32B-150-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FB-32R-25-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FB-32R-50-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FB-32R-75-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FB-32R-100-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FB-32R-125-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FB-32R-150-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FB-32H-25-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FB-32H-50-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FB-32H-75-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FB-32H-100-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FB-32H-125-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FB-32H-150-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FB-32D-25-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FB-32D-50-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FB-32D-75-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FB-32D-100-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FB-32D-125-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FB-32D-150-HP1		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FB-40B-25-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FB-40B-50-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FB-40B-75-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FB-40B-100-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FB-40B-125-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FB-40B-150-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FB-40R-25-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FB-40R-50-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FB-40R-75-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FB-40R-100-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FB-40R-125-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FB-40R-150-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FB-40H-25-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FB-40H-50-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FB-40H-75-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FB-40H-100-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FB-40H-125-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FB-40H-150-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FB-40D-25-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FB-40D-50-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FB-40D-75-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FB-40D-100-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FB-40D-125-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FB-40D-150-HP1		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-CA-20B-25-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-CA-20B-50-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-CA-20B-75-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-CA-20B-100-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-CA-20B-125-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-CA-20B-150-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-CA-20R-25-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-CA-20R-50-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-CA-20R-75-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-CA-20R-100-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-CA-20R-125-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-CA-20R-150-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-CA-20H-25-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-CA-20H-50-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-CA-20H-75-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-CA-20H-100-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-CA-20H-125-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-CA-20H-150-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-CA-20D-25-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-CA-20D-50-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-CA-20D-75-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-CA-20D-100-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-CA-20D-125-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-CA-20D-150-HP1		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-CA-25B-25-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-CA-25B-50-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-CA-25B-75-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-CA-25B-100-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-CA-25B-125-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-CA-25B-150-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-CA-25R-25-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-CA-25R-50-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-CA-25R-75-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-CA-25R-100-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-CA-25R-125-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-CA-25R-150-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-CA-25H-25-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-CA-25H-50-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-CA-25H-75-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-CA-25H-100-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-CA-25H-125-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-CA-25H-150-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-CA-25D-25-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-CA-25D-50-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-CA-25D-75-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-CA-25D-100-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-CA-25D-125-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-CA-25D-150-HP1		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-CA-32B-25-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-CA-32B-50-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-CA-32B-75-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-CA-32B-100-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-CA-32B-125-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-CA-32B-150-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-CA-32R-25-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-CA-32R-50-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-CA-32R-75-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-CA-32R-100-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-CA-32R-125-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-CA-32R-150-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-CA-32H-25-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-CA-32H-50-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-CA-32H-75-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-CA-32H-100-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-CA-32H-125-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-CA-32H-150-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-CA-32D-25-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-CA-32D-50-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-CA-32D-75-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-CA-32D-100-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-CA-32D-125-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-CA-32D-150-HP1		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-CA-40B-25-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-CA-40B-50-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-CA-40B-75-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-CA-40B-100-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-CA-40B-125-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-CA-40B-150-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-CA-40R-25-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-CA-40R-50-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-CA-40R-75-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-CA-40R-100-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-CA-40R-125-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-CA-40R-150-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-CA-40H-25-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-CA-40H-50-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-CA-40H-75-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-CA-40H-100-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-CA-40H-125-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-CA-40H-150-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-CA-40D-25-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-CA-40D-50-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-CA-40D-75-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-CA-40D-100-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-CA-40D-125-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-CA-40D-150-HP1		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TA-20B-25-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TA-20B-50-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TA-20B-75-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TA-20B-100-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TA-20B-125-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TA-20B-150-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TA-20R-25-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TA-20R-50-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TA-20R-75-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TA-20R-100-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TA-20R-125-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TA-20R-150-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TA-20H-25-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TA-20H-50-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TA-20H-75-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TA-20H-100-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TA-20H-125-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TA-20H-150-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TA-20D-25-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TA-20D-50-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TA-20D-75-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TA-20D-100-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TA-20D-125-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TA-20D-150-HP1		Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TA-25B-25-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TA-25B-50-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TA-25B-75-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TA-25B-100-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TA-25B-125-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TA-25B-150-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TA-25R-25-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TA-25R-50-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TA-25R-75-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TA-25R-100-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TA-25R-125-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TA-25R-150-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TA-25H-25-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TA-25H-50-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TA-25H-75-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TA-25H-100-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TA-25H-125-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TA-25H-150-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TA-25D-25-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TA-25D-50-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TA-25D-75-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TA-25D-100-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TA-25D-125-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TA-25D-150-HP1		Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TA-32B-25-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TA-32B-50-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TA-32B-75-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TA-32B-100-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TA-32B-125-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TA-32B-150-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TA-32R-25-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TA-32R-50-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TA-32R-75-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TA-32R-100-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TA-32R-125-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TA-32R-150-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TA-32H-25-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TA-32H-50-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TA-32H-75-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TA-32H-100-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TA-32H-125-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TA-32H-150-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TA-32D-25-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TA-32D-50-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TA-32D-75-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TA-32D-100-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TA-32D-125-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TA-32D-150-HP1		Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TA-40B-25-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TA-40B-50-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TA-40B-75-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TA-40B-100-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TA-40B-125-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TA-40B-150-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TA-40R-25-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TA-40R-50-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TA-40R-75-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TA-40R-100-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TA-40R-125-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TA-40R-150-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TA-40H-25-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TA-40H-50-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TA-40H-75-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TA-40H-100-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TA-40H-125-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TA-40H-150-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TA-40D-25-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TA-40D-50-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TA-40D-75-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TA-40D-100-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TA-40D-125-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TA-40D-150-HP1		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TB-20B-25-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TB-20B-50-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TB-20B-75-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TB-20B-100-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TB-20B-125-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TB-20B-150-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TB-20R-25-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TB-20R-50-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TB-20R-75-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TB-20R-100-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TB-20R-125-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TB-20R-150-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TB-20H-25-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TB-20H-50-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TB-20H-75-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TB-20H-100-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TB-20H-125-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TB-20H-150-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TB-20D-25-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TB-20D-50-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TB-20D-75-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TB-20D-100-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TB-20D-125-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TB-20D-150-HP1		Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TB-25B-25-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TB-25B-50-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TB-25B-75-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TB-25B-100-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TB-25B-125-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TB-25B-150-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TB-25R-25-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TB-25R-50-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TB-25R-75-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TB-25R-100-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TB-25R-125-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TB-25R-150-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TB-25H-25-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TB-25H-50-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TB-25H-75-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TB-25H-100-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TB-25H-125-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TB-25H-150-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TB-25D-25-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TB-25D-50-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TB-25D-75-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TB-25D-100-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TB-25D-125-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TB-25D-150-HP1		Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TB-32B-25-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TB-32B-50-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TB-32B-75-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TB-32B-100-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TB-32B-125-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TB-32B-150-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TB-32R-25-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TB-32R-50-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TB-32R-75-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TB-32R-100-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TB-32R-125-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TB-32R-150-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TB-32H-25-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TB-32H-50-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TB-32H-75-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TB-32H-100-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TB-32H-125-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TB-32H-150-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TB-32D-25-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TB-32D-50-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TB-32D-75-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TB-32D-100-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TB-32D-125-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TB-32D-150-HP1		Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TB-40B-25-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TB-40B-50-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TB-40B-75-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TB-40B-100-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TB-40B-125-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TB-40B-150-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TB-40R-25-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TB-40R-50-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TB-40R-75-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TB-40R-100-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TB-40R-125-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TB-40R-150-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TB-40H-25-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TB-40H-50-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TB-40H-75-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TB-40H-100-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TB-40H-125-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TB-40H-150-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TB-40D-25-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TB-40D-50-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TB-40D-75-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TB-40D-100-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TB-40D-125-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TB-40D-150-HP1		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm

Pneumatic CylindersCKD

672 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-HP1 Long-life Super Micro Cylinder (Bore 20-40 mm)

Brand CKD·Pneumatic Cylinders

Available part numbers (672)

SCM-00-20B-25-HP1, SCM-00-20B-50-HP1, SCM-00-20B-75-HP1, SCM-00-20B-100-HP1, SCM-00-20B-125-HP1, SCM-00-20B-150-HP1, SCM-00-20R-25-HP1, SCM-00-20R-50-HP1, SCM-00-20R-75-HP1, SCM-00-20R-100-HP1 + 662 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCM-00-20B-25-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-00-20B-50-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-00-20B-75-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-00-20B-100-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-00-20B-125-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-00-20B-150-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-00-20R-25-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-00-20R-50-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-00-20R-75-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-00-20R-100-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-00-20R-125-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-00-20R-150-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-00-20H-25-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-00-20H-50-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-00-20H-75-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-00-20H-100-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-00-20H-125-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-00-20H-150-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-00-20D-25-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-00-20D-50-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-00-20D-75-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-00-20D-100-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-00-20D-125-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-00-20D-150-HP1	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-00-25B-25-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-00-25B-50-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-00-25B-75-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-00-25B-100-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-00-25B-125-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-00-25B-150-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-00-25R-25-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-00-25R-50-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-00-25R-75-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-00-25R-100-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-00-25R-125-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-00-25R-150-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-00-25H-25-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-00-25H-50-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-00-25H-75-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-00-25H-100-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-00-25H-125-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-00-25H-150-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-00-25D-25-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-00-25D-50-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-00-25D-75-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-00-25D-100-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-00-25D-125-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-00-25D-150-HP1	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-00-32B-25-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-00-32B-50-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-00-32B-75-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-00-32B-100-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-00-32B-125-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-00-32B-150-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-00-32R-25-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-00-32R-50-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-00-32R-75-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-00-32R-100-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-00-32R-125-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-00-32R-150-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-00-32H-25-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-00-32H-50-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-00-32H-75-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-00-32H-100-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-00-32H-125-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-00-32H-150-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-00-32D-25-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-00-32D-50-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-00-32D-75-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-00-32D-100-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-00-32D-125-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-00-32D-150-HP1	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-00-40B-25-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-00-40B-50-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-00-40B-75-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-00-40B-100-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-00-40B-125-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-00-40B-150-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-00-40R-25-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-00-40R-50-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-00-40R-75-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-00-40R-100-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-00-40R-125-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-00-40R-150-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-00-40H-25-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-00-40H-50-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-00-40H-75-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-00-40H-100-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-00-40H-125-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-00-40H-150-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-00-40D-25-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-00-40D-50-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-00-40D-75-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-00-40D-100-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-00-40D-125-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-00-40D-150-HP1	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-LB-20B-25-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-LB-20B-50-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-LB-20B-75-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-LB-20B-100-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-LB-20B-125-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-LB-20B-150-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-LB-20R-25-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-LB-20R-50-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-LB-20R-75-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-LB-20R-100-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-LB-20R-125-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-LB-20R-150-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-LB-20H-25-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-LB-20H-50-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-LB-20H-75-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-LB-20H-100-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-LB-20H-125-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-LB-20H-150-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-LB-20D-25-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-LB-20D-50-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-LB-20D-75-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-LB-20D-100-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-LB-20D-125-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-LB-20D-150-HP1	Mounting: Axial foot, both sides \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-LB-25B-25-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-LB-25B-50-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-LB-25B-75-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-LB-25B-100-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-LB-25B-125-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-LB-25B-150-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-LB-25R-25-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-LB-25R-50-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-LB-25R-75-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-LB-25R-100-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-LB-25R-125-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-LB-25R-150-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-LB-25H-25-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-LB-25H-50-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-LB-25H-75-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-LB-25H-100-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-LB-25H-125-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-LB-25H-150-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-LB-25D-25-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-LB-25D-50-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-LB-25D-75-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-LB-25D-100-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-LB-25D-125-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-LB-25D-150-HP1	Mounting: Axial foot, both sides \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-LB-32B-25-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-LB-32B-50-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-LB-32B-75-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-LB-32B-100-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-LB-32B-125-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-LB-32B-150-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-LB-32R-25-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-LB-32R-50-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-LB-32R-75-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-LB-32R-100-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-LB-32R-125-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-LB-32R-150-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-LB-32H-25-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-LB-32H-50-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-LB-32H-75-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-LB-32H-100-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-LB-32H-125-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-LB-32H-150-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-LB-32D-25-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-LB-32D-50-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-LB-32D-75-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-LB-32D-100-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-LB-32D-125-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-LB-32D-150-HP1	Mounting: Axial foot, both sides \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-LB-40B-25-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-LB-40B-50-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-LB-40B-75-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-LB-40B-100-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-LB-40B-125-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-LB-40B-150-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-LB-40R-25-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-LB-40R-50-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-LB-40R-75-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-LB-40R-100-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-LB-40R-125-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-LB-40R-150-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-LB-40H-25-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-LB-40H-50-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-LB-40H-75-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-LB-40H-100-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-LB-40H-125-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-LB-40H-150-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-LB-40D-25-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-LB-40D-50-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-LB-40D-75-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-LB-40D-100-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-LB-40D-125-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-LB-40D-150-HP1	Mounting: Axial foot, both sides \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FA-20B-25-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FA-20B-50-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FA-20B-75-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FA-20B-100-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FA-20B-125-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FA-20B-150-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FA-20R-25-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FA-20R-50-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FA-20R-75-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FA-20R-100-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FA-20R-125-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FA-20R-150-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FA-20H-25-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FA-20H-50-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FA-20H-75-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FA-20H-100-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FA-20H-125-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FA-20H-150-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FA-20D-25-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FA-20D-50-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FA-20D-75-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FA-20D-100-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FA-20D-125-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FA-20D-150-HP1	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FA-25B-25-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FA-25B-50-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FA-25B-75-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FA-25B-100-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FA-25B-125-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FA-25B-150-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FA-25R-25-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FA-25R-50-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FA-25R-75-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FA-25R-100-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FA-25R-125-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FA-25R-150-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FA-25H-25-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FA-25H-50-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FA-25H-75-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FA-25H-100-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FA-25H-125-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FA-25H-150-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FA-25D-25-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FA-25D-50-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FA-25D-75-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FA-25D-100-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FA-25D-125-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FA-25D-150-HP1	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FA-32B-25-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FA-32B-50-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FA-32B-75-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FA-32B-100-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FA-32B-125-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FA-32B-150-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FA-32R-25-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FA-32R-50-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FA-32R-75-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FA-32R-100-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FA-32R-125-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FA-32R-150-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FA-32H-25-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FA-32H-50-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FA-32H-75-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FA-32H-100-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FA-32H-125-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FA-32H-150-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FA-32D-25-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FA-32D-50-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FA-32D-75-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FA-32D-100-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FA-32D-125-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FA-32D-150-HP1	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FA-40B-25-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FA-40B-50-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FA-40B-75-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FA-40B-100-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FA-40B-125-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FA-40B-150-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FA-40R-25-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FA-40R-50-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FA-40R-75-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FA-40R-100-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FA-40R-125-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FA-40R-150-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FA-40H-25-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FA-40H-50-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FA-40H-75-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FA-40H-100-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FA-40H-125-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FA-40H-150-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FA-40D-25-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FA-40D-50-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FA-40D-75-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FA-40D-100-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FA-40D-125-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FA-40D-150-HP1	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FB-20B-25-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FB-20B-50-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FB-20B-75-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FB-20B-100-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FB-20B-125-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FB-20B-150-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FB-20R-25-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FB-20R-50-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FB-20R-75-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FB-20R-100-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FB-20R-125-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FB-20R-150-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FB-20H-25-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FB-20H-50-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FB-20H-75-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FB-20H-100-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FB-20H-125-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FB-20H-150-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FB-20D-25-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FB-20D-50-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FB-20D-75-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FB-20D-100-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FB-20D-125-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FB-20D-150-HP1	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FB-25B-25-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FB-25B-50-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FB-25B-75-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FB-25B-100-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FB-25B-125-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FB-25B-150-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FB-25R-25-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FB-25R-50-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FB-25R-75-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FB-25R-100-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FB-25R-125-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FB-25R-150-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FB-25H-25-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FB-25H-50-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FB-25H-75-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FB-25H-100-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FB-25H-125-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FB-25H-150-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FB-25D-25-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FB-25D-50-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FB-25D-75-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FB-25D-100-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FB-25D-125-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FB-25D-150-HP1	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FB-32B-25-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FB-32B-50-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FB-32B-75-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FB-32B-100-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FB-32B-125-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FB-32B-150-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FB-32R-25-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FB-32R-50-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FB-32R-75-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FB-32R-100-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FB-32R-125-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FB-32R-150-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FB-32H-25-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FB-32H-50-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FB-32H-75-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FB-32H-100-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FB-32H-125-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FB-32H-150-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FB-32D-25-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FB-32D-50-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FB-32D-75-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FB-32D-100-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FB-32D-125-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FB-32D-150-HP1	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FB-40B-25-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FB-40B-50-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FB-40B-75-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FB-40B-100-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FB-40B-125-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FB-40B-150-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FB-40R-25-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FB-40R-50-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FB-40R-75-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FB-40R-100-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FB-40R-125-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FB-40R-150-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FB-40H-25-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FB-40H-50-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FB-40H-75-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FB-40H-100-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FB-40H-125-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FB-40H-150-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FB-40D-25-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FB-40D-50-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FB-40D-75-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FB-40D-100-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FB-40D-125-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FB-40D-150-HP1	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-CA-20B-25-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-CA-20B-50-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-CA-20B-75-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-CA-20B-100-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-CA-20B-125-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-CA-20B-150-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-CA-20R-25-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-CA-20R-50-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-CA-20R-75-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-CA-20R-100-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-CA-20R-125-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-CA-20R-150-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-CA-20H-25-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-CA-20H-50-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-CA-20H-75-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-CA-20H-100-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-CA-20H-125-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-CA-20H-150-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-CA-20D-25-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-CA-20D-50-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-CA-20D-75-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-CA-20D-100-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-CA-20D-125-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-CA-20D-150-HP1	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-CA-25B-25-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-CA-25B-50-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-CA-25B-75-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-CA-25B-100-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-CA-25B-125-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-CA-25B-150-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-CA-25R-25-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-CA-25R-50-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-CA-25R-75-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-CA-25R-100-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-CA-25R-125-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-CA-25R-150-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-CA-25H-25-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-CA-25H-50-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-CA-25H-75-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-CA-25H-100-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-CA-25H-125-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-CA-25H-150-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-CA-25D-25-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-CA-25D-50-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-CA-25D-75-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-CA-25D-100-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-CA-25D-125-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-CA-25D-150-HP1	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-CA-32B-25-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-CA-32B-50-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-CA-32B-75-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-CA-32B-100-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-CA-32B-125-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-CA-32B-150-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-CA-32R-25-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-CA-32R-50-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-CA-32R-75-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-CA-32R-100-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-CA-32R-125-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-CA-32R-150-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-CA-32H-25-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-CA-32H-50-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-CA-32H-75-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-CA-32H-100-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-CA-32H-125-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-CA-32H-150-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-CA-32D-25-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-CA-32D-50-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-CA-32D-75-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-CA-32D-100-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-CA-32D-125-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-CA-32D-150-HP1	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-CA-40B-25-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-CA-40B-50-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-CA-40B-75-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-CA-40B-100-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-CA-40B-125-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-CA-40B-150-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-CA-40R-25-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-CA-40R-50-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-CA-40R-75-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-CA-40R-100-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-CA-40R-125-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-CA-40R-150-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-CA-40H-25-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-CA-40H-50-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-CA-40H-75-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-CA-40H-100-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-CA-40H-125-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-CA-40H-150-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-CA-40D-25-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-CA-40D-50-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-CA-40D-75-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-CA-40D-100-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-CA-40D-125-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-CA-40D-150-HP1	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TA-20B-25-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TA-20B-50-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TA-20B-75-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TA-20B-100-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TA-20B-125-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TA-20B-150-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TA-20R-25-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TA-20R-50-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TA-20R-75-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TA-20R-100-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TA-20R-125-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TA-20R-150-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TA-20H-25-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TA-20H-50-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TA-20H-75-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TA-20H-100-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TA-20H-125-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TA-20H-150-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TA-20D-25-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TA-20D-50-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TA-20D-75-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TA-20D-100-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TA-20D-125-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TA-20D-150-HP1	Mounting: Rod-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TA-25B-25-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TA-25B-50-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TA-25B-75-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TA-25B-100-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TA-25B-125-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TA-25B-150-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TA-25R-25-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TA-25R-50-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TA-25R-75-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TA-25R-100-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TA-25R-125-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TA-25R-150-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TA-25H-25-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TA-25H-50-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TA-25H-75-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TA-25H-100-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TA-25H-125-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TA-25H-150-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TA-25D-25-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TA-25D-50-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TA-25D-75-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TA-25D-100-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TA-25D-125-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TA-25D-150-HP1	Mounting: Rod-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TA-32B-25-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TA-32B-50-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TA-32B-75-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TA-32B-100-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TA-32B-125-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TA-32B-150-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TA-32R-25-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TA-32R-50-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TA-32R-75-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TA-32R-100-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TA-32R-125-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TA-32R-150-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TA-32H-25-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TA-32H-50-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TA-32H-75-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TA-32H-100-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TA-32H-125-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TA-32H-150-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TA-32D-25-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TA-32D-50-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TA-32D-75-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TA-32D-100-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TA-32D-125-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TA-32D-150-HP1	Mounting: Rod-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TA-40B-25-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TA-40B-50-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TA-40B-75-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TA-40B-100-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TA-40B-125-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TA-40B-150-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TA-40R-25-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TA-40R-50-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TA-40R-75-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TA-40R-100-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TA-40R-125-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TA-40R-150-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TA-40H-25-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TA-40H-50-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TA-40H-75-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TA-40H-100-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TA-40H-125-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TA-40H-150-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TA-40D-25-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TA-40D-50-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TA-40D-75-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TA-40D-100-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TA-40D-125-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TA-40D-150-HP1	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TB-20B-25-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TB-20B-50-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TB-20B-75-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TB-20B-100-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TB-20B-125-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TB-20B-150-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TB-20R-25-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TB-20R-50-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TB-20R-75-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TB-20R-100-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TB-20R-125-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TB-20R-150-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TB-20H-25-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TB-20H-50-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TB-20H-75-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TB-20H-100-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TB-20H-125-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TB-20H-150-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TB-20D-25-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TB-20D-50-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TB-20D-75-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TB-20D-100-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TB-20D-125-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TB-20D-150-HP1	Mounting: Head-end trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TB-25B-25-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TB-25B-50-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TB-25B-75-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TB-25B-100-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TB-25B-125-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TB-25B-150-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TB-25R-25-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TB-25R-50-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TB-25R-75-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TB-25R-100-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TB-25R-125-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TB-25R-150-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TB-25H-25-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TB-25H-50-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TB-25H-75-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TB-25H-100-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TB-25H-125-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TB-25H-150-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TB-25D-25-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TB-25D-50-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TB-25D-75-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TB-25D-100-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TB-25D-125-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TB-25D-150-HP1	Mounting: Head-end trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TB-32B-25-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TB-32B-50-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TB-32B-75-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TB-32B-100-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TB-32B-125-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TB-32B-150-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TB-32R-25-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TB-32R-50-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TB-32R-75-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TB-32R-100-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TB-32R-125-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TB-32R-150-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TB-32H-25-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TB-32H-50-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TB-32H-75-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TB-32H-100-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TB-32H-125-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TB-32H-150-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TB-32D-25-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TB-32D-50-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TB-32D-75-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TB-32D-100-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TB-32D-125-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TB-32D-150-HP1	Mounting: Head-end trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TB-40B-25-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TB-40B-50-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TB-40B-75-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TB-40B-100-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TB-40B-125-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TB-40B-150-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TB-40R-25-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TB-40R-50-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TB-40R-75-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TB-40R-100-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TB-40R-125-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TB-40R-150-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TB-40H-25-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TB-40H-50-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TB-40H-75-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TB-40H-100-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TB-40H-125-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TB-40H-150-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TB-40D-25-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TB-40D-50-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TB-40D-75-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TB-40D-100-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TB-40D-125-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TB-40D-150-HP1	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCM-HP1 Long-life Super Micro Cylinder (Bore 20-40 mm)
