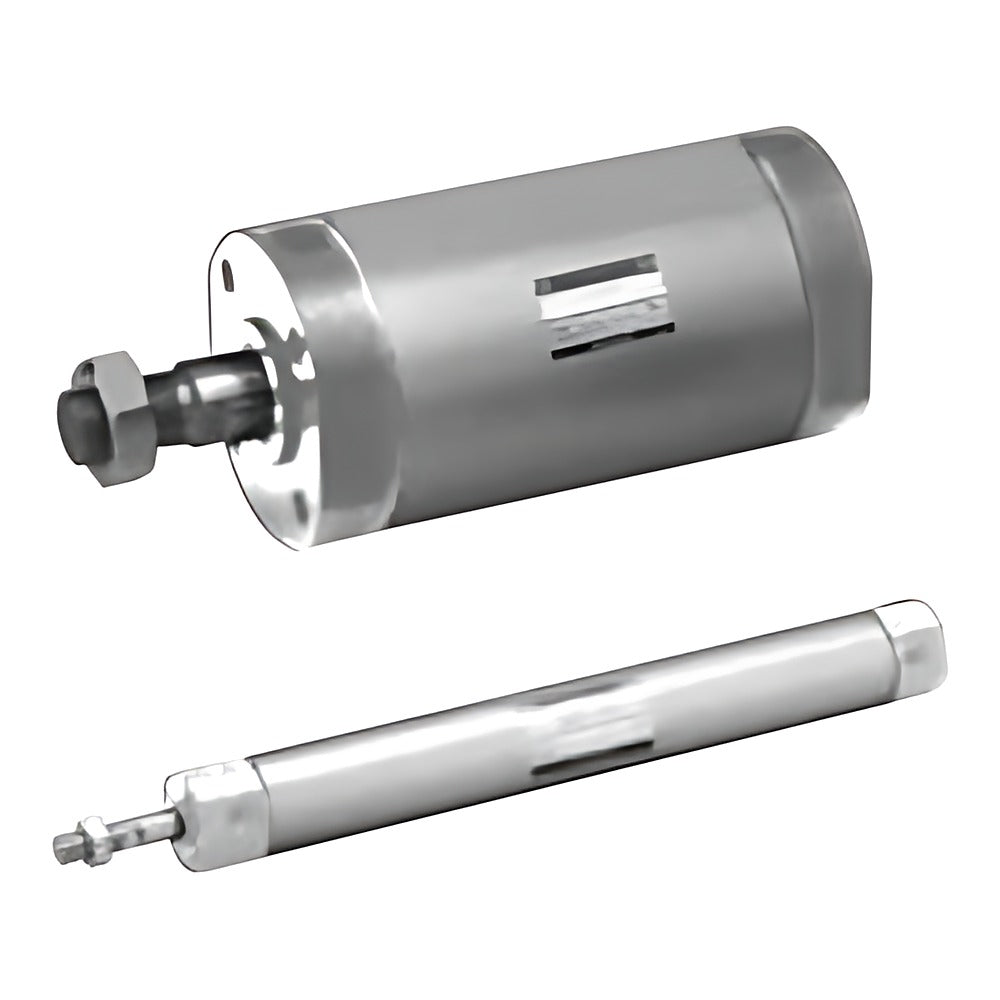

CKD SCM-M Super Micro Cylinder, Non-rotating (Bore 20-63)

CKD SCM-M Super Micro Cylinder, Non-rotating (Bore 20-63)

CKD SCM-M super micro double-acting non-rotating cylinder, bore 20 to 63 mm, with built-in magnet for auto switches.

Key features

  • Non-rotating piston rod, non-rotation accuracy ±1°
  • Mountings 00, LB, FA, FB, CA, TA, TB; rubber cushion both ends (D)
  • Standard strokes 25 to 300 mm; 1 mm intermediate strokes up to 600 mm to order
  • Auto switch ready (built-in magnet); T0/T5/T8 reed and T1/T2/T3/T2W/T2Y/T2YD/T2J solid-state switches, rail or band (Z) mounting, ordered as suffix
  • Options J/L (bellows), Q; accessories I/Y/B2 as suffix

Specifications

Action Double acting, non-rotating rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (ø20-50), 0.05 MPa (ø63)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 30 to 1000 mm/s
Cushion Rubber cushion, both ends (D)
Source CKD Korea catalog CB-029SK-9, p. 422-426
SCM-M-00-20D-25 Mounting: Basic (00) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-00-20D-50 Mounting: Basic (00) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-00-20D-75 Mounting: Basic (00) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-00-20D-100 Mounting: Basic (00) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-00-20D-125 Mounting: Basic (00) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-00-20D-150 Mounting: Basic (00) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-00-20D-200 Mounting: Basic (00) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-00-20D-250 Mounting: Basic (00) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-00-20D-300 Mounting: Basic (00) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-LB-20D-25 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-LB-20D-50 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-LB-20D-75 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-LB-20D-100 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-LB-20D-125 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-LB-20D-150 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-LB-20D-200 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-LB-20D-250 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-LB-20D-300 Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FA-20D-25 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FA-20D-50 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FA-20D-75 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FA-20D-100 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FA-20D-125 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FA-20D-150 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FA-20D-200 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FA-20D-250 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FA-20D-300 Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FB-20D-25 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FB-20D-50 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FB-20D-75 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FB-20D-100 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FB-20D-125 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FB-20D-150 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FB-20D-200 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FB-20D-250 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FB-20D-300 Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-CA-20D-25 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-CA-20D-50 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-CA-20D-75 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-CA-20D-100 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-CA-20D-125 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-CA-20D-150 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-CA-20D-200 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-CA-20D-250 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-CA-20D-300 Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TA-20D-25 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TA-20D-50 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TA-20D-75 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TA-20D-100 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TA-20D-125 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TA-20D-150 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TA-20D-200 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TA-20D-250 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TA-20D-300 Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TB-20D-25 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TB-20D-50 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TB-20D-75 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TB-20D-100 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TB-20D-125 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TB-20D-150 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TB-20D-200 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TB-20D-250 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TB-20D-300 Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-00-25D-25 Mounting: Basic (00) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-00-25D-50 Mounting: Basic (00) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-00-25D-75 Mounting: Basic (00) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-00-25D-100 Mounting: Basic (00) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-00-25D-125 Mounting: Basic (00) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-00-25D-150 Mounting: Basic (00) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-00-25D-200 Mounting: Basic (00) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-00-25D-250 Mounting: Basic (00) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-00-25D-300 Mounting: Basic (00) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-LB-25D-25 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-LB-25D-50 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-LB-25D-75 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-LB-25D-100 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-LB-25D-125 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-LB-25D-150 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-LB-25D-200 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-LB-25D-250 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-LB-25D-300 Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FA-25D-25 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FA-25D-50 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FA-25D-75 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FA-25D-100 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FA-25D-125 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FA-25D-150 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FA-25D-200 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FA-25D-250 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FA-25D-300 Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FB-25D-25 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FB-25D-50 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FB-25D-75 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FB-25D-100 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FB-25D-125 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FB-25D-150 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FB-25D-200 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FB-25D-250 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FB-25D-300 Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-CA-25D-25 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-CA-25D-50 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-CA-25D-75 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-CA-25D-100 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-CA-25D-125 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-CA-25D-150 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-CA-25D-200 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-CA-25D-250 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-CA-25D-300 Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TA-25D-25 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TA-25D-50 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TA-25D-75 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TA-25D-100 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TA-25D-125 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TA-25D-150 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TA-25D-200 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TA-25D-250 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TA-25D-300 Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TB-25D-25 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TB-25D-50 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TB-25D-75 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TB-25D-100 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TB-25D-125 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TB-25D-150 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TB-25D-200 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TB-25D-250 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TB-25D-300 Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-00-32D-25 Mounting: Basic (00) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-00-32D-50 Mounting: Basic (00) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-00-32D-75 Mounting: Basic (00) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-00-32D-100 Mounting: Basic (00) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-00-32D-125 Mounting: Basic (00) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-00-32D-150 Mounting: Basic (00) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-00-32D-200 Mounting: Basic (00) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-00-32D-250 Mounting: Basic (00) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-00-32D-300 Mounting: Basic (00) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-LB-32D-25 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-LB-32D-50 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-LB-32D-75 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-LB-32D-100 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-LB-32D-125 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-LB-32D-150 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-LB-32D-200 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-LB-32D-250 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-LB-32D-300 Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FA-32D-25 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FA-32D-50 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FA-32D-75 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FA-32D-100 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FA-32D-125 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FA-32D-150 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FA-32D-200 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FA-32D-250 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FA-32D-300 Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FB-32D-25 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FB-32D-50 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FB-32D-75 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FB-32D-100 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FB-32D-125 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FB-32D-150 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FB-32D-200 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FB-32D-250 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FB-32D-300 Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-CA-32D-25 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-CA-32D-50 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-CA-32D-75 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-CA-32D-100 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-CA-32D-125 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-CA-32D-150 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-CA-32D-200 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-CA-32D-250 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-CA-32D-300 Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TA-32D-25 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TA-32D-50 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TA-32D-75 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TA-32D-100 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TA-32D-125 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TA-32D-150 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TA-32D-200 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TA-32D-250 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TA-32D-300 Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TB-32D-25 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TB-32D-50 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TB-32D-75 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TB-32D-100 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TB-32D-125 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TB-32D-150 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TB-32D-200 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TB-32D-250 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TB-32D-300 Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-00-40D-25 Mounting: Basic (00) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-00-40D-50 Mounting: Basic (00) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-00-40D-75 Mounting: Basic (00) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-00-40D-100 Mounting: Basic (00) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-00-40D-125 Mounting: Basic (00) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-00-40D-150 Mounting: Basic (00) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-00-40D-200 Mounting: Basic (00) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-00-40D-250 Mounting: Basic (00) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-00-40D-300 Mounting: Basic (00) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-LB-40D-25 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-LB-40D-50 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-LB-40D-75 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-LB-40D-100 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-LB-40D-125 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-LB-40D-150 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-LB-40D-200 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-LB-40D-250 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-LB-40D-300 Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FA-40D-25 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FA-40D-50 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FA-40D-75 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FA-40D-100 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FA-40D-125 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FA-40D-150 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FA-40D-200 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FA-40D-250 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FA-40D-300 Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FB-40D-25 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FB-40D-50 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FB-40D-75 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FB-40D-100 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FB-40D-125 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FB-40D-150 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FB-40D-200 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FB-40D-250 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FB-40D-300 Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-CA-40D-25 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-CA-40D-50 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-CA-40D-75 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-CA-40D-100 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-CA-40D-125 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-CA-40D-150 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-CA-40D-200 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-CA-40D-250 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-CA-40D-300 Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TA-40D-25 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TA-40D-50 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TA-40D-75 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TA-40D-100 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TA-40D-125 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TA-40D-150 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TA-40D-200 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TA-40D-250 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TA-40D-300 Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TB-40D-25 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TB-40D-50 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TB-40D-75 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TB-40D-100 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TB-40D-125 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TB-40D-150 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TB-40D-200 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TB-40D-250 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TB-40D-300 Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-00-50D-25 Mounting: Basic (00) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-00-50D-50 Mounting: Basic (00) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-00-50D-75 Mounting: Basic (00) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-00-50D-100 Mounting: Basic (00) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-00-50D-125 Mounting: Basic (00) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-00-50D-150 Mounting: Basic (00) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-00-50D-200 Mounting: Basic (00) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-00-50D-250 Mounting: Basic (00) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-00-50D-300 Mounting: Basic (00) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-LB-50D-25 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-LB-50D-50 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-LB-50D-75 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-LB-50D-100 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-LB-50D-125 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-LB-50D-150 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-LB-50D-200 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-LB-50D-250 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-LB-50D-300 Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-FA-50D-25 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-FA-50D-50 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-FA-50D-75 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-FA-50D-100 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-FA-50D-125 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-FA-50D-150 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-FA-50D-200 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-FA-50D-250 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-FA-50D-300 Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-FB-50D-25 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-FB-50D-50 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-FB-50D-75 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-FB-50D-100 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-FB-50D-125 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-FB-50D-150 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-FB-50D-200 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-FB-50D-250 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-FB-50D-300 Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-CA-50D-25 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-CA-50D-50 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-CA-50D-75 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-CA-50D-100 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-CA-50D-125 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-CA-50D-150 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-CA-50D-200 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-CA-50D-250 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-CA-50D-300 Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-TA-50D-25 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-TA-50D-50 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-TA-50D-75 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-TA-50D-100 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-TA-50D-125 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-TA-50D-150 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-TA-50D-200 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-TA-50D-250 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-TA-50D-300 Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-TB-50D-25 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-TB-50D-50 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-TB-50D-75 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-TB-50D-100 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-TB-50D-125 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-TB-50D-150 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-TB-50D-200 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-TB-50D-250 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-TB-50D-300 Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-00-63D-25 Mounting: Basic (00) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-00-63D-50 Mounting: Basic (00) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-00-63D-75 Mounting: Basic (00) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-00-63D-100 Mounting: Basic (00) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-00-63D-125 Mounting: Basic (00) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-00-63D-150 Mounting: Basic (00) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-00-63D-200 Mounting: Basic (00) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-00-63D-250 Mounting: Basic (00) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-00-63D-300 Mounting: Basic (00) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-LB-63D-25 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-LB-63D-50 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-LB-63D-75 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-LB-63D-100 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-LB-63D-125 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-LB-63D-150 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-LB-63D-200 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-LB-63D-250 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-LB-63D-300 Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-FA-63D-25 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-FA-63D-50 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-FA-63D-75 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-FA-63D-100 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-FA-63D-125 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-FA-63D-150 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-FA-63D-200 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-FA-63D-250 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-FA-63D-300 Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-FB-63D-25 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-FB-63D-50 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-FB-63D-75 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-FB-63D-100 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-FB-63D-125 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-FB-63D-150 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-FB-63D-200 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-FB-63D-250 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-FB-63D-300 Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-CA-63D-25 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-CA-63D-50 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-CA-63D-75 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-CA-63D-100 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-CA-63D-125 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-CA-63D-150 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-CA-63D-200 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-CA-63D-250 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-CA-63D-300 Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-TA-63D-25 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-TA-63D-50 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-TA-63D-75 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-TA-63D-100 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-TA-63D-125 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-TA-63D-150 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-TA-63D-200 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-TA-63D-250 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-TA-63D-300 Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-TB-63D-25 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-TB-63D-50 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-TB-63D-75 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-TB-63D-100 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-TB-63D-125 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-TB-63D-150 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-TB-63D-200 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-TB-63D-250 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-TB-63D-300 Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
Pneumatic CylindersCKD
378 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-M Super Micro Cylinder, Non-rotating (Bore 20-63)

Brand CKD·Pneumatic Cylinders

Available part numbers (378)

SCM-M-00-20D-25, SCM-M-00-20D-50, SCM-M-00-20D-75, SCM-M-00-20D-100, SCM-M-00-20D-125, SCM-M-00-20D-150, SCM-M-00-20D-200, SCM-M-00-20D-250, SCM-M-00-20D-300, SCM-M-LB-20D-25 + 368 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCM-M-00-20D-25Mounting: Basic (00) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-00-20D-50Mounting: Basic (00) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-00-20D-75Mounting: Basic (00) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-00-20D-100Mounting: Basic (00) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-00-20D-125Mounting: Basic (00) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-00-20D-150Mounting: Basic (00) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-00-20D-200Mounting: Basic (00) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-00-20D-250Mounting: Basic (00) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-00-20D-300Mounting: Basic (00) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-LB-20D-25Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-LB-20D-50Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-LB-20D-75Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-LB-20D-100Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-LB-20D-125Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-LB-20D-150Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-LB-20D-200Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-LB-20D-250Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-LB-20D-300Mounting: Axial foot (LB) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FA-20D-25Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FA-20D-50Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FA-20D-75Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FA-20D-100Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FA-20D-125Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FA-20D-150Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FA-20D-200Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FA-20D-250Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FA-20D-300Mounting: Rod-side flange (FA) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FB-20D-25Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FB-20D-50Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FB-20D-75Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FB-20D-100Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FB-20D-125Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FB-20D-150Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FB-20D-200Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FB-20D-250Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FB-20D-300Mounting: Head-side flange (FB) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-CA-20D-25Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-CA-20D-50Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-CA-20D-75Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-CA-20D-100Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-CA-20D-125Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-CA-20D-150Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-CA-20D-200Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-CA-20D-250Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-CA-20D-300Mounting: Single clevis (CA) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TA-20D-25Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TA-20D-50Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TA-20D-75Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TA-20D-100Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TA-20D-125Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TA-20D-150Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TA-20D-200Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TA-20D-250Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TA-20D-300Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TB-20D-25Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TB-20D-50Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TB-20D-75Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TB-20D-100Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TB-20D-125Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TB-20D-150Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TB-20D-200Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TB-20D-250Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TB-20D-300Mounting: Head-side trunnion (TB) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-00-25D-25Mounting: Basic (00) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-00-25D-50Mounting: Basic (00) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-00-25D-75Mounting: Basic (00) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-00-25D-100Mounting: Basic (00) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-00-25D-125Mounting: Basic (00) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-00-25D-150Mounting: Basic (00) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-00-25D-200Mounting: Basic (00) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-00-25D-250Mounting: Basic (00) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-00-25D-300Mounting: Basic (00) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-LB-25D-25Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-LB-25D-50Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-LB-25D-75Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-LB-25D-100Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-LB-25D-125Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-LB-25D-150Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-LB-25D-200Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-LB-25D-250Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-LB-25D-300Mounting: Axial foot (LB) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FA-25D-25Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FA-25D-50Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FA-25D-75Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FA-25D-100Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FA-25D-125Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FA-25D-150Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FA-25D-200Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FA-25D-250Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FA-25D-300Mounting: Rod-side flange (FA) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FB-25D-25Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FB-25D-50Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FB-25D-75Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FB-25D-100Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FB-25D-125Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FB-25D-150Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FB-25D-200Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FB-25D-250Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FB-25D-300Mounting: Head-side flange (FB) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-CA-25D-25Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-CA-25D-50Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-CA-25D-75Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-CA-25D-100Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-CA-25D-125Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-CA-25D-150Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-CA-25D-200Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-CA-25D-250Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-CA-25D-300Mounting: Single clevis (CA) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TA-25D-25Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TA-25D-50Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TA-25D-75Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TA-25D-100Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TA-25D-125Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TA-25D-150Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TA-25D-200Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TA-25D-250Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TA-25D-300Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TB-25D-25Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TB-25D-50Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TB-25D-75Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TB-25D-100Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TB-25D-125Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TB-25D-150Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TB-25D-200Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TB-25D-250Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TB-25D-300Mounting: Head-side trunnion (TB) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-00-32D-25Mounting: Basic (00) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-00-32D-50Mounting: Basic (00) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-00-32D-75Mounting: Basic (00) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-00-32D-100Mounting: Basic (00) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-00-32D-125Mounting: Basic (00) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-00-32D-150Mounting: Basic (00) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-00-32D-200Mounting: Basic (00) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-00-32D-250Mounting: Basic (00) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-00-32D-300Mounting: Basic (00) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-LB-32D-25Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-LB-32D-50Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-LB-32D-75Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-LB-32D-100Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-LB-32D-125Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-LB-32D-150Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-LB-32D-200Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-LB-32D-250Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-LB-32D-300Mounting: Axial foot (LB) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FA-32D-25Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FA-32D-50Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FA-32D-75Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FA-32D-100Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FA-32D-125Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FA-32D-150Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FA-32D-200Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FA-32D-250Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FA-32D-300Mounting: Rod-side flange (FA) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FB-32D-25Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FB-32D-50Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FB-32D-75Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FB-32D-100Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FB-32D-125Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FB-32D-150Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FB-32D-200Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FB-32D-250Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FB-32D-300Mounting: Head-side flange (FB) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-CA-32D-25Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-CA-32D-50Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-CA-32D-75Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-CA-32D-100Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-CA-32D-125Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-CA-32D-150Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-CA-32D-200Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-CA-32D-250Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-CA-32D-300Mounting: Single clevis (CA) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TA-32D-25Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TA-32D-50Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TA-32D-75Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TA-32D-100Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TA-32D-125Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TA-32D-150Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TA-32D-200Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TA-32D-250Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TA-32D-300Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TB-32D-25Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TB-32D-50Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TB-32D-75Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TB-32D-100Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TB-32D-125Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TB-32D-150Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TB-32D-200Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TB-32D-250Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TB-32D-300Mounting: Head-side trunnion (TB) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-00-40D-25Mounting: Basic (00) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-00-40D-50Mounting: Basic (00) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-00-40D-75Mounting: Basic (00) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-00-40D-100Mounting: Basic (00) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-00-40D-125Mounting: Basic (00) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-00-40D-150Mounting: Basic (00) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-00-40D-200Mounting: Basic (00) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-00-40D-250Mounting: Basic (00) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-00-40D-300Mounting: Basic (00) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-LB-40D-25Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-LB-40D-50Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-LB-40D-75Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-LB-40D-100Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-LB-40D-125Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-LB-40D-150Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-LB-40D-200Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-LB-40D-250Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-LB-40D-300Mounting: Axial foot (LB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FA-40D-25Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FA-40D-50Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FA-40D-75Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FA-40D-100Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FA-40D-125Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FA-40D-150Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FA-40D-200Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FA-40D-250Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FA-40D-300Mounting: Rod-side flange (FA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-FB-40D-25Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-FB-40D-50Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-FB-40D-75Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-FB-40D-100Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-FB-40D-125Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-FB-40D-150Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-FB-40D-200Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-FB-40D-250Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-FB-40D-300Mounting: Head-side flange (FB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-CA-40D-25Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-CA-40D-50Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-CA-40D-75Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-CA-40D-100Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-CA-40D-125Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-CA-40D-150Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-CA-40D-200Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-CA-40D-250Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-CA-40D-300Mounting: Single clevis (CA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TA-40D-25Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TA-40D-50Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TA-40D-75Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TA-40D-100Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TA-40D-125Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TA-40D-150Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TA-40D-200Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TA-40D-250Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TA-40D-300Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-TB-40D-25Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SCM-M-TB-40D-50Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SCM-M-TB-40D-75Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
SCM-M-TB-40D-100Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SCM-M-TB-40D-125Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
SCM-M-TB-40D-150Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
SCM-M-TB-40D-200Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
SCM-M-TB-40D-250Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
SCM-M-TB-40D-300Mounting: Head-side trunnion (TB) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
SCM-M-00-50D-25Mounting: Basic (00) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-00-50D-50Mounting: Basic (00) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-00-50D-75Mounting: Basic (00) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-00-50D-100Mounting: Basic (00) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-00-50D-125Mounting: Basic (00) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-00-50D-150Mounting: Basic (00) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-00-50D-200Mounting: Basic (00) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-00-50D-250Mounting: Basic (00) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-00-50D-300Mounting: Basic (00) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-LB-50D-25Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-LB-50D-50Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-LB-50D-75Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-LB-50D-100Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-LB-50D-125Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-LB-50D-150Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-LB-50D-200Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-LB-50D-250Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-LB-50D-300Mounting: Axial foot (LB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-FA-50D-25Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-FA-50D-50Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-FA-50D-75Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-FA-50D-100Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-FA-50D-125Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-FA-50D-150Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-FA-50D-200Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-FA-50D-250Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-FA-50D-300Mounting: Rod-side flange (FA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-FB-50D-25Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-FB-50D-50Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-FB-50D-75Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-FB-50D-100Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-FB-50D-125Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-FB-50D-150Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-FB-50D-200Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-FB-50D-250Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-FB-50D-300Mounting: Head-side flange (FB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-CA-50D-25Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-CA-50D-50Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-CA-50D-75Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-CA-50D-100Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-CA-50D-125Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-CA-50D-150Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-CA-50D-200Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-CA-50D-250Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-CA-50D-300Mounting: Single clevis (CA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-TA-50D-25Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-TA-50D-50Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-TA-50D-75Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-TA-50D-100Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-TA-50D-125Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-TA-50D-150Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-TA-50D-200Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-TA-50D-250Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-TA-50D-300Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-TB-50D-25Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-TB-50D-50Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-TB-50D-75Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-TB-50D-100Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-TB-50D-125Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-TB-50D-150Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-TB-50D-200Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-TB-50D-250Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-TB-50D-300Mounting: Head-side trunnion (TB) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-00-63D-25Mounting: Basic (00) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-00-63D-50Mounting: Basic (00) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-00-63D-75Mounting: Basic (00) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-00-63D-100Mounting: Basic (00) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-00-63D-125Mounting: Basic (00) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-00-63D-150Mounting: Basic (00) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-00-63D-200Mounting: Basic (00) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-00-63D-250Mounting: Basic (00) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-00-63D-300Mounting: Basic (00) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-LB-63D-25Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-LB-63D-50Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-LB-63D-75Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-LB-63D-100Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-LB-63D-125Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-LB-63D-150Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-LB-63D-200Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-LB-63D-250Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-LB-63D-300Mounting: Axial foot (LB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-FA-63D-25Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-FA-63D-50Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-FA-63D-75Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-FA-63D-100Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-FA-63D-125Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-FA-63D-150Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-FA-63D-200Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-FA-63D-250Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-FA-63D-300Mounting: Rod-side flange (FA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-FB-63D-25Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-FB-63D-50Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-FB-63D-75Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-FB-63D-100Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-FB-63D-125Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-FB-63D-150Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-FB-63D-200Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-FB-63D-250Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-FB-63D-300Mounting: Head-side flange (FB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-CA-63D-25Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-CA-63D-50Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-CA-63D-75Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-CA-63D-100Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-CA-63D-125Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-CA-63D-150Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-CA-63D-200Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-CA-63D-250Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-CA-63D-300Mounting: Single clevis (CA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-TA-63D-25Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-TA-63D-50Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-TA-63D-75Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-TA-63D-100Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-TA-63D-125Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-TA-63D-150Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-TA-63D-200Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-TA-63D-250Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-TA-63D-300Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
SCM-M-TB-63D-25Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
SCM-M-TB-63D-50Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SCM-M-TB-63D-75Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
SCM-M-TB-63D-100Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SCM-M-TB-63D-125Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
SCM-M-TB-63D-150Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
SCM-M-TB-63D-200Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
SCM-M-TB-63D-250Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
SCM-M-TB-63D-300Mounting: Head-side trunnion (TB) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
