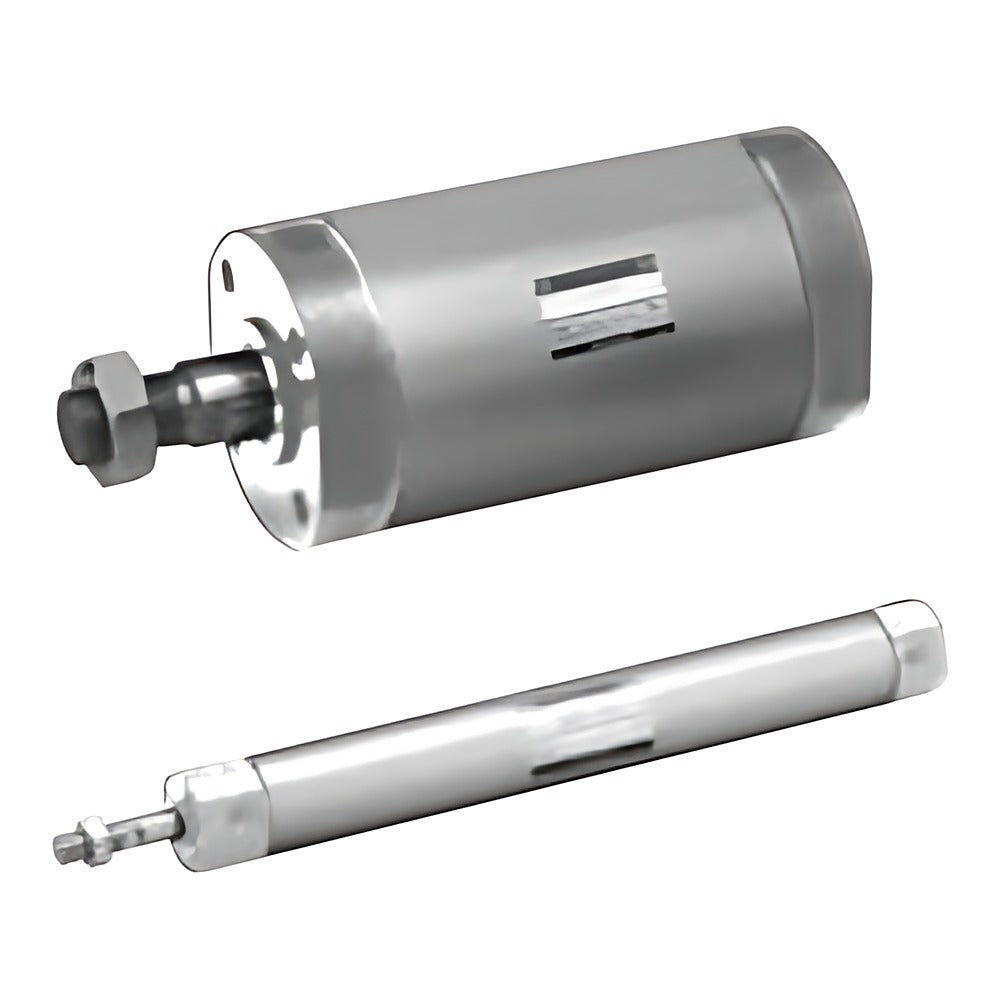

CKD SCM-P/R-FP1 Super Micro Cylinder (Stroke Adjust)

CKD SCM-P/R-FP1 super micro cylinder with stroke adjustment on extend (P) or retract (R) side, bore 20-63 mm, with NSF H1 food-grade grease.

Key features

NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
Super micro cylinder with switch magnet built in
Auto switches (T0H/T2H/T3H/T2WH etc.) with count R/H/D/T/4, band mounting Z, bellows J/K/L, switch rail Q, stainless rod M and rod-end I/Y/B1/B2 ordered as suffixes
Intermediate strokes in 1 mm steps; NPT (N) / G (G) port threads made to order
Stroke adjust range 25 or 50 mm; rubber cushion both ends (D); standard strokes 25-300 mm

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa (20-40), 0.05 MPa (50-100)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Piston speed	30-1000 mm/s
Cushion	Rubber, both ends
Source	CKD Korea catalog CC-1271K, p. 64-68

SCM-P-00-20D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-00-20D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-00-20D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-00-20D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-00-20D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-00-20D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-00-20D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-00-20D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-00-20D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-00-20D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-00-20D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-00-20D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-00-20D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-00-20D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-00-20D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-00-20D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-00-20D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-00-20D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-LB-20D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-LB-20D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-LB-20D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-LB-20D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-LB-20D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-LB-20D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-LB-20D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-LB-20D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-LB-20D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-LB-20D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-LB-20D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-LB-20D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-LB-20D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-LB-20D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-LB-20D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-LB-20D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-LB-20D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-LB-20D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-FA-20D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-FA-20D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-FA-20D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-FA-20D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-FA-20D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-FA-20D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-FA-20D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-FA-20D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-FA-20D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-FA-20D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-FA-20D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-FA-20D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-FA-20D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-FA-20D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-FA-20D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-FA-20D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-FA-20D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-FA-20D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-TA-20D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-TA-20D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-TA-20D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-TA-20D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-TA-20D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-TA-20D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-TA-20D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-TA-20D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-TA-20D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-TA-20D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-TA-20D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-TA-20D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-TA-20D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-TA-20D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-TA-20D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-TA-20D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-TA-20D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-TA-20D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-TB-20D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-TB-20D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-TB-20D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-TB-20D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-TB-20D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-TB-20D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-TB-20D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-TB-20D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-TB-20D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-TB-20D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-TB-20D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-TB-20D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-TB-20D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-TB-20D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-TB-20D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-TB-20D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-TB-20D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-TB-20D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-00-25D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-00-25D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-00-25D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-00-25D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-00-25D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-00-25D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-00-25D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-00-25D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-00-25D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-00-25D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-00-25D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-00-25D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-00-25D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-00-25D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-00-25D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-00-25D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-00-25D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-00-25D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-LB-25D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-LB-25D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-LB-25D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-LB-25D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-LB-25D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-LB-25D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-LB-25D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-LB-25D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-LB-25D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-LB-25D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-LB-25D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-LB-25D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-LB-25D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-LB-25D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-LB-25D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-LB-25D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-LB-25D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-LB-25D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-FA-25D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-FA-25D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-FA-25D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-FA-25D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-FA-25D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-FA-25D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-FA-25D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-FA-25D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-FA-25D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-FA-25D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-FA-25D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-FA-25D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-FA-25D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-FA-25D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-FA-25D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-FA-25D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-FA-25D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-FA-25D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-TA-25D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-TA-25D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-TA-25D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-TA-25D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-TA-25D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-TA-25D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-TA-25D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-TA-25D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-TA-25D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-TA-25D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-TA-25D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-TA-25D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-TA-25D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-TA-25D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-TA-25D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-TA-25D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-TA-25D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-TA-25D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-TB-25D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-TB-25D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-TB-25D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-TB-25D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-TB-25D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-TB-25D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-TB-25D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-TB-25D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-TB-25D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-TB-25D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-TB-25D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-TB-25D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-TB-25D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-TB-25D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-TB-25D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-TB-25D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-TB-25D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-TB-25D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-00-32D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-00-32D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-00-32D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-00-32D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-00-32D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-00-32D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-00-32D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-00-32D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-00-32D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-00-32D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-00-32D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-00-32D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-00-32D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-00-32D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-00-32D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-00-32D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-00-32D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-00-32D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-LB-32D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-LB-32D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-LB-32D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-LB-32D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-LB-32D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-LB-32D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-LB-32D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-LB-32D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-LB-32D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-LB-32D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-LB-32D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-LB-32D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-LB-32D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-LB-32D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-LB-32D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-LB-32D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-LB-32D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-LB-32D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-FA-32D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-FA-32D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-FA-32D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-FA-32D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-FA-32D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-FA-32D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-FA-32D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-FA-32D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-FA-32D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-FA-32D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-FA-32D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-FA-32D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-FA-32D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-FA-32D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-FA-32D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-FA-32D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-FA-32D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-FA-32D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-TA-32D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-TA-32D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-TA-32D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-TA-32D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-TA-32D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-TA-32D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-TA-32D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-TA-32D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-TA-32D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-TA-32D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-TA-32D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-TA-32D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-TA-32D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-TA-32D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-TA-32D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-TA-32D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-TA-32D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-TA-32D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-TB-32D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-TB-32D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-TB-32D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-TB-32D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-TB-32D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-TB-32D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-TB-32D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-TB-32D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-TB-32D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-TB-32D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-TB-32D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-TB-32D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-TB-32D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-TB-32D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-TB-32D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-TB-32D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-TB-32D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-TB-32D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-00-40D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-00-40D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-00-40D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-00-40D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-00-40D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-00-40D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-00-40D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-00-40D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-00-40D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-00-40D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-00-40D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-00-40D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-00-40D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-00-40D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-00-40D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-00-40D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-00-40D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-00-40D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-LB-40D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-LB-40D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-LB-40D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-LB-40D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-LB-40D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-LB-40D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-LB-40D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-LB-40D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-LB-40D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-LB-40D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-LB-40D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-LB-40D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-LB-40D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-LB-40D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-LB-40D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-LB-40D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-LB-40D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-LB-40D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-FA-40D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-FA-40D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-FA-40D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-FA-40D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-FA-40D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-FA-40D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-FA-40D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-FA-40D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-FA-40D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-FA-40D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-FA-40D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-FA-40D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-FA-40D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-FA-40D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-FA-40D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-FA-40D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-FA-40D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-FA-40D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-TA-40D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-TA-40D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-TA-40D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-TA-40D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-TA-40D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-TA-40D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-TA-40D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-TA-40D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-TA-40D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-TA-40D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-TA-40D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-TA-40D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-TA-40D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-TA-40D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-TA-40D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-TA-40D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-TA-40D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-TA-40D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-TB-40D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-TB-40D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-TB-40D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-TB-40D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-TB-40D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-TB-40D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-TB-40D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-TB-40D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-TB-40D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-TB-40D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-TB-40D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-TB-40D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-TB-40D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-TB-40D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-TB-40D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-TB-40D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-TB-40D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-TB-40D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-00-50D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-00-50D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-00-50D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-00-50D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-00-50D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-00-50D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-00-50D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-00-50D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-00-50D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-00-50D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-00-50D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-00-50D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-00-50D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-00-50D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-00-50D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-00-50D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-00-50D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-00-50D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-LB-50D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-LB-50D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-LB-50D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-LB-50D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-LB-50D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-LB-50D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-LB-50D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-LB-50D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-LB-50D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-LB-50D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-LB-50D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-LB-50D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-LB-50D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-LB-50D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-LB-50D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-LB-50D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-LB-50D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-LB-50D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-FA-50D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-FA-50D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-FA-50D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-FA-50D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-FA-50D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-FA-50D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-FA-50D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-FA-50D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-FA-50D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-FA-50D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-FA-50D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-FA-50D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-FA-50D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-FA-50D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-FA-50D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-FA-50D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-FA-50D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-FA-50D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-TA-50D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-TA-50D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-TA-50D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-TA-50D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-TA-50D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-TA-50D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-TA-50D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-TA-50D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-TA-50D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-TA-50D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-TA-50D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-TA-50D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-TA-50D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-TA-50D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-TA-50D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-TA-50D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-TA-50D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-TA-50D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-TB-50D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-TB-50D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-TB-50D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-TB-50D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-TB-50D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-TB-50D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-TB-50D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-TB-50D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-TB-50D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-TB-50D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-TB-50D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-TB-50D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-TB-50D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-TB-50D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-TB-50D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-TB-50D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-TB-50D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-TB-50D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-00-63D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-00-63D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-00-63D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-00-63D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-00-63D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-00-63D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-00-63D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-00-63D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-00-63D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-00-63D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-00-63D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-00-63D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-00-63D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-00-63D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-00-63D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-00-63D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-00-63D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-00-63D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-LB-63D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-LB-63D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-LB-63D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-LB-63D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-LB-63D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-LB-63D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-LB-63D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-LB-63D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-LB-63D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-LB-63D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-LB-63D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-LB-63D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-LB-63D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-LB-63D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-LB-63D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-LB-63D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-LB-63D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-LB-63D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-FA-63D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-FA-63D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-FA-63D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-FA-63D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-FA-63D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-FA-63D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-FA-63D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-FA-63D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-FA-63D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-FA-63D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-FA-63D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-FA-63D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-FA-63D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-FA-63D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-FA-63D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-FA-63D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-FA-63D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-FA-63D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-TA-63D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-TA-63D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-TA-63D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-TA-63D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-TA-63D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-TA-63D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-TA-63D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-TA-63D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-TA-63D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-TA-63D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-TA-63D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-TA-63D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-TA-63D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-TA-63D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-TA-63D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-TA-63D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-TA-63D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-TA-63D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-P-TB-63D-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-P-TB-63D-25-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-P-TB-63D-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-P-TB-63D-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-P-TB-63D-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-P-TB-63D-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-P-TB-63D-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-P-TB-63D-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-P-TB-63D-125-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-P-TB-63D-125-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-P-TB-63D-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-P-TB-63D-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-P-TB-63D-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-P-TB-63D-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-P-TB-63D-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-P-TB-63D-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-P-TB-63D-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-P-TB-63D-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-00-20D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-00-20D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-00-20D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-00-20D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-00-20D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-00-20D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-00-20D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-00-20D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-00-20D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-00-20D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-00-20D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-00-20D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-00-20D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-00-20D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-00-20D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-00-20D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-00-20D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-00-20D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-LB-20D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-LB-20D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-LB-20D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-LB-20D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-LB-20D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-LB-20D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-LB-20D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-LB-20D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-LB-20D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-LB-20D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-LB-20D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-LB-20D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-LB-20D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-LB-20D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-LB-20D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-LB-20D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-LB-20D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-LB-20D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-FA-20D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-FA-20D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-FA-20D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-FA-20D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-FA-20D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-FA-20D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-FA-20D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-FA-20D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-FA-20D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-FA-20D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-FA-20D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-FA-20D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-FA-20D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-FA-20D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-FA-20D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-FA-20D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-FA-20D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-FA-20D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-TA-20D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-TA-20D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-TA-20D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-TA-20D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-TA-20D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-TA-20D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-TA-20D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-TA-20D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-TA-20D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-TA-20D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-TA-20D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-TA-20D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-TA-20D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-TA-20D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-TA-20D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-TA-20D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-TA-20D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-TA-20D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-TB-20D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-TB-20D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-TB-20D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-TB-20D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-TB-20D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-TB-20D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-TB-20D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-TB-20D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-TB-20D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-TB-20D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-TB-20D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-TB-20D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-TB-20D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-TB-20D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-TB-20D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-TB-20D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-TB-20D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-TB-20D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-00-25D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-00-25D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-00-25D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-00-25D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-00-25D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-00-25D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-00-25D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-00-25D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-00-25D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-00-25D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-00-25D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-00-25D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-00-25D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-00-25D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-00-25D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-00-25D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-00-25D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-00-25D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-LB-25D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-LB-25D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-LB-25D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-LB-25D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-LB-25D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-LB-25D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-LB-25D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-LB-25D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-LB-25D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-LB-25D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-LB-25D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-LB-25D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-LB-25D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-LB-25D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-LB-25D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-LB-25D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-LB-25D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-LB-25D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-FA-25D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-FA-25D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-FA-25D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-FA-25D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-FA-25D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-FA-25D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-FA-25D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-FA-25D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-FA-25D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-FA-25D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-FA-25D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-FA-25D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-FA-25D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-FA-25D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-FA-25D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-FA-25D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-FA-25D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-FA-25D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-TA-25D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-TA-25D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-TA-25D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-TA-25D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-TA-25D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-TA-25D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-TA-25D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-TA-25D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-TA-25D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-TA-25D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-TA-25D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-TA-25D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-TA-25D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-TA-25D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-TA-25D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-TA-25D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-TA-25D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-TA-25D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-TB-25D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-TB-25D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-TB-25D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-TB-25D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-TB-25D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-TB-25D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-TB-25D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-TB-25D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-TB-25D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-TB-25D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-TB-25D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-TB-25D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-TB-25D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-TB-25D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-TB-25D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-TB-25D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-TB-25D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-TB-25D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-00-32D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-00-32D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-00-32D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-00-32D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-00-32D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-00-32D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-00-32D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-00-32D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-00-32D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-00-32D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-00-32D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-00-32D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-00-32D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-00-32D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-00-32D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-00-32D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-00-32D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-00-32D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-LB-32D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-LB-32D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-LB-32D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-LB-32D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-LB-32D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-LB-32D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-LB-32D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-LB-32D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-LB-32D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-LB-32D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-LB-32D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-LB-32D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-LB-32D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-LB-32D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-LB-32D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-LB-32D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-LB-32D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-LB-32D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-FA-32D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-FA-32D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-FA-32D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-FA-32D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-FA-32D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-FA-32D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-FA-32D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-FA-32D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-FA-32D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-FA-32D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-FA-32D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-FA-32D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-FA-32D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-FA-32D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-FA-32D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-FA-32D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-FA-32D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-FA-32D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-TA-32D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-TA-32D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-TA-32D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-TA-32D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-TA-32D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-TA-32D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-TA-32D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-TA-32D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-TA-32D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-TA-32D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-TA-32D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-TA-32D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-TA-32D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-TA-32D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-TA-32D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-TA-32D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-TA-32D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-TA-32D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-TB-32D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-TB-32D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-TB-32D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-TB-32D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-TB-32D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-TB-32D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-TB-32D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-TB-32D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-TB-32D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-TB-32D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-TB-32D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-TB-32D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-TB-32D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-TB-32D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-TB-32D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-TB-32D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-TB-32D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-TB-32D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-00-40D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-00-40D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-00-40D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-00-40D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-00-40D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-00-40D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-00-40D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-00-40D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-00-40D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-00-40D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-00-40D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-00-40D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-00-40D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-00-40D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-00-40D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-00-40D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-00-40D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-00-40D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-LB-40D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-LB-40D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-LB-40D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-LB-40D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-LB-40D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-LB-40D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-LB-40D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-LB-40D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-LB-40D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-LB-40D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-LB-40D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-LB-40D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-LB-40D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-LB-40D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-LB-40D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-LB-40D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-LB-40D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-LB-40D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-FA-40D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-FA-40D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-FA-40D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-FA-40D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-FA-40D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-FA-40D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-FA-40D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-FA-40D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-FA-40D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-FA-40D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-FA-40D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-FA-40D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-FA-40D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-FA-40D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-FA-40D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-FA-40D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-FA-40D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-FA-40D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-TA-40D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-TA-40D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-TA-40D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-TA-40D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-TA-40D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-TA-40D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-TA-40D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-TA-40D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-TA-40D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-TA-40D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-TA-40D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-TA-40D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-TA-40D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-TA-40D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-TA-40D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-TA-40D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-TA-40D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-TA-40D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-TB-40D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-TB-40D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-TB-40D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-TB-40D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-TB-40D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-TB-40D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-TB-40D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-TB-40D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-TB-40D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-TB-40D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-TB-40D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-TB-40D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-TB-40D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-TB-40D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-TB-40D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-TB-40D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-TB-40D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-TB-40D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-00-50D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-00-50D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-00-50D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-00-50D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-00-50D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-00-50D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-00-50D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-00-50D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-00-50D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-00-50D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-00-50D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-00-50D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-00-50D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-00-50D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-00-50D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-00-50D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-00-50D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-00-50D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-LB-50D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-LB-50D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-LB-50D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-LB-50D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-LB-50D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-LB-50D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-LB-50D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-LB-50D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-LB-50D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-LB-50D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-LB-50D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-LB-50D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-LB-50D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-LB-50D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-LB-50D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-LB-50D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-LB-50D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-LB-50D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-FA-50D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-FA-50D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-FA-50D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-FA-50D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-FA-50D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-FA-50D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-FA-50D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-FA-50D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-FA-50D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-FA-50D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-FA-50D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-FA-50D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-FA-50D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-FA-50D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-FA-50D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-FA-50D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-FA-50D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-FA-50D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-TA-50D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-TA-50D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-TA-50D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-TA-50D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-TA-50D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-TA-50D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-TA-50D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-TA-50D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-TA-50D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-TA-50D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-TA-50D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-TA-50D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-TA-50D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-TA-50D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-TA-50D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-TA-50D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-TA-50D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-TA-50D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-TB-50D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-TB-50D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-TB-50D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-TB-50D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-TB-50D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-TB-50D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-TB-50D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-TB-50D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-TB-50D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-TB-50D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-TB-50D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-TB-50D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-TB-50D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-TB-50D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-TB-50D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-TB-50D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-TB-50D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-TB-50D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-00-63D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-00-63D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-00-63D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-00-63D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-00-63D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-00-63D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-00-63D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-00-63D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-00-63D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-00-63D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-00-63D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-00-63D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-00-63D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-00-63D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-00-63D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-00-63D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-00-63D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-00-63D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-LB-63D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-LB-63D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-LB-63D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-LB-63D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-LB-63D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-LB-63D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-LB-63D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-LB-63D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-LB-63D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-LB-63D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-LB-63D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-LB-63D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-LB-63D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-LB-63D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-LB-63D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-LB-63D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-LB-63D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-LB-63D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-FA-63D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-FA-63D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-FA-63D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-FA-63D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-FA-63D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-FA-63D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-FA-63D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-FA-63D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-FA-63D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-FA-63D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-FA-63D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-FA-63D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-FA-63D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-FA-63D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-FA-63D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-FA-63D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-FA-63D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-FA-63D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-TA-63D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-TA-63D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-TA-63D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-TA-63D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-TA-63D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-TA-63D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-TA-63D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-TA-63D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-TA-63D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-TA-63D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-TA-63D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-TA-63D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-TA-63D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-TA-63D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-TA-63D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-TA-63D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-TA-63D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-TA-63D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
SCM-R-TB-63D-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
SCM-R-TB-63D-25-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
SCM-R-TB-63D-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
SCM-R-TB-63D-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
SCM-R-TB-63D-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
SCM-R-TB-63D-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
SCM-R-TB-63D-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
SCM-R-TB-63D-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
SCM-R-TB-63D-125-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
SCM-R-TB-63D-125-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
SCM-R-TB-63D-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
SCM-R-TB-63D-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
SCM-R-TB-63D-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
SCM-R-TB-63D-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
SCM-R-TB-63D-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
SCM-R-TB-63D-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
SCM-R-TB-63D-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
SCM-R-TB-63D-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm

Pneumatic CylindersCKD

1080 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-P/R-FP1 Super Micro Cylinder (Stroke Adjust)

Brand CKD·Pneumatic Cylinders

Available part numbers (1080)

SCM-P-00-20D-25-25-FP1, SCM-P-00-20D-25-50-FP1, SCM-P-00-20D-50-25-FP1, SCM-P-00-20D-50-50-FP1, SCM-P-00-20D-75-25-FP1, SCM-P-00-20D-75-50-FP1, SCM-P-00-20D-100-25-FP1, SCM-P-00-20D-100-50-FP1, SCM-P-00-20D-125-25-FP1, SCM-P-00-20D-125-50-FP1 + 1070 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCM-P-00-20D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-00-20D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-00-20D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-00-20D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-00-20D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-00-20D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-00-20D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-00-20D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-00-20D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-00-20D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-00-20D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-00-20D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-00-20D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-00-20D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-00-20D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-00-20D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-00-20D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-00-20D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-LB-20D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-LB-20D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-LB-20D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-LB-20D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-LB-20D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-LB-20D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-LB-20D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-LB-20D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-LB-20D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-LB-20D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-LB-20D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-LB-20D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-LB-20D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-LB-20D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-LB-20D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-LB-20D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-LB-20D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-LB-20D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-FA-20D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-FA-20D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-FA-20D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-FA-20D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-FA-20D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-FA-20D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-FA-20D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-FA-20D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-FA-20D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-FA-20D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-FA-20D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-FA-20D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-FA-20D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-FA-20D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-FA-20D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-FA-20D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-FA-20D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-FA-20D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-TA-20D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-TA-20D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-TA-20D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-TA-20D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-TA-20D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-TA-20D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-TA-20D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-TA-20D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-TA-20D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-TA-20D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-TA-20D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-TA-20D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-TA-20D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-TA-20D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-TA-20D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-TA-20D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-TA-20D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-TA-20D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-TB-20D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-TB-20D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-TB-20D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-TB-20D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-TB-20D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-TB-20D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-TB-20D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-TB-20D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-TB-20D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-TB-20D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-TB-20D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-TB-20D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-TB-20D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-TB-20D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-TB-20D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-TB-20D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-TB-20D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-TB-20D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-00-25D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-00-25D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-00-25D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-00-25D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-00-25D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-00-25D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-00-25D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-00-25D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-00-25D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-00-25D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-00-25D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-00-25D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-00-25D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-00-25D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-00-25D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-00-25D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-00-25D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-00-25D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-LB-25D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-LB-25D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-LB-25D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-LB-25D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-LB-25D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-LB-25D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-LB-25D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-LB-25D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-LB-25D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-LB-25D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-LB-25D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-LB-25D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-LB-25D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-LB-25D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-LB-25D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-LB-25D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-LB-25D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-LB-25D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-FA-25D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-FA-25D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-FA-25D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-FA-25D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-FA-25D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-FA-25D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-FA-25D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-FA-25D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-FA-25D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-FA-25D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-FA-25D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-FA-25D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-FA-25D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-FA-25D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-FA-25D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-FA-25D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-FA-25D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-FA-25D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-TA-25D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-TA-25D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-TA-25D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-TA-25D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-TA-25D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-TA-25D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-TA-25D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-TA-25D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-TA-25D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-TA-25D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-TA-25D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-TA-25D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-TA-25D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-TA-25D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-TA-25D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-TA-25D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-TA-25D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-TA-25D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-TB-25D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-TB-25D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-TB-25D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-TB-25D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-TB-25D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-TB-25D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-TB-25D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-TB-25D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-TB-25D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-TB-25D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-TB-25D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-TB-25D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-TB-25D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-TB-25D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-TB-25D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-TB-25D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-TB-25D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-TB-25D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-00-32D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-00-32D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-00-32D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-00-32D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-00-32D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-00-32D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-00-32D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-00-32D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-00-32D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-00-32D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-00-32D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-00-32D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-00-32D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-00-32D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-00-32D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-00-32D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-00-32D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-00-32D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-LB-32D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-LB-32D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-LB-32D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-LB-32D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-LB-32D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-LB-32D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-LB-32D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-LB-32D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-LB-32D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-LB-32D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-LB-32D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-LB-32D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-LB-32D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-LB-32D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-LB-32D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-LB-32D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-LB-32D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-LB-32D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-FA-32D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-FA-32D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-FA-32D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-FA-32D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-FA-32D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-FA-32D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-FA-32D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-FA-32D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-FA-32D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-FA-32D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-FA-32D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-FA-32D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-FA-32D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-FA-32D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-FA-32D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-FA-32D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-FA-32D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-FA-32D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-TA-32D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-TA-32D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-TA-32D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-TA-32D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-TA-32D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-TA-32D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-TA-32D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-TA-32D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-TA-32D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-TA-32D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-TA-32D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-TA-32D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-TA-32D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-TA-32D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-TA-32D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-TA-32D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-TA-32D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-TA-32D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-TB-32D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-TB-32D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-TB-32D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-TB-32D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-TB-32D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-TB-32D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-TB-32D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-TB-32D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-TB-32D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-TB-32D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-TB-32D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-TB-32D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-TB-32D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-TB-32D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-TB-32D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-TB-32D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-TB-32D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-TB-32D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-00-40D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-00-40D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-00-40D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-00-40D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-00-40D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-00-40D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-00-40D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-00-40D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-00-40D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-00-40D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-00-40D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-00-40D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-00-40D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-00-40D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-00-40D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-00-40D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-00-40D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-00-40D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-LB-40D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-LB-40D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-LB-40D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-LB-40D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-LB-40D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-LB-40D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-LB-40D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-LB-40D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-LB-40D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-LB-40D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-LB-40D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-LB-40D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-LB-40D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-LB-40D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-LB-40D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-LB-40D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-LB-40D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-LB-40D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-FA-40D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-FA-40D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-FA-40D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-FA-40D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-FA-40D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-FA-40D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-FA-40D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-FA-40D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-FA-40D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-FA-40D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-FA-40D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-FA-40D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-FA-40D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-FA-40D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-FA-40D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-FA-40D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-FA-40D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-FA-40D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-TA-40D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-TA-40D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-TA-40D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-TA-40D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-TA-40D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-TA-40D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-TA-40D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-TA-40D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-TA-40D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-TA-40D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-TA-40D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-TA-40D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-TA-40D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-TA-40D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-TA-40D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-TA-40D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-TA-40D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-TA-40D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-TB-40D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-TB-40D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-TB-40D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-TB-40D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-TB-40D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-TB-40D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-TB-40D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-TB-40D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-TB-40D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-TB-40D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-TB-40D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-TB-40D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-TB-40D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-TB-40D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-TB-40D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-TB-40D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-TB-40D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-TB-40D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-00-50D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-00-50D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-00-50D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-00-50D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-00-50D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-00-50D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-00-50D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-00-50D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-00-50D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-00-50D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-00-50D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-00-50D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-00-50D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-00-50D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-00-50D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-00-50D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-00-50D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-00-50D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-LB-50D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-LB-50D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-LB-50D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-LB-50D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-LB-50D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-LB-50D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-LB-50D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-LB-50D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-LB-50D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-LB-50D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-LB-50D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-LB-50D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-LB-50D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-LB-50D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-LB-50D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-LB-50D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-LB-50D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-LB-50D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-FA-50D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-FA-50D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-FA-50D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-FA-50D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-FA-50D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-FA-50D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-FA-50D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-FA-50D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-FA-50D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-FA-50D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-FA-50D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-FA-50D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-FA-50D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-FA-50D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-FA-50D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-FA-50D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-FA-50D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-FA-50D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-TA-50D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-TA-50D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-TA-50D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-TA-50D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-TA-50D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-TA-50D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-TA-50D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-TA-50D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-TA-50D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-TA-50D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-TA-50D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-TA-50D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-TA-50D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-TA-50D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-TA-50D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-TA-50D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-TA-50D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-TA-50D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-TB-50D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-TB-50D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-TB-50D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-TB-50D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-TB-50D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-TB-50D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-TB-50D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-TB-50D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-TB-50D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-TB-50D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-TB-50D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-TB-50D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-TB-50D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-TB-50D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-TB-50D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-TB-50D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-TB-50D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-TB-50D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-00-63D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-00-63D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-00-63D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-00-63D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-00-63D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-00-63D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-00-63D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-00-63D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-00-63D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-00-63D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-00-63D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-00-63D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-00-63D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-00-63D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-00-63D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-00-63D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-00-63D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-00-63D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-LB-63D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-LB-63D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-LB-63D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-LB-63D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-LB-63D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-LB-63D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-LB-63D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-LB-63D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-LB-63D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-LB-63D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-LB-63D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-LB-63D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-LB-63D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-LB-63D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-LB-63D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-LB-63D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-LB-63D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-LB-63D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-FA-63D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-FA-63D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-FA-63D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-FA-63D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-FA-63D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-FA-63D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-FA-63D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-FA-63D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-FA-63D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-FA-63D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-FA-63D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-FA-63D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-FA-63D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-FA-63D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-FA-63D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-FA-63D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-FA-63D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-FA-63D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-TA-63D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-TA-63D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-TA-63D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-TA-63D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-TA-63D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-TA-63D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-TA-63D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-TA-63D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-TA-63D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-TA-63D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-TA-63D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-TA-63D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-TA-63D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-TA-63D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-TA-63D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-TA-63D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-TA-63D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-TA-63D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-P-TB-63D-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-P-TB-63D-25-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-P-TB-63D-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-P-TB-63D-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-P-TB-63D-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-P-TB-63D-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-P-TB-63D-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-P-TB-63D-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-P-TB-63D-125-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-P-TB-63D-125-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-P-TB-63D-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-P-TB-63D-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-P-TB-63D-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-P-TB-63D-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-P-TB-63D-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-P-TB-63D-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-P-TB-63D-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-P-TB-63D-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-00-20D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-00-20D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-00-20D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-00-20D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-00-20D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-00-20D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-00-20D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-00-20D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-00-20D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-00-20D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-00-20D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-00-20D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-00-20D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-00-20D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-00-20D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-00-20D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-00-20D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-00-20D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-LB-20D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-LB-20D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-LB-20D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-LB-20D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-LB-20D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-LB-20D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-LB-20D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-LB-20D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-LB-20D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-LB-20D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-LB-20D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-LB-20D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-LB-20D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-LB-20D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-LB-20D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-LB-20D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-LB-20D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-LB-20D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-FA-20D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-FA-20D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-FA-20D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-FA-20D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-FA-20D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-FA-20D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-FA-20D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-FA-20D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-FA-20D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-FA-20D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-FA-20D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-FA-20D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-FA-20D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-FA-20D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-FA-20D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-FA-20D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-FA-20D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-FA-20D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-TA-20D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-TA-20D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-TA-20D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-TA-20D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-TA-20D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-TA-20D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-TA-20D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-TA-20D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-TA-20D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-TA-20D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-TA-20D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-TA-20D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-TA-20D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-TA-20D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-TA-20D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-TA-20D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-TA-20D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-TA-20D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-TB-20D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-TB-20D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-TB-20D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-TB-20D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-TB-20D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-TB-20D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-TB-20D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-TB-20D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-TB-20D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-TB-20D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-TB-20D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-TB-20D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-TB-20D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-TB-20D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-TB-20D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-TB-20D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-TB-20D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-TB-20D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-00-25D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-00-25D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-00-25D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-00-25D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-00-25D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-00-25D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-00-25D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-00-25D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-00-25D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-00-25D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-00-25D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-00-25D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-00-25D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-00-25D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-00-25D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-00-25D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-00-25D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-00-25D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-LB-25D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-LB-25D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-LB-25D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-LB-25D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-LB-25D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-LB-25D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-LB-25D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-LB-25D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-LB-25D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-LB-25D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-LB-25D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-LB-25D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-LB-25D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-LB-25D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-LB-25D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-LB-25D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-LB-25D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-LB-25D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-FA-25D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-FA-25D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-FA-25D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-FA-25D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-FA-25D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-FA-25D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-FA-25D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-FA-25D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-FA-25D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-FA-25D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-FA-25D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-FA-25D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-FA-25D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-FA-25D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-FA-25D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-FA-25D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-FA-25D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-FA-25D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-TA-25D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-TA-25D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-TA-25D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-TA-25D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-TA-25D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-TA-25D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-TA-25D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-TA-25D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-TA-25D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-TA-25D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-TA-25D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-TA-25D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-TA-25D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-TA-25D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-TA-25D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-TA-25D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-TA-25D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-TA-25D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-TB-25D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-TB-25D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-TB-25D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-TB-25D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-TB-25D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-TB-25D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-TB-25D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-TB-25D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-TB-25D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-TB-25D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-TB-25D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-TB-25D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-TB-25D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-TB-25D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-TB-25D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-TB-25D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-TB-25D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-TB-25D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-00-32D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-00-32D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-00-32D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-00-32D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-00-32D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-00-32D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-00-32D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-00-32D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-00-32D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-00-32D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-00-32D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-00-32D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-00-32D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-00-32D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-00-32D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-00-32D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-00-32D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-00-32D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-LB-32D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-LB-32D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-LB-32D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-LB-32D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-LB-32D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-LB-32D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-LB-32D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-LB-32D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-LB-32D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-LB-32D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-LB-32D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-LB-32D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-LB-32D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-LB-32D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-LB-32D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-LB-32D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-LB-32D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-LB-32D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-FA-32D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-FA-32D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-FA-32D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-FA-32D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-FA-32D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-FA-32D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-FA-32D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-FA-32D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-FA-32D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-FA-32D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-FA-32D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-FA-32D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-FA-32D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-FA-32D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-FA-32D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-FA-32D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-FA-32D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-FA-32D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-TA-32D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-TA-32D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-TA-32D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-TA-32D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-TA-32D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-TA-32D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-TA-32D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-TA-32D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-TA-32D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-TA-32D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-TA-32D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-TA-32D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-TA-32D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-TA-32D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-TA-32D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-TA-32D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-TA-32D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-TA-32D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-TB-32D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-TB-32D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-TB-32D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-TB-32D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-TB-32D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-TB-32D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-TB-32D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-TB-32D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-TB-32D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-TB-32D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-TB-32D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-TB-32D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-TB-32D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-TB-32D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-TB-32D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-TB-32D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-TB-32D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-TB-32D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-00-40D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-00-40D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-00-40D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-00-40D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-00-40D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-00-40D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-00-40D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-00-40D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-00-40D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-00-40D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-00-40D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-00-40D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-00-40D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-00-40D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-00-40D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-00-40D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-00-40D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-00-40D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-LB-40D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-LB-40D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-LB-40D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-LB-40D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-LB-40D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-LB-40D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-LB-40D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-LB-40D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-LB-40D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-LB-40D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-LB-40D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-LB-40D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-LB-40D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-LB-40D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-LB-40D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-LB-40D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-LB-40D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-LB-40D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-FA-40D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-FA-40D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-FA-40D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-FA-40D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-FA-40D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-FA-40D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-FA-40D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-FA-40D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-FA-40D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-FA-40D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-FA-40D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-FA-40D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-FA-40D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-FA-40D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-FA-40D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-FA-40D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-FA-40D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-FA-40D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-TA-40D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-TA-40D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-TA-40D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-TA-40D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-TA-40D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-TA-40D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-TA-40D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-TA-40D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-TA-40D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-TA-40D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-TA-40D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-TA-40D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-TA-40D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-TA-40D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-TA-40D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-TA-40D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-TA-40D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-TA-40D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-TB-40D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-TB-40D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-TB-40D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-TB-40D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-TB-40D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-TB-40D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-TB-40D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-TB-40D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-TB-40D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-TB-40D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-TB-40D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-TB-40D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-TB-40D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-TB-40D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-TB-40D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-TB-40D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-TB-40D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-TB-40D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-00-50D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-00-50D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-00-50D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-00-50D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-00-50D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-00-50D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-00-50D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-00-50D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-00-50D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-00-50D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-00-50D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-00-50D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-00-50D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-00-50D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-00-50D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-00-50D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-00-50D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-00-50D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-LB-50D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-LB-50D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-LB-50D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-LB-50D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-LB-50D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-LB-50D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-LB-50D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-LB-50D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-LB-50D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-LB-50D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-LB-50D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-LB-50D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-LB-50D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-LB-50D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-LB-50D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-LB-50D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-LB-50D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-LB-50D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-FA-50D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-FA-50D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-FA-50D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-FA-50D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-FA-50D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-FA-50D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-FA-50D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-FA-50D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-FA-50D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-FA-50D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-FA-50D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-FA-50D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-FA-50D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-FA-50D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-FA-50D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-FA-50D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-FA-50D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-FA-50D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-TA-50D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-TA-50D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-TA-50D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-TA-50D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-TA-50D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-TA-50D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-TA-50D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-TA-50D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-TA-50D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-TA-50D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-TA-50D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-TA-50D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-TA-50D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-TA-50D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-TA-50D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-TA-50D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-TA-50D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-TA-50D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-TB-50D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-TB-50D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-TB-50D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-TB-50D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-TB-50D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-TB-50D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-TB-50D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-TB-50D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-TB-50D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-TB-50D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-TB-50D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-TB-50D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-TB-50D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-TB-50D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-TB-50D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-TB-50D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-TB-50D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-TB-50D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-00-63D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-00-63D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-00-63D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-00-63D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-00-63D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-00-63D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-00-63D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-00-63D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-00-63D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-00-63D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-00-63D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-00-63D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-00-63D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-00-63D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-00-63D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-00-63D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-00-63D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-00-63D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-LB-63D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-LB-63D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-LB-63D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-LB-63D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-LB-63D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-LB-63D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-LB-63D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-LB-63D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-LB-63D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-LB-63D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-LB-63D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-LB-63D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-LB-63D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-LB-63D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-LB-63D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-LB-63D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-LB-63D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-LB-63D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-FA-63D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-FA-63D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-FA-63D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-FA-63D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-FA-63D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-FA-63D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-FA-63D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-FA-63D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-FA-63D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-FA-63D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-FA-63D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-FA-63D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-FA-63D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-FA-63D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-FA-63D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-FA-63D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-FA-63D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-FA-63D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-TA-63D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-TA-63D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-TA-63D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-TA-63D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-TA-63D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-TA-63D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-TA-63D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-TA-63D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-TA-63D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-TA-63D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-TA-63D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-TA-63D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-TA-63D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-TA-63D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-TA-63D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-TA-63D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-TA-63D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-TA-63D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm
	SCM-R-TB-63D-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 25 mm
	SCM-R-TB-63D-25-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Adjust range: 50 mm
	SCM-R-TB-63D-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 25 mm
	SCM-R-TB-63D-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Adjust range: 50 mm
	SCM-R-TB-63D-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 25 mm
	SCM-R-TB-63D-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Adjust range: 50 mm
	SCM-R-TB-63D-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 25 mm
	SCM-R-TB-63D-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Adjust range: 50 mm
	SCM-R-TB-63D-125-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 25 mm
	SCM-R-TB-63D-125-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Adjust range: 50 mm
	SCM-R-TB-63D-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 25 mm
	SCM-R-TB-63D-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Adjust range: 50 mm
	SCM-R-TB-63D-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 25 mm
	SCM-R-TB-63D-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Adjust range: 50 mm
	SCM-R-TB-63D-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 25 mm
	SCM-R-TB-63D-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Adjust range: 50 mm
	SCM-R-TB-63D-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 25 mm
	SCM-R-TB-63D-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Adjust range: 50 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCM-P/R-FP1 Super Micro Cylinder (Stroke Adjust)
