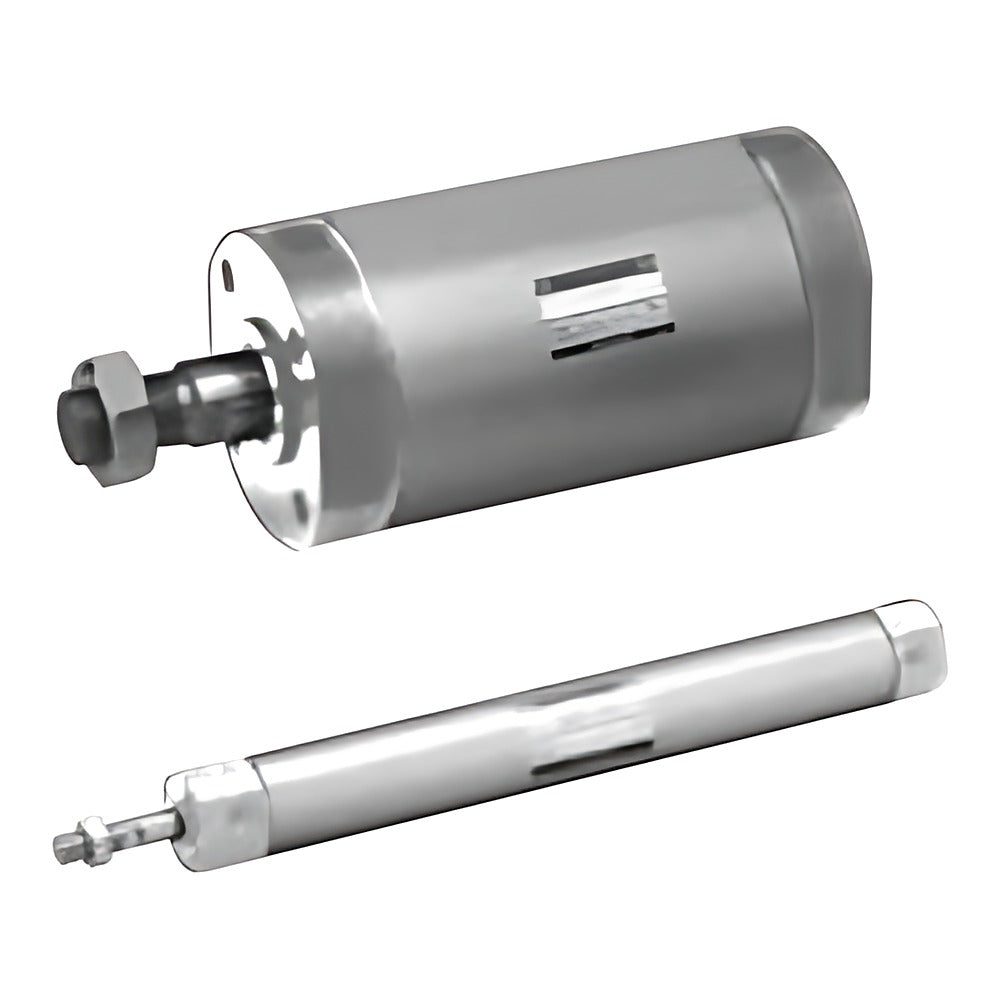

CKD SCM-Q Super Micro Cylinder (Drop Prevention, P7, Bore 80-100)

CKD SCM-Q Super Micro Cylinder (Drop Prevention, P7, Bore 80-100)

CKD SCM-Q clean-room super micro cylinder with mechanical drop-prevention lock at the stroke end, bore 80-100 mm.

Key features

  • Mechanical lock holds the piston at the rod or head stroke end when air pressure is lost
  • Holding force: max. thrust x 0.7
  • Clean spec P7 (exhaust treatment) or P71 (vacuum suction); P5/P51 versions made to order
  • Air cushion both ends (B), rod end (R) or head end (H); mounting 00, LB, FA, FB
  • Switch magnet built in; auto switches and option Q (switch rail attached, -QP7) ordered in the same code

Specifications

Operation Double-acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C
Lubrication Not allowed
Switch magnet Built in (all models)
Min. operating pressure 0.2 MPa (20-32), 0.15 MPa (40-100)
Piston speed 30-200 mm/s
Lock Head or rod end
Port size M5 to Rc1/2 by bore
Source CKD Korea catalog CB-033S-4, p. 53-65
SCM-Q-00-80B-25-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-25-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-25-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-25-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-50-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-50-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-50-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-50-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-75-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-75-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-75-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-75-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-100-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-100-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-100-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-100-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-125-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-125-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-125-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-125-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-150-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-150-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-150-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-150-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-200-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-200-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-200-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-200-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-250-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-250-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-250-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-250-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-300-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-300-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-300-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-300-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-25-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-25-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-25-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-25-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-50-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-50-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-50-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-50-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-75-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-75-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-75-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-75-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-100-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-100-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-100-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-100-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-125-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-125-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-125-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-125-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-150-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-150-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-150-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-150-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-200-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-200-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-200-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-200-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-250-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-250-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-250-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-250-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-300-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-300-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-300-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-300-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-25-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-25-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-25-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-25-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-50-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-50-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-50-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-50-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-75-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-75-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-75-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-75-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-100-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-100-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-100-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-100-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-125-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-125-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-125-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-125-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-150-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-150-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-150-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-150-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-200-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-200-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-200-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-200-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-250-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-250-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-250-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-250-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-300-R-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-300-R-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-300-H-P7 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-300-H-P71 Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-25-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-25-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-25-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-25-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-50-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-50-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-50-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-50-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-75-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-75-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-75-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-75-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-100-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-100-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-100-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-100-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-125-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-125-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-125-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-125-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-150-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-150-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-150-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-150-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-200-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-200-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-200-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-200-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-250-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-250-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-250-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-250-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-300-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-300-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-300-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-300-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-25-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-25-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-25-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-25-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-50-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-50-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-50-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-50-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-75-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-75-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-75-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-75-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-100-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-100-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-100-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-100-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-125-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-125-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-125-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-125-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-150-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-150-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-150-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-150-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-200-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-200-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-200-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-200-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-250-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-250-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-250-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-250-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-300-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-300-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-300-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-300-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-25-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-25-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-25-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-25-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-50-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-50-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-50-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-50-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-75-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-75-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-75-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-75-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-100-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-100-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-100-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-100-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-125-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-125-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-125-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-125-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-150-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-150-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-150-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-150-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-200-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-200-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-200-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-200-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-250-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-250-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-250-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-250-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-300-R-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-300-R-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-300-H-P7 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-300-H-P71 Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-25-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-25-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-25-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-25-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-50-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-50-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-50-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-50-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-75-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-75-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-75-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-75-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-100-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-100-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-100-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-100-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-125-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-125-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-125-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-125-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-150-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-150-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-150-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-150-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-200-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-200-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-200-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-200-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-250-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-250-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-250-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-250-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-300-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-300-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-300-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-300-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-25-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-25-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-25-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-25-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-50-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-50-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-50-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-50-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-75-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-75-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-75-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-75-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-100-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-100-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-100-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-100-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-125-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-125-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-125-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-125-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-150-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-150-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-150-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-150-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-200-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-200-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-200-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-200-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-250-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-250-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-250-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-250-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-300-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-300-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-300-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-300-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-25-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-25-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-25-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-25-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-50-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-50-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-50-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-50-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-75-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-75-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-75-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-75-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-100-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-100-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-100-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-100-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-125-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-125-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-125-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-125-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-150-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-150-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-150-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-150-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-200-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-200-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-200-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-200-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-250-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-250-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-250-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-250-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-300-R-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-300-R-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-300-H-P7 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-300-H-P71 Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-25-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-25-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-25-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-25-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-50-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-50-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-50-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-50-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-75-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-75-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-75-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-75-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-100-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-100-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-100-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-100-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-125-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-125-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-125-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-125-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-150-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-150-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-150-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-150-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-200-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-200-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-200-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-200-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-250-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-250-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-250-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-250-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-300-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-300-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-300-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-300-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-25-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-25-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-25-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-25-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-50-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-50-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-50-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-50-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-75-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-75-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-75-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-75-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-100-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-100-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-100-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-100-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-125-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-125-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-125-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-125-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-150-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-150-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-150-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-150-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-200-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-200-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-200-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-200-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-250-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-250-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-250-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-250-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-300-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-300-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-300-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-300-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-25-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-25-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-25-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-25-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-50-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-50-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-50-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-50-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-75-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-75-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-75-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-75-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-100-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-100-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-100-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-100-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-125-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-125-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-125-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-125-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-150-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-150-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-150-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-150-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-200-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-200-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-200-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-200-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-250-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-250-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-250-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-250-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-300-R-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-300-R-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-300-H-P7 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-300-H-P71 Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-25-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-25-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-25-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-25-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-50-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-50-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-50-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-50-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-75-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-75-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-75-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-75-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-100-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-100-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-100-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-100-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-125-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-125-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-125-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-125-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-150-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-150-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-150-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-150-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-200-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-200-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-200-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-200-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-250-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-250-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-250-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-250-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-300-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-300-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-300-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-300-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-25-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-25-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-25-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-25-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-50-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-50-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-50-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-50-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-75-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-75-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-75-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-75-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-100-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-100-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-100-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-100-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-125-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-125-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-125-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-125-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-150-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-150-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-150-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-150-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-200-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-200-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-200-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-200-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-250-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-250-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-250-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-250-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-300-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-300-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-300-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-300-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-25-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-25-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-25-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-25-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-50-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-50-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-50-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-50-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-75-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-75-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-75-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-75-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-100-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-100-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-100-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-100-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-125-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-125-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-125-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-125-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-150-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-150-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-150-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-150-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-200-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-200-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-200-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-200-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-250-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-250-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-250-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-250-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-300-R-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-300-R-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-300-H-P7 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-300-H-P71 Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-25-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-25-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-25-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-25-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-50-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-50-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-50-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-50-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-75-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-75-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-75-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-75-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-100-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-100-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-100-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-100-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-125-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-125-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-125-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-125-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-150-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-150-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-150-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-150-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-200-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-200-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-200-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-200-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-250-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-250-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-250-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-250-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-300-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-300-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-300-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-300-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-25-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-25-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-25-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-25-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-50-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-50-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-50-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-50-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-75-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-75-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-75-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-75-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-100-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-100-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-100-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-100-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-125-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-125-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-125-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-125-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-150-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-150-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-150-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-150-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-200-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-200-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-200-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-200-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-250-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-250-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-250-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-250-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-300-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-300-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-300-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-300-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-25-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-25-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-25-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-25-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-50-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-50-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-50-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-50-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-75-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-75-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-75-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-75-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-100-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-100-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-100-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-100-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-125-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-125-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-125-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-125-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-150-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-150-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-150-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-150-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-200-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-200-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-200-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-200-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-250-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-250-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-250-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-250-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-300-R-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-300-R-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-300-H-P7 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-300-H-P71 Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-25-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-25-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-25-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-25-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-50-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-50-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-50-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-50-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-75-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-75-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-75-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-75-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-100-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-100-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-100-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-100-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-125-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-125-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-125-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-125-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-150-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-150-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-150-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-150-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-200-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-200-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-200-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-200-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-250-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-250-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-250-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-250-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-300-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-300-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-300-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-300-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-25-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-25-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-25-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-25-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-50-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-50-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-50-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-50-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-75-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-75-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-75-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-75-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-100-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-100-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-100-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-100-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-125-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-125-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-125-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-125-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-150-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-150-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-150-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-150-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-200-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-200-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-200-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-200-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-250-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-250-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-250-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-250-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-300-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-300-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-300-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-300-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-25-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-25-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-25-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-25-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-50-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-50-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-50-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-50-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-75-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-75-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-75-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-75-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-100-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-100-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-100-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-100-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-125-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-125-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-125-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-125-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-150-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-150-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-150-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-150-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-200-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-200-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-200-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-200-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-250-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-250-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-250-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-250-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-300-R-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-300-R-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-300-H-P7 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-300-H-P71 Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-25-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-25-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-25-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-25-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-50-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-50-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-50-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-50-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-75-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-75-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-75-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-75-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-100-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-100-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-100-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-100-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-125-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-125-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-125-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-125-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-150-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-150-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-150-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-150-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-200-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-200-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-200-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-200-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-250-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-250-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-250-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-250-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-300-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-300-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-300-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-300-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-25-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-25-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-25-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-25-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-50-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-50-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-50-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-50-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-75-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-75-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-75-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-75-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-100-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-100-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-100-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-100-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-125-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-125-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-125-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-125-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-150-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-150-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-150-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-150-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-200-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-200-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-200-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-200-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-250-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-250-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-250-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-250-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-300-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-300-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-300-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-300-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-25-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-25-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-25-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-25-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-50-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-50-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-50-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-50-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-75-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-75-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-75-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-75-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-100-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-100-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-100-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-100-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-125-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-125-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-125-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-125-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-150-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-150-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-150-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-150-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-200-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-200-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-200-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-200-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-250-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-250-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-250-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-250-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-300-R-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-300-R-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-300-H-P7 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-300-H-P71 Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
Pneumatic CylindersCKD
864 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-Q Super Micro Cylinder (Drop Prevention, P7, Bore 80-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (864)

SCM-Q-00-80B-25-R-P7, SCM-Q-00-80B-25-R-P71, SCM-Q-00-80B-25-H-P7, SCM-Q-00-80B-25-H-P71, SCM-Q-00-80B-50-R-P7, SCM-Q-00-80B-50-R-P71, SCM-Q-00-80B-50-H-P7, SCM-Q-00-80B-50-H-P71, SCM-Q-00-80B-75-R-P7, SCM-Q-00-80B-75-R-P71 + 854 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCM-Q-00-80B-25-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-25-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-25-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-25-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-50-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-50-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-50-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-50-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-75-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-75-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-75-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-75-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-100-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-100-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-100-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-100-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-125-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-125-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-125-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-125-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-150-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-150-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-150-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-150-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-200-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-200-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-200-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-200-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-250-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-250-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-250-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-250-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-300-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-300-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80B-300-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80B-300-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-25-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-25-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-25-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-25-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-50-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-50-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-50-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-50-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-75-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-75-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-75-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-75-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-100-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-100-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-100-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-100-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-125-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-125-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-125-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-125-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-150-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-150-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-150-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-150-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-200-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-200-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-200-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-200-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-250-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-250-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-250-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-250-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-300-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-300-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80R-300-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80R-300-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-25-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-25-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-25-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-25-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-50-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-50-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-50-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-50-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-75-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-75-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-75-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-75-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-100-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-100-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-100-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-100-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-125-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-125-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-125-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-125-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-150-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-150-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-150-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-150-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-200-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-200-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-200-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-200-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-250-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-250-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-250-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-250-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-300-R-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-300-R-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-80H-300-H-P7Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-80H-300-H-P71Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-25-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-25-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-25-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-25-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-50-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-50-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-50-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-50-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-75-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-75-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-75-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-75-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-100-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-100-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-100-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-100-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-125-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-125-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-125-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-125-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-150-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-150-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-150-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-150-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-200-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-200-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-200-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-200-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-250-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-250-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-250-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-250-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-300-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-300-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100B-300-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100B-300-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-25-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-25-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-25-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-25-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-50-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-50-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-50-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-50-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-75-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-75-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-75-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-75-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-100-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-100-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-100-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-100-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-125-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-125-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-125-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-125-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-150-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-150-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-150-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-150-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-200-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-200-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-200-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-200-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-250-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-250-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-250-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-250-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-300-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-300-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100R-300-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100R-300-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-25-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-25-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-25-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-25-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-50-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-50-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-50-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-50-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-75-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-75-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-75-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-75-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-100-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-100-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-100-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-100-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-125-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-125-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-125-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-125-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-150-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-150-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-150-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-150-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-200-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-200-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-200-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-200-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-250-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-250-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-250-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-250-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-300-R-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-300-R-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-00-100H-300-H-P7Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-00-100H-300-H-P71Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-25-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-25-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-25-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-25-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-50-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-50-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-50-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-50-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-75-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-75-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-75-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-75-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-100-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-100-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-100-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-100-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-125-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-125-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-125-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-125-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-150-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-150-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-150-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-150-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-200-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-200-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-200-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-200-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-250-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-250-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-250-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-250-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-300-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-300-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80B-300-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80B-300-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-25-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-25-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-25-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-25-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-50-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-50-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-50-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-50-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-75-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-75-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-75-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-75-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-100-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-100-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-100-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-100-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-125-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-125-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-125-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-125-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-150-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-150-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-150-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-150-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-200-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-200-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-200-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-200-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-250-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-250-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-250-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-250-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-300-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-300-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80R-300-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80R-300-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-25-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-25-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-25-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-25-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-50-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-50-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-50-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-50-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-75-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-75-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-75-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-75-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-100-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-100-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-100-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-100-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-125-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-125-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-125-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-125-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-150-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-150-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-150-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-150-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-200-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-200-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-200-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-200-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-250-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-250-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-250-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-250-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-300-R-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-300-R-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-80H-300-H-P7Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-80H-300-H-P71Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-25-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-25-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-25-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-25-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-50-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-50-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-50-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-50-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-75-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-75-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-75-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-75-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-100-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-100-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-100-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-100-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-125-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-125-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-125-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-125-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-150-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-150-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-150-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-150-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-200-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-200-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-200-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-200-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-250-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-250-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-250-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-250-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-300-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-300-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100B-300-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100B-300-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-25-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-25-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-25-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-25-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-50-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-50-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-50-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-50-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-75-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-75-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-75-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-75-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-100-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-100-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-100-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-100-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-125-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-125-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-125-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-125-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-150-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-150-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-150-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-150-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-200-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-200-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-200-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-200-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-250-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-250-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-250-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-250-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-300-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-300-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100R-300-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100R-300-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-25-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-25-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-25-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-25-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-50-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-50-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-50-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-50-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-75-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-75-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-75-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-75-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-100-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-100-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-100-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-100-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-125-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-125-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-125-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-125-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-150-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-150-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-150-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-150-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-200-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-200-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-200-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-200-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-250-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-250-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-250-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-250-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-300-R-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-300-R-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-LB-100H-300-H-P7Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-LB-100H-300-H-P71Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-25-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-25-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-25-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-25-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-50-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-50-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-50-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-50-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-75-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-75-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-75-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-75-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-100-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-100-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-100-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-100-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-125-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-125-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-125-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-125-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-150-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-150-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-150-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-150-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-200-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-200-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-200-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-200-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-250-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-250-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-250-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-250-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-300-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-300-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80B-300-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80B-300-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-25-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-25-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-25-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-25-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-50-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-50-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-50-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-50-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-75-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-75-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-75-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-75-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-100-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-100-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-100-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-100-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-125-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-125-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-125-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-125-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-150-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-150-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-150-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-150-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-200-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-200-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-200-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-200-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-250-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-250-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-250-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-250-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-300-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-300-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80R-300-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80R-300-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-25-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-25-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-25-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-25-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-50-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-50-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-50-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-50-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-75-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-75-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-75-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-75-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-100-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-100-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-100-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-100-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-125-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-125-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-125-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-125-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-150-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-150-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-150-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-150-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-200-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-200-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-200-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-200-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-250-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-250-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-250-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-250-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-300-R-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-300-R-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-80H-300-H-P7Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-80H-300-H-P71Mounting: Rod-end flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-25-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-25-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-25-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-25-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-50-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-50-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-50-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-50-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-75-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-75-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-75-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-75-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-100-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-100-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-100-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-100-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-125-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-125-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-125-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-125-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-150-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-150-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-150-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-150-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-200-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-200-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-200-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-200-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-250-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-250-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-250-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-250-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-300-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-300-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100B-300-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100B-300-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-25-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-25-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-25-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-25-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-50-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-50-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-50-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-50-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-75-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-75-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-75-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-75-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-100-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-100-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-100-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-100-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-125-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-125-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-125-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-125-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-150-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-150-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-150-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-150-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-200-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-200-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-200-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-200-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-250-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-250-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-250-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-250-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-300-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-300-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100R-300-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100R-300-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-25-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-25-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-25-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-25-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-50-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-50-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-50-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-50-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-75-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-75-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-75-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-75-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-100-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-100-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-100-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-100-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-125-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-125-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-125-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-125-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-150-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-150-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-150-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-150-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-200-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-200-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-200-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-200-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-250-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-250-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-250-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-250-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-300-R-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-300-R-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FA-100H-300-H-P7Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FA-100H-300-H-P71Mounting: Rod-end flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-25-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-25-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-25-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-25-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-50-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-50-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-50-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-50-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-75-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-75-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-75-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-75-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-100-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-100-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-100-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-100-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-125-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-125-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-125-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-125-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-150-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-150-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-150-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-150-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-200-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-200-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-200-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-200-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-250-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-250-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-250-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-250-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-300-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-300-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80B-300-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80B-300-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-25-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-25-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-25-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-25-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-50-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-50-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-50-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-50-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-75-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-75-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-75-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-75-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-100-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-100-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-100-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-100-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-125-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-125-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-125-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-125-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-150-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-150-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-150-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-150-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-200-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-200-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-200-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-200-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-250-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-250-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-250-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-250-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-300-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-300-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80R-300-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80R-300-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-25-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-25-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-25-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-25-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-50-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-50-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-50-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-50-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-75-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-75-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-75-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-75-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-100-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-100-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-100-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-100-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-125-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-125-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-125-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-125-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-150-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-150-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-150-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-150-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-200-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-200-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-200-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-200-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-250-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-250-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-250-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-250-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-300-R-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-300-R-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-80H-300-H-P7Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-80H-300-H-P71Mounting: Head-end flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-25-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-25-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-25-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-25-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-50-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-50-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-50-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-50-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-75-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-75-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-75-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-75-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-100-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-100-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-100-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-100-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-125-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-125-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-125-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-125-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-150-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-150-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-150-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-150-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-200-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-200-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-200-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-200-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-250-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-250-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-250-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-250-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-300-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-300-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100B-300-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100B-300-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-25-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-25-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-25-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-25-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-50-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-50-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-50-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-50-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-75-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-75-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-75-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-75-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-100-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-100-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-100-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-100-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-125-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-125-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-125-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-125-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-150-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-150-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-150-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-150-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-200-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-200-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-200-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-200-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-250-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-250-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-250-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-250-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-300-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-300-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100R-300-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100R-300-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-25-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-25-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-25-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-25-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-50-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-50-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-50-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-50-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-75-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-75-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-75-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-75-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-100-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-100-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-100-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-100-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-125-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-125-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-125-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-125-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-150-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-150-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-150-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-150-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-200-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-200-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-200-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-200-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-250-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-250-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-250-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-250-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-300-R-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-300-R-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Rod end (R) | Clean spec: P71 vacuum suction
SCM-Q-FB-100H-300-H-P7Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P7 exhaust treatment
SCM-Q-FB-100H-300-H-P71Mounting: Head-end flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock position: Head end (H) | Clean spec: P71 vacuum suction

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
