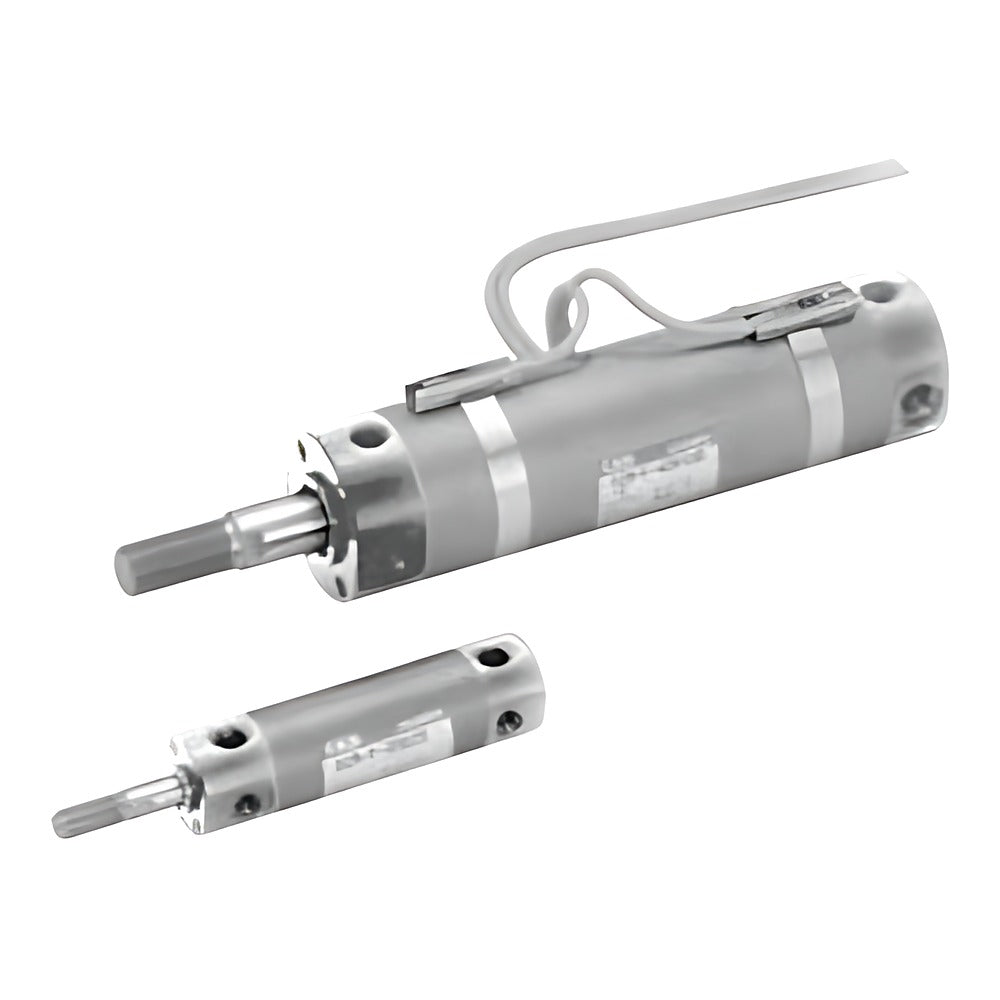

CKD SCM-Q Super Micro Cylinder, Drop Prevention (Bore 20-40)

CKD SCM-Q Super Micro Cylinder, Drop Prevention (Bore 20-40)

CKD SCM-Q super micro (round body) double-acting cylinder with a stroke-end drop-prevention lock, bore 20 to 40 mm.

Key features

  • Mechanical lock on the head end (H) or rod end (R) holds the piston at stroke end on air loss
  • Air cushion on both ends (B), rod end (R) or head end (H)
  • Mountings 00, LB, FA, FB, CA (ø20-63), CB (ø80-100), TA, TB (ø20-63); TA not with rod-end lock, TB not with head-end lock
  • Standard strokes 25 to 300 mm; 1 mm intermediate strokes up to 1000 mm (ø20-32) / 1500 mm (ø40-100) to order
  • Auto switch ready (built-in magnet); T0/T5/T8 reed and T1/T2/T3/T2W/T2Y/T2YD/T2J solid-state switches, rail or band (Z) mounting, ordered as suffix
  • Options Q (rail delivered), P6 (copper/PTFE free), rod-end accessories I/Y and brackets B1/B2 ordered as suffix

Specifications

Action Double acting with drop-prevention lock
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa (ø20-40), 0.1 MPa (ø50-100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 30 to 500 mm/s
Holding force Max. thrust x 0.7
Lubrication Not required
Source CKD Korea catalog CB-029SK-9, p. 370-379
SCM-Q-00-20B-25-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-25-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-50-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-50-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-75-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-75-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-100-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-100-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-125-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-125-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-150-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-150-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-200-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-200-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-250-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-250-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-300-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-300-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-25-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-25-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-50-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-50-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-75-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-75-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-100-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-100-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-125-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-125-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-150-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-150-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-200-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-200-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-250-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-250-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-300-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-300-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-25-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-25-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-50-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-50-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-75-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-75-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-100-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-100-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-125-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-125-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-150-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-150-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-200-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-200-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-250-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-250-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-300-R Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-300-H Mounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-25-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-25-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-50-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-50-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-75-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-75-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-100-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-100-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-125-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-125-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-150-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-150-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-200-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-200-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-250-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-250-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-300-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-300-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-25-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-25-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-50-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-50-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-75-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-75-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-100-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-100-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-125-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-125-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-150-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-150-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-200-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-200-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-250-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-250-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-300-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-300-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-25-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-25-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-50-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-50-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-75-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-75-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-100-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-100-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-125-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-125-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-150-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-150-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-200-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-200-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-250-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-250-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-300-R Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-300-H Mounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-25-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-25-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-50-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-50-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-75-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-75-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-100-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-100-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-125-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-125-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-150-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-150-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-200-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-200-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-250-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-250-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-300-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-300-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-25-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-25-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-50-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-50-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-75-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-75-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-100-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-100-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-125-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-125-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-150-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-150-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-200-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-200-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-250-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-250-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-300-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-300-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-25-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-25-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-50-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-50-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-75-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-75-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-100-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-100-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-125-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-125-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-150-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-150-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-200-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-200-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-250-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-250-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-300-R Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-300-H Mounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-25-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-25-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-50-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-50-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-75-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-75-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-100-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-100-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-125-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-125-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-150-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-150-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-200-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-200-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-250-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-250-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-300-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-300-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-25-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-25-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-50-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-50-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-75-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-75-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-100-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-100-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-125-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-125-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-150-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-150-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-200-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-200-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-250-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-250-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-300-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-300-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-25-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-25-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-50-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-50-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-75-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-75-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-100-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-100-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-125-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-125-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-150-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-150-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-200-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-200-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-250-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-250-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-300-R Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-300-H Mounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-25-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-25-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-50-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-50-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-75-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-75-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-100-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-100-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-125-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-125-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-150-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-150-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-200-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-200-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-250-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-250-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-300-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-300-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-25-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-25-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-50-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-50-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-75-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-75-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-100-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-100-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-125-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-125-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-150-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-150-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-200-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-200-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-250-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-250-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-300-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-300-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-25-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-25-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-50-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-50-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-75-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-75-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-100-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-100-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-125-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-125-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-150-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-150-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-200-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-200-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-250-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-250-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-300-R Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-300-H Mounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-25-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-50-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-75-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-100-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-125-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-150-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-200-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-250-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-300-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-25-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-50-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-75-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-100-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-125-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-150-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-200-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-250-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-300-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-25-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-50-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-75-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-100-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-125-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-150-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-200-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-250-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-300-H Mounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TB-20B-25-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-50-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-75-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-100-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-125-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-150-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-200-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-250-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-300-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-25-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-50-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-75-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-100-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-125-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-150-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-200-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-250-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-300-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-25-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-50-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-75-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-100-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-125-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-150-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-200-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-250-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-300-R Mounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-25-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-25-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-50-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-50-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-75-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-75-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-100-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-100-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-125-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-125-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-150-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-150-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-200-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-200-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-250-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-250-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-300-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-300-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-25-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-25-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-50-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-50-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-75-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-75-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-100-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-100-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-125-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-125-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-150-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-150-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-200-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-200-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-250-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-250-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-300-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-300-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-25-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-25-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-50-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-50-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-75-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-75-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-100-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-100-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-125-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-125-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-150-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-150-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-200-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-200-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-250-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-250-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-300-R Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-300-H Mounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-25-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-25-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-50-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-50-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-75-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-75-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-100-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-100-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-125-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-125-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-150-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-150-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-200-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-200-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-250-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-250-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-300-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-300-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-25-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-25-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-50-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-50-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-75-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-75-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-100-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-100-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-125-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-125-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-150-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-150-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-200-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-200-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-250-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-250-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-300-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-300-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-25-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-25-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-50-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-50-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-75-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-75-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-100-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-100-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-125-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-125-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-150-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-150-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-200-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-200-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-250-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-250-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-300-R Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-300-H Mounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-25-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-25-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-50-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-50-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-75-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-75-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-100-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-100-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-125-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-125-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-150-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-150-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-200-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-200-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-250-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-250-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-300-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-300-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-25-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-25-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-50-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-50-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-75-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-75-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-100-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-100-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-125-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-125-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-150-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-150-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-200-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-200-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-250-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-250-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-300-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-300-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-25-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-25-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-50-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-50-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-75-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-75-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-100-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-100-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-125-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-125-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-150-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-150-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-200-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-200-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-250-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-250-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-300-R Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-300-H Mounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-25-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-25-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-50-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-50-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-75-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-75-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-100-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-100-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-125-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-125-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-150-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-150-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-200-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-200-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-250-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-250-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-300-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-300-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-25-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-25-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-50-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-50-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-75-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-75-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-100-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-100-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-125-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-125-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-150-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-150-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-200-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-200-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-250-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-250-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-300-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-300-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-25-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-25-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-50-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-50-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-75-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-75-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-100-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-100-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-125-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-125-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-150-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-150-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-200-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-200-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-250-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-250-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-300-R Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-300-H Mounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-25-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-25-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-50-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-50-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-75-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-75-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-100-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-100-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-125-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-125-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-150-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-150-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-200-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-200-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-250-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-250-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-300-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-300-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-25-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-25-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-50-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-50-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-75-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-75-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-100-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-100-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-125-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-125-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-150-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-150-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-200-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-200-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-250-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-250-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-300-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-300-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-25-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-25-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-50-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-50-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-75-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-75-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-100-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-100-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-125-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-125-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-150-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-150-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-200-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-200-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-250-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-250-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-300-R Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-300-H Mounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-25-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-50-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-75-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-100-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-125-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-150-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-200-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-250-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-300-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-25-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-50-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-75-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-100-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-125-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-150-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-200-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-250-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-300-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-25-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-50-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-75-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-100-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-125-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-150-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-200-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-250-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-300-H Mounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TB-25B-25-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-50-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-75-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-100-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-125-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-150-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-200-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-250-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-300-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-25-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-50-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-75-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-100-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-125-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-150-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-200-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-250-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-300-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-25-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-50-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-75-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-100-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-125-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-150-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-200-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-250-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-300-R Mounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-32B-25-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-25-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-50-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-50-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-75-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-75-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-100-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-100-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-125-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-125-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-150-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-150-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-200-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-200-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-250-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-250-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-300-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-300-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-25-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-25-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-50-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-50-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-75-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-75-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-100-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-100-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-125-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-125-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-150-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-150-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-200-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-200-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-250-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-250-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-300-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-300-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-25-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-25-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-50-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-50-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-75-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-75-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-100-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-100-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-125-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-125-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-150-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-150-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-200-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-200-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-250-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-250-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-300-R Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-300-H Mounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-25-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-25-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-50-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-50-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-75-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-75-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-100-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-100-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-125-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-125-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-150-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-150-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-200-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-200-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-250-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-250-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-300-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-300-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-25-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-25-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-50-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-50-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-75-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-75-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-100-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-100-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-125-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-125-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-150-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-150-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-200-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-200-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-250-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-250-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-300-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-300-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-25-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-25-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-50-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-50-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-75-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-75-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-100-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-100-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-125-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-125-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-150-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-150-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-200-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-200-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-250-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-250-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-300-R Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-300-H Mounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-25-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-25-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-50-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-50-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-75-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-75-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-100-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-100-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-125-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-125-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-150-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-150-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-200-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-200-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-250-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-250-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-300-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-300-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-25-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-25-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-50-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-50-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-75-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-75-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-100-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-100-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-125-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-125-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-150-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-150-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-200-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-200-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-250-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-250-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-300-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-300-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-25-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-25-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-50-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-50-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-75-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-75-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-100-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-100-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-125-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-125-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-150-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-150-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-200-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-200-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-250-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-250-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-300-R Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-300-H Mounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-25-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-25-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-50-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-50-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-75-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-75-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-100-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-100-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-125-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-125-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-150-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-150-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-200-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-200-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-250-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-250-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-300-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-300-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-25-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-25-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-50-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-50-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-75-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-75-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-100-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-100-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-125-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-125-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-150-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-150-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-200-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-200-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-250-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-250-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-300-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-300-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-25-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-25-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-50-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-50-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-75-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-75-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-100-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-100-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-125-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-125-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-150-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-150-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-200-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-200-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-250-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-250-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-300-R Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-300-H Mounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-25-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-25-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-50-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-50-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-75-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-75-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-100-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-100-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-125-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-125-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-150-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-150-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-200-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-200-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-250-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-250-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-300-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-300-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-25-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-25-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-50-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-50-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-75-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-75-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-100-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-100-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-125-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-125-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-150-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-150-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-200-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-200-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-250-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-250-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-300-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-300-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-25-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-25-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-50-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-50-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-75-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-75-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-100-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-100-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-125-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-125-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-150-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-150-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-200-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-200-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-250-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-250-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-300-R Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-300-H Mounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-25-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-50-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-75-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-100-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-125-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-150-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-200-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-250-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-300-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-25-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-50-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-75-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-100-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-125-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-150-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-200-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-250-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-300-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-25-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-50-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-75-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-100-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-125-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-150-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-200-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-250-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-300-H Mounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TB-32B-25-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-50-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-75-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-100-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-125-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-150-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-200-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-250-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-300-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-25-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-50-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-75-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-100-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-125-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-150-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-200-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-250-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-300-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-25-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-50-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-75-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-100-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-125-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-150-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-200-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-250-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-300-R Mounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-25-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-25-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-50-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-50-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-75-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-75-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-100-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-100-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-125-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-125-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-150-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-150-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-200-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-200-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-250-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-250-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-300-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-300-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-25-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-25-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-50-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-50-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-75-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-75-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-100-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-100-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-125-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-125-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-150-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-150-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-200-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-200-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-250-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-250-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-300-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-300-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-25-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-25-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-50-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-50-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-75-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-75-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-100-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-100-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-125-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-125-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-150-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-150-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-200-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-200-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-250-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-250-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-300-R Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-300-H Mounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-25-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-25-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-50-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-50-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-75-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-75-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-100-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-100-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-125-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-125-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-150-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-150-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-200-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-200-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-250-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-250-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-300-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-300-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-25-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-25-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-50-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-50-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-75-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-75-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-100-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-100-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-125-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-125-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-150-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-150-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-200-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-200-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-250-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-250-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-300-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-300-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-25-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-25-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-50-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-50-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-75-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-75-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-100-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-100-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-125-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-125-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-150-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-150-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-200-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-200-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-250-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-250-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-300-R Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-300-H Mounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-25-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-25-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-50-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-50-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-75-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-75-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-100-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-100-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-125-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-125-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-150-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-150-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-200-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-200-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-250-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-250-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-300-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-300-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-25-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-25-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-50-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-50-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-75-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-75-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-100-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-100-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-125-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-125-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-150-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-150-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-200-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-200-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-250-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-250-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-300-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-300-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-25-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-25-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-50-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-50-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-75-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-75-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-100-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-100-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-125-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-125-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-150-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-150-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-200-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-200-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-250-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-250-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-300-R Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-300-H Mounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-25-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-25-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-50-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-50-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-75-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-75-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-100-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-100-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-125-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-125-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-150-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-150-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-200-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-200-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-250-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-250-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-300-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-300-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-25-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-25-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-50-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-50-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-75-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-75-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-100-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-100-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-125-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-125-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-150-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-150-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-200-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-200-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-250-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-250-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-300-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-300-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-25-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-25-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-50-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-50-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-75-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-75-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-100-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-100-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-125-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-125-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-150-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-150-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-200-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-200-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-250-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-250-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-300-R Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-300-H Mounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-25-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-25-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-50-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-50-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-75-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-75-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-100-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-100-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-125-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-125-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-150-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-150-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-200-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-200-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-250-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-250-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-300-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-300-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-25-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-25-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-50-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-50-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-75-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-75-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-100-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-100-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-125-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-125-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-150-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-150-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-200-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-200-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-250-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-250-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-300-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-300-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-25-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-25-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-50-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-50-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-75-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-75-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-100-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-100-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-125-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-125-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-150-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-150-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-200-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-200-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-250-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-250-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-300-R Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-300-H Mounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-25-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-50-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-75-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-100-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-125-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-150-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-200-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-250-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-300-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-25-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-50-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-75-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-100-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-125-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-150-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-200-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-250-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-300-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-25-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-50-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-75-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-100-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-125-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-150-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-200-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-250-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-300-H Mounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TB-40B-25-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-50-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-75-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-100-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-125-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-150-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-200-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-250-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-300-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-25-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-50-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-75-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-100-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-125-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-150-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-200-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-250-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-300-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-25-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-50-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-75-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-100-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-125-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-150-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-200-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-250-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-300-R Mounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
Pneumatic CylindersCKD
1296 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-Q Super Micro Cylinder, Drop Prevention (Bore 20-40)

Brand CKD·Pneumatic Cylinders

Available part numbers (1296)

SCM-Q-00-20B-25-R, SCM-Q-00-20B-25-H, SCM-Q-00-20B-50-R, SCM-Q-00-20B-50-H, SCM-Q-00-20B-75-R, SCM-Q-00-20B-75-H, SCM-Q-00-20B-100-R, SCM-Q-00-20B-100-H, SCM-Q-00-20B-125-R, SCM-Q-00-20B-125-H + 1286 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCM-Q-00-20B-25-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-25-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-50-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-50-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-75-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-75-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-100-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-100-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-125-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-125-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-150-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-150-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-200-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-200-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-250-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-250-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-00-20B-300-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-20B-300-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-25-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-25-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-50-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-50-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-75-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-75-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-100-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-100-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-125-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-125-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-150-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-150-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-200-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-200-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-250-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-250-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-00-20R-300-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-20R-300-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-25-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-25-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-50-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-50-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-75-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-75-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-100-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-100-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-125-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-125-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-150-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-150-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-200-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-200-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-250-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-250-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-00-20H-300-RMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-20H-300-HMounting: Basic (00) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-25-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-25-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-50-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-50-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-75-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-75-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-100-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-100-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-125-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-125-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-150-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-150-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-200-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-200-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-250-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-250-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-LB-20B-300-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20B-300-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-25-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-25-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-50-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-50-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-75-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-75-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-100-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-100-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-125-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-125-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-150-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-150-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-200-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-200-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-250-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-250-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-LB-20R-300-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20R-300-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-25-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-25-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-50-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-50-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-75-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-75-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-100-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-100-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-125-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-125-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-150-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-150-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-200-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-200-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-250-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-250-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-LB-20H-300-RMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-LB-20H-300-HMounting: Axial foot (LB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-25-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-25-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-50-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-50-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-75-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-75-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-100-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-100-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-125-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-125-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-150-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-150-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-200-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-200-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-250-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-250-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FA-20B-300-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20B-300-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-25-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-25-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-50-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-50-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-75-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-75-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-100-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-100-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-125-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-125-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-150-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-150-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-200-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-200-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-250-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-250-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FA-20R-300-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20R-300-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-25-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-25-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-50-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-50-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-75-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-75-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-100-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-100-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-125-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-125-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-150-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-150-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-200-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-200-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-250-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-250-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FA-20H-300-RMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FA-20H-300-HMounting: Rod-side flange (FA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-25-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-25-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-50-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-50-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-75-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-75-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-100-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-100-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-125-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-125-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-150-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-150-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-200-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-200-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-250-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-250-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FB-20B-300-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20B-300-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-25-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-25-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-50-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-50-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-75-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-75-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-100-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-100-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-125-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-125-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-150-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-150-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-200-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-200-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-250-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-250-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FB-20R-300-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20R-300-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-25-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-25-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-50-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-50-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-75-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-75-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-100-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-100-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-125-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-125-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-150-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-150-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-200-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-200-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-250-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-250-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FB-20H-300-RMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FB-20H-300-HMounting: Head-side flange (FB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-25-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-25-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-50-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-50-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-75-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-75-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-100-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-100-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-125-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-125-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-150-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-150-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-200-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-200-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-250-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-250-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-CA-20B-300-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20B-300-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-25-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-25-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-50-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-50-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-75-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-75-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-100-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-100-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-125-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-125-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-150-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-150-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-200-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-200-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-250-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-250-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-CA-20R-300-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20R-300-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-25-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-25-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-50-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-50-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-75-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-75-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-100-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-100-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-125-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-125-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-150-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-150-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-200-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-200-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-250-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-250-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-CA-20H-300-RMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-CA-20H-300-HMounting: Single clevis (CA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-25-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-50-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-75-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-100-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-125-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-150-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-200-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-250-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-TA-20B-300-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-25-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-50-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-75-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-100-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-125-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-150-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-200-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-250-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-TA-20R-300-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-25-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-50-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-75-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-100-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-125-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-150-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-200-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-250-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-TA-20H-300-HMounting: Rod-side trunnion (TA) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TB-20B-25-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-50-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-75-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-100-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-125-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-150-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-200-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-250-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20B-300-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-25-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-50-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-75-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-100-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-125-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-150-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-200-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-250-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20R-300-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-25-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-50-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-75-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-100-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-125-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-150-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-200-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-250-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-TB-20H-300-RMounting: Head-side trunnion (TB) | Bore: 20 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-25-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-25-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-50-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-50-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-75-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-75-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-100-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-100-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-125-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-125-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-150-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-150-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-200-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-200-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-250-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-250-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-00-25B-300-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-25B-300-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-25-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-25-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-50-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-50-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-75-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-75-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-100-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-100-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-125-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-125-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-150-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-150-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-200-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-200-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-250-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-250-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-00-25R-300-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-25R-300-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-25-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-25-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-50-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-50-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-75-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-75-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-100-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-100-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-125-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-125-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-150-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-150-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-200-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-200-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-250-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-250-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-00-25H-300-RMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-25H-300-HMounting: Basic (00) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-25-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-25-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-50-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-50-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-75-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-75-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-100-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-100-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-125-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-125-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-150-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-150-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-200-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-200-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-250-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-250-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-LB-25B-300-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25B-300-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-25-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-25-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-50-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-50-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-75-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-75-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-100-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-100-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-125-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-125-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-150-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-150-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-200-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-200-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-250-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-250-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-LB-25R-300-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25R-300-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-25-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-25-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-50-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-50-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-75-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-75-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-100-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-100-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-125-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-125-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-150-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-150-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-200-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-200-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-250-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-250-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-LB-25H-300-RMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-LB-25H-300-HMounting: Axial foot (LB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-25-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-25-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-50-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-50-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-75-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-75-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-100-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-100-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-125-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-125-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-150-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-150-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-200-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-200-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-250-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-250-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FA-25B-300-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25B-300-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-25-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-25-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-50-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-50-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-75-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-75-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-100-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-100-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-125-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-125-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-150-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-150-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-200-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-200-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-250-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-250-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FA-25R-300-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25R-300-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-25-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-25-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-50-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-50-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-75-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-75-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-100-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-100-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-125-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-125-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-150-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-150-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-200-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-200-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-250-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-250-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FA-25H-300-RMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FA-25H-300-HMounting: Rod-side flange (FA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-25-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-25-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-50-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-50-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-75-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-75-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-100-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-100-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-125-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-125-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-150-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-150-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-200-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-200-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-250-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-250-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FB-25B-300-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25B-300-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-25-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-25-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-50-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-50-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-75-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-75-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-100-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-100-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-125-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-125-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-150-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-150-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-200-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-200-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-250-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-250-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FB-25R-300-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25R-300-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-25-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-25-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-50-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-50-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-75-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-75-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-100-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-100-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-125-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-125-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-150-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-150-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-200-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-200-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-250-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-250-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-FB-25H-300-RMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-FB-25H-300-HMounting: Head-side flange (FB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-25-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-25-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-50-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-50-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-75-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-75-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-100-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-100-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-125-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-125-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-150-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-150-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-200-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-200-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-250-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-250-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-CA-25B-300-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25B-300-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-25-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-25-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-50-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-50-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-75-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-75-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-100-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-100-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-125-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-125-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-150-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-150-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-200-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-200-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-250-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-250-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-CA-25R-300-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25R-300-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-25-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-25-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-50-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-50-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-75-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-75-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-100-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-100-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-125-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-125-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-150-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-150-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-200-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-200-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-250-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-250-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-CA-25H-300-RMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-CA-25H-300-HMounting: Single clevis (CA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-25-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-50-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-75-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-100-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-125-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-150-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-200-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-250-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-TA-25B-300-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-25-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-50-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-75-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-100-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-125-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-150-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-200-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-250-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-TA-25R-300-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-25-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-50-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-75-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-100-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-125-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-150-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-200-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-250-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: M5
SCM-Q-TA-25H-300-HMounting: Rod-side trunnion (TA) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: M5
SCM-Q-TB-25B-25-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-50-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-75-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-100-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-125-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-150-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-200-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-250-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25B-300-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-25-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-50-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-75-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-100-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-125-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-150-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-200-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-250-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25R-300-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-25-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-50-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-75-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-100-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-125-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-150-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-200-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-250-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: M5
SCM-Q-TB-25H-300-RMounting: Head-side trunnion (TB) | Bore: 25 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: M5
SCM-Q-00-32B-25-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-25-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-50-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-50-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-75-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-75-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-100-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-100-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-125-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-125-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-150-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-150-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-200-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-200-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-250-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-250-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32B-300-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32B-300-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-25-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-25-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-50-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-50-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-75-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-75-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-100-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-100-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-125-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-125-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-150-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-150-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-200-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-200-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-250-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-250-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32R-300-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32R-300-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-25-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-25-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-50-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-50-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-75-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-75-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-100-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-100-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-125-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-125-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-150-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-150-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-200-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-200-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-250-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-250-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-32H-300-RMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-32H-300-HMounting: Basic (00) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-25-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-25-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-50-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-50-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-75-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-75-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-100-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-100-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-125-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-125-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-150-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-150-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-200-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-200-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-250-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-250-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32B-300-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32B-300-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-25-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-25-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-50-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-50-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-75-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-75-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-100-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-100-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-125-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-125-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-150-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-150-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-200-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-200-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-250-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-250-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32R-300-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32R-300-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-25-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-25-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-50-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-50-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-75-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-75-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-100-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-100-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-125-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-125-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-150-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-150-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-200-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-200-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-250-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-250-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-32H-300-RMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-32H-300-HMounting: Axial foot (LB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-25-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-25-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-50-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-50-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-75-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-75-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-100-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-100-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-125-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-125-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-150-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-150-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-200-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-200-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-250-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-250-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32B-300-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32B-300-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-25-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-25-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-50-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-50-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-75-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-75-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-100-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-100-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-125-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-125-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-150-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-150-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-200-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-200-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-250-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-250-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32R-300-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32R-300-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-25-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-25-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-50-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-50-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-75-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-75-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-100-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-100-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-125-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-125-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-150-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-150-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-200-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-200-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-250-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-250-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-32H-300-RMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-32H-300-HMounting: Rod-side flange (FA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-25-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-25-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-50-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-50-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-75-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-75-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-100-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-100-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-125-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-125-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-150-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-150-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-200-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-200-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-250-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-250-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32B-300-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32B-300-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-25-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-25-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-50-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-50-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-75-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-75-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-100-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-100-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-125-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-125-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-150-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-150-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-200-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-200-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-250-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-250-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32R-300-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32R-300-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-25-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-25-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-50-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-50-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-75-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-75-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-100-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-100-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-125-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-125-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-150-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-150-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-200-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-200-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-250-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-250-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-32H-300-RMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-32H-300-HMounting: Head-side flange (FB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-25-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-25-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-50-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-50-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-75-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-75-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-100-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-100-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-125-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-125-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-150-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-150-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-200-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-200-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-250-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-250-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32B-300-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32B-300-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-25-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-25-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-50-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-50-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-75-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-75-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-100-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-100-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-125-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-125-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-150-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-150-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-200-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-200-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-250-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-250-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32R-300-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32R-300-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-25-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-25-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-50-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-50-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-75-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-75-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-100-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-100-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-125-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-125-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-150-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-150-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-200-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-200-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-250-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-250-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-32H-300-RMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-32H-300-HMounting: Single clevis (CA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-25-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-50-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-75-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-100-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-125-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-150-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-200-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-250-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32B-300-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-25-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-50-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-75-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-100-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-125-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-150-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-200-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-250-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32R-300-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-25-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-50-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-75-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-100-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-125-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-150-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-200-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-250-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-32H-300-HMounting: Rod-side trunnion (TA) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TB-32B-25-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-50-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-75-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-100-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-125-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-150-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-200-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-250-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32B-300-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-25-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-50-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-75-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-100-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-125-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-150-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-200-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-250-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32R-300-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-25-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-50-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-75-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-100-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-125-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-150-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-200-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-250-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-32H-300-RMounting: Head-side trunnion (TB) | Bore: 32 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-25-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-25-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-50-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-50-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-75-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-75-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-100-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-100-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-125-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-125-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-150-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-150-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-200-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-200-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-250-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-250-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40B-300-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40B-300-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-25-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-25-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-50-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-50-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-75-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-75-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-100-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-100-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-125-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-125-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-150-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-150-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-200-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-200-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-250-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-250-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40R-300-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40R-300-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-25-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-25-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-50-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-50-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-75-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-75-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-100-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-100-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-125-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-125-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-150-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-150-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-200-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-200-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-250-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-250-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-00-40H-300-RMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-00-40H-300-HMounting: Basic (00) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-25-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-25-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-50-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-50-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-75-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-75-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-100-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-100-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-125-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-125-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-150-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-150-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-200-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-200-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-250-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-250-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40B-300-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40B-300-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-25-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-25-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-50-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-50-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-75-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-75-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-100-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-100-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-125-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-125-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-150-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-150-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-200-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-200-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-250-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-250-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40R-300-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40R-300-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-25-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-25-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-50-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-50-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-75-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-75-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-100-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-100-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-125-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-125-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-150-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-150-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-200-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-200-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-250-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-250-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-LB-40H-300-RMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-LB-40H-300-HMounting: Axial foot (LB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-25-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-25-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-50-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-50-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-75-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-75-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-100-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-100-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-125-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-125-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-150-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-150-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-200-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-200-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-250-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-250-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40B-300-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40B-300-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-25-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-25-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-50-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-50-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-75-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-75-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-100-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-100-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-125-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-125-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-150-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-150-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-200-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-200-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-250-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-250-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40R-300-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40R-300-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-25-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-25-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-50-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-50-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-75-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-75-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-100-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-100-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-125-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-125-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-150-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-150-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-200-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-200-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-250-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-250-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FA-40H-300-RMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FA-40H-300-HMounting: Rod-side flange (FA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-25-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-25-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-50-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-50-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-75-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-75-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-100-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-100-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-125-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-125-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-150-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-150-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-200-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-200-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-250-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-250-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40B-300-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40B-300-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-25-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-25-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-50-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-50-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-75-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-75-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-100-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-100-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-125-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-125-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-150-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-150-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-200-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-200-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-250-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-250-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40R-300-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40R-300-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-25-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-25-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-50-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-50-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-75-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-75-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-100-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-100-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-125-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-125-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-150-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-150-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-200-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-200-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-250-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-250-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-FB-40H-300-RMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-FB-40H-300-HMounting: Head-side flange (FB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-25-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-25-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-50-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-50-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-75-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-75-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-100-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-100-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-125-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-125-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-150-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-150-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-200-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-200-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-250-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-250-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40B-300-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40B-300-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-25-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-25-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-50-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-50-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-75-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-75-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-100-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-100-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-125-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-125-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-150-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-150-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-200-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-200-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-250-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-250-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40R-300-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40R-300-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-25-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-25-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-50-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-50-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-75-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-75-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-100-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-100-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-125-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-125-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-150-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-150-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-200-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-200-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-250-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-250-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-CA-40H-300-RMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-CA-40H-300-HMounting: Single clevis (CA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-25-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-50-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-75-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-100-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-125-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-150-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-200-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-250-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40B-300-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-25-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-50-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-75-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-100-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-125-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-150-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-200-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-250-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40R-300-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-25-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-50-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-75-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-100-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-125-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-150-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-200-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-250-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TA-40H-300-HMounting: Rod-side trunnion (TA) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/8
SCM-Q-TB-40B-25-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-50-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-75-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-100-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-125-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-150-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-200-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-250-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40B-300-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-25-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-50-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-75-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-100-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-125-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-150-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-200-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-250-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40R-300-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-25-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-50-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-75-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-100-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-125-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-150-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-200-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-250-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/8
SCM-Q-TB-40H-300-RMounting: Head-side trunnion (TB) | Bore: 40 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
