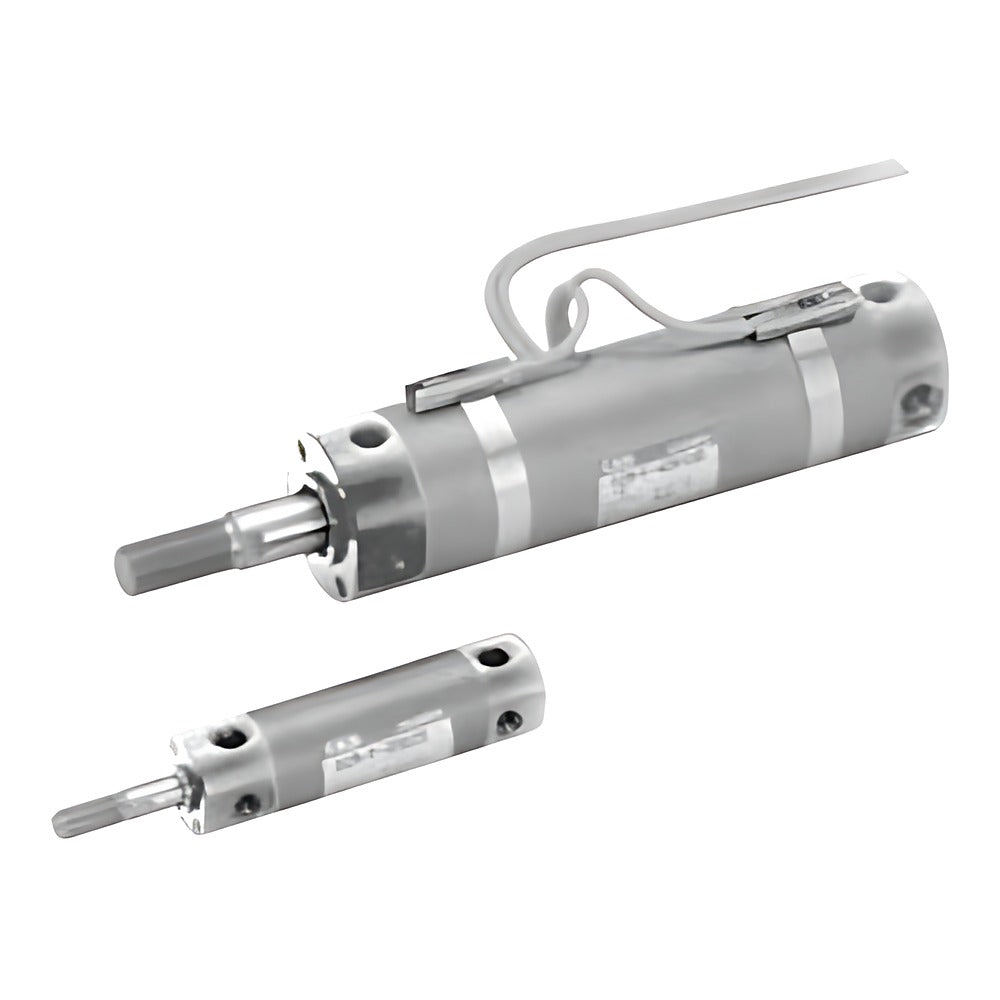

CKD SCM-Q Super Micro Cylinder, Drop Prevention (Bore 50-100)

CKD SCM-Q Super Micro Cylinder, Drop Prevention (Bore 50-100)

CKD SCM-Q super micro (round body) double-acting cylinder with a stroke-end drop-prevention lock, bore 50 to 100 mm.

Key features

  • Mechanical lock on the head end (H) or rod end (R) holds the piston at stroke end on air loss
  • Air cushion on both ends (B), rod end (R) or head end (H)
  • Mountings 00, LB, FA, FB, CA (ø20-63), CB (ø80-100), TA, TB (ø20-63); TA not with rod-end lock, TB not with head-end lock
  • Standard strokes 25 to 300 mm; 1 mm intermediate strokes up to 1000 mm (ø20-32) / 1500 mm (ø40-100) to order
  • Auto switch ready (built-in magnet); T0/T5/T8 reed and T1/T2/T3/T2W/T2Y/T2YD/T2J solid-state switches, rail or band (Z) mounting, ordered as suffix
  • Options Q (rail delivered), P6 (copper/PTFE free), rod-end accessories I/Y and brackets B1/B2 ordered as suffix

Specifications

Action Double acting with drop-prevention lock
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa (ø20-40), 0.1 MPa (ø50-100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 30 to 500 mm/s
Holding force Max. thrust x 0.7
Lubrication Not required
Source CKD Korea catalog CB-029SK-9, p. 370-379
SCM-Q-00-50B-25-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-25-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-50-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-50-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-75-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-75-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-100-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-100-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-125-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-125-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-150-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-150-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-200-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-200-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-250-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-250-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-300-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-300-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-25-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-25-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-50-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-50-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-75-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-75-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-100-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-100-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-125-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-125-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-150-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-150-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-200-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-200-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-250-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-250-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-300-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-300-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-25-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-25-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-50-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-50-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-75-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-75-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-100-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-100-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-125-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-125-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-150-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-150-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-200-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-200-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-250-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-250-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-300-R Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-300-H Mounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-25-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-25-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-50-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-50-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-75-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-75-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-100-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-100-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-125-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-125-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-150-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-150-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-200-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-200-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-250-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-250-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-300-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-300-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-25-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-25-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-50-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-50-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-75-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-75-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-100-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-100-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-125-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-125-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-150-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-150-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-200-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-200-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-250-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-250-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-300-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-300-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-25-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-25-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-50-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-50-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-75-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-75-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-100-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-100-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-125-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-125-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-150-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-150-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-200-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-200-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-250-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-250-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-300-R Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-300-H Mounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-25-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-25-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-50-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-50-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-75-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-75-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-100-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-100-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-125-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-125-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-150-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-150-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-200-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-200-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-250-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-250-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-300-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-300-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-25-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-25-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-50-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-50-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-75-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-75-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-100-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-100-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-125-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-125-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-150-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-150-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-200-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-200-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-250-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-250-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-300-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-300-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-25-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-25-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-50-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-50-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-75-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-75-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-100-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-100-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-125-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-125-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-150-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-150-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-200-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-200-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-250-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-250-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-300-R Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-300-H Mounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-25-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-25-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-50-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-50-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-75-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-75-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-100-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-100-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-125-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-125-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-150-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-150-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-200-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-200-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-250-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-250-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-300-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-300-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-25-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-25-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-50-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-50-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-75-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-75-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-100-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-100-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-125-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-125-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-150-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-150-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-200-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-200-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-250-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-250-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-300-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-300-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-25-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-25-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-50-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-50-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-75-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-75-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-100-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-100-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-125-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-125-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-150-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-150-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-200-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-200-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-250-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-250-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-300-R Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-300-H Mounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-25-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-25-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-50-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-50-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-75-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-75-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-100-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-100-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-125-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-125-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-150-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-150-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-200-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-200-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-250-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-250-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-300-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-300-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-25-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-25-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-50-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-50-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-75-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-75-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-100-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-100-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-125-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-125-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-150-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-150-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-200-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-200-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-250-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-250-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-300-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-300-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-25-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-25-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-50-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-50-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-75-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-75-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-100-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-100-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-125-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-125-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-150-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-150-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-200-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-200-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-250-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-250-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-300-R Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-300-H Mounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-25-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-50-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-75-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-100-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-125-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-150-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-200-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-250-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-300-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-25-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-50-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-75-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-100-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-125-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-150-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-200-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-250-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-300-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-25-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-50-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-75-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-100-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-125-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-150-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-200-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-250-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-300-H Mounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TB-50B-25-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-50-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-75-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-100-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-125-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-150-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-200-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-250-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-300-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-25-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-50-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-75-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-100-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-125-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-150-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-200-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-250-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-300-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-25-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-50-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-75-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-100-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-125-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-150-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-200-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-250-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-300-R Mounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-25-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-25-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-50-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-50-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-75-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-75-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-100-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-100-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-125-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-125-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-150-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-150-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-200-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-200-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-250-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-250-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-300-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-300-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-25-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-25-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-50-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-50-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-75-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-75-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-100-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-100-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-125-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-125-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-150-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-150-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-200-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-200-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-250-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-250-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-300-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-300-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-25-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-25-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-50-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-50-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-75-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-75-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-100-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-100-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-125-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-125-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-150-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-150-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-200-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-200-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-250-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-250-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-300-R Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-300-H Mounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-25-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-25-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-50-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-50-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-75-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-75-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-100-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-100-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-125-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-125-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-150-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-150-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-200-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-200-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-250-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-250-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-300-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-300-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-25-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-25-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-50-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-50-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-75-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-75-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-100-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-100-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-125-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-125-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-150-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-150-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-200-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-200-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-250-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-250-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-300-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-300-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-25-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-25-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-50-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-50-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-75-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-75-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-100-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-100-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-125-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-125-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-150-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-150-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-200-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-200-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-250-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-250-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-300-R Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-300-H Mounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-25-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-25-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-50-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-50-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-75-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-75-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-100-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-100-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-125-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-125-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-150-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-150-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-200-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-200-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-250-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-250-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-300-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-300-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-25-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-25-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-50-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-50-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-75-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-75-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-100-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-100-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-125-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-125-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-150-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-150-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-200-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-200-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-250-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-250-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-300-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-300-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-25-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-25-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-50-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-50-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-75-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-75-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-100-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-100-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-125-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-125-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-150-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-150-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-200-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-200-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-250-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-250-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-300-R Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-300-H Mounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-25-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-25-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-50-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-50-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-75-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-75-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-100-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-100-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-125-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-125-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-150-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-150-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-200-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-200-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-250-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-250-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-300-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-300-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-25-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-25-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-50-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-50-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-75-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-75-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-100-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-100-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-125-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-125-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-150-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-150-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-200-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-200-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-250-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-250-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-300-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-300-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-25-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-25-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-50-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-50-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-75-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-75-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-100-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-100-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-125-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-125-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-150-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-150-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-200-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-200-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-250-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-250-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-300-R Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-300-H Mounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-25-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-25-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-50-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-50-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-75-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-75-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-100-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-100-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-125-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-125-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-150-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-150-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-200-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-200-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-250-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-250-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-300-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-300-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-25-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-25-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-50-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-50-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-75-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-75-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-100-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-100-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-125-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-125-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-150-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-150-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-200-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-200-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-250-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-250-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-300-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-300-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-25-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-25-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-50-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-50-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-75-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-75-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-100-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-100-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-125-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-125-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-150-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-150-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-200-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-200-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-250-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-250-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-300-R Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-300-H Mounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-25-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-50-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-75-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-100-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-125-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-150-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-200-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-250-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-300-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-25-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-50-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-75-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-100-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-125-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-150-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-200-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-250-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-300-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-25-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-50-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-75-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-100-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-125-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-150-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-200-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-250-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-300-H Mounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TB-63B-25-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-50-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-75-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-100-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-125-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-150-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-200-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-250-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-300-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-25-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-50-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-75-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-100-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-125-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-150-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-200-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-250-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-300-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-25-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-50-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-75-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-100-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-125-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-150-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-200-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-250-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-300-R Mounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-80B-25-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-25-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-50-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-50-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-75-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-75-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-100-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-100-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-125-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-125-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-150-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-150-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-200-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-200-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-250-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-250-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-300-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-300-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-25-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-25-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-50-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-50-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-75-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-75-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-100-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-100-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-125-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-125-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-150-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-150-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-200-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-200-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-250-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-250-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-300-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-300-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-25-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-25-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-50-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-50-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-75-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-75-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-100-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-100-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-125-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-125-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-150-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-150-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-200-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-200-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-250-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-250-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-300-R Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-300-H Mounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-25-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-25-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-50-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-50-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-75-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-75-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-100-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-100-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-125-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-125-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-150-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-150-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-200-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-200-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-250-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-250-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-300-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-300-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-25-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-25-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-50-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-50-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-75-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-75-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-100-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-100-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-125-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-125-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-150-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-150-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-200-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-200-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-250-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-250-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-300-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-300-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-25-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-25-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-50-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-50-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-75-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-75-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-100-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-100-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-125-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-125-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-150-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-150-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-200-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-200-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-250-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-250-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-300-R Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-300-H Mounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-25-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-25-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-50-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-50-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-75-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-75-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-100-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-100-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-125-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-125-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-150-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-150-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-200-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-200-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-250-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-250-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-300-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-300-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-25-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-25-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-50-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-50-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-75-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-75-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-100-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-100-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-125-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-125-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-150-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-150-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-200-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-200-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-250-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-250-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-300-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-300-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-25-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-25-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-50-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-50-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-75-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-75-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-100-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-100-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-125-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-125-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-150-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-150-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-200-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-200-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-250-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-250-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-300-R Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-300-H Mounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-25-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-25-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-50-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-50-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-75-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-75-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-100-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-100-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-125-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-125-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-150-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-150-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-200-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-200-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-250-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-250-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-300-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-300-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-25-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-25-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-50-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-50-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-75-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-75-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-100-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-100-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-125-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-125-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-150-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-150-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-200-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-200-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-250-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-250-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-300-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-300-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-25-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-25-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-50-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-50-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-75-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-75-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-100-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-100-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-125-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-125-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-150-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-150-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-200-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-200-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-250-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-250-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-300-R Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-300-H Mounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-25-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-25-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-50-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-50-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-75-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-75-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-100-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-100-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-125-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-125-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-150-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-150-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-200-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-200-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-250-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-250-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-300-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-300-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-25-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-25-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-50-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-50-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-75-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-75-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-100-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-100-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-125-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-125-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-150-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-150-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-200-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-200-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-250-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-250-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-300-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-300-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-25-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-25-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-50-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-50-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-75-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-75-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-100-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-100-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-125-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-125-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-150-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-150-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-200-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-200-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-250-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-250-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-300-R Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-300-H Mounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-100B-25-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-25-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-50-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-50-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-75-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-75-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-100-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-100-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-125-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-125-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-150-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-150-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-200-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-200-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-250-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-250-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-300-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-300-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-25-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-25-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-50-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-50-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-75-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-75-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-100-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-100-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-125-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-125-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-150-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-150-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-200-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-200-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-250-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-250-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-300-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-300-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-25-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-25-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-50-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-50-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-75-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-75-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-100-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-100-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-125-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-125-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-150-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-150-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-200-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-200-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-250-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-250-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-300-R Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-300-H Mounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-25-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-25-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-50-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-50-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-75-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-75-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-100-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-100-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-125-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-125-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-150-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-150-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-200-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-200-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-250-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-250-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-300-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-300-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-25-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-25-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-50-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-50-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-75-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-75-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-100-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-100-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-125-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-125-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-150-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-150-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-200-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-200-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-250-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-250-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-300-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-300-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-25-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-25-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-50-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-50-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-75-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-75-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-100-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-100-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-125-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-125-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-150-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-150-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-200-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-200-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-250-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-250-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-300-R Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-300-H Mounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-25-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-25-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-50-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-50-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-75-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-75-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-100-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-100-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-125-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-125-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-150-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-150-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-200-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-200-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-250-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-250-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-300-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-300-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-25-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-25-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-50-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-50-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-75-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-75-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-100-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-100-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-125-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-125-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-150-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-150-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-200-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-200-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-250-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-250-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-300-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-300-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-25-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-25-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-50-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-50-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-75-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-75-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-100-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-100-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-125-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-125-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-150-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-150-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-200-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-200-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-250-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-250-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-300-R Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-300-H Mounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-25-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-25-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-50-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-50-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-75-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-75-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-100-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-100-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-125-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-125-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-150-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-150-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-200-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-200-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-250-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-250-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-300-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-300-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-25-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-25-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-50-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-50-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-75-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-75-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-100-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-100-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-125-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-125-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-150-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-150-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-200-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-200-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-250-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-250-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-300-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-300-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-25-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-25-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-50-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-50-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-75-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-75-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-100-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-100-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-125-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-125-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-150-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-150-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-200-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-200-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-250-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-250-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-300-R Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-300-H Mounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-25-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-25-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-50-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-50-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-75-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-75-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-100-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-100-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-125-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-125-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-150-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-150-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-200-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-200-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-250-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-250-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-300-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-300-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-25-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-25-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-50-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-50-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-75-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-75-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-100-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-100-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-125-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-125-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-150-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-150-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-200-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-200-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-250-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-250-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-300-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-300-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-25-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-25-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-50-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-50-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-75-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-75-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-100-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-100-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-125-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-125-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-150-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-150-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-200-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-200-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-250-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-250-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-300-R Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-300-H Mounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
Pneumatic CylindersCKD
1188 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-Q Super Micro Cylinder, Drop Prevention (Bore 50-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (1188)

SCM-Q-00-50B-25-R, SCM-Q-00-50B-25-H, SCM-Q-00-50B-50-R, SCM-Q-00-50B-50-H, SCM-Q-00-50B-75-R, SCM-Q-00-50B-75-H, SCM-Q-00-50B-100-R, SCM-Q-00-50B-100-H, SCM-Q-00-50B-125-R, SCM-Q-00-50B-125-H + 1178 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCM-Q-00-50B-25-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-25-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-50-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-50-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-75-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-75-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-100-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-100-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-125-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-125-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-150-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-150-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-200-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-200-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-250-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-250-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50B-300-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50B-300-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-25-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-25-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-50-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-50-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-75-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-75-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-100-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-100-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-125-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-125-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-150-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-150-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-200-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-200-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-250-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-250-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50R-300-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50R-300-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-25-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-25-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-50-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-50-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-75-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-75-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-100-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-100-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-125-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-125-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-150-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-150-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-200-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-200-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-250-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-250-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-50H-300-RMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-50H-300-HMounting: Basic (00) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-25-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-25-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-50-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-50-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-75-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-75-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-100-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-100-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-125-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-125-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-150-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-150-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-200-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-200-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-250-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-250-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50B-300-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50B-300-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-25-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-25-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-50-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-50-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-75-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-75-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-100-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-100-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-125-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-125-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-150-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-150-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-200-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-200-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-250-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-250-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50R-300-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50R-300-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-25-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-25-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-50-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-50-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-75-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-75-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-100-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-100-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-125-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-125-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-150-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-150-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-200-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-200-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-250-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-250-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-50H-300-RMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-50H-300-HMounting: Axial foot (LB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-25-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-25-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-50-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-50-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-75-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-75-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-100-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-100-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-125-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-125-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-150-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-150-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-200-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-200-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-250-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-250-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50B-300-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50B-300-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-25-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-25-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-50-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-50-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-75-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-75-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-100-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-100-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-125-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-125-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-150-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-150-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-200-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-200-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-250-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-250-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50R-300-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50R-300-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-25-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-25-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-50-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-50-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-75-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-75-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-100-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-100-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-125-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-125-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-150-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-150-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-200-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-200-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-250-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-250-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-50H-300-RMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-50H-300-HMounting: Rod-side flange (FA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-25-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-25-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-50-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-50-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-75-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-75-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-100-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-100-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-125-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-125-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-150-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-150-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-200-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-200-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-250-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-250-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50B-300-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50B-300-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-25-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-25-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-50-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-50-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-75-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-75-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-100-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-100-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-125-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-125-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-150-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-150-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-200-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-200-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-250-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-250-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50R-300-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50R-300-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-25-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-25-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-50-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-50-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-75-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-75-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-100-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-100-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-125-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-125-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-150-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-150-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-200-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-200-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-250-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-250-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-50H-300-RMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-50H-300-HMounting: Head-side flange (FB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-25-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-25-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-50-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-50-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-75-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-75-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-100-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-100-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-125-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-125-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-150-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-150-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-200-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-200-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-250-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-250-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50B-300-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50B-300-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-25-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-25-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-50-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-50-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-75-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-75-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-100-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-100-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-125-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-125-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-150-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-150-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-200-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-200-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-250-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-250-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50R-300-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50R-300-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-25-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-25-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-50-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-50-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-75-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-75-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-100-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-100-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-125-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-125-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-150-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-150-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-200-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-200-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-250-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-250-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-50H-300-RMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-50H-300-HMounting: Single clevis (CA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-25-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-50-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-75-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-100-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-125-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-150-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-200-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-250-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50B-300-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-25-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-50-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-75-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-100-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-125-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-150-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-200-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-250-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50R-300-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-25-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-50-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-75-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-100-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-125-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-150-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-200-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-250-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-50H-300-HMounting: Rod-side trunnion (TA) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TB-50B-25-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-50-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-75-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-100-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-125-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-150-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-200-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-250-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50B-300-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-25-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-50-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-75-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-100-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-125-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-150-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-200-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-250-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50R-300-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-25-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-50-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-75-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-100-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-125-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-150-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-200-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-250-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-50H-300-RMounting: Head-side trunnion (TB) | Bore: 50 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-25-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-25-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-50-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-50-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-75-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-75-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-100-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-100-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-125-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-125-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-150-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-150-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-200-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-200-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-250-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-250-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63B-300-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63B-300-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-25-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-25-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-50-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-50-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-75-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-75-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-100-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-100-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-125-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-125-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-150-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-150-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-200-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-200-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-250-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-250-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63R-300-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63R-300-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-25-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-25-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-50-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-50-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-75-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-75-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-100-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-100-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-125-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-125-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-150-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-150-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-200-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-200-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-250-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-250-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-00-63H-300-RMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-63H-300-HMounting: Basic (00) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-25-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-25-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-50-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-50-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-75-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-75-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-100-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-100-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-125-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-125-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-150-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-150-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-200-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-200-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-250-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-250-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63B-300-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63B-300-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-25-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-25-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-50-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-50-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-75-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-75-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-100-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-100-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-125-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-125-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-150-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-150-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-200-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-200-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-250-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-250-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63R-300-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63R-300-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-25-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-25-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-50-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-50-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-75-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-75-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-100-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-100-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-125-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-125-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-150-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-150-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-200-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-200-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-250-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-250-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-LB-63H-300-RMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-LB-63H-300-HMounting: Axial foot (LB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-25-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-25-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-50-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-50-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-75-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-75-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-100-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-100-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-125-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-125-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-150-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-150-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-200-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-200-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-250-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-250-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63B-300-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63B-300-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-25-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-25-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-50-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-50-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-75-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-75-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-100-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-100-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-125-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-125-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-150-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-150-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-200-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-200-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-250-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-250-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63R-300-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63R-300-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-25-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-25-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-50-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-50-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-75-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-75-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-100-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-100-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-125-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-125-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-150-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-150-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-200-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-200-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-250-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-250-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FA-63H-300-RMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FA-63H-300-HMounting: Rod-side flange (FA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-25-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-25-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-50-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-50-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-75-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-75-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-100-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-100-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-125-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-125-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-150-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-150-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-200-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-200-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-250-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-250-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63B-300-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63B-300-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-25-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-25-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-50-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-50-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-75-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-75-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-100-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-100-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-125-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-125-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-150-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-150-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-200-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-200-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-250-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-250-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63R-300-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63R-300-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-25-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-25-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-50-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-50-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-75-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-75-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-100-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-100-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-125-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-125-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-150-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-150-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-200-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-200-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-250-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-250-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-FB-63H-300-RMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-FB-63H-300-HMounting: Head-side flange (FB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-25-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-25-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-50-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-50-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-75-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-75-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-100-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-100-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-125-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-125-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-150-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-150-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-200-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-200-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-250-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-250-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63B-300-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63B-300-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-25-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-25-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-50-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-50-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-75-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-75-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-100-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-100-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-125-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-125-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-150-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-150-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-200-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-200-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-250-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-250-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63R-300-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63R-300-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-25-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-25-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-50-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-50-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-75-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-75-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-100-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-100-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-125-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-125-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-150-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-150-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-200-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-200-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-250-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-250-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-CA-63H-300-RMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-CA-63H-300-HMounting: Single clevis (CA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-25-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-50-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-75-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-100-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-125-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-150-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-200-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-250-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63B-300-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-25-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-50-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-75-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-100-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-125-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-150-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-200-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-250-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63R-300-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-25-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-50-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-75-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-100-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-125-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-150-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-200-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-250-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TA-63H-300-HMounting: Rod-side trunnion (TA) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/4
SCM-Q-TB-63B-25-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-50-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-75-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-100-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-125-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-150-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-200-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-250-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63B-300-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-25-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-50-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-75-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-100-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-125-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-150-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-200-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-250-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63R-300-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-25-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-50-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-75-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-100-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-125-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-150-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-200-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-250-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-TB-63H-300-RMounting: Head-side trunnion (TB) | Bore: 63 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/4
SCM-Q-00-80B-25-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-25-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-50-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-50-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-75-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-75-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-100-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-100-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-125-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-125-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-150-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-150-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-200-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-200-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-250-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-250-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80B-300-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80B-300-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-25-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-25-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-50-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-50-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-75-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-75-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-100-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-100-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-125-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-125-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-150-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-150-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-200-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-200-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-250-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-250-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80R-300-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80R-300-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-25-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-25-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-50-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-50-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-75-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-75-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-100-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-100-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-125-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-125-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-150-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-150-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-200-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-200-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-250-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-250-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-80H-300-RMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-00-80H-300-HMounting: Basic (00) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-25-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-25-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-50-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-50-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-75-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-75-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-100-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-100-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-125-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-125-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-150-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-150-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-200-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-200-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-250-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-250-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80B-300-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80B-300-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-25-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-25-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-50-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-50-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-75-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-75-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-100-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-100-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-125-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-125-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-150-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-150-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-200-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-200-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-250-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-250-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80R-300-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80R-300-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-25-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-25-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-50-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-50-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-75-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-75-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-100-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-100-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-125-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-125-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-150-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-150-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-200-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-200-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-250-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-250-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-LB-80H-300-RMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-LB-80H-300-HMounting: Axial foot (LB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-25-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-25-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-50-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-50-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-75-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-75-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-100-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-100-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-125-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-125-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-150-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-150-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-200-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-200-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-250-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-250-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80B-300-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80B-300-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-25-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-25-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-50-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-50-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-75-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-75-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-100-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-100-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-125-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-125-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-150-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-150-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-200-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-200-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-250-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-250-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80R-300-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80R-300-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-25-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-25-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-50-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-50-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-75-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-75-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-100-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-100-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-125-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-125-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-150-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-150-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-200-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-200-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-250-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-250-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FA-80H-300-RMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FA-80H-300-HMounting: Rod-side flange (FA) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-25-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-25-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-50-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-50-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-75-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-75-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-100-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-100-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-125-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-125-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-150-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-150-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-200-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-200-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-250-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-250-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80B-300-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80B-300-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-25-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-25-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-50-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-50-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-75-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-75-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-100-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-100-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-125-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-125-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-150-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-150-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-200-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-200-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-250-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-250-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80R-300-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80R-300-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-25-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-25-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-50-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-50-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-75-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-75-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-100-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-100-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-125-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-125-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-150-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-150-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-200-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-200-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-250-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-250-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-FB-80H-300-RMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-FB-80H-300-HMounting: Head-side flange (FB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-25-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-25-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-50-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-50-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-75-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-75-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-100-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-100-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-125-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-125-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-150-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-150-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-200-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-200-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-250-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-250-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80B-300-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80B-300-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-25-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-25-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-50-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-50-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-75-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-75-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-100-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-100-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-125-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-125-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-150-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-150-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-200-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-200-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-250-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-250-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80R-300-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80R-300-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-25-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-25-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-50-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-50-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-75-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-75-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-100-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-100-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-125-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-125-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-150-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-150-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-200-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-200-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-250-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-250-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc3/8
SCM-Q-CB-80H-300-RMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc3/8
SCM-Q-CB-80H-300-HMounting: Double clevis (CB) | Bore: 80 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc3/8
SCM-Q-00-100B-25-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-25-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-50-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-50-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-75-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-75-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-100-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-100-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-125-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-125-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-150-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-150-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-200-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-200-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-250-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-250-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100B-300-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100B-300-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-25-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-25-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-50-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-50-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-75-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-75-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-100-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-100-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-125-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-125-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-150-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-150-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-200-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-200-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-250-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-250-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100R-300-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100R-300-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-25-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-25-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-50-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-50-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-75-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-75-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-100-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-100-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-125-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-125-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-150-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-150-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-200-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-200-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-250-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-250-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-00-100H-300-RMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-00-100H-300-HMounting: Basic (00) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-25-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-25-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-50-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-50-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-75-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-75-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-100-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-100-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-125-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-125-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-150-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-150-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-200-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-200-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-250-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-250-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100B-300-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100B-300-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-25-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-25-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-50-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-50-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-75-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-75-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-100-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-100-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-125-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-125-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-150-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-150-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-200-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-200-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-250-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-250-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100R-300-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100R-300-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-25-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-25-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-50-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-50-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-75-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-75-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-100-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-100-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-125-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-125-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-150-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-150-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-200-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-200-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-250-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-250-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-LB-100H-300-RMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-LB-100H-300-HMounting: Axial foot (LB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-25-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-25-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-50-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-50-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-75-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-75-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-100-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-100-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-125-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-125-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-150-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-150-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-200-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-200-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-250-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-250-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100B-300-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100B-300-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-25-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-25-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-50-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-50-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-75-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-75-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-100-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-100-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-125-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-125-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-150-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-150-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-200-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-200-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-250-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-250-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100R-300-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100R-300-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-25-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-25-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-50-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-50-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-75-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-75-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-100-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-100-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-125-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-125-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-150-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-150-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-200-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-200-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-250-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-250-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FA-100H-300-RMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FA-100H-300-HMounting: Rod-side flange (FA) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-25-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-25-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-50-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-50-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-75-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-75-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-100-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-100-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-125-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-125-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-150-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-150-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-200-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-200-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-250-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-250-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100B-300-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100B-300-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-25-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-25-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-50-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-50-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-75-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-75-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-100-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-100-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-125-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-125-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-150-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-150-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-200-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-200-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-250-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-250-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100R-300-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100R-300-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-25-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-25-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-50-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-50-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-75-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-75-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-100-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-100-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-125-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-125-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-150-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-150-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-200-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-200-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-250-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-250-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-FB-100H-300-RMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-FB-100H-300-HMounting: Head-side flange (FB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-25-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-25-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-50-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-50-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-75-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-75-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-100-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-100-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-125-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-125-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-150-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-150-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-200-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-200-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-250-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-250-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100B-300-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100B-300-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, both ends | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-25-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-25-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-50-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-50-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-75-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-75-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-100-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-100-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-125-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-125-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-150-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-150-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-200-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-200-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-250-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-250-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100R-300-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100R-300-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, rod end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-25-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-25-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 25 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-50-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-50-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 50 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-75-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-75-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 75 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-100-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-100-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 100 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-125-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-125-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 125 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-150-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-150-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 150 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-200-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-200-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 200 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-250-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-250-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 250 mm | Lock: Head end | Port: Rc1/2
SCM-Q-CB-100H-300-RMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Rod end | Port: Rc1/2
SCM-Q-CB-100H-300-HMounting: Double clevis (CB) | Bore: 100 mm | Cushion: Air cushion, head end | Stroke: 300 mm | Lock: Head end | Port: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
