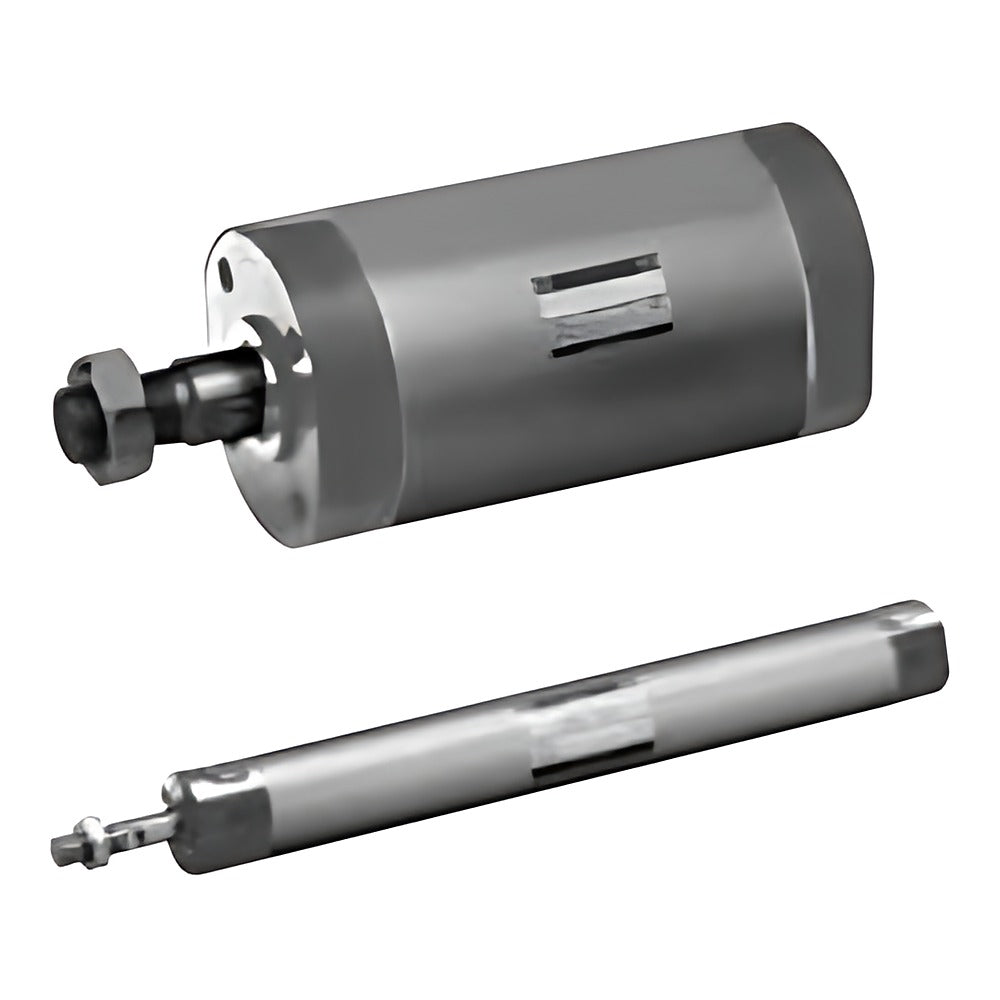

CKD SCM-R Super Micro Cylinder (Stroke Adjusting, Retract)

CKD SCM-R Super Micro Cylinder (Stroke Adjusting, Retract)

CKD SCM-R super micro cylinder is a double-acting cylinder with a stroke-adjusting mechanism on the retract side, bores 20-63 mm.

Key features

  • Stroke adjustable on the retract side within 25 or 50 mm
  • Rubber cushion (D); mounting styles 00, LB, FA, TA, TB
  • Standard strokes 25-300 mm, max. 1000/1500 mm (over 600 mm made to order)
  • LB, FB, TB brackets shipped assembled; FA and TA shipped with the product
  • Auto-switch magnet built in; rail mounting (standard) or band mounting (Z) for T-type switches
  • Switches ordered with suffix (e.g. -T2H-D); options J/L bellows, Q, M stainless rod, P6

Specifications

Bore sizes 20, 25, 32, 40, 50, 63 mm
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1/0.05 MPa (20-40/50-63)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C
Port size Rc1/8 (20-40), Rc1/4 (50-63)
Piston speed 30-1000 mm/s
Cushion Rubber cushion (D)
Source CKD Korea catalog CB-029SK-9, p. 360-365
SCM-R-00-20D-25-25 Mounting: Basic | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-00-20D-25-50 Mounting: Basic | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-00-20D-50-25 Mounting: Basic | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-00-20D-50-50 Mounting: Basic | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-00-20D-75-25 Mounting: Basic | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-00-20D-75-50 Mounting: Basic | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-00-20D-100-25 Mounting: Basic | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-00-20D-100-50 Mounting: Basic | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-00-20D-125-25 Mounting: Basic | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-00-20D-125-50 Mounting: Basic | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-00-20D-150-25 Mounting: Basic | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-00-20D-150-50 Mounting: Basic | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-00-20D-200-25 Mounting: Basic | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-00-20D-200-50 Mounting: Basic | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-00-20D-250-25 Mounting: Basic | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-00-20D-250-50 Mounting: Basic | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-00-20D-300-25 Mounting: Basic | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-00-20D-300-50 Mounting: Basic | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-LB-20D-25-25 Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-LB-20D-25-50 Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-LB-20D-50-25 Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-LB-20D-50-50 Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-LB-20D-75-25 Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-LB-20D-75-50 Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-LB-20D-100-25 Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-LB-20D-100-50 Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-LB-20D-125-25 Mounting: Axial foot | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-LB-20D-125-50 Mounting: Axial foot | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-LB-20D-150-25 Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-LB-20D-150-50 Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-LB-20D-200-25 Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-LB-20D-200-50 Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-LB-20D-250-25 Mounting: Axial foot | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-LB-20D-250-50 Mounting: Axial foot | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-LB-20D-300-25 Mounting: Axial foot | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-LB-20D-300-50 Mounting: Axial foot | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-FA-20D-25-25 Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-FA-20D-25-50 Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-FA-20D-50-25 Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-FA-20D-50-50 Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-FA-20D-75-25 Mounting: Rod flange | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-FA-20D-75-50 Mounting: Rod flange | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-FA-20D-100-25 Mounting: Rod flange | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-FA-20D-100-50 Mounting: Rod flange | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-FA-20D-125-25 Mounting: Rod flange | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-FA-20D-125-50 Mounting: Rod flange | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-FA-20D-150-25 Mounting: Rod flange | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-FA-20D-150-50 Mounting: Rod flange | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-FA-20D-200-25 Mounting: Rod flange | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-FA-20D-200-50 Mounting: Rod flange | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-FA-20D-250-25 Mounting: Rod flange | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-FA-20D-250-50 Mounting: Rod flange | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-FA-20D-300-25 Mounting: Rod flange | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-FA-20D-300-50 Mounting: Rod flange | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TA-20D-25-25 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TA-20D-25-50 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TA-20D-50-25 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TA-20D-50-50 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TA-20D-75-25 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TA-20D-75-50 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TA-20D-100-25 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TA-20D-100-50 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TA-20D-125-25 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TA-20D-125-50 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TA-20D-150-25 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TA-20D-150-50 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TA-20D-200-25 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TA-20D-200-50 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TA-20D-250-25 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TA-20D-250-50 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TA-20D-300-25 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TA-20D-300-50 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TB-20D-25-25 Mounting: Head trunnion | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TB-20D-25-50 Mounting: Head trunnion | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TB-20D-50-25 Mounting: Head trunnion | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TB-20D-50-50 Mounting: Head trunnion | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TB-20D-75-25 Mounting: Head trunnion | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TB-20D-75-50 Mounting: Head trunnion | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TB-20D-100-25 Mounting: Head trunnion | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TB-20D-100-50 Mounting: Head trunnion | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TB-20D-125-25 Mounting: Head trunnion | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TB-20D-125-50 Mounting: Head trunnion | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TB-20D-150-25 Mounting: Head trunnion | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TB-20D-150-50 Mounting: Head trunnion | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TB-20D-200-25 Mounting: Head trunnion | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TB-20D-200-50 Mounting: Head trunnion | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TB-20D-250-25 Mounting: Head trunnion | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TB-20D-250-50 Mounting: Head trunnion | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TB-20D-300-25 Mounting: Head trunnion | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TB-20D-300-50 Mounting: Head trunnion | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-00-25D-25-25 Mounting: Basic | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-00-25D-25-50 Mounting: Basic | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-00-25D-50-25 Mounting: Basic | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-00-25D-50-50 Mounting: Basic | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-00-25D-75-25 Mounting: Basic | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-00-25D-75-50 Mounting: Basic | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-00-25D-100-25 Mounting: Basic | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-00-25D-100-50 Mounting: Basic | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-00-25D-125-25 Mounting: Basic | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-00-25D-125-50 Mounting: Basic | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-00-25D-150-25 Mounting: Basic | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-00-25D-150-50 Mounting: Basic | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-00-25D-200-25 Mounting: Basic | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-00-25D-200-50 Mounting: Basic | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-00-25D-250-25 Mounting: Basic | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-00-25D-250-50 Mounting: Basic | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-00-25D-300-25 Mounting: Basic | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-00-25D-300-50 Mounting: Basic | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-LB-25D-25-25 Mounting: Axial foot | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-LB-25D-25-50 Mounting: Axial foot | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-LB-25D-50-25 Mounting: Axial foot | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-LB-25D-50-50 Mounting: Axial foot | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-LB-25D-75-25 Mounting: Axial foot | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-LB-25D-75-50 Mounting: Axial foot | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-LB-25D-100-25 Mounting: Axial foot | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-LB-25D-100-50 Mounting: Axial foot | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-LB-25D-125-25 Mounting: Axial foot | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-LB-25D-125-50 Mounting: Axial foot | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-LB-25D-150-25 Mounting: Axial foot | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-LB-25D-150-50 Mounting: Axial foot | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-LB-25D-200-25 Mounting: Axial foot | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-LB-25D-200-50 Mounting: Axial foot | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-LB-25D-250-25 Mounting: Axial foot | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-LB-25D-250-50 Mounting: Axial foot | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-LB-25D-300-25 Mounting: Axial foot | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-LB-25D-300-50 Mounting: Axial foot | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-FA-25D-25-25 Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-FA-25D-25-50 Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-FA-25D-50-25 Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-FA-25D-50-50 Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-FA-25D-75-25 Mounting: Rod flange | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-FA-25D-75-50 Mounting: Rod flange | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-FA-25D-100-25 Mounting: Rod flange | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-FA-25D-100-50 Mounting: Rod flange | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-FA-25D-125-25 Mounting: Rod flange | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-FA-25D-125-50 Mounting: Rod flange | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-FA-25D-150-25 Mounting: Rod flange | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-FA-25D-150-50 Mounting: Rod flange | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-FA-25D-200-25 Mounting: Rod flange | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-FA-25D-200-50 Mounting: Rod flange | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-FA-25D-250-25 Mounting: Rod flange | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-FA-25D-250-50 Mounting: Rod flange | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-FA-25D-300-25 Mounting: Rod flange | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-FA-25D-300-50 Mounting: Rod flange | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TA-25D-25-25 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TA-25D-25-50 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TA-25D-50-25 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TA-25D-50-50 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TA-25D-75-25 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TA-25D-75-50 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TA-25D-100-25 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TA-25D-100-50 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TA-25D-125-25 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TA-25D-125-50 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TA-25D-150-25 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TA-25D-150-50 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TA-25D-200-25 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TA-25D-200-50 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TA-25D-250-25 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TA-25D-250-50 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TA-25D-300-25 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TA-25D-300-50 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TB-25D-25-25 Mounting: Head trunnion | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TB-25D-25-50 Mounting: Head trunnion | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TB-25D-50-25 Mounting: Head trunnion | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TB-25D-50-50 Mounting: Head trunnion | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TB-25D-75-25 Mounting: Head trunnion | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TB-25D-75-50 Mounting: Head trunnion | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TB-25D-100-25 Mounting: Head trunnion | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TB-25D-100-50 Mounting: Head trunnion | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TB-25D-125-25 Mounting: Head trunnion | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TB-25D-125-50 Mounting: Head trunnion | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TB-25D-150-25 Mounting: Head trunnion | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TB-25D-150-50 Mounting: Head trunnion | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TB-25D-200-25 Mounting: Head trunnion | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TB-25D-200-50 Mounting: Head trunnion | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TB-25D-250-25 Mounting: Head trunnion | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TB-25D-250-50 Mounting: Head trunnion | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TB-25D-300-25 Mounting: Head trunnion | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TB-25D-300-50 Mounting: Head trunnion | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-00-32D-25-25 Mounting: Basic | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-00-32D-25-50 Mounting: Basic | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-00-32D-50-25 Mounting: Basic | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-00-32D-50-50 Mounting: Basic | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-00-32D-75-25 Mounting: Basic | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-00-32D-75-50 Mounting: Basic | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-00-32D-100-25 Mounting: Basic | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-00-32D-100-50 Mounting: Basic | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-00-32D-125-25 Mounting: Basic | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-00-32D-125-50 Mounting: Basic | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-00-32D-150-25 Mounting: Basic | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-00-32D-150-50 Mounting: Basic | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-00-32D-200-25 Mounting: Basic | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-00-32D-200-50 Mounting: Basic | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-00-32D-250-25 Mounting: Basic | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-00-32D-250-50 Mounting: Basic | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-00-32D-300-25 Mounting: Basic | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-00-32D-300-50 Mounting: Basic | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-LB-32D-25-25 Mounting: Axial foot | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-LB-32D-25-50 Mounting: Axial foot | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-LB-32D-50-25 Mounting: Axial foot | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-LB-32D-50-50 Mounting: Axial foot | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-LB-32D-75-25 Mounting: Axial foot | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-LB-32D-75-50 Mounting: Axial foot | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-LB-32D-100-25 Mounting: Axial foot | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-LB-32D-100-50 Mounting: Axial foot | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-LB-32D-125-25 Mounting: Axial foot | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-LB-32D-125-50 Mounting: Axial foot | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-LB-32D-150-25 Mounting: Axial foot | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-LB-32D-150-50 Mounting: Axial foot | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-LB-32D-200-25 Mounting: Axial foot | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-LB-32D-200-50 Mounting: Axial foot | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-LB-32D-250-25 Mounting: Axial foot | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-LB-32D-250-50 Mounting: Axial foot | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-LB-32D-300-25 Mounting: Axial foot | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-LB-32D-300-50 Mounting: Axial foot | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-FA-32D-25-25 Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-FA-32D-25-50 Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-FA-32D-50-25 Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-FA-32D-50-50 Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-FA-32D-75-25 Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-FA-32D-75-50 Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-FA-32D-100-25 Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-FA-32D-100-50 Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-FA-32D-125-25 Mounting: Rod flange | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-FA-32D-125-50 Mounting: Rod flange | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-FA-32D-150-25 Mounting: Rod flange | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-FA-32D-150-50 Mounting: Rod flange | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-FA-32D-200-25 Mounting: Rod flange | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-FA-32D-200-50 Mounting: Rod flange | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-FA-32D-250-25 Mounting: Rod flange | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-FA-32D-250-50 Mounting: Rod flange | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-FA-32D-300-25 Mounting: Rod flange | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-FA-32D-300-50 Mounting: Rod flange | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TA-32D-25-25 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TA-32D-25-50 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TA-32D-50-25 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TA-32D-50-50 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TA-32D-75-25 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TA-32D-75-50 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TA-32D-100-25 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TA-32D-100-50 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TA-32D-125-25 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TA-32D-125-50 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TA-32D-150-25 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TA-32D-150-50 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TA-32D-200-25 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TA-32D-200-50 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TA-32D-250-25 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TA-32D-250-50 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TA-32D-300-25 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TA-32D-300-50 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TB-32D-25-25 Mounting: Head trunnion | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TB-32D-25-50 Mounting: Head trunnion | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TB-32D-50-25 Mounting: Head trunnion | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TB-32D-50-50 Mounting: Head trunnion | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TB-32D-75-25 Mounting: Head trunnion | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TB-32D-75-50 Mounting: Head trunnion | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TB-32D-100-25 Mounting: Head trunnion | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TB-32D-100-50 Mounting: Head trunnion | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TB-32D-125-25 Mounting: Head trunnion | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TB-32D-125-50 Mounting: Head trunnion | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TB-32D-150-25 Mounting: Head trunnion | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TB-32D-150-50 Mounting: Head trunnion | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TB-32D-200-25 Mounting: Head trunnion | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TB-32D-200-50 Mounting: Head trunnion | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TB-32D-250-25 Mounting: Head trunnion | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TB-32D-250-50 Mounting: Head trunnion | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TB-32D-300-25 Mounting: Head trunnion | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TB-32D-300-50 Mounting: Head trunnion | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-00-40D-25-25 Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-00-40D-25-50 Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-00-40D-50-25 Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-00-40D-50-50 Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-00-40D-75-25 Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-00-40D-75-50 Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-00-40D-100-25 Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-00-40D-100-50 Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-00-40D-125-25 Mounting: Basic | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-00-40D-125-50 Mounting: Basic | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-00-40D-150-25 Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-00-40D-150-50 Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-00-40D-200-25 Mounting: Basic | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-00-40D-200-50 Mounting: Basic | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-00-40D-250-25 Mounting: Basic | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-00-40D-250-50 Mounting: Basic | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-00-40D-300-25 Mounting: Basic | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-00-40D-300-50 Mounting: Basic | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-LB-40D-25-25 Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-LB-40D-25-50 Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-LB-40D-50-25 Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-LB-40D-50-50 Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-LB-40D-75-25 Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-LB-40D-75-50 Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-LB-40D-100-25 Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-LB-40D-100-50 Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-LB-40D-125-25 Mounting: Axial foot | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-LB-40D-125-50 Mounting: Axial foot | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-LB-40D-150-25 Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-LB-40D-150-50 Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-LB-40D-200-25 Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-LB-40D-200-50 Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-LB-40D-250-25 Mounting: Axial foot | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-LB-40D-250-50 Mounting: Axial foot | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-LB-40D-300-25 Mounting: Axial foot | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-LB-40D-300-50 Mounting: Axial foot | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-FA-40D-25-25 Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-FA-40D-25-50 Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-FA-40D-50-25 Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-FA-40D-50-50 Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-FA-40D-75-25 Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-FA-40D-75-50 Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-FA-40D-100-25 Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-FA-40D-100-50 Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-FA-40D-125-25 Mounting: Rod flange | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-FA-40D-125-50 Mounting: Rod flange | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-FA-40D-150-25 Mounting: Rod flange | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-FA-40D-150-50 Mounting: Rod flange | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-FA-40D-200-25 Mounting: Rod flange | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-FA-40D-200-50 Mounting: Rod flange | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-FA-40D-250-25 Mounting: Rod flange | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-FA-40D-250-50 Mounting: Rod flange | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-FA-40D-300-25 Mounting: Rod flange | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-FA-40D-300-50 Mounting: Rod flange | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TA-40D-25-25 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TA-40D-25-50 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TA-40D-50-25 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TA-40D-50-50 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TA-40D-75-25 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TA-40D-75-50 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TA-40D-100-25 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TA-40D-100-50 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TA-40D-125-25 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TA-40D-125-50 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TA-40D-150-25 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TA-40D-150-50 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TA-40D-200-25 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TA-40D-200-50 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TA-40D-250-25 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TA-40D-250-50 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TA-40D-300-25 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TA-40D-300-50 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TB-40D-25-25 Mounting: Head trunnion | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TB-40D-25-50 Mounting: Head trunnion | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TB-40D-50-25 Mounting: Head trunnion | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TB-40D-50-50 Mounting: Head trunnion | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TB-40D-75-25 Mounting: Head trunnion | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TB-40D-75-50 Mounting: Head trunnion | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TB-40D-100-25 Mounting: Head trunnion | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TB-40D-100-50 Mounting: Head trunnion | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TB-40D-125-25 Mounting: Head trunnion | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TB-40D-125-50 Mounting: Head trunnion | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TB-40D-150-25 Mounting: Head trunnion | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TB-40D-150-50 Mounting: Head trunnion | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TB-40D-200-25 Mounting: Head trunnion | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TB-40D-200-50 Mounting: Head trunnion | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TB-40D-250-25 Mounting: Head trunnion | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TB-40D-250-50 Mounting: Head trunnion | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TB-40D-300-25 Mounting: Head trunnion | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TB-40D-300-50 Mounting: Head trunnion | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-00-50D-25-25 Mounting: Basic | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-00-50D-25-50 Mounting: Basic | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-00-50D-50-25 Mounting: Basic | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-00-50D-50-50 Mounting: Basic | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-00-50D-75-25 Mounting: Basic | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-00-50D-75-50 Mounting: Basic | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-00-50D-100-25 Mounting: Basic | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-00-50D-100-50 Mounting: Basic | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-00-50D-125-25 Mounting: Basic | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-00-50D-125-50 Mounting: Basic | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-00-50D-150-25 Mounting: Basic | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-00-50D-150-50 Mounting: Basic | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-00-50D-200-25 Mounting: Basic | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-00-50D-200-50 Mounting: Basic | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-00-50D-250-25 Mounting: Basic | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-00-50D-250-50 Mounting: Basic | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-00-50D-300-25 Mounting: Basic | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-00-50D-300-50 Mounting: Basic | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-LB-50D-25-25 Mounting: Axial foot | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-LB-50D-25-50 Mounting: Axial foot | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-LB-50D-50-25 Mounting: Axial foot | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-LB-50D-50-50 Mounting: Axial foot | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-LB-50D-75-25 Mounting: Axial foot | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-LB-50D-75-50 Mounting: Axial foot | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-LB-50D-100-25 Mounting: Axial foot | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-LB-50D-100-50 Mounting: Axial foot | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-LB-50D-125-25 Mounting: Axial foot | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-LB-50D-125-50 Mounting: Axial foot | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-LB-50D-150-25 Mounting: Axial foot | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-LB-50D-150-50 Mounting: Axial foot | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-LB-50D-200-25 Mounting: Axial foot | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-LB-50D-200-50 Mounting: Axial foot | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-LB-50D-250-25 Mounting: Axial foot | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-LB-50D-250-50 Mounting: Axial foot | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-LB-50D-300-25 Mounting: Axial foot | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-LB-50D-300-50 Mounting: Axial foot | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-FA-50D-25-25 Mounting: Rod flange | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-FA-50D-25-50 Mounting: Rod flange | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-FA-50D-50-25 Mounting: Rod flange | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-FA-50D-50-50 Mounting: Rod flange | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-FA-50D-75-25 Mounting: Rod flange | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-FA-50D-75-50 Mounting: Rod flange | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-FA-50D-100-25 Mounting: Rod flange | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-FA-50D-100-50 Mounting: Rod flange | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-FA-50D-125-25 Mounting: Rod flange | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-FA-50D-125-50 Mounting: Rod flange | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-FA-50D-150-25 Mounting: Rod flange | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-FA-50D-150-50 Mounting: Rod flange | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-FA-50D-200-25 Mounting: Rod flange | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-FA-50D-200-50 Mounting: Rod flange | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-FA-50D-250-25 Mounting: Rod flange | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-FA-50D-250-50 Mounting: Rod flange | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-FA-50D-300-25 Mounting: Rod flange | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-FA-50D-300-50 Mounting: Rod flange | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TA-50D-25-25 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TA-50D-25-50 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TA-50D-50-25 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TA-50D-50-50 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TA-50D-75-25 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TA-50D-75-50 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TA-50D-100-25 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TA-50D-100-50 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TA-50D-125-25 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TA-50D-125-50 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TA-50D-150-25 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TA-50D-150-50 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TA-50D-200-25 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TA-50D-200-50 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TA-50D-250-25 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TA-50D-250-50 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TA-50D-300-25 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TA-50D-300-50 Mounting: Rod trunnion | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TB-50D-25-25 Mounting: Head trunnion | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TB-50D-25-50 Mounting: Head trunnion | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TB-50D-50-25 Mounting: Head trunnion | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TB-50D-50-50 Mounting: Head trunnion | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TB-50D-75-25 Mounting: Head trunnion | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TB-50D-75-50 Mounting: Head trunnion | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TB-50D-100-25 Mounting: Head trunnion | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TB-50D-100-50 Mounting: Head trunnion | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TB-50D-125-25 Mounting: Head trunnion | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TB-50D-125-50 Mounting: Head trunnion | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TB-50D-150-25 Mounting: Head trunnion | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TB-50D-150-50 Mounting: Head trunnion | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TB-50D-200-25 Mounting: Head trunnion | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TB-50D-200-50 Mounting: Head trunnion | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TB-50D-250-25 Mounting: Head trunnion | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TB-50D-250-50 Mounting: Head trunnion | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TB-50D-300-25 Mounting: Head trunnion | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TB-50D-300-50 Mounting: Head trunnion | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-00-63D-25-25 Mounting: Basic | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-00-63D-25-50 Mounting: Basic | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-00-63D-50-25 Mounting: Basic | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-00-63D-50-50 Mounting: Basic | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-00-63D-75-25 Mounting: Basic | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-00-63D-75-50 Mounting: Basic | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-00-63D-100-25 Mounting: Basic | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-00-63D-100-50 Mounting: Basic | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-00-63D-125-25 Mounting: Basic | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-00-63D-125-50 Mounting: Basic | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-00-63D-150-25 Mounting: Basic | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-00-63D-150-50 Mounting: Basic | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-00-63D-200-25 Mounting: Basic | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-00-63D-200-50 Mounting: Basic | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-00-63D-250-25 Mounting: Basic | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-00-63D-250-50 Mounting: Basic | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-00-63D-300-25 Mounting: Basic | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-00-63D-300-50 Mounting: Basic | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-LB-63D-25-25 Mounting: Axial foot | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-LB-63D-25-50 Mounting: Axial foot | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-LB-63D-50-25 Mounting: Axial foot | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-LB-63D-50-50 Mounting: Axial foot | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-LB-63D-75-25 Mounting: Axial foot | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-LB-63D-75-50 Mounting: Axial foot | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-LB-63D-100-25 Mounting: Axial foot | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-LB-63D-100-50 Mounting: Axial foot | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-LB-63D-125-25 Mounting: Axial foot | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-LB-63D-125-50 Mounting: Axial foot | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-LB-63D-150-25 Mounting: Axial foot | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-LB-63D-150-50 Mounting: Axial foot | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-LB-63D-200-25 Mounting: Axial foot | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-LB-63D-200-50 Mounting: Axial foot | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-LB-63D-250-25 Mounting: Axial foot | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-LB-63D-250-50 Mounting: Axial foot | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-LB-63D-300-25 Mounting: Axial foot | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-LB-63D-300-50 Mounting: Axial foot | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-FA-63D-25-25 Mounting: Rod flange | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-FA-63D-25-50 Mounting: Rod flange | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-FA-63D-50-25 Mounting: Rod flange | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-FA-63D-50-50 Mounting: Rod flange | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-FA-63D-75-25 Mounting: Rod flange | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-FA-63D-75-50 Mounting: Rod flange | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-FA-63D-100-25 Mounting: Rod flange | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-FA-63D-100-50 Mounting: Rod flange | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-FA-63D-125-25 Mounting: Rod flange | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-FA-63D-125-50 Mounting: Rod flange | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-FA-63D-150-25 Mounting: Rod flange | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-FA-63D-150-50 Mounting: Rod flange | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-FA-63D-200-25 Mounting: Rod flange | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-FA-63D-200-50 Mounting: Rod flange | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-FA-63D-250-25 Mounting: Rod flange | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-FA-63D-250-50 Mounting: Rod flange | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-FA-63D-300-25 Mounting: Rod flange | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-FA-63D-300-50 Mounting: Rod flange | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TA-63D-25-25 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TA-63D-25-50 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TA-63D-50-25 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TA-63D-50-50 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TA-63D-75-25 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TA-63D-75-50 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TA-63D-100-25 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TA-63D-100-50 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TA-63D-125-25 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TA-63D-125-50 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TA-63D-150-25 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TA-63D-150-50 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TA-63D-200-25 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TA-63D-200-50 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TA-63D-250-25 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TA-63D-250-50 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TA-63D-300-25 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TA-63D-300-50 Mounting: Rod trunnion | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TB-63D-25-25 Mounting: Head trunnion | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TB-63D-25-50 Mounting: Head trunnion | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TB-63D-50-25 Mounting: Head trunnion | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TB-63D-50-50 Mounting: Head trunnion | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TB-63D-75-25 Mounting: Head trunnion | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TB-63D-75-50 Mounting: Head trunnion | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TB-63D-100-25 Mounting: Head trunnion | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TB-63D-100-50 Mounting: Head trunnion | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TB-63D-125-25 Mounting: Head trunnion | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TB-63D-125-50 Mounting: Head trunnion | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TB-63D-150-25 Mounting: Head trunnion | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TB-63D-150-50 Mounting: Head trunnion | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TB-63D-200-25 Mounting: Head trunnion | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TB-63D-200-50 Mounting: Head trunnion | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TB-63D-250-25 Mounting: Head trunnion | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TB-63D-250-50 Mounting: Head trunnion | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TB-63D-300-25 Mounting: Head trunnion | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TB-63D-300-50 Mounting: Head trunnion | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 50 mm
Pneumatic CylindersCKD
540 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-R Super Micro Cylinder (Stroke Adjusting, Retract)

Brand CKD·Pneumatic Cylinders

Available part numbers (540)

SCM-R-00-20D-25-25, SCM-R-00-20D-25-50, SCM-R-00-20D-50-25, SCM-R-00-20D-50-50, SCM-R-00-20D-75-25, SCM-R-00-20D-75-50, SCM-R-00-20D-100-25, SCM-R-00-20D-100-50, SCM-R-00-20D-125-25, SCM-R-00-20D-125-50 + 530 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCM-R-00-20D-25-25Mounting: Basic | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-00-20D-25-50Mounting: Basic | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-00-20D-50-25Mounting: Basic | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-00-20D-50-50Mounting: Basic | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-00-20D-75-25Mounting: Basic | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-00-20D-75-50Mounting: Basic | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-00-20D-100-25Mounting: Basic | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-00-20D-100-50Mounting: Basic | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-00-20D-125-25Mounting: Basic | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-00-20D-125-50Mounting: Basic | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-00-20D-150-25Mounting: Basic | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-00-20D-150-50Mounting: Basic | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-00-20D-200-25Mounting: Basic | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-00-20D-200-50Mounting: Basic | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-00-20D-250-25Mounting: Basic | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-00-20D-250-50Mounting: Basic | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-00-20D-300-25Mounting: Basic | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-00-20D-300-50Mounting: Basic | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-LB-20D-25-25Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-LB-20D-25-50Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-LB-20D-50-25Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-LB-20D-50-50Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-LB-20D-75-25Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-LB-20D-75-50Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-LB-20D-100-25Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-LB-20D-100-50Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-LB-20D-125-25Mounting: Axial foot | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-LB-20D-125-50Mounting: Axial foot | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-LB-20D-150-25Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-LB-20D-150-50Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-LB-20D-200-25Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-LB-20D-200-50Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-LB-20D-250-25Mounting: Axial foot | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-LB-20D-250-50Mounting: Axial foot | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-LB-20D-300-25Mounting: Axial foot | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-LB-20D-300-50Mounting: Axial foot | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-FA-20D-25-25Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-FA-20D-25-50Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-FA-20D-50-25Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-FA-20D-50-50Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-FA-20D-75-25Mounting: Rod flange | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-FA-20D-75-50Mounting: Rod flange | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-FA-20D-100-25Mounting: Rod flange | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-FA-20D-100-50Mounting: Rod flange | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-FA-20D-125-25Mounting: Rod flange | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-FA-20D-125-50Mounting: Rod flange | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-FA-20D-150-25Mounting: Rod flange | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-FA-20D-150-50Mounting: Rod flange | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-FA-20D-200-25Mounting: Rod flange | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-FA-20D-200-50Mounting: Rod flange | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-FA-20D-250-25Mounting: Rod flange | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-FA-20D-250-50Mounting: Rod flange | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-FA-20D-300-25Mounting: Rod flange | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-FA-20D-300-50Mounting: Rod flange | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TA-20D-25-25Mounting: Rod trunnion | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TA-20D-25-50Mounting: Rod trunnion | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TA-20D-50-25Mounting: Rod trunnion | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TA-20D-50-50Mounting: Rod trunnion | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TA-20D-75-25Mounting: Rod trunnion | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TA-20D-75-50Mounting: Rod trunnion | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TA-20D-100-25Mounting: Rod trunnion | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TA-20D-100-50Mounting: Rod trunnion | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TA-20D-125-25Mounting: Rod trunnion | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TA-20D-125-50Mounting: Rod trunnion | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TA-20D-150-25Mounting: Rod trunnion | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TA-20D-150-50Mounting: Rod trunnion | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TA-20D-200-25Mounting: Rod trunnion | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TA-20D-200-50Mounting: Rod trunnion | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TA-20D-250-25Mounting: Rod trunnion | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TA-20D-250-50Mounting: Rod trunnion | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TA-20D-300-25Mounting: Rod trunnion | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TA-20D-300-50Mounting: Rod trunnion | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TB-20D-25-25Mounting: Head trunnion | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TB-20D-25-50Mounting: Head trunnion | Bore: 20 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TB-20D-50-25Mounting: Head trunnion | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TB-20D-50-50Mounting: Head trunnion | Bore: 20 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TB-20D-75-25Mounting: Head trunnion | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TB-20D-75-50Mounting: Head trunnion | Bore: 20 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TB-20D-100-25Mounting: Head trunnion | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TB-20D-100-50Mounting: Head trunnion | Bore: 20 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TB-20D-125-25Mounting: Head trunnion | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TB-20D-125-50Mounting: Head trunnion | Bore: 20 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TB-20D-150-25Mounting: Head trunnion | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TB-20D-150-50Mounting: Head trunnion | Bore: 20 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TB-20D-200-25Mounting: Head trunnion | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TB-20D-200-50Mounting: Head trunnion | Bore: 20 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TB-20D-250-25Mounting: Head trunnion | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TB-20D-250-50Mounting: Head trunnion | Bore: 20 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TB-20D-300-25Mounting: Head trunnion | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TB-20D-300-50Mounting: Head trunnion | Bore: 20 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-00-25D-25-25Mounting: Basic | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-00-25D-25-50Mounting: Basic | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-00-25D-50-25Mounting: Basic | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-00-25D-50-50Mounting: Basic | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-00-25D-75-25Mounting: Basic | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-00-25D-75-50Mounting: Basic | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-00-25D-100-25Mounting: Basic | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-00-25D-100-50Mounting: Basic | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-00-25D-125-25Mounting: Basic | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-00-25D-125-50Mounting: Basic | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-00-25D-150-25Mounting: Basic | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-00-25D-150-50Mounting: Basic | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-00-25D-200-25Mounting: Basic | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-00-25D-200-50Mounting: Basic | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-00-25D-250-25Mounting: Basic | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-00-25D-250-50Mounting: Basic | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-00-25D-300-25Mounting: Basic | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-00-25D-300-50Mounting: Basic | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-LB-25D-25-25Mounting: Axial foot | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-LB-25D-25-50Mounting: Axial foot | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-LB-25D-50-25Mounting: Axial foot | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-LB-25D-50-50Mounting: Axial foot | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-LB-25D-75-25Mounting: Axial foot | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-LB-25D-75-50Mounting: Axial foot | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-LB-25D-100-25Mounting: Axial foot | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-LB-25D-100-50Mounting: Axial foot | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-LB-25D-125-25Mounting: Axial foot | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-LB-25D-125-50Mounting: Axial foot | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-LB-25D-150-25Mounting: Axial foot | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-LB-25D-150-50Mounting: Axial foot | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-LB-25D-200-25Mounting: Axial foot | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-LB-25D-200-50Mounting: Axial foot | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-LB-25D-250-25Mounting: Axial foot | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-LB-25D-250-50Mounting: Axial foot | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-LB-25D-300-25Mounting: Axial foot | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-LB-25D-300-50Mounting: Axial foot | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-FA-25D-25-25Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-FA-25D-25-50Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-FA-25D-50-25Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-FA-25D-50-50Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-FA-25D-75-25Mounting: Rod flange | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-FA-25D-75-50Mounting: Rod flange | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-FA-25D-100-25Mounting: Rod flange | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-FA-25D-100-50Mounting: Rod flange | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-FA-25D-125-25Mounting: Rod flange | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-FA-25D-125-50Mounting: Rod flange | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-FA-25D-150-25Mounting: Rod flange | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-FA-25D-150-50Mounting: Rod flange | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-FA-25D-200-25Mounting: Rod flange | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-FA-25D-200-50Mounting: Rod flange | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-FA-25D-250-25Mounting: Rod flange | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-FA-25D-250-50Mounting: Rod flange | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-FA-25D-300-25Mounting: Rod flange | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-FA-25D-300-50Mounting: Rod flange | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TA-25D-25-25Mounting: Rod trunnion | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TA-25D-25-50Mounting: Rod trunnion | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TA-25D-50-25Mounting: Rod trunnion | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TA-25D-50-50Mounting: Rod trunnion | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TA-25D-75-25Mounting: Rod trunnion | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TA-25D-75-50Mounting: Rod trunnion | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TA-25D-100-25Mounting: Rod trunnion | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TA-25D-100-50Mounting: Rod trunnion | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TA-25D-125-25Mounting: Rod trunnion | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TA-25D-125-50Mounting: Rod trunnion | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TA-25D-150-25Mounting: Rod trunnion | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TA-25D-150-50Mounting: Rod trunnion | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TA-25D-200-25Mounting: Rod trunnion | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TA-25D-200-50Mounting: Rod trunnion | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TA-25D-250-25Mounting: Rod trunnion | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TA-25D-250-50Mounting: Rod trunnion | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TA-25D-300-25Mounting: Rod trunnion | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TA-25D-300-50Mounting: Rod trunnion | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TB-25D-25-25Mounting: Head trunnion | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TB-25D-25-50Mounting: Head trunnion | Bore: 25 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TB-25D-50-25Mounting: Head trunnion | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TB-25D-50-50Mounting: Head trunnion | Bore: 25 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TB-25D-75-25Mounting: Head trunnion | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TB-25D-75-50Mounting: Head trunnion | Bore: 25 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TB-25D-100-25Mounting: Head trunnion | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TB-25D-100-50Mounting: Head trunnion | Bore: 25 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TB-25D-125-25Mounting: Head trunnion | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TB-25D-125-50Mounting: Head trunnion | Bore: 25 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TB-25D-150-25Mounting: Head trunnion | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TB-25D-150-50Mounting: Head trunnion | Bore: 25 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TB-25D-200-25Mounting: Head trunnion | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TB-25D-200-50Mounting: Head trunnion | Bore: 25 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TB-25D-250-25Mounting: Head trunnion | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TB-25D-250-50Mounting: Head trunnion | Bore: 25 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TB-25D-300-25Mounting: Head trunnion | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TB-25D-300-50Mounting: Head trunnion | Bore: 25 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-00-32D-25-25Mounting: Basic | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-00-32D-25-50Mounting: Basic | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-00-32D-50-25Mounting: Basic | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-00-32D-50-50Mounting: Basic | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-00-32D-75-25Mounting: Basic | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-00-32D-75-50Mounting: Basic | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-00-32D-100-25Mounting: Basic | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-00-32D-100-50Mounting: Basic | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-00-32D-125-25Mounting: Basic | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-00-32D-125-50Mounting: Basic | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-00-32D-150-25Mounting: Basic | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-00-32D-150-50Mounting: Basic | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-00-32D-200-25Mounting: Basic | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-00-32D-200-50Mounting: Basic | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-00-32D-250-25Mounting: Basic | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-00-32D-250-50Mounting: Basic | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-00-32D-300-25Mounting: Basic | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-00-32D-300-50Mounting: Basic | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-LB-32D-25-25Mounting: Axial foot | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-LB-32D-25-50Mounting: Axial foot | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-LB-32D-50-25Mounting: Axial foot | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-LB-32D-50-50Mounting: Axial foot | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-LB-32D-75-25Mounting: Axial foot | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-LB-32D-75-50Mounting: Axial foot | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-LB-32D-100-25Mounting: Axial foot | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-LB-32D-100-50Mounting: Axial foot | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-LB-32D-125-25Mounting: Axial foot | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-LB-32D-125-50Mounting: Axial foot | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-LB-32D-150-25Mounting: Axial foot | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-LB-32D-150-50Mounting: Axial foot | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-LB-32D-200-25Mounting: Axial foot | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-LB-32D-200-50Mounting: Axial foot | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-LB-32D-250-25Mounting: Axial foot | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-LB-32D-250-50Mounting: Axial foot | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-LB-32D-300-25Mounting: Axial foot | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-LB-32D-300-50Mounting: Axial foot | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-FA-32D-25-25Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-FA-32D-25-50Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-FA-32D-50-25Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-FA-32D-50-50Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-FA-32D-75-25Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-FA-32D-75-50Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-FA-32D-100-25Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-FA-32D-100-50Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-FA-32D-125-25Mounting: Rod flange | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-FA-32D-125-50Mounting: Rod flange | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-FA-32D-150-25Mounting: Rod flange | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-FA-32D-150-50Mounting: Rod flange | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-FA-32D-200-25Mounting: Rod flange | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-FA-32D-200-50Mounting: Rod flange | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-FA-32D-250-25Mounting: Rod flange | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-FA-32D-250-50Mounting: Rod flange | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-FA-32D-300-25Mounting: Rod flange | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-FA-32D-300-50Mounting: Rod flange | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TA-32D-25-25Mounting: Rod trunnion | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TA-32D-25-50Mounting: Rod trunnion | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TA-32D-50-25Mounting: Rod trunnion | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TA-32D-50-50Mounting: Rod trunnion | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TA-32D-75-25Mounting: Rod trunnion | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TA-32D-75-50Mounting: Rod trunnion | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TA-32D-100-25Mounting: Rod trunnion | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TA-32D-100-50Mounting: Rod trunnion | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TA-32D-125-25Mounting: Rod trunnion | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TA-32D-125-50Mounting: Rod trunnion | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TA-32D-150-25Mounting: Rod trunnion | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TA-32D-150-50Mounting: Rod trunnion | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TA-32D-200-25Mounting: Rod trunnion | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TA-32D-200-50Mounting: Rod trunnion | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TA-32D-250-25Mounting: Rod trunnion | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TA-32D-250-50Mounting: Rod trunnion | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TA-32D-300-25Mounting: Rod trunnion | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TA-32D-300-50Mounting: Rod trunnion | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TB-32D-25-25Mounting: Head trunnion | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TB-32D-25-50Mounting: Head trunnion | Bore: 32 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TB-32D-50-25Mounting: Head trunnion | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TB-32D-50-50Mounting: Head trunnion | Bore: 32 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TB-32D-75-25Mounting: Head trunnion | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TB-32D-75-50Mounting: Head trunnion | Bore: 32 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TB-32D-100-25Mounting: Head trunnion | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TB-32D-100-50Mounting: Head trunnion | Bore: 32 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TB-32D-125-25Mounting: Head trunnion | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TB-32D-125-50Mounting: Head trunnion | Bore: 32 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TB-32D-150-25Mounting: Head trunnion | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TB-32D-150-50Mounting: Head trunnion | Bore: 32 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TB-32D-200-25Mounting: Head trunnion | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TB-32D-200-50Mounting: Head trunnion | Bore: 32 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TB-32D-250-25Mounting: Head trunnion | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TB-32D-250-50Mounting: Head trunnion | Bore: 32 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TB-32D-300-25Mounting: Head trunnion | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TB-32D-300-50Mounting: Head trunnion | Bore: 32 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-00-40D-25-25Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-00-40D-25-50Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-00-40D-50-25Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-00-40D-50-50Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-00-40D-75-25Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-00-40D-75-50Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-00-40D-100-25Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-00-40D-100-50Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-00-40D-125-25Mounting: Basic | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-00-40D-125-50Mounting: Basic | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-00-40D-150-25Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-00-40D-150-50Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-00-40D-200-25Mounting: Basic | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-00-40D-200-50Mounting: Basic | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-00-40D-250-25Mounting: Basic | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-00-40D-250-50Mounting: Basic | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-00-40D-300-25Mounting: Basic | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-00-40D-300-50Mounting: Basic | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-LB-40D-25-25Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-LB-40D-25-50Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-LB-40D-50-25Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-LB-40D-50-50Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-LB-40D-75-25Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-LB-40D-75-50Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-LB-40D-100-25Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-LB-40D-100-50Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-LB-40D-125-25Mounting: Axial foot | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-LB-40D-125-50Mounting: Axial foot | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-LB-40D-150-25Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-LB-40D-150-50Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-LB-40D-200-25Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-LB-40D-200-50Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-LB-40D-250-25Mounting: Axial foot | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-LB-40D-250-50Mounting: Axial foot | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-LB-40D-300-25Mounting: Axial foot | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-LB-40D-300-50Mounting: Axial foot | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-FA-40D-25-25Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-FA-40D-25-50Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-FA-40D-50-25Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-FA-40D-50-50Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-FA-40D-75-25Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-FA-40D-75-50Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-FA-40D-100-25Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-FA-40D-100-50Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-FA-40D-125-25Mounting: Rod flange | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-FA-40D-125-50Mounting: Rod flange | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-FA-40D-150-25Mounting: Rod flange | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-FA-40D-150-50Mounting: Rod flange | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-FA-40D-200-25Mounting: Rod flange | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-FA-40D-200-50Mounting: Rod flange | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-FA-40D-250-25Mounting: Rod flange | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-FA-40D-250-50Mounting: Rod flange | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-FA-40D-300-25Mounting: Rod flange | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-FA-40D-300-50Mounting: Rod flange | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TA-40D-25-25Mounting: Rod trunnion | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TA-40D-25-50Mounting: Rod trunnion | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TA-40D-50-25Mounting: Rod trunnion | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TA-40D-50-50Mounting: Rod trunnion | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TA-40D-75-25Mounting: Rod trunnion | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TA-40D-75-50Mounting: Rod trunnion | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TA-40D-100-25Mounting: Rod trunnion | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TA-40D-100-50Mounting: Rod trunnion | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TA-40D-125-25Mounting: Rod trunnion | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TA-40D-125-50Mounting: Rod trunnion | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TA-40D-150-25Mounting: Rod trunnion | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TA-40D-150-50Mounting: Rod trunnion | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TA-40D-200-25Mounting: Rod trunnion | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TA-40D-200-50Mounting: Rod trunnion | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TA-40D-250-25Mounting: Rod trunnion | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TA-40D-250-50Mounting: Rod trunnion | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TA-40D-300-25Mounting: Rod trunnion | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TA-40D-300-50Mounting: Rod trunnion | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TB-40D-25-25Mounting: Head trunnion | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TB-40D-25-50Mounting: Head trunnion | Bore: 40 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TB-40D-50-25Mounting: Head trunnion | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TB-40D-50-50Mounting: Head trunnion | Bore: 40 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TB-40D-75-25Mounting: Head trunnion | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TB-40D-75-50Mounting: Head trunnion | Bore: 40 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TB-40D-100-25Mounting: Head trunnion | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TB-40D-100-50Mounting: Head trunnion | Bore: 40 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TB-40D-125-25Mounting: Head trunnion | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TB-40D-125-50Mounting: Head trunnion | Bore: 40 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TB-40D-150-25Mounting: Head trunnion | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TB-40D-150-50Mounting: Head trunnion | Bore: 40 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TB-40D-200-25Mounting: Head trunnion | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TB-40D-200-50Mounting: Head trunnion | Bore: 40 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TB-40D-250-25Mounting: Head trunnion | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TB-40D-250-50Mounting: Head trunnion | Bore: 40 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TB-40D-300-25Mounting: Head trunnion | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TB-40D-300-50Mounting: Head trunnion | Bore: 40 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-00-50D-25-25Mounting: Basic | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-00-50D-25-50Mounting: Basic | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-00-50D-50-25Mounting: Basic | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-00-50D-50-50Mounting: Basic | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-00-50D-75-25Mounting: Basic | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-00-50D-75-50Mounting: Basic | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-00-50D-100-25Mounting: Basic | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-00-50D-100-50Mounting: Basic | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-00-50D-125-25Mounting: Basic | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-00-50D-125-50Mounting: Basic | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-00-50D-150-25Mounting: Basic | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-00-50D-150-50Mounting: Basic | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-00-50D-200-25Mounting: Basic | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-00-50D-200-50Mounting: Basic | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-00-50D-250-25Mounting: Basic | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-00-50D-250-50Mounting: Basic | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-00-50D-300-25Mounting: Basic | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-00-50D-300-50Mounting: Basic | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-LB-50D-25-25Mounting: Axial foot | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-LB-50D-25-50Mounting: Axial foot | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-LB-50D-50-25Mounting: Axial foot | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-LB-50D-50-50Mounting: Axial foot | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-LB-50D-75-25Mounting: Axial foot | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-LB-50D-75-50Mounting: Axial foot | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-LB-50D-100-25Mounting: Axial foot | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-LB-50D-100-50Mounting: Axial foot | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-LB-50D-125-25Mounting: Axial foot | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-LB-50D-125-50Mounting: Axial foot | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-LB-50D-150-25Mounting: Axial foot | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-LB-50D-150-50Mounting: Axial foot | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-LB-50D-200-25Mounting: Axial foot | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-LB-50D-200-50Mounting: Axial foot | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-LB-50D-250-25Mounting: Axial foot | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-LB-50D-250-50Mounting: Axial foot | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-LB-50D-300-25Mounting: Axial foot | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-LB-50D-300-50Mounting: Axial foot | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-FA-50D-25-25Mounting: Rod flange | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-FA-50D-25-50Mounting: Rod flange | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-FA-50D-50-25Mounting: Rod flange | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-FA-50D-50-50Mounting: Rod flange | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-FA-50D-75-25Mounting: Rod flange | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-FA-50D-75-50Mounting: Rod flange | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-FA-50D-100-25Mounting: Rod flange | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-FA-50D-100-50Mounting: Rod flange | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-FA-50D-125-25Mounting: Rod flange | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-FA-50D-125-50Mounting: Rod flange | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-FA-50D-150-25Mounting: Rod flange | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-FA-50D-150-50Mounting: Rod flange | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-FA-50D-200-25Mounting: Rod flange | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-FA-50D-200-50Mounting: Rod flange | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-FA-50D-250-25Mounting: Rod flange | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-FA-50D-250-50Mounting: Rod flange | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-FA-50D-300-25Mounting: Rod flange | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-FA-50D-300-50Mounting: Rod flange | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TA-50D-25-25Mounting: Rod trunnion | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TA-50D-25-50Mounting: Rod trunnion | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TA-50D-50-25Mounting: Rod trunnion | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TA-50D-50-50Mounting: Rod trunnion | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TA-50D-75-25Mounting: Rod trunnion | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TA-50D-75-50Mounting: Rod trunnion | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TA-50D-100-25Mounting: Rod trunnion | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TA-50D-100-50Mounting: Rod trunnion | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TA-50D-125-25Mounting: Rod trunnion | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TA-50D-125-50Mounting: Rod trunnion | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TA-50D-150-25Mounting: Rod trunnion | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TA-50D-150-50Mounting: Rod trunnion | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TA-50D-200-25Mounting: Rod trunnion | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TA-50D-200-50Mounting: Rod trunnion | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TA-50D-250-25Mounting: Rod trunnion | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TA-50D-250-50Mounting: Rod trunnion | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TA-50D-300-25Mounting: Rod trunnion | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TA-50D-300-50Mounting: Rod trunnion | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TB-50D-25-25Mounting: Head trunnion | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TB-50D-25-50Mounting: Head trunnion | Bore: 50 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TB-50D-50-25Mounting: Head trunnion | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TB-50D-50-50Mounting: Head trunnion | Bore: 50 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TB-50D-75-25Mounting: Head trunnion | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TB-50D-75-50Mounting: Head trunnion | Bore: 50 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TB-50D-100-25Mounting: Head trunnion | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TB-50D-100-50Mounting: Head trunnion | Bore: 50 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TB-50D-125-25Mounting: Head trunnion | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TB-50D-125-50Mounting: Head trunnion | Bore: 50 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TB-50D-150-25Mounting: Head trunnion | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TB-50D-150-50Mounting: Head trunnion | Bore: 50 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TB-50D-200-25Mounting: Head trunnion | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TB-50D-200-50Mounting: Head trunnion | Bore: 50 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TB-50D-250-25Mounting: Head trunnion | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TB-50D-250-50Mounting: Head trunnion | Bore: 50 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TB-50D-300-25Mounting: Head trunnion | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TB-50D-300-50Mounting: Head trunnion | Bore: 50 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-00-63D-25-25Mounting: Basic | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-00-63D-25-50Mounting: Basic | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-00-63D-50-25Mounting: Basic | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-00-63D-50-50Mounting: Basic | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-00-63D-75-25Mounting: Basic | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-00-63D-75-50Mounting: Basic | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-00-63D-100-25Mounting: Basic | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-00-63D-100-50Mounting: Basic | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-00-63D-125-25Mounting: Basic | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-00-63D-125-50Mounting: Basic | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-00-63D-150-25Mounting: Basic | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-00-63D-150-50Mounting: Basic | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-00-63D-200-25Mounting: Basic | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-00-63D-200-50Mounting: Basic | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-00-63D-250-25Mounting: Basic | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-00-63D-250-50Mounting: Basic | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-00-63D-300-25Mounting: Basic | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-00-63D-300-50Mounting: Basic | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-LB-63D-25-25Mounting: Axial foot | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-LB-63D-25-50Mounting: Axial foot | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-LB-63D-50-25Mounting: Axial foot | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-LB-63D-50-50Mounting: Axial foot | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-LB-63D-75-25Mounting: Axial foot | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-LB-63D-75-50Mounting: Axial foot | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-LB-63D-100-25Mounting: Axial foot | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-LB-63D-100-50Mounting: Axial foot | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-LB-63D-125-25Mounting: Axial foot | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-LB-63D-125-50Mounting: Axial foot | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-LB-63D-150-25Mounting: Axial foot | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-LB-63D-150-50Mounting: Axial foot | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-LB-63D-200-25Mounting: Axial foot | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-LB-63D-200-50Mounting: Axial foot | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-LB-63D-250-25Mounting: Axial foot | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-LB-63D-250-50Mounting: Axial foot | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-LB-63D-300-25Mounting: Axial foot | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-LB-63D-300-50Mounting: Axial foot | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-FA-63D-25-25Mounting: Rod flange | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-FA-63D-25-50Mounting: Rod flange | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-FA-63D-50-25Mounting: Rod flange | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-FA-63D-50-50Mounting: Rod flange | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-FA-63D-75-25Mounting: Rod flange | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-FA-63D-75-50Mounting: Rod flange | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-FA-63D-100-25Mounting: Rod flange | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-FA-63D-100-50Mounting: Rod flange | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-FA-63D-125-25Mounting: Rod flange | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-FA-63D-125-50Mounting: Rod flange | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-FA-63D-150-25Mounting: Rod flange | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-FA-63D-150-50Mounting: Rod flange | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-FA-63D-200-25Mounting: Rod flange | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-FA-63D-200-50Mounting: Rod flange | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-FA-63D-250-25Mounting: Rod flange | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-FA-63D-250-50Mounting: Rod flange | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-FA-63D-300-25Mounting: Rod flange | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-FA-63D-300-50Mounting: Rod flange | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TA-63D-25-25Mounting: Rod trunnion | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TA-63D-25-50Mounting: Rod trunnion | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TA-63D-50-25Mounting: Rod trunnion | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TA-63D-50-50Mounting: Rod trunnion | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TA-63D-75-25Mounting: Rod trunnion | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TA-63D-75-50Mounting: Rod trunnion | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TA-63D-100-25Mounting: Rod trunnion | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TA-63D-100-50Mounting: Rod trunnion | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TA-63D-125-25Mounting: Rod trunnion | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TA-63D-125-50Mounting: Rod trunnion | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TA-63D-150-25Mounting: Rod trunnion | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TA-63D-150-50Mounting: Rod trunnion | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TA-63D-200-25Mounting: Rod trunnion | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TA-63D-200-50Mounting: Rod trunnion | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TA-63D-250-25Mounting: Rod trunnion | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TA-63D-250-50Mounting: Rod trunnion | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TA-63D-300-25Mounting: Rod trunnion | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TA-63D-300-50Mounting: Rod trunnion | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 50 mm
SCM-R-TB-63D-25-25Mounting: Head trunnion | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 25 mm
SCM-R-TB-63D-25-50Mounting: Head trunnion | Bore: 63 mm | Stroke: 25 mm | Adjustment range: 50 mm
SCM-R-TB-63D-50-25Mounting: Head trunnion | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 25 mm
SCM-R-TB-63D-50-50Mounting: Head trunnion | Bore: 63 mm | Stroke: 50 mm | Adjustment range: 50 mm
SCM-R-TB-63D-75-25Mounting: Head trunnion | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 25 mm
SCM-R-TB-63D-75-50Mounting: Head trunnion | Bore: 63 mm | Stroke: 75 mm | Adjustment range: 50 mm
SCM-R-TB-63D-100-25Mounting: Head trunnion | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 25 mm
SCM-R-TB-63D-100-50Mounting: Head trunnion | Bore: 63 mm | Stroke: 100 mm | Adjustment range: 50 mm
SCM-R-TB-63D-125-25Mounting: Head trunnion | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 25 mm
SCM-R-TB-63D-125-50Mounting: Head trunnion | Bore: 63 mm | Stroke: 125 mm | Adjustment range: 50 mm
SCM-R-TB-63D-150-25Mounting: Head trunnion | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 25 mm
SCM-R-TB-63D-150-50Mounting: Head trunnion | Bore: 63 mm | Stroke: 150 mm | Adjustment range: 50 mm
SCM-R-TB-63D-200-25Mounting: Head trunnion | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 25 mm
SCM-R-TB-63D-200-50Mounting: Head trunnion | Bore: 63 mm | Stroke: 200 mm | Adjustment range: 50 mm
SCM-R-TB-63D-250-25Mounting: Head trunnion | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 25 mm
SCM-R-TB-63D-250-50Mounting: Head trunnion | Bore: 63 mm | Stroke: 250 mm | Adjustment range: 50 mm
SCM-R-TB-63D-300-25Mounting: Head trunnion | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 25 mm
SCM-R-TB-63D-300-50Mounting: Head trunnion | Bore: 63 mm | Stroke: 300 mm | Adjustment range: 50 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
