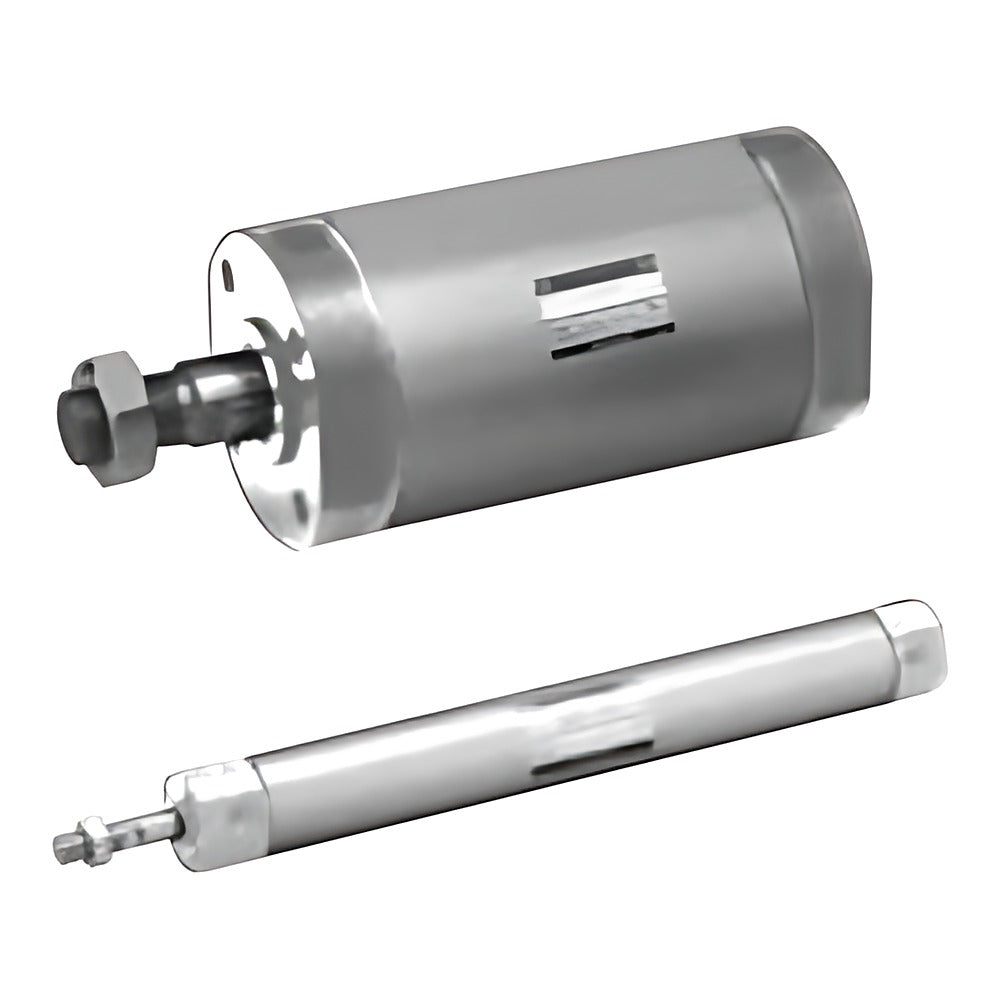

CKD SCM Super Micro Cylinder (Double Acting, Bore 20-40)

CKD SCM super micro cylinder is a double-acting single-rod round-body cylinder with selectable rubber or air cushions; this product covers bores 20-40 mm.

Key features

Cushion B/R/H air cushion or D rubber cushion
Mounting styles 00, LB, FA, FB, CA, TA, TB
Standard strokes 25-300 mm; up to 1000 mm (bore 20-32) / 1500 mm (bore 40) in 1 mm steps
Auto-switch magnet built in; rail mounting (standard) or band mounting (Z) for T-type switches
Switches ordered with suffix (e.g. -T2H-D); options J/L bellows, Q, M stainless rod, P6
Brackets supplied with the product (shipped assembled when bellows are fitted); I/Y/B1/B2 accessories separate

Specifications

Bore sizes	20, 25, 32, 40 mm
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Piston speed	30-1000 mm/s
Lubrication	Not required
Min. operating pressure	0.1 MPa
Port size	Rc1/8 (M5 for 20/25 with air cushion)
Source	CKD Korea catalog CB-029SK-9, p. 316-341

SCM-00-20B-25		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-00-20B-50		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-00-20B-75		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-00-20B-100		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-00-20B-125		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-00-20B-150		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-00-20B-200		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-00-20B-250		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-00-20B-300		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-00-20R-25		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-00-20R-50		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-00-20R-75		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-00-20R-100		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-00-20R-125		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-00-20R-150		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-00-20R-200		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-00-20R-250		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-00-20R-300		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-00-20H-25		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-00-20H-50		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-00-20H-75		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-00-20H-100		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-00-20H-125		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-00-20H-150		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-00-20H-200		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-00-20H-250		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-00-20H-300		Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-00-20D-25		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-00-20D-50		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-00-20D-75		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-00-20D-100		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-00-20D-125		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-00-20D-150		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-00-20D-200		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-00-20D-250		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-00-20D-300		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-LB-20B-25		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-LB-20B-50		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-LB-20B-75		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-LB-20B-100		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-LB-20B-125		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-LB-20B-150		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-LB-20B-200		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-LB-20B-250		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-LB-20B-300		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-LB-20R-25		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-LB-20R-50		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-LB-20R-75		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-LB-20R-100		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-LB-20R-125		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-LB-20R-150		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-LB-20R-200		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-LB-20R-250		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-LB-20R-300		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-LB-20H-25		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-LB-20H-50		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-LB-20H-75		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-LB-20H-100		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-LB-20H-125		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-LB-20H-150		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-LB-20H-200		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-LB-20H-250		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-LB-20H-300		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-LB-20D-25		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-LB-20D-50		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-LB-20D-75		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-LB-20D-100		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-LB-20D-125		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-LB-20D-150		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-LB-20D-200		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-LB-20D-250		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-LB-20D-300		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-FA-20B-25		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FA-20B-50		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FA-20B-75		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FA-20B-100		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FA-20B-125		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FA-20B-150		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FA-20B-200		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-FA-20B-250		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-FA-20B-300		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-FA-20R-25		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FA-20R-50		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FA-20R-75		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FA-20R-100		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FA-20R-125		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FA-20R-150		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FA-20R-200		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-FA-20R-250		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-FA-20R-300		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-FA-20H-25		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FA-20H-50		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FA-20H-75		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FA-20H-100		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FA-20H-125		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FA-20H-150		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FA-20H-200		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-FA-20H-250		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-FA-20H-300		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-FA-20D-25		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FA-20D-50		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FA-20D-75		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FA-20D-100		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FA-20D-125		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FA-20D-150		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FA-20D-200		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-FA-20D-250		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-FA-20D-300		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-FB-20B-25		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FB-20B-50		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FB-20B-75		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FB-20B-100		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FB-20B-125		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FB-20B-150		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FB-20B-200		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-FB-20B-250		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-FB-20B-300		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-FB-20R-25		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FB-20R-50		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FB-20R-75		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FB-20R-100		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FB-20R-125		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FB-20R-150		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FB-20R-200		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-FB-20R-250		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-FB-20R-300		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-FB-20H-25		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FB-20H-50		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FB-20H-75		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FB-20H-100		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FB-20H-125		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FB-20H-150		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FB-20H-200		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-FB-20H-250		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-FB-20H-300		Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-FB-20D-25		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FB-20D-50		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FB-20D-75		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FB-20D-100		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FB-20D-125		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FB-20D-150		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FB-20D-200		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-FB-20D-250		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-FB-20D-300		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-CA-20B-25		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-CA-20B-50		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-CA-20B-75		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-CA-20B-100		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-CA-20B-125		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-CA-20B-150		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-CA-20B-200		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-CA-20B-250		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-CA-20B-300		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-CA-20R-25		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-CA-20R-50		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-CA-20R-75		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-CA-20R-100		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-CA-20R-125		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-CA-20R-150		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-CA-20R-200		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-CA-20R-250		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-CA-20R-300		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-CA-20H-25		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-CA-20H-50		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-CA-20H-75		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-CA-20H-100		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-CA-20H-125		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-CA-20H-150		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-CA-20H-200		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-CA-20H-250		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-CA-20H-300		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-CA-20D-25		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-CA-20D-50		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-CA-20D-75		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-CA-20D-100		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-CA-20D-125		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-CA-20D-150		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-CA-20D-200		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-CA-20D-250		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-CA-20D-300		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-TA-20B-25		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TA-20B-50		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TA-20B-75		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TA-20B-100		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TA-20B-125		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TA-20B-150		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TA-20B-200		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-TA-20B-250		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-TA-20B-300		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-TA-20R-25		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TA-20R-50		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TA-20R-75		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TA-20R-100		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TA-20R-125		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TA-20R-150		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TA-20R-200		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-TA-20R-250		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-TA-20R-300		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-TA-20H-25		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TA-20H-50		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TA-20H-75		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TA-20H-100		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TA-20H-125		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TA-20H-150		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TA-20H-200		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-TA-20H-250		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-TA-20H-300		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-TA-20D-25		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TA-20D-50		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TA-20D-75		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TA-20D-100		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TA-20D-125		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TA-20D-150		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TA-20D-200		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-TA-20D-250		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-TA-20D-300		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-TB-20B-25		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TB-20B-50		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TB-20B-75		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TB-20B-100		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TB-20B-125		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TB-20B-150		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TB-20B-200		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-TB-20B-250		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-TB-20B-300		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-TB-20R-25		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TB-20R-50		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TB-20R-75		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TB-20R-100		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TB-20R-125		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TB-20R-150		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TB-20R-200		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-TB-20R-250		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-TB-20R-300		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-TB-20H-25		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TB-20H-50		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TB-20H-75		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TB-20H-100		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TB-20H-125		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TB-20H-150		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TB-20H-200		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-TB-20H-250		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-TB-20H-300		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-TB-20D-25		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TB-20D-50		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TB-20D-75		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TB-20D-100		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TB-20D-125		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TB-20D-150		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TB-20D-200		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-TB-20D-250		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-TB-20D-300		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-00-25B-25		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-00-25B-50		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-00-25B-75		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-00-25B-100		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-00-25B-125		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-00-25B-150		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-00-25B-200		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-00-25B-250		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-00-25B-300		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-00-25R-25		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-00-25R-50		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-00-25R-75		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-00-25R-100		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-00-25R-125		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-00-25R-150		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-00-25R-200		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-00-25R-250		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-00-25R-300		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-00-25H-25		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-00-25H-50		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-00-25H-75		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-00-25H-100		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-00-25H-125		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-00-25H-150		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-00-25H-200		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-00-25H-250		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-00-25H-300		Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-00-25D-25		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-00-25D-50		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-00-25D-75		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-00-25D-100		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-00-25D-125		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-00-25D-150		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-00-25D-200		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-00-25D-250		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-00-25D-300		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-LB-25B-25		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-LB-25B-50		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-LB-25B-75		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-LB-25B-100		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-LB-25B-125		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-LB-25B-150		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-LB-25B-200		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-LB-25B-250		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-LB-25B-300		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-LB-25R-25		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-LB-25R-50		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-LB-25R-75		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-LB-25R-100		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-LB-25R-125		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-LB-25R-150		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-LB-25R-200		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-LB-25R-250		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-LB-25R-300		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-LB-25H-25		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-LB-25H-50		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-LB-25H-75		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-LB-25H-100		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-LB-25H-125		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-LB-25H-150		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-LB-25H-200		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-LB-25H-250		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-LB-25H-300		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-LB-25D-25		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-LB-25D-50		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-LB-25D-75		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-LB-25D-100		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-LB-25D-125		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-LB-25D-150		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-LB-25D-200		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-LB-25D-250		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-LB-25D-300		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-FA-25B-25		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FA-25B-50		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FA-25B-75		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FA-25B-100		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FA-25B-125		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FA-25B-150		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FA-25B-200		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-FA-25B-250		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-FA-25B-300		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-FA-25R-25		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FA-25R-50		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FA-25R-75		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FA-25R-100		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FA-25R-125		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FA-25R-150		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FA-25R-200		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-FA-25R-250		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-FA-25R-300		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-FA-25H-25		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FA-25H-50		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FA-25H-75		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FA-25H-100		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FA-25H-125		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FA-25H-150		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FA-25H-200		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-FA-25H-250		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-FA-25H-300		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-FA-25D-25		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FA-25D-50		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FA-25D-75		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FA-25D-100		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FA-25D-125		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FA-25D-150		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FA-25D-200		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-FA-25D-250		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-FA-25D-300		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-FB-25B-25		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FB-25B-50		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FB-25B-75		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FB-25B-100		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FB-25B-125		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FB-25B-150		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FB-25B-200		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-FB-25B-250		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-FB-25B-300		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-FB-25R-25		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FB-25R-50		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FB-25R-75		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FB-25R-100		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FB-25R-125		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FB-25R-150		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FB-25R-200		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-FB-25R-250		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-FB-25R-300		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-FB-25H-25		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FB-25H-50		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FB-25H-75		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FB-25H-100		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FB-25H-125		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FB-25H-150		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FB-25H-200		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-FB-25H-250		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-FB-25H-300		Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-FB-25D-25		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FB-25D-50		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FB-25D-75		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FB-25D-100		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FB-25D-125		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FB-25D-150		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FB-25D-200		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-FB-25D-250		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-FB-25D-300		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-CA-25B-25		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-CA-25B-50		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-CA-25B-75		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-CA-25B-100		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-CA-25B-125		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-CA-25B-150		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-CA-25B-200		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-CA-25B-250		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-CA-25B-300		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-CA-25R-25		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-CA-25R-50		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-CA-25R-75		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-CA-25R-100		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-CA-25R-125		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-CA-25R-150		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-CA-25R-200		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-CA-25R-250		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-CA-25R-300		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-CA-25H-25		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-CA-25H-50		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-CA-25H-75		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-CA-25H-100		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-CA-25H-125		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-CA-25H-150		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-CA-25H-200		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-CA-25H-250		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-CA-25H-300		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-CA-25D-25		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-CA-25D-50		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-CA-25D-75		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-CA-25D-100		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-CA-25D-125		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-CA-25D-150		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-CA-25D-200		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-CA-25D-250		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-CA-25D-300		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-TA-25B-25		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TA-25B-50		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TA-25B-75		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TA-25B-100		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TA-25B-125		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TA-25B-150		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TA-25B-200		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-TA-25B-250		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-TA-25B-300		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-TA-25R-25		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TA-25R-50		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TA-25R-75		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TA-25R-100		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TA-25R-125		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TA-25R-150		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TA-25R-200		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-TA-25R-250		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-TA-25R-300		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-TA-25H-25		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TA-25H-50		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TA-25H-75		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TA-25H-100		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TA-25H-125		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TA-25H-150		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TA-25H-200		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-TA-25H-250		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-TA-25H-300		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-TA-25D-25		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TA-25D-50		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TA-25D-75		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TA-25D-100		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TA-25D-125		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TA-25D-150		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TA-25D-200		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-TA-25D-250		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-TA-25D-300		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-TB-25B-25		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TB-25B-50		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TB-25B-75		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TB-25B-100		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TB-25B-125		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TB-25B-150		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TB-25B-200		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-TB-25B-250		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-TB-25B-300		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-TB-25R-25		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TB-25R-50		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TB-25R-75		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TB-25R-100		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TB-25R-125		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TB-25R-150		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TB-25R-200		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-TB-25R-250		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-TB-25R-300		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-TB-25H-25		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TB-25H-50		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TB-25H-75		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TB-25H-100		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TB-25H-125		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TB-25H-150		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TB-25H-200		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-TB-25H-250		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-TB-25H-300		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-TB-25D-25		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TB-25D-50		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TB-25D-75		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TB-25D-100		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TB-25D-125		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TB-25D-150		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TB-25D-200		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-TB-25D-250		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-TB-25D-300		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-00-32B-25		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-00-32B-50		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-00-32B-75		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-00-32B-100		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-00-32B-125		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-00-32B-150		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-00-32B-200		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-00-32B-250		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-00-32B-300		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-00-32R-25		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-00-32R-50		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-00-32R-75		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-00-32R-100		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-00-32R-125		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-00-32R-150		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-00-32R-200		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-00-32R-250		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-00-32R-300		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-00-32H-25		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-00-32H-50		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-00-32H-75		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-00-32H-100		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-00-32H-125		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-00-32H-150		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-00-32H-200		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-00-32H-250		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-00-32H-300		Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-00-32D-25		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-00-32D-50		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-00-32D-75		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-00-32D-100		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-00-32D-125		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-00-32D-150		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-00-32D-200		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-00-32D-250		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-00-32D-300		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-LB-32B-25		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-LB-32B-50		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-LB-32B-75		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-LB-32B-100		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-LB-32B-125		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-LB-32B-150		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-LB-32B-200		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-LB-32B-250		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-LB-32B-300		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-LB-32R-25		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-LB-32R-50		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-LB-32R-75		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-LB-32R-100		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-LB-32R-125		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-LB-32R-150		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-LB-32R-200		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-LB-32R-250		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-LB-32R-300		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-LB-32H-25		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-LB-32H-50		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-LB-32H-75		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-LB-32H-100		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-LB-32H-125		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-LB-32H-150		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-LB-32H-200		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-LB-32H-250		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-LB-32H-300		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-LB-32D-25		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-LB-32D-50		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-LB-32D-75		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-LB-32D-100		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-LB-32D-125		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-LB-32D-150		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-LB-32D-200		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-LB-32D-250		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-LB-32D-300		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-FA-32B-25		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FA-32B-50		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FA-32B-75		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FA-32B-100		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FA-32B-125		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FA-32B-150		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FA-32B-200		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-FA-32B-250		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-FA-32B-300		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-FA-32R-25		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FA-32R-50		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FA-32R-75		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FA-32R-100		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FA-32R-125		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FA-32R-150		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FA-32R-200		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-FA-32R-250		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-FA-32R-300		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-FA-32H-25		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FA-32H-50		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FA-32H-75		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FA-32H-100		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FA-32H-125		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FA-32H-150		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FA-32H-200		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-FA-32H-250		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-FA-32H-300		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-FA-32D-25		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FA-32D-50		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FA-32D-75		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FA-32D-100		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FA-32D-125		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FA-32D-150		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FA-32D-200		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-FA-32D-250		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-FA-32D-300		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-FB-32B-25		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FB-32B-50		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FB-32B-75		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FB-32B-100		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FB-32B-125		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FB-32B-150		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FB-32B-200		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-FB-32B-250		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-FB-32B-300		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-FB-32R-25		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FB-32R-50		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FB-32R-75		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FB-32R-100		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FB-32R-125		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FB-32R-150		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FB-32R-200		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-FB-32R-250		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-FB-32R-300		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-FB-32H-25		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FB-32H-50		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FB-32H-75		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FB-32H-100		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FB-32H-125		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FB-32H-150		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FB-32H-200		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-FB-32H-250		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-FB-32H-300		Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-FB-32D-25		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FB-32D-50		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FB-32D-75		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FB-32D-100		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FB-32D-125		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FB-32D-150		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FB-32D-200		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-FB-32D-250		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-FB-32D-300		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-CA-32B-25		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-CA-32B-50		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-CA-32B-75		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-CA-32B-100		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-CA-32B-125		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-CA-32B-150		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-CA-32B-200		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-CA-32B-250		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-CA-32B-300		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-CA-32R-25		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-CA-32R-50		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-CA-32R-75		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-CA-32R-100		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-CA-32R-125		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-CA-32R-150		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-CA-32R-200		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-CA-32R-250		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-CA-32R-300		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-CA-32H-25		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-CA-32H-50		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-CA-32H-75		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-CA-32H-100		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-CA-32H-125		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-CA-32H-150		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-CA-32H-200		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-CA-32H-250		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-CA-32H-300		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-CA-32D-25		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-CA-32D-50		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-CA-32D-75		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-CA-32D-100		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-CA-32D-125		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-CA-32D-150		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-CA-32D-200		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-CA-32D-250		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-CA-32D-300		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-TA-32B-25		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TA-32B-50		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TA-32B-75		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TA-32B-100		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TA-32B-125		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TA-32B-150		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TA-32B-200		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-TA-32B-250		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-TA-32B-300		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-TA-32R-25		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TA-32R-50		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TA-32R-75		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TA-32R-100		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TA-32R-125		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TA-32R-150		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TA-32R-200		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-TA-32R-250		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-TA-32R-300		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-TA-32H-25		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TA-32H-50		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TA-32H-75		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TA-32H-100		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TA-32H-125		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TA-32H-150		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TA-32H-200		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-TA-32H-250		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-TA-32H-300		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-TA-32D-25		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TA-32D-50		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TA-32D-75		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TA-32D-100		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TA-32D-125		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TA-32D-150		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TA-32D-200		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-TA-32D-250		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-TA-32D-300		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-TB-32B-25		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TB-32B-50		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TB-32B-75		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TB-32B-100		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TB-32B-125		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TB-32B-150		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TB-32B-200		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-TB-32B-250		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-TB-32B-300		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-TB-32R-25		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TB-32R-50		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TB-32R-75		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TB-32R-100		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TB-32R-125		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TB-32R-150		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TB-32R-200		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-TB-32R-250		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-TB-32R-300		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-TB-32H-25		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TB-32H-50		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TB-32H-75		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TB-32H-100		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TB-32H-125		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TB-32H-150		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TB-32H-200		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-TB-32H-250		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-TB-32H-300		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-TB-32D-25		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TB-32D-50		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TB-32D-75		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TB-32D-100		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TB-32D-125		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TB-32D-150		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TB-32D-200		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-TB-32D-250		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-TB-32D-300		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-00-40B-25		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-00-40B-50		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-00-40B-75		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-00-40B-100		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-00-40B-125		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-00-40B-150		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-00-40B-200		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-00-40B-250		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-00-40B-300		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-00-40R-25		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-00-40R-50		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-00-40R-75		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-00-40R-100		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-00-40R-125		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-00-40R-150		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-00-40R-200		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-00-40R-250		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-00-40R-300		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-00-40H-25		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-00-40H-50		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-00-40H-75		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-00-40H-100		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-00-40H-125		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-00-40H-150		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-00-40H-200		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-00-40H-250		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-00-40H-300		Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-00-40D-25		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-00-40D-50		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-00-40D-75		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-00-40D-100		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-00-40D-125		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-00-40D-150		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-00-40D-200		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-00-40D-250		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-00-40D-300		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-LB-40B-25		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-LB-40B-50		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-LB-40B-75		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-LB-40B-100		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-LB-40B-125		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-LB-40B-150		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-LB-40B-200		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-LB-40B-250		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-LB-40B-300		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-LB-40R-25		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-LB-40R-50		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-LB-40R-75		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-LB-40R-100		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-LB-40R-125		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-LB-40R-150		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-LB-40R-200		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-LB-40R-250		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-LB-40R-300		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-LB-40H-25		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-LB-40H-50		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-LB-40H-75		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-LB-40H-100		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-LB-40H-125		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-LB-40H-150		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-LB-40H-200		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-LB-40H-250		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-LB-40H-300		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-LB-40D-25		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-LB-40D-50		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-LB-40D-75		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-LB-40D-100		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-LB-40D-125		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-LB-40D-150		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-LB-40D-200		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-LB-40D-250		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-LB-40D-300		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-FA-40B-25		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FA-40B-50		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FA-40B-75		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FA-40B-100		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FA-40B-125		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FA-40B-150		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FA-40B-200		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-FA-40B-250		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-FA-40B-300		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-FA-40R-25		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FA-40R-50		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FA-40R-75		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FA-40R-100		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FA-40R-125		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FA-40R-150		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FA-40R-200		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-FA-40R-250		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-FA-40R-300		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-FA-40H-25		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FA-40H-50		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FA-40H-75		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FA-40H-100		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FA-40H-125		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FA-40H-150		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FA-40H-200		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-FA-40H-250		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-FA-40H-300		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-FA-40D-25		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FA-40D-50		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FA-40D-75		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FA-40D-100		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FA-40D-125		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FA-40D-150		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FA-40D-200		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-FA-40D-250		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-FA-40D-300		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-FB-40B-25		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-FB-40B-50		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-FB-40B-75		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-FB-40B-100		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-FB-40B-125		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-FB-40B-150		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-FB-40B-200		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-FB-40B-250		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-FB-40B-300		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-FB-40R-25		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-FB-40R-50		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-FB-40R-75		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-FB-40R-100		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-FB-40R-125		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-FB-40R-150		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-FB-40R-200		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-FB-40R-250		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-FB-40R-300		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-FB-40H-25		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-FB-40H-50		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-FB-40H-75		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-FB-40H-100		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-FB-40H-125		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-FB-40H-150		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-FB-40H-200		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-FB-40H-250		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-FB-40H-300		Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-FB-40D-25		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-FB-40D-50		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-FB-40D-75		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-FB-40D-100		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-FB-40D-125		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-FB-40D-150		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-FB-40D-200		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-FB-40D-250		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-FB-40D-300		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-CA-40B-25		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-CA-40B-50		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-CA-40B-75		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-CA-40B-100		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-CA-40B-125		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-CA-40B-150		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-CA-40B-200		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-CA-40B-250		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-CA-40B-300		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-CA-40R-25		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-CA-40R-50		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-CA-40R-75		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-CA-40R-100		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-CA-40R-125		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-CA-40R-150		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-CA-40R-200		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-CA-40R-250		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-CA-40R-300		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-CA-40H-25		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-CA-40H-50		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-CA-40H-75		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-CA-40H-100		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-CA-40H-125		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-CA-40H-150		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-CA-40H-200		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-CA-40H-250		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-CA-40H-300		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-CA-40D-25		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-CA-40D-50		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-CA-40D-75		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-CA-40D-100		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-CA-40D-125		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-CA-40D-150		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-CA-40D-200		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-CA-40D-250		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-CA-40D-300		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-TA-40B-25		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TA-40B-50		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TA-40B-75		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TA-40B-100		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TA-40B-125		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TA-40B-150		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TA-40B-200		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-TA-40B-250		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-TA-40B-300		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-TA-40R-25		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TA-40R-50		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TA-40R-75		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TA-40R-100		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TA-40R-125		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TA-40R-150		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TA-40R-200		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-TA-40R-250		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-TA-40R-300		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-TA-40H-25		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TA-40H-50		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TA-40H-75		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TA-40H-100		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TA-40H-125		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TA-40H-150		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TA-40H-200		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-TA-40H-250		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-TA-40H-300		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-TA-40D-25		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TA-40D-50		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TA-40D-75		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TA-40D-100		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TA-40D-125		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TA-40D-150		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TA-40D-200		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-TA-40D-250		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-TA-40D-300		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-TB-40B-25		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-TB-40B-50		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-TB-40B-75		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-TB-40B-100		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-TB-40B-125		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-TB-40B-150		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-TB-40B-200		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-TB-40B-250		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-TB-40B-300		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-TB-40R-25		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-TB-40R-50		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-TB-40R-75		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-TB-40R-100		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-TB-40R-125		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-TB-40R-150		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-TB-40R-200		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-TB-40R-250		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-TB-40R-300		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-TB-40H-25		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-TB-40H-50		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-TB-40H-75		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-TB-40H-100		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-TB-40H-125		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-TB-40H-150		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-TB-40H-200		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-TB-40H-250		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-TB-40H-300		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-TB-40D-25		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-TB-40D-50		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-TB-40D-75		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-TB-40D-100		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-TB-40D-125		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-TB-40D-150		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-TB-40D-200		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-TB-40D-250		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-TB-40D-300		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm

Pneumatic CylindersCKD

1008 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM Super Micro Cylinder (Double Acting, Bore 20-40)

Brand CKD·Pneumatic Cylinders

Available part numbers (1008)

SCM-00-20B-25, SCM-00-20B-50, SCM-00-20B-75, SCM-00-20B-100, SCM-00-20B-125, SCM-00-20B-150, SCM-00-20B-200, SCM-00-20B-250, SCM-00-20B-300, SCM-00-20R-25 + 998 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCM-00-20B-25	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-00-20B-50	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-00-20B-75	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-00-20B-100	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-00-20B-125	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-00-20B-150	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-00-20B-200	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-00-20B-250	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-00-20B-300	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-00-20R-25	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-00-20R-50	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-00-20R-75	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-00-20R-100	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-00-20R-125	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-00-20R-150	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-00-20R-200	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-00-20R-250	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-00-20R-300	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-00-20H-25	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-00-20H-50	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-00-20H-75	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-00-20H-100	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-00-20H-125	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-00-20H-150	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-00-20H-200	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-00-20H-250	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-00-20H-300	Mounting: Basic \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-00-20D-25	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-00-20D-50	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-00-20D-75	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-00-20D-100	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-00-20D-125	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-00-20D-150	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-00-20D-200	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-00-20D-250	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-00-20D-300	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-LB-20B-25	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-LB-20B-50	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-LB-20B-75	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-LB-20B-100	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-LB-20B-125	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-LB-20B-150	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-LB-20B-200	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-LB-20B-250	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-LB-20B-300	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-LB-20R-25	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-LB-20R-50	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-LB-20R-75	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-LB-20R-100	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-LB-20R-125	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-LB-20R-150	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-LB-20R-200	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-LB-20R-250	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-LB-20R-300	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-LB-20H-25	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-LB-20H-50	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-LB-20H-75	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-LB-20H-100	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-LB-20H-125	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-LB-20H-150	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-LB-20H-200	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-LB-20H-250	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-LB-20H-300	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-LB-20D-25	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-LB-20D-50	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-LB-20D-75	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-LB-20D-100	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-LB-20D-125	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-LB-20D-150	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-LB-20D-200	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-LB-20D-250	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-LB-20D-300	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-FA-20B-25	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FA-20B-50	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FA-20B-75	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FA-20B-100	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FA-20B-125	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FA-20B-150	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FA-20B-200	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-FA-20B-250	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-FA-20B-300	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-FA-20R-25	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FA-20R-50	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FA-20R-75	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FA-20R-100	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FA-20R-125	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FA-20R-150	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FA-20R-200	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-FA-20R-250	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-FA-20R-300	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-FA-20H-25	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FA-20H-50	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FA-20H-75	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FA-20H-100	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FA-20H-125	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FA-20H-150	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FA-20H-200	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-FA-20H-250	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-FA-20H-300	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-FA-20D-25	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FA-20D-50	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FA-20D-75	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FA-20D-100	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FA-20D-125	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FA-20D-150	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FA-20D-200	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-FA-20D-250	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-FA-20D-300	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-FB-20B-25	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FB-20B-50	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FB-20B-75	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FB-20B-100	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FB-20B-125	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FB-20B-150	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FB-20B-200	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-FB-20B-250	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-FB-20B-300	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-FB-20R-25	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FB-20R-50	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FB-20R-75	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FB-20R-100	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FB-20R-125	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FB-20R-150	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FB-20R-200	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-FB-20R-250	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-FB-20R-300	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-FB-20H-25	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FB-20H-50	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FB-20H-75	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FB-20H-100	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FB-20H-125	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FB-20H-150	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FB-20H-200	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-FB-20H-250	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-FB-20H-300	Mounting: Head flange \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-FB-20D-25	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FB-20D-50	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FB-20D-75	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FB-20D-100	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FB-20D-125	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FB-20D-150	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FB-20D-200	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-FB-20D-250	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-FB-20D-300	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-CA-20B-25	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-CA-20B-50	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-CA-20B-75	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-CA-20B-100	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-CA-20B-125	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-CA-20B-150	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-CA-20B-200	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-CA-20B-250	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-CA-20B-300	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-CA-20R-25	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-CA-20R-50	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-CA-20R-75	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-CA-20R-100	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-CA-20R-125	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-CA-20R-150	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-CA-20R-200	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-CA-20R-250	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-CA-20R-300	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-CA-20H-25	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-CA-20H-50	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-CA-20H-75	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-CA-20H-100	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-CA-20H-125	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-CA-20H-150	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-CA-20H-200	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-CA-20H-250	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-CA-20H-300	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-CA-20D-25	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-CA-20D-50	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-CA-20D-75	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-CA-20D-100	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-CA-20D-125	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-CA-20D-150	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-CA-20D-200	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-CA-20D-250	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-CA-20D-300	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-TA-20B-25	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TA-20B-50	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TA-20B-75	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TA-20B-100	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TA-20B-125	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TA-20B-150	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TA-20B-200	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-TA-20B-250	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-TA-20B-300	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-TA-20R-25	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TA-20R-50	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TA-20R-75	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TA-20R-100	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TA-20R-125	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TA-20R-150	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TA-20R-200	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-TA-20R-250	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-TA-20R-300	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-TA-20H-25	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TA-20H-50	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TA-20H-75	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TA-20H-100	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TA-20H-125	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TA-20H-150	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TA-20H-200	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-TA-20H-250	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-TA-20H-300	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-TA-20D-25	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TA-20D-50	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TA-20D-75	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TA-20D-100	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TA-20D-125	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TA-20D-150	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TA-20D-200	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-TA-20D-250	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-TA-20D-300	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-TB-20B-25	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TB-20B-50	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TB-20B-75	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TB-20B-100	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TB-20B-125	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TB-20B-150	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TB-20B-200	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-TB-20B-250	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-TB-20B-300	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-TB-20R-25	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TB-20R-50	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TB-20R-75	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TB-20R-100	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TB-20R-125	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TB-20R-150	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TB-20R-200	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-TB-20R-250	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-TB-20R-300	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-TB-20H-25	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TB-20H-50	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TB-20H-75	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TB-20H-100	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TB-20H-125	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TB-20H-150	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TB-20H-200	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-TB-20H-250	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-TB-20H-300	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-TB-20D-25	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TB-20D-50	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TB-20D-75	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TB-20D-100	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TB-20D-125	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TB-20D-150	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TB-20D-200	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-TB-20D-250	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-TB-20D-300	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-00-25B-25	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-00-25B-50	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-00-25B-75	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-00-25B-100	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-00-25B-125	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-00-25B-150	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-00-25B-200	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-00-25B-250	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-00-25B-300	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-00-25R-25	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-00-25R-50	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-00-25R-75	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-00-25R-100	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-00-25R-125	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-00-25R-150	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-00-25R-200	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-00-25R-250	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-00-25R-300	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-00-25H-25	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-00-25H-50	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-00-25H-75	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-00-25H-100	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-00-25H-125	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-00-25H-150	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-00-25H-200	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-00-25H-250	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-00-25H-300	Mounting: Basic \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-00-25D-25	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-00-25D-50	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-00-25D-75	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-00-25D-100	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-00-25D-125	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-00-25D-150	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-00-25D-200	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-00-25D-250	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-00-25D-300	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-LB-25B-25	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-LB-25B-50	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-LB-25B-75	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-LB-25B-100	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-LB-25B-125	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-LB-25B-150	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-LB-25B-200	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-LB-25B-250	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-LB-25B-300	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-LB-25R-25	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-LB-25R-50	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-LB-25R-75	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-LB-25R-100	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-LB-25R-125	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-LB-25R-150	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-LB-25R-200	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-LB-25R-250	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-LB-25R-300	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-LB-25H-25	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-LB-25H-50	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-LB-25H-75	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-LB-25H-100	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-LB-25H-125	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-LB-25H-150	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-LB-25H-200	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-LB-25H-250	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-LB-25H-300	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-LB-25D-25	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-LB-25D-50	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-LB-25D-75	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-LB-25D-100	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-LB-25D-125	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-LB-25D-150	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-LB-25D-200	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-LB-25D-250	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-LB-25D-300	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-FA-25B-25	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FA-25B-50	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FA-25B-75	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FA-25B-100	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FA-25B-125	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FA-25B-150	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FA-25B-200	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-FA-25B-250	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-FA-25B-300	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-FA-25R-25	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FA-25R-50	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FA-25R-75	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FA-25R-100	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FA-25R-125	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FA-25R-150	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FA-25R-200	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-FA-25R-250	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-FA-25R-300	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-FA-25H-25	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FA-25H-50	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FA-25H-75	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FA-25H-100	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FA-25H-125	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FA-25H-150	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FA-25H-200	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-FA-25H-250	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-FA-25H-300	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-FA-25D-25	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FA-25D-50	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FA-25D-75	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FA-25D-100	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FA-25D-125	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FA-25D-150	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FA-25D-200	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-FA-25D-250	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-FA-25D-300	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-FB-25B-25	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FB-25B-50	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FB-25B-75	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FB-25B-100	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FB-25B-125	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FB-25B-150	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FB-25B-200	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-FB-25B-250	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-FB-25B-300	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-FB-25R-25	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FB-25R-50	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FB-25R-75	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FB-25R-100	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FB-25R-125	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FB-25R-150	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FB-25R-200	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-FB-25R-250	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-FB-25R-300	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-FB-25H-25	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FB-25H-50	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FB-25H-75	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FB-25H-100	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FB-25H-125	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FB-25H-150	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FB-25H-200	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-FB-25H-250	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-FB-25H-300	Mounting: Head flange \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-FB-25D-25	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FB-25D-50	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FB-25D-75	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FB-25D-100	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FB-25D-125	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FB-25D-150	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FB-25D-200	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-FB-25D-250	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-FB-25D-300	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-CA-25B-25	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-CA-25B-50	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-CA-25B-75	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-CA-25B-100	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-CA-25B-125	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-CA-25B-150	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-CA-25B-200	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-CA-25B-250	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-CA-25B-300	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-CA-25R-25	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-CA-25R-50	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-CA-25R-75	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-CA-25R-100	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-CA-25R-125	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-CA-25R-150	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-CA-25R-200	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-CA-25R-250	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-CA-25R-300	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-CA-25H-25	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-CA-25H-50	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-CA-25H-75	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-CA-25H-100	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-CA-25H-125	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-CA-25H-150	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-CA-25H-200	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-CA-25H-250	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-CA-25H-300	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-CA-25D-25	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-CA-25D-50	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-CA-25D-75	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-CA-25D-100	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-CA-25D-125	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-CA-25D-150	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-CA-25D-200	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-CA-25D-250	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-CA-25D-300	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-TA-25B-25	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TA-25B-50	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TA-25B-75	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TA-25B-100	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TA-25B-125	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TA-25B-150	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TA-25B-200	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-TA-25B-250	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-TA-25B-300	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-TA-25R-25	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TA-25R-50	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TA-25R-75	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TA-25R-100	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TA-25R-125	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TA-25R-150	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TA-25R-200	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-TA-25R-250	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-TA-25R-300	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-TA-25H-25	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TA-25H-50	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TA-25H-75	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TA-25H-100	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TA-25H-125	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TA-25H-150	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TA-25H-200	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-TA-25H-250	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-TA-25H-300	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-TA-25D-25	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TA-25D-50	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TA-25D-75	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TA-25D-100	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TA-25D-125	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TA-25D-150	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TA-25D-200	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-TA-25D-250	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-TA-25D-300	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-TB-25B-25	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TB-25B-50	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TB-25B-75	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TB-25B-100	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TB-25B-125	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TB-25B-150	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TB-25B-200	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-TB-25B-250	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-TB-25B-300	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-TB-25R-25	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TB-25R-50	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TB-25R-75	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TB-25R-100	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TB-25R-125	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TB-25R-150	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TB-25R-200	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-TB-25R-250	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-TB-25R-300	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-TB-25H-25	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TB-25H-50	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TB-25H-75	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TB-25H-100	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TB-25H-125	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TB-25H-150	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TB-25H-200	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-TB-25H-250	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-TB-25H-300	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-TB-25D-25	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TB-25D-50	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TB-25D-75	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TB-25D-100	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TB-25D-125	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TB-25D-150	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TB-25D-200	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-TB-25D-250	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-TB-25D-300	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-00-32B-25	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-00-32B-50	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-00-32B-75	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-00-32B-100	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-00-32B-125	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-00-32B-150	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-00-32B-200	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-00-32B-250	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-00-32B-300	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-00-32R-25	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-00-32R-50	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-00-32R-75	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-00-32R-100	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-00-32R-125	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-00-32R-150	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-00-32R-200	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-00-32R-250	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-00-32R-300	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-00-32H-25	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-00-32H-50	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-00-32H-75	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-00-32H-100	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-00-32H-125	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-00-32H-150	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-00-32H-200	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-00-32H-250	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-00-32H-300	Mounting: Basic \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-00-32D-25	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-00-32D-50	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-00-32D-75	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-00-32D-100	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-00-32D-125	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-00-32D-150	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-00-32D-200	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-00-32D-250	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-00-32D-300	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-LB-32B-25	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-LB-32B-50	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-LB-32B-75	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-LB-32B-100	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-LB-32B-125	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-LB-32B-150	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-LB-32B-200	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-LB-32B-250	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-LB-32B-300	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-LB-32R-25	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-LB-32R-50	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-LB-32R-75	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-LB-32R-100	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-LB-32R-125	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-LB-32R-150	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-LB-32R-200	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-LB-32R-250	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-LB-32R-300	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-LB-32H-25	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-LB-32H-50	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-LB-32H-75	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-LB-32H-100	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-LB-32H-125	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-LB-32H-150	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-LB-32H-200	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-LB-32H-250	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-LB-32H-300	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-LB-32D-25	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-LB-32D-50	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-LB-32D-75	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-LB-32D-100	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-LB-32D-125	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-LB-32D-150	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-LB-32D-200	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-LB-32D-250	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-LB-32D-300	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-FA-32B-25	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FA-32B-50	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FA-32B-75	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FA-32B-100	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FA-32B-125	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FA-32B-150	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FA-32B-200	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-FA-32B-250	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-FA-32B-300	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-FA-32R-25	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FA-32R-50	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FA-32R-75	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FA-32R-100	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FA-32R-125	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FA-32R-150	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FA-32R-200	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-FA-32R-250	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-FA-32R-300	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-FA-32H-25	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FA-32H-50	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FA-32H-75	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FA-32H-100	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FA-32H-125	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FA-32H-150	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FA-32H-200	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-FA-32H-250	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-FA-32H-300	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-FA-32D-25	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FA-32D-50	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FA-32D-75	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FA-32D-100	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FA-32D-125	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FA-32D-150	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FA-32D-200	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-FA-32D-250	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-FA-32D-300	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-FB-32B-25	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FB-32B-50	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FB-32B-75	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FB-32B-100	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FB-32B-125	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FB-32B-150	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FB-32B-200	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-FB-32B-250	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-FB-32B-300	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-FB-32R-25	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FB-32R-50	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FB-32R-75	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FB-32R-100	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FB-32R-125	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FB-32R-150	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FB-32R-200	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-FB-32R-250	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-FB-32R-300	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-FB-32H-25	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FB-32H-50	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FB-32H-75	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FB-32H-100	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FB-32H-125	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FB-32H-150	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FB-32H-200	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-FB-32H-250	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-FB-32H-300	Mounting: Head flange \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-FB-32D-25	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FB-32D-50	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FB-32D-75	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FB-32D-100	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FB-32D-125	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FB-32D-150	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FB-32D-200	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-FB-32D-250	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-FB-32D-300	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-CA-32B-25	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-CA-32B-50	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-CA-32B-75	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-CA-32B-100	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-CA-32B-125	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-CA-32B-150	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-CA-32B-200	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-CA-32B-250	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-CA-32B-300	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-CA-32R-25	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-CA-32R-50	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-CA-32R-75	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-CA-32R-100	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-CA-32R-125	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-CA-32R-150	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-CA-32R-200	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-CA-32R-250	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-CA-32R-300	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-CA-32H-25	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-CA-32H-50	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-CA-32H-75	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-CA-32H-100	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-CA-32H-125	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-CA-32H-150	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-CA-32H-200	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-CA-32H-250	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-CA-32H-300	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-CA-32D-25	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-CA-32D-50	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-CA-32D-75	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-CA-32D-100	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-CA-32D-125	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-CA-32D-150	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-CA-32D-200	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-CA-32D-250	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-CA-32D-300	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-TA-32B-25	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TA-32B-50	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TA-32B-75	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TA-32B-100	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TA-32B-125	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TA-32B-150	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TA-32B-200	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-TA-32B-250	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-TA-32B-300	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-TA-32R-25	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TA-32R-50	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TA-32R-75	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TA-32R-100	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TA-32R-125	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TA-32R-150	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TA-32R-200	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-TA-32R-250	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-TA-32R-300	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-TA-32H-25	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TA-32H-50	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TA-32H-75	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TA-32H-100	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TA-32H-125	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TA-32H-150	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TA-32H-200	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-TA-32H-250	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-TA-32H-300	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-TA-32D-25	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TA-32D-50	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TA-32D-75	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TA-32D-100	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TA-32D-125	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TA-32D-150	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TA-32D-200	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-TA-32D-250	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-TA-32D-300	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-TB-32B-25	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TB-32B-50	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TB-32B-75	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TB-32B-100	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TB-32B-125	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TB-32B-150	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TB-32B-200	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-TB-32B-250	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-TB-32B-300	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-TB-32R-25	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TB-32R-50	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TB-32R-75	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TB-32R-100	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TB-32R-125	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TB-32R-150	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TB-32R-200	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-TB-32R-250	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-TB-32R-300	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-TB-32H-25	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TB-32H-50	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TB-32H-75	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TB-32H-100	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TB-32H-125	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TB-32H-150	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TB-32H-200	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-TB-32H-250	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-TB-32H-300	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-TB-32D-25	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TB-32D-50	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TB-32D-75	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TB-32D-100	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TB-32D-125	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TB-32D-150	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TB-32D-200	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-TB-32D-250	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-TB-32D-300	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-00-40B-25	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-00-40B-50	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-00-40B-75	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-00-40B-100	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-00-40B-125	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-00-40B-150	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-00-40B-200	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-00-40B-250	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-00-40B-300	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-00-40R-25	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-00-40R-50	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-00-40R-75	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-00-40R-100	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-00-40R-125	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-00-40R-150	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-00-40R-200	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-00-40R-250	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-00-40R-300	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-00-40H-25	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-00-40H-50	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-00-40H-75	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-00-40H-100	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-00-40H-125	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-00-40H-150	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-00-40H-200	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-00-40H-250	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-00-40H-300	Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-00-40D-25	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-00-40D-50	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-00-40D-75	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-00-40D-100	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-00-40D-125	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-00-40D-150	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-00-40D-200	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-00-40D-250	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-00-40D-300	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-LB-40B-25	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-LB-40B-50	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-LB-40B-75	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-LB-40B-100	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-LB-40B-125	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-LB-40B-150	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-LB-40B-200	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-LB-40B-250	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-LB-40B-300	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-LB-40R-25	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-LB-40R-50	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-LB-40R-75	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-LB-40R-100	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-LB-40R-125	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-LB-40R-150	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-LB-40R-200	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-LB-40R-250	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-LB-40R-300	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-LB-40H-25	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-LB-40H-50	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-LB-40H-75	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-LB-40H-100	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-LB-40H-125	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-LB-40H-150	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-LB-40H-200	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-LB-40H-250	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-LB-40H-300	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-LB-40D-25	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-LB-40D-50	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-LB-40D-75	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-LB-40D-100	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-LB-40D-125	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-LB-40D-150	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-LB-40D-200	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-LB-40D-250	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-LB-40D-300	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-FA-40B-25	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FA-40B-50	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FA-40B-75	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FA-40B-100	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FA-40B-125	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FA-40B-150	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FA-40B-200	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-FA-40B-250	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-FA-40B-300	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-FA-40R-25	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FA-40R-50	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FA-40R-75	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FA-40R-100	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FA-40R-125	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FA-40R-150	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FA-40R-200	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-FA-40R-250	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-FA-40R-300	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-FA-40H-25	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FA-40H-50	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FA-40H-75	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FA-40H-100	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FA-40H-125	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FA-40H-150	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FA-40H-200	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-FA-40H-250	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-FA-40H-300	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-FA-40D-25	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FA-40D-50	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FA-40D-75	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FA-40D-100	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FA-40D-125	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FA-40D-150	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FA-40D-200	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-FA-40D-250	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-FA-40D-300	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-FB-40B-25	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-FB-40B-50	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-FB-40B-75	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-FB-40B-100	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-FB-40B-125	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-FB-40B-150	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-FB-40B-200	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-FB-40B-250	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-FB-40B-300	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-FB-40R-25	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-FB-40R-50	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-FB-40R-75	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-FB-40R-100	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-FB-40R-125	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-FB-40R-150	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-FB-40R-200	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-FB-40R-250	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-FB-40R-300	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-FB-40H-25	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-FB-40H-50	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-FB-40H-75	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-FB-40H-100	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-FB-40H-125	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-FB-40H-150	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-FB-40H-200	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-FB-40H-250	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-FB-40H-300	Mounting: Head flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-FB-40D-25	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-FB-40D-50	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-FB-40D-75	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-FB-40D-100	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-FB-40D-125	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-FB-40D-150	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-FB-40D-200	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-FB-40D-250	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-FB-40D-300	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-CA-40B-25	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-CA-40B-50	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-CA-40B-75	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-CA-40B-100	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-CA-40B-125	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-CA-40B-150	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-CA-40B-200	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-CA-40B-250	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-CA-40B-300	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-CA-40R-25	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-CA-40R-50	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-CA-40R-75	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-CA-40R-100	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-CA-40R-125	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-CA-40R-150	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-CA-40R-200	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-CA-40R-250	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-CA-40R-300	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-CA-40H-25	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-CA-40H-50	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-CA-40H-75	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-CA-40H-100	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-CA-40H-125	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-CA-40H-150	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-CA-40H-200	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-CA-40H-250	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-CA-40H-300	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-CA-40D-25	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-CA-40D-50	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-CA-40D-75	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-CA-40D-100	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-CA-40D-125	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-CA-40D-150	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-CA-40D-200	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-CA-40D-250	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-CA-40D-300	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-TA-40B-25	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TA-40B-50	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TA-40B-75	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TA-40B-100	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TA-40B-125	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TA-40B-150	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TA-40B-200	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-TA-40B-250	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-TA-40B-300	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-TA-40R-25	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TA-40R-50	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TA-40R-75	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TA-40R-100	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TA-40R-125	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TA-40R-150	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TA-40R-200	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-TA-40R-250	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-TA-40R-300	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-TA-40H-25	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TA-40H-50	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TA-40H-75	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TA-40H-100	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TA-40H-125	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TA-40H-150	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TA-40H-200	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-TA-40H-250	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-TA-40H-300	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-TA-40D-25	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TA-40D-50	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TA-40D-75	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TA-40D-100	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TA-40D-125	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TA-40D-150	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TA-40D-200	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-TA-40D-250	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-TA-40D-300	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-TB-40B-25	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-TB-40B-50	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-TB-40B-75	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-TB-40B-100	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-TB-40B-125	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-TB-40B-150	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-TB-40B-200	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-TB-40B-250	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-TB-40B-300	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-TB-40R-25	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-TB-40R-50	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-TB-40R-75	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-TB-40R-100	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-TB-40R-125	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-TB-40R-150	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-TB-40R-200	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-TB-40R-250	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-TB-40R-300	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-TB-40H-25	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-TB-40H-50	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-TB-40H-75	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-TB-40H-100	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-TB-40H-125	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-TB-40H-150	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-TB-40H-200	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-TB-40H-250	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-TB-40H-300	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-TB-40D-25	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-TB-40D-50	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-TB-40D-75	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-TB-40D-100	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-TB-40D-125	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-TB-40D-150	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-TB-40D-200	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-TB-40D-250	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-TB-40D-300	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCM Super Micro Cylinder (Double Acting, Bore 20-40)
