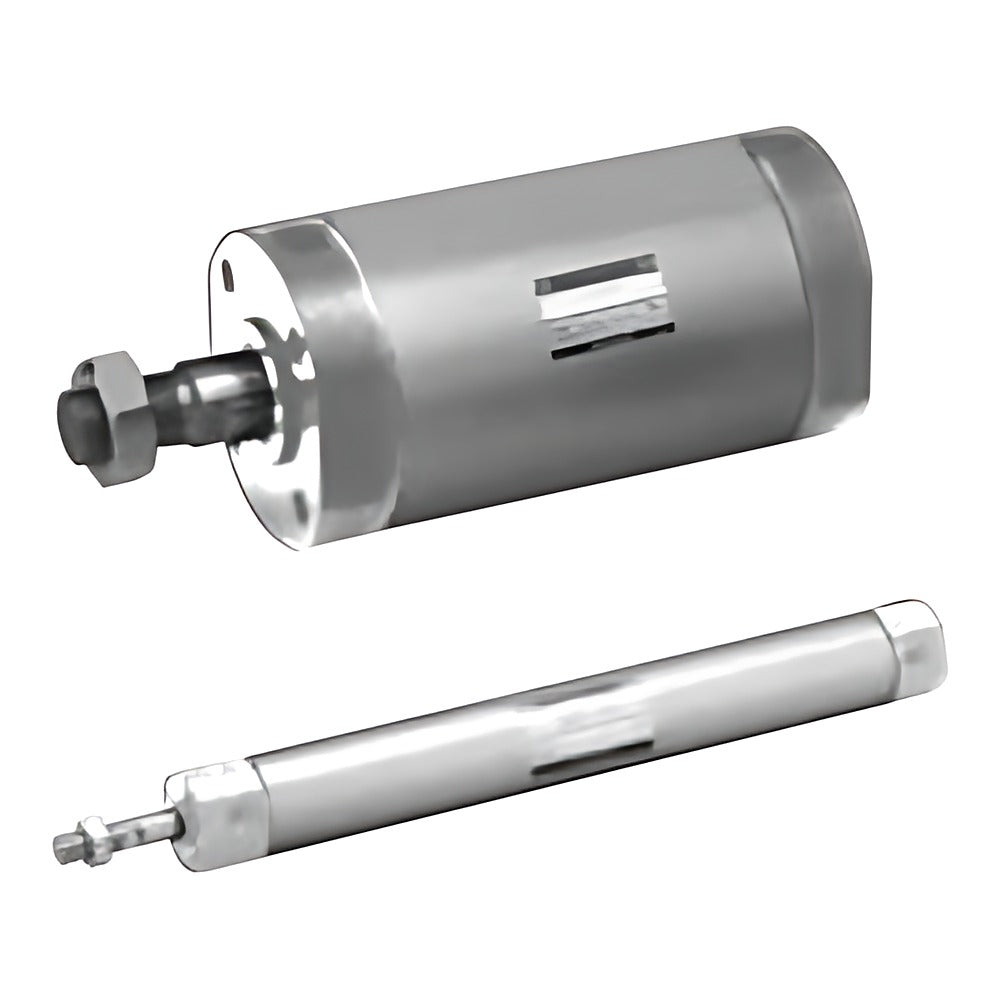

CKD SCM Super Micro Cylinder (Clean Room P7, Bore 20-40)

CKD SCM clean-room super micro (round body) cylinder, double-acting single rod, bore 20-40 mm, with built-in switch magnet.

Key features

Clean spec P7 (exhaust treatment) or P71 (vacuum suction); P5/P51 copper/silicone/halogen-free versions are made to order
Cushion: air cushion both ends (B), rod end (R), head end (H) or rubber cushion (D)
Mounting: basic (00), axial foot (LB), rod-end flange (FA), head-end flange (FB)
Switch magnet built in; auto switches (T0/T5/T8/T1/T2/T3/T2W/T2Y/T3W/T3Y/T2YD/T2J) rail or band (Z) mount
Option Q (switch rail attached) written directly before the clean suffix, e.g. -QP7
Intermediate strokes 10-1000/1500 mm in 1 mm steps

Specifications

Operation	Double-acting, single rod
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Lubrication	Not allowed
Switch magnet	Built in (all models)
Min. operating pressure	0.15 MPa (20-32), 0.1 MPa (40-100)
Piston speed	30-1000 mm/s
Port size	M5 to Rc1/2 by bore and cushion
Source	CKD Korea catalog CB-033S-4, p. 45-65

SCM-00-20B-25-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-20B-25-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-20B-50-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-20B-50-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-20B-75-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-20B-75-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-20B-100-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-20B-100-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-20B-125-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-20B-125-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-20B-150-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-20B-150-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-20B-200-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-20B-200-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-20B-250-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-20B-250-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-20B-300-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-20B-300-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-20R-25-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-20R-25-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-20R-50-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-20R-50-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-20R-75-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-20R-75-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-20R-100-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-20R-100-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-20R-125-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-20R-125-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-20R-150-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-20R-150-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-20R-200-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-20R-200-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-20R-250-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-20R-250-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-20R-300-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-20R-300-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-20H-25-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-20H-25-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-20H-50-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-20H-50-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-20H-75-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-20H-75-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-20H-100-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-20H-100-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-20H-125-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-20H-125-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-20H-150-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-20H-150-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-20H-200-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-20H-200-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-20H-250-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-20H-250-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-20H-300-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-20H-300-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-20D-25-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-20D-25-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-20D-50-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-20D-50-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-20D-75-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-20D-75-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-20D-100-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-20D-100-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-20D-125-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-20D-125-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-20D-150-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-20D-150-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-20D-200-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-20D-200-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-20D-250-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-20D-250-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-20D-300-P7		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-20D-300-P71		Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-25B-25-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-25B-25-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-25B-50-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-25B-50-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-25B-75-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-25B-75-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-25B-100-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-25B-100-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-25B-125-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-25B-125-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-25B-150-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-25B-150-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-25B-200-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-25B-200-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-25B-250-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-25B-250-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-25B-300-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-25B-300-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-25R-25-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-25R-25-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-25R-50-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-25R-50-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-25R-75-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-25R-75-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-25R-100-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-25R-100-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-25R-125-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-25R-125-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-25R-150-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-25R-150-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-25R-200-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-25R-200-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-25R-250-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-25R-250-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-25R-300-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-25R-300-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-25H-25-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-25H-25-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-25H-50-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-25H-50-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-25H-75-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-25H-75-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-25H-100-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-25H-100-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-25H-125-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-25H-125-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-25H-150-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-25H-150-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-25H-200-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-25H-200-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-25H-250-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-25H-250-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-25H-300-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-25H-300-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-25D-25-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-25D-25-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-25D-50-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-25D-50-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-25D-75-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-25D-75-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-25D-100-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-25D-100-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-25D-125-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-25D-125-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-25D-150-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-25D-150-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-25D-200-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-25D-200-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-25D-250-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-25D-250-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-25D-300-P7		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-25D-300-P71		Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-32B-25-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-32B-25-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-32B-50-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-32B-50-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-32B-75-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-32B-75-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-32B-100-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-32B-100-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-32B-125-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-32B-125-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-32B-150-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-32B-150-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-32B-200-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-32B-200-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-32B-250-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-32B-250-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-32B-300-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-32B-300-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-32R-25-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-32R-25-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-32R-50-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-32R-50-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-32R-75-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-32R-75-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-32R-100-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-32R-100-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-32R-125-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-32R-125-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-32R-150-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-32R-150-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-32R-200-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-32R-200-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-32R-250-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-32R-250-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-32R-300-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-32R-300-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-32H-25-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-32H-25-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-32H-50-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-32H-50-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-32H-75-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-32H-75-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-32H-100-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-32H-100-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-32H-125-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-32H-125-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-32H-150-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-32H-150-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-32H-200-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-32H-200-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-32H-250-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-32H-250-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-32H-300-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-32H-300-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-32D-25-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-32D-25-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-32D-50-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-32D-50-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-32D-75-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-32D-75-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-32D-100-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-32D-100-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-32D-125-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-32D-125-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-32D-150-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-32D-150-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-32D-200-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-32D-200-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-32D-250-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-32D-250-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-32D-300-P7		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-32D-300-P71		Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-40B-25-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-40B-25-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-40B-50-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-40B-50-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-40B-75-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-40B-75-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-40B-100-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-40B-100-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-40B-125-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-40B-125-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-40B-150-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-40B-150-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-40B-200-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-40B-200-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-40B-250-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-40B-250-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-40B-300-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-40B-300-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-40R-25-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-40R-25-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-40R-50-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-40R-50-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-40R-75-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-40R-75-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-40R-100-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-40R-100-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-40R-125-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-40R-125-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-40R-150-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-40R-150-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-40R-200-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-40R-200-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-40R-250-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-40R-250-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-40R-300-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-40R-300-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-40H-25-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-40H-25-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-40H-50-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-40H-50-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-40H-75-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-40H-75-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-40H-100-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-40H-100-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-40H-125-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-40H-125-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-40H-150-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-40H-150-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-40H-200-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-40H-200-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-40H-250-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-40H-250-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-40H-300-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-40H-300-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-40D-25-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-40D-25-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-40D-50-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-40D-50-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-40D-75-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-40D-75-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-40D-100-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-40D-100-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-40D-125-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-40D-125-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-40D-150-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-40D-150-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-40D-200-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-40D-200-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-40D-250-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-40D-250-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-40D-300-P7		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-40D-300-P71		Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-20B-25-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20B-25-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-20B-50-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20B-50-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-20B-75-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20B-75-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-20B-100-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20B-100-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-20B-125-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20B-125-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-20B-150-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20B-150-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-20B-200-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20B-200-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-20B-250-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20B-250-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-20B-300-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20B-300-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-20R-25-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20R-25-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-20R-50-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20R-50-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-20R-75-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20R-75-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-20R-100-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20R-100-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-20R-125-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20R-125-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-20R-150-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20R-150-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-20R-200-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20R-200-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-20R-250-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20R-250-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-20R-300-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20R-300-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-20H-25-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20H-25-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-20H-50-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20H-50-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-20H-75-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20H-75-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-20H-100-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20H-100-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-20H-125-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20H-125-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-20H-150-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20H-150-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-20H-200-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20H-200-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-20H-250-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20H-250-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-20H-300-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20H-300-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-20D-25-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20D-25-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-20D-50-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20D-50-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-20D-75-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20D-75-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-20D-100-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20D-100-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-20D-125-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20D-125-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-20D-150-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20D-150-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-20D-200-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20D-200-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-20D-250-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20D-250-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-20D-300-P7		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-20D-300-P71		Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-25B-25-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25B-25-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-25B-50-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25B-50-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-25B-75-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25B-75-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-25B-100-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25B-100-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-25B-125-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25B-125-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-25B-150-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25B-150-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-25B-200-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25B-200-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-25B-250-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25B-250-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-25B-300-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25B-300-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-25R-25-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25R-25-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-25R-50-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25R-50-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-25R-75-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25R-75-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-25R-100-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25R-100-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-25R-125-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25R-125-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-25R-150-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25R-150-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-25R-200-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25R-200-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-25R-250-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25R-250-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-25R-300-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25R-300-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-25H-25-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25H-25-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-25H-50-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25H-50-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-25H-75-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25H-75-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-25H-100-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25H-100-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-25H-125-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25H-125-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-25H-150-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25H-150-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-25H-200-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25H-200-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-25H-250-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25H-250-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-25H-300-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25H-300-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-25D-25-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25D-25-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-25D-50-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25D-50-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-25D-75-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25D-75-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-25D-100-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25D-100-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-25D-125-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25D-125-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-25D-150-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25D-150-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-25D-200-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25D-200-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-25D-250-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25D-250-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-25D-300-P7		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-25D-300-P71		Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-32B-25-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32B-25-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-32B-50-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32B-50-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-32B-75-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32B-75-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-32B-100-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32B-100-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-32B-125-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32B-125-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-32B-150-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32B-150-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-32B-200-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32B-200-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-32B-250-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32B-250-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-32B-300-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32B-300-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-32R-25-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32R-25-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-32R-50-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32R-50-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-32R-75-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32R-75-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-32R-100-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32R-100-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-32R-125-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32R-125-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-32R-150-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32R-150-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-32R-200-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32R-200-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-32R-250-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32R-250-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-32R-300-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32R-300-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-32H-25-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32H-25-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-32H-50-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32H-50-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-32H-75-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32H-75-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-32H-100-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32H-100-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-32H-125-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32H-125-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-32H-150-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32H-150-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-32H-200-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32H-200-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-32H-250-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32H-250-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-32H-300-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32H-300-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-32D-25-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32D-25-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-32D-50-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32D-50-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-32D-75-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32D-75-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-32D-100-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32D-100-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-32D-125-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32D-125-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-32D-150-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32D-150-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-32D-200-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32D-200-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-32D-250-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32D-250-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-32D-300-P7		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-32D-300-P71		Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-40B-25-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40B-25-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-40B-50-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40B-50-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-40B-75-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40B-75-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-40B-100-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40B-100-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-40B-125-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40B-125-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-40B-150-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40B-150-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-40B-200-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40B-200-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-40B-250-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40B-250-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-40B-300-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40B-300-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-40R-25-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40R-25-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-40R-50-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40R-50-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-40R-75-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40R-75-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-40R-100-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40R-100-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-40R-125-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40R-125-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-40R-150-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40R-150-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-40R-200-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40R-200-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-40R-250-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40R-250-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-40R-300-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40R-300-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-40H-25-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40H-25-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-40H-50-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40H-50-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-40H-75-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40H-75-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-40H-100-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40H-100-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-40H-125-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40H-125-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-40H-150-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40H-150-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-40H-200-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40H-200-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-40H-250-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40H-250-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-40H-300-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40H-300-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-40D-25-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40D-25-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-40D-50-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40D-50-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-40D-75-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40D-75-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-40D-100-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40D-100-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-40D-125-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40D-125-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-40D-150-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40D-150-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-40D-200-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40D-200-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-40D-250-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40D-250-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-40D-300-P7		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-40D-300-P71		Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-20B-25-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20B-25-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-20B-50-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20B-50-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-20B-75-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20B-75-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-20B-100-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20B-100-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-20B-125-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20B-125-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-20B-150-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20B-150-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-20B-200-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20B-200-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-20B-250-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20B-250-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-20B-300-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20B-300-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-20R-25-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20R-25-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-20R-50-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20R-50-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-20R-75-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20R-75-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-20R-100-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20R-100-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-20R-125-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20R-125-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-20R-150-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20R-150-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-20R-200-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20R-200-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-20R-250-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20R-250-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-20R-300-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20R-300-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-20H-25-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20H-25-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-20H-50-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20H-50-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-20H-75-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20H-75-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-20H-100-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20H-100-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-20H-125-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20H-125-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-20H-150-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20H-150-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-20H-200-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20H-200-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-20H-250-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20H-250-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-20H-300-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20H-300-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-20D-25-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20D-25-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-20D-50-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20D-50-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-20D-75-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20D-75-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-20D-100-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20D-100-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-20D-125-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20D-125-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-20D-150-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20D-150-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-20D-200-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20D-200-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-20D-250-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20D-250-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-20D-300-P7		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-20D-300-P71		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-25B-25-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25B-25-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-25B-50-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25B-50-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-25B-75-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25B-75-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-25B-100-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25B-100-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-25B-125-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25B-125-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-25B-150-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25B-150-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-25B-200-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25B-200-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-25B-250-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25B-250-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-25B-300-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25B-300-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-25R-25-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25R-25-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-25R-50-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25R-50-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-25R-75-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25R-75-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-25R-100-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25R-100-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-25R-125-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25R-125-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-25R-150-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25R-150-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-25R-200-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25R-200-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-25R-250-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25R-250-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-25R-300-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25R-300-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-25H-25-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25H-25-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-25H-50-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25H-50-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-25H-75-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25H-75-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-25H-100-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25H-100-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-25H-125-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25H-125-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-25H-150-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25H-150-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-25H-200-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25H-200-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-25H-250-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25H-250-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-25H-300-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25H-300-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-25D-25-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25D-25-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-25D-50-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25D-50-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-25D-75-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25D-75-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-25D-100-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25D-100-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-25D-125-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25D-125-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-25D-150-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25D-150-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-25D-200-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25D-200-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-25D-250-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25D-250-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-25D-300-P7		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-25D-300-P71		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-32B-25-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32B-25-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-32B-50-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32B-50-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-32B-75-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32B-75-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-32B-100-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32B-100-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-32B-125-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32B-125-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-32B-150-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32B-150-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-32B-200-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32B-200-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-32B-250-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32B-250-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-32B-300-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32B-300-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-32R-25-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32R-25-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-32R-50-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32R-50-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-32R-75-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32R-75-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-32R-100-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32R-100-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-32R-125-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32R-125-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-32R-150-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32R-150-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-32R-200-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32R-200-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-32R-250-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32R-250-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-32R-300-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32R-300-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-32H-25-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32H-25-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-32H-50-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32H-50-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-32H-75-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32H-75-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-32H-100-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32H-100-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-32H-125-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32H-125-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-32H-150-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32H-150-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-32H-200-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32H-200-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-32H-250-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32H-250-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-32H-300-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32H-300-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-32D-25-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32D-25-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-32D-50-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32D-50-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-32D-75-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32D-75-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-32D-100-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32D-100-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-32D-125-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32D-125-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-32D-150-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32D-150-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-32D-200-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32D-200-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-32D-250-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32D-250-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-32D-300-P7		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-32D-300-P71		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-40B-25-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40B-25-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-40B-50-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40B-50-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-40B-75-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40B-75-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-40B-100-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40B-100-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-40B-125-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40B-125-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-40B-150-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40B-150-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-40B-200-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40B-200-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-40B-250-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40B-250-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-40B-300-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40B-300-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-40R-25-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40R-25-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-40R-50-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40R-50-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-40R-75-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40R-75-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-40R-100-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40R-100-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-40R-125-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40R-125-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-40R-150-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40R-150-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-40R-200-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40R-200-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-40R-250-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40R-250-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-40R-300-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40R-300-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-40H-25-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40H-25-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-40H-50-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40H-50-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-40H-75-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40H-75-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-40H-100-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40H-100-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-40H-125-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40H-125-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-40H-150-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40H-150-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-40H-200-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40H-200-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-40H-250-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40H-250-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-40H-300-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40H-300-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-40D-25-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40D-25-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-40D-50-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40D-50-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-40D-75-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40D-75-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-40D-100-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40D-100-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-40D-125-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40D-125-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-40D-150-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40D-150-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-40D-200-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40D-200-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-40D-250-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40D-250-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-40D-300-P7		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-40D-300-P71		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-20B-25-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20B-25-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-20B-50-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20B-50-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-20B-75-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20B-75-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-20B-100-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20B-100-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-20B-125-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20B-125-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-20B-150-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20B-150-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-20B-200-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20B-200-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-20B-250-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20B-250-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-20B-300-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20B-300-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-20R-25-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20R-25-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-20R-50-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20R-50-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-20R-75-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20R-75-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-20R-100-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20R-100-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-20R-125-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20R-125-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-20R-150-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20R-150-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-20R-200-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20R-200-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-20R-250-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20R-250-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-20R-300-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20R-300-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-20H-25-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20H-25-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-20H-50-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20H-50-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-20H-75-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20H-75-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-20H-100-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20H-100-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-20H-125-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20H-125-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-20H-150-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20H-150-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-20H-200-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20H-200-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-20H-250-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20H-250-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-20H-300-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20H-300-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-20D-25-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20D-25-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-20D-50-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20D-50-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-20D-75-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20D-75-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-20D-100-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20D-100-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-20D-125-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20D-125-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-20D-150-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20D-150-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-20D-200-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20D-200-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-20D-250-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20D-250-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-20D-300-P7		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-20D-300-P71		Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-25B-25-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25B-25-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-25B-50-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25B-50-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-25B-75-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25B-75-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-25B-100-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25B-100-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-25B-125-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25B-125-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-25B-150-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25B-150-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-25B-200-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25B-200-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-25B-250-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25B-250-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-25B-300-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25B-300-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-25R-25-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25R-25-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-25R-50-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25R-50-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-25R-75-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25R-75-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-25R-100-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25R-100-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-25R-125-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25R-125-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-25R-150-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25R-150-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-25R-200-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25R-200-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-25R-250-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25R-250-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-25R-300-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25R-300-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-25H-25-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25H-25-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-25H-50-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25H-50-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-25H-75-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25H-75-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-25H-100-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25H-100-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-25H-125-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25H-125-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-25H-150-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25H-150-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-25H-200-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25H-200-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-25H-250-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25H-250-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-25H-300-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25H-300-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-25D-25-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25D-25-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-25D-50-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25D-50-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-25D-75-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25D-75-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-25D-100-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25D-100-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-25D-125-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25D-125-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-25D-150-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25D-150-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-25D-200-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25D-200-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-25D-250-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25D-250-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-25D-300-P7		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-25D-300-P71		Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-32B-25-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32B-25-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-32B-50-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32B-50-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-32B-75-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32B-75-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-32B-100-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32B-100-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-32B-125-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32B-125-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-32B-150-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32B-150-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-32B-200-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32B-200-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-32B-250-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32B-250-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-32B-300-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32B-300-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-32R-25-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32R-25-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-32R-50-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32R-50-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-32R-75-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32R-75-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-32R-100-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32R-100-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-32R-125-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32R-125-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-32R-150-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32R-150-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-32R-200-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32R-200-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-32R-250-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32R-250-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-32R-300-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32R-300-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-32H-25-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32H-25-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-32H-50-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32H-50-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-32H-75-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32H-75-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-32H-100-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32H-100-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-32H-125-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32H-125-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-32H-150-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32H-150-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-32H-200-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32H-200-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-32H-250-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32H-250-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-32H-300-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32H-300-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-32D-25-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32D-25-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-32D-50-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32D-50-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-32D-75-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32D-75-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-32D-100-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32D-100-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-32D-125-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32D-125-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-32D-150-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32D-150-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-32D-200-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32D-200-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-32D-250-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32D-250-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-32D-300-P7		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-32D-300-P71		Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-40B-25-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40B-25-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-40B-50-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40B-50-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-40B-75-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40B-75-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-40B-100-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40B-100-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-40B-125-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40B-125-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-40B-150-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40B-150-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-40B-200-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40B-200-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-40B-250-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40B-250-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-40B-300-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40B-300-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-40R-25-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40R-25-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-40R-50-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40R-50-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-40R-75-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40R-75-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-40R-100-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40R-100-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-40R-125-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40R-125-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-40R-150-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40R-150-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-40R-200-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40R-200-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-40R-250-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40R-250-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-40R-300-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40R-300-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-40H-25-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40H-25-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-40H-50-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40H-50-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-40H-75-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40H-75-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-40H-100-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40H-100-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-40H-125-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40H-125-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-40H-150-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40H-150-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-40H-200-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40H-200-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-40H-250-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40H-250-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-40H-300-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40H-300-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-40D-25-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40D-25-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-40D-50-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40D-50-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-40D-75-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40D-75-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-40D-100-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40D-100-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-40D-125-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40D-125-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-40D-150-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40D-150-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-40D-200-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40D-200-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-40D-250-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40D-250-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-40D-300-P7		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-40D-300-P71		Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction

Pneumatic CylindersCKD

1152 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM Super Micro Cylinder (Clean Room P7, Bore 20-40)

Brand CKD·Pneumatic Cylinders

Available part numbers (1152)

SCM-00-20B-25-P7, SCM-00-20B-25-P71, SCM-00-20B-50-P7, SCM-00-20B-50-P71, SCM-00-20B-75-P7, SCM-00-20B-75-P71, SCM-00-20B-100-P7, SCM-00-20B-100-P71, SCM-00-20B-125-P7, SCM-00-20B-125-P71 + 1142 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCM-00-20B-25-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20B-25-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-20B-50-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20B-50-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-20B-75-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20B-75-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-20B-100-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20B-100-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-20B-125-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20B-125-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-20B-150-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20B-150-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-20B-200-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20B-200-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-20B-250-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20B-250-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-20B-300-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20B-300-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-20R-25-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20R-25-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-20R-50-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20R-50-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-20R-75-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20R-75-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-20R-100-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20R-100-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-20R-125-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20R-125-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-20R-150-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20R-150-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-20R-200-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20R-200-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-20R-250-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20R-250-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-20R-300-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20R-300-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-20H-25-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20H-25-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-20H-50-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20H-50-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-20H-75-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20H-75-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-20H-100-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20H-100-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-20H-125-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20H-125-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-20H-150-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20H-150-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-20H-200-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20H-200-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-20H-250-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20H-250-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-20H-300-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20H-300-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-20D-25-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20D-25-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-20D-50-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20D-50-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-20D-75-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20D-75-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-20D-100-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20D-100-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-20D-125-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20D-125-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-20D-150-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20D-150-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-20D-200-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20D-200-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-20D-250-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20D-250-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-20D-300-P7	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-20D-300-P71	Mounting: Basic (00) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-25B-25-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25B-25-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-25B-50-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25B-50-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-25B-75-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25B-75-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-25B-100-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25B-100-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-25B-125-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25B-125-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-25B-150-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25B-150-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-25B-200-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25B-200-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-25B-250-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25B-250-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-25B-300-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25B-300-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-25R-25-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25R-25-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-25R-50-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25R-50-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-25R-75-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25R-75-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-25R-100-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25R-100-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-25R-125-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25R-125-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-25R-150-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25R-150-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-25R-200-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25R-200-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-25R-250-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25R-250-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-25R-300-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25R-300-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-25H-25-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25H-25-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-25H-50-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25H-50-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-25H-75-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25H-75-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-25H-100-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25H-100-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-25H-125-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25H-125-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-25H-150-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25H-150-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-25H-200-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25H-200-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-25H-250-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25H-250-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-25H-300-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25H-300-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-25D-25-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25D-25-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-25D-50-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25D-50-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-25D-75-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25D-75-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-25D-100-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25D-100-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-25D-125-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25D-125-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-25D-150-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25D-150-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-25D-200-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25D-200-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-25D-250-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25D-250-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-25D-300-P7	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-25D-300-P71	Mounting: Basic (00) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-32B-25-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32B-25-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-32B-50-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32B-50-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-32B-75-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32B-75-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-32B-100-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32B-100-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-32B-125-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32B-125-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-32B-150-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32B-150-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-32B-200-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32B-200-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-32B-250-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32B-250-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-32B-300-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32B-300-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-32R-25-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32R-25-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-32R-50-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32R-50-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-32R-75-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32R-75-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-32R-100-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32R-100-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-32R-125-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32R-125-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-32R-150-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32R-150-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-32R-200-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32R-200-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-32R-250-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32R-250-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-32R-300-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32R-300-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-32H-25-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32H-25-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-32H-50-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32H-50-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-32H-75-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32H-75-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-32H-100-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32H-100-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-32H-125-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32H-125-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-32H-150-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32H-150-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-32H-200-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32H-200-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-32H-250-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32H-250-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-32H-300-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32H-300-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-32D-25-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32D-25-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-32D-50-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32D-50-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-32D-75-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32D-75-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-32D-100-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32D-100-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-32D-125-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32D-125-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-32D-150-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32D-150-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-32D-200-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32D-200-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-32D-250-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32D-250-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-32D-300-P7	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-32D-300-P71	Mounting: Basic (00) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-40B-25-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40B-25-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-40B-50-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40B-50-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-40B-75-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40B-75-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-40B-100-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40B-100-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-40B-125-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40B-125-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-40B-150-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40B-150-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-40B-200-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40B-200-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-40B-250-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40B-250-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-40B-300-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40B-300-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-40R-25-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40R-25-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-40R-50-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40R-50-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-40R-75-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40R-75-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-40R-100-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40R-100-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-40R-125-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40R-125-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-40R-150-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40R-150-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-40R-200-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40R-200-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-40R-250-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40R-250-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-40R-300-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40R-300-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-40H-25-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40H-25-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-40H-50-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40H-50-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-40H-75-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40H-75-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-40H-100-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40H-100-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-40H-125-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40H-125-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-40H-150-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40H-150-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-40H-200-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40H-200-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-40H-250-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40H-250-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-40H-300-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40H-300-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-40D-25-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40D-25-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-40D-50-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40D-50-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-40D-75-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40D-75-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-40D-100-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40D-100-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-40D-125-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40D-125-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-40D-150-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40D-150-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-40D-200-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40D-200-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-40D-250-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40D-250-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-40D-300-P7	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-40D-300-P71	Mounting: Basic (00) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20B-25-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20B-25-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20B-50-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20B-50-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20B-75-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20B-75-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20B-100-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20B-100-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20B-125-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20B-125-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20B-150-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20B-150-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20B-200-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20B-200-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20B-250-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20B-250-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20B-300-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20B-300-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20R-25-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20R-25-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20R-50-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20R-50-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20R-75-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20R-75-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20R-100-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20R-100-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20R-125-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20R-125-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20R-150-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20R-150-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20R-200-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20R-200-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20R-250-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20R-250-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20R-300-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20R-300-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20H-25-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20H-25-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20H-50-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20H-50-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20H-75-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20H-75-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20H-100-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20H-100-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20H-125-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20H-125-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20H-150-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20H-150-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20H-200-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20H-200-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20H-250-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20H-250-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20H-300-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20H-300-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20D-25-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20D-25-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20D-50-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20D-50-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20D-75-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20D-75-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20D-100-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20D-100-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20D-125-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20D-125-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20D-150-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20D-150-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20D-200-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20D-200-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20D-250-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20D-250-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-20D-300-P7	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-20D-300-P71	Mounting: Axial foot (LB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25B-25-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25B-25-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25B-50-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25B-50-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25B-75-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25B-75-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25B-100-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25B-100-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25B-125-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25B-125-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25B-150-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25B-150-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25B-200-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25B-200-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25B-250-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25B-250-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25B-300-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25B-300-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25R-25-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25R-25-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25R-50-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25R-50-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25R-75-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25R-75-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25R-100-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25R-100-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25R-125-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25R-125-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25R-150-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25R-150-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25R-200-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25R-200-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25R-250-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25R-250-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25R-300-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25R-300-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25H-25-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25H-25-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25H-50-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25H-50-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25H-75-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25H-75-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25H-100-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25H-100-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25H-125-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25H-125-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25H-150-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25H-150-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25H-200-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25H-200-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25H-250-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25H-250-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25H-300-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25H-300-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25D-25-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25D-25-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25D-50-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25D-50-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25D-75-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25D-75-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25D-100-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25D-100-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25D-125-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25D-125-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25D-150-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25D-150-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25D-200-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25D-200-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25D-250-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25D-250-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-25D-300-P7	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-25D-300-P71	Mounting: Axial foot (LB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32B-25-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32B-25-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32B-50-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32B-50-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32B-75-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32B-75-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32B-100-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32B-100-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32B-125-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32B-125-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32B-150-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32B-150-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32B-200-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32B-200-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32B-250-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32B-250-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32B-300-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32B-300-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32R-25-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32R-25-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32R-50-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32R-50-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32R-75-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32R-75-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32R-100-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32R-100-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32R-125-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32R-125-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32R-150-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32R-150-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32R-200-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32R-200-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32R-250-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32R-250-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32R-300-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32R-300-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32H-25-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32H-25-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32H-50-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32H-50-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32H-75-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32H-75-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32H-100-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32H-100-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32H-125-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32H-125-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32H-150-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32H-150-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32H-200-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32H-200-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32H-250-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32H-250-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32H-300-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32H-300-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32D-25-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32D-25-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32D-50-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32D-50-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32D-75-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32D-75-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32D-100-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32D-100-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32D-125-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32D-125-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32D-150-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32D-150-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32D-200-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32D-200-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32D-250-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32D-250-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-32D-300-P7	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-32D-300-P71	Mounting: Axial foot (LB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40B-25-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40B-25-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40B-50-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40B-50-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40B-75-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40B-75-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40B-100-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40B-100-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40B-125-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40B-125-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40B-150-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40B-150-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40B-200-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40B-200-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40B-250-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40B-250-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40B-300-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40B-300-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40R-25-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40R-25-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40R-50-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40R-50-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40R-75-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40R-75-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40R-100-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40R-100-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40R-125-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40R-125-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40R-150-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40R-150-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40R-200-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40R-200-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40R-250-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40R-250-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40R-300-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40R-300-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40H-25-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40H-25-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40H-50-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40H-50-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40H-75-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40H-75-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40H-100-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40H-100-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40H-125-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40H-125-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40H-150-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40H-150-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40H-200-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40H-200-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40H-250-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40H-250-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40H-300-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40H-300-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40D-25-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40D-25-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40D-50-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40D-50-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40D-75-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40D-75-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40D-100-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40D-100-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40D-125-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40D-125-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40D-150-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40D-150-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40D-200-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40D-200-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40D-250-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40D-250-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-40D-300-P7	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-40D-300-P71	Mounting: Axial foot (LB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20B-25-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20B-25-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20B-50-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20B-50-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20B-75-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20B-75-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20B-100-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20B-100-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20B-125-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20B-125-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20B-150-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20B-150-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20B-200-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20B-200-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20B-250-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20B-250-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20B-300-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20B-300-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20R-25-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20R-25-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20R-50-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20R-50-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20R-75-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20R-75-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20R-100-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20R-100-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20R-125-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20R-125-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20R-150-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20R-150-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20R-200-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20R-200-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20R-250-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20R-250-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20R-300-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20R-300-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20H-25-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20H-25-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20H-50-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20H-50-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20H-75-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20H-75-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20H-100-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20H-100-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20H-125-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20H-125-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20H-150-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20H-150-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20H-200-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20H-200-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20H-250-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20H-250-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20H-300-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20H-300-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20D-25-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20D-25-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20D-50-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20D-50-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20D-75-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20D-75-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20D-100-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20D-100-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20D-125-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20D-125-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20D-150-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20D-150-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20D-200-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20D-200-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20D-250-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20D-250-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-20D-300-P7	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-20D-300-P71	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25B-25-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25B-25-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25B-50-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25B-50-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25B-75-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25B-75-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25B-100-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25B-100-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25B-125-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25B-125-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25B-150-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25B-150-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25B-200-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25B-200-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25B-250-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25B-250-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25B-300-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25B-300-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25R-25-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25R-25-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25R-50-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25R-50-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25R-75-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25R-75-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25R-100-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25R-100-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25R-125-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25R-125-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25R-150-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25R-150-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25R-200-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25R-200-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25R-250-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25R-250-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25R-300-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25R-300-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25H-25-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25H-25-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25H-50-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25H-50-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25H-75-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25H-75-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25H-100-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25H-100-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25H-125-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25H-125-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25H-150-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25H-150-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25H-200-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25H-200-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25H-250-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25H-250-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25H-300-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25H-300-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25D-25-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25D-25-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25D-50-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25D-50-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25D-75-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25D-75-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25D-100-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25D-100-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25D-125-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25D-125-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25D-150-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25D-150-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25D-200-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25D-200-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25D-250-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25D-250-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-25D-300-P7	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-25D-300-P71	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32B-25-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32B-25-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32B-50-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32B-50-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32B-75-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32B-75-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32B-100-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32B-100-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32B-125-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32B-125-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32B-150-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32B-150-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32B-200-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32B-200-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32B-250-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32B-250-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32B-300-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32B-300-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32R-25-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32R-25-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32R-50-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32R-50-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32R-75-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32R-75-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32R-100-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32R-100-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32R-125-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32R-125-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32R-150-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32R-150-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32R-200-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32R-200-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32R-250-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32R-250-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32R-300-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32R-300-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32H-25-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32H-25-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32H-50-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32H-50-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32H-75-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32H-75-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32H-100-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32H-100-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32H-125-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32H-125-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32H-150-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32H-150-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32H-200-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32H-200-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32H-250-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32H-250-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32H-300-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32H-300-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32D-25-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32D-25-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32D-50-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32D-50-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32D-75-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32D-75-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32D-100-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32D-100-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32D-125-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32D-125-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32D-150-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32D-150-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32D-200-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32D-200-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32D-250-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32D-250-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-32D-300-P7	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-32D-300-P71	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40B-25-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40B-25-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40B-50-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40B-50-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40B-75-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40B-75-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40B-100-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40B-100-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40B-125-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40B-125-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40B-150-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40B-150-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40B-200-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40B-200-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40B-250-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40B-250-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40B-300-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40B-300-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40R-25-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40R-25-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40R-50-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40R-50-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40R-75-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40R-75-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40R-100-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40R-100-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40R-125-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40R-125-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40R-150-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40R-150-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40R-200-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40R-200-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40R-250-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40R-250-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40R-300-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40R-300-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40H-25-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40H-25-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40H-50-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40H-50-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40H-75-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40H-75-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40H-100-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40H-100-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40H-125-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40H-125-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40H-150-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40H-150-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40H-200-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40H-200-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40H-250-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40H-250-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40H-300-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40H-300-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40D-25-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40D-25-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40D-50-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40D-50-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40D-75-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40D-75-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40D-100-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40D-100-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40D-125-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40D-125-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40D-150-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40D-150-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40D-200-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40D-200-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40D-250-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40D-250-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-40D-300-P7	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-40D-300-P71	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20B-25-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20B-25-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20B-50-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20B-50-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20B-75-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20B-75-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20B-100-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20B-100-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20B-125-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20B-125-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20B-150-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20B-150-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20B-200-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20B-200-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20B-250-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20B-250-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20B-300-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20B-300-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20R-25-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20R-25-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20R-50-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20R-50-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20R-75-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20R-75-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20R-100-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20R-100-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20R-125-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20R-125-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20R-150-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20R-150-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20R-200-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20R-200-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20R-250-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20R-250-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20R-300-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20R-300-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20H-25-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20H-25-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20H-50-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20H-50-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20H-75-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20H-75-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20H-100-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20H-100-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20H-125-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20H-125-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20H-150-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20H-150-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20H-200-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20H-200-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20H-250-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20H-250-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20H-300-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20H-300-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20D-25-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20D-25-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20D-50-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20D-50-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20D-75-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20D-75-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20D-100-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20D-100-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20D-125-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20D-125-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20D-150-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20D-150-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20D-200-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20D-200-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20D-250-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20D-250-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-20D-300-P7	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-20D-300-P71	Mounting: Head-end flange (FB) \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25B-25-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25B-25-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25B-50-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25B-50-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25B-75-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25B-75-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25B-100-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25B-100-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25B-125-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25B-125-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25B-150-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25B-150-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25B-200-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25B-200-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25B-250-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25B-250-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25B-300-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25B-300-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25R-25-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25R-25-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25R-50-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25R-50-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25R-75-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25R-75-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25R-100-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25R-100-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25R-125-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25R-125-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25R-150-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25R-150-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25R-200-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25R-200-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25R-250-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25R-250-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25R-300-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25R-300-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25H-25-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25H-25-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25H-50-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25H-50-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25H-75-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25H-75-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25H-100-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25H-100-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25H-125-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25H-125-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25H-150-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25H-150-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25H-200-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25H-200-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25H-250-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25H-250-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25H-300-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25H-300-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25D-25-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25D-25-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25D-50-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25D-50-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25D-75-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25D-75-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25D-100-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25D-100-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25D-125-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25D-125-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25D-150-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25D-150-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25D-200-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25D-200-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25D-250-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25D-250-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-25D-300-P7	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-25D-300-P71	Mounting: Head-end flange (FB) \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32B-25-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32B-25-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32B-50-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32B-50-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32B-75-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32B-75-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32B-100-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32B-100-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32B-125-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32B-125-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32B-150-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32B-150-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32B-200-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32B-200-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32B-250-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32B-250-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32B-300-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32B-300-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32R-25-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32R-25-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32R-50-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32R-50-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32R-75-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32R-75-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32R-100-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32R-100-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32R-125-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32R-125-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32R-150-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32R-150-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32R-200-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32R-200-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32R-250-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32R-250-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32R-300-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32R-300-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32H-25-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32H-25-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32H-50-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32H-50-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32H-75-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32H-75-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32H-100-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32H-100-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32H-125-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32H-125-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32H-150-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32H-150-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32H-200-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32H-200-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32H-250-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32H-250-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32H-300-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32H-300-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32D-25-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32D-25-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32D-50-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32D-50-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32D-75-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32D-75-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32D-100-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32D-100-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32D-125-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32D-125-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32D-150-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32D-150-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32D-200-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32D-200-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32D-250-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32D-250-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-32D-300-P7	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-32D-300-P71	Mounting: Head-end flange (FB) \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40B-25-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40B-25-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40B-50-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40B-50-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40B-75-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40B-75-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40B-100-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40B-100-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40B-125-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40B-125-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40B-150-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40B-150-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40B-200-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40B-200-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40B-250-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40B-250-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40B-300-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40B-300-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40R-25-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40R-25-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40R-50-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40R-50-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40R-75-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40R-75-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40R-100-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40R-100-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40R-125-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40R-125-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40R-150-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40R-150-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40R-200-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40R-200-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40R-250-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40R-250-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40R-300-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40R-300-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40H-25-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40H-25-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40H-50-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40H-50-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40H-75-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40H-75-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40H-100-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40H-100-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40H-125-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40H-125-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40H-150-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40H-150-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40H-200-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40H-200-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40H-250-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40H-250-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40H-300-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40H-300-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40D-25-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40D-25-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40D-50-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40D-50-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40D-75-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40D-75-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40D-100-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40D-100-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40D-125-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40D-125-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40D-150-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40D-150-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40D-200-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40D-200-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40D-250-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40D-250-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-40D-300-P7	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-40D-300-P71	Mounting: Head-end flange (FB) \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCM Super Micro Cylinder (Clean Room P7, Bore 20-40)
