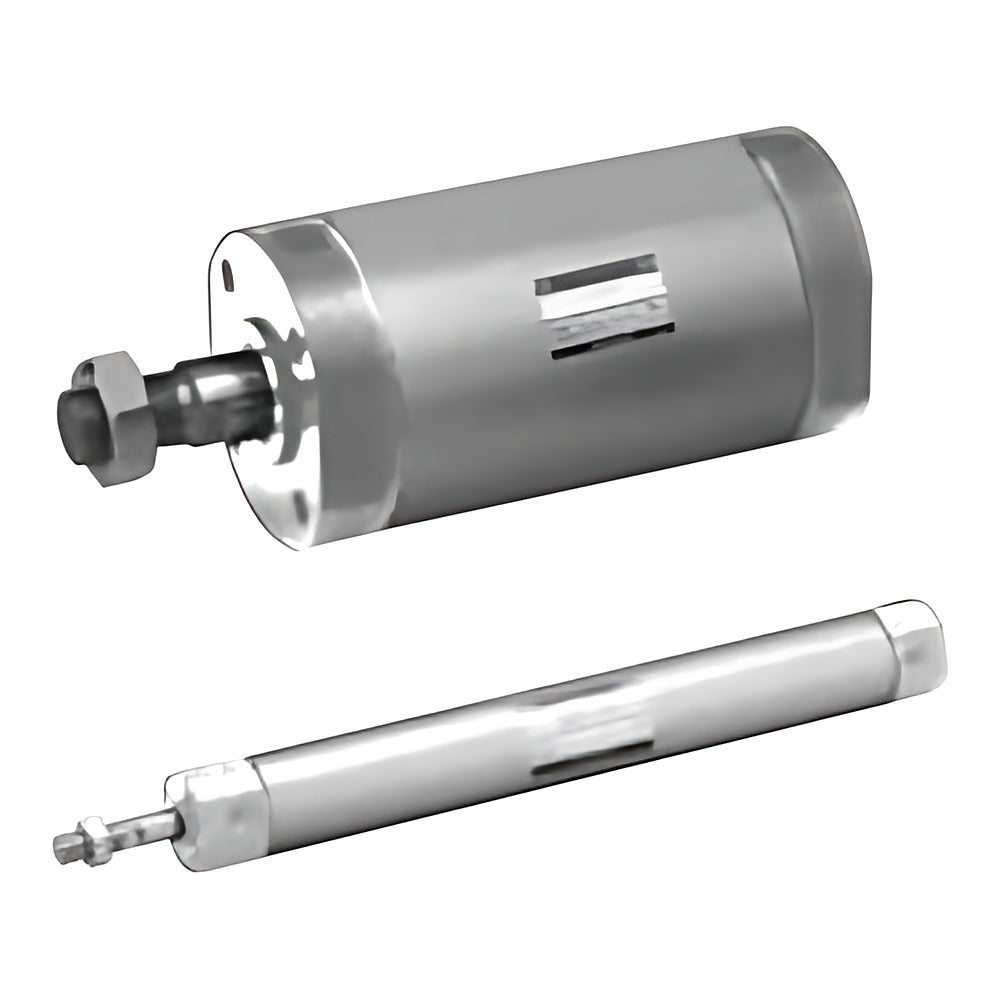

CKD SCM Super Micro Cylinder (Clean Room P7, Bore 50-100)

CKD SCM clean-room super micro (round body) cylinder, double-acting single rod, bore 50-100 mm, with built-in switch magnet.

Key features

Clean spec P7 (exhaust treatment) or P71 (vacuum suction); P5/P51 copper/silicone/halogen-free versions are made to order
Cushion: air cushion both ends (B), rod end (R), head end (H) or rubber cushion (D)
Mounting: basic (00), axial foot (LB), rod-end flange (FA), head-end flange (FB)
Switch magnet built in; auto switches (T0/T5/T8/T1/T2/T3/T2W/T2Y/T3W/T3Y/T2YD/T2J) rail or band (Z) mount
Option Q (switch rail attached) written directly before the clean suffix, e.g. -QP7
Intermediate strokes 10-1000/1500 mm in 1 mm steps

Specifications

Operation	Double-acting, single rod
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Lubrication	Not allowed
Switch magnet	Built in (all models)
Min. operating pressure	0.15 MPa (20-32), 0.1 MPa (40-100)
Piston speed	30-1000 mm/s
Port size	M5 to Rc1/2 by bore and cushion
Source	CKD Korea catalog CB-033S-4, p. 45-65

SCM-00-50B-25-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-50B-25-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-50B-50-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-50B-50-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-50B-75-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-50B-75-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-50B-100-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-50B-100-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-50B-125-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-50B-125-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-50B-150-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-50B-150-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-50B-200-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-50B-200-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-50B-250-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-50B-250-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-50B-300-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-50B-300-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-50R-25-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-50R-25-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-50R-50-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-50R-50-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-50R-75-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-50R-75-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-50R-100-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-50R-100-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-50R-125-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-50R-125-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-50R-150-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-50R-150-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-50R-200-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-50R-200-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-50R-250-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-50R-250-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-50R-300-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-50R-300-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-50H-25-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-50H-25-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-50H-50-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-50H-50-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-50H-75-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-50H-75-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-50H-100-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-50H-100-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-50H-125-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-50H-125-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-50H-150-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-50H-150-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-50H-200-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-50H-200-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-50H-250-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-50H-250-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-50H-300-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-50H-300-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-50D-25-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-50D-25-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-50D-50-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-50D-50-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-50D-75-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-50D-75-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-50D-100-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-50D-100-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-50D-125-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-50D-125-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-50D-150-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-50D-150-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-50D-200-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-50D-200-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-50D-250-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-50D-250-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-50D-300-P7		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-50D-300-P71		Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-63B-25-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-63B-25-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-63B-50-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-63B-50-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-63B-75-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-63B-75-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-63B-100-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-63B-100-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-63B-125-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-63B-125-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-63B-150-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-63B-150-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-63B-200-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-63B-200-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-63B-250-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-63B-250-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-63B-300-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-63B-300-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-63R-25-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-63R-25-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-63R-50-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-63R-50-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-63R-75-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-63R-75-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-63R-100-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-63R-100-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-63R-125-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-63R-125-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-63R-150-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-63R-150-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-63R-200-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-63R-200-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-63R-250-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-63R-250-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-63R-300-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-63R-300-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-63H-25-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-63H-25-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-63H-50-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-63H-50-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-63H-75-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-63H-75-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-63H-100-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-63H-100-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-63H-125-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-63H-125-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-63H-150-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-63H-150-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-63H-200-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-63H-200-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-63H-250-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-63H-250-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-63H-300-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-63H-300-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-63D-25-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-63D-25-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-63D-50-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-63D-50-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-63D-75-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-63D-75-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-63D-100-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-63D-100-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-63D-125-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-63D-125-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-63D-150-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-63D-150-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-63D-200-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-63D-200-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-63D-250-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-63D-250-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-63D-300-P7		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-63D-300-P71		Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-80B-25-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-80B-25-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-80B-50-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-80B-50-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-80B-75-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-80B-75-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-80B-100-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-80B-100-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-80B-125-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-80B-125-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-80B-150-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-80B-150-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-80B-200-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-80B-200-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-80B-250-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-80B-250-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-80B-300-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-80B-300-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-80R-25-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-80R-25-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-80R-50-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-80R-50-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-80R-75-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-80R-75-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-80R-100-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-80R-100-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-80R-125-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-80R-125-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-80R-150-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-80R-150-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-80R-200-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-80R-200-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-80R-250-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-80R-250-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-80R-300-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-80R-300-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-80H-25-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-80H-25-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-80H-50-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-80H-50-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-80H-75-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-80H-75-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-80H-100-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-80H-100-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-80H-125-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-80H-125-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-80H-150-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-80H-150-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-80H-200-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-80H-200-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-80H-250-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-80H-250-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-80H-300-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-80H-300-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-80D-25-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-80D-25-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-80D-50-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-80D-50-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-80D-75-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-80D-75-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-80D-100-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-80D-100-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-80D-125-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-80D-125-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-80D-150-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-80D-150-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-80D-200-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-80D-200-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-80D-250-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-80D-250-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-80D-300-P7		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-80D-300-P71		Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-100B-25-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-100B-25-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-100B-50-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-100B-50-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-100B-75-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-100B-75-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-100B-100-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-100B-100-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-100B-125-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-100B-125-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-100B-150-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-100B-150-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-100B-200-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-100B-200-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-100B-250-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-100B-250-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-100B-300-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-100B-300-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-100R-25-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-100R-25-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-100R-50-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-100R-50-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-100R-75-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-100R-75-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-100R-100-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-100R-100-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-100R-125-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-100R-125-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-100R-150-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-100R-150-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-100R-200-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-100R-200-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-100R-250-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-100R-250-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-100R-300-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-100R-300-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-100H-25-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-100H-25-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-100H-50-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-100H-50-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-100H-75-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-100H-75-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-100H-100-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-100H-100-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-100H-125-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-100H-125-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-100H-150-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-100H-150-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-100H-200-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-100H-200-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-100H-250-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-100H-250-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-100H-300-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-100H-300-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-00-100D-25-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-00-100D-25-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-00-100D-50-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-00-100D-50-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-00-100D-75-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-00-100D-75-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-00-100D-100-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-00-100D-100-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-00-100D-125-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-00-100D-125-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-00-100D-150-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-00-100D-150-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-00-100D-200-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-00-100D-200-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-00-100D-250-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-00-100D-250-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-00-100D-300-P7		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-00-100D-300-P71		Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-50B-25-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50B-25-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-50B-50-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50B-50-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-50B-75-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50B-75-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-50B-100-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50B-100-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-50B-125-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50B-125-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-50B-150-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50B-150-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-50B-200-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50B-200-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-50B-250-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50B-250-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-50B-300-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50B-300-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-50R-25-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50R-25-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-50R-50-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50R-50-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-50R-75-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50R-75-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-50R-100-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50R-100-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-50R-125-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50R-125-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-50R-150-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50R-150-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-50R-200-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50R-200-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-50R-250-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50R-250-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-50R-300-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50R-300-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-50H-25-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50H-25-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-50H-50-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50H-50-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-50H-75-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50H-75-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-50H-100-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50H-100-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-50H-125-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50H-125-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-50H-150-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50H-150-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-50H-200-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50H-200-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-50H-250-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50H-250-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-50H-300-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50H-300-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-50D-25-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50D-25-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-50D-50-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50D-50-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-50D-75-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50D-75-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-50D-100-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50D-100-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-50D-125-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50D-125-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-50D-150-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50D-150-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-50D-200-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50D-200-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-50D-250-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50D-250-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-50D-300-P7		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-50D-300-P71		Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-63B-25-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63B-25-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-63B-50-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63B-50-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-63B-75-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63B-75-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-63B-100-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63B-100-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-63B-125-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63B-125-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-63B-150-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63B-150-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-63B-200-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63B-200-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-63B-250-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63B-250-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-63B-300-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63B-300-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-63R-25-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63R-25-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-63R-50-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63R-50-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-63R-75-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63R-75-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-63R-100-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63R-100-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-63R-125-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63R-125-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-63R-150-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63R-150-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-63R-200-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63R-200-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-63R-250-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63R-250-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-63R-300-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63R-300-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-63H-25-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63H-25-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-63H-50-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63H-50-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-63H-75-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63H-75-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-63H-100-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63H-100-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-63H-125-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63H-125-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-63H-150-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63H-150-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-63H-200-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63H-200-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-63H-250-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63H-250-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-63H-300-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63H-300-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-63D-25-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63D-25-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-63D-50-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63D-50-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-63D-75-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63D-75-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-63D-100-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63D-100-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-63D-125-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63D-125-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-63D-150-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63D-150-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-63D-200-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63D-200-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-63D-250-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63D-250-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-63D-300-P7		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-63D-300-P71		Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-80B-25-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80B-25-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-80B-50-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80B-50-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-80B-75-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80B-75-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-80B-100-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80B-100-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-80B-125-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80B-125-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-80B-150-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80B-150-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-80B-200-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80B-200-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-80B-250-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80B-250-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-80B-300-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80B-300-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-80R-25-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80R-25-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-80R-50-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80R-50-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-80R-75-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80R-75-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-80R-100-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80R-100-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-80R-125-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80R-125-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-80R-150-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80R-150-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-80R-200-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80R-200-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-80R-250-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80R-250-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-80R-300-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80R-300-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-80H-25-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80H-25-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-80H-50-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80H-50-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-80H-75-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80H-75-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-80H-100-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80H-100-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-80H-125-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80H-125-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-80H-150-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80H-150-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-80H-200-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80H-200-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-80H-250-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80H-250-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-80H-300-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80H-300-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-80D-25-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80D-25-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-80D-50-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80D-50-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-80D-75-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80D-75-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-80D-100-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80D-100-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-80D-125-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80D-125-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-80D-150-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80D-150-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-80D-200-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80D-200-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-80D-250-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80D-250-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-80D-300-P7		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-80D-300-P71		Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-100B-25-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100B-25-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-100B-50-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100B-50-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-100B-75-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100B-75-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-100B-100-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100B-100-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-100B-125-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100B-125-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-100B-150-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100B-150-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-100B-200-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100B-200-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-100B-250-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100B-250-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-100B-300-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100B-300-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-100R-25-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100R-25-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-100R-50-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100R-50-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-100R-75-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100R-75-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-100R-100-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100R-100-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-100R-125-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100R-125-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-100R-150-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100R-150-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-100R-200-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100R-200-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-100R-250-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100R-250-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-100R-300-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100R-300-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-100H-25-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100H-25-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-100H-50-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100H-50-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-100H-75-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100H-75-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-100H-100-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100H-100-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-100H-125-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100H-125-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-100H-150-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100H-150-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-100H-200-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100H-200-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-100H-250-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100H-250-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-100H-300-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100H-300-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-LB-100D-25-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100D-25-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-LB-100D-50-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100D-50-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-LB-100D-75-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100D-75-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-LB-100D-100-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100D-100-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-LB-100D-125-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100D-125-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-LB-100D-150-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100D-150-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-LB-100D-200-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100D-200-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-LB-100D-250-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100D-250-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-LB-100D-300-P7		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-LB-100D-300-P71		Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-50B-25-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50B-25-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-50B-50-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50B-50-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-50B-75-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50B-75-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-50B-100-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50B-100-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-50B-125-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50B-125-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-50B-150-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50B-150-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-50B-200-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50B-200-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-50B-250-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50B-250-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-50B-300-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50B-300-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-50R-25-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50R-25-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-50R-50-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50R-50-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-50R-75-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50R-75-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-50R-100-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50R-100-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-50R-125-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50R-125-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-50R-150-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50R-150-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-50R-200-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50R-200-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-50R-250-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50R-250-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-50R-300-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50R-300-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-50H-25-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50H-25-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-50H-50-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50H-50-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-50H-75-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50H-75-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-50H-100-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50H-100-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-50H-125-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50H-125-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-50H-150-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50H-150-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-50H-200-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50H-200-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-50H-250-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50H-250-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-50H-300-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50H-300-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-50D-25-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50D-25-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-50D-50-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50D-50-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-50D-75-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50D-75-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-50D-100-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50D-100-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-50D-125-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50D-125-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-50D-150-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50D-150-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-50D-200-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50D-200-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-50D-250-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50D-250-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-50D-300-P7		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-50D-300-P71		Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-63B-25-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63B-25-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-63B-50-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63B-50-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-63B-75-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63B-75-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-63B-100-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63B-100-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-63B-125-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63B-125-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-63B-150-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63B-150-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-63B-200-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63B-200-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-63B-250-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63B-250-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-63B-300-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63B-300-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-63R-25-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63R-25-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-63R-50-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63R-50-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-63R-75-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63R-75-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-63R-100-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63R-100-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-63R-125-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63R-125-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-63R-150-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63R-150-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-63R-200-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63R-200-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-63R-250-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63R-250-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-63R-300-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63R-300-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-63H-25-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63H-25-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-63H-50-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63H-50-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-63H-75-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63H-75-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-63H-100-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63H-100-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-63H-125-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63H-125-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-63H-150-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63H-150-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-63H-200-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63H-200-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-63H-250-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63H-250-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-63H-300-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63H-300-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-63D-25-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63D-25-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-63D-50-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63D-50-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-63D-75-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63D-75-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-63D-100-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63D-100-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-63D-125-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63D-125-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-63D-150-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63D-150-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-63D-200-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63D-200-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-63D-250-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63D-250-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-63D-300-P7		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-63D-300-P71		Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-80B-25-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80B-25-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-80B-50-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80B-50-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-80B-75-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80B-75-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-80B-100-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80B-100-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-80B-125-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80B-125-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-80B-150-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80B-150-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-80B-200-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80B-200-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-80B-250-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80B-250-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-80B-300-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80B-300-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-80R-25-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80R-25-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-80R-50-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80R-50-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-80R-75-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80R-75-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-80R-100-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80R-100-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-80R-125-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80R-125-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-80R-150-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80R-150-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-80R-200-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80R-200-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-80R-250-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80R-250-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-80R-300-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80R-300-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-80H-25-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80H-25-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-80H-50-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80H-50-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-80H-75-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80H-75-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-80H-100-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80H-100-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-80H-125-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80H-125-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-80H-150-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80H-150-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-80H-200-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80H-200-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-80H-250-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80H-250-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-80H-300-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80H-300-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-80D-25-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80D-25-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-80D-50-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80D-50-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-80D-75-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80D-75-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-80D-100-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80D-100-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-80D-125-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80D-125-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-80D-150-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80D-150-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-80D-200-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80D-200-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-80D-250-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80D-250-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-80D-300-P7		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-80D-300-P71		Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-100B-25-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100B-25-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-100B-50-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100B-50-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-100B-75-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100B-75-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-100B-100-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100B-100-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-100B-125-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100B-125-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-100B-150-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100B-150-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-100B-200-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100B-200-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-100B-250-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100B-250-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-100B-300-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100B-300-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-100R-25-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100R-25-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-100R-50-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100R-50-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-100R-75-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100R-75-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-100R-100-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100R-100-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-100R-125-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100R-125-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-100R-150-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100R-150-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-100R-200-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100R-200-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-100R-250-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100R-250-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-100R-300-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100R-300-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-100H-25-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100H-25-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-100H-50-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100H-50-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-100H-75-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100H-75-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-100H-100-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100H-100-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-100H-125-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100H-125-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-100H-150-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100H-150-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-100H-200-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100H-200-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-100H-250-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100H-250-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-100H-300-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100H-300-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FA-100D-25-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100D-25-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FA-100D-50-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100D-50-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FA-100D-75-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100D-75-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FA-100D-100-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100D-100-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FA-100D-125-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100D-125-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FA-100D-150-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100D-150-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FA-100D-200-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100D-200-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FA-100D-250-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100D-250-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FA-100D-300-P7		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FA-100D-300-P71		Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-50B-25-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50B-25-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-50B-50-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50B-50-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-50B-75-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50B-75-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-50B-100-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50B-100-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-50B-125-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50B-125-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-50B-150-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50B-150-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-50B-200-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50B-200-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-50B-250-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50B-250-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-50B-300-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50B-300-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-50R-25-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50R-25-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-50R-50-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50R-50-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-50R-75-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50R-75-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-50R-100-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50R-100-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-50R-125-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50R-125-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-50R-150-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50R-150-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-50R-200-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50R-200-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-50R-250-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50R-250-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-50R-300-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50R-300-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-50H-25-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50H-25-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-50H-50-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50H-50-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-50H-75-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50H-75-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-50H-100-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50H-100-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-50H-125-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50H-125-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-50H-150-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50H-150-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-50H-200-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50H-200-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-50H-250-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50H-250-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-50H-300-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50H-300-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-50D-25-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50D-25-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-50D-50-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50D-50-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-50D-75-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50D-75-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-50D-100-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50D-100-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-50D-125-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50D-125-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-50D-150-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50D-150-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-50D-200-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50D-200-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-50D-250-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50D-250-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-50D-300-P7		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-50D-300-P71		Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-63B-25-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63B-25-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-63B-50-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63B-50-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-63B-75-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63B-75-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-63B-100-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63B-100-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-63B-125-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63B-125-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-63B-150-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63B-150-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-63B-200-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63B-200-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-63B-250-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63B-250-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-63B-300-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63B-300-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-63R-25-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63R-25-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-63R-50-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63R-50-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-63R-75-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63R-75-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-63R-100-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63R-100-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-63R-125-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63R-125-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-63R-150-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63R-150-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-63R-200-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63R-200-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-63R-250-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63R-250-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-63R-300-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63R-300-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-63H-25-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63H-25-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-63H-50-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63H-50-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-63H-75-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63H-75-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-63H-100-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63H-100-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-63H-125-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63H-125-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-63H-150-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63H-150-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-63H-200-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63H-200-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-63H-250-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63H-250-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-63H-300-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63H-300-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-63D-25-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63D-25-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-63D-50-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63D-50-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-63D-75-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63D-75-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-63D-100-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63D-100-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-63D-125-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63D-125-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-63D-150-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63D-150-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-63D-200-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63D-200-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-63D-250-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63D-250-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-63D-300-P7		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-63D-300-P71		Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-80B-25-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80B-25-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-80B-50-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80B-50-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-80B-75-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80B-75-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-80B-100-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80B-100-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-80B-125-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80B-125-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-80B-150-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80B-150-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-80B-200-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80B-200-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-80B-250-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80B-250-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-80B-300-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80B-300-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-80R-25-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80R-25-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-80R-50-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80R-50-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-80R-75-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80R-75-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-80R-100-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80R-100-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-80R-125-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80R-125-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-80R-150-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80R-150-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-80R-200-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80R-200-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-80R-250-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80R-250-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-80R-300-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80R-300-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-80H-25-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80H-25-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-80H-50-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80H-50-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-80H-75-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80H-75-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-80H-100-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80H-100-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-80H-125-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80H-125-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-80H-150-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80H-150-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-80H-200-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80H-200-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-80H-250-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80H-250-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-80H-300-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80H-300-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-80D-25-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80D-25-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-80D-50-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80D-50-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-80D-75-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80D-75-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-80D-100-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80D-100-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-80D-125-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80D-125-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-80D-150-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80D-150-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-80D-200-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80D-200-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-80D-250-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80D-250-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-80D-300-P7		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-80D-300-P71		Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-100B-25-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100B-25-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-100B-50-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100B-50-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-100B-75-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100B-75-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-100B-100-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100B-100-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-100B-125-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100B-125-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-100B-150-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100B-150-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-100B-200-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100B-200-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-100B-250-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100B-250-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-100B-300-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100B-300-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-100R-25-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100R-25-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-100R-50-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100R-50-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-100R-75-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100R-75-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-100R-100-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100R-100-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-100R-125-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100R-125-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-100R-150-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100R-150-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-100R-200-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100R-200-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-100R-250-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100R-250-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-100R-300-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100R-300-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-100H-25-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100H-25-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-100H-50-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100H-50-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-100H-75-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100H-75-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-100H-100-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100H-100-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-100H-125-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100H-125-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-100H-150-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100H-150-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-100H-200-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100H-200-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-100H-250-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100H-250-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-100H-300-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100H-300-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
SCM-FB-100D-25-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100D-25-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
SCM-FB-100D-50-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100D-50-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
SCM-FB-100D-75-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100D-75-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
SCM-FB-100D-100-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100D-100-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
SCM-FB-100D-125-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100D-125-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
SCM-FB-100D-150-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100D-150-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
SCM-FB-100D-200-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100D-200-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
SCM-FB-100D-250-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100D-250-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
SCM-FB-100D-300-P7		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
SCM-FB-100D-300-P71		Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction

Pneumatic CylindersCKD

1152 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM Super Micro Cylinder (Clean Room P7, Bore 50-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (1152)

SCM-00-50B-25-P7, SCM-00-50B-25-P71, SCM-00-50B-50-P7, SCM-00-50B-50-P71, SCM-00-50B-75-P7, SCM-00-50B-75-P71, SCM-00-50B-100-P7, SCM-00-50B-100-P71, SCM-00-50B-125-P7, SCM-00-50B-125-P71 + 1142 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCM-00-50B-25-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50B-25-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-50B-50-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50B-50-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-50B-75-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50B-75-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-50B-100-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50B-100-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-50B-125-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50B-125-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-50B-150-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50B-150-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-50B-200-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50B-200-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-50B-250-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50B-250-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-50B-300-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50B-300-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-50R-25-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50R-25-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-50R-50-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50R-50-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-50R-75-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50R-75-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-50R-100-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50R-100-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-50R-125-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50R-125-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-50R-150-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50R-150-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-50R-200-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50R-200-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-50R-250-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50R-250-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-50R-300-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50R-300-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-50H-25-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50H-25-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-50H-50-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50H-50-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-50H-75-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50H-75-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-50H-100-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50H-100-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-50H-125-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50H-125-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-50H-150-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50H-150-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-50H-200-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50H-200-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-50H-250-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50H-250-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-50H-300-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50H-300-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-50D-25-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50D-25-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-50D-50-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50D-50-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-50D-75-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50D-75-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-50D-100-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50D-100-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-50D-125-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50D-125-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-50D-150-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50D-150-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-50D-200-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50D-200-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-50D-250-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50D-250-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-50D-300-P7	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-50D-300-P71	Mounting: Basic (00) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-63B-25-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63B-25-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-63B-50-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63B-50-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-63B-75-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63B-75-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-63B-100-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63B-100-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-63B-125-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63B-125-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-63B-150-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63B-150-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-63B-200-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63B-200-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-63B-250-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63B-250-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-63B-300-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63B-300-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-63R-25-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63R-25-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-63R-50-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63R-50-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-63R-75-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63R-75-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-63R-100-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63R-100-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-63R-125-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63R-125-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-63R-150-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63R-150-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-63R-200-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63R-200-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-63R-250-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63R-250-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-63R-300-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63R-300-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-63H-25-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63H-25-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-63H-50-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63H-50-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-63H-75-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63H-75-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-63H-100-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63H-100-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-63H-125-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63H-125-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-63H-150-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63H-150-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-63H-200-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63H-200-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-63H-250-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63H-250-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-63H-300-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63H-300-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-63D-25-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63D-25-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-63D-50-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63D-50-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-63D-75-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63D-75-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-63D-100-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63D-100-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-63D-125-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63D-125-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-63D-150-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63D-150-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-63D-200-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63D-200-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-63D-250-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63D-250-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-63D-300-P7	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-63D-300-P71	Mounting: Basic (00) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-80B-25-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80B-25-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-80B-50-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80B-50-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-80B-75-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80B-75-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-80B-100-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80B-100-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-80B-125-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80B-125-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-80B-150-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80B-150-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-80B-200-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80B-200-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-80B-250-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80B-250-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-80B-300-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80B-300-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-80R-25-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80R-25-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-80R-50-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80R-50-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-80R-75-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80R-75-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-80R-100-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80R-100-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-80R-125-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80R-125-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-80R-150-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80R-150-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-80R-200-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80R-200-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-80R-250-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80R-250-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-80R-300-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80R-300-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-80H-25-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80H-25-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-80H-50-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80H-50-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-80H-75-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80H-75-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-80H-100-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80H-100-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-80H-125-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80H-125-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-80H-150-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80H-150-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-80H-200-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80H-200-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-80H-250-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80H-250-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-80H-300-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80H-300-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-80D-25-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80D-25-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-80D-50-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80D-50-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-80D-75-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80D-75-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-80D-100-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80D-100-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-80D-125-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80D-125-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-80D-150-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80D-150-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-80D-200-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80D-200-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-80D-250-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80D-250-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-80D-300-P7	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-80D-300-P71	Mounting: Basic (00) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-100B-25-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100B-25-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-100B-50-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100B-50-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-100B-75-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100B-75-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-100B-100-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100B-100-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-100B-125-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100B-125-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-100B-150-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100B-150-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-100B-200-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100B-200-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-100B-250-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100B-250-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-100B-300-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100B-300-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-100R-25-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100R-25-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-100R-50-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100R-50-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-100R-75-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100R-75-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-100R-100-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100R-100-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-100R-125-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100R-125-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-100R-150-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100R-150-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-100R-200-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100R-200-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-100R-250-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100R-250-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-100R-300-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100R-300-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-100H-25-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100H-25-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-100H-50-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100H-50-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-100H-75-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100H-75-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-100H-100-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100H-100-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-100H-125-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100H-125-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-100H-150-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100H-150-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-100H-200-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100H-200-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-100H-250-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100H-250-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-100H-300-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100H-300-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-00-100D-25-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100D-25-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-00-100D-50-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100D-50-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-00-100D-75-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100D-75-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-00-100D-100-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100D-100-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-00-100D-125-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100D-125-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-00-100D-150-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100D-150-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-00-100D-200-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100D-200-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-00-100D-250-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100D-250-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-00-100D-300-P7	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-00-100D-300-P71	Mounting: Basic (00) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50B-25-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50B-25-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50B-50-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50B-50-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50B-75-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50B-75-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50B-100-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50B-100-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50B-125-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50B-125-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50B-150-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50B-150-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50B-200-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50B-200-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50B-250-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50B-250-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50B-300-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50B-300-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50R-25-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50R-25-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50R-50-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50R-50-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50R-75-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50R-75-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50R-100-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50R-100-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50R-125-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50R-125-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50R-150-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50R-150-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50R-200-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50R-200-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50R-250-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50R-250-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50R-300-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50R-300-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50H-25-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50H-25-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50H-50-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50H-50-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50H-75-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50H-75-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50H-100-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50H-100-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50H-125-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50H-125-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50H-150-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50H-150-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50H-200-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50H-200-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50H-250-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50H-250-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50H-300-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50H-300-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50D-25-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50D-25-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50D-50-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50D-50-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50D-75-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50D-75-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50D-100-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50D-100-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50D-125-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50D-125-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50D-150-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50D-150-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50D-200-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50D-200-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50D-250-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50D-250-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-50D-300-P7	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-50D-300-P71	Mounting: Axial foot (LB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63B-25-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63B-25-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63B-50-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63B-50-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63B-75-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63B-75-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63B-100-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63B-100-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63B-125-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63B-125-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63B-150-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63B-150-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63B-200-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63B-200-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63B-250-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63B-250-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63B-300-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63B-300-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63R-25-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63R-25-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63R-50-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63R-50-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63R-75-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63R-75-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63R-100-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63R-100-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63R-125-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63R-125-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63R-150-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63R-150-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63R-200-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63R-200-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63R-250-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63R-250-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63R-300-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63R-300-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63H-25-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63H-25-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63H-50-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63H-50-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63H-75-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63H-75-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63H-100-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63H-100-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63H-125-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63H-125-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63H-150-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63H-150-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63H-200-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63H-200-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63H-250-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63H-250-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63H-300-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63H-300-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63D-25-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63D-25-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63D-50-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63D-50-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63D-75-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63D-75-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63D-100-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63D-100-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63D-125-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63D-125-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63D-150-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63D-150-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63D-200-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63D-200-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63D-250-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63D-250-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-63D-300-P7	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-63D-300-P71	Mounting: Axial foot (LB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80B-25-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80B-25-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80B-50-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80B-50-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80B-75-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80B-75-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80B-100-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80B-100-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80B-125-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80B-125-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80B-150-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80B-150-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80B-200-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80B-200-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80B-250-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80B-250-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80B-300-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80B-300-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80R-25-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80R-25-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80R-50-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80R-50-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80R-75-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80R-75-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80R-100-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80R-100-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80R-125-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80R-125-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80R-150-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80R-150-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80R-200-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80R-200-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80R-250-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80R-250-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80R-300-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80R-300-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80H-25-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80H-25-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80H-50-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80H-50-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80H-75-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80H-75-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80H-100-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80H-100-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80H-125-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80H-125-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80H-150-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80H-150-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80H-200-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80H-200-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80H-250-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80H-250-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80H-300-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80H-300-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80D-25-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80D-25-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80D-50-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80D-50-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80D-75-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80D-75-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80D-100-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80D-100-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80D-125-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80D-125-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80D-150-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80D-150-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80D-200-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80D-200-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80D-250-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80D-250-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-80D-300-P7	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-80D-300-P71	Mounting: Axial foot (LB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100B-25-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100B-25-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100B-50-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100B-50-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100B-75-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100B-75-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100B-100-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100B-100-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100B-125-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100B-125-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100B-150-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100B-150-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100B-200-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100B-200-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100B-250-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100B-250-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100B-300-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100B-300-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100R-25-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100R-25-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100R-50-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100R-50-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100R-75-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100R-75-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100R-100-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100R-100-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100R-125-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100R-125-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100R-150-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100R-150-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100R-200-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100R-200-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100R-250-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100R-250-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100R-300-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100R-300-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100H-25-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100H-25-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100H-50-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100H-50-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100H-75-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100H-75-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100H-100-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100H-100-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100H-125-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100H-125-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100H-150-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100H-150-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100H-200-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100H-200-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100H-250-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100H-250-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100H-300-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100H-300-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100D-25-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100D-25-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100D-50-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100D-50-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100D-75-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100D-75-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100D-100-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100D-100-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100D-125-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100D-125-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100D-150-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100D-150-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100D-200-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100D-200-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100D-250-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100D-250-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-LB-100D-300-P7	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-LB-100D-300-P71	Mounting: Axial foot (LB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50B-25-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50B-25-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50B-50-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50B-50-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50B-75-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50B-75-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50B-100-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50B-100-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50B-125-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50B-125-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50B-150-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50B-150-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50B-200-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50B-200-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50B-250-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50B-250-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50B-300-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50B-300-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50R-25-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50R-25-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50R-50-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50R-50-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50R-75-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50R-75-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50R-100-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50R-100-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50R-125-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50R-125-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50R-150-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50R-150-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50R-200-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50R-200-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50R-250-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50R-250-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50R-300-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50R-300-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50H-25-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50H-25-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50H-50-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50H-50-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50H-75-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50H-75-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50H-100-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50H-100-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50H-125-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50H-125-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50H-150-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50H-150-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50H-200-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50H-200-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50H-250-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50H-250-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50H-300-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50H-300-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50D-25-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50D-25-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50D-50-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50D-50-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50D-75-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50D-75-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50D-100-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50D-100-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50D-125-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50D-125-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50D-150-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50D-150-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50D-200-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50D-200-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50D-250-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50D-250-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-50D-300-P7	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-50D-300-P71	Mounting: Rod-end flange (FA) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63B-25-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63B-25-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63B-50-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63B-50-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63B-75-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63B-75-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63B-100-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63B-100-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63B-125-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63B-125-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63B-150-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63B-150-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63B-200-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63B-200-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63B-250-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63B-250-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63B-300-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63B-300-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63R-25-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63R-25-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63R-50-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63R-50-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63R-75-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63R-75-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63R-100-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63R-100-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63R-125-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63R-125-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63R-150-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63R-150-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63R-200-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63R-200-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63R-250-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63R-250-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63R-300-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63R-300-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63H-25-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63H-25-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63H-50-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63H-50-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63H-75-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63H-75-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63H-100-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63H-100-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63H-125-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63H-125-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63H-150-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63H-150-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63H-200-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63H-200-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63H-250-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63H-250-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63H-300-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63H-300-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63D-25-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63D-25-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63D-50-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63D-50-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63D-75-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63D-75-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63D-100-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63D-100-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63D-125-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63D-125-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63D-150-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63D-150-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63D-200-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63D-200-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63D-250-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63D-250-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-63D-300-P7	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-63D-300-P71	Mounting: Rod-end flange (FA) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80B-25-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80B-25-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80B-50-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80B-50-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80B-75-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80B-75-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80B-100-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80B-100-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80B-125-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80B-125-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80B-150-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80B-150-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80B-200-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80B-200-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80B-250-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80B-250-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80B-300-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80B-300-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80R-25-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80R-25-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80R-50-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80R-50-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80R-75-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80R-75-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80R-100-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80R-100-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80R-125-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80R-125-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80R-150-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80R-150-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80R-200-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80R-200-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80R-250-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80R-250-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80R-300-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80R-300-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80H-25-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80H-25-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80H-50-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80H-50-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80H-75-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80H-75-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80H-100-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80H-100-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80H-125-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80H-125-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80H-150-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80H-150-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80H-200-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80H-200-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80H-250-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80H-250-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80H-300-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80H-300-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80D-25-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80D-25-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80D-50-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80D-50-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80D-75-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80D-75-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80D-100-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80D-100-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80D-125-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80D-125-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80D-150-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80D-150-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80D-200-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80D-200-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80D-250-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80D-250-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-80D-300-P7	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-80D-300-P71	Mounting: Rod-end flange (FA) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100B-25-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100B-25-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100B-50-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100B-50-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100B-75-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100B-75-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100B-100-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100B-100-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100B-125-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100B-125-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100B-150-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100B-150-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100B-200-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100B-200-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100B-250-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100B-250-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100B-300-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100B-300-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100R-25-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100R-25-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100R-50-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100R-50-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100R-75-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100R-75-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100R-100-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100R-100-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100R-125-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100R-125-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100R-150-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100R-150-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100R-200-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100R-200-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100R-250-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100R-250-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100R-300-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100R-300-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100H-25-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100H-25-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100H-50-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100H-50-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100H-75-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100H-75-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100H-100-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100H-100-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100H-125-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100H-125-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100H-150-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100H-150-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100H-200-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100H-200-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100H-250-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100H-250-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100H-300-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100H-300-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100D-25-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100D-25-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100D-50-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100D-50-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100D-75-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100D-75-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100D-100-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100D-100-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100D-125-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100D-125-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100D-150-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100D-150-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100D-200-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100D-200-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100D-250-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100D-250-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FA-100D-300-P7	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FA-100D-300-P71	Mounting: Rod-end flange (FA) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50B-25-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50B-25-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50B-50-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50B-50-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50B-75-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50B-75-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50B-100-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50B-100-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50B-125-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50B-125-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50B-150-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50B-150-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50B-200-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50B-200-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50B-250-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50B-250-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50B-300-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50B-300-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50R-25-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50R-25-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50R-50-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50R-50-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50R-75-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50R-75-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50R-100-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50R-100-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50R-125-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50R-125-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50R-150-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50R-150-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50R-200-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50R-200-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50R-250-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50R-250-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50R-300-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50R-300-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50H-25-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50H-25-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50H-50-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50H-50-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50H-75-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50H-75-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50H-100-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50H-100-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50H-125-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50H-125-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50H-150-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50H-150-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50H-200-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50H-200-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50H-250-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50H-250-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50H-300-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50H-300-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50D-25-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50D-25-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50D-50-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50D-50-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50D-75-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50D-75-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50D-100-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50D-100-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50D-125-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50D-125-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50D-150-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50D-150-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50D-200-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50D-200-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50D-250-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50D-250-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-50D-300-P7	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-50D-300-P71	Mounting: Head-end flange (FB) \| Bore: 50 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63B-25-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63B-25-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63B-50-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63B-50-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63B-75-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63B-75-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63B-100-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63B-100-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63B-125-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63B-125-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63B-150-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63B-150-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63B-200-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63B-200-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63B-250-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63B-250-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63B-300-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63B-300-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63R-25-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63R-25-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63R-50-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63R-50-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63R-75-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63R-75-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63R-100-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63R-100-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63R-125-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63R-125-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63R-150-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63R-150-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63R-200-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63R-200-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63R-250-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63R-250-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63R-300-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63R-300-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63H-25-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63H-25-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63H-50-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63H-50-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63H-75-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63H-75-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63H-100-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63H-100-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63H-125-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63H-125-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63H-150-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63H-150-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63H-200-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63H-200-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63H-250-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63H-250-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63H-300-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63H-300-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63D-25-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63D-25-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63D-50-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63D-50-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63D-75-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63D-75-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63D-100-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63D-100-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63D-125-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63D-125-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63D-150-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63D-150-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63D-200-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63D-200-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63D-250-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63D-250-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-63D-300-P7	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-63D-300-P71	Mounting: Head-end flange (FB) \| Bore: 63 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80B-25-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80B-25-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80B-50-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80B-50-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80B-75-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80B-75-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80B-100-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80B-100-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80B-125-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80B-125-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80B-150-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80B-150-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80B-200-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80B-200-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80B-250-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80B-250-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80B-300-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80B-300-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80R-25-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80R-25-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80R-50-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80R-50-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80R-75-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80R-75-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80R-100-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80R-100-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80R-125-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80R-125-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80R-150-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80R-150-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80R-200-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80R-200-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80R-250-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80R-250-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80R-300-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80R-300-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80H-25-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80H-25-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80H-50-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80H-50-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80H-75-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80H-75-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80H-100-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80H-100-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80H-125-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80H-125-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80H-150-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80H-150-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80H-200-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80H-200-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80H-250-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80H-250-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80H-300-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80H-300-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80D-25-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80D-25-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80D-50-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80D-50-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80D-75-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80D-75-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80D-100-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80D-100-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80D-125-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80D-125-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80D-150-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80D-150-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80D-200-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80D-200-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80D-250-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80D-250-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-80D-300-P7	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-80D-300-P71	Mounting: Head-end flange (FB) \| Bore: 80 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100B-25-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100B-25-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100B-50-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100B-50-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100B-75-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100B-75-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100B-100-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100B-100-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100B-125-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100B-125-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100B-150-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100B-150-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100B-200-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100B-200-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100B-250-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100B-250-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100B-300-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100B-300-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100R-25-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100R-25-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100R-50-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100R-50-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100R-75-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100R-75-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100R-100-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100R-100-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100R-125-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100R-125-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100R-150-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100R-150-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100R-200-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100R-200-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100R-250-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100R-250-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100R-300-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100R-300-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100H-25-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100H-25-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100H-50-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100H-50-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100H-75-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100H-75-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100H-100-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100H-100-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100H-125-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100H-125-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100H-150-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100H-150-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100H-200-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100H-200-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100H-250-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100H-250-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100H-300-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100H-300-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100D-25-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100D-25-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100D-50-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100D-50-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100D-75-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100D-75-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100D-100-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100D-100-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100D-125-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100D-125-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100D-150-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100D-150-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100D-200-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100D-200-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100D-250-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100D-250-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm \| Clean spec: P71 vacuum suction
	SCM-FB-100D-300-P7	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P7 exhaust treatment
	SCM-FB-100D-300-P71	Mounting: Head-end flange (FB) \| Bore: 100 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm \| Clean spec: P71 vacuum suction

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCM Super Micro Cylinder (Clean Room P7, Bore 50-100)
