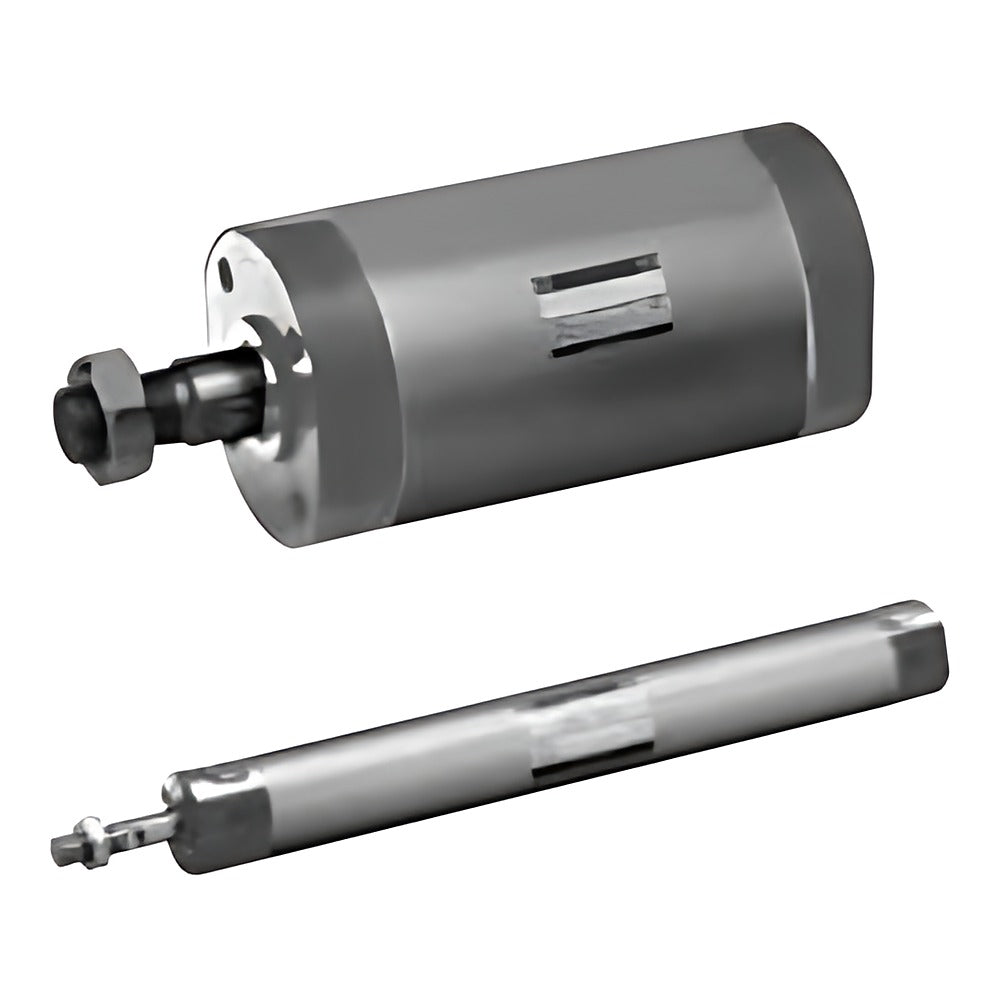

CKD SCM-T Super Micro Cylinder (Double Acting, Heat Resistant)

CKD SCM-T super micro cylinder is a heat-resistant double-acting round-body cylinder for ambient temperatures up to 120 C.

Key features

Heat-resistant construction for 5-120 C ambient; no auto switches
Bores 20-40 rubber cushion (D) only; bores 50-100 air cushion B/R/H
Mounting styles 00, LB, FA, FB, CA, TA, TB (20-63); 00, LB, FA, FB, CB (80/100)
Option L silicone-rubber glass-fibre bellows (250 C), M stainless rod; I/Y/B1/B2 accessories
Lubrication not allowed; regrease the bore periodically

Specifications

Bore sizes	20-100 mm
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1/0.05 MPa (20-40/50-100)
Proof pressure	1.6 MPa
Ambient temperature	5 to 120 C
Piston speed	30-1000 mm/s
Lubrication	Not allowed
Source	CKD Korea catalog CB-029SK-9, p. 366-369

SCM-T-00-20D-25		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-00-20D-50		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-00-20D-75		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-00-20D-100		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-00-20D-125		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-00-20D-150		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-00-20D-200		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-00-20D-250		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-00-20D-300		Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-LB-20D-25		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-LB-20D-50		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-LB-20D-75		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-LB-20D-100		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-LB-20D-125		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-LB-20D-150		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-LB-20D-200		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-LB-20D-250		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-LB-20D-300		Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-FA-20D-25		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-FA-20D-50		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-FA-20D-75		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-FA-20D-100		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-FA-20D-125		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-FA-20D-150		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-FA-20D-200		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-FA-20D-250		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-FA-20D-300		Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-FB-20D-25		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-FB-20D-50		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-FB-20D-75		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-FB-20D-100		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-FB-20D-125		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-FB-20D-150		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-FB-20D-200		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-FB-20D-250		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-FB-20D-300		Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-CA-20D-25		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-CA-20D-50		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-CA-20D-75		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-CA-20D-100		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-CA-20D-125		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-CA-20D-150		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-CA-20D-200		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-CA-20D-250		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-CA-20D-300		Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-TA-20D-25		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-TA-20D-50		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-TA-20D-75		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-TA-20D-100		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-TA-20D-125		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-TA-20D-150		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-TA-20D-200		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-TA-20D-250		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-TA-20D-300		Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-TB-20D-25		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-TB-20D-50		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-TB-20D-75		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-TB-20D-100		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-TB-20D-125		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-TB-20D-150		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-TB-20D-200		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-TB-20D-250		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-TB-20D-300		Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-00-25D-25		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-00-25D-50		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-00-25D-75		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-00-25D-100		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-00-25D-125		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-00-25D-150		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-00-25D-200		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-00-25D-250		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-00-25D-300		Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-LB-25D-25		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-LB-25D-50		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-LB-25D-75		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-LB-25D-100		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-LB-25D-125		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-LB-25D-150		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-LB-25D-200		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-LB-25D-250		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-LB-25D-300		Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-FA-25D-25		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-FA-25D-50		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-FA-25D-75		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-FA-25D-100		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-FA-25D-125		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-FA-25D-150		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-FA-25D-200		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-FA-25D-250		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-FA-25D-300		Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-FB-25D-25		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-FB-25D-50		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-FB-25D-75		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-FB-25D-100		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-FB-25D-125		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-FB-25D-150		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-FB-25D-200		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-FB-25D-250		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-FB-25D-300		Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-CA-25D-25		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-CA-25D-50		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-CA-25D-75		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-CA-25D-100		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-CA-25D-125		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-CA-25D-150		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-CA-25D-200		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-CA-25D-250		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-CA-25D-300		Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-TA-25D-25		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-TA-25D-50		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-TA-25D-75		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-TA-25D-100		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-TA-25D-125		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-TA-25D-150		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-TA-25D-200		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-TA-25D-250		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-TA-25D-300		Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-TB-25D-25		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-TB-25D-50		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-TB-25D-75		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-TB-25D-100		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-TB-25D-125		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-TB-25D-150		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-TB-25D-200		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-TB-25D-250		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-TB-25D-300		Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-00-32D-25		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-00-32D-50		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-00-32D-75		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-00-32D-100		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-00-32D-125		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-00-32D-150		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-00-32D-200		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-00-32D-250		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-00-32D-300		Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-LB-32D-25		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-LB-32D-50		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-LB-32D-75		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-LB-32D-100		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-LB-32D-125		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-LB-32D-150		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-LB-32D-200		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-LB-32D-250		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-LB-32D-300		Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-FA-32D-25		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-FA-32D-50		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-FA-32D-75		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-FA-32D-100		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-FA-32D-125		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-FA-32D-150		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-FA-32D-200		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-FA-32D-250		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-FA-32D-300		Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-FB-32D-25		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-FB-32D-50		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-FB-32D-75		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-FB-32D-100		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-FB-32D-125		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-FB-32D-150		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-FB-32D-200		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-FB-32D-250		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-FB-32D-300		Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-CA-32D-25		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-CA-32D-50		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-CA-32D-75		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-CA-32D-100		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-CA-32D-125		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-CA-32D-150		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-CA-32D-200		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-CA-32D-250		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-CA-32D-300		Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-TA-32D-25		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-TA-32D-50		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-TA-32D-75		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-TA-32D-100		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-TA-32D-125		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-TA-32D-150		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-TA-32D-200		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-TA-32D-250		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-TA-32D-300		Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-TB-32D-25		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-TB-32D-50		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-TB-32D-75		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-TB-32D-100		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-TB-32D-125		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-TB-32D-150		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-TB-32D-200		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-TB-32D-250		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-TB-32D-300		Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-00-40D-25		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-00-40D-50		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-00-40D-75		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-00-40D-100		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-00-40D-125		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-00-40D-150		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-00-40D-200		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-00-40D-250		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-00-40D-300		Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-LB-40D-25		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-LB-40D-50		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-LB-40D-75		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-LB-40D-100		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-LB-40D-125		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-LB-40D-150		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-LB-40D-200		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-LB-40D-250		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-LB-40D-300		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-FA-40D-25		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-FA-40D-50		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-FA-40D-75		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-FA-40D-100		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-FA-40D-125		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-FA-40D-150		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-FA-40D-200		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-FA-40D-250		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-FA-40D-300		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-FB-40D-25		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-FB-40D-50		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-FB-40D-75		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-FB-40D-100		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-FB-40D-125		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-FB-40D-150		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-FB-40D-200		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-FB-40D-250		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-FB-40D-300		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-CA-40D-25		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-CA-40D-50		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-CA-40D-75		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-CA-40D-100		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-CA-40D-125		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-CA-40D-150		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-CA-40D-200		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-CA-40D-250		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-CA-40D-300		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-TA-40D-25		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-TA-40D-50		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-TA-40D-75		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-TA-40D-100		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-TA-40D-125		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-TA-40D-150		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-TA-40D-200		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-TA-40D-250		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-TA-40D-300		Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-TB-40D-25		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
SCM-T-TB-40D-50		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
SCM-T-TB-40D-75		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
SCM-T-TB-40D-100		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
SCM-T-TB-40D-125		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
SCM-T-TB-40D-150		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
SCM-T-TB-40D-200		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
SCM-T-TB-40D-250		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
SCM-T-TB-40D-300		Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
SCM-T-00-50B-25		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-00-50B-50		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-00-50B-75		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-00-50B-100		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-00-50B-125		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-00-50B-150		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-00-50B-200		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-00-50B-250		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-00-50B-300		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-00-50R-25		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-00-50R-50		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-00-50R-75		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-00-50R-100		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-00-50R-125		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-00-50R-150		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-00-50R-200		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-00-50R-250		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-00-50R-300		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-00-50H-25		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-00-50H-50		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-00-50H-75		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-00-50H-100		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-00-50H-125		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-00-50H-150		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-00-50H-200		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-00-50H-250		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-00-50H-300		Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-LB-50B-25		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-LB-50B-50		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-LB-50B-75		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-LB-50B-100		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-LB-50B-125		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-LB-50B-150		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-LB-50B-200		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-LB-50B-250		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-LB-50B-300		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-LB-50R-25		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-LB-50R-50		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-LB-50R-75		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-LB-50R-100		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-LB-50R-125		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-LB-50R-150		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-LB-50R-200		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-LB-50R-250		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-LB-50R-300		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-LB-50H-25		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-LB-50H-50		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-LB-50H-75		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-LB-50H-100		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-LB-50H-125		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-LB-50H-150		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-LB-50H-200		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-LB-50H-250		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-LB-50H-300		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-FA-50B-25		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-FA-50B-50		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-FA-50B-75		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-FA-50B-100		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-FA-50B-125		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-FA-50B-150		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-FA-50B-200		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-FA-50B-250		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-FA-50B-300		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-FA-50R-25		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-FA-50R-50		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-FA-50R-75		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-FA-50R-100		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-FA-50R-125		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-FA-50R-150		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-FA-50R-200		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-FA-50R-250		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-FA-50R-300		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-FA-50H-25		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-FA-50H-50		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-FA-50H-75		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-FA-50H-100		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-FA-50H-125		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-FA-50H-150		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-FA-50H-200		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-FA-50H-250		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-FA-50H-300		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-FB-50B-25		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-FB-50B-50		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-FB-50B-75		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-FB-50B-100		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-FB-50B-125		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-FB-50B-150		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-FB-50B-200		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-FB-50B-250		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-FB-50B-300		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-FB-50R-25		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-FB-50R-50		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-FB-50R-75		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-FB-50R-100		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-FB-50R-125		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-FB-50R-150		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-FB-50R-200		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-FB-50R-250		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-FB-50R-300		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-FB-50H-25		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-FB-50H-50		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-FB-50H-75		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-FB-50H-100		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-FB-50H-125		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-FB-50H-150		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-FB-50H-200		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-FB-50H-250		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-FB-50H-300		Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-CA-50B-25		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-CA-50B-50		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-CA-50B-75		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-CA-50B-100		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-CA-50B-125		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-CA-50B-150		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-CA-50B-200		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-CA-50B-250		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-CA-50B-300		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-CA-50R-25		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-CA-50R-50		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-CA-50R-75		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-CA-50R-100		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-CA-50R-125		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-CA-50R-150		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-CA-50R-200		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-CA-50R-250		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-CA-50R-300		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-CA-50H-25		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-CA-50H-50		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-CA-50H-75		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-CA-50H-100		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-CA-50H-125		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-CA-50H-150		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-CA-50H-200		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-CA-50H-250		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-CA-50H-300		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-TA-50B-25		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-TA-50B-50		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-TA-50B-75		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-TA-50B-100		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-TA-50B-125		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-TA-50B-150		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-TA-50B-200		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-TA-50B-250		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-TA-50B-300		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-TA-50R-25		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-TA-50R-50		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-TA-50R-75		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-TA-50R-100		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-TA-50R-125		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-TA-50R-150		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-TA-50R-200		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-TA-50R-250		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-TA-50R-300		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-TA-50H-25		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-TA-50H-50		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-TA-50H-75		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-TA-50H-100		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-TA-50H-125		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-TA-50H-150		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-TA-50H-200		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-TA-50H-250		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-TA-50H-300		Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-TB-50B-25		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-TB-50B-50		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-TB-50B-75		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-TB-50B-100		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-TB-50B-125		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-TB-50B-150		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-TB-50B-200		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-TB-50B-250		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-TB-50B-300		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-TB-50R-25		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-TB-50R-50		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-TB-50R-75		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-TB-50R-100		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-TB-50R-125		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-TB-50R-150		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-TB-50R-200		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-TB-50R-250		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-TB-50R-300		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-TB-50H-25		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-TB-50H-50		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-TB-50H-75		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-TB-50H-100		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-TB-50H-125		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-TB-50H-150		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-TB-50H-200		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-TB-50H-250		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-TB-50H-300		Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-00-63B-25		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-00-63B-50		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-00-63B-75		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-00-63B-100		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-00-63B-125		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-00-63B-150		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-00-63B-200		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-00-63B-250		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-00-63B-300		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-00-63R-25		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-00-63R-50		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-00-63R-75		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-00-63R-100		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-00-63R-125		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-00-63R-150		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-00-63R-200		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-00-63R-250		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-00-63R-300		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-00-63H-25		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-00-63H-50		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-00-63H-75		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-00-63H-100		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-00-63H-125		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-00-63H-150		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-00-63H-200		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-00-63H-250		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-00-63H-300		Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-LB-63B-25		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-LB-63B-50		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-LB-63B-75		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-LB-63B-100		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-LB-63B-125		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-LB-63B-150		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-LB-63B-200		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-LB-63B-250		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-LB-63B-300		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-LB-63R-25		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-LB-63R-50		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-LB-63R-75		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-LB-63R-100		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-LB-63R-125		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-LB-63R-150		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-LB-63R-200		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-LB-63R-250		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-LB-63R-300		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-LB-63H-25		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-LB-63H-50		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-LB-63H-75		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-LB-63H-100		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-LB-63H-125		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-LB-63H-150		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-LB-63H-200		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-LB-63H-250		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-LB-63H-300		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-FA-63B-25		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-FA-63B-50		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-FA-63B-75		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-FA-63B-100		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-FA-63B-125		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-FA-63B-150		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-FA-63B-200		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-FA-63B-250		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-FA-63B-300		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-FA-63R-25		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-FA-63R-50		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-FA-63R-75		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-FA-63R-100		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-FA-63R-125		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-FA-63R-150		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-FA-63R-200		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-FA-63R-250		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-FA-63R-300		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-FA-63H-25		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-FA-63H-50		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-FA-63H-75		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-FA-63H-100		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-FA-63H-125		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-FA-63H-150		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-FA-63H-200		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-FA-63H-250		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-FA-63H-300		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-FB-63B-25		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-FB-63B-50		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-FB-63B-75		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-FB-63B-100		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-FB-63B-125		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-FB-63B-150		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-FB-63B-200		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-FB-63B-250		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-FB-63B-300		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-FB-63R-25		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-FB-63R-50		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-FB-63R-75		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-FB-63R-100		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-FB-63R-125		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-FB-63R-150		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-FB-63R-200		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-FB-63R-250		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-FB-63R-300		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-FB-63H-25		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-FB-63H-50		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-FB-63H-75		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-FB-63H-100		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-FB-63H-125		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-FB-63H-150		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-FB-63H-200		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-FB-63H-250		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-FB-63H-300		Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-CA-63B-25		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-CA-63B-50		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-CA-63B-75		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-CA-63B-100		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-CA-63B-125		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-CA-63B-150		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-CA-63B-200		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-CA-63B-250		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-CA-63B-300		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-CA-63R-25		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-CA-63R-50		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-CA-63R-75		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-CA-63R-100		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-CA-63R-125		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-CA-63R-150		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-CA-63R-200		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-CA-63R-250		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-CA-63R-300		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-CA-63H-25		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-CA-63H-50		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-CA-63H-75		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-CA-63H-100		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-CA-63H-125		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-CA-63H-150		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-CA-63H-200		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-CA-63H-250		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-CA-63H-300		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-TA-63B-25		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-TA-63B-50		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-TA-63B-75		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-TA-63B-100		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-TA-63B-125		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-TA-63B-150		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-TA-63B-200		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-TA-63B-250		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-TA-63B-300		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-TA-63R-25		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-TA-63R-50		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-TA-63R-75		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-TA-63R-100		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-TA-63R-125		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-TA-63R-150		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-TA-63R-200		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-TA-63R-250		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-TA-63R-300		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-TA-63H-25		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-TA-63H-50		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-TA-63H-75		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-TA-63H-100		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-TA-63H-125		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-TA-63H-150		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-TA-63H-200		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-TA-63H-250		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-TA-63H-300		Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-TB-63B-25		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-TB-63B-50		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-TB-63B-75		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-TB-63B-100		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-TB-63B-125		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-TB-63B-150		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-TB-63B-200		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-TB-63B-250		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-TB-63B-300		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-TB-63R-25		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-TB-63R-50		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-TB-63R-75		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-TB-63R-100		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-TB-63R-125		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-TB-63R-150		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-TB-63R-200		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-TB-63R-250		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-TB-63R-300		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-TB-63H-25		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-TB-63H-50		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-TB-63H-75		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-TB-63H-100		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-TB-63H-125		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-TB-63H-150		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-TB-63H-200		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-TB-63H-250		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-TB-63H-300		Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-00-80B-25		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-00-80B-50		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-00-80B-75		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-00-80B-100		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-00-80B-125		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-00-80B-150		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-00-80B-200		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-00-80B-250		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-00-80B-300		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-00-80R-25		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-00-80R-50		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-00-80R-75		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-00-80R-100		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-00-80R-125		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-00-80R-150		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-00-80R-200		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-00-80R-250		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-00-80R-300		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-00-80H-25		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-00-80H-50		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-00-80H-75		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-00-80H-100		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-00-80H-125		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-00-80H-150		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-00-80H-200		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-00-80H-250		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-00-80H-300		Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-LB-80B-25		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-LB-80B-50		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-LB-80B-75		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-LB-80B-100		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-LB-80B-125		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-LB-80B-150		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-LB-80B-200		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-LB-80B-250		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-LB-80B-300		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-LB-80R-25		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-LB-80R-50		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-LB-80R-75		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-LB-80R-100		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-LB-80R-125		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-LB-80R-150		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-LB-80R-200		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-LB-80R-250		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-LB-80R-300		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-LB-80H-25		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-LB-80H-50		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-LB-80H-75		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-LB-80H-100		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-LB-80H-125		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-LB-80H-150		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-LB-80H-200		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-LB-80H-250		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-LB-80H-300		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-FA-80B-25		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-FA-80B-50		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-FA-80B-75		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-FA-80B-100		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-FA-80B-125		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-FA-80B-150		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-FA-80B-200		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-FA-80B-250		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-FA-80B-300		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-FA-80R-25		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-FA-80R-50		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-FA-80R-75		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-FA-80R-100		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-FA-80R-125		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-FA-80R-150		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-FA-80R-200		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-FA-80R-250		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-FA-80R-300		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-FA-80H-25		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-FA-80H-50		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-FA-80H-75		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-FA-80H-100		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-FA-80H-125		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-FA-80H-150		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-FA-80H-200		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-FA-80H-250		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-FA-80H-300		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-FB-80B-25		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-FB-80B-50		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-FB-80B-75		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-FB-80B-100		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-FB-80B-125		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-FB-80B-150		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-FB-80B-200		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-FB-80B-250		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-FB-80B-300		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-FB-80R-25		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-FB-80R-50		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-FB-80R-75		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-FB-80R-100		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-FB-80R-125		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-FB-80R-150		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-FB-80R-200		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-FB-80R-250		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-FB-80R-300		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-FB-80H-25		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-FB-80H-50		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-FB-80H-75		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-FB-80H-100		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-FB-80H-125		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-FB-80H-150		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-FB-80H-200		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-FB-80H-250		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-FB-80H-300		Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-CB-80B-25		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-CB-80B-50		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-CB-80B-75		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-CB-80B-100		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-CB-80B-125		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-CB-80B-150		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-CB-80B-200		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-CB-80B-250		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-CB-80B-300		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-CB-80R-25		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-CB-80R-50		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-CB-80R-75		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-CB-80R-100		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-CB-80R-125		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-CB-80R-150		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-CB-80R-200		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-CB-80R-250		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-CB-80R-300		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-CB-80H-25		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-CB-80H-50		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-CB-80H-75		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-CB-80H-100		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-CB-80H-125		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-CB-80H-150		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-CB-80H-200		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-CB-80H-250		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-CB-80H-300		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-00-100B-25		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-00-100B-50		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-00-100B-75		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-00-100B-100		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-00-100B-125		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-00-100B-150		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-00-100B-200		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-00-100B-250		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-00-100B-300		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-00-100R-25		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-00-100R-50		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-00-100R-75		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-00-100R-100		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-00-100R-125		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-00-100R-150		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-00-100R-200		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-00-100R-250		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-00-100R-300		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-00-100H-25		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-00-100H-50		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-00-100H-75		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-00-100H-100		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-00-100H-125		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-00-100H-150		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-00-100H-200		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-00-100H-250		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-00-100H-300		Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-LB-100B-25		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-LB-100B-50		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-LB-100B-75		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-LB-100B-100		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-LB-100B-125		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-LB-100B-150		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-LB-100B-200		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-LB-100B-250		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-LB-100B-300		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-LB-100R-25		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-LB-100R-50		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-LB-100R-75		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-LB-100R-100		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-LB-100R-125		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-LB-100R-150		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-LB-100R-200		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-LB-100R-250		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-LB-100R-300		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-LB-100H-25		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-LB-100H-50		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-LB-100H-75		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-LB-100H-100		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-LB-100H-125		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-LB-100H-150		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-LB-100H-200		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-LB-100H-250		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-LB-100H-300		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-FA-100B-25		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-FA-100B-50		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-FA-100B-75		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-FA-100B-100		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-FA-100B-125		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-FA-100B-150		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-FA-100B-200		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-FA-100B-250		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-FA-100B-300		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-FA-100R-25		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-FA-100R-50		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-FA-100R-75		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-FA-100R-100		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-FA-100R-125		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-FA-100R-150		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-FA-100R-200		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-FA-100R-250		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-FA-100R-300		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-FA-100H-25		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-FA-100H-50		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-FA-100H-75		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-FA-100H-100		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-FA-100H-125		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-FA-100H-150		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-FA-100H-200		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-FA-100H-250		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-FA-100H-300		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-FB-100B-25		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-FB-100B-50		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-FB-100B-75		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-FB-100B-100		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-FB-100B-125		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-FB-100B-150		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-FB-100B-200		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-FB-100B-250		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-FB-100B-300		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-FB-100R-25		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-FB-100R-50		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-FB-100R-75		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-FB-100R-100		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-FB-100R-125		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-FB-100R-150		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-FB-100R-200		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-FB-100R-250		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-FB-100R-300		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-FB-100H-25		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-FB-100H-50		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-FB-100H-75		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-FB-100H-100		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-FB-100H-125		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-FB-100H-150		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-FB-100H-200		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-FB-100H-250		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-FB-100H-300		Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
SCM-T-CB-100B-25		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
SCM-T-CB-100B-50		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
SCM-T-CB-100B-75		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
SCM-T-CB-100B-100		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
SCM-T-CB-100B-125		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
SCM-T-CB-100B-150		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
SCM-T-CB-100B-200		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
SCM-T-CB-100B-250		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
SCM-T-CB-100B-300		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
SCM-T-CB-100R-25		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
SCM-T-CB-100R-50		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
SCM-T-CB-100R-75		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
SCM-T-CB-100R-100		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
SCM-T-CB-100R-125		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
SCM-T-CB-100R-150		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
SCM-T-CB-100R-200		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
SCM-T-CB-100R-250		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
SCM-T-CB-100R-300		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
SCM-T-CB-100H-25		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
SCM-T-CB-100H-50		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
SCM-T-CB-100H-75		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
SCM-T-CB-100H-100		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
SCM-T-CB-100H-125		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
SCM-T-CB-100H-150		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
SCM-T-CB-100H-200		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
SCM-T-CB-100H-250		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
SCM-T-CB-100H-300		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm

Pneumatic CylindersCKD

900 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-T Super Micro Cylinder (Double Acting, Heat Resistant)

Brand CKD·Pneumatic Cylinders

Available part numbers (900)

SCM-T-00-20D-25, SCM-T-00-20D-50, SCM-T-00-20D-75, SCM-T-00-20D-100, SCM-T-00-20D-125, SCM-T-00-20D-150, SCM-T-00-20D-200, SCM-T-00-20D-250, SCM-T-00-20D-300, SCM-T-LB-20D-25 + 890 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCM-T-00-20D-25	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-00-20D-50	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-00-20D-75	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-00-20D-100	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-00-20D-125	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-00-20D-150	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-00-20D-200	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-00-20D-250	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-00-20D-300	Mounting: Basic \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-LB-20D-25	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-LB-20D-50	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-LB-20D-75	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-LB-20D-100	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-LB-20D-125	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-LB-20D-150	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-LB-20D-200	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-LB-20D-250	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-LB-20D-300	Mounting: Axial foot \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-FA-20D-25	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-FA-20D-50	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-FA-20D-75	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-FA-20D-100	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-FA-20D-125	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-FA-20D-150	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-FA-20D-200	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-FA-20D-250	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-FA-20D-300	Mounting: Rod flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-FB-20D-25	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-FB-20D-50	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-FB-20D-75	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-FB-20D-100	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-FB-20D-125	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-FB-20D-150	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-FB-20D-200	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-FB-20D-250	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-FB-20D-300	Mounting: Head flange \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-CA-20D-25	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-CA-20D-50	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-CA-20D-75	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-CA-20D-100	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-CA-20D-125	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-CA-20D-150	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-CA-20D-200	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-CA-20D-250	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-CA-20D-300	Mounting: Single clevis \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-TA-20D-25	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-TA-20D-50	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-TA-20D-75	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-TA-20D-100	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-TA-20D-125	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-TA-20D-150	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-TA-20D-200	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-TA-20D-250	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-TA-20D-300	Mounting: Rod trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-TB-20D-25	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-TB-20D-50	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-TB-20D-75	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-TB-20D-100	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-TB-20D-125	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-TB-20D-150	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-TB-20D-200	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-TB-20D-250	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-TB-20D-300	Mounting: Head trunnion \| Bore: 20 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-00-25D-25	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-00-25D-50	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-00-25D-75	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-00-25D-100	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-00-25D-125	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-00-25D-150	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-00-25D-200	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-00-25D-250	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-00-25D-300	Mounting: Basic \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-LB-25D-25	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-LB-25D-50	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-LB-25D-75	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-LB-25D-100	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-LB-25D-125	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-LB-25D-150	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-LB-25D-200	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-LB-25D-250	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-LB-25D-300	Mounting: Axial foot \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-FA-25D-25	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-FA-25D-50	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-FA-25D-75	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-FA-25D-100	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-FA-25D-125	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-FA-25D-150	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-FA-25D-200	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-FA-25D-250	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-FA-25D-300	Mounting: Rod flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-FB-25D-25	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-FB-25D-50	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-FB-25D-75	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-FB-25D-100	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-FB-25D-125	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-FB-25D-150	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-FB-25D-200	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-FB-25D-250	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-FB-25D-300	Mounting: Head flange \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-CA-25D-25	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-CA-25D-50	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-CA-25D-75	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-CA-25D-100	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-CA-25D-125	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-CA-25D-150	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-CA-25D-200	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-CA-25D-250	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-CA-25D-300	Mounting: Single clevis \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-TA-25D-25	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-TA-25D-50	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-TA-25D-75	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-TA-25D-100	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-TA-25D-125	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-TA-25D-150	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-TA-25D-200	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-TA-25D-250	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-TA-25D-300	Mounting: Rod trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-TB-25D-25	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-TB-25D-50	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-TB-25D-75	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-TB-25D-100	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-TB-25D-125	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-TB-25D-150	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-TB-25D-200	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-TB-25D-250	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-TB-25D-300	Mounting: Head trunnion \| Bore: 25 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-00-32D-25	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-00-32D-50	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-00-32D-75	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-00-32D-100	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-00-32D-125	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-00-32D-150	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-00-32D-200	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-00-32D-250	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-00-32D-300	Mounting: Basic \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-LB-32D-25	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-LB-32D-50	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-LB-32D-75	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-LB-32D-100	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-LB-32D-125	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-LB-32D-150	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-LB-32D-200	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-LB-32D-250	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-LB-32D-300	Mounting: Axial foot \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-FA-32D-25	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-FA-32D-50	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-FA-32D-75	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-FA-32D-100	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-FA-32D-125	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-FA-32D-150	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-FA-32D-200	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-FA-32D-250	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-FA-32D-300	Mounting: Rod flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-FB-32D-25	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-FB-32D-50	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-FB-32D-75	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-FB-32D-100	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-FB-32D-125	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-FB-32D-150	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-FB-32D-200	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-FB-32D-250	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-FB-32D-300	Mounting: Head flange \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-CA-32D-25	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-CA-32D-50	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-CA-32D-75	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-CA-32D-100	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-CA-32D-125	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-CA-32D-150	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-CA-32D-200	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-CA-32D-250	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-CA-32D-300	Mounting: Single clevis \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-TA-32D-25	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-TA-32D-50	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-TA-32D-75	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-TA-32D-100	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-TA-32D-125	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-TA-32D-150	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-TA-32D-200	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-TA-32D-250	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-TA-32D-300	Mounting: Rod trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-TB-32D-25	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-TB-32D-50	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-TB-32D-75	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-TB-32D-100	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-TB-32D-125	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-TB-32D-150	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-TB-32D-200	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-TB-32D-250	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-TB-32D-300	Mounting: Head trunnion \| Bore: 32 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-00-40D-25	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-00-40D-50	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-00-40D-75	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-00-40D-100	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-00-40D-125	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-00-40D-150	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-00-40D-200	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-00-40D-250	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-00-40D-300	Mounting: Basic \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-LB-40D-25	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-LB-40D-50	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-LB-40D-75	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-LB-40D-100	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-LB-40D-125	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-LB-40D-150	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-LB-40D-200	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-LB-40D-250	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-LB-40D-300	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-FA-40D-25	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-FA-40D-50	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-FA-40D-75	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-FA-40D-100	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-FA-40D-125	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-FA-40D-150	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-FA-40D-200	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-FA-40D-250	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-FA-40D-300	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-FB-40D-25	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-FB-40D-50	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-FB-40D-75	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-FB-40D-100	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-FB-40D-125	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-FB-40D-150	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-FB-40D-200	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-FB-40D-250	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-FB-40D-300	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-CA-40D-25	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-CA-40D-50	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-CA-40D-75	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-CA-40D-100	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-CA-40D-125	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-CA-40D-150	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-CA-40D-200	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-CA-40D-250	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-CA-40D-300	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-TA-40D-25	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-TA-40D-50	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-TA-40D-75	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-TA-40D-100	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-TA-40D-125	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-TA-40D-150	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-TA-40D-200	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-TA-40D-250	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-TA-40D-300	Mounting: Rod trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-TB-40D-25	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 25 mm
	SCM-T-TB-40D-50	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 50 mm
	SCM-T-TB-40D-75	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 75 mm
	SCM-T-TB-40D-100	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 100 mm
	SCM-T-TB-40D-125	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 125 mm
	SCM-T-TB-40D-150	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 150 mm
	SCM-T-TB-40D-200	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 200 mm
	SCM-T-TB-40D-250	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 250 mm
	SCM-T-TB-40D-300	Mounting: Head trunnion \| Bore: 40 mm \| Cushion: Rubber cushion, both ends \| Stroke: 300 mm
	SCM-T-00-50B-25	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-00-50B-50	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-00-50B-75	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-00-50B-100	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-00-50B-125	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-00-50B-150	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-00-50B-200	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-00-50B-250	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-00-50B-300	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-00-50R-25	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-00-50R-50	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-00-50R-75	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-00-50R-100	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-00-50R-125	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-00-50R-150	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-00-50R-200	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-00-50R-250	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-00-50R-300	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-00-50H-25	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-00-50H-50	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-00-50H-75	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-00-50H-100	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-00-50H-125	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-00-50H-150	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-00-50H-200	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-00-50H-250	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-00-50H-300	Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-LB-50B-25	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-LB-50B-50	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-LB-50B-75	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-LB-50B-100	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-LB-50B-125	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-LB-50B-150	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-LB-50B-200	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-LB-50B-250	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-LB-50B-300	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-LB-50R-25	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-LB-50R-50	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-LB-50R-75	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-LB-50R-100	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-LB-50R-125	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-LB-50R-150	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-LB-50R-200	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-LB-50R-250	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-LB-50R-300	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-LB-50H-25	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-LB-50H-50	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-LB-50H-75	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-LB-50H-100	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-LB-50H-125	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-LB-50H-150	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-LB-50H-200	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-LB-50H-250	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-LB-50H-300	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-FA-50B-25	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-FA-50B-50	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-FA-50B-75	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-FA-50B-100	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-FA-50B-125	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-FA-50B-150	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-FA-50B-200	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-FA-50B-250	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-FA-50B-300	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-FA-50R-25	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-FA-50R-50	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-FA-50R-75	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-FA-50R-100	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-FA-50R-125	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-FA-50R-150	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-FA-50R-200	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-FA-50R-250	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-FA-50R-300	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-FA-50H-25	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-FA-50H-50	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-FA-50H-75	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-FA-50H-100	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-FA-50H-125	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-FA-50H-150	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-FA-50H-200	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-FA-50H-250	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-FA-50H-300	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-FB-50B-25	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-FB-50B-50	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-FB-50B-75	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-FB-50B-100	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-FB-50B-125	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-FB-50B-150	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-FB-50B-200	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-FB-50B-250	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-FB-50B-300	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-FB-50R-25	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-FB-50R-50	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-FB-50R-75	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-FB-50R-100	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-FB-50R-125	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-FB-50R-150	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-FB-50R-200	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-FB-50R-250	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-FB-50R-300	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-FB-50H-25	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-FB-50H-50	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-FB-50H-75	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-FB-50H-100	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-FB-50H-125	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-FB-50H-150	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-FB-50H-200	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-FB-50H-250	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-FB-50H-300	Mounting: Head flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-CA-50B-25	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-CA-50B-50	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-CA-50B-75	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-CA-50B-100	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-CA-50B-125	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-CA-50B-150	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-CA-50B-200	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-CA-50B-250	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-CA-50B-300	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-CA-50R-25	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-CA-50R-50	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-CA-50R-75	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-CA-50R-100	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-CA-50R-125	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-CA-50R-150	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-CA-50R-200	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-CA-50R-250	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-CA-50R-300	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-CA-50H-25	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-CA-50H-50	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-CA-50H-75	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-CA-50H-100	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-CA-50H-125	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-CA-50H-150	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-CA-50H-200	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-CA-50H-250	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-CA-50H-300	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-TA-50B-25	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-TA-50B-50	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-TA-50B-75	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-TA-50B-100	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-TA-50B-125	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-TA-50B-150	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-TA-50B-200	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-TA-50B-250	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-TA-50B-300	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-TA-50R-25	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-TA-50R-50	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-TA-50R-75	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-TA-50R-100	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-TA-50R-125	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-TA-50R-150	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-TA-50R-200	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-TA-50R-250	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-TA-50R-300	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-TA-50H-25	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-TA-50H-50	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-TA-50H-75	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-TA-50H-100	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-TA-50H-125	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-TA-50H-150	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-TA-50H-200	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-TA-50H-250	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-TA-50H-300	Mounting: Rod trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-TB-50B-25	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-TB-50B-50	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-TB-50B-75	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-TB-50B-100	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-TB-50B-125	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-TB-50B-150	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-TB-50B-200	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-TB-50B-250	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-TB-50B-300	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-TB-50R-25	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-TB-50R-50	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-TB-50R-75	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-TB-50R-100	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-TB-50R-125	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-TB-50R-150	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-TB-50R-200	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-TB-50R-250	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-TB-50R-300	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-TB-50H-25	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-TB-50H-50	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-TB-50H-75	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-TB-50H-100	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-TB-50H-125	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-TB-50H-150	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-TB-50H-200	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-TB-50H-250	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-TB-50H-300	Mounting: Head trunnion \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-00-63B-25	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-00-63B-50	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-00-63B-75	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-00-63B-100	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-00-63B-125	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-00-63B-150	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-00-63B-200	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-00-63B-250	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-00-63B-300	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-00-63R-25	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-00-63R-50	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-00-63R-75	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-00-63R-100	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-00-63R-125	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-00-63R-150	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-00-63R-200	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-00-63R-250	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-00-63R-300	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-00-63H-25	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-00-63H-50	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-00-63H-75	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-00-63H-100	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-00-63H-125	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-00-63H-150	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-00-63H-200	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-00-63H-250	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-00-63H-300	Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-LB-63B-25	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-LB-63B-50	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-LB-63B-75	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-LB-63B-100	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-LB-63B-125	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-LB-63B-150	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-LB-63B-200	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-LB-63B-250	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-LB-63B-300	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-LB-63R-25	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-LB-63R-50	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-LB-63R-75	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-LB-63R-100	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-LB-63R-125	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-LB-63R-150	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-LB-63R-200	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-LB-63R-250	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-LB-63R-300	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-LB-63H-25	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-LB-63H-50	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-LB-63H-75	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-LB-63H-100	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-LB-63H-125	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-LB-63H-150	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-LB-63H-200	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-LB-63H-250	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-LB-63H-300	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-FA-63B-25	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-FA-63B-50	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-FA-63B-75	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-FA-63B-100	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-FA-63B-125	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-FA-63B-150	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-FA-63B-200	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-FA-63B-250	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-FA-63B-300	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-FA-63R-25	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-FA-63R-50	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-FA-63R-75	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-FA-63R-100	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-FA-63R-125	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-FA-63R-150	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-FA-63R-200	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-FA-63R-250	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-FA-63R-300	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-FA-63H-25	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-FA-63H-50	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-FA-63H-75	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-FA-63H-100	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-FA-63H-125	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-FA-63H-150	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-FA-63H-200	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-FA-63H-250	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-FA-63H-300	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-FB-63B-25	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-FB-63B-50	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-FB-63B-75	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-FB-63B-100	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-FB-63B-125	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-FB-63B-150	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-FB-63B-200	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-FB-63B-250	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-FB-63B-300	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-FB-63R-25	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-FB-63R-50	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-FB-63R-75	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-FB-63R-100	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-FB-63R-125	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-FB-63R-150	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-FB-63R-200	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-FB-63R-250	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-FB-63R-300	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-FB-63H-25	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-FB-63H-50	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-FB-63H-75	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-FB-63H-100	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-FB-63H-125	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-FB-63H-150	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-FB-63H-200	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-FB-63H-250	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-FB-63H-300	Mounting: Head flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-CA-63B-25	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-CA-63B-50	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-CA-63B-75	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-CA-63B-100	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-CA-63B-125	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-CA-63B-150	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-CA-63B-200	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-CA-63B-250	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-CA-63B-300	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-CA-63R-25	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-CA-63R-50	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-CA-63R-75	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-CA-63R-100	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-CA-63R-125	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-CA-63R-150	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-CA-63R-200	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-CA-63R-250	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-CA-63R-300	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-CA-63H-25	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-CA-63H-50	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-CA-63H-75	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-CA-63H-100	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-CA-63H-125	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-CA-63H-150	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-CA-63H-200	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-CA-63H-250	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-CA-63H-300	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-TA-63B-25	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-TA-63B-50	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-TA-63B-75	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-TA-63B-100	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-TA-63B-125	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-TA-63B-150	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-TA-63B-200	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-TA-63B-250	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-TA-63B-300	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-TA-63R-25	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-TA-63R-50	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-TA-63R-75	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-TA-63R-100	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-TA-63R-125	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-TA-63R-150	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-TA-63R-200	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-TA-63R-250	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-TA-63R-300	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-TA-63H-25	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-TA-63H-50	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-TA-63H-75	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-TA-63H-100	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-TA-63H-125	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-TA-63H-150	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-TA-63H-200	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-TA-63H-250	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-TA-63H-300	Mounting: Rod trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-TB-63B-25	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-TB-63B-50	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-TB-63B-75	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-TB-63B-100	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-TB-63B-125	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-TB-63B-150	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-TB-63B-200	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-TB-63B-250	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-TB-63B-300	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-TB-63R-25	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-TB-63R-50	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-TB-63R-75	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-TB-63R-100	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-TB-63R-125	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-TB-63R-150	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-TB-63R-200	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-TB-63R-250	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-TB-63R-300	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-TB-63H-25	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-TB-63H-50	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-TB-63H-75	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-TB-63H-100	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-TB-63H-125	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-TB-63H-150	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-TB-63H-200	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-TB-63H-250	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-TB-63H-300	Mounting: Head trunnion \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-00-80B-25	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-00-80B-50	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-00-80B-75	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-00-80B-100	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-00-80B-125	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-00-80B-150	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-00-80B-200	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-00-80B-250	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-00-80B-300	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-00-80R-25	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-00-80R-50	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-00-80R-75	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-00-80R-100	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-00-80R-125	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-00-80R-150	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-00-80R-200	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-00-80R-250	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-00-80R-300	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-00-80H-25	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-00-80H-50	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-00-80H-75	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-00-80H-100	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-00-80H-125	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-00-80H-150	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-00-80H-200	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-00-80H-250	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-00-80H-300	Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-LB-80B-25	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-LB-80B-50	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-LB-80B-75	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-LB-80B-100	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-LB-80B-125	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-LB-80B-150	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-LB-80B-200	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-LB-80B-250	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-LB-80B-300	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-LB-80R-25	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-LB-80R-50	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-LB-80R-75	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-LB-80R-100	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-LB-80R-125	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-LB-80R-150	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-LB-80R-200	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-LB-80R-250	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-LB-80R-300	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-LB-80H-25	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-LB-80H-50	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-LB-80H-75	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-LB-80H-100	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-LB-80H-125	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-LB-80H-150	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-LB-80H-200	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-LB-80H-250	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-LB-80H-300	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-FA-80B-25	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-FA-80B-50	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-FA-80B-75	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-FA-80B-100	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-FA-80B-125	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-FA-80B-150	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-FA-80B-200	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-FA-80B-250	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-FA-80B-300	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-FA-80R-25	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-FA-80R-50	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-FA-80R-75	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-FA-80R-100	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-FA-80R-125	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-FA-80R-150	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-FA-80R-200	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-FA-80R-250	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-FA-80R-300	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-FA-80H-25	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-FA-80H-50	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-FA-80H-75	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-FA-80H-100	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-FA-80H-125	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-FA-80H-150	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-FA-80H-200	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-FA-80H-250	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-FA-80H-300	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-FB-80B-25	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-FB-80B-50	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-FB-80B-75	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-FB-80B-100	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-FB-80B-125	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-FB-80B-150	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-FB-80B-200	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-FB-80B-250	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-FB-80B-300	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-FB-80R-25	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-FB-80R-50	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-FB-80R-75	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-FB-80R-100	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-FB-80R-125	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-FB-80R-150	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-FB-80R-200	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-FB-80R-250	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-FB-80R-300	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-FB-80H-25	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-FB-80H-50	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-FB-80H-75	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-FB-80H-100	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-FB-80H-125	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-FB-80H-150	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-FB-80H-200	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-FB-80H-250	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-FB-80H-300	Mounting: Head flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-CB-80B-25	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-CB-80B-50	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-CB-80B-75	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-CB-80B-100	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-CB-80B-125	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-CB-80B-150	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-CB-80B-200	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-CB-80B-250	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-CB-80B-300	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-CB-80R-25	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-CB-80R-50	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-CB-80R-75	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-CB-80R-100	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-CB-80R-125	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-CB-80R-150	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-CB-80R-200	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-CB-80R-250	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-CB-80R-300	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-CB-80H-25	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-CB-80H-50	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-CB-80H-75	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-CB-80H-100	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-CB-80H-125	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-CB-80H-150	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-CB-80H-200	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-CB-80H-250	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-CB-80H-300	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-00-100B-25	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-00-100B-50	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-00-100B-75	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-00-100B-100	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-00-100B-125	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-00-100B-150	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-00-100B-200	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-00-100B-250	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-00-100B-300	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-00-100R-25	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-00-100R-50	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-00-100R-75	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-00-100R-100	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-00-100R-125	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-00-100R-150	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-00-100R-200	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-00-100R-250	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-00-100R-300	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-00-100H-25	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-00-100H-50	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-00-100H-75	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-00-100H-100	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-00-100H-125	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-00-100H-150	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-00-100H-200	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-00-100H-250	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-00-100H-300	Mounting: Basic \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-LB-100B-25	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-LB-100B-50	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-LB-100B-75	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-LB-100B-100	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-LB-100B-125	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-LB-100B-150	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-LB-100B-200	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-LB-100B-250	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-LB-100B-300	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-LB-100R-25	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-LB-100R-50	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-LB-100R-75	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-LB-100R-100	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-LB-100R-125	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-LB-100R-150	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-LB-100R-200	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-LB-100R-250	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-LB-100R-300	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-LB-100H-25	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-LB-100H-50	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-LB-100H-75	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-LB-100H-100	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-LB-100H-125	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-LB-100H-150	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-LB-100H-200	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-LB-100H-250	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-LB-100H-300	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-FA-100B-25	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-FA-100B-50	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-FA-100B-75	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-FA-100B-100	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-FA-100B-125	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-FA-100B-150	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-FA-100B-200	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-FA-100B-250	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-FA-100B-300	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-FA-100R-25	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-FA-100R-50	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-FA-100R-75	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-FA-100R-100	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-FA-100R-125	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-FA-100R-150	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-FA-100R-200	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-FA-100R-250	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-FA-100R-300	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-FA-100H-25	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-FA-100H-50	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-FA-100H-75	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-FA-100H-100	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-FA-100H-125	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-FA-100H-150	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-FA-100H-200	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-FA-100H-250	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-FA-100H-300	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-FB-100B-25	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-FB-100B-50	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-FB-100B-75	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-FB-100B-100	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-FB-100B-125	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-FB-100B-150	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-FB-100B-200	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-FB-100B-250	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-FB-100B-300	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-FB-100R-25	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-FB-100R-50	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-FB-100R-75	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-FB-100R-100	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-FB-100R-125	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-FB-100R-150	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-FB-100R-200	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-FB-100R-250	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-FB-100R-300	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-FB-100H-25	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-FB-100H-50	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-FB-100H-75	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-FB-100H-100	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-FB-100H-125	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-FB-100H-150	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-FB-100H-200	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-FB-100H-250	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-FB-100H-300	Mounting: Head flange \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	SCM-T-CB-100B-25	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 25 mm
	SCM-T-CB-100B-50	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	SCM-T-CB-100B-75	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	SCM-T-CB-100B-100	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	SCM-T-CB-100B-125	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 125 mm
	SCM-T-CB-100B-150	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	SCM-T-CB-100B-200	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	SCM-T-CB-100B-250	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 250 mm
	SCM-T-CB-100B-300	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	SCM-T-CB-100R-25	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 25 mm
	SCM-T-CB-100R-50	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	SCM-T-CB-100R-75	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	SCM-T-CB-100R-100	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	SCM-T-CB-100R-125	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 125 mm
	SCM-T-CB-100R-150	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	SCM-T-CB-100R-200	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	SCM-T-CB-100R-250	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 250 mm
	SCM-T-CB-100R-300	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	SCM-T-CB-100H-25	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 25 mm
	SCM-T-CB-100H-50	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	SCM-T-CB-100H-75	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	SCM-T-CB-100H-100	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	SCM-T-CB-100H-125	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 125 mm
	SCM-T-CB-100H-150	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	SCM-T-CB-100H-200	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	SCM-T-CB-100H-250	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 250 mm
	SCM-T-CB-100H-300	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCM-T Super Micro Cylinder (Double Acting, Heat Resistant)
