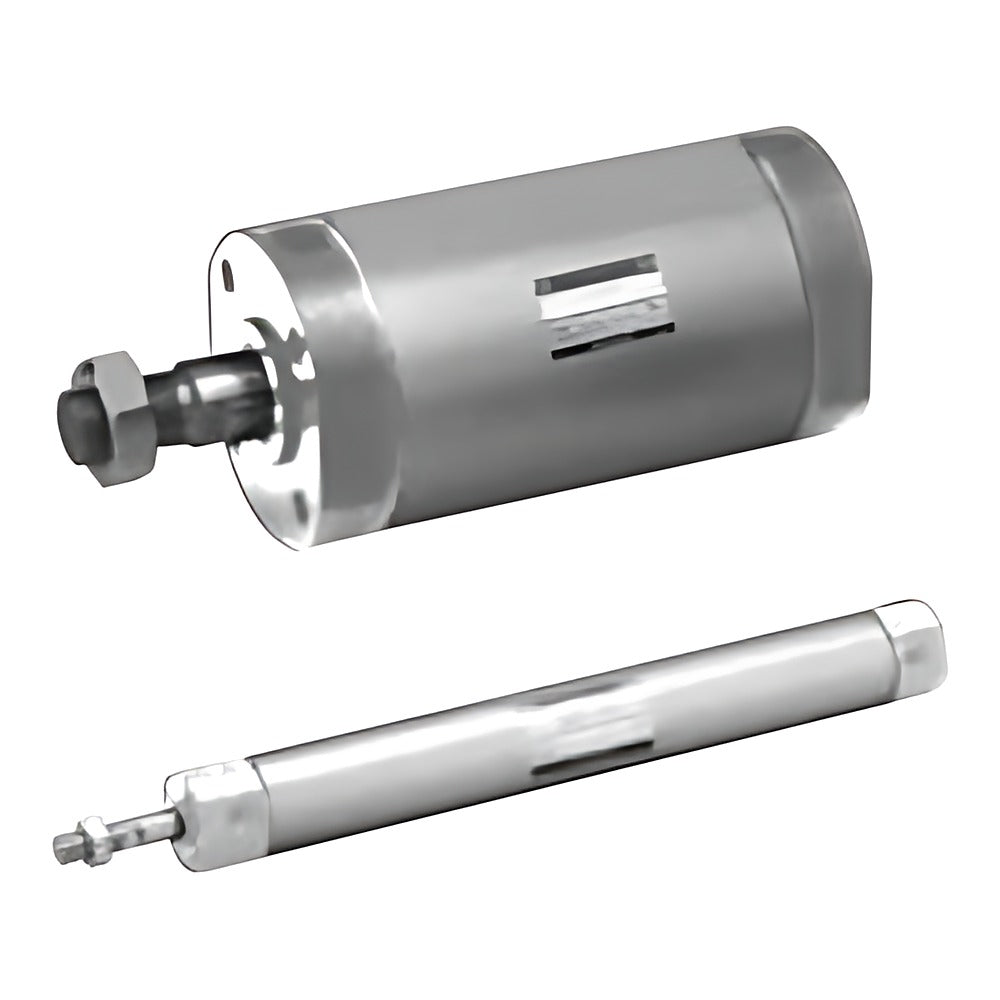

CKD SCM-W-FP1 Super Micro Cylinder (Two-Stage)

CKD SCM-W-FP1 two-stage super micro cylinder, bore 20-63 mm, with NSF H1 food-grade grease.

Key features

NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
Super micro cylinder with switch magnet built in
Auto switches (T0H/T2H/T3H/T2WH etc.) with count R/H/D/T/4, band mounting Z, bellows J/K/L, switch rail Q, stainless rod M and rod-end I/Y/B1/B2 ordered as suffixes
Intermediate strokes in 1 mm steps; NPT (N) / G (G) port threads made to order
Two-stage stroke: total stroke S1 up to 600 mm, 1st stage S2 up to 200 mm; rubber cushion (D)

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa (20-40), 0.05 MPa (50-100)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Piston speed	30-1000 mm/s
Cushion	Rubber, both ends
Source	CKD Korea catalog CC-1271K, p. 64-68

SCM-W-00-20-D50-D25-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D75-D25-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D75-D50-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D100-D25-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D100-D50-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D100-D75-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-20-D125-D25-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D125-D50-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D125-D75-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-20-D125-D100-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-20-D150-D25-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D150-D50-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D150-D75-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-20-D150-D100-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-20-D150-D125-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-20-D200-D25-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D200-D50-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D200-D75-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-20-D200-D100-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-20-D200-D125-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-20-D200-D150-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-20-D250-D25-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D250-D50-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D250-D75-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-20-D250-D100-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-20-D250-D125-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-20-D250-D150-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-20-D250-D200-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-20-D300-D25-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D300-D50-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D300-D75-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-20-D300-D100-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-20-D300-D125-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-20-D300-D150-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-20-D300-D200-FP1		Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-25-D50-D25-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D75-D25-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D75-D50-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D100-D25-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D100-D50-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D100-D75-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-25-D125-D25-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D125-D50-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D125-D75-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-25-D125-D100-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-25-D150-D25-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D150-D50-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D150-D75-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-25-D150-D100-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-25-D150-D125-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-25-D200-D25-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D200-D50-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D200-D75-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-25-D200-D100-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-25-D200-D125-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-25-D200-D150-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-25-D250-D25-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D250-D50-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D250-D75-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-25-D250-D100-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-25-D250-D125-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-25-D250-D150-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-25-D250-D200-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-25-D300-D25-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D300-D50-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D300-D75-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-25-D300-D100-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-25-D300-D125-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-25-D300-D150-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-25-D300-D200-FP1		Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-32-D50-D25-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D75-D25-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D75-D50-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D100-D25-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D100-D50-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D100-D75-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-32-D125-D25-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D125-D50-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D125-D75-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-32-D125-D100-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-32-D150-D25-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D150-D50-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D150-D75-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-32-D150-D100-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-32-D150-D125-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-32-D200-D25-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D200-D50-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D200-D75-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-32-D200-D100-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-32-D200-D125-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-32-D200-D150-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-32-D250-D25-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D250-D50-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D250-D75-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-32-D250-D100-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-32-D250-D125-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-32-D250-D150-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-32-D250-D200-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-32-D300-D25-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D300-D50-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D300-D75-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-32-D300-D100-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-32-D300-D125-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-32-D300-D150-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-32-D300-D200-FP1		Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-40-D50-D25-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-40-D75-D25-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-40-D75-D50-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-40-D100-D25-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-40-D100-D50-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-40-D100-D75-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-40-D125-D25-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-40-D125-D50-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-40-D125-D75-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-40-D125-D100-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-40-D150-D25-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-40-D150-D50-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-40-D150-D75-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-40-D150-D100-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-40-D150-D125-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-40-D200-D25-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-40-D200-D50-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-40-D200-D75-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-40-D200-D100-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-40-D200-D125-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-40-D200-D150-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-40-D250-D25-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-40-D250-D50-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-40-D250-D75-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-40-D250-D100-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-40-D250-D125-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-40-D250-D150-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-40-D250-D200-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-40-D300-D25-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-40-D300-D50-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-40-D300-D75-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-40-D300-D100-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-40-D300-D125-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-40-D300-D150-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-40-D300-D200-FP1		Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-50-D50-D25-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-50-D75-D25-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-50-D75-D50-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-50-D100-D25-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-50-D100-D50-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-50-D100-D75-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-50-D125-D25-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-50-D125-D50-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-50-D125-D75-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-50-D125-D100-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-50-D150-D25-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-50-D150-D50-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-50-D150-D75-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-50-D150-D100-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-50-D150-D125-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-50-D200-D25-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-50-D200-D50-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-50-D200-D75-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-50-D200-D100-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-50-D200-D125-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-50-D200-D150-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-50-D250-D25-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-50-D250-D50-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-50-D250-D75-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-50-D250-D100-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-50-D250-D125-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-50-D250-D150-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-50-D250-D200-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-50-D300-D25-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-50-D300-D50-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-50-D300-D75-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-50-D300-D100-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-50-D300-D125-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-50-D300-D150-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-50-D300-D200-FP1		Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-63-D50-D25-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-63-D75-D25-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-63-D75-D50-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-63-D100-D25-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-63-D100-D50-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-63-D100-D75-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-63-D125-D25-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-63-D125-D50-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-63-D125-D75-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-63-D125-D100-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-63-D150-D25-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-63-D150-D50-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-63-D150-D75-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-63-D150-D100-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-63-D150-D125-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-63-D200-D25-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-63-D200-D50-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-63-D200-D75-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-63-D200-D100-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-63-D200-D125-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-63-D200-D150-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-63-D250-D25-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-63-D250-D50-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-63-D250-D75-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-63-D250-D100-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-63-D250-D125-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-63-D250-D150-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-63-D250-D200-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-63-D300-D25-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-63-D300-D50-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-63-D300-D75-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-63-D300-D100-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-63-D300-D125-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-63-D300-D150-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-63-D300-D200-FP1		Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-20-D50-D25-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D75-D25-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D75-D50-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D100-D25-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D100-D50-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D100-D75-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-20-D125-D25-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D125-D50-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D125-D75-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-20-D125-D100-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-20-D150-D25-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D150-D50-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D150-D75-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-20-D150-D100-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-20-D150-D125-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-20-D200-D25-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D200-D50-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D200-D75-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-20-D200-D100-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-20-D200-D125-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-20-D200-D150-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-20-D250-D25-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D250-D50-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D250-D75-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-20-D250-D100-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-20-D250-D125-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-20-D250-D150-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-20-D250-D200-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-20-D300-D25-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D300-D50-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D300-D75-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-20-D300-D100-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-20-D300-D125-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-20-D300-D150-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-20-D300-D200-FP1		Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-25-D50-D25-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D75-D25-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D75-D50-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D100-D25-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D100-D50-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D100-D75-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-25-D125-D25-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D125-D50-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D125-D75-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-25-D125-D100-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-25-D150-D25-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D150-D50-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D150-D75-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-25-D150-D100-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-25-D150-D125-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-25-D200-D25-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D200-D50-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D200-D75-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-25-D200-D100-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-25-D200-D125-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-25-D200-D150-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-25-D250-D25-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D250-D50-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D250-D75-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-25-D250-D100-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-25-D250-D125-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-25-D250-D150-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-25-D250-D200-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-25-D300-D25-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D300-D50-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D300-D75-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-25-D300-D100-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-25-D300-D125-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-25-D300-D150-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-25-D300-D200-FP1		Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-32-D50-D25-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D75-D25-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D75-D50-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D100-D25-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D100-D50-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D100-D75-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-32-D125-D25-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D125-D50-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D125-D75-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-32-D125-D100-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-32-D150-D25-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D150-D50-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D150-D75-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-32-D150-D100-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-32-D150-D125-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-32-D200-D25-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D200-D50-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D200-D75-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-32-D200-D100-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-32-D200-D125-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-32-D200-D150-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-32-D250-D25-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D250-D50-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D250-D75-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-32-D250-D100-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-32-D250-D125-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-32-D250-D150-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-32-D250-D200-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-32-D300-D25-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D300-D50-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D300-D75-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-32-D300-D100-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-32-D300-D125-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-32-D300-D150-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-32-D300-D200-FP1		Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-40-D50-D25-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-40-D75-D25-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-40-D75-D50-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-40-D100-D25-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-40-D100-D50-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-40-D100-D75-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-40-D125-D25-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-40-D125-D50-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-40-D125-D75-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-40-D125-D100-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-40-D150-D25-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-40-D150-D50-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-40-D150-D75-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-40-D150-D100-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-40-D150-D125-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-40-D200-D25-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-40-D200-D50-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-40-D200-D75-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-40-D200-D100-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-40-D200-D125-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-40-D200-D150-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-40-D250-D25-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-40-D250-D50-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-40-D250-D75-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-40-D250-D100-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-40-D250-D125-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-40-D250-D150-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-40-D250-D200-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-40-D300-D25-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-40-D300-D50-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-40-D300-D75-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-40-D300-D100-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-40-D300-D125-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-40-D300-D150-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-40-D300-D200-FP1		Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-50-D50-D25-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-50-D75-D25-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-50-D75-D50-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-50-D100-D25-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-50-D100-D50-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-50-D100-D75-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-50-D125-D25-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-50-D125-D50-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-50-D125-D75-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-50-D125-D100-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-50-D150-D25-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-50-D150-D50-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-50-D150-D75-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-50-D150-D100-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-50-D150-D125-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-50-D200-D25-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-50-D200-D50-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-50-D200-D75-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-50-D200-D100-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-50-D200-D125-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-50-D200-D150-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-50-D250-D25-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-50-D250-D50-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-50-D250-D75-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-50-D250-D100-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-50-D250-D125-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-50-D250-D150-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-50-D250-D200-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-50-D300-D25-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-50-D300-D50-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-50-D300-D75-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-50-D300-D100-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-50-D300-D125-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-50-D300-D150-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-50-D300-D200-FP1		Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-63-D50-D25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-63-D75-D25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-63-D75-D50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-63-D100-D25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-63-D100-D50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-63-D100-D75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-63-D125-D25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-63-D125-D50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-63-D125-D75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-63-D125-D100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-63-D150-D25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-63-D150-D50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-63-D150-D75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-63-D150-D100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-63-D150-D125-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-63-D200-D25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-63-D200-D50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-63-D200-D75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-63-D200-D100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-63-D200-D125-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-63-D200-D150-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-63-D250-D25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-63-D250-D50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-63-D250-D75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-63-D250-D100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-63-D250-D125-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-63-D250-D150-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-63-D250-D200-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-63-D300-D25-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-63-D300-D50-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-63-D300-D75-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-63-D300-D100-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-63-D300-D125-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-63-D300-D150-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-63-D300-D200-FP1		Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-20-D50-D25-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D75-D25-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D75-D50-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D100-D25-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D100-D50-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D100-D75-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-20-D125-D25-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D125-D50-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D125-D75-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-20-D125-D100-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-20-D150-D25-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D150-D50-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D150-D75-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-20-D150-D100-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-20-D150-D125-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-20-D200-D25-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D200-D50-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D200-D75-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-20-D200-D100-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-20-D200-D125-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-20-D200-D150-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-20-D250-D25-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D250-D50-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D250-D75-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-20-D250-D100-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-20-D250-D125-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-20-D250-D150-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-20-D250-D200-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-20-D300-D25-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D300-D50-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D300-D75-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-20-D300-D100-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-20-D300-D125-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-20-D300-D150-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-20-D300-D200-FP1		Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-25-D50-D25-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D75-D25-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D75-D50-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D100-D25-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D100-D50-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D100-D75-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-25-D125-D25-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D125-D50-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D125-D75-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-25-D125-D100-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-25-D150-D25-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D150-D50-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D150-D75-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-25-D150-D100-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-25-D150-D125-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-25-D200-D25-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D200-D50-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D200-D75-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-25-D200-D100-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-25-D200-D125-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-25-D200-D150-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-25-D250-D25-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D250-D50-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D250-D75-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-25-D250-D100-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-25-D250-D125-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-25-D250-D150-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-25-D250-D200-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-25-D300-D25-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D300-D50-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D300-D75-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-25-D300-D100-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-25-D300-D125-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-25-D300-D150-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-25-D300-D200-FP1		Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-32-D50-D25-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D75-D25-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D75-D50-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D100-D25-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D100-D50-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D100-D75-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-32-D125-D25-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D125-D50-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D125-D75-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-32-D125-D100-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-32-D150-D25-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D150-D50-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D150-D75-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-32-D150-D100-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-32-D150-D125-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-32-D200-D25-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D200-D50-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D200-D75-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-32-D200-D100-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-32-D200-D125-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-32-D200-D150-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-32-D250-D25-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D250-D50-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D250-D75-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-32-D250-D100-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-32-D250-D125-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-32-D250-D150-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-32-D250-D200-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-32-D300-D25-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D300-D50-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D300-D75-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-32-D300-D100-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-32-D300-D125-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-32-D300-D150-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-32-D300-D200-FP1		Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-40-D50-D25-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-40-D75-D25-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-40-D75-D50-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-40-D100-D25-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-40-D100-D50-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-40-D100-D75-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-40-D125-D25-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-40-D125-D50-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-40-D125-D75-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-40-D125-D100-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-40-D150-D25-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-40-D150-D50-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-40-D150-D75-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-40-D150-D100-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-40-D150-D125-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-40-D200-D25-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-40-D200-D50-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-40-D200-D75-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-40-D200-D100-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-40-D200-D125-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-40-D200-D150-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-40-D250-D25-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-40-D250-D50-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-40-D250-D75-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-40-D250-D100-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-40-D250-D125-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-40-D250-D150-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-40-D250-D200-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-40-D300-D25-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-40-D300-D50-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-40-D300-D75-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-40-D300-D100-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-40-D300-D125-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-40-D300-D150-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-40-D300-D200-FP1		Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-50-D50-D25-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-50-D75-D25-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-50-D75-D50-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-50-D100-D25-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-50-D100-D50-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-50-D100-D75-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-50-D125-D25-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-50-D125-D50-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-50-D125-D75-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-50-D125-D100-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-50-D150-D25-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-50-D150-D50-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-50-D150-D75-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-50-D150-D100-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-50-D150-D125-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-50-D200-D25-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-50-D200-D50-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-50-D200-D75-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-50-D200-D100-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-50-D200-D125-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-50-D200-D150-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-50-D250-D25-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-50-D250-D50-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-50-D250-D75-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-50-D250-D100-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-50-D250-D125-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-50-D250-D150-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-50-D250-D200-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-50-D300-D25-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-50-D300-D50-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-50-D300-D75-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-50-D300-D100-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-50-D300-D125-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-50-D300-D150-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-50-D300-D200-FP1		Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-63-D50-D25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-63-D75-D25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-63-D75-D50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-63-D100-D25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-63-D100-D50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-63-D100-D75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-63-D125-D25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-63-D125-D50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-63-D125-D75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-63-D125-D100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-63-D150-D25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-63-D150-D50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-63-D150-D75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-63-D150-D100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-63-D150-D125-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-63-D200-D25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-63-D200-D50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-63-D200-D75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-63-D200-D100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-63-D200-D125-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-63-D200-D150-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-63-D250-D25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-63-D250-D50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-63-D250-D75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-63-D250-D100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-63-D250-D125-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-63-D250-D150-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-63-D250-D200-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-63-D300-D25-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-63-D300-D50-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-63-D300-D75-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-63-D300-D100-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-63-D300-D125-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-63-D300-D150-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-63-D300-D200-FP1		Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-20-D50-D25-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D75-D25-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D75-D50-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D100-D25-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D100-D50-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D100-D75-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-20-D125-D25-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D125-D50-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D125-D75-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-20-D125-D100-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-20-D150-D25-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D150-D50-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D150-D75-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-20-D150-D100-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-20-D150-D125-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-20-D200-D25-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D200-D50-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D200-D75-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-20-D200-D100-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-20-D200-D125-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-20-D200-D150-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-20-D250-D25-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D250-D50-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D250-D75-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-20-D250-D100-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-20-D250-D125-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-20-D250-D150-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-20-D250-D200-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-20-D300-D25-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D300-D50-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D300-D75-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-20-D300-D100-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-20-D300-D125-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-20-D300-D150-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-20-D300-D200-FP1		Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-25-D50-D25-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D75-D25-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D75-D50-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D100-D25-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D100-D50-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D100-D75-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-25-D125-D25-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D125-D50-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D125-D75-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-25-D125-D100-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-25-D150-D25-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D150-D50-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D150-D75-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-25-D150-D100-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-25-D150-D125-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-25-D200-D25-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D200-D50-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D200-D75-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-25-D200-D100-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-25-D200-D125-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-25-D200-D150-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-25-D250-D25-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D250-D50-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D250-D75-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-25-D250-D100-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-25-D250-D125-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-25-D250-D150-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-25-D250-D200-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-25-D300-D25-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D300-D50-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D300-D75-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-25-D300-D100-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-25-D300-D125-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-25-D300-D150-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-25-D300-D200-FP1		Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-32-D50-D25-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D75-D25-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D75-D50-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D100-D25-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D100-D50-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D100-D75-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-32-D125-D25-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D125-D50-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D125-D75-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-32-D125-D100-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-32-D150-D25-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D150-D50-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D150-D75-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-32-D150-D100-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-32-D150-D125-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-32-D200-D25-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D200-D50-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D200-D75-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-32-D200-D100-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-32-D200-D125-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-32-D200-D150-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-32-D250-D25-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D250-D50-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D250-D75-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-32-D250-D100-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-32-D250-D125-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-32-D250-D150-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-32-D250-D200-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-32-D300-D25-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D300-D50-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D300-D75-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-32-D300-D100-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-32-D300-D125-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-32-D300-D150-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-32-D300-D200-FP1		Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-40-D50-D25-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-40-D75-D25-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-40-D75-D50-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-40-D100-D25-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-40-D100-D50-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-40-D100-D75-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-40-D125-D25-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-40-D125-D50-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-40-D125-D75-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-40-D125-D100-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-40-D150-D25-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-40-D150-D50-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-40-D150-D75-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-40-D150-D100-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-40-D150-D125-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-40-D200-D25-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-40-D200-D50-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-40-D200-D75-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-40-D200-D100-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-40-D200-D125-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-40-D200-D150-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-40-D250-D25-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-40-D250-D50-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-40-D250-D75-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-40-D250-D100-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-40-D250-D125-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-40-D250-D150-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-40-D250-D200-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-40-D300-D25-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-40-D300-D50-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-40-D300-D75-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-40-D300-D100-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-40-D300-D125-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-40-D300-D150-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-40-D300-D200-FP1		Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-50-D50-D25-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-50-D75-D25-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-50-D75-D50-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-50-D100-D25-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-50-D100-D50-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-50-D100-D75-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-50-D125-D25-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-50-D125-D50-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-50-D125-D75-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-50-D125-D100-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-50-D150-D25-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-50-D150-D50-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-50-D150-D75-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-50-D150-D100-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-50-D150-D125-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-50-D200-D25-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-50-D200-D50-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-50-D200-D75-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-50-D200-D100-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-50-D200-D125-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-50-D200-D150-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-50-D250-D25-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-50-D250-D50-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-50-D250-D75-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-50-D250-D100-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-50-D250-D125-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-50-D250-D150-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-50-D250-D200-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-50-D300-D25-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-50-D300-D50-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-50-D300-D75-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-50-D300-D100-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-50-D300-D125-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-50-D300-D150-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-50-D300-D200-FP1		Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-63-D50-D25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-63-D75-D25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-63-D75-D50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-63-D100-D25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-63-D100-D50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-63-D100-D75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-63-D125-D25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-63-D125-D50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-63-D125-D75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-63-D125-D100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-63-D150-D25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-63-D150-D50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-63-D150-D75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-63-D150-D100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-63-D150-D125-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-63-D200-D25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-63-D200-D50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-63-D200-D75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-63-D200-D100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-63-D200-D125-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-63-D200-D150-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-63-D250-D25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-63-D250-D50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-63-D250-D75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-63-D250-D100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-63-D250-D125-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-63-D250-D150-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-63-D250-D200-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-63-D300-D25-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-63-D300-D50-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-63-D300-D75-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-63-D300-D100-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-63-D300-D125-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-63-D300-D150-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-63-D300-D200-FP1		Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-20-D50-D25-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D75-D25-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D75-D50-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D100-D25-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D100-D50-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D100-D75-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-20-D125-D25-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D125-D50-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D125-D75-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-20-D125-D100-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-20-D150-D25-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D150-D50-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D150-D75-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-20-D150-D100-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-20-D150-D125-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-20-D200-D25-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D200-D50-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D200-D75-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-20-D200-D100-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-20-D200-D125-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-20-D200-D150-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-20-D250-D25-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D250-D50-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D250-D75-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-20-D250-D100-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-20-D250-D125-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-20-D250-D150-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-20-D250-D200-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-20-D300-D25-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D300-D50-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D300-D75-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-20-D300-D100-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-20-D300-D125-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-20-D300-D150-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-20-D300-D200-FP1		Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-25-D50-D25-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D75-D25-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D75-D50-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D100-D25-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D100-D50-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D100-D75-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-25-D125-D25-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D125-D50-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D125-D75-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-25-D125-D100-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-25-D150-D25-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D150-D50-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D150-D75-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-25-D150-D100-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-25-D150-D125-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-25-D200-D25-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D200-D50-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D200-D75-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-25-D200-D100-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-25-D200-D125-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-25-D200-D150-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-25-D250-D25-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D250-D50-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D250-D75-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-25-D250-D100-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-25-D250-D125-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-25-D250-D150-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-25-D250-D200-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-25-D300-D25-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D300-D50-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D300-D75-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-25-D300-D100-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-25-D300-D125-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-25-D300-D150-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-25-D300-D200-FP1		Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-32-D50-D25-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D75-D25-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D75-D50-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D100-D25-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D100-D50-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D100-D75-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-32-D125-D25-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D125-D50-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D125-D75-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-32-D125-D100-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-32-D150-D25-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D150-D50-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D150-D75-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-32-D150-D100-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-32-D150-D125-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-32-D200-D25-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D200-D50-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D200-D75-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-32-D200-D100-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-32-D200-D125-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-32-D200-D150-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-32-D250-D25-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D250-D50-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D250-D75-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-32-D250-D100-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-32-D250-D125-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-32-D250-D150-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-32-D250-D200-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-32-D300-D25-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D300-D50-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D300-D75-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-32-D300-D100-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-32-D300-D125-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-32-D300-D150-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-32-D300-D200-FP1		Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-40-D50-D25-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-40-D75-D25-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-40-D75-D50-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-40-D100-D25-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-40-D100-D50-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-40-D100-D75-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-40-D125-D25-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-40-D125-D50-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-40-D125-D75-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-40-D125-D100-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-40-D150-D25-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-40-D150-D50-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-40-D150-D75-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-40-D150-D100-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-40-D150-D125-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-40-D200-D25-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-40-D200-D50-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-40-D200-D75-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-40-D200-D100-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-40-D200-D125-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-40-D200-D150-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-40-D250-D25-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-40-D250-D50-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-40-D250-D75-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-40-D250-D100-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-40-D250-D125-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-40-D250-D150-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-40-D250-D200-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-40-D300-D25-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-40-D300-D50-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-40-D300-D75-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-40-D300-D100-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-40-D300-D125-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-40-D300-D150-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-40-D300-D200-FP1		Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-50-D50-D25-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-50-D75-D25-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-50-D75-D50-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-50-D100-D25-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-50-D100-D50-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-50-D100-D75-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-50-D125-D25-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-50-D125-D50-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-50-D125-D75-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-50-D125-D100-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-50-D150-D25-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-50-D150-D50-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-50-D150-D75-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-50-D150-D100-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-50-D150-D125-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-50-D200-D25-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-50-D200-D50-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-50-D200-D75-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-50-D200-D100-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-50-D200-D125-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-50-D200-D150-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-50-D250-D25-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-50-D250-D50-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-50-D250-D75-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-50-D250-D100-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-50-D250-D125-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-50-D250-D150-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-50-D250-D200-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-50-D300-D25-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-50-D300-D50-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-50-D300-D75-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-50-D300-D100-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-50-D300-D125-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-50-D300-D150-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-50-D300-D200-FP1		Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-63-D50-D25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-63-D75-D25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-63-D75-D50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-63-D100-D25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-63-D100-D50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-63-D100-D75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-63-D125-D25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-63-D125-D50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-63-D125-D75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-63-D125-D100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-63-D150-D25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-63-D150-D50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-63-D150-D75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-63-D150-D100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-63-D150-D125-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-63-D200-D25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-63-D200-D50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-63-D200-D75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-63-D200-D100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-63-D200-D125-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-63-D200-D150-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-63-D250-D25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-63-D250-D50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-63-D250-D75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-63-D250-D100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-63-D250-D125-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-63-D250-D150-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-63-D250-D200-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-63-D300-D25-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-63-D300-D50-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-63-D300-D75-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-63-D300-D100-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-63-D300-D125-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-63-D300-D150-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-63-D300-D200-FP1		Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-20-D50-D25-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D75-D25-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D75-D50-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D100-D25-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D100-D50-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D100-D75-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-20-D125-D25-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D125-D50-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D125-D75-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-20-D125-D100-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-20-D150-D25-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D150-D50-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D150-D75-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-20-D150-D100-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-20-D150-D125-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-20-D200-D25-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D200-D50-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D200-D75-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-20-D200-D100-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-20-D200-D125-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-20-D200-D150-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-20-D250-D25-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D250-D50-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D250-D75-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-20-D250-D100-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-20-D250-D125-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-20-D250-D150-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-20-D250-D200-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-20-D300-D25-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D300-D50-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D300-D75-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-20-D300-D100-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-20-D300-D125-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-20-D300-D150-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-20-D300-D200-FP1		Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-25-D50-D25-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D75-D25-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D75-D50-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D100-D25-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D100-D50-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D100-D75-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-25-D125-D25-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D125-D50-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D125-D75-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-25-D125-D100-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-25-D150-D25-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D150-D50-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D150-D75-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-25-D150-D100-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-25-D150-D125-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-25-D200-D25-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D200-D50-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D200-D75-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-25-D200-D100-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-25-D200-D125-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-25-D200-D150-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-25-D250-D25-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D250-D50-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D250-D75-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-25-D250-D100-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-25-D250-D125-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-25-D250-D150-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-25-D250-D200-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-25-D300-D25-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D300-D50-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D300-D75-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-25-D300-D100-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-25-D300-D125-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-25-D300-D150-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-25-D300-D200-FP1		Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-32-D50-D25-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D75-D25-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D75-D50-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D100-D25-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D100-D50-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D100-D75-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-32-D125-D25-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D125-D50-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D125-D75-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-32-D125-D100-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-32-D150-D25-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D150-D50-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D150-D75-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-32-D150-D100-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-32-D150-D125-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-32-D200-D25-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D200-D50-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D200-D75-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-32-D200-D100-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-32-D200-D125-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-32-D200-D150-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-32-D250-D25-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D250-D50-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D250-D75-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-32-D250-D100-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-32-D250-D125-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-32-D250-D150-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-32-D250-D200-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-32-D300-D25-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D300-D50-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D300-D75-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-32-D300-D100-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-32-D300-D125-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-32-D300-D150-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-32-D300-D200-FP1		Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-40-D50-D25-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-40-D75-D25-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-40-D75-D50-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-40-D100-D25-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-40-D100-D50-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-40-D100-D75-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-40-D125-D25-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-40-D125-D50-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-40-D125-D75-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-40-D125-D100-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-40-D150-D25-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-40-D150-D50-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-40-D150-D75-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-40-D150-D100-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-40-D150-D125-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-40-D200-D25-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-40-D200-D50-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-40-D200-D75-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-40-D200-D100-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-40-D200-D125-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-40-D200-D150-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-40-D250-D25-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-40-D250-D50-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-40-D250-D75-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-40-D250-D100-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-40-D250-D125-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-40-D250-D150-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-40-D250-D200-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-40-D300-D25-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-40-D300-D50-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-40-D300-D75-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-40-D300-D100-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-40-D300-D125-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-40-D300-D150-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-40-D300-D200-FP1		Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-50-D50-D25-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-50-D75-D25-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-50-D75-D50-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-50-D100-D25-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-50-D100-D50-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-50-D100-D75-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-50-D125-D25-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-50-D125-D50-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-50-D125-D75-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-50-D125-D100-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-50-D150-D25-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-50-D150-D50-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-50-D150-D75-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-50-D150-D100-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-50-D150-D125-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-50-D200-D25-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-50-D200-D50-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-50-D200-D75-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-50-D200-D100-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-50-D200-D125-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-50-D200-D150-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-50-D250-D25-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-50-D250-D50-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-50-D250-D75-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-50-D250-D100-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-50-D250-D125-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-50-D250-D150-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-50-D250-D200-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-50-D300-D25-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-50-D300-D50-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-50-D300-D75-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-50-D300-D100-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-50-D300-D125-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-50-D300-D150-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-50-D300-D200-FP1		Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-63-D50-D25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-63-D75-D25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-63-D75-D50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-63-D100-D25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-63-D100-D50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-63-D100-D75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-63-D125-D25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-63-D125-D50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-63-D125-D75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-63-D125-D100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-63-D150-D25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-63-D150-D50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-63-D150-D75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-63-D150-D100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-63-D150-D125-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-63-D200-D25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-63-D200-D50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-63-D200-D75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-63-D200-D100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-63-D200-D125-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-63-D200-D150-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-63-D250-D25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-63-D250-D50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-63-D250-D75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-63-D250-D100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-63-D250-D125-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-63-D250-D150-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-63-D250-D200-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-63-D300-D25-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-63-D300-D50-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-63-D300-D75-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-63-D300-D100-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-63-D300-D125-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-63-D300-D150-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-63-D300-D200-FP1		Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm

Pneumatic CylindersCKD

1260 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-W-FP1 Super Micro Cylinder (Two-Stage)

Brand CKD·Pneumatic Cylinders

Available part numbers (1260)

SCM-W-00-20-D50-D25-FP1, SCM-W-00-20-D75-D25-FP1, SCM-W-00-20-D75-D50-FP1, SCM-W-00-20-D100-D25-FP1, SCM-W-00-20-D100-D50-FP1, SCM-W-00-20-D100-D75-FP1, SCM-W-00-20-D125-D25-FP1, SCM-W-00-20-D125-D50-FP1, SCM-W-00-20-D125-D75-FP1, SCM-W-00-20-D125-D100-FP1 + 1250 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCM-W-00-20-D50-D25-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D75-D25-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D75-D50-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D100-D25-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D100-D50-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D100-D75-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-20-D125-D25-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D125-D50-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D125-D75-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-20-D125-D100-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-20-D150-D25-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D150-D50-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D150-D75-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-20-D150-D100-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-20-D150-D125-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-20-D200-D25-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D200-D50-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D200-D75-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-20-D200-D100-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-20-D200-D125-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-20-D200-D150-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-20-D250-D25-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D250-D50-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D250-D75-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-20-D250-D100-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-20-D250-D125-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-20-D250-D150-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-20-D250-D200-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-20-D300-D25-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D300-D50-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D300-D75-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-20-D300-D100-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-20-D300-D125-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-20-D300-D150-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-20-D300-D200-FP1	Mounting: Basic \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-25-D50-D25-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D75-D25-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D75-D50-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D100-D25-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D100-D50-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D100-D75-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-25-D125-D25-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D125-D50-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D125-D75-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-25-D125-D100-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-25-D150-D25-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D150-D50-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D150-D75-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-25-D150-D100-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-25-D150-D125-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-25-D200-D25-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D200-D50-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D200-D75-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-25-D200-D100-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-25-D200-D125-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-25-D200-D150-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-25-D250-D25-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D250-D50-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D250-D75-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-25-D250-D100-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-25-D250-D125-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-25-D250-D150-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-25-D250-D200-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-25-D300-D25-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D300-D50-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D300-D75-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-25-D300-D100-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-25-D300-D125-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-25-D300-D150-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-25-D300-D200-FP1	Mounting: Basic \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-32-D50-D25-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D75-D25-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D75-D50-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D100-D25-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D100-D50-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D100-D75-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-32-D125-D25-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D125-D50-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D125-D75-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-32-D125-D100-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-32-D150-D25-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D150-D50-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D150-D75-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-32-D150-D100-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-32-D150-D125-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-32-D200-D25-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D200-D50-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D200-D75-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-32-D200-D100-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-32-D200-D125-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-32-D200-D150-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-32-D250-D25-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D250-D50-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D250-D75-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-32-D250-D100-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-32-D250-D125-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-32-D250-D150-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-32-D250-D200-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-32-D300-D25-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D300-D50-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D300-D75-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-32-D300-D100-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-32-D300-D125-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-32-D300-D150-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-32-D300-D200-FP1	Mounting: Basic \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-40-D50-D25-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-40-D75-D25-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-40-D75-D50-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-40-D100-D25-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-40-D100-D50-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-40-D100-D75-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-40-D125-D25-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-40-D125-D50-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-40-D125-D75-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-40-D125-D100-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-40-D150-D25-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-40-D150-D50-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-40-D150-D75-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-40-D150-D100-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-40-D150-D125-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-40-D200-D25-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-40-D200-D50-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-40-D200-D75-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-40-D200-D100-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-40-D200-D125-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-40-D200-D150-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-40-D250-D25-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-40-D250-D50-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-40-D250-D75-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-40-D250-D100-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-40-D250-D125-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-40-D250-D150-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-40-D250-D200-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-40-D300-D25-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-40-D300-D50-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-40-D300-D75-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-40-D300-D100-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-40-D300-D125-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-40-D300-D150-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-40-D300-D200-FP1	Mounting: Basic \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-50-D50-D25-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-50-D75-D25-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-50-D75-D50-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-50-D100-D25-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-50-D100-D50-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-50-D100-D75-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-50-D125-D25-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-50-D125-D50-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-50-D125-D75-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-50-D125-D100-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-50-D150-D25-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-50-D150-D50-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-50-D150-D75-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-50-D150-D100-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-50-D150-D125-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-50-D200-D25-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-50-D200-D50-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-50-D200-D75-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-50-D200-D100-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-50-D200-D125-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-50-D200-D150-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-50-D250-D25-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-50-D250-D50-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-50-D250-D75-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-50-D250-D100-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-50-D250-D125-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-50-D250-D150-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-50-D250-D200-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-50-D300-D25-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-50-D300-D50-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-50-D300-D75-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-50-D300-D100-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-50-D300-D125-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-50-D300-D150-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-50-D300-D200-FP1	Mounting: Basic \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-63-D50-D25-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-63-D75-D25-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-63-D75-D50-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-63-D100-D25-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-63-D100-D50-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-63-D100-D75-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-63-D125-D25-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-63-D125-D50-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-63-D125-D75-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-63-D125-D100-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-63-D150-D25-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-63-D150-D50-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-63-D150-D75-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-63-D150-D100-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-63-D150-D125-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-63-D200-D25-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-63-D200-D50-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-63-D200-D75-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-63-D200-D100-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-63-D200-D125-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-63-D200-D150-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-63-D250-D25-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-63-D250-D50-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-63-D250-D75-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-63-D250-D100-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-63-D250-D125-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-63-D250-D150-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-63-D250-D200-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-63-D300-D25-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-63-D300-D50-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-63-D300-D75-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-63-D300-D100-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-63-D300-D125-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-63-D300-D150-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-63-D300-D200-FP1	Mounting: Basic \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-20-D50-D25-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D75-D25-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D75-D50-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D100-D25-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D100-D50-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D100-D75-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-20-D125-D25-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D125-D50-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D125-D75-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-20-D125-D100-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-20-D150-D25-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D150-D50-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D150-D75-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-20-D150-D100-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-20-D150-D125-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-20-D200-D25-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D200-D50-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D200-D75-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-20-D200-D100-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-20-D200-D125-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-20-D200-D150-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-20-D250-D25-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D250-D50-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D250-D75-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-20-D250-D100-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-20-D250-D125-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-20-D250-D150-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-20-D250-D200-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-20-D300-D25-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D300-D50-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D300-D75-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-20-D300-D100-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-20-D300-D125-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-20-D300-D150-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-20-D300-D200-FP1	Mounting: Axial foot \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-25-D50-D25-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D75-D25-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D75-D50-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D100-D25-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D100-D50-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D100-D75-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-25-D125-D25-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D125-D50-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D125-D75-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-25-D125-D100-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-25-D150-D25-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D150-D50-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D150-D75-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-25-D150-D100-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-25-D150-D125-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-25-D200-D25-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D200-D50-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D200-D75-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-25-D200-D100-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-25-D200-D125-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-25-D200-D150-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-25-D250-D25-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D250-D50-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D250-D75-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-25-D250-D100-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-25-D250-D125-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-25-D250-D150-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-25-D250-D200-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-25-D300-D25-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D300-D50-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D300-D75-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-25-D300-D100-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-25-D300-D125-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-25-D300-D150-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-25-D300-D200-FP1	Mounting: Axial foot \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-32-D50-D25-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D75-D25-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D75-D50-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D100-D25-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D100-D50-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D100-D75-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-32-D125-D25-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D125-D50-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D125-D75-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-32-D125-D100-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-32-D150-D25-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D150-D50-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D150-D75-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-32-D150-D100-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-32-D150-D125-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-32-D200-D25-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D200-D50-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D200-D75-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-32-D200-D100-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-32-D200-D125-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-32-D200-D150-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-32-D250-D25-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D250-D50-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D250-D75-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-32-D250-D100-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-32-D250-D125-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-32-D250-D150-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-32-D250-D200-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-32-D300-D25-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D300-D50-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D300-D75-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-32-D300-D100-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-32-D300-D125-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-32-D300-D150-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-32-D300-D200-FP1	Mounting: Axial foot \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-40-D50-D25-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-40-D75-D25-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-40-D75-D50-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-40-D100-D25-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-40-D100-D50-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-40-D100-D75-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-40-D125-D25-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-40-D125-D50-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-40-D125-D75-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-40-D125-D100-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-40-D150-D25-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-40-D150-D50-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-40-D150-D75-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-40-D150-D100-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-40-D150-D125-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-40-D200-D25-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-40-D200-D50-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-40-D200-D75-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-40-D200-D100-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-40-D200-D125-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-40-D200-D150-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-40-D250-D25-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-40-D250-D50-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-40-D250-D75-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-40-D250-D100-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-40-D250-D125-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-40-D250-D150-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-40-D250-D200-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-40-D300-D25-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-40-D300-D50-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-40-D300-D75-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-40-D300-D100-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-40-D300-D125-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-40-D300-D150-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-40-D300-D200-FP1	Mounting: Axial foot \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-50-D50-D25-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-50-D75-D25-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-50-D75-D50-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-50-D100-D25-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-50-D100-D50-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-50-D100-D75-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-50-D125-D25-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-50-D125-D50-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-50-D125-D75-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-50-D125-D100-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-50-D150-D25-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-50-D150-D50-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-50-D150-D75-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-50-D150-D100-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-50-D150-D125-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-50-D200-D25-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-50-D200-D50-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-50-D200-D75-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-50-D200-D100-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-50-D200-D125-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-50-D200-D150-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-50-D250-D25-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-50-D250-D50-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-50-D250-D75-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-50-D250-D100-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-50-D250-D125-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-50-D250-D150-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-50-D250-D200-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-50-D300-D25-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-50-D300-D50-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-50-D300-D75-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-50-D300-D100-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-50-D300-D125-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-50-D300-D150-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-50-D300-D200-FP1	Mounting: Axial foot \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-63-D50-D25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-63-D75-D25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-63-D75-D50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-63-D100-D25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-63-D100-D50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-63-D100-D75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-63-D125-D25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-63-D125-D50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-63-D125-D75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-63-D125-D100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-63-D150-D25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-63-D150-D50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-63-D150-D75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-63-D150-D100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-63-D150-D125-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-63-D200-D25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-63-D200-D50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-63-D200-D75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-63-D200-D100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-63-D200-D125-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-63-D200-D150-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-63-D250-D25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-63-D250-D50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-63-D250-D75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-63-D250-D100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-63-D250-D125-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-63-D250-D150-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-63-D250-D200-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-63-D300-D25-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-63-D300-D50-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-63-D300-D75-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-63-D300-D100-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-63-D300-D125-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-63-D300-D150-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-63-D300-D200-FP1	Mounting: Axial foot \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-20-D50-D25-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D75-D25-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D75-D50-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D100-D25-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D100-D50-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D100-D75-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-20-D125-D25-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D125-D50-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D125-D75-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-20-D125-D100-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-20-D150-D25-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D150-D50-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D150-D75-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-20-D150-D100-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-20-D150-D125-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-20-D200-D25-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D200-D50-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D200-D75-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-20-D200-D100-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-20-D200-D125-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-20-D200-D150-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-20-D250-D25-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D250-D50-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D250-D75-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-20-D250-D100-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-20-D250-D125-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-20-D250-D150-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-20-D250-D200-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-20-D300-D25-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D300-D50-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D300-D75-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-20-D300-D100-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-20-D300-D125-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-20-D300-D150-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-20-D300-D200-FP1	Mounting: Rod-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-25-D50-D25-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D75-D25-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D75-D50-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D100-D25-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D100-D50-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D100-D75-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-25-D125-D25-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D125-D50-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D125-D75-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-25-D125-D100-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-25-D150-D25-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D150-D50-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D150-D75-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-25-D150-D100-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-25-D150-D125-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-25-D200-D25-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D200-D50-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D200-D75-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-25-D200-D100-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-25-D200-D125-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-25-D200-D150-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-25-D250-D25-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D250-D50-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D250-D75-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-25-D250-D100-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-25-D250-D125-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-25-D250-D150-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-25-D250-D200-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-25-D300-D25-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D300-D50-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D300-D75-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-25-D300-D100-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-25-D300-D125-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-25-D300-D150-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-25-D300-D200-FP1	Mounting: Rod-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-32-D50-D25-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D75-D25-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D75-D50-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D100-D25-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D100-D50-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D100-D75-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-32-D125-D25-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D125-D50-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D125-D75-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-32-D125-D100-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-32-D150-D25-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D150-D50-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D150-D75-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-32-D150-D100-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-32-D150-D125-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-32-D200-D25-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D200-D50-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D200-D75-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-32-D200-D100-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-32-D200-D125-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-32-D200-D150-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-32-D250-D25-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D250-D50-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D250-D75-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-32-D250-D100-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-32-D250-D125-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-32-D250-D150-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-32-D250-D200-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-32-D300-D25-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D300-D50-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D300-D75-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-32-D300-D100-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-32-D300-D125-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-32-D300-D150-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-32-D300-D200-FP1	Mounting: Rod-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-40-D50-D25-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-40-D75-D25-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-40-D75-D50-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-40-D100-D25-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-40-D100-D50-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-40-D100-D75-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-40-D125-D25-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-40-D125-D50-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-40-D125-D75-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-40-D125-D100-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-40-D150-D25-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-40-D150-D50-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-40-D150-D75-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-40-D150-D100-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-40-D150-D125-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-40-D200-D25-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-40-D200-D50-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-40-D200-D75-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-40-D200-D100-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-40-D200-D125-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-40-D200-D150-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-40-D250-D25-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-40-D250-D50-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-40-D250-D75-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-40-D250-D100-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-40-D250-D125-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-40-D250-D150-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-40-D250-D200-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-40-D300-D25-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-40-D300-D50-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-40-D300-D75-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-40-D300-D100-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-40-D300-D125-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-40-D300-D150-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-40-D300-D200-FP1	Mounting: Rod-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-50-D50-D25-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-50-D75-D25-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-50-D75-D50-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-50-D100-D25-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-50-D100-D50-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-50-D100-D75-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-50-D125-D25-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-50-D125-D50-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-50-D125-D75-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-50-D125-D100-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-50-D150-D25-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-50-D150-D50-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-50-D150-D75-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-50-D150-D100-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-50-D150-D125-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-50-D200-D25-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-50-D200-D50-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-50-D200-D75-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-50-D200-D100-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-50-D200-D125-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-50-D200-D150-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-50-D250-D25-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-50-D250-D50-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-50-D250-D75-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-50-D250-D100-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-50-D250-D125-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-50-D250-D150-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-50-D250-D200-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-50-D300-D25-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-50-D300-D50-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-50-D300-D75-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-50-D300-D100-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-50-D300-D125-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-50-D300-D150-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-50-D300-D200-FP1	Mounting: Rod-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-63-D50-D25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-63-D75-D25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-63-D75-D50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-63-D100-D25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-63-D100-D50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-63-D100-D75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-63-D125-D25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-63-D125-D50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-63-D125-D75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-63-D125-D100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-63-D150-D25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-63-D150-D50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-63-D150-D75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-63-D150-D100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-63-D150-D125-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-63-D200-D25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-63-D200-D50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-63-D200-D75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-63-D200-D100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-63-D200-D125-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-63-D200-D150-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-63-D250-D25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-63-D250-D50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-63-D250-D75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-63-D250-D100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-63-D250-D125-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-63-D250-D150-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-63-D250-D200-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-63-D300-D25-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-63-D300-D50-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-63-D300-D75-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-63-D300-D100-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-63-D300-D125-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-63-D300-D150-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-63-D300-D200-FP1	Mounting: Rod-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-20-D50-D25-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D75-D25-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D75-D50-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D100-D25-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D100-D50-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D100-D75-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-20-D125-D25-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D125-D50-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D125-D75-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-20-D125-D100-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-20-D150-D25-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D150-D50-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D150-D75-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-20-D150-D100-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-20-D150-D125-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-20-D200-D25-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D200-D50-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D200-D75-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-20-D200-D100-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-20-D200-D125-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-20-D200-D150-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-20-D250-D25-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D250-D50-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D250-D75-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-20-D250-D100-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-20-D250-D125-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-20-D250-D150-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-20-D250-D200-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-20-D300-D25-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D300-D50-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D300-D75-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-20-D300-D100-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-20-D300-D125-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-20-D300-D150-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-20-D300-D200-FP1	Mounting: Head-side flange \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-25-D50-D25-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D75-D25-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D75-D50-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D100-D25-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D100-D50-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D100-D75-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-25-D125-D25-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D125-D50-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D125-D75-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-25-D125-D100-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-25-D150-D25-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D150-D50-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D150-D75-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-25-D150-D100-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-25-D150-D125-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-25-D200-D25-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D200-D50-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D200-D75-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-25-D200-D100-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-25-D200-D125-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-25-D200-D150-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-25-D250-D25-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D250-D50-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D250-D75-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-25-D250-D100-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-25-D250-D125-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-25-D250-D150-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-25-D250-D200-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-25-D300-D25-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D300-D50-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D300-D75-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-25-D300-D100-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-25-D300-D125-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-25-D300-D150-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-25-D300-D200-FP1	Mounting: Head-side flange \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-32-D50-D25-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D75-D25-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D75-D50-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D100-D25-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D100-D50-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D100-D75-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-32-D125-D25-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D125-D50-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D125-D75-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-32-D125-D100-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-32-D150-D25-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D150-D50-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D150-D75-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-32-D150-D100-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-32-D150-D125-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-32-D200-D25-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D200-D50-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D200-D75-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-32-D200-D100-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-32-D200-D125-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-32-D200-D150-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-32-D250-D25-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D250-D50-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D250-D75-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-32-D250-D100-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-32-D250-D125-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-32-D250-D150-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-32-D250-D200-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-32-D300-D25-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D300-D50-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D300-D75-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-32-D300-D100-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-32-D300-D125-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-32-D300-D150-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-32-D300-D200-FP1	Mounting: Head-side flange \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-40-D50-D25-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-40-D75-D25-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-40-D75-D50-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-40-D100-D25-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-40-D100-D50-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-40-D100-D75-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-40-D125-D25-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-40-D125-D50-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-40-D125-D75-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-40-D125-D100-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-40-D150-D25-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-40-D150-D50-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-40-D150-D75-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-40-D150-D100-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-40-D150-D125-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-40-D200-D25-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-40-D200-D50-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-40-D200-D75-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-40-D200-D100-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-40-D200-D125-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-40-D200-D150-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-40-D250-D25-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-40-D250-D50-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-40-D250-D75-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-40-D250-D100-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-40-D250-D125-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-40-D250-D150-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-40-D250-D200-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-40-D300-D25-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-40-D300-D50-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-40-D300-D75-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-40-D300-D100-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-40-D300-D125-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-40-D300-D150-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-40-D300-D200-FP1	Mounting: Head-side flange \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-50-D50-D25-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-50-D75-D25-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-50-D75-D50-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-50-D100-D25-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-50-D100-D50-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-50-D100-D75-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-50-D125-D25-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-50-D125-D50-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-50-D125-D75-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-50-D125-D100-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-50-D150-D25-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-50-D150-D50-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-50-D150-D75-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-50-D150-D100-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-50-D150-D125-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-50-D200-D25-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-50-D200-D50-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-50-D200-D75-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-50-D200-D100-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-50-D200-D125-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-50-D200-D150-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-50-D250-D25-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-50-D250-D50-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-50-D250-D75-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-50-D250-D100-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-50-D250-D125-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-50-D250-D150-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-50-D250-D200-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-50-D300-D25-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-50-D300-D50-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-50-D300-D75-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-50-D300-D100-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-50-D300-D125-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-50-D300-D150-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-50-D300-D200-FP1	Mounting: Head-side flange \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-63-D50-D25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-63-D75-D25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-63-D75-D50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-63-D100-D25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-63-D100-D50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-63-D100-D75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-63-D125-D25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-63-D125-D50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-63-D125-D75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-63-D125-D100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-63-D150-D25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-63-D150-D50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-63-D150-D75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-63-D150-D100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-63-D150-D125-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-63-D200-D25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-63-D200-D50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-63-D200-D75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-63-D200-D100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-63-D200-D125-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-63-D200-D150-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-63-D250-D25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-63-D250-D50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-63-D250-D75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-63-D250-D100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-63-D250-D125-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-63-D250-D150-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-63-D250-D200-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-63-D300-D25-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-63-D300-D50-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-63-D300-D75-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-63-D300-D100-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-63-D300-D125-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-63-D300-D150-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-63-D300-D200-FP1	Mounting: Head-side flange \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-20-D50-D25-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D75-D25-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D75-D50-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D100-D25-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D100-D50-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D100-D75-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-20-D125-D25-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D125-D50-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D125-D75-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-20-D125-D100-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-20-D150-D25-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D150-D50-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D150-D75-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-20-D150-D100-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-20-D150-D125-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-20-D200-D25-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D200-D50-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D200-D75-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-20-D200-D100-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-20-D200-D125-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-20-D200-D150-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-20-D250-D25-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D250-D50-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D250-D75-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-20-D250-D100-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-20-D250-D125-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-20-D250-D150-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-20-D250-D200-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-20-D300-D25-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D300-D50-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D300-D75-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-20-D300-D100-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-20-D300-D125-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-20-D300-D150-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-20-D300-D200-FP1	Mounting: Rod-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-25-D50-D25-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D75-D25-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D75-D50-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D100-D25-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D100-D50-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D100-D75-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-25-D125-D25-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D125-D50-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D125-D75-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-25-D125-D100-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-25-D150-D25-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D150-D50-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D150-D75-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-25-D150-D100-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-25-D150-D125-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-25-D200-D25-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D200-D50-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D200-D75-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-25-D200-D100-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-25-D200-D125-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-25-D200-D150-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-25-D250-D25-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D250-D50-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D250-D75-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-25-D250-D100-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-25-D250-D125-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-25-D250-D150-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-25-D250-D200-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-25-D300-D25-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D300-D50-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D300-D75-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-25-D300-D100-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-25-D300-D125-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-25-D300-D150-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-25-D300-D200-FP1	Mounting: Rod-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-32-D50-D25-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D75-D25-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D75-D50-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D100-D25-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D100-D50-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D100-D75-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-32-D125-D25-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D125-D50-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D125-D75-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-32-D125-D100-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-32-D150-D25-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D150-D50-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D150-D75-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-32-D150-D100-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-32-D150-D125-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-32-D200-D25-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D200-D50-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D200-D75-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-32-D200-D100-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-32-D200-D125-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-32-D200-D150-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-32-D250-D25-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D250-D50-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D250-D75-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-32-D250-D100-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-32-D250-D125-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-32-D250-D150-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-32-D250-D200-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-32-D300-D25-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D300-D50-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D300-D75-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-32-D300-D100-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-32-D300-D125-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-32-D300-D150-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-32-D300-D200-FP1	Mounting: Rod-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-40-D50-D25-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-40-D75-D25-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-40-D75-D50-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-40-D100-D25-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-40-D100-D50-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-40-D100-D75-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-40-D125-D25-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-40-D125-D50-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-40-D125-D75-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-40-D125-D100-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-40-D150-D25-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-40-D150-D50-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-40-D150-D75-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-40-D150-D100-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-40-D150-D125-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-40-D200-D25-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-40-D200-D50-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-40-D200-D75-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-40-D200-D100-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-40-D200-D125-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-40-D200-D150-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-40-D250-D25-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-40-D250-D50-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-40-D250-D75-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-40-D250-D100-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-40-D250-D125-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-40-D250-D150-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-40-D250-D200-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-40-D300-D25-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-40-D300-D50-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-40-D300-D75-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-40-D300-D100-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-40-D300-D125-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-40-D300-D150-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-40-D300-D200-FP1	Mounting: Rod-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-50-D50-D25-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-50-D75-D25-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-50-D75-D50-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-50-D100-D25-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-50-D100-D50-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-50-D100-D75-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-50-D125-D25-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-50-D125-D50-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-50-D125-D75-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-50-D125-D100-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-50-D150-D25-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-50-D150-D50-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-50-D150-D75-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-50-D150-D100-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-50-D150-D125-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-50-D200-D25-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-50-D200-D50-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-50-D200-D75-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-50-D200-D100-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-50-D200-D125-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-50-D200-D150-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-50-D250-D25-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-50-D250-D50-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-50-D250-D75-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-50-D250-D100-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-50-D250-D125-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-50-D250-D150-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-50-D250-D200-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-50-D300-D25-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-50-D300-D50-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-50-D300-D75-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-50-D300-D100-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-50-D300-D125-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-50-D300-D150-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-50-D300-D200-FP1	Mounting: Rod-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-63-D50-D25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-63-D75-D25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-63-D75-D50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-63-D100-D25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-63-D100-D50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-63-D100-D75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-63-D125-D25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-63-D125-D50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-63-D125-D75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-63-D125-D100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-63-D150-D25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-63-D150-D50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-63-D150-D75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-63-D150-D100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-63-D150-D125-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-63-D200-D25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-63-D200-D50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-63-D200-D75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-63-D200-D100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-63-D200-D125-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-63-D200-D150-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-63-D250-D25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-63-D250-D50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-63-D250-D75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-63-D250-D100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-63-D250-D125-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-63-D250-D150-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-63-D250-D200-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-63-D300-D25-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-63-D300-D50-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-63-D300-D75-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-63-D300-D100-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-63-D300-D125-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-63-D300-D150-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-63-D300-D200-FP1	Mounting: Rod-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-20-D50-D25-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D75-D25-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D75-D50-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D100-D25-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D100-D50-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D100-D75-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-20-D125-D25-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D125-D50-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D125-D75-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-20-D125-D100-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-20-D150-D25-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D150-D50-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D150-D75-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-20-D150-D100-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-20-D150-D125-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-20-D200-D25-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D200-D50-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D200-D75-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-20-D200-D100-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-20-D200-D125-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-20-D200-D150-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-20-D250-D25-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D250-D50-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D250-D75-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-20-D250-D100-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-20-D250-D125-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-20-D250-D150-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-20-D250-D200-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-20-D300-D25-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D300-D50-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D300-D75-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-20-D300-D100-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-20-D300-D125-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-20-D300-D150-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-20-D300-D200-FP1	Mounting: Head-side trunnion \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-25-D50-D25-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D75-D25-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D75-D50-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D100-D25-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D100-D50-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D100-D75-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-25-D125-D25-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D125-D50-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D125-D75-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-25-D125-D100-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-25-D150-D25-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D150-D50-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D150-D75-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-25-D150-D100-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-25-D150-D125-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-25-D200-D25-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D200-D50-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D200-D75-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-25-D200-D100-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-25-D200-D125-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-25-D200-D150-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-25-D250-D25-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D250-D50-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D250-D75-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-25-D250-D100-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-25-D250-D125-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-25-D250-D150-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-25-D250-D200-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-25-D300-D25-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D300-D50-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D300-D75-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-25-D300-D100-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-25-D300-D125-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-25-D300-D150-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-25-D300-D200-FP1	Mounting: Head-side trunnion \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-32-D50-D25-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D75-D25-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D75-D50-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D100-D25-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D100-D50-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D100-D75-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-32-D125-D25-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D125-D50-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D125-D75-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-32-D125-D100-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-32-D150-D25-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D150-D50-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D150-D75-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-32-D150-D100-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-32-D150-D125-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-32-D200-D25-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D200-D50-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D200-D75-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-32-D200-D100-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-32-D200-D125-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-32-D200-D150-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-32-D250-D25-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D250-D50-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D250-D75-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-32-D250-D100-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-32-D250-D125-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-32-D250-D150-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-32-D250-D200-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-32-D300-D25-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D300-D50-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D300-D75-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-32-D300-D100-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-32-D300-D125-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-32-D300-D150-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-32-D300-D200-FP1	Mounting: Head-side trunnion \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-40-D50-D25-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-40-D75-D25-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-40-D75-D50-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-40-D100-D25-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-40-D100-D50-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-40-D100-D75-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-40-D125-D25-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-40-D125-D50-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-40-D125-D75-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-40-D125-D100-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-40-D150-D25-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-40-D150-D50-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-40-D150-D75-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-40-D150-D100-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-40-D150-D125-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-40-D200-D25-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-40-D200-D50-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-40-D200-D75-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-40-D200-D100-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-40-D200-D125-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-40-D200-D150-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-40-D250-D25-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-40-D250-D50-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-40-D250-D75-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-40-D250-D100-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-40-D250-D125-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-40-D250-D150-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-40-D250-D200-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-40-D300-D25-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-40-D300-D50-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-40-D300-D75-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-40-D300-D100-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-40-D300-D125-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-40-D300-D150-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-40-D300-D200-FP1	Mounting: Head-side trunnion \| Bore: 40 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-50-D50-D25-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-50-D75-D25-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-50-D75-D50-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-50-D100-D25-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-50-D100-D50-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-50-D100-D75-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-50-D125-D25-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-50-D125-D50-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-50-D125-D75-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-50-D125-D100-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-50-D150-D25-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-50-D150-D50-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-50-D150-D75-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-50-D150-D100-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-50-D150-D125-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-50-D200-D25-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-50-D200-D50-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-50-D200-D75-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-50-D200-D100-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-50-D200-D125-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-50-D200-D150-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-50-D250-D25-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-50-D250-D50-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-50-D250-D75-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-50-D250-D100-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-50-D250-D125-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-50-D250-D150-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-50-D250-D200-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-50-D300-D25-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-50-D300-D50-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-50-D300-D75-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-50-D300-D100-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-50-D300-D125-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-50-D300-D150-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-50-D300-D200-FP1	Mounting: Head-side trunnion \| Bore: 50 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-63-D50-D25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-63-D75-D25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-63-D75-D50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-63-D100-D25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-63-D100-D50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-63-D100-D75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-63-D125-D25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-63-D125-D50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-63-D125-D75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-63-D125-D100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-63-D150-D25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-63-D150-D50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-63-D150-D75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-63-D150-D100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-63-D150-D125-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-63-D200-D25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-63-D200-D50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-63-D200-D75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-63-D200-D100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-63-D200-D125-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-63-D200-D150-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-63-D250-D25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-63-D250-D50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-63-D250-D75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-63-D250-D100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-63-D250-D125-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-63-D250-D150-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-63-D250-D200-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-63-D300-D25-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-63-D300-D50-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-63-D300-D75-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-63-D300-D100-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-63-D300-D125-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-63-D300-D150-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-63-D300-D200-FP1	Mounting: Head-side trunnion \| Bore: 63 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCM-W-FP1 Super Micro Cylinder (Two-Stage)
