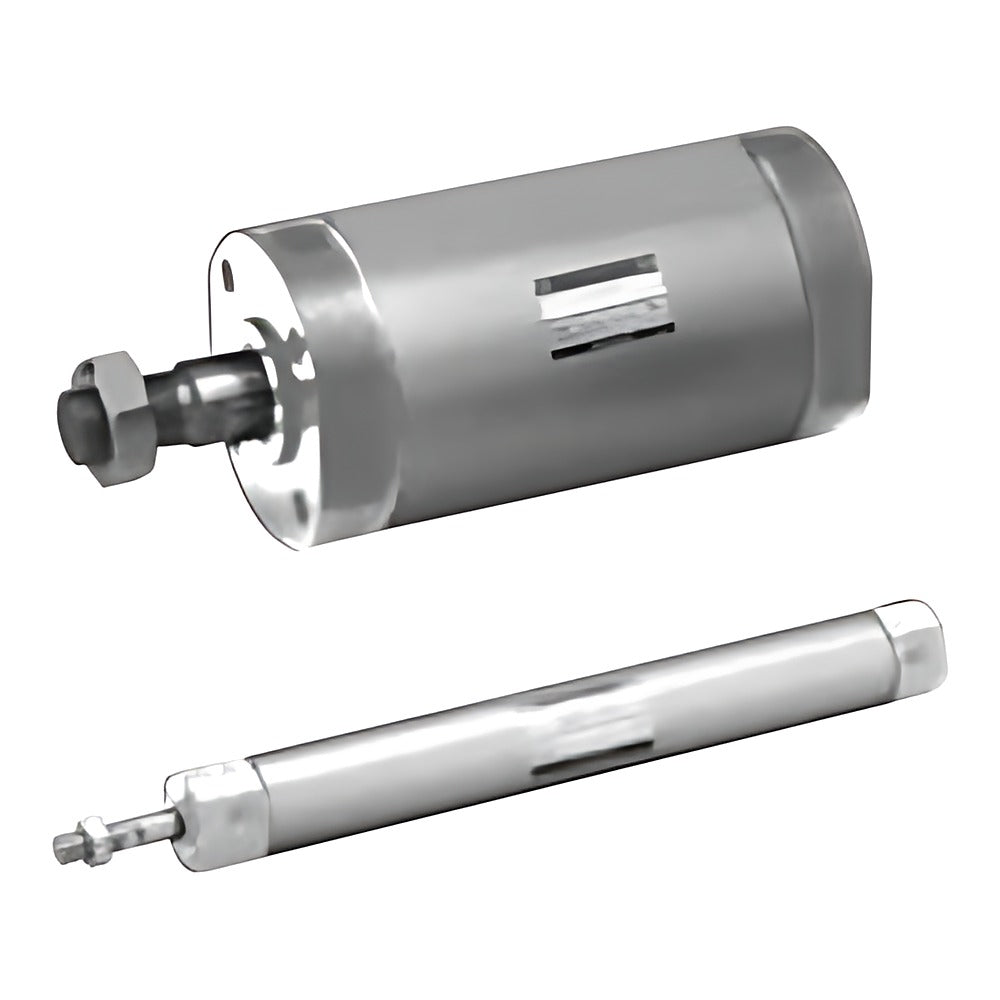

CKD SCM-W Super Micro Cylinder, Two-Stage (Bore 20-32)

CKD SCM-W super micro double-acting two-stage cylinder giving three positions, bore 20 to 32 mm.

Key features

Two-stage cylinder: total stroke S1 and 1st-stage stroke S2 give 3 stop positions
S2 up to 200 mm; when S1 equals S2 max. operating pressure is 0.5 MPa
Mountings 00, LB, FA, FB, CA, TA, TB; rubber cushion (D)
Standard strokes 25 to 300 mm; 1 mm intermediate up to 600 mm to order
Auto switch ready (built-in magnet); T0/T5/T8 reed and T1/T2/T3/T2W/T2Y/T2YD/T2J solid-state switches, rail or band (Z) mounting, ordered as suffix
Options J/L (bellows), Q, M, P6; accessories I/Y/B2 as suffix

Specifications

Action	Double acting, two-stage
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.2 MPa (ø20-40), 0.1 MPa (ø50-63)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60°C (no freezing)
Piston speed	50 to 1000 mm/s
Cushion	Rubber cushion (D)
Port size	Rc1/8
Source	CKD Korea catalog CB-029SK-9, p. 410-415

SCM-W-00-20-D25-D25		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D50-D25		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D50-D50		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D75-D25		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D75-D50		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D75-D75		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-20-D100-D25		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D100-D50		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D100-D75		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-20-D100-D100		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-20-D125-D25		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D125-D50		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D125-D75		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-20-D125-D100		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-20-D125-D125		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-20-D150-D25		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D150-D50		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D150-D75		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-20-D150-D100		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-20-D150-D125		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-20-D150-D150		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-20-D200-D25		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D200-D50		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D200-D75		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-20-D200-D100		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-20-D200-D125		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-20-D200-D150		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-20-D200-D200		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-20-D250-D25		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D250-D50		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D250-D75		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-20-D250-D100		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-20-D250-D125		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-20-D250-D150		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-20-D250-D200		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-20-D300-D25		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-20-D300-D50		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-20-D300-D75		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-20-D300-D100		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-20-D300-D125		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-20-D300-D150		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-20-D300-D200		Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-20-D25-D25		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D50-D25		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D50-D50		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D75-D25		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D75-D50		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D75-D75		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-20-D100-D25		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D100-D50		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D100-D75		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-20-D100-D100		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-20-D125-D25		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D125-D50		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D125-D75		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-20-D125-D100		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-20-D125-D125		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-20-D150-D25		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D150-D50		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D150-D75		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-20-D150-D100		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-20-D150-D125		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-20-D150-D150		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-20-D200-D25		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D200-D50		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D200-D75		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-20-D200-D100		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-20-D200-D125		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-20-D200-D150		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-20-D200-D200		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-20-D250-D25		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D250-D50		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D250-D75		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-20-D250-D100		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-20-D250-D125		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-20-D250-D150		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-20-D250-D200		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-20-D300-D25		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-20-D300-D50		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-20-D300-D75		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-20-D300-D100		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-20-D300-D125		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-20-D300-D150		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-20-D300-D200		Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-20-D25-D25		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D50-D25		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D50-D50		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D75-D25		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D75-D50		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D75-D75		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-20-D100-D25		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D100-D50		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D100-D75		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-20-D100-D100		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-20-D125-D25		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D125-D50		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D125-D75		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-20-D125-D100		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-20-D125-D125		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-20-D150-D25		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D150-D50		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D150-D75		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-20-D150-D100		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-20-D150-D125		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-20-D150-D150		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-20-D200-D25		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D200-D50		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D200-D75		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-20-D200-D100		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-20-D200-D125		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-20-D200-D150		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-20-D200-D200		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-20-D250-D25		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D250-D50		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D250-D75		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-20-D250-D100		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-20-D250-D125		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-20-D250-D150		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-20-D250-D200		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-20-D300-D25		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-20-D300-D50		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-20-D300-D75		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-20-D300-D100		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-20-D300-D125		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-20-D300-D150		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-20-D300-D200		Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-20-D25-D25		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D50-D25		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D50-D50		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D75-D25		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D75-D50		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D75-D75		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-20-D100-D25		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D100-D50		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D100-D75		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-20-D100-D100		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-20-D125-D25		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D125-D50		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D125-D75		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-20-D125-D100		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-20-D125-D125		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-20-D150-D25		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D150-D50		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D150-D75		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-20-D150-D100		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-20-D150-D125		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-20-D150-D150		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-20-D200-D25		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D200-D50		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D200-D75		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-20-D200-D100		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-20-D200-D125		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-20-D200-D150		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-20-D200-D200		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-20-D250-D25		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D250-D50		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D250-D75		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-20-D250-D100		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-20-D250-D125		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-20-D250-D150		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-20-D250-D200		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-20-D300-D25		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-20-D300-D50		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-20-D300-D75		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-20-D300-D100		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-20-D300-D125		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-20-D300-D150		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-20-D300-D200		Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-CA-20-D25-D25		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-20-D50-D25		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-20-D50-D50		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-20-D75-D25		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-20-D75-D50		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-20-D75-D75		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-20-D100-D25		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-20-D100-D50		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-20-D100-D75		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-20-D100-D100		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-20-D125-D25		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-20-D125-D50		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-20-D125-D75		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-20-D125-D100		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-20-D125-D125		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-20-D150-D25		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-20-D150-D50		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-20-D150-D75		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-20-D150-D100		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-20-D150-D125		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-20-D150-D150		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-CA-20-D200-D25		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-20-D200-D50		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-20-D200-D75		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-20-D200-D100		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-20-D200-D125		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-20-D200-D150		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-CA-20-D200-D200		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-CA-20-D250-D25		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-20-D250-D50		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-20-D250-D75		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-20-D250-D100		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-20-D250-D125		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-20-D250-D150		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-CA-20-D250-D200		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-CA-20-D300-D25		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-20-D300-D50		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-20-D300-D75		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-20-D300-D100		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-20-D300-D125		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-20-D300-D150		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-CA-20-D300-D200		Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-20-D25-D25		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D50-D25		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D50-D50		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D75-D25		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D75-D50		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D75-D75		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-20-D100-D25		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D100-D50		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D100-D75		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-20-D100-D100		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-20-D125-D25		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D125-D50		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D125-D75		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-20-D125-D100		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-20-D125-D125		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-20-D150-D25		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D150-D50		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D150-D75		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-20-D150-D100		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-20-D150-D125		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-20-D150-D150		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-20-D200-D25		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D200-D50		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D200-D75		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-20-D200-D100		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-20-D200-D125		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-20-D200-D150		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-20-D200-D200		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-20-D250-D25		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D250-D50		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D250-D75		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-20-D250-D100		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-20-D250-D125		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-20-D250-D150		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-20-D250-D200		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-20-D300-D25		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-20-D300-D50		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-20-D300-D75		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-20-D300-D100		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-20-D300-D125		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-20-D300-D150		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-20-D300-D200		Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-20-D25-D25		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D50-D25		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D50-D50		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D75-D25		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D75-D50		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D75-D75		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-20-D100-D25		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D100-D50		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D100-D75		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-20-D100-D100		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-20-D125-D25		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D125-D50		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D125-D75		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-20-D125-D100		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-20-D125-D125		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-20-D150-D25		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D150-D50		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D150-D75		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-20-D150-D100		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-20-D150-D125		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-20-D150-D150		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-20-D200-D25		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D200-D50		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D200-D75		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-20-D200-D100		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-20-D200-D125		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-20-D200-D150		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-20-D200-D200		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-20-D250-D25		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D250-D50		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D250-D75		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-20-D250-D100		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-20-D250-D125		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-20-D250-D150		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-20-D250-D200		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-20-D300-D25		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-20-D300-D50		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-20-D300-D75		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-20-D300-D100		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-20-D300-D125		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-20-D300-D150		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-20-D300-D200		Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-25-D25-D25		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D50-D25		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D50-D50		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D75-D25		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D75-D50		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D75-D75		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-25-D100-D25		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D100-D50		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D100-D75		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-25-D100-D100		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-25-D125-D25		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D125-D50		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D125-D75		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-25-D125-D100		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-25-D125-D125		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-25-D150-D25		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D150-D50		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D150-D75		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-25-D150-D100		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-25-D150-D125		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-25-D150-D150		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-25-D200-D25		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D200-D50		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D200-D75		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-25-D200-D100		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-25-D200-D125		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-25-D200-D150		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-25-D200-D200		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-25-D250-D25		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D250-D50		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D250-D75		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-25-D250-D100		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-25-D250-D125		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-25-D250-D150		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-25-D250-D200		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-25-D300-D25		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-25-D300-D50		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-25-D300-D75		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-25-D300-D100		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-25-D300-D125		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-25-D300-D150		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-25-D300-D200		Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-25-D25-D25		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D50-D25		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D50-D50		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D75-D25		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D75-D50		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D75-D75		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-25-D100-D25		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D100-D50		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D100-D75		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-25-D100-D100		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-25-D125-D25		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D125-D50		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D125-D75		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-25-D125-D100		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-25-D125-D125		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-25-D150-D25		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D150-D50		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D150-D75		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-25-D150-D100		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-25-D150-D125		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-25-D150-D150		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-25-D200-D25		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D200-D50		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D200-D75		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-25-D200-D100		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-25-D200-D125		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-25-D200-D150		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-25-D200-D200		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-25-D250-D25		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D250-D50		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D250-D75		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-25-D250-D100		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-25-D250-D125		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-25-D250-D150		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-25-D250-D200		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-25-D300-D25		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-25-D300-D50		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-25-D300-D75		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-25-D300-D100		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-25-D300-D125		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-25-D300-D150		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-25-D300-D200		Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-25-D25-D25		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D50-D25		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D50-D50		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D75-D25		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D75-D50		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D75-D75		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-25-D100-D25		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D100-D50		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D100-D75		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-25-D100-D100		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-25-D125-D25		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D125-D50		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D125-D75		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-25-D125-D100		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-25-D125-D125		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-25-D150-D25		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D150-D50		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D150-D75		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-25-D150-D100		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-25-D150-D125		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-25-D150-D150		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-25-D200-D25		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D200-D50		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D200-D75		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-25-D200-D100		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-25-D200-D125		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-25-D200-D150		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-25-D200-D200		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-25-D250-D25		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D250-D50		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D250-D75		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-25-D250-D100		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-25-D250-D125		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-25-D250-D150		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-25-D250-D200		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-25-D300-D25		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-25-D300-D50		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-25-D300-D75		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-25-D300-D100		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-25-D300-D125		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-25-D300-D150		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-25-D300-D200		Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-25-D25-D25		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D50-D25		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D50-D50		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D75-D25		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D75-D50		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D75-D75		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-25-D100-D25		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D100-D50		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D100-D75		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-25-D100-D100		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-25-D125-D25		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D125-D50		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D125-D75		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-25-D125-D100		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-25-D125-D125		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-25-D150-D25		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D150-D50		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D150-D75		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-25-D150-D100		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-25-D150-D125		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-25-D150-D150		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-25-D200-D25		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D200-D50		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D200-D75		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-25-D200-D100		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-25-D200-D125		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-25-D200-D150		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-25-D200-D200		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-25-D250-D25		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D250-D50		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D250-D75		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-25-D250-D100		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-25-D250-D125		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-25-D250-D150		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-25-D250-D200		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-25-D300-D25		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-25-D300-D50		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-25-D300-D75		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-25-D300-D100		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-25-D300-D125		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-25-D300-D150		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-25-D300-D200		Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-CA-25-D25-D25		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-25-D50-D25		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-25-D50-D50		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-25-D75-D25		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-25-D75-D50		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-25-D75-D75		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-25-D100-D25		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-25-D100-D50		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-25-D100-D75		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-25-D100-D100		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-25-D125-D25		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-25-D125-D50		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-25-D125-D75		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-25-D125-D100		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-25-D125-D125		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-25-D150-D25		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-25-D150-D50		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-25-D150-D75		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-25-D150-D100		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-25-D150-D125		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-25-D150-D150		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-CA-25-D200-D25		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-25-D200-D50		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-25-D200-D75		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-25-D200-D100		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-25-D200-D125		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-25-D200-D150		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-CA-25-D200-D200		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-CA-25-D250-D25		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-25-D250-D50		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-25-D250-D75		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-25-D250-D100		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-25-D250-D125		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-25-D250-D150		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-CA-25-D250-D200		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-CA-25-D300-D25		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-25-D300-D50		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-25-D300-D75		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-25-D300-D100		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-25-D300-D125		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-25-D300-D150		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-CA-25-D300-D200		Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-25-D25-D25		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D50-D25		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D50-D50		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D75-D25		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D75-D50		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D75-D75		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-25-D100-D25		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D100-D50		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D100-D75		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-25-D100-D100		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-25-D125-D25		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D125-D50		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D125-D75		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-25-D125-D100		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-25-D125-D125		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-25-D150-D25		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D150-D50		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D150-D75		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-25-D150-D100		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-25-D150-D125		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-25-D150-D150		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-25-D200-D25		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D200-D50		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D200-D75		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-25-D200-D100		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-25-D200-D125		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-25-D200-D150		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-25-D200-D200		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-25-D250-D25		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D250-D50		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D250-D75		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-25-D250-D100		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-25-D250-D125		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-25-D250-D150		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-25-D250-D200		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-25-D300-D25		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-25-D300-D50		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-25-D300-D75		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-25-D300-D100		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-25-D300-D125		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-25-D300-D150		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-25-D300-D200		Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-25-D25-D25		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D50-D25		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D50-D50		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D75-D25		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D75-D50		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D75-D75		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-25-D100-D25		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D100-D50		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D100-D75		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-25-D100-D100		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-25-D125-D25		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D125-D50		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D125-D75		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-25-D125-D100		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-25-D125-D125		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-25-D150-D25		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D150-D50		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D150-D75		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-25-D150-D100		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-25-D150-D125		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-25-D150-D150		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-25-D200-D25		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D200-D50		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D200-D75		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-25-D200-D100		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-25-D200-D125		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-25-D200-D150		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-25-D200-D200		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-25-D250-D25		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D250-D50		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D250-D75		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-25-D250-D100		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-25-D250-D125		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-25-D250-D150		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-25-D250-D200		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-25-D300-D25		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-25-D300-D50		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-25-D300-D75		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-25-D300-D100		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-25-D300-D125		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-25-D300-D150		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-25-D300-D200		Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-32-D25-D25		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D50-D25		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D50-D50		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D75-D25		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D75-D50		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D75-D75		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-32-D100-D25		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D100-D50		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D100-D75		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-32-D100-D100		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-32-D125-D25		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D125-D50		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D125-D75		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-32-D125-D100		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-32-D125-D125		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-32-D150-D25		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D150-D50		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D150-D75		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-32-D150-D100		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-32-D150-D125		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-32-D150-D150		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-32-D200-D25		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D200-D50		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D200-D75		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-32-D200-D100		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-32-D200-D125		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-32-D200-D150		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-32-D200-D200		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-32-D250-D25		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D250-D50		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D250-D75		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-32-D250-D100		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-32-D250-D125		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-32-D250-D150		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-32-D250-D200		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-00-32-D300-D25		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-00-32-D300-D50		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-00-32-D300-D75		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-00-32-D300-D100		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-00-32-D300-D125		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-00-32-D300-D150		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-00-32-D300-D200		Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-32-D25-D25		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D50-D25		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D50-D50		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D75-D25		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D75-D50		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D75-D75		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-32-D100-D25		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D100-D50		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D100-D75		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-32-D100-D100		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-32-D125-D25		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D125-D50		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D125-D75		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-32-D125-D100		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-32-D125-D125		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-32-D150-D25		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D150-D50		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D150-D75		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-32-D150-D100		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-32-D150-D125		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-32-D150-D150		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-32-D200-D25		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D200-D50		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D200-D75		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-32-D200-D100		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-32-D200-D125		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-32-D200-D150		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-32-D200-D200		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-32-D250-D25		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D250-D50		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D250-D75		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-32-D250-D100		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-32-D250-D125		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-32-D250-D150		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-32-D250-D200		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-LB-32-D300-D25		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-LB-32-D300-D50		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-LB-32-D300-D75		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-LB-32-D300-D100		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-LB-32-D300-D125		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-LB-32-D300-D150		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-LB-32-D300-D200		Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-32-D25-D25		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D50-D25		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D50-D50		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D75-D25		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D75-D50		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D75-D75		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-32-D100-D25		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D100-D50		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D100-D75		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-32-D100-D100		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-32-D125-D25		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D125-D50		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D125-D75		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-32-D125-D100		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-32-D125-D125		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-32-D150-D25		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D150-D50		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D150-D75		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-32-D150-D100		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-32-D150-D125		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-32-D150-D150		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-32-D200-D25		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D200-D50		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D200-D75		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-32-D200-D100		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-32-D200-D125		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-32-D200-D150		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-32-D200-D200		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-32-D250-D25		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D250-D50		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D250-D75		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-32-D250-D100		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-32-D250-D125		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-32-D250-D150		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-32-D250-D200		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FA-32-D300-D25		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FA-32-D300-D50		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FA-32-D300-D75		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FA-32-D300-D100		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FA-32-D300-D125		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FA-32-D300-D150		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FA-32-D300-D200		Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-32-D25-D25		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D50-D25		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D50-D50		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D75-D25		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D75-D50		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D75-D75		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-32-D100-D25		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D100-D50		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D100-D75		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-32-D100-D100		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-32-D125-D25		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D125-D50		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D125-D75		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-32-D125-D100		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-32-D125-D125		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-32-D150-D25		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D150-D50		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D150-D75		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-32-D150-D100		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-32-D150-D125		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-32-D150-D150		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-32-D200-D25		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D200-D50		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D200-D75		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-32-D200-D100		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-32-D200-D125		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-32-D200-D150		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-32-D200-D200		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-32-D250-D25		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D250-D50		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D250-D75		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-32-D250-D100		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-32-D250-D125		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-32-D250-D150		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-32-D250-D200		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-FB-32-D300-D25		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-FB-32-D300-D50		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-FB-32-D300-D75		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-FB-32-D300-D100		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-FB-32-D300-D125		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-FB-32-D300-D150		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-FB-32-D300-D200		Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-CA-32-D25-D25		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-32-D50-D25		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-32-D50-D50		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-32-D75-D25		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-32-D75-D50		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-32-D75-D75		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-32-D100-D25		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-32-D100-D50		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-32-D100-D75		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-32-D100-D100		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-32-D125-D25		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-32-D125-D50		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-32-D125-D75		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-32-D125-D100		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-32-D125-D125		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-32-D150-D25		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-32-D150-D50		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-32-D150-D75		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-32-D150-D100		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-32-D150-D125		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-32-D150-D150		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-CA-32-D200-D25		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-32-D200-D50		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-32-D200-D75		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-32-D200-D100		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-32-D200-D125		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-32-D200-D150		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-CA-32-D200-D200		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-CA-32-D250-D25		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-32-D250-D50		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-32-D250-D75		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-32-D250-D100		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-32-D250-D125		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-32-D250-D150		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-CA-32-D250-D200		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-CA-32-D300-D25		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-CA-32-D300-D50		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-CA-32-D300-D75		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-CA-32-D300-D100		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-CA-32-D300-D125		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-CA-32-D300-D150		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-CA-32-D300-D200		Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-32-D25-D25		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D50-D25		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D50-D50		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D75-D25		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D75-D50		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D75-D75		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-32-D100-D25		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D100-D50		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D100-D75		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-32-D100-D100		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-32-D125-D25		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D125-D50		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D125-D75		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-32-D125-D100		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-32-D125-D125		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-32-D150-D25		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D150-D50		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D150-D75		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-32-D150-D100		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-32-D150-D125		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-32-D150-D150		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-32-D200-D25		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D200-D50		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D200-D75		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-32-D200-D100		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-32-D200-D125		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-32-D200-D150		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-32-D200-D200		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-32-D250-D25		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D250-D50		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D250-D75		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-32-D250-D100		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-32-D250-D125		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-32-D250-D150		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-32-D250-D200		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TA-32-D300-D25		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TA-32-D300-D50		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TA-32-D300-D75		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TA-32-D300-D100		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TA-32-D300-D125		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TA-32-D300-D150		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TA-32-D300-D200		Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-32-D25-D25		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D50-D25		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D50-D50		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D75-D25		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D75-D50		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D75-D75		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-32-D100-D25		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D100-D50		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D100-D75		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-32-D100-D100		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-32-D125-D25		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D125-D50		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D125-D75		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-32-D125-D100		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-32-D125-D125		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-32-D150-D25		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D150-D50		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D150-D75		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-32-D150-D100		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-32-D150-D125		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-32-D150-D150		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-32-D200-D25		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D200-D50		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D200-D75		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-32-D200-D100		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-32-D200-D125		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-32-D200-D150		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-32-D200-D200		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-32-D250-D25		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D250-D50		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D250-D75		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-32-D250-D100		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-32-D250-D125		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-32-D250-D150		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-32-D250-D200		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
SCM-W-TB-32-D300-D25		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
SCM-W-TB-32-D300-D50		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
SCM-W-TB-32-D300-D75		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
SCM-W-TB-32-D300-D100		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
SCM-W-TB-32-D300-D125		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
SCM-W-TB-32-D300-D150		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
SCM-W-TB-32-D300-D200		Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm

Pneumatic CylindersCKD

882 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-W Super Micro Cylinder, Two-Stage (Bore 20-32)

Brand CKD·Pneumatic Cylinders

Available part numbers (882)

SCM-W-00-20-D25-D25, SCM-W-00-20-D50-D25, SCM-W-00-20-D50-D50, SCM-W-00-20-D75-D25, SCM-W-00-20-D75-D50, SCM-W-00-20-D75-D75, SCM-W-00-20-D100-D25, SCM-W-00-20-D100-D50, SCM-W-00-20-D100-D75, SCM-W-00-20-D100-D100 + 872 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCM-W-00-20-D25-D25	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D50-D25	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D50-D50	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D75-D25	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D75-D50	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D75-D75	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-20-D100-D25	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D100-D50	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D100-D75	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-20-D100-D100	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-20-D125-D25	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D125-D50	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D125-D75	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-20-D125-D100	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-20-D125-D125	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-20-D150-D25	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D150-D50	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D150-D75	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-20-D150-D100	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-20-D150-D125	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-20-D150-D150	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-20-D200-D25	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D200-D50	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D200-D75	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-20-D200-D100	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-20-D200-D125	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-20-D200-D150	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-20-D200-D200	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-20-D250-D25	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D250-D50	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D250-D75	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-20-D250-D100	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-20-D250-D125	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-20-D250-D150	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-20-D250-D200	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-20-D300-D25	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-20-D300-D50	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-20-D300-D75	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-20-D300-D100	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-20-D300-D125	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-20-D300-D150	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-20-D300-D200	Mounting: Basic (00) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-20-D25-D25	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D50-D25	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D50-D50	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D75-D25	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D75-D50	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D75-D75	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-20-D100-D25	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D100-D50	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D100-D75	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-20-D100-D100	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-20-D125-D25	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D125-D50	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D125-D75	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-20-D125-D100	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-20-D125-D125	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-20-D150-D25	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D150-D50	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D150-D75	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-20-D150-D100	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-20-D150-D125	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-20-D150-D150	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-20-D200-D25	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D200-D50	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D200-D75	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-20-D200-D100	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-20-D200-D125	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-20-D200-D150	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-20-D200-D200	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-20-D250-D25	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D250-D50	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D250-D75	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-20-D250-D100	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-20-D250-D125	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-20-D250-D150	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-20-D250-D200	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-20-D300-D25	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-20-D300-D50	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-20-D300-D75	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-20-D300-D100	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-20-D300-D125	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-20-D300-D150	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-20-D300-D200	Mounting: Axial foot (LB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-20-D25-D25	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D50-D25	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D50-D50	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D75-D25	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D75-D50	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D75-D75	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-20-D100-D25	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D100-D50	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D100-D75	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-20-D100-D100	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-20-D125-D25	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D125-D50	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D125-D75	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-20-D125-D100	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-20-D125-D125	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-20-D150-D25	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D150-D50	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D150-D75	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-20-D150-D100	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-20-D150-D125	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-20-D150-D150	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-20-D200-D25	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D200-D50	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D200-D75	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-20-D200-D100	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-20-D200-D125	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-20-D200-D150	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-20-D200-D200	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-20-D250-D25	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D250-D50	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D250-D75	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-20-D250-D100	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-20-D250-D125	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-20-D250-D150	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-20-D250-D200	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-20-D300-D25	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-20-D300-D50	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-20-D300-D75	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-20-D300-D100	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-20-D300-D125	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-20-D300-D150	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-20-D300-D200	Mounting: Rod-side flange (FA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-20-D25-D25	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D50-D25	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D50-D50	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D75-D25	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D75-D50	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D75-D75	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-20-D100-D25	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D100-D50	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D100-D75	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-20-D100-D100	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-20-D125-D25	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D125-D50	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D125-D75	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-20-D125-D100	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-20-D125-D125	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-20-D150-D25	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D150-D50	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D150-D75	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-20-D150-D100	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-20-D150-D125	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-20-D150-D150	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-20-D200-D25	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D200-D50	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D200-D75	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-20-D200-D100	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-20-D200-D125	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-20-D200-D150	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-20-D200-D200	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-20-D250-D25	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D250-D50	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D250-D75	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-20-D250-D100	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-20-D250-D125	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-20-D250-D150	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-20-D250-D200	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-20-D300-D25	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-20-D300-D50	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-20-D300-D75	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-20-D300-D100	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-20-D300-D125	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-20-D300-D150	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-20-D300-D200	Mounting: Head-side flange (FB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-CA-20-D25-D25	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-20-D50-D25	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-20-D50-D50	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-20-D75-D25	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-20-D75-D50	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-20-D75-D75	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-20-D100-D25	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-20-D100-D50	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-20-D100-D75	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-20-D100-D100	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-20-D125-D25	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-20-D125-D50	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-20-D125-D75	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-20-D125-D100	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-20-D125-D125	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-20-D150-D25	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-20-D150-D50	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-20-D150-D75	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-20-D150-D100	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-20-D150-D125	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-20-D150-D150	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-CA-20-D200-D25	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-20-D200-D50	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-20-D200-D75	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-20-D200-D100	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-20-D200-D125	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-20-D200-D150	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-CA-20-D200-D200	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-CA-20-D250-D25	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-20-D250-D50	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-20-D250-D75	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-20-D250-D100	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-20-D250-D125	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-20-D250-D150	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-CA-20-D250-D200	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-CA-20-D300-D25	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-20-D300-D50	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-20-D300-D75	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-20-D300-D100	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-20-D300-D125	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-20-D300-D150	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-CA-20-D300-D200	Mounting: Single clevis (CA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-20-D25-D25	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D50-D25	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D50-D50	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D75-D25	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D75-D50	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D75-D75	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-20-D100-D25	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D100-D50	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D100-D75	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-20-D100-D100	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-20-D125-D25	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D125-D50	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D125-D75	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-20-D125-D100	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-20-D125-D125	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-20-D150-D25	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D150-D50	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D150-D75	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-20-D150-D100	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-20-D150-D125	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-20-D150-D150	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-20-D200-D25	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D200-D50	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D200-D75	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-20-D200-D100	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-20-D200-D125	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-20-D200-D150	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-20-D200-D200	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-20-D250-D25	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D250-D50	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D250-D75	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-20-D250-D100	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-20-D250-D125	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-20-D250-D150	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-20-D250-D200	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-20-D300-D25	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-20-D300-D50	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-20-D300-D75	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-20-D300-D100	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-20-D300-D125	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-20-D300-D150	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-20-D300-D200	Mounting: Rod-side trunnion (TA) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-20-D25-D25	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D50-D25	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D50-D50	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D75-D25	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D75-D50	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D75-D75	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-20-D100-D25	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D100-D50	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D100-D75	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-20-D100-D100	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-20-D125-D25	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D125-D50	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D125-D75	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-20-D125-D100	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-20-D125-D125	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-20-D150-D25	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D150-D50	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D150-D75	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-20-D150-D100	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-20-D150-D125	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-20-D150-D150	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-20-D200-D25	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D200-D50	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D200-D75	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-20-D200-D100	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-20-D200-D125	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-20-D200-D150	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-20-D200-D200	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-20-D250-D25	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D250-D50	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D250-D75	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-20-D250-D100	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-20-D250-D125	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-20-D250-D150	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-20-D250-D200	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-20-D300-D25	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-20-D300-D50	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-20-D300-D75	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-20-D300-D100	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-20-D300-D125	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-20-D300-D150	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-20-D300-D200	Mounting: Head-side trunnion (TB) \| Bore: 20 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-25-D25-D25	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D50-D25	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D50-D50	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D75-D25	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D75-D50	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D75-D75	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-25-D100-D25	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D100-D50	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D100-D75	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-25-D100-D100	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-25-D125-D25	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D125-D50	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D125-D75	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-25-D125-D100	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-25-D125-D125	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-25-D150-D25	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D150-D50	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D150-D75	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-25-D150-D100	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-25-D150-D125	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-25-D150-D150	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-25-D200-D25	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D200-D50	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D200-D75	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-25-D200-D100	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-25-D200-D125	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-25-D200-D150	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-25-D200-D200	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-25-D250-D25	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D250-D50	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D250-D75	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-25-D250-D100	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-25-D250-D125	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-25-D250-D150	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-25-D250-D200	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-25-D300-D25	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-25-D300-D50	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-25-D300-D75	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-25-D300-D100	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-25-D300-D125	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-25-D300-D150	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-25-D300-D200	Mounting: Basic (00) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-25-D25-D25	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D50-D25	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D50-D50	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D75-D25	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D75-D50	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D75-D75	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-25-D100-D25	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D100-D50	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D100-D75	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-25-D100-D100	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-25-D125-D25	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D125-D50	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D125-D75	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-25-D125-D100	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-25-D125-D125	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-25-D150-D25	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D150-D50	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D150-D75	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-25-D150-D100	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-25-D150-D125	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-25-D150-D150	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-25-D200-D25	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D200-D50	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D200-D75	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-25-D200-D100	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-25-D200-D125	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-25-D200-D150	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-25-D200-D200	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-25-D250-D25	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D250-D50	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D250-D75	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-25-D250-D100	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-25-D250-D125	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-25-D250-D150	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-25-D250-D200	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-25-D300-D25	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-25-D300-D50	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-25-D300-D75	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-25-D300-D100	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-25-D300-D125	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-25-D300-D150	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-25-D300-D200	Mounting: Axial foot (LB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-25-D25-D25	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D50-D25	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D50-D50	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D75-D25	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D75-D50	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D75-D75	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-25-D100-D25	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D100-D50	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D100-D75	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-25-D100-D100	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-25-D125-D25	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D125-D50	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D125-D75	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-25-D125-D100	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-25-D125-D125	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-25-D150-D25	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D150-D50	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D150-D75	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-25-D150-D100	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-25-D150-D125	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-25-D150-D150	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-25-D200-D25	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D200-D50	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D200-D75	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-25-D200-D100	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-25-D200-D125	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-25-D200-D150	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-25-D200-D200	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-25-D250-D25	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D250-D50	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D250-D75	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-25-D250-D100	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-25-D250-D125	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-25-D250-D150	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-25-D250-D200	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-25-D300-D25	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-25-D300-D50	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-25-D300-D75	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-25-D300-D100	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-25-D300-D125	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-25-D300-D150	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-25-D300-D200	Mounting: Rod-side flange (FA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-25-D25-D25	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D50-D25	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D50-D50	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D75-D25	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D75-D50	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D75-D75	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-25-D100-D25	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D100-D50	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D100-D75	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-25-D100-D100	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-25-D125-D25	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D125-D50	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D125-D75	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-25-D125-D100	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-25-D125-D125	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-25-D150-D25	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D150-D50	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D150-D75	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-25-D150-D100	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-25-D150-D125	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-25-D150-D150	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-25-D200-D25	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D200-D50	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D200-D75	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-25-D200-D100	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-25-D200-D125	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-25-D200-D150	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-25-D200-D200	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-25-D250-D25	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D250-D50	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D250-D75	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-25-D250-D100	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-25-D250-D125	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-25-D250-D150	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-25-D250-D200	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-25-D300-D25	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-25-D300-D50	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-25-D300-D75	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-25-D300-D100	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-25-D300-D125	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-25-D300-D150	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-25-D300-D200	Mounting: Head-side flange (FB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-CA-25-D25-D25	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-25-D50-D25	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-25-D50-D50	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-25-D75-D25	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-25-D75-D50	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-25-D75-D75	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-25-D100-D25	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-25-D100-D50	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-25-D100-D75	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-25-D100-D100	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-25-D125-D25	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-25-D125-D50	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-25-D125-D75	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-25-D125-D100	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-25-D125-D125	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-25-D150-D25	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-25-D150-D50	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-25-D150-D75	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-25-D150-D100	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-25-D150-D125	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-25-D150-D150	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-CA-25-D200-D25	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-25-D200-D50	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-25-D200-D75	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-25-D200-D100	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-25-D200-D125	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-25-D200-D150	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-CA-25-D200-D200	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-CA-25-D250-D25	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-25-D250-D50	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-25-D250-D75	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-25-D250-D100	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-25-D250-D125	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-25-D250-D150	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-CA-25-D250-D200	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-CA-25-D300-D25	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-25-D300-D50	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-25-D300-D75	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-25-D300-D100	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-25-D300-D125	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-25-D300-D150	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-CA-25-D300-D200	Mounting: Single clevis (CA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-25-D25-D25	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D50-D25	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D50-D50	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D75-D25	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D75-D50	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D75-D75	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-25-D100-D25	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D100-D50	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D100-D75	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-25-D100-D100	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-25-D125-D25	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D125-D50	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D125-D75	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-25-D125-D100	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-25-D125-D125	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-25-D150-D25	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D150-D50	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D150-D75	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-25-D150-D100	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-25-D150-D125	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-25-D150-D150	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-25-D200-D25	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D200-D50	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D200-D75	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-25-D200-D100	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-25-D200-D125	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-25-D200-D150	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-25-D200-D200	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-25-D250-D25	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D250-D50	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D250-D75	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-25-D250-D100	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-25-D250-D125	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-25-D250-D150	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-25-D250-D200	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-25-D300-D25	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-25-D300-D50	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-25-D300-D75	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-25-D300-D100	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-25-D300-D125	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-25-D300-D150	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-25-D300-D200	Mounting: Rod-side trunnion (TA) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-25-D25-D25	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D50-D25	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D50-D50	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D75-D25	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D75-D50	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D75-D75	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-25-D100-D25	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D100-D50	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D100-D75	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-25-D100-D100	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-25-D125-D25	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D125-D50	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D125-D75	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-25-D125-D100	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-25-D125-D125	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-25-D150-D25	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D150-D50	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D150-D75	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-25-D150-D100	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-25-D150-D125	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-25-D150-D150	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-25-D200-D25	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D200-D50	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D200-D75	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-25-D200-D100	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-25-D200-D125	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-25-D200-D150	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-25-D200-D200	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-25-D250-D25	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D250-D50	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D250-D75	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-25-D250-D100	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-25-D250-D125	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-25-D250-D150	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-25-D250-D200	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-25-D300-D25	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-25-D300-D50	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-25-D300-D75	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-25-D300-D100	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-25-D300-D125	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-25-D300-D150	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-25-D300-D200	Mounting: Head-side trunnion (TB) \| Bore: 25 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-32-D25-D25	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D50-D25	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D50-D50	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D75-D25	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D75-D50	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D75-D75	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-32-D100-D25	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D100-D50	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D100-D75	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-32-D100-D100	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-32-D125-D25	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D125-D50	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D125-D75	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-32-D125-D100	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-32-D125-D125	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-32-D150-D25	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D150-D50	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D150-D75	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-32-D150-D100	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-32-D150-D125	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-32-D150-D150	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-32-D200-D25	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D200-D50	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D200-D75	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-32-D200-D100	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-32-D200-D125	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-32-D200-D150	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-32-D200-D200	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-32-D250-D25	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D250-D50	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D250-D75	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-32-D250-D100	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-32-D250-D125	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-32-D250-D150	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-32-D250-D200	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-00-32-D300-D25	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-00-32-D300-D50	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-00-32-D300-D75	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-00-32-D300-D100	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-00-32-D300-D125	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-00-32-D300-D150	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-00-32-D300-D200	Mounting: Basic (00) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-32-D25-D25	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D50-D25	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D50-D50	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D75-D25	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D75-D50	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D75-D75	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-32-D100-D25	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D100-D50	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D100-D75	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-32-D100-D100	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-32-D125-D25	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D125-D50	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D125-D75	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-32-D125-D100	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-32-D125-D125	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-32-D150-D25	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D150-D50	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D150-D75	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-32-D150-D100	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-32-D150-D125	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-32-D150-D150	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-32-D200-D25	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D200-D50	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D200-D75	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-32-D200-D100	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-32-D200-D125	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-32-D200-D150	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-32-D200-D200	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-32-D250-D25	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D250-D50	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D250-D75	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-32-D250-D100	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-32-D250-D125	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-32-D250-D150	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-32-D250-D200	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-LB-32-D300-D25	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-LB-32-D300-D50	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-LB-32-D300-D75	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-LB-32-D300-D100	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-LB-32-D300-D125	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-LB-32-D300-D150	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-LB-32-D300-D200	Mounting: Axial foot (LB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-32-D25-D25	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D50-D25	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D50-D50	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D75-D25	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D75-D50	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D75-D75	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-32-D100-D25	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D100-D50	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D100-D75	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-32-D100-D100	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-32-D125-D25	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D125-D50	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D125-D75	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-32-D125-D100	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-32-D125-D125	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-32-D150-D25	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D150-D50	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D150-D75	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-32-D150-D100	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-32-D150-D125	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-32-D150-D150	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-32-D200-D25	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D200-D50	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D200-D75	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-32-D200-D100	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-32-D200-D125	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-32-D200-D150	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-32-D200-D200	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-32-D250-D25	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D250-D50	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D250-D75	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-32-D250-D100	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-32-D250-D125	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-32-D250-D150	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-32-D250-D200	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FA-32-D300-D25	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FA-32-D300-D50	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FA-32-D300-D75	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FA-32-D300-D100	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FA-32-D300-D125	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FA-32-D300-D150	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FA-32-D300-D200	Mounting: Rod-side flange (FA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-32-D25-D25	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D50-D25	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D50-D50	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D75-D25	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D75-D50	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D75-D75	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-32-D100-D25	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D100-D50	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D100-D75	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-32-D100-D100	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-32-D125-D25	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D125-D50	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D125-D75	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-32-D125-D100	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-32-D125-D125	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-32-D150-D25	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D150-D50	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D150-D75	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-32-D150-D100	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-32-D150-D125	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-32-D150-D150	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-32-D200-D25	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D200-D50	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D200-D75	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-32-D200-D100	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-32-D200-D125	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-32-D200-D150	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-32-D200-D200	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-32-D250-D25	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D250-D50	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D250-D75	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-32-D250-D100	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-32-D250-D125	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-32-D250-D150	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-32-D250-D200	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-FB-32-D300-D25	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-FB-32-D300-D50	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-FB-32-D300-D75	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-FB-32-D300-D100	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-FB-32-D300-D125	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-FB-32-D300-D150	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-FB-32-D300-D200	Mounting: Head-side flange (FB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-CA-32-D25-D25	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-32-D50-D25	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-32-D50-D50	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-32-D75-D25	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-32-D75-D50	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-32-D75-D75	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-32-D100-D25	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-32-D100-D50	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-32-D100-D75	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-32-D100-D100	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-32-D125-D25	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-32-D125-D50	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-32-D125-D75	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-32-D125-D100	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-32-D125-D125	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-32-D150-D25	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-32-D150-D50	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-32-D150-D75	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-32-D150-D100	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-32-D150-D125	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-32-D150-D150	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-CA-32-D200-D25	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-32-D200-D50	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-32-D200-D75	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-32-D200-D100	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-32-D200-D125	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-32-D200-D150	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-CA-32-D200-D200	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-CA-32-D250-D25	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-32-D250-D50	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-32-D250-D75	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-32-D250-D100	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-32-D250-D125	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-32-D250-D150	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-CA-32-D250-D200	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-CA-32-D300-D25	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-CA-32-D300-D50	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-CA-32-D300-D75	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-CA-32-D300-D100	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-CA-32-D300-D125	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-CA-32-D300-D150	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-CA-32-D300-D200	Mounting: Single clevis (CA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-32-D25-D25	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D50-D25	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D50-D50	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D75-D25	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D75-D50	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D75-D75	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-32-D100-D25	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D100-D50	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D100-D75	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-32-D100-D100	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-32-D125-D25	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D125-D50	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D125-D75	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-32-D125-D100	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-32-D125-D125	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-32-D150-D25	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D150-D50	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D150-D75	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-32-D150-D100	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-32-D150-D125	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-32-D150-D150	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-32-D200-D25	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D200-D50	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D200-D75	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-32-D200-D100	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-32-D200-D125	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-32-D200-D150	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-32-D200-D200	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-32-D250-D25	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D250-D50	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D250-D75	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-32-D250-D100	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-32-D250-D125	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-32-D250-D150	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-32-D250-D200	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TA-32-D300-D25	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TA-32-D300-D50	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TA-32-D300-D75	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TA-32-D300-D100	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TA-32-D300-D125	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TA-32-D300-D150	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TA-32-D300-D200	Mounting: Rod-side trunnion (TA) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-32-D25-D25	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D50-D25	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D50-D50	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D75-D25	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D75-D50	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D75-D75	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 75 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-32-D100-D25	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D100-D50	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D100-D75	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-32-D100-D100	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 100 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-32-D125-D25	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D125-D50	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D125-D75	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-32-D125-D100	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-32-D125-D125	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 125 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-32-D150-D25	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D150-D50	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D150-D75	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-32-D150-D100	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-32-D150-D125	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-32-D150-D150	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 150 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-32-D200-D25	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D200-D50	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D200-D75	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-32-D200-D100	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-32-D200-D125	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-32-D200-D150	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-32-D200-D200	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 200 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-32-D250-D25	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D250-D50	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D250-D75	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-32-D250-D100	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-32-D250-D125	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-32-D250-D150	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-32-D250-D200	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 250 mm \| 1st stage stroke S2: 200 mm
	SCM-W-TB-32-D300-D25	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 25 mm
	SCM-W-TB-32-D300-D50	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 50 mm
	SCM-W-TB-32-D300-D75	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 75 mm
	SCM-W-TB-32-D300-D100	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 100 mm
	SCM-W-TB-32-D300-D125	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 125 mm
	SCM-W-TB-32-D300-D150	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 150 mm
	SCM-W-TB-32-D300-D200	Mounting: Head-side trunnion (TB) \| Bore: 32 mm \| Total stroke S1: 300 mm \| 1st stage stroke S2: 200 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCM-W Super Micro Cylinder, Two-Stage (Bore 20-32)
