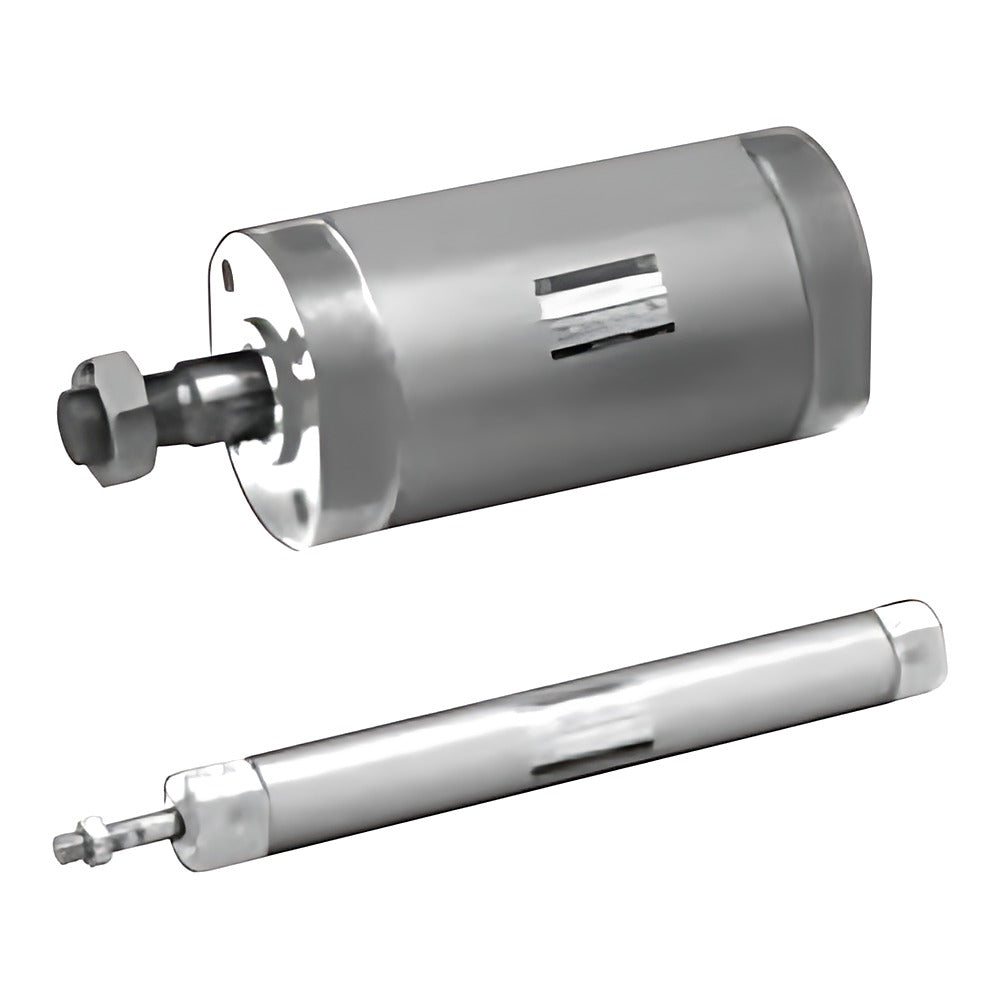

CKD SCM-W4-FP1 Super Micro Cylinder (Tandem)

CKD SCM-W4-FP1 Super Micro Cylinder (Tandem)

CKD SCM-W4-FP1 double-acting tandem super micro cylinder, bore 20-63 mm, with NSF H1 food-grade grease.

Key features

  • NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
  • Super micro cylinder with switch magnet built in
  • Auto switches (T0H/T2H/T3H/T2WH etc.) with count R/H/D/T/4, band mounting Z, bellows J/K/L, switch rail Q, stainless rod M and rod-end I/Y/B1/B2 ordered as suffixes
  • Intermediate strokes in 1 mm steps; NPT (N) / G (G) port threads made to order
  • Tandem construction for about double output force; standard strokes 25-300 mm (max. 600 mm)

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (20-40), 0.05 MPa (50-100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C
Piston speed 30-1000 mm/s
Type Double acting, tandem (W4)
Source CKD Korea catalog CC-1271K, p. 64-68
SCM-W4-00-20B-25-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-00-20B-50-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-00-20B-75-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-00-20B-100-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-00-20B-125-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-00-20B-150-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-00-20B-200-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-00-20B-250-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-00-20B-300-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-00-20R-25-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-00-20R-50-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-00-20R-75-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-00-20R-100-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-00-20R-125-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-00-20R-150-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-00-20R-200-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-00-20R-250-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-00-20R-300-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-00-20H-25-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-00-20H-50-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-00-20H-75-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-00-20H-100-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-00-20H-125-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-00-20H-150-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-00-20H-200-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-00-20H-250-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-00-20H-300-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-00-20D-25-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-00-20D-50-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-00-20D-75-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-00-20D-100-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-00-20D-125-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-00-20D-150-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-00-20D-200-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-00-20D-250-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-00-20D-300-FP1 Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-LB-20B-25-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-LB-20B-50-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-LB-20B-75-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-LB-20B-100-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-LB-20B-125-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-LB-20B-150-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-LB-20B-200-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-LB-20B-250-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-LB-20B-300-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-LB-20R-25-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-LB-20R-50-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-LB-20R-75-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-LB-20R-100-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-LB-20R-125-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-LB-20R-150-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-LB-20R-200-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-LB-20R-250-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-LB-20R-300-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-LB-20H-25-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-LB-20H-50-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-LB-20H-75-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-LB-20H-100-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-LB-20H-125-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-LB-20H-150-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-LB-20H-200-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-LB-20H-250-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-LB-20H-300-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-LB-20D-25-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-LB-20D-50-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-LB-20D-75-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-LB-20D-100-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-LB-20D-125-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-LB-20D-150-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-LB-20D-200-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-LB-20D-250-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-LB-20D-300-FP1 Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FA-20B-25-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FA-20B-50-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FA-20B-75-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FA-20B-100-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FA-20B-125-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FA-20B-150-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FA-20B-200-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FA-20B-250-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FA-20B-300-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FA-20R-25-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FA-20R-50-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FA-20R-75-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FA-20R-100-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FA-20R-125-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FA-20R-150-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FA-20R-200-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FA-20R-250-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FA-20R-300-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FA-20H-25-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FA-20H-50-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FA-20H-75-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FA-20H-100-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FA-20H-125-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FA-20H-150-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FA-20H-200-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FA-20H-250-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FA-20H-300-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FA-20D-25-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FA-20D-50-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FA-20D-75-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FA-20D-100-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FA-20D-125-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FA-20D-150-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FA-20D-200-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FA-20D-250-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FA-20D-300-FP1 Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FB-20B-25-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FB-20B-50-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FB-20B-75-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FB-20B-100-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FB-20B-125-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FB-20B-150-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FB-20B-200-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FB-20B-250-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FB-20B-300-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FB-20R-25-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FB-20R-50-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FB-20R-75-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FB-20R-100-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FB-20R-125-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FB-20R-150-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FB-20R-200-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FB-20R-250-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FB-20R-300-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FB-20H-25-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FB-20H-50-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FB-20H-75-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FB-20H-100-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FB-20H-125-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FB-20H-150-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FB-20H-200-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FB-20H-250-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FB-20H-300-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FB-20D-25-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FB-20D-50-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FB-20D-75-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FB-20D-100-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FB-20D-125-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FB-20D-150-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FB-20D-200-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FB-20D-250-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FB-20D-300-FP1 Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-CA-20B-25-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-CA-20B-50-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-CA-20B-75-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-CA-20B-100-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-CA-20B-125-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-CA-20B-150-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-CA-20B-200-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-CA-20B-250-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-CA-20B-300-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-CA-20R-25-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-CA-20R-50-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-CA-20R-75-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-CA-20R-100-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-CA-20R-125-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-CA-20R-150-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-CA-20R-200-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-CA-20R-250-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-CA-20R-300-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-CA-20H-25-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-CA-20H-50-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-CA-20H-75-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-CA-20H-100-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-CA-20H-125-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-CA-20H-150-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-CA-20H-200-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-CA-20H-250-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-CA-20H-300-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-CA-20D-25-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-CA-20D-50-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-CA-20D-75-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-CA-20D-100-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-CA-20D-125-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-CA-20D-150-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-CA-20D-200-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-CA-20D-250-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-CA-20D-300-FP1 Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TA-20B-25-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TA-20B-50-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TA-20B-75-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TA-20B-100-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TA-20B-125-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TA-20B-150-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TA-20B-200-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TA-20B-250-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TA-20B-300-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TA-20R-25-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TA-20R-50-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TA-20R-75-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TA-20R-100-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TA-20R-125-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TA-20R-150-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TA-20R-200-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TA-20R-250-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TA-20R-300-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TA-20H-25-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TA-20H-50-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TA-20H-75-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TA-20H-100-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TA-20H-125-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TA-20H-150-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TA-20H-200-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TA-20H-250-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TA-20H-300-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TA-20D-25-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TA-20D-50-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TA-20D-75-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TA-20D-100-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TA-20D-125-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TA-20D-150-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TA-20D-200-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TA-20D-250-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TA-20D-300-FP1 Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TB-20B-25-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TB-20B-50-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TB-20B-75-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TB-20B-100-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TB-20B-125-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TB-20B-150-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TB-20B-200-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TB-20B-250-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TB-20B-300-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TB-20R-25-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TB-20R-50-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TB-20R-75-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TB-20R-100-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TB-20R-125-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TB-20R-150-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TB-20R-200-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TB-20R-250-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TB-20R-300-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TB-20H-25-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TB-20H-50-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TB-20H-75-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TB-20H-100-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TB-20H-125-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TB-20H-150-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TB-20H-200-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TB-20H-250-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TB-20H-300-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TB-20D-25-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TB-20D-50-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TB-20D-75-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TB-20D-100-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TB-20D-125-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TB-20D-150-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TB-20D-200-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TB-20D-250-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TB-20D-300-FP1 Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-00-25B-25-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-00-25B-50-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-00-25B-75-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-00-25B-100-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-00-25B-125-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-00-25B-150-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-00-25B-200-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-00-25B-250-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-00-25B-300-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-00-25R-25-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-00-25R-50-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-00-25R-75-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-00-25R-100-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-00-25R-125-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-00-25R-150-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-00-25R-200-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-00-25R-250-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-00-25R-300-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-00-25H-25-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-00-25H-50-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-00-25H-75-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-00-25H-100-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-00-25H-125-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-00-25H-150-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-00-25H-200-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-00-25H-250-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-00-25H-300-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-00-25D-25-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-00-25D-50-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-00-25D-75-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-00-25D-100-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-00-25D-125-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-00-25D-150-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-00-25D-200-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-00-25D-250-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-00-25D-300-FP1 Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-LB-25B-25-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-LB-25B-50-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-LB-25B-75-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-LB-25B-100-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-LB-25B-125-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-LB-25B-150-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-LB-25B-200-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-LB-25B-250-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-LB-25B-300-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-LB-25R-25-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-LB-25R-50-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-LB-25R-75-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-LB-25R-100-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-LB-25R-125-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-LB-25R-150-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-LB-25R-200-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-LB-25R-250-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-LB-25R-300-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-LB-25H-25-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-LB-25H-50-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-LB-25H-75-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-LB-25H-100-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-LB-25H-125-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-LB-25H-150-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-LB-25H-200-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-LB-25H-250-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-LB-25H-300-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-LB-25D-25-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-LB-25D-50-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-LB-25D-75-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-LB-25D-100-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-LB-25D-125-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-LB-25D-150-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-LB-25D-200-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-LB-25D-250-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-LB-25D-300-FP1 Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FA-25B-25-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FA-25B-50-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FA-25B-75-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FA-25B-100-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FA-25B-125-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FA-25B-150-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FA-25B-200-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FA-25B-250-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FA-25B-300-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FA-25R-25-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FA-25R-50-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FA-25R-75-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FA-25R-100-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FA-25R-125-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FA-25R-150-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FA-25R-200-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FA-25R-250-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FA-25R-300-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FA-25H-25-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FA-25H-50-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FA-25H-75-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FA-25H-100-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FA-25H-125-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FA-25H-150-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FA-25H-200-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FA-25H-250-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FA-25H-300-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FA-25D-25-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FA-25D-50-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FA-25D-75-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FA-25D-100-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FA-25D-125-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FA-25D-150-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FA-25D-200-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FA-25D-250-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FA-25D-300-FP1 Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FB-25B-25-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FB-25B-50-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FB-25B-75-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FB-25B-100-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FB-25B-125-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FB-25B-150-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FB-25B-200-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FB-25B-250-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FB-25B-300-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FB-25R-25-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FB-25R-50-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FB-25R-75-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FB-25R-100-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FB-25R-125-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FB-25R-150-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FB-25R-200-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FB-25R-250-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FB-25R-300-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FB-25H-25-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FB-25H-50-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FB-25H-75-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FB-25H-100-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FB-25H-125-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FB-25H-150-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FB-25H-200-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FB-25H-250-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FB-25H-300-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FB-25D-25-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FB-25D-50-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FB-25D-75-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FB-25D-100-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FB-25D-125-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FB-25D-150-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FB-25D-200-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FB-25D-250-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FB-25D-300-FP1 Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-CA-25B-25-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-CA-25B-50-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-CA-25B-75-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-CA-25B-100-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-CA-25B-125-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-CA-25B-150-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-CA-25B-200-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-CA-25B-250-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-CA-25B-300-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-CA-25R-25-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-CA-25R-50-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-CA-25R-75-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-CA-25R-100-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-CA-25R-125-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-CA-25R-150-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-CA-25R-200-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-CA-25R-250-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-CA-25R-300-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-CA-25H-25-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-CA-25H-50-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-CA-25H-75-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-CA-25H-100-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-CA-25H-125-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-CA-25H-150-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-CA-25H-200-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-CA-25H-250-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-CA-25H-300-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-CA-25D-25-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-CA-25D-50-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-CA-25D-75-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-CA-25D-100-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-CA-25D-125-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-CA-25D-150-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-CA-25D-200-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-CA-25D-250-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-CA-25D-300-FP1 Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TA-25B-25-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TA-25B-50-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TA-25B-75-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TA-25B-100-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TA-25B-125-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TA-25B-150-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TA-25B-200-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TA-25B-250-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TA-25B-300-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TA-25R-25-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TA-25R-50-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TA-25R-75-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TA-25R-100-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TA-25R-125-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TA-25R-150-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TA-25R-200-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TA-25R-250-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TA-25R-300-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TA-25H-25-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TA-25H-50-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TA-25H-75-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TA-25H-100-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TA-25H-125-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TA-25H-150-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TA-25H-200-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TA-25H-250-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TA-25H-300-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TA-25D-25-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TA-25D-50-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TA-25D-75-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TA-25D-100-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TA-25D-125-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TA-25D-150-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TA-25D-200-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TA-25D-250-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TA-25D-300-FP1 Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TB-25B-25-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TB-25B-50-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TB-25B-75-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TB-25B-100-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TB-25B-125-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TB-25B-150-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TB-25B-200-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TB-25B-250-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TB-25B-300-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TB-25R-25-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TB-25R-50-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TB-25R-75-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TB-25R-100-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TB-25R-125-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TB-25R-150-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TB-25R-200-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TB-25R-250-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TB-25R-300-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TB-25H-25-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TB-25H-50-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TB-25H-75-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TB-25H-100-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TB-25H-125-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TB-25H-150-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TB-25H-200-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TB-25H-250-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TB-25H-300-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TB-25D-25-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TB-25D-50-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TB-25D-75-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TB-25D-100-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TB-25D-125-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TB-25D-150-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TB-25D-200-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TB-25D-250-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TB-25D-300-FP1 Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-00-32B-25-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-00-32B-50-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-00-32B-75-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-00-32B-100-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-00-32B-125-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-00-32B-150-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-00-32B-200-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-00-32B-250-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-00-32B-300-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-00-32R-25-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-00-32R-50-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-00-32R-75-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-00-32R-100-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-00-32R-125-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-00-32R-150-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-00-32R-200-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-00-32R-250-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-00-32R-300-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-00-32H-25-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-00-32H-50-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-00-32H-75-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-00-32H-100-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-00-32H-125-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-00-32H-150-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-00-32H-200-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-00-32H-250-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-00-32H-300-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-00-32D-25-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-00-32D-50-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-00-32D-75-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-00-32D-100-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-00-32D-125-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-00-32D-150-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-00-32D-200-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-00-32D-250-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-00-32D-300-FP1 Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-LB-32B-25-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-LB-32B-50-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-LB-32B-75-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-LB-32B-100-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-LB-32B-125-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-LB-32B-150-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-LB-32B-200-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-LB-32B-250-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-LB-32B-300-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-LB-32R-25-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-LB-32R-50-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-LB-32R-75-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-LB-32R-100-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-LB-32R-125-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-LB-32R-150-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-LB-32R-200-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-LB-32R-250-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-LB-32R-300-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-LB-32H-25-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-LB-32H-50-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-LB-32H-75-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-LB-32H-100-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-LB-32H-125-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-LB-32H-150-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-LB-32H-200-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-LB-32H-250-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-LB-32H-300-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-LB-32D-25-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-LB-32D-50-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-LB-32D-75-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-LB-32D-100-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-LB-32D-125-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-LB-32D-150-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-LB-32D-200-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-LB-32D-250-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-LB-32D-300-FP1 Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FA-32B-25-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FA-32B-50-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FA-32B-75-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FA-32B-100-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FA-32B-125-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FA-32B-150-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FA-32B-200-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FA-32B-250-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FA-32B-300-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FA-32R-25-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FA-32R-50-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FA-32R-75-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FA-32R-100-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FA-32R-125-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FA-32R-150-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FA-32R-200-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FA-32R-250-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FA-32R-300-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FA-32H-25-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FA-32H-50-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FA-32H-75-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FA-32H-100-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FA-32H-125-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FA-32H-150-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FA-32H-200-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FA-32H-250-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FA-32H-300-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FA-32D-25-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FA-32D-50-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FA-32D-75-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FA-32D-100-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FA-32D-125-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FA-32D-150-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FA-32D-200-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FA-32D-250-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FA-32D-300-FP1 Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FB-32B-25-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FB-32B-50-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FB-32B-75-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FB-32B-100-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FB-32B-125-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FB-32B-150-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FB-32B-200-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FB-32B-250-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FB-32B-300-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FB-32R-25-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FB-32R-50-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FB-32R-75-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FB-32R-100-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FB-32R-125-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FB-32R-150-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FB-32R-200-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FB-32R-250-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FB-32R-300-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FB-32H-25-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FB-32H-50-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FB-32H-75-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FB-32H-100-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FB-32H-125-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FB-32H-150-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FB-32H-200-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FB-32H-250-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FB-32H-300-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FB-32D-25-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FB-32D-50-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FB-32D-75-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FB-32D-100-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FB-32D-125-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FB-32D-150-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FB-32D-200-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FB-32D-250-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FB-32D-300-FP1 Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-CA-32B-25-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-CA-32B-50-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-CA-32B-75-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-CA-32B-100-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-CA-32B-125-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-CA-32B-150-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-CA-32B-200-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-CA-32B-250-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-CA-32B-300-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-CA-32R-25-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-CA-32R-50-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-CA-32R-75-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-CA-32R-100-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-CA-32R-125-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-CA-32R-150-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-CA-32R-200-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-CA-32R-250-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-CA-32R-300-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-CA-32H-25-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-CA-32H-50-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-CA-32H-75-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-CA-32H-100-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-CA-32H-125-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-CA-32H-150-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-CA-32H-200-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-CA-32H-250-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-CA-32H-300-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-CA-32D-25-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-CA-32D-50-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-CA-32D-75-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-CA-32D-100-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-CA-32D-125-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-CA-32D-150-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-CA-32D-200-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-CA-32D-250-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-CA-32D-300-FP1 Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TA-32B-25-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TA-32B-50-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TA-32B-75-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TA-32B-100-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TA-32B-125-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TA-32B-150-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TA-32B-200-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TA-32B-250-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TA-32B-300-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TA-32R-25-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TA-32R-50-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TA-32R-75-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TA-32R-100-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TA-32R-125-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TA-32R-150-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TA-32R-200-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TA-32R-250-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TA-32R-300-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TA-32H-25-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TA-32H-50-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TA-32H-75-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TA-32H-100-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TA-32H-125-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TA-32H-150-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TA-32H-200-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TA-32H-250-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TA-32H-300-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TA-32D-25-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TA-32D-50-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TA-32D-75-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TA-32D-100-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TA-32D-125-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TA-32D-150-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TA-32D-200-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TA-32D-250-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TA-32D-300-FP1 Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TB-32B-25-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TB-32B-50-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TB-32B-75-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TB-32B-100-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TB-32B-125-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TB-32B-150-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TB-32B-200-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TB-32B-250-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TB-32B-300-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TB-32R-25-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TB-32R-50-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TB-32R-75-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TB-32R-100-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TB-32R-125-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TB-32R-150-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TB-32R-200-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TB-32R-250-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TB-32R-300-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TB-32H-25-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TB-32H-50-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TB-32H-75-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TB-32H-100-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TB-32H-125-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TB-32H-150-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TB-32H-200-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TB-32H-250-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TB-32H-300-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TB-32D-25-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TB-32D-50-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TB-32D-75-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TB-32D-100-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TB-32D-125-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TB-32D-150-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TB-32D-200-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TB-32D-250-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TB-32D-300-FP1 Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 300 mm
Pneumatic CylindersCKD
756 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-W4-FP1 Super Micro Cylinder (Tandem)

Brand CKD·Pneumatic Cylinders

Available part numbers (756)

SCM-W4-00-20B-25-FP1, SCM-W4-00-20B-50-FP1, SCM-W4-00-20B-75-FP1, SCM-W4-00-20B-100-FP1, SCM-W4-00-20B-125-FP1, SCM-W4-00-20B-150-FP1, SCM-W4-00-20B-200-FP1, SCM-W4-00-20B-250-FP1, SCM-W4-00-20B-300-FP1, SCM-W4-00-20R-25-FP1 + 746 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCM-W4-00-20B-25-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-00-20B-50-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-00-20B-75-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-00-20B-100-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-00-20B-125-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-00-20B-150-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-00-20B-200-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-00-20B-250-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-00-20B-300-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-00-20R-25-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-00-20R-50-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-00-20R-75-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-00-20R-100-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-00-20R-125-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-00-20R-150-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-00-20R-200-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-00-20R-250-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-00-20R-300-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-00-20H-25-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-00-20H-50-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-00-20H-75-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-00-20H-100-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-00-20H-125-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-00-20H-150-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-00-20H-200-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-00-20H-250-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-00-20H-300-FP1Mounting: Basic | Bore: 20 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-00-20D-25-FP1Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-00-20D-50-FP1Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-00-20D-75-FP1Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-00-20D-100-FP1Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-00-20D-125-FP1Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-00-20D-150-FP1Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-00-20D-200-FP1Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-00-20D-250-FP1Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-00-20D-300-FP1Mounting: Basic | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-LB-20B-25-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-LB-20B-50-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-LB-20B-75-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-LB-20B-100-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-LB-20B-125-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-LB-20B-150-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-LB-20B-200-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-LB-20B-250-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-LB-20B-300-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-LB-20R-25-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-LB-20R-50-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-LB-20R-75-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-LB-20R-100-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-LB-20R-125-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-LB-20R-150-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-LB-20R-200-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-LB-20R-250-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-LB-20R-300-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-LB-20H-25-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-LB-20H-50-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-LB-20H-75-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-LB-20H-100-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-LB-20H-125-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-LB-20H-150-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-LB-20H-200-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-LB-20H-250-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-LB-20H-300-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-LB-20D-25-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-LB-20D-50-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-LB-20D-75-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-LB-20D-100-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-LB-20D-125-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-LB-20D-150-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-LB-20D-200-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-LB-20D-250-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-LB-20D-300-FP1Mounting: Axial foot | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FA-20B-25-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FA-20B-50-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FA-20B-75-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FA-20B-100-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FA-20B-125-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FA-20B-150-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FA-20B-200-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FA-20B-250-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FA-20B-300-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FA-20R-25-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FA-20R-50-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FA-20R-75-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FA-20R-100-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FA-20R-125-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FA-20R-150-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FA-20R-200-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FA-20R-250-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FA-20R-300-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FA-20H-25-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FA-20H-50-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FA-20H-75-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FA-20H-100-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FA-20H-125-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FA-20H-150-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FA-20H-200-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FA-20H-250-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FA-20H-300-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FA-20D-25-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FA-20D-50-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FA-20D-75-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FA-20D-100-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FA-20D-125-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FA-20D-150-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FA-20D-200-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FA-20D-250-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FA-20D-300-FP1Mounting: Rod-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FB-20B-25-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FB-20B-50-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FB-20B-75-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FB-20B-100-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FB-20B-125-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FB-20B-150-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FB-20B-200-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FB-20B-250-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FB-20B-300-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FB-20R-25-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FB-20R-50-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FB-20R-75-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FB-20R-100-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FB-20R-125-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FB-20R-150-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FB-20R-200-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FB-20R-250-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FB-20R-300-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FB-20H-25-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FB-20H-50-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FB-20H-75-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FB-20H-100-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FB-20H-125-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FB-20H-150-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FB-20H-200-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FB-20H-250-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FB-20H-300-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FB-20D-25-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FB-20D-50-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FB-20D-75-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FB-20D-100-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FB-20D-125-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FB-20D-150-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FB-20D-200-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FB-20D-250-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FB-20D-300-FP1Mounting: Head-side flange | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-CA-20B-25-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-CA-20B-50-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-CA-20B-75-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-CA-20B-100-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-CA-20B-125-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-CA-20B-150-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-CA-20B-200-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-CA-20B-250-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-CA-20B-300-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-CA-20R-25-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-CA-20R-50-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-CA-20R-75-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-CA-20R-100-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-CA-20R-125-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-CA-20R-150-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-CA-20R-200-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-CA-20R-250-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-CA-20R-300-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-CA-20H-25-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-CA-20H-50-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-CA-20H-75-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-CA-20H-100-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-CA-20H-125-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-CA-20H-150-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-CA-20H-200-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-CA-20H-250-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-CA-20H-300-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-CA-20D-25-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-CA-20D-50-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-CA-20D-75-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-CA-20D-100-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-CA-20D-125-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-CA-20D-150-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-CA-20D-200-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-CA-20D-250-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-CA-20D-300-FP1Mounting: Single clevis | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TA-20B-25-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TA-20B-50-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TA-20B-75-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TA-20B-100-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TA-20B-125-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TA-20B-150-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TA-20B-200-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TA-20B-250-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TA-20B-300-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TA-20R-25-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TA-20R-50-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TA-20R-75-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TA-20R-100-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TA-20R-125-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TA-20R-150-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TA-20R-200-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TA-20R-250-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TA-20R-300-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TA-20H-25-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TA-20H-50-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TA-20H-75-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TA-20H-100-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TA-20H-125-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TA-20H-150-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TA-20H-200-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TA-20H-250-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TA-20H-300-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TA-20D-25-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TA-20D-50-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TA-20D-75-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TA-20D-100-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TA-20D-125-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TA-20D-150-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TA-20D-200-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TA-20D-250-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TA-20D-300-FP1Mounting: Rod-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TB-20B-25-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TB-20B-50-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TB-20B-75-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TB-20B-100-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TB-20B-125-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TB-20B-150-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TB-20B-200-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TB-20B-250-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TB-20B-300-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TB-20R-25-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TB-20R-50-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TB-20R-75-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TB-20R-100-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TB-20R-125-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TB-20R-150-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TB-20R-200-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TB-20R-250-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TB-20R-300-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TB-20H-25-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TB-20H-50-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TB-20H-75-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TB-20H-100-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TB-20H-125-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TB-20H-150-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TB-20H-200-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TB-20H-250-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TB-20H-300-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TB-20D-25-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TB-20D-50-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TB-20D-75-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TB-20D-100-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TB-20D-125-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TB-20D-150-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TB-20D-200-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TB-20D-250-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TB-20D-300-FP1Mounting: Head-side trunnion | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-00-25B-25-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-00-25B-50-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-00-25B-75-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-00-25B-100-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-00-25B-125-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-00-25B-150-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-00-25B-200-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-00-25B-250-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-00-25B-300-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-00-25R-25-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-00-25R-50-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-00-25R-75-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-00-25R-100-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-00-25R-125-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-00-25R-150-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-00-25R-200-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-00-25R-250-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-00-25R-300-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-00-25H-25-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-00-25H-50-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-00-25H-75-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-00-25H-100-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-00-25H-125-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-00-25H-150-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-00-25H-200-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-00-25H-250-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-00-25H-300-FP1Mounting: Basic | Bore: 25 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-00-25D-25-FP1Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-00-25D-50-FP1Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-00-25D-75-FP1Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-00-25D-100-FP1Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-00-25D-125-FP1Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-00-25D-150-FP1Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-00-25D-200-FP1Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-00-25D-250-FP1Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-00-25D-300-FP1Mounting: Basic | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-LB-25B-25-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-LB-25B-50-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-LB-25B-75-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-LB-25B-100-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-LB-25B-125-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-LB-25B-150-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-LB-25B-200-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-LB-25B-250-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-LB-25B-300-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-LB-25R-25-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-LB-25R-50-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-LB-25R-75-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-LB-25R-100-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-LB-25R-125-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-LB-25R-150-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-LB-25R-200-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-LB-25R-250-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-LB-25R-300-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-LB-25H-25-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-LB-25H-50-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-LB-25H-75-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-LB-25H-100-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-LB-25H-125-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-LB-25H-150-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-LB-25H-200-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-LB-25H-250-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-LB-25H-300-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-LB-25D-25-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-LB-25D-50-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-LB-25D-75-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-LB-25D-100-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-LB-25D-125-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-LB-25D-150-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-LB-25D-200-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-LB-25D-250-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-LB-25D-300-FP1Mounting: Axial foot | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FA-25B-25-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FA-25B-50-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FA-25B-75-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FA-25B-100-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FA-25B-125-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FA-25B-150-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FA-25B-200-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FA-25B-250-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FA-25B-300-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FA-25R-25-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FA-25R-50-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FA-25R-75-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FA-25R-100-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FA-25R-125-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FA-25R-150-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FA-25R-200-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FA-25R-250-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FA-25R-300-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FA-25H-25-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FA-25H-50-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FA-25H-75-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FA-25H-100-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FA-25H-125-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FA-25H-150-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FA-25H-200-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FA-25H-250-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FA-25H-300-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FA-25D-25-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FA-25D-50-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FA-25D-75-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FA-25D-100-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FA-25D-125-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FA-25D-150-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FA-25D-200-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FA-25D-250-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FA-25D-300-FP1Mounting: Rod-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FB-25B-25-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FB-25B-50-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FB-25B-75-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FB-25B-100-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FB-25B-125-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FB-25B-150-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FB-25B-200-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FB-25B-250-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FB-25B-300-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FB-25R-25-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FB-25R-50-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FB-25R-75-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FB-25R-100-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FB-25R-125-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FB-25R-150-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FB-25R-200-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FB-25R-250-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FB-25R-300-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FB-25H-25-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FB-25H-50-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FB-25H-75-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FB-25H-100-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FB-25H-125-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FB-25H-150-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FB-25H-200-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FB-25H-250-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FB-25H-300-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FB-25D-25-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FB-25D-50-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FB-25D-75-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FB-25D-100-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FB-25D-125-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FB-25D-150-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FB-25D-200-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FB-25D-250-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FB-25D-300-FP1Mounting: Head-side flange | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-CA-25B-25-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-CA-25B-50-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-CA-25B-75-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-CA-25B-100-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-CA-25B-125-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-CA-25B-150-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-CA-25B-200-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-CA-25B-250-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-CA-25B-300-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-CA-25R-25-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-CA-25R-50-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-CA-25R-75-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-CA-25R-100-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-CA-25R-125-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-CA-25R-150-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-CA-25R-200-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-CA-25R-250-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-CA-25R-300-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-CA-25H-25-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-CA-25H-50-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-CA-25H-75-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-CA-25H-100-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-CA-25H-125-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-CA-25H-150-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-CA-25H-200-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-CA-25H-250-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-CA-25H-300-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-CA-25D-25-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-CA-25D-50-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-CA-25D-75-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-CA-25D-100-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-CA-25D-125-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-CA-25D-150-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-CA-25D-200-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-CA-25D-250-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-CA-25D-300-FP1Mounting: Single clevis | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TA-25B-25-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TA-25B-50-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TA-25B-75-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TA-25B-100-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TA-25B-125-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TA-25B-150-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TA-25B-200-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TA-25B-250-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TA-25B-300-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TA-25R-25-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TA-25R-50-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TA-25R-75-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TA-25R-100-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TA-25R-125-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TA-25R-150-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TA-25R-200-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TA-25R-250-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TA-25R-300-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TA-25H-25-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TA-25H-50-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TA-25H-75-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TA-25H-100-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TA-25H-125-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TA-25H-150-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TA-25H-200-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TA-25H-250-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TA-25H-300-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TA-25D-25-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TA-25D-50-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TA-25D-75-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TA-25D-100-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TA-25D-125-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TA-25D-150-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TA-25D-200-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TA-25D-250-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TA-25D-300-FP1Mounting: Rod-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TB-25B-25-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TB-25B-50-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TB-25B-75-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TB-25B-100-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TB-25B-125-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TB-25B-150-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TB-25B-200-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TB-25B-250-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TB-25B-300-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TB-25R-25-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TB-25R-50-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TB-25R-75-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TB-25R-100-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TB-25R-125-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TB-25R-150-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TB-25R-200-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TB-25R-250-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TB-25R-300-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TB-25H-25-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TB-25H-50-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TB-25H-75-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TB-25H-100-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TB-25H-125-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TB-25H-150-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TB-25H-200-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TB-25H-250-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TB-25H-300-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TB-25D-25-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TB-25D-50-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TB-25D-75-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TB-25D-100-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TB-25D-125-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TB-25D-150-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TB-25D-200-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TB-25D-250-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TB-25D-300-FP1Mounting: Head-side trunnion | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-00-32B-25-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-00-32B-50-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-00-32B-75-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-00-32B-100-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-00-32B-125-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-00-32B-150-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-00-32B-200-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-00-32B-250-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-00-32B-300-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-00-32R-25-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-00-32R-50-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-00-32R-75-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-00-32R-100-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-00-32R-125-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-00-32R-150-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-00-32R-200-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-00-32R-250-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-00-32R-300-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-00-32H-25-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-00-32H-50-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-00-32H-75-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-00-32H-100-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-00-32H-125-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-00-32H-150-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-00-32H-200-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-00-32H-250-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-00-32H-300-FP1Mounting: Basic | Bore: 32 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-00-32D-25-FP1Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-00-32D-50-FP1Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-00-32D-75-FP1Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-00-32D-100-FP1Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-00-32D-125-FP1Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-00-32D-150-FP1Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-00-32D-200-FP1Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-00-32D-250-FP1Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-00-32D-300-FP1Mounting: Basic | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-LB-32B-25-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-LB-32B-50-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-LB-32B-75-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-LB-32B-100-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-LB-32B-125-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-LB-32B-150-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-LB-32B-200-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-LB-32B-250-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-LB-32B-300-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-LB-32R-25-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-LB-32R-50-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-LB-32R-75-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-LB-32R-100-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-LB-32R-125-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-LB-32R-150-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-LB-32R-200-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-LB-32R-250-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-LB-32R-300-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-LB-32H-25-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-LB-32H-50-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-LB-32H-75-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-LB-32H-100-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-LB-32H-125-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-LB-32H-150-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-LB-32H-200-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-LB-32H-250-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-LB-32H-300-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-LB-32D-25-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-LB-32D-50-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-LB-32D-75-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-LB-32D-100-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-LB-32D-125-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-LB-32D-150-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-LB-32D-200-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-LB-32D-250-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-LB-32D-300-FP1Mounting: Axial foot | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FA-32B-25-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FA-32B-50-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FA-32B-75-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FA-32B-100-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FA-32B-125-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FA-32B-150-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FA-32B-200-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FA-32B-250-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FA-32B-300-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FA-32R-25-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FA-32R-50-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FA-32R-75-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FA-32R-100-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FA-32R-125-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FA-32R-150-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FA-32R-200-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FA-32R-250-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FA-32R-300-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FA-32H-25-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FA-32H-50-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FA-32H-75-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FA-32H-100-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FA-32H-125-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FA-32H-150-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FA-32H-200-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FA-32H-250-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FA-32H-300-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FA-32D-25-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FA-32D-50-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FA-32D-75-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FA-32D-100-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FA-32D-125-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FA-32D-150-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FA-32D-200-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FA-32D-250-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FA-32D-300-FP1Mounting: Rod-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FB-32B-25-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FB-32B-50-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FB-32B-75-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FB-32B-100-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FB-32B-125-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FB-32B-150-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FB-32B-200-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FB-32B-250-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FB-32B-300-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FB-32R-25-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FB-32R-50-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FB-32R-75-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FB-32R-100-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FB-32R-125-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FB-32R-150-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FB-32R-200-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FB-32R-250-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FB-32R-300-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FB-32H-25-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FB-32H-50-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FB-32H-75-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FB-32H-100-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FB-32H-125-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FB-32H-150-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FB-32H-200-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FB-32H-250-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FB-32H-300-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FB-32D-25-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FB-32D-50-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FB-32D-75-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FB-32D-100-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FB-32D-125-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FB-32D-150-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FB-32D-200-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FB-32D-250-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FB-32D-300-FP1Mounting: Head-side flange | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-CA-32B-25-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-CA-32B-50-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-CA-32B-75-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-CA-32B-100-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-CA-32B-125-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-CA-32B-150-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-CA-32B-200-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-CA-32B-250-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-CA-32B-300-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-CA-32R-25-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-CA-32R-50-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-CA-32R-75-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-CA-32R-100-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-CA-32R-125-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-CA-32R-150-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-CA-32R-200-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-CA-32R-250-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-CA-32R-300-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-CA-32H-25-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-CA-32H-50-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-CA-32H-75-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-CA-32H-100-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-CA-32H-125-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-CA-32H-150-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-CA-32H-200-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-CA-32H-250-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-CA-32H-300-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-CA-32D-25-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-CA-32D-50-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-CA-32D-75-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-CA-32D-100-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-CA-32D-125-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-CA-32D-150-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-CA-32D-200-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-CA-32D-250-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-CA-32D-300-FP1Mounting: Single clevis | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TA-32B-25-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TA-32B-50-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TA-32B-75-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TA-32B-100-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TA-32B-125-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TA-32B-150-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TA-32B-200-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TA-32B-250-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TA-32B-300-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TA-32R-25-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TA-32R-50-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TA-32R-75-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TA-32R-100-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TA-32R-125-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TA-32R-150-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TA-32R-200-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TA-32R-250-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TA-32R-300-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TA-32H-25-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TA-32H-50-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TA-32H-75-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TA-32H-100-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TA-32H-125-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TA-32H-150-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TA-32H-200-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TA-32H-250-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TA-32H-300-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TA-32D-25-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TA-32D-50-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TA-32D-75-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TA-32D-100-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TA-32D-125-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TA-32D-150-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TA-32D-200-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TA-32D-250-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TA-32D-300-FP1Mounting: Rod-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TB-32B-25-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TB-32B-50-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TB-32B-75-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TB-32B-100-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TB-32B-125-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TB-32B-150-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TB-32B-200-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TB-32B-250-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TB-32B-300-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TB-32R-25-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TB-32R-50-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TB-32R-75-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TB-32R-100-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TB-32R-125-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TB-32R-150-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TB-32R-200-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TB-32R-250-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TB-32R-300-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TB-32H-25-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TB-32H-50-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TB-32H-75-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TB-32H-100-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TB-32H-125-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TB-32H-150-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TB-32H-200-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TB-32H-250-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TB-32H-300-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TB-32D-25-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TB-32D-50-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TB-32D-75-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TB-32D-100-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TB-32D-125-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TB-32D-150-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TB-32D-200-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TB-32D-250-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TB-32D-300-FP1Mounting: Head-side trunnion | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
