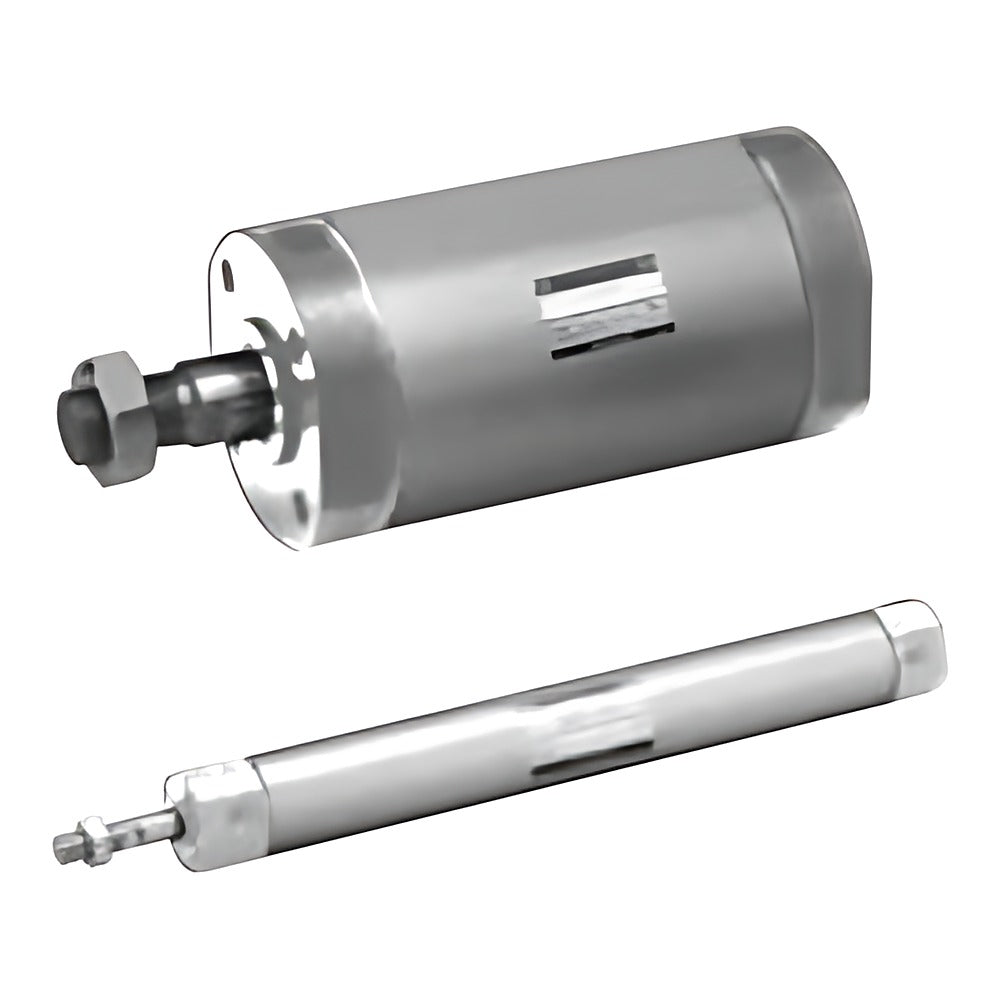

CKD SCM-W4-FP1 Super Micro Cylinder (Tandem) - Part 2

CKD SCM-W4-FP1 Super Micro Cylinder (Tandem) - Part 2

CKD SCM-W4-FP1 double-acting tandem super micro cylinder, bore 20-63 mm, with NSF H1 food-grade grease.

Key features

  • NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
  • Super micro cylinder with switch magnet built in
  • Auto switches (T0H/T2H/T3H/T2WH etc.) with count R/H/D/T/4, band mounting Z, bellows J/K/L, switch rail Q, stainless rod M and rod-end I/Y/B1/B2 ordered as suffixes
  • Intermediate strokes in 1 mm steps; NPT (N) / G (G) port threads made to order
  • Tandem construction for about double output force; standard strokes 25-300 mm (max. 600 mm)

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (20-40), 0.05 MPa (50-100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C
Piston speed 30-1000 mm/s
Type Double acting, tandem (W4)
Source CKD Korea catalog CC-1271K, p. 64-68
SCM-W4-00-40B-25-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-00-40B-50-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-00-40B-75-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-00-40B-100-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-00-40B-125-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-00-40B-150-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-00-40B-200-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-00-40B-250-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-00-40B-300-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-00-40R-25-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-00-40R-50-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-00-40R-75-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-00-40R-100-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-00-40R-125-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-00-40R-150-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-00-40R-200-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-00-40R-250-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-00-40R-300-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-00-40H-25-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-00-40H-50-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-00-40H-75-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-00-40H-100-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-00-40H-125-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-00-40H-150-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-00-40H-200-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-00-40H-250-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-00-40H-300-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-00-40D-25-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-00-40D-50-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-00-40D-75-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-00-40D-100-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-00-40D-125-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-00-40D-150-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-00-40D-200-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-00-40D-250-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-00-40D-300-FP1 Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-LB-40B-25-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-LB-40B-50-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-LB-40B-75-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-LB-40B-100-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-LB-40B-125-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-LB-40B-150-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-LB-40B-200-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-LB-40B-250-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-LB-40B-300-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-LB-40R-25-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-LB-40R-50-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-LB-40R-75-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-LB-40R-100-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-LB-40R-125-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-LB-40R-150-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-LB-40R-200-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-LB-40R-250-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-LB-40R-300-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-LB-40H-25-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-LB-40H-50-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-LB-40H-75-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-LB-40H-100-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-LB-40H-125-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-LB-40H-150-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-LB-40H-200-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-LB-40H-250-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-LB-40H-300-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-LB-40D-25-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-LB-40D-50-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-LB-40D-75-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-LB-40D-100-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-LB-40D-125-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-LB-40D-150-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-LB-40D-200-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-LB-40D-250-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-LB-40D-300-FP1 Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FA-40B-25-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FA-40B-50-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FA-40B-75-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FA-40B-100-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FA-40B-125-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FA-40B-150-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FA-40B-200-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FA-40B-250-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FA-40B-300-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FA-40R-25-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FA-40R-50-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FA-40R-75-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FA-40R-100-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FA-40R-125-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FA-40R-150-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FA-40R-200-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FA-40R-250-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FA-40R-300-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FA-40H-25-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FA-40H-50-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FA-40H-75-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FA-40H-100-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FA-40H-125-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FA-40H-150-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FA-40H-200-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FA-40H-250-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FA-40H-300-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FA-40D-25-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FA-40D-50-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FA-40D-75-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FA-40D-100-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FA-40D-125-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FA-40D-150-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FA-40D-200-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FA-40D-250-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FA-40D-300-FP1 Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FB-40B-25-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FB-40B-50-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FB-40B-75-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FB-40B-100-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FB-40B-125-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FB-40B-150-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FB-40B-200-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FB-40B-250-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FB-40B-300-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FB-40R-25-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FB-40R-50-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FB-40R-75-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FB-40R-100-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FB-40R-125-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FB-40R-150-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FB-40R-200-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FB-40R-250-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FB-40R-300-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FB-40H-25-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FB-40H-50-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FB-40H-75-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FB-40H-100-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FB-40H-125-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FB-40H-150-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FB-40H-200-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FB-40H-250-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FB-40H-300-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FB-40D-25-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FB-40D-50-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FB-40D-75-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FB-40D-100-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FB-40D-125-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FB-40D-150-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FB-40D-200-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FB-40D-250-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FB-40D-300-FP1 Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-CA-40B-25-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-CA-40B-50-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-CA-40B-75-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-CA-40B-100-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-CA-40B-125-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-CA-40B-150-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-CA-40B-200-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-CA-40B-250-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-CA-40B-300-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-CA-40R-25-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-CA-40R-50-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-CA-40R-75-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-CA-40R-100-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-CA-40R-125-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-CA-40R-150-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-CA-40R-200-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-CA-40R-250-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-CA-40R-300-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-CA-40H-25-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-CA-40H-50-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-CA-40H-75-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-CA-40H-100-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-CA-40H-125-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-CA-40H-150-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-CA-40H-200-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-CA-40H-250-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-CA-40H-300-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-CA-40D-25-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-CA-40D-50-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-CA-40D-75-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-CA-40D-100-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-CA-40D-125-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-CA-40D-150-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-CA-40D-200-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-CA-40D-250-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-CA-40D-300-FP1 Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TA-40B-25-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TA-40B-50-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TA-40B-75-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TA-40B-100-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TA-40B-125-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TA-40B-150-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TA-40B-200-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TA-40B-250-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TA-40B-300-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TA-40R-25-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TA-40R-50-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TA-40R-75-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TA-40R-100-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TA-40R-125-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TA-40R-150-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TA-40R-200-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TA-40R-250-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TA-40R-300-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TA-40H-25-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TA-40H-50-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TA-40H-75-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TA-40H-100-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TA-40H-125-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TA-40H-150-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TA-40H-200-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TA-40H-250-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TA-40H-300-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TA-40D-25-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TA-40D-50-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TA-40D-75-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TA-40D-100-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TA-40D-125-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TA-40D-150-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TA-40D-200-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TA-40D-250-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TA-40D-300-FP1 Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TB-40B-25-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TB-40B-50-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TB-40B-75-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TB-40B-100-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TB-40B-125-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TB-40B-150-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TB-40B-200-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TB-40B-250-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TB-40B-300-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TB-40R-25-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TB-40R-50-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TB-40R-75-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TB-40R-100-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TB-40R-125-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TB-40R-150-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TB-40R-200-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TB-40R-250-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TB-40R-300-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TB-40H-25-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TB-40H-50-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TB-40H-75-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TB-40H-100-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TB-40H-125-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TB-40H-150-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TB-40H-200-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TB-40H-250-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TB-40H-300-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TB-40D-25-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TB-40D-50-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TB-40D-75-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TB-40D-100-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TB-40D-125-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TB-40D-150-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TB-40D-200-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TB-40D-250-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TB-40D-300-FP1 Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-00-50B-25-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-00-50B-50-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-00-50B-75-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-00-50B-100-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-00-50B-125-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-00-50B-150-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-00-50B-200-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-00-50B-250-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-00-50B-300-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-00-50R-25-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-00-50R-50-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-00-50R-75-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-00-50R-100-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-00-50R-125-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-00-50R-150-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-00-50R-200-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-00-50R-250-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-00-50R-300-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-00-50H-25-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-00-50H-50-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-00-50H-75-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-00-50H-100-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-00-50H-125-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-00-50H-150-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-00-50H-200-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-00-50H-250-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-00-50H-300-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-00-50D-25-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-00-50D-50-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-00-50D-75-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-00-50D-100-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-00-50D-125-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-00-50D-150-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-00-50D-200-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-00-50D-250-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-00-50D-300-FP1 Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-LB-50B-25-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-LB-50B-50-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-LB-50B-75-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-LB-50B-100-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-LB-50B-125-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-LB-50B-150-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-LB-50B-200-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-LB-50B-250-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-LB-50B-300-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-LB-50R-25-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-LB-50R-50-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-LB-50R-75-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-LB-50R-100-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-LB-50R-125-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-LB-50R-150-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-LB-50R-200-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-LB-50R-250-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-LB-50R-300-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-LB-50H-25-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-LB-50H-50-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-LB-50H-75-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-LB-50H-100-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-LB-50H-125-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-LB-50H-150-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-LB-50H-200-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-LB-50H-250-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-LB-50H-300-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-LB-50D-25-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-LB-50D-50-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-LB-50D-75-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-LB-50D-100-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-LB-50D-125-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-LB-50D-150-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-LB-50D-200-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-LB-50D-250-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-LB-50D-300-FP1 Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FA-50B-25-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FA-50B-50-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FA-50B-75-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FA-50B-100-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FA-50B-125-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FA-50B-150-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FA-50B-200-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FA-50B-250-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FA-50B-300-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FA-50R-25-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FA-50R-50-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FA-50R-75-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FA-50R-100-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FA-50R-125-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FA-50R-150-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FA-50R-200-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FA-50R-250-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FA-50R-300-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FA-50H-25-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FA-50H-50-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FA-50H-75-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FA-50H-100-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FA-50H-125-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FA-50H-150-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FA-50H-200-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FA-50H-250-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FA-50H-300-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FA-50D-25-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FA-50D-50-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FA-50D-75-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FA-50D-100-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FA-50D-125-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FA-50D-150-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FA-50D-200-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FA-50D-250-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FA-50D-300-FP1 Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FB-50B-25-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FB-50B-50-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FB-50B-75-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FB-50B-100-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FB-50B-125-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FB-50B-150-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FB-50B-200-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FB-50B-250-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FB-50B-300-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FB-50R-25-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FB-50R-50-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FB-50R-75-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FB-50R-100-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FB-50R-125-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FB-50R-150-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FB-50R-200-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FB-50R-250-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FB-50R-300-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FB-50H-25-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FB-50H-50-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FB-50H-75-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FB-50H-100-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FB-50H-125-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FB-50H-150-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FB-50H-200-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FB-50H-250-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FB-50H-300-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FB-50D-25-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FB-50D-50-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FB-50D-75-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FB-50D-100-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FB-50D-125-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FB-50D-150-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FB-50D-200-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FB-50D-250-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FB-50D-300-FP1 Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-CA-50B-25-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-CA-50B-50-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-CA-50B-75-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-CA-50B-100-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-CA-50B-125-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-CA-50B-150-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-CA-50B-200-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-CA-50B-250-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-CA-50B-300-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-CA-50R-25-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-CA-50R-50-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-CA-50R-75-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-CA-50R-100-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-CA-50R-125-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-CA-50R-150-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-CA-50R-200-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-CA-50R-250-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-CA-50R-300-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-CA-50H-25-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-CA-50H-50-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-CA-50H-75-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-CA-50H-100-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-CA-50H-125-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-CA-50H-150-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-CA-50H-200-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-CA-50H-250-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-CA-50H-300-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-CA-50D-25-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-CA-50D-50-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-CA-50D-75-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-CA-50D-100-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-CA-50D-125-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-CA-50D-150-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-CA-50D-200-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-CA-50D-250-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-CA-50D-300-FP1 Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TA-50B-25-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TA-50B-50-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TA-50B-75-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TA-50B-100-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TA-50B-125-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TA-50B-150-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TA-50B-200-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TA-50B-250-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TA-50B-300-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TA-50R-25-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TA-50R-50-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TA-50R-75-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TA-50R-100-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TA-50R-125-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TA-50R-150-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TA-50R-200-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TA-50R-250-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TA-50R-300-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TA-50H-25-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TA-50H-50-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TA-50H-75-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TA-50H-100-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TA-50H-125-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TA-50H-150-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TA-50H-200-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TA-50H-250-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TA-50H-300-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TA-50D-25-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TA-50D-50-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TA-50D-75-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TA-50D-100-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TA-50D-125-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TA-50D-150-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TA-50D-200-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TA-50D-250-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TA-50D-300-FP1 Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TB-50B-25-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TB-50B-50-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TB-50B-75-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TB-50B-100-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TB-50B-125-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TB-50B-150-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TB-50B-200-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TB-50B-250-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TB-50B-300-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TB-50R-25-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TB-50R-50-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TB-50R-75-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TB-50R-100-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TB-50R-125-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TB-50R-150-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TB-50R-200-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TB-50R-250-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TB-50R-300-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TB-50H-25-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TB-50H-50-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TB-50H-75-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TB-50H-100-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TB-50H-125-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TB-50H-150-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TB-50H-200-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TB-50H-250-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TB-50H-300-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TB-50D-25-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TB-50D-50-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TB-50D-75-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TB-50D-100-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TB-50D-125-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TB-50D-150-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TB-50D-200-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TB-50D-250-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TB-50D-300-FP1 Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-00-63B-25-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-00-63B-50-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-00-63B-75-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-00-63B-100-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-00-63B-125-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-00-63B-150-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-00-63B-200-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-00-63B-250-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-00-63B-300-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-00-63R-25-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-00-63R-50-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-00-63R-75-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-00-63R-100-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-00-63R-125-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-00-63R-150-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-00-63R-200-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-00-63R-250-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-00-63R-300-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-00-63H-25-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-00-63H-50-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-00-63H-75-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-00-63H-100-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-00-63H-125-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-00-63H-150-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-00-63H-200-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-00-63H-250-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-00-63H-300-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-00-63D-25-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-00-63D-50-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-00-63D-75-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-00-63D-100-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-00-63D-125-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-00-63D-150-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-00-63D-200-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-00-63D-250-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-00-63D-300-FP1 Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-LB-63B-25-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-LB-63B-50-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-LB-63B-75-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-LB-63B-100-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-LB-63B-125-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-LB-63B-150-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-LB-63B-200-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-LB-63B-250-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-LB-63B-300-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-LB-63R-25-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-LB-63R-50-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-LB-63R-75-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-LB-63R-100-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-LB-63R-125-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-LB-63R-150-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-LB-63R-200-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-LB-63R-250-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-LB-63R-300-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-LB-63H-25-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-LB-63H-50-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-LB-63H-75-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-LB-63H-100-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-LB-63H-125-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-LB-63H-150-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-LB-63H-200-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-LB-63H-250-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-LB-63H-300-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-LB-63D-25-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-LB-63D-50-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-LB-63D-75-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-LB-63D-100-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-LB-63D-125-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-LB-63D-150-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-LB-63D-200-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-LB-63D-250-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-LB-63D-300-FP1 Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FA-63B-25-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FA-63B-50-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FA-63B-75-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FA-63B-100-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FA-63B-125-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FA-63B-150-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FA-63B-200-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FA-63B-250-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FA-63B-300-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FA-63R-25-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FA-63R-50-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FA-63R-75-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FA-63R-100-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FA-63R-125-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FA-63R-150-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FA-63R-200-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FA-63R-250-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FA-63R-300-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FA-63H-25-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FA-63H-50-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FA-63H-75-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FA-63H-100-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FA-63H-125-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FA-63H-150-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FA-63H-200-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FA-63H-250-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FA-63H-300-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FA-63D-25-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FA-63D-50-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FA-63D-75-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FA-63D-100-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FA-63D-125-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FA-63D-150-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FA-63D-200-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FA-63D-250-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FA-63D-300-FP1 Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FB-63B-25-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FB-63B-50-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FB-63B-75-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FB-63B-100-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FB-63B-125-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FB-63B-150-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FB-63B-200-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FB-63B-250-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FB-63B-300-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FB-63R-25-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FB-63R-50-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FB-63R-75-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FB-63R-100-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FB-63R-125-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FB-63R-150-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FB-63R-200-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FB-63R-250-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FB-63R-300-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FB-63H-25-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FB-63H-50-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FB-63H-75-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FB-63H-100-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FB-63H-125-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FB-63H-150-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FB-63H-200-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FB-63H-250-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FB-63H-300-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FB-63D-25-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FB-63D-50-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FB-63D-75-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FB-63D-100-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FB-63D-125-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FB-63D-150-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FB-63D-200-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FB-63D-250-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FB-63D-300-FP1 Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-CA-63B-25-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-CA-63B-50-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-CA-63B-75-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-CA-63B-100-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-CA-63B-125-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-CA-63B-150-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-CA-63B-200-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-CA-63B-250-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-CA-63B-300-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-CA-63R-25-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-CA-63R-50-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-CA-63R-75-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-CA-63R-100-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-CA-63R-125-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-CA-63R-150-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-CA-63R-200-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-CA-63R-250-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-CA-63R-300-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-CA-63H-25-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-CA-63H-50-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-CA-63H-75-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-CA-63H-100-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-CA-63H-125-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-CA-63H-150-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-CA-63H-200-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-CA-63H-250-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-CA-63H-300-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-CA-63D-25-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-CA-63D-50-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-CA-63D-75-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-CA-63D-100-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-CA-63D-125-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-CA-63D-150-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-CA-63D-200-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-CA-63D-250-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-CA-63D-300-FP1 Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TA-63B-25-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TA-63B-50-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TA-63B-75-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TA-63B-100-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TA-63B-125-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TA-63B-150-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TA-63B-200-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TA-63B-250-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TA-63B-300-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TA-63R-25-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TA-63R-50-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TA-63R-75-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TA-63R-100-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TA-63R-125-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TA-63R-150-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TA-63R-200-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TA-63R-250-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TA-63R-300-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TA-63H-25-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TA-63H-50-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TA-63H-75-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TA-63H-100-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TA-63H-125-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TA-63H-150-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TA-63H-200-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TA-63H-250-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TA-63H-300-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TA-63D-25-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TA-63D-50-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TA-63D-75-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TA-63D-100-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TA-63D-125-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TA-63D-150-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TA-63D-200-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TA-63D-250-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TA-63D-300-FP1 Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TB-63B-25-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TB-63B-50-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TB-63B-75-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TB-63B-100-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TB-63B-125-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TB-63B-150-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TB-63B-200-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TB-63B-250-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TB-63B-300-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TB-63R-25-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TB-63R-50-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TB-63R-75-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TB-63R-100-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TB-63R-125-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TB-63R-150-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TB-63R-200-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TB-63R-250-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TB-63R-300-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TB-63H-25-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TB-63H-50-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TB-63H-75-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TB-63H-100-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TB-63H-125-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TB-63H-150-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TB-63H-200-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TB-63H-250-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TB-63H-300-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TB-63D-25-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TB-63D-50-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TB-63D-75-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TB-63D-100-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TB-63D-125-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TB-63D-150-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TB-63D-200-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TB-63D-250-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TB-63D-300-FP1 Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 300 mm
Pneumatic CylindersCKD
756 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-W4-FP1 Super Micro Cylinder (Tandem) - Part 2

Brand CKD·Pneumatic Cylinders

Available part numbers (756)

SCM-W4-00-40B-25-FP1, SCM-W4-00-40B-50-FP1, SCM-W4-00-40B-75-FP1, SCM-W4-00-40B-100-FP1, SCM-W4-00-40B-125-FP1, SCM-W4-00-40B-150-FP1, SCM-W4-00-40B-200-FP1, SCM-W4-00-40B-250-FP1, SCM-W4-00-40B-300-FP1, SCM-W4-00-40R-25-FP1 + 746 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCM-W4-00-40B-25-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-00-40B-50-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-00-40B-75-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-00-40B-100-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-00-40B-125-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-00-40B-150-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-00-40B-200-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-00-40B-250-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-00-40B-300-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-00-40R-25-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-00-40R-50-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-00-40R-75-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-00-40R-100-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-00-40R-125-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-00-40R-150-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-00-40R-200-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-00-40R-250-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-00-40R-300-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-00-40H-25-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-00-40H-50-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-00-40H-75-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-00-40H-100-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-00-40H-125-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-00-40H-150-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-00-40H-200-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-00-40H-250-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-00-40H-300-FP1Mounting: Basic | Bore: 40 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-00-40D-25-FP1Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-00-40D-50-FP1Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-00-40D-75-FP1Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-00-40D-100-FP1Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-00-40D-125-FP1Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-00-40D-150-FP1Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-00-40D-200-FP1Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-00-40D-250-FP1Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-00-40D-300-FP1Mounting: Basic | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-LB-40B-25-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-LB-40B-50-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-LB-40B-75-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-LB-40B-100-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-LB-40B-125-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-LB-40B-150-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-LB-40B-200-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-LB-40B-250-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-LB-40B-300-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-LB-40R-25-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-LB-40R-50-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-LB-40R-75-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-LB-40R-100-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-LB-40R-125-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-LB-40R-150-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-LB-40R-200-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-LB-40R-250-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-LB-40R-300-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-LB-40H-25-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-LB-40H-50-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-LB-40H-75-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-LB-40H-100-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-LB-40H-125-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-LB-40H-150-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-LB-40H-200-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-LB-40H-250-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-LB-40H-300-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-LB-40D-25-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-LB-40D-50-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-LB-40D-75-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-LB-40D-100-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-LB-40D-125-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-LB-40D-150-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-LB-40D-200-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-LB-40D-250-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-LB-40D-300-FP1Mounting: Axial foot | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FA-40B-25-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FA-40B-50-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FA-40B-75-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FA-40B-100-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FA-40B-125-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FA-40B-150-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FA-40B-200-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FA-40B-250-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FA-40B-300-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FA-40R-25-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FA-40R-50-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FA-40R-75-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FA-40R-100-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FA-40R-125-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FA-40R-150-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FA-40R-200-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FA-40R-250-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FA-40R-300-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FA-40H-25-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FA-40H-50-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FA-40H-75-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FA-40H-100-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FA-40H-125-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FA-40H-150-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FA-40H-200-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FA-40H-250-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FA-40H-300-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FA-40D-25-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FA-40D-50-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FA-40D-75-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FA-40D-100-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FA-40D-125-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FA-40D-150-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FA-40D-200-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FA-40D-250-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FA-40D-300-FP1Mounting: Rod-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FB-40B-25-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FB-40B-50-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FB-40B-75-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FB-40B-100-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FB-40B-125-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FB-40B-150-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FB-40B-200-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FB-40B-250-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FB-40B-300-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FB-40R-25-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FB-40R-50-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FB-40R-75-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FB-40R-100-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FB-40R-125-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FB-40R-150-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FB-40R-200-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FB-40R-250-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FB-40R-300-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FB-40H-25-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FB-40H-50-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FB-40H-75-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FB-40H-100-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FB-40H-125-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FB-40H-150-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FB-40H-200-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FB-40H-250-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FB-40H-300-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FB-40D-25-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FB-40D-50-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FB-40D-75-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FB-40D-100-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FB-40D-125-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FB-40D-150-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FB-40D-200-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FB-40D-250-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FB-40D-300-FP1Mounting: Head-side flange | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-CA-40B-25-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-CA-40B-50-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-CA-40B-75-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-CA-40B-100-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-CA-40B-125-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-CA-40B-150-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-CA-40B-200-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-CA-40B-250-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-CA-40B-300-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-CA-40R-25-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-CA-40R-50-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-CA-40R-75-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-CA-40R-100-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-CA-40R-125-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-CA-40R-150-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-CA-40R-200-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-CA-40R-250-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-CA-40R-300-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-CA-40H-25-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-CA-40H-50-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-CA-40H-75-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-CA-40H-100-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-CA-40H-125-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-CA-40H-150-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-CA-40H-200-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-CA-40H-250-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-CA-40H-300-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-CA-40D-25-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-CA-40D-50-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-CA-40D-75-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-CA-40D-100-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-CA-40D-125-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-CA-40D-150-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-CA-40D-200-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-CA-40D-250-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-CA-40D-300-FP1Mounting: Single clevis | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TA-40B-25-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TA-40B-50-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TA-40B-75-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TA-40B-100-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TA-40B-125-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TA-40B-150-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TA-40B-200-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TA-40B-250-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TA-40B-300-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TA-40R-25-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TA-40R-50-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TA-40R-75-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TA-40R-100-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TA-40R-125-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TA-40R-150-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TA-40R-200-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TA-40R-250-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TA-40R-300-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TA-40H-25-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TA-40H-50-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TA-40H-75-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TA-40H-100-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TA-40H-125-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TA-40H-150-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TA-40H-200-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TA-40H-250-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TA-40H-300-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TA-40D-25-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TA-40D-50-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TA-40D-75-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TA-40D-100-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TA-40D-125-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TA-40D-150-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TA-40D-200-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TA-40D-250-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TA-40D-300-FP1Mounting: Rod-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TB-40B-25-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TB-40B-50-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TB-40B-75-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TB-40B-100-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TB-40B-125-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TB-40B-150-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TB-40B-200-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TB-40B-250-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TB-40B-300-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TB-40R-25-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TB-40R-50-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TB-40R-75-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TB-40R-100-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TB-40R-125-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TB-40R-150-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TB-40R-200-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TB-40R-250-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TB-40R-300-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TB-40H-25-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TB-40H-50-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TB-40H-75-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TB-40H-100-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TB-40H-125-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TB-40H-150-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TB-40H-200-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TB-40H-250-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TB-40H-300-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TB-40D-25-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TB-40D-50-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TB-40D-75-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TB-40D-100-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TB-40D-125-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TB-40D-150-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TB-40D-200-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TB-40D-250-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TB-40D-300-FP1Mounting: Head-side trunnion | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-00-50B-25-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-00-50B-50-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-00-50B-75-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-00-50B-100-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-00-50B-125-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-00-50B-150-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-00-50B-200-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-00-50B-250-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-00-50B-300-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-00-50R-25-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-00-50R-50-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-00-50R-75-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-00-50R-100-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-00-50R-125-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-00-50R-150-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-00-50R-200-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-00-50R-250-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-00-50R-300-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-00-50H-25-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-00-50H-50-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-00-50H-75-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-00-50H-100-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-00-50H-125-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-00-50H-150-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-00-50H-200-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-00-50H-250-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-00-50H-300-FP1Mounting: Basic | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-00-50D-25-FP1Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-00-50D-50-FP1Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-00-50D-75-FP1Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-00-50D-100-FP1Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-00-50D-125-FP1Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-00-50D-150-FP1Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-00-50D-200-FP1Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-00-50D-250-FP1Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-00-50D-300-FP1Mounting: Basic | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-LB-50B-25-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-LB-50B-50-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-LB-50B-75-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-LB-50B-100-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-LB-50B-125-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-LB-50B-150-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-LB-50B-200-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-LB-50B-250-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-LB-50B-300-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-LB-50R-25-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-LB-50R-50-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-LB-50R-75-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-LB-50R-100-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-LB-50R-125-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-LB-50R-150-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-LB-50R-200-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-LB-50R-250-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-LB-50R-300-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-LB-50H-25-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-LB-50H-50-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-LB-50H-75-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-LB-50H-100-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-LB-50H-125-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-LB-50H-150-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-LB-50H-200-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-LB-50H-250-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-LB-50H-300-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-LB-50D-25-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-LB-50D-50-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-LB-50D-75-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-LB-50D-100-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-LB-50D-125-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-LB-50D-150-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-LB-50D-200-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-LB-50D-250-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-LB-50D-300-FP1Mounting: Axial foot | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FA-50B-25-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FA-50B-50-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FA-50B-75-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FA-50B-100-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FA-50B-125-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FA-50B-150-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FA-50B-200-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FA-50B-250-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FA-50B-300-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FA-50R-25-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FA-50R-50-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FA-50R-75-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FA-50R-100-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FA-50R-125-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FA-50R-150-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FA-50R-200-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FA-50R-250-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FA-50R-300-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FA-50H-25-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FA-50H-50-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FA-50H-75-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FA-50H-100-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FA-50H-125-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FA-50H-150-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FA-50H-200-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FA-50H-250-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FA-50H-300-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FA-50D-25-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FA-50D-50-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FA-50D-75-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FA-50D-100-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FA-50D-125-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FA-50D-150-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FA-50D-200-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FA-50D-250-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FA-50D-300-FP1Mounting: Rod-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FB-50B-25-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FB-50B-50-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FB-50B-75-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FB-50B-100-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FB-50B-125-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FB-50B-150-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FB-50B-200-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FB-50B-250-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FB-50B-300-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FB-50R-25-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FB-50R-50-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FB-50R-75-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FB-50R-100-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FB-50R-125-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FB-50R-150-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FB-50R-200-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FB-50R-250-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FB-50R-300-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FB-50H-25-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FB-50H-50-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FB-50H-75-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FB-50H-100-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FB-50H-125-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FB-50H-150-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FB-50H-200-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FB-50H-250-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FB-50H-300-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FB-50D-25-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FB-50D-50-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FB-50D-75-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FB-50D-100-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FB-50D-125-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FB-50D-150-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FB-50D-200-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FB-50D-250-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FB-50D-300-FP1Mounting: Head-side flange | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-CA-50B-25-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-CA-50B-50-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-CA-50B-75-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-CA-50B-100-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-CA-50B-125-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-CA-50B-150-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-CA-50B-200-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-CA-50B-250-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-CA-50B-300-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-CA-50R-25-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-CA-50R-50-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-CA-50R-75-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-CA-50R-100-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-CA-50R-125-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-CA-50R-150-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-CA-50R-200-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-CA-50R-250-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-CA-50R-300-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-CA-50H-25-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-CA-50H-50-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-CA-50H-75-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-CA-50H-100-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-CA-50H-125-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-CA-50H-150-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-CA-50H-200-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-CA-50H-250-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-CA-50H-300-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-CA-50D-25-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-CA-50D-50-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-CA-50D-75-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-CA-50D-100-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-CA-50D-125-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-CA-50D-150-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-CA-50D-200-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-CA-50D-250-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-CA-50D-300-FP1Mounting: Single clevis | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TA-50B-25-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TA-50B-50-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TA-50B-75-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TA-50B-100-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TA-50B-125-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TA-50B-150-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TA-50B-200-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TA-50B-250-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TA-50B-300-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TA-50R-25-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TA-50R-50-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TA-50R-75-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TA-50R-100-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TA-50R-125-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TA-50R-150-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TA-50R-200-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TA-50R-250-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TA-50R-300-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TA-50H-25-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TA-50H-50-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TA-50H-75-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TA-50H-100-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TA-50H-125-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TA-50H-150-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TA-50H-200-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TA-50H-250-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TA-50H-300-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TA-50D-25-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TA-50D-50-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TA-50D-75-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TA-50D-100-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TA-50D-125-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TA-50D-150-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TA-50D-200-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TA-50D-250-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TA-50D-300-FP1Mounting: Rod-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TB-50B-25-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TB-50B-50-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TB-50B-75-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TB-50B-100-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TB-50B-125-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TB-50B-150-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TB-50B-200-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TB-50B-250-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TB-50B-300-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TB-50R-25-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TB-50R-50-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TB-50R-75-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TB-50R-100-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TB-50R-125-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TB-50R-150-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TB-50R-200-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TB-50R-250-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TB-50R-300-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TB-50H-25-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TB-50H-50-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TB-50H-75-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TB-50H-100-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TB-50H-125-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TB-50H-150-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TB-50H-200-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TB-50H-250-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TB-50H-300-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TB-50D-25-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TB-50D-50-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TB-50D-75-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TB-50D-100-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TB-50D-125-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TB-50D-150-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TB-50D-200-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TB-50D-250-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TB-50D-300-FP1Mounting: Head-side trunnion | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-00-63B-25-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-00-63B-50-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-00-63B-75-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-00-63B-100-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-00-63B-125-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-00-63B-150-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-00-63B-200-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-00-63B-250-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-00-63B-300-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-00-63R-25-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-00-63R-50-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-00-63R-75-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-00-63R-100-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-00-63R-125-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-00-63R-150-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-00-63R-200-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-00-63R-250-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-00-63R-300-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-00-63H-25-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-00-63H-50-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-00-63H-75-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-00-63H-100-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-00-63H-125-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-00-63H-150-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-00-63H-200-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-00-63H-250-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-00-63H-300-FP1Mounting: Basic | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-00-63D-25-FP1Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-00-63D-50-FP1Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-00-63D-75-FP1Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-00-63D-100-FP1Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-00-63D-125-FP1Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-00-63D-150-FP1Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-00-63D-200-FP1Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-00-63D-250-FP1Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-00-63D-300-FP1Mounting: Basic | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-LB-63B-25-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-LB-63B-50-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-LB-63B-75-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-LB-63B-100-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-LB-63B-125-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-LB-63B-150-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-LB-63B-200-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-LB-63B-250-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-LB-63B-300-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-LB-63R-25-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-LB-63R-50-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-LB-63R-75-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-LB-63R-100-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-LB-63R-125-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-LB-63R-150-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-LB-63R-200-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-LB-63R-250-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-LB-63R-300-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-LB-63H-25-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-LB-63H-50-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-LB-63H-75-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-LB-63H-100-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-LB-63H-125-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-LB-63H-150-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-LB-63H-200-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-LB-63H-250-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-LB-63H-300-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-LB-63D-25-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-LB-63D-50-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-LB-63D-75-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-LB-63D-100-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-LB-63D-125-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-LB-63D-150-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-LB-63D-200-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-LB-63D-250-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-LB-63D-300-FP1Mounting: Axial foot | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FA-63B-25-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FA-63B-50-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FA-63B-75-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FA-63B-100-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FA-63B-125-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FA-63B-150-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FA-63B-200-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FA-63B-250-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FA-63B-300-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FA-63R-25-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FA-63R-50-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FA-63R-75-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FA-63R-100-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FA-63R-125-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FA-63R-150-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FA-63R-200-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FA-63R-250-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FA-63R-300-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FA-63H-25-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FA-63H-50-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FA-63H-75-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FA-63H-100-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FA-63H-125-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FA-63H-150-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FA-63H-200-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FA-63H-250-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FA-63H-300-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FA-63D-25-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FA-63D-50-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FA-63D-75-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FA-63D-100-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FA-63D-125-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FA-63D-150-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FA-63D-200-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FA-63D-250-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FA-63D-300-FP1Mounting: Rod-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-FB-63B-25-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-FB-63B-50-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-FB-63B-75-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-FB-63B-100-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-FB-63B-125-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-FB-63B-150-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-FB-63B-200-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-FB-63B-250-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-FB-63B-300-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-FB-63R-25-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-FB-63R-50-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-FB-63R-75-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-FB-63R-100-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-FB-63R-125-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-FB-63R-150-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-FB-63R-200-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-FB-63R-250-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-FB-63R-300-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-FB-63H-25-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-FB-63H-50-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-FB-63H-75-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-FB-63H-100-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-FB-63H-125-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-FB-63H-150-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-FB-63H-200-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-FB-63H-250-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-FB-63H-300-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-FB-63D-25-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-FB-63D-50-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-FB-63D-75-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-FB-63D-100-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-FB-63D-125-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-FB-63D-150-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-FB-63D-200-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-FB-63D-250-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-FB-63D-300-FP1Mounting: Head-side flange | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-CA-63B-25-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-CA-63B-50-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-CA-63B-75-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-CA-63B-100-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-CA-63B-125-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-CA-63B-150-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-CA-63B-200-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-CA-63B-250-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-CA-63B-300-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-CA-63R-25-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-CA-63R-50-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-CA-63R-75-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-CA-63R-100-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-CA-63R-125-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-CA-63R-150-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-CA-63R-200-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-CA-63R-250-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-CA-63R-300-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-CA-63H-25-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-CA-63H-50-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-CA-63H-75-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-CA-63H-100-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-CA-63H-125-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-CA-63H-150-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-CA-63H-200-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-CA-63H-250-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-CA-63H-300-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-CA-63D-25-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-CA-63D-50-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-CA-63D-75-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-CA-63D-100-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-CA-63D-125-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-CA-63D-150-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-CA-63D-200-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-CA-63D-250-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-CA-63D-300-FP1Mounting: Single clevis | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TA-63B-25-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TA-63B-50-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TA-63B-75-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TA-63B-100-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TA-63B-125-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TA-63B-150-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TA-63B-200-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TA-63B-250-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TA-63B-300-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TA-63R-25-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TA-63R-50-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TA-63R-75-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TA-63R-100-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TA-63R-125-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TA-63R-150-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TA-63R-200-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TA-63R-250-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TA-63R-300-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TA-63H-25-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TA-63H-50-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TA-63H-75-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TA-63H-100-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TA-63H-125-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TA-63H-150-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TA-63H-200-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TA-63H-250-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TA-63H-300-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TA-63D-25-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TA-63D-50-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TA-63D-75-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TA-63D-100-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TA-63D-125-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TA-63D-150-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TA-63D-200-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TA-63D-250-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TA-63D-300-FP1Mounting: Rod-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 300 mm
SCM-W4-TB-63B-25-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 25 mm
SCM-W4-TB-63B-50-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 50 mm
SCM-W4-TB-63B-75-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 75 mm
SCM-W4-TB-63B-100-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 100 mm
SCM-W4-TB-63B-125-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 125 mm
SCM-W4-TB-63B-150-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 150 mm
SCM-W4-TB-63B-200-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 200 mm
SCM-W4-TB-63B-250-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 250 mm
SCM-W4-TB-63B-300-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, both ends | Stroke: 300 mm
SCM-W4-TB-63R-25-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 25 mm
SCM-W4-TB-63R-50-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 50 mm
SCM-W4-TB-63R-75-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 75 mm
SCM-W4-TB-63R-100-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 100 mm
SCM-W4-TB-63R-125-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 125 mm
SCM-W4-TB-63R-150-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 150 mm
SCM-W4-TB-63R-200-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 200 mm
SCM-W4-TB-63R-250-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 250 mm
SCM-W4-TB-63R-300-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, rod end | Stroke: 300 mm
SCM-W4-TB-63H-25-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 25 mm
SCM-W4-TB-63H-50-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 50 mm
SCM-W4-TB-63H-75-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 75 mm
SCM-W4-TB-63H-100-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 100 mm
SCM-W4-TB-63H-125-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 125 mm
SCM-W4-TB-63H-150-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 150 mm
SCM-W4-TB-63H-200-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 200 mm
SCM-W4-TB-63H-250-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 250 mm
SCM-W4-TB-63H-300-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Air, head end | Stroke: 300 mm
SCM-W4-TB-63D-25-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SCM-W4-TB-63D-50-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SCM-W4-TB-63D-75-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SCM-W4-TB-63D-100-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SCM-W4-TB-63D-125-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 125 mm
SCM-W4-TB-63D-150-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 150 mm
SCM-W4-TB-63D-200-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 200 mm
SCM-W4-TB-63D-250-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 250 mm
SCM-W4-TB-63D-300-FP1Mounting: Head-side trunnion | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
