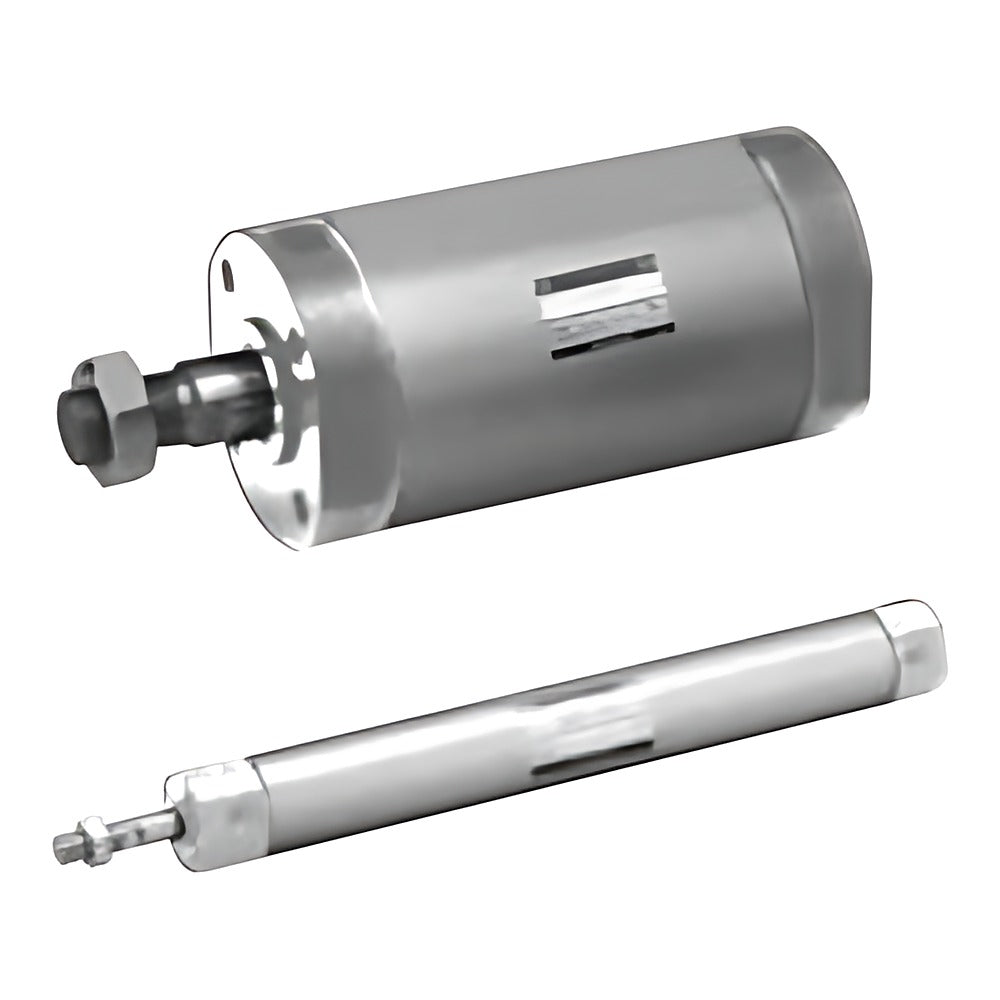

CKD SCM-X/Y-FP1 Super Micro Cylinder (Single Acting)

CKD SCM-X/Y-FP1 Super Micro Cylinder (Single Acting)

CKD SCM-X/Y-FP1 single-acting (push X / pull Y) super micro cylinder, bore 20-40 mm, with NSF H1 food-grade grease.

Key features

  • NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
  • Super micro cylinder with switch magnet built in
  • Auto switches (T0H/T2H/T3H/T2WH etc.) with count R/H/D/T/4, band mounting Z, bellows J/K/L, switch rail Q, stainless rod M and rod-end I/Y/B1/B2 ordered as suffixes
  • Intermediate strokes in 1 mm steps; NPT (N) / G (G) port threads made to order
  • Air cushion not selectable; standard strokes 25-200 mm

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (20-40), 0.05 MPa (50-100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C
Piston speed 30-1000 mm/s
Cushion Rubber, both ends
Source CKD Korea catalog CC-1271K, p. 64-68
SCM-X-00-20D-25-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
SCM-X-00-20D-50-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
SCM-X-00-20D-75-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
SCM-X-00-20D-100-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
SCM-X-00-20D-125-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 20 mm | Stroke: 125 mm
SCM-X-00-20D-150-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
SCM-X-00-20D-200-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
SCM-X-LB-20D-25-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm
SCM-X-LB-20D-50-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm
SCM-X-LB-20D-75-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm
SCM-X-LB-20D-100-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm
SCM-X-LB-20D-125-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 20 mm | Stroke: 125 mm
SCM-X-LB-20D-150-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm
SCM-X-LB-20D-200-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm
SCM-X-FA-20D-25-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 25 mm
SCM-X-FA-20D-50-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 50 mm
SCM-X-FA-20D-75-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 75 mm
SCM-X-FA-20D-100-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 100 mm
SCM-X-FA-20D-125-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 125 mm
SCM-X-FA-20D-150-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 150 mm
SCM-X-FA-20D-200-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 200 mm
SCM-X-FB-20D-25-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 25 mm
SCM-X-FB-20D-50-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 50 mm
SCM-X-FB-20D-75-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 75 mm
SCM-X-FB-20D-100-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 100 mm
SCM-X-FB-20D-125-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 125 mm
SCM-X-FB-20D-150-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 150 mm
SCM-X-FB-20D-200-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 200 mm
SCM-X-CA-20D-25-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
SCM-X-CA-20D-50-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
SCM-X-CA-20D-75-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
SCM-X-CA-20D-100-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
SCM-X-CA-20D-125-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 20 mm | Stroke: 125 mm
SCM-X-CA-20D-150-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
SCM-X-CA-20D-200-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm
SCM-X-TA-20D-25-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 25 mm
SCM-X-TA-20D-50-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 50 mm
SCM-X-TA-20D-75-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 75 mm
SCM-X-TA-20D-100-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 100 mm
SCM-X-TA-20D-125-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 125 mm
SCM-X-TA-20D-150-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 150 mm
SCM-X-TA-20D-200-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 200 mm
SCM-X-TB-20D-25-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 25 mm
SCM-X-TB-20D-50-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 50 mm
SCM-X-TB-20D-75-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 75 mm
SCM-X-TB-20D-100-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 100 mm
SCM-X-TB-20D-125-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 125 mm
SCM-X-TB-20D-150-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 150 mm
SCM-X-TB-20D-200-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 200 mm
SCM-X-00-25D-25-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
SCM-X-00-25D-50-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
SCM-X-00-25D-75-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
SCM-X-00-25D-100-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
SCM-X-00-25D-125-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 25 mm | Stroke: 125 mm
SCM-X-00-25D-150-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
SCM-X-00-25D-200-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
SCM-X-LB-25D-25-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 25 mm | Stroke: 25 mm
SCM-X-LB-25D-50-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 25 mm | Stroke: 50 mm
SCM-X-LB-25D-75-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 25 mm | Stroke: 75 mm
SCM-X-LB-25D-100-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 25 mm | Stroke: 100 mm
SCM-X-LB-25D-125-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 25 mm | Stroke: 125 mm
SCM-X-LB-25D-150-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 25 mm | Stroke: 150 mm
SCM-X-LB-25D-200-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 25 mm | Stroke: 200 mm
SCM-X-FA-25D-25-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 25 mm
SCM-X-FA-25D-50-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 50 mm
SCM-X-FA-25D-75-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 75 mm
SCM-X-FA-25D-100-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 100 mm
SCM-X-FA-25D-125-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 125 mm
SCM-X-FA-25D-150-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 150 mm
SCM-X-FA-25D-200-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 200 mm
SCM-X-FB-25D-25-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 25 mm
SCM-X-FB-25D-50-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 50 mm
SCM-X-FB-25D-75-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 75 mm
SCM-X-FB-25D-100-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 100 mm
SCM-X-FB-25D-125-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 125 mm
SCM-X-FB-25D-150-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 150 mm
SCM-X-FB-25D-200-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 200 mm
SCM-X-CA-25D-25-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm
SCM-X-CA-25D-50-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm
SCM-X-CA-25D-75-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm
SCM-X-CA-25D-100-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm
SCM-X-CA-25D-125-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 25 mm | Stroke: 125 mm
SCM-X-CA-25D-150-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm
SCM-X-CA-25D-200-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm
SCM-X-TA-25D-25-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 25 mm
SCM-X-TA-25D-50-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 50 mm
SCM-X-TA-25D-75-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 75 mm
SCM-X-TA-25D-100-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 100 mm
SCM-X-TA-25D-125-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 125 mm
SCM-X-TA-25D-150-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 150 mm
SCM-X-TA-25D-200-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 200 mm
SCM-X-TB-25D-25-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 25 mm
SCM-X-TB-25D-50-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 50 mm
SCM-X-TB-25D-75-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 75 mm
SCM-X-TB-25D-100-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 100 mm
SCM-X-TB-25D-125-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 125 mm
SCM-X-TB-25D-150-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 150 mm
SCM-X-TB-25D-200-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 200 mm
SCM-X-00-32D-25-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
SCM-X-00-32D-50-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
SCM-X-00-32D-75-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
SCM-X-00-32D-100-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
SCM-X-00-32D-125-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 32 mm | Stroke: 125 mm
SCM-X-00-32D-150-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
SCM-X-00-32D-200-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
SCM-X-LB-32D-25-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 32 mm | Stroke: 25 mm
SCM-X-LB-32D-50-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 32 mm | Stroke: 50 mm
SCM-X-LB-32D-75-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 32 mm | Stroke: 75 mm
SCM-X-LB-32D-100-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 32 mm | Stroke: 100 mm
SCM-X-LB-32D-125-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 32 mm | Stroke: 125 mm
SCM-X-LB-32D-150-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 32 mm | Stroke: 150 mm
SCM-X-LB-32D-200-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 32 mm | Stroke: 200 mm
SCM-X-FA-32D-25-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 25 mm
SCM-X-FA-32D-50-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 50 mm
SCM-X-FA-32D-75-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 75 mm
SCM-X-FA-32D-100-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 100 mm
SCM-X-FA-32D-125-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 125 mm
SCM-X-FA-32D-150-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 150 mm
SCM-X-FA-32D-200-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 200 mm
SCM-X-FB-32D-25-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 25 mm
SCM-X-FB-32D-50-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 50 mm
SCM-X-FB-32D-75-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 75 mm
SCM-X-FB-32D-100-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 100 mm
SCM-X-FB-32D-125-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 125 mm
SCM-X-FB-32D-150-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 150 mm
SCM-X-FB-32D-200-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 200 mm
SCM-X-CA-32D-25-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm
SCM-X-CA-32D-50-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm
SCM-X-CA-32D-75-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm
SCM-X-CA-32D-100-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm
SCM-X-CA-32D-125-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 32 mm | Stroke: 125 mm
SCM-X-CA-32D-150-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm
SCM-X-CA-32D-200-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm
SCM-X-TA-32D-25-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 25 mm
SCM-X-TA-32D-50-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 50 mm
SCM-X-TA-32D-75-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 75 mm
SCM-X-TA-32D-100-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 100 mm
SCM-X-TA-32D-125-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 125 mm
SCM-X-TA-32D-150-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 150 mm
SCM-X-TA-32D-200-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 200 mm
SCM-X-TB-32D-25-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 25 mm
SCM-X-TB-32D-50-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 50 mm
SCM-X-TB-32D-75-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 75 mm
SCM-X-TB-32D-100-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 100 mm
SCM-X-TB-32D-125-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 125 mm
SCM-X-TB-32D-150-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 150 mm
SCM-X-TB-32D-200-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 200 mm
SCM-X-00-40D-25-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
SCM-X-00-40D-50-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
SCM-X-00-40D-75-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
SCM-X-00-40D-100-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
SCM-X-00-40D-125-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 40 mm | Stroke: 125 mm
SCM-X-00-40D-150-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
SCM-X-00-40D-200-FP1 Type: Single acting, push (X) | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
SCM-X-LB-40D-25-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm
SCM-X-LB-40D-50-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm
SCM-X-LB-40D-75-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm
SCM-X-LB-40D-100-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm
SCM-X-LB-40D-125-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 40 mm | Stroke: 125 mm
SCM-X-LB-40D-150-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm
SCM-X-LB-40D-200-FP1 Type: Single acting, push (X) | Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm
SCM-X-FA-40D-25-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 25 mm
SCM-X-FA-40D-50-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 50 mm
SCM-X-FA-40D-75-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 75 mm
SCM-X-FA-40D-100-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 100 mm
SCM-X-FA-40D-125-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 125 mm
SCM-X-FA-40D-150-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 150 mm
SCM-X-FA-40D-200-FP1 Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 200 mm
SCM-X-FB-40D-25-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 25 mm
SCM-X-FB-40D-50-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 50 mm
SCM-X-FB-40D-75-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 75 mm
SCM-X-FB-40D-100-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 100 mm
SCM-X-FB-40D-125-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 125 mm
SCM-X-FB-40D-150-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 150 mm
SCM-X-FB-40D-200-FP1 Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 200 mm
SCM-X-CA-40D-25-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
SCM-X-CA-40D-50-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
SCM-X-CA-40D-75-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
SCM-X-CA-40D-100-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
SCM-X-CA-40D-125-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 40 mm | Stroke: 125 mm
SCM-X-CA-40D-150-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
SCM-X-CA-40D-200-FP1 Type: Single acting, push (X) | Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
SCM-X-TA-40D-25-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 25 mm
SCM-X-TA-40D-50-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 50 mm
SCM-X-TA-40D-75-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 75 mm
SCM-X-TA-40D-100-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 100 mm
SCM-X-TA-40D-125-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 125 mm
SCM-X-TA-40D-150-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 150 mm
SCM-X-TA-40D-200-FP1 Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 200 mm
SCM-X-TB-40D-25-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 25 mm
SCM-X-TB-40D-50-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 50 mm
SCM-X-TB-40D-75-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 75 mm
SCM-X-TB-40D-100-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 100 mm
SCM-X-TB-40D-125-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 125 mm
SCM-X-TB-40D-150-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 150 mm
SCM-X-TB-40D-200-FP1 Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 200 mm
SCM-Y-00-20D-25-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
SCM-Y-00-20D-50-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
SCM-Y-00-20D-75-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
SCM-Y-00-20D-100-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
SCM-Y-00-20D-125-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 20 mm | Stroke: 125 mm
SCM-Y-00-20D-150-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
SCM-Y-00-20D-200-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
SCM-Y-LB-20D-25-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm
SCM-Y-LB-20D-50-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm
SCM-Y-LB-20D-75-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm
SCM-Y-LB-20D-100-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm
SCM-Y-LB-20D-125-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 20 mm | Stroke: 125 mm
SCM-Y-LB-20D-150-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm
SCM-Y-LB-20D-200-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm
SCM-Y-FA-20D-25-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 25 mm
SCM-Y-FA-20D-50-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 50 mm
SCM-Y-FA-20D-75-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 75 mm
SCM-Y-FA-20D-100-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 100 mm
SCM-Y-FA-20D-125-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 125 mm
SCM-Y-FA-20D-150-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 150 mm
SCM-Y-FA-20D-200-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 200 mm
SCM-Y-FB-20D-25-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 25 mm
SCM-Y-FB-20D-50-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 50 mm
SCM-Y-FB-20D-75-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 75 mm
SCM-Y-FB-20D-100-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 100 mm
SCM-Y-FB-20D-125-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 125 mm
SCM-Y-FB-20D-150-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 150 mm
SCM-Y-FB-20D-200-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 200 mm
SCM-Y-CA-20D-25-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
SCM-Y-CA-20D-50-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
SCM-Y-CA-20D-75-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
SCM-Y-CA-20D-100-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
SCM-Y-CA-20D-125-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 20 mm | Stroke: 125 mm
SCM-Y-CA-20D-150-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
SCM-Y-CA-20D-200-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm
SCM-Y-TA-20D-25-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 25 mm
SCM-Y-TA-20D-50-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 50 mm
SCM-Y-TA-20D-75-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 75 mm
SCM-Y-TA-20D-100-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 100 mm
SCM-Y-TA-20D-125-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 125 mm
SCM-Y-TA-20D-150-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 150 mm
SCM-Y-TA-20D-200-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 200 mm
SCM-Y-TB-20D-25-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 25 mm
SCM-Y-TB-20D-50-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 50 mm
SCM-Y-TB-20D-75-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 75 mm
SCM-Y-TB-20D-100-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 100 mm
SCM-Y-TB-20D-125-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 125 mm
SCM-Y-TB-20D-150-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 150 mm
SCM-Y-TB-20D-200-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 200 mm
SCM-Y-00-25D-25-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
SCM-Y-00-25D-50-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
SCM-Y-00-25D-75-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
SCM-Y-00-25D-100-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
SCM-Y-00-25D-125-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 25 mm | Stroke: 125 mm
SCM-Y-00-25D-150-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
SCM-Y-00-25D-200-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
SCM-Y-LB-25D-25-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 25 mm | Stroke: 25 mm
SCM-Y-LB-25D-50-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 25 mm | Stroke: 50 mm
SCM-Y-LB-25D-75-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 25 mm | Stroke: 75 mm
SCM-Y-LB-25D-100-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 25 mm | Stroke: 100 mm
SCM-Y-LB-25D-125-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 25 mm | Stroke: 125 mm
SCM-Y-LB-25D-150-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 25 mm | Stroke: 150 mm
SCM-Y-LB-25D-200-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 25 mm | Stroke: 200 mm
SCM-Y-FA-25D-25-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 25 mm
SCM-Y-FA-25D-50-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 50 mm
SCM-Y-FA-25D-75-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 75 mm
SCM-Y-FA-25D-100-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 100 mm
SCM-Y-FA-25D-125-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 125 mm
SCM-Y-FA-25D-150-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 150 mm
SCM-Y-FA-25D-200-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 200 mm
SCM-Y-FB-25D-25-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 25 mm
SCM-Y-FB-25D-50-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 50 mm
SCM-Y-FB-25D-75-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 75 mm
SCM-Y-FB-25D-100-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 100 mm
SCM-Y-FB-25D-125-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 125 mm
SCM-Y-FB-25D-150-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 150 mm
SCM-Y-FB-25D-200-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 200 mm
SCM-Y-CA-25D-25-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm
SCM-Y-CA-25D-50-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm
SCM-Y-CA-25D-75-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm
SCM-Y-CA-25D-100-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm
SCM-Y-CA-25D-125-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 25 mm | Stroke: 125 mm
SCM-Y-CA-25D-150-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm
SCM-Y-CA-25D-200-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm
SCM-Y-TA-25D-25-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 25 mm
SCM-Y-TA-25D-50-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 50 mm
SCM-Y-TA-25D-75-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 75 mm
SCM-Y-TA-25D-100-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 100 mm
SCM-Y-TA-25D-125-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 125 mm
SCM-Y-TA-25D-150-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 150 mm
SCM-Y-TA-25D-200-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 200 mm
SCM-Y-TB-25D-25-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 25 mm
SCM-Y-TB-25D-50-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 50 mm
SCM-Y-TB-25D-75-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 75 mm
SCM-Y-TB-25D-100-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 100 mm
SCM-Y-TB-25D-125-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 125 mm
SCM-Y-TB-25D-150-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 150 mm
SCM-Y-TB-25D-200-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 200 mm
SCM-Y-00-32D-25-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
SCM-Y-00-32D-50-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
SCM-Y-00-32D-75-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
SCM-Y-00-32D-100-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
SCM-Y-00-32D-125-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 32 mm | Stroke: 125 mm
SCM-Y-00-32D-150-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
SCM-Y-00-32D-200-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
SCM-Y-LB-32D-25-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 32 mm | Stroke: 25 mm
SCM-Y-LB-32D-50-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 32 mm | Stroke: 50 mm
SCM-Y-LB-32D-75-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 32 mm | Stroke: 75 mm
SCM-Y-LB-32D-100-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 32 mm | Stroke: 100 mm
SCM-Y-LB-32D-125-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 32 mm | Stroke: 125 mm
SCM-Y-LB-32D-150-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 32 mm | Stroke: 150 mm
SCM-Y-LB-32D-200-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 32 mm | Stroke: 200 mm
SCM-Y-FA-32D-25-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 25 mm
SCM-Y-FA-32D-50-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 50 mm
SCM-Y-FA-32D-75-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 75 mm
SCM-Y-FA-32D-100-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 100 mm
SCM-Y-FA-32D-125-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 125 mm
SCM-Y-FA-32D-150-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 150 mm
SCM-Y-FA-32D-200-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 200 mm
SCM-Y-FB-32D-25-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 25 mm
SCM-Y-FB-32D-50-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 50 mm
SCM-Y-FB-32D-75-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 75 mm
SCM-Y-FB-32D-100-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 100 mm
SCM-Y-FB-32D-125-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 125 mm
SCM-Y-FB-32D-150-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 150 mm
SCM-Y-FB-32D-200-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 200 mm
SCM-Y-CA-32D-25-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm
SCM-Y-CA-32D-50-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm
SCM-Y-CA-32D-75-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm
SCM-Y-CA-32D-100-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm
SCM-Y-CA-32D-125-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 32 mm | Stroke: 125 mm
SCM-Y-CA-32D-150-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm
SCM-Y-CA-32D-200-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm
SCM-Y-TA-32D-25-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 25 mm
SCM-Y-TA-32D-50-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 50 mm
SCM-Y-TA-32D-75-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 75 mm
SCM-Y-TA-32D-100-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 100 mm
SCM-Y-TA-32D-125-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 125 mm
SCM-Y-TA-32D-150-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 150 mm
SCM-Y-TA-32D-200-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 200 mm
SCM-Y-TB-32D-25-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 25 mm
SCM-Y-TB-32D-50-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 50 mm
SCM-Y-TB-32D-75-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 75 mm
SCM-Y-TB-32D-100-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 100 mm
SCM-Y-TB-32D-125-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 125 mm
SCM-Y-TB-32D-150-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 150 mm
SCM-Y-TB-32D-200-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 200 mm
SCM-Y-00-40D-25-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
SCM-Y-00-40D-50-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
SCM-Y-00-40D-75-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
SCM-Y-00-40D-100-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
SCM-Y-00-40D-125-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 40 mm | Stroke: 125 mm
SCM-Y-00-40D-150-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
SCM-Y-00-40D-200-FP1 Type: Single acting, pull (Y) | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
SCM-Y-LB-40D-25-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm
SCM-Y-LB-40D-50-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm
SCM-Y-LB-40D-75-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm
SCM-Y-LB-40D-100-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm
SCM-Y-LB-40D-125-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 40 mm | Stroke: 125 mm
SCM-Y-LB-40D-150-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm
SCM-Y-LB-40D-200-FP1 Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm
SCM-Y-FA-40D-25-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 25 mm
SCM-Y-FA-40D-50-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 50 mm
SCM-Y-FA-40D-75-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 75 mm
SCM-Y-FA-40D-100-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 100 mm
SCM-Y-FA-40D-125-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 125 mm
SCM-Y-FA-40D-150-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 150 mm
SCM-Y-FA-40D-200-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 200 mm
SCM-Y-FB-40D-25-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 25 mm
SCM-Y-FB-40D-50-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 50 mm
SCM-Y-FB-40D-75-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 75 mm
SCM-Y-FB-40D-100-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 100 mm
SCM-Y-FB-40D-125-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 125 mm
SCM-Y-FB-40D-150-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 150 mm
SCM-Y-FB-40D-200-FP1 Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 200 mm
SCM-Y-CA-40D-25-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
SCM-Y-CA-40D-50-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
SCM-Y-CA-40D-75-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
SCM-Y-CA-40D-100-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
SCM-Y-CA-40D-125-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 40 mm | Stroke: 125 mm
SCM-Y-CA-40D-150-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
SCM-Y-CA-40D-200-FP1 Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
SCM-Y-TA-40D-25-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 25 mm
SCM-Y-TA-40D-50-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 50 mm
SCM-Y-TA-40D-75-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 75 mm
SCM-Y-TA-40D-100-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 100 mm
SCM-Y-TA-40D-125-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 125 mm
SCM-Y-TA-40D-150-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 150 mm
SCM-Y-TA-40D-200-FP1 Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 200 mm
SCM-Y-TB-40D-25-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 25 mm
SCM-Y-TB-40D-50-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 50 mm
SCM-Y-TB-40D-75-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 75 mm
SCM-Y-TB-40D-100-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 100 mm
SCM-Y-TB-40D-125-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 125 mm
SCM-Y-TB-40D-150-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 150 mm
SCM-Y-TB-40D-200-FP1 Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 200 mm
Pneumatic CylindersCKD
392 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-X/Y-FP1 Super Micro Cylinder (Single Acting)

Brand CKD·Pneumatic Cylinders

Available part numbers (392)

SCM-X-00-20D-25-FP1, SCM-X-00-20D-50-FP1, SCM-X-00-20D-75-FP1, SCM-X-00-20D-100-FP1, SCM-X-00-20D-125-FP1, SCM-X-00-20D-150-FP1, SCM-X-00-20D-200-FP1, SCM-X-LB-20D-25-FP1, SCM-X-LB-20D-50-FP1, SCM-X-LB-20D-75-FP1 + 382 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCM-X-00-20D-25-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
SCM-X-00-20D-50-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
SCM-X-00-20D-75-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
SCM-X-00-20D-100-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
SCM-X-00-20D-125-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 20 mm | Stroke: 125 mm
SCM-X-00-20D-150-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
SCM-X-00-20D-200-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
SCM-X-LB-20D-25-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm
SCM-X-LB-20D-50-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm
SCM-X-LB-20D-75-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm
SCM-X-LB-20D-100-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm
SCM-X-LB-20D-125-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 20 mm | Stroke: 125 mm
SCM-X-LB-20D-150-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm
SCM-X-LB-20D-200-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm
SCM-X-FA-20D-25-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 25 mm
SCM-X-FA-20D-50-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 50 mm
SCM-X-FA-20D-75-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 75 mm
SCM-X-FA-20D-100-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 100 mm
SCM-X-FA-20D-125-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 125 mm
SCM-X-FA-20D-150-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 150 mm
SCM-X-FA-20D-200-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 200 mm
SCM-X-FB-20D-25-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 25 mm
SCM-X-FB-20D-50-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 50 mm
SCM-X-FB-20D-75-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 75 mm
SCM-X-FB-20D-100-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 100 mm
SCM-X-FB-20D-125-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 125 mm
SCM-X-FB-20D-150-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 150 mm
SCM-X-FB-20D-200-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 200 mm
SCM-X-CA-20D-25-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
SCM-X-CA-20D-50-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
SCM-X-CA-20D-75-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
SCM-X-CA-20D-100-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
SCM-X-CA-20D-125-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 20 mm | Stroke: 125 mm
SCM-X-CA-20D-150-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
SCM-X-CA-20D-200-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm
SCM-X-TA-20D-25-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 25 mm
SCM-X-TA-20D-50-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 50 mm
SCM-X-TA-20D-75-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 75 mm
SCM-X-TA-20D-100-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 100 mm
SCM-X-TA-20D-125-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 125 mm
SCM-X-TA-20D-150-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 150 mm
SCM-X-TA-20D-200-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 200 mm
SCM-X-TB-20D-25-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 25 mm
SCM-X-TB-20D-50-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 50 mm
SCM-X-TB-20D-75-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 75 mm
SCM-X-TB-20D-100-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 100 mm
SCM-X-TB-20D-125-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 125 mm
SCM-X-TB-20D-150-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 150 mm
SCM-X-TB-20D-200-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 200 mm
SCM-X-00-25D-25-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
SCM-X-00-25D-50-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
SCM-X-00-25D-75-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
SCM-X-00-25D-100-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
SCM-X-00-25D-125-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 25 mm | Stroke: 125 mm
SCM-X-00-25D-150-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
SCM-X-00-25D-200-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
SCM-X-LB-25D-25-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 25 mm | Stroke: 25 mm
SCM-X-LB-25D-50-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 25 mm | Stroke: 50 mm
SCM-X-LB-25D-75-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 25 mm | Stroke: 75 mm
SCM-X-LB-25D-100-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 25 mm | Stroke: 100 mm
SCM-X-LB-25D-125-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 25 mm | Stroke: 125 mm
SCM-X-LB-25D-150-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 25 mm | Stroke: 150 mm
SCM-X-LB-25D-200-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 25 mm | Stroke: 200 mm
SCM-X-FA-25D-25-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 25 mm
SCM-X-FA-25D-50-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 50 mm
SCM-X-FA-25D-75-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 75 mm
SCM-X-FA-25D-100-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 100 mm
SCM-X-FA-25D-125-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 125 mm
SCM-X-FA-25D-150-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 150 mm
SCM-X-FA-25D-200-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 200 mm
SCM-X-FB-25D-25-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 25 mm
SCM-X-FB-25D-50-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 50 mm
SCM-X-FB-25D-75-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 75 mm
SCM-X-FB-25D-100-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 100 mm
SCM-X-FB-25D-125-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 125 mm
SCM-X-FB-25D-150-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 150 mm
SCM-X-FB-25D-200-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 200 mm
SCM-X-CA-25D-25-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm
SCM-X-CA-25D-50-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm
SCM-X-CA-25D-75-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm
SCM-X-CA-25D-100-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm
SCM-X-CA-25D-125-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 25 mm | Stroke: 125 mm
SCM-X-CA-25D-150-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm
SCM-X-CA-25D-200-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm
SCM-X-TA-25D-25-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 25 mm
SCM-X-TA-25D-50-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 50 mm
SCM-X-TA-25D-75-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 75 mm
SCM-X-TA-25D-100-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 100 mm
SCM-X-TA-25D-125-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 125 mm
SCM-X-TA-25D-150-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 150 mm
SCM-X-TA-25D-200-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 200 mm
SCM-X-TB-25D-25-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 25 mm
SCM-X-TB-25D-50-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 50 mm
SCM-X-TB-25D-75-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 75 mm
SCM-X-TB-25D-100-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 100 mm
SCM-X-TB-25D-125-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 125 mm
SCM-X-TB-25D-150-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 150 mm
SCM-X-TB-25D-200-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 200 mm
SCM-X-00-32D-25-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
SCM-X-00-32D-50-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
SCM-X-00-32D-75-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
SCM-X-00-32D-100-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
SCM-X-00-32D-125-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 32 mm | Stroke: 125 mm
SCM-X-00-32D-150-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
SCM-X-00-32D-200-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
SCM-X-LB-32D-25-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 32 mm | Stroke: 25 mm
SCM-X-LB-32D-50-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 32 mm | Stroke: 50 mm
SCM-X-LB-32D-75-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 32 mm | Stroke: 75 mm
SCM-X-LB-32D-100-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 32 mm | Stroke: 100 mm
SCM-X-LB-32D-125-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 32 mm | Stroke: 125 mm
SCM-X-LB-32D-150-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 32 mm | Stroke: 150 mm
SCM-X-LB-32D-200-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 32 mm | Stroke: 200 mm
SCM-X-FA-32D-25-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 25 mm
SCM-X-FA-32D-50-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 50 mm
SCM-X-FA-32D-75-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 75 mm
SCM-X-FA-32D-100-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 100 mm
SCM-X-FA-32D-125-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 125 mm
SCM-X-FA-32D-150-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 150 mm
SCM-X-FA-32D-200-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 200 mm
SCM-X-FB-32D-25-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 25 mm
SCM-X-FB-32D-50-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 50 mm
SCM-X-FB-32D-75-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 75 mm
SCM-X-FB-32D-100-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 100 mm
SCM-X-FB-32D-125-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 125 mm
SCM-X-FB-32D-150-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 150 mm
SCM-X-FB-32D-200-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 200 mm
SCM-X-CA-32D-25-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm
SCM-X-CA-32D-50-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm
SCM-X-CA-32D-75-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm
SCM-X-CA-32D-100-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm
SCM-X-CA-32D-125-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 32 mm | Stroke: 125 mm
SCM-X-CA-32D-150-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm
SCM-X-CA-32D-200-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm
SCM-X-TA-32D-25-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 25 mm
SCM-X-TA-32D-50-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 50 mm
SCM-X-TA-32D-75-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 75 mm
SCM-X-TA-32D-100-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 100 mm
SCM-X-TA-32D-125-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 125 mm
SCM-X-TA-32D-150-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 150 mm
SCM-X-TA-32D-200-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 200 mm
SCM-X-TB-32D-25-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 25 mm
SCM-X-TB-32D-50-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 50 mm
SCM-X-TB-32D-75-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 75 mm
SCM-X-TB-32D-100-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 100 mm
SCM-X-TB-32D-125-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 125 mm
SCM-X-TB-32D-150-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 150 mm
SCM-X-TB-32D-200-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 200 mm
SCM-X-00-40D-25-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
SCM-X-00-40D-50-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
SCM-X-00-40D-75-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
SCM-X-00-40D-100-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
SCM-X-00-40D-125-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 40 mm | Stroke: 125 mm
SCM-X-00-40D-150-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
SCM-X-00-40D-200-FP1Type: Single acting, push (X) | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
SCM-X-LB-40D-25-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm
SCM-X-LB-40D-50-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm
SCM-X-LB-40D-75-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm
SCM-X-LB-40D-100-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm
SCM-X-LB-40D-125-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 40 mm | Stroke: 125 mm
SCM-X-LB-40D-150-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm
SCM-X-LB-40D-200-FP1Type: Single acting, push (X) | Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm
SCM-X-FA-40D-25-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 25 mm
SCM-X-FA-40D-50-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 50 mm
SCM-X-FA-40D-75-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 75 mm
SCM-X-FA-40D-100-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 100 mm
SCM-X-FA-40D-125-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 125 mm
SCM-X-FA-40D-150-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 150 mm
SCM-X-FA-40D-200-FP1Type: Single acting, push (X) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 200 mm
SCM-X-FB-40D-25-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 25 mm
SCM-X-FB-40D-50-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 50 mm
SCM-X-FB-40D-75-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 75 mm
SCM-X-FB-40D-100-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 100 mm
SCM-X-FB-40D-125-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 125 mm
SCM-X-FB-40D-150-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 150 mm
SCM-X-FB-40D-200-FP1Type: Single acting, push (X) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 200 mm
SCM-X-CA-40D-25-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
SCM-X-CA-40D-50-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
SCM-X-CA-40D-75-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
SCM-X-CA-40D-100-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
SCM-X-CA-40D-125-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 40 mm | Stroke: 125 mm
SCM-X-CA-40D-150-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
SCM-X-CA-40D-200-FP1Type: Single acting, push (X) | Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
SCM-X-TA-40D-25-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 25 mm
SCM-X-TA-40D-50-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 50 mm
SCM-X-TA-40D-75-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 75 mm
SCM-X-TA-40D-100-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 100 mm
SCM-X-TA-40D-125-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 125 mm
SCM-X-TA-40D-150-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 150 mm
SCM-X-TA-40D-200-FP1Type: Single acting, push (X) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 200 mm
SCM-X-TB-40D-25-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 25 mm
SCM-X-TB-40D-50-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 50 mm
SCM-X-TB-40D-75-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 75 mm
SCM-X-TB-40D-100-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 100 mm
SCM-X-TB-40D-125-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 125 mm
SCM-X-TB-40D-150-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 150 mm
SCM-X-TB-40D-200-FP1Type: Single acting, push (X) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 200 mm
SCM-Y-00-20D-25-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
SCM-Y-00-20D-50-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
SCM-Y-00-20D-75-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
SCM-Y-00-20D-100-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
SCM-Y-00-20D-125-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 20 mm | Stroke: 125 mm
SCM-Y-00-20D-150-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
SCM-Y-00-20D-200-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
SCM-Y-LB-20D-25-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm
SCM-Y-LB-20D-50-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm
SCM-Y-LB-20D-75-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm
SCM-Y-LB-20D-100-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm
SCM-Y-LB-20D-125-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 20 mm | Stroke: 125 mm
SCM-Y-LB-20D-150-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm
SCM-Y-LB-20D-200-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm
SCM-Y-FA-20D-25-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 25 mm
SCM-Y-FA-20D-50-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 50 mm
SCM-Y-FA-20D-75-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 75 mm
SCM-Y-FA-20D-100-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 100 mm
SCM-Y-FA-20D-125-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 125 mm
SCM-Y-FA-20D-150-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 150 mm
SCM-Y-FA-20D-200-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 200 mm
SCM-Y-FB-20D-25-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 25 mm
SCM-Y-FB-20D-50-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 50 mm
SCM-Y-FB-20D-75-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 75 mm
SCM-Y-FB-20D-100-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 100 mm
SCM-Y-FB-20D-125-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 125 mm
SCM-Y-FB-20D-150-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 150 mm
SCM-Y-FB-20D-200-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 200 mm
SCM-Y-CA-20D-25-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
SCM-Y-CA-20D-50-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
SCM-Y-CA-20D-75-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
SCM-Y-CA-20D-100-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
SCM-Y-CA-20D-125-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 20 mm | Stroke: 125 mm
SCM-Y-CA-20D-150-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
SCM-Y-CA-20D-200-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm
SCM-Y-TA-20D-25-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 25 mm
SCM-Y-TA-20D-50-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 50 mm
SCM-Y-TA-20D-75-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 75 mm
SCM-Y-TA-20D-100-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 100 mm
SCM-Y-TA-20D-125-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 125 mm
SCM-Y-TA-20D-150-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 150 mm
SCM-Y-TA-20D-200-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 20 mm | Stroke: 200 mm
SCM-Y-TB-20D-25-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 25 mm
SCM-Y-TB-20D-50-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 50 mm
SCM-Y-TB-20D-75-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 75 mm
SCM-Y-TB-20D-100-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 100 mm
SCM-Y-TB-20D-125-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 125 mm
SCM-Y-TB-20D-150-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 150 mm
SCM-Y-TB-20D-200-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 20 mm | Stroke: 200 mm
SCM-Y-00-25D-25-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
SCM-Y-00-25D-50-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
SCM-Y-00-25D-75-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
SCM-Y-00-25D-100-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
SCM-Y-00-25D-125-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 25 mm | Stroke: 125 mm
SCM-Y-00-25D-150-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
SCM-Y-00-25D-200-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
SCM-Y-LB-25D-25-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 25 mm | Stroke: 25 mm
SCM-Y-LB-25D-50-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 25 mm | Stroke: 50 mm
SCM-Y-LB-25D-75-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 25 mm | Stroke: 75 mm
SCM-Y-LB-25D-100-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 25 mm | Stroke: 100 mm
SCM-Y-LB-25D-125-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 25 mm | Stroke: 125 mm
SCM-Y-LB-25D-150-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 25 mm | Stroke: 150 mm
SCM-Y-LB-25D-200-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 25 mm | Stroke: 200 mm
SCM-Y-FA-25D-25-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 25 mm
SCM-Y-FA-25D-50-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 50 mm
SCM-Y-FA-25D-75-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 75 mm
SCM-Y-FA-25D-100-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 100 mm
SCM-Y-FA-25D-125-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 125 mm
SCM-Y-FA-25D-150-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 150 mm
SCM-Y-FA-25D-200-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 200 mm
SCM-Y-FB-25D-25-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 25 mm
SCM-Y-FB-25D-50-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 50 mm
SCM-Y-FB-25D-75-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 75 mm
SCM-Y-FB-25D-100-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 100 mm
SCM-Y-FB-25D-125-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 125 mm
SCM-Y-FB-25D-150-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 150 mm
SCM-Y-FB-25D-200-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 200 mm
SCM-Y-CA-25D-25-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm
SCM-Y-CA-25D-50-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm
SCM-Y-CA-25D-75-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm
SCM-Y-CA-25D-100-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm
SCM-Y-CA-25D-125-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 25 mm | Stroke: 125 mm
SCM-Y-CA-25D-150-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm
SCM-Y-CA-25D-200-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm
SCM-Y-TA-25D-25-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 25 mm
SCM-Y-TA-25D-50-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 50 mm
SCM-Y-TA-25D-75-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 75 mm
SCM-Y-TA-25D-100-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 100 mm
SCM-Y-TA-25D-125-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 125 mm
SCM-Y-TA-25D-150-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 150 mm
SCM-Y-TA-25D-200-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 25 mm | Stroke: 200 mm
SCM-Y-TB-25D-25-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 25 mm
SCM-Y-TB-25D-50-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 50 mm
SCM-Y-TB-25D-75-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 75 mm
SCM-Y-TB-25D-100-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 100 mm
SCM-Y-TB-25D-125-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 125 mm
SCM-Y-TB-25D-150-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 150 mm
SCM-Y-TB-25D-200-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 25 mm | Stroke: 200 mm
SCM-Y-00-32D-25-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
SCM-Y-00-32D-50-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
SCM-Y-00-32D-75-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
SCM-Y-00-32D-100-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
SCM-Y-00-32D-125-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 32 mm | Stroke: 125 mm
SCM-Y-00-32D-150-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
SCM-Y-00-32D-200-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
SCM-Y-LB-32D-25-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 32 mm | Stroke: 25 mm
SCM-Y-LB-32D-50-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 32 mm | Stroke: 50 mm
SCM-Y-LB-32D-75-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 32 mm | Stroke: 75 mm
SCM-Y-LB-32D-100-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 32 mm | Stroke: 100 mm
SCM-Y-LB-32D-125-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 32 mm | Stroke: 125 mm
SCM-Y-LB-32D-150-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 32 mm | Stroke: 150 mm
SCM-Y-LB-32D-200-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 32 mm | Stroke: 200 mm
SCM-Y-FA-32D-25-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 25 mm
SCM-Y-FA-32D-50-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 50 mm
SCM-Y-FA-32D-75-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 75 mm
SCM-Y-FA-32D-100-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 100 mm
SCM-Y-FA-32D-125-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 125 mm
SCM-Y-FA-32D-150-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 150 mm
SCM-Y-FA-32D-200-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 200 mm
SCM-Y-FB-32D-25-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 25 mm
SCM-Y-FB-32D-50-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 50 mm
SCM-Y-FB-32D-75-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 75 mm
SCM-Y-FB-32D-100-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 100 mm
SCM-Y-FB-32D-125-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 125 mm
SCM-Y-FB-32D-150-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 150 mm
SCM-Y-FB-32D-200-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 200 mm
SCM-Y-CA-32D-25-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm
SCM-Y-CA-32D-50-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm
SCM-Y-CA-32D-75-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm
SCM-Y-CA-32D-100-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm
SCM-Y-CA-32D-125-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 32 mm | Stroke: 125 mm
SCM-Y-CA-32D-150-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm
SCM-Y-CA-32D-200-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm
SCM-Y-TA-32D-25-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 25 mm
SCM-Y-TA-32D-50-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 50 mm
SCM-Y-TA-32D-75-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 75 mm
SCM-Y-TA-32D-100-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 100 mm
SCM-Y-TA-32D-125-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 125 mm
SCM-Y-TA-32D-150-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 150 mm
SCM-Y-TA-32D-200-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 32 mm | Stroke: 200 mm
SCM-Y-TB-32D-25-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 25 mm
SCM-Y-TB-32D-50-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 50 mm
SCM-Y-TB-32D-75-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 75 mm
SCM-Y-TB-32D-100-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 100 mm
SCM-Y-TB-32D-125-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 125 mm
SCM-Y-TB-32D-150-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 150 mm
SCM-Y-TB-32D-200-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 32 mm | Stroke: 200 mm
SCM-Y-00-40D-25-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
SCM-Y-00-40D-50-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
SCM-Y-00-40D-75-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
SCM-Y-00-40D-100-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
SCM-Y-00-40D-125-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 40 mm | Stroke: 125 mm
SCM-Y-00-40D-150-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
SCM-Y-00-40D-200-FP1Type: Single acting, pull (Y) | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
SCM-Y-LB-40D-25-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm
SCM-Y-LB-40D-50-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm
SCM-Y-LB-40D-75-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm
SCM-Y-LB-40D-100-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm
SCM-Y-LB-40D-125-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 40 mm | Stroke: 125 mm
SCM-Y-LB-40D-150-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm
SCM-Y-LB-40D-200-FP1Type: Single acting, pull (Y) | Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm
SCM-Y-FA-40D-25-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 25 mm
SCM-Y-FA-40D-50-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 50 mm
SCM-Y-FA-40D-75-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 75 mm
SCM-Y-FA-40D-100-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 100 mm
SCM-Y-FA-40D-125-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 125 mm
SCM-Y-FA-40D-150-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 150 mm
SCM-Y-FA-40D-200-FP1Type: Single acting, pull (Y) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 200 mm
SCM-Y-FB-40D-25-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 25 mm
SCM-Y-FB-40D-50-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 50 mm
SCM-Y-FB-40D-75-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 75 mm
SCM-Y-FB-40D-100-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 100 mm
SCM-Y-FB-40D-125-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 125 mm
SCM-Y-FB-40D-150-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 150 mm
SCM-Y-FB-40D-200-FP1Type: Single acting, pull (Y) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 200 mm
SCM-Y-CA-40D-25-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
SCM-Y-CA-40D-50-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
SCM-Y-CA-40D-75-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
SCM-Y-CA-40D-100-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
SCM-Y-CA-40D-125-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 40 mm | Stroke: 125 mm
SCM-Y-CA-40D-150-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
SCM-Y-CA-40D-200-FP1Type: Single acting, pull (Y) | Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
SCM-Y-TA-40D-25-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 25 mm
SCM-Y-TA-40D-50-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 50 mm
SCM-Y-TA-40D-75-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 75 mm
SCM-Y-TA-40D-100-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 100 mm
SCM-Y-TA-40D-125-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 125 mm
SCM-Y-TA-40D-150-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 150 mm
SCM-Y-TA-40D-200-FP1Type: Single acting, pull (Y) | Mounting: Rod-side trunnion | Bore: 40 mm | Stroke: 200 mm
SCM-Y-TB-40D-25-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 25 mm
SCM-Y-TB-40D-50-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 50 mm
SCM-Y-TB-40D-75-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 75 mm
SCM-Y-TB-40D-100-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 100 mm
SCM-Y-TB-40D-125-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 125 mm
SCM-Y-TB-40D-150-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 150 mm
SCM-Y-TB-40D-200-FP1Type: Single acting, pull (Y) | Mounting: Head-side trunnion | Bore: 40 mm | Stroke: 200 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
