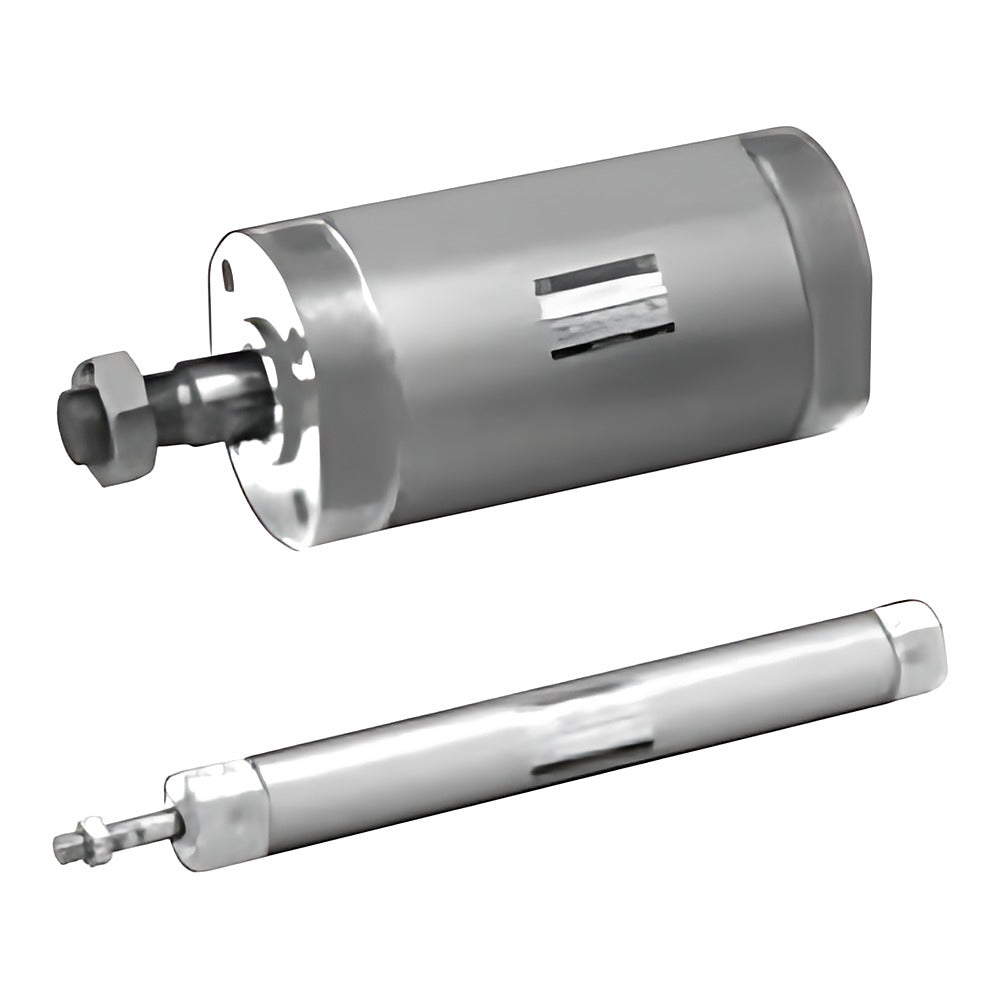

CKD SCM-Y Super Micro Cylinder (Single Acting, Spring Return Pull)

CKD SCM-Y Super Micro Cylinder (Single Acting, Spring Return Pull)

CKD SCM-Y super micro cylinder is a single-acting pull-type round-body cylinder with spring return, bores 20-40 mm.

Key features

  • Single acting, pull type with built-in return spring
  • Rubber cushion (D) on both ends; mounting styles 00, LB, FA, FB, CA, TA, TB
  • Standard strokes 25-200 mm, max. 200 mm
  • Auto-switch magnet built in; rail mounting (standard) or band mounting (Z) for T-type switches
  • Switches ordered with suffix (e.g. -T2H-D); options J/L bellows, Q, M stainless rod, P6

Specifications

Bore sizes 20, 25, 32, 40 mm
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.2 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C
Port size Rc1/8
Piston speed 50-1000 mm/s
Cushion Rubber cushion (D)
Source CKD Korea catalog CB-029SK-9, p. 348-352
SCM-Y-00-20D-25 Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
SCM-Y-00-20D-50 Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
SCM-Y-00-20D-75 Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
SCM-Y-00-20D-100 Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
SCM-Y-00-20D-125 Mounting: Basic | Bore: 20 mm | Stroke: 125 mm
SCM-Y-00-20D-150 Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
SCM-Y-00-20D-200 Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
SCM-Y-LB-20D-25 Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm
SCM-Y-LB-20D-50 Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm
SCM-Y-LB-20D-75 Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm
SCM-Y-LB-20D-100 Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm
SCM-Y-LB-20D-125 Mounting: Axial foot | Bore: 20 mm | Stroke: 125 mm
SCM-Y-LB-20D-150 Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm
SCM-Y-LB-20D-200 Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm
SCM-Y-FA-20D-25 Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm
SCM-Y-FA-20D-50 Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm
SCM-Y-FA-20D-75 Mounting: Rod flange | Bore: 20 mm | Stroke: 75 mm
SCM-Y-FA-20D-100 Mounting: Rod flange | Bore: 20 mm | Stroke: 100 mm
SCM-Y-FA-20D-125 Mounting: Rod flange | Bore: 20 mm | Stroke: 125 mm
SCM-Y-FA-20D-150 Mounting: Rod flange | Bore: 20 mm | Stroke: 150 mm
SCM-Y-FA-20D-200 Mounting: Rod flange | Bore: 20 mm | Stroke: 200 mm
SCM-Y-FB-20D-25 Mounting: Head flange | Bore: 20 mm | Stroke: 25 mm
SCM-Y-FB-20D-50 Mounting: Head flange | Bore: 20 mm | Stroke: 50 mm
SCM-Y-FB-20D-75 Mounting: Head flange | Bore: 20 mm | Stroke: 75 mm
SCM-Y-FB-20D-100 Mounting: Head flange | Bore: 20 mm | Stroke: 100 mm
SCM-Y-FB-20D-125 Mounting: Head flange | Bore: 20 mm | Stroke: 125 mm
SCM-Y-FB-20D-150 Mounting: Head flange | Bore: 20 mm | Stroke: 150 mm
SCM-Y-FB-20D-200 Mounting: Head flange | Bore: 20 mm | Stroke: 200 mm
SCM-Y-CA-20D-25 Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
SCM-Y-CA-20D-50 Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
SCM-Y-CA-20D-75 Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
SCM-Y-CA-20D-100 Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
SCM-Y-CA-20D-125 Mounting: Single clevis | Bore: 20 mm | Stroke: 125 mm
SCM-Y-CA-20D-150 Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
SCM-Y-CA-20D-200 Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm
SCM-Y-TA-20D-25 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 25 mm
SCM-Y-TA-20D-50 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 50 mm
SCM-Y-TA-20D-75 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 75 mm
SCM-Y-TA-20D-100 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 100 mm
SCM-Y-TA-20D-125 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 125 mm
SCM-Y-TA-20D-150 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 150 mm
SCM-Y-TA-20D-200 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 200 mm
SCM-Y-TB-20D-25 Mounting: Head trunnion | Bore: 20 mm | Stroke: 25 mm
SCM-Y-TB-20D-50 Mounting: Head trunnion | Bore: 20 mm | Stroke: 50 mm
SCM-Y-TB-20D-75 Mounting: Head trunnion | Bore: 20 mm | Stroke: 75 mm
SCM-Y-TB-20D-100 Mounting: Head trunnion | Bore: 20 mm | Stroke: 100 mm
SCM-Y-TB-20D-125 Mounting: Head trunnion | Bore: 20 mm | Stroke: 125 mm
SCM-Y-TB-20D-150 Mounting: Head trunnion | Bore: 20 mm | Stroke: 150 mm
SCM-Y-TB-20D-200 Mounting: Head trunnion | Bore: 20 mm | Stroke: 200 mm
SCM-Y-00-25D-25 Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
SCM-Y-00-25D-50 Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
SCM-Y-00-25D-75 Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
SCM-Y-00-25D-100 Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
SCM-Y-00-25D-125 Mounting: Basic | Bore: 25 mm | Stroke: 125 mm
SCM-Y-00-25D-150 Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
SCM-Y-00-25D-200 Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
SCM-Y-LB-25D-25 Mounting: Axial foot | Bore: 25 mm | Stroke: 25 mm
SCM-Y-LB-25D-50 Mounting: Axial foot | Bore: 25 mm | Stroke: 50 mm
SCM-Y-LB-25D-75 Mounting: Axial foot | Bore: 25 mm | Stroke: 75 mm
SCM-Y-LB-25D-100 Mounting: Axial foot | Bore: 25 mm | Stroke: 100 mm
SCM-Y-LB-25D-125 Mounting: Axial foot | Bore: 25 mm | Stroke: 125 mm
SCM-Y-LB-25D-150 Mounting: Axial foot | Bore: 25 mm | Stroke: 150 mm
SCM-Y-LB-25D-200 Mounting: Axial foot | Bore: 25 mm | Stroke: 200 mm
SCM-Y-FA-25D-25 Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm
SCM-Y-FA-25D-50 Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm
SCM-Y-FA-25D-75 Mounting: Rod flange | Bore: 25 mm | Stroke: 75 mm
SCM-Y-FA-25D-100 Mounting: Rod flange | Bore: 25 mm | Stroke: 100 mm
SCM-Y-FA-25D-125 Mounting: Rod flange | Bore: 25 mm | Stroke: 125 mm
SCM-Y-FA-25D-150 Mounting: Rod flange | Bore: 25 mm | Stroke: 150 mm
SCM-Y-FA-25D-200 Mounting: Rod flange | Bore: 25 mm | Stroke: 200 mm
SCM-Y-FB-25D-25 Mounting: Head flange | Bore: 25 mm | Stroke: 25 mm
SCM-Y-FB-25D-50 Mounting: Head flange | Bore: 25 mm | Stroke: 50 mm
SCM-Y-FB-25D-75 Mounting: Head flange | Bore: 25 mm | Stroke: 75 mm
SCM-Y-FB-25D-100 Mounting: Head flange | Bore: 25 mm | Stroke: 100 mm
SCM-Y-FB-25D-125 Mounting: Head flange | Bore: 25 mm | Stroke: 125 mm
SCM-Y-FB-25D-150 Mounting: Head flange | Bore: 25 mm | Stroke: 150 mm
SCM-Y-FB-25D-200 Mounting: Head flange | Bore: 25 mm | Stroke: 200 mm
SCM-Y-CA-25D-25 Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm
SCM-Y-CA-25D-50 Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm
SCM-Y-CA-25D-75 Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm
SCM-Y-CA-25D-100 Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm
SCM-Y-CA-25D-125 Mounting: Single clevis | Bore: 25 mm | Stroke: 125 mm
SCM-Y-CA-25D-150 Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm
SCM-Y-CA-25D-200 Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm
SCM-Y-TA-25D-25 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 25 mm
SCM-Y-TA-25D-50 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 50 mm
SCM-Y-TA-25D-75 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 75 mm
SCM-Y-TA-25D-100 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 100 mm
SCM-Y-TA-25D-125 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 125 mm
SCM-Y-TA-25D-150 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 150 mm
SCM-Y-TA-25D-200 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 200 mm
SCM-Y-TB-25D-25 Mounting: Head trunnion | Bore: 25 mm | Stroke: 25 mm
SCM-Y-TB-25D-50 Mounting: Head trunnion | Bore: 25 mm | Stroke: 50 mm
SCM-Y-TB-25D-75 Mounting: Head trunnion | Bore: 25 mm | Stroke: 75 mm
SCM-Y-TB-25D-100 Mounting: Head trunnion | Bore: 25 mm | Stroke: 100 mm
SCM-Y-TB-25D-125 Mounting: Head trunnion | Bore: 25 mm | Stroke: 125 mm
SCM-Y-TB-25D-150 Mounting: Head trunnion | Bore: 25 mm | Stroke: 150 mm
SCM-Y-TB-25D-200 Mounting: Head trunnion | Bore: 25 mm | Stroke: 200 mm
SCM-Y-00-32D-25 Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
SCM-Y-00-32D-50 Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
SCM-Y-00-32D-75 Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
SCM-Y-00-32D-100 Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
SCM-Y-00-32D-125 Mounting: Basic | Bore: 32 mm | Stroke: 125 mm
SCM-Y-00-32D-150 Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
SCM-Y-00-32D-200 Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
SCM-Y-LB-32D-25 Mounting: Axial foot | Bore: 32 mm | Stroke: 25 mm
SCM-Y-LB-32D-50 Mounting: Axial foot | Bore: 32 mm | Stroke: 50 mm
SCM-Y-LB-32D-75 Mounting: Axial foot | Bore: 32 mm | Stroke: 75 mm
SCM-Y-LB-32D-100 Mounting: Axial foot | Bore: 32 mm | Stroke: 100 mm
SCM-Y-LB-32D-125 Mounting: Axial foot | Bore: 32 mm | Stroke: 125 mm
SCM-Y-LB-32D-150 Mounting: Axial foot | Bore: 32 mm | Stroke: 150 mm
SCM-Y-LB-32D-200 Mounting: Axial foot | Bore: 32 mm | Stroke: 200 mm
SCM-Y-FA-32D-25 Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm
SCM-Y-FA-32D-50 Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm
SCM-Y-FA-32D-75 Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm
SCM-Y-FA-32D-100 Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm
SCM-Y-FA-32D-125 Mounting: Rod flange | Bore: 32 mm | Stroke: 125 mm
SCM-Y-FA-32D-150 Mounting: Rod flange | Bore: 32 mm | Stroke: 150 mm
SCM-Y-FA-32D-200 Mounting: Rod flange | Bore: 32 mm | Stroke: 200 mm
SCM-Y-FB-32D-25 Mounting: Head flange | Bore: 32 mm | Stroke: 25 mm
SCM-Y-FB-32D-50 Mounting: Head flange | Bore: 32 mm | Stroke: 50 mm
SCM-Y-FB-32D-75 Mounting: Head flange | Bore: 32 mm | Stroke: 75 mm
SCM-Y-FB-32D-100 Mounting: Head flange | Bore: 32 mm | Stroke: 100 mm
SCM-Y-FB-32D-125 Mounting: Head flange | Bore: 32 mm | Stroke: 125 mm
SCM-Y-FB-32D-150 Mounting: Head flange | Bore: 32 mm | Stroke: 150 mm
SCM-Y-FB-32D-200 Mounting: Head flange | Bore: 32 mm | Stroke: 200 mm
SCM-Y-CA-32D-25 Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm
SCM-Y-CA-32D-50 Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm
SCM-Y-CA-32D-75 Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm
SCM-Y-CA-32D-100 Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm
SCM-Y-CA-32D-125 Mounting: Single clevis | Bore: 32 mm | Stroke: 125 mm
SCM-Y-CA-32D-150 Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm
SCM-Y-CA-32D-200 Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm
SCM-Y-TA-32D-25 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 25 mm
SCM-Y-TA-32D-50 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 50 mm
SCM-Y-TA-32D-75 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 75 mm
SCM-Y-TA-32D-100 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 100 mm
SCM-Y-TA-32D-125 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 125 mm
SCM-Y-TA-32D-150 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 150 mm
SCM-Y-TA-32D-200 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 200 mm
SCM-Y-TB-32D-25 Mounting: Head trunnion | Bore: 32 mm | Stroke: 25 mm
SCM-Y-TB-32D-50 Mounting: Head trunnion | Bore: 32 mm | Stroke: 50 mm
SCM-Y-TB-32D-75 Mounting: Head trunnion | Bore: 32 mm | Stroke: 75 mm
SCM-Y-TB-32D-100 Mounting: Head trunnion | Bore: 32 mm | Stroke: 100 mm
SCM-Y-TB-32D-125 Mounting: Head trunnion | Bore: 32 mm | Stroke: 125 mm
SCM-Y-TB-32D-150 Mounting: Head trunnion | Bore: 32 mm | Stroke: 150 mm
SCM-Y-TB-32D-200 Mounting: Head trunnion | Bore: 32 mm | Stroke: 200 mm
SCM-Y-00-40D-25 Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
SCM-Y-00-40D-50 Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
SCM-Y-00-40D-75 Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
SCM-Y-00-40D-100 Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
SCM-Y-00-40D-125 Mounting: Basic | Bore: 40 mm | Stroke: 125 mm
SCM-Y-00-40D-150 Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
SCM-Y-00-40D-200 Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
SCM-Y-LB-40D-25 Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm
SCM-Y-LB-40D-50 Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm
SCM-Y-LB-40D-75 Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm
SCM-Y-LB-40D-100 Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm
SCM-Y-LB-40D-125 Mounting: Axial foot | Bore: 40 mm | Stroke: 125 mm
SCM-Y-LB-40D-150 Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm
SCM-Y-LB-40D-200 Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm
SCM-Y-FA-40D-25 Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm
SCM-Y-FA-40D-50 Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm
SCM-Y-FA-40D-75 Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm
SCM-Y-FA-40D-100 Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm
SCM-Y-FA-40D-125 Mounting: Rod flange | Bore: 40 mm | Stroke: 125 mm
SCM-Y-FA-40D-150 Mounting: Rod flange | Bore: 40 mm | Stroke: 150 mm
SCM-Y-FA-40D-200 Mounting: Rod flange | Bore: 40 mm | Stroke: 200 mm
SCM-Y-FB-40D-25 Mounting: Head flange | Bore: 40 mm | Stroke: 25 mm
SCM-Y-FB-40D-50 Mounting: Head flange | Bore: 40 mm | Stroke: 50 mm
SCM-Y-FB-40D-75 Mounting: Head flange | Bore: 40 mm | Stroke: 75 mm
SCM-Y-FB-40D-100 Mounting: Head flange | Bore: 40 mm | Stroke: 100 mm
SCM-Y-FB-40D-125 Mounting: Head flange | Bore: 40 mm | Stroke: 125 mm
SCM-Y-FB-40D-150 Mounting: Head flange | Bore: 40 mm | Stroke: 150 mm
SCM-Y-FB-40D-200 Mounting: Head flange | Bore: 40 mm | Stroke: 200 mm
SCM-Y-CA-40D-25 Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
SCM-Y-CA-40D-50 Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
SCM-Y-CA-40D-75 Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
SCM-Y-CA-40D-100 Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
SCM-Y-CA-40D-125 Mounting: Single clevis | Bore: 40 mm | Stroke: 125 mm
SCM-Y-CA-40D-150 Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
SCM-Y-CA-40D-200 Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
SCM-Y-TA-40D-25 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 25 mm
SCM-Y-TA-40D-50 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 50 mm
SCM-Y-TA-40D-75 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 75 mm
SCM-Y-TA-40D-100 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 100 mm
SCM-Y-TA-40D-125 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 125 mm
SCM-Y-TA-40D-150 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 150 mm
SCM-Y-TA-40D-200 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 200 mm
SCM-Y-TB-40D-25 Mounting: Head trunnion | Bore: 40 mm | Stroke: 25 mm
SCM-Y-TB-40D-50 Mounting: Head trunnion | Bore: 40 mm | Stroke: 50 mm
SCM-Y-TB-40D-75 Mounting: Head trunnion | Bore: 40 mm | Stroke: 75 mm
SCM-Y-TB-40D-100 Mounting: Head trunnion | Bore: 40 mm | Stroke: 100 mm
SCM-Y-TB-40D-125 Mounting: Head trunnion | Bore: 40 mm | Stroke: 125 mm
SCM-Y-TB-40D-150 Mounting: Head trunnion | Bore: 40 mm | Stroke: 150 mm
SCM-Y-TB-40D-200 Mounting: Head trunnion | Bore: 40 mm | Stroke: 200 mm
Pneumatic CylindersCKD
196 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCM-Y Super Micro Cylinder (Single Acting, Spring Return Pull)

Brand CKD·Pneumatic Cylinders

Available part numbers (196)

SCM-Y-00-20D-25, SCM-Y-00-20D-50, SCM-Y-00-20D-75, SCM-Y-00-20D-100, SCM-Y-00-20D-125, SCM-Y-00-20D-150, SCM-Y-00-20D-200, SCM-Y-LB-20D-25, SCM-Y-LB-20D-50, SCM-Y-LB-20D-75 + 186 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCM-Y-00-20D-25Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
SCM-Y-00-20D-50Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
SCM-Y-00-20D-75Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
SCM-Y-00-20D-100Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
SCM-Y-00-20D-125Mounting: Basic | Bore: 20 mm | Stroke: 125 mm
SCM-Y-00-20D-150Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
SCM-Y-00-20D-200Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
SCM-Y-LB-20D-25Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm
SCM-Y-LB-20D-50Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm
SCM-Y-LB-20D-75Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm
SCM-Y-LB-20D-100Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm
SCM-Y-LB-20D-125Mounting: Axial foot | Bore: 20 mm | Stroke: 125 mm
SCM-Y-LB-20D-150Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm
SCM-Y-LB-20D-200Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm
SCM-Y-FA-20D-25Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm
SCM-Y-FA-20D-50Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm
SCM-Y-FA-20D-75Mounting: Rod flange | Bore: 20 mm | Stroke: 75 mm
SCM-Y-FA-20D-100Mounting: Rod flange | Bore: 20 mm | Stroke: 100 mm
SCM-Y-FA-20D-125Mounting: Rod flange | Bore: 20 mm | Stroke: 125 mm
SCM-Y-FA-20D-150Mounting: Rod flange | Bore: 20 mm | Stroke: 150 mm
SCM-Y-FA-20D-200Mounting: Rod flange | Bore: 20 mm | Stroke: 200 mm
SCM-Y-FB-20D-25Mounting: Head flange | Bore: 20 mm | Stroke: 25 mm
SCM-Y-FB-20D-50Mounting: Head flange | Bore: 20 mm | Stroke: 50 mm
SCM-Y-FB-20D-75Mounting: Head flange | Bore: 20 mm | Stroke: 75 mm
SCM-Y-FB-20D-100Mounting: Head flange | Bore: 20 mm | Stroke: 100 mm
SCM-Y-FB-20D-125Mounting: Head flange | Bore: 20 mm | Stroke: 125 mm
SCM-Y-FB-20D-150Mounting: Head flange | Bore: 20 mm | Stroke: 150 mm
SCM-Y-FB-20D-200Mounting: Head flange | Bore: 20 mm | Stroke: 200 mm
SCM-Y-CA-20D-25Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
SCM-Y-CA-20D-50Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
SCM-Y-CA-20D-75Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
SCM-Y-CA-20D-100Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
SCM-Y-CA-20D-125Mounting: Single clevis | Bore: 20 mm | Stroke: 125 mm
SCM-Y-CA-20D-150Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
SCM-Y-CA-20D-200Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm
SCM-Y-TA-20D-25Mounting: Rod trunnion | Bore: 20 mm | Stroke: 25 mm
SCM-Y-TA-20D-50Mounting: Rod trunnion | Bore: 20 mm | Stroke: 50 mm
SCM-Y-TA-20D-75Mounting: Rod trunnion | Bore: 20 mm | Stroke: 75 mm
SCM-Y-TA-20D-100Mounting: Rod trunnion | Bore: 20 mm | Stroke: 100 mm
SCM-Y-TA-20D-125Mounting: Rod trunnion | Bore: 20 mm | Stroke: 125 mm
SCM-Y-TA-20D-150Mounting: Rod trunnion | Bore: 20 mm | Stroke: 150 mm
SCM-Y-TA-20D-200Mounting: Rod trunnion | Bore: 20 mm | Stroke: 200 mm
SCM-Y-TB-20D-25Mounting: Head trunnion | Bore: 20 mm | Stroke: 25 mm
SCM-Y-TB-20D-50Mounting: Head trunnion | Bore: 20 mm | Stroke: 50 mm
SCM-Y-TB-20D-75Mounting: Head trunnion | Bore: 20 mm | Stroke: 75 mm
SCM-Y-TB-20D-100Mounting: Head trunnion | Bore: 20 mm | Stroke: 100 mm
SCM-Y-TB-20D-125Mounting: Head trunnion | Bore: 20 mm | Stroke: 125 mm
SCM-Y-TB-20D-150Mounting: Head trunnion | Bore: 20 mm | Stroke: 150 mm
SCM-Y-TB-20D-200Mounting: Head trunnion | Bore: 20 mm | Stroke: 200 mm
SCM-Y-00-25D-25Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
SCM-Y-00-25D-50Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
SCM-Y-00-25D-75Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
SCM-Y-00-25D-100Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
SCM-Y-00-25D-125Mounting: Basic | Bore: 25 mm | Stroke: 125 mm
SCM-Y-00-25D-150Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
SCM-Y-00-25D-200Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
SCM-Y-LB-25D-25Mounting: Axial foot | Bore: 25 mm | Stroke: 25 mm
SCM-Y-LB-25D-50Mounting: Axial foot | Bore: 25 mm | Stroke: 50 mm
SCM-Y-LB-25D-75Mounting: Axial foot | Bore: 25 mm | Stroke: 75 mm
SCM-Y-LB-25D-100Mounting: Axial foot | Bore: 25 mm | Stroke: 100 mm
SCM-Y-LB-25D-125Mounting: Axial foot | Bore: 25 mm | Stroke: 125 mm
SCM-Y-LB-25D-150Mounting: Axial foot | Bore: 25 mm | Stroke: 150 mm
SCM-Y-LB-25D-200Mounting: Axial foot | Bore: 25 mm | Stroke: 200 mm
SCM-Y-FA-25D-25Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm
SCM-Y-FA-25D-50Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm
SCM-Y-FA-25D-75Mounting: Rod flange | Bore: 25 mm | Stroke: 75 mm
SCM-Y-FA-25D-100Mounting: Rod flange | Bore: 25 mm | Stroke: 100 mm
SCM-Y-FA-25D-125Mounting: Rod flange | Bore: 25 mm | Stroke: 125 mm
SCM-Y-FA-25D-150Mounting: Rod flange | Bore: 25 mm | Stroke: 150 mm
SCM-Y-FA-25D-200Mounting: Rod flange | Bore: 25 mm | Stroke: 200 mm
SCM-Y-FB-25D-25Mounting: Head flange | Bore: 25 mm | Stroke: 25 mm
SCM-Y-FB-25D-50Mounting: Head flange | Bore: 25 mm | Stroke: 50 mm
SCM-Y-FB-25D-75Mounting: Head flange | Bore: 25 mm | Stroke: 75 mm
SCM-Y-FB-25D-100Mounting: Head flange | Bore: 25 mm | Stroke: 100 mm
SCM-Y-FB-25D-125Mounting: Head flange | Bore: 25 mm | Stroke: 125 mm
SCM-Y-FB-25D-150Mounting: Head flange | Bore: 25 mm | Stroke: 150 mm
SCM-Y-FB-25D-200Mounting: Head flange | Bore: 25 mm | Stroke: 200 mm
SCM-Y-CA-25D-25Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm
SCM-Y-CA-25D-50Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm
SCM-Y-CA-25D-75Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm
SCM-Y-CA-25D-100Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm
SCM-Y-CA-25D-125Mounting: Single clevis | Bore: 25 mm | Stroke: 125 mm
SCM-Y-CA-25D-150Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm
SCM-Y-CA-25D-200Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm
SCM-Y-TA-25D-25Mounting: Rod trunnion | Bore: 25 mm | Stroke: 25 mm
SCM-Y-TA-25D-50Mounting: Rod trunnion | Bore: 25 mm | Stroke: 50 mm
SCM-Y-TA-25D-75Mounting: Rod trunnion | Bore: 25 mm | Stroke: 75 mm
SCM-Y-TA-25D-100Mounting: Rod trunnion | Bore: 25 mm | Stroke: 100 mm
SCM-Y-TA-25D-125Mounting: Rod trunnion | Bore: 25 mm | Stroke: 125 mm
SCM-Y-TA-25D-150Mounting: Rod trunnion | Bore: 25 mm | Stroke: 150 mm
SCM-Y-TA-25D-200Mounting: Rod trunnion | Bore: 25 mm | Stroke: 200 mm
SCM-Y-TB-25D-25Mounting: Head trunnion | Bore: 25 mm | Stroke: 25 mm
SCM-Y-TB-25D-50Mounting: Head trunnion | Bore: 25 mm | Stroke: 50 mm
SCM-Y-TB-25D-75Mounting: Head trunnion | Bore: 25 mm | Stroke: 75 mm
SCM-Y-TB-25D-100Mounting: Head trunnion | Bore: 25 mm | Stroke: 100 mm
SCM-Y-TB-25D-125Mounting: Head trunnion | Bore: 25 mm | Stroke: 125 mm
SCM-Y-TB-25D-150Mounting: Head trunnion | Bore: 25 mm | Stroke: 150 mm
SCM-Y-TB-25D-200Mounting: Head trunnion | Bore: 25 mm | Stroke: 200 mm
SCM-Y-00-32D-25Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
SCM-Y-00-32D-50Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
SCM-Y-00-32D-75Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
SCM-Y-00-32D-100Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
SCM-Y-00-32D-125Mounting: Basic | Bore: 32 mm | Stroke: 125 mm
SCM-Y-00-32D-150Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
SCM-Y-00-32D-200Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
SCM-Y-LB-32D-25Mounting: Axial foot | Bore: 32 mm | Stroke: 25 mm
SCM-Y-LB-32D-50Mounting: Axial foot | Bore: 32 mm | Stroke: 50 mm
SCM-Y-LB-32D-75Mounting: Axial foot | Bore: 32 mm | Stroke: 75 mm
SCM-Y-LB-32D-100Mounting: Axial foot | Bore: 32 mm | Stroke: 100 mm
SCM-Y-LB-32D-125Mounting: Axial foot | Bore: 32 mm | Stroke: 125 mm
SCM-Y-LB-32D-150Mounting: Axial foot | Bore: 32 mm | Stroke: 150 mm
SCM-Y-LB-32D-200Mounting: Axial foot | Bore: 32 mm | Stroke: 200 mm
SCM-Y-FA-32D-25Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm
SCM-Y-FA-32D-50Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm
SCM-Y-FA-32D-75Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm
SCM-Y-FA-32D-100Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm
SCM-Y-FA-32D-125Mounting: Rod flange | Bore: 32 mm | Stroke: 125 mm
SCM-Y-FA-32D-150Mounting: Rod flange | Bore: 32 mm | Stroke: 150 mm
SCM-Y-FA-32D-200Mounting: Rod flange | Bore: 32 mm | Stroke: 200 mm
SCM-Y-FB-32D-25Mounting: Head flange | Bore: 32 mm | Stroke: 25 mm
SCM-Y-FB-32D-50Mounting: Head flange | Bore: 32 mm | Stroke: 50 mm
SCM-Y-FB-32D-75Mounting: Head flange | Bore: 32 mm | Stroke: 75 mm
SCM-Y-FB-32D-100Mounting: Head flange | Bore: 32 mm | Stroke: 100 mm
SCM-Y-FB-32D-125Mounting: Head flange | Bore: 32 mm | Stroke: 125 mm
SCM-Y-FB-32D-150Mounting: Head flange | Bore: 32 mm | Stroke: 150 mm
SCM-Y-FB-32D-200Mounting: Head flange | Bore: 32 mm | Stroke: 200 mm
SCM-Y-CA-32D-25Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm
SCM-Y-CA-32D-50Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm
SCM-Y-CA-32D-75Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm
SCM-Y-CA-32D-100Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm
SCM-Y-CA-32D-125Mounting: Single clevis | Bore: 32 mm | Stroke: 125 mm
SCM-Y-CA-32D-150Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm
SCM-Y-CA-32D-200Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm
SCM-Y-TA-32D-25Mounting: Rod trunnion | Bore: 32 mm | Stroke: 25 mm
SCM-Y-TA-32D-50Mounting: Rod trunnion | Bore: 32 mm | Stroke: 50 mm
SCM-Y-TA-32D-75Mounting: Rod trunnion | Bore: 32 mm | Stroke: 75 mm
SCM-Y-TA-32D-100Mounting: Rod trunnion | Bore: 32 mm | Stroke: 100 mm
SCM-Y-TA-32D-125Mounting: Rod trunnion | Bore: 32 mm | Stroke: 125 mm
SCM-Y-TA-32D-150Mounting: Rod trunnion | Bore: 32 mm | Stroke: 150 mm
SCM-Y-TA-32D-200Mounting: Rod trunnion | Bore: 32 mm | Stroke: 200 mm
SCM-Y-TB-32D-25Mounting: Head trunnion | Bore: 32 mm | Stroke: 25 mm
SCM-Y-TB-32D-50Mounting: Head trunnion | Bore: 32 mm | Stroke: 50 mm
SCM-Y-TB-32D-75Mounting: Head trunnion | Bore: 32 mm | Stroke: 75 mm
SCM-Y-TB-32D-100Mounting: Head trunnion | Bore: 32 mm | Stroke: 100 mm
SCM-Y-TB-32D-125Mounting: Head trunnion | Bore: 32 mm | Stroke: 125 mm
SCM-Y-TB-32D-150Mounting: Head trunnion | Bore: 32 mm | Stroke: 150 mm
SCM-Y-TB-32D-200Mounting: Head trunnion | Bore: 32 mm | Stroke: 200 mm
SCM-Y-00-40D-25Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
SCM-Y-00-40D-50Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
SCM-Y-00-40D-75Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
SCM-Y-00-40D-100Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
SCM-Y-00-40D-125Mounting: Basic | Bore: 40 mm | Stroke: 125 mm
SCM-Y-00-40D-150Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
SCM-Y-00-40D-200Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
SCM-Y-LB-40D-25Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm
SCM-Y-LB-40D-50Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm
SCM-Y-LB-40D-75Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm
SCM-Y-LB-40D-100Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm
SCM-Y-LB-40D-125Mounting: Axial foot | Bore: 40 mm | Stroke: 125 mm
SCM-Y-LB-40D-150Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm
SCM-Y-LB-40D-200Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm
SCM-Y-FA-40D-25Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm
SCM-Y-FA-40D-50Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm
SCM-Y-FA-40D-75Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm
SCM-Y-FA-40D-100Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm
SCM-Y-FA-40D-125Mounting: Rod flange | Bore: 40 mm | Stroke: 125 mm
SCM-Y-FA-40D-150Mounting: Rod flange | Bore: 40 mm | Stroke: 150 mm
SCM-Y-FA-40D-200Mounting: Rod flange | Bore: 40 mm | Stroke: 200 mm
SCM-Y-FB-40D-25Mounting: Head flange | Bore: 40 mm | Stroke: 25 mm
SCM-Y-FB-40D-50Mounting: Head flange | Bore: 40 mm | Stroke: 50 mm
SCM-Y-FB-40D-75Mounting: Head flange | Bore: 40 mm | Stroke: 75 mm
SCM-Y-FB-40D-100Mounting: Head flange | Bore: 40 mm | Stroke: 100 mm
SCM-Y-FB-40D-125Mounting: Head flange | Bore: 40 mm | Stroke: 125 mm
SCM-Y-FB-40D-150Mounting: Head flange | Bore: 40 mm | Stroke: 150 mm
SCM-Y-FB-40D-200Mounting: Head flange | Bore: 40 mm | Stroke: 200 mm
SCM-Y-CA-40D-25Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
SCM-Y-CA-40D-50Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
SCM-Y-CA-40D-75Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
SCM-Y-CA-40D-100Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
SCM-Y-CA-40D-125Mounting: Single clevis | Bore: 40 mm | Stroke: 125 mm
SCM-Y-CA-40D-150Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
SCM-Y-CA-40D-200Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
SCM-Y-TA-40D-25Mounting: Rod trunnion | Bore: 40 mm | Stroke: 25 mm
SCM-Y-TA-40D-50Mounting: Rod trunnion | Bore: 40 mm | Stroke: 50 mm
SCM-Y-TA-40D-75Mounting: Rod trunnion | Bore: 40 mm | Stroke: 75 mm
SCM-Y-TA-40D-100Mounting: Rod trunnion | Bore: 40 mm | Stroke: 100 mm
SCM-Y-TA-40D-125Mounting: Rod trunnion | Bore: 40 mm | Stroke: 125 mm
SCM-Y-TA-40D-150Mounting: Rod trunnion | Bore: 40 mm | Stroke: 150 mm
SCM-Y-TA-40D-200Mounting: Rod trunnion | Bore: 40 mm | Stroke: 200 mm
SCM-Y-TB-40D-25Mounting: Head trunnion | Bore: 40 mm | Stroke: 25 mm
SCM-Y-TB-40D-50Mounting: Head trunnion | Bore: 40 mm | Stroke: 50 mm
SCM-Y-TB-40D-75Mounting: Head trunnion | Bore: 40 mm | Stroke: 75 mm
SCM-Y-TB-40D-100Mounting: Head trunnion | Bore: 40 mm | Stroke: 100 mm
SCM-Y-TB-40D-125Mounting: Head trunnion | Bore: 40 mm | Stroke: 125 mm
SCM-Y-TB-40D-150Mounting: Head trunnion | Bore: 40 mm | Stroke: 150 mm
SCM-Y-TB-40D-200Mounting: Head trunnion | Bore: 40 mm | Stroke: 200 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
