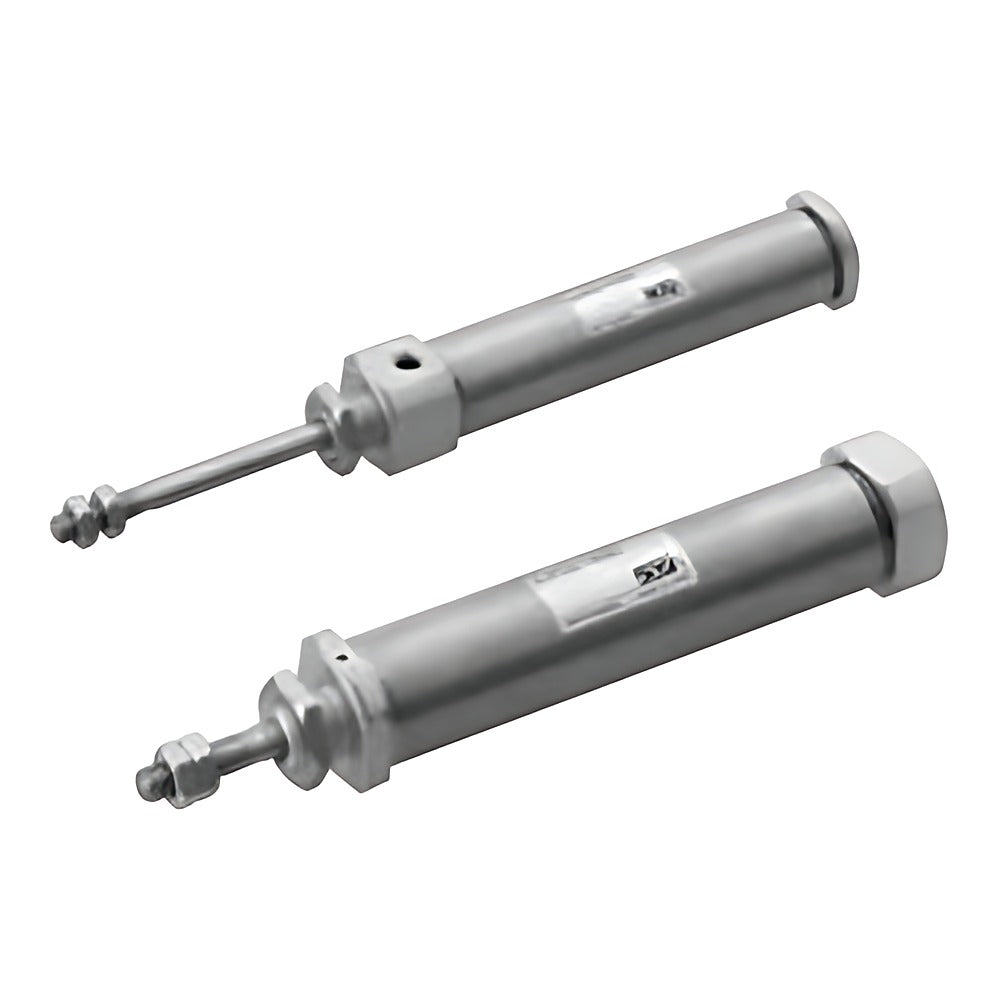

CKD SCPD3-C Pencil Cylinder (Double-Acting, Rubber Air Cushion)

CKD SCPD3-C Pencil Cylinder (Double-Acting, Rubber Air Cushion)

CKD SCPD3-*C double-acting pencil cylinder with rubber air cushion that lowers impact noise and acceleration at the stroke ends, bores 6/10/16 mm.

Key features

  • Rubber air cushion: air trapped between cushion and cover absorbs energy before the rubber deforms
  • Code: cushion symbol C follows the bore (e.g. SCPD3-L-00-10C-15)
  • Bores 6/10/16 mm, standard strokes 15/30/45/60 mm (max. 100/200/260 mm)
  • Mounting: 00, LS, FA, CB (CB bore 10/16 only); axial head port suffix O
  • Auto switches T0H/T0V, T5H/T5V (reed), T2H/T2V, T3H/T3V, T2WH/T2WV, T3WH/T3WV (solid state) are added after the stroke on switch-ready (-L) models with switch quantity R/H/D/T; lead 1 m standard, 3 m/5 m optional

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Port size M5
Stroke tolerance +1.0/0 mm
Min. operating pressure 0.3 MPa (bore 6/10), 0.2 MPa (bore 16)
Ambient temperature -10 to 60°C
Piston speed 50 to 750 mm/s
Cushion Rubber air cushion
Source CKD Korea catalog CB-029SK-9, p. 116-121
SCPD3-00-6C-15 Model: SCPD3 (no switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
SCPD3-00-6C-30 Model: SCPD3 (no switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
SCPD3-00-6C-45 Model: SCPD3 (no switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
SCPD3-00-6C-60 Model: SCPD3 (no switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
SCPD3-00-10C-15 Model: SCPD3 (no switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
SCPD3-00-10C-30 Model: SCPD3 (no switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
SCPD3-00-10C-45 Model: SCPD3 (no switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
SCPD3-00-10C-60 Model: SCPD3 (no switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
SCPD3-00-16C-15 Model: SCPD3 (no switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
SCPD3-00-16C-30 Model: SCPD3 (no switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
SCPD3-00-16C-45 Model: SCPD3 (no switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
SCPD3-00-16C-60 Model: SCPD3 (no switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
SCPD3-LS-6C-15 Model: SCPD3 (no switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm
SCPD3-LS-6C-30 Model: SCPD3 (no switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm
SCPD3-LS-6C-45 Model: SCPD3 (no switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm
SCPD3-LS-6C-60 Model: SCPD3 (no switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm
SCPD3-LS-10C-15 Model: SCPD3 (no switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm
SCPD3-LS-10C-30 Model: SCPD3 (no switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm
SCPD3-LS-10C-45 Model: SCPD3 (no switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm
SCPD3-LS-10C-60 Model: SCPD3 (no switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm
SCPD3-LS-16C-15 Model: SCPD3 (no switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm
SCPD3-LS-16C-30 Model: SCPD3 (no switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm
SCPD3-LS-16C-45 Model: SCPD3 (no switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm
SCPD3-LS-16C-60 Model: SCPD3 (no switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm
SCPD3-FA-6C-15 Model: SCPD3 (no switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 15 mm
SCPD3-FA-6C-30 Model: SCPD3 (no switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 30 mm
SCPD3-FA-6C-45 Model: SCPD3 (no switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 45 mm
SCPD3-FA-6C-60 Model: SCPD3 (no switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 60 mm
SCPD3-FA-10C-15 Model: SCPD3 (no switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 15 mm
SCPD3-FA-10C-30 Model: SCPD3 (no switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 30 mm
SCPD3-FA-10C-45 Model: SCPD3 (no switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 45 mm
SCPD3-FA-10C-60 Model: SCPD3 (no switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 60 mm
SCPD3-FA-16C-15 Model: SCPD3 (no switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 15 mm
SCPD3-FA-16C-30 Model: SCPD3 (no switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 30 mm
SCPD3-FA-16C-45 Model: SCPD3 (no switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 45 mm
SCPD3-FA-16C-60 Model: SCPD3 (no switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 60 mm
SCPD3-CB-10C-15 Model: SCPD3 (no switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 15 mm
SCPD3-CB-10C-30 Model: SCPD3 (no switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 30 mm
SCPD3-CB-10C-45 Model: SCPD3 (no switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 45 mm
SCPD3-CB-10C-60 Model: SCPD3 (no switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 60 mm
SCPD3-CB-16C-15 Model: SCPD3 (no switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 15 mm
SCPD3-CB-16C-30 Model: SCPD3 (no switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 30 mm
SCPD3-CB-16C-45 Model: SCPD3 (no switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 45 mm
SCPD3-CB-16C-60 Model: SCPD3 (no switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 60 mm
SCPD3-L-00-6C-15 Model: SCPD3-L (switch magnet built in) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
SCPD3-L-00-6C-30 Model: SCPD3-L (switch magnet built in) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
SCPD3-L-00-6C-45 Model: SCPD3-L (switch magnet built in) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
SCPD3-L-00-6C-60 Model: SCPD3-L (switch magnet built in) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
SCPD3-L-00-10C-15 Model: SCPD3-L (switch magnet built in) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
SCPD3-L-00-10C-30 Model: SCPD3-L (switch magnet built in) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
SCPD3-L-00-10C-45 Model: SCPD3-L (switch magnet built in) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
SCPD3-L-00-10C-60 Model: SCPD3-L (switch magnet built in) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
SCPD3-L-00-16C-15 Model: SCPD3-L (switch magnet built in) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
SCPD3-L-00-16C-30 Model: SCPD3-L (switch magnet built in) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
SCPD3-L-00-16C-45 Model: SCPD3-L (switch magnet built in) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
SCPD3-L-00-16C-60 Model: SCPD3-L (switch magnet built in) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
SCPD3-L-LS-6C-15 Model: SCPD3-L (switch magnet built in) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm
SCPD3-L-LS-6C-30 Model: SCPD3-L (switch magnet built in) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm
SCPD3-L-LS-6C-45 Model: SCPD3-L (switch magnet built in) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm
SCPD3-L-LS-6C-60 Model: SCPD3-L (switch magnet built in) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm
SCPD3-L-LS-10C-15 Model: SCPD3-L (switch magnet built in) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm
SCPD3-L-LS-10C-30 Model: SCPD3-L (switch magnet built in) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm
SCPD3-L-LS-10C-45 Model: SCPD3-L (switch magnet built in) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm
SCPD3-L-LS-10C-60 Model: SCPD3-L (switch magnet built in) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm
SCPD3-L-LS-16C-15 Model: SCPD3-L (switch magnet built in) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm
SCPD3-L-LS-16C-30 Model: SCPD3-L (switch magnet built in) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm
SCPD3-L-LS-16C-45 Model: SCPD3-L (switch magnet built in) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm
SCPD3-L-LS-16C-60 Model: SCPD3-L (switch magnet built in) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm
SCPD3-L-FA-6C-15 Model: SCPD3-L (switch magnet built in) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 15 mm
SCPD3-L-FA-6C-30 Model: SCPD3-L (switch magnet built in) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 30 mm
SCPD3-L-FA-6C-45 Model: SCPD3-L (switch magnet built in) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 45 mm
SCPD3-L-FA-6C-60 Model: SCPD3-L (switch magnet built in) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 60 mm
SCPD3-L-FA-10C-15 Model: SCPD3-L (switch magnet built in) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 15 mm
SCPD3-L-FA-10C-30 Model: SCPD3-L (switch magnet built in) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 30 mm
SCPD3-L-FA-10C-45 Model: SCPD3-L (switch magnet built in) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 45 mm
SCPD3-L-FA-10C-60 Model: SCPD3-L (switch magnet built in) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 60 mm
SCPD3-L-FA-16C-15 Model: SCPD3-L (switch magnet built in) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 15 mm
SCPD3-L-FA-16C-30 Model: SCPD3-L (switch magnet built in) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 30 mm
SCPD3-L-FA-16C-45 Model: SCPD3-L (switch magnet built in) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 45 mm
SCPD3-L-FA-16C-60 Model: SCPD3-L (switch magnet built in) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 60 mm
SCPD3-L-CB-10C-15 Model: SCPD3-L (switch magnet built in) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 15 mm
SCPD3-L-CB-10C-30 Model: SCPD3-L (switch magnet built in) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 30 mm
SCPD3-L-CB-10C-45 Model: SCPD3-L (switch magnet built in) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 45 mm
SCPD3-L-CB-10C-60 Model: SCPD3-L (switch magnet built in) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 60 mm
SCPD3-L-CB-16C-15 Model: SCPD3-L (switch magnet built in) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 15 mm
SCPD3-L-CB-16C-30 Model: SCPD3-L (switch magnet built in) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 30 mm
SCPD3-L-CB-16C-45 Model: SCPD3-L (switch magnet built in) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 45 mm
SCPD3-L-CB-16C-60 Model: SCPD3-L (switch magnet built in) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 60 mm
Pneumatic CylindersCKD
88 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCPD3-C Pencil Cylinder (Double-Acting, Rubber Air Cushion)

Brand CKD·Pneumatic Cylinders

Available part numbers (88)

SCPD3-00-6C-15, SCPD3-00-6C-30, SCPD3-00-6C-45, SCPD3-00-6C-60, SCPD3-00-10C-15, SCPD3-00-10C-30, SCPD3-00-10C-45, SCPD3-00-10C-60, SCPD3-00-16C-15, SCPD3-00-16C-30 + 78 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
